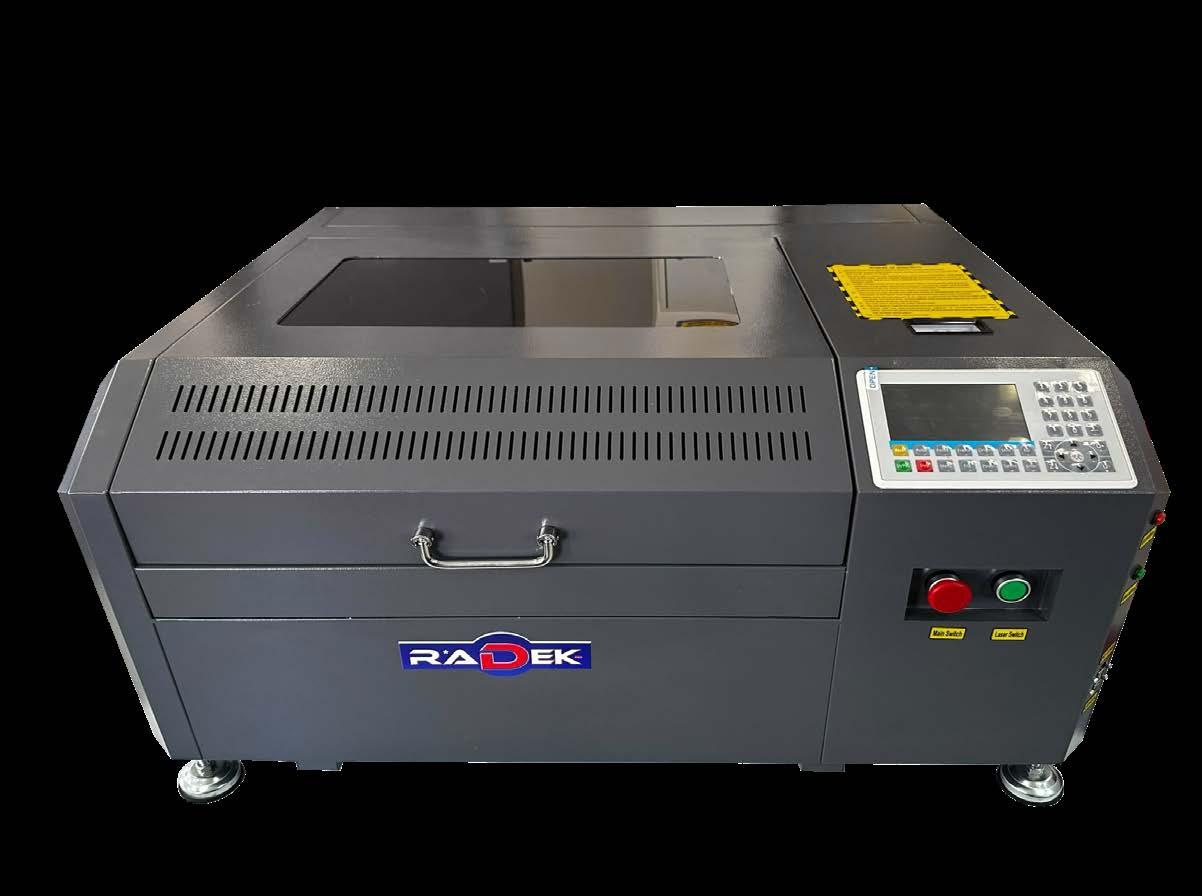

CO2 LASER
BUSINESS IDEA
CO2 lasers present an excellent opportunity for starting a new business or expanding an existing one, thanks to their versatility in processing numerous materials and their application in various industries and projects.
CO2 lasers are among the greatest technological advancements, offering superior quality in processing various materials. Due to their operational safety and extremely low maintenance costs, CO2 lasers positively impact business economics. The laser beam, guided by mirrors and lenses, efficiently transmits and focuses the beam for successful engraving and cutting of materials such as wood, MDF, plywood, HDF, acrylic, leather, cardboard, rubber, marble, mirrors, coated metals and more. They are widely used across various industries, including manufacturing, small and large enterprises, crafts, packaging, printing, leather processing, clothing, automotive, musical instruments, architecture, label production, medical industries and many others.

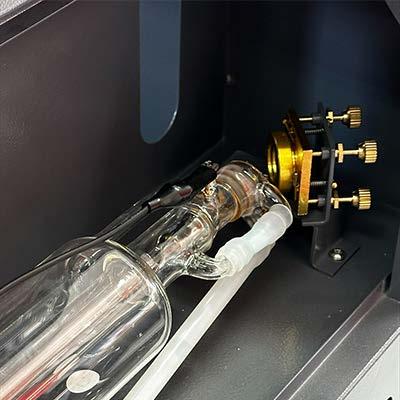

A high-quality 50W CO2 tube that allows processing materials up to 20mm thick.

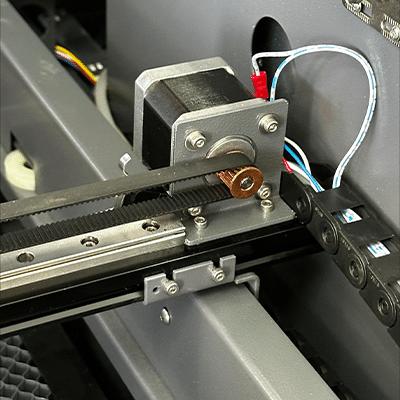

Highly precise linear guides guarantee stable and smooth movement during operation.

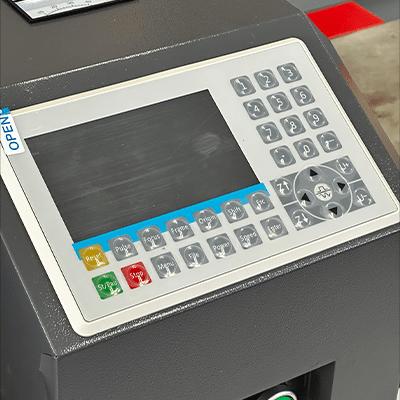

Industrial RUIDA 6445 controller with numerous options and a large display.

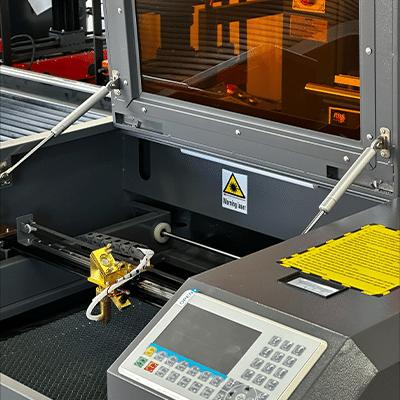

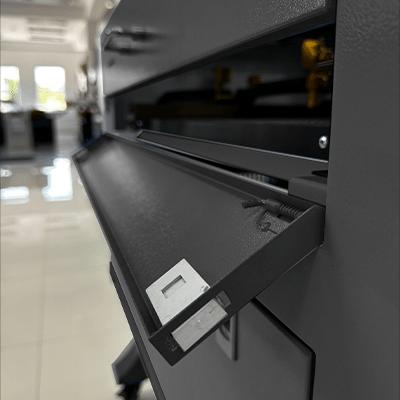

The laser includes doors that allow positioning of materials larger than the working area of the laser.
Working area (X and Y axis)
Working area (Z axis)
Laser power
Engraving speed
Cutting speed
Positioning
Cooling system
Worktable
Linear guides
Movement motor
Software Controller
Air compressor
Ventilation
Cutting thickness
Positioning accuracy
Rotary axis
Machine dimensions
Packing dimensions
Weight
400x400mm
150mm
50W
1-400mm/s
1-400mm/s
Red dot (RED DOT)
Industrial chiller CW3000
Movable platform with Honeycomb
15mm (X and Y axis)
Step motor 42
Rdworks
Ruida 6445
Included Built-in 38W
1-20mm (depending on material)
≤0.01mm
Optional
900x750x420mm
1020x880x610mm
70kg
Rotary axis for engraving cylindrical products.
Unlike standard CO2 lasers, RADEK lasers are fully equipped at the highest level with features such as an industrial cooling chiller, motorized movable platform (Z-axis), automatic focus, red dot pointer for positioning, honeycomb working table, a powerful compressor and a fan with a flexible hose.
CO2 TUBE

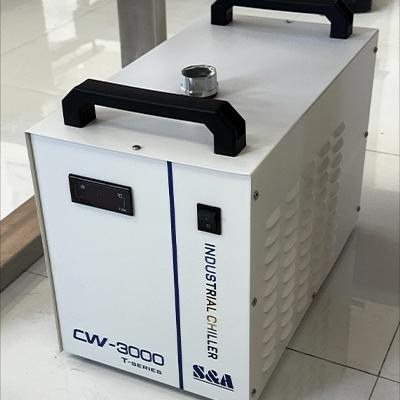

The industrial chiller functions to cool the liquid that heats up during laser operation. It maintains a constant liquid temperature, ensuring protection and smooth operation of the laser.
INDUSTRIAL CHILLER
LINEAR SYSTEM
INDUSTRIAL CONTROLLER
COMPLETE EQUIPMENT
ACCESS DOORS
