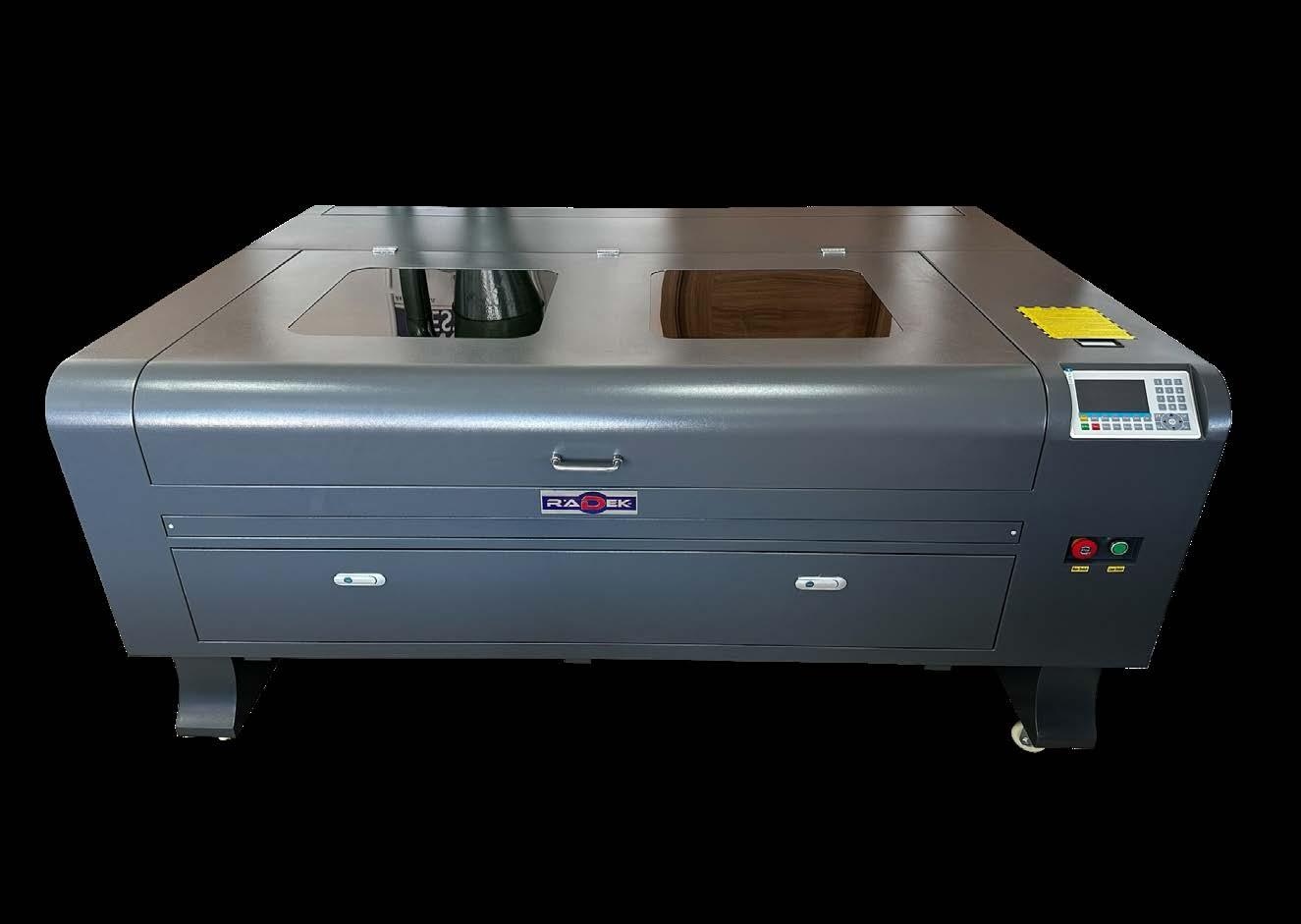

CO2 LASER
BUSINESS IDEA
CO2 lasers present an excellent opportunity for starting a new business or expanding an existing one, thanks to their versatility in processing numerous materials and their application in various industries and projects.
CO2 lasers are one of the greatest technological achievements, offering superior quality in processing various materials. Thanks to their operational safety and extremely low maintenance costs, CO2 lasers positively impact the economic side of business. The laser beam, guided by mirrors and lenses, efficiently transmits and focuses the beam for successful engraving and cutting of materials such as wood, MDF, plywood, HDF, acrylic, leather, cardboard, rubber, marble, mirrors, coated metals and more. They are widely used in various industries, including industrial manufacturing, small and large businesses, craftsmen, packaging industry, printing, leather processing, clothing, automotive, musical instruments, architecture, label production, medical industry and many others.
LINEAR SYSTEM
Highly precise linear guides guarantee stable and smooth movement during operation.
INDUSTRIAL CONTROLLER

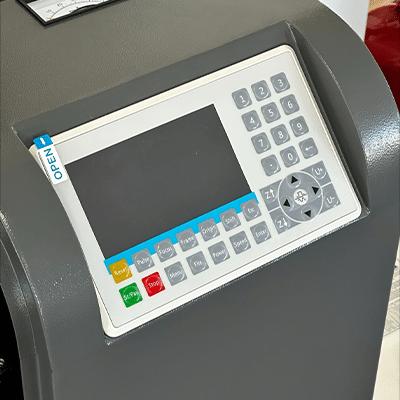

Industrial RUIDA 6445 controller with numerous options and a large display.

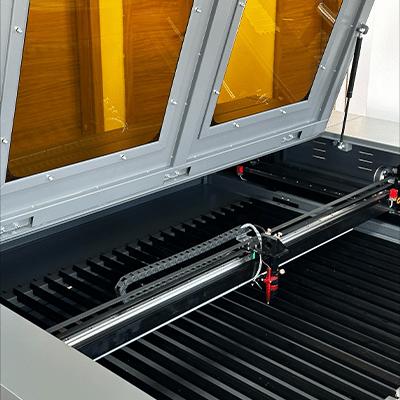

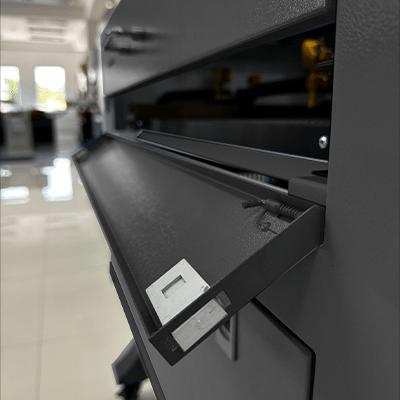

The laser machine has access doors that allow the positioning of materials larger than the working area.
OPTIONAL

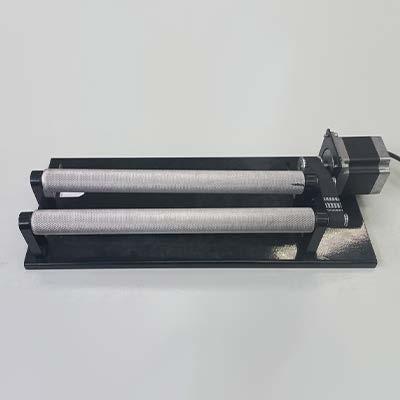

Rotary axis for engraving cylindrical products.
Working area (X and Y axis)
Working area (Z axis)
Laser power
Engraving speed
Cutting speed
Positioning
Cooling system
Worktable
Linear guides
Movement motor
Software Controller
Air compressor
Ventilation
Cutting thickness
Positioning accuracy
Rotary axis
Machine dimensions
Packing dimensions
Weight
1600x1000mm
350mm
130W / 150W
1-1000mm/s
1-500mm/s

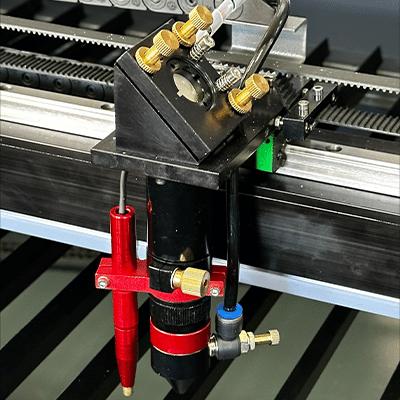

Automatic focus + red dot
Industrial chiller CW5200
Movable platform with Honeycomb
15mm (X and Y axis)
Step motor 57
Rdworks Ruida 6445
Included 550W
1-20mm (depending on material)
≤0.01mm
Optional
2150x1530x1130mm
2280x1620x1290mm
476kg
COMPLETE EQUIPMENT
Unlike standard CO2 lasers, RADEK lasers are fully equipped at the highest level with features such as an industrial cooling chiller, motorized movable platform (Z-axis), automatic focus, red dot pointer for positioning, honeycomb working table, a powerful compressor and a fan with a flexible hose.

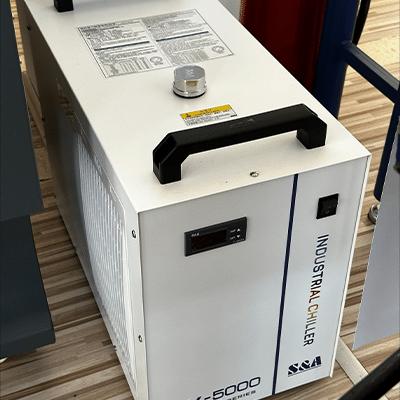

The industrial chiller functions to cool the liquid that heats up during laser operation. It maintains a constant liquid temperature, ensuring protection and smooth operation of the laser.

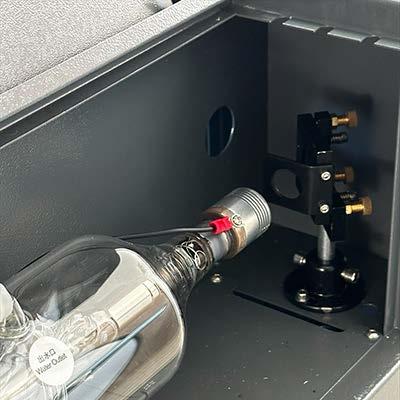

A high-quality 130W CO2 tube that allows processing materials up to 20mm thick. Optionally, a 150W tube can be installed. The tubes are from the renowned brand EFR, which has been on the market for many years and guarantees quality, durability and maximum efficiency in cutting and engraving.
CO2 TUBE
INDUSTRIAL CHILLER
ACCESS DOORS
