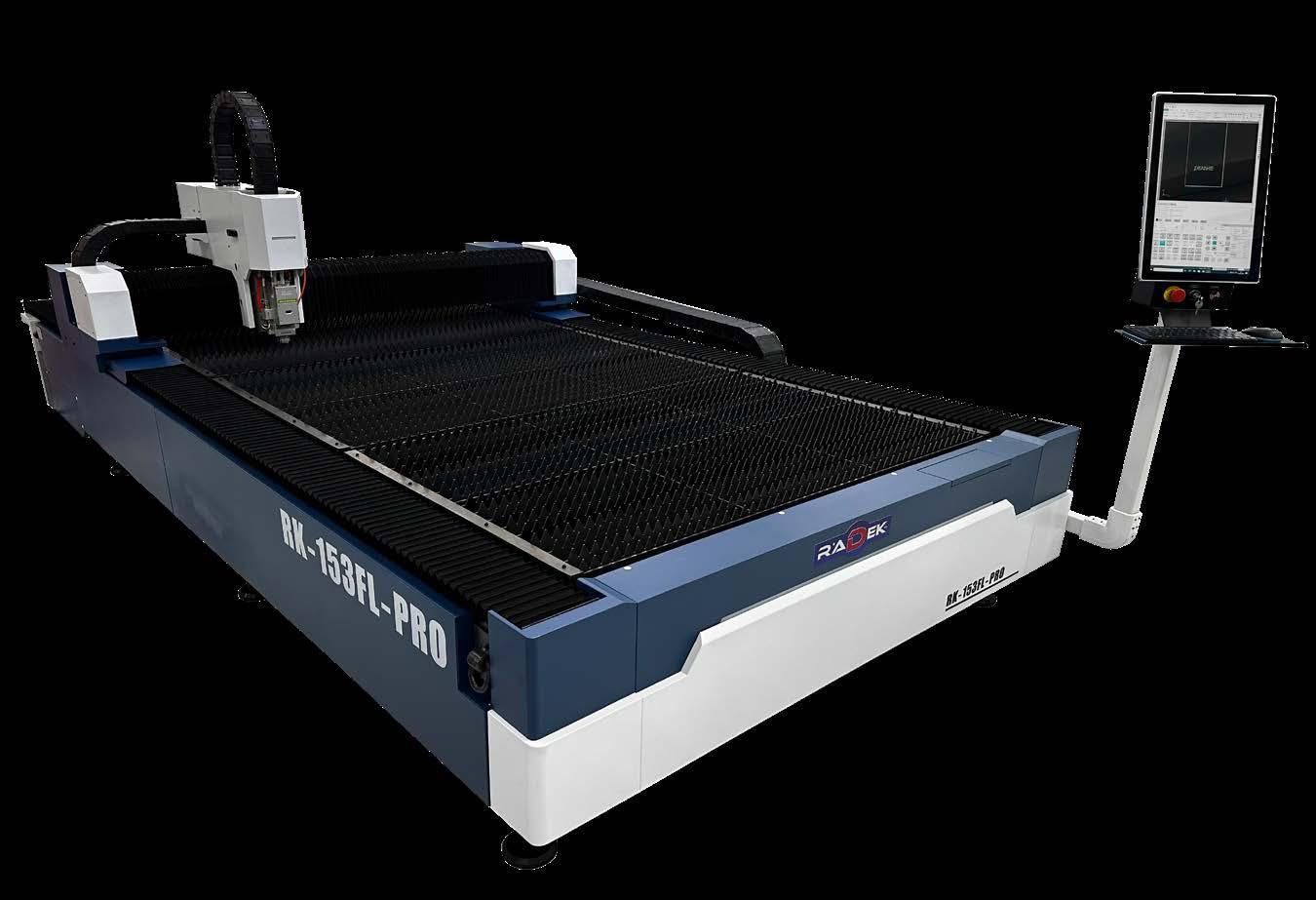

CNC FIBER LASER

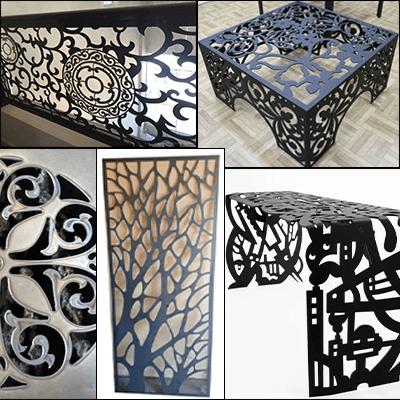

The fiber laser is ideal for cutting steel, stainless steel, aluminum, copper, brass and more. It is used in industries such as fence manufacturing, decorative elements, construction, urban equipment, machine parts, ventilation and others. APPLICATION

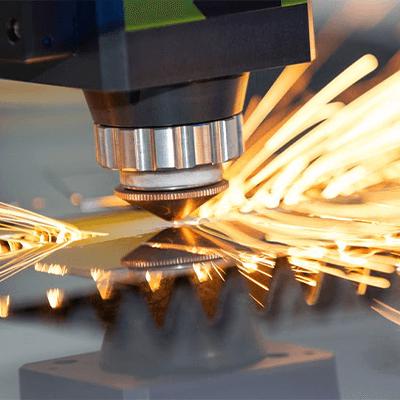

The CNC fiber laser represents the fastest and most advanced technology for cutting metal without additional processing. The cutting speed is incomparably higher compared to other cutting technologies which significantly increases efficiency. It is equipped with a MAX laser source, RAYTOOLS laser head, CYPCUT control system, FUJI servo motors, an industrial chiller for cooling, a ventilation system and a voltage stabilizer. The best configuration for the best results and highest quality!

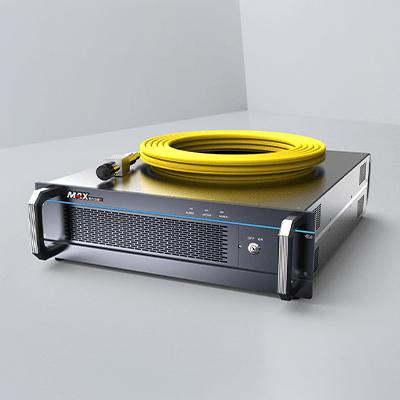

LASER SOURCE
MAKS brand laser source with 100,000 operating hours, proven to be the most durable and long-lasting compared to other brands.

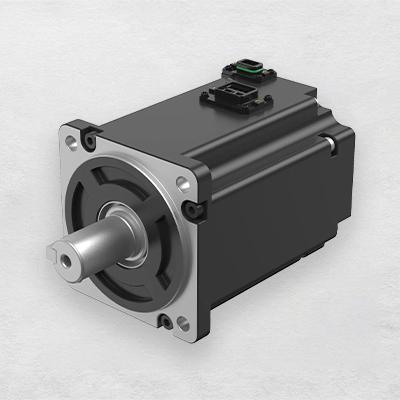

HIGH-PRECISION SERVO MOTORS
Specially designed for high demands and performance. Ensure precise positioning of the bridge without deviations or errors and enable highspeed movement.
The industrial chiller cools the liquid heated during laser operation, maintaining a constant temperature and ensuring protection and uninterrupted laser operation.
Working area
Optional working area
Laser power
Optional laser power
Movement motor type
Y-axis motor power
X-axis motor power
Z-axis motor power
Laser source type
Laser head type
Positioning accuracy
Repeat positioning accuracy
Processing speed
Travel speed
Maximum load capacity
Operating system
Ventilation
Cooling chiller
Voltage stabilizer
Machine dimensions
Packing dimensions
Weight
1500x3000mm
2000x4000mm
1500W
3000W, 4000W, 6000W
Servo motors
850W
750W
400W
Max
Raytools
±0.05mm/m

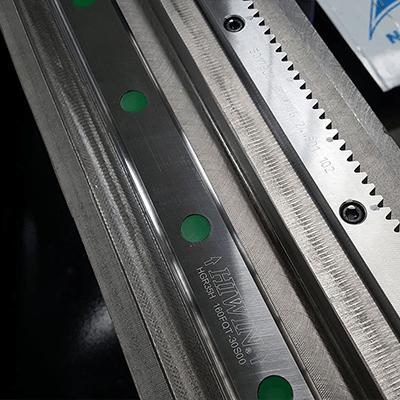

The movement of the axes is carried out through linear guides and a rack-and-pinion system, which is the most commonly used and proven system in CNC machines. It enables smooth operation, low noise levels, and significantly reduces additional loads, increasing their lifespan and durability.
CONSTRUCTION

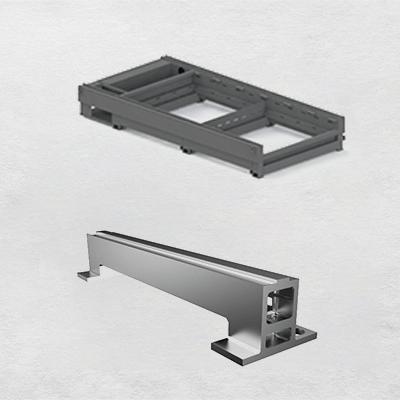

A massive structure providing a high level of rigidity and excellent resistance to static and dynamic loads. Manufactured using high-precision CNC machining centers for metal, ensuring precision, quality and machine durability.

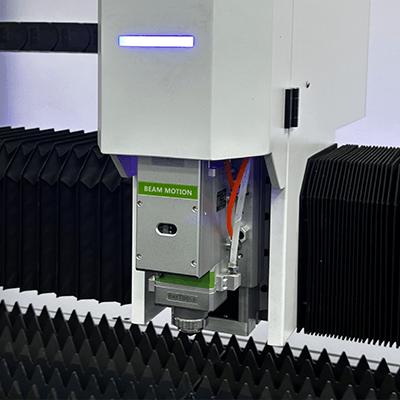

Raytools brand laser head with automatic focusing, a leading name in quality, durability and precision.
LASER HEAD
Available laser power options: 1500W, 3000W, 4000W and 6000W.
POWER OPTIONS
X AND Y AXIS MOVEMENT
INDUSTRIAL CHILLER
