CNC DRILLING MACHINE

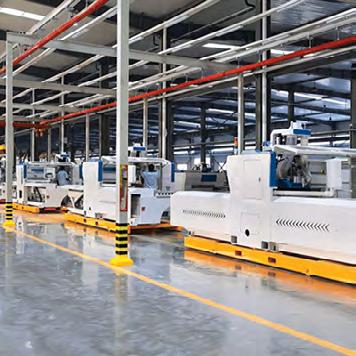

The production process employs advanced technology, including robotic welding, thermal treatment of the struc ture, an industrial CNC metalworking machining center, and the latest, most reliable quality control inspections.

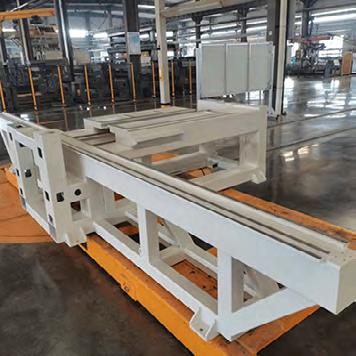

The machine features a robust 3,000 kg frame, providing exceptional rigidity and outstanding resistance to both static and dynamic loads. Manufactured on high-precision CNC machining centers, it guarantees superior accuracy, long-term reliability, and outstanding durability.

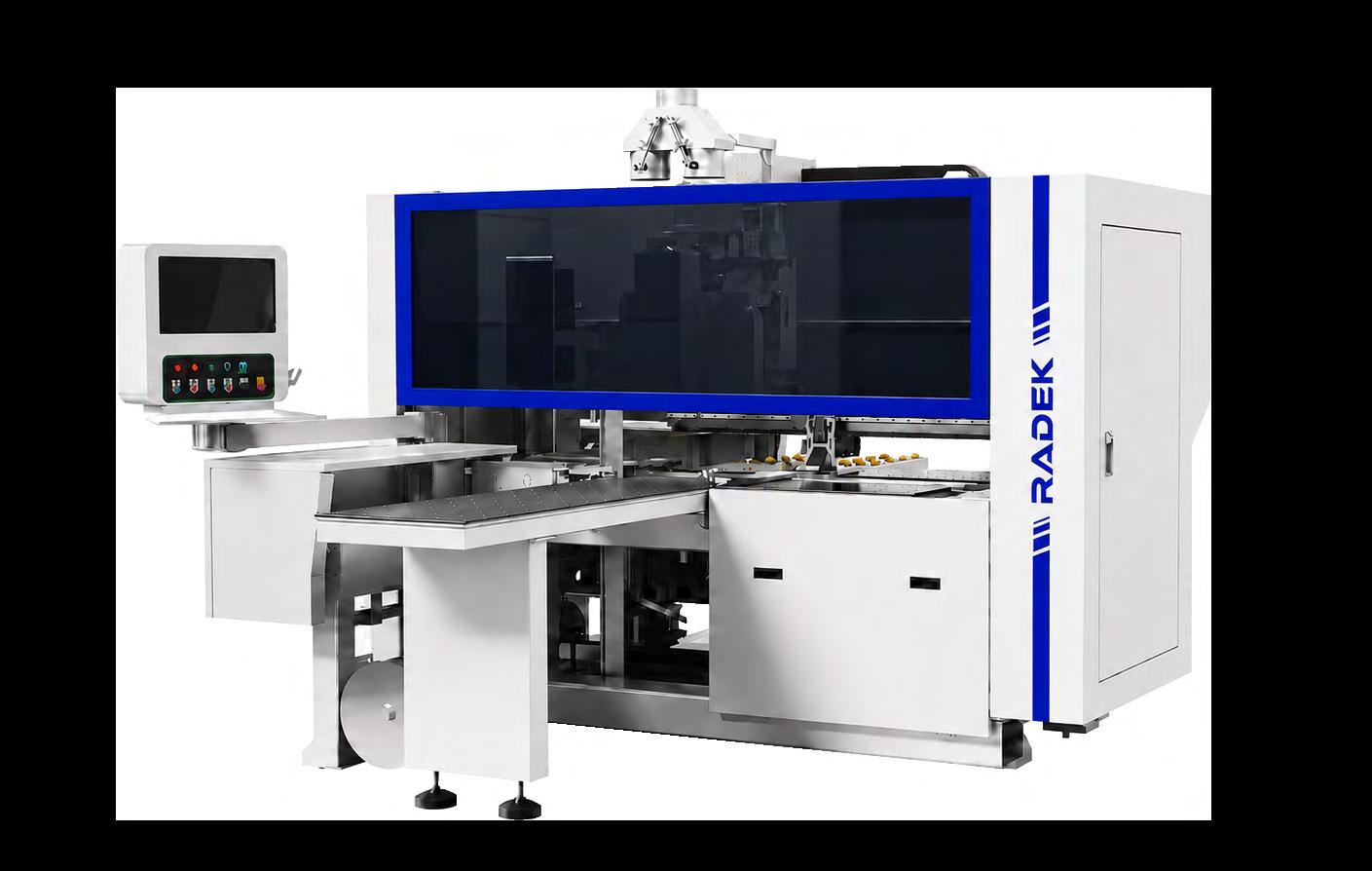

Innovative machine technology for fast and precise six-sided drilling. It is primarily designed for drilling and grooving panel materials. The machine can process a wide range of furniture joining systems, including hinge holes, dowels, cam fittings, perforations, back panel grooves, and other machining operations. It can also automatically identify workpieces by wirelessly scanning barcode labels, ensuring a faster, more efficient, and fully traceable production process.
SERVOMOTORS AND DRIVERS

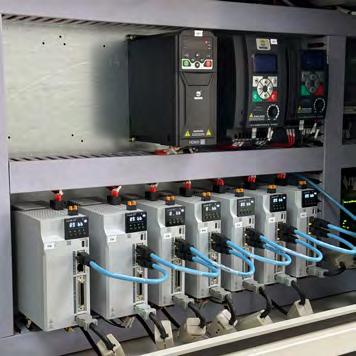

High-performance servomo tors execute control com mands quickly and accurate ly, ensuring accurate, fast and high-quality drilling.

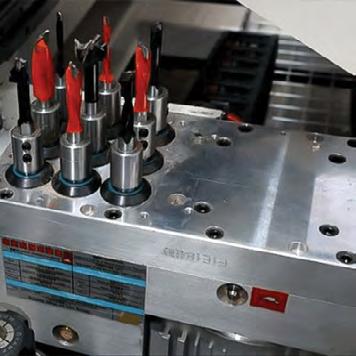

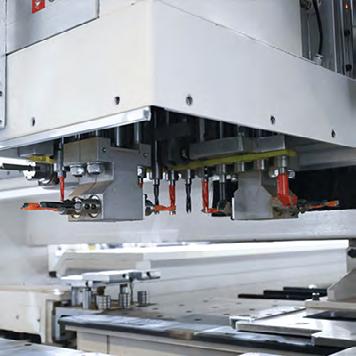

UPPER DRILLING BLOCK
Equipped with 12 vertical drilling spindles and 8 horizontal drilling spindles, the machine also includes a dedicated 3.5 kW milling and engraving motor. This additional unit enables flexible and highly precise material processing, making it ideal for complex manufacturing applications.
LOWER DRILLING BLOCK
Equipped with 9 vertical drill bits, along with an additional 3.5kW motor for cutting and engraving.
X-axis movement
Y-axis movement
Z-axis movement
X-axis speed
Y-axis speed
Z-axis speed
Minimum processing dimensions
Total power
Upper drilling block
Lower drilling block
Type of movement motor
Additional upper motor
Additional lower motor
Operating air pressure
Control system
Gearbox
Machine dimensions
Weight
180-2800mm
35-1220mm
50mm
130m/min
80m/min
30m/min
38x180mm
15kW
12 vertical + 8 horizontal drills 9 vertical drills

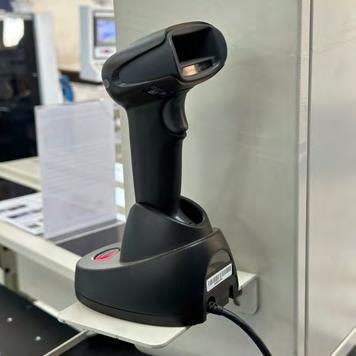

The machine includes a wireless barcode reader for workpiece codes, capable of scanning codes in batches and automatically waiting for the next workpiece in line. SCANNING

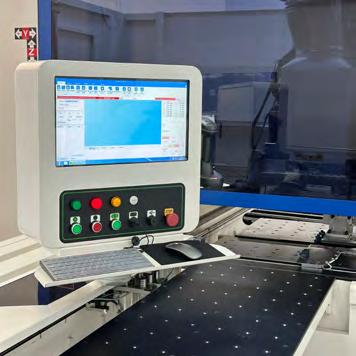

The system includes spe cialized CAM software with a graphical interface, providing high stability and suitability for automated production lines across industrial capacities.

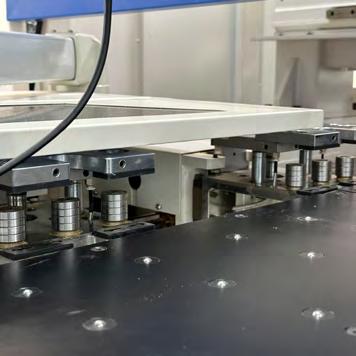

Air tables with round bear ings efficiently facilitate the movement of workpieces.
High-performance bearings with double support ensure the secure holding of both small and large pieces, guaranteeing stable fixation of the workpiece without slipping. They are controlled by precise servomotors, ensuring accuracy and error-free operation.

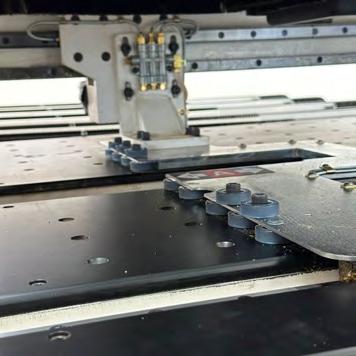

additional support with a side pressure mechanism for accurate and stable machine work without causing damage.

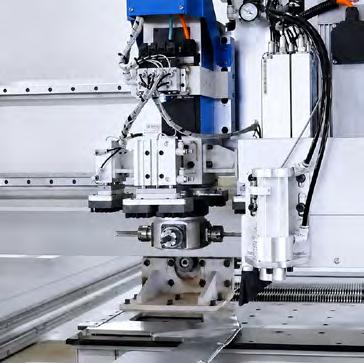

Optional: Additional 4-drill aggregate unit designed for creating grooves, channels, and special openings on workpieces. This system increases the flexibility of the CNC drilling machine and enables various processing operations to be performed within a single working cycle.
An
SIDE SUPPORT

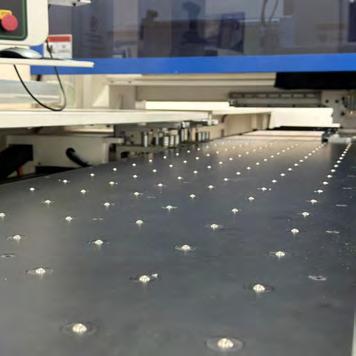

AIR TABLES
