Brick re-engineered for modern construction
Optimized for timber framing, light gauge steel frame and SIPS, Mauerwall combines design customization, rapid installation and ultra-low embodied carbon, with certified durability.
Product
High performing, non-combustible engineered brick facade panels composed of durable mesh-reinforced mineral polymer and calcium silicate fiber cement board.
Applications

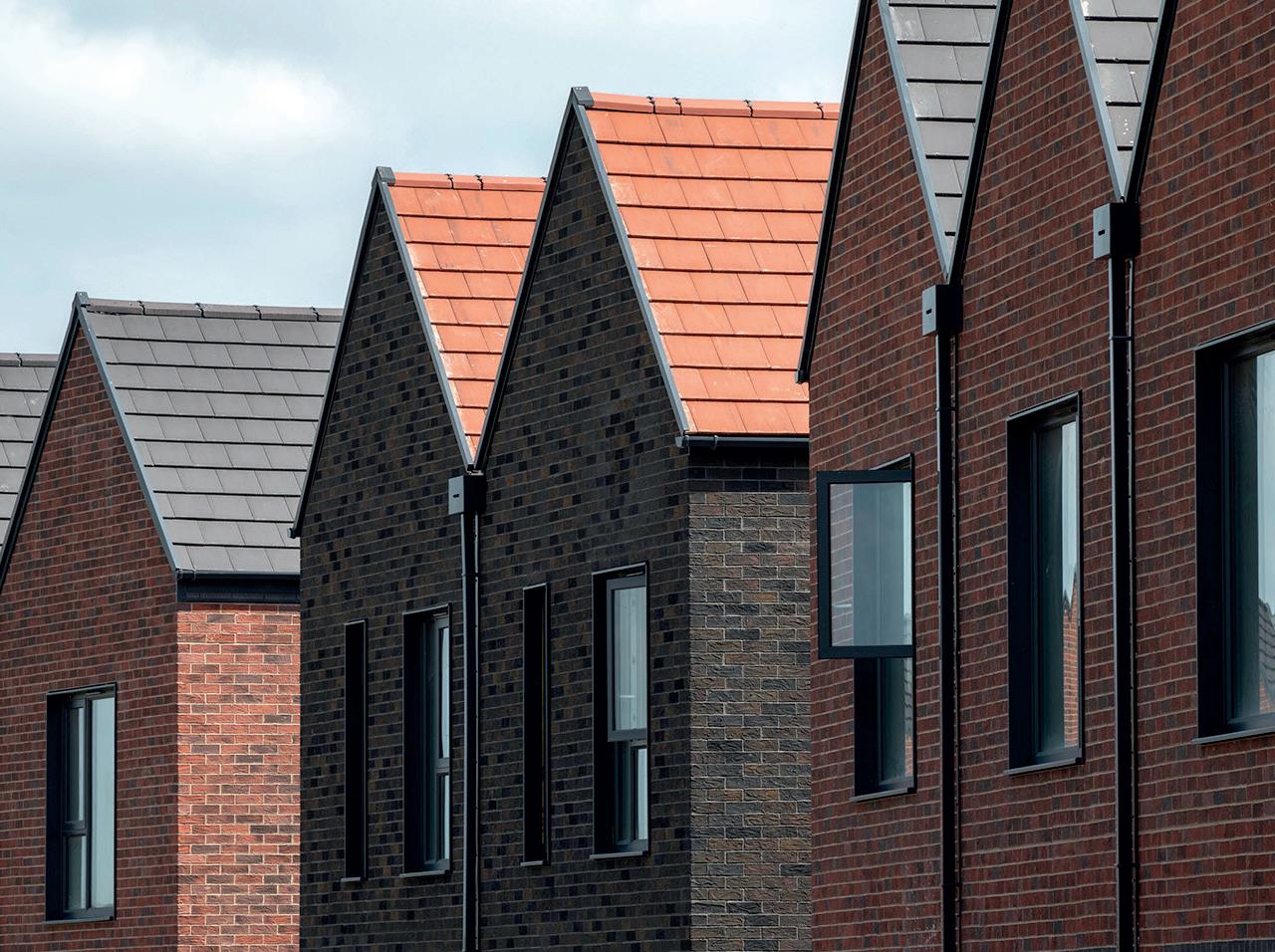

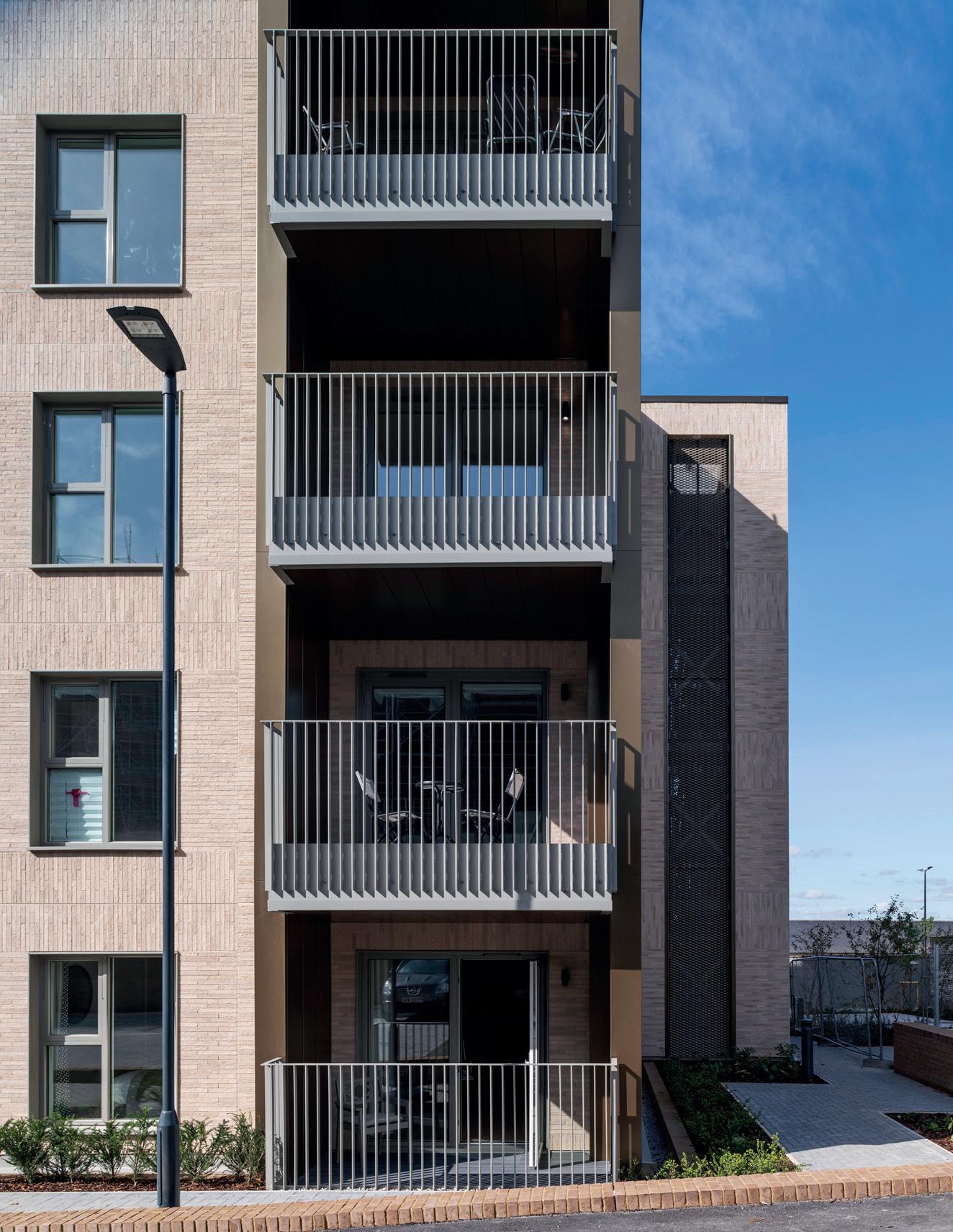

Designed as a lightweight external cladding for both new build and existing residential and commercial buildings.
Mauerwall is suitable for a wide range of construction types including: structural timber framing, light gauge steel frame, masonry, and concrete panel construction. Suitable for cavity wall assemblies, with or without insulation.
Suitable for use in all weather exposure zones and in high impact areas including ground floors in public spaces.
Mauerwall is non-combustible and when applied onto substrates with an equivalent or better fire classification, the product can be used without any restrictions on building height.
Performance and Features
Service life in excess of 60 years
Tested to European standards and covered by KIWA BDA Agrement.
Non-combustible
A2-s1-d0 fire classification (BS EN13501-1).
Very severe weather resistance
Suitable for all exposure zones including areas subject to ‘very severe’ driving rain.
High impact resistance
Category 1 European Classificationsuitable for ground floor application within public spaces.
Unlocks design opportunity
Achieve a wide range of brick types, masonry types, bonds, architectural masonry details and features simply and more affordably.
Less embodied carbon than brick
Up to 50% reduction in embodied carbon compared to a traditional clay brick facing wall.
Rapid install in all weather
With up to 160 pre-pointed bricks installed in one lightweight panel, in all weather, the install is multiples faster than traditional masonry.
Use below damp proof course
Can be installed below damp proof course but above ground level, simplifying the ground floor interface and construction sequencing.
Standard panel Site
Feature panel
Panel Properties
Thickness
Size
Weight
Thermal Conductivity
Horizontal fixing centers*
Vertical fixing centers*
14 mm (average 4mm finish onto 11mm calcium silicate fiber cement board)
Max. 1200(W) x 2400(L) mm
22 Kg/m2
0.24 W/mK
Max. 600 mm centers
Max. 525 mm centers
*Refer to Mauerwall fixing guide for further information
Panel Types
Standard panels (max. 10 bricks long x 16 bricks high)

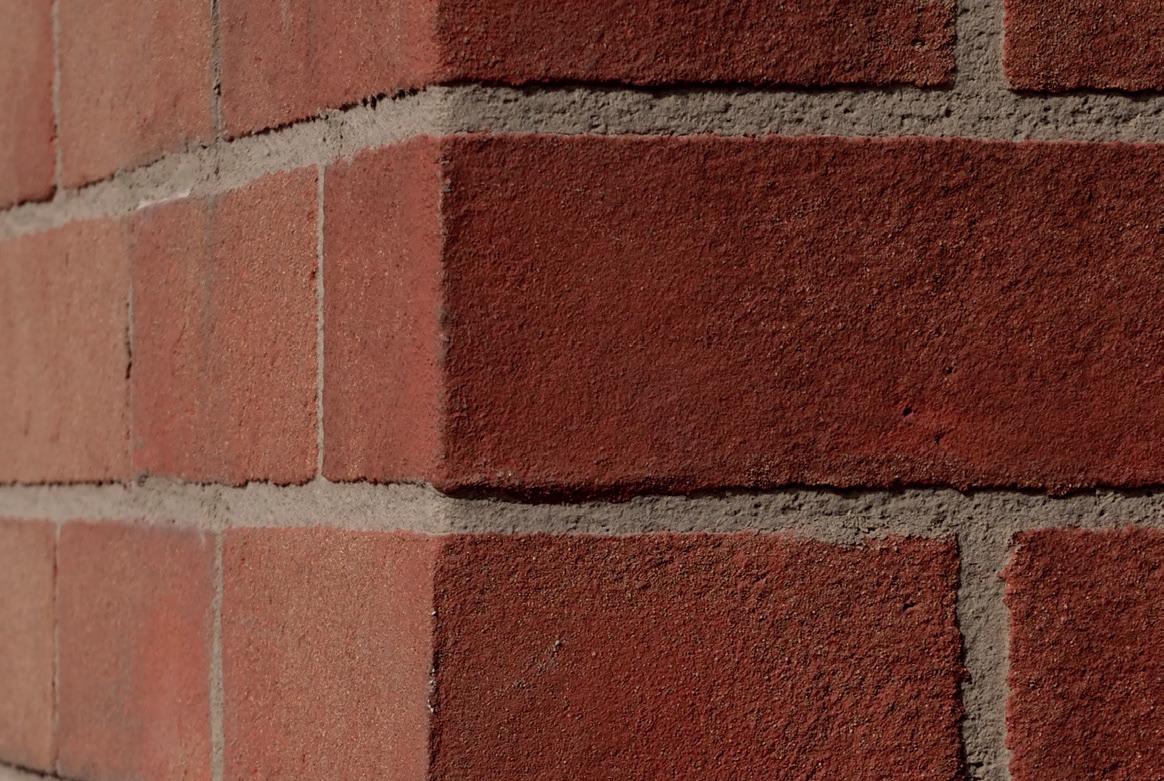

Site formed corner panels - providing +/- 10mm of length adjustment
Height adjustment panels - + 5 mm of adjustment
Site formed corner reveals

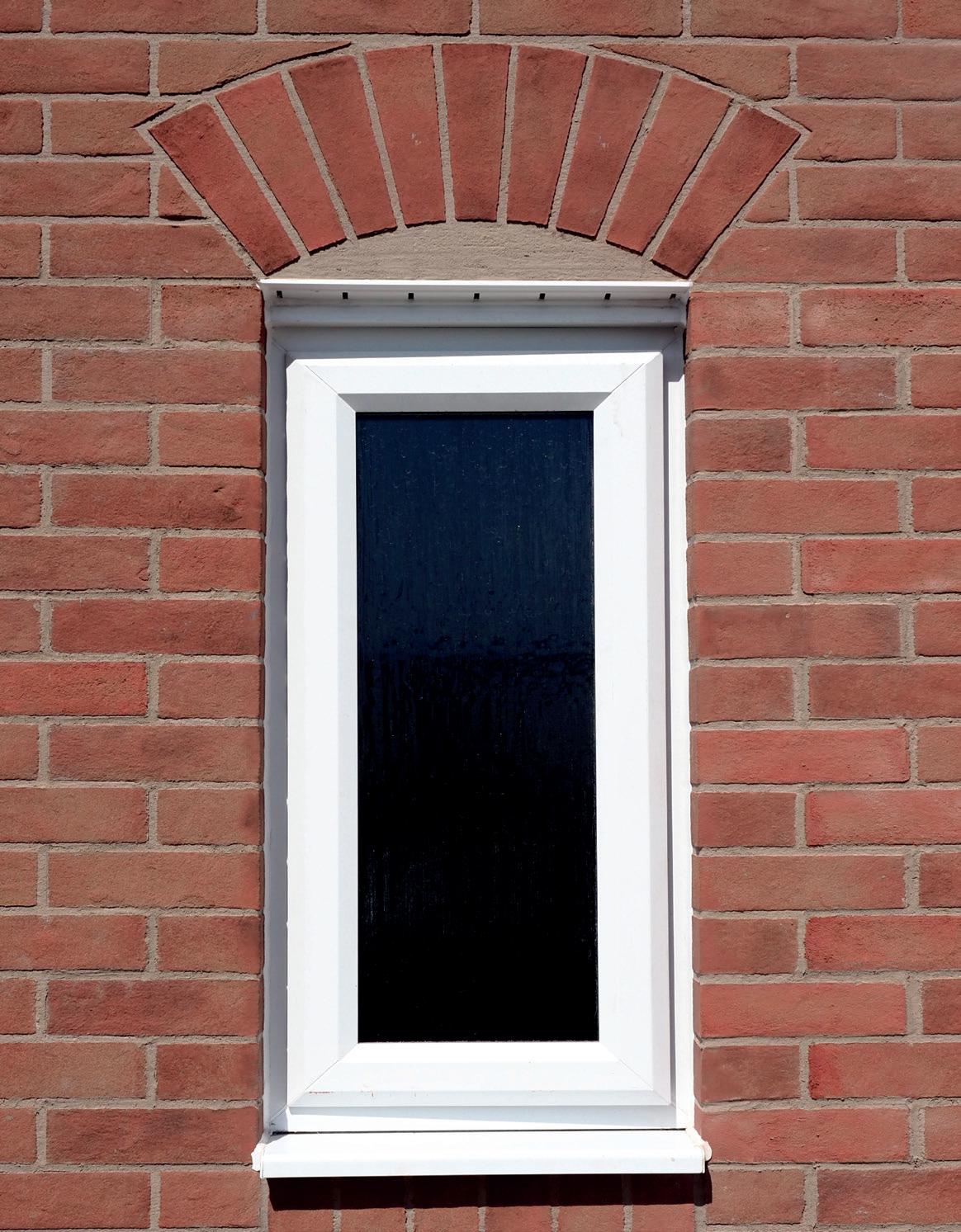

Feature header panels - soldier course headers, arches, voussoirs, stone lintels

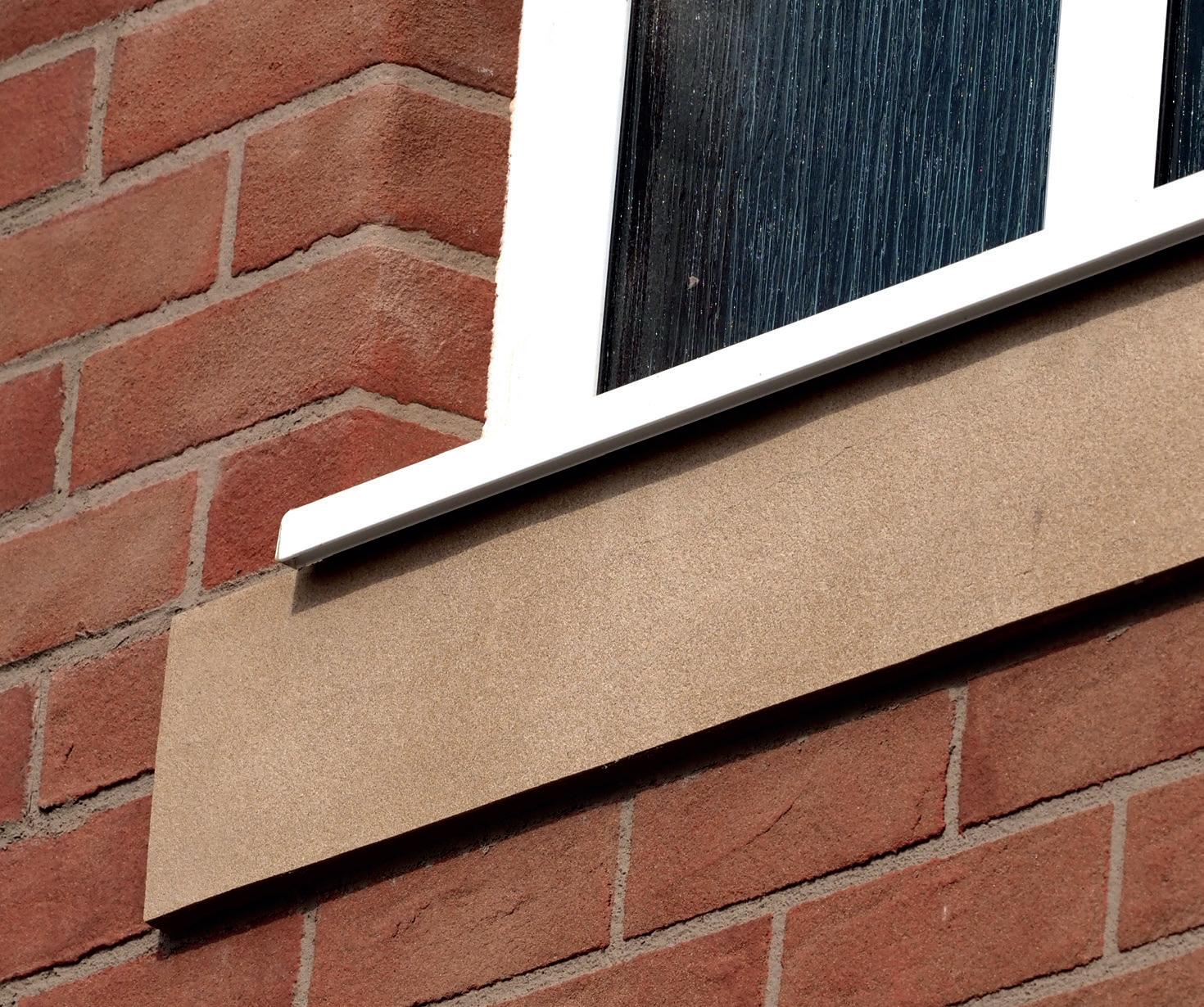

Feature cill panels - soldier course cills, stone cills
Feature corner reveals - stack bond surround, stone surround

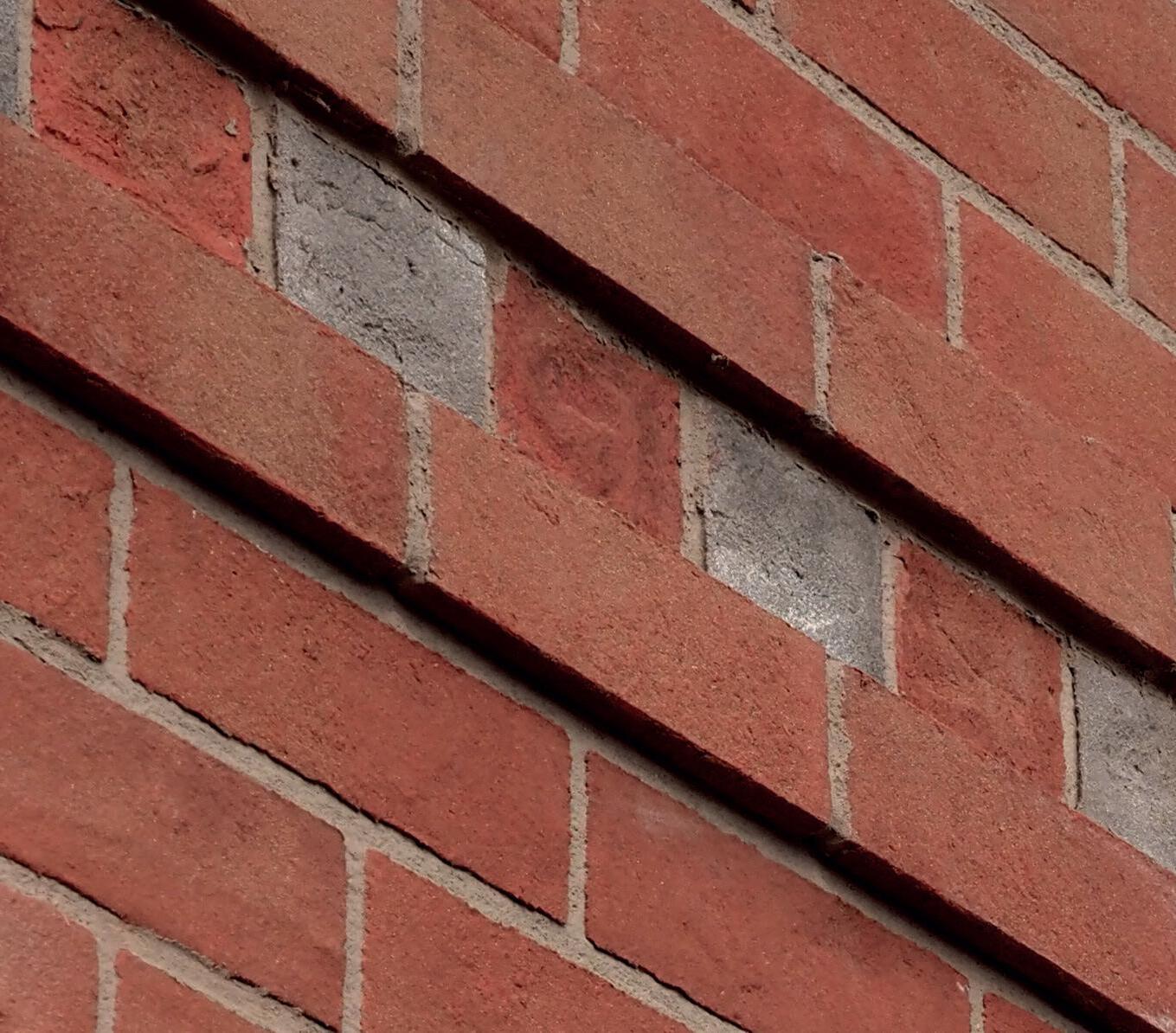

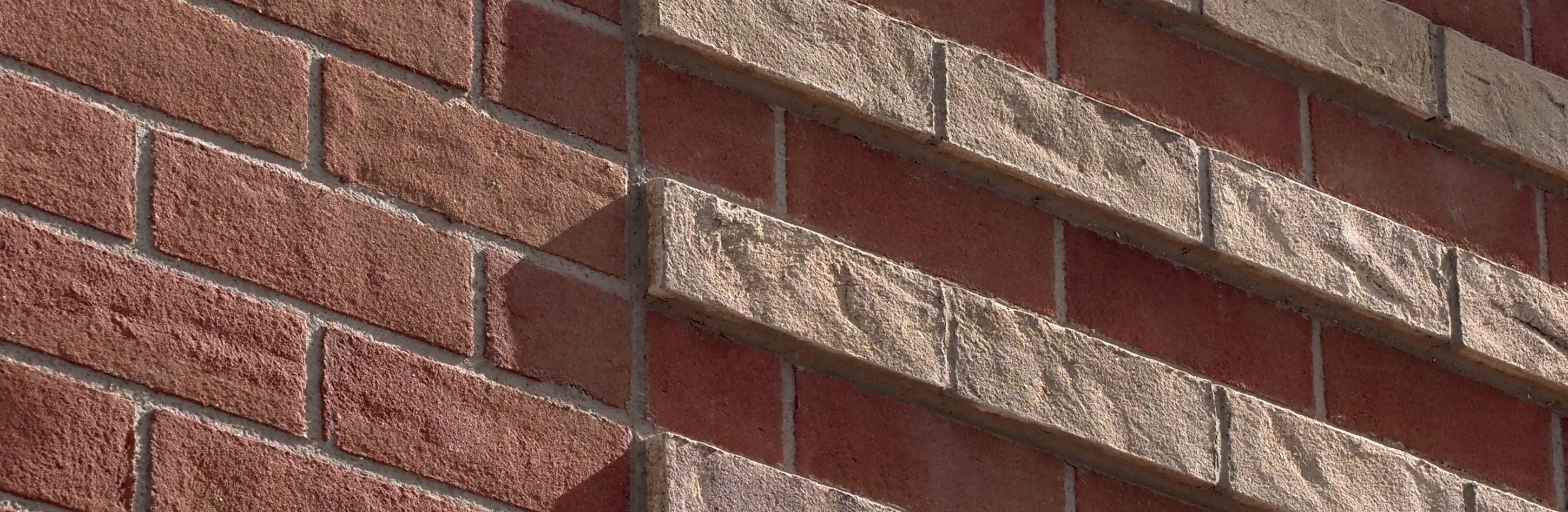

Feature projecting brick detail panels - Max 11 mm projection available for various brick details
Brick Format
UK Standard 65(h) x 215(l) mm
US Standard modular 75/8 x 21/4 x 35/8 in / 194 x 57 x 92 mm actual
UK Jumbo 75/8 x 23/4 x 35/8 in / 194 x 70 x 92 mm actual Roman 40(h) x 440(l) mm
Pointing joint size
Pointing profile Recessed
Typical Brick Bonds
Stretcher Bond (Standard)

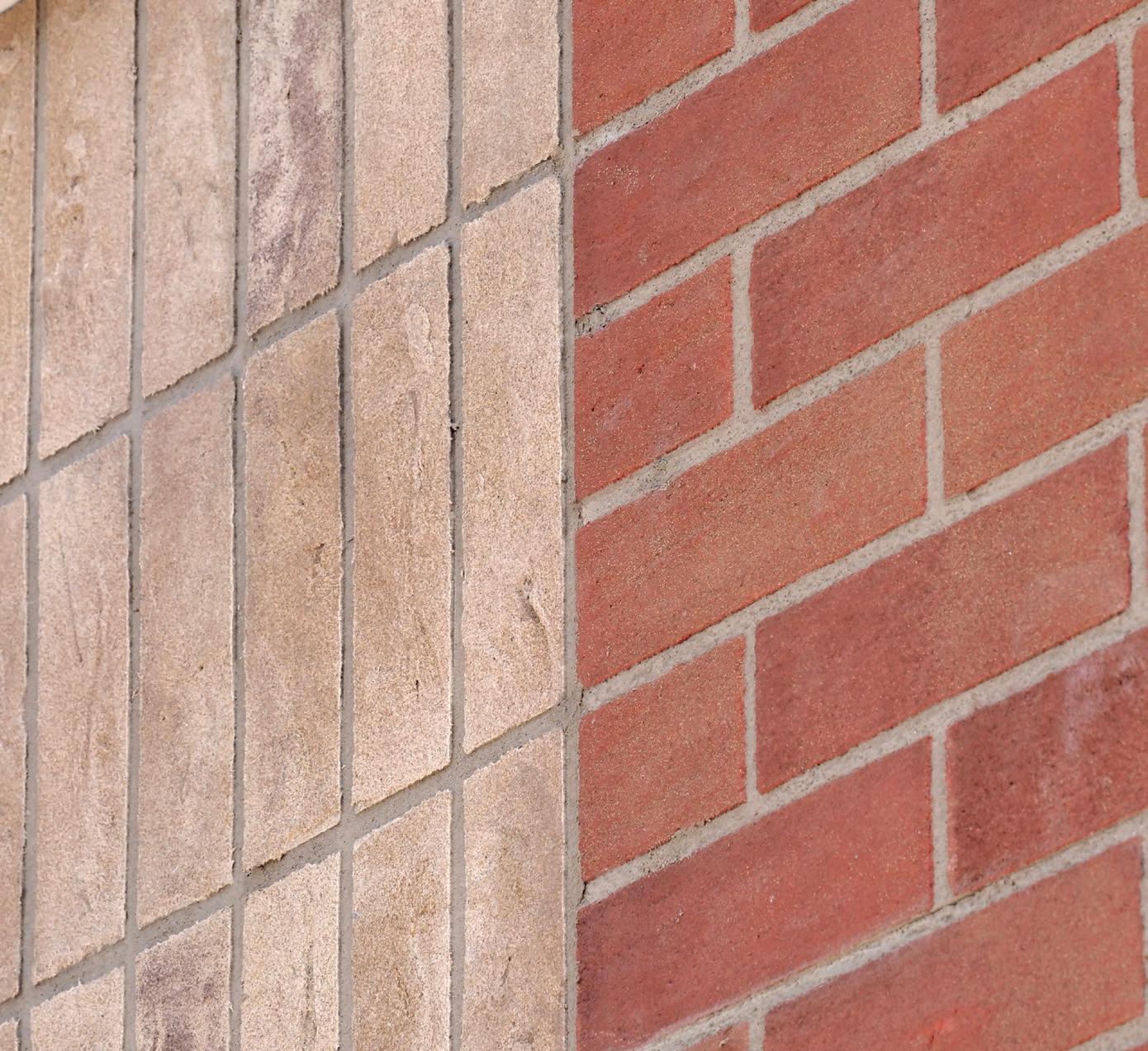

Stack Bond
English Bond

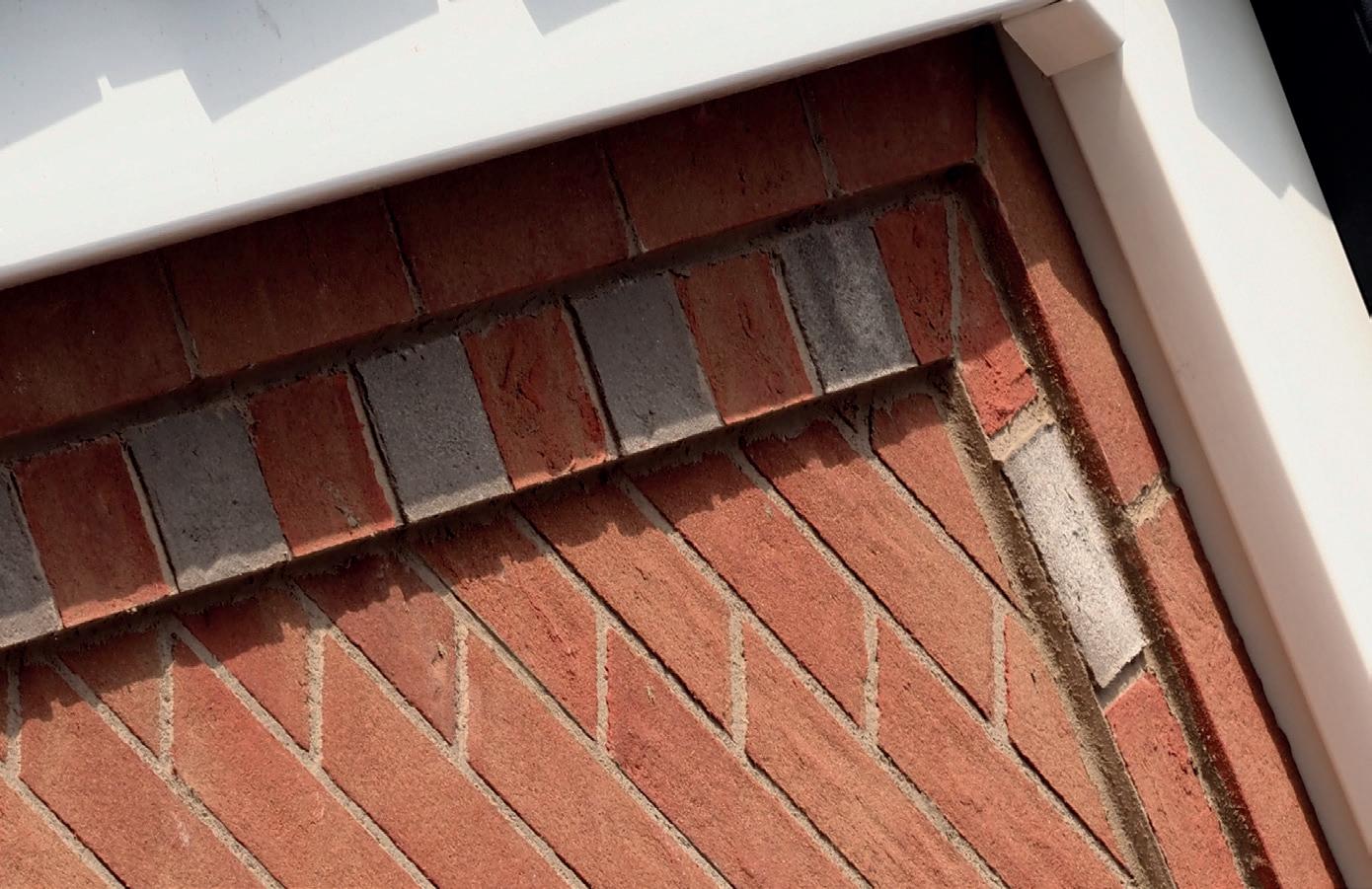

Herringbone (Available on selected brick types)
Flemish Bond
Roman Stretcher (Quarter length stagger)
