GEN III CAST ALUMINUM BLOCKS

STRENGTH TO THE NEXT POWER!

QUICK INFO >>>

The ultimate upgrade for adding strength in the Aluminum or Iron LS Next platform is the LS NEXT² upgrade. This offers larger Billet Steel main caps using Ford (2.750”) or LS (2.560”) mains, that feature 1/2” main studs giving superior clamping force for even higher power levels. Blocks come machined to accept fully counterweighted crankshafts & machined for 1/2” head studs.

Features Dart priority main oiling system with provisions for stock oil filter mounting. By utilizing conventional style main caps and oil pans with LS rotating assemblies and related components, Dart has addressed the windage and oil control problems which result from the factory LS engine’s separated crankcase bays.

Features

• Priority main oiling system.

• Available in deck heights from 9.240”, 9.450”, 9.750”.

• Cylinder barrels extended .375” at the bottom.

• Extra thick decks ensure reliable head gasket seal.

• Blind 1/2” head bolt holes.

• Scalloped water jackets increase flow around cylinders for better cooling.

• Clearance for 4.100” stroke with steel rods.

• Clearanced for center counterweighted crankshafts.

• 1/2” main studs, with 4 splayed outer bolts on middle main bearing caps.

• LS style motor mounts.

• Provisions for OE stock roller lifters and cam.

• Uses stock timing covers and stock rear cover. (Raised Cam blocks require special front and rear covers.)

• All OE bolt holes for starter, water pump, etc.

• Driver or passenger side starter mounts (Not available with skirted version).

• Parts kit included (Part# 32000035). Parts kits do not include cam bearings.

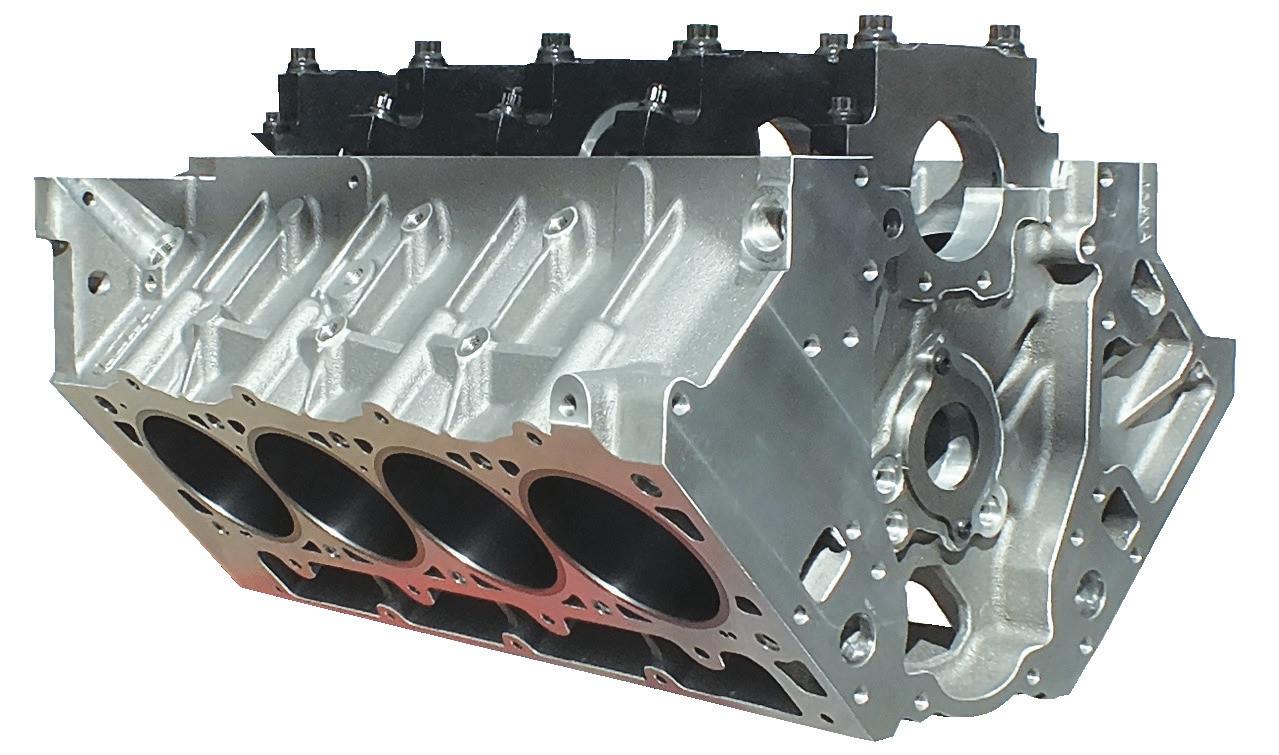

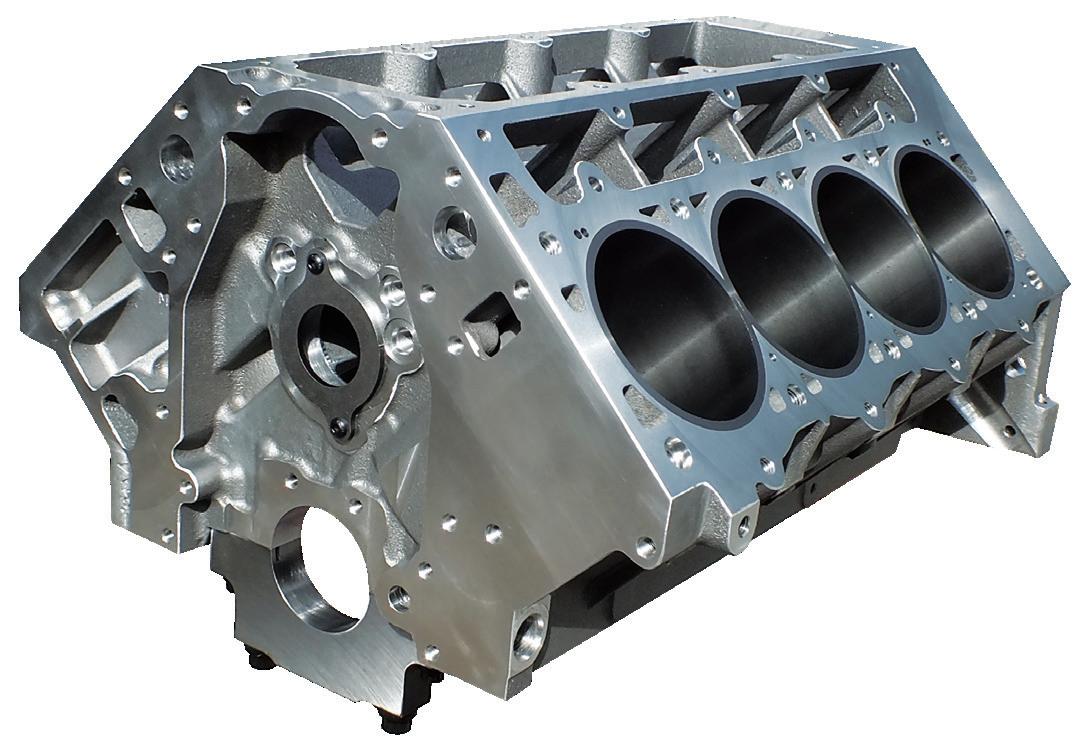

LS NEXT² - GEN III - ALUMINUM (RACE BLOCK)

Ls Next Specs

Material: RMR Cast Aluminum Alloy

Deck Height: 9.240”, 9.450”, 9.750”

Cylinder Bores: 4.000” up to 4.165” (max)

Main Bearings: Stock LS

Main Caps: Steel 4-bolt 1-5

Cam Location: Standard or raised .388"

Lifter Bores: Stock .842” dia.

Freeze Plugs: Screw-in

Rear Seal: Stock LS

Weight: 115 lbs.

QUICK INFO >>>

PRO1 LS 15° 205cc intake runner covers applica tions from street cars and trucks to racing. As cast ports flow more than many ported designs at a much more affordable price.

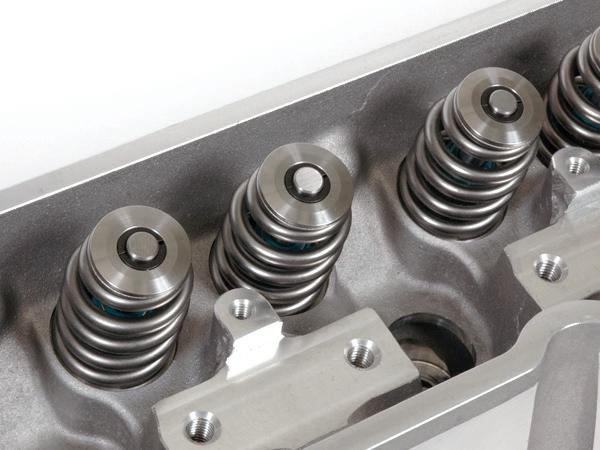

Dart’s 15° 205cc Aluminum cathedral port cylinder heads for GM LS series small block V8 engines offer higher performance and more versatility than factory designs.

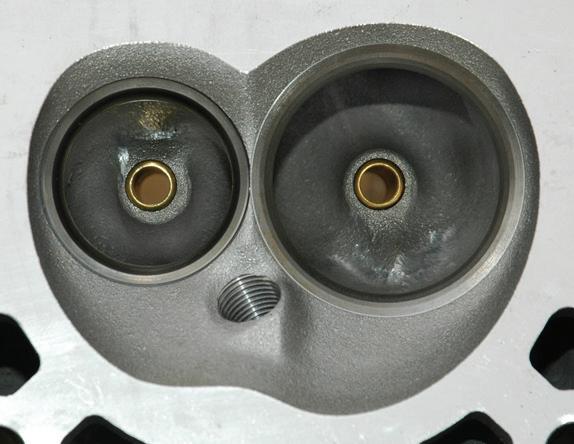

The Dart LS cathedral port high performance cylinder has better airflow, more efficient com bustion chambers, and more user-friendly features than production LS castings.

The Dart LS style cylinder head retains stock valve angles, stock valve locations and stock accessory mounting holes to make installation easy. Virtually everything else has been improved.

Heads are sold individually.

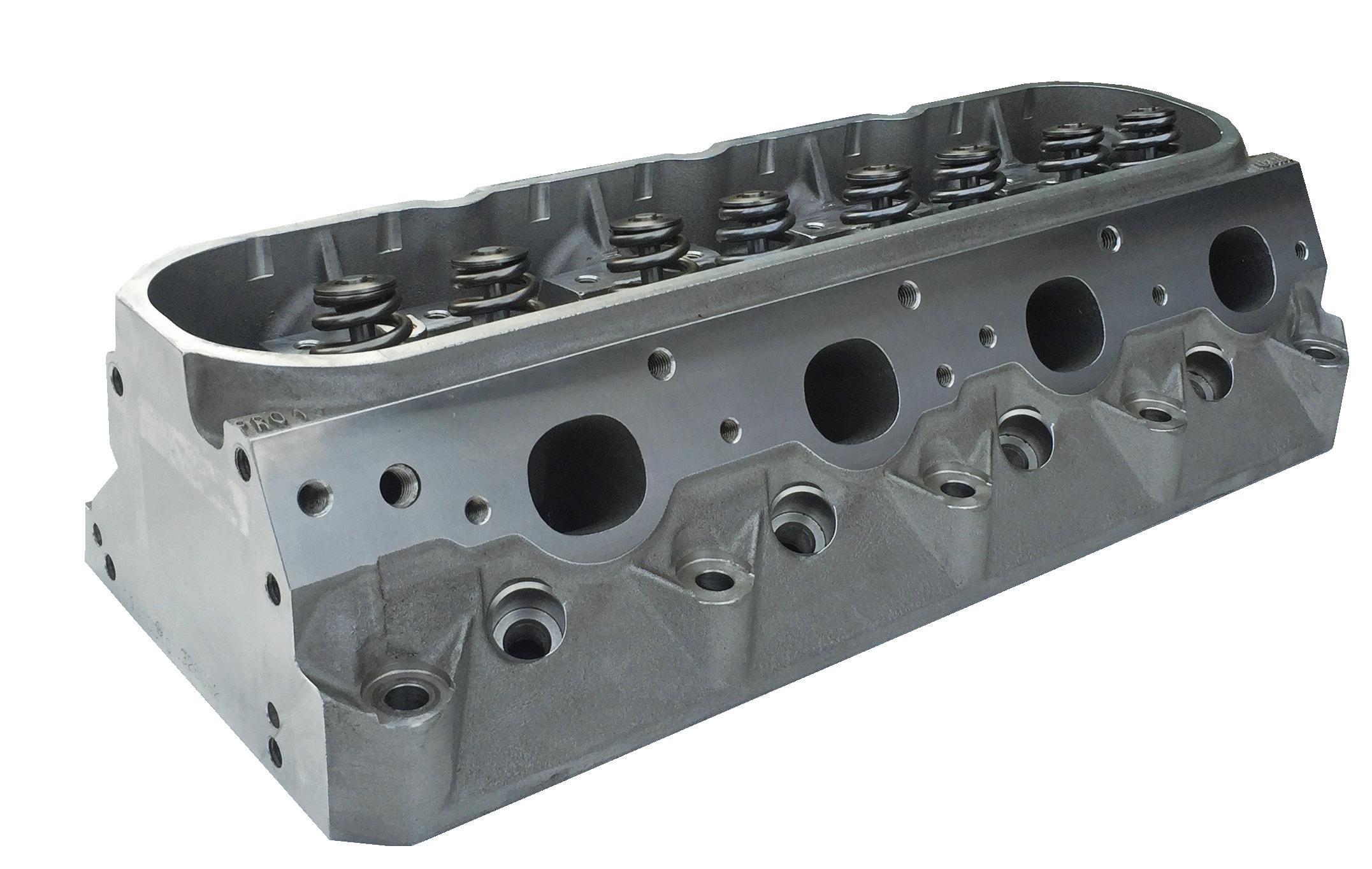

PRO1 LS 15° 205cc - ALUMINUM - LS1 (CATHEDRAL PORT) - 4 BOLT CASTING - 2.020"/1.600" VALVES

Head parts kit - see page 107.

PRO1 LS 15° 205cc - ALUMINUM - LS1 (CATHEDRAL PORT) - 6 BOLT CASTING - 2.020"/1.600" VALVES

QUICK INFO >>>

PRO1 LS 15 ° tions from street cars and trucks to racing. As cast ports flow more than many ported designs at a much more affordable price.

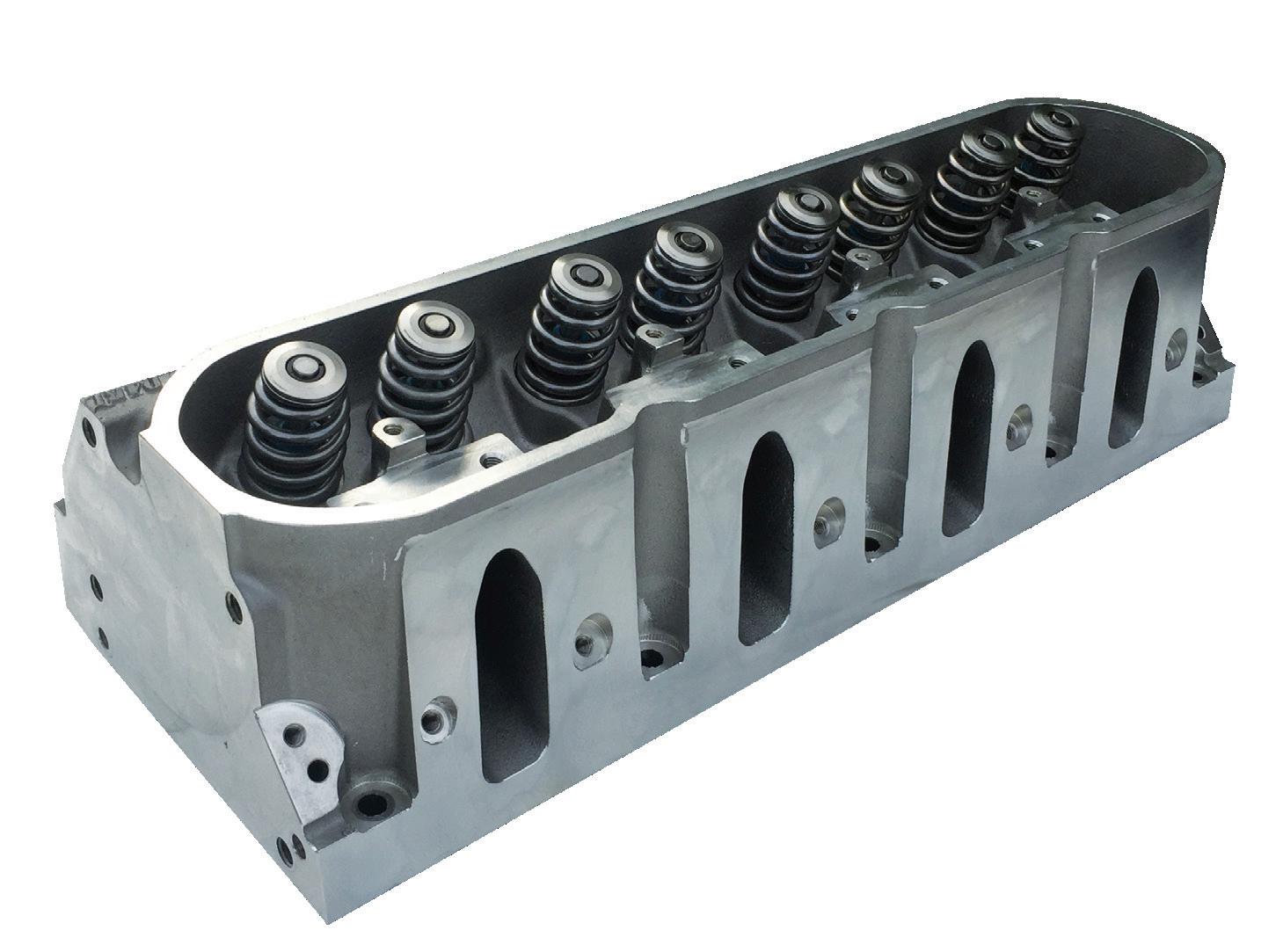

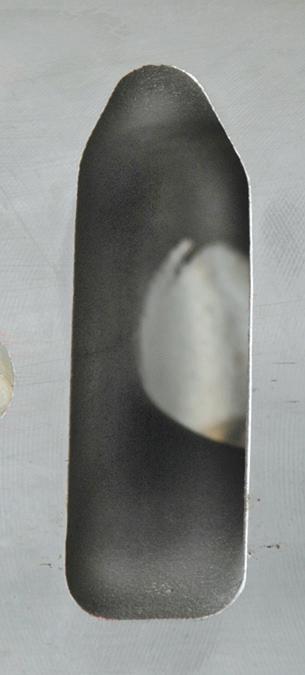

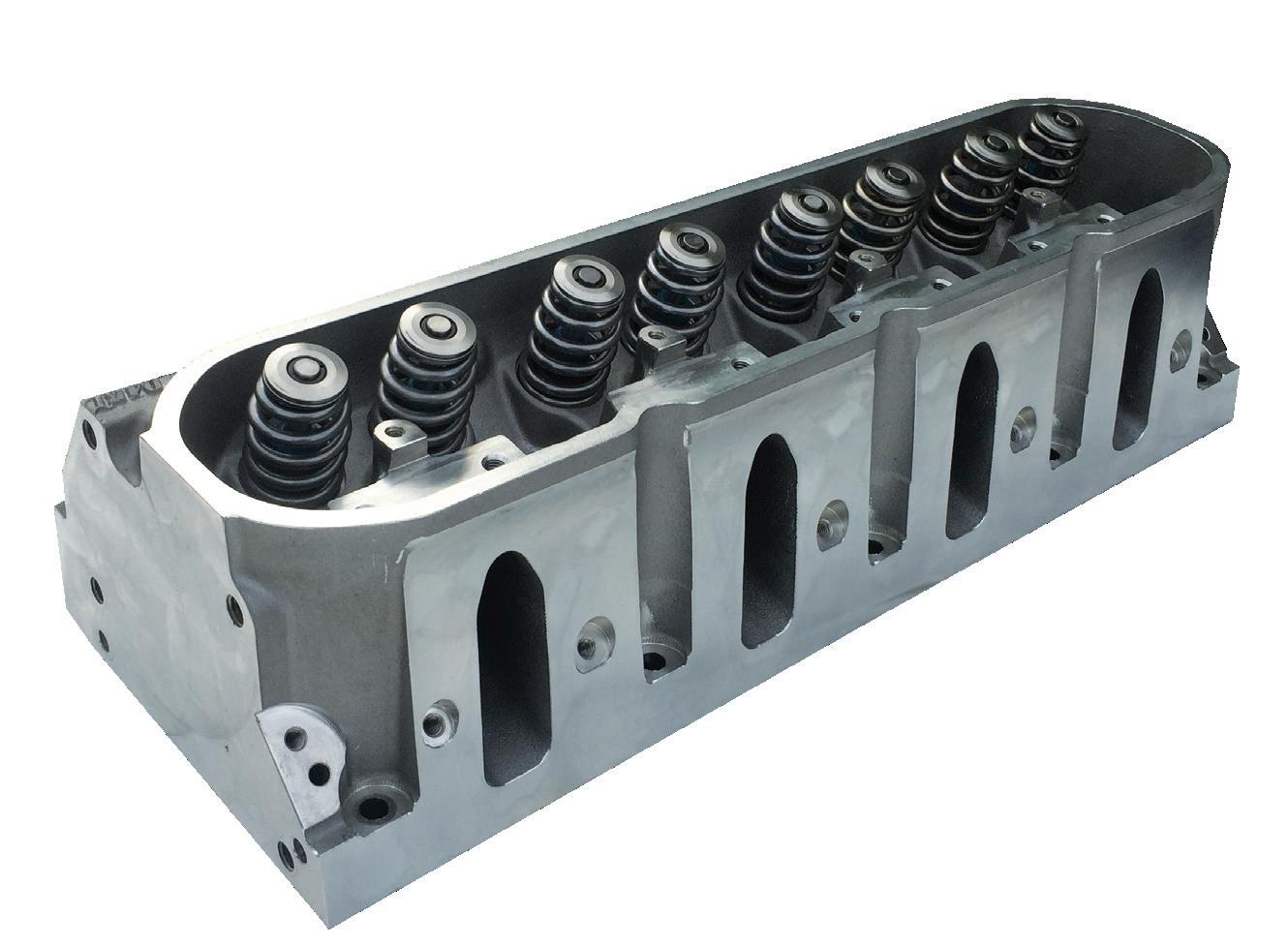

Dart’s 15° 225cc Aluminum cathedral port cylinder head for GM LS series small block V8 engines offers higher performance and more versatility than factory designs.

The Dart LS high performance cylinder head has better airflow, more efficient combustion cham bers, and more user-friendly features than production LS castings.

The Dart LS style cylinder head retains stock valve angles, stock valve locations and stock accessory mounting holes to make installation easy. Virtually everything else has been improved.

Heads are sold individually.
