MAXI FORCE ENGINE KITS
BUSHING, CON ROD PT 41mm
BUSHING, BAL SHAFT
BUSHING, CAMSHAFT
CAPSCREW, CON ROD, P.T.
SEAL, OIL REAR
SEAL, CRANKSHAFT FRONT

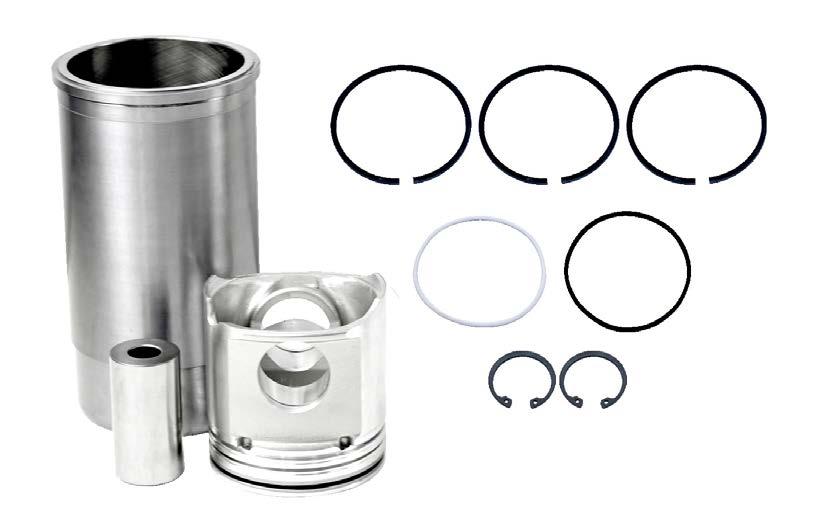

PISTON-LINER KIT
SEAL, VALVE STEM

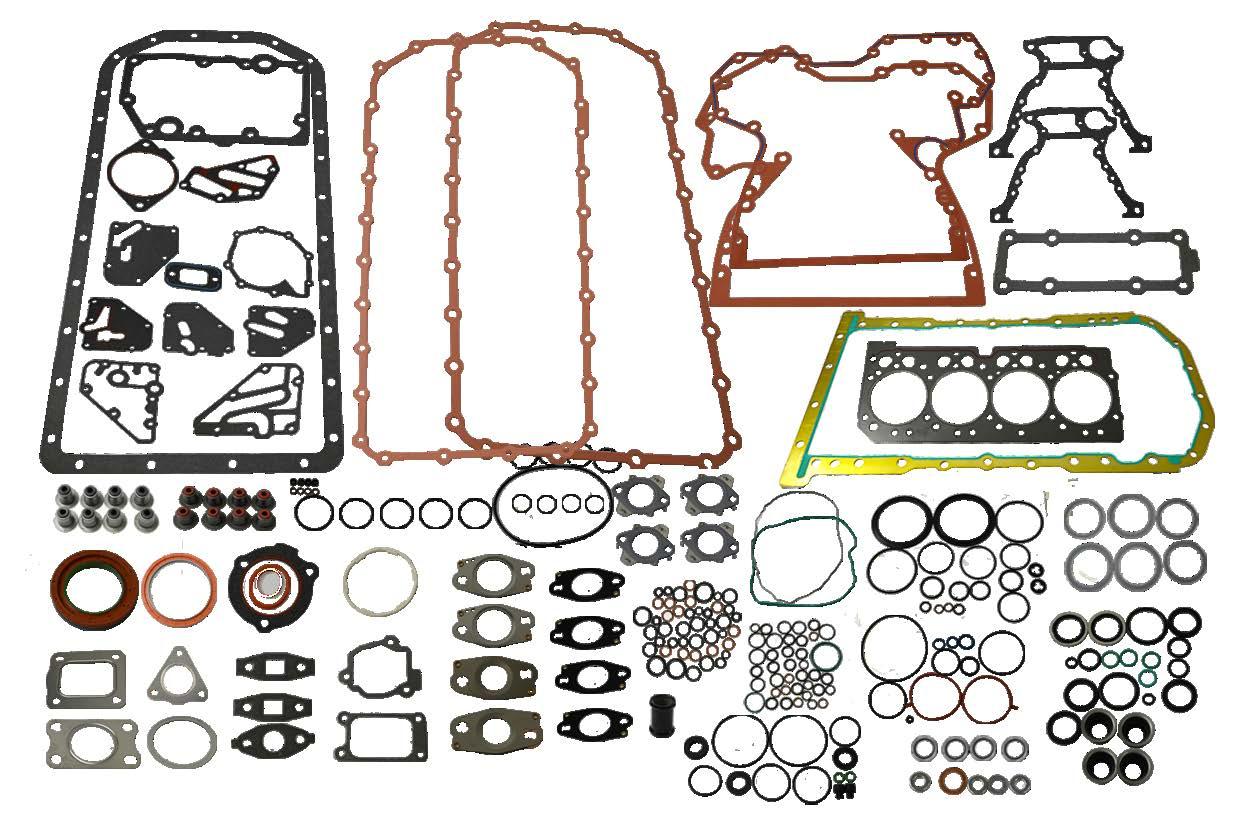

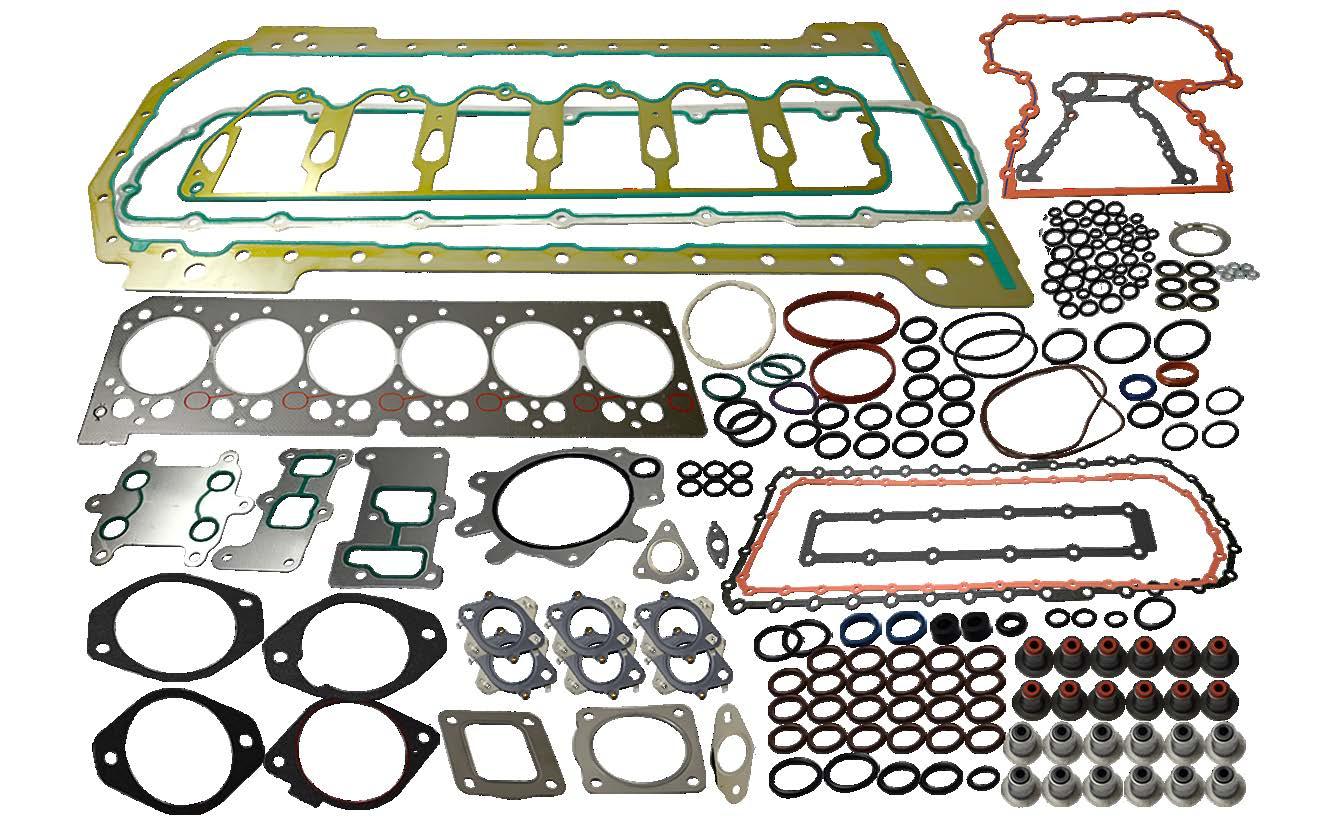

GASKET, O/H SET PT
BRG, MAIN STD
BRG, MAIN THRUST STD
BRG, CON ROD STD
MAXI FORCE ENGINE KITS
BUSHING, CON ROD PT 41mm
BUSHING, BAL SHAFT
BUSHING, CAMSHAFT
CAPSCREW, CON ROD, P.T.
SEAL, VALVE STEM LITER ENG
SEAL, OIL REAR
SEAL, CRANKSHAFT FRONT
GASKET, O/H SET
KIT, CYL P.T. (RE527039)
BRG, MAIN STD
BRG, MAIN THRUST STD
BRG, CON ROD STD
MAXI FORCE ENGINE KITS
BUSHING, CON ROD PT 41mm
BUSHING, BAL SHAFT
BUSHING, CAMSHAFT
CAPSCREW, CON ROD, P.T.
SEAL, OIL REAR
SEAL, CRANKSHAFT FRONT
SEAL, VALBE STEM
KIT, CYL P.T. (RE521616) 4V
GASKET, O/H SET PT
BRG, MAIN STD
BRG, MAIN THRUST STD
BRG, CON ROD STD
MAXI FORCE ENGINE KITS
BUSHING, CON ROD PT 41mm
BUSHING, CAMSHAFT CAPSCREW, CON ROD, P.T.
SEAL, OIL REAR
SEAL, CRANKSHAFT FRONT
SEAL, VALVE STEM
GASKET, O/H SET PT
KIT, PISTON/LINER
BRG, MAIN STD
BRG, MAIN THRUST STD
BRG, CON ROD STD
MAXI FORCE ENGINE KITS
BUSHING, CON ROD PT 41mm
BUSHING, BAL SHAFT
BUSHING, CAMSHAFT
CAPSCREW, CON ROD
SEAL, OIL REAR
SEAL, CRANKSHAFT FRONT
SEAL, VALVE STEM
PISTON-LINER
GASKET, O/H SET PT
BRG, MAIN STD
BRG, MAIN THRUST STD
BRG, CON ROD STD
MAXI FORCE ENGINE KITS

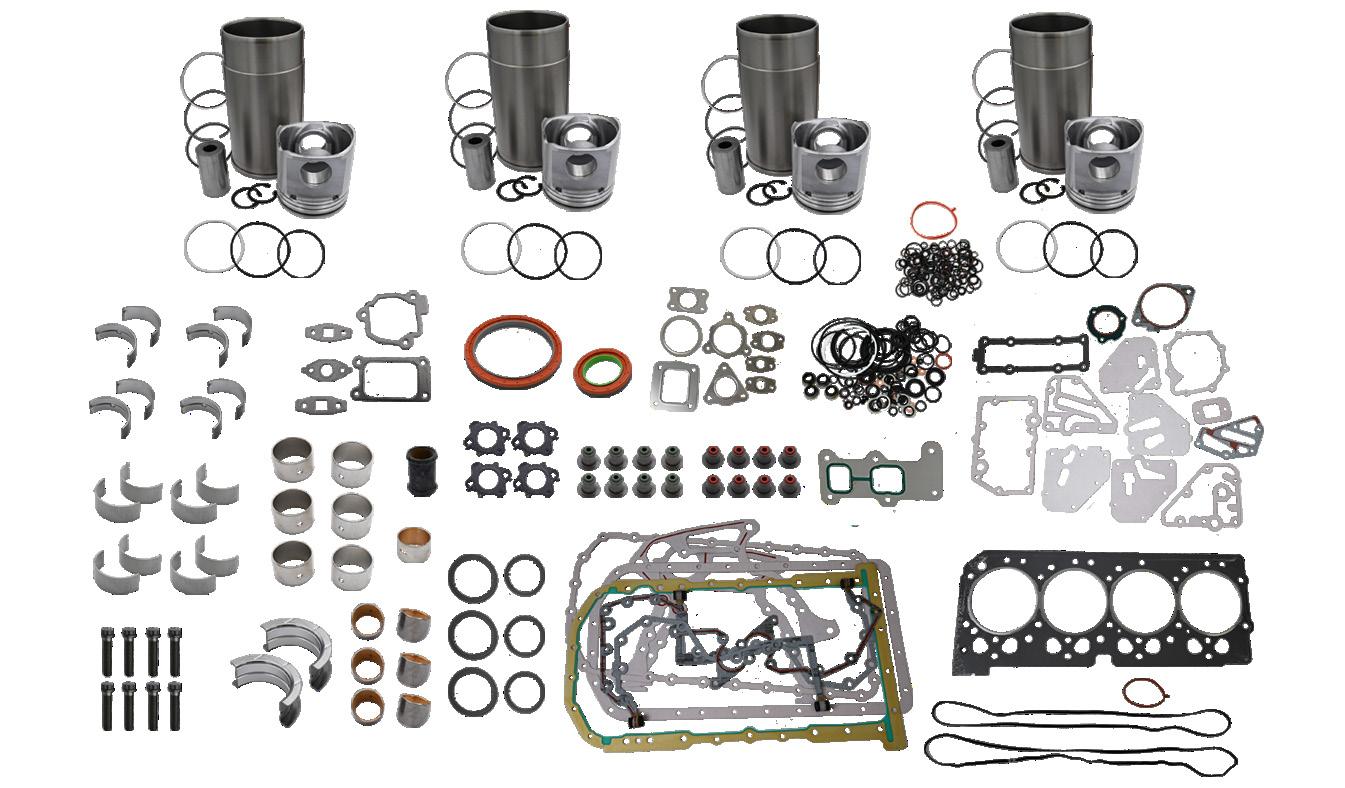

ENGINE KIT – STANDARD POWERTECH
501118 | OE REF: RE66094
For: John Deere 6005 / 6010
Series: PowerTech Config: 4 Cyl
Engine Description: 4.5T/H Bore: 4.19in / 106.5mm Pin Ø: 1.6250in / (+/- .0002) = 41mm
Con Rod (M): R114081 Machined (15), R500335 Fractured (15)
Piston (M): RE55512, RE505102 Engine Models: 4045HBM01 | 4045TFM75 | 4045TL051 | 4045HDW52
KIT, GROMET (4)
BUSHING, CON ROD PT 41mm
BUSHING, BAL SHAFT
BUSHING, CAMSHAFT
CAPSCREW, CON ROD, P.T.
SEAL, VALVE STEM LITER ENG
SEAL, OIL REAR
GASKET, O/H SET P.T.
SEAL, CRANKSHAFT FRONT
KIT, CYLINDER PT (RE55512)
BRG, MAIN STD
BRG, MAIN THRUST STD
BRG, CAN ROD STD
MAXI FORCE ENGINE KITS

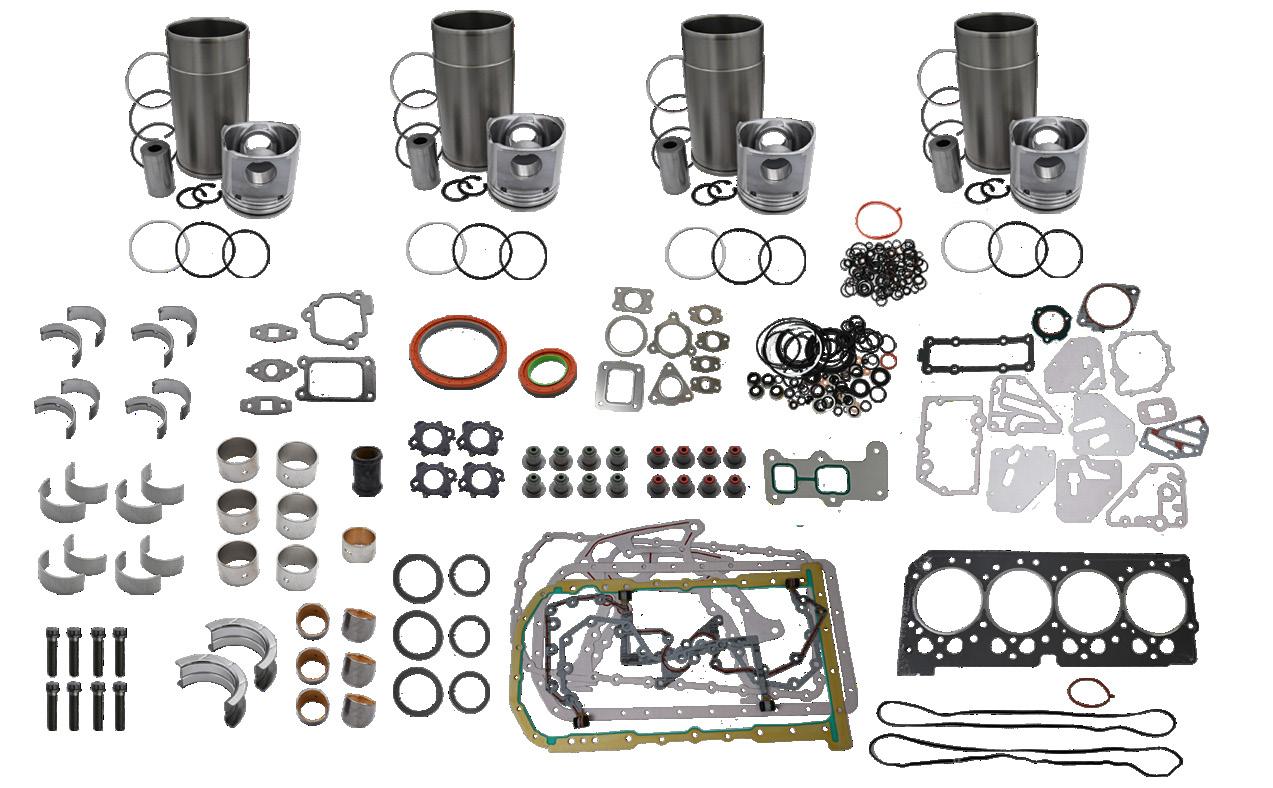

ENGINE KIT – STANDARD POWERTECH 501119 | OE REF: RE66094A For: John Deere 6005 / 6010
Series: PowerTech Config: 4 Cyl
Engine Description: 4.5T/H Bore: 4.19in / 106.5mm Pin Ø: 1.6250in / (+/- .0002) = 41mm
Con Rod (M): R114081 Machined (15), R500335 Fractured (15) Piston (M): RE55512, RE505102 Engine Models: 4045HBM01 | 4045TFM75 | 4045TL051 | 4045HDW52
KIT, GROMET (4)
BUSHING, CON ROD PT 41mm
BUSHING, BAL SHAFT
BUSHING, CAMSHAFT
CAPSCREW, CON ROD, P.T.
SEAL, VALVE STEM LITER ENG
SEAL, OIL REAR
GASKET, O/H SET P.T.
SEAL, CRANKSHAFT FRONT
KIT, CYLINDER PT (RE55512)
BRG, MAIN STD
BRG, MAIN THRUST STD
BRG, CAN ROD STD
MAXI FORCE ENGINE KITS
ENGINE KIT – STANDARD POWERTECH
501120 | OE REF: RE66097
For: John Deere 6005 / 6010 / 6020 / 6J / 7005 / 7010 / 7020 / 7J
Series: PowerTech Config: 6 Cyl
Engine Description: 6.8T/H
Bore: 4.19in / 106.5mm Pin Ø: 1.6250in / (+/- .0002) = 41mm
Con Rod (M): R114081, R500335
Piston (M): RE55512, RE505102 Engine Models: 6068HBM02 |
KIT, GROMET (4)
BUSHING, CON ROD PT 41mm
CAPSCREW, CON ROD, P.T.
BUSHING, CAMSHAFT
SEAL, VALVE STEM LITER ENG
SEAL, OIL REAR
GASKET, O/H SET P.T.
SEAL, CRANKSHAFT FRONT
KIT, CYLINDER PT (RE55512)
BRG, MAIN STD
BRG, MAIN THRUST STD
BRG, CAN ROD STD
MAXI FORCE ENGINE KITS
ENGINE KIT – STANDARD POWERTECH 501121 | OE REF: RE66097A
For: John Deere 6005 / 6010 / 6020 / 6J / 7005 / 7010 / 7020 / 7J
Series: PowerTech Config: 6 Cyl
Engine Description: 6.8T/H
Bore: 4.19in / 106.5mm Pin Ø: 1.6250in / (+/- .0002) = 41mm
Con Rod (M): R114081, R500335
Piston (M): RE55512, RE505102
Engine Models: 6068HBM02 | 6068HBM03 |
KIT, GROMET (4)
BUSHING, CON ROD PT 41mm
BUSHING, CAMSHAFT
CAPSCREW, CON ROD, P.T.
SEAL, VALVE STEM LITER ENG
SEAL, OIL REAR
GASKET, O/H SET P.T.
SEAL, CRANKSHAFT FRONT
KIT, CYLINDER PT (RE55512)
BRG, MAIN STD
BRG, MAIN THRUST STD
BRG, CAN ROD STD
MAXI FORCE ENGINE KITS
ENGINE KIT – STANDARD POWERTECH
500752 | OE REF: DZ109998
For: John Deere 6190R / 6210R
Series: PowerTech Config: 6 Cyl
Engine Description: Tier 4 Applications (4 Valve per Cylinder)
Bore: 4.19in / 106.5mm Pin Ø: 1.6250in / (+/- .0002) = 41mm
Con Rod (M): R500335 (Fractured)
Piston (M): RE544601 Engine Models: 6068HDW78 | 6068HDW85 | 6068HFC94 |
DZ109764
RE65165
RE65168
RE65908
RE505515
RE44574
DZ109995
R114082
R119874
R501124
KIT, CYL 4045 / 6068 TIER 4 FINAL
BRG, MAIN STD
BRG, MAIN THRUST STD
BRG, CON ROD STUD
SEAL, CRANKSHAFT FRONT
SEAL, OIL REAT
GASKET, O/H SET, 6068 TIER 4
BUSHING, CON ROD PT 41mm
BUSHING, CAMSHAFT
CAPSCREW, CON ROD
SEAL, VALVE STEM, INTAKE
SEAL, VALVE STEM, EXHAUST
MAXI FORCE ENGINE KITS
ENGINE KIT – STANDARD POWERTECH
500753 | OE REF: DZ110005
For: John Deere 6M / 6R
Series: PowerTech Config: 6 Cyl
Engine Description: Tier 4 Applications (4 Valve per Cylinder)
Bore: 4.19in / 106.5mm Pin Ø: 1.6250in / (+/- .0002) = 41mm
Con Rod (M): R500335 (Fractured)
Piston (M): RE553821 Engine Models: 6068CP550 | 6068DW401 | 6068DW501 |
DZ109761
RE65165
RE65168
RE65908
RE505515
RE44574
DZ109995
R114082
R119874
R501124
KIT, CYL 4045 / 6068 TIER 4 FINAL
BRG, MAIN STD
BRG, MAIN THRUST STD
BRG, CON ROD STUD
SEAL, CRANKSHAFT FRONT
SEAL, OIL REAT
GASKET, O/H SET, 6068 TIER 4
BUSHING, CON ROD PT 41mm
BUSHING, CAMSHAFT
CAPSCREW, CON ROD
SEAL, VALVE STEM, INTAKE
SEAL, VALVE STEM, EXHAUST
MAXI FORCE ENGINE KITS
ENGINE KIT – STANDARD POWERTECH
500754 | OE REF: DZ110000
For: John Deere 6150M / 6170M / 6140R / 6150R / 6150RH
Series: PowerTech Config: 6 Cyl
Engine Description: Tier 4 Applications (4 Valve per Cylinder)
Bore: 4.19in / 106.5mm Pin Ø: 1.6250in / (+/- .0002) = 41mm
Con Rod (M): R500335 (Fractured)
Piston (M): RE544607
Engine Models: 6068HDW84 | 6068HFC93 | 6068HL490 | 6068HT079
DZ109765
RE65165
RE65168
RE65908
RE505515
RE44574
DZ109995
R114082
R119874
R501124
KIT, CYL 4045 / 6068 TIER 4 FINAL
BRG, MAIN STD
BRG, MAIN THRUST STD
BRG, CON ROD STUD
SEAL, CRANKSHAFT FRONT
SEAL, OIL REAT
GASKET, O/H SET, 6068 TIER 4
BUSHING, CON ROD PT 41mm
BUSHING, CAMSHAFT
CAPSCREW, CON ROD
SEAL, VALVE STEM, INTAKE
SEAL, VALVE STEM, EXHAUST
MAXI FORCE ENGINE KITS
ENGINE KIT – STANDARD POWERTECH
500755 | OE REF: DZ109776
For: John Deere 6M / 6R
Series: PowerTech Config: 4 Cyl
Engine Description: Tier 4 Applications (4 Valve per Cylinder)
Bore: 4.19in / 106.5mm Pin Ø: 1.6250in / (+/- .0002) = 41mm
Con Rod (M): R500335 (Fractured)
Piston (M): RE544607 Engine Models: 4045HFC92 |
DZ109765
RE65165
RE65168
RE65908
R114082
KIT, CYL 4045 / 6068 TIER 4 FINAL
BRG, MAIN STD
BRG, MAIN THRUST STD
BRG, CON ROD STUD
SEAL, CRANKSHAFT FRONT
SEAL, OIL REAT
GASKET, O/H SET, 6068 TIER 4
BUSHING, CON ROD PT 41mm
BUSHING, CAMSHAFT
CAPSCREW, CON ROD
SEAL, VALVE STEM, EXHAUST
MAXI FORCE ENGINE KITS
ENGINE KIT – STANDARD POWERTECH
500756 | OE REF: DZ109780 For: John Deere 6M / 6R
Series: PowerTech Config: 4 Cyl
Engine Description: Tier 4 Applications (4 Valve per Cylinder)
Bore: 4.19in / 106.5mm Pin Ø: 1.6250in / (+/- .0002) = 41mm
Con Rod (M): R500335 (Fractured) Piston (M): RE544601
KIT, CYL 4045 / 6068 TIER 4 FINAL
BRG, MAIN STD
BRG, MAIN THRUST STD
BRG, CON ROD STUD
4045 T4 O/H GASKET SET
BUSHING, CON ROD PT 41mm
BUSHING, CAMSHAFT
BUSHING, BALANCER SHAFT
CAPSCREW, CON ROD
SEAL, VALVE STEM, INTAKE
SEAL, VALVE STEM, EXHAUST
MAXI FORCE ENGINE KITS
KIT, CYL 4045 / 6068 TIER 4 FINAL
BRG, MAIN STD
BRG, MAIN THRUST STD
BRG, CON ROD STUD
4045 T4 O/H GASKET SET
BUSHING, CON ROD PT 41mm
BUSHING, BALANCER SHAFT
BUSHING, CAMSHAFT
CAPSCREW, CON ROD
SEAL, VALVE STEM, INTAKE
SEAL, VALVE STEM, EXHAUST
MAXI FORCE ENGINE KITS

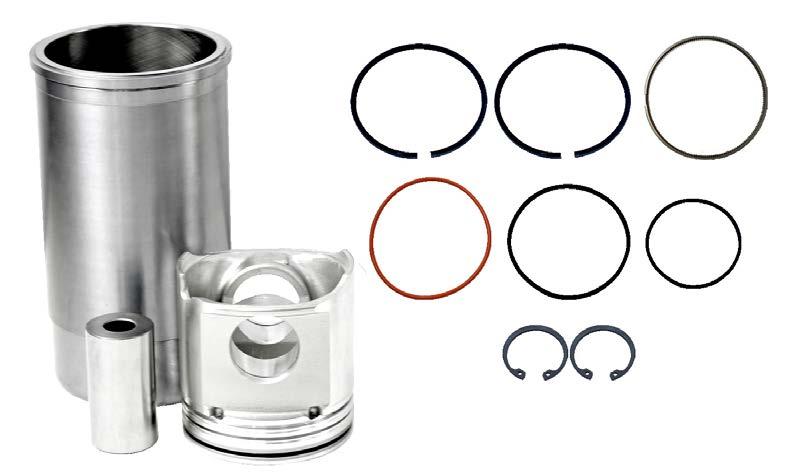

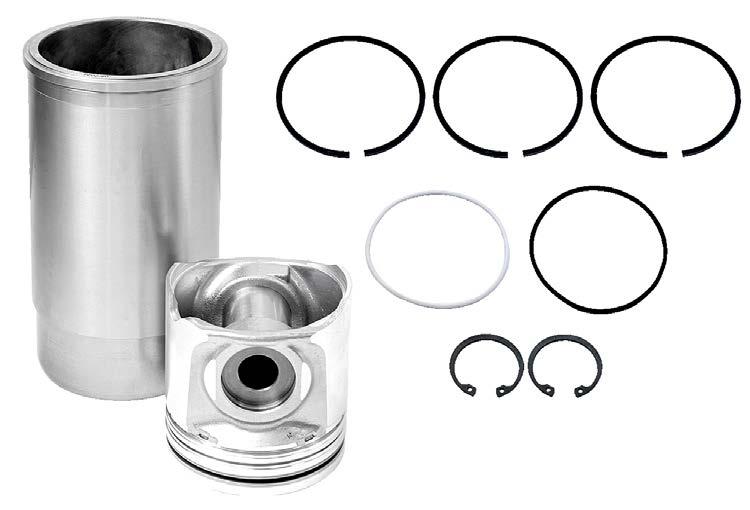

PISTON & LINER KIT
501058 | OE Ref: DZ109761
John Deere 6M 6R Series
PISTON & LINER KIT
501055 | OE Ref: DZ109758
John Deere 6M 6R Series
PISTON & LINER KIT
501057 | OE Ref: DZ109765
John Deere 5M 5R 6M 6R Series
PISTON & LINER KIT
501061 | OE Ref: DZ109764
John Deere 6M 6R 7R Series
MAXI FORCE ENGINE KITS
