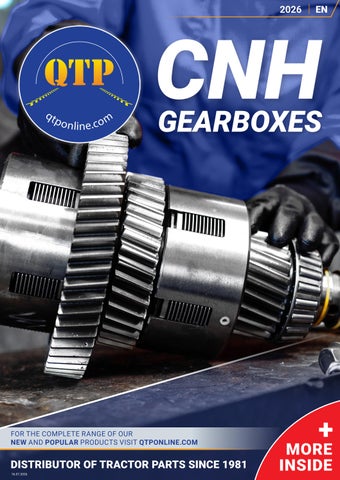

2026
EN
CNH
GEARBOXES
FOR THE COMPLETE RANGE OF OUR NEW AND POPULAR PRODUCTS VISIT QTPONLINE.COM
DISTRIBUTOR OF TRACTOR PARTS SINCE 1981 07.08.2026
+
MORE INSIDE
CONTENTS Section 1 QTP Part numbers listed as ATO are Available To Order only, they are currently not stocked in store. Where quantities are listed as AR these are use as required. 1. New Holland Gearboxes summary (Page 5) 2. Case IH Gearbox summary (Page 6) 3. 16x16 Semi Powershift (New Holland Electro Command, Case IH Active Drive 4) (Page 7) 4. 16x16 General Specifications (Page 8) 5. 16x16 Main Input shaft from flywheel (Page 9) 6. 16x16 Front cover and oil tubes (Pages 10-11) 7. 16x16 Front section bearing and gears (Page 12) 8. 16x16 Front section bearings, gears and Forward/ Reverse synchroniser (Pages 14-15) 9. 16x16 C1 & C2 Clutch Packs (Pages 16-17) 10. 16x16 1-4 / 5-8 Synchroniser and gears (Pages 18-19) 11. 16x16 Mid-Section Shims Pages (20-21) 12. 16x16 C3 & C4 Clutch Packs (Pages 22-23) 13. 16x16 Rear section High/ Low Synchroniser & Gears (Pages 24-25) 14. 16x16 High / Low Synchroniser fork assembly (Pages 26-27) 15. 16x16 Circlips and blanking Cap (Page 28) 16. 16x16 Transmission, Lubrication Control Valve (Pages 30-31) 17. 16x16 Transmission Control Valve (Pages 32-33) 18. 16x16 Forward/Reverse & 1-4/5-8 Selector fork assemblies. (Pages 34-35) 19. 16x16 Top cover assembly (Pages 36-37) 20. 16X16 Top cover gearshift position sensor (Page 38)
Section 2 21. 18X6 Semi Powershift (New Holland Range Command, Case IH Active Drive 6) (Page 40) 22. 18X6 Semi Powershift (New Holland Range Command, Case IH Active Drive 6) General Specifications (Pages 41-43) 23. 18x6 Full Powershift (New Holland Power Command, Case IH PowerDrive) (Page 44) 24. 18x6 Full Powershift (New Holland Power Command, Case IH PowerDrive) General specifications. (Page 45)
2 Original equipment, manufacturers names and part numbers are quoted for reference purposes only and are not intended to infer that our replacement parts are used as [1]original equipment.
25. Short Wheelbase Semi Powershift Transmission A Clutch Pack (Pages 46-47) 26. Short Wheelbase Semi Powershift Transmission B Clutch Pack (Pages 48-49) 27. Short Wheelbase Full Powershift Transmission A Clutch Pack (Pages 50-51) 28. Short Wheelbase Full Powershift Transmission B Clutch Pack (Pages 52-53) 29. Short Wheelbase Semi & Full Powershift Transmission Top Shaft (Pages 54-55) 30. Semi & Full Powershift Assembly orientation for C, D, E Packs and shaft (Page 56) 31. Short Wheelbase, Semi & Full Powershift C/D Clutch Pack Hub, Shims and Seals (Pages 58-59) 32. Short Wheelbase, Semi & Full Powershift C&D Clutch Packs (Pages 60-61) 33. Short Wheelbase Full Powershift Transmission E Clutch Pack and lower shaft (Pages 6263) 34. Short Wheelbase Full Powershift Transmission Fast /Slow Clutch Pack (Pages 64-66) 35. Short Wheelbase Full Powershift Medium Clutch Pack (Pages 68-69) 36. Short Wheelbase Full Powershift Reverse Clutch Pack (Pages 70-73) 37. Short Wheelbase Full Powershift Transmission control valves (Page 74-81) 38. Short Wheelbase Semi Powershift Transmission E Clutch Pack and Lower shaft (Pages 82-83) 39. Short Wheelbase Semi Powershift Transmission Slow, Medium, Fast and Reverse Synchronisers and Gears (Pages 84-87) 40. Semi Powershift transmission Selector forks (Pages 88-89) 41. Short Wheelbase Semi Powershift Transmission control valves (Pages 90-93)
Section 3 42. Long Wheelbase Full Powershift Transmission. (Page 94) 43. Long Wheelbase Full Powershift Transmission General Specifications (Pages 95-97) 44. Long Wheelbase Full Powershift Transmission Input Shaft (Page 98) 45. Long Wheelbase Full Powershift Transmission A Clutch Pack (Pages 100-101) 46. Long Wheelbase Full Powershift Transmission B Clutch Pack (Pages 102-103) 47. Long Wheelbase Full Powershift hub gear and Shims for C/D clutch pack (Pages 104-105) 48. Long Wheelbase Full Powershift C/D Clutch Pack (Pages 106-107) 49. Long Wheelbase Full Powershift Transmission E Clutch Pack (Pages 108-109) 50. Long Wheelbase Full Powershift Transmission Top Shaft (Pages 110-111)
3 [2]OUR FULL RANGE OF PRODUCTS VISIT QTPONLINE.COM TO VIEW
51. Long Wheelbase Full Powershift Transmission Slow Clutch Pack (Pages 112-114) 52. Long Wheelbase Full Powershift Transmission Fast Clutch Pack (Pages 116-117) 53. Long Wheelbase Full Powershift Transmission Medium Pack (Pages 118-121) 54. Long Wheelbase Full Powershift Reverse Clutch Pack (Pages 122-123) 55. Long Wheelbase Full Powershift Transmission Control Valve (Pages 124-125)
Section 4 56. 12x12 / 24X24 Synchro Shuttle, Powershuttle Dual Command (New Holland) (Case IH) ActiveDrive 2, ManualDrive) (Page 126-128) 57. 12x12 Powershuttle Transmission Forward/ Reverse Clutch Packs (Pages 130-131) 58. 12x12 Mechanical Transmission Forward / Reverse Synchroniser assembly (Pages 132133) 59. 12x12 Transmission HI / LO Splitter Synchro Fork (Pages 134-135) 60. 24x24 Powershuttle Transmission Front Section (Pages 136-137) 61. Powershuttle Transmission Forward / Reverse Clutches (Pages 138-139) 62. 24x24 Powershuttle Transmission Forward / Reverse Clutches Continued (Pages 140141) 63. 24x24 Powershuttle Transmission Hydraulic Control Valve (Pages 142-143) 64. 24x24 Powershuttle Transmission Hydraulic Control Valve Continued (Pages 144-145) 65. 24x24 Powershuttle Transmission HI / LO Clutch Variant (Pages 146-147) 66. 24x24 Powershuttle Transmission 1/2 & 3/4 Gears & Synchronisers (148-149) 67. 24x24 Powershuttle Transmission Selector Forks for Range Synchronisers (Pages 150151) 68. 24x24 Powershuttle Transmission Range Gears and Synchronisers (Pages 152-153)
Section 5 69. Transmission Clutch Dampers (Page 154) 70. Transmission Filters 16x16 Electro Command / Active Drive 4 (Page 156) 71. Transmission Filters 18x6 Range Command / Active Drive 6 Semi Powershift (Page 157) 72. Transmission Filters 18x6 Power Command / Power Drive Full Powershift (Page 158) 73. Transmission Filters 24x24 Dual Command / Active Drive 2. (Page 158)
4 Original equipment, manufacturers names and part numbers are quoted for reference purposes only and are not intended to infer that our replacement parts are used as original equipment.
[3]
5 VISIT QTPONLINE.COM TO VIEW OUR FULL RANGE OF PRODUCTS
6 Original equipment, manufacturers names and part numbers are quoted for reference purposes only and are not intended to infer that our replacement parts are used as original equipment.
7 VISIT QTPONLINE.COM TO VIEW OUR FULL RANGE OF PRODUCTS
8 Original equipment, manufacturers names and part numbers are quoted for reference purposes only and are not intended to infer that our replacement parts are used as original equipment.
401196 409805 401197
9 VISIT QTPONLINE.COM TO VIEW OUR FULL RANGE OF PRODUCTS
10 Original equipment, manufacturers names and part numbers are quoted for reference purposes only and are not intended to infer that our replacement parts are used as original equipment.
4818 4819 401195 401234 4908
11 VISIT QTPONLINE.COM TO VIEW OUR FULL RANGE OF PRODUCTS
401223 401224 401217 401218 401219 401220 401221 401222
12 Original equipment, manufacturers names and part numbers are quoted for reference purposes only and are not intended to infer that our replacement parts are used as original equipment.
Looking for a specific part? Phone: +353 44 934 1638 Email: web@qtponline.com
online.com
14 Original equipment, manufacturers names and part numbers are quoted for reference purposes only and are not intended to infer that our replacement parts are used as original equipment.
401301 401302 401303 401304 401359 401307 401305 401308 401309 401191 401310 57100 401311
15 VISIT QTPONLINE.COM TO VIEW OUR FULL RANGE OF PRODUCTS
16 Original equipment, manufacturers names and part numbers are quoted for reference purposes only and are not intended to infer that our replacement parts are used as original equipment.
4818 4819 4907 4919 401371 401372 401036 409885 409884 400076 401056 401363 401364 401365 401366 401367 409890 409863 401368 401369 401370
17 VISIT QTPONLINE.COM TO VIEW OUR FULL RANGE OF PRODUCTS
18 Original equipment, manufacturers names and part numbers are quoted for reference purposes only and are not intended to infer that our replacement parts are used as original equipment.
401312 401313 401315 401314 401302 401309 44432 401307 401316 401317 401318 401224 401319 401320 401321 401322 409774
19 VISIT QTPONLINE.COM TO VIEW OUR FULL RANGE OF PRODUCTS
20 Original equipment, manufacturers names and part numbers are quoted for reference purposes only and are not intended to infer that our replacement parts are used as original equipment.
401191 401192 401193 401195 401194 401195
21 VISIT QTPONLINE.COM TO VIEW OUR FULL RANGE OF PRODUCTS
22 Original equipment, manufacturers names and part numbers are quoted for reference purposes only and are not intended to infer that our replacement parts are used as original equipment.
401278 401211 401279 401213 401280 401281 400075 401282 401283 401284 401285 400077 401286 401287 401288 400078 401289 401290 401291 401292 401293 401294 409806 401295 401225 401296 401297 401298 401299 401086 401358
23 VISIT QTPONLINE.COM TO VIEW OUR FULL RANGE OF PRODUCTS
24 Original equipment, manufacturers names and part numbers are quoted for reference purposes only and are not intended to infer that our replacement parts are used as original equipment.
401225 401226 401227 401228 401229 401323 401324 401325 401326 401192 401327 401328 401329 401330 401331 400074 401124 401332 401333 43574 401334 401335 401335 401336 401337
25 VISIT QTPONLINE.COM TO VIEW OUR FULL RANGE OF PRODUCTS
26 Original equipment, manufacturers names and part numbers are quoted for reference purposes only and are not intended to infer that our replacement parts are used as original equipment.
401236 401237 401238 401239 401240 401241 401242 401243 401244 401245 401246 401247 401248 401249 401250
27 VISIT QTPONLINE.COM TO VIEW OUR FULL RANGE OF PRODUCTS
401198 44418 43574
28 Original equipment, manufacturers names and part numbers are quoted for reference purposes only and are not intended to infer that our replacement parts are used as original equipment.
Looking for a specific part? Phone: +353 44 934 1638 Email: web@qtponline.com
online.com
30 Original equipment, manufacturers names and part numbers are quoted for reference purposes only and are not intended to infer that our replacement parts are used as original equipment.
401199 401200 401201 401202 401203 401204 401205 401206 401207 401208 401209 401210 401211 401212 401213 401214 401215 401216
31 VISIT QTPONLINE.COM TO VIEW OUR FULL RANGE OF PRODUCTS
16
32 Original equipment, manufacturers names and part numbers are quoted for reference purposes only and are not intended to infer that our replacement parts are used as original equipment.
401195 401194 401231 401232 401233 401235 401234 43604
33 VISIT QTPONLINE.COM TO VIEW OUR FULL RANGE OF PRODUCTS
29
34 Original equipment, manufacturers names and part numbers are quoted for reference purposes only and are not intended to infer that our replacement parts are used as original equipment.
401251 401252 401253 401254 401255 401256 401257 401258 401259 401260 401261 409811 401262 401263 401264 401265 401266 401267 401268 401269 401270 401271 401272 401274 43604
35 VISIT QTPONLINE.COM TO VIEW OUR FULL RANGE OF PRODUCTS
36 Original equipment, manufacturers names and part numbers are quoted for reference purposes only and are not intended to infer that our replacement parts are used as original equipment.
401250 401248 401275 401276 401277
37 VISIT QTPONLINE.COM TO VIEW OUR FULL RANGE OF PRODUCTS
38 Original equipment, manufacturers names and part numbers are quoted for reference purposes only and are not intended to infer that our replacement parts are used as original equipment.
Looking for a specific part? Phone: +353 44 934 1638 Email: web@qtponline.com
online.com
40 Original equipment, manufacturers names and part numbers are quoted for reference purposes only and are not intended to infer that our replacement parts are used as original equipment.
41 VISIT QTPONLINE.COM TO VIEW OUR FULL RANGE OF PRODUCTS
42 Original equipment, manufacturers names and part numbers are quoted for reference purposes only and are not intended to infer that our replacement parts are used as original equipment.
43 VISIT QTPONLINE.COM TO VIEW OUR FULL RANGE OF PRODUCTS
44 Original equipment, manufacturers names and part numbers are quoted for reference purposes only and are not intended to infer that our replacement parts are used as original equipment.
18x6 Full Powershift (NewHolland Power Command, Case IH PowerDrive) General specifications. 17/18/19 forward and 6 reverse gears Controlled by nine hydraulically engaged clutches via processor driven PWM valves Transmission lubrication Via the main hydraulic pump Transmission hydraulic pressure 17 -19 bar (246 -276 psi) Lubrication pressure 3 -3.7 bar (43.5 -53.7 psi)
Description Driven disc Friction disc
Springs
Clutch A & B
Quantity 5 5
Total clutch pack: Friction disc minimum wear:
Description Driven disc Driven disc Friction disc Total clutch pack: Friction disc minimum wear: Clutch “C” bearing shims Springs Description Driven disc Driven disc Friction disc
Thickness 2 mm (0.079 in) 2.8 mm (0.110 in) 23.7 - 23.9 mm (0.933 - 0.941 in) (Under load of 1600 N (360 lb) 2.4 mm (0.094 in) (0.20 mm (0.008 in) per face)
7
Clutch C
Quantity 6 2 8
Rolling resistance adjustment 8 Quantity 3 3 6
Clutches D & E
Thickness 1.50 mm (0.059 in) 1.75 mm (0.069 in) 2.75 mm (0.108 in) 26.2 - 26.4 mm (1.031 - 1.039 in) (Under load of 1600 N (360 lb) 2.35 mm (0.093 in) (0.20 mm (0.008 in) per face)
Total clutch pack: Friction disc minimum wear: Springs
6
Description Driven disc Driven disc Friction disc
Clutch Fast
Quantity 8 2 10
Thickness 1.50 mm (0.059 in) 1.75 mm (0.069 in) 2.75 mm (0.108 in) 42.9 - 43.1 mm (1.689 - 1.697 in) (Under load of 1600 N (360 lb) 2.35 mm (0.093 in) (0.20 mm (0.008 in) per face)
Total clutch pack: Friction disc minimum wear: Springs
8
Description Driven disc Driven disc Friction disc Total clutch pack: Friction disc minimum wear: Springs Description Driven disc Driven disc Friction disc
Clutch Slow
Quantity 11 3 14
12 Quantity 10 2 12
Thickness 1.50 mm (0.059 in) 1.75 mm (0.069 in) 2.45 mm (0.096 in) 55.9 - 56.1 mm (2.201 - 2.209 in) (Under load of 1600 N (360 lb) 1.75 mm (0.069 in) (0.35 mm (0.014 in) per face)
Clutch Medium
Total clutch pack: Friction disc minimum wear: Medium clutch bearing shims (Rolling resistance adjustment) Springs 12 Description Driven disc Driven disc Friction disc
Springs
Thickness 1.50 mm (0.059 in) 1.75 mm (0.069 in) 2.75 mm (0.108 in) 34.5 - 34.7 mm (1.358 - 1.366 in) (Under load of 1600 N (360 lb) 2.35 mm (0.093 in) (0.20 mm (0.008 in) per face) 9.800 - 10.700 mm (0.386 - 0.421 in) in 0.025 mm (0.001 in) steps
Quantity 10 2 12
Total clutch pack: Friction disc minimum wear:
12
Thickness 1.50 mm (0.059 in) 1.75 mm (0.069 in) 2.75 mm (0.108 in) 51.5 - 51.7 mm (2.028 - 2.035 in) (Under load of 1600 N (360 lb) 2.35 mm (0.093 in) (0.20 mm (0.008 in) per face) 8.900 - 9.650 mm (0.350 - 0.380 in) in 0.025 mm (0.001 in) steps
Clutch Reverse
Thickness 1.50 mm (0.059 in) 1.75 mm (0.069 in) 2.75 mm (0.108 in) 51.5 - 51.7 mm (2.028 - 2.035 in) (Under load of 1600 N (360 lb) 2.35 mm (0.093 in) (0.20 mm (0.008 in) per face)
45 VISIT QTPONLINE.COM TO VIEW OUR FULL RANGE OF PRODUCTS [41]
Short Wheelbase Semi Powershift Transmission A Clutch Pack
46 Original equipment, manufacturers names and part numbers are quoted for reference purposes only and are not intended to infer that our replacement parts are used as original equipment.
Short Wheelbase Semi Powershift Transmission A Clutch Pack #
QTP
Part Name
Qty
1
42164
GASKET 55mm ID x 90mm OD 10mm Thk, 2 lip seals
1
1
42164
SEAL 55mm ID x 90mm OD x 10mm Thk
1
2
400298
CIRCLIP M90, Int,
2
3
400297
BALL BEARING 55mm ID x 90mm OD x 18mm W
1
4
400296
CIRCLIP M55, Ext
1
5
43083
OIL SCRAPER RING Split, 83.02mm ID x 90mm OD x
2
6
400295
CLUTCH HOUSING ASSY, Incl. 7, 10
1
7
400517
BALL 7.14mm D, Gr 100 D=7.144
2
8
409864
SEALING RING 82.55mm ID x 90mm OD x 3.2mm Thk
1
9
43790
SEAL 128.55mm ID x 136.06mm OD x 3.2mm Thk
1
10
ATO
LOCK PIN M2 x 10, Slotted
1
11
44004
SPRING 173mm OD x 1.27mm Thk
7
12
400292
CIRCLIP 2mm Thk
1
13
400291
RETAINER CUP 68mm ID x 78mm OD x 3mm Thk
1
14
400290
SPRING Belleville, 68mm ID x 1.9mm Thk
9
15
400289
PISTON
1
16
42161
CLUTCH PACK
1
17
400288
CIRCLIP M100, Int, BLO
1
18
400287
SNAP RING M70, Ext
1
19
43085
BALL BEARING 70mm ID x 100mm OD x 16mm W
1
20
400286
WASHER 70mm ID x 95mm OD -x 1mm Thk
1
21
44608
HUB 24T Internal / 44T External
1
22
401095
PIN 2.5mm OD x 50mm L
1
42164 400298 400297 400296 43083 400295 400517 409864 43790 44004 400292 400291 400290 400289 42161 400288 400287 43085 400286 44608 401095
47 VISIT QTPONLINE.COM TO VIEW OUR FULL RANGE OF PRODUCTS
Short Wheelbase Semi Powershift Transmission B Clutch Pack
15
48 Original equipment, manufacturers names and part numbers are quoted for reference purposes only and are not intended to infer that our replacement parts are used as original equipment.
Short Wheelbase Semi Powershift Transmission B Clutch Pack #
1
QTP
44607
Part Name
Qty
2
400301
CIRCLIP M175, Int, BLO
1
3
400300
SNAP RING 168mm, 2mm Thk, Int
1
4
400299
THRUST PLATE 53T, 173mm OD
1
5
42161
CLUTCH PACK
1
6
44004
SPRING 173mm OD x 1.27mm Thk
7
7
400291
RETAINER CUP 68mm ID x 78mm OD x 3mm Thk
1
8
400292
CIRCLIP 2mm Thk
2
9
400290
SPRING Belleville, 68mm ID x 1.9mm Thk
9
10
400289
PISTON
1
11
43790
SEAL 128.55mm ID x 136.06mm OD x 3.2mm Thk
1
12
409864
SEALING RING 82.55mm ID x 90mm OD x 3.2mm Thk
1
13
44604
CLUTCH HOUSING
1
14
43083
OIL SCRAPER RING Split,83.02mm ID x 90mm OD
3
15
44364
Transmission Carrier Housing Range command
1
HUB
44607 400301 400300 400299 42161 44004 400291 400292 400290 400289 43790 409864 44604 43083 44364
49 VISIT QTPONLINE.COM TO VIEW OUR FULL RANGE OF PRODUCTS
1
Short Wheelbase Full Powershift Transmission A Clutch Pack
50 Original equipment, manufacturers names and part numbers are quoted for reference purposes only and are not intended to infer that our replacement parts are used as original equipment.
Short Wheelbase Full Powershift Transmission A Clutch Pack
Short Wheelbase Full Powershift Transmission A Clutch Pack #
QTP
Part Name
Qty
1
42164
GASKET 55mm ID x 90mm OD x55 x 90 x 10 10mm Thk, 2 lip seals
1
2
400298
CIRCLIP M90, Int, BLO
2
3
400297
BALL BEARING 55mm ID x 90mm OD x 18mm W
1
4
400296
CIRCLIP M55, Ext
1
5
43083
OIL SCRAPER RING Split, 83.02mm ID x 90mm OD x
2
6
ATO
CLUTCH HOUSING Incl. 7,10
1
7
400294
BALL 7.14mm D, Gr 100
2
8
43104
GASKET 79.97mm ID x 87.5mm OD x 3.2mm Thk
1
9
43081
GASKET 144.55mm ID x 152.06mm OD x 3.2mm Thk
1
10
401387
LOCK PIN M2 x 10, Slotted
1
11
44004
SPRING 173mm OD x 1.27mm Thk
7
12
400292
CIRCLIP 2mm Thk D=68
1
13
400291
RETAINER CUP 68mm ID x 78mm OD x 3mm Thk
1
14
400290
SPRING Belleville, 68mm ID x 1.9mm Thk
7
15
401642
PISTON
1
16
680298
CLUTCH OVERHAUL KIT
1
17
400288
CIRCLIP M100, Int, BLO
1
18
400287
SNAP RING M70, Ext
1
19
43085
BALL BEARING 70mm ID x 100mm OD x 16mm W
1
20
400286
WASHER 70mm ID x 95mm OD -x 1mm Thk
1
21
401388
HUB
1
42164 400298 400297 400296 43083 400294 43104 43081 401387 44004 400292 400291 400290 401642 680298 400288 400287 43085 400286 401388
51 [47] VISIT QTPONLINE.COM TO VIEW OUR FULL RANGE OF PRODUCTS
Short Wheelbase Full Powershift Transmission B Clutch Pack
15
52 Original equipment, manufacturers names and part numbers are quoted for reference purposes only and are not intended to infer that our replacement parts are used as original equipment.
Short Wheelbase Full Powershift Transmission B Clutch Pack #
QTP
Part Name
Qty
1
401408
HUB
1
2
400301
CIRCLIP M175, Int, BLO
1
3
400300
SNAP RING 168mm, 2mm Thk, Int
1
4
400299
THRUST PLATE 53T, 173mm OD
1
5
680289
CLUTCH OVERHAUL KIT
1
6
44004
SPRING 173mm OD x 1.27mm Thk
7
7
400291
RETAINER CUP 68mm ID x 78mm OD x 3mm Thk
1
8
400292
CIRCLIP 2mm Thk
2
9
400290
SPRING Belleville, 68mm ID x 1.9mm Thk
7
10
401409
PISTON 80mm ID x 152mm OD x 30.5mm Thk
1
11
43081
GASKET 144.55mm ID x 152.06mm OD x 3.2mm Thk
1
12
43104
GASKET 79.97mm ID x 87.5mm OD x 3.2mm Thk
1
13
44391
CLUTCH HOUSING
1
14
43083
OIL SCRAPER RING Split, 83.02mm ID x 90mm OD x
3
15
401658
Transmission Carrier Housing Full Powershift Transmission
1
401408 400301 400300 400299 680289 44004 400291 400292 400290 401409 43081 43104 44391 43083 401658
53 VISIT QTPONLINE.COM TO VIEW OUR FULL RANGE OF PRODUCTS
54 Original equipment, manufacturers names and part numbers are quoted for reference purposes only and are not intended to infer that our replacement parts are used as original equipment.
401117 401118 401119 401120 400516 401121 401122 401123 401124 401125 400520 400519 401126 44286 44292 44289 44287 44288 400518 401127 400518 401127 400166 43067 401128
55 VISIT QTPONLINE.COM TO VIEW OUR FULL RANGE OF PRODUCTS
Semi & Full Powershift Assembly orientation for C, D, E Packs and Shaft
Install the “E" clutch pack ensuring that the oil gallery marking is in line with those on the C/D clutch assembly.
Carefully push the lower the clutch packs ensuring that the marking hole is in line with the markings on the clutch packs.
56 Original equipment, manufacturers names and part numbers are quoted for reference purposes only and are not intended to infer that our replacement parts are used as original equipment.
Looking for a specific part? Phone: +353 44 934 1638 Email: web@qtponline.com
online.com
58 Original equipment, manufacturers names and part numbers are quoted for reference purposes only and are not intended to infer that our replacement parts are used as original equipment.
401096 401097 401038 401098 401099 401100 55135 400347 400352 3408 400348 401355
59 VISIT QTPONLINE.COM TO VIEW OUR FULL RANGE OF PRODUCTS
60 Original equipment, manufacturers names and part numbers are quoted for reference purposes only and are not intended to infer that our replacement parts are used as original equipment.
401102 401033 401035 401032 43947 401103 401104 43950 401105 401106 401107 42183 43949 401108 42184 43946
61 VISIT QTPONLINE.COM TO VIEW OUR FULL RANGE OF PRODUCTS
62 Original equipment, manufacturers names and part numbers are quoted for reference purposes only and are not intended to infer that our replacement parts are used as original equipment.
401393 401110 401356 43067 401034 401035 401033 401357 401032 43947 401032 43947 401103 43946 43949 43950 401105 401106 401107 42183 401116
63 VISIT QTPONLINE.COM TO VIEW OUR FULL RANGE OF PRODUCTS
64 Original equipment, manufacturers names and part numbers are quoted for reference purposes only and are not intended to infer that our replacement parts are used as original equipment.
401158 401159 43949 43950 43946 401160 401161 400305 43947 401162 401032 44323 401107 401106 401163 400077 401134 44500 401164 401142 409806 401138 401139 401137 60112RS 409805 400346 401166 43083 43791 400342 401167 401168
65 VISIT QTPONLINE.COM TO VIEW OUR FULL RANGE OF PRODUCTS
66 Original equipment, manufacturers names and part numbers are quoted for reference purposes only and are not intended to infer that our replacement parts are used as original equipment.
Looking for a specific part? Phone: +353 44 934 1638 Email: web@qtponline.com
online.com
68 Original equipment, manufacturers names and part numbers are quoted for reference purposes only and are not intended to infer that our replacement parts are used as original equipment.
401129 401130 400344 400345 401131 400298 401132 43083 401133 400077 401134 44322 401135 400305 401032 43947 401136 401137 401138 401139 409806 60112RS 401140 401141 401142 401143 401144 401145 401146 401147 401148 401149
69 VISIT QTPONLINE.COM TO VIEW OUR FULL RANGE OF PRODUCTS
70 Original equipment, manufacturers names and part numbers are quoted for reference purposes only and are not intended to infer that our replacement parts are used as original equipment.
401150 401151 401152 43791 43083 43949 400077 401134 44322 43946 400305 401032 43947 401153 401137 401139 401138 409806 401154 401155 400343 400298 401156
71 VISIT QTPONLINE.COM TO VIEW OUR FULL RANGE OF PRODUCTS
401157
72 Original equipment, manufacturers names and part numbers are quoted for reference purposes only and are not intended to infer that our replacement parts are used as original equipment.
73 VISIT QTPONLINE.COM TO VIEW OUR FULL RANGE OF PRODUCTS
44499 43604 43835 43091
74
Original equipment, manufacturers names and part numbers are quoted for reference purposes only and are not intended to infer that our replacement parts are used as original equipment.
Looking for a specific part? Phone: +353 44 934 1638 Email: web@qtponline.com
online.com
76 Original equipment, manufacturers names and part numbers are quoted for reference purposes only and are not intended to infer that our replacement parts are used as original equipment.
400361 401346 401235 401338 401342 401339 400370 401345 401340 401349 42267 401347
77 VISIT QTPONLINE.COM TO VIEW OUR FULL RANGE OF PRODUCTS
78 Original equipment, manufacturers names and part numbers are quoted for reference purposes only and are not intended to infer that our replacement parts are used as original equipment.
401348 400364 401351 400362 401350 400363 401349 400353
79 VISIT QTPONLINE.COM TO VIEW OUR FULL RANGE OF PRODUCTS
Short Wheelbase Full Powershift Transmission control valves
80 Original equipment, manufacturers names and part numbers are quoted for reference purposes only and are not intended to infer that our replacement parts are used as original equipment.
Short Wheelbase Full Powershift Transmission control valves
Short Wheelbase Full Powershift Transmission control valves #
QTP
Part Name
Description
Qty
1 2 3 4 5 6 7 8 9 10 11 12 13
ATO ATO ATO ATO ATO 4000363 400364 401351 ATO 401693 401694 401349 401350
-
1 1 1 1 1 6 3 1 1 1 1 1 2
14 15 16 17 18 19 20 21
ATO ATO ATO ATO 400353 401348 400362 401695
HYD TUBE 171mm L HYD CONNECTOR Hex, M12 x ASSY, Incl 3, 4 1.25 HYD CONNECTOR M12 x 1.25 Lubrication PLUG Taper, M12 x 1.25 x 11mm -L, STL, ZND HYD TUBE 194mm L O-RING 14mm ID x 1.78mm Thk, -NBR CIRCLIP 16.2mm ID x 18mm OD O-RING 0.103'' Thk x 0.549'' ID, --113, Cl 5, 75 Duro FITTING BANJO BOLT M14 x 1.5, M12 x 1.5, 61mm L CAP Banjo Fitting, M12 x 1.5, R50, ZND O-RING 11.3mm ID x 2.4mm Thk, HNBR SEALING WASHER 12.2mm ID x -18mm OD x 1.5mm Thk, Copper HYD TUBE 318.5mm L HYD TUBE 379mm L HYD TUBE 153mm L HYD TUBE 220mm L O-RING 0.139'' Thk x 0.609'' ID, --208, 70 Duro O-RING 12.42mm ID x 1.78mm O-RING 12.4mm ID x 2.62mm Thk, NBR O-RING 0.139'' Thk x 0.859'' ID, --212, Cl 5, 75 Duro
Lubrication
Pressure Check Pressure Check -
Drain Lubrication Lubrication Lubrication -
4000363 400364 401351 401693 401694 401349 401350 400353 401348 400362 401695
81 VISIT QTPONLINE.COM TO VIEW OUR FULL RANGE OF PRODUCTS
1 1 3 1 1 11 1 1
82 Original equipment, manufacturers names and part numbers are quoted for reference purposes only and are not intended to infer that our replacement parts are used as original equipment.
401109
Part Name
401109 401110 401356 43067 401034 401035 401033 401357 400355 401113 401114 43950 401115 401106 42183 43949 401116 401107 401032 43947 401103 43946
83 VISIT QTPONLINE.COM TO VIEW OUR FULL RANGE OF PRODUCTS
84 Original equipment, manufacturers names and part numbers are quoted for reference purposes only and are not intended to infer that our replacement parts are used as original equipment.
401169 400516 401170 401171 401172 401173 401174 401175 401176 401177 401178 401179 32306 41725R 401180 401181 400515 401182 401183 4011184 401185 401186 401187 41648 401188 400514 43087 401189
85 VISIT QTPONLINE.COM TO VIEW OUR FULL RANGE OF PRODUCTS
86 Original equipment, manufacturers names and part numbers are quoted for reference purposes only and are not intended to infer that our replacement parts are used as original equipment.
87 VISIT QTPONLINE.COM TO VIEW OUR FULL RANGE OF PRODUCTS
Semi Powershift transmission Selector forks
88 Original equipment, manufacturers names and part numbers are quoted for reference purposes only and are not intended to infer that our replacement parts are used as original equipment.
Semi Powershift transmission Selector forks
43027 41651 401677 401678 401679 7398 41652 44189 41944 401609 401680 401681 401682 401683 401684 401255 401685 401686 401687 401591 401688 401689 409705
89 VISIT QTPONLINE.COM TO VIEW OUR FULL RANGE OF PRODUCTS
41
90 Original equipment, manufacturers names and part numbers are quoted for reference purposes only and are not intended to infer that our replacement parts are used as original equipment.
401591 400370 401343 401344 401341 401349 401339 401342 401338 401235 401340 401346 43604 43835
91 VISIT QTPONLINE.COM TO VIEW OUR FULL RANGE OF PRODUCTS
92 Original equipment, manufacturers names and part numbers are quoted for reference purposes only and are not intended to infer that our replacement parts are used as original equipment.
BS117 43607
93 VISIT QTPONLINE.COM TO VIEW OUR FULL RANGE OF PRODUCTS
94 Original equipment, manufacturers names and part numbers are quoted for reference purposes only and are not intended to infer that our replacement parts are used as original equipment.
95 VISIT QTPONLINE.COM TO VIEW OUR FULL RANGE OF PRODUCTS
96 Original equipment, manufacturers names and part numbers are quoted for reference purposes only and are not intended to infer that our replacement parts are used as original equipment.
97 VISIT QTPONLINE.COM TO VIEW OUR FULL RANGE OF PRODUCTS
401395 400359 401356 400360 401396 401397 400298 391162 401398 401399 401400
98 Original equipment, manufacturers names and part numbers are quoted for reference purposes only and are not intended to infer that our replacement parts are used as original equipment.
Looking for a specific part? Phone: +353 44 934 1638 Email: web@qtponline.com
online.com
100 Original equipment, manufacturers names and part numbers are quoted for reference purposes only and are not intended to infer that our replacement parts are used as original equipment.
401094 400298 400297 400296 43083 401410 13104 43081 401387 44004 400292 400291 400290 401642 680298 400288 400287 43085 400286 401388 400517
101 VISIT QTPONLINE.COM TO VIEW OUR FULL RANGE OF PRODUCTS
15 102 Original equipment, manufacturers names and part numbers are quoted for reference purposes only and are not intended to infer that our replacement parts are used as original equipment.
401408 400301 400300 400299 680298 44004 400291 400292 400290 401409 43081 43104 44391 43083 401659
103 VISIT QTPONLINE.COM TO VIEW OUR FULL RANGE OF PRODUCTS
104 Original equipment, manufacturers names and part numbers are quoted for reference purposes only and are not intended to infer that our replacement parts are used as original equipment.
401401 55135 401402 401097 401098 400348 401038 400347 3408 401100
105 VISIT QTPONLINE.COM TO VIEW OUR FULL RANGE OF PRODUCTS
106 Original equipment, manufacturers names and part numbers are quoted for reference purposes only and are not intended to infer that our replacement parts are used as original equipment.
401403 401035 401033 401032 43947 401103 43946 43950 401105 401106 401107 42183 43949 401108 42184
107 VISIT QTPONLINE.COM TO VIEW OUR FULL RANGE OF PRODUCTS
108 Original equipment, manufacturers names and part numbers are quoted for reference purposes only and are not intended to infer that our replacement parts are used as original equipment.
401390 401110 401391 43067 401034 401035 401033 401392 401032 43947 401103 43946 43950 401105 401106 42183 43949 401393 401107 401394 401159 401356
109 VISIT QTPONLINE.COM TO VIEW OUR FULL RANGE OF PRODUCTS
110 Original equipment, manufacturers names and part numbers are quoted for reference purposes only and are not intended to infer that our replacement parts are used as original equipment.
401405 401120 401119 401118 401406 401407 401122 401418 401419 401125 400520 400519 401420 401421 44292 44289 44287 44288 400166 401127 400518 401422 401124 401423
111 VISIT QTPONLINE.COM TO VIEW OUR FULL RANGE OF PRODUCTS
112 Original equipment, manufacturers names and part numbers are quoted for reference purposes only and are not intended to infer that our replacement parts are used as original equipment.
401134 43949 400077 43946 400305 401032 43947 44500 401138 401137 401415 400342 401164 401142 60112RS 401165 401416 43083 401166 400346 43791 401417 409806 401139 5138520
113
VISIT QTPONLINE.COM TO VIEW OUR FULL RANGE OF PRODUCTS
114 Original equipment, manufacturers names and part numbers are quoted for reference purposes only and are not intended to infer that our replacement parts are used as original equipment.
Looking for a specific part? Phone: +353 44 934 1638 Email: web@qtponline.com
online.com
116 Original equipment, manufacturers names and part numbers are quoted for reference purposes only and are not intended to infer that our replacement parts are used as original equipment.
401163 401161 401162 401106 401107 43947 401032 400305 43946 43949 43950 401160 401356 401159 400051 401389
117 VISIT QTPONLINE.COM TO VIEW OUR FULL RANGE OF PRODUCTS
118 Original equipment, manufacturers names and part numbers are quoted for reference purposes only and are not intended to infer that our replacement parts are used as original equipment.
401641 401151 401152 401134 43949 400077 43946 400305 401032 43947 401153 401154 43791 401155 400298 400343 401643 401137 401138 401139 409806 43083 401157
119 VISIT QTPONLINE.COM TO VIEW OUR FULL RANGE OF PRODUCTS
401156
120 Original equipment, manufacturers names and part numbers are quoted for reference purposes only and are not intended to infer that our replacement parts are used as original equipment.
121 VISIT QTPONLINE.COM TO VIEW OUR FULL RANGE OF PRODUCTS
122 Original equipment, manufacturers names and part numbers are quoted for reference purposes only and are not intended to infer that our replacement parts are used as original equipment.
43947 401032 400305 401135 400077 43949 401134 401404 43083 401132 400298 401131 400345 400344 401130 401133 401136 44322 401141 401137 401138 401139 409806 60112RS 401140 401142 401411 401412 401413 401146 401147 401148 401149 401414
123 VISIT QTPONLINE.COM TO VIEW OUR FULL RANGE OF PRODUCTS
124 Original equipment, manufacturers names and part numbers are quoted for reference purposes only and are not intended to infer that our replacement parts are used as original equipment.
401235 401531 401266 401348 401527 43607 401345 400370 400362 401346 401339 42267 401347 401349 401338 43604
125 VISIT QTPONLINE.COM TO VIEW OUR FULL RANGE OF PRODUCTS
126 Original equipment, manufacturers names and part numbers are quoted for reference purposes only and are not intended to infer that our replacement parts are used as original equipment.
127 VISIT QTPONLINE.COM TO VIEW OUR FULL RANGE OF PRODUCTS
128 Original equipment, manufacturers names and part numbers are quoted for reference purposes only and are not intended to infer that our replacement parts are used as original equipment.
Looking for a specific part? Phone: +353 44 934 1638 Email: web@qtponline.com
online.com
130 Original equipment, manufacturers names and part numbers are quoted for reference purposes only and are not intended to infer that our replacement parts are used as original equipment.
44004 400292 400291 400290 400289 44321 400298 400296 60112RS 401080 400637 44336 409864 43790 401082 400301 400300 401083 401084 43083 401085 44136 400180 401086 401087
131 VISIT QTPONLINE.COM TO VIEW OUR FULL RANGE OF PRODUCTS
132 Original equipment, manufacturers names and part numbers are quoted for reference purposes only and are not intended to infer that our replacement parts are used as original equipment.
401424 401425 43193 401426 401427 401428 401429 60092RS 401430 401431 43573 401432 401433 401434 400298 391162 401399 401436 55455 401437
133 VISIT QTPONLINE.COM TO VIEW OUR FULL RANGE OF PRODUCTS
134 Original equipment, manufacturers names and part numbers are quoted for reference purposes only and are not intended to infer that our replacement parts are used as original equipment.
401438 401439 401440 401441 401442 401443 401444 401445 401446 401447 401448 401449 401450 401452 401453
135 VISIT QTPONLINE.COM TO VIEW OUR FULL RANGE OF PRODUCTS
136 Original equipment, manufacturers names and part numbers are quoted for reference purposes only and are not intended to infer that our replacement parts are used as original equipment.
401454 401455 401456 401457 401146 401458 401459 401460 401460 401460 401461 401462 401463 401464 400298 391162 43574 401465
401466 401159 401467 44290 401468 401469 401470 401471 401472 401473 401474
137 VISIT QTPONLINE.COM TO VIEW OUR FULL RANGE OF PRODUCTS
138 Original equipment, manufacturers names and part numbers are quoted for reference purposes only and are not intended to infer that our replacement parts are used as original equipment.
401475 401476 401477 401478 401479 401480 401035 401481 401482 401483 401299 401484 401485 409806 401486 401488 401033 401489 401490
139 VISIT QTPONLINE.COM TO VIEW OUR FULL RANGE OF PRODUCTS
140 Original equipment, manufacturers names and part numbers are quoted for reference purposes only and are not intended to infer that our replacement parts are used as original equipment.
401491 401492 401493 409864 401494 409863 401489 401486 401485 401482 401299 401484 401483 401477 401488 401495 401496 401497 401487 401033 401490 401035 409806 401498 401499 43866 401500 401501 401502 401503 401491
141 VISIT QTPONLINE.COM TO VIEW OUR FULL RANGE OF PRODUCTS
142 Original equipment, manufacturers names and part numbers are quoted for reference purposes only and are not intended to infer that our replacement parts are used as original equipment.
401504 401505 401351 401506 401507 401508 401509 401510 401511 401339 7859 401512 401513
143 VISIT QTPONLINE.COM TO VIEW OUR FULL RANGE OF PRODUCTS
144 Original equipment, manufacturers names and part numbers are quoted for reference purposes only and are not intended to infer that our replacement parts are used as original equipment.
401514 401515 401516 401517 401518 401519 401520 401521 401522 400370 401523 401524 401525 401526 401340 401527 401339 401234 401528 401529 7850 401530 401531 401532 401351 401194 401533 43607 43604
145 VISIT QTPONLINE.COM TO VIEW OUR FULL RANGE OF PRODUCTS
146 Original equipment, manufacturers names and part numbers are quoted for reference purposes only and are not intended to infer that our replacement parts are used as original equipment.
43866 401496 401547 401036 401544 401545 43473 409885 400076 401543 401542 401541 501540 401539 401538 401537 401536 401535 409863 401551
147 VISIT QTPONLINE.COM TO VIEW OUR FULL RANGE OF PRODUCTS
148 Original equipment, manufacturers names and part numbers are quoted for reference purposes only and are not intended to infer that our replacement parts are used as original equipment.
401552 401553 401501 401554 401555 401556 401557 401558 401559 401560 401561 401562 401563 401564 401565 401566 401567 401568 401569 401570 401571 401572 401574 401573 401574 401575 401578 401576 401577 401578 401579 401580 401581
149 VISIT QTPONLINE.COM TO VIEW OUR FULL RANGE OF PRODUCTS
150 Original equipment, manufacturers names and part numbers are quoted for reference purposes only and are not intended to infer that our replacement parts are used as original equipment.
401582 401583 401640 401585 401586 401587 401588 401589 401590 401591 401592 401593 401594 401595 7398 401596 41652 401597 401598 401599 401600 401601 401602 401603 401604 401605 401444 401606 401607 401608 401609 401610 401611 401612
151 VISIT QTPONLINE.COM TO VIEW OUR FULL RANGE OF PRODUCTS
152 Original equipment, manufacturers names and part numbers are quoted for reference purposes only and are not intended to infer that our replacement parts are used as original equipment.
401613 401614 401615 401616 401617 401618 401619 401620 401621 401622 401623 401624 401625 401626 401627 401628 401629 401630 401631 401632 401633 401634 401635 401636 401637 401638 401639 401652
153 VISIT QTPONLINE.COM TO VIEW OUR FULL RANGE OF PRODUCTS
Transmission Clutch Dampers
41036 404892L 43469 44032 42972 43470 52231 44285 42971 41863
154 Original equipment, manufacturers names and part numbers are quoted for reference purposes only and are not intended to infer that our replacement parts are used as original equipment.
Looking for a specific part? Phone: +353 44 934 1638 Email: web@qtponline.com
online.com
43796 42122 404893 402820 41258 41260 42239R 400235 44175
156 Original equipment, manufacturers names and part numbers are quoted for reference purposes only and are not intended to infer that our replacement parts are used as original equipment.
42122 41260 402820 404893 7143
157 VISIT QTPONLINE.COM TO VIEW OUR FULL RANGE OF PRODUCTS
41260 42122 404893 43796
400235 44175
158 Original equipment, manufacturers names and part numbers are quoted for reference purposes only and are not intended to infer that our replacement parts are used as original equipment.
Looking for a specific part? Phone: +353 44 934 1638 Email: web@qtponline.com
online.com
CNH
GEARBOXES
Produced by Quality Tractor Parts
