CATALOGUE

BALL JOINTS & TRACK ROD ENDS

CONTENTS BALL JOINTS

3–5

TRACK ROD ENDS

6–83

John Deere

6–13

Massey Ferguson

14–21

Ford New Holland

22–30

Case

31–40

David Brown

41–42

Deutz

43-49

Fendt

50-55

Fiat

56-58

Hurlimann

JCB

Lamborghini

Landini

62-65

Leyland

Manitou

67-69

McCormick

Nuffield

Renault

72-76

Same

77-78

Steyr

79-80

Universal

Valmet

81-82

Zetor

82-83

Original equipment manufacturer names and part numbers are quoted for reference purposes only and are not intended to infer that our replacement parts are used as original equipment.

BALL JOINTS

Ver 7.7

Mod 12-08-22

Axle

Track Rod

BALL JOINTS

Part No.

Compatibility

Length

Axle

Track rod

OE Ref

58350

Ball Joint John Deere 6R 6M Series

249mm

M30

M28

AL220297

300095

Ball Joint Fendt 900 Vario Favorit 800 Turbos Com 1 Series

240mm

M30x1.5 RH

M28x1.5 RH

F926301100010

240mm

M22x1.5 RH

M24x1.5 RH

AL150907

240mm

M26x1.5 RH

M28x1.5 RH

AL209479

240mm

M26x1.5 RH

M28x1.5 RH

AL220359

235mm

M26x1.5 RH

M28x1.5 RH

AL160202

55515

Ball Joint Inner Fendt Favorit 800 Turboshaft Favorit 900 Vario Com 1 Manitou Loader Various Series 55514 / 300093 / 300094 – Track Rods to suit

235mm

M30x1.5 RH

M28x1.5 RH

661500

300037

Ball Joint John Deere 40 50 6000 6010 6020 7000 7005 Same Diamond Lamborghini R8 Victory Deutz Agrotron Agrotron MKIII Series

230mm

M24x1.5 RH

M28x1.5 RH

4435178

3176

Ball Joint Ford TW25 APL 365 John Deere 50 40 6010 6020 Deutz Agrotron Agrotron MKIII Agrotron New Series 3129 – Track Rod to suit

230mm

M24x1.5 RH

M28x1.5 RH

87494461

55184

Ball Joint JCB Telehandler 520 530 540 Series 55183 – Track Rod to suit

230mm

M22x1.5 RH

M28x1.5 RH

38717046

58349 – Track Rod to suit

300096 – Track Rod to suit

58131

Ball Joint John Deere 6005 6030 6E 6D 6M 6R Series

58574

Ball Joint John Deere 6R Series

57852

59316

58130 – Track Rod to suit

58573 – Track Rod to suit Ball Joint John Deere 6R 6M Series 57853 – Track Rod to suit Ball Joint John Deere6020 6030 7020 7030 6005 6M 6R Same Diamond Lamborghini Victory Deutz Agrotron Agrotron MKIII Series 59315 – Track Rod to suit

Mod 12-08-22

Ver 7.7

BALL JOINTS

Original equipment manufacturer names and part numbers are quoted for reference purposes only and are not intended to infer that our replacement parts are used as original equipment.

Axle

Track Rod

BALL JOINTS

Part No.

Compatibility

Length

Axle

Track rod

OE Ref

59785

Ball Joint John Deere 40 50 55 6000 6010 6020 7000 7005 7010 6J Case 2000 3000/3200 Utility 96 Deutz Agrotron Agrotron MKIII Agrotron New Series 59784 / 59786 / 59787 – Track Rods to suit

230mm

M24x1.5 RH

M28x1.5 RH

AL68253

220mm

M24x1.5 RH

M26x1.5 RH

F716300100040

215mm

M26x1.5 RH

M24x1.5 RH

AL161341

300049

Ball JointFendt Xylon Favorit 800 Turboshift Farmer 400 Vario Favorit 700 800 Vario Valtra / Valmet N Series 64796 / 64797 / 300089 / 300090 – Track Rods to suit

58671

4 Cylinder Inner Ball Joint John Deere 6020 6030 Series

55502

Ball Joint Manitou Loader Various Series

215mm

M22x1.5 RH

M24x1.5 RH

474235

53951

Ball Joint Steyr 8000 Deutz Agroprima DX4 DX3-SC DX3-V/F/S DX3-VC Series

210mm

M22x1.5 RH

4358287

210mm

M22x1.5 RH

M24x1.5 RH

F385300100020

300088

3144

58670 – Track Rod to suit

Track Rod End Fendt Favorit 600 Series 300043 – Inner Tie Rod Ball Joint Massey Ferguson 300 3000 600 3600 4200 6100 6200 6400 7400 8100 8200 3100 Ford New Holland 10 40 TL TL70 TW John Deere 50 40 5020 6000 6010 6020 6030 7000 7010 51 5R 6J Case MX Maxxum Series

QT P

BEST SE L L

210mm

M22x1.5 RH

M24x1.5 RH

83957792 83957096

210mm

M22

M24

83957796

210mm

M20x1.5 RH

M24x1.5 RH

700545A1

See website for Inner Tie Rods

2825

Ball Joint Case Maxxum Ford New Holland 10 40 McCormick MTX MC Series 53819 – Nut

64611

Ball Joint Case CS/CS Pro CVX Landini Legend Steyr 9100 CVT 100 Series 6829 / 52795 – Track Rods to suit

Original equipment manufacturer names and part numbers are quoted for reference purposes only and are not intended to infer that our replacement parts are used as original equipment.

BALL JOINTS

Ver 7.7

Mod 12-08-22

Axle

Track Rod

BALL JOINTS

Part No.

Compatibility

Length

Axle

Track rod

OE Ref

780159

Ball Joint Case CS/CS Pro Deutz Agroprima Agrostar DX6 Agroxtra Agrotron 6 Valtra / Valmet 6000 8000 M T 700 900 600 800 500 300 400 200 Renault Ceres Cergos Series 780192 – Track Rod to suit

210mm

M22x1.5 RH

6005009895

300042

Ball Joint Fendt Farmer 300 C/CA LSA Turbomatik Series 680296 / 680297 / 300091 / 300092 – Track Rods to suit

190mm

M20x1.5 RH

M22x1.5 RH

F380306100010

4255

Ball Joint Ford New Holland 10 30 Case CS/CS Pro CX 95/Utility 3000/3200 Utility Steyr M Series

180mm

M20x1.5 RH

M18x1.5 LH

1966127C1

59960

Ball Joint John Deere 6000 Case 43 44 45 56 68 85/Utility 95/Utility BD Series 59961 / 59963 / 59964 / 300047 / 300048 – Track Rods to suit

180mm

M20x1.5 RH

M22x1.5 RH

AL80541

6463

Ball Joint Massey Ferguson 200 300 300 4200 5400 6100 6200 6400 3100 4300 Ford New Holland 10 30 John Deere 50 Case CX Maxxum MX CS/CS Pro 95/Utility 4000/4200 Utility 3000/3200 Utility Series

180mm

M20x1.5 RH

M18x1.5 RH

3426312M1 CAR49001

6537

Ball Joint Inner Massey Ferguson 300 4200 4300 Landini 30 Atlantis Atlas Ghibli Vision Powerfarm Meccanico Tier 2 Vision Tier 2 Series 67284 – Track Rod to suit

180mm

M18x1.5 RH

3428268M1

780197

Ball Joint Renault / Claas Dionis 50 70 80 Series

138mm

M20x1.5 LH

M18x1.5 LH

6000103044

780198

Ball Joint Renault / Claas Dionis 50 70 80 Series

137mm

M20x1.5 RH

M18x1.5 RH

6000103045

Mod 12-08-22

Ver 7.7

QT P

BALL JOINTS

BEST SE L L

Original equipment manufacturer names and part numbers are quoted for reference purposes only and are not intended to infer that our replacement parts are used as original equipment.

Track Rod Ends John Deere

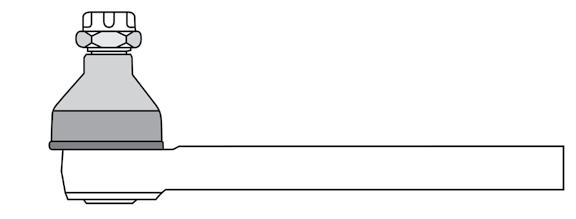

JOHN DEERE TRACK ROD ENDS Type TypeAA

TYPE A

B: B: External External thread thread

Track Rod Ends

Overall length length (end (end to to centre) centre) A: Overall A:

Part No.

Compatibility

OE Ref

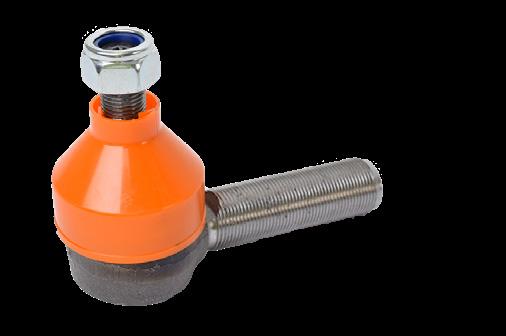

300097

Track Rod End Right Hand John Deere 50 55 7000 Series

157mm

1 1/8” UNF

RE12325

300098

Track Rod End Left Hand John Deere 50 55 7000 Series

157mm

1 1/8” UNF LH

RE12326

58756

Track Rod End John Deere 40 50 Series

125mm

M24x1.5 RH

AL178019

60001

Track Rod End John Deere 30 40 50 55 60 6M 6R 7000 7010 7020 7030 Series

125mm

1" LH

26/497-53

780154

Track Rod End John Deere 20 30 40 Series

106mm

M24x1.5 RH

6000187031

Original equipment manufacturer names and part numbers are quoted for reference purposes only and are not intended to infer that our replacement parts are used as original equipment.

TRACK ROD ENDS

Ver 7.7

Mod 12-08-22

Track Rod Ends John Deere Type TypeAA

TYPE A

B: B: External thread

Track Rod Ends

Overalllength length(end (endto tocentre) centre) A:Overall A:

Part No.

Compatibility

OE Ref

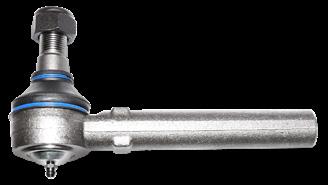

300021

Track Rod End John Deere 20 30 40 50 55 Series

105mm

M24x1.5 RH

AL110074 AL82826

780153

Track Rod End John Deere 20 30 40 Series

105mm

M24x1.5 LH

6000188759

300084

Track Rod End John Deere 20 Series

100mm

M20x1.5

AL39029

780146

Track Rod End John Deere 5000 5005 5010 5015 5G 5GV Series

100mm

M20x1.5 RH

6000100833

57875

Track Rod End John Deere 10 20 4000 Series

100mm

W1"x16 LH

LVA17027

55492

Track Rod End John Deere 5000 5005 5010 5015 5G 5GV Series

95mm

M20x1.5 LH

3131021R1

Mod 12-08-22

Ver 7.7

TRACK ROD ENDS

Original equipment manufacturer names and part numbers are quoted for reference purposes only and are not intended to infer that our replacement parts are used as original equipment.

Track Rod Ends John Deere

B: Internal thread

TYPE B

A: Overall length (end to centre)

Track Rod Ends

Part No.

Compatibility

OE Ref

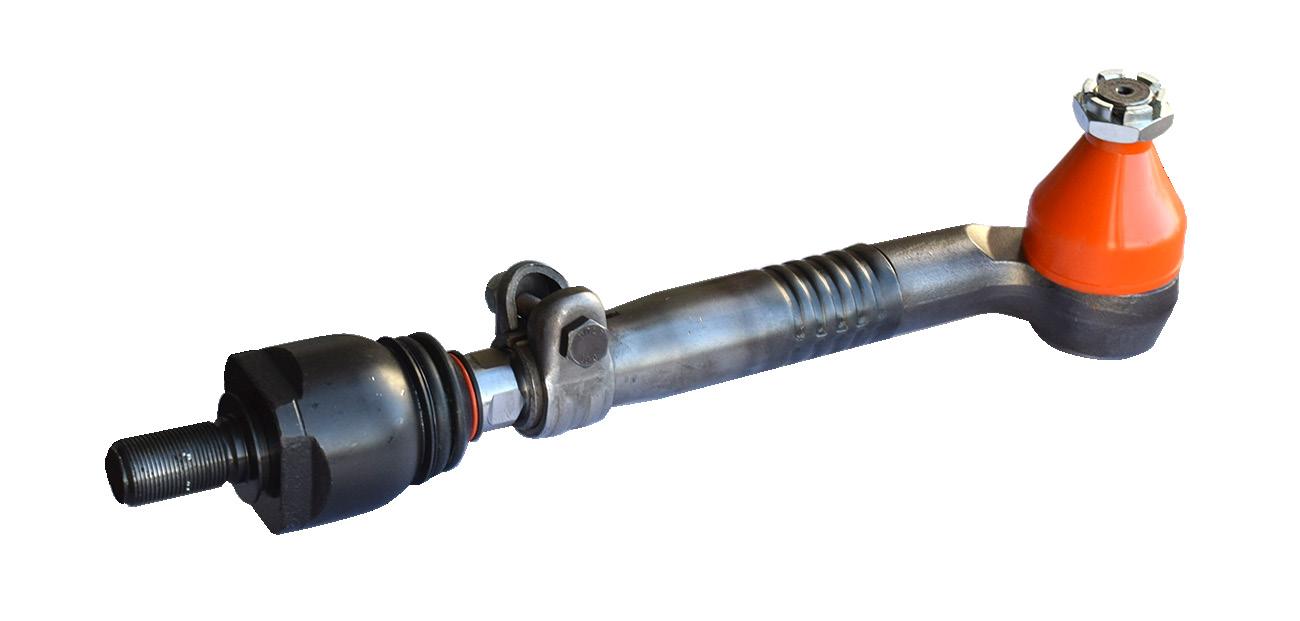

57853

Track Rod End 3 Piece John Deere 6R 6M Series Axle Type 750/208 209 255 256 316 317 Up to SN 866615 57852 – Ball Joint to suit

225mm

M28x1.5 RH

AL220365

145mm

M24x1.5 RH

AL150906

75mm

M24x1.5 RH

AL32866

58130

Track Rod End John Deere 6E 6D 6M 6R 6005 6030 Series

300031

Track Rod End John Deere 40 Series

58131 – Ball Joint to suit

TYPE C

B: Internal thread

Track Rod Ends

A: Overall length (end to centre) Part No.

Compatibility

OE Ref

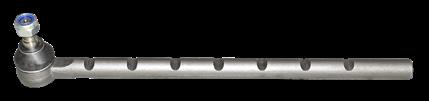

300081

Track Rod End John Deere 20 Series

370mm

Ø20

AL39027

300080

Track Rod End John Deere 20 30 40 50 55 Series

310mm

Ø20 11 Holes

AL39022

59782

Track Rod End John Deere 40 50 55 Series

285mm

M18x1.5

AL39319

6463 – Ball Joint to suit

Original equipment manufacturer names and part numbers are quoted for reference purposes only and are not intended to infer that our replacement parts are used as original equipment.

TRACK ROD ENDS

Ver 7.7

Mod 12-08-22

Track Rod Ends John Deere

TYPE C

B: Internal thread

Track Rod Ends

A: Overall length (end to centre) Part No.

Compatibility

OE Ref

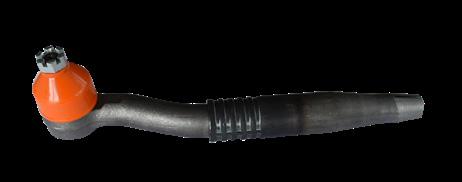

58349

Track Rod End John Deere 6M 6R Series

240mm

M22x1.5

AL224306

59315

Track Rod End John Deere 6020 6030 7020 7030 6M 6R Series

225mm

M28x1.5 RH

AL209601

59784

Track Rod End John Deere 6000 6010 6020 6010 Series

225mm

M28x1.5 RH

AL110923

58573

Track Rod End John Deere 6R Series

210mm

M28x1.5 RH

AL209329

58940

Track Rod End John Deere 6M 6R 6RC Series

200mm

M24x1.5 RH

AL211652

780194

Track Rod End John Deere 5003 5005 5015 5020 5025 Series

200mm

M18x1.5 RH

6000103260

59296

Track Rod End Outer John Deere 5020 Series

195mm

M24x1.5 RH

AL178288

58670

Track Rod End John Deere 6020 6030 Series

175mm

M24x1.5 RH

AL161338

51263

Track Rod End John Deere 5000 5010 5020 Series

173mm

M18x1.5 LH

81878543

172mm

M18x1.5 RH

137048A1

58350 – Ball Joint to suit

59316 – Ball Joint to suit

59785 – Ball Joint to suit

58574 – Ball Joint to suit

3144 – Ball Joint to suit

3144 / 58671 – Ball Joints to suit

4255 / 6463 – Ball Joints to suit Track Rod End John Deere 5000 5010 5020 Series

51262

Mod 12-08-22

4255 / 6463 – Ball Joints to suit

Ver 7.7

TRACK ROD ENDS

Original equipment manufacturer names and part numbers are quoted for reference purposes only and are not intended to infer that our replacement parts are used as original equipment.

Track Rod Ends John Deere

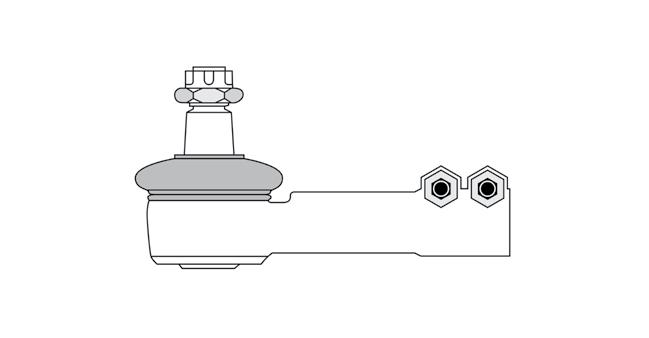

TYPE D

B: Internal thread/diameter

Track Rod Ends

A: Overall length (end to centre) Part No.

Compatibility

OE Ref

300005

Track Rod End John Deere 20 30 40 50 Series

340mm

Ø20 13 Holes

AL39024

300032

Drag Link John Deere 30 40 50 Series

330mm

Ø22 6 Holes

AL177945

300079

Track Rod End John Deere 40 Series

235mm

Ø20 8 Holes

AL39019

B: External Thread

TYPE E

Track Rod Ends

A: Overall length (centre to centre)

Part No.

Compatibility

OE Ref

58623

Track Rod John Deere 40 50 55 Series

1391mm

M24x1.5 RH

AL178030

58865 – Lift Link Tube

B: Internal thread/ A: Overall length (end to centre) Part No.

300083

Compatibility Track Rod End John Deere 40 Series 300082 – Inner Tie Rod 3144 – Ball Joint to suit

diameter

TYPE G

Track Rod Ends

OE Ref

315mm

M24x1.5 RH

AL39318

Original equipment manufacturer names and part numbers are quoted for reference purposes only and are not intended to infer that our replacement parts are used as original equipment.

TRACK ROD ENDS

Ver 7.7

Mod 12-08-22

Track Rod Ends John Deere

B: Internal thread/ diameter

A: Overall length (end to centre)

TYPE G

Track Rod Ends

Part No.

Compatibility

OE Ref

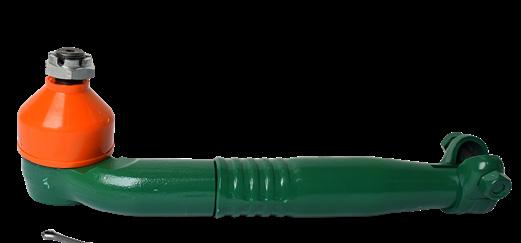

59598

Track Rod End John Deere 40 41 50 51 Series

300mm

M24x1.5 RH

AL168706

59964

Track Rod End John Deere 6000 Series

285mm

M22x1.5

AL110956

270mm

M28x1.5 RH

AL68255

260mm

M24x1.5 RH

AL168709

3144 – Ball Joint to suit

59960 – Ball Joint to suit Track Rod End John Deere 40 50 55 Series

59786

59785 – Ball Joint to suit

Track Rod End Right Hand John Deere 6000 6003 6005 6010 6020 7010 7020 Series

59962

3144 – Ball Joint to suit 59961 – Track Rod Left Hand

B: Internal thread/ A: Overall length (end to centre)

diameter

TYPE H Track Rod Ends

Part No.

Compatibility

OE Ref

300082

Track Rod End John Deere 40 Series

315mm

24x1.5 RH

AL178072

59599

Track Rod End John Deere 40 41 50 51 Series

300mm

M24x1.5 RH

AL168705

59963

Track Rod End John Deere 6000 Series

285mm

M22x1.5 RH

AL110957

Mod 12-08-22

3144 – Ball Joint to suit

59960 – Ball Joint to suit

Ver 7.7

TRACK ROD ENDS

Original equipment manufacturer names and part numbers are quoted for reference purposes only and are not intended to infer that our replacement parts are used as original equipment.

Track Rod Ends John Deere

B: Internal thread/ diameter

A: Overall length (end to centre)

TYPE H Track Rod Ends

Part No.

Compatibility

OE Ref

59787

Track Rod End John Deere 40 50 55 Series

275mm

M28x1.5 RH

AL68254

59961

Track Rod End John Deere 6000 6003 6005 6010 6020 7010 7020 Series

260mm

M24x1.5 RH

AL116740

59785 – Ball Joint to suit

59960 / 3144 – Ball Joint to suit

B: Internal thread/ diameter

A: Overall length (end to centre)

TYPE I

Track Rod Ends

Part No.

Compatibility

OE Ref

300100

Tie Rod End John Deere 8000 8010 8020 8030 8R Series

370mm

1 1/4” UNF RH

RE61401

300099 – Tie Rod Left Hand

B: Internal thread/ diameter

A: Overall length (end to centre)

TYPE J

Track Rod Ends

Part No.

Compatibility

OE Ref

300099

Tie Rod End John Deere 8000 8010 8020 8030 8R Series

370mm

1 1/4” UNF LH

RE173541

300100 – Tie Rod Right Hand

Original equipment manufacturer names and part numbers are quoted for reference purposes only and are not intended to infer that our replacement parts are used as original equipment.

TRACK ROD ENDS

Ver 7.7

Mod 12-08-22

Track Rod Ends John Deere

TYPE L

B: External thread

Track Rod Ends

A: Overall length (end to centre) Part No.

Compatibility

OE Ref

58586

Track Rod End John Deere 50 55 Series

380mm

M28x1.5 RH

AL69818

58587

Track Rod End John Deere 50 55 Series

380mm

M28x1.5 RH

AL69819

TYPE M

B: Internal thread/ A: Overall length (end to centre)

diameter

Track Rod Ends

Part No.

Compatibility

OE Ref

300017

Track Rod End John Deere 20 30 40 50 Series

150mm

1 1/8” UNF

AL178094

TYPE N

B: Internal thread/ A: Overall length (end to centre)

Track Rod Ends

diameter

Part No.

Compatibility

OE Ref

58123

Track Rod Assembly John Deere 8000 8020 8030 8R Series

305mm

M45x2 RH

RE568090

Mod 12-08-22

Ver 7.7

TRACK ROD ENDS

Original equipment manufacturer names and part numbers are quoted for reference purposes only and are not intended to infer that our replacement parts are used as original equipment.

Track Rod Ends Massey Ferguson

MASSEY FERGUSON TRACK ROD ENDS Type A

TYPE A

B: External Externalthread thread

Track Rod Ends

A: Overall length (end to centre) Part No.

Compatibility

OE Ref

6119

Track Rod End Massey Ferguson 300 Series

106mm

M28x1.5 RH

3595527M91

6580

Track Rod End Right Hand Massey Ferguson 300 Series

106mm

M24x1.5 RH

3475543M91

1112

Track Rod End Massey Ferguson 300 600 2600 Series

105mm

M24x1.5 RH

1824403M91

3182

Track Rod End Massey Ferguson 2600 3600 Series

105mm

M24x1.5 LH

1617829M91

6579

Track Rod End Massey Ferguson 50HX Series

105mm

M24x1.5 LH

3475538M91

300003

Track Rod End Massey Ferguson 65 100 200 300 500 600 2200 Series

105mm

13/16"-16 UNS RH

1821234M91

886802

Track Rod End Massey Ferguson 100 200 300 500 600 Industrial Series

100mm

13/16”

886802M91

Original equipment manufacturer names and part numbers are quoted for reference purposes only and are not intended to infer that our replacement parts are used as original equipment.

TRACK ROD ENDS

Ver 7.7

Mod 12-08-22

Track Rod Ends Massey Ferguson Type A

TYPE A

B: External thread

Track Rod Ends

A: Overall length (end to centre) Part No.

Compatibility

OE Ref

1807259

Track Rod End Massey Ferguson 500 Series

95mm

1” RH

1617829M1

1862029

Track Rod End Massey Ferguson 35 100 Series

90mm

11/16” RH

1862029M91

61639

Track Rod End Massey Ferguson TE Series comes with Grease Nipple Straight threaded end

80mm

3/8” BSP

126920

826752

Track Rod End Massey Ferguson 35 100 200 500 Series

80mm

11/16”

180391M91 826752M2

61638

Track Rod End Massey Ferguson TE Series comes with Grease Nipple Angled threaded end

76mm

3/8” BSP

893607M1

64429

Track Rod End Massey Ferguson 3000 3100 3600 6100 6200 8100 8200 Series

75mm

M24x1.5 LH

3104945M1

1851617

Track Rod End Massey Ferguson 35 100 200 500 Series

40mm

1/2” UNF

1851617M2

Mod 12-08-22

Ver 7.7

TRACK ROD ENDS

Original equipment manufacturer names and part numbers are quoted for reference purposes only and are not intended to infer that our replacement parts are used as original equipment.

Track Rod Ends Massey Ferguson

TYPE B

B: Internal thread

Track Rod Ends

A: Overall length (end to centre) Part No.

Compatibility

OE Ref

6045

Track Rod End Massey Ferguson 300 Series

80mm

M22X1.5 RH

3427168M2

1851618

Track Rod End Joint Massey Ferguson 35 100 200 500 Series

40mm

1/2” UNF

1851618M2

TYPE C

B: Internal thread

Track Rod Ends

A: Overall length (end to centre) Part No.

Compatibility

OE Ref

1913

Track Rod End Tube Massey Ferguson 100 200 300 500 600 Series

470mm

3/4” UNF

898053M91

886797

Track Rod End Inner Massey Ferguson 100 200 300 500 600 Series

385mm

Ø19

886797M91

285mm

M18x1.5 RH

AL39319

280mm

M18x1.5 RH

3764028M2

59782

Track Rod End Massey Ferguson 4200 4300 Series 6463 – Ball Joint to suit

6947

Track Rod End Massey Ferguson 300 3000 4200 4300 5400 6100 6200 6400 Series 6463 – Ball Joint to suit

Original equipment manufacturer names and part numbers are quoted for reference purposes only and are not intended to infer that our replacement parts are used as original equipment.

TRACK ROD ENDS

Ver 7.7

Mod 12-08-22

Track Rod Ends Massey Ferguson

TYPE C

B: Internal thread

Track Rod Ends

A: Overall length (end to centre) Part No.

Compatibility

OE Ref

62764

Track Rod End Massey Ferguson 300 4200 4300 Series

270mm

M18x1.5 RH

3428818M2

61475

Track Rod End Massey Fergson 3000 3100 Series

250mm

M28x1.5 RH

3426313M1

6830

Track Rod End Massey Fergson 3600 5400 6200 6400 7400 8100 Series

240mm

M24x1.5 RH

3764132M1

6831

Track Rod End Massey Ferguson 3600 6400 8100 8200 Series

240mm

M24x1.5 RH

3764286M1

220mm

M18x1.5 RH

3764027M2

200mm

M18x1.5 RH

3426336M1

195mm

M24x1.5 RH

3429731M1

195mm

M24x1.5 RH

3764024M1

Track Rod End Massey Ferguson 200 300 3000 4200 4300 5400 6100 6200 6400 Series

6462

6463 – Ball Joint to suit

Track Rod End Massey Ferguson 3000 Series

3195

6463 – Ball Joint to suit

Track Rod End Massey Ferguson 3600 8100 Series

6828

Track Rod End Massey Ferguson 3000 3100 3600 6100 6200 Series

6829

3144 – Ball Joint to suit

Mod 12-08-22

Ver 7.7

TRACK ROD ENDS

Original equipment manufacturer names and part numbers are quoted for reference purposes only and are not intended to infer that our replacement parts are used as original equipment.

Track Rod Ends Massey Ferguson

TYPE C

B: Internal thread

Track Rod Ends

A: Overall length (end to centre) Part No.

Compatibility

OE Ref

429965

Track Rod End Massey Ferguson 200 300 4200 4300 Series

180mm

M18x1.5 RH

3429173M3

173mm

M18x1.5

81878543

172mm

M18x1.5 RH

137048A1

51263

Track Rod End Massey Ferguson 4700 Series

51262

Track Rod End Massey Ferguson 4700 Series

4255 – Ball Joint to suit

6463 – Ball Joint to suit

TYPE D

B: Internal thread/diameter

Track Rod Ends

A: Overall length (end to centre) Part No.

Compatibility

OE Ref

1807258

Track Rod End Push in Massey Ferguson 500 Series

390mm

Ø24 7 Holes

1807258M1

881736

Track Rod End Outer Push in Massey Ferguson 100 200 300 500 600 Series

370mm

Ø19 7 Holes

881736M92

6313

Track Rod End Outer Massey Ferguson 200 600 Series

360mm

Ø28 6 Holes

1678024M1

1365

Track Rod End Massey Ferguson 200 600 Series

270mm

Ø24 4 Holes

1678023M1

Original equipment manufacturer names and part numbers are quoted for reference purposes only and are not intended to infer that our replacement parts are used as original equipment.

TRACK ROD ENDS

Ver 7.7

Mod 12-08-22

Track Rod Ends Massey Ferguson

B: Internal thread/diameter

TYPE D Track Rod Ends

A: Overall length (end to centre)

Part No.

Compatibility

OE Ref

1860408

Track Rod End Left Hand Massey Ferguson 100 200 Series

200mm

Ø15 7 Holes

1860408M2

1860412

Track Rod End Right Hand Massey Ferguson 100 200 Series

200mm

Ø15 7 Holes

1860412M2

1860564

Track Rod End Front Left Hand Power Steering Massey Ferguson 100 200 Series

170mm

Ø15 7 Holes

1860564M2

1860565

Track Rod End Right Hand Power Steering Massey Ferguson 100 200 Series

170mm

Ø15 7 Holes

1860565M2

B: External Thread

TYPE E

Track Rod Ends

A: Overall length (centre to centre)

Part No.

Compatibility

OE Ref

885549

Drag Link Massey Ferguson 100 200 300 Series

1185mm

M16x1.5

885549M91

6920

Drag Link Massey Ferguson 100 200 Series 1 push in end 1 screw in end

1050mm

61798

Drag Link Massey Ferguson 135 240 Series 1 push in end 1 screw in end

1020mm

M22x1.5 RH

1860411M92

6739

Drag Link Massey Ferguson 35 135 Series 2 screw in ends

985mm

M12x1.25

826749M92

847423

Track Rod End Massey Ferguson 50 50B MK11 Series

568mm

847423M91

847440

Track Rod End Massey Ferguson 50 50B MK11 Series

420mm

847440M91

884797

Drag Link Massey Ferguson 100 200 300 Industrial Series

110mm

884797M91

Mod 12-08-22

Ver 7.7

TRACK ROD ENDS

1860409M1

Original equipment manufacturer names and part numbers are quoted for reference purposes only and are not intended to infer that our replacement parts are used as original equipment.

Track Rod Ends Massey Ferguson

TYPE M

B: Internal thread/ A: Overall length (end to centre)

Track Rod Ends

diameter

Part No.

Compatibility

OE Ref

6121

Track Rod End Massey Ferguson 300 4200 4300 Series

105mm

M28x1.5 RH

3599679M91

67180

Track Rod End Massey Ferguson 500 Series

88mm

3/4x20” UNF RH

1891734M91

1050

Track Rod End Massey Ferguson 200 500 600 2600 2700 3600 Series

70mm

M18x1.5 RH

3314437M1

300064

Inner Tie Rod End Massey Ferguson 100 500 Series

68mm

11/16"-18 UNS

1809496M1

WELD ON TRACK ROD ENDS Part No.

Compatibility

1056

Track Rod End Weld on Massey Ferguson 100 200 500 600 Series

102mm

Ø21.9mm

Original equipment manufacturer names and part numbers are quoted for reference purposes only and are not intended to infer that our replacement parts are used as original equipment.

OE Ref

TRACK ROD ENDS

Ver 7.7

Mod 12-08-22

Track Rod Ends Massey Ferguson

TYPE O

B: External thread

Track Rod Ends

A: Overall length Part No.

Compatibility

64947

Track Rod End Massey Ferguson 3000 3100 3600 4200 4300 5400 6100 6200 6400 8100 8200 Series

6120

Track Rod End Massey Ferguson 300 4200 4300 Series

120mm

OE Ref

M50x1.5 RH

3904168M91

M24x1.5 RH

1695045M91

TYPE P

B: External thread

Track Rod Ends

A: Overall length (end to centre) Part No.

Compatibility

OE Ref

P14

Track Rod End Massey Ferguson 65 Series

165mm

13/16”

182519M91

WARE BUSHES 6500

Track Rod End Ware Bush Massey Ferguson 200 500 600 Series 18.6mm – 22mm

6718

Track Rod End Ware Bush Large Massey Ferguson 300 Series 23.4mm – 26mm

OE REF: 3599308M1

Mod 12-08-22

Ver 7.7

TRACK ROD ENDS

Original equipment manufacturer names and part numbers are quoted for reference purposes only and are not intended to infer that our replacement parts are used as original equipment.

Track Rod Ends Ford New Holland

FORD NEW HOLLAND TRACK ROD ENDS Type A

TYPE A

B: External thread

Track Rod Ends

A: Overall length (end to centre) Part No.

Compatibility

OE Ref

4009

Track Rod End Screw in Ford New Holland 10 600 1000 1000-All Purpose Series

127mm

1”-16 UNS

81822051

108mm

11/16” RH

81717427

41262

Track Rod End Ford New Holland 40 60 TM TS TSA TDD T7-Auto Command TM-Brasil Series

105mm

M24x1.5 RH

5117314

780153

Track Rod End Ford New Holland 40 60 TD TM TSA T4 TDD T4000F T4000-Deluxe T7-Auto Command TNF TNFA TNNA TNN Series

105mm

M24x1.5 LH

6000188759

4262

Track Rod End Ford New Holland 1000 1000-All Purpose Series

101mm

1”

C5NN3308C

4000

Track Rod End Ford New Holland 10 600 1000 1000-All Purpose Dexta Series

100mm

11/16” LH

957E3290B

42074

Track Rod End Ford New Holland 35 T5000 TL TLA Series

100mm

M24x1.5 RH

5178390

4001

Track Rod End Rear Ford New Holland 10 600 1000 1000-All Purpose Dexta Series 41391 – Boot Seal

Original equipment manufacturer names and part numbers are quoted for reference purposes only and are not intended to infer that our replacement parts are used as original equipment.

TRACK ROD ENDS

Ver 7.7

Mod 12-08-22

Track Rod Ends Ford New Holland Type A

TYPE A

B: External thread

Track Rod Ends

A: Overall length (end to centre) Part No.

Compatibility

OE Ref

780146

Track Rod End Ford New Holland 10 30 600 1000-All Purpose Series

100mm

M20x1.5 RH

6000100833

780149

Track Rod End Ford New Holland 10 600 Series

100mm

M22x1.5 LH

6000198855

780150

Track Rod End Ford New Holland 10 600 Series

100mm

M22x1.5 LH

6000198854

55492

Track Rod End Ford New Holland 10 30 600 Series

95mm

M20x1.5 LH

3131021R1

1372

Track Rod End Ford New Holland 10 TW 700 Series

95mm

1”

83913086

5707

Track Rod End Ford New Holland TD TD-5000 TDD Series

80mm

Ø24mm

44078446

300022

Track Rod End Ford New Holland 10 30 600 1000-All Purpose Series

80mm

3/4" UNF

81802873

75mm

M20x1.0 RH

4955011

73mm

1 1/4” LH

E9NN3N981AA

Track Rod End Ford New Holland 10 35 40 TD TL TN TS TLA TDD TNA TL-Brasil TNF Series

1209

6463 – Ball Joint to suit Track Rod End Ford New Holland 40 TS TSA Series

41085

Mod 12-08-22

Ver 7.7

TRACK ROD ENDS

Original equipment manufacturer names and part numbers are quoted for reference purposes only and are not intended to infer that our replacement parts are used as original equipment.

Track Rod Ends Ford New Holland Type A

TYPE A

B: External thread

Track Rod Ends

A: Overall length (end to centre) Part No.

Compatibility

OE Ref

4541

Track Rod End Inner Ford New Holland 10 Series

72mm

1 1/4” UNF

83948964

1368

Track Rod End Ford New Holland Industrial Series

53mm

11/16”

D9NN3A303AB

2043

Track Rod End Ford New Holland Industrial Series

53mm

11/16”

A40962

TYPE B

B: Internal thread

A: Overall length (end to centre)

Track Rod Ends

Part No.

Compatibility

OE Ref

1381

Track Rod End Ford New Holland 10 TW 700 Series

95mm

7/8”

83934991

1369

Track Rod End Ford New Holland Industrial Series

60mm

11/16” RH

D9NN3A302AB

43284

Track Rod End Ford New Holland 1000-All Purpose Series

48mm

1/2” UNF

81812654

Original equipment manufacturer names and part numbers are quoted for reference purposes only and are not intended to infer that our replacement parts are used as original equipment.

TRACK ROD ENDS

Ver 7.7

Mod 12-08-22

Track Rod Ends Ford New Holland

TYPE C

B: Internal thread

Track Rod Ends

A: Overall length (end to centre) Part No.

Compatibility

OE Ref

2217

Drag Link Ford New Holland 30 600 1000 1000-All Purpose Series

1025mm

7/8” RH

81821968

4011

Track Rod End Ford New Holland 30 600 1000 1000-All Purpose Series

460mm

15/16”

81822048

220mm

M18x1.5 RH

83957757

220mm

M18x1.5 LH

83957751

175mm

M24x1.5 RH

AL161338

173mm

M18x1.5

81878543

172mm

M18x1.5 RH

137048A1

2186

Track Rod End Right Hand Ford New Holland 10 Series

2187

Track Rod End Left Hand Ford New Holland 10 Series

58670

Track Rod End Ford New Holland T5000 Series

51263

Track Rod End Left Hand Ford New Holland 30 Series

51262

Track Rod End Ford New Holland 30 Series

6463 – Ball Joint to suit

3144 / 58671 – Ball Joints to suit

4255 / 6463 – Ball Joints to suit

TYPE D

B: Internal thread/diameter

Track Rod Ends

A: Overall length (end to centre) Part No.

Compatibility

OE Ref

42073

Track Rod End Ford New Holland 35 T5000 TL TLA Series

900mm

Ø24mm 7 Holes

5178378

Mod 12-08-22

Ver 7.7

TRACK ROD ENDS

Original equipment manufacturer names and part numbers are quoted for reference purposes only and are not intended to infer that our replacement parts are used as original equipment.

Track Rod Ends Ford New Holland

TYPE D

B: Internal thread/diameter

Track Rod Ends

A: Overall length (end to centre) Part No.

Compatibility

OE Ref

3400

Track Rod End Ford New Holland TD TD5000 TDF T3F TD5 TT TDD Series

640mm

Ø20mm 9 Holes

5109530

41082

Track Rod End Ford New Holland 40 TS TSA T6000 Series

500mm

Ø35mm 8 Holes

81864106

4003

Track Rod End Ford New Holland 10 30 600 1000 1000-All Purpose Series

480mm

Ø19mm 7 Holes

C5NN3278A

41437

Track Rod End Ford New Holland 10 600 1000 1000-All Purpose Series

450mm

Ø24mm 7 Holes

C7NN3280F

2819

Track Rod End Ford New Holland 10 Series

448mm

Ø30mm 7 Holes

E3NN3278AA

4543

Track Rod End Ford New Holland 10 Series

448mm

Ø31.5mm 7 Holes

83957771

4012

Track Rod End Ford New Holland 600 1000 Series

446mm

Ø24mm 7 Holes

81802849

4010

Track Rod End Ford New Holland 1000 1000-All Purpose Series

395mm

Ø24mm 7 Holes

81802856

1298

Track Rod End Ford New Holland 10 30 Series

230mm

Ø22mm 6 Holes

E1NN3A300A

4004

Track Rod End Ford New Holland 30 600 1000 1000-All Purpose Series

230mm

Ø22mm 6 Holes

81825595

4005

Track Rod End Ford New Holland 10 600 1000 Series

205mm

Ø24 4 Holes

C7NN3A300A

B: External Thread

TYPE E

Track Rod Ends

A: Overall length (centre to centre) Part No.

Compatibility

OE Ref

44158

Drag Link Ford New Holland TD TD5 TD5000 TDD Series

1515mm

M24x1.5 RH

5142233

42169

Track Rod End Ford New Holland 35 40 TL TS TLA TDD Series

1470mm

M20x1 RH

5168933

4008

Drag Link Ford New Holland 10 600 1000 1000-All Purpose Series

1285mm

32mm

83925158

Original equipment manufacturer names and part numbers are quoted for reference purposes only and are not intended to infer that our replacement parts are used as original equipment.

TRACK ROD ENDS

Ver 7.7

Mod 12-08-22

Track Rod Ends Ford New Holland

B: Internal thread/ diameter

A: Overall length (end to centre)

TYPE G

Track Rod Ends

Part No.

Compatibility

OE Ref

1700

Track Rod End Ford New Holland 10 Series

320mm

M18x1.5 RH

83959471

404285

Track Rod End Ford New Holland 40 Series

285mm

M24x1.5 LH

81878549

409868

Track Rod End Ford New Holland 40 Series

240mm

M24x1.5

81878547

6463 – Ball Joint to suit

2825 / 3144 – Ball Joints to suit

B: Internal thread/ A: Overall length (end to centre)

diameter

TYPE H Track Rod Ends

Part No.

Compatibility

OE Ref

1701

Track Rod End Ford New Holland 10 Series

320mm

M18x1.5 RH

83959470

3129

Track Rod End Ford New Holland 30 TW Series

310mm

M28X1.5 RH

83959467

404286

Track Rod End Ford New Holland 40 Series

285mm

M24x1.5 RH

81878550

409867

Track Rod End Ford New Holland 40 Series

240mm

M24x1.5 RH

81878548

Mod 12-08-22

6463 – Ball Joint to suit

3176 – Ball Joint to suit

3144 – Ball Joint to suit

Ver 7.7

TRACK ROD ENDS

Original equipment manufacturer names and part numbers are quoted for reference purposes only and are not intended to infer that our replacement parts are used as original equipment.

Track Rod Ends Ford New Holland

TYPE I

B: Internal thread/ A: Overall length (end to centre) Part No.

Compatibility

55512

Track Rod Outer Ford New Holland Telehandler Series

Track Rod Ends

diameter

OE Ref

335mm

M24x1.5 RH

601206

3144 – Ball Joint to suit

TYPE J

B: Internal thread/ A: Overall length (end to centre) Part No.

Compatibility

55513

Track Rod Outer Ford New Holland Telehandler Series

diameter

Track Rod Ends

OE Ref

335mm

M24x1.5 RH

601211

3144 – Ball Joint to suit

TYPE L

B: External thread

Track Rod Ends

A: Overall length (end to centre) Part No.

Compatibility

OE Ref

41402

Track Rod End Assembly Ford New Holland 10 Series

467mm

M24x1.5 RH

83956515

42256

Track Rod End Ford New Holland 10 Series

467mm

M22x1.5 RH

83956514

44455

Track Rod End Assembly Ford New Holland T4000 T4 T5 TNDA TT4 TNA T4000-Deluxe T5-Duel Command Series

300mm

M22x1.5 RH

123/87395856

Original equipment manufacturer names and part numbers are quoted for reference purposes only and are not intended to infer that our replacement parts are used as original equipment.

TRACK ROD ENDS

Ver 7.7

Mod 12-08-22

Track Rod Ends Ford New Holland

TYPE M

B: Internal thread/ A: Overall length (end to centre)

Track Rod Ends

diameter

Part No.

Compatibility

OE Ref

3142

Track Rod End Ford New Holland 10 Series

175mm

M24x1.5 RH

83957789

3148

Track Rod End Ford New Holland 10 Series

170mm

M24x1.5 LH

83957797

3144 / 2825 – Ball Joints to suit

41083

Track Rod End Screw in Ford New Holland 40 TS TSA T6000 Series

123mm

1 1/8” RH

81864100

4542

Track Rod End Left Hand Outer Ford New Holland 10 Series

120mm

1” RH

E3NN3289AA

4007

Drag Link End Ford New Holland 10 600 1000 1000-All Purpose Series

105mm

15/16”

81825394

41084

Track Rod End Ford New Holland 40 TS TSA Series

100mm

7/8” UNF

E9NN3B539AA

4002

Track Rod End Screw In Ford New Holland 10 30 600 1000 1000-All Purpose Series

98mm

3/4” UNF

C5NN3289C

4540

Track Rod End Ford New Holland 10 Series

90mm

7/8”

83948951

Mod 12-08-22

Ver 7.7

TRACK ROD ENDS

Original equipment manufacturer names and part numbers are quoted for reference purposes only and are not intended to infer that our replacement parts are used as original equipment.

Track Rod Ends Ford New Holland

TYPE M

B: Internal thread/

Track Rod Ends

diameter

A: Overall length (end to centre) Part No.

Compatibility

OE Ref

300065

Track Rod End Ford New Holland TG Series

80mm

M24x1.5 RH

435664A1

43285

Track Rod End Ford New Holland 1000 1000-All Purpose Series

49mm

7/6”x20 TPI

C5NN3A302B

TYPE N

B: Internal thread/

Track Rod Ends

diameter

A: Overall length (end to centre) Part No.

Compatibility

OE Ref

1383

Track Rod End Ford New Holland TW Series

150mm

M36x1.5 RH

ZF 051303028

B: Diameter A: Overall length (end to end)

Track Rod Ends

Part No.

Compatibility

2442

Track Rod End Tube Ford New Holland 30 600 1000 1000-All Purpose Series

898mm

42170

Track Rod End Threaded Bar Ford New Holland 35 40 TL TS TLA TDD Series

445mm

TYPE Q

OE Ref 81815960

3/4” UNF RH 7 Holes

Original equipment manufacturer names and part numbers are quoted for reference purposes only and are not intended to infer that our replacement parts are used as original equipment.

C5NN3282E

TRACK ROD ENDS

Ver 7.7

Mod 12-08-22

Track Rod Ends Case

CASE INTERNATIONAL TRACK ROD ENDS Type A

TYPE A

B: External thread

Track Rod Ends

A: Overall length (end to centre) Part No.

Compatibility

OE Ref

300044

Track Rod End Case Magnum Series

140mm

1 1/8” RH

1277451C1

300072

Track Rod End Case 55 Series

140mm

M30x1.5 RH

3229222R91

300059

Track Rod End Case Magnum Series

139mm

1 1/8” LH

1277452C1

300077

Track Rod End Case MXM Puma Series

125mm

M24x1.5 RH

5198880

300045

Track Rod End Case 55 56 Series

120mm

M30x1.5 RH

3221270R91

52505

Track Rod End Case 43 44 45 55 56 Series

115mm

M29x1.5

3232877R91

41262

Track Rod End Case 33 40 43 44 45 56 2000 JX Maxxum MXM MXU VJ Series

105mm

M24x1.5 RH

5117314

Mod 12-08-22

Ver 7.7

TRACK ROD ENDS

Original equipment manufacturer names and part numbers are quoted for reference purposes only and are not intended to infer that our replacement parts are used as original equipment.

Track Rod Ends Case Type A

TYPE A

B: External thread

Track Rod Ends

A: Overall length (end to centre) Part No.

Compatibility

OE Ref

780153

Track Rod End Case 33 40 43 44 45 56 2000 JX Maxxum MXM MXU Series

105mm

M24x1.5 LH

6000188759

42074

Track Rod End Case JXU Series

100mm

M24x1.5 RH

5178390

52503

Track Rod End Case 24 53 54 Series

100mm

M18x1.5 RH

3058214R91

52507

Track Rod End Case 24 33 40 44 46 54 Series

100mm

M22X1.5 RH

3141530R91

54017

Track Rod End Case 24 53 54 Series

100mm

M18x1.5 RH

2334601

300009

Track Rod End Case BD Series

100mm

M16x1.5

716195R91

300018

Track Rod End Case 33 43 44 45 Series

100mm

M20x1.5 RH

3147510R1

780146

Track Rod End Case 33 43 44 45 46 54 55 56 2000 Series

100mm

M20x1.5 RH

6000100833

780150

Track Rod End Case 24 33 34 40 44 46 53 54 Series

100mm

M22x1.5 RH

6000198854

Original equipment manufacturer names and part numbers are quoted for reference purposes only and are not intended to infer that our replacement parts are used as original equipment.

TRACK ROD ENDS

Ver 7.7

Mod 12-08-22

Track Rod Ends Case Type A

B: External thread

TYPE A

Track Rod Ends

A: Overall length (end to centre) Part No.

Compatibility

OE Ref

54018

Track Rod End Case 33 40 43 44 45 46 55 Series

100mm

M20x1.5 RH

3116407R92

55492

Track Rod End Case 23 53 83 2000 PJ Series

95mm

M20x1.5 LH

3131021R1

3914

Track Rod End Case 54 74 75 84 85/Utility 95/Utility 4000/4200 Utility 3000/3200 Utility Maxxum MX CX Series

95mm

7/8”

3116407R92

52217

Track Rod End Case 44 54 B BD Classic Series

85mm

Ø 3/4” UNF LH

3040920R92

5707

Track Rod End Case JX Series

80mm

Ø 24mm

44078446

52220

Track Rod End Case 44 54 B BD Classic Series

78mm

3/8” BSP LH

3045309R91

1208

Track Rod End Case JX Series 41021 – Nut to suit

75mm

M20x1.0 RH

5109526

41085

Track Rod End Case Maxxum MXU Series

73mm

1 1/4” LH

E9NN3N981AA

300001

Track Rod End Case 33 53 83 Classic Series

65mm

M18x1.5 RH

3131016

52219

Track Rod End Case 44 54 B BD Classic Series

80mm

3/4” BSP RH

3040922R92

Mod 12-08-22

Ver 7.7

TRACK ROD ENDS

Original equipment manufacturer names and part numbers are quoted for reference purposes only and are not intended to infer that our replacement parts are used as original equipment.

Track Rod Ends Case

B: Internal thread

TYPE B

A: Overall length (end to centre)

Track Rod Ends

Part No.

Compatibility

OE Ref

300020

Track Rod End Case 55 56 Series

95mm

M24 RH

3221271R93

300063

Track Rod End Case 2000 Series

85mm

M18x1.5 LH

135824A1

52404

Track Rod End Case 43 44 45 56 84 85/Utility Series

80mm

M20 RH

3146035R92

52506

Track Rod End Case 24 33 46 54 Series

75mm

M20x1.5 RH

3141531R91

300011

Track Rod End Case 24 33 34 40 44 46 Series

70mm

M20x1.5

3141532R92

300007

Track Rod End Case 33 43 44 45 46 55 56 Series

70mm

M20x1.5 RH

3224266

Original equipment manufacturer names and part numbers are quoted for reference purposes only and are not intended to infer that our replacement parts are used as original equipment.

TRACK ROD ENDS

Ver 7.7

Mod 12-08-22

Track Rod Ends Case

TYPE C

B: Internal thread

Track Rod Ends

A: Overall length (end to centre) Part No.

Compatibility

OE Ref

52795

Track Rod End Case CS/CS Pro CVX Maxxum Puma Maxxum MX Series 64611 – Ball Joint to suit

265mm

M24x1.5 RH

351144

52010

Track Rod End Case 43 44 45 56 85/Utility 95/Utility Series

255mm

M22x1.5 RH

1968464C1

2824

Track Rod End Case Maxxum Series 3144 / 2825 – Ball Joints to suit

205mm

M24x1.5 RH

D149728

2839

Track Rod End Case Maxxum Series

205mm

M24x1.5 RH

126144A1

51263

Track Rod End Case 68 C CX BD Maxxum MX CS/CS Pro 95 3000/3200 4000/4200 Utility Series

173mm

M18x1.5

81878543

51262

Track Rod End Case 68 C CX BD Maxxum MX CS/CS Pro 95 3000/3200 4000/4200 Utility Series

172mm

M18x1.5 RH

137048A1

42084

Track Rod End Case CS/CS Pro Series 6463 – Ball Joint to suit

143mm

M18x1.5 RH

133743603

Mod 12-08-22

Ver 7.7

TRACK ROD ENDS

Original equipment manufacturer names and part numbers are quoted for reference purposes only and are not intended to infer that our replacement parts are used as original equipment.

Track Rod Ends Case

TYPE D

B: Internal thread/diameter

Track Rod Ends

A: Overall length (end to centre) Part No.

Compatibility

OE Ref

42073

Track Rod End Case JXU Series

900mm

Ø 24mm 7 Holes

5178378

52218

Track Rod End Case 44 54 B BD Classic Series

800mm

Ø 3/4” 6 Holes

3040919R92

300041

Track Rod End Case 33 40 44 Series

730mm

Ø 22mm 6 Holes

3217563R1

300070

Track Rod End Case 43 44 45 56 Series

730mm

Ø 26mm 6 Holes

3223996R1

300040

Track Rod End Case 33 43 44 45 Series

725mm

Ø 22mm 6 Holes

3148923R1

3400

Track Rod End Case JX AVJ VJ JXN JXV Farmall-A Farmall-JX Series

640mm

Ø 20mm 9 Holes

5109530

41082

Track Rod End Case Maxxum MXU Series

500mm

Ø 35mm 8 Holes

81864106

300000

Track Rod End Case 24 53 54 83 Classic Series

380mm

Ø 18mm 6 Holes

3058213R91

3098

Track Rod End Case 84 85/95 Utility Series

360mm

Ø 20.5mm 6 Holes

3116406R91

300024

Drag Link Case 33 Series

200mm

M12x1.5 RH 4 Holes

3148925R1

Original equipment manufacturer names and part numbers are quoted for reference purposes only and are not intended to infer that our replacement parts are used as original equipment.

TRACK ROD ENDS

Ver 7.7

Mod 12-08-22

Track Rod Ends Case

B: External Thread

TYPE E

Track Rod Ends

A: Overall length (centre to centre) Part No.

Compatibility

OE Ref

44158

Drag Link Case JX VJ Farmall-A Farmall-JX Series

1515mm

M24x1.5 RH

5142233

42169

Track Rod End Case JX JXU Farmall-A Farmall-JX Series

1470mm

M20x1

5168933

300012

Drag Link Case 33 40 Series

1224mm

M24x1.5 RH

3216556R91

300046

Drag Link Case 44 46 55 56 Series

1205mm

300010

Drag Link Case Classic Series

1178mm

M20x1.5 RH

3058842R93

300071

Drag Link Case 33 40 Series

970mm

M20x1.5

3225505R91

52395

Track Rod Case CX 74 84 85 95 4000/4200 Utility Series

499mm

7/8" RH

3116321R93

3223988R92

TYPE F

B: Internal Thread

Track Rod Ends

A: Overall length (centre to centre) Part No.

Compatibility

OE Ref

300057

Track Rod End Case 43 44 45 56 CS/CS Pro Series

180mm

M22x1.5 RH

354730A1

Mod 12-08-22

Ver 7.7

TRACK ROD ENDS

Original equipment manufacturer names and part numbers are quoted for reference purposes only and are not intended to infer that our replacement parts are used as original equipment.

Track Rod Ends Case

B: Internal thread/ A: Overall length (end to centre)

diameter

TYPE G

Track Rod Ends

Part No.

Compatibility

OE Ref

300039

Track Rod End Case 56 Series

390mm

M22x1.5 LH

1968473C1

780260

Track Rod End Case Maxxum MX Series

265mm

M24x1.5

6000104516

TYPE H B: Internal thread/ A: Overall length (end to centre)

diameter

Track Rod Ends

Part No.

Compatibility

OE Ref

300038

Track Rod End Case 56 Series

380mm

M22x1.5 RH

1968469C1

59599

Track Rod End Case CS/CS Pro CVX Series

300mm

M24x1.5 RH

AL168705

780259

Track Rod End Case Maxxum MX Series

265mm

M24x1.5

6000104513

Original equipment manufacturer names and part numbers are quoted for reference purposes only and are not intended to infer that our replacement parts are used as original equipment.

TRACK ROD ENDS

Ver 7.7

Mod 12-08-22

Track Rod Ends Case

B: Internal thread/ diameter

A: Overall length (end to centre)

TYPE I

Track Rod Ends

Part No.

Compatibility

OE Ref

300067

Track Rod End Case Magnum MX Series

500mm

1 3/8” UNF

302645A1

300061

Track Rod End Case Magnum Series

315mm

1 1/4” UNF LH

128609A1

B: Internal thread/ A: Overall length (end to centre)

diameter

TYPE J

Track Rod Ends

Part No.

Compatibility

OE Ref

300066

Track Rod End Case Magnum MX Series

500mm

1 3/8” UNF

302643A1

300060

Track Rod End Case Magnum Series

315mm

1 1/4” UNF RH

128604A1

Mod 12-08-22

Ver 7.7

TRACK ROD ENDS

Original equipment manufacturer names and part numbers are quoted for reference purposes only and are not intended to infer that our replacement parts are used as original equipment.

Track Rod Ends Case

TYPE M

B: Internal thread/

Track Rod Ends

diameter

A: Overall length (end to centre)

Part No.

Compatibility

OE Ref

41083

Track Rod End Case Maxxum MXU Series

123mm

1 1/8” RH

81864100

300073

Track Rod End Case 55 Series

120mm

M24x1.5 RH

3229223R91

41084

Track Rod End Case MXU Series

100mm

7/8”

E9NN3B539AA

300058

Track Rod End Case Magnum MX 5000 Series

80mm

1”

1277261C1

TYPE N

B: Internal thread/

Track Rod Ends

diameter

A: Overall length (end to centre) Part No.

Compatibility

OE Ref

300014

Track Rod End Case 24 46 53 54 55 Series

150mm

M36x1.5 RH

01295620 3138344

300023

Track Rod End Case 43 44 45 46 55 56 Series

141mm

M36 RH

2374315

Original equipment manufacturer names and part numbers are quoted for reference purposes only and are not intended to infer that our replacement parts are used as original equipment.

TRACK ROD ENDS

Ver 7.7

Mod 12-08-22

Track Rod Ends David Brown

DAVID BROWN TRACK ROD ENDS Type A

TYPE A

B: External thread

Track Rod Ends

A: Overall length (end to centre) Part No.

Compatibility

OE Ref

300034

Track Rod End David Brown 90 900 Series

100mm

M22x1.5 RH

K965270

3094

Track Rod End David Brown 90 94 1200 1400 Series

100mm

3/4”UNF RH

K207722

780149

Track Rod End David Brown 90 900 Series

100mm

M22x1.5 LH

6000198855

780150

Track Rod End David Brown 90 900 Series

100mm

M22x1.5 LH

6000198854

3095

Track Rod End David Brown 90 94 700 800 900 1200 Series

90mm

3/4”UNF RH

K908071

Mod 12-08-22

Ver 7.7

TRACK ROD ENDS

Original equipment manufacturer names and part numbers are quoted for reference purposes only and are not intended to infer that our replacement parts are used as original equipment.

Track Rod Ends David Brown Type A

TYPE A

B: External thread

Track Rod Ends

A: Overall length (end to centre) Part No.

Compatibility

OE Ref

3907

Track Rod End David Brown 90 94 900 1200 1400 Series

70mm

3/4”UNF RH

K207721

B: Internal thread

TYPE B

A: Overall length (end to centre)

Track Rod Ends

Part No.

Compatibility

OE Ref

3915

Track Rod End David Brown 800 900 1200 Series

75mm

7/8” RH Internal

K929057

Original equipment manufacturer names and part numbers are quoted for reference purposes only and are not intended to infer that our replacement parts are used as original equipment.

TRACK ROD ENDS

Ver 7.7

Mod 12-08-22

Track Rod Ends Deutz

DEUTZ TRACK ROD ENDS Type A

TYPE A

B: External thread

Track Rod Ends

A: Overall length (end to centre) Part No.

Compatibility

OE Ref

52504

Track Rod End Deutz DX Series

125mm

M30

3141529R91

780154

Track Rod End Deutz DX4 DXAB 06 Series

106mm

M24x1.5 RH

6000187031

53955

Track Rod End Deutz 05 06 07 07C DX Classique Series

103mm

M16x1.5 RH

3388475

54017

Track Rod End Deutz 05 06 07 07C DX Classique Series

100mm

M16x1.5 RH

2334601

54018

Track Rod End Deutz 05 06 07 07C DX Classique Series

100mm

M20x1.5 RH

3147875R1

Mod 12-08-22

Ver 7.7

TRACK ROD ENDS

Original equipment manufacturer names and part numbers are quoted for reference purposes only and are not intended to infer that our replacement parts are used as original equipment.

Track Rod Ends Deutz Type A

TYPE A

B: External thread

Track Rod Ends

A: Overall length (end to centre) Part No.

Compatibility

OE Ref

55491

Track Rod End Deutz Agrolux Agroplus Agrocompact Agrolux-F Series

100mm

M18x1.5 RH

13542374

780146

Track Rod End Deutz DX 07 06 07C 05 Series

100mm

M20x1.5 RH

6000100833

780150

Track Rod End Deutz Agrolux Series

100mm

M22x1.5 LH

6000198854

53953

Track Rod End Deutz DX 07 06 07C Classique 05 Series

90mm

M16x1.5 RH

2381195

B: Internal thread

TYPE B

A: Overall length (end to centre)

Track Rod Ends

Part No.

Compatibility

OE Ref

300029

Track Rod End Deutz Agroprima DX4 DX7 DX6 Intrac Dxab 07 06 07C Dxbis Series

63mm

M18x1.5 RH

4301365

Original equipment manufacturer names and part numbers are quoted for reference purposes only and are not intended to infer that our replacement parts are used as original equipment.

TRACK ROD ENDS

Ver 7.7

Mod 12-08-22

Track Rod Ends Deutz

TYPE C

B: Internal thread

Track Rod Ends

A: Overall length (end to centre) Part No.

Compatibility

OE Ref

53954

Track Rod End Deutz Agroprima Agrostar Agroxtra Agrostar Freischt DX6 Series

365mm

22x1.5 RH

4383057

55239

Track Rod End Deutz Agrotron New TTV M Profiline K COM3 TTV COM3 Series

305mm

24x1.5 RH

90001077

780192

Track Rod End Deutz Agroprima DX4 Agroxtra DX3 SC Series

210mm

M22x1.5 RH

6005009894

B: Internal thread/diameter

TYPE D Track Rod Ends

A: Overall length (end to centre) Part No.

Compatibility

OE Ref

300036

Track Rod End Deutz Agroprima DX DX4 DX6 07 06 DX3 SC DX3 VC Series

760mm

Ø28 7 Holes

4317563

53952

Track Rod End Deutz Agroprima DX DX4 DX6 07 06 07C Classique 05 Series

710mm

Ø26 7 Holes

2315645

Mod 12-08-22

Ver 7.7

TRACK ROD ENDS

Original equipment manufacturer names and part numbers are quoted for reference purposes only and are not intended to infer that our replacement parts are used as original equipment.

Track Rod Ends Deutz

B: External Thread

TYPE E

Track Rod Ends

A: Overall length (centre to centre)

Part No.

Compatibility

300015

Track Rod End Deutz DX DX4 05 06 07 07C Classique Series

1453mm

2322881

300028

Drag Link Deutz 07 Series

1030mm

2315361

55520

Drag Link Deutz 05 06 07C Classique Series

975mm

2311068

300006

Drag Link Deutz 05 06 07 07C Classique Series

975mm

2382774

300008

Drag Link Deutz Classique Series

975mm

3387877

300052

Drag Link Deutz 06 07 Series

975mm

2382765

58071

Drag Link Deutz 05 06 07 07C Classique Series

967mm

2311074

300002

Drag Link Deutz 05 06 07 07C Classique Series

960mm

300025

Drag Link Deutz 06 Series

960mm

M16x1.5 RH

Original equipment manufacturer names and part numbers are quoted for reference purposes only and are not intended to infer that our replacement parts are used as original equipment.

OE Ref

2311093

2382763

TRACK ROD ENDS

Ver 7.7

Mod 12-08-22

Track Rod Ends Deutz

TYPE F

Track Rod Ends

A: Overall length (centre to centre) Part No.

Compatibility

OE Ref

300030

Track Rod End Deutz Agroprima Agrostar Agroxtra Agrostar-Freisicht Series

270mm

M22x1.5 RH

4388223

300019

Track Rod End Deutz Agroprima Agrostar DX4 Agroxtra Agrocompact 3 Agrostar Freisicht DX3 SC DX3 V/F/S DX3 VC Series

225mm

M22x1.5 RH

4358286

B: Internal thread/ A: Overall length (end to centre)

diameter

TYPE I

Track Rod Ends

Part No.

Compatibility

OE Ref

300054

Track Rod End Deutz Agrotron Agrotron-MKIII Agrotron-6 Series

393mm

M24x1.5 RH

4415658

53733

Track Rod End Deutz Agrotron Agrotron-MKIII Agrotron-4 Agrotron-6 Series

340mm

M24x1.5 RH

4415653

300056

Track Rod End Deutz Agrotron Agrotron-MKIII Agrotron-6 Agrotron-TTV Series

330mm

M24x1.5

4415662

Mod 12-08-22

Ver 7.7

TRACK ROD ENDS

Original equipment manufacturer names and part numbers are quoted for reference purposes only and are not intended to infer that our replacement parts are used as original equipment.

Track Rod Ends Deutz

B: Internal thread/ A: Overall length (end to centre)

diameter

TYPE I

Track Rod Ends

Part No.

Compatibility

OE Ref

55864

Track Rod Deutz Agrotron Agrotron-K Agrotron-K COM3 Series 3144 – Ball Joint to suit

305mm

M24x1.5 RH

90005251

B: Internal thread/ A: Overall length (end to centre)

diameter

TYPE J

Track Rod Ends

Part No.

Compatibility

OE Ref

300053

Track Rod End Deutz Agrotron Agrotron-6 Agrotron-MKIII Agrotron-New Series

393mm

M24x1.5 RH

4415657

53732

Track Rod End Deutz Agrotron Agrotron-MKIII Agrotron-4 Agrotron-6 Series

340mm

M24x1.5 RH

4415652

300055

Track Rod End Deutz Agrotron Agrotron-MKIII Agrotron-6 Agrotron-TTV Series

330mm

M24x1.5 RH

4415661

55863

Track Rod Deutz Agrotron Agrotron-K Agrotron-K COM3 Series 3144 – Ball Joint to suit

305mm

M24x1.5 RH

90005252

Original equipment manufacturer names and part numbers are quoted for reference purposes only and are not intended to infer that our replacement parts are used as original equipment.

TRACK ROD ENDS

Ver 7.7

Mod 12-08-22

Track Rod Ends Deutz

TYPE L

B: External thread

Track Rod Ends

A: Overall length (end to centre) Part No.

Compatibility

55860

OE Ref

Track Rod and Ball Joint Kit Deutz Agrotron 6100 Series

M22x1.5 RH

900263860

55861

Track Rod Ball Joint Kit Deutz Agrotron-M Agrotron-TTV COM3 7 TTV Series

M22x1.5 RH

90008956

55865

Track Rod Ball Joint Kit Deutz Agrotron-M 7 TTV Series

M22x1.5 RH

90020622

TYPE N

B: Internal thread/

Track Rod Ends

diameter

A: Overall length (end to centre) Part No.

Compatibility

OE Ref

300023

Track Rod End Deutz 06 DX7 DXAB DXBIS Series

141mm

M36x1.5 RH

2374315

Mod 12-08-22

Ver 7.7

TRACK ROD ENDS

Original equipment manufacturer names and part numbers are quoted for reference purposes only and are not intended to infer that our replacement parts are used as original equipment.

Track Rod Ends Fendt

FENDT TRACK ROD ENDS Type A

TYPE A

B: External thread

Track Rod Ends

A: Overall length (end to centre) Part No.

Compatibility

OE Ref

300016

Track Rod End Fendt Farmer 300 LSA C/CA Turbomatik Series

125mm

M24x1.5 RH

1927609ZP

55491

Track Rod End Fendt Farmer 100 Series

100mm

M18x1.5 RH

13542374

300004

Track Rod End Fendt Farmer 100 Farmer Classique Series

100mm

M20x1.5 LH

X800210024000

300102

Track Rod End Fendt Farmer 100 GT Kommunal GT Porte-outils Series

100mm

M20x1.5 RH

X800210007000

780146

Track Rod End Fendt Farmer-100 Farmer-300-LSA Farmer-300-Turbomatik Farmer-300 Series

100mm

M20x1.5 RH

6000100833

Original equipment manufacturer names and part numbers are quoted for reference purposes only and are not intended to infer that our replacement parts are used as original equipment.

TRACK ROD ENDS

Ver 7.7

Mod 12-08-22

Track Rod Ends Fendt Type A

TYPE A

B: External thread

Track Rod Ends

A: Overall length (end to centre) Part No.

Compatibility

OE Ref

300033

Track Rod End Fendt Farmer 200 Series

76mm

M22x1.5 LH

G155302120210

300051

Track Rod End Fendt Farmer 200 Series

76mm

M22x1.5 RH

G155302120200

300013

Track Rod End Fendt Farmer 100 Farmer 200 GT Porte-outils Farmer 300 LSA Farmer 300 C/CA Farmer 300 Turbomatik Series

65mm

M20x1.5 RH

G155302120150

300027

Track Rod End Fendt Favorit 600 Series

65mm

M18x1.5 RH

F150403090050

300050

Track Rod End Fendt Farmer 200 Series

65mm

M20x1.5 LH

G155302120160

Mod 12-08-22

Ver 7.7

TRACK ROD ENDS

Original equipment manufacturer names and part numbers are quoted for reference purposes only and are not intended to infer that our replacement parts are used as original equipment.

Track Rod Ends Fendt

TYPE B

B: Internal thread

A: Overall length (end to centre)

Track Rod Ends

Part No.

Compatibility

OE Ref

52404

Track Rod End Fendt Farmer-300-LSA Farmer-300-C/CA Series

80mm

M20 RH

3146035R92

300035

Track Rod End Fendt Farmer-100 Favorit-600 Farmer-300-LSA Series

65mm

M20x1.5 RH

X800210051000

B: Internal thread / diameter

TYPE F

Track Rod Ends

A: Overall length (centre to centre) Part No.

Compatibility

OE Ref

300090

Track Rod End Fendt Farmer-400 Vario Series 300049 – Ball Joint to suit

360mm

M26x1.5 RH

F411301101010

300096

Track Rod End Fendt Favorit 900 Vario TMS Favorit 800 Turboshift Favorit 900 Vario COM 1 Series 300096 – Ball Joint to suit

350mm

M28x1.5 RH

F926301100020

300043

Track Rod End Fendt Favorit 600 Series 300088 – Ball Joint to suit

330mm

M24x1.5 RH

F385300100010

300089

Track Rod End Fendt Farmer 400 Vario Series 300049 – Ball Joint to suit

365mm

M26x1.5 RH

F411301100010

Original equipment manufacturer names and part numbers are quoted for reference purposes only and are not intended to infer that our replacement parts are used as original equipment.

TRACK ROD ENDS

Ver 7.7

Mod 12-08-22

Track Rod Ends Fendt

B: Internal thread/ diameter

A: Overall length (end to centre)

TYPE G

Track Rod Ends

Part No.

Compatibility

OE Ref

300094

Track Rod End Fendt Favorit 800 Turboshift GT Porte-outils Farmer 300 LSA C/CA Turbomatik Favorit 900 Vario COM I Series 55515 – Ball Joint to suit

415mm

M28X1.5 RH

F816300100020

64797

Track Rod End Left Hand Fendt Favorit 700 800-Vario 700-Vario Favorit-800-Turboshift Series 300049 – Ball Joint to suit

400mm

M26x1.5 RH

F716300100010

67289

Track Rod Right Hand Fendt Favorit-800-Turboshift Favorit-700 800-Vario 700-Vario-SCR Series

400mm

M26x1.5 RH

ACV0025280

680297

Track Rod End Fendt Farmer-300-LSA Series 300042 – Ball Joint to suit

325mm

M22X1.5 RH

F308300100010

TYPE H B: Internal thread/ A: Overall length (end to centre)

diameter

Track Rod Ends

Part No.

Compatibility

OE Ref

300093

Track Rod End Fendt Favorit 800 Turboshift Favorit 900 Vario COM I Series 55515 – Ball Joint to suit

415mm

M28X1.5 RH

F816300100010

64796

Track Rod End Fendt 800 Vario Favorit 700 Favorit 800 Turboshaft Series 300049 – Ball Joint to suit

400mm

M26x1.5 RH

F716300100020

680296

Track Rod End Fendt Farmer 300 LSA Series 300042 – Ball Joint to suit

325mm

M22x1.5

F308300100020

Mod 12-08-22

Ver 7.7

TRACK ROD ENDS

Original equipment manufacturer names and part numbers are quoted for reference purposes only and are not intended to infer that our replacement parts are used as original equipment.

Track Rod Ends Fendt

B: Internal thread/ A: Overall length (end to centre)

diameter

TYPE I

Track Rod Ends

Part No.

Compatibility

OE Ref

300092

Inner Tie Rod End Fendt Favorit-500 GT-Porte-outils Farmer-300-LSA Farmer-300-Turbomatik Series 300042 – Ball Joint to suit

415mm

M22X1.5 RH

F514300100020

300047

Track Rod End Left Hand Fendt GT-Porte-outils Farmer-300-LSA Series 59960 – Ball Joint to suit

380mm

M22x1.5

F198300100010

B: Internal thread/ A: Overall length (end to centre)

diameter

TYPE J

Track Rod Ends

Part No.

Compatibility

OE Ref

300091

Inner Tie Rod End Fendt Favorit-500 GT-Porte-outils Farmer-300-LSA Farmer-300-Turbomatik Series 300042 – Ball Joint to suit

415mm

M22X1.5 RH

F514300100010

300048

Track Rod End Right Hand Fendt GT Porte-outils Farmer 300 LSA Series 59960 – Ball Joint to suit

380mm

M22x1.5

F198300100020

Original equipment manufacturer names and part numbers are quoted for reference purposes only and are not intended to infer that our replacement parts are used as original equipment.

TRACK ROD ENDS

Ver 7.7

Mod 12-08-22

Track Rod Ends Fendt

TYPE M

B: Internal thread/ A: Overall length (end to centre)

Track Rod Ends

diameter

Part No.

Compatibility

OE Ref

300087

Track Rod End Fendt Favorit-600 Series

70mm

M18x1.5 RH

F150403090040

300101

Track Rod End Fendt Farmer-300-LSA Series

50mm

M20x1.5 RH

X800210019000

Mod 12-08-22

Ver 7.7

TRACK ROD ENDS

Original equipment manufacturer names and part numbers are quoted for reference purposes only and are not intended to infer that our replacement parts are used as original equipment.

Track Rod Ends Fiat

FIAT TRACK ROD ENDS Type A

TYPE A

B: External thread

Track Rod Ends

A: Overall length (end to centre) Part No.

Compatibility

OE Ref

780154

Track Rod End Fiat 66 Winner Series

106mm

M24x1.5 RH

6000187031

41262

Track Rod End Fiat 66 90 1000 M Winner Classique Series

105mm

M24x1.5 RH

5117314

780153

Track Rod End Fiat 66 88 90 1000 M Winner Series

105mm

M24x1.5 LH

6000188759

42074

Track Rod End Fiat L Series

100mm

M24x1.5 RH

5178390

300085

Track Rod End Fiat Classique Series

85mm

M20x1.0 RH

588309

Original equipment manufacturer names and part numbers are quoted for reference purposes only and are not intended to infer that our replacement parts are used as original equipment.

TRACK ROD ENDS

Ver 7.7

Mod 12-08-22

Track Rod Ends Fiat Type A

TYPE A

B: External thread

Track Rod Ends

A: Overall length (end to centre) Part No.

Compatibility

OE Ref

5707

Track Rod End Fiat Classique Series

80mm

Ø24mm

44078446

1208

Track Rod End Fiat 46 56 66 76 88 90 93 94 L Winner Classique Series 41021 – Nut to suit

75mm

M20x1.0 RH

5109526

1209

Track Rod End Fiat 46 56 66 76 88 90 93 94 L Winner Classique Series 41021 – Nut to suit

75mm

M20x1.0 RH

4955011

B: Internal thread/diameter

TYPE D Track Rod Ends

A: Overall length (end to centre) Part No.

Compatibility

OE Ref

42073

Track Rod End Fiat L Series

900mm

Ø24 7 Holes

5178378

3400

Track Rod End Fiat 66 90 93 94 Classique Series

640mm

Ø20 9 Holes

5109530

Mod 12-08-22

Ver 7.7

TRACK ROD ENDS

Original equipment manufacturer names and part numbers are quoted for reference purposes only and are not intended to infer that our replacement parts are used as original equipment.

Track Rod Ends Fiat

B: Internal thread/diameter

TYPE D Track Rod Ends

A: Overall length (end to centre) Part No.

Compatibility

OE Ref

300086

Track Rod End Fiat Classique Series

375mm

Ø20 7 Holes

4950872

B: External Thread

TYPE E

Track Rod Ends

A: Overall length (centre to centre)

Part No.

Compatibility

OE Ref

44158

Drag Link Fiat 66 88 Series

1515mm

M24x1.5 RH

5142233

42169

Track Rod End Fiat L65 L75 L85 L95 Series

1470mm

M20x1

5168933

B: External Thread

TYPE Q Track Rod Ends

A: Overall length (end to end)

Part No.

Compatibility

OE Ref

42170

Track Rod End Threaded Bar Fiat L65 L75 L85 L95 Series

445mm

3/4" 7 Holes

C5NN3282E

Original equipment manufacturer names and part numbers are quoted for reference purposes only and are not intended to infer that our replacement parts are used as original equipment.

TRACK ROD ENDS

Ver 7.7

Mod 12-08-22

Track Rod Ends Hurlimann

HURLIMANN TRACK ROD ENDS Type A

TYPE A

B: External Thread

Track Rod Ends

A: Overall length (end to centre) Part No.

Compatibility

OE Ref

55491

Track Rod End Hurlimann XE XF XN XA H Series

100mm

M18x1.5 RH

13542374

TYPE C

B: Internal thread

Track Rod Ends

A: Overall length (end to centre) Part No.

Compatibility

OE Ref

55239

Track Rod End Hurlimann XL XL COM3 XL Hi-Level XL Hi-Level COM3 XM-COM3 XM Hi-Level COM3 Series

305mm

24x1.5 RH

90001077

Mod 12-08-22

Ver 7.7

TRACK ROD ENDS

Original equipment manufacturer names and part numbers are quoted for reference purposes only and are not intended to infer that our replacement parts are used as original equipment.

Track Rod Ends JCB

JCB TRACK ROD ENDS TYPE L

B: External thread

Track Rod Ends

A: Overall length (end to centre) Part No.

Compatibility

OE Ref

55182

Track Rod & Ball joint kit JCB Forklift Backhoe Series

397mm

M22x1.5

45323400

55186

Track Rod & Ball joint kit JCB Telehandler 520 Series

350mm

M20X1.5 RH

10905624

55183

Track Rod JCB Telehandler 520 530 540 Series 55184 – Ball Joint to suit

215mm

M28X1.5

45323401

Original equipment manufacturer names and part numbers are quoted for reference purposes only and are not intended to infer that our replacement parts are used as original equipment.

TRACK ROD ENDS

Ver 7.7

Mod 12-08-22

Track Rod Ends Lamborghini

LAMBORGHINI TRACK ROD ENDS Type A

TYPE A

B: External Thread

Track Rod Ends

A: Overall length (end to centre) Part No.

Compatibility

OE Ref

3182

Track Rod End Lamborghini R R2 RF RS RV Sprint Crono Crono Target F Plus Series

105mm

M24x1.5 LH

1617829M91

55491

Track Rod End Lamborghini R R2 RF RS RV Sprint Crono Crono Target F Plus Series

100mm

M18x1.5 RH

13542374

TYPE C

B: Internal thread

Track Rod Ends

A: Overall length (end to centre) Part No.

Compatibility

OE Ref

55239

Track Rod End Lamborghini R6 R6 COM3 R6 Hi-Profile R6 VRT R6 VRT COM3 Series

305mm

24x1.5 RH

90001077

Mod 12-08-22

Ver 7.7

TRACK ROD ENDS

Original equipment manufacturer names and part numbers are quoted for reference purposes only and are not intended to infer that our replacement parts are used as original equipment.

Track Rod Ends Landini

LANDINI TRACK ROD ENDS Type A

TYPE A

B: External Thread

Track Rod Ends

A: Overall length (end to centre) Part No.

Compatibility

OE Ref

1112

Track Rod End Landini 390 399 350 355 360 690 699 Series

105mm

M24x1.5 RH

1824403M91

3182

Track Rod End Landini 2640 3505 3525 3545 3610 3630 3650 Series

105mm

M24x1.5 LH

1617829M91

TYPE C

B: Internal thread

Track Rod Ends

A: Overall length (end to centre) Part No.

Compatibility

OE Ref

1126

Track Rod End Landini Atlas Ghibli Mythos-Vision Mythos-Tier-2 Ghibli-Tier-2 Powerfarm-Meccanico-Tier 2 Vision-Tier-2 Series

295mm

18x1.5 RH

3664942M91

Original equipment manufacturer names and part numbers are quoted for reference purposes only and are not intended to infer that our replacement parts are used as original equipment.

TRACK ROD ENDS

Ver 7.7

Mod 12-08-22

Track Rod Ends Landini

TYPE C

B: Internal thread

Track Rod Ends

A: Overall length (end to centre) Part No.

Compatibility

OE Ref

52795

Track Rod End Landini Legend Series 64611 – Ball Joint to suit

265mm

M24x1.5 RH

351144

300074

Track Rod End Landini Legend 105 115 130 145 140 Series

265mm

M24x1.5 RH

6505467M1

61475

Track Rod End Landini 60 Atlantis Atlas Ghibli Mythos Vision Mythos-Tier 2 Ghibli-Tier-2 Powerfarm-Meccanico-Tier-2 Vision-Tier-2 Series

250mm

M28x1.5 RH

3426313M1

6831

Track Rod End Landini Legend NG Legend NG TDI Series 3144 – Ball Joint to suit

240mm

M24x1.5 RH

3764286M1

3195

Track Rod End Landini 60 70 80 Blizzard Ghibli Mythos Vision Globalfarm Ghibli Tier 2 Powerfarm Meccanico Tier 3 Vision Tier 2 60 NG 60 Tier 2 Series 6463 – Ball Joint to suit

200mm

M18x1.5 RH

3426336M1

6829

Track Rod End Landini Large Series 3144 / 64611 – Ball Joints to suit

195mm

M24x1.5 RH

3764024M1

429965

Track Rod End Landini 30 Series

180mm

M18x1.5 RH

3429173M3

Mod 12-08-22

Ver 7.7

TRACK ROD ENDS

Original equipment manufacturer names and part numbers are quoted for reference purposes only and are not intended to infer that our replacement parts are used as original equipment.

Track Rod Ends Landini

TYPE D

B: Internal thread/diameter

Track Rod Ends

A: Overall length (end to centre) Part No.

Compatibility

OE Ref

6313

Track Rod End Outer Landini Large Series

360mm

Ø28 6 Holes

1678024M1

B: Internal thread/ A: Overall length (end to centre)

diameter

TYPE G

Track Rod Ends

Part No.

Compatibility

OE Ref

780260

Track Rod End Landini Legend NG Legend NG TDI Series 3144 – Ball Joint to suit

265mm

M24x1.5

6000104516

TYPE H B: Internal thread/ A: Overall length (end to centre)

diameter

Track Rod Ends

Part No.

Compatibility

OE Ref

300075

Track Rod End Landini Legend Series

265mm

24x1.5 RH

3541414M1

Original equipment manufacturer names and part numbers are quoted for reference purposes only and are not intended to infer that our replacement parts are used as original equipment.

TRACK ROD ENDS

Ver 7.7

Mod 12-08-22

Track Rod Ends Landini

B: Internal thread/ diameter

A: Overall length (end to centre)

TYPE H Track Rod Ends

Part No.

Compatibility

OE Ref

780259

Track Rod End Landini Legend NG Legend NG TDI Series

265mm

M24x1.5 RH

6000104513

TYPE M

B: Internal thread/ A: Overall length (end to centre)

Track Rod Ends

diameter

Part No.

Compatibility

OE Ref

1050

Track Rod End Landini 30 Series

70mm

18x1.5 RH

3314437M1

Mod 12-08-22

Ver 7.7

TRACK ROD ENDS

Original equipment manufacturer names and part numbers are quoted for reference purposes only and are not intended to infer that our replacement parts are used as original equipment.

Track Rod Ends Leyland

LEYLAND TRACK ROD ENDS Type A

TYPE A

B: External Thread

Track Rod Ends

A: Overall length (end to centre) Part No.

Compatibility

OE Ref

886802

Track Rod End Screw In Leyland 245 253 255 262 270 272 282 285 344 384 2100 Series

100mm

13/16”

886802M91

TYPE D

B: Internal thread/diameter

Track Rod Ends

A: Overall length (end to centre) Part No.

Compatibility

1667

Track Rod End Leyland 245 253 255 262 270 272 282 285 344 384 502 602 702 802 2100 Series

365

Ø19 9 Holes

Original equipment manufacturer names and part numbers are quoted for reference purposes only and are not intended to infer that our replacement parts are used as original equipment.

OE Ref

TRACK ROD ENDS

Ver 7.7

Mod 12-08-22

Track Rod Ends Manitou

MANITOU TRACK ROD ENDS Type A

TYPE A

B: External Thread

Track Rod Ends

A: Overall length (end to centre) Part No.

Compatibility

OE Ref

55503

Track Rod Outer Manitou Loader Various Series

100mm

M22x1.5 RH

6063

TYPE C

B: Internal thread

Track Rod Ends

A: Overall length (end to centre) Part No.

Compatibility

OE Ref

55510

Track Rod Outer Manitou Loader Various Series 3144 – Ball Joint to suit

258mm

M24x1.5 RH

474683

Mod 12-08-22

Ver 7.7

TRACK ROD ENDS

Original equipment manufacturer names and part numbers are quoted for reference purposes only and are not intended to infer that our replacement parts are used as original equipment.

Track Rod Ends Manitou

TYPE D

B: Internal thread/diameter

Track Rod Ends

A: Overall length (end to centre) Part No.

Compatibility

OE Ref

55514

Track Rod Outer Manitou Loader Various Series 55515 – Ball Joint to suit

317mm

M28x1.5 RH

661501

TYPE I

B: Internal thread/

Track Rod Ends

diameter

A: Overall length (end to centre) Part No.

Compatibility

OE Ref

55504

Track Rod Outer Left Hand Manitou Loader Various Series 3144 – Ball Joint to suit

395mm

M24x1.5 RH

601214

55509

Track Rod Outer Right Hand Manitou Loader Various Series 3144 – Ball Joint to suit

359mm

M24x1.5 RH

6012222

55512

Track Rod Outer Left Hand Manitou Loader Various Series 3144 – Ball Joint to suit

335mm

M24x1.5 RH

601206

55506

Track Rod Outer Left Hand Manitou Loader Various Series 3144 – Ball Joint to suit

294mm

M24x1.5 RH

601218

Original equipment manufacturer names and part numbers are quoted for reference purposes only and are not intended to infer that our replacement parts are used as original equipment.

TRACK ROD ENDS

Ver 7.7

Mod 12-08-22

Track Rod Ends Manitou

TYPE J

B: Internal thread/

Track Rod Ends

diameter

A: Overall length (end to centre) Part No.

Compatibility

OE Ref

55505

Track Rod Outer Right Hand Manitou Loader Various Series 3144 – Ball Joint to suit

400mm

M24x1.5 RH

601215

55508

Track Rod Outer Left Hand Manitou Loader Various Series 3144 – Ball Joint to suit

359mm

M24x1.5 RH

601223

55513

Track Rod Outer Right Hand Manitou Loader Various Series 3144 – Ball Joint to suit

335mm

M24x1.5 RH

601211

55507

Track Rod Outer Right Hand Manitou Loader Various Series 3144 – Ball Joint to suit

295mm

M24x1.5 RH

601219

TYPE M

B: Internal thread/ A: Overall length (end to centre)

Track Rod Ends

diameter

Part No.

Compatibility

OE Ref

55511

Track Rod Inner Manitou Loader Various Series

63mm

M20x1.5 LH

475940

Mod 12-08-22

Ver 7.7

TRACK ROD ENDS

Original equipment manufacturer names and part numbers are quoted for reference purposes only and are not intended to infer that our replacement parts are used as original equipment.

Track Rod Ends McCormick

McCORMICK TRACK ROD ENDS Type A

TYPE A

B: External thread

Track Rod Ends

A: Overall length (end to centre) Part No.

Compatibility

OE Ref

3914

Track Rod End Screw in McCormick CX Series

95mm

7/8”

3116407R92

TYPE C

B: Internal thread

Track Rod Ends

A: Overall length (end to centre) Part No.

Compatibility

OE Ref

52795

Track Rod End McCormick MC MTX XTX Series 64611 – Ball Joint to suit

265mm

M24x1.5 RH

351144

51263

Track Rod End McCormick MC CX C Series 6463 / 4255 – Ball Joints to suit

173mm

M18x1.5

81878543

51262

Track Rod End McCormick MC CX C Series 6463 / 4255 – Ball Joints to suit

172mm

M18x1.5 RH

137048A1

Original equipment manufacturer names and part numbers are quoted for reference purposes only and are not intended to infer that our replacement parts are used as original equipment.

TRACK ROD ENDS

Ver 7.7

Mod 12-08-22

Track Rod Ends Nuffiled

NUFFIELD TRACK ROD ENDS Type A

TYPE A

B: External Thread

Track Rod Ends

A: Overall length (end to centre) Part No.

Compatibility

OE Ref

886802

Track Rod End Nuffield 3/45 4/65 Series

100mm

13/16”

886802M91

TYPE D

B: Internal thread/diameter

Track Rod Ends

A: Overall length (end to centre) Part No.

Compatibility

OE Ref

1667

Track Rod End Nuffield 3/45 4/65 Series

365mm

Ø19 9 Holes

VPJ3064

Mod 12-08-22

Ver 7.7

TRACK ROD ENDS

Original equipment manufacturer names and part numbers are quoted for reference purposes only and are not intended to infer that our replacement parts are used as original equipment.

Track Rod Ends Renault

RENAULT TRACK ROD ENDS Type A

TYPE A

B: External Thread

Track Rod Ends

A: Overall length (end to centre) Part No.

Compatibility

OE Ref

780154

Track Rod End Renault 700 800 900 1000 Series

106mm

M24x1.5 RH

6000187031

6579

Track Rod End Renault 700 800 900 1000 Series

105mm

M24x1.5 LH

3475538M91

780144

Track Rod End Renault Celtis Ceres Classique 50 60 70 80 90 100 400 600 700 800 900 1000 R Series

105mm

M16x1.5 RH

7700504269 / 7700681

780147

Track Rod End Renault 50 60 70 80 600 700 Series

105mm

M24x1.5 LH

7700658834

780153

Track Rod End Renault 700 800 900 1000 Series

105mm

M24x1.5 LH

6000188759

Original equipment manufacturer names and part numbers are quoted for reference purposes only and are not intended to infer that our replacement parts are used as original equipment.

TRACK ROD ENDS

Ver 7.7

Mod 12-08-22

Track Rod Ends Renault Type A

TYPE A

B: External Thread

Track Rod Ends

A: Overall length (end to centre) Part No.

Compatibility

OE Ref

780156

Track Rod End Renault 50 60 70 80 600 700 Series

105mm

M24x1.5 RH

7700658833

780157

Track Rod End Renault 90 100 700 800 Series

105mm

M28x1.5 LH

7700654420

780158

Track Rod End Renault 90 100 700 800 Series

105mm

M28x1.5 RH

7700654419

780146

Track Rod End Renault Dionis Fructus 50 70 80 Series

100mm

M20x1.5 RH

6000100833

780149

Track Rod End Renault 500 600 700 Series

100mm

M22x1.5 LH

6000198855

780150

Track Rod End Renault 500 600 700 Series

100mm

M22x1.5 LH

6000198854

780151

Track Rod End Renault 500 600 Series

100mm

M22x1.5 LH

7700693256

Mod 12-08-22

Ver 7.7

TRACK ROD ENDS

Original equipment manufacturer names and part numbers are quoted for reference purposes only and are not intended to infer that our replacement parts are used as original equipment.

Track Rod Ends Renault Type A

TYPE A

B: External Thread

Track Rod Ends

A: Overall length (end to centre) Part No.

Compatibility

OE Ref

780152

Track Rod End Renault 500 600 Series

100mm

M22x1.5 RH

7700693255

55492

Track Rod End Renault Dionis Fructus 50 70 80 Series

95mm

M20x1.5 LH

3131021R1

780145

Track Rod End Renault Dionis Fructus 50 70 80 Series

95mm

M20X1.5 LH

6000100832

780141

Track Rod End Renault Classique 30 300 400 Series

90mm

M16x1.5 LH

7700681808

300078

Track Rod End Inner Renault 600 700 Classique Series

85mm

M16x1.5 LH

7700504270

780143

Track Rod End Renault Classique Series

85mm

M16x1.5 LH

7700504271

Original equipment manufacturer names and part numbers are quoted for reference purposes only and are not intended to infer that our replacement parts are used as original equipment.

TRACK ROD ENDS

Ver 7.7

Mod 12-08-22

Track Rod Ends Renault

TYPE B

B: Internal thread

Track Rod Ends

A: Overall length (end to centre) Part No.

Compatibility

OE Ref

780199

Track Rod End Renault Dionis 50 70 80 Series

55mm

M18X1.5 RH

6000148972

780200

Track Rod End Renault Dionis 50 70 80 Series

55mm

M18x1.5 RH

6000148973

TYPE C

B: Internal thread

Track Rod Ends

A: Overall length (end to centre) Part No.

Compatibility

OE Ref

52795

Track Rod End Renault Arion 400 600 Series 64611 – Ball Joint to suit

265mm

M24x1.5 RH

351144

780196

Track Rod End Renault Temis 100 Ares 500 600 700 800 Series

255mm

M24x1.5 RH

6000103324

780192

Track Rod End Renault Ceres Cergo Series 780159 – Ball Joint to suit

210mm

M22x1.5 RH

6005009894

780194

Track Rod End Renault Ceres Cergo Ergos Celtis Series

200mm

M18x1.5 RH

6000103260

Mod 12-08-22

Ver 7.7

TRACK ROD ENDS

Original equipment manufacturer names and part numbers are quoted for reference purposes only and are not intended to infer that our replacement parts are used as original equipment.

Track Rod Ends Renault

TYPE C

B: Internal thread

Track Rod Ends

A: Overall length (end to centre) Part No.

Compatibility

OE Ref

6829

Track Rod End Renault Temis 100 Ares 500 600 700 800 Series 3144 – Ball Joint to suit

195mm

M24x1.5 RH

3764024M1

429965

Track Rod End Renault Axos Series

180mm

M18x1.5 RH

3429173M3

B: Internal thread/ diameter

TYPE G

Track Rod Ends

A: Overall length (end to centre) Part No.

Compatibility

OE Ref

780260

Track Rod End Renault 500 Ares 500 600 700 800 Arion 600 Series 3144 – Ball Joint to suit

265mm

M24x1.5

6000104516

TYPE H B: Internal thread/ A: Overall length (end to centre)

diameter

Track Rod Ends

Part No.

Compatibility

OE Ref

780259

Track Rod End Renault 500 Ares 500 600 700 800 Arion 600 Series 3144 – Ball Joint to suit

265mm

M24x1.5

6000104513

Original equipment manufacturer names and part numbers are quoted for reference purposes only and are not intended to infer that our replacement parts are used as original equipment.

TRACK ROD ENDS

Ver 7.7

Mod 12-08-22

Track Rod Ends Same

SAME TRACK ROD ENDS Type A

TYPE A

B: External Thread

Track Rod Ends

A: Overall length (end to centre) Part No.

Compatibility

OE Ref

3182

Track Rod End Same Antares Silver Centauro Corsaro Leopard Drago Leone Explorer-II-Saturno Explorer-II-Special Series

100mm

M241x1.5 LH

1617829M91

4334

Track Rod End Same Galaxy Laser Titan Series

105mm

M24x1.5 RH

25743454

1114

Track Rod End Same Antares Silver Centauro Corsaro Leopard Drago Leone Explorer II Saturno Explorer II Special Series

100mm

M22x1.5 RH

42742373

55491

Track Rod End Same Aster Centauro Condor Corsaro Delfino Leopard Panther Drago Argon Frutteto Golden Mercury Taurus Centurion Centurion 75 Solar Leone Aurora Dorado Dorado F Dorado S Dorado V Frutteto II Minitauro Ranger Ranger 45 Vigneron Saturno Sirenetta Atlanta Falcon Series

100mm

M24x1.5 RH

13542374

Mod 12-08-22

Ver 7.7

TRACK ROD ENDS

Original equipment manufacturer names and part numbers are quoted for reference purposes only and are not intended to infer that our replacement parts are used as original equipment.

Track Rod Ends Same

TYPE C

B: Internal thread

Track Rod Ends

A: Overall length (end to centre) Part No.

Compatibility

OE Ref

4332

Track Rod End Same Row Crop Centauro Leopard Jaguar Panther Argon Mercury Centurion Solar Series

340mm

M16 RH

17663603

4333

Track Rod End Same Centauro Tiger Trident Jaguar Panther Mercury Centurion Series

340mm

M16x1.5 RH

16963763

55239

Track Rod End Same Iron COM3 HI-Line DCR COM 3 Continuo COM3 Continuo Series

305mm

24x1.5 RH

90001077

Original equipment manufacturer names and part numbers are quoted for reference purposes only and are not intended to infer that our replacement parts are used as original equipment.

TRACK ROD ENDS

Ver 7.7

Mod 12-08-22

Track Rod Ends Steyr

STEYR TRACK ROD ENDS TYPE C

B: Internal thread

Track Rod Ends

A: Overall length (end to centre) Part No.

Compatibility

OE Ref

780192

Track Rod End Steyr 8000 9000 Profi Series 780159 – Ball Joint to suit

210mm

M22x1.5 RH

6005009894

42084

Track Rod End Steyr 9000 M Series 6463 – Ball Joint to suit

143mm

M18x1.5 RH

133743603

300062

Track Rod End Steyr 9000 9100 CVT100 Series 4255 – Ball Joint to suit

143mm

M18x1.5 LH

133743601

B: Internal thread/ A: Overall length (end to centre)

diameter

TYPE G

Track Rod Ends

Part No.

Compatibility

OE Ref

59598

Track Rod End Steyr 9100 CVT100 Series 3144 – Ball Joint to suit

300mm

M24x1.5 RH

AL168706

Mod 12-08-22

Ver 7.7

TRACK ROD ENDS

Original equipment manufacturer names and part numbers are quoted for reference purposes only and are not intended to infer that our replacement parts are used as original equipment.

Track Rod Ends Steyr

TYPE H B: Internal thread/ A: Overall length (end to centre)

diameter

Track Rod Ends

Part No.

Compatibility

OE Ref

59599

Track Rod End Steyr 9100 CVT100 Series 3144 – Ball Joint to suit

300mm

M24x1.5 RH

AL168705

UNIVERSAL TRACK ROD ENDS TYPE D

B: Internal thread/diameter

Track Rod Ends

A: Overall length (end to centre) Part No.

Compatibility

OE Ref

4461

Track Rod End Universal 300 400 500 600 Series

380mm

Ø22 7 Holes

4988565

Original equipment manufacturer names and part numbers are quoted for reference purposes only and are not intended to infer that our replacement parts are used as original equipment.

TRACK ROD ENDS

Ver 7.7

Mod 12-08-22

Track Rod Ends Valmet / Valtra

VALTRA / VALMET TRACK ROD ENDS Type A

TYPE A

B: External Thread

Track Rod Ends

A: Overall length (end to centre) Part No.

Compatibility

OE Ref

780153

Track Rod End Valtra / Valmet 500 600 700 800 900 Series

105mm

M24x1.5 LH

6000188759

TYPE C

B: Internal thread

Track Rod Ends

A: Overall length (end to centre) Part No.

Compatibility

OE Ref

67310

Track Rod Valtra / Valmet N Series 3144 – Ball Joint to suit

355mm

M26x1.5

39912262

67309

Track Rod Valtra / Valmet M N XM T T2 TC/TCH Series 3144 – Ball Joint to suit

330mm

M24x1.5

39912263

300068

Track Rod End Valtra / Valmet 6000 8000 Series

295mm

M22x1.5 RH

31882210

6829

Track Rod End Valtra / Valmet 6000 8000 Series 3144 – Ball Joint to suit

195mm

M24x1.5 RH

3764024M1

300069

Track Rod End Valtra / Valmet 200 300 400 500 600 700 800 900 A T M 6000 8000 Series

160mm

M22x1.5 RH

166700430707

Mod 12-08-22

Ver 7.7

TRACK ROD ENDS

Original equipment manufacturer names and part numbers are quoted for reference purposes only and are not intended to infer that our replacement parts are used as original equipment.

Track Rod Ends Valmet / Valtra

B: Internal thread/ A: Overall length (end to centre)

diameter

TYPE G

Track Rod Ends

Part No.

Compatibility

OE Ref

67289

Track Rod End Right Hand Thread Valtra / Valmet N Series

400mm

M26x1.5RH

ACV0025280

ZETOR TRACK ROD ENDS Type A

TYPE A

B: External Thread

Track Rod Ends

A: Overall length (end to centre) Part No.

Compatibility

OE Ref

3916

Track Rod End Right Hand Thread Zetor Crystal 8000 9000 10000 11000 12000 Series

130mm

M24x2.0 RH

80220019

3920

Track Rod End Right Hand Thread Zetor 5000 6000 7000 8000 9000 10000 11000 12000 14000 16000 Series

120mm

M27x2 RH

88221019

Original equipment manufacturer names and part numbers are quoted for reference purposes only and are not intended to infer that our replacement parts are used as original equipment.

TRACK ROD ENDS

Ver 7.7

Mod 12-08-22

Track Rod Ends Zetor Type A

TYPE A

B: External Thread

Track Rod Ends

A: Overall length (end to centre) Part No.

Compatibility

OE Ref

3921

Track Rod End Left Hand Thread Zetor 5000 6000 7000 8000 9000 10000 11000 12000 14000 16000 Series

120mm

M27x2.0 RH

88221009

3918

Track Rod End Left Hand Thread Zetor 3000 4000 5000 6000 7000 Series

100mm

M18x1.5 RH

67143531

3919

Track Rod End Right Hand Thread Zetor 3000 4000 5000 6000 7000 Series

100mm

M18x1.5 RH

S.71278

TYPE D

B: Internal thread/diameter

Track Rod Ends

A: Overall length (end to centre) Part No.

Compatibility

OE Ref

55357

Track Rod End Zetor Crystal Outer Push In 8000 9000 10000 11000 12000 Series

340mm

Ø24 8 Holes

80220029

Mod 12-08-22

Ver 7.7

TRACK ROD ENDS

Original equipment manufacturer names and part numbers are quoted for reference purposes only and are not intended to infer that our replacement parts are used as original equipment.
