Quorum Fan Catalog 2025

2025

FA N C ATA LOG

THE RIGHT DESIGN FOR ANY IDEA

Welcome to the 2025 Quorum Fan Catalog. With Quorum's range of fans, from classic designs to modern classics, we have a ceiling fan for every need. Whether you are revamping a room, updating your home, designing your dream house, or simply cooling the patio, we have you covered.

With an enormous selection of designs and finishes to choose from, you’ll find the perfect ceiling fan that allows you to express your own personal taste and create the mood of comfort and style that only a beautiful ceiling fan can achieve. If you want to set your home apart – you are holding the right catalog!

If you prefer to shop online, you're invited to browse our entire collection of lighting and ceiling fans at QuorumInternational.com

Ceiling Fan Visual Table Of Contents.................................................................................. 008 Indoor Ceiling Fans ..............................................................................................................014 Contemporary Selections .................................................................................................................... 014 Soft Contemporary Selections ............................................................................................................054 Traditional Selections ........................................................................................................................... 092 ......................................................................................................................................... 142

Indoor Fan Light Kits .......................................................................................................... 206 Patio Fans ............................................................................................................................218 Contemporary Selections .................................................................................................................... 218 Soft Contemporary Selections ............................................................................................................ 240 Traditional Selections ........................................................................................................................... 272 ................................................................................................................................... 320

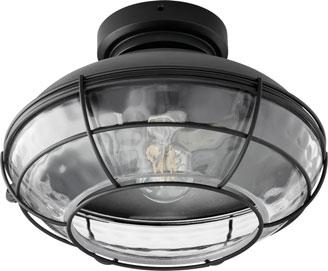

Patio Fan Light Kits............................................................................................................. 346 Glass (For Light Kits) ........................................................................................................... 352 Accessories ......................................................................................................................... 356 Blade Alternatives ................................................................................................................................ 358 Optional Downrods & Adapters ........................................................................................................... 386 Remote & Wall Controls ....................................................................................................................... 387

Index ................................................................................................................................... 390

FIND YOUR DISTINCTIVE STYLE C E I L I N G FA N S

003

HOW THE BOOK WORKS

Ceiling fans are grouped into "selections" that follow a common design theme to help you shop according to the style of the fan that you want. Fans that are intended for outdoor use are also grouped into a special patio section. Each fan family has a name and is often shown with one of our optional light kits that compliments the style and finish of the fan family. Note that many of Quorum’s ceiling fan finishes are also applied to our decorative lighting fixture families that are found in our separate 2025 Quorum Lighting catalog or online at QuorumInternational.com.

How to Read the Specifications On each product page, you will find basic specifications for each ceiling fan or light kit. The basic fan specifications include item number, fan finish, and blade finish.

Finish codes are found at the end of the item number

4525-59 Matte Black - metal finish Weathered Gray | Matte Black Blades - blade finish: side A | side B blade finish

Detailed Mechanical & Energy Specs To help you learn more information about dimensions and energy usage, a detailed reference chart is provided for every fan family (see sample below). This information is available on each family section or visit us online at: QuorumInternational.com.

Detailed Mechanical Specifications Chart Sample: general specs

HEIGHT CHART

FAN HEIGHT Using 4" Downrod ● Distance of 18.25" ● Distance of 10.25"

MECHANICAL SPECS

LIGHT SOURCE

153 x 13 Motor Size 3 Speeds-Reversible/Manual Reverse Switch 14 Poles .54/.42/.25 AMPS on H/M/L 66/38/13 WATTS on H/M/L 167/127/72 RPMS on H/M/L Detachable Switch Cup Triple Capacitor Remote Control Adaptable w/ Manual Reverse LED Kit Included

Medium Frosted LED

Medium Clear LED

REMOTE CONTROL OPTION

ENERGY SPECS

GENERAL SPECS

Energy Information at High Speed Airflow: 4487 Cubic Feet/Minute Electricity Use: 64 Watts (Excludes Lights) Airflow Efficiency: 70 Cubic Feet/Minute/Watt Visit QuorumInternational.com for DOE Energy Guide

14 Finish Combinations Available Lifetime Motor Warranty Five Blades 52" Blade Sweep 12-Degree Blade Pitch 80" Lead Wire 4" Downrod Included

7-501-0

8-223

BLADE ALTERNATIVES Use indoor blade type 8-52 - See page 369.

energy specs

available options

Icon Key

Wet Location

DC Motor

Wet Listed

Damp Listed

Light Kit Adaptable

LED

Blade Options

Up/Down Light

Hugger Fan

SMART by BOND*

WiFi

*SMART by BOND technology allows you to control your fan settings from your mobile device anywhere you go. It also allows you to connect your fan to many voice activated smart home device (not included).

C E I L I N G FA N S

005

DIFFERENT

BY DESIGN Exceptional design is impossible to ignore. When perfectly executed, it breaks through the mundane and captivates the senses.

It’s something we take very seriously at Quorum International.

That’s why our products are designed in-house by our award-winning design team.

And once our products are designed and manufactured, we offer them to our Authorized Quorum Distributors who, in turn, provide them to customers who appreciate the innovation, value and workmanship that go into each fixture.

Headquartered in Fort Worth, Texas, Quorum leads the industry in service, quality and style, and we are honored that our distributors and customers continue to rely on us for those very things.

Please enjoy our catalog. We look forward to providing you with beautifully functional and inspiring products.

Be sure to look for the upcoming Quorum Summer Supplement that will be available in April 2025 introducing all new designs!

C E I L I N G FA N S

007

Indoor Fans

Visual Table of Contents

Aerovon 52" 144

Aerovon 60" 146

Alto 62" 056

Apex 058

Axis 54" 060

Bandit 24" 094

Banzai Hugger 52" 148

Breeze 52" 150

Breeze 2 Light Bowl Uni-Pack 152

Breeze 3 Light Uni-Pack 156

Breeze 4 Light Uni-Pack 160

Breeze 60" 164

Breeze 60" 2 Light Bowl Uni-Pack 166

Brewster 096

Brisa 60" 062

Chateaux 098

Chateaux 52" Uni-Pack 100

Chateaux 60" 102

Cirque 60" 064

Cirque 72" 066

Custom Hugger 42" 168

Custom Hugger 52" 170

Dayton Hugger 068

Empress 104

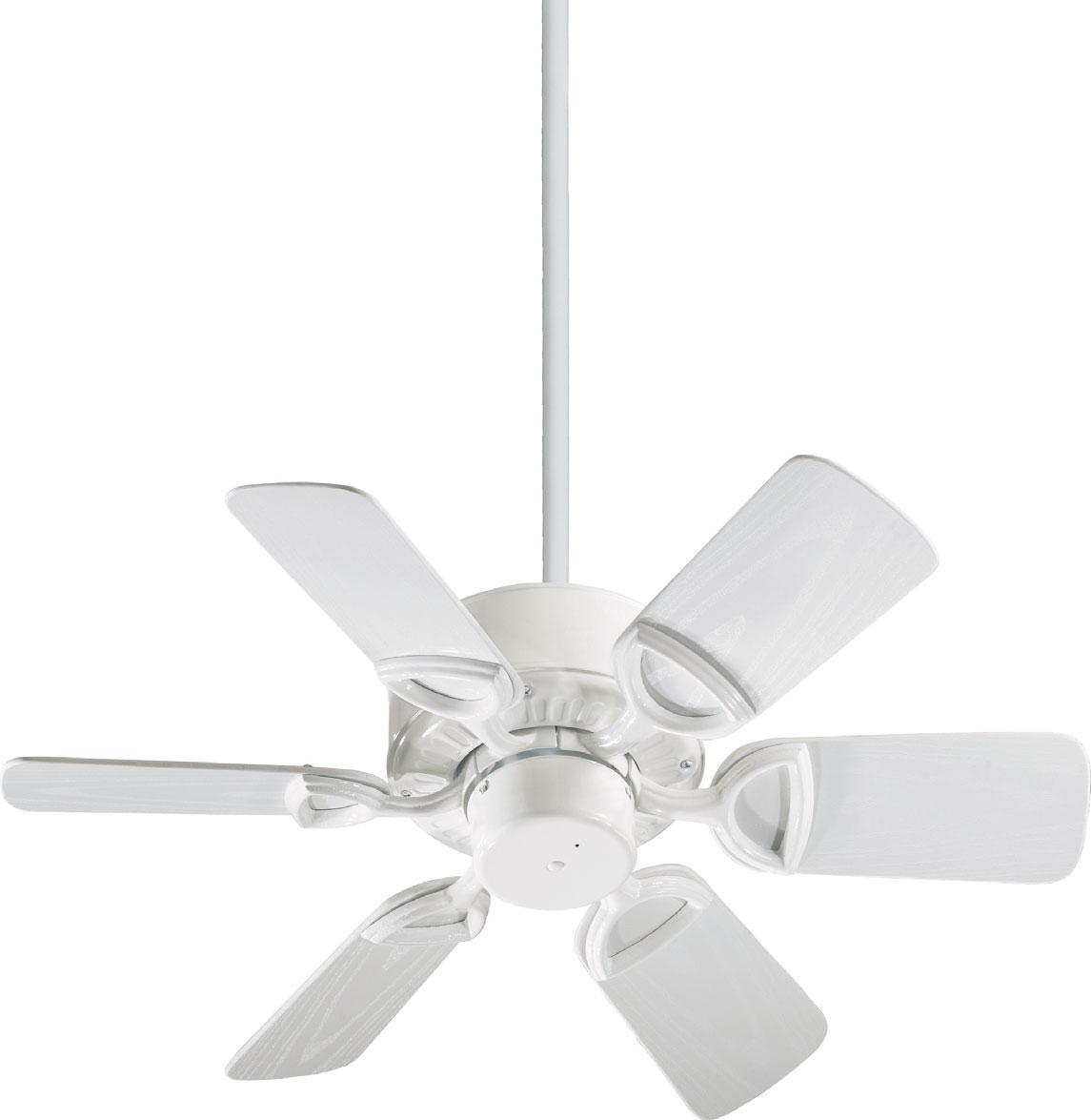

Estate 30" 106

Estate 42" 108

Estate 52" 110

Exodus 58" 070

Expo 52" 172

Expo 52" 4 Blade 174

Expo 60" 176

Expo 60" 4 Blade 178

Fury 65" 016

Galveston 112

Gamble 114

Gusto 32" 116

Hawkeye 018

Holt 020

Kimbo 60" 072

Kress 022

Lurus 64" 024

Marino 54" 028

Maxwell 52" 074

Medallion 30" 118

Medallion 42" 120

Medallion 52" 122

Mira 30" 124

Mod 60" 180

Mod 72" 182

Ovation 52" 184

Ovation 2 Light Bowl Uni-Pack 186

Ovation 3 Light Uni-Pack Clear 190

Ovation 3 Light Uni-Pack 192

Ovation 4 Light Uni-Pack Clear 196

Ovation 4 Light Uni-Pack 198

Ovation 60" 202

Papillon 66" 030

Papillon 80" 032

Pinnacle 126

Premier 52" Uni-Pack 204

V I S UA L TA B L E O F C O N T E N T S

009

Indoor Fans

Visual Table of Contents

Proxima 60" 034

Proxima 72" 036

Quest 52" 076

Reni 65" 078

Revel 80" 080

Rosales 60" 082

Rova 72" 084

Salon 128

Soho 086

Spree 84" 088

Titus 65" 038

Titus 80" 040

Trinity 042

Trio 044

Turner 130

Twain 56" 090

Veleta Hugger 56" 046

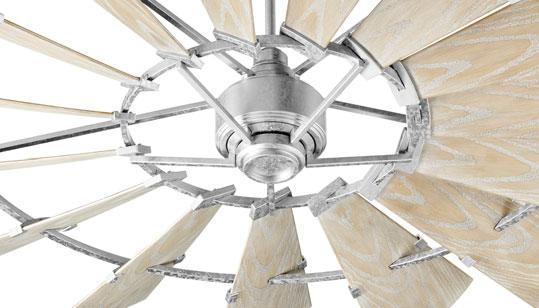

Windmill 44" 132

Windmill 52" 134

Windmill 60" 136

Windmill 72" 138

Windsor 140

Zeus 65" 048

Zeus 80" 050

Zeus 120" 052

V I S UA L TA B L E O F C O N T E N T S

011

Patio Fans

Visual Table of Contents

Aerovon 52" Damp 322

Aerovon 60" Damp 324

Allure AW Patio 236

Alto 60" Patio 242

Apex 56" Patio 244

Bandit 24" Damp 274

Breeze 52" Patio 328

Breeze 52" 2 Light Uni-Pack Patio 330

Breeze 52" Patio Plus 332

Breeze 60" 2 Light Uni-Pack Patio 334

Brisa 60" Damp 246

Cirque Patio 60" 248

Cirque Patio 72" 250

Cyprus Damp Patio 276

Dayton Hugger Damp 252

Esquire 58" Patio 254

Estate Patio 30" 278

Estate Patio 42" 280

Estate Patio 52" 282

Estate Patio Uni-Pack 284

Exodus 58" Damp 256

Fury 65" Damp 220

Galveston Patio 288

Georgia Patio 290

Hudson Patio 258

Impulse Damp Patio 336

Kimbo 60" Damp 260

Marino Patio 54" 222

Medallion Patio 30" 292

Medallion Patio 42" 294

Medallion Patio 52" 296

Mira Damp 298

Mod Damp 60" 338

Mod Damp 72" 340

Monaco Patio 300

Niles 64" Patio 302

Ovation 52" Patio 342

Ovation 52" 2 Light Uni-Pack Patio 344

Piazza Patio 304

Pinnacle Patio 306

Portico 60" Patio 308

Portland Patio 224

Proxima 60" Patio 226

Proxima 72" Patio 228

Revel 80" Damp 262

Rosales 60" Damp 264

Rova 72" Patio 266

Spree 84" Damp 268

Titus 65" Patio 230

Titus 80" Patio 232

Twain 56" Damp 270

Veranda Damp Patio 310

Windmill Patio 44" 312

Windmill Patio 52" 314

Windmill Patio 60" 316

Windmill Patio 72" 318

Zeus 65" Damp 234

Zeus 80" Damp 236

Zeus 120" Damp 238

V I S UA L TA B L E O F C O N T E N T S

013

CONTEMP

ORARY selections

Clean lines and polished metals are the hallmarks of our contemporary designs. Engineered with the utmost precision, Quorum fans are designed to elevate your space and bring unmatched style to your décor.

I N D O O R FA N S

C O N T E M P O R A RY S E L EC T I O N S

015

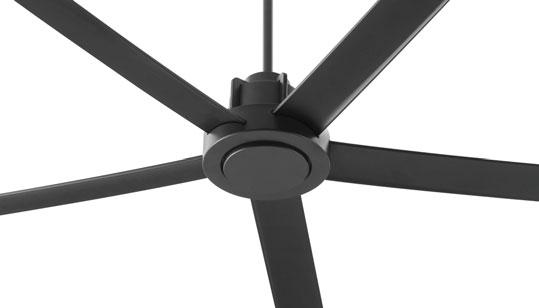

Fury 65"

AVAILABLE FINISHES * S U P P L I E D W I T H A 1 / 2 " D I A M E T E R D OW N R O D

41655-59 Matte Black Matte Black ABS Blades

41655-8 Studio White Studio White ABS Blades

Optional LED Light Kit 8-41655-59

Optional LED Light Kit 8-41655-8

(1) 24W, 3000k, 2227 Lumens, 90CRI 120V LED kit w/ White Acrylic Diffuser Light Kit shown on 41655-59 ceiling fan

(1) 24W, 3000k, 2227 Lumens, 90CRI 120V LED kit w/ White Acrylic Diffuser Light Kit shown on 41655-8 ceiling fan

HEIGHT CHART

MECHANICAL SPECS

FAN HEIGHT

DC30 Motor 6 Speeds-Reversible w/ Wall Control .33/.26/.20/.15/.11/.08 AMPS on H/M/L 27/19/14/10/7/5 WATTS on H/M/L 90/82/74/66/59/50 RPMS on H/M/L Wall Control Included Remote Control Adaptable Integral LED Light Kit is 18W, 3000k, 1274 Lumens, 90CRI (dimmable)

Using 4" Downrod ● Distance of 12.25" ● Distance of 8"

GENERAL SPECS 2 Finishes Available Limited Lifetime Motor Warranty Five ABS Blades 65" Blade Sweep 13-Degree Blade Pitch 80" Lead Wire 4" & 6" Downrods Included 1/2" Downrod Diameter

I N D O O R FA N S

OPTIONAL LIGHT SOURCE

LED MODULE

REMOTE CONTROL OPTIONS

ENERGY SPECS Energy Information at High Speed Airflow: 6622 Cubic Feet/Minute Electricity Use: 33 Watts (Excludes Lights) Airflow Efficiency: 200 Cubic Feet/Minute/Watt Visit QuorumInternational.com for DOE Energy Guide

Included (4 DIP Switches)

8-1400

F U RY 6 5"

017

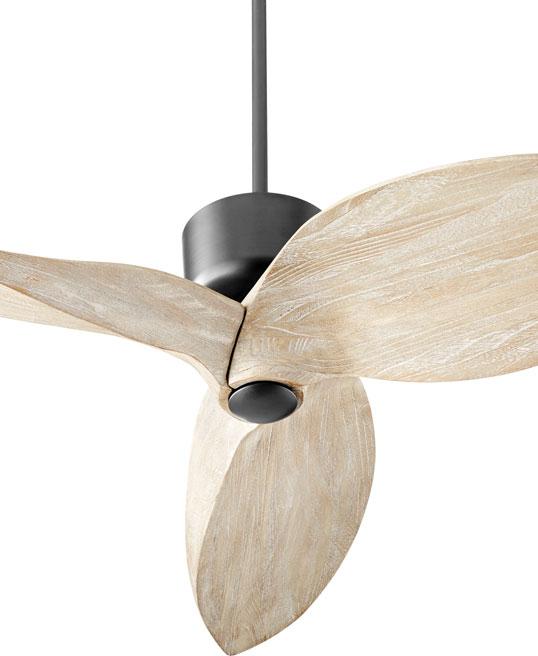

Hawkeye 52"

AVAILABLE FINISHES * S U P P L I E D W I T H A 1 / 2 " D I A M E T E R D OW N R O D

31523-69 Textured Black Weathered Oak Blades

31523-65 Satin Nickel Weathered Oak Blades

HEIGHT CHART

MECHANICAL SPECS

REMOTE CONTROL OPTIONS

FAN HEIGHT

125mm Motor Size 6 Speeds-Reversible w/ Wall Control .39/.26/.17/.11/.09/.08 AMPS on H/M/L 30/18/10/6/4/2WATTS on H/M/L 167/143/120/96/73/49 RPMS on H/M/L Wall Control Included Remote Control Adaptable Not Light Kit Adaptable

Included (No DIP Switches)

Using 6" Downrod ● Distance of 18.5" ● Distance of 13.5"

GENERAL SPECS 2 Finishes Available Lifetime Motor Warranty Three Blades 52" Blade Sweep 45 Degree Blade Pitch 80" Lead Wire 6" Downrod Included 1/2" Downrod Diameter

I N D O O R FA N S

8-9860-0

ENERGY SPECS Energy Information at High Speed Airflow: 5774 Cubic Feet/Minute Electricity Use: 32 Watts (Excludes Lights) Airflow Efficiency: 180 Cubic Feet/Minute/Watt Visit QuorumInternational.com for DOE Energy Guide

H AW K E Y E 5 2 "

019

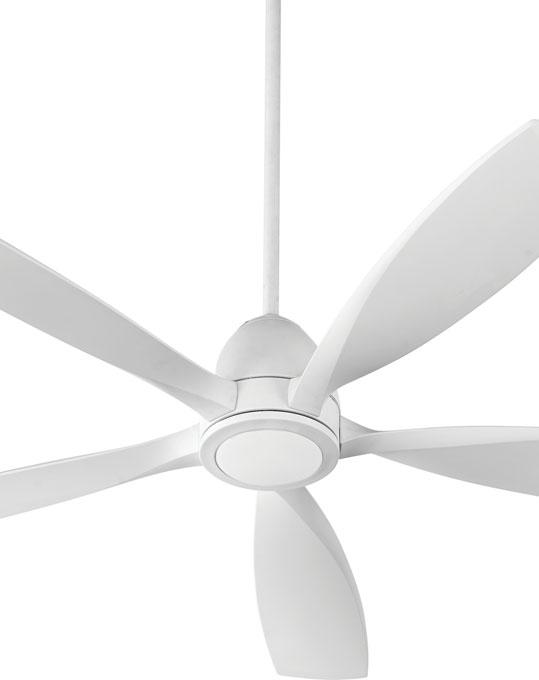

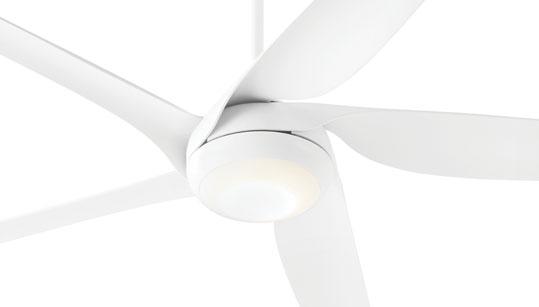

Holt 56"

AVAILABLE FINISHES * S U P P L I E D W I T H A 1 / 2 " D I A M E T E R D OW N R O D

66565-8 Studio White | White Acrylic Diffuser Studio White Blades

Integral 15W, 3000k, 986 Lumens, 90CRI Dimming LED kit

66565-65 Satin Nickel | White Acrylic Diffuser Silver Blades

Integral 15W, 3000k, 986 Lumens, 90CRI Dimming LED kit

HEIGHT CHART

MECHANICAL SPECS

FAN HEIGHT

120DC-25mm Motor 6 Speeds-Reversible w/ Wall Control 8 Poles .25/.23/.20/.15/.10/.07 AMPS on H/M/L 24/19/12/9/6/4 WATTS on H/M/L 178/164/141/121/100/83 RPMS on H/M/L 6 Speed Wall Control Included LED Light Kit is 15W, 3000k, 986 Lumens, 90CRI (dimmable)

Using 4.5" Downrod ● Distance of 13.5" ● Distance of 10.75"

GENERAL SPECS 2 Finishes Available Lifetime Motor Warranty Five Blades 56" Blade Sweep 16-Degree Blade Pitch 80" Lead Wire 4.5" Downrod Included 1/2" Downrod Diameter

I N D O O R FA N S

LIGHT SOURCE

LED MODULE

WALL CONTROL

ENERGY SPECS Energy Information at High Speed Airflow: 5560 Cubic Feet/Minute Electricity Use: 31 Watts (Excludes Lights) Airflow Efficiency: 179 Cubic Feet/Minute/Watt Visit QuorumInternational.com for DOE Energy Guide

Included (4 DIP Switches)

H O LT 5 6"

021

Kress 60"

AVAILABLE FINISHES * S U P P L I E D W I T H A 1 / 2 " D I A M E T E R D OW N R O D

74603-8 Studio White Studio White Blades

74603-86 Oiled Bronze Oiled Bronze Blades

Optional LED Light Kit 180-1 Integral 15W, 3000k, 1528 Lumens, 90CRI Dimming LED kit w/ White Acrylic Diffuser

Optional LED Light Kit 180-1 Integral 15W, 3000k, 1528 Lumens, 90CRI Dimming LED kit w/ White Acrylic Diffuser

Light Kit shown on 74603-8 ceiling fan

Light Kit shown on 74603-86 ceiling fan

HEIGHT CHART

MECHANICAL SPECS

FAN HEIGHT

120DC-25mm Motor 6 Speeds-Reversible w/ Wall Control 8 Poles .28/.20/.15/.10/.07/.05 AMPS on H/M/L 19/13/9/6/4/2 WATTS on H/M/L 200/173/151/123/100/77 RPMS on H/M/L 6 Speed Wall Control Included Optional LED Light Kit is 15W, 3000k, 986 Lumens, 90CRI (dimmable)

Using 4.5" Downrod ● Distance of 12.5" ● Distance of 9.75"

GENERAL SPECS 2 Finishes Available Lifetime Motor Warranty Three Blades 60" Blade Sweep 16-Degree Blade Pitch 80" Lead Wire 4.5 Downrod Included 1/2" Downrod Diameter

I N D O O R FA N S

OPTIONAL LIGHT SOURCE

LED MODULE

WALL CONTROL

ENERGY SPECS Energy Information at High Speed Airflow: 5876 Cubic Feet/Minute Electricity Use : 21 Watts (Excludes Lights) Airflow Efficiency: 279 Cubic Feet/Minute/Watt Visit QuorumInternational.com for DOE Energy Guide

Included (4 DIP Switches)

KRESS 60"

023

Lurus 64"

AVAILABLE FINISHES * S U P P L I E D W I T H A 1 / 2 " D I A M E T E R D OW N R O D

30643-65 Satin Nickel Weathered Gray Blades

Supplied with hardware for traditional or hugger mount options

30643-65 Hugger Option

I N D O O R FA N S

LU R U S 6 4"

025

AVAILABLE FINISHES * S U P P L I E D W I T H A 1 / 2 " D I A M E T E R D OW N R O D

30643-59 Matte Black Weathered Gray Blades

30643-59 Hugger Option

30643-8 Studio White Weathered Gray Blades

30643-8 Hugger Option

Supplied with hardware for traditional or hugger mount options

Supplied with hardware for traditional or hugger mount options

Optional Light Kit 8-306-65 8"(w) x 2"(h) - (1) 18W, 120V, 3000k, 1549 Lumens, 90CRI, Dimmable LED (Included) Satin Nickel | Satin Opal Glass Light Kit shown on 30643-65 ceiling fan (hugger option)

HEIGHT CHART - DOWNROD

FAN HEIGHT Using 6" Downrod ● Distance of 14.25" ● Distance of 12.25"

HEIGHT CHART - HUGGER

Optional Light Kit 8-306-59 8"(w) x 2"(h) - (1) 18W, 120V, 3000k, 1549 Lumens, 90CRI, Dimmable LED (Included) Matte Black | Satin Opal Glass Light Kit shown on 30643-59 ceiling fan (downrod option)

MECHANICAL SPECS DC-165NL Motor 6 Speeds-Reversible 8 Poles .38/.27/.19/.12/.08/.05 AMPS on H/M/L 30/20/13/8/5/3 WATTS on H/M/L 140/123/105/86/69/50 RPMS on H/M/L Optional LED Light Kit Available

● Distance of 9.25" ● Distance of 7.25"

Light Kit shown on 30643-8 ceiling fan (hugger option)

OPTIONAL LIGHT SOURCE

LED MODULE

REMOTE CONTROL OPTIONS

ENERGY SPECS - DOWNROD Energy Information at High Speed Airflow: 9567 Cubic Feet/Minute Electricity Use: 33 Watts (Excludes Lights) Airflow Efficiency: 289 Cubic Feet/Minute/Watt Visit QuorumInternational.com for DOE Energy Guide

ENERGY SPECS - HUGGER FAN HEIGHT

Optional Light Kit 8-306-8 8"(w) x 2"(h) - (1) 18W, 120V, 3000k, 1549 Lumens, 90CRI, Dimmable LED (Included) Studio White | Satin Opal Glass

Included (4 DIP Switches)

8-347

Energy Information at High Speed Airflow: 8113 Cubic Feet/Minute Electricity Use: 33 Watts (Excludes Lights) Airflow Efficiency: 246 Cubic Feet/Minute/Watt Visit QuorumInternational.com for DOE Energy Guide

GENERAL SPECS 3 Finishes Available Lifetime Motor Warranty Three Blades 64" Blade Sweep 14-Degree Blade Pitch 80" Lead Wire 6" Downrod Included 1/2" Downrod Diameter

I N D O O R FA N S

LU R U S 6 4"

027

Marino 54"

AVAILABLE FINISHES * S U P P L I E D W I T H A 1 / 2 " D I A M E T E R D OW N R O D

97543-59 Matte Black | Satin Opal Glass Matte Black ABS Blades

(1) 18W, 120V, 3000k, 1116 Lumens, 90CRI, Dimmable LED (Included)

97543-8 Studio White | Satin Opal Glass Studio White ABS Blades

(1) 18W, 120V, 3000k, 1116 Lumens, 90CRI, Dimmable LED (Included)

HEIGHT CHART

FAN HEIGHT Using 4" Downrod ● Distance of 12.25" ● Distance of 10.25"

GENERAL SPECS 2 Finishes Available Lifetime Motor Warranty Three ABS Blades 54" Blade Sweep 14-Degree Blade Pitch 80" Lead Wire 4" & 6" Downrods Included 1/2" Downrod Diameter

I N D O O R FA N S

MECHANICAL SPECS DC Motor 6 Speeds-Reversible w/ Wall Control 8 Poles .22/.16/.11/.07/.06/.05 AMPS on H/M/L 16/11/7/5/3/2 WATTS on H/M/L 165/147/127/101/73/52 RPMS on H/M/L 18W LED Light Kit Included

LIGHT SOURCE

LED MODULE

REMOTE CONTROL OPTIONS

ENERGY SPECS Energy Information at High Speed Airflow: 6088 Cubic Feet/Minute Electricity Use: 19 Watts (Excludes Lights) Airflow Efficiency: 320 Cubic Feet/Minute/Watt Visit QuorumInternational.com for DOE Energy Guide

Included (4 DIP Switches)

8-347

M A R I N O 5 4"

029

Papillon 66"

AVAILABLE FINISHES * S U P P L I E D W I T H A 1 / 2 " D I A M E T E R D OW N R O D

28664-65 Satin Nickel Weathered Grey Blades

28664-59 Matte Black Walnut Blades

Optional LED Light Kit 8-288-8

Integral 24W, 3000k, 1342 Lumens, 986 Lumens, 90CRI Dimming LED kit w/ White Acrylic Diffuser Light Kit shown on 28664-8 ceiling fan *also available in Matte Black (-59) and Satin Nickel (-65)

28664-8 Studio White Weathered Grey Blades

Optional LED Light Kit 8-288-59

Integral 24W, 3000k, 1662 Lumens, 90CRI Dimming LED kit w/ White Acrylic Diffuser Light Kit shown on 28664-59 ceiling fan *also available in Studio White (-8) and Satin Nickel (-65)

HEIGHT CHART

MECHANICAL SPECS

FAN HEIGHT

DC165L Motor 6 Speeds-Reversible w/ Wall Control 6 Poles .39/.29/.22/.17/.11/.07 AMPS on H/M/L 30/22/18/12/8/5 WATTS on H/M/L 106/96/84/73/62/50 RPMS on H/M/L 6 Speed Wall Control Included Optional LED Light Kit is 24W, 3000k, 90CRI (dimmable)

Using 6" Downrod ● Distance of 13.5" ● Distance of 10"

GENERAL SPECS 3 Finishes Available Lifetime Motor Warranty Four Blades 66" Blade Sweep 20-Degree Blade Pitch 80" Lead Wire 6" Downrod Included 1/2" Downrod Diameter

I N D O O R FA N S

OPTIONAL LIGHT SOURCE

LED Module

REMOTE CONTROL OPTIONS

ENERGY SPECS Energy Information at High Speed Airflow: 7660 Cubic Feet/Minute Electricity Use: 29 Watts (Excludes Lights) Airflow Efficiency: 264 Cubic Feet/Minute/Watt Visit QuorumInternational.com for DOE Energy Guide

Included (4 DIP Switches)

8-1400

PA P I L LO N 6 6"

031

Papillon 80"

AVAILABLE FINISHES * S U P P L I E D W I T H A 1 / 2 " D I A M E T E R D OW N R O D

28804-65 Satin Nickel Weathered Grey Blades

28804-59 Matte Black Walnut Blades

28804-8 Studio White Weathered Grey Blades

Optional LED Light Kit 8-288-65*

Integral 24W, 3000k, 1662 Lumens, 90CRI Dimming LED kit w/ White Acrylic Diffuser Light Kit shown on 28804-65 ceiling fan *also available in Studio White (-8) and Matte Black (-59)

HEIGHT CHART

MECHANICAL SPECS

FAN HEIGHT

DC165L Motor 6 Speeds-Reversible w/ Wall Control 6 Poles .40/.27/.17/.11/.08/.05 AMPS on H/M/L 32/20/12/7/5/3 WATTS on H/M/L 82/72/61/52/42/32 RPMS on H/M/L 6 Speed Wall Control Included Optional LED Light Kit is 20W, 3000k, 90CRI (dimmable)

Using 8" Downrod ● Distance of 15.5" ● Distance of 12"

GENERAL SPECS 3 Finishes Available Lifetime Motor Warranty Four Blades 80" Blade Sweep 20-Degree Blade Pitch 80" Lead Wire 8" Downrod Included 1/2" Downrod Diameter

I N D O O R FA N S

OPTIONAL LIGHT SOURCE

LED Module

REMOTE CONTROL OPTIONS

ENERGY SPECS Energy Information at High Speed Airflow: 8172 Cubic Feet/Minute Electricity Use: 32 Watts (Excludes Lights) Airflow Efficiency: 255 Cubic Feet/Minute/Watt Visit QuorumInternational.com for DOE Energy Guide

Included (4 DIP Switches)

8-1400

PA P I L LO N 8 0 "

033

Proxima 60"

AVAILABLE FINISHES * S U P P L I E D W I T H A 1 / 2 " D I A M E T E R D OW N R O D

96608-86 Oiled Bronze Oiled Bronze ABS Blades

96608-69 Textured Black Textured Black ABS Blades

96608-65 Satin Nickel Silver ABS Blades

HEIGHT CHART

MECHANICAL SPECS

REMOTE CONTROL OPTIONS

FAN HEIGHT

DC-165M Motor 6 Speeds-Reversible w/Wall Control 6 Poles .44/.29/.20/.14/.09/.06 AMPS on H/M/L 31/20/13/9/6/4 WATTS on H/M/L 153/128/110/91/72/53 RPMS on H/M/L Not Able to be Wired in Series Not Light Kit Adaptable

Included (No DIP Switches)

Using 4" downrod ● Distance of 15.5" ● Distance of 12.5"

GENERAL SPECS 3 Finishes Available Lifetime Motor Warranty Eight Blades 60" Blade Sweep 14 Degree Blade Pitch 80" Lead Wire 4" & 6" Downrods Included 1/2" Downrod Diameter

I N D O O R FA N S

8-9860-0

ENERGY SPECS Energy Information at High Speed Airflow: 8151 Cubic Feet/Minute Electricity Use: 34 Watts (Excludes Lights) Airflow Efficiency: 239 Cubic Feet/Minute/Watt Visit QuorumInternational.com for DOE Energy Guide

P R OX I M A 6 0 "

035

Proxima 72"

AVAILABLE FINISHES * S U P P L I E D W I T H A 1 / 2 " D I A M E T E R D OW N R O D

96728-86 Oiled Bronze Oiled Bronze Blades

96728-69 Textured Black Textured Black Blades

96728-65 Satin Nickel Silver Blades

HEIGHT CHART

MECHANICAL SPECS

REMOTE CONTROL OPTIONS

FAN HEIGHT

DC-165L Motor 6 Speeds-Reversible w/Wall Control 6 Poles .20/.14/.11/.09/.07/.05 AMPS on H/M/L 33/19/12/7/4/3 WATTS on H/M/L 84/73/63/53/43/33 RPMS on H/M/L Not Able to be Wired in Series Not Light Kit Adaptable

Included (No DIP Switches)

Using 4" downrod ● Distance of 15.5" ● Distance of 12.5"

GENERAL SPECS 3 Finishes Available Lifetime Motor Warranty Eight Blades 72" Blade Sweep 14 Degree Blade Pitch 80" Lead Wire 4" & 6" Downrods Included 1/2" Downrod Diameter

I N D O O R FA N S

8-9860-0

ENERGY SPECS Energy Information at High Speed Airflow: 9082 Cubic Feet/Minute Electricity Use: 34 Watts (Excludes Lights) Airflow Efficiency: 267 Cubic Feet/Minute/Watt Visit QuorumInternational.com for DOE Energy Guide

P R OX I M A 7 2 "

037

Titus 65"

AVAILABLE FINISHES * S U P P L I E D W I T H A 1 / 2 " D I A M E T E R D OW N R O D

20656-65 Satin Nickel Silver ABS Blades

20656-59 Matte Black Matte Black ABS Blades

20656-8 Studio White Studio White ABS Blades

Optional Light Kit 8-208-59* 7.75"(w) x 2.125"(h) - (1) 18W, 120V, 3000k, 1543 Lumens, 90CRI, Dimmable LED (Included) Matte Black | White Lens

Light Kit shown on 20656-59 ceiling fan *also available in Studio White (-8) and Satin Nickel (-65)

HEIGHT CHART

MECHANICAL SPECS DC-165NM Motor 6 Speeds-Reversible w/ Wall Control .35/.24/.17/.11/.07/.04 AMPS on H/M/L 28/19/13/8/5/3 WATTS on H/M/L 135/117/100/84/66/50 RPMS on H/M/L Optional LED Light Kit Available

FAN HEIGHT

ENERGY SPECS

Using 6" Downrod ● Distance of 15.25" ● Distance of 13.25"

Energy Information at High Speed Airflow: 6225 Cubic Feet/Minute Electricity Use: 28 Watts (Excludes Lights) Airflow Efficiency: 222 Cubic Feet/Minute/Watt Visit QuorumInternational.com for DOE Energy Guide

GENERAL SPECS 3 Finishes Available Lifetime Motor Warranty Six ABS Blades 65" Blade Sweep 25-Degree Blade Pitch 80" Lead Wire 6" Downrod Included 1/2" Downrod Diameter

I N D O O R FA N S

OPTIONAL LIGHT SOURCE

LED MODULE

REMOTE CONTROL OPTIONS

Included (4 DIP Switches)

8-347

T I T U S 6 5"

039

Titus 80"

AVAILABLE FINISHES * S U P P L I E D W I T H A 1 / 2 " D I A M E T E R D OW N R O D

20806-65 Satin Nickel Silver ABS Blades

20806-59 Matte Black Matte Black ABS Blades

20806-8 Studio White Studio White ABS Blades

Optional Light Kit 8-208-59* 7.75"(w) x 2.125"(h) - (1) 18W, 120V, 3000k, 1543 Lumens, 90CRI, Dimmable LED (Included) Matte Black | White Lens

Light Kit shown on 20806-59 ceiling fan *also available in Studio White (-8) and Satin Nickel (-65)

HEIGHT CHART

MECHANICAL SPECS DC-165NL Motor 6 Speeds-Reversible w/ Wall Control .40/.32/.22/.17/.12/.08 AMPS on H/M/L 31/24/17/12/8/5 WATTS on H/M/L 95/87/78/69/60/51 RPMS on H/M/L Optional LED Light Kit Available

FAN HEIGHT

ENERGY SPECS

Using 6" Downrod ● Distance of 15.25" ● Distance of 13.25"

Energy Information at High Speed Airflow: 8225 Cubic Feet/Minute Electricity Use: 24 Watts (Excludes Lights) Airflow Efficiency: 343 Cubic Feet/Minute/Watt Visit QuorumInternational.com for DOE Energy Guide

GENERAL SPECS 3 Finishes Available Lifetime Motor Warranty Six ABS Blades 80" Blade Sweep 25-Degree Blade Pitch 80" Lead Wire 6" Downrod Included 1/2" Downrod Diameter

I N D O O R FA N S

OPTIONAL LIGHT SOURCE

LED MODULE

REMOTE CONTROL OPTIONS

Included (4 DIP Switches)

8-347

TITUS 80"

041

Trinity 52"

AVAILABLE FINISHES * S U P P L I E D W I T H A 1 / 2 " D I A M E T E R D OW N R O D

41523-69 Textured Black Weathered Oak Blades

41523-65 Satin Nickel Weathered Oak Blades

Integral (1) 18W, 3000k, 1313 Lumens, 90CRI Dimming LED (Included)

Integral (1) 18W, 3000k, 1313 Lumens, 90CRI Dimming LED (Included)

HEIGHT CHART

MECHANICAL SPECS

FAN HEIGHT

125mm Motor Size 6 Speeds-Reversible w/ Wall Control .39/.26/.17/.11/.09/.08 AMPS on H/M/L 30/18/11/6/4/2 WATTS on H/M/L 167/143/120/96/73/49 RPMS on H/M/L Wall Control Included Remote Control Adaptable Integral LED Light Kit is 18W, 3000k, 1313 Lumens, 90CRI (dimmable)

Using 6" Downrod ● Distance of 15.75" ● Distance of 11.75"

GENERAL SPECS 2 Finishes Available Limited Lifetime Motor Warranty Three Blades 52" Blade Sweep 18-Degree Blade Pitch 80" Lead Wire 6" Downrod Included 1/2" Downrod Diameter

I N D O O R FA N S

LIGHT SOURCE

LED MODULE

REMOTE CONTROL OPTIONS

ENERGY SPECS Energy Information at High Speed Airflow: 4617 Cubic Feet/Minute Electricity Use: 29 Watts (Excludes Lights) Airflow Efficiency: 159 Cubic Feet/Minute/Watt Visit QuorumInternational.com for DOE Energy Guide

Included (No DIP Switches)

8-9860-0

TRINIT Y 52"

043

Trio 60"

AVAILABLE FINISHES * S U P P L I E D W I T H A 1 / 2 " D I A M E T E R D OW N R O D

35603-69 Textured Black Weathered Oak Blades

35603-65 Satin Nickel Weathered Oak Blades

Optional LED Light Kit 8-356-69

Optional LED Light Kit 8-356-65

18W, 3000k, 986 Lumens, 90CRI Dimming LED kit w/ White Acrylic Diffuser Light Kit shown on 35603-69 ceiling fan

18W, 3000k, 1306 Lumens, 90CRI Dimming LED kit w/ White Acrylic Diffuser Light Kit shown on 35603-65 ceiling fan

HEIGHT CHART

MECHANICAL SPECS

FAN HEIGHT

125mm Motor Size 6 Speeds-Reversible w/ Wall Control .41/.26/.17/.11/.06/.03 AMPS on H/M/L 33/20/13/8/4/2 WATTS on H/M/L 149/128/109/89/69/50 RPMS on H/M/L Wall Control Included Remote Control Adaptable Optional LED Light Kit is 18W, 3000k, 986 Lumens, 90CRI (dimmable)

Using 6" Downrod ● Distance of 13.75" ● Distance of 11.25"

GENERAL SPECS 2 Finishes Available Limited Lifetime Motor Warranty Three Blades 60" Blade Sweep 14-Degree Blade Pitch 80" Lead Wire 6" Downrod Included 1/2" Downrod Diameter

I N D O O R FA N S

OPTIONAL LIGHT SOURCE

LED MODULE

REMOTE CONTROL OPTIONS

ENERGY SPECS Energy Information at High Speed Airflow: 6987Cubic Feet/Minute Electricity Use: 36 Watts (Excludes Lights) Airflow Efficiency: 194 Cubic Feet/Minute/Watt Visit QuorumInternational.com for DOE Energy Guide

Included (No DIP Switches)

8-9860-0

TRIO 60"

045

Veleta 56" Hugger

Optional LED Light Kit (included) (1) 20W 5CCT, 90CRI 120V LED kit w/ White Polycarbonate Diffuser, 2700/3000/4000/5000/6500k, 1510 Lumens @ 3000k 39563-80 shown with optional light kit

AVAILABLE FINISHES

39563-59 Matte Black Walnut Blades

HEIGHT CHART

FAN HEIGHT ● Distance of 11" ● Distance of 8"

GENERAL SPECS 2 Finishes Available Lifetime Motor Warranty Three Blades 14-Degree Blade Pitch 56" Blade Sweep 12" Lead Wire

I N D O O R FA N S

39563-80 Aged Brass Walnut Blades

MECHANICAL SPECS DC-15NS Motor 6 Speeds-Reversible w/ Wall Control 9 Poles .38/.22/.14/.08/.05/.03 AMPS on H/M/L 31/18/11/6/3/2 WATTS on H/M/L 161/138/116/94/72/50 RPMS on H/M/L Triple Capacitor Not Remote Control Adaptable Detachable Switch Cup Supplied with Optional LED Kit (1) 20W 5CCT, 90CRI 120V LED kit w/ White Polycarbonate Diffuser

LIGHT SOURCE

LED MODULE

WALL CONTROL

ENERGY SPECS Energy Information at High Speed Airflow: 3255 Cubic Feet/Minute Electricity Use: 20 Watts (Excludes Lights) Airflow Efficiency: 160 cubic feet/min./watt Visit QuorumInternational.com for DOE Energy Guide

Included (5 DIP Switches)

V E L E TA 5 6" H U G G E R

047

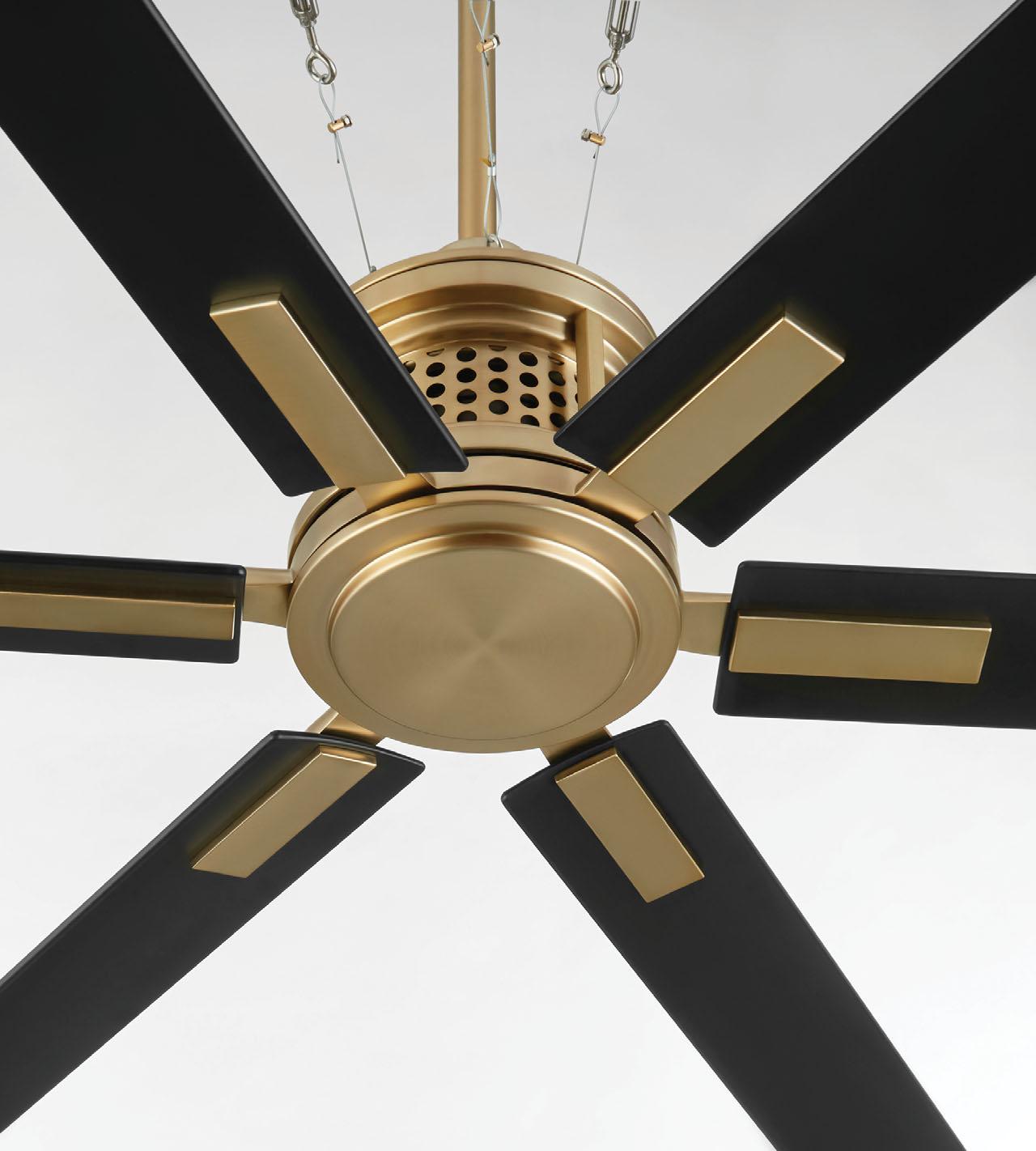

Zeus 65"

AVAILABLE FINISHES * S U P P L I E D W I T H A 3 /4" D I A M E T E R D OW N R O D

10656-80 Aged Brass Matte Black ABS Blades

10656-65 Satin Nickel Silver ABS Blades

10656-59 Matte Black Matte Black ABS Blades

Optional Light Kit 8-10806-59 9.375"(w) x 2.5"(h) - (1) 24W, 3000k, 2113 Lumens, 90CRI Dimming, 120V LED Matte Black | Matte White Acrylic

10656-8 Studio White Studio White ABS Blades

UL Damp / Shown on 10806-59 fan Also Available: Studio White, Satin Nickel & Aged Brass

HEIGHT CHART

FAN HEIGHT Using 6" Downrod ● Distance of 17" ● Distance of 16.25"

GENERAL SPECS 4 Finishes Available Lifetime Motor Warranty Six ABS Blades 65" Blade Sweep 11.5-Degree Blade Pitch 80" Lead Wire 6" Downrod Included 3/4" Downrod Diameter

C E I L I N G FA N S

MECHANICAL SPECS DC-168-25 Motor 6 Speeds-Reversible w/ Wall Control 8 Poles .39/.27/.17/.11/.07/.06 AMPS on H/M/L 31/19/12/7/4/3 WATTS on H/M/L 140/118/96/74/52/30 RPMS on H/M/L Optional light kit 8-10806-XX Optional set (3) 96" stabilizing cables w/ hardware included Optional 3/4" diameter downrods available - See page 386

OPTIONAL LIGHT SOURCE

LED MODULE

WALL MOUNTED POCKET REMOTE

ENERGY SPECS Energy Information at High Speed Airflow: 10021 Cubic Feet/Minute Electricity Use: 34 Watts (Excludes Lights) Airflow Efficiency: 295 Cubic Feet/Minute/Watt Visit QuorumInternational.com for DOE Energy Guide

Included

ZEU S 6 5"

049

Zeus 80"

AVAILABLE FINISHES * S U P P L I E D W I T H A 3 /4" D I A M E T E R D OW N R O D

10806-80 Aged Brass Matte Black ABS Blades

10806-65 Satin Nickel Silver ABS Blades

10806-59 Matte Black Matte Black ABS Blades

Optional Light Kit 8-10806-59 9.375"(w) x 2.5"(h) - (1) 24W, 3000k, 2113 Lumens, 90CRI Dimming, 120V LED Matte Black | Matte White Acrylic

10806-8 Studio White Studio White ABS Blades

UL Damp / Shown on 10806-59 fan Also Available: Studio White, Satin Nickel & Aged Brass

HEIGHT CHART

FAN HEIGHT Using 10" Downrod ● Distance of 21" ● Distance of 19.25"

GENERAL SPECS 4 Finishes Available Lifetime Motor Warranty Six ABS Blades 80" Blade Sweep 11.5-Degree Blade Pitch 80" Lead Wire 10" Downrod Included 3/4" Downrod Diameter

C E I L I N G FA N S

MECHANICAL SPECS DC-168NL Motor 6 Speeds-Reversible w/ Wall Control 8 Poles .60/.39/.23/.12/.07/.05 AMPS on H/M/L 49/30/17/9/5/3 WATTS on H/M/L 120/100/80/60/40/20 RPMS on H/M/L Optional light kit 8-10806-XX Optional set (3) 96" stabilizing cables w/ hardware included Optional 3/4" diameter downrods available - See page 386

OPTIONAL LIGHT SOURCE

LED MODULE

WALL MOUNTED POCKET REMOTE

ENERGY SPECS Energy Information at High Speed Airflow: 17436 Cubic Feet/Minute Electricity Use: 54 Watts (Excludes Lights) Airflow Efficiency: 322 Cubic Feet/Minute/Watt Visit QuorumInternational.com for DOE Energy Guide

Included

ZEU S 8 0 "

051

Zeus 120"

AVAILABLE FINISHES * S U P P L I E D W I T H A 3 /4" D I A M E T E R D OW N R O D

101206-80 Aged Brass Matte Black ABS Blades

101206-65 Satin Nickel Silver ABS Blades

101206-8 Studio White Studio White ABS Blades

101206-59 Matte Black Matte Black ABS Blades

Optional Light Kit 8-10806-80 9.375"(w) x 2.5"(h) - (1) 24W, 3000k, 2113 Lumens, 90CRI Dimming, 120V LED Aged Brass | Matte White Acrylic

UL Damp / Shown on 101206-80 fan Also Available: Studio White, Matte Black & Satin Nickel

HEIGHT CHART

FAN HEIGHT Using 10" Downrod ● Distance of 21" ● Distance of 19.25"

MECHANICAL SPECS DC-168NL Motor 6 Speeds-Reversible w/ Wall Control 8 Poles 1/.65/.38/.21/.11/.06 AMPS on H/M/L 89/53/29/15/7/4 WATTS on H/M/L 75/64/53/42/31/20 RPMS on H/M/L Optional light kit 8-1806-XX Optional set (3) 96" stabilizing cables w/ hardware included Optional 3/4" diameter downrods available - See page 386

OPTIONAL LIGHT SOURCE

LED MODULE

WALL MOUNTED POCKET REMOTE

GENERAL SPECS 4 Finishes Available Lifetime Motor Warranty Six ABS Blades 120" Blade Sweep 11.5-Degree Blade Pitch 80" Lead Wire 10" Downrod Included 3/4" Downrod Diameter

C E I L I N G FA N S

Included

ZEU S 120"

053

SOFT CONTEMP

ORARY selections

Comfortably walking the line between modern and traditional, our soft contemporary designs offer the best of both worlds. Fans in this collection will complement virtually any interior design style.

I N D O O R FA N S

S O F T C O N T E M P O R A RY S E L EC T I O N S

055

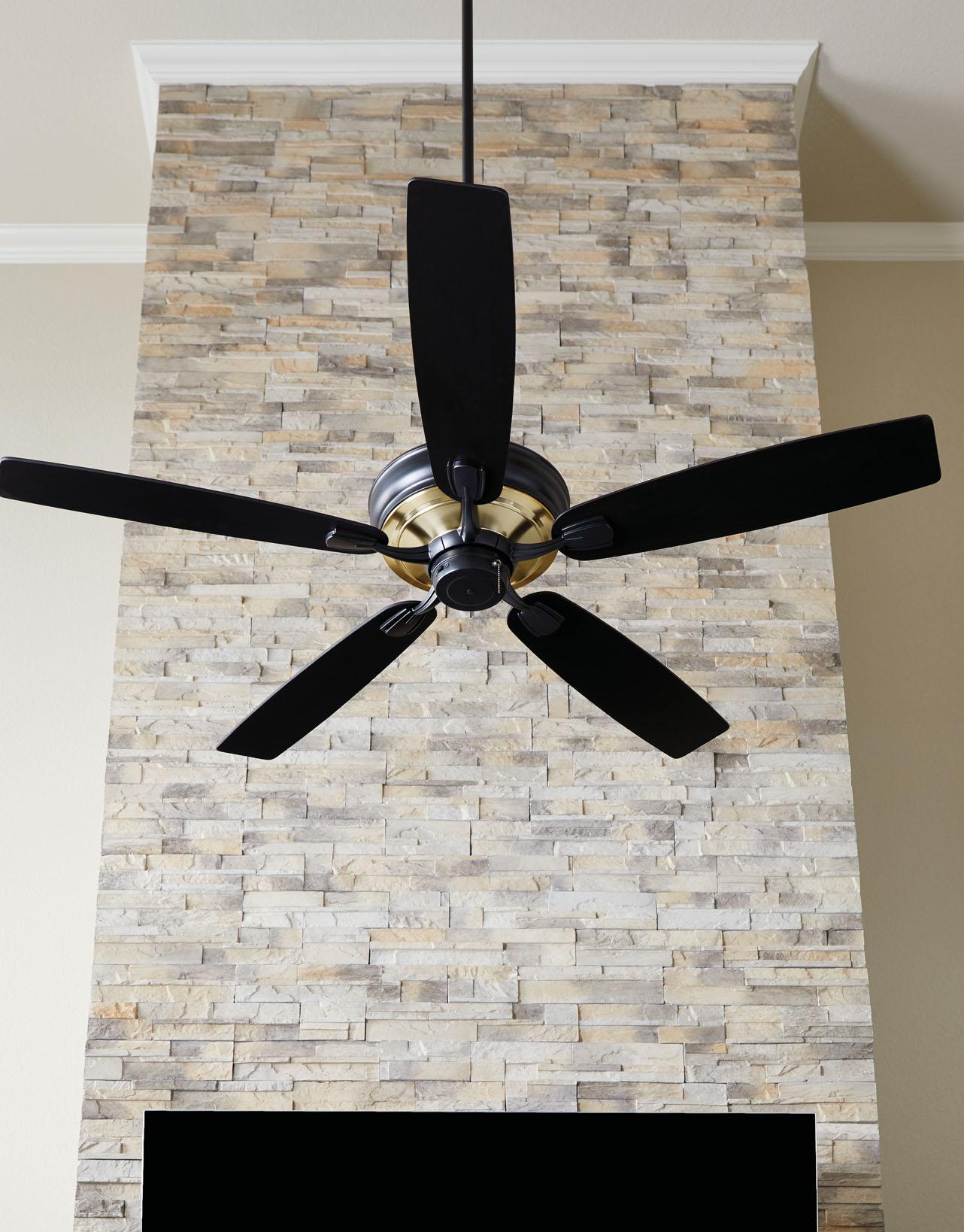

Alto 62"

AVAILABLE FINISHES * S U P P L I E D W I T H A 1 / 2 " D I A M E T E R D OW N R O D

40625-69 Textured Black Matte Black | Walnut Blades

HEIGHT CHART

40625-80 Aged Brass Matte Black | Walnut Blades

MECHANICAL SPECS

Using 4" Downrod ● Distance of 14" ● Distance of 12"

212x25 Motor Size 3 Speeds w/ Pull Chain Switch Reversible w/ Manual Reverse Switch 20 Poles .67/.58/.38 AMPS on H/M/L 76/51/22 WATTS on H/M/L 149/117/73 RPMS on H/M/L Detachable Switch Cup Triple Capacitor Light Kit Adaptable Skirted Blade Arms

GENERAL SPECS

ENERGY SPECS

FAN HEIGHT

2 Finishes Available Lifetime Motor Warranty Five Blades 62" Blade Sweep 12-Degree Blade Pitch 80" Lead Wire 4" & 6" Downrods Included 1/2" Downrod Diameter

I N D O O R FA N S

REMOTE CONTROL OPTION

7-501-0

Energy Information at High Speed Airflow: 7647 Cubic Feet/Minute Electricity Use: 85 Watts (Excludes Lights) Airflow Efficiency: 89 Cubic Feet/Minute/Watt Visit QuorumInternational.com for DOE Energy Guide

A LTO 6 2 "

057

Apex 56"

AVAILABLE FINISHES * S U P P L I E D W I T H A 1 / 2 " D I A M E T E R D OW N R O D

90565-86 Oiled Bronze Walnut | Oiled Bronze Blades

90565-69 Textured Black Matte Black | Weathered Oak Blades

HEIGHT CHART

FAN HEIGHT Using 4" Downrod ● Distance of 12.5" ● Distance of 10.5"

GENERAL SPECS 5 Finish Combinations Available Lifetime Motor Warranty Five Blades 56" Blade Sweep 14-Degree Blade Pitch 4" & 6" Downrods Included 1/2" Downrod Diameter

I N D O O R FA N S

90565-80 Aged Brass Walnut | Dark Oak Blades

90565-65 Satin Nickel Walnut | Silver Blades

MECHANICAL SPECS 188 x 22 Motor Size 3 Speeds w/ Pull Chain Switch Reversible w/ Manual Reverse Switch 80" Lead Wire 16 Poles .68/.46/.27 AMPS on H/M/L 80/39/14 WATTS on H/M/L 157/106/62 RPMS on H/M/L Triple Capacitor Remote Control Adaptable

ENERGY SPECS

90565-8 Studio White Studio White Blades

REMOTE CONTROL OPTIONS

7-1305-0

7-1401-0

8-223

BLADE ALTERNATIVES Use indoor blade type 3-56 - See page 371 Use indoor blade type 3-60 - See page 373

Energy Information at High Speed Airflow: 6430 Cubic Feet/Minute Electricity Use: 81 Watts (Excludes Lights) Airflow Efficiency: 79 Cubic Feet/Minute/Watt Visit QuorumInternational.com for DOE Energy Guide

A P E X 5 6"

059

Axis 54"

AVAILABLE FINISH * S U P P L I E D W I T H A 1 / 2 " D I A M E T E R D OW N R O D

26544-80 Aged Brass Matte Black Blades

Integral 24W, 3000k, 1599 Lumens, 90CRI Dimming LED (Included)

HEIGHT CHART

FAN HEIGHT Using 4" Downrod ● Distance of 12.25" ● Distance of 7.25"

GENERAL SPECS Lifetime Motor Warranty Four Blades 54" Blade Sweep 16-Degree Blade Pitch 4" & 6" Downrods Included 1/2" Downrod Diameter

I N D O O R FA N S

MECHANICAL SPECS DC153 Motor 6 Speeds-Reversible 80" Lead Wire 8 Poles .33/.23/.15/.09/.06/.04 AMPS on H/M/L 26/17/11/6/4/2 WATTS on H/M/L 145/123/106/88/68/50 RPMS on H/M/L Integral LED Light Kit is 24W, 3000k, 1599 Lumens, 90CRI (dimmable) Not Remote Control Adaptable

LIGHT SOURCE

LED MODULE

REMOTE CONTROL OPTIONS

ENERGY SPECS Energy Information at High Speed Airflow: 3970 Cubic Feet/Minute Electricity Use: 32 Watts (Excludes Lights) Airflow Efficiency: 124 Cubic Feet/Minute/Watt Visit QuorumInternational.com for DOE Energy Guide

Included (4 DIP Switches)

8-347

A X I S 5 4"

061

Brisa 60" Damp

AVAILABLE FINISHES * S U P P L I E D W I T H A 1 / 2 " D I A M E T E R D OW N R O D

61603-8 Studio White/Aged Brass Studio White ABS Blades

61603-59 Matte Black Matte Black ABS Blades

HEIGHT CHART

FAN HEIGHT Using 6" Downrod ● Distance of 14.75" ● Distance of 10"

GENERAL SPECS 2 Finish Combinations Available (Powder Coated) Lifetime Motor Warranty Three ABS Blades 60" Blade Sweep 12-Degree Blade Pitch 80" Lead Wire 6" Downrod Included 1/2" Downrod Diameter

I N D O O R FA N S

Optional LED Light Kit (included) (1) 20W, 5CCT, 90CRI 120V LED kit w/ White Acrylic Diffuser 2700/3000/4000/5000/6500k, 1510 Lumens @ 3000k 61603-8 ceiling fan shown with optional light kit (included)

MECHANICAL SPECS DC-15NS Motor 6 Speeds-Reversible 9 Poles .27/.19/.13/.09/.06/.04 AMPS on H/M/L 20/15/9/6/4/3 WATTS on H/M/L 110/99/87/75/63/50 RPMS on H/M/L Remote Control Adaptable Supplied with Optional LED Kit or Cover Plate for use with no Light Kit UL Damp Listed

LIGHT SOURCE

LED MODULE

REMOTE CONTROL OPTIONS

ENERGY SPECS Energy Information at High Speed Airflow: 5894 Cubic Feet/Minute Electricity Use: 21 Watts (Excludes Lights) Airflow Efficiency: 281 Cubic Feet/Minute/Watt Visit QuorumInternational.com for DOE Energy Guide

Included (5 DIP Switches)

B R I S A 6 0 " DA M P

063

Cirque 60"

AVAILABLE FINISHES * S U P P L I E D W I T H A 1 / 2 " D I A M E T E R D OW N R O D

46012-5942 Matte Black Weathered Grey ABS Blades

(1) 18W, 3000k, 1589 Lumens, 90CRI Dimming LED (Included)

HEIGHT CHART

FAN HEIGHT Using 6" Downrod ● Distance of 15" ● Distance of 12.5"

GENERAL SPECS 3 Finishes Available Lifetime Motor Warranty Twelve ABS Blades 60" Blade Sweep 14-Degree Blade Pitch 80" Lead Wire 6" Downrod Included 1/2" Downrod Diameter

I N D O O R FA N S

46012-59 Matte Black Matte Black ABS Blades

(1) 18W, 3000k, 1589 Lumens, 90CRI Dimming LED (Included)

MECHANICAL SPECS DC153-20NS Motor 6 Speeds-Reversible w/ Wall Control 8 Poles .39/.26/.20/.14/.09/.07 AMPS on H/M/L 31/21/14/12/9/5 WATTS on H/M/L 100/90/80/70/60/50 RPMS on H/M/L 18W LED Light Kit Included Wall Control Included Not Hugger Adaptable

LIGHT SOURCE

LED MODULE

REMOTE CONTROL OPTIONS

ENERGY SPECS Energy Information at High Speed Airflow: 7130 Cubic Feet/Minute Electricity Use: 31 Watts (Excludes Lights) Airflow Efficiency: 230 Cubic Feet/Minute/Watt Visit QuorumInternational.com for DOE Energy Guide

Included (4 DIP Switches)

8-347

INSTALLATION NOTE Multiple fans installed on the same circuit require individual wall controls and switch legs. The power supply wire from the control to the fans cannot be shared.

CIRQUE 60"

065

Cirque 72"

AVAILABLE FINISHES * S U P P L I E D W I T H A 1 / 2 " D I A M E T E R D OW N R O D

47212-65 Satin Nickel Silver ABS Blades

(1) 18W, 3000k, 1589 Lumens, 90CRI Dimming LED (Included)

47212-5942 Matte Black Weathered Grey ABS Blades

(1) 18W, 3000k, 1589 Lumens, 90CRI Dimming LED (Included)

HEIGHT CHART

FAN HEIGHT Using 6" Downrod ● Distance of 15" ● Distance of 12.5"

GENERAL SPECS 3 Finishes Available Lifetime Motor Warranty Twelve ABS Blades 72" Blade Sweep 14-Degree Blade Pitch 80" Lead Wire 6" Downrod Included 1/2" Downrod Diameter

I N D O O R FA N S

47212-59 Matte Black Matte Black ABS Blades

(1) 18W, 3000k, 1589 Lumens, 90CRI Dimming LED (Included)

MECHANICAL SPECS DC-165NL Motor 6 Speeds-Reversible w/ Wall Control 8 Poles .38/.24/.16/.11/.06/.04 AMPS on H/M/L 30/18/12/8/4/2 WATTS on H/M/L 81/70/60/51/41/30 RPMS on H/M/L 18W LED Light Kit Included Wall Control Included Not Hugger Adaptable

LIGHT SOURCE

LED Module

REMOTE CONTROL OPTIONS

ENERGY SPECS Energy Information at High Speed Airflow: 8739 Cubic Feet/Minute Electricity Use: 28 Watts (Excludes Lights) Airflow Efficiency: 312 Cubic Feet/Minute/Watt Visit QuorumInternational.com for DOE Energy Guide

Included (4 DIP Switches)

8-347

INSTALLATION NOTE Multiple fans installed on the same circuit require individual wall controls and switch legs. The power supply wire from the control to the fans cannot be shared.

CIRQUE 72"

067

Dayton Hugger

AVAILABLE FINISHES

52523-59 Matte Black Walnut ABS Blades

52523-8 Studio White Natural Finish ABS Blades

Optional Light Kit 8-52523 5.75"(w) x 1.5"(h) - (1) 20W 5CCT, 90CRI 120V LED kit w/ White Polycarbonate Diffuser 2700/3000/4000/5000/6500k, 1559 Lumens @ 3000k Light Kit is shown on 52523-8 ceiling fan

HEIGHT CHART

FAN HEIGHT Using 4" Downrod ● Distance of 9.125" ● Distance of 6.5"

GENERAL SPECS 2 Finish Combinations Available (Powder Coated) Lifetime Motor Warranty Three ABS Blades 52" Blade Sweep 13.5-Degree Blade Pitch 16" Lead Wire

I N D O O R FA N S

MECHANICAL SPECS 125-DC12 Motor 6 Speeds-Reversible 8 Poles .28/.20/.15/.10/.07/.05 AMPS on H/M/L 19/13/9/6/4/2 WATTS on H/M/L 200/173/151/123/100/77 RPMS on H/M/L Remote Control Adaptable UL Damp Listed

LIGHT SOURCE

LED MODULE

REMOTE CONTROL OPTIONS

ENERGY SPECS Energy Information at High Speed Airflow: 4670 Cubic Feet/Minute Electricity Use: 25 Watts (Excludes Lights) Airflow Efficiency: 187 Cubic Feet/Minute/Watt Visit QuorumInternational.com for DOE Energy Guide

Included (5 DIP Switches)

DAY TO N H U G G E R

069

Exodus 58" Damp

Optional LED Light Kit (included)

(1) 20W, 5CCT, 90CRI 120V LED kit w/ White Acrylic Diffuser, 2700/3000/3500/4000/5000k 34583-80 shown with optional light kit (included)

AVAILABLE FINISHES * S U P P L I E D W I T H A 3 /4" D I A M E T E R D OW N R O D

34583-80 Aged Brass Matte Black ABS Blades

HEIGHT CHART

34583-59 Matte Black Matte Black ABS Blades

MECHANICAL SPECS

Using 6" Downrod ● Distance of 15.5" ● Distance of 12.5"

DCS-15NS Motor 6 Speeds-Reversible with Wall Control 9 Poles .28/.18/.11/.08/.05/.03 AMPS on H/M/L 21/13/8/5/3/2 WATTS on H/M/L 156/136/115/93/72/51 RPMS on H/M/L 6 Speed Wall Control Included Remote Control Adaptable Light Kit Uses (1) 20W, 5CCT, 90CRI LED Optional 3/4" diameter downrods available - See page 386 UL Damp Listed

GENERAL SPECS

ENERGY SPECS

FAN HEIGHT

Lifetime Motor Warranty Three ABS Blades 58" Blade Sweep 13-Degree Blade Pitch 80" Lead Wire 6" Downrod Included 3/4" Downrod Diameter

PAT I O FA N S

Energy Information at High Speed Airflow: 6538 Cubic Feet/Minute Electricity Use: 23 Watts (Excludes Lights) Airflow Efficiency: 284 Cubic Feet/Minute/Watt Visit QuorumInternational.com for DOE Energy Guide

OPTIONAL LIGHT SOURCE

LED

REMOTE CONTROL OPTIONS

Included (5 DIP Switches)

8-1405

E XO D U S 5 8" DA M P

071

Kimbo 60"

AVAILABLE FINISHES * S U P P L I E D W I T H A 1 / 2 " D I A M E T E R D OW N R O D

55606-59 Matte Black Colonial Black ABS Blades

55606-80 Aged Brass Colonial Black ABS Blades

HEIGHT CHART

FAN HEIGHT Using 6" Downrod ● Distance of 15" ● Distance of 11"

GENERAL SPECS 2 Finish Combinations Available Lifetime Motor Warranty Six ABS Blades 60" Blade Sweep 12.5-Degree Blade Pitch 80" Lead Wire 6" Downrod Included 1/2" Downrod Diameter

I N D O O R FA N S

Optional LED Light Kit (included)

(1) 20W, 5CCT, 90CRI 120V LED kit w/ White Polycarbonate Diffuser 2700/3000/4000/5000/6500k, 1365 Lumens @ 3000k 55606-59 shown with optional light kit (included)

MECHANICAL SPECS DC-30NS Motor 6 Speeds-Reversible 9 Poles .39/.20/.13/.09/.05/.04 AMPS on H/M/L 23/16/10/6/4/3 WATTS on H/M/L 135/118/101/84/67/50 RPMS on H/M/L Remote Control Adaptable Detachable Switch Cup Supplied with Optional LED Kit or Cover Plate for use with no Light Kit UL Damp Listed

LIGHT SOURCE

LED MODULE

REMOTE CONTROL OPTIONS

ENERGY SPECS Energy Information at High Speed Airflow: 7259 Cubic Feet/Minute Electricity Use: 24 Watts (Excludes Lights) Airflow Efficiency: 302 Cubic Feet/Minute/Watt Visit QuorumInternational.com for DOE Energy Guide

Included (5 DIP Switches)

KIMBO 60"

073

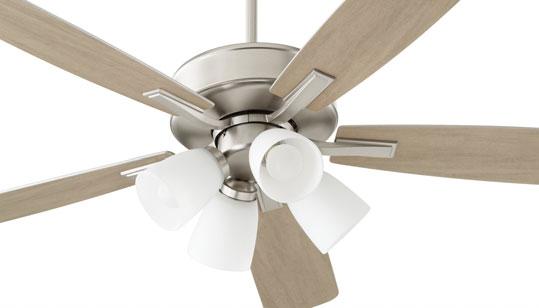

Maxwell 52"

AVAILABLE FINISHES * S U P P L I E D W I T H A 1 / 2 " D I A M E T E R D OW N R O D

37525-65 Satin Nickel | Satin Opal Glass Weathered Gray | Silver Blades

(2) 9W M, 120V, 3000k, 80CRI, 750 Lumens, Non-Dimming LED (Included)

37525-59 Matte Black | Satin Opal Glass Matte Black | Weathered Gray Blades

(2) 9W M, 120V, 3000k, 80CRI, 750 Lumens, Non-Dimming LED (Included)

37525-8 Studio White | Satin Opal Glass Studio White | Weathered Gray Blades

(2) 9W M, 120V, 3000k, 80CRI, 750 Lumens, Non-Dimming LED (Included)

HEIGHT CHART

FAN HEIGHT Using 4" Downrod ● Distance of 16.75" ● Distance of 10.25"

GENERAL SPECS 3 Finishes Available Lifetime Motor Warranty Five Blades 52" Blade Sweep 12.5-Degree Blade Pitch 80" Lead Wire 4" & 6" Downrods Included 1/2" Downrod Diameter

I N D O O R FA N S

MECHANICAL SPECS

LIGHT SOURCE

153x17 Motor Size 3 Speeds w/ Pull Chain Switch Reversible w/ Manual Reverse Switch 14 Poles .48/.32/.21 AMPS on H/M/L 57/26/11 WATTS on H/M/L 175/120/78 RPMS on H/M/L LED Light Kit is (2) 9W M, 3000k, 80CRI (non-dimmable) Triple Capacitor Remote Control Adaptable

Medium Frosted LED

REMOTE CONTROL OPTIONS

ENERGY SPECS Energy Information at High Speed Airflow: 4442 Cubic Feet/Minute Electricity Use: 58 Watts (Excludes Lights) Airflow Efficiency: 76 Cubic Feet/Minute/Watt Visit QuorumInternational.com for DOE Energy Guide

7-1307-0

7-501-0

8-223

MA X WELL 52"

075

Quest 52"

AVAILABLE FINISH * S U P P L I E D W I T H A 1 / 2 " D I A M E T E R D OW N R O D

68524-65 Satin Nickel | Satin Opal Glass Silver Blades

Integral 18W, 3000k, 1342 Lumens, 90CRI Dimming LED

HEIGHT CHART

MECHANICAL SPECS

FAN HEIGHT

172 x 17 Motor Size 3 Speeds-Reversible/Manual Reverse Switch 16 Poles .54/.50/.35 AMPS on H/M/L 64/43/17 WATTS on H/M/L 168/140/79 RPMS on H/M/L Dimmable Light Kit LED Light Kit is 18W, 3000k, 1342 Lumens, 90CRI

Using 4" Downrod ● Distance of 14.25" ● Distance of 10.25"

GENERAL SPECS Lifetime Motor Warranty Five Blades 52" Blade Sweep 14-Degree Blade Pitch 80" Lead Wire 4" & 6" Downrods Included 1/2" Downrod Diameter

I N D O O R FA N S

LIGHT SOURCE

LED MODULE

WALL CONTROL

ENERGY SPECS Energy Information at High Speed Airflow: 5067 Cubic Feet/Minute Electricity Use: 64 Watts (Excludes Lights) Airflow Efficiency: 79 Cubic Feet/Minute/Watt Visit QuorumInternational.com for DOE Energy Guide

Included (4 DIP Switches)

QUEST 52"

077

Reni 65"

AVAILABLE FINISHES * S U P P L I E D W I T H A 1 / 2 " D I A M E T E R D OW N R O D

21653-80 Aged Brass Walnut Stained Wood Blades

21653-59 Matte Black Matte Black Stained Wood Blades

Optional LED Light Kit 8-21653*

24W, 3000k, 1767 Lumens, 90CRI LED kit w/ White Glass Diffuser Light Kit shown on 21653-59 ceiling fan *also available in Aged Brass (-80)

HEIGHT CHART

MECHANICAL SPECS

FAN HEIGHT

DC-165NM Motor 6 Speeds-Reversible w/ Wall Control 6 Poles .34/.23/.16/.10/.06/.04 AMPS on H/M/L 27/16/11/6/4/2 WATTS on H/M/L 151/130/114/92/72/51 RPMS on H/M/L Dimmable Light Kit LED Light Kit is 24W, 3000k, 1767 Lumens, 90CRI

Using 4" Downrod ● Distance of 12.5" ● Distance of 9.25"

GENERAL SPECS 2 Finishes Available Lifetime Motor Warranty Three Blades 65" Blade Sweep 11.5-Degree Blade Pitch 80" Lead Wire 4" & 6" Downrods Included 1/2" Downrod Diameter

I N D O O R FA N S

OPTIONAL LIGHT SOURCE

LED MODULE

REMOTE CONTROL OPTIONS

ENERGY SPECS Energy Information at High Speed Airflow: 7826 Cubic Feet/Minute Electricity Use: 32 Watts (Excludes Lights) Airflow Efficiency: 244 Cubic Feet/Minute/Watt Visit QuorumInternational.com for DOE Energy Guide

Included (4 DIP Switches)

8-1400

R E N I 6 5"

079

Revel 80"

AVAILABLE FINISHES * S U P P L I E D W I T H A 1 / 2 " D I A M E T E R D OW N R O D

80805-8059 Aged Brass/Matte Black Matte Black ABS Blades

80805-59 Matte Black Matte Black ABS Blades

80805-808 Aged Brass Studio White ABS Blades

Optional LED Light Kit 8-80805

Integral 24W, 3000k, 2227 Lumens, 90CRI Dimming 120V LED kit w/ White Acrylic Diffuser Light Kit shown on 80805-8059 ceiling fan

HEIGHT CHART

MECHANICAL SPECS

FAN HEIGHT

DC-30NS Motor 6 Speeds-Reversible w/ Wall Control 16 Poles .36/.23/.15/.09/.07/.04 AMPS on H/M/L 27/17/10/6/4/3 WATTS on H/M/L 96/83/70/57/45/33 RPMS on H/M/L Dimmable Light Kit LED Light Kit is 24W, 3000k, 2227 Lumens, 90CRI

Using 6" Downrod ● Distance of 14.25" ● Distance of 12.25"

GENERAL SPECS 3 Finishes Available Lifetime Motor Warranty Five ABS Blades 80" Blade Sweep 9-Degree Blade Pitch 80" Lead Wire 6" Downrod Included 1/2" Downrod Diameter

I N D O O R FA N S

OPTIONAL LIGHT SOURCE

LED MODULE

WALL CONTROL

ENERGY SPECS Energy Information at High Speed Airflow: 10578 Cubic Feet/Minute Electricity Use: 33 Watts (Excludes Lights) Airflow Efficiency: 320 Cubic Feet/Minute/Watt Visit QuorumInternational.com for DOE Energy Guide

Included (4 DIP Switches)

8-1400

REVEL 80"

081

Rosales 60"

33608-80 Aged Brass Studio White ABS Blades

AVAILABLE FINISHES * S U P P L I E D W I T H A 1 / 2 " D I A M E T E R D OW N R O D

33608-59 Matte Black Matte Black ABS Blades

HEIGHT CHART

FAN HEIGHT Using 6" Downrod ● Distance of 14.5" ● Distance of 12"

GENERAL SPECS 2 Finish Combinations Available Lifetime Motor Warranty Eight ABS Blades 60" Blade Sweep 11-Degree Blade Pitch 80" Lead Wire 6" Downrod Included 1/2" Downrod Diameter

I N D O O R FA N S

Optional LED Light Kit (included)

(1) 20W, 5CCT, 90CRI 120V LED kit w/ White Polycarbonate Diffuser 2700/3000/4000/5000/6500k 33608-80 shown with optional light kit (included)

MECHANICAL SPECS DC-30NS Motor 6 Speeds-Reversible 9 Poles .32/.23/.15/.10/.07/.04 AMPS on H/M/L 28/19/12/8/5/3 WATTS on H/M/L 125/107/93/79/65/51 RPMS on H/M/L Remote Control Adaptable Supplied with Optional LED Kit or Cover Plate for use with no Light Kit UL Damp Listed

LIGHT SOURCE

LED MODULE

REMOTE CONTROL OPTIONS

ENERGY SPECS Energy Information at High Speed Airflow: 7384 Cubic Feet/Minute Electricity Use: 29 Watts (Excludes Lights) Airflow Efficiency: 255 Cubic Feet/Minute/Watt Visit QuorumInternational.com for DOE Energy Guide

Included (5 DIP Switches)

ROSALES 60"

083

Rova 72"

SMART CEILING FAN

AVAILABLE FINISHES * S U P P L I E D W I T H A 1 / 2 " D I A M E T E R D OW N R O D

82725-80 Aged Brass Matte Black ABS Blades

82725-65 Satin Nickel Weathered Grey ABS Blades

82725-8 Studio White Studio White ABS Blades

Optional LED Light Kit 8-827-80*

Integral 18W, 3000k, 1347 Lumens, 90CRI Dimming LED kit w/ White Acrylic Diffuser Light Kit shown on 82725-80 ceiling fan *also available in Studio White (-8), Matte Black (-59) and Satin Nickel (-65)

HEIGHT CHART

MECHANICAL SPECS

FAN HEIGHT

DC-165NM Motor 6 Speeds-Reversible with Wall Control 14 Poles .30/.24/.20/.15/.11/.08 AMPS on H/M/L 25/19/15/11/8/5 WATTS on H/M/L 90/82/74/60/59/52 RPMS on H/M/L 4 Speed Wall Control Included Remote Control Adaptable

Using 6" Downrod ● Distance of 15.75" ● Distance of 13.5"

GENERAL SPECS 3 Finishes Available Lifetime Motor Warranty Five ABS Blades 72" Blade Sweep 13-Degree Blade Pitch 80" Lead Wire 6" Downrod Included 1/2" Downrod Diameter

I N D O O R FA N S

OPTIONAL LIGHT SOURCE

LED

REMOTE CONTROL OPTIONS

ENERGY SPECS Energy Information at High Speed Airflow: 6495 Cubic Feet/Minute Electricity Use: 27 Watts (Excludes Lights) Airflow Efficiency: 240 Cubic Feet/Minute/Watt Visit QuorumInternational.com for DOE Energy Guide

Included (4 DIP Switches)

8-1400

R OVA 7 2 "

085

Soho 52"

AVAILABLE FINISHES * S U P P L I E D W I T H A 1 / 2 " D I A M E T E R D OW N R O D

64525-86 Oiled Bronze Walnut | Oiled Bronze Blades

64525-8641 Oiled Bronze Weathered Oak Blades

64525-80 Aged Brass Walnut | Weathered Oak Blades

64525-65 Satin Nickel Walnut | Silver Blades

HEIGHT CHART

FAN HEIGHT Using 4" Downrod ● Distance of 13.25" ● Distance of 11"

GENERAL SPECS 4 Finish Combinations Available Lifetime Motor Warranty Five Blades 52" Blade Sweep 13.5-Degree Blade Pitch 80" Lead Wire 4" & 6" Downrods Included 1/2" Downrod Diameter

I N D O O R FA N S

MECHANICAL SPECS 172 x 14 Motor Size 3 Speeds w/ Pull Chain Switch Reversible w/ Manual Reverse Switch 16 Poles .51/.36/.20 AMPS on H/M/L 64/33/8 WATTS on H/M/L 160/110/62 RPMS on H/M/L Detachable Switch Cup Skirted Blade Arms

REMOTE CONTROL OPTIONS

7-1305-0

7-1401-0

7-501-0

8-223

ENERGY SPECS Energy Information at High Speed Airflow: 4446 Cubic Feet/Minute Electricity Use: 64 Watts (Excludes Lights) Airflow Efficiency: 69 Cubic Feet/Minute/Watt Visit QuorumInternational.com for DOE Energy Guide

SOHO 52"

087

Spree 84" Damp

Optional LED Light Kit (included)

(1) 20W, 5CCT, 90CRI 120V LED kit w/ White Acrylic Diffuser, 2700/3000/3500/4000/5000k, 1694 Lumens @ 3000k 35846-47 shown with optional light kit (included)

Wet Location

AVAILABLE FINISHES * S U P P L I E D W I T H A 3 /4" D I A M E T E R D OW N R O D

Ridged blade top design for increased air flow

35846-47 Brushed Brass Matte Black ABS Blades

HEIGHT CHART

35846-59 Matte Black Matte Black ABS Blades

MECHANICAL SPECS

Using 6" Downrod ● Distance of 15.5" ● Distance of 12.25"

DCS-165NL Motor 6 Speeds-Reversible with Wall Control 6 Poles .39/.30/.19/.11/.07/.05 AMPS on H/M/L 31/25/14/9/5/3 WATTS on H/M/L 73/67/58/49/40/30 RPMS on H/M/L 6 Speed Wall Control Included Remote Control Adaptable Light Kit Uses (1) 20W, 5CCT, 1694 Lumens, 90CRI LED Optional 3/4" diameter downrods available - See page 386 UL Wet Listed

GENERAL SPECS

ENERGY SPECS

FAN HEIGHT

Lifetime Motor Warranty Six ABS Blades 84" Blade Sweep 16-Degree Blade Pitch 80" Lead Wire 6" Downrod Included 3/4" Downrod Diameter

I N D O O R FA N S

Energy Information at High Speed Airflow: 8871 Cubic Feet/Minute Electricity Use: 31 Watts (Excludes Lights) Airflow Efficiency: 286 Cubic Feet/Minute/Watt Visit QuorumInternational.com for DOE Energy Guide

OPTIONAL LIGHT SOURCE

LED

REMOTE CONTROL OPTIONS

Included (5 DIP Switches)

8-1405

S P R E E 8 4" DA M P

089

Twain 56"

AVAILABLE FINISHES * S U P P L I E D W I T H A 3 /4" D I A M E T E R D OW N R O D

30562-59 Matte Black Walnut ABS Blades

HEIGHT CHART

FAN HEIGHT Using 6" Downrod ● Distance of 13" ● Distance of 13"

GENERAL SPECS 2 Finishes Available Lifetime Motor Warranty Two ABS Blades 56" Blade Sweep 14-Degree Blade Pitch 80" Lead Wire 4" & 6" Downrods Included 3/4" Downrod Diameter

I N D O O R FA N S

30562-47 Brushed Brass Walnut ABS Blades

MECHANICAL SPECS DC-15NS Motor 6 Speeds-Reversible 9 Poles .35/.22/.13/.09/.06/.04 AMPS on H/M/L 25/16/10/6/4/2 WATTS on H/M/L 136/119/102/85/67/50 RPMS on H/M/L Remote Control Adaptable Not Light Kit Adabtable Optional 3/4" diameter downrods available - See page 386 UL Damp Listed

REMOTE CONTROL OPTION

Included (5 DIP Switches)

8-1405

ENERGY SPECS Energy Information at High Speed Airflow: 5937 Cubic Feet/Minute Electricity Use: 30 Watts (Excludes Lights) Airflow Efficiency: 198 Cubic Feet/Minute/Watt Visit QuorumInternational.com for DOE Energy Guide

T WA I N 5 6"

091

TRADITI

Intricate detailing and rich walnut blades are the foundation on which our traditional designs are built. Always appropriate, this collection will no doubt add an element of refined sophistication to your traditional home.

ONAL

selections

I N D O O R FA N S

T R A D I T I O N A L S E L EC T I O N S

093

Bandit 24"

AVAILABLE FINISH * S U P P L I E D W I T H A 1 / 2 " D I A M E T E R D OW N R O D

22245-69 Textured Black Weathered Grey ABS Blades

Integral 18W, 3000k, 1266 Lumens, 90CRI Dimming LED (Included)

HEIGHT CHART

22.5° 45°

FAN HEIGHT Using 6" Downrod ● Distance of 21.25" Distance of 24" ● Distance of 27.5"

MECHANICAL SPECS 153x15 Motor Size 4 Speeds-Reversible 14 Poles .26/.21/.16/.13 AMPS on H/M/L 32/20/11/7 WATTS on H/M/L 364/328/250/200 RPMS on H/M/L Triple Capacitor Not Remote Control Adaptable

LIGHT SOURCE

LED MODULE

WALL CONTROL

ENERGY SPECS Energy Information at High Speed Airflow: 1659 Cubic Feet/Minute Electricity Use: 29 Watts (Excludes Lights) Airflow Efficiency: 57 Cubic Feet/Minute/Watt Visit QuorumInternational.com for DOE Energy Guide

Included

GENERAL SPECS Lifetime Motor Warranty Five ABS Blades 24" Blade Sweep 80" Lead Wire 6" Downrod Included 1/2" Downrod Diameter 16-Degree Blade Pitch Fan Housing Swivels 22.5° and 45° either Direction Height at 22.5° Swivel is 24" Height at 45° Swivel is 27.75"

I N D O O R FA N S

B A N D I T 24"

095

Brewster 60"

AVAILABLE FINISHES * S U P P L I E D W I T H A 1 / 2 " D I A M E T E R D OW N R O D

27603-70 Persian White Distressed Weathered Pine Blades

27603-69 Textured Black Weathered Gray Blades

Optional Light Kit 2360-9169 12.75"(w) x 3"(h) - (3) 9W M LED, 3000k (Included) Textured Black | Optional 2520H Glass

Light Kit shown on 27603-69 ceiling fan

BREWSTER 60" LIGHT KIT OPTIONS item #

glass

dimensions

lights

NA

12.75"(w) x 3"(h)

(3) 9W M LED (Included)

NA

11"(w) x 3"(h)

(3) 9W M LED (Included)

textured black 2360-9169 persian white 2360-9170

*All light kits comply with 2005 Energy Policy Act.

HEIGHT CHART

FAN HEIGHT Using 6" downrod ● Distance of 17.75" ● Distance of 10.25"

GENERAL SPECS 2 Finishes Available Lifetime Motor Warranty Three Blades 60" Blade Sweep 14-Degree Blade Pitch 80" Lead Wire 6" Downrod Included 1/2" Downrod Diameter

I N D O O R FA N S

MECHANICAL SPECS

REMOTE CONTROL OPTIONS

172 x 20 Motor Size 4 Speeds - Reversible 16 Poles .54/.40/.28/.19 AMPS on H/M/M/L 63/36/17/8 WATTS on H/M/M/L 132/100/66/43 RPM on H/M/M/L Triple Capacitor 4 Speed Wall Control Included Remote Control Adaptable w/ Manual Reverse

Included

7-1305-0

ENERGY SPECS Energy Information at High Speed Airflow: 5399 Cubic Feet/Minute Electricity Used: 63 Watts (Excludes Lights) Airflow Efficiency: 85 Cubic Feet/Watt Visit QuorumInternational.com for DOE Energy Guide

BREWSTER 60"

097

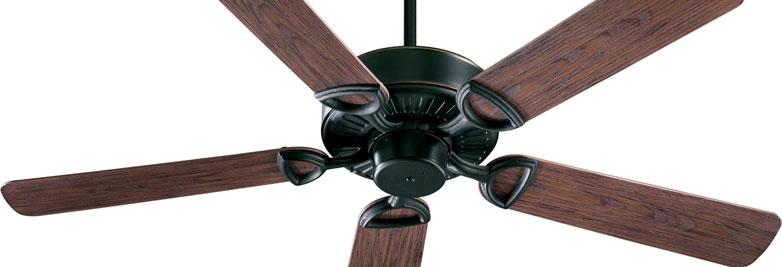

Chateaux 52"

AVAILABLE FINISHES * S U P P L I E D W I T H A 1 / 2 " D I A M E T E R D OW N R O D

78525-95 Old World Walnut | Rosewood Blades

78525-86 Oiled Bronze Walnut | Oiled Bronze Blades

78525-67 Antique White Antique White Blades

HEIGHT CHART

78525-8 Studio White Studio White Blades

MECHANICAL SPECS

Using 3.5" Downrod ● Distance of 11" ● Distance of 9.75"

188 x 15 Motor Size 3 Speeds w/ Pull Chain Switch Reversible w/ Manual Reverse Switch 16 Poles .58/.38/.24 AMPS on H/M/L 68/29/12 WATTS on H/M/L 179/115/68 RPMS on H/M/L Triple Capacitor Remote Control Adaptable Detachable Switch Cup Skirted Blade Arms

GENERAL SPECS

ENERGY SPECS

FAN HEIGHT

5 Finishes Available Lifetime Motor Warranty Five Blades 52" Blade Sweep 14-Degree Blade Pitch 80" Lead Wire 3.5" & 6" Downrods Included 1/2" Downrod Diameter

I N D O O R FA N S

78525-70 Persian White Distressed Weathered Pine Blades

REMOTE CONTROL OPTIONS

7-1305-0

7-1401-0

8-223

BLADE ALTERNATIVES Use indoor blade type 4-52 - See page 366

Energy Information at High Speed Airflow: 5375 Cubic Feet/Minute Electricity Use: 78 Watts (Excludes Lights) Airflow Efficiency: 68 Cubic Feet/Minute/Watt Visit QuorumInternational.com for DOE Energy Guide

C H AT E AU X 5 2 "

099

Chateaux 52" Uni-Pack

AVAILABLE FINISH * S U P P L I E D W I T H A 1 / 2 " D I A M E T E R D OW N R O D

78525-1970 Persian White | Clear Seeded Glass Distressed Weathered Pine Blades

Light Kit uses (3) 9W M, 3000k, 1500 Lumens, 80CRI, Non-Dimmable LED (Included)

HEIGHT CHART

MECHANICAL SPECS

Using 3.5" Downrod ● Distance of 18.75" ● Distance of 10"

188 x 15 Motor Size 3 Speeds w/ Pull Chain Switch Reversible w/ Manual Reverse Switch 16 Poles .65/.42/.22 AMPS on H/M/L 78/33/9 WATTS on H/M/L 184/114/53 RPMS on H/M/L Triple Capacitor Remote Control Adaptable Light Kit uses (3) 9W M LED Bulbs (Included) Skirted Blade Arms

GENERAL SPECS

ENERGY SPECS

FAN HEIGHT

Lifetime Motor Warranty Five Blades 52" Blade Sweep 14-Degree Blade Pitch 80" Lead Wire 3.5" & 6" Downrods Included 1/2" Downrod Diameter

I N D O O R FA N S

Energy Information at High Speed Airflow: 5168 Cubic Feet/Minute Electricity Use: 80 Watts (Excludes Lights) Airflow Efficiency: 64 Cubic Feet/Minute/Watt Visit QuorumInternational.com for DOE Energy Guide

LIGHT SOURCE

Medium Clear LED

REMOTE CONTROL OPTIONS

7-1305-0

7-1401-0

8-223

BLADE ALTERNATIVES Use indoor blade type 4-52 - See page 366

C H AT E AU X 5 2 " U N I - PAC K

101

Chateaux 60"

AVAILABLE FINISH * S U P P L I E D W I T H A 1 / 2 " D I A M E T E R D OW N R O D

78605-86 Oiled Bronze Walnut | Oiled Bronze Blades

HEIGHT CHART

MECHANICAL SPECS

Using 3.5" Downrod ● Distance of 13.5" ● Distance of 10.25"

188 x 25 Motor Size 3 Speeds w/ Pull Chain Switch Reversible w/ Manual Reverse Switch 16 Poles .59/.43/.26 AMPS on H/M/L 70/37/14 WATTS on H/M/L 117/82/45 RPMS on H/M/L Triple Capacitor Remote Control Adaptable Detachable Switch Cup Skirted Blade Arms

GENERAL SPECS

ENERGY SPECS

FAN HEIGHT

Lifetime Motor Warranty Five Blades 60" Blade Sweep 14-Degree Blade Pitch 80" Lead Wire 3.5" & 6" Downrods Included 1/2" Downrod Diameter

I N D O O R FA N S

REMOTE CONTROL OPTIONS

7-1305-0

7-1401-0

8-223

Energy Information at High Speed Airflow: 5118 Cubic Feet/Minute Electricity Use: 71 Watts (Excludes Lights) Airflow Efficiency: 72 Cubic Feet/Minute/Watt Visit QuorumInternational.com for DOE Energy Guide

C H AT E AU X 6 0 "

103

Empress 52"

AVAILABLE FINISHES * S U P P L I E D W I T H A 1 / 2 " D I A M E T E R D OW N R O D

35525-8 Studio White Studio White Blades

HEIGHT CHART

MECHANICAL SPECS

Using 4" Downrod ● Distance of 14.25" ● Distance of 13.25"

188 x 15 Motor Size 3 Speeds w/ Pull Chain Switch Reversible w/ Manual Reverse Switch 16 Poles .65/.44/.23 AMPS on H/M/L 75/33/9 WATTS on H/M/L 154/102/57 RPMS on H/M/L Triple Capacitor Remote Control Adaptable Detachable Switch Cup Skirted Blade Arms

GENERAL SPECS

ENERGY SPECS

FAN HEIGHT

Lifetime Motor Warranty Five Blades 52" Blade Sweep 14-Degree Blade Pitch 80" Lead Wire 4" & 6" Downrods Included 1/2" Downrod Diameter

I N D O O R FA N S

REMOTE CONTROL OPTIONS

7-1305-0

7-1401-0

Energy Information at High Speed Airflow: 5042 Cubic Feet/Minute Electricity Use: 70 Watts (Excludes Lights) Airflow Efficiency: 72 Cubic Feet/Minute/Watt Visit QuorumInternational.com for DOE Energy Guide

EMPRESS 52"

105

Estate 30"

AVAILABLE FINISHES * S U P P L I E D W I T H A 1 / 2 " D I A M E T E R D OW N R O D

43306-95 Old World Walnut | Rosewood Blades

43306-65 Satin Nickel Walnut | Silver Blades

HEIGHT CHART

43306-86 Oiled Bronze Oiled Bronze | Walnut Blades

43306-5942 Matte Black Weathered Grey | Matte Black Blades

MECHANICAL SPECS

Using 3.5" Downrod ● Distance of 12" ● Distance of 10.75"

153 x 12 Motor Size 3 Speeds w/ Pull Chain Switch Reversible w/ Manual Reverse Switch 14 Poles .30/.20/.09 AMPS on H/M/L 50/26/9 WATTS on H/M/L 240/182/100 RPMS on H/M/L Triple Capacitor Remote Control Adaptable Detachable Switch Cup Skirted Blade Arms

GENERAL SPECS

ENERGY SPECS

FAN HEIGHT

5 Finishes Available Lifetime Motor Warranty Six Blades 30" Blade Sweep 25-Degree Blade Pitch 80" Lead Wire 3.5" & 6" Downrods Included 1/2" Downrod Diameter

I N D O O R FA N S

43306-6 Gloss White White Blades

REMOTE CONTROL OPTIONS

7-1305-0

7-1401-0

8-223

BLADE ALTERNATIVES Use indoor blade type 1-30 - See page 359

Energy Information at High Speed Airflow: 2552 Cubic Feet/Minute Electricity Use: 51 Watts (Excludes Lights) Airflow Efficiency: 50 Cubic Feet/Minute/Watt Visit QuorumInternational.com for DOE Energy Guide

E S TAT E 3 0 "

107

Estate 42"

AVAILABLE FINISHES * S U P P L I E D W I T H A 1 / 2 " D I A M E T E R D OW N R O D

43425-86 Oiled Bronze Walnut | Oiled Bronze Blades

43425-65 Satin Nickel Walnut | Silver Blades

43425-6 Gloss White White Blades

HEIGHT CHART

MECHANICAL SPECS

Using 3.5" Downrod ● Distance of 12" ● Distance of 10.75"

153 x 13 Motor Size 3 Speeds w/ Pull Chain Switch Reversible w/ Manual Reverse Switch 14 Poles .47/.34/.20 AMPS on H/M/L 55/25/9 WATTS on H/M/L 195/138/75 RPMS on H/M/L Triple Capacitor Remote Control Adaptable Detachable Switch Cup Skirted Blade Arms

GENERAL SPECS

ENERGY SPECS

FAN HEIGHT

3 Finishes Available Lifetime Motor Warranty Five Blades 42" Blade Sweep 14-Degree Blade Pitch 3.5" & 6" Downrods Included 1/2" Downrod Diameter

I N D O O R FA N S

REMOTE CONTROL OPTIONS

7-1305-0

7-1401-0

8-223

BLADE ALTERNATIVES Use indoor blade type 1-42 - See page 360

Energy Information at High Speed Airflow: 3523 Cubic Feet/Minute Electricity Use: 52 Watts (Excludes Lights) Airflow Efficiency: 67 Cubic Feet/Minute/Watt Visit QuorumInternational.com for DOE Energy Guide

E S TAT E 42 "

109

Estate 52"

AVAILABLE FINISHES * S U P P L I E D W I T H A 1 / 2 " D I A M E T E R D OW N R O D

43525-86 Oiled Bronze Walnut | Oiled Bronze Blades

43525-67 Antique White Antique White Blades

43525-65 Satin Nickel Walnut | Silver Blades

43525-5942 Matte Black Weathered Grey | Matte Black Blades

43525-8 Studio White Studio White Blades

43525-6 Gloss White White Blades

HEIGHT CHART

MECHANICAL SPECS

Using 3.5" Downrod ● Distance of 12" ● Distance of 10.5"

153 x 15 Motor Size 3 Speeds w/ Pull Chain Switch Reversible w/ Manual Reverse Switch 14 Poles .58/.39/.21 AMPS on H/M/L 66/29/9 WATTS on H/M/L 175/104/58 RPMS on H/M/L Triple Capacitor Remote Control Adaptable Detachable Switch Cup Skirted Blade Arms

GENERAL SPECS

ENERGY SPECS

FAN HEIGHT

6 Finishes Available Lifetime Motor Warranty Five Blades 52" Blade Sweep 14-Degree Blade Pitch 3.5" & 6" Downrods Included 1/2" Downrod Diameter

I N D O O R FA N S

REMOTE CONTROL OPTIONS

7-1305-0

7-1401-0

8-223

BLADE ALTERNATIVES Use indoor blade type 1-52 - See page 362

Energy Information at High Speed Airflow: 4663 Cubic Feet/Minute Electricity Use: 69 Watts (Excludes Lights) Airflow Efficiency: 67 Cubic Feet/Minute/Watt Visit QuorumInternational.com for DOE Energy Guide

E S TAT E 5 2 "

111

Galveston 52"

AVAILABLE FINISHES * S U P P L I E D W I T H A 1 / 2 " D I A M E T E R D OW N R O D

3525-86 Oiled Bronze Weathered Oak Blades

3525-69 Textured Black Matte Black | Weathered Oak Blades

Light Kit Uses (1) 9W M LED Bulb (Included)

HEIGHT CHART

FAN HEIGHT Using 4" Downrod ● Distance of 18.25" ● Distance of 10.5"

GENERAL SPECS 2 Finishes Available Lifetime Motor Warranty Five Blades 52" Blade Sweep 80" Lead Wire 13.5-Degree Blade Pitch 4" & 6" Downrods Included 1/2" Downrod Diameter

I N D O O R FA N S

Light Kit Uses (1) 9W M LED Bulb (Included)

MECHANICAL SPECS

LIGHT SOURCE

172x17 Motor Size 3 Speeds-Reversible w/ Manual Reverse Switch 16 Poles .48/.35/.25 AMPS on H/M/L 67/35/21 WATTS on H/M/L 169/120/92 RPMS on H/M/L Remote Control Adaptable w/ Manual Reverse Light Kit uses (1) 9W M LED Bulb (Included) Bulb Provided is Non-Dimming

Medium Frosted LED

REMOTE CONTROL OPTIONS

ENERGY SPECS Energy Information at High Speed Airflow: 4778 Cubic Feet/Minute Electricity Use: 68 Watts (Excludes Lights) Airflow Efficiency: 70 Cubic Feet/Minute/Watt Visit QuorumInternational.com for DOE Energy Guide

Included

7-1307-0

7-501-0

G A LV E S TO N 5 2 "

113

Gamble 60"

AVAILABLE FINISH * S U P P L I E D W I T H A 1 / 2 " D I A M E T E R D OW N R O D

50605-69 Textured Black/Aged Brass Weathered Gray | Matte Black Blades

HEIGHT CHART

FAN HEIGHT Using 4" Downrod ● Distance of 14.25" ● Distance of 11.5"

GENERAL SPECS Lifetime Motor Warranty Five Blades 60" Blade Sweep 13.5-Degree Blade Pitch 80" Lead Wire 4" & 6" Downrods Included 1/2" Downrod Diameter

I N D O O R FA N S

MECHANICAL SPECS 125x30 DC Motor 4 Speeds w/ Pull Chain Switch Reversible w/ Manual Reverse Switch .4/.24/.12/.07 AMPS on H/M/L 33/19/9/4 WATTS on H/M/L 128/108/80/50 RPMS on H/M/L Not Remote Control Adaptable

OPTIONAL WALL CONTROL

7-1306-6

ENERGY SPECS Energy Information at High Speed Airflow: 5878 Cubic Feet/Minute Electricity Use: 32 Watts (Excludes Lights) Airflow Efficiency: 183 Cubic Feet/Minute/Watt Visit QuorumInternational.com for DOE Energy Guide

GAMBLE 60"

115

Gusto 32"

AVAILABLE FINISHES * S U P P L I E D W I T H A 1 / 2 " D I A M E T E R D OW N R O D

32323-65 Satin Nickel Silver Blades

32323-59 Mate Black Matte Black Blades

32323-8 Studio White Studio White Blades

HEIGHT CHART

MECHANICAL SPECS

Using 4" Downrod ● Distance of 16.5" ● Distance of 10"

153 x 10 Motor Size 3 Speeds-Reversible w/ Pull Chain Switch Reversible w/ Manual Reverse Switch 14 Poles .37/.32/.20 AMPS on H/M/L 44/33/13 WATTS on H/M/L 187/175/99 RPMS on H/M/L Triple Capacitor Remote Control Adaptable Dual-Mount Canopy Included for Hugger Mounting Detachable Switch Cup

GENERAL SPECS

ENERGY SPECS

FAN HEIGHT

3 Finishes Available Lifetime Motor Warranty Three Blades 32" Blade Sweep 13.5-Degree Blade Pitch 80" Lead Wire 4" & 6" Downrods Included 1/2" Downrod Diameter Hugger Adaptable Canopy Included

I N D O O R FA N S

REMOTE CONTROL OPTIONS

7-1305-0

7-1401-0

INSTALLATION NOTE Optional controls can only be used with downrod installation - Not with Hugger Mounting

Energy Information at High Speed Airflow: 2252 Cubic Feet/Minute Electricity Use: 41 Watts (Excludes Lights) Airflow Efficiency: 54 Cubic Feet/Minute/Watt Visit QuorumInternational.com for DOE Energy Guide

G U S TO 3 2 "

117

Medallion 30"

AVAILABLE FINISH

51306-8 Studio White Studio White Blades

HEIGHT CHART

FAN HEIGHT ● Distance of 8" ● Distance of 7.75"

GENERAL SPECS Lifetime Motor Warranty Six Blades 30" Blade Sweep 25-Degree Blade Pitch

I N D O O R FA N S

MECHANICAL SPECS 153 x 12 Motor Size 3 Speeds w/ Pull Chain Switch Reversible w/ Manual Reverse Switch 14 Poles .44/.32/.19 AMPS on H/M/L 53/26/9 WATTS on H/M/L 209/153/89 RPMS on H/M/L Triple Capacitor Remote Control Adaptable Detachable Switch Cup Skirted Blade Arms

REMOTE CONTROL OPTIONS

7-1305-0

7-1401-0

BLADE ALTERNATIVES Use indoor blade type 1-30 - See page 359

ENERGY SPECS Energy Information at High Speed Airflow: 1586 Cubic Feet/Minute Electricity Use: 52 Watts (Excludes Lights) Airflow Efficiency: 30 Cubic Feet/Minute/Watt Visit QuorumInternational.com for DOE Energy Guide

M E DA L L I O N 3 0 "

119

Medallion 42"

AVAILABLE FINISHES

51425-8 Studio White Studio White Blades

HEIGHT CHART

FAN HEIGHT ● Distance of 8" ● Distance of 7.25"

GENERAL SPECS Lifetime Motor Warranty Five Blades 42" Blade Sweep 14-Degree Blade Pitch

I N D O O R FA N S

MECHANICAL SPECS 153 x 13 Motor Size 3 Speeds w/ Pull Chain Switch Reversible w/ Manual Reverse Switch 14 Poles .42/.31/.19 AMPS on H/M/L 54/25/10 WATTS on H/M/L 221/160/97 RPMS on H/M/L Triple Capacitor Remote Control Adaptable Detachable Switch Cup Skirted Blade Arms

REMOTE CONTROL OPTIONS

7-1305-0

7-1401-0

BLADE ALTERNATIVES Use indoor blade type 1-42 - See page 360

ENERGY SPECS Energy Information at High Speed Airflow: 3146 Cubic Feet/Minute Electricity Use: 52 Watts (Excludes Lights) Airflow Efficiency: 60 Cubic Feet/Minute/Watt Visit QuorumInternational.com for DOE Energy Guide

M E DA L L I O N 42 "

121

Medallion 52"

AVAILABLE FINISHES

51525-6522 Satin Nickel Rosewood | Dark Oak Blades

51525-8 Studio White Studio White Blades

51525-6 Gloss White White Blades

HEIGHT CHART

FAN HEIGHT ● Distance of 7.5" ● Distance of 7.5"

GENERAL SPECS 3 Finishes Available Lifetime Motor Warranty Five Blades 52" Blade Sweep 14-Degree Blade Pitch

I N D O O R FA N S

MECHANICAL SPECS 153 x 15 Motor Size 3 Speeds w/ Pull Chain Switch Reversible w/ Manual Reverse Switch 14 Poles .55/.39/.21 AMPS on H/M/L 67/31/9 WATTS on H/M/L 158/104/54 RPMS on H/M/L Triple Capacitor Remote Control Adaptable Detachable Switch Cup Skirted Blade Arms

REMOTE CONTROL OPTIONS

7-1305-0

7-1401-0

BLADE ALTERNATIVES Use indoor blade type 1-52 - See page 362

ENERGY SPECS Energy Information at High Speed Airflow: 4041 Cubic Feet/Minute Electricity Use: 63 Watts (Excludes Lights) Airflow Efficiency: 64 Cubic Feet/Min ute/Watt Visit QuorumInternational.com for DOE Energy Guide

M E DA L L I O N 5 2 "

123

Mira 30"

AVAILABLE FINISH * S U P P L I E D W I T H A 1 / 2 " D I A M E T E R D OW N R O D

32304-69 Textured Black Weathered Gray ABS Blades

Integral 18W, 3000k, 1096 Lumens, 90CRI Dimming LED (Included)

HEIGHT CHART

MECHANICAL SPECS

FAN HEIGHT

153x15 Motor Size 4 Speeds - Reversible 14 Poles .26/.23/.20/.15 AMPS on H/M/M/L 33/25/18/11 WATTS on H/M/M/L 301/274/232/173 RPM on H/M/M/L 4 Speed Wall Control Included Not Remote Control Adaptable

Using 6" downrod ● Distance of 19" ● Distance of 14.5"

GENERAL SPECS Lifetime Motor Warranty Four ABS Blades 30" Blade Sweep 35" Metal Cage 15-Degree Blade Pitch 80" Lead Wire 6" Downrod Included 1/2" Downrod Diameter

I N D O O R FA N S

LIGHT SOURCE

LED MODULE

WALL CONTROL

ENERGY SPECS Energy Information at High Speed Airflow: 2286 Cubic Feet/Minute Electricity Use: 32 Watts (Excludes Lights) Airflow Efficiency: 71 Cubic Feet/Minute/Watt Visit QuorumInternational.com for DOE Energy Guide

Included

MIR A 30"

125

Pinnacle 52"

AVAILABLE FINISHES * S U P P L I E D W I T H A 1 / 2 " D I A M E T E R D OW N R O D

91525-95 Old World Rosewood | Walnut Blades

91525-86 Oiled Bronze Walnut | Oiled Bronze Blades

91525-65 Satin Nickel Walnut | Silver Blades

91525-60 Aged Silver Leaf Weathered Oak | Walnut Blades

91525-8 Studio White Studio White Blades

91525-4 Antique Brass Rosewood | Medium Oak Blades

HEIGHT CHART

MECHANICAL SPECS

Using 4" Downrod ● Distance of 12.5" ● Distance of 11"

188 x 22 Motor Size 3 Speeds w/ Pull Chain Switch Reversible w/ Manual Reverse Switch 16 Poles .65/.44/.23 AMPS on H/M/L 83/36/10 WATTS on H/M/L 162/108/64 RPMS on H/M/L Triple Capacitor Remote Control Adaptable Detachable Switch Cup Skirted Blade Arms

GENERAL SPECS

ENERGY SPECS

FAN HEIGHT

6 Finishes Available Lifetime Motor Warranty Five Blades 52" Blade Sweep 16-Degree Blade Pitch 80" Lead Wire 4" & 6" Downrods Included 1/2" Downrod Diameter

I N D O O R FA N S

REMOTE CONTROL OPTIONS

7-1305-0

7-1401-0

8-223

BLADE ALTERNATIVES Use indoor blade type 5-52 - See page 367 Use indoor blade type 5-56 - See page 372 Use indoor blade type 5-60 - See page 374

Energy Information at High Speed Airflow: 6110 Cubic Feet/Minute Electricity Use: 85 Watts (Excludes Lights) Airflow Efficiency: 71 Cubic Feet/Minute/Watt Visit QuorumInternational.com for DOE Energy Guide

P I N N AC L E 5 2 "

127

Salon 56"

83565-86 Oiled Bronze Walnut | Oiled Bronze Blades

Up-light uses (3) 4.5W C LED Bulbs

OP TIONAL LIGHT KITS * S U P P L I E D W I T H A 1 / 2 " D I A M E T E R D OW N R O D

2384-9186 11.75"(w) x 7.75"(h) - (2) 4.5W C LED (Included) Oiled Bronze | Satin Opal

2383-9186 8"(w) x 4.75"(h) - (3) 9W M, 3000k, 90CRI LED Bulbs (Included) Oiled Bronze

SALON 56" LIGHT KIT OPTIONS item #

glass

dimensions

lights

2383-9186

NA

8"(w) x 4.75"(h)

(3) 9W M LED (Included)

2384-9186

Satin Opal

11.75"(w) x 7.75"(h)

(2) 4.5W C LED (Included))

oiled bronze

*All light kits comply with 2005 Energy Policy Act.

HEIGHT CHART

FAN HEIGHT Using 12" Downrod ● Distance of 22.5" ● Distance of 18.75"

GENERAL SPECS Lifetime Motor Warranty Five Blades 56" Blade Sweep 14-Degree Blade Pitch 80" Lead Wire 4" & 12" Downrods Included 1/2" Downrod Diameter

I N D O O R FA N S

MECHANICAL SPECS

LIGHT SOURCE

188 x 15 Motor Size 3 Speeds-Reversible w/ Wall Control 16 Poles .68/.50/.28 AMPS on H/M/L 66/31/9 WATTS on H/M/L 150/90/50 RPMS on H/M/L Wall Control Included Remote Control Adaptable Up-Light - (3) 4.5W C LED Bulbs (Included) Skirted Blade Arms

LED Candelabra

REMOTE CONTROL OPTIONS

ENERGY SPECS Energy Information at High Speed Airflow: 5314 Cubic Feet/Minute Electricity Use: 66 Watts (Excludes Lights) Airflow Efficiency: 80 Cubic Feet/Minute/Watt Visit QuorumInternational.com for DOE Energy Guide

Included (4 DIP Switches)

7-1305-0

8-1402

BLADE ALTERNATIVES Use indoor blade type 5-56 - See page 372

S A LO N 5 6"

129

Turner 68"

AVAILABLE FINISHES * S U P P L I E D W I T H A 1 / 2 " D I A M E T E R D OW N R O D

28682-70 Persian White Finish Distressed Weathered Pine Blades

HEIGHT CHART

FAN HEIGHT Using 4" Downrod ● Distance of 17.5" ● Distance of 13.25"

GENERAL SPECS 2 Finishes Available Lifetime Motor Warranty Two Blades 68" Blade Sweep 16-Degree Blade Pitch 80" Lead Wire 4" & 6" Downrods Included 1/2" Downrod Diameter

I N D O O R FA N S

28682-86 Oiled Bronze Finish Distressed Vintage Walnut Blades

MECHANICAL SPECS 153 x 20 Motor Size 4 Speeds - Reversible w/ Manual Reverse Switch 14 Poles .42/.30/.22/.16 AMPS on H/M/M/L 51/26/15/8 WATTS on H/M/M/L 90/65/50/43 RPM on H/M/M/L Triple Capacitor 4 Speed Wall Control Included Remote Control Adaptable w/ Manual Reverse Not Light Kit Adaptable

REMOTE CONTROL OPTIONS

Included

7-1305-0

7-1401-0

ENERGY SPECS Energy Information at High Speed Airflow: 4450 Cubic Feet/Minute Electricity Used: 51 Watts (Excludes Lights) Airflow Efficiency: 87 Cubic Feet/Watt Visit QuorumInternational.com for DOE Energy Guide

T U R N E R 6 8"

131

Windmill 44"

94410-86 Oiled Bronze Weathered Oak Blades

AVAILABLE FINISH * S U P P L I E D W I T H A 1 / 2 " D I A M E T E R D OW N R O D

Optional Light Kit 1904-86 11"(w) x 6"(h) - (1) 18W, 3000k, 1200 Lumens, 90CRI, Dimming LED (Included) Oiled Bronze | Satin Opal UL Damp / Light Kit shown on 94410-86 ceiling fan

HEIGHT CHART

FAN HEIGHT Using 6" Downrod ● Distance of 16.5" ● Distance of 11.5"

GENERAL SPECS Lifetime Motor Warranty Ten Blades 44" Blade Sweep 30-Degree Blade Pitch 80" Lead Wire 6" Downrod Included 1/2" Downrod Diameter

I N D O O R FA N S

MECHANICAL SPECS DC-125 Motor 6 Speeds-Reversible w/ Wall Control 8 Poles .39/.29/.20/.13/.11/.05 AMPS on H/M/L 32/22/15/10/7/3 WATTS on H/M/L 100/90/80/70/60/50 RPMS on H/M/L Light Kit Adaptable Remote Control Included Not Hugger Adaptable Not Slope Ceiling Kit Adaptable Maximum 25° Slope with Minimum 18" Downrod Maximum Length Optional Downrod 48"

REMOTE CONTROL

Included

INSTALLATION NOTE Multiple fans installed on the same circuit require individual wall controls and switch legs. The power supply wire from the control to the fans can not be shared.

ENERGY SPECS

LIGHT KIT OPTIONS

Energy Information at High Speed Airflow: 2574 Cubic Feet/Minute Electricity Use: 26 Watts (Excludes Lights) Airflow Efficiency: 99 Cubic Feet/Minute/Watt Visit QuorumInternational.com for DOE Energy Guide

Additional Light Kit options on page 214

INSTALLATION INSTRUCTIONS Visit www.quoruminternational.com/pages/faqs

W I N D M I L L 4 4"

133

Windmill 52"

AVAILABLE FINISHES * S U P P L I E D W I T H A 1 / 2 " D I A M E T E R D OW N R O D

95210-86 Oiled Bronze Weathered Oak Blades

95210-69 Textured Black Weathered Oak Blades

95210-9 Galvanized Weathered Oak Blades

HEIGHT CHART

FAN HEIGHT Using 6" Downrod ● Distance of 16.5" ● Distance of 11.5"

GENERAL SPECS 3 Finishes Available Lifetime Motor Warranty Ten Blades 52" Blade Sweep 30-Degree Blade Pitch 80" Lead Wire 6" Downrod Included 1/2" Downrod Diameter

I N D O O R FA N S

MECHANICAL SPECS DC-165M Motor 6 Speeds-Reversible w/ Wall Control 8 Poles .39/.26/.17/.12/.07/.04 AMPS on H/M/L 32/20/12/9/5/3 WATTS on H/M/L 84/74/64/51/41/31 RPMS on H/M/L Light Kit Adaptable Remote Control Included Not Hugger Adaptable Not Slope Ceiling Kit Adaptable Maximum 25° Slope with Minimum 18" Downrod Maximum Length Optional Downrod 48"

ENERGY SPECS Energy Information at High Speed Airflow: 2881 Cubic Feet/Minute Electricity Use: 26 Watts (Excludes Lights) Airflow Efficiency: 110 Cubic Feet/Minute/Watt Visit QuorumInternational.com for DOE Energy Guide

REMOTE CONTROL

Included

INSTALLATION NOTE Multiple fans installed on the same circuit require individual wall controls and switch legs. The power supply wire from the control to the fans can not be shared.

LIGHT KIT OPTIONS Additional Light Kit options on page 214

INSTALLATION INSTRUCTIONS Visit www.quoruminternational.com/pages/faqs

WINDMILL 52"

135

Windmill 60"

AVAILABLE FINISHES * S U P P L I E D W I T H A 1 / 2 " D I A M E T E R D OW N R O D

96015-86 Oiled Bronze Weathered Oak Blades

96015-69 Textured Black Weathered Oak Blades

96015-9 Galvanized Weathered Oak Blades

Optional Light Kit 1974-86

9.75"(w) x 6.5"(h) - (1) 6W, 2700k, 80CRI M, Dimming LED (Included)

Oiled Bronze | Clear hammered Glass Light Kit shown on 96015-69 ceiling fan

HEIGHT CHART

FAN HEIGHT Using 6" Downrod ● Distance of 16.5" ● Distance of 11.5"

GENERAL SPECS 3 Finishes Available Lifetime Motor Warranty Fifteen Blades 60" Blade Sweep 30-Degree Blade Pitch 80" Lead Wire 6" Downrod Included 1/2" Downrod Diameter

I N D O O R FA N S

MECHANICAL SPECS DC-165L Motor 6 Speeds-Reversible w/ Wall Control 8 Poles .42/.27/.21/.17/.11/.08 AMPS on H/M/L 30/19/14/11/7/5 WATTS on H/M/L 65/53/47/41/37/33 RPMS on H/M/L Light Kit Adaptable Remote Control Included Not Hugger Adaptable Not Slope Ceiling Kit Adaptable Maximum 25° Slope with Minimum 18" Downrod Maximum Length Optional Downrod 48"

ENERGY SPECS Energy Information at High Speed Airflow: 3472 Cubic Feet/Minute Electricity Use: 33 Watts (Excludes Lights) Airflow Efficiency: 105 Cubic Feet/Minute/Watt Visit QuorumInternational.com for DOE Energy Guide

REMOTE CONTROL

Included

INSTALLATION NOTE Multiple fans installed on the same circuit require individual wall controls and switch legs. The power supply wire from the control to the fans can not be shared.

LIGHT KIT OPTIONS Additional Light Kit options on page 214

INSTALLATION INSTRUCTIONS Visit www.quoruminternational.com/pages/faqs

WINDMILL 60"

137

Windmill 72"

AVAILABLE FINISHES * S U P P L I E D W I T H A 1 / 2 " D I A M E T E R D OW N R O D

97215-86 Oiled Bronze Weathered Oak Blades

97215-69 Textured Black Weathered Oak Blades

97215-9 Galvanized Weathered Oak Blades

Optional Light Kit 1975-69 12.75"(w) x 7"(h) - (1) 6W M, 2700k, 500 Lumens, 80CRI, Dimming LED (Included) / Textured Black | Clear Hammered Glass Light Kit shown on 97215-69 ceiling fan

HEIGHT CHART

FAN HEIGHT Using 6" Downrod ● Distance of 16.5" ● Distance of 11.5"

GENERAL SPECS 3 Finishes Available Lifetime Motor Warranty Fifteen Blades 72" Blade Sweep 30-Degree Blade Pitch 80" Lead Wire 6" Downrod Included 1/2" Downrod Diameter

I N D O O R FA N S

MECHANICAL SPECS DC-165L Motor 6 Speeds-Reversible w/ Wall Control 8 Poles .47/.33/.24/.17/.11/.07 AMPS on H/M/L 34/25/16/12/8/5 WATTS on H/M/L 43/38/35/31/27/23 RPMS on H/M/L Light Kit Adaptable Remote Control Included Not Hugger Adaptable Not Slope Ceiling Kit Adaptable Maximum 25° Slope with Minimum 18" Downrod Maximum Length Optional Downrod 48"

ENERGY SPECS Energy Information at High Speed Airflow: 2826 Cubic Feet/Minute Electricity Use: 37 Watts (Excludes Lights) Airflow Efficiency: 76 Cubic Feet/Minute/Watt Visit QuorumInternational.com for DOE Energy Guide

REMOTE CONTROL

Included

INSTALLATION NOTE Multiple fans installed on the same circuit require individual wall controls and switch legs. The power supply wire from the control to the fans can not be shared.

LIGHT KIT OPTIONS Additional Light Kit options on page 214

INSTALLATION INSTRUCTIONS Visit www.quoruminternational.com/pages/faqs

WINDMILL 72"

139

Windsor 52"

AVAILABLE FINISHES * S U P P L I E D W I T H A 1 / 2 " D I A M E T E R D OW N R O D

85525-44 Toasted Sienna Walnut | Rosewood Blades

85525-67 Antique White Antique White Blades

HEIGHT CHART

MECHANICAL SPECS

Using 4" Downrod ● Distance of 15.75" ● Distance of 13.75"

188 x 15 Motor Size 3 Speeds w/ Pull Chain Switch Reversible w/ Manual Reverse Switch 16 Poles .61/.42/.22 AMPS on H/M/L 83/34/9 WATTS on H/M/L 169/110/54 RPMS on H/M/L Triple Capacitor Remote Control Adaptable Detachable Switch Cup Skirted Blade Arms

GENERAL SPECS

ENERGY SPECS

FAN HEIGHT

2 Finishes Available Lifetime Motor Warranty Five Blades 52" Blade Sweep 14-Degree Blade Pitch 80" Lead Wire 4" & 6" Downrods Included 1/2" Downrod Diameter

I N D O O R FA N S

REMOTE CONTROL OPTIONS

7-1305-0

7-1401-0

8-223

Energy Information at High Speed Airflow: 5711 Cubic Feet/Minute Electricity Use: 68 Watts (Excludes Lights) Airflow Efficiency: 83 Cubic Feet/Minute/Watt Visit QuorumInternational.com for DOE Energy Guide

WINDSOR 52"

141

Main street is a significant part of the iconography of American life. There is a main street present in almost every city and town across the country. This concept represents the interest and ideals of everyday people in communities throughout, which is why we felt it was emblematic of the collection that bears its name. Our Main Street by Quorum designs combine high-quality craftsmanship with affordable pricing, making these products some of our most popular for today's styles and trends.

I N D O O R FA N S

M A I N S T R E E T BY Q U O R U M

143

Aerovon 52" Industrial Fan

AVAILABLE FINISHES * S U P P L I E D W I T H A 1 / 2 " D I A M E T E R D OW N R O D

60523-65 Satin Nickel Silver ABS Blades

60523-8 Studio White Studio White ABS Blades

60523-59 Matte Black Matte Black ABS Blades

HEIGHT CHART

FAN HEIGHT Using 4" Downrod ● Distance of 9.5" ● Distance of 8"

GENERAL SPECS 3 Finishes Available Limited Lifetime Motor Warranty Three ABS Blades 22-Degree Blade Pitch 80" Lead Wire 4" & 6" Downrods Included 1/2" Downrod Diameter

I N D O O R FA N S

MECHANICAL SPECS

WALL CONTROL

153 x 15 Motor Size 4 Speeds w/ Wall Control Forward Speed Only - Non-Reversible .34/.29/.23/.18 AMPS on H/M/L 41/30/19/11 WATTS on H/M/L 175/145/116/85 RPMS on H/M/L 4 Speed Wall Control Included Not Remote Control Adaptable Not Light Kit Adaptable UL Damp Listed

Included

ENERGY SPECS Energy Information at High Speed Airflow: 3937 Cubic Feet/Minute Electricity Use: 39 Watts (Excludes Lights) Airflow Efficiency: 100 Cubic Feet/Minute/Watt Visit QuorumInternational.com for DOE Energy Guide

A E R OVO N 5 2 " I N D U S T R I A L FA N

145

Aerovon 60" Industrial Fan

AVAILABLE FINISHES * S U P P L I E D W I T H A 1 / 2 " D I A M E T E R D OW N R O D

60603-65 Satin Nickel Silver ABS Blades

60603-59 Matte Black Matte Black ABS Blades

60603-8 Studio White Studio White ABS Blades

HEIGHT CHART

MECHANICAL SPECS

Using 6" Downrod ● Distance of 15.5" ● Distance of 11.25"

172 x 20 Motor Size 4 Speeds w/ Wall Control 16 Poles Forward Speed Only - Non-Reversible .38/.30/.23/.17 AMPS on H/M/L 45/29/17/9 WATTS on H/M/L 142/110/83/58 RPMS on H/M/L 4 Speed Wall Control Included Not Remote Control Adaptable Not Light Kit Adaptable UL Damp Listed

GENERAL SPECS

ENERGY SPECS

FAN HEIGHT

3 Finishes Available Limited Lifetime Motor Warranty Three ABS Blades 60" Blade Sweep 22-Degree Blade Pitch 80" Lead Wire 6" Downrod Included 1/2" Downrod Diameter

I N D O O R FA N S

WALL CONTROL

Included

Energy Information at High Speed Airflow: 4961 Cubic Feet/Minute Electricity Use: 43 Watts (Excludes Lights) Airflow Efficiency: 115 Cubic Feet/Minute/Watt Visit QuorumInternational.com for DOE Energy Guide

A E R OVO N 6 0 " I N D U S T R I A L FA N

147

Banzai 52" Hugger

AVAILABLE FINISHES

22523-59 Matte Black Matte Black | Walnut Blades

22523-47 Brushed Brass Matte Black | Walnut Blades

22523-8 Studio White Washed Oak | Studio White Blades

HEIGHT CHART

FAN HEIGHT Using 4" Downrod ● Distance of 10.5" ● Distance of 9"

GENERAL SPECS 3 Finish Combinations Available Lifetime Motor Warranty Three Blades 52" Blade Sweep 14-Degree Blade Pitch 12" Lead Wire

I N D O O R FA N S

MECHANICAL SPECS 153x15mm Motor 3 Speeds w/ Pull Chain Switch Reversible w/ Manual Reverse Switch 14 Poles .49/.37/.24 AMPS on H/M/L 60/31/13 WATTS on H/M/L 155/110/70 RPMS on H/M/L Not Light Kit Adaptable

ENERGY SPECS Energy Information at High Speed Airflow: 3619 Cubic Feet/Minute Electricity Use: 60 Watts (Excludes Lights) Airflow Efficiency: 60 Cubic Feet/Minute/Watt Visit QuorumInternational.com for DOE Energy Guide

BANZAI 52" HUGGER

149

Breeze 52"

AVAILABLE FINISHES * S U P P L I E D W I T H A 1 / 2 " D I A M E T E R D OW N R O D

7052-86 Oiled Bronze Walnut | Dark Oak Blades

7052-69 Textured Black Matte Black | Weathered Oak Blades

HEIGHT CHART

FAN HEIGHT Using 3.5" Downrod ● Distance of 11.75" ● Distance of 9.75"

GENERAL SPECS 5 Finish Combinations Available Lifetime Motor Warranty Five Blades 52" Blade Sweep 12-Degree Blade Pitch 80" Lead Wire 3.5" & 6" Downrods Included 1/2" Downrod Diameter

I N D O O R FA N S

7052-80 Aged Brass Walnut | Dark Oak Blades

7052-65 Satin Nickel Walnut | Silver Blades

MECHANICAL SPECS 153 x 15 Motor Size 3 Speeds w/ Pull Chain Switch Reversible w/ Manual Reverse Switch 14 Poles .55/.39/.22 AMPS on H/M/L 66/33/10 WATTS on H/M/L 173/122/64 RPMS on H/M/L Detachable Switch Cup Triple Capacitor Light Kit Adaptable Remote Control Adaptable Skirted Blade Arms

7052-8 Studio White Studio White Blades

REMOTE CONTROL OPTIONS

7-1305-0

7-501-0

8-223

BLADE ALTERNATIVES Use indoor blade type 9-52 - See page 370

ENERGY SPECS Energy Information at High Speed Airflow: 4449 Cubic Feet/Minute Electricity Use: 58 Watts (Excludes Lights) Airflow Efficiency: 77 Cubic Feet/Minute/Watt Visit QuorumInternational.com for DOE Energy Guide

BREEZE 52"

151

Breeze 52" 2 Light Uni-Pack

AVAILABLE FINISHES * S U P P L I E D W I T H A 1 / 2 " D I A M E T E R D OW N R O D

7052-286 Oiled Bronze | Clear Seeded Glass Weathered Oak | Oiled Bronze Blades

70525-86 Oiled Bronze | Satin Opal Glass Walnut | Dark Oak Blades

7052-280 Aged Brass | Clear Seeded Glass Weathered Oak | Matte Black Blades

70525-80 Aged Brass | Satin Opal Glass Walnut | Dark Oak Blades

Light Kit uses (2) 7W M, 3000k, 1600 Lumens, 80CRI, Non-Dimming LED (Included)

Light Kit uses (2) 7W M, 3000k, 1600 Lumens, 80CRI, Non-Dimming LED (Included) I N D O O R FA N S

Light Kit uses (2) 9W M, 3000k, 1600 Lumens, 80CRI, Non-Dimming LED (Included)

Light Kit uses (2) 9W M, 3000k, 1600 Lumens, 80CRI,

Non-Dimming LED (Included)

B R E E Z E 5 2 " 2 L I G H T U N I - PAC K

153

AVAILABLE FINISHES * S U P P L I E D W I T H A 1 / 2 " D I A M E T E R D OW N R O D

7052-269 Textured Black | Clear Seeded Glass Weathered Oak | Matte Black Blades

70525-69 Textured Black | Satin Opal Glass Weathered Oak | Matte Black Blades

7052-265 Satin Nickel | Clear Seeded Glass Weathered Gray | Silver Blades

70525-65 Satin Nickel | Satin Opal Glass Walnut | Silver Blades

Light Kit uses (2) 7W M, 3000k, 1600 Lumens, 80CRI, Non-Dimming LED (Included)

Light Kit uses (2) 7W M, 3000k, 1600 Lumens, 80CRI, Non-Dimming LED (Included)

Light Kit uses (2) 9W M, 3000k, 1600 Lumens, 80CRI, Non-Dimming LED (Included)

Light Kit uses (2) 9W M, 3000k, 1600 Lumens, 80CRI, Non-Dimming LED (Included)

7052-208 Studio White | Clear Seeded Glass Studio White Blades

Light Kit uses (2) 7W M, 3000k, 1600 Lumens, 80CRI, Non-Dimming LED (Included)

HEIGHT CHART

FAN HEIGHT Using 3.5" Downrod ● Distance of 16.5" ● Distance of 9.75"

GENERAL SPECS 10 Finish Combinations Available Lifetime Motor Warranty Five Blades 52" Blade Sweep 12-Degree Blade Pitch 80" Lead Wire 3.5" & 6" Downrods Included 1/2" Downrod Diameter

I N D O O R FA N S

70525-8 Studio White | Satin Opal Glass Studio White Blades

Light Kit uses (2) 9W M, 3000k, 1600 Lumens, 80CRI, Non-Dimming LED (Included)

MECHANICAL SPECS 153 x 15 Motor Size 3 Speeds w/ Pull Chain Switch Reversible w/ Manual Reverse Switch 14 Poles .55/.39/.22 AMPS on H/M/L 66/32/10 WATTS on H/M/L 161/112/61 RPMS on H/M/L Detachable Switch Cup Triple Capacitor Remote Control Adaptable Skirted Blade Arms LED Bulbs Included

ENERGY SPECS Energy Information at High Speed Airflow: 4575 Cubic Feet/Minute Electricity Use: 66 Watts (Excludes Lights) Airflow Efficiency: 70 Cubic Feet/Minute/Watt Visit QuorumInternational.com for DOE Energy Guide

LIGHT SOURCE

Medium Frosted LED

Medium Clear LED

REMOTE CONTROL OPTIONS

7-501-0

8-223

BLADE ALTERNATIVES Use indoor blade type 9-52 - See page 370

B R E E Z E 5 2 " 2 L I G H T U N I - PAC K

155

Breeze 52" 3 Light Uni-Pack

AVAILABLE FINISHES * S U P P L I E D W I T H A 1 / 2 " D I A M E T E R D OW N R O D

7052-386 Oiled Bronze | Clear Seeded Glass Weathered Oak | Oiled Bronze Blades

70525-386 Oiled Bronze | Satin Opal Glass Walnut | Dark Oak Blades

7052-380 Aged Brass | Clear Seeded Glass Weathered Oak | Matte Black Blades

70525-380 Aged Brass | Satin Opal Glass Walnut | Dark Oak Blades

Light Kit uses (3) 7W M, 3000k, 2400 Lumens, 80CRI, Non-Dimming LED (Included)

Light Kit uses (3) 7W M, 3000k, 2400 Lumens, 80CRI, Non-Dimming LED (Included) I N D O O R FA N S

Light Kit uses (3) 9W M, 3000k, 2400 Lumens, 80CRI, Non-Dimming LED (Included)

Light Kit uses (3) 9W M, 3000k, 2400 Lumens, 80CRI, Non-Dimming LED (Included) B R E E Z E 5 2 " 3 L I G H T U N I - PAC K

157

AVAILABLE FINISHES * S U P P L I E D W I T H A 1 / 2 " D I A M E T E R D OW N R O D

70525-369 Textured Black | Clear Seeded Glass Matte Black | Weathered Oak Blades

70525-365 Satin Nickel | Satin Opal Glass Walnut | Silver Blades

7052-365 Satin Nickel | Clear Seeded Glass Weathered Gray | Silver Blades

70525-308 Studio White | Satin Opal Glass Studio White Blades

Light Kit uses (3) 7W M, 3000k, 2400 Lumens, 80CRI, Non-Dimming LED (Included)

Light Kit uses (3) 7W M, 3000k, 2400 Lumens, 80CRI, Non-Dimming LED (Included)

Light Kit uses (3) 9W M, 3000k, 2400 Lumens, 80CRI, Non-Dimming LED (Included)

Light Kit uses (3) 9W M, 3000k, 2400 Lumens, 80CRI, Non-Dimming LED (Included)

7052-308 Studio White | Clear Seeded Glass Studio White Blades

Light Kit uses (3) 7W M, 3000k, 2400 Lumens, 80CRI, Non-Dimming LED (Included)

HEIGHT CHART

FAN HEIGHT Using 3.5" Downrod ● Distance of 16.75" ● Distance of 9.75"

GENERAL SPECS 9 Finish Combinations Available Lifetime Motor Warranty Five Blades 52" Blade Sweep 12-Degree Blade Pitch 80" Lead Wire 3.5" & 6" Downrods Included 1/2" Downrod Diameter

I N D O O R FA N S

MECHANICAL SPECS 153 x 15 Motor Size 3 Speeds w/ Pull Chain Switch Reversible w/ Manual Reverse Switch 14 Poles .55/.39/.22 AMPS on H/M/L 66/33/10 WATTS on H/M/L 173/122/64 RPMS on H/M/L Detachable Switch Cup Triple Capacitor Remote Control Adaptable Skirted Blade Arms LED Bulbs Included

ENERGY SPECS Energy Information at High Speed Airflow: 4453 Cubic Feet/Minute Electricity Use: 58 Watts (Excludes Lights) Airflow Efficiency: 76 Cubic Feet/Minute/Watt Visit QuorumInternational.com for DOE Energy Guide

LIGHT SOURCE

Medium Frosted LED

Medium Clear LED

REMOTE CONTROL OPTIONS

7-501-0

8-223

BLADE ALTERNATIVES Use indoor blade type 9-52 - See page 370

B R E E Z E 5 2 " 3 L I G H T U N I - PAC K

159

Breeze 52" 4 Light Uni-Pack

AVAILABLE FINISHES * S U P P L I E D W I T H A 1 / 2 " D I A M E T E R D OW N R O D

7052-486 Oiled Bronze | Clear Seeded Glass Weathered Oak | Oiled Bronze Blades

70525-486 Oiled Bronze | Satin Opal Glass Walnut | Dark Oak Blades

7052-480 Aged Brass | Clear Seeded Glass Matte Black | Weathered Oak Blades

70525-480 Aged Brass | Satin Opal Glass Walnut | Dark Oak Blades

Light Kit uses (4) 7W M, 3000k, 3200 Lumens, 80CRI, Non-Dimming LED (Included)

Light Kit uses (4) 7W M, 3000k, 3200 Lumens, 80CRI, Non-Dimming LED (Included) I N D O O R FA N S

Light Kit uses (4) 9W M, 3000k, 3200 Lumens, 80CRI, Non-Dimming LED (Included)

Light Kit uses (4) 9W M, 3000k, 3200 Lumens, 80CRI, Non-Dimming LED (Included) B R E E Z E 5 2 " 4 L I G H T U N I - PAC K

161

AVAILABLE FINISHES * S U P P L I E D W I T H A 1 / 2 " D I A M E T E R D OW N R O D

70525-469 Textured Black | Clear Seeded Glass Matte Black | Weathered Oak Blades

7052-465 Satin Nickel | Clear Seeded Glass Weathered Gray | Silver Blades

70525-465 Satin Nickel | Satin Opal Glass Walnut | Silver Blades

7052-408 Studio White | Clear Seeded Glass Studio White Blades

Light Kit uses (4) 7W M, 3000k, 3200 Lumens, 80CRI, Non-Dimming LED (Included)

Light Kit uses (4) 9W M, 3000k, 3200 Lumens, 80CRI, Non-Dimming LED (Included)

Light Kit uses (4) 7W M, 3000k, 3200 Lumens, 80CRI, Non-Dimming LED (Included)

Light Kit uses (4) 7W M, 3000k, 3200 Lumens, 80CRI, Non-Dimming LED (Included)

70525-408 Studio White | Satin Opal Glass Studio White Blades

Light Kit uses (4) 9W M, 3000k, 3200 Lumens, 80CRI, Non-Dimming LED (Included)

HEIGHT CHART

FAN HEIGHT Using 3.5" Downrod ● Distance of 16.75" ● Distance of 9.75"

GENERAL SPECS 9 Finish Combinations Available Lifetime Motor Warranty Five Blades 52" Blade Sweep 12-Degree Blade Pitch 80" Lead Wire 3.5" & 6" Downrods Included 1/2" Downrod Diameter

I N D O O R FA N S

MECHANICAL SPECS 153 x 15 Motor Size 3 Speeds w/ Pull Chain Switch Reversible w/ Manual Reverse Switch 14 Poles .55/.39/.22 AMPS on H/M/L 66/33/10 WATTS on H/M/L 173/122/64 RPMS on H/M/L Detachable Switch Cup Triple Capacitor Remote Control Adaptable Skirted Blade Arms LED Bulbs Included

ENERGY SPECS Energy Information at High Speed Airflow: 4407 Cubic Feet/Minute Electricity Use: 58 Watts (Excludes Lights) Airflow Efficiency: 76 Cubic Feet/Minute/Watt Visit QuorumInternational.com for DOE Energy Guide

LIGHT SOURCE

Medium Frosted LED

Medium Clear LED

REMOTE CONTROL OPTIONS

7-501-0

8-223

BLADE ALTERNATIVES Use indoor blade type 9-52 - See page 370

B R E E Z E 5 2 " 4 L I G H T U N I - PAC K

163

Breeze 60"

AVAILABLE FINISHES * S U P P L I E D W I T H A 1 / 2 " D I A M E T E R D OW N R O D

7060-86 Oiled Bronze Dark Oak | Walnut Blades

7060-69 Textured Black Weathered Oak | Matte Black Blades

HEIGHT CHART

FAN HEIGHT Using 4" Downrod ● Distance of 12.25" ● Distance of 10.25"

GENERAL SPECS 5 Finishes Available Lifetime Motor Warranty Five Blades 60" Blade Sweep 12-Degree Blade Pitch 80" Lead Wire 4" & 6" Downrods Included 1/2" Downrod Diameter

I N D O O R FA N S

7060-80 Aged Brass Dark Oak | Walnut Blades

7060-65 Satin Nickel Silver | Walnut Blades

MECHANICAL SPECS 188 x 25 Motor Size 3 Speeds w/ Pull Chain Switch Reversible w/ Manual Reverse Switch 16 Poles .70/.48/.28 AMPS on H/M/L 83/38/13 WATTS on H/M/L 156/103/58 RPMS on H/M/L Detachable Switch Cup Triple Capacitor Light Kit Adaptable Remote Control Adaptable Skirted Blade Arms

7060-8 Studio White Studio White Blades

REMOTE CONTROL OPTIONS

7-1305-0

7-1401-0

7-501-0

8-223

BLADE ALTERNATIVES Use indoor blade type 9-60 - See page 376

ENERGY SPECS Energy Information at High Speed Airflow: 5695 Cubic Feet/Minute Electricity Use: 73 Watts (Excludes Lights) Airflow Efficiency: 78 Cubic Feet/Minute/Watt Visit QuorumInternational.com for DOE Energy Guide

BREEZE 60"

165

Breeze 60" 2 Light Uni-Pack

AVAILABLE FINISHES * S U P P L I E D W I T H A 1 / 2 " D I A M E T E R D OW N R O D

70605-86 Oiled Bronze | Satin Opal Glass Oiled Bronze | Weathered Oak Blades Light Kit uses (2) 9W M, 3000k, 1600 Lumens, 80CRI, Non-Dimming LED (Included)

70605-69 Textured Black | Satin Opal Glass Weathered Oak | Textured Black Blades Light Kit uses (2) 9W M, 3000k, 1600 Lumens, 80CRI, Non-Dimming LED (Included)

70605-65 Satin Nickel | Satin Opal Glass Silver | Weathered Grey Blades Light Kit uses (2) 9W M, 3000k, 1600 Lumens, 80CRI, Non-Dimming LED (Included)

HEIGHT CHART

FAN HEIGHT Using 4" Downrod ● Distance of 16.75" ● Distance of 10.25"

GENERAL SPECS 3 Finishes Available Lifetime Motor Warranty Five Blades 60" Blade Sweep 12-Degree Blade Pitch 80" Lead Wire 4" Downrod Included 1/2" Downrod Diameter

I N D O O R FA N S

MECHANICAL SPECS 188 x 25 Motor Size 3 Speeds w/ Pull Chain Switch Reversible w/ Manual Reverse Switch 16 Poles .63/.45/.27 AMPS on H/M/L 77/38/14 WATTS on H/M/L 145/99/56 RPMS on H/M/L Detachable Switch Cup Triple Capacitor Remote Control Adaptable Skirted Blade Arms LED Bulbs Included

ENERGY SPECS Energy Information at High Speed Airflow: 5526 Cubic Feet/Minute Electricity Use: 69 Watts (Excludes Lights) Airflow Efficiency: 80 Cubic Feet/Minute/Watt Visit QuorumInternational.com for DOE Energy Guide

LIGHT SOURCE

Medium Frosted LED

REMOTE CONTROL OPTION

7-501-0

8-223

BLADE ALTERNATIVES Use indoor blade type 9-60 - See page 376

B R E E Z E 6 0 " 2 L I G H T U N I - PAC K

167

Custom Hugger 42"

AVAILABLE FINISH

11425-6 Gloss White White Blades

HEIGHT CHART

MECHANICAL SPECS

BLADE ALTERNATIVES Use indoor blade type 1-42 - See page 360

FAN HEIGHT

153 x 10 Motor Size 3 Speeds w/ Pull Chain Switch Reversible w/ Manual Reverse Switch 14 Poles .38/.29/.21 AMPS on H/M/L 48/27/15 WATTS on H/M/L 220/175/120 RPMS on H/M/L Single Capacitor Not Remote Control Adaptable Detachable Switch Cup

● Distance of 7.5" ● Distance of 6"

GENERAL SPECS Lifetime Motor Warranty Five Blades 11.5-Degree Blade Pitch 42" Blade Sweep 8" Lead Wire

I N D O O R FA N S

ENERGY SPECS Energy Information at High Speed Airflow: 2331 Cubic Feet/Minute Electricity Use: 48 Watts (Excludes Lights) Airflow Efficiency: 48 cubic feet/min./watt Visit QuorumInternational.com for DOE Energy Guide

C U S TO M H U G G E R 42 "

169

Custom Hugger 52"

AVAILABLE FINISHES

11525-65 Satin Nickel Walnut | Silver Blades

11525-6 Gloss White White Blades

11525-4 Antique Brass Medium Oak | Dark Oak Blades

HEIGHT CHART

MECHANICAL SPECS

BLADE ALTERNATIVES Use indoor blade type 1-52 - See page 362

FAN HEIGHT

153 x 12 Motor Size 3 Speeds w/ Pull Chain Switch Reversible w/ Manual Reverse Switch 14 Poles .40/.32/.19 AMPS on H/M/L 71/32/14 WATTS on H/M/L 158/121/75 RPMS on H/M/L Triple Capacitor Not Remote Control Adaptable Detachable Switch Cup

● Distance of 7.75" ● Distance of 6"

GENERAL SPECS 3 Finishes Available Lifetime Motor Warranty Five Blades 11.5-Degree Blade Pitch 52" Blade Sweep 8" Lead Wire

I N D O O R FA N S

ENERGY SPECS Energy Information at High Speed Airflow: 3884 Cubic Feet/Minute Electricity Use: 48 Watts (Excludes Lights) Airflow Efficiency: 70 cubic feet/min./watt Visit QuorumInternational.com for DOE Energy Guide

C U S TO M H U G G E R 5 2 "

171

Expo 52"

AVAILABLE FINISHES * S U P P L I E D W I T H A 1 / 2 " D I A M E T E R D OW N R O D

20523-80 Aged Brass | Satin Opal Glass Matte Black | Walnut Oak Blades

20523-65 Satin Nickel | Satin Opal Glass Silver | Weathered Gray Blades

20523-59 Matte Black | Satin Opal Glass Matte Black | Weathered Gray Blades

20523-8 Studio White | Satin Opal Glass White Blades

(2) 9W M, 3000k, 1600 Lumens, 80CRI Non-Dimming LED Bulbs (Included)

(2) 9W M, 3000k, 1600 Lumens, 80CRI Non-Dimming LED Bulbs (Included)

(2) 9W M, 3000k, 1600 Lumens, 80CRI Non-Dimming LED Bulbs (Included)

HEIGHT CHART

(2) 9W M, 3000k, 1600 Lumens, 80CRI Non-Dimming LED Bulbs (Included)

MECHANICAL SPECS

Using 4" Downrod ● Distance of 13.25" ● Distance of 9"

153x15 Motor Size 3 Speeds w/ Pull Chain Switch Reversible w/ Manual Reverse Switch 80" Lead Wire 14 Poles .48/.35/.21 AMPS on H/M/L 58/29/11 WATTS on H/M/L 185/130/75 RPMS on H/M/L LED Light Kit is (2) 9W M, 3000k, 80CRI (non-dimmable) Triple Capacitor Remote Control Adaptable

GENERAL SPECS

ENERGY SPECS

FAN HEIGHT

4 Finishes Available Lifetime Motor Warranty Three Blades 52" Blade Sweep 12.5-Degree Blade Pitch 4" Downrod Included 1/2" Downrod Diameter

I N D O O R FA N S

Energy Information at High Speed Airflow: 4635 Cubic Feet/Minute Electricity Use: 56 Watts (Excludes Lights) Airflow Efficiency: 82 Cubic Feet/Minute/Watt Visit QuorumInternational.com for DOE Energy Guide

LIGHT SOURCE

Medium Frosted LED

REMOTE CONTROL OPTIONS

7-1307-0

7-501-0

8-223

EXPO 52"

173

Expo 52" 4 Blade

AVAILABLE FINISHES * S U P P L I E D W I T H A 1 / 2 " D I A M E T E R D OW N R O D

20524-80 Aged Brass | Satin Opal Glass Walnut Oak | Matte Black Blades

20524-65 Satin Nickel | Satin Opal Glass Silver | Weathered Gray Blades

20524-59 Matte Black | Satin Opal Glass Matte Black | Weathered Gray Blades

20524-8 Studio White | Satin Opal Glass White Blades

(2) 9W M, 3000k, 1600 Lumens, 80CRI Non-Dimming LED Bulbs (Included)

(2) 9W M, 3000k, 1600 Lumens, 80CRI Non-Dimming LED Bulbs (Included)

(2) 9W M, 3000k, 1600 Lumens, 80CRI Non-Dimming LED Bulbs (Included)

HEIGHT CHART

(2) 9W M, 3000k, 1600 Lumens, 80CRI Non-Dimming LED Bulbs (Included)

MECHANICAL SPECS

Using 4" Downrod ● Distance of 13.25" ● Distance of 9"

153x17 Motor Size 3 Speeds w/ Pull Chain Switch Reversible w/ Manual Reverse Switch 80" Lead Wire 14 Poles .52/.34/.21 AMPS on H/M/L 63/29/11 WATTS on H/M/L 167/112/63 RPMS on H/M/L LED Light Kit is (2) 9W M, 3000k, 80CRI (non-dimmable) Triple Capacitor Remote Control Adaptable

GENERAL SPECS

ENERGY SPECS

FAN HEIGHT

4 Finishes Available Lifetime Motor Warranty Four Blades 52" Blade Sweep 12.5-Degree Blade Pitch 4" Downrod Included 1/2" Downrod Diameter

I N D O O R FA N S

Energy Information at High Speed Airflow: 4533 Cubic Feet/Minute Electricity Use: 64 Watts (Excludes Lights) Airflow Efficiency: 70 Cubic Feet/Minute/Watt Visit QuorumInternational.com for DOE Energy Guide

LIGHT SOURCE

Medium Frosted LED

REMOTE CONTROL OPTIONS

7-1307-0

7-501-0

EXPO 52" 4 BL ADE

175

Expo 60"

AVAILABLE FINISHES * S U P P L I E D W I T H A 1 / 2 " D I A M E T E R D OW N R O D

20603-80 Aged Brass | Satin Opal Glass Matte Black | Walnut Oak Blades

20603-65 Satin Nickel | Satin Opal Glass Silver | Weathered Gray Blades

20603-59 Matte Black | Satin Opal Glass Matte Black | Weathered Gray Blades

20603-8 Studio White | Satin Opal Glass White Blades

(2) 9W M, 3000k, 1600 Lumens, 80CRI Non-Dimming LED Bulbs (Included)

(2) 9W M, 3000k, 1600 Lumens, 80CRI Non-Dimming LED Bulbs (Included)

(2) 9W M, 3000k, 1600 Lumens, 80CRI Non-Dimming LED Bulbs (Included)

HEIGHT CHART

FAN HEIGHT Using 6" Downrod ● Distance of 15.75" ● Distance of 11.5"

GENERAL SPECS 4 Finishes Available Lifetime Motor Warranty Three Blades 60" Blade Sweep 12.5-Degree Blade Pitch 80" Lead Wire 6" Downrod Included 1/2" Downrod Diameter

I N D O O R FA N S

(2) 9W M, 3000k, 1600 Lumens, 80CRI Non-Dimming LED Bulbs (Included)

MECHANICAL SPECS

LIGHT SOURCE

172x20 Motor Size 3 Speeds w/ Pull Chain Switch Reversible w/ Manual Reverse Switch 16 Poles .50/.40/.23 AMPS on H/M/L 61/37/12 WATTS on H/M/L 141/110/63 RPMS on H/M/L LED Light Kit is (2) 9W M, 3000k, 80CRI (non-dimmable) Triple Capacitor Remote Control Adaptable

Medium Frosted LED

REMOTE CONTROL OPTIONS

ENERGY SPECS Energy Information at High Speed Airflow: 5560 Cubic Feet/Minute Electricity Use: 59 Watts (Excludes Lights) Airflow Efficiency: 94 Cubic Feet/Minute/Watt Visit QuorumInternational.com for DOE Energy Guide

7-1305-0

7-501-0

EXPO 60"

177

Expo 60" 4 Blade

AVAILABLE FINISHES * S U P P L I E D W I T H A 1 / 2 " D I A M E T E R D OW N R O D

20604-80 Aged Brass | Satin Opal Glass Walnut Oak | Matte Black Blades

20604-65 Satin Nickel | Satin Opal Glass Silver | Weathered Gray Blades

20604-59 Matte Black | Satin Opal Glass Matte Black | Weathered Gray Blades

20604-8 Studio White | Satin Opal Glass White Blades

(2) 9W M, 3000k, 1600 Lumens, 80CRI Non-Dimming LED Bulbs (Included)

(2) 9W M, 3000k, 1600 Lumens, 80CRI Non-Dimming LED Bulbs (Included)

(2) 9W M, 3000k, 1600 Lumens, 80CRI Non-Dimming LED Bulbs (Included)

HEIGHT CHART

(2) 9W M, 3000k, 1600 Lumens, 80CRI Non-Dimming LED Bulbs (Included)

MECHANICAL SPECS

Using 6" Downrod ● Distance of 15.75" ● Distance of 11.5"

188x20 Motor Size 3 Speeds w/ Pull Chain Switch Reversible w/ Manual Reverse Switch 80" Lead Wire 16 Poles .58/.47/.28 AMPS on H/M/L 68/43/15 WATTS on H/M/L 154/120/67 RPMS on H/M/L LED Light Kit is (2) 9W M, 3000k, 80CRI (non-dimmable) Triple Capacitor Remote Control Adaptable

GENERAL SPECS

ENERGY SPECS

FAN HEIGHT

4 Finishes Available Lifetime Motor Warranty Four Blades 60" Blade Sweep 12.5-Degree Blade Pitch 6" Downrod Included 1/2" Downrod Diameter

I N D O O R FA N S

Energy Information at High Speed Airflow: 5310 Cubic Feet/Minute Electricity Use: 68 Watts (Excludes Lights) Airflow Efficiency: 78 Cubic Feet/Minute/Watt Visit QuorumInternational.com for DOE Energy Guide

LIGHT SOURCE

Medium Frosted LED

REMOTE CONTROL OPTIONS

7-1307-0

7-501-0

EXPO 60" 4 BL ADE

179

Mod 60"

AVAILABLE FINISHES * S U P P L I E D W I T H A 1 / 2 " D I A M E T E R D OW N R O D

30608-59 Matte Black Weathered Gray ABS Blades

Optional Light Kit 1905-69 14"(w) x 5.5"(h) - (3) 6W M, 2700k, 80CRI, Dimming LED (Included) Textured Black Light kit shown on 30608-59 ceiling fan

HEIGHT CHART

FAN HEIGHT Using 6" Downrod ● Distance of 15.75" ● Distance of 14.125"

GENERAL SPECS Lifetime Motor Warranty Eight ABS Blades 60" Blade Sweep 13-Degree Blade Pitch 80" Lead Wire 6" Downrod Included 1/2" Downrod Diameter

I N D O O R FA N S

MECHANICAL SPECS DC153 DC Motor 6 Speeds-Reversible 8 Poles .41/.30/.21/.13/.09/.06 AMPS on H/M/L 32/22/15/9/6/4 WATTS on H/M/L 115/103/88/75/64/51 RPMS on H/M/L Remote Control Adaptable w/ 8-1400 Light Kit Adaptable Detachable Switch Cup UL Damp Listed

ENERGY SPECS

REMOTE CONTROL OPTIONS

Included (4 DIP Switches)

8-347

LIGHT KIT OPTIONS Additional Light Kit options on page 216

Energy Information at High Speed Airflow: 8316 Cubic Feet/Minute Electricity Use: 32 Watts (Excludes Lights) Airflow Efficiency: 259 Cubic Feet/Minute/Watt Visit QuorumInternational.com for DOE Energy Guide

MOD 60"

181

Mod 72"

AVAILABLE FINISHES * S U P P L I E D W I T H A 1 / 2 " D I A M E T E R D OW N R O D

Optional Light Kit 1905-69 14"(w) x 5.5"(h) - (3) 6W M, 2700k, 80CRI, Dimming LED (Included) Textured Black

30728-59 Matte Black Weathered Gray ABS Blades

Light kit shown on 30728-59 ceiling fan

HEIGHT CHART

FAN HEIGHT Using 6" Downrod ● Distance of 15.75" ● Distance of 14.125"

GENERAL SPECS Lifetime Motor Warranty Eight ABS Blades 72" Blade Sweep 13-Degree Blade Pitch 80" Lead Wire 6" Downrod Included 1/2" Downrod Diameter

I N D O O R FA N S

MECHANICAL SPECS DC168 DC Motor 6 Speeds-Reversible 8 Poles .42/.35/.25/.19/.13/.09 AMPS on H/M/L 32/25/19/13/9/7 WATTS on H/M/L 88/83/75/67/59/51 RPMS on H/M/L Remote Control Adaptable w/ 8-1400 Light Kit Adaptable Detachable Switch Cup UL Damp Listed

ENERGY SPECS

REMOTE CONTROL OPTIONS

Included (4 DIP Switches)

8-374

LIGHT KIT OPTIONS Additional Light Kit options on page 216

Energy Information at High Speed Airflow: 9936 Cubic Feet/Minute Electricity Use: 31 Watts (Excludes Lights) Airflow Efficiency: 320 Cubic Feet/Minute/Watt Visit QuorumInternational.com for DOE Energy Guide

MOD 72"

183

Ovation 52"

4525-8 Studio White Washed Oak | Studio White Blades

AVAILABLE FINISHES * S U P P L I E D W I T H A 1 / 2 " D I A M E T E R D OW N R O D

4525-165 Satin Nickel Walnut | Silver Blades

4525-159 Matte Black Walnut | Matte Black Blades

4525-86 Oiled Bronze Oiled Bronze | Weathered Oak Blades

4525-80 Aged Brass Matte Black | Walnut Blades

4525-65 Satin Nickel Weathered Gray | Silver Blades

4525-59 Matte Black Weathered Gray | Matte Black Blades

MECHANICAL SPECS

REMOTE CONTROL OPTION

HEIGHT CHART

FAN HEIGHT Using 4" Downrod ● Distance of 12.5" ● Distance of 10.25"

GENERAL SPECS 7 Finish Combinations Available Lifetime Motor Warranty Five Blades 52" Blade Sweep 12-Degree Blade Pitch 80" Lead Wire 4" Downrod Included 1/2" Downrod Diameter

I N D O O R FA N S

153 x 13 Motor Size 3 Speeds w/ Pull Chain Switch Reversible w/ Manual Reverse Switch 14 Poles .56/.42/.26 AMPS on H/M/L 66/39/14 WATTS on H/M/L 167/126/75 RPMS on H/M/L Detachable Switch Cup Triple Capacitor Remote Control Adaptable

7-501-0

8-223

BLADE ALTERNATIVES Use indoor blade type 8-52 - See page 369

ENERGY SPECS Energy Information at High Speed Airflow: 4487 Cubic Feet/Minute Electricity Use: 64 Watts (Excludes Lights) Airflow Efficiency: 70 Cubic Feet/Minute/Watt Visit QuorumInternational.com for DOE Energy Guide

OVAT I O N 5 2 "

185

Ovation 52" 2 Light Uni-Pack

AVAILABLE FINISHES * S U P P L I E D W I T H A 1 / 2 " D I A M E T E R D OW N R O D

4525-2286 Oiled Bronze | Clear Seeded Glass Oiled Bronze | Weathered Oak Blades

4525-286 Oiled Bronze | Satin Opal Glass Oiled Bronze | Weathered Oak Blades

4525-2280 Aged Brass | Clear Seeded Glass Matte Black | Walnut Blades

4525-280 Aged Brass | Satin Opal Glass Matte Black | Walnut Blades

Light Kit uses (2) 9W, 3000k, 1600 Lumens, 80CRI, Non-Dimming LED (Included)

Light Kit uses (2) 7W, 3000k, 1600 Lumens, 80CRI, Non-Dimming LED (Included) I N D O O R FA N S

Light Kit uses (2) 9W, 3000k, 1600 Lumens, 80CRI, Non-Dimming LED (Included)

Light Kit uses (2) 9W, 3000k, 1600 Lumens, 80CRI, Non-Dimming LED (Included) OVAT I O N 5 2 " 2 L I G H T U N I - PAC K

187

AVAILABLE FINISHES * S U P P L I E D W I T H A 1 / 2 " D I A M E T E R D OW N R O D

4525-22165 Satin Nickel | Clear Seeded Glass Silver | Walnut Blades

4525-2165 Satin Nickel | Satin Opal Glass Walnut | Silver Blades

4525-2265 Satin Nickel | Clear Seeded Glass Weathered Gray | Silver Blades

4525-265 Satin Nickel | Satin Opal Glass Weathered Gray | Silver Blades

4525-22159 Matte Black | Clear Seeded Glass Walnut | Matte Black Blades

4525-2159 Matte Black | Satin Opal Glass Walnut | Matte Black Blades

Light Kit uses (2) 7W, 3000k, 1600 Lumens, 80CRI, Non-Dimming LED (Included)

Light Kit uses (2) 9W, 3000k, 1600 Lumens, 80CRI, Non-Dimming LED (Included)

Light Kit uses (2) 7W, 3000k, 1600 Lumens, 80CRI, Non-Dimming LED (Included)

Light Kit uses (2) 9W, 3000k, 1600 Lumens, 80CRI, Non-Dimming LED (Included)

Light Kit uses (2) 9W, 3000k, 1600 Lumens, 80CRI, Non-Dimming LED (Included)

Light Kit uses (2) 9W, 3000k, 1600 Lumens, 80CRI, Non-Dimming LED (Included)

4525-2259 Matte Black | Clear Seeded Glass Weathered Gray | Matte Black Blades

4525-259 Matte Black | Satin Opal Glass Weathered Gray | Matte Black Blades

4525-2208 Studio White | Clear Seeded Glass Studio White | Washed Oak Blades

4525-208 Studio White | Satin Opal Glass Studio White | Washed Oak Blades

Light Kit uses (2) 9W, 3000k, 1600 Lumens, 80CRI, Non-Dimming LED (Included)

Light Kit uses (2) 9W, 3000k, 1600 Lumens, 80CRI, Non-Dimming LED (Included)

HEIGHT CHART

Light Kit uses (2) 9W, 3000k, 1600 Lumens, 80CRI, Non-Dimming LED (Included)

Light Kit uses (2) 9W, 3000k, 1600 Lumens, 80CRI, Non-Dimming LED (Included)

MECHANICAL SPECS

Using 4" Downrod ● Distance of 17.25" ● Distance of 10.25"

153 x 13 Motor Size 3 Speeds w/ Pull Chain Switch Reversible w/ Manual Reverse Switch 14 Poles .56/.41/.26 AMPS on H/M/L 66/38/14 WATTS on H/M/L 165/124/72 RPMS on H/M/L Detachable Switch Cup Triple Capacitor Remote Control Adaptable w/ Manual Reverse LED Kit Included

GENERAL SPECS

ENERGY SPECS

FAN HEIGHT

14 Finish Combinations Available Lifetime Motor Warranty Five Blades 52" Blade Sweep 12-Degree Blade Pitch 80" Lead Wire 4" Downrod Included 1/2" Downrod Diameter

I N D O O R FA N S

Energy Information at High Speed Airflow: 4487 Cubic Feet/Minute Electricity Use: 64 Watts (Excludes Lights) Airflow Efficiency: 70 Cubic Feet/Minute/Watt Visit QuorumInternational.com for DOE Energy Guide

LIGHT SOURCE

Medium Frosted LED

Medium Clear LED

REMOTE CONTROL OPTION

7-501-0

8-223

BLADE ALTERNATIVES Use indoor blade type 8-52 - See page 369

OVAT I O N 5 2 " 2 L I G H T U N I - PAC K

189

Ovation 52" 3 Light Uni-Pack Clear Glass

AVAILABLE FINISHES * S U P P L I E D W I T H A 1 / 2 " D I A M E T E R D OW N R O D

4525-0380 Aged Brass | Clear Glass Matte Black | Walnut Blades

4525-03165

Light Kit uses (3) 7W, 3000k, 2400 Lumens, 80CRI, Non-Dimming LED (Included)

Light Kit uses (3) 7W, 3000k, 2400 Lumens, 80CRI, Non-Dimming LED (Included)

4525-03159

4525-0308 Studio White | Clear Glass Studio White | Washed Oak Blades

Matte Black | Clear Glass Walnut | Matte Black Blades

Light Kit uses (3) 7W, 3000k, 2400 Lumens, 80CRI, Non-Dimming LED (Included)

HEIGHT CHART

Satin Nickel | Clear Glass Walnut | Silver Blades

Light Kit uses (3) 7W, 3000k, 2400 Lumens Lumens, 80CRI, Non-Dimming LED (Included)

MECHANICAL SPECS

Using 4" Downrod ● Distance of 18.25" ● Distance of 10.25"

153 x 13 Motor Size 3 Speeds w/ Pull Chain Switch Reversible w/ Manual Reverse Switch 14 Poles .55/.41/.25 AMPS on H/M/L 66/37/14 WATTS on H/M/L 167/125/73 RPMS on H/M/L Detachable Switch Cup Triple Capacitor Remote Control Adaptable w/ Manual Reverse LED Kit Included

GENERAL SPECS

ENERGY SPECS

FAN HEIGHT

4 Finish Combinations Available Lifetime Motor Warranty Five Blades 52" Blade Sweep 12-Degree Blade Pitch 80" Lead Wire 4" Downrod Included 1/2" Downrod Diameter

I N D O O R FA N S

Energy Information at High Speed Airflow: 4487 Cubic Feet/Minute Electricity Use: 64 Watts (Excludes Lights) Airflow Efficiency: 70 Cubic Feet/Minute/Watt Visit QuorumInternational.com for DOE Energy Guide

LIGHT SOURCE

Medium Clear LED

REMOTE CONTROL OPTION

7-501-0

8-223

BLADE ALTERNATIVES Use indoor blade type 8-52 - See page 369

OVAT I O N 5 2 " 3 L I G H T U N I - PAC K

191

Ovation 52" 3 Light Uni-Pack

AVAILABLE FINISHES * S U P P L I E D W I T H A 1 / 2 " D I A M E T E R D OW N R O D

4525-2386 Oiled Bronze | Clear Seeded Glass Oiled Bronze | Weathered Oak Blades

4525-386 Oiled Bronze | Satin Opal Glass Weathered Oak | Oiled Bronze Blades

4525-2380 Aged Brass | Clear Seeded Glass Matte Black | Walnut Blades

4525-380 Aged Brass | Satin Opal Glass Matte Black | Walnut Blades

Light Kit uses (3) 9W, 3000k, 2400 Lumens, 80CRI, Non-Dimming LED (Included)

Light Kit uses (3) 7W, 3000k, 2400 Lumens, 80CRI, Non-Dimming LED (Included)

I N D O O R FA N S

Light Kit uses (3) 9W, 3000k, 2400 Lumens, 80CRI, Non-Dimming LED (Included)

Light Kit uses (3) 9W, 3000k, 2400 Lumens, 80CRI, Non-Dimming LED (Included)

OVAT I O N 5 2 " 3 L I G H T U N I - PAC K

193

AVAILABLE FINISHES * S U P P L I E D W I T H A 1 / 2 " D I A M E T E R D OW N R O D

4525-23165 Satin Nickel | Clear Seeded Glass Walnut | Silver Blades

4525-3165 Satin Nickel | Satin Opal Glass Walnut | Silver Blades

Light Kit uses (3) 7W, 3000k, 2400 Lumens, 80CRI, Non-Dimming LED (Included)

Light Kit uses (3) 9W, 3000k, 2400 Lumens, 80CRI, Non-Dimming LED (Included)

4525-2365 Satin Nickel | Clear Seeded Glass Silver | Weathered Gray Blades

4525-365 Satin Nickel | Satin Opal Glass Silver | Weathered Gray Blades

4525-23159

4525-3159

Light Kit uses (3) 7W, 3000k, 2400 Lumens, 80CRI, Non-Dimming LED (Included)

Light Kit uses (3) 9W, 3000k, 2400 Lumens, 80CRI, Non-Dimming LED (Included)

Light Kit uses (3) 9W, 3000k, 2400 Lumens, 80CRI, Non-Dimming LED (Included)

Matte Black | Clear Seeded Glass Walnut | Matte Black Blades

Light Kit uses (3) 9W, 3000k, 2400 Lumens, 80CRI, Non-Dimming LED (Included)

Matte Black | Satin Opal Glass Walnut | Matte Black Blades

4525-2359 Matte Black | Clear Seeded Glass Matte Black | Weathered Gray Blades

4525-359 Matte Black | Satin Opal Glass Weathered Gray | Matte Black Blades

4525-2308 Studio White | Clear Seeded Glass Studio White | Washed Oak Blades

4525-308 Studio White | Satin Opal Glass Studio White | Washed Oak Blades

Light Kit uses (3) 9W, 3000k, 2400 Lumens, 80CRI, Non-Dimming LED (Included)

Light Kit uses (3) 9W, 3000k, 2400 Lumens Lumens, 80CRI, Non-Dimming LED (Included)

HEIGHT CHART

Light Kit uses (3) 9W, 3000k, 2400 Lumens, 80CRI, Non-Dimming LED (Included)

Light Kit uses (3) 9W, 3000k, 2400 Lumens, 80CRI, Non-Dimming LED (Included)

MECHANICAL SPECS

Using 4" Downrod ● Distance of 18.25" ● Distance of 10.25"

153 x 13 Motor Size 3 Speeds w/ Pull Chain Switch Reversible w/ Manual Reverse Switch 14 Poles .55/.41/.25 AMPS on H/M/L 66/37/14 WATTS on H/M/L 167/125/73 RPMS on H/M/L Detachable Switch Cup Triple Capacitor Remote Control Adaptable w/ Manual Reverse LED Kit Included

GENERAL SPECS

ENERGY SPECS

FAN HEIGHT

14 Finish Combinations Available Lifetime Motor Warranty Five Blades 52" Blade Sweep 12-Degree Blade Pitch 80" Lead Wire 4" Downrod Included 1/2" Downrod Diameter

I N D O O R FA N S

Energy Information at High Speed Airflow: 4487 Cubic Feet/Minute Electricity Use: 64 Watts (Excludes Lights) Airflow Efficiency: 70 Cubic Feet/Minute/Watt Visit QuorumInternational.com for DOE Energy Guide

LIGHT SOURCE

Medium Frosted LED

Medium Clear LED

REMOTE CONTROL OPTION

7-501-0

8-223

BLADE ALTERNATIVES Use indoor blade type 8-52 - See page 369

OVAT I O N 5 2 " 3 L I G H T U N I - PAC K

195

Ovation 52" 4 Light Uni-Pack Clear Glass

AVAILABLE FINISHES * S U P P L I E D W I T H A 1 / 2 " D I A M E T E R D OW N R O D

4525-0480 Aged Brass | Clear Glass Matte Black | Walnut Blades

4525-04165

Light Kit uses (4) 7W, 3000k, 3200 Lumens, 80CRI, Non-Dimming LED (Included)

Light Kit uses (4) 7W, 3000k, 3200 Lumens, 80CRI, Non-Dimming LED (Included)

4525-04159

4525-0408 Studio White | Clear Glass Studio White | Washed Oak Blades

Matte Black | Clear Glass Walnut | Matte Black Blades

Light Kit uses (4) 7W, 3000k, 3200 Lumens, 80CRI, Non-Dimming LED (Included)

HEIGHT CHART

Satin Nickel | Clear Glass Silver | Walnut Blades

Light Kit uses (4) 9W, 3000k, 3200 Lumens, 80CRI, Non-Dimming LED (Included)

MECHANICAL SPECS

Using 4" Downrod ● Distance of 18.25" ● Distance of 10.25"

153 x 13 Motor Size 3 Speeds w/ Pull Chain Switch Reversible w/ Manual Reverse Switch 14 Poles .54/.42/.25 AMPS on H/M/L 66/38/13 WATTS on H/M/L 167/127/72 RPMS on H/M/L Detachable Switch Cup Triple Capacitor Remote Control Adaptable w/ Manual Reverse LED Kit Included

GENERAL SPECS

ENERGY SPECS

FAN HEIGHT

4 Finish Combinations Available Lifetime Motor Warranty Five Blades 52" Blade Sweep 12-Degree Blade Pitch 80" Lead Wire 4" Downrod Included 1/2" Downrod Diameter

I N D O O R FA N S

Energy Information at High Speed Airflow: 4487 Cubic Feet/Minute Electricity Use: 64 Watts (Excludes Lights) Airflow Efficiency: 70 Cubic Feet/Minute/Watt Visit QuorumInternational.com for DOE Energy Guide

LIGHT SOURCE

Medium Clear LED

REMOTE CONTROL OPTION

7-501-0

8-223

BLADE ALTERNATIVES Use indoor blade type 8-52 - See page 369.

OVAT I O N 5 2 " 4 L I G H T U N I - PAC K

197

Ovation 52" 4 Light Uni-Pack

AVAILABLE FINISHES * S U P P L I E D W I T H A 1 / 2 " D I A M E T E R D OW N R O D

4525-2486 Oiled Bronze | Clear Seeded Glass Oiled Bronze | Weathered Oak Blades

4525-486 Oiled Bronze | Satin Opal Glass Oiled Bronze | Weathered Oak Blades

4525-2480 Aged Brass | Clear Seeded Glass Matte Black | Walnut Blades

4525-480 Aged Brass | Satin Opal Glass Matte Black | Walnut Blades

Light Kit uses (4) 9W, 3000k, 3200 Lumens, 80CRI, Non-Dimming LED (Included)

Light Kit uses (4) 7W, 3000k, 3200 Lumens, 80CRI, Non-Dimming LED (Included) I N D O O R FA N S

Light Kit uses (4) 9W, 3000k, 3200 Lumens, 80CRI, Non-Dimming LED (Included)

Light Kit uses (4) 9W, 3000k, 3200 Lumens, 80CRI, Non-Dimming LED (Included) OVAT I O N 5 2 " 4 L I G H T U N I - PAC K

199

AVAILABLE FINISHES * S U P P L I E D W I T H A 1 / 2 " D I A M E T E R D OW N R O D

4525-24165 Satin Nickel | Clear Seeded Glass Walnut | Silver Blades

4525-4165 Satin Nickel | Satin Opal Glass Walnut | Silver Blades

Light Kit uses (4) 7W, 3000k, 3200 Lumens, 80CRI, Non-Dimming LED (Included)

Light Kit uses (4) 9W, 3000k, 3200 Lumens, 80CRI, Non-Dimming LED (Included)

4525-2465 Satin Nickel | Clear Seeded Glass Weathered Gray | Silver Blades

4525-465 Satin Nickel | Satin Opal Glass Weathered Gray | Silver Blades

4525-24159

4525-4159

Light Kit uses (4) 7W, 3000k, 3200 Lumens, 80CRI, Non-Dimming LED (Included)

Light Kit uses (4) 9W, 3000k, 3200 Lumens, 80CRI, Non-Dimming LED (Included)

Light Kit uses (4) 9W, 3000k, 3200 Lumens, 80CRI, Non-Dimming LED (Included)

Matte Black | Clear Seeded Glass Walnut | Matte Black Blades

Light Kit uses (4) 9W, 3000k, 3200 Lumens, 80CRI, Non-Dimming LED (Included)

Matte Black | Satin Opal Glass Walnut | Matte Black Blades

4525-2459 Matte Black | Clear Seeded Glass Weathered Gray | Matte Black Blades

4525-459 Matte Black | Satin Opal Glass Weathered Gray | Matte Black Blades

4525-2408 Studio White | Clear Seeded Glass Studio White | Washed Oak Blades

4525-408 Studio White | Satin Opal Glass Studio White | Washed Oak Blades

Light Kit uses (4) 9W, 3000k, 3200 Lumens, 80CRI, Non-Dimming LED (Included)

Light Kit uses (4) 9W, 3000k, 3200 Lumens, 80CRI, Non-Dimming LED (Included)

HEIGHT CHART

Light Kit uses (4) 9W, 3000k, 3200 Lumens, 80CRI, Non-Dimming LED (Included)

Light Kit uses (4) 9W, 3000k, 3200 Lumens, 80CRI, Non-Dimming LED (Included)

MECHANICAL SPECS

Using 4" Downrod ● Distance of 18.25" ● Distance of 10.25"

153 x 13 Motor Size 3 Speeds w/ Pull Chain Switch Reversible w/ Manual Reverse Switch 14 Poles .54/.42/.25 AMPS on H/M/L 66/38/13 WATTS on H/M/L 167/127/72 RPMS on H/M/L Detachable Switch Cup Triple Capacitor Remote Control Adaptable w/ Manual Reverse LED Kit Included

GENERAL SPECS

ENERGY SPECS

FAN HEIGHT

14 Finish Combinations Available Lifetime Motor Warranty Five Blades 52" Blade Sweep 12-Degree Blade Pitch 80" Lead Wire 4" Downrod Included 1/2" Downrod Diameter

I N D O O R FA N S

Energy Information at High Speed Airflow: 4487 Cubic Feet/Minute Electricity Use: 64 Watts (Excludes Lights) Airflow Efficiency: 70 Cubic Feet/Minute/Watt Visit QuorumInternational.com for DOE Energy Guide

LIGHT SOURCE

Medium Frosted LED

Medium Clear LED

REMOTE CONTROL OPTION

7-501-0

8-223

BLADE ALTERNATIVES Use indoor blade type 8-52 - See page 369.

OVAT I O N 5 2 " 4 L I G H T U N I - PAC K

201

Ovation 60"

4605-59 Matte Black Weathered Gray | Matte Black Blades

AVAILABLE FINISHES * S U P P L I E D W I T H A 1 / 2 " D I A M E T E R D OW N R O D

4605-165 Satin Nickel Walnut | Silver Blades

4605-159 Matte Black Walnut | Matte Black Blades

4605-86 Oiled Bronze Weathered Oak | Oiled Bronze Blades

4605-80 Aged Brass Matte Black | Walnut Blades

4605-65 Satin Nickel Silver | Weathered Gray Blades

4605-8 Stidio White Studio White | Washed Oak Blades

MECHANICAL SPECS

REMOTE CONTROL OPTION

HEIGHT CHART

FAN HEIGHT Using 4" Downrod ● Distance of 12.5" ● Distance of 10.25"

GENERAL SPECS 7 Finish Combinations Available Lifetime Motor Warranty Five Blades 60" Blade Sweep 11-Degree Blade Pitch 80" Lead Wire 4" Downrod Included 1/2" Downrod Diameter

I N D O O R FA N S

188x20 Motor Size 3 Speeds w/ Pull Chain Switch Reversible w/ Manual Reverse Switch 16 Poles .62/.51/.37 AMPS on H/M/L 74/48/24 WATTS on H/M/L 138/104/66 RPMS on H/M/L Detachable Switch Cup Triple Capacitor Remote Control Adaptable

7-501-0

8-223

BLADE ALTERNATIVES Use indoor blade type 8-60 - See page 375

ENERGY SPECS Energy Information at High Speed Airflow: 5290 Cubic Feet/Minute Electricity Use: 74 Watts (Excludes Lights) Airflow Efficiency: 71 Cubic Feet/Minute/Watt Visit QuorumInternational.com for DOE Energy Guide

OVAT I O N 6 0 "

203

Premier 52" Uni-Pack

AVAILABLE FINISHES * S U P P L I E D W I T H A 1 / 2 " D I A M E T E R D OW N R O D

54525-86 Oiled Bronze | Satin Opal Glass Walnut | Weathered Oak Blades

Integral (1) 28W, 3000k, 1850 lumens, 80CRI, Dimming LED (Included)

54525-80 Aged Brass | Satin Opal Glass Matte Black | Walnut Blades

Integral (1) 28W, 3000k, 1850 lumens, 80CRI, Dimming LED (Included)

54525-65 Satin Nickel | Satin Opal Glass Silver | Walnut Blades

Integral (1) 28W, 3000k, 1850 lumens, 80CRI, Dimming LED (Included)

HEIGHT CHART

FAN HEIGHT Using 6" Downrod ● Distance of 19.5" ● Distance of 13.25"

GENERAL SPECS 5 Finish Combinations Available Lifetime Motor Warranty Five Blades 52" Blade Sweep 12-Degree Blade Pitch 80" Lead Wire 6" Downrod Included

I N D O O R FA N S

54525-69 Textured Black | Satin Opal Glass Matte Black | Weathered Oak Blades

Integral (1) 28W, 3000k, 1850 lumens, 80CRI, Dimming LED (Included)

54525-8 Studio White | Satin Opal Glass Studio White Blades

Integral (1) 28W, 3000k, 1850 lumens, 80CRI, Dimming LED (Included)

MECHANICAL SPECS 172 x 14 Motor Size 3 Speeds w/ Pull Chain Switch Reversible w/ Manual Reverse Switch 16 Poles .49/.32/.21 AMPS on H/M/L 59/26/11 WATTS on H/M/L 179/114/69 RPMS on H/M/L Detachable Switch Cup Triple Capacitor Remote Control Adaptable w/ Manual Reverse LED Kit Included Skirted Blade Arms

ENERGY SPECS Energy Information at High Speed Airflow: 4732 Cubic Feet/Minute Electricity Use: 57 Watts (Excludes Lights) Airflow Efficiency: 82 Cubic Feet/Minute/Watt Visit QuorumInternational.com for DOE Energy Guide

LIGHT SOURCE

LED MODULE

REMOTE CONTROL OPTION

7-501-0

8-223

P R E M I E R 5 2 " U N I - PAC K

205

INDOOR FAN LIGHT KITS Nothing elevates your fan like a beautiful light kit. Whether your style is contemporary, traditional, or somewhere in between, dozens of light kit styles make it easy to find the perfect illuminating accent for your Quorum fan.

I N D O O R FA N L I G H T K I T S

207

1012-908 (shown) 8.75"(w) x 2.25"(h) - (1) 24W, 3000k, 1832 Lumens, 90CRI, LED Studio White | Satin Opal Glass Shown on 190565-08 fan

Additional Finishes:

1012-986* Oiled Bronze Satin Opal Glass

1012-980* Aged Brass Satin Opal Glass

1012-965* Satin Nickel Satin Opal Glass

1012-959* Matte Black Satin Opal Glass

* Bulbs included. All items comply with 2005 Energy Policy Act.

1180-880* (shown) 11.5"(w) x 4"(h) - (2) 9W, 3000k, 1560 Lumens, 80CRI M LED Aged Brass | Satin Opal Glass Bulbs Provided are Non-Dimming

Additional Finishes:

1180-886* Oiled Bronze Satin Opal Glass

1180-869* Textured Black Satin Opal Glass

* Bulbs included. All items comply with 2005 Energy Policy Act.

1180-865* Satin Nickel Satin Opal Glass

1180-808* Studio White Satin Opal Glass

I N D O O R FA N L I G H T K I T S

209

1141-9159* (shown) 10"(w) x 3.5"(h) - (1) 12W, 3000k, 1067 Lumens, 90CRI Dimmable LED Module Matte Black | Satin Opal Glass Additional Finish:

1141-9186* Oiled Bronze Satin Opal Glass

1141-9180* Aged Brass Satin Opal Glass

1141-9165* Satin Nickel Satin Opal Glass

1141-9108* Studio White Satin Opal Glass

1141-869* (shown) 10"(w) x 3.5"(h) - (1) 9W, 3000k, 780 Lumens, 80CRI M LED Textured Black | Satin Opal Glass

1129-865* (shown) 12"(w) x 5"(h) - (2) 9W, 3000k, 1560 Lumens, 80CRI M LED Satin Nickel | Faux Alabaster Glass

Bulb Provided is Non-Dimming

Bulbs Provided are Non-Dimming

Additional Finish:

Additional Finish:

1141-806* Gloss White Satin Opal Glass

1129-806* Gloss White Faux Alabaster Glass

* Bulbs included. All items comply with 2005 Energy Policy Act.

2401-804* (shown) 7"(w) x 2.75"(h) - (4) 9W, 3000k, 3120 Lumens, 80CRI M LED Bulbs

(Included)

Antique Brass

Bulbs Provided are Non-Dimming

Additional Finishes:

2401-8095* Old World

2401-8086* Oiled Bronze

2401-8065* Satin Nickel

2401-808* Studio White

2303-9165* (shown) 5.5"(w) x 3"(h) - (3) 9W, 3000k, 2340 Lumens, 80CRI M LED Bulbs

(Included)

Satin Nickel

Bulbs Provided are Non-Dimming

Additional Finishes:

2303-9186* Oiled Bronze

2303-9169* Textured Black

* Bulbs included. All items comply with 2005 Energy Policy Act.

2303-9108* Studio White

I N D O O R FA N L I G H T K I T S

211

2444-8059* (shown) 10"(w) x 3"(h) - (4) 9W, 3120 Lumens, M LED Bulbs Matte Black Bulbs Provided are Non-Dimming

Additional Finishes:

2444-8086* Oiled Bronze

2444-8070* Persian White

2444-8069* Textured Black

2444-8067* Antique White

2444-8065* Satin Nickel

2444-808* Studio White

2444-806* Gloss White

2444-804* Antique Brass

* Bulbs included. All items comply with 2005 Energy Policy Act.

CUSTOM LIGHT KITS Quorum International offers a variety of Light Kits that come with an optional end cap that can be customized to fit your fan configuration. Whether you have a fan with an Old World or Toasted Sienna finish the Custom Light Kits allows you to choose your style.

1165-4486* 10.75"(w) x 6.5"(h) - (2) 7W M, 2700k, 1600 Lumens, 80CRI M, Dimmable LED Toasted Sienna | Oiled Bronze Clear Seeded Glass Dimmable LED Bulbs Included

1166-801* 13"(w) x 7.5"(h) - (2) 9W M, 3000k, 1560 Lumens, 80CRI LED Satin Nickel | Gloss White Faux Alabaster Glass Bulbs Provided are Non-Dimming

1232-801* 12.75"(w) x 7"(h) - (2) 9W M, 3000k, 1560 Lumens, 80CRI LED Toasted Sienna | Old World Amber Scavo Glass Bulbs Provided are Non-Dimming

1858-9165 11"(w) x 4.75"(h) - (2) 9W M, 3000k, 1560 Lumens, 80CRI LED Satin Nickel Cream Fabric Shade Bulbs Provided are Non-Dimming

* Bulbs included. All items comply with 2005 Energy Policy Act.

I N D O O R FA N L I G H T K I T S

213

WINDMILL LIGHT KIT OPTIONS item #

glass

dimensions

lights

1902-9

Clear Seeded

11"(w) x 6.5"(h)

(1) 6W M, 2700k, 800 Lumens, 80CRI, Dimming LED (Included)

1904-9

Satin Opal

11"(w) x 6"(h)

(1) 18W, 3000k, 1543 Lumens, 90CRI, Dimming LED (Included)

1905-9

NA

11"(w) x 6.5"(h)

(3) 6W M, 2700k, 2400 Lumens, 80CRI, Dimming LED (Included)

1974-9

Clear Hammered

9.75"(w) x 6.5"(h)

(1) 6W M, 2700k, 800 Lumens, 80CRI, Dimming LED (Included)

1975-9

Clear Hammered

12.75"(w) x 7"(h)

(1) 6W M, 2700k, 800 Lumens, 80CRI, Dimming LED (Included)

1902-69

Clear Seeded

11"(w) x 6.5"(h)

(1) 6W M, 2700k, 800 Lumens, 80CRI, Dimming LED (Included)

1904-69

Satin Opal

11"(w) x 6"(h)

(1) 18W, 3000k, 1543 Lumens, 90CRI, Dimming LED (Included)

1905-69

NA

11"(w) x 6.5"(h)

(3) 6W M, 2700k, 2400 Lumens, 80CRI, Dimming LED (Included)

1974-69

Clear Hammered

9.75"(w) x 6.5"(h)

(1) 6W M, 2700k, 800 Lumens, 80CRI, Dimming LED (Included)

1975-69

Clear Hammered

12.75"(w) x 7"(h)

(1) 6W M, 2700k, 800 Lumens, 80CRI, Dimming LED (Included)

1902-86

Clear Seeded

11"(w) x 6.5"(h)

(1) 6W M, 2700k, 800 Lumen, 80CRI, Dimming LED (Included)

1904-86

Satin Opal

11"(w) x 6"(h)

(1) 18W, 3000k, 1543 Lumens, 90CRI, Dimming LED (Included)

1905-86

NA

11"(w) x 6.5"(h)

(3) 6W M, 2700k, 2400 Lumens, 80CRI, Dimming LED (Included)

1974-86

Clear Hammered

9.75"(w) x 6.5"(h)

(1) 6W M, 2700k, 800 Lumens, 80CRI, Dimming LED (Included)

1975-86

Clear Hammered

12.75"(w) x 7"(h)

(1) 6W M, 2700k, 800 Lumens, 80CRI, Dimming LED (Included)

galvanized

textured black

oiled bronze

*All light kits comply with 2005 Energy Policy Act. * Bulbs included. All items comply with 2005 Energy Policy Act.

OP TIONAL LIGHT KITS

1904-9 11"(w) x 6"(h) - (1) 18W, 3000k, 1543 Lumens, 90CRI, Dimming LED (Included) Galvanized | Satin Opal

1902-9 11"(w) x 6.5"(h) - (1) 6W M, 2700k, 800 Lumens, 80CRI, Dimming LED (Included) Galvanized | Clear Seeded Glass

1902-69 11"(w) x 6.5"(h) - (1) 6W M, 2700k, 800 Lumens, 80CRI, Dimming LED (Included) Textured Black | Clear Seeded Glass

1905-86 14"(w) x 5.5"(h) - (3) 6W M, 2700k, 2400 Lumens, 80CRI, Dimming LED (Included) Oiled Bronze

1974-86

1975-9

9.75"(w) x 6.5"(h) - (1) 6W M, 2700k, 800 Lumens, 80CRI, Dimming LED (Included)

Oiled Bronze | Clear Hammered Glass

* Bulbs included. All items comply with 2005 Energy Policy Act.

12.75"(w) x 7"(h) - (1) 6W M, 2700k, 800 Lumens, 80CRI, Dimming LED (Included)

Galvanized | Clear Hammered Glass

I N D O O R FA N L I G H T K I T S

215

MOD LIGHT KIT OPTIONS item #

glass

dimensions

lights

1902-69

Clear Seeded

11"(w) x 6.5"(h)

(1) 6W M, 2700k, 800 Lumens, 80CRI, Dimming LED (Included)

1904-69

Satin Opal

11"(w) x 6"(h)

(1) 18W, 3000k, 1543 Lumens, 90CRI, Dimming LED (Included)

1905-69

NA

11"(w) x 6.5"(h)

(3) 6W M, 2700k, 2400 lumens, 80CRI, Dimming LED (Included)

1974-69

Clear Hammered

9.75"(w) x 6.5"(h)

(1) 6W M, 2700k, 800 Lumens, 80CRI, Dimming LED (Included)

1975-69

Clear Hammered

12.75"(w) x 7"(h)

(1) 6W M, 2700k, 800 Lumens, 80CRI, Dimming LED (Included)

textured black

*All light kits comply with 2005 Energy Policy Act. * Bulbs included. All items comply with 2005 Energy Policy Act.

OP TIONAL LIGHT KITS

1902-69 11"(w) x 6.5"(h) - (1) 6W M, 2700k, 800 Lumens, 80CRI, Dimming LED (Included) Textured Black | Clear Seeded Glass

1905-69 14"(w) x 5.5"(h) - (3) 6W M, 2700k, 2400 Lumens, 80CRI, Dimming LED (Included) Textured Black

1974-69

1975-69

Textured Black | Clear Hammered Glass

Textured Black | Clear Hammered Glass

9.75"(w) x 6.5"(h) - (1) 6W M, 2700k, 800 Lumens, 80CRI, Dimming LED (Included)

12.75"(w) x 7"(h) - (1) 6W M, 2700k, 800 Lumens, 80CRI, Dimming LED (Included)

1904-69 11"(w) x 6"(h) - (1) 18W, 3000k, 1543 Lumens, 90CRI, Dimming LED (Included) Textured Black | Satin Opal * Bulbs included. All items comply with 2005 Energy Policy Act.

I N D O O R FA N L I G H T K I T S

217

CONTEMP PATIO selections Contemporary doesn’t get any cooler than Quorum’s contemporary patio designs. Covered outdoor spaces deserve a pick me up and nothing perks up a patio like the modern, sleek, and sophisticated style of these fans.

ORARY PAT I O FA N S

C O N T E M P O R A RY PAT I O S E L EC T I O N S

219

Fury 65" Damp

Damp Location

AVAILABLE FINISHES * S U P P L I E D W I T H A 1 / 2 " D I A M E T E R D OW N R O D

41655-59 Matte Black Matte Black ABS Blades

41655-8 Studio White Studio White ABS Blades

Optional LED Light Kit 8-41655-59

Optional LED Light Kit 8-41655-8

(1) 24W, 3000k, 1459 Lumens, 90CRI 120V LED kit w/ White Acrylic Diffuser Light Kit shown on 41655-59 ceiling fan

(1) 24W, 3000k, 1459 Lumens, 90CRI 120V LED kit w/ White Acrylic Diffuser Light Kit shown on 41655-8 ceiling fan

HEIGHT CHART

MECHANICAL SPECS

FAN HEIGHT

125mm Motor Size 6 Speeds-Reversible w/ Wall Control .33/.26/.20/.15/.11/.08 AMPS on H/M/L 27/19/14/10/7/5 WATTS on H/M/L 90/82/74/66/59/50 RPMS on H/M/L Wall Control Included Remote Control Adaptable Integral LED Light Kit is 18W, 3000k, 1274 Lumens, 90CRI (dimmable)

Using 4" Downrod ● Distance of 12.25" ● Distance of 8"

GENERAL SPECS 2 Finishes Available Limited Lifetime Motor Warranty Five ABS Blades 65" Blade Sweep 13-Degree Blade Pitch 80" Lead Wire 4" & 6" Downrods Included 1/2" Downrod Diameter

PAT I O FA N S

OPTIONAL LIGHT SOURCE

LED MODULE

REMOTE CONTROL OPTIONS

ENERGY SPECS Energy Information at High Speed Airflow: 6608 Cubic Feet/Minute Electricity Use: 32 Watts (Excludes Lights) Airflow Efficiency: 206 Cubic Feet/Minute/Watt Visit QuorumInternational.com for DOE Energy Guide

Included (4 DIP Switches)

8-1400

F U RY 6 5" DA M P

221

Marino 54" Patio

AVAILABLE FINISHES * S U P P L I E D W I T H A 1 / 2 " D I A M E T E R D OW N R O D

97543-59 Matte Black | Satin Opal Glass Matte Black ABS Blades

(1) 18W, 120V, 3000k, 1116 Lumens, 90CRI, Dimmable LED (Included)

97543-8 Studio White | Satin Opal Glass Studio White ABS Blades

(1) 18W, 120V, 3000k, 1116 Lumens, 90CRI, Dimmable LED (Included)

HEIGHT CHART

FAN HEIGHT Using 4" Downrod ● Distance of 12.25" ● Distance of 10.25"

GENERAL SPECS 2 Finishes Available Lifetime Motor Warranty Three ABS Blades 54" Blade Sweep 14-Degree Blade Pitch 80" Lead Wire 4" & 6" Downrods Included 1/2" Downrod Diameter

PAT I O FA N S

MECHANICAL SPECS DC Motor 6 Speeds-Reversible w/ Wall Control 8 Poles .22/.16/.11/.07/.06/.05 AMPS on H/M/L 16/11/7/5/3/2 WATTS on H/M/L 165/147/127/101/73/52 RPMS on H/M/L 18W LED Light Kit Included

LIGHT SOURCE

LED MODULE

REMOTE CONTROL OPTIONS

ENERGY SPECS Energy Information at High Speed Airflow: 6088 Cubic Feet/Minute Electricity Use: 19 Watts (Excludes Lights) Airflow Efficiency: 320 Cubic Feet/Minute/Watt Visit QuorumInternational.com for DOE Energy Guide

Included (4 DIP Switches)

8-347

M A R I N O 5 4" PAT I O

223

Portland 58" Patio

Wet Location

AVAILABLE FINISHES * S U P P L I E D W I T H A 1 / 2 " D I A M E T E R D OW N R O D

12583-59 Matte Black Matte Black ABS Blades

12583-8 Studio White Studio White ABS Blades

Optional Light Kit 9-12583 5.75"(w) x 1.5"(h) - (1) 15W, 3000k, 1318 Lumens, 90CRI, LED Studio White | Satin Opal Glass UL Wet / Shown on 12583-59 fan

HEIGHT CHART

MECHANICAL SPECS

WALL CONTROL

120DCx15 Motor 6 Speeds-Reversible 8 Poles .35/.22/.15/.09/.06/.04 AMPS on H/M/L 29/18/11/6/4/3 WATTS on H/M/L 175/150/125/100/80/60 RPMS on H/M/L

FAN HEIGHT

ENERGY SPECS

Using 6" Downrod ● Distance of 14.5" ● Distance of 11.75"

Energy Information at High Speed Airflow: 6052 Cubic Feet/Minute Electricity Use: 30 Watts (Excludes Lights) Airflow Efficiency: 201 Cubic Feet/Minute/Watt Visit QuorumInternational.com for DOE Energy Guide

GENERAL SPECS 2 Finishes Available Lifetime Motor Warranty Three ABS Blades 58" Blade Sweep 16-Degree Blade Pitch 80" Lead Wire 6" Downrod Included 1/2" Downrod Diameter

PAT I O FA N S

Included (5 DIP Switches)

P O R T L A N D 5 8" PAT I O

225

Proxima 60" Damp

Wet Location

AVAILABLE FINISHES * S U P P L I E D W I T H A 1 / 2 " D I A M E T E R D OW N R O D

196608-86 Oiled Bronze Oiled Bronze ABS Blades

196608-65 Satin Nickel Silver ABS Blades

196608-69 Textured Black Textured Black ABS Blades

HEIGHT CHART

FAN HEIGHT Using 4" Downrod ● Distance of 16" ● Distance of 13"

GENERAL SPECS 3 Finishes Available (Powder Coated) Lifetime Motor Warranty Eight ABS Blades 60" Blade Sweep 14-Degree Blade Pitch 80" Lead Wire 4" & 6" Downrods Included 1/2" Downrod Diameter

PAT I O FA N S

MECHANICAL SPECS DC-165NM Motor 6 Speeds-Reversible w/ Wall Control 6 Poles .45/.30/.21/.14/.10/.07 AMPS on H/M/L 32/20/14/9/6/4 WATTS on H/M/L 147/125/109/91/73/53 RPMS on H/M/L UL Wet Listed Remote Control Adaptable Not Light Kit Adaptable

REMOTE CONTROL OPTIONS

Included (No DIP Switches)

8-9860-0

ENERGY SPECS Energy Information at High Speed Airflow: 7449 Cubic Feet/Minute Electricity Use: 32 Watts (Excludes Lights) Airflow Efficiency: 232 Cubic Feet/Minute/Watt Visit QuorumInternational.com for DOE Energy Guide

P R OX I M A 6 0 " DA M P

227

Proxima 72" Damp

Wet Location

AVAILABLE FINISHES * S U P P L I E D W I T H A 1 / 2 " D I A M E T E R D OW N R O D

196728-86 Oiled Bronze Oiled Bronze ABS Blades

196728-65 Satin Nickel Silver ABS Blades

196728-69 Textured Black Textured Black ABS Blades

HEIGHT CHART

FAN HEIGHT Using 4" Downrod ● Distance of 16" ● Distance of 13"

GENERAL SPECS 3 Finishes Available (Powder Coated) Lifetime Motor Warranty Eight ABS Blades 72" Blade Sweep 14-Degree Blade Pitch 80" Lead Wire 4" & 6" Downrods Included 1/2" Downrod Diameter

PAT I O FA N S

MECHANICAL SPECS DC-165L Motor 6 Speeds-Reversible w/Wall Controller 6 Poles .47/.29/.19/.13/.09/.06 AMPS on H/M/L 33/20/13/8/5/3 WATTS on H/M/L 94/79/66/55/42/32 RPMS on H/M/L UL Wet Listed Remote Control Adaptable Not Light Kit Adaptable

REMOTE CONTROL OPTIONS

Included (No DIP Switches)

8-9860-0

ENERGY SPECS Energy Information at High Speed Airflow: 9793 Cubic Feet/Minute Electricity Use: 34 Watts (Excludes Lights) Airflow Efficiency: 288 Cubic Feet/Minute/Watt Visit QuorumInternational.com for DOE Energy Guide

P R OX I M A 7 2 " DA M P

229

Titus 65" Damp

AVAILABLE FINISHES * S U P P L I E D W I T H A 1 / 2 " D I A M E T E R D OW N R O D

20656-65 Satin Nickel Silver ABS Blades

20656-59 Matte Black Matte Black ABS Blades

20656-8 Studio White Studio White ABS Blades

Optional Light Kit 8-208-59* 7.75"(w) x 2.125"(h) - (1) 18W, 120V, 3000k, 1543 Lumens, 90CRI, Dimmable LED (Included) Matte Black | White Lens

Light Kit shown on 20656-59 ceiling fan *also available in Studio White (-8) and Satin Nickel (-65)

HEIGHT CHART

MECHANICAL SPECS DC - 165NM Motor 6 Speeds-Reversible w/ Wall Control .35/.24/.17/.11/.07/.04 AMPS on H/M/L 28/19/13/8/5/3 WATTS on H/M/L 135/117/100/84/66/50 RPMS on H/M/L Optional LED Light Kit Available

FAN HEIGHT

ENERGY SPECS

Using 6" Downrod ● Distance of 15.25" ● Distance of 13.25"

Energy Information at High Speed Airflow: 6225 Cubic Feet/Minute Electricity Use: 28 Watts (Excludes Lights) Airflow Efficiency: 222 Cubic Feet/Minute/Watt Visit QuorumInternational.com for DOE Energy Guide

GENERAL SPECS 3 Finishes Available Lifetime Motor Warranty Six ABS Blades 65" Blade Sweep 25-Degree Blade Pitch 80" Lead Wire 6" Downrod Included 1/2" Downrod Diameter

PAT I O FA N S

OPTIONAL LIGHT SOURCE

LED MODULE

REMOTE CONTROL OPTIONS

Included (4 DIP Switches)

8-347

T I T U S 6 5" DA M P

231

Titus 80" Damp

AVAILABLE FINISHES * S U P P L I E D W I T H A 1 / 2 " D I A M E T E R D OW N R O D

20806-65 Satin Nickel Silver ABS Blades

20806-59 Matte Black Matte Black ABS Blades

20806-8 Studio White Studio White ABS Blades

Optional Light Kit 8-208-59* 7.75"(w) x 2.125"(h) - (1) 18W, 120V, 3000k, 1543 Lumens, 90CRI, Dimmable LED (Included) Matte Black | White Lens

Light Kit shown on 20806-59 ceiling fan *also available in Studio White (-8) and Satin Nickel (-65)

HEIGHT CHART

MECHANICAL SPECS DC - 165NL Motor 6 Speeds-Reversible w/ Wall Control .40/.32/.22/.17/.12/.08 AMPS on H/M/L 31/24/17/12/8/5 WATTS on H/M/L 95/87/78/69/60/51 RPMS on H/M/L Optional LED Light Kit Available

FAN HEIGHT

ENERGY SPECS

Using 6" Downrod ● Distance of 15.25" ● Distance of 13.25"

Energy Information at High Speed Airflow: 8225 Cubic Feet/Minute Electricity Use: 24 Watts (Excludes Lights) Airflow Efficiency: 343 Cubic Feet/Minute/Watt Visit QuorumInternational.com for DOE Energy Guide

GENERAL SPECS 3 Finishes Available Lifetime Motor Warranty Six ABS Blades 80" Blade Sweep 25-Degree Blade Pitch 80" Lead Wire 6" Downrod Included 1/2" Downrod Diameter

PAT I O FA N S

OPTIONAL LIGHT SOURCE

LED MODULE

REMOTE CONTROL OPTIONS

Included (4 DIP Switches)

8-347

T I T U S 8 0 " DA M P

233

Zeus 65" Damp

AVAILABLE FINISHES * S U P P L I E D W I T H A 3 /4" D I A M E T E R D OW N R O D

10656-80 Aged Brass Matte Black ABS Blades

10656-65 Satin Nickel Silver ABS Blades

10656-59 Matte Black Matte Black ABS Blades

Optional Light Kit 8-10806-59 9.375"(w) x 2.5"(h) - (1) 24W, 3000k, 2113 Lumens, 90CRI Dimming, 120V LED Matte Black | Matte White Acrylic

10656-8 Studio White Studio White ABS Blades

UL Damp / Shown on 10806-59 fan Also Available: Studio White, Satin Nickel & Aged Brass

HEIGHT CHART

FAN HEIGHT Using 6" Downrod ● Distance of 17" ● Distance of 16.25"

GENERAL SPECS 4 Finishes Available Lifetime Motor Warranty Six ABS Blades 65" Blade Sweep 11.5-Degree Blade Pitch 80" Lead Wire 6" Downrod Included 3/4" Downrod Diameter

C E I L I N G FA N S

MECHANICAL SPECS DC-168-25 Motor 6 Speeds-Reversible w/ Wall Control 8 Poles .39/.27/.17/.11/.07/.06 AMPS on H/M/L 31/19/12/7/4/3 WATTS on H/M/L 140/118/96/74/52/30 RPMS on H/M/L Optional light kit 8-10806-XX Optional set (3) 96" stabilizing cables w/ hardware included Optional 3/4" diameter downrods available - See page 386

OPTIONAL LIGHT SOURCE

LED MODULE

WALL MOUNTED POCKET REMOTE

ENERGY SPECS Energy Information at High Speed Airflow: 10021 Cubic Feet/Minute Electricity Use: 34 Watts (Excludes Lights) Airflow Efficiency: 295 Cubic Feet/Minute/Watt Visit QuorumInternational.com for DOE Energy Guide

Included

ZEU S 6 5" DA M P

235

Zeus 80" Damp

AVAILABLE FINISHES * S U P P L I E D W I T H A 3 /4" D I A M E T E R D OW N R O D

10806-80 Aged Brass Matte Black ABS Blades

10806-65 Satin Nickel Silver ABS Blades

10806-59 Matte Black Matte Black ABS Blades

Optional Light Kit 8-10806-59 9.375"(w) x 2.5"(h) - (1) 24W, 3000k, 2113 Lumens, 90CRI Dimming, 120V LED Matte Black | Matte White Acrylic

10806-8 Studio White Studio White ABS Blades

UL Damp / Shown on 10806-59 fan Also Available: Studio White, Satin Nickel & Aged Brass

HEIGHT CHART

FAN HEIGHT Using 10" Downrod ● Distance of 21" ● Distance of 19.25"

GENERAL SPECS 4 Finishes Available Lifetime Motor Warranty Six ABS Blades 80" Blade Sweep 11.5-Degree Blade Pitch 80" Lead Wire 10" Downrod Included 3/4" Downrod Diameter

PAT I O FA N S

MECHANICAL SPECS DC-168NL Motor 6 Speeds-Reversible w/ Wall Control 8 Poles .60/.39/.23/.12/.07/.05 AMPS on H/M/L 49/30/17/9/5/3 WATTS on H/M/L 120/100/80/60/40/20 RPMS on H/M/L Optional light kit 8-10806-XX Optional set (3) 96" stabilizing cables w/ hardware included Optional 3/4" diameter downrods available - See page 386

OPTIONAL LIGHT SOURCE

LED MODULE

WALL MOUNTED POCKET REMOTE

ENERGY SPECS Energy Information at High Speed Airflow: 17436 Cubic Feet/Minute Electricity Use: 54 Watts (Excludes Lights) Airflow Efficiency: 322 Cubic Feet/Minute/Watt Visit QuorumInternational.com for DOE Energy Guide

Included

ZEU S 8 0 " DA M P

237

Zeus 120" Damp

AVAILABLE FINISHES * S U P P L I E D W I T H A 3 /4" D I A M E T E R D OW N R O D

101206-80 Aged Brass Matte Black ABS Blades

101206-65 Satin Nickel Silver ABS Blades

101206-8 Studio White Studio White ABS Blades

101206-59 Matte Black Matte Black ABS Blades

Optional Light Kit 8-10806-80 9.375"(w) x 2.5"(h) - (1) 24W, 3000k, 2113 Lumens, 90CRI Dimming, 120V LED Aged Brass | Matte White Acrylic

UL Damp / Shown on 101206-80 fan Also Available: Studio White, Matte Black & Satin Nickel

HEIGHT CHART

FAN HEIGHT Using 10" Downrod ● Distance of 21" ● Distance of 19.25"

GENERAL SPECS 4 Finishes Available Lifetime Motor Warranty Six ABS Blades 120" Blade Sweep 11.5-Degree Blade Pitch 80" Lead Wire 10" Downrod Included 3/4" Downrod Diameter

PAT I O FA N S

MECHANICAL SPECS DC-168NL Motor 6 Speeds-Reversible w/ Wall Control 8 Poles 1/.65/.38/.21/.11/.06 AMPS on H/M/L 89/53/29/15/7/4 WATTS on H/M/L 75/64/53/42/31/20 RPMS on H/M/L Optional light kit 8-1806-XX Optional set (3) 96" stabilizing cables w/ hardware included Optional 3/4" diameter downrods available - See page 386

OPTIONAL LIGHT SOURCE

LED MODULE

WALL MOUNTED POCKET REMOTE

ENERGY SPECS Energy Information at High Speed Airflow: 22139 Cubic Feet/Minute Electricity Use: 97 Watts (Excludes Lights) Airflow Efficiency: 228 Cubic Feet/Minute/Watt

Included

ZEU S 120" DA M P

239

The softer side of contemporary design comes through in this collection designed to bring a modern yet traditional feel to outdoor spaces. Interesting shapes and appealing finishes provide the perfect balance of poise and panache.

PAT I O FA N S

S O F T C O N T E M P O R A RY PAT I O S E L EC T I O N S

241

Alto 62" Patio

Wet Location

AVAILABLE FINISHES * S U P P L I E D W I T H A 1 / 2 " D I A M E T E R D OW N R O D

140625-86 Oiled Bronze Oiled Bronze ABS Blades

HEIGHT CHART

140625-69 Textured Black Matte Black ABS Blades

MECHANICAL SPECS

Using 4" Downrod ● Distance of 14" ● Distance of 12"

212 x 25 Motor Size 3 Speeds w/ Pull Chain Switch Reversible w/ Manual Reverse Switch 20 Poles .67/.58/.38 AMPS on H/M/L 76/51/22 WATTS on H/M/L 149/117/73 RPMS on H/M/L Triple Capacitor Remote Control Adaptable Detachable Switch Cup UL Wet Listed

GENERAL SPECS

ENERGY SPECS

FAN HEIGHT

2 Finish Combinations Available (Powder Coated) Lifetime Motor Warranty Five ABS Blades 62" Blade Sweep 12-Degree Blade Pitch 80" Lead Wire 4" & 6" Downrods Included 1/2" Downrod Diameter

PAT I O FA N S

REMOTE CONTROL OPTION

7-501-0

Energy Information at High Speed Airflow: 6943 Cubic Feet/Minute Electricity Use: 84 Watts (Excludes Lights) Airflow Efficiency: 82 Cubic Feet/Minute/Watt Visit QuorumInternational.com for DOE Energy Guide

A LTO 6 2 " PAT I O

243

Apex 56" Patio

Wet Location

AVAILABLE FINISHES * S U P P L I E D W I T H A 1 / 2 " D I A M E T E R D OW N R O D

190565-65 Satin Nickel Silver ABS Blades

190565-59 Matte Black Matte Black ABS Blades

Optional Light Kit 1012-965 8.75"(w) x 2.25"(h) - (1) 24W, 3000k, 1832 Lumens, 90CRI, LED Studio White | Satin Opal Glass

UL Damp / Shown on 190565-65 fan

HEIGHT CHART

FAN HEIGHT Using 4" Downrod ● Distance of 14" ● Distance of 11.5"

GENERAL SPECS 2 Finishes Available Lifetime Motor Warranty Five ABS Blades 56" Blade Sweep 14-Degree Blade Pitch 4" & 6" Downrods Included 1/2" Downrod Diameter

PAT I O FA N S

MECHANICAL SPECS 188 x 25 Motor Size 3 Speeds w/ Pull Chain Switch Reversible w/ Manual Reverse Switch 80" Lead Wire 16 Poles .56/.42/.23 AMPS on H/M/L 67/37/11 WATTS on H/M/L 146/110/51 RPMS on H/M/L Triple Capacitor Remote Control Adaptable

ENERGY SPECS

REMOTE CONTROL OPTIONS

7-1305-0

7-1401-0

8-223

BLADE ALTERNATIVES Use outdoor blade type 3-56 - See page 382 Use outdoor blade type 3-60 - See page 384

Energy Information at High Speed Airflow: 5993 Cubic Feet/Minute Electricity Use: 65 Watts (Excludes Lights) Airflow Efficiency: 92 Cubic Feet/Minute/Watt Visit QuorumInternational.com for DOE Energy Guide

A P E X 5 6" PAT I O

245

Brisa 60" Damp

AVAILABLE FINISHES * S U P P L I E D W I T H A 1 / 2 " D I A M E T E R D OW N R O D

61603-8 Studio White/Aged Brass Studio White ABS Blades

61603-59 Matte Black Matte Black ABS Blades

HEIGHT CHART

FAN HEIGHT Using 6" Downrod ● Distance of 14.75" ● Distance of 10"

GENERAL SPECS 2 Finish Combinations Available (Powder Coated) Lifetime Motor Warranty Three ABS Blades 60" Blade Sweep 12-Degree Blade Pitch 80" Lead Wire 6" Downrod Included 1/2" Downrod Diameter

PAT I O FA N S

Optional LED Light Kit (included)

(1) 20W, 5CCT, 90CRI 120V LED kit w/ White Acrylic Diffuser 2700/3000/4000/5000/6500k, 1510 Lumens @ 3000k 61603-59 ceiling fan shown with optional light kit (included)

MECHANICAL SPECS DC-15NS Motor 6 Speeds-Reversible 9 Poles .27/.19/.13/.09/.06/.04 AMPS on H/M/L 20/15/9/6/4/3 WATTS on H/M/L 110/99/87/75/63/50 RPMS on H/M/L Remote Control Adaptable Supplied with Optional LED Kit or Cover Plate for use with no Light Kit UL Damp Listed

LIGHT SOURCE

LED MODULE

REMOTE CONTROL OPTIONS

ENERGY SPECS Energy Information at High Speed Airflow: 5894 Cubic Feet/Minute Electricity Use: 21 Watts (Excludes Lights) Airflow Efficiency: 281 Cubic Feet/Minute/Watt Visit QuorumInternational.com for DOE Energy Guide

Included (5 DIP Switches)

B R I S A 6 0 " DA M P

247

Cirque 60" Damp

AVAILABLE FINISHES * S U P P L I E D W I T H A 1 / 2 " D I A M E T E R D OW N R O D

46012-5942 Matte Black Weathered Grey ABS Blades

(1) 18W, 3000k, 1589 Lumens, 90CRI Dimming LED (Included)

HEIGHT CHART

FAN HEIGHT Using 6" Downrod ● Distance of 15" ● Distance of 12.5"

GENERAL SPECS 2 Finishes Available Lifetime Motor Warranty Twelve ABS Blades 60" Blade Sweep 14-Degree Blade Pitch 80" Lead Wire 6" Downrod Included 1/2" Downrod Diameter

PAT I O FA N S

46012-59 Matte Black Matte Black ABS Blades

(1) 18W, 3000k, 1589 Lumens, 90CRI Dimming LED (Included)

MECHANICAL SPECS DC153-20NS Motor 6 Speeds-Reversible w/ Wall Control 8 Poles .39/.26/.20/.14/.09/.07 AMPS on H/M/L 31/21/14/12/9/5 WATTS on H/M/L 100/90/80/70/60/50 RPMS on H/M/L 18W LED Light Kit Included Wall Control Included Not Hugger Adaptable

LIGHT SOURCE

LED MODULE

REMOTE CONTROL OPTIONS

ENERGY SPECS Energy Information at High Speed Airflow: 7130 Cubic Feet/Minute Electricity Use: 31 Watts (Excludes Lights) Airflow Efficiency: 230 Cubic Feet/Minute/Watt Visit QuorumInternational.com for DOE Energy Guide

Included (4 DIP Switches)

8-347

INSTALLATION NOTE Multiple fans installed on the same circuit require individual wall controls and switch legs. The power supply wire from the control to the fans cannot be shared.

C I R Q U E 6 0 " DA M P

249

Cirque 72" Damp

AVAILABLE FINISHES * S U P P L I E D W I T H A 1 / 2 " D I A M E T E R D OW N R O D

47212-65 Satin Nickel Silver ABS Blades

(1) 18W, 3000k, 1589 Lumens, 90CRI Dimming LED (Included)

47212-5942 Matte Black Weathered Grey ABS Blades

(1) 18W, 3000k, 1589 Lumens, 90CRI Dimming LED (Included)

HEIGHT CHART

FAN HEIGHT Using 6" Downrod ● Distance of 15" ● Distance of 12.5"

GENERAL SPECS 3 Finishes Available Lifetime Motor Warranty Twelve ABS Blades 72" Blade Sweep 14-Degree Blade Pitch 80" Lead Wire 6" Downrod Included 1/2" Downrod Diameter

PAT I O FA N S

47212-59 Matte Black Matte Black ABS Blades

(1) 18W, 3000k, 1589 Lumens, 90CRI Dimming LED (Included)

MECHANICAL SPECS DC-165NL Motor 6 Speeds-Reversible w/ Wall Control 8 Poles .38/.24/.16/.11/.06/.04 AMPS on H/M/L 30/18/12/8/4/2 WATTS on H/M/L 81/70/60/51/41/30 RPMS on H/M/L 18W LED Light Kit Included Wall Control Included Not Hugger Adaptable

LIGHT SOURCE

LED MODULE

REMOTE CONTROL OPTIONS

ENERGY SPECS Energy Information at High Speed Airflow: 8739 Cubic Feet/Minute Electricity Use: 28 Watts (Excludes Lights) Airflow Efficiency: 312 Cubic Feet/Minute/Watt Visit QuorumInternational.com for DOE Energy Guide

Included (4 DIP Switches)

8-347

INSTALLATION NOTE Multiple fans installed on the same circuit require individual wall controls and switch legs. The power supply wire from the control to the fans cannot be shared.

C I R Q U E 7 2 " DA M P

251

Dayton Hugger Damp

AVAILABLE FINISHES

52523-59 Matte Black Walnut ABS Blades

52523-8 Studio White Natural Finish ABS Blades

Optional Light Kit 8-52523 5.75"(w) x 1.5"(h) - (1) 20W 5CCT, 90CRI 120V LED kit w/ White Polycarbonate Diffuser 2700/3000/4000/5000/6500k, 1559 Lumens @ 3000k Light Kit is shown on 52523-59 ceiling fan

HEIGHT CHART

FAN HEIGHT Using 4" Downrod ● Distance of 9.125" ● Distance of 6.5"

GENERAL SPECS 2 Finish Combinations Available (Powder Coated) Lifetime Motor Warranty Three ABS Blades 52" Blade Sweep 13.5-Degree Blade Pitch 16" Lead Wire

PAT I O FA N S

MECHANICAL SPECS 125-DC12 Motor 6 Speeds-Reversible 8 Poles .28/.20/.15/.10/.07/.05 AMPS on H/M/L 19/13/9/6/4/2 WATTS on H/M/L 200/173/151/123/100/77 RPMS on H/M/L Remote Control Adaptable UL Damp Listed

OPTIONAL LIGHT SOURCE

LED MODULE

REMOTE CONTROL OPTIONS

ENERGY SPECS Energy Information at High Speed Airflow: 4670 Cubic Feet/Minute Electricity Use: 25 Watts (Excludes Lights) Airflow Efficiency: 187 Cubic Feet/Minute/Watt Visit QuorumInternational.com for DOE Energy Guide

Included (5 DIP Switches)

DAY TO N H U G G E R DA M P

253

Esquire 58" Patio

Wet Location

AVAILABLE FINISH * S U P P L I E D W I T H A 3 /4" D I A M E T E R D OW N R O D

Optional Cover (included)

15583-59 fan provided with Matte Black and Brushed Brass (shown) bottom cover options for use without light kit

15583-59 Matte Black Matte Black ABS Blades

HEIGHT CHART

FAN HEIGHT Using 4" Downrod ● Distance of 14.25" ● Distance of 12"

GENERAL SPECS Lifetime Motor Warranty Three ABS Blades 58" Blade Sweep 14-Degree Blade Pitch 80" Lead Wire 4 & 6" Downrods Included 3/4" Downrod Diameter

PAT I O FA N S

Optional LED Light Kit (included)

(1) 20W, 5CCT, 90CRI 120V LED kit w/ White Acrylic Diffuser, 2700/3000/3500/4000/5000k, 1483 Lumens @ 3000k

MECHANICAL SPECS DCS-15NS Motor 6 Speeds-Reversible with Wall Control 9 Poles .29/.19/.12/.08/.05/.03 AMPS on H/M/L 21/14/9/5/3/2 WATTS on H/M/L 145/127/107/88/69/50 RPMS on H/M/L Remote Control Adaptable Light Kit Uses (1) 20W, 3000k, 1483 Lumens, 90CRI LED Optional 3/4" diameter downrods available - See page 386 UL Wet Listed

OPTIONAL LIGHT SOURCE

LED

REMOTE CONTROL OPTIONS

ENERGY SPECS Energy Information at High Speed Airflow: 6173 Cubic Feet/Minute Electricity Use: 19 Watts (Excludes Lights) Airflow Efficiency: 325 Cubic Feet/Minute/Watt Visit QuorumInternational.com for DOE Energy Guide

Included (5 DIP Switches)

8-1405

E S Q U I R E 5 8" PAT I O

255

Exodus 58" Damp

Optional LED Light Kit (included)

(1) 20W, 5CCT, 90CRI 120V LED kit w/ White Acrylic Diffuser, 2700/3000/3500/4000/5000k 34583-80 shown with optional light kit (included)

AVAILABLE FINISHES * S U P P L I E D W I T H A 3 /4" D I A M E T E R D OW N R O D

34583-80 Aged Brass Matte Black ABS Blades

HEIGHT CHART

34583-59 Matte Black Matte Black ABS Blades

MECHANICAL SPECS

Using 6" Downrod ● Distance of 15.5" ● Distance of 12.5"

DCS-15NS Motor 6 Speeds-Reversible with Wall Control 9 Poles .28/.18/.11/.08/.05/.03 AMPS on H/M/L 21/13/8/5/3/2 WATTS on H/M/L 156/136/115/93/72/51 RPMS on H/M/L 6 Speed Wall Control Included Remote Control Adaptable Light Kit Uses (1) 20W, 5CCT, 90CRI LED Optional 3/4" diameter downrods available - See page 386 UL Damp Listed

GENERAL SPECS

ENERGY SPECS

FAN HEIGHT

Lifetime Motor Warranty Three ABS Blades 58" Blade Sweep 13-Degree Blade Pitch 80" Lead Wire 6" Downrod Included 3/4" Downrod Diameter

PAT I O FA N S

Energy Information at High Speed Airflow: 6538 Cubic Feet/Minute Electricity Use: 23 Watts (Excludes Lights) Airflow Efficiency: 284 Cubic Feet/Minute/Watt Visit QuorumInternational.com for DOE Energy Guide

OPTIONAL LIGHT SOURCE

LED

REMOTE CONTROL OPTIONS

Included (5 DIP Switches)

8-1405

E XO D U S 5 8" DA M P

257

Hudson 52" Patio

Wet Location

AVAILABLE FINISH * S U P P L I E D W I T H A 1 / 2 " D I A M E T E R D OW N R O D

137525-95 Old World Walnut ABS Blades

HEIGHT CHART

MECHANICAL SPECS

Using 6" Downrod ● Distance of 16.5" ● Distance of 14.75"

172 x 14 Motor Size 3 Speeds w/ Pull Chain Switch Reversible w/ Manual Reverse Switch 16 Poles .57/.39/.21 AMPS on H/M/L 68/30/9 WATTS on H/M/L 163/110/65 RPMS on H/M/L Triple Capacitor Remote Control Adaptable Detachable Switch Cup UL Wet Listed

GENERAL SPECS

ENERGY SPECS

FAN HEIGHT

Lifetime Motor Warranty Five ABS Blades 52" Blade Sweep 14-Degree Blade Pitch 80" Lead Wire 6" Downrod Included 1/2" Downrod Diameter

PAT I O FA N S

REMOTE CONTROL OPTIONS

Included

7-501-0

8-223

Energy Information at High Speed Airflow: 5480 Cubic Feet/Minute Electricity Use: 69 Watts (Excludes Lights) Airflow Efficiency: 79 Cubic Feet/Minute/Watt Visit QuorumInternational.com for DOE Energy Guide

H U D S O N 5 2 " PAT I O

259

Kimbo 60" Damp

AVAILABLE FINISHES * S U P P L I E D W I T H A 1 / 2 " D I A M E T E R D OW N R O D

55606-59 Matte Black Colonial Black ABS Blades

55606-80 Aged Brass Colonial Black ABS Blades

HEIGHT CHART

FAN HEIGHT Using 6" Downrod ● Distance of 15" ● Distance of 11"

GENERAL SPECS 2 Finish Combinations Available Lifetime Motor Warranty Six ABS Blades 60" Blade Sweep 12.5-Degree Blade Pitch 80" Lead Wire 6" Downrod Included 1/2" Downrod Diameter

PAT I O FA N S

Optional LED Light Kit (included)

(1) 20W, 5CCT, 90CRI 120V LED kit w/ White Polycarbonate Diffuser 2700/3000/4000/5000/6500k, 1365 Lumens @ 3000k 55606-59 shown with optional light kit (included)

MECHANICAL SPECS DC-30NS Motor 6 Speeds-Reversible 9 Poles .39/.20/.13/.09/.05/.04 AMPS on H/M/L 23/16/10/6/4/3 WATTS on H/M/L 135/118/101/84/67/50 RPMS on H/M/L Remote Control Adaptable Detachable Switch Cup Supplied with Optional LED Kit or Cover Plate for use with no Light Kit UL Damp Listed

LIGHT SOURCE

LED MODULE

REMOTE CONTROL OPTIONS

ENERGY SPECS Energy Information at High Speed Airflow: 7259 Cubic Feet/Minute Electricity Use: 24 Watts (Excludes Lights) Airflow Efficiency: 302 Cubic Feet/Minute/Watt Visit QuorumInternational.com for DOE Energy Guide

Included (5 DIP Switches)

K I M B O 6 0 " DA M P

261

Revel 80" Damp

AVAILABLE FINISHES * S U P P L I E D W I T H A 1 / 2 " D I A M E T E R D OW N R O D

80805-8059 Aged Brass/Matte Black Matte Black ABS Blades

80805-59 Matte Black Matte Black ABS Blades

80805-808 Aged Brass/Studio White Studio White ABS Blades

Optional LED Light Kit 8-80805

Integral 24W, 3000k, 2227 Lumens, 90CRI Dimming 120V LED kit w/ White Acrylic Diffuser Light Kit shown on 80805-8059 ceiling fan

HEIGHT CHART

MECHANICAL SPECS

FAN HEIGHT

DC-30NS Motor 6 Speeds-Reversible w/ Wall Control 16 Poles .36/.23/.15/.09/.07/.04 AMPS on H/M/L 27/17/10/6/4/3 WATTS on H/M/L 96/83/70/57/45/33 RPMS on H/M/L Dimmable Light Kit LED Light Kit is 24W, 3000k, 2227 Lumens, 90CRI

Using 6" Downrod ● Distance of 14.25" ● Distance of 12.25"

GENERAL SPECS 3 Finishes Available Lifetime Motor Warranty Five ABS Blades 80" Blade Sweep 9-Degree Blade Pitch 80" Lead Wire 6" Downrod Included 1/2" Downrod Diameter

PAT I O FA N S

OPTIONAL LIGHT SOURCE

LED MODULE

WALL CONTROL

ENERGY SPECS Energy Information at High Speed Airflow: 10578 Cubic Feet/Minute Electricity Use: 33 Watts (Excludes Lights) Airflow Efficiency: 320 Cubic Feet/Minute/Watt Visit QuorumInternational.com for DOE Energy Guide

Included (4 DIP Switches)

8-1400

R E V E L 8 0 " DA M P

263

Rosales 60" Damp

33608-80 Aged Brass Studio White ABS Blades

AVAILABLE FINISHES * S U P P L I E D W I T H A 1 / 2 " D I A M E T E R D OW N R O D

33608-59 Matte Black Matte Black ABS Blades

HEIGHT CHART

FAN HEIGHT Using 6" Downrod ● Distance of 14.5" ● Distance of 12"

GENERAL SPECS 2 Finish Combinations Available Lifetime Motor Warranty Eight ABS Blades 60" Blade Sweep 11-Degree Blade Pitch 80" Lead Wire 6" Downrod Included 1/2" Downrod Diameter

PAT I O FA N S

Optional LED Light Kit (included)

(1) 20W, 5CCT, 90CRI 120V LED kit w/ White Polycarbonate Diffuser 2700/3000/4000/5000/6500k 33608-80 shown with optional light kit (included)

MECHANICAL SPECS DC-30NS Motor 6 Speeds-Reversible 9 Poles .32/.23/.15/.10/.07/.04 AMPS on H/M/L 28/19/12/8/5/3 WATTS on H/M/L 125/107/93/79/65/51 RPMS on H/M/L Remote Control Adaptable Supplied with Optional LED Kit or Cover Plate for use with no Light Kit UL Damp Listed

LIGHT SOURCE

LED MODULE

REMOTE CONTROL OPTIONS

ENERGY SPECS Energy Information at High Speed Airflow: 7384 Cubic Feet/Minute Electricity Use: 29 Watts (Excludes Lights) Airflow Efficiency: 255 Cubic Feet/Minute/Watt Visit QuorumInternational.com for DOE Energy Guide

Included (5 DIP Switches)

R O S A L E S 6 0 " DA M P

265

Rova 72" Damp

SMART CEILING FAN

82725-80 Aged Brass Matte Black ABS Blades

AVAILABLE FINISHES * S U P P L I E D W I T H A 1 / 2 " D I A M E T E R D OW N R O D

82725-65 Satin Nickel Weathered Grey ABS Blades

Optional LED Light Kit 8-827-80*

82725-8 Studio White Studio White ABS Blades

Integral 18W, 3000k, 1347 Lumens, 90CRI Dimming LED kit w/ White Acrylic Diffuser Light Kit shown on 82725-80 ceiling fan *also available in Studio White (-8), Matte Black (-59) and Satin Nickel (-65)

HEIGHT CHART

MECHANICAL SPECS

FAN HEIGHT

DC-165NM Motor 6 Speeds-Reversible with Wall Control 14 Poles .30/.24/.20/.15/.11/.08 AMPS on H/M/L 25/19/15/11/8/5 WATTS on H/M/L 90/82/74/60/59/52 RPMS on H/M/L 4 Speed Wall Control Included Remote Control Adaptable

Using 6" Downrod ● Distance of 15.75" ● Distance of 13.5"

GENERAL SPECS 3 Finishes Available Lifetime Motor Warranty Five ABS Blades 72" Blade Sweep 13-Degree Blade Pitch 80" Lead Wire 6" Downrod Included 1/2" Downrod Diameter

PAT I O FA N S

OPTIONAL LIGHT SOURCE

LED

REMOTE CONTROL OPTIONS

ENERGY SPECS Energy Information at High Speed Airflow: 6495 Cubic Feet/Minute Electricity Use: 27 Watts (Excludes Lights) Airflow Efficiency: 240 Cubic Feet/Minute/Watt Visit QuorumInternational.com for DOE Energy Guide

Included (4 DIP Switches)

8-1400

R OVA 7 2 " DA M P

267

Spree 84" Damp

35846-47 Brushed Brass Matte Black ABS Blades

Wet Location

Ridged blade top design for increased air flow

AVAILABLE FINISHES * S U P P L I E D W I T H A 3 /4" D I A M E T E R D OW N R O D

35846-59 Matte Black Matte Black ABS Blades

HEIGHT CHART

Optional LED Light Kit (included)

(1) 20W, 5CCT, 90CRI 120V LED kit w/ White Acrylic Diffuser, 2700/3000/3500/4000/5000k, 1694 Lumens @ 3000k 35846-47 shown with optional light kit (included)

MECHANICAL SPECS

Using 6" Downrod ● Distance of 15.5" ● Distance of 12.25"

DCS-165NL Motor 6 Speeds-Reversible with Wall Control 6 Poles .39/.30/.19/.11/.07/.05 AMPS on H/M/L 31/25/14/9/5/3 WATTS on H/M/L 73/67/58/49/40/30 RPMS on H/M/L 6 Speed Wall Control Included Remote Control Adaptable Light Kit Uses (1) 20W, 5CCT, 1694 Lumens, 90CRI LED Optional 3/4" diameter downrods available - See page 386 UL Wet Listed

GENERAL SPECS

ENERGY SPECS

FAN HEIGHT

Lifetime Motor Warranty Six ABS Blades 84" Blade Sweep 16-Degree Blade Pitch 80" Lead Wire 6" Downrod Included 3/4" Downrod Diameter

PAT I O FA N S

Energy Information at High Speed Airflow: 8871 Cubic Feet/Minute Electricity Use: 31 Watts (Excludes Lights) Airflow Efficiency: 286 Cubic Feet/Minute/Watt Visit QuorumInternational.com for DOE Energy Guide

OPTIONAL LIGHT SOURCE

LED

REMOTE CONTROL OPTIONS

Included (5 DIP Switches)

8-1405

S P R E E 8 4" DA M P

269

Twain 56" Damp

AVAILABLE FINISHES * S U P P L I E D W I T H A 3 /4" D I A M E T E R D OW N R O D

30562-59 Matte Black Walnut ABS Blades

HEIGHT CHART

FAN HEIGHT Using 6" Downrod ● Distance of 13" ● Distance of 13"

GENERAL SPECS 2 Finishes Available Lifetime Motor Warranty Two ABS Blades 56" Blade Sweep 14-Degree Blade Pitch 80" Lead Wire 4" & 6" Downrods Included 3/4" Downrod Diameter

I N D O O R FA N S

30562-47 Brushed Brass Walnut ABS Blades

MECHANICAL SPECS DC-15NS Motor 6 Speeds-Reversible 9 Poles .35/.22/.13/.09/.06/.04 AMPS on H/M/L 25/16/10/6/4/2 WATTS on H/M/L 136/119/102/85/67/50 RPMS on H/M/L Remote Control Adaptable Not Light Kit Adabtable Optional 3/4" diameter downrods available - See page 386 UL Damp Listed

REMOTE CONTROL OPTION

Included (5 DIP Switches)

8-1405

ENERGY SPECS Energy Information at High Speed Airflow: 5937 Cubic Feet/Minute Electricity Use: 30 Watts (Excludes Lights) Airflow Efficiency: 198 Cubic Feet/Minute/Watt Visit QuorumInternational.com for DOE Energy Guide

T WA I N 5 6"

271

Nothing soothes the soul like the gentle breeze of a ceiling fan on a warm summer night. Our traditional patio designs will warm your heart while cooling your outdoor space.

PAT I O FA N S

PAT I O T R A D I T I O N A L S E L EC T I O N S

273

Bandit 24" Damp

AVAILABLE FINISH * S U P P L I E D W I T H A 1 / 2 " D I A M E T E R D OW N R O D

22245-69 Textured Black Weathered Grey ABS Blades

Integral 18W, 3000k, 1266 Lumens, 90CRI Dimming LED (Included)

HEIGHT CHART

22.5° 45°

FAN HEIGHT Using 6" Downrod ● Distance of 21.25" Distance of 24" ● Distance of 27.5"

MECHANICAL SPECS 153x15 Motor Size 4 Speeds-Reversible 14 Poles .26/.21/.16/.13 AMPS on H/M/L 32/20/11/7 WATTS on H/M/L 364/328/250/200 RPMS on H/M/L Triple Capacitor Not Remote Control Adaptable

LIGHT SOURCE

LED MODULE

WALL CONTROL

ENERGY SPECS Energy Information at High Speed Airflow: 1659 Cubic Feet/Minute Electricity Use: 29 Watts (Excludes Lights) Airflow Efficiency: 57 Cubic Feet/Minute/Watt Visit QuorumInternational.com for DOE Energy Guide

Included

GENERAL SPECS Lifetime Motor Warranty Five ABS Blades 24" Blade Sweep 80" Lead Wire 6" Downrod Included 1/2" Downrod Diameter 16-Degree Blade Pitch Fan Housing Swivels 22.5° and 45° either Direction Height at 22.5° Swivel is 24" Height at 45° Swivel is 27.75"

PAT I O FA N S

B A N D I T 24" DA M P

275

Cyprus Damp Patio

AVAILABLE FINISH

98134-59 Matte Black Black ABS Blades

HEIGHT CHART

GENERAL SPECS Lifetime Motor Warranty Four ABS Blades 13" Blade Sweep 12" Lead Wire Provided with Optional 9.5' Power Cord with Plug Pull Chain Switch for Oscillating Function Oscillates 45 Degrees

MECHANICAL SPECS FAN HEIGHT ● Extension of 19" ● Height of 29"

Diameter of 15"

PAT I O FA N S

153x16 Motor Size 3 Speeds w/ Pull Chain Switch 14 Poles .40/.31/.25 AMPS on H/M/L 46/37/29 WATTS on H/M/L 905/710/520 RPMS on H/M/L Not Remote Control Adaptable UL Damp listed

C Y P R U S DA M P PAT I O

277

Estate 30" Patio

Wet Location

AVAILABLE FINISHES * S U P P L I E D W I T H A 1 / 2 " D I A M E T E R D OW N R O D

143306-95 Old World Walnut ABS Blades

143306-86 Oiled Bronze Oiled Bronze ABS Blades

143306-6 Gloss White White ABS Blades

HEIGHT CHART

FAN HEIGHT Using 4" Downrod ● Distance of 12" ● Distance of 10.75"

GENERAL SPECS 3 Finishes Available (Powder Coated) Lifetime Motor Warranty Six ABS Blades 30" Blade Sweep Blade Type 1-30" with Semi-Square Tip 25-Degree Blade Pitch 4" & 6" Downrods Included 1/2" Downrod Diameter

PAT I O FA N S

MECHANICAL SPECS 153 x 12 Motor Size 3 Speeds w/ Pull Chain Switch Reversible w/ Manual Reverse Switch 14 Poles .29/.21/.09 AMPS on H/M/L 53/27/9 WATTS on H/M/L 245/185/103 RPMS on H/M/L Triple Capacitor Remote Control Adaptable Detachable Switch Cup Skirted Blade Arms/Sealed Vent Holes UL Wet Listed

REMOTE CONTROL OPTIONS

7-1305-0

7-1401-0

8-223

BLADE ALTERNATIVES Use outdoor blade type 1-30 - See page 377

ENERGY SPECS Energy Information at High Speed Airflow: 3362 Cubic Feet/Minute Electricity Use: 53 Watts (Excludes Lights) Airflow Efficiency: 63 Cubic Feet/Minute/Watt Visit QuorumInternational.com for DOE Energy Guide

E S TAT E 3 0 " PAT I O

279

Estate 42" Patio

Wet Location

AVAILABLE FINISHES * S U P P L I E D W I T H A 1 / 2 " D I A M E T E R D OW N R O D

143425-95 Old World Walnut ABS Blades

143425-86 Oiled Bronze Oiled Bronze ABS Blades

143425-6 Gloss White White ABS Blades

HEIGHT CHART

FAN HEIGHT Using 4" Downrod ● Distance of 12" ● Distance of 10.75"

GENERAL SPECS 3 Finishes Available (Powder Coated) Lifetime Motor Warranty Five ABS Blades 42" Blade Sweep 14-Degree Blade Pitch 4" & 6" Downrods Included 1/2" Downrod Diameter

PAT I O FA N S

MECHANICAL SPECS 153 x 13 Motor Size 3 Speeds w/ Pull Chain Switch Reversible w/ Manual Reverse Switch 14 Poles .42/.31/.18 AMPS on H/M/L 61/26/9 WATTS on H/M/L 214/156/52 RPMS on H/M/L Triple Capacitor Remote Control Adaptable Detachable Switch Cup Skirted Blade Arms/Sealed Vent Holes UL Wet Listed

REMOTE CONTROL OPTIONS

7-1305-0

7-1401-0

8-223

BLADE ALTERNATIVES Use outdoor blade type 1-42 - See page 378

ENERGY SPECS Energy Information at High Speed Airflow: 3939 Cubic Feet/Minute Electricity Use: 53 Watts (Excludes Lights) Airflow Efficiency: 74 Cubic Feet/Minute/Watt Visit QuorumInternational.com for DOE Energy Guide

E S TAT E 42 " PAT I O

281

Estate 52" Patio

143525-86 Oiled Bronze Oiled Bronze ABS Blades

143525-599 Matte Black Black ABS Blades

Wet Location

AVAILABLE FINISHES * S U P P L I E D W I T H A 1 / 2 " D I A M E T E R D OW N R O D

143525-95 Old World Walnut ABS Blades

143525-924 Galvanized Walnut ABS Blades

HEIGHT CHART

FAN HEIGHT Using 4" Downrod ● Distance of 13.75" ● Distance of 11"

GENERAL SPECS 5 Finish Combinations Available (Powder Coated) Lifetime Motor Warranty Five ABS Blades 52" Blade Sweep 14-Degree Blade Pitch 4" & 6" Downrods Included 1/2" Downrod Diameter

PAT I O FA N S

143525-6 Gloss White White ABS Blades

MECHANICAL SPECS 153 x 15 Motor Size 3 Speeds w/ Pull Chain Switch Reversible w/ Manual Reverse Switch 14 Poles .57/.38/.21 AMPS on H/M/L 65/29/8 WATTS on H/M/L 168/112/65 RPMS on H/M/L Triple Capacitor Remote Control Adaptable Detachable Switch Cup Skirted Blade Arms/Sealed Vent Holes UL Wet Listed

REMOTE CONTROL OPTIONS

7-1305-0

7-1401-0

8-223

BLADE ALTERNATIVES Use outdoor blade type 1-52 - See page 379

ENERGY SPECS Energy Information at High Speed Airflow: 4654 Cubic Feet/Minute Electricity Use: 55 Watts (Excludes Lights) Airflow Efficiency: 84 Cubic Feet/Minute/Watt Visit QuorumInternational.com for DOE Energy Guide

E S TAT E 5 2 " PAT I O

283

Estate 52" Uni-Pack Patio

Wet Location

AVAILABLE FINISHES * S U P P L I E D W I T H A 1 / 2 " D I A M E T E R D OW N R O D

143525-995 Old World | Satin Opal Glass Walnut ABS Blades

Light Kit uses (2) 9W, 3000k, 1560 Lumens, 80CRI, Non-Dimming LED Bulbs (Included)

143525-986 Oiled Bronze | Satin Opal Glass Oiled Bronze ABS Blades

Light Kit uses (2) 9W, 3000k, 1560 Lumens, 80CRI, Non-Dimming LED Bulbs (Included) PAT I O FA N S

143525-959 Matte Black | Satin Opal Glass Medium Oak ABS Blades

Light Kit uses (2) 60W, 1560 Lumens, C Bulbs (Included)

E S TAT E 5 2 " U N I - PAC K PAT I O

285

AVAILABLE FINISHES * S U P P L I E D W I T H A 1 / 2 " D I A M E T E R D OW N R O D

1435255959 Matte Black | Satin Opal Glass Matte Black ABS Blades

Light Kit uses (2) 9W, 3000k, 1560 Lumens, 80CRI, Non-Dimming LED Bulbs (Included)

1435259924 Galvanized | Satin Opal Glass Walnut ABS Blades

Light Kit uses (2) 9W, 3000k, 1560 Lumens, 80CRI, Non-Dimming LED Bulbs (Included)

143525-944 Toasted Sienna | Satin Oapl Glass Rosewood ABS Blades

Light Kit uses (2) 9W, 3000k, 1560 Lumens, 80CRI, Non-Dimming LED Bulbs (Included)

143525-906 Gloss White | Satin Opal Glass White ABS Blades

Light Kit uses (2) 9W, 3000k, 1560 Lumens, 80CRI, Non-Dimming LED Bulbs (Included)

HEIGHT CHART

MECHANICAL SPECS

Using 4" Downrod ● Distance of 19.25" ● Distance of 11.5"

153 x 15 Motor Size 3 Speeds w/ Pull Chain Switch Reversible w/ Manual Reverse Switch 14 Poles .57/.39/.21 AMPS on H/M/L 55/30/9 WATTS on H/M/L 154/105/52 RPMS on H/M/L Triple Capacitor Remote Control Adaptable w/Manual Reverse Skirted Blade Arms/Sealed Vent Holes UL Wet Listed

GENERAL SPECS

ENERGY SPECS

FAN HEIGHT

7 Finish Combinations Available (Powder Coated) Lifetime Motor Warranty Five ABS Blades 52" Blade Sweep 14-Degree Blade Pitch 80" Lead Wire 4" & 6" Downrods Included 1/2" Downrod Diameter

PAT I O FA N S

Energy Information at High Speed Airflow: 4654 Cubic Feet/Minute Electricity Use: 55 Watts (Excludes Lights) Airflow Efficiency: 84 Cubic Feet/Minute/Watt Visit QuorumInternational.com for DOE Energy Guide

LIGHT SOURCE

Medium Frosted LED

REMOTE CONTROL OPTIONS

7-1305-0

7-1401-0

BLADE ALTERNATIVES Use outdoor blade type 1-52 - See page 379

E S TAT E 5 2 " U N I - PAC K PAT I O

287

Galveston 52" Patio

Wet Location

AVAILABLE FINISHES * S U P P L I E D W I T H A 1 / 2 " D I A M E T E R D OW N R O D

13525-86 Oiled Bronze Walnut ABS Blades

13525-69 Textured Black Weathered Oak ABS Blades

13525-9 Galvanized Walnut ABS Blades

13525-8 Studio White White ABS Blades

Light Kit Uses (1) 9W M 3000k, 780 Lumens, LED Bulb (Included)

Light Kit Uses (1) 9W M 3000k, 780 Lumens, LED Bulb (Included)

HEIGHT CHART

Light Kit Uses (1) 9W M 3000k, 780 Lumens, LED Bulb (Included)

Light Kit Uses (1) 9W M 3000k, 780 Lumens, LED Bulb (Included)

MECHANICAL SPECS

Using 4" Downrod ● Distance of 18.5" ● Distance of 10.75"

172x17 Motor Size 3 Speeds w/ Included Wall Control Reversible w/ Manual Reverse Switch 14 Poles .48/.35/.25 AMPS on H/M/L 57/30/15 WATTS on H/M/L 171/120/84 RPMS on H/M/L Remote Control Adaptable w/ Manual Reverse Light Kit uses (1) 9W M 3000k LED Bulb (Included) Bulb Provided is Non-Dimming UL Wet listed

GENERAL SPECS

ENERGY SPECS

FAN HEIGHT

4 Finishes Available (Powder Coated) Lifetime Motor Warranty Five ABS Blades 52" Blade Sweep 80" Lead Wire 13.5-Degree Blade Pitch 4" & 6" Downrods Included 1/2" Downrod Diameter

PAT I O FA N S

LIGHT SOURCE

Medium Frosted LED

REMOTE CONTROL OPTIONS

Included

7-1401-0

7-1305-0

Energy Information at High Speed Airflow: 5308 Cubic Feet/Minute Electricity Use: 60 Watts (Excludes Lights) Airflow Efficiency: 88 Cubic Feet/Minute/Watt Visit QuorumInternational.com for DOE Energy Guide

G A LV E S TO N 5 2 " PAT I O

289

Georgia 52" Patio

Wet Location

AVAILABLE FINISH * S U P P L I E D W I T H A 1 / 2 " D I A M E T E R D OW N R O D

174525-995 Old World | Clear Hammered Glass Walnut ABS Blades

Light Kit uses (3) 4.5W, 1500 Lumens, C LED Bulbs (Included)

HEIGHT CHART

MECHANICAL SPECS

Using 4" Downrod ● Distance of 21.75" ● Distance of 10"

172 x 17 Motor Size 4 Speeds-Reversible / Manual Reverse 16 Poles .54/.36/.26/.12 AMPS on H/M/L 60/35/19/8 WATTS on H/M/L 162/109/81/43 RPMS on H/M/L 4 Speed Wall Control Included Remote Control Adaptable w/ Manual Reverse Skirted Blade Arms Light Kit Uses (3) 4.5W C LED Bulbs (Included) UL Wet Listed

GENERAL SPECS

ENERGY SPECS

FAN HEIGHT

Lifetime Motor Warranty Five ABS Blades 52" Blade Sweep 14-Degree Blade Pitch 80" Lead Wire 4" & 6" Downrods Included 1/2" Downrod Diameter

PAT I O FA N S

LIGHT SOURCE

LED Candelabra

REMOTE CONTROL OPTIONS

Included

7-1305-0

7-1401-0

Energy Information at High Speed Airflow: 5135 Cubic Feet/Minute Electricity Use: 60 Watts (Excludes Lights) Airflow Efficiency: 85 Cubic Feet/Minute/Watt Visit QuorumInternational.com for DOE Energy Guide

G EO R G I A 5 2 " PAT I O

291

Medallion 30" Patio

AVAILABLE FINISH

151306-8 Studio White Studio White ABS Blades

HEIGHT CHART

FAN HEIGHT ● Distance of 8" ● Distance of 7.75"

GENERAL SPECS Powder Coated Finish Lifetime Motor Warranty Six ABS Blades 30" Blade Sweep 25-Degree Blade Pitch 8" Lead Wire

PAT I O FA N S

MECHANICAL SPECS 153 x 12 Motor Size 3 Speeds w/ Pull Chain Switch Reversible w/ Manual Reverse Switch 14 Poles .44/.32/.19 AMPS on H/M/L 53/26/9 WATTS on H/M/L 203/146/84 RPMS on H/M/L Triple Capacitor Remote Control Adaptable Detachable Switch Cup Skirted Blade Arms Sealed Vent Holes UL Damp Listed

REMOTE CONTROL OPTIONS

7-1305-0

7-1401-0

BLADE ALTERNATIVES Use outdoor blade type 1-30 - See page 377

ENERGY SPECS Energy Information at High Speed Airflow: 2528 Cubic Feet/Minute Electricity Use: 46 Watts (Excludes Lights) Airflow Efficiency: 54 Cubic Feet/Minute/Watt Visit QuorumInternational.com for DOE Energy Guide

M E DA L L I O N 3 0 " PAT I O

293

Medallion 42" Patio

AVAILABLE FINISHES

151425-95 Old World Walnut ABS Blades

HEIGHT CHART

FAN HEIGHT ● Distance of 8" ● Distance of 7.25"

GENERAL SPECS 2 Finishes Available (Powder Coated) Lifetime Motor Warranty Five ABS Blades 42" Blade Sweep 14-Degree Blade Pitch 8" Lead Wire

PAT I O FA N S

151425-8 Studio White Studio White ABS Blades

MECHANICAL SPECS 153 x 13 Motor Size 3 Speeds w/ Pull Chain Switch Reversible w/ Manual Reverse Switch 14 Poles .42/.31/.19 AMPS on H/M/L 54/25/9 WATTS on H/M/L 240/179/102 RPMS on H/M/L Triple Capacitor Remote Control Adaptable Detachable Switch Cup Skirted Blade Arms Sealed Vent Holes UL Damp Listed

REMOTE CONTROL OPTIONS

7-1305-0

7-1401-0

BLADE ALTERNATIVES Use outdoor blade type 1-42 - See page 378

ENERGY SPECS Energy Information at High Speed Airflow: 2479 Cubic Feet/Minute Electricity Use: 33 Watts (Excludes Lights) Airflow Efficiency: 76 Cubic Feet/Minute/Watt Visit QuorumInternational.com for DOE Energy Guide

M E DA L L I O N 42 " PAT I O

295

Medallion 52" Patio

AVAILABLE FINISHES

151525-95 Old World Walnut ABS Blades

HEIGHT CHART

FAN HEIGHT ● Distance of 7.5" ● Distance of 7.5"

GENERAL SPECS 2 Finishes Available (Powder Coated) Lifetime Motor Warranty Five ABS Blades 52" Blade Sweep 14-Degree Blade Pitch 8" Lead Wire

PAT I O FA N S

151525-8 Studio White Studio White ABS Blades

MECHANICAL SPECS 153 x 15 Motor Size 3 Speeds w/ Pull Chain Switch Reversible w/ Manual Reverse Switch 14 Poles .55/.39/.21 AMPS on H/M/L 66/31/10 WATTS on H/M/L 167/116/62 RPMS on H/M/L Triple Capacitor Remote Control Adaptable Detachable Switch Cup Skirted Blade Arms Sealed Vent Holes UL Damp Listed

REMOTE CONTROL OPTIONS

7-1305-0

7-1401-0

BLADE ALTERNATIVES Use outdoor blade type 1-52 - See page 379

ENERGY SPECS Energy Information at High Speed Airflow: 3912 Cubic Feet/Minute Electricity Use: 53 Watts (Excludes Lights) Airflow Efficiency: 73 Cubic Feet/Minute/Watt Visit QuorumInternational.com for DOE Energy Guide

M E DA L L I O N 5 2 " PAT I O

297

Mira 30" Damp

AVAILABLE FINISH * S U P P L I E D W I T H A 1 / 2 " D I A M E T E R D OW N R O D

32304-69 Textured Black Weathered Gray ABS Blades

Integral 18W, 3000k, 1096 Lumens, 90CRI Dimming LED (Included)

HEIGHT CHART

MECHANICAL SPECS

FAN HEIGHT

153x15 Motor Size 4 Speeds - Reversible 14 Poles .26/.23/.20/.15 AMPS on H/M/M/L 33/25/18/11 WATTS on H/M/M/L 301/274/232/173 RPM on H/M/M/L 4 Speed Wall Control Included Not Remote Control Adaptable

Using 6" downrod ● Distance of 19" ● Distance of 14.5"

GENERAL SPECS Lifetime Motor Warranty Four ABS Blades 30" Blade Sweep 35" Metal Cage 14-Degree Blade Pitch 80" Lead Wire 6" Downrod Included 1/2" Downrod Diameter

PAT I O FA N S

LIGHT SOURCE

LED MODULE

WALL CONTROL

ENERGY SPECS Energy Information at High Speed Airflow: 2286 Cubic Feet/Minute Electricity Use: 32 Watts (Excludes Lights) Airflow Efficiency: 71 Cubic Feet/Minute/Watt Visit QuorumInternational.com for DOE Energy Guide

Included

M I R A 3 0 " DA M P

299

Monaco 52" Patio

Wet Location

AVAILABLE FINISHES * S U P P L I E D W I T H A 1 / 2 " D I A M E T E R D OW N R O D

135525-95 Old World Walnut ABS Blades

135525-65 Satin Nickel Maple ABS Blades

135525-8 Studio White Studio White ABS Blades

HEIGHT CHART

FAN HEIGHT Using 4" Downrod ● Distance of 16.75" ● Distance of 13.5"

GENERAL SPECS 3 Finishes Available (Powder Coated) Lifetime Motor Warranty Five ABS Blades 52" Blade Sweep 14-Degree Blade Pitch 80" Lead Wire 4" & 6" Downrods Included 1/2" Downrod Diameter

PAT I O FA N S

MECHANICAL SPECS 188 x 15 Motor Size 3 Speeds w/ Pull Chain Switch Reversible w/ Manual Reverse Switch 16 Poles .52/.38/.26 AMPS on H/M/L 67/38/18 WATTS on H/M/L 170/120/78 RPMS on H/M/L Triple Capacitor Remote Control Adaptable Detachable Switch Cup Skirted Blade Arms UL Wet Listed

REMOTE CONTROL OPTIONS

7-1305-0

7-1401-0

ENERGY SPECS Energy Information at High Speed Airflow: 5151 Cubic Feet/Minute Electricity Use: 67 Watts (Excludes Lights) Airflow Efficiency: 76 Cubic Feet/Minute/Watt Visit QuorumInternational.com for DOE Energy Guide

M O N AC O 5 2 " PAT I O

301

Niles 64" Patio

Wet Location

AVAILABLE FINISH * S U P P L I E D W I T H A 1 / 2 " D I A M E T E R D OW N R O D

133645-59 Matte Black | Satin Opal Glass Black ABS Blades

Light Kit uses (1) 9W, 3000k, 780 Lumens, 80CRI, LED

HEIGHT CHART

FAN HEIGHT Using 6" Downrod ● Distance of 20.25" ● Distance of 12.25"

GENERAL SPECS Lifetime Motor Warranty Five ABS Blades 64" Blade Sweep 12-Degree Blade Pitch 80" Lead Wire 6" Downrod Included 1/2" Downrod Diameter

PAT I O FA N S

MECHANICAL SPECS

LIGHT SOURCE

188x25 Motor Size 3 Speeds w/ Pull Chain Switch Reversible w/ Manual Reverse Switch 16 Poles .60/.44/.34 AMPS on H/M/L 72/38/21 WATTS on H/M/L 118/84/60 RPMS on H/M/L Triple Capacitor Not Remote Control Adaptable UL Wet Listed

Medium Frosted LED

ENERGY SPECS Energy Information at High Speed Airflow: 6652 Cubic Feet/Minute Electricity Use: 77 Watts (Excludes Lights) Airflow Efficiency: 86 Cubic Feet/Minute/Watt Visit QuorumInternational.com for DOE Energy Guide

N I L E S 6 4" PAT I O

303

Piazza Patio

AVAILABLE FINISHES

94144-86 Oiled Bronze Oiled Bronze ABS Blades

HEIGHT CHART

94144-69 Textured Black Textured Black ABS Blades

GENERAL SPECS 2 Finishes Available Lifetime Motor Warranty Four ABS Blades 14" Blade Sweep 25° Blade Pitch 12" Lead Wire On/Off Switch for Oscillating Function Oscillates 45 Degree

WALL CONTROL

Included

MECHANICAL SPECS FAN HEIGHT ● Extension of 21.5" ● Height of 22.25"

Diameter of 18.5"

PAT I O FA N S

84mm Motor Size 3 Speeds .48/.42/.34 AMPS on H/M/L 56/42/27 WATTS on H/M/L 824/677/501 RPMS on H/M/L Not Remote Control Adaptable ETL Damp listed

P I A Z Z A PAT I O

305

Pinnacle 52" Patio

Wet Location

AVAILABLE FINISHES * S U P P L I E D W I T H A 1 / 2 " D I A M E T E R D OW N R O D

191525-95 Old World Walnut ABS Blades

191525-86 Oiled Bronze Walnut ABS Blades

191525-69 Textured Black Matte Black ABS Blades

191525-8 Studio White Studio White ABS Blades

HEIGHT CHART

FAN HEIGHT Using 4" Downrod ● Distance of 13" ● Distance of 11.25"

GENERAL SPECS 4 Finishes Available (Powder Coated) Lifetime Motor Warranty Five ABS Blades 52" Blade Sweep 16-Degree Blade Pitch 80" Lead Wire 4" & 6" Downrods Included 1/2" Downrod Diameter

PAT I O FA N S

MECHANICAL SPECS 188 x 22 Motor Size.

3 Speeds w/ Pull Chain Switch Reversible w/ Manual Reverse Switch 16 Poles .72/.47/.24 AMPS on H/M/L 83/37/10 WATTS on H/M/L 173/110/54 RPMS on H/M/L Remote Control Adaptable Detachable Switch Cup Skirted Blade Arms Sealed Vent Holes UL Wet Listed

REMOTE CONTROL OPTIONS

7-1305-0

7-1401-0

8-223

BLADE ALTERNATIVES Use outdoor blade type 5-52 - See page 380 Use outdoor blade type 5-56 - See page 383 Use outdoor blade type 5-60 - See page 385

ENERGY SPECS Energy Information at High Speed w/52" Blades Airflow: 6417 Cubic Feet/Minute Electricity Use: 87 Watts (Excludes Lights) Airflow Efficiency: 74 Cubic Feet/Minute/Watt Visit QuorumInternational.com for DOE Energy Guide

P I N N AC L E 5 2 " PAT I O

307

Portico 60" Patio

Wet Location

AVAILABLE FINISHES * S U P P L I E D W I T H A 1 / 2 " D I A M E T E R D OW N R O D

14605-86 Oiled Bronze Weathered Oak ABS Blades

14605-69 Textured Black Walnut ABS Blades

Light Kit Uses (1) 9W, 780 Lumens, M LED Non-Dimming Bulb (Included)

HEIGHT CHART

FAN HEIGHT Using 4" Downrod ● Distance of 19.5" ● Distance of 10.75"

GENERAL SPECS 2 Finishes Available Lifetime Motor Warranty Five ABS Blades 60" Blade Sweep 13.5-Degree Blade Pitch 80" Lead Wire 4" & 6" Downrods Included 1/2" Downrod Diameter

PAT I O FA N S

Light Kit Uses (1) 9W, 780 Lumens, M LED Non-Dimming Bulb (Included)

MECHANICAL SPECS

LIGHT SOURCE

188 x 25 Motor Size 3 Speeds w/ Included Wall Control Reversible w/ Manual Reverse Switch 16 Poles .64/.45/.34 AMPS on H/M/L 75/38/22 WATTS on H/M/L 134/91/70 RPMS on H/M/L Light Kit Uses (1) 14W M 2700k CFL (Included) Bulb Provided is Non-Dimming UL Wet listed

Medium Frosted LED

WALL CONTROL

ENERGY SPECS Energy Information at High Speed Airflow: 6261 Cubic Feet/Minute Electricity Use: 77 Watts (Excludes Lights) Airflow Efficiency: 81 Cubic Feet/Minute/Watt Visit QuorumInternational.com for DOE Energy Guide

Included

P O R T I C O 6 0 " PAT I O

309

Veranda Damp Patio

92413-86 Oiled Bronze Oiled Bronze ABS Blades

AVAILABLE FINISHES

92413-65 Satin Nickel Silver ABS Blades

HEIGHT CHART

92413-59 Matte Black Black ABS Blades

GENERAL SPECS 3 Finishes Available Lifetime Motor Warranty Four ABS Blades 13" Blade Sweep 25° Blade Pitch 12" Lead Wire On/Off Switch for Oscillating Function Oscillates 45 Degrees

WALL CONTROL

Included

MECHANICAL SPECS FAN HEIGHT ● Extension of 18" ● Height of 23"

Diameter of 16"

PAT I O FA N S

153x16 Motor Size 3 Speeds 14 Poles .49/.50/.48 AMPS on H/M/L 60/49/40 WATTS on H/M/L 1299/1107/899 RPMS on H/M/L Not Remote Control Adaptable UL Damp listed

V E R A N DA DA M P PAT I O

311

Windmill 44" Damp

AVAILABLE FINISHES * S U P P L I E D W I T H A 1 / 2 " D I A M E T E R D OW N R O D

194410-9 Galvanized Aluminum Weathered Oak Finished ABS Blades

Optional Light Kit 1975-9 12.75"(w) x 7"(h) - (1) 6W, 2700k, 800 Lumens, 80CRI, Dimming LED (Included) Galvanized | Clear Hammered Glass Light Kit shown on 194410-9 ceiling fan

HEIGHT CHART

FAN HEIGHT Using 6" Downrod ● Distance of 16.5" ● Distance of 11.5"

GENERAL SPECS Lifetime Motor Warranty Ten ABS Blades 44" Blade Sweep 30-Degree Blade Pitch 80" Lead Wire 6" Downrod Included 1/2" Downrod Diameter

PAT I O FA N S

MECHANICAL SPECS DC-125 Motor 6 Speeds-Reversible w/ Wall Control 8 Poles .39/.29/.20/.13/.11/.05 AMPS on H/M/L 32/22/15/10/7/3 WATTS on H/M/L 100/90/80/70/60/50 RPMS on H/M/L Light Kit Adaptable Remote Control Included Not Hugger Adaptable Not Slope Ceiling Kit Adaptable Maximum 25° Slope with Minimum 18" Downrod Maximum Length Optional Downrod 48"

ENERGY SPECS Energy Information at High Speed Airflow: 2574 Cubic Feet/Minute Electricity Use: 26 Watts (Excludes Lights) Airflow Efficiency: 99 Cubic Feet/Minute/Watt Visit QuorumInternational.com for DOE Energy Guide

REMOTE CONTROL

Included

INSTALLATION NOTE Multiple fans installed on the same circuit require individual wall controls and switch legs. The power supply wire from the control to the fans can not be shared.

LIGHT KIT OPTIONS Additional Light Kit options on page 214

INSTALLATION INSTRUCTIONS Visit www.quoruminternational.com/pages/faqs

W I N D M I L L 4 4" DA M P

313

Windmill 52" Damp

AVAILABLE FINISHES * S U P P L I E D W I T H A 1 / 2 " D I A M E T E R D OW N R O D

195210-86 Oiled Bronze ABS Weathered Oak Finished ABS Blades

195210-69 Textured Black ABS Weathered Oak Finished ABS Blades

195210-9 Galvanized ABS Weathered Oak Finished ABS Blades

Optional Light Kit 1902-69 11"(w) x 6.5"(h) - (1) 6W, 2700k, 800 Lumens, 80CRI, Dimming LED (Included) Textured Black | Clear Seeded Glass Light Kit shown on 195210-69 ceiling fan

HEIGHT CHART

FAN HEIGHT Using 6" Downrod ● Distance of 16.5" ● Distance of 11.5"

GENERAL SPECS 3 Finishes Available Lifetime Motor Warranty Ten ABS Blades 52" Blade Sweep 30-Degree Blade Pitch 80" Lead Wire 6" Downrod Included 1/2" Downrod Diameter

PAT I O FA N S

MECHANICAL SPECS DC-165M Motor 6 Speeds-Reversible w/ Wall Control 8 Poles .39/.26/.17/.12/.07/.04 AMPS on H/M/L 32/20/12/9/5/3 WATTS on H/M/L 84/74/64/51/41/31 RPMS on H/M/L Light Kit Adaptable Remote Control Included Not Hugger Adaptable Not Slope Ceiling Kit Adaptable Maximum 25° Slope with Minimum 18" Downrod Maximum Length Optional Downrod 48"

ENERGY SPECS Energy Information at High Speed Airflow: 2881 Cubic Feet/Minute Electricity Use: 26 Watts (Excludes Lights) Airflow Efficiency: 110 Cubic Feet/Minute/Watt Visit QuorumInternational.com for DOE Energy Guide

REMOTE CONTROL

Included

INSTALLATION NOTE Multiple fans installed on the same circuit require individual wall controls and switch legs. The power supply wire from the control to the fans can not be shared.

LIGHT KIT OPTIONS Additional Light Kit options on page 214

INSTALLATION INSTRUCTIONS Visit www.quoruminternational.com/pages/faqs

W I N D M I L L 5 2 " DA M P

315

Windmill 60" Damp

AVAILABLE FINISHES * S U P P L I E D W I T H A 1 / 2 " D I A M E T E R D OW N R O D

196015-86 Oiled Bronze ABS Weathered Oak Finished ABS Blades

196015-69 Textured Black ABS Weathered Oak Finished ABS Blades

196015-9 Galvanized ABS Weathered Oak Finished ABS Blades

Optional Light Kit 1974-69 9.75"(w) x 6.5"(h) - (1) 6W, 2700k, 800 Lumens, 80CRI, Dimming LED (Included) Textured Black | Clear Hammered Glass Light Kit shown on 196015-69 ceiling fan

HEIGHT CHART

FAN HEIGHT Using 6" Downrod ● Distance of 16.5" ● Distance of 11.5"

GENERAL SPECS 3 Finishes Available Lifetime Motor Warranty Fifteen ABS Blades 60" Blade Sweep 30-Degree Blade Pitch 80" Lead Wire 6" Downrod Included 1/2" Downrod Diameter

PAT I O FA N S

MECHANICAL SPECS DC-165L Motor 6 Speeds-Reversible w/ Wall Control 8 Poles .42/.27/.21/.17/.11/.08 AMPS on H/M/L 30/19/14/11/7/5 WATTS on H/M/L 65/53/47/41/37/33 RPMS on H/M/L Light Kit Adaptable Remote Control Included Not Hugger Adaptable Not Slope Ceiling Kit Adaptable Maximum 25° Slope with Minimum 18" Downrod Maximum Length Optional Downrod 48"

ENERGY SPECS Energy Information at High Speed Airflow: 3472 Cubic Feet/Minute Electricity Use: 33 Watts (Excludes Lights) Airflow Efficiency: 105 Cubic Feet/Minute/Watt Visit QuorumInternational.com for DOE Energy Guide

REMOTE CONTROL

Included

INSTALLATION NOTE Multiple fans installed on the same circuit require individual wall controls and switch legs. The power supply wire from the control to the fans can not be shared.

LIGHT KIT OPTIONS Additional Light Kit options on page 214

INSTALLATION INSTRUCTIONS Visit www.quoruminternational.com/pages/faqs

W I N D M I L L 6 0 " DA M P

317

Windmill 72" Damp

AVAILABLE FINISHES * S U P P L I E D W I T H A 1 / 2 " D I A M E T E R D OW N R O D

197215-86 Oiled Bronze ABS Weathered Oak Finished ABS Blades

197215-69 Textured Black ABS Weathered Oak Finished ABS Blades

197215-9 Galvanized ABS Weathered Oak Finished ABS Blades

Optional Light Kit 1905-69 11"(w) x 6.5"(h) - (3) 6W, 2700k, 2400 Lumens, 80CRI, Dimming LED (Included) Textured Black Light Kit shown on 197215-69 ceiling fan

HEIGHT CHART

FAN HEIGHT Using 6" Downrod ● Distance of 16.5" ● Distance of 11.5"

GENERAL SPECS 3 Finishes Available Lifetime Motor Warranty Fifteen ABS Blades 72" Blade Sweep 30-Degree Blade Pitch 80" Lead Wire 6" Downrod Included 1/2" Downrod Diameter

PAT I O FA N S

MECHANICAL SPECS DC-165L Motor 6 Speeds-Reversible w/ Wall Control 8 Poles .47/.33/.24/.17/.11/.07 AMPS on H/M/L 34/25/16/12/8/5 WATTS on H/M/L 43/38/35/31/27/23 RPMS on H/M/L Light Kit Adaptable Remote Control Included Not Hugger Adaptable Not Slope Ceiling Kit Adaptable Maximum 25° Slope with Minimum 18" Downrod Maximum Length Optional Downrod 48"

ENERGY SPECS Energy Information at High Speed Airflow: 2826 Cubic Feet/Minute Electricity Use: 37 Watts (Excludes Lights) Airflow Efficiency: 76 Cubic Feet/Minute/Watt Visit QuorumInternational.com for DOE Energy Guide

REMOTE CONTROL

Included

INSTALLATION NOTE Multiple fans installed on the same circuit require individual wall controls and switch legs. The power supply wire from the control to the fans can not be shared.

LIGHT KIT OPTIONS Additional Light Kit options on page 214

INSTALLATION INSTRUCTIONS Visit www.quoruminternational.com/pages/faqs

W I N D M I L L 7 2 " DA M P

319

Outdoor spaces can be just as inviting as indoors with our Main Street by Quorum designs. This collection offers an affordable alternative to higher prices without sacrificing the exceptional workmanship that Quorum fans are famous for.

PAT I O FA N S

M A I N S T R E E T BY Q U O R U M

321

Aerovon 52" Industrial Fan

AVAILABLE FINISHES * S U P P L I E D W I T H A 1 / 2 " D I A M E T E R D OW N R O D

60523-65 Satin Nickel Silver ABS Blades

60523-59 Matte Black Matte Black ABS Blades

HEIGHT CHART

FAN HEIGHT Using 4" Downrod ● Distance of 9.5" ● Distance of 8"

GENERAL SPECS 3 Finishes Available Limited Lifetime Motor Warranty Three ABS Blades 22-Degree Blade Pitch 80" Lead Wire 4" & 6" Downrods Included 1/2" Downrod Diameter

PAT I O FA N S

60523-8 Studio White Studio White ABS Blades

MECHANICAL SPECS

WALL CONTROL

153 x 15 Motor Size 4 Speeds w/ Wall Control Forward Speed Only - Non-Reversible .34/.29/.23/.18 AMPS on H/M/L 41/30/19/11 WATTS on H/M/L 175/145/116/85 RPMS on H/M/L 4 Speed Wall Control Included Not Remote Control Adaptable Not Light Kit Adaptable UL Damp Listed

Included

ENERGY SPECS Energy Information at High Speed Airflow: 3937 Cubic Feet/Minute Electricity Use: 39 Watts (Excludes Lights) Airflow Efficiency: 100 Cubic Feet/Minute/Watt Visit QuorumInternational.com for DOE Energy Guide

A E R OVO N 5 2 " I N D U S T R I A L FA N

323

Aerovon 60" Industrial Fan

AVAILABLE FINISHES * S U P P L I E D W I T H A 1 / 2 " D I A M E T E R D OW N R O D

60603-65 Satin Nickel Silver ABS Blades

60603-59 Matte Black Matte Black ABS Blades

60603-8 Studio White Studio White ABS Blades

HEIGHT CHART

MECHANICAL SPECS

Using 6" Downrod ● Distance of 15.5" ● Distance of 11.25"

172 x 20 Motor Size 4 Speeds w/ Wall Control 16 Poles Forward Speed Only - Non-Reversible .38/.30/.23/.17 AMPS on H/M/L 45/29/17/9 WATTS on H/M/L 142/110/83/58 RPMS on H/M/L 4 Speed Wall Control Included Not Remote Control Adaptable Not Light Kit Adaptable UL Damp Listed

GENERAL SPECS

ENERGY SPECS

FAN HEIGHT

3 Finishes Available Limited Lifetime Motor Warranty Three ABS Blades 60" Blade Sweep 22-Degree Blade Pitch 80" Lead Wire 6" Downrod Included 1/2" Downrod Diameter

PAT I O FA N S

WALL CONTROL

Included

Energy Information at High Speed Airflow: 4961 Cubic Feet/Minute Electricity Use: 43 Watts (Excludes Lights) Airflow Efficiency: 115 Cubic Feet/Minute/Watt Visit QuorumInternational.com for DOE Energy Guide

A E R OVO N 6 0 " I N D U S T R I A L FA N

325

Allure All-Weather 52" Patio

Wet Location

AVAILABLE FINISHES * S U P P L I E D W I T H A 1 / 2 " D I A M E T E R D OW N R O D

146525-86 Oiled Bronze Walnut ABS Blades

146525-69 Textured Black Matte Black ABS Blades

146525-6 Gloss White White ABS Blades

HEIGHT CHART

FAN HEIGHT Using 4" Downrod ● Distance of 13.25" ● Distance of 10.5"

GENERAL SPECS 3 Finishes Available (Powder Coated) Lifetime Motor Warranty Five ABS Blades 52" Blade Sweep 80" Lead Wire 13.5-Degree Blade Pitch 4" & 6" Aluminum Downrods Included 1/2" Downrod Diameter

PAT I O FA N S

MECHANICAL SPECS 153x16 Motor Size 3 Speeds w/ Pull Chain Switch Reversible w/ Manual Reverse Switch 14 Poles .50/.36/.21 AMPS on H/M/L 64/33/12 WATTS on H/M/L 154/110/60 RPMS on H/M/L ABS Housing, Canopy, and Blades Remote Control Adaptable w/Manual Reverse UL Wet Listed

REMOTE CONTROL OPTIONS

7-1305-0

7-501-0

7-1401-0

8-223

BLADE ALTERNATIVES Use outdoor blade type 1-52 - See page 379

ENERGY SPECS Energy Information at High Speed Airflow: 4787 Cubic Feet/Minute Electricity Use: 63 Watts (Excludes Lights) Airflow Efficiency: 75 Cubic Feet/Minute/Watt Visit QuorumInternational.com for DOE Energy Guide

A L LU R E A L L-W E AT H E R 5 2 " PAT I O

327

Breeze 52" Patio

Wet Location

AVAILABLE FINISHES * S U P P L I E D W I T H A 1 / 2 " D I A M E T E R D OW N R O D

17052-86 Oiled Bronze Oiled Bronze ABS Blades

17052-65 Satin Nickel Silver ABS Blades

HEIGHT CHART

FAN HEIGHT Using 4" Downrod ● Distance of 12.25" ● Distance of 10.25"

GENERAL SPECS 4 Finishes Available Lifetime Motor Warranty Five ABS Blades 52" Blade Sweep 12-Degree Blade Pitch 80" Lead Wire 4" & 6" Downrods Included 1/2" Downrod Diameter

PAT I O FA N S

17052-69 Textured Black Weathered Oak ABS Blades

17052-8 Studio White Studio White ABS Blades

Optional Black ABS Blades 5255959379 Shown on 17052-69 Ceiling Fan

MECHANICAL SPECS

REMOTE CONTROL OPTIONS

153 x 15 Motor Size 3 Speeds w/ Pull Chain Switch Reversible w/ Manual Reverse Switch 14 Poles .46/.33/.21 AMPS on H/M/L 55/29/11 WATTS on H/M/L 167/115/74 RPMS on H/M/L Detachable Switch Cup Triple Capacitor Light Kit Adaptable Remote Control Adaptable Skirted Blade Arms UL Wet Listed

7-1305-0

7-501-0

8-223

BLADE ALTERNATIVES Use outdoor blade type 9-52 - See page 381

ENERGY SPECS Energy Information at High Speed Airflow: 4690 Cubic Feet/Minute Electricity Use: 52 Watts (Excludes Lights) Airflow Efficiency: 90 Cubic Feet/Minute/Watt Visit QuorumInternational.com for DOE Energy Guide

B R E E Z E 5 2 " PAT I O

329

Breeze 52" 2 Light Uni-Pack Patio

Wet Location

AVAILABLE FINISHES * S U P P L I E D W I T H A 1 / 2 " D I A M E T E R D OW N R O D

170525-86 Oiled Bronze | Clear Seeded Glass Oiled Bronze ABS Blades

Light Kit uses (2) 6W M, 2700k, 1600 Lumens, 80CRI, Non-Dimming LED (Included)

170525-65 Satin Nickel | Clear Seeded Glass Silver ABS Blades

Light Kit uses (2) 6W M, 2700k, 1600 Lumens, 80CRI, Non-Dimming LED (Included)

HEIGHT CHART

FAN HEIGHT Using 4" Downrod ● Distance of 16.5" ● Distance of 10.25"

GENERAL SPECS 5 Finishes Available Lifetime Motor Warranty Five ABS Blades 52" Blade Sweep 12-Degree Blade Pitch 80" Lead Wire 4" & 6" Downrods Included 1/2" Downrod Diameter

PAT I O FA N S

170525-69 Textured Black | Clear Seeded Glass Weathered Oak ABS Blades

Light Kit uses (2) 6W M, 2700k, 1600 Lumens, 80CRI, Non-Dimming LED (Included)

170525-59 Matte Black | Clear Seeded Glass Black ABS Blades

170525-8 Studio White | Clear Seeded Glass Studio White ABS Blades

MECHANICAL SPECS

LIGHT SOURCE

Light Kit uses (2) 6W M, 2700k, 1600 Lumens, 80CRI, Non-Dimming LED (Included)

153 x 15 Motor Size 3 Speeds w/ Pull Chain Switch Reversible w/ Manual Reverse Switch 14 Poles .46/.33/.21 AMPS on H/M/L 55/29/11 WATTS on H/M/L 167/115/74 RPMS on H/M/L Detachable Switch Cup Triple Capacitor Remote Control Adaptable Skirted Blade Arms UL Wet Listed

ENERGY SPECS Energy Information at High Speed Airflow: 4499 Cubic Feet/Minute Electricity Use: 51 Watts (Excludes Lights) Airflow Efficiency: 87 Cubic Feet/Minute/Watt Visit QuorumInternational.com for DOE Energy Guide

Light Kit uses (2) 6W M, 2700k, 1600 Lumens, 80CRI, Non-Dimming LED (Included)

Medium Clear LED

REMOTE CONTROL OPTIONS

7-1305-0

7-501-0

8-223

BLADE ALTERNATIVES Use outdoor blade type 9-52 - See page 381

B R E E Z E 5 2 " 2 L I G H T U N I - PAC K PAT I O

331

Breeze 52" Patio Plus

Wet Location

AVAILABLE FINISHES * S U P P L I E D W I T H A 1 / 2 " D I A M E T E R D OW N R O D

17052-186 Oiled Bronze | Satin Opal Glass Oiled Bronze ABS Blades

17052-165 Satin Nickel | Satin Opal Glass Silver ABS Blades

17052-159 Matte Black | Satin Opal Glass Black ABS Blades

17052-108 Studio White | Satin Opal Glass Studio White ABS Blades

Light Kit uses (1) 18W M, 3000k, 1471 Lumens, 90CRI, Dimmable LED (Included)

Light Kit uses (1) 18W M, 3000k, 1471 Lumens, 90CRI, Dimmable LED (Included)

HEIGHT CHART

FAN HEIGHT Using 4" Downrod ● Distance of 14.5" ● Distance of 10.25"

GENERAL SPECS 4 Finishes Available Lifetime Motor Warranty Five ABS Blades 52" Blade Sweep 12-Degree Blade Pitch 80" Lead Wire 4" & 6" Downrods Included 1/2" Downrod Diameter

PAT I O FA N S

Light Kit uses (1) 18W M, 3000k, 1471 Lumens, 90CRI, Dimmable LED (Included)

Light Kit uses (1) 18W M, 3000k, 1471 Lumens, 90CRI, Dimmable LED (Included)

MECHANICAL SPECS 153 x 15 Motor Size 3 Speeds w/ Pull Chain Switch Reversible w/ Manual Reverse Switch 14 Poles .46/.32/.23 AMPS on H/M/L 58/24/14 WATTS on H/M/L 165/107/68 RPMS on H/M/L Detachable Switch Cup Triple Capacitor Remote Control Adaptable Skirted Blade Arms UL Wet Listed

ENERGY SPECS Energy Information at High Speed Airflow: 4382 Cubic Feet/Minute Electricity Use: 52 Watts (Excludes Lights) Airflow Efficiency: 84 Cubic Feet/Minute/Watt Visit QuorumInternational.com for DOE Energy Guide

LIGHT SOURCE

LED Array

REMOTE CONTROL OPTIONS

7-1305-0

7-501-0

8-223

BLADE ALTERNATIVES Use outdoor blade type 9-52 - See page 381

B R E E Z E 5 2 " PAT I O P LU S

333

Breeze 60" 2 Light Uni-Pack Patio

Wet Location

AVAILABLE FINISHES * S U P P L I E D W I T H A 1 / 2 " D I A M E T E R D OW N R O D

170605-86 Oiled Bronze | Clear Seeded Glass Oiled Bronze ABS Blades

Light Kit uses (2) 6W M, 2700k, 1000 Lumens, 80CRI, Non-Dimming LED (Included)

170605-69 Textured Black | Clear Seeded Glass Matte Black ABS Blades

Light Kit uses (2) 6W M, 2700k, 1000 Lumens, 80CRI, Non-Dimming LED (Included)

170605-8 Studio White | Clear Seeded Glass Studio White ABS Blades

Light Kit uses (2) 6W M, 2700k, 1000 Lumens, 80CRI, Non-Dimming LED (Included)

HEIGHT CHART

FAN HEIGHT Using 6" Downrod ● Distance of 18.75" ● Distance of 12.25"

GENERAL SPECS 3 Finishes Available Lifetime Motor Warranty Five ABS Blades 60" Blade Sweep 12-Degree Blade Pitch 80" Lead Wire 6" Downrod Included 1/2" Downrod Diameter

PAT I O FA N S

MECHANICAL SPECS 188 x 25 Motor Size 3 Speeds w/ Pull Chain Switch Reversible w/ Manual Reverse Switch 14 Poles .59/.42/.26 AMPS on H/M/L 71/38/14 WATTS on H/M/L 136/97/52 RPMS on H/M/L Detachable Switch Cup Triple Capacitor Remote Control Adaptable Skirted Blade Arms UL Wet Listed

ENERGY SPECS Energy Information at High Speed Airflow: 6042 Cubic Feet/Minute Electricity Use: 71 Watts (Excludes Lights) Airflow Efficiency: 85 Cubic Feet/Minute/Watt Visit QuorumInternational.com for DOE Energy Guide

LIGHT SOURCE

Medium Clear LED

REMOTE CONTROL OPTION

7-1305-0

7-501-0

8-223

B R E E Z E 6 0 " 2 L I G H T U N I - PAC K PAT I O

335

Impulse Damp Patio

AVAILABLE FINISH

93203-59 Matte Black Black ABS Blades

HEIGHT CHART

GENERAL SPECS Lifetime Motor Warranty Three ABS Blades 21" Blade Sweep 14° Blade Pitch 12" Lead Wire On/Off Oscillating Function w/ Pull Chain Oscillates 45 Degrees Provided with Optional 9.5' Power Cord with Plug Fan Cage at 15° Tilt Angle Fan Cage can Adjust to 30° or 45° Tilt Angle

FAN HEIGHT

MECHANICAL SPECS

● Extension of 19.25"

84mm Motor Size 3 Speeds w/ Pull Chain 14 Poles .40/.31/.25 AMPS on H/M/L 47/37/29 WATTS on H/M/L 620/475/360 RPMS on H/M/L Not Remote Control Adaptable UL Damp listed

● Height of 26.5"

Diameter of 24"

PAT I O FA N S

I M P U L S E DA M P PAT I O

337

Mod 60" Damp

AVAILABLE FINISHES * S U P P L I E D W I T H A 1 / 2 " D I A M E T E R D OW N R O D

Optional Light Kit 1905-69 14"(w) x 5.5"(h) - (3) 6W M, 2700k, 2400 Lumens, 80CRI, Dimming LED (Included) Textured Black

30608-59 Matte Black Weathered Gray ABS Blades

Light kit shown on 30608-59 ceiling fan

HEIGHT CHART

FAN HEIGHT Using 6" Downrod ● Distance of 15.75" ● Distance of 14.125"

GENERAL SPECS 2 Finishes Available Lifetime Motor Warranty Eight ABS Blades 60" Blade Sweep 13-Degree Blade Pitch 80" Lead Wire 6" Downrod Included 1/2" Downrod Diameter

PAT I O FA N S

MECHANICAL SPECS DC153 DC Motor 6 Speeds-Reversible 8 Poles .41/.30/.21/.13/.09/.06 AMPS on H/M/L 32/22/15/9/6/4 WATTS on H/M/L 115/103/88/75/64/51 RPMS on H/M/L Not Remote Control Adaptable Detachable Switch Cup UL Damp Listed

ENERGY SPECS Energy Information at High Speed Airflow: 8316 Cubic Feet/Minute Electricity Use: 32 Watts (Excludes Lights) Airflow Efficiency: 259 Cubic Feet/Minute/Watt Visit QuorumInternational.com for DOE Energy Guide

REMOTE CONTROL OPTIONS

Included (4 DIP Switches)

8-1400

LIGHT KIT OPTIONS Additional Light Kit options on page 216

M O D 6 0 " DA M P

339

Mod 72" Damp

AVAILABLE FINISHES * S U P P L I E D W I T H A 1 / 2 " D I A M E T E R D OW N R O D

30728-59 Matte Black Weathered Gray ABS Blades

Optional Light Kit 1905-69 14"(w) x 5.5"(h) - (3) 6W M, 2700k, 2400 Lumens, 80CRI, Dimming LED (Included) Textured Black Light kit shown on 30728-59 ceiling fan

HEIGHT CHART

FAN HEIGHT Using 6" Downrod ● Distance of 15.75" ● Distance of 14.125"

GENERAL SPECS Lifetime Motor Warranty Eight ABS Blades 60" Blade Sweep 13-Degree Blade Pitch 80" Lead Wire 6" Downrod Included 1/2" Downrod Diameter

PAT I O FA N S

MECHANICAL SPECS DC168 DC Motor 6 Speeds-Reversible 8 Poles .42/.35/.25/.19/.13/.09 AMPS on H/M/L 32/25/19/13/9/7 WATTS on H/M/L 88/83/75/67/59/51 RPMS on H/M/L Not Remote Control Adaptable Detachable Switch Cup UL Damp Listed

ENERGY SPECS Energy Information at High Speed Airflow: 9936 Cubic Feet/Minute Electricity Use: 31 Watts (Excludes Lights) Airflow Efficiency: 320 Cubic Feet/Minute/Watt Visit QuorumInternational.com for DOE Energy Guide

REMOTE CONTROL OPTIONS

Included (4 DIP Switches)

8-1400

LIGHT KIT OPTIONS Additional Light Kit options on page 216

M O D 7 2 " DA M P

341

Ovation 52" Patio

Wet Location

AVAILABLE FINISHES * S U P P L I E D W I T H A 1 / 2 " D I A M E T E R D OW N R O D

1452-86 Oiled Bronze Oiled Bronze ABS Blades

1452-59 Matte Black Matte Black ABS Blades

HEIGHT CHART

FAN HEIGHT Using 4" Downrod ● Distance of 13.25" ● Distance of 11"

GENERAL SPECS 3 Finishes Available Lifetime Motor Warranty Five ABS Blades 52" Blade Sweep 11-Degree Blade Pitch 80" Lead Wire 4" Downrod Included 1/2" Downrod Diameter

PAT I O FA N S

1452-8 Studio White Studio White ABS Blades

MECHANICAL SPECS 153 x 13 Motor Size 3 Speeds w/ Pull Chain Switch Reversible w/ Manual Reverse Switch 16 Poles .50/.35/.22 AMPS on H/M/L 59/26/11 WATTS on H/M/L 177/125/76 RPMS on H/M/L Detachable Switch Cup Triple Capacitor Remote Control Adaptable

REMOTE CONTROL OPTION

7-501-0

8-223

ENERGY SPECS Energy Information at High Speed Airflow: 4866 Cubic Feet/Minute Electricity Use: 58 Watts (Excludes Lights) Airflow Efficiency: 83 Cubic Feet/Minute/Watt Visit QuorumInternational.com for DOE Energy Guide

OVAT I O N 5 2 " PAT I O

343

Ovation 52" 2 Light Uni-Pack Patio

Wet Location

AVAILABLE FINISHES * S U P P L I E D W I T H A 1 / 2 " D I A M E T E R D OW N R O D

14525-86 Oiled Bronze | Clear Hammered Glass Oiled Bronze ABS Blades

14525-65 Satin Nickel | Clear Hammered Glass Silver ABS Blades

14525-59 Matte Black | Clear Hammered Glass Matte Black ABS Blades

14525-8 Studio White | Clear Hammered Glass Studio White ABS Blades

Light Kit uses (2) 7W, 3000k, 1600 Lumens, 80CRI, Non-Dimming LED (Included)

Light Kit uses (2) 7W, 3000k, 1600 Lumens, 80CRI, Non-Dimming LED (Included)

HEIGHT CHART

Light Kit uses (2) 7W, 3000k, 1600 Lumens, 80CRI, Non-Dimming LED (Included)

Light Kit uses (2) 7W, 3000k, 1600 Lumens, 80CRI, Non-Dimming LED (Included)

MECHANICAL SPECS

Using 4" Downrod ● Distance of 17.75" ● Distance of 11"

153 x 13 Motor Size 3 Speeds w/ Pull Chain Switch Reversible w/ Manual Reverse Switch 16 Poles .50/.35/.22 AMPS on H/M/L 60/26/10 WATTS on H/M/L 178/125/77 RPMS on H/M/L Detachable Switch Cup Triple Capacitor Remote Control Adaptable w/ Manual Reverse LED Kit Included

GENERAL SPECS

ENERGY SPECS

FAN HEIGHT

4 Finishes Available Lifetime Motor Warranty Five ABS Blades 52" Blade Sweep 11-Degree Blade Pitch 80" Lead Wire 4" Downrod Included 1/2" Downrod Diameter

PAT I O FA N S

Energy Information at High Speed Airflow: 4972 Cubic Feet/Minute Electricity Use: 58 Watts (Excludes Lights) Airflow Efficiency: 86 Cubic Feet/Minute/Watt Visit QuorumInternational.com for DOE Energy Guide

LIGHT SOURCE

Medium Clear LED

REMOTE CONTROL OPTION

7-501-0

8-223

OVAT I O N 5 2 " 2 L I G H T U N I - PAC K PAT I O

345

PATIO FAN LIGHT KITS

Choose from dozens of light kit styles to complement your patio ceiling fan.

Each is built to last and ready for whatever Mother Nature throws at it.

PAT I O FA N L I G H T K I T S

347

Wet Location

1374-809* (shown) 9.75"(w) x 6.5"(h) - (1) 9W M, 3000k, 800 Lumens, 80CRI, Non-Dimming LED Bulb (Included) Galvanized | Clear Hammered Glass

Wet Location

1375-895* (shown) 12.75"(w) x 7"(h) - (1) 9W M, 3000k, 800 Lumens, 80CRI, Non-Dimming LED Bulb (Included) Old World | Clear Hammered Glass Additional Finish:

1375-886* Oiled Bronze Clear Hammered Glass

Additional Finishes:

1374-895* Old World Clear Hammered Glass

1374-886* Oiled Bronze Clear Hammered Glass

1374-859* Matte Black Clear Hammered Glass

1374-806* Gloss White Clear Hammered Glass

1456-59 Matte Black Satin Opal Glass

1456-8 Studio White Satin Opal Glass

Wet Location

1456-65* (shown) 10"(w) x 3.5"(h) - (1) 18W, 3000k, 1471 Lumens, 90CRI, 120V LED (Included) Satin Nickel | Satin Opal Glass Additional Finishes:

1456-86 Oiled Bronze Satin Opal Glass

1456-80 Aged Brass Satin Opal Glass

* Bulbs included. All items comply with 2005 Energy Policy Act.

Wet Location

1370-65 (shown) 8"(w) x 4.25"(h) - (2) 7W M, 3000k, 1600 Lumens, 80CRI, Non-Dimming LED Bulb (Included) Satin Nickel | Clear Seeded Glass Additional Finishes:

1370-86 Oiled Bronze Clear Seeded Glass

1370-69 Textured Black Clear Seeded Glass

1370-8 Studio White Clear Seeded Glass

Wet Location

1376-895* 13"(w) x 9.25"(h) - (1) 7W, 3000k, 800 Lumens, 80CRI, Non-Dimming LED Bulb (Included) Old World | Clear Hammered Glass * Bulbs included. All items comply with 2005 Energy Policy Act.

PAT I O FA N L I G H T K I T S

349

2314-65* (shown) 16"(w) x 7"(h) - (3) 6W M, 2700k, 2400 Lumens, 80CRI, Non-Dimming LED Bulb (Included) Satin Nickel Additional Finishes:

2314-86* Oiled Bronze

2314-8* Studio White

Wet Location

1377-886* (shown) 10"(w) x 6"(h) - (1) 9W M, 3000k, 780 Lumens, 80CRI, Non-Dimming LED Bulb (Included) Oiled Bronze | Amber Scavo Glass Additional Finishes:

1377-895* Old World Satin Opal Glass

1377-867* Antique White Satin Opal Glass

1377-859* Matte Black Satin Opal Glass

1377-806* Gloss White Satin Opal Glass

* Bulbs included. All items comply with 2005 Energy Policy Act.

1011-959* (shown) 8.125"(w) x 4"(h) - (1) 18W, 3000k, 1520 Lumens, 90CRI Dimmable LED Module Matte Black | Satin Opal Glass Additional Finishes:

1011-980* Aged Brass Satin Opal Glass

1011-965* Satin Nickel Satin Opal Glass

1011-908* Studio White Satin Opal Glass

1011-906* White Satin Opal Glass

Wet Location

4106-806* (shown) 4.25"(w) x 2.25"(h) - (1) 9W M, 3000k, 780 Lumens, 80CRI, Non-Dimming LED Bulb (Included) Gloss White Additional Finishes: Wet Location

4106-8095* Old Word

4106-8044* Toasted Sienna

* Bulbs included. All items comply with 2005 Energy Policy Act.

1395-808* (shown) 13.75"(w) x 5.5"(h) - (2) 9W M, 3000k, 1560 Lumens, 80CRI, Non-Dimming LED Bulb (Included) Studio White | Faux Alabaster Glass PAT I O FA N L I G H T K I T S

351

GLASS SELECTIO

NS The right glass can make all the difference when choosing a light for your ceiling fan. That’s why we offer many varieties of glass colors, shapes and sizes designed to enhance the beauty and style of your Quorum ceiling fan.

G L A S S S E L EC T I O N S

353

Light Kit Glass

2104 5"(w) x 4.75"(h) Clear Hammered

2520H 5"(w) x 5"(h) Satin Opal

2292 4.5"(w) x 4.75"(h) Frost Ribbed

2531 4.25"(w) x 4.75"(h) Clear Ribbed

2705 4.25"(w) x 5"(h) Clear Seeded

2743 4.25"(w) x 5.25"(h) Clear

2747 4.25"(w) x 5"(h) Silver Mercury

2752 5"(w) x 5.25"(h) Clear Seeded

2756 5"(w) x 5.25"(h) Clear

2801 5"(w) x 5.25"(h) Clear Seeded

2807 4.75"(w) x 4.5"(h) Clear Crackle

2812 5.5"(w) x 5"(h) Faux Alabaster

2812E 5.5"(w) x 5"(h) Cream Mottled Scavo

2814 5.5"(w) x 5"(h) Faux Brown Alabaster

2840 5.5"(w) x 4.75"(h) Amber Scavo

2843 4.25"(w) x 5.25"(h) Amber Scavo

2900 5.5"(w) x 4.5"(h) Clear Seeded

2915 5.5"(w) x 5.25"(h) Faux Alabaster

2943 4.25"(w) x 5.25"(h) Faux Alabaster

2943H 4.25"(w) x 5.25"(h) Satin Opal

4100 8"(w) x 6"(h) Opal

LIGHT KIT GLASS

355

ACCESSO SELECTIO Remote controls, down rods, conversion kits, ceiling adapters, wall controls and custom blade options are just a few of the fan accessories you can choose from for your Quorum ceiling fan. Our accessories are designed to make installing and using your fan as easy and convenient as possible.

RY NS AC C E S S O RY S E L EC T I O N S

357

Blade Alternatives CUSTOMIZE YOUR NEW QUORUM FAN: Step 1: Find the blade type for the fan you have selected.

NOTE: Blade type is found in your fan’s specifications table under "Blade Alternative".

Not all fans offer blade alternatives.

Step 2: Select your new blade set from those available for your fan.

Step 3: Order your fan WITH the alternative blade item number.

Example: 43525-86 w/ 5252020721

HOW BLADE NUMBERS WORK (in general): 52

5

blade span

56 side A finish

# blades

50

1

2

indoor/ outdoor side B finish

1 blade type

blade tip

CONTENTS Indoor Blade Types .................... 358 Blade Type 1 - 30 .................. 359 Blade Type 1 - 42 .................. 360 Blade Type 1 - 52 .................. 362 Blade Type 4 - 52 .................. 366 Blade Type 5 - 52 .................. 367 Blade Type 8 - 52 .................. 369 Blade Type 9 - 52 .................. 370 Blade Type 3 - 56 .................. 371 Blade Type 5 - 56 .................. 372 Blade Type 3 - 60 .................. 373 Blade Type 5 - 60 .................. 374 Blade Type 8 - 60 .................. 375 Blade Type 9 - 60 .................. 376 Outdoor Blade Types ................. 377 Blade Type 1 - 30 .................. 377 Blade Type 1 - 42 .................. 378 Blade Type 1 - 52 .................. 379 Blade Type 5 - 52 .................. 380 Blade Type 9 - 52 .................. 381 Blade Type 3 - 56 .................. 382 Blade Type 5 - 56 .................. 383 Blade Type 3 - 60 .................. 384 Blade Type 5 - 60 .................. 385

BLADE TYPE 1 - 30 INDOOR Blade type 1 - 30 indoor allows you to customize your indoor fan to a variety of blade finishes.

All blades are 6 count with a 30" sweep.

Alternative Blades For:

Estate 30 - 43306-XX

Medallion 30 - 51306-XX

3060606121 White Blade Tip - Semi-Square

3065524121 Rosewood | Walnut Blade Tip - Semi-Square

3060808121 Studio White Blade Tip - Semi-Square

3065942121 Matte Black | Weathered Grey Blade Tip - Semi-Square

3066524121 Silver | Walnut Blade Tip - Semi-Square

3068624121 Oiled Bronze | Walnut Blade Tip - Semi-Square

AC C E S S O R I E S

359

BLADE TYPE 1 - 42 INDOOR Blade type 1 - 42 indoor allows you to customize your indoor fan to a variety of blade finishes.

All blades are 5 count with a 42" sweep.

Alternative Blades For:

Custom Hugger 42 - 11425-XX

Estate 42 - 43425-XX

Medallion 42 - 51425-XX

4250606111 White Blade Tip - Pointed

4255524111 Rosewood | Walnut Blade Tip - Pointed

4250606121 White Blade Tip - Semi-Square

4255524121 Rosewood | Walnut Blade Tip - Semi-Square

4252222121 Cherry Blade Tip - Semi-Square

4255650111 Dark Oak | Medium Oak Blade Tip - Pointed

4254545121 Old Pine Blade Tip - Semi-Square

4255650121 Dark Oak | Medium Oak Blade Tip - Semi-Square

4254608121 Maple | Studio White Blade Tip - Semi-Square

4256524111 Silver | Walnut Blade Tip - Pointed

4256524121 Silver | Walnut Blade Tip - Semi-Square

4256565121 Silver Blade Tip - Semi-Square

4256767121 Antique White Blade Tip - Semi-Square

4258624121 Oiled Bronze | Walnut Blade Tip - Semi-Square

AC C E S S O R I E S

361

BLADE TYPE 1 - 52 INDOOR Blade type 1 - 52 indoor allows you to customize your indoor fan to a variety of blade finishes.

All blades are 5 count with a 52" sweep.

Alternative Blades For:

Custom Hugger 52 - 11525-XX

Estate 52 - 43525-XX

Medallion 52 - 51525-XX

5250606111 White Blade Tip - Pointed

5254141121 Weathered Oak Blade Tip - Semi-Square

5250808111 Studio White Blade Tip - Pointed

5254424111 Toasted Sienna | Walnut Blade Tip - Pointed

5250606121 White Blade Tip - Semi-Square

5254545111 Old Pine Blade Tip - Pointed

5250808121 Studio White Blade Tip - Semi-Square

5254545121 Old Pine Blade Tip - Semi-Square

5252020821 Vintage Walnut Distressed Blade Tip - Semi-Square

5254608111 Maple | Studio White Blade Tip - Pointed

5254608121 Maple | Studio White Blade Tip - Semi-Square

5255524121 Rosewood | Walnut Blade Tip - Semi-Square

5254747821 Weathered Pine Distressed Blade Tip - Semi-Square

5255624111 Dark Oak | Walnut Blade Tip - Pointed

5255024111 Medium Oak | Walnut Blade Tip - Pointed

5255624121 Dark Oak | Walnut Blade Tip - Semi-Square

5255024121 Medium Oak | Walnut Blade Tip - Semi-Square

5255650111 Dark Oak | Medium Oak Blade Tip - Pointed

5255055111 Medium Oak | Rosewood Blade Tip - Pointed

5255650121 Dark Oak | Medium Oak Blade Tip - Semi-Square

5255524111 Rosewood | Walnut Blade Tip - Pointed

5255655111 Dark Oak | Rosewood Blade Tip - Pointed

1 - 52 indoor continued on following page AC C E S S O R I E S

363

5255655121 Dark Oak | Rosewood Blade Tip - Semi-Square

5256524121 Silver | Walnut Blade Tip - Semi-Square

5255924111 Matte Black | Walnut Blade Tip - Pointed

5256542121 Silver | Weathered Gray Blade Tip - Semi-Square

5255941111 Matte Black | Weathered Oak Blade Tip - Pointed

5256565121 Silver Blade Tip - Semi-Square

5255941121 Matte Black | Weathered Oak Blade Tip - Semi-Square

5256752121 Antique White | Washed Oak Blade Tip - Semi-Square

5255942121 Matte Black | Weathered Gray Blade Tip - Semi-Square

5256767111 Antique White Blade Tip - Pointed

5256524111 Silver | Walnut Blade Tip - Pointed

5256767121 Antique White Blade Tip - Semi-Square

5258324121 Teak | Walnut Blade Tip - Semi-Square

5258383111 Teak Blade Tip - Pointed

5258624111 Oiled Bronze | Walnut Blade Tip - Pointed

5258624121 Oiled Bronze | Walnut Blade Tip - Semi-Square

5258641121 Oiled Bronze | Weathered Oak Blade Tip - Semi-Square

5259524111 Old World | Walnut Blade Tip - Pointed

AC C E S S O R I E S

365

BLADE TYPE 4 - 52 INDOOR Blade type 4 - 52 indoor allows you to customize your indoor fan to a variety of blade finishes.

All blades are 5 count with a 52" sweep.

Alternative Blades For:

Chateaux - 78525-XX

5250808164 Studio White Blade Tip - Scalloped

5256752164 Antique White | Washed Oak Blade Tip - Scalloped

5254141164 Weathered Oak Blade Tip - Scalloped

5258624164 Oiled Bronze | Walnut Blade Tip - Scalloped

5254424164 Toasted Sienna | Walnut Blade Tip - Scalloped

8-78525-70 Weathered Pine Distressed Blade Tip - Scalloped

5256524164 Silver | Walnut Blade Tip - Scalloped

BLADE TYPE 5 - 52 INDOOR Blade type 5 - 52 indoor allows you to customize your indoor fan to a variety of blade finishes.

All blades are 5 count with a 52" sweep.

Alternative Blades For:

Pinnacle - 91525-XX

5250606125 White Blade Tip - Semi-Square

5250808125 Studio White Blade Tip - Semi-Square

5254141125 Weathered Oak Blade Tip - Semi-Square

5254424125 Toasted Sienna | Walnut Blade Tip - Semi-Square

5252020125 Vintage Walnut Blade Tip - Semi-Square

5252020725 Vintage Walnut Scrapped Blade Tip - Semi-Square

5252020825 Vintage Walnut Distressed Blade Tip - Semi-Square

5254424165 Toasted Sienna | Walnut Blade Tip - Scalloped

5254747825 Weathered Pine Distressed Blade Tip - Semi-Square

5254124125 Walnut | Weathered Oak Blade Tip - Semi-Square

5 - 52 indoor continued on following page AC C E S S O R I E S

367

5255206125 Washed Oak | White Blade Tip - Semi-Square

5258624125 Oiled Bronze | Walnut Blade Tip - Semi-Square

5255524125 Rosewood | Walnut Blade Tip - Semi-Square

5258624165 Oiled Bronze | Walnut Blade Tip - Scalloped

5256524125 Silver | Walnut Blade Tip - Semi-Square

BLADE TYPE 8 - 52 INDOOR Blade type 8 - 52 indoor allows you to customize your indoor fan to a variety of blade finishes.

All blades are 5 count with a 52" sweep.

Alternative Blades For:

Ovation - 42525-XX

Ovation - 2 Light Bowl - 4525-XXXX Ovation - 3 Light Uni-Pack - 4525-XXX Ovation - 4 Light Uni-Pack - 4525-XXX

5250808128 Studio White Blade Tip - Semi-Square

5256542128 Silver | Weathered Grey Blade Tip - Semi-Square

5255942128 Matte Black | Weathered Grey Blade Tip - Semi-Square

5258641128 Oiled Bronze | Weathered Oak Blade Tip - Semi-Square

5255941128 Matte Black | Weathered Oak Blade Tip - Semi-Square

AC C E S S O R I E S

369

BLADE TYPE 9 - 52 INDOOR Blade type 9 - 52 indoor allows you to customize your indoor fan to a variety of blade finishes.

All blades are 5 count with a 52" sweep.

Alternative Blades For:

Breeze - 7052-XX

Breeze 2 Light Bowl - 7052-XXX

5250202179 Black Walnut Blade Tip - Semi-Square

5250808179 Studio White Blade Tip - Semi-Square

5255624179 Dark Oak | Walnut Blade Tip - Semi-Square

5256524179 Silver | Walnut Blade Tip - Semi-Square

5256542179 Silver | Weathered Grey Blade Tip - Semi-Square

Breeze 3 Light Uni-Pack - 70525-XX

Breeze 4 Light Uni-Pack - 70525-XXX

5255941179 Matte Black | Weathered Oak Blade Tip - Semi-Square

5258641179 Oiled Bronze | Weathered Oak Blade Tip - Semi-Square

BLADE TYPE 3 - 56 INDOOR Blade type 3 - 56 indoor allows you to customize your indoor fan to a variety of blade finishes.

All blades are 5 count with a 56" sweep.

Alternative Blades For:

Apex - 90565-XX

5650808133 White Blade Tip - Semi-Square

5655941133 Matte Black | Weathered Oak Blade Tip - Semi-Square

5655624133 Dark Oak | Walnut Blade Tip - Semi-Square

5658624133 Oiled Bronze | Walnut Blade Tip - Semi-Square

5656524133 Silver | Walnut Blade Tip - Semi-Square

AC C E S S O R I E S

371

BLADE TYPE 5 - 56 INDOOR Blade type 5 - 56 indoor allows you to customize your indoor fan to a variety of blade finishes.

All blades are 5 count with a 56" sweep.

Alternative Blades For:

Pinnacle - 91525-XX

Salon - 83565-XX

5654141125 Weathered Oak Blade Tip - Semi-Square

5658624125 Oiled Bronze | Walnut Blade Tip - Semi-Square

5654141165 Weathered Oak Blade Tip - Napoleon

5658624165 Oiled Bronze | Walnut Blade Tip - Scalloped

5655624125 Dark Oak | Walnut Blade Tip - Semi-Square

BLADE TYPE 3 - 60 INDOOR Blade type 3 - 60 indoor allows you to customize your indoor fan to a variety of blade finishes.

All blades are 5 count with a 60" sweep.

Alternative Blades For:

Apex - 90565-XX

6050808133 White Blade Tip - Semi-Square

6056524133 Silver | Walnut Blade Tip - Semi-Square

6055624133 Dark Oak | Walnut Blade Tip - Semi-Square

6058624133 Oiled Bronze | Walnut Blade Tip - Semi-Square

AC C E S S O R I E S

373

BLADE TYPE 5 - 60 INDOOR Blade type 5 - 60 indoor allows you to customize your indoor fan to a variety of blade finishes.

All blades are 5 count with a 60" sweep.

Alternative Blades For:

6054424125 Toasted Sienna | Walnut Blade Tip - Semi-Square

Pinnacle - 91525-XX

6050808125 Studio White Blade Tip - Semi-Square

6055524125 Rosewood | Walnut Blade Tip - Semi-Square

6054124125 Walnut | Weathered Oak Blade Tip - Semi-Square

6058624125 Oiled Bronze | Walnut Blade Tip - Semi-Square

6054141125 Weathered Oak Blade Tip - Semi-Square

6056524125 Silver | Walnut Blade Tip - Semi-Square

BLADE TYPE 8 - 60 INDOOR Blade type 8 - 60 indoor allows you to customize your indoor fan to a variety of blade finishes.

All blades are 5 count with a 60" sweep.

Alternative Blades For:

Ovation - 4605-XX

6050852128 Studio White | Washed Oak Blade Tip - Semi-Square

6056542128 Silver | Weathered Grey Blade Tip - Semi-Square

6055924128 Matte Black | Walnut Blade Tip - Semi-Square

6058641128 Oiled Bronze | Weathered Oak Blade Tip - Semi-Square

6055942128 Matte Black | Weathered Grey Blade Tip - Semi-Square

6056524128 Silver | Walnut Blade Tip - Semi-Square

AC C E S S O R I E S

375

BLADE TYPE 9 - 60 INDOOR Blade type 9 - 60 indoor allows you to customize your indoor fan to a variety of blade finishes.

All blades are 5 count with a 60" sweep.

Alternative Blades For:

Breeze 60 - 7060-XX

Breeze 60 2 Light Bowl - 70605-XX

6050202179 Black Walnut Blade Tip - Semi-Square

6056524179 Silver | Walnut Blade Tip - Semi-Square

6050808179 Studio White Blade Tip - Semi-Square

6056541179 Silver | Weathered Oak Blade Tip - Semi-Square

6055624179 Dark Oak | Walnut Blade Tip - Semi-Square

6056542179 Silver | Weathered Grey Blade Tip - Semi-Square

6055941179 Matte Black | Weathered Oak Blade Tip - Semi-Square

6058641179 Oiled Bronze | Weathered Oak Blade Tip - Semi-Square

BLADE TYPE 1 - 30 OUTDOOR Blade type 1 - 30 outdoor allows you to customize your outdoor fan to a variety of blade finishes.

All blades are 6 count with a 30" sweep.

Alternative Blades For:

Estate 30 Patio - 143306-XX

Medallion 30 Patio - 151306-XX

3060606321 White Blade Tip - Semi-Square

3062424321 Walnut Blade Tip - Semi-Square

3061515321 Black Blade Tip - Semi-Square

3068686321 Oiled Bronze Blade Tip - Semi-Square

AC C E S S O R I E S

377

BLADE TYPE 1 - 42 OUTDOOR Blade type 1 - 42 outdoor allows you to customize your outdoor fan to a variety of blade finishes.

All blades are 5 count with a 42" sweep.

Alternative Blades For:

Estate 42 Patio - 143425-XX

Medallion 42 Patio - 151425-XX

4250606321 White Blade Tip - Semi-Square

4255050321 Medium Oak Blade Tip - Semi-Square

4251515321 Black Blade Tip - Semi-Square

4258686321 Oiled Bronze Blade Tip - Semi-Square

4252424321 Walnut Blade Tip - Semi-Square

BLADE TYPE 1 - 52 OUTDOOR Blade type 1 - 52 outdoor allows you to customize your outdoor fan to a variety of blade finishes.

All blades are 5 count with a 52" sweep.

Alternative Blades For:

All-Weather Allure Patio - 146525-XX Estate 52 Patio - 143525-XX

Estate Uni-Pack Patio - 143525-XXX

Medallion Patio - 151525-XX

5250606321 White Blade Tip - Semi-Square

5255050321 Medium Oak Blade Tip - Semi-Square

5251515321 Black Blade Tip - Semi-Square

5255555321 Rosewood Blade Tip - Semi-Square

5252424321 Walnut Blade Tip - Semi-Square

5256767321 Antique White Blade Tip - Semi-Square

5254141321 Weathered Oak Blade Tip - Semi-Square

5258686321 Oiled Bronze Blade Tip - Semi-Square

5254747321 Weathered Pine Blade Tip - Semi-Square

AC C E S S O R I E S

379

BLADE TYPE 5 - 52 OUTDOOR Blade type 5 - 52 outdoor allows you to customize your outdoor fan to a variety of blade finishes.

All blades are 5 count with a 52" sweep.

Alternative Blades For:

Pinnacle Patio - 191525-XX

5250808325 Studio White Blade Tip - Semi-Square

5254141325 Weathered Oak Blade Tip - Semi-Square

5251515325 Black Blade Tip - Semi-Square

5256969325 Textured Black Blade Tip - Semi-Square

5252424325 Walnut Blade Tip - Semi-Square

BLADE TYPE 9 - 52 OUTDOOR Blade type 9 - 52 outdoor allows you to customize your outdoor fan to a variety of blade finishes.

All blades are 5 count with a 52" sweep.

Alternative Blades For:

Breeze Patio - 17052-XX

Breeze 2 Light Uni-Pack Patio 170525-XX

5250808079 Studio White Blade Tip - Semi-Square

5256565079 Silver Blade Tip - Semi-Square

5250808379 Studio White Blade Tip - Semi-Square

5256565379 Silver Blade Tip - Semi-Square

5254141379 Weathered Oak Blade Tip - Semi-Square

5258686079 Oiled Bronze Blade Tip - Semi-Square

5255959079 Matte Black Blade Tip - Semi-Square

5258686379 Oiled Bronze Blade Tip - Semi-Square

5255959379 Matte Black Blade Tip - Semi-Square

AC C E S S O R I E S

381

BLADE TYPE 3 - 56 OUTDOOR Blade type 3 - 56 outdoor allows you to customize your indoor fan to a variety of blade finishes.

All blades are 5 count with a 56" sweep.

Alternative Blades For:

5654242033 Weathered Gray Blade Tip - Semi-Square

Apex - 190565-XX

5650808033 Studio White Blade Tip - Semi-Square

5655959033 Matte Black Blade Tip - Semi-Square

5654141033 Weathered Oak Blade Tip - Semi-Square

5656565033 Silver Blade Tip - Semi-Square

BLADE TYPE 5 - 56 OUTDOOR Blade type 5 - 56 outdoor allows you to customize your outdoor fan to a variety of blade finishes.

All blades are 5 count with a 56" sweep.

Alternative Blades For:

Pinnacle Patio - 191525-XX

5651515325 Black Blade Tip - Semi-Square

5656969325 Textured Black Blade Tip - Semi-Square

5652424325 Walnut Blade Tip - Semi-Square

AC C E S S O R I E S

383

BLADE TYPE 3 - 60 OUTDOOR Blade type 3 - 60 outdoor allows you to customize your indoor fan to a variety of blade finishes.

All blades are 5 count with a 60" sweep.

Alternative Blades For:

6054242033 Weathered Gray Blade Tip - Semi-Square

Apex - 190565-XX

6050808033 Studio White Blade Tip - Semi-Square

6055959033 Matte Black Blade Tip - Semi-Square

6054141033 Weathered Oak Blade Tip - Semi-Square

6056565033 Silver Blade Tip - Semi-Square

BLADE TYPE 5 - 60 OUTDOOR Blade type 5 - 60 outdoor allows you to customize your outdoor fan to a variety of blade finishes.

All blades are 5 count with a 60" sweep.

Alternative Blades For:

Pinnacle Patio - 191525-XX

6050808325 Studio White Blade Tip - Semi-Square

6055555325 Rosewood Blade Tip - Semi-Square

6051515325 Black Blade Tip - Semi-Square

6056969325 Textured Black Blade Tip - Semi-Square

6052424325 Walnut Blade Tip - Semi-Square

AC C E S S O R I E S

385

OPTIONAL 1/2" DOWNRODS These downrods allow you to choose how far your fan will hang from the ceiling. We offer a complete line of extension rods to match Quorum finishes. Remember, your fan should always hang at least 7 feet above the floor.

Downrod Finish

6"

12"

18"

24"

36"

48"

60"

72"

Antique Brass

6-064

6-124

6-184

6-244

6-364

6-484

6-604

6-724

White

6-066

6-126

6-186

6-246

6-366

6-486

6-606

6-726

Studio White

6-0608

6-128

6-188

6-248

6-368

6-488

6-608

6-728

Galvanized

6-069

6-129

6-189

6-249

6-369

6-489

6-609

6-729

Toasted Sienna

6-0644

6-1244

6-1844

6-2444

6-3644

6-4844

6-6044

6-7244

Aged Silver Leaf

NA

6-1260

6-1860

6-2460

6-3660

6-4860

6-6060

6-7260

Matte Black

6-0659

6-1259

6-1859

6-2459

6-3659

6-4859

6-6059

6-7259

Satin Nickel

6-0665

6-1265

6-1865

6-2465

6-3665

6-4865

6-6065

6-7265

Antique White

6-0667

6-1267

6-1867

6-2467

6-3667

6-4867

6-6067

6-7267

Textured Black

NA

6-1269

6-1869

6-2469

6-3669

6-4869

6-6069

6-7269

Persian White

NA

6-1270

6-1870

6-2470

6-3670

6-4870

6-6070

6-7270

Aged Brass

NA

6-1280

6-1880

6-2480

6-3680

6-4880

6-6080

6-7280

Oiled Bronze

6-0686

6-1286

6-1886

6-2486

6-3686

6-4886

6-6086

6-7286

Old World

6-0695

6-1295

6-1895

6-2495

6-3695

6-4895

6-6095

6-7295

45 DEGREE CEILING ADAPTER FOR 1/2" DOWNRODS When you have a ceiling with a slope up to 45 degrees, use this adapter to hang your ceiling fan. 6"(w) x 3.25"(h).

Item#

Finish

Item#

Finish

7-1745-4

Antique Brass

7-1745-65

Satin Nickel

7-1745-6

White

7-1745-67

Antique White

7-1745-8

Studio White

7-1745-69

Textured Black

7-1745-9

Galvanized

7-1745-70

Persian White

7-1745-44

Toasted Sienna

7-1745-80

Aged Brass

7-1745-59

Matte Black

7-1745-86

Oiled Bronze

7-1745-60

Aged Silver Leaf

7-1745-95

Old World

OPTIONAL 3/4" DOWNRODS Optional ¾” diameter downrods available for select fans supplied with ¾” diameter downrods. One end threaded to comply with Canadian standards. Remember, your fan should always hang at least 7 feet above the floor.

Downrod Finish

12"

18"

24"

36"

48"

60"

72"

Studio White

NA

NA

69-248

69-368

69-488

69-608

69-728

Brushed Brass

69-1247

69-1847

69-2447

69-3647

69-4847

69-6047

69-7247

Matte Black

69-1259

69-1859

69-2459

69-3659

69-4859

69-6059

69-7259

Satin Nickel

NA

NA

69-2465

69-3665

69-4865

69-6065

69-7265

Aged Brass

69-1280

69-1880

69-2480

69-3680

69-4880

69-6080

69-7280

45 DEGREE CEILING ADAPTER FOR 3/4" DOWNRODS When you have a ceiling with a slope up to 45 degrees, use this adapter to hang your ceiling fan. 6"(w) x 3.25"(h).

Item#

Finish

Item#

Finish

7-1945-47

Brushed Brass

7-1945-80

Aged Brass

7-1945-59

Matte Black

NOTE: NOT FOR USE WITH ZEUS SERIES FANS

HUGGER ADAPTER Use a Hugger Adapter to mount your fan flush to the ceiling. This easy to install unit fits all standard body Quorum ceiling fans.

5"(w) x 2"(h). Includes hanging bracket and canopy.

Item#

Finish

Item#

7-1600-4

Antique Brass

7-1600-65

Satin Nickel

7-1600-6

White

7-1600-67

Antique White

7-1600-8

Studio White

7-1600-69

Textured Black

7-1600-44

Toasted Sienna

7-1600-70

Persian White

7-1600-47

Brushed Brass

7-1600-80

Aged Brass

7-1600-59

Matte Black

7-1600-86

Oiled Bronze

7-1600-60

Aged Silver Leaf

7-1600-95

Old World

Finish

BOWL KIT END CAPS Personalize your décor with one of the many optional finishes of end caps for bowl style light kits. Caps are drilled for fan speed and light pull chains.

Item#

Finish

Item#

Finish

7-1100-04

Antique Brass

7-1100-065

Satin Nickel

7-1100-06

White

7-1100-067

Antique White

7-1100-08

Studio White

7-1100-069

Textured Black

7-1100-044

Toasted Sienna

7-1100-070

Persian White

7-1100-059

Matte Black

7-1100-080

Aged Brass

7-1100-060

Aged Silver Leaf

7-1100-086

Oiled Bronze

7-1100-095

Old World

STANDARD REMOTE CONTROLS 2-Wire Canopy Remote Control Kit For LED a. 7-501-0 On/Off and forward/reverse fan function, 3 fan speed settings, infinite light dimmer control for LED Kits. Timer setting to turn fan off after 2, 4 or 8 hours running time. Receiver fits in ceiling canopy and uses existing 2 wires.

WiFi kit for AC Motor Fans b. 8-223 Now you have the opportunity to make your AC motor fan smart by installing the 8-223 WiFi kit. By downloading the BOND HOME app on your phone, you can now control your fan with this remote as well as your smart phone. Control includes a timer setting to turn your fan off after 2, 4 or 8 hours running time.

a

b

AC C E S S O R I E S

387

2-WIRE CANOPY CONTROLS Canopy controls provide additional convenience when operating your ceiling fan. Imagine the ease of controlling a fan without having to use the fan’s pull chains. This is also another way to control ceiling fans hanging on high, hard-to-reach ceilings and in applications where running a 3rd wire for a ceiling fan is prohibitive. Canopy controls are easy to install and will control the fan speed functions and the light functions.

a

b

c

a. 2-Wire Canopy Wall Control with Reverse Function 7-1301-0 Controls 3 speeds and forward/reverse functions on one fan and light dimmer. Receiver fits in ceiling canopy cup and uses 2 existing wires. Can be used with halogen light kits, 100W bulb max. Will work with all models compatible with the 7-1401-0 as listed for assorted models throughout the fan section. b. Battery Operated Wall Control with Reverse Function 7-1305-0 Controls 3 speeds and forward/reverse functions for one ceiling fan. Light on/off with dimmer for incandescent lamp.

Light on/off only for fluorescent or LED lamps. 300W light max (no halogen). Receiver fits inside ceiling canopy and uses two existing wires. This control is supplied with removable white and ivory face plates. 12 volt battery included.

Compatible with specified models as noted in the fan general specifications. c. Battery Operated Wall Control with Reverse Function 7-1307-0 Controls 3 speeds and forward/reverse functions for one ceiling fan. Light on/off with dimmer for screw base LED lamp.

Receiver fits inside ceiling canopy and uses two existing wires. The control is supplied with removable white and ivory face plates. 12 volt battery included.

WALL CONTROLS Quorum offers a full line of slider and rotary style fan and light kit wall controls. They are guaranteed not to cause humming or noise when used with Quorum ceiling fans.

d. 7-1191-6

e. 7-1192-6

f. 7-1190-6

d. Slider Wall Control (fan only) Controls a single ceiling fan’s 3 speeds and the power on/off.

7-1191-6* - White *faceplate is included

e. Slider Wall Control (fan/light kit) Controls the 3 speeds, power on/off and the light kit settings for one fan.

7-1192-6* - White *faceplate is included

f. 5 Amp Slider Wall Control (fan only) Controls the 3 speeds and the power on/off for 4-5 ceiling fans.

7-1190-6* - White *faceplate is included

g. 7-1196-0 3 speeds

g. 7-1197-0 4 speeds

g. Rotary Wall Control (fan only) Controls a single ceiling fan’s speeds and the power on/off. Clear knob will blend with any existing faceplate.

7-1196-0* 3 Speeds 7-1197-0* 4 Speeds *Supplied with gold and silver rotary knobs

AC C E S S O R I E S

389

PRODUCT# .............................. PAGE#

PRODUCT# .............................. PAGE#

PRODUCT# .............................. PAGE#

1011-906............................................. 351

1180-865 ...........................................209

143306-95........................................ 279

1011-908............................................. 351

1180-869...........................................209

143425-6 ...........................................281

1011-959 ............................................. 351

1180-880 ..........................................209

143425-86 .........................................281

1011-965 ............................................. 351

1180-886 ..........................................209

143425-95 .........................................281

1011-980............................................. 351

1232-801 ............................................ 213

1435255959 .....................................286

101206-59................................ 053, 239

12583-59 .......................................... 225

143525-599 ...................................... 282

101206-65................................ 053, 239

12583-8............................................. 225

143525-6...........................................283

101206-8 .................................. 053, 239

133645-59 ........................................303

143525-86 ........................................ 282

101206-80 ............................... 053, 239

13525-69...........................................289

143525-906...................................... 287

1012-908 ...........................................208

13525-8 .............................................289

143525-924 ......................................283

1012-959 ...........................................208

13525-86 ..........................................289

143525-944......................................286

1012-965 .................................. 208, 245

13525-9 .............................................289

143525-95 ........................................283

1012-980 ...........................................208

135525-65..........................................301

143525-959 ...................................... 285

1012-986 ...........................................208

135525-8............................................301

143525-986...................................... 285

10656-59 ................................. 049, 235

135525-95..........................................301

1435259924 .....................................286

10656-65 ................................. 049, 235

1370-65 .............................................349

143525-995 ...................................... 285

10656-8 ................................... 049, 235

1370-69 ............................................349

14525-59...........................................345

10656-80 ................................ 049, 235

1370-8 ...............................................349

14525-65...........................................345

10806-59 ..................................051, 237

1370-86 ............................................349

14525-8.............................................345

10806-65 ..................................051, 237

1374-806 ..........................................348

14525-86 ..........................................345

10806-8.....................................051, 237

1374-809 ..........................................348

1452-59 .............................................343

10806-80 ..................................051, 237

1374-859...........................................348

1452-8 ...............................................343

1129-806 ............................................210

1374-886 ..........................................348

1452-86 ............................................343

1129-865 ............................................210

1374-895...........................................348

1456-59 ............................................348

1141-806 .............................................210

137525-95 ......................................... 259

1456-65 ............................................348

1141-869 .............................................210

1375-886 ..........................................348

1456-8...............................................348

1141-9108............................................210

1375-895...........................................348

1456-80 ............................................348

1141-9159 ............................................210

1376-895 ..........................................349

1456-86 ............................................348

1141-9165 ............................................210

1377-806 ..........................................350

14605-69..........................................309

1141-9180............................................210

1377-859...........................................350

14605-86..........................................309

1141-9186 ............................................210

1377-867 ...........................................350

146525-6 .......................................... 327

11425-6 ...............................................169

1377-886 ..........................................350

146525-69 ........................................ 327

11525-4 ................................................ 171

1377-895...........................................350

146525-86 ........................................ 327

11525-6 ................................................ 171

1395-808 ........................................... 351

151306-8 ........................................... 293

11525-65 .............................................. 171

140625-69........................................ 243

151425-8 ........................................... 295

1165-4486 ......................................... 213

140625-86 ....................................... 243

151425-95 ......................................... 295

1166-801 ............................................. 213

143306-6 .......................................... 279

151525-8 ............................................ 297

1180-808 ..........................................209

143306-86 ....................................... 279

151525-95.......................................... 297

PRODUCT# .............................. PAGE#

PRODUCT# .............................. PAGE#

PRODUCT# .............................. PAGE#

15583-59 .......................................... 255

195210-9 ............................................ 315

20806-59................................. 041, 233

17052-108 ......................................... 333

196015-69.......................................... 317

20806-65................................. 041, 233

17052-159 ......................................... 333

196015-86 ......................................... 317

20806-8................................... 041, 233

17052-165 ......................................... 333

196015-9 ............................................ 317

2104 ..................................................354

17052-186 ......................................... 333

196608-65 ........................................227

21653-59...........................................079

170525-59 ......................................... 331

196608-69 ........................................227

21653-80 ..........................................079

170525-65 ......................................... 331

196608-86 ........................................227

22245-69................................. 095, 275

170525-69 ......................................... 331

196728-65 ........................................ 229

22523-47 ...........................................149

170525-8............................................ 331

196728-69 ........................................ 229

22523-59 ...........................................149

170525-86 ......................................... 331

196728-86 ........................................ 229

22523-8 .............................................149

17052-65........................................... 329

197215-69 ..........................................319

2292 ..................................................354

17052-69 .......................................... 329

197215-86 ..........................................319

2303-9108 ......................................... 211

17052-8 ............................................. 329

197215-9 .............................................319

2303-9165 .......................................... 211

17052-86 .......................................... 329

1974-69 .......................................214, 216

2303-9169 .......................................... 211

170605-69........................................ 335

1974-86....................................... 137, 214

2303-9186.......................................... 211

170605-8 .......................................... 335

1974-9 ................................................ 214

2314-65.............................................350

170605-86 ....................................... 335

1975-69............................... 139, 214, 216

2314-8 ...............................................350

174525-995 ....................................... 291

1975-86.............................................. 214

2314-86 ............................................350

180-1 ..................................................023

1975-9 ................................................ 214

2360-9169........................................097

1858-9165 .......................................... 213

20523-59 .......................................... 173

2360-9170 ........................................097

1902-69 ......................................214, 216

20523-65 .......................................... 173

2383-9186 ......................................... 129

1902-86 ............................................. 214

20523-8............................................. 173

2384-9186......................................... 129

1902-9................................................ 214

20523-80 .......................................... 173

2401-804 ........................................... 211

1904-69 ......................................214, 216

20524-59 .......................................... 175

2401-8065 ......................................... 211

1904-86 ......................................133, 214

20524-65 .......................................... 175

2401-808 ........................................... 211

1904-9 ............................................... 214

20524-8 ............................................ 175

2401-8086 ......................................... 211

190565-59 ........................................ 245

20524-80 .......................................... 175

2401-8095 ......................................... 211

190565-65 ........................................ 245

20603-59 .......................................... 177

2444-804 ......................................... 212

1905-69 ..............................183, 214, 216

20603-65 .......................................... 177

2444-8059 ....................................... 212

1905-86 ............................................. 214

20603-8 ............................................ 177

2444-806 ......................................... 212

1905-9 ............................................... 214

20603-80 ......................................... 177

2444-8065 ....................................... 212

191525-69 .........................................307

20604-59.......................................... 179

2444-8067 ....................................... 212

191525-8 ...........................................307

20604-65.......................................... 179

2444-8069 ....................................... 212

191525-86 .........................................307

20604-8............................................ 179

2444-8070 ....................................... 212

191525-95 .........................................307

20604-80 ......................................... 179

2444-808 ......................................... 212

194410-9............................................ 313

20656-59 ................................. 039, 231

2444-8086 ....................................... 212

195210-69 .......................................... 315

20656-65 ................................. 039, 231

2520H ...............................................354

195210-86 .......................................... 315

20656-8 ................................... 039, 231

2531 ...................................................354

INDEX

391

PRODUCT# .............................. PAGE#

PRODUCT# .............................. PAGE#

PRODUCT# .............................. PAGE#

26544-80..........................................061

3065524121 ......................................359

4250606111 ......................................360

2705 ..................................................354

3065942121 ......................................359

4250606121 .....................................360

2743 ..................................................354

3066524121 ......................................359

4250606321 .................................... 378

2747 ..................................................354

3068624121 .....................................359

4251515321........................................ 378

2752 ..................................................354

3068686321 .................................... 377

4252222121 .......................................360

2756 ..................................................354

30728-59 .................................. 183, 341

4252424321 ..................................... 378

27603-69 .........................................097

31523-65 ............................................019

4254545121 ......................................360

27603-70 .........................................097

31523-69............................................019

4254608121 .....................................360

2801 ..................................................354

32304-69 ..................................125, 299

4255050321 ..................................... 378

2807 .................................................354

32323-59 ............................................ 117

4255524111 .......................................360

2812................................................... 355

32323-65 ............................................ 117

4255524121 ......................................360

2812E ................................................ 355

32323-8 .............................................. 117

4255650111 .......................................360

2814 .................................................. 355

33608-59 ................................ 083, 265

4255650121 ......................................360

2840 ................................................. 355

33608-80 ...............................082, 264

4256524111 .......................................360

2843 ................................................. 355

34583-59 ..................................071, 257

4256524121 .......................................361

28664-59 ..........................................031

34583-80..................................071, 257

4256565121 .......................................361

28664-65 ..........................................031

3525-69 .............................................. 113

4256767121........................................361

28664-8 ............................................031

3525-86.............................................. 113

4258624121 .......................................361

28682-70 ........................................... 131

35525-8 .............................................105

4258686321..................................... 378

28682-86 ........................................... 131

35603-65 .........................................045

43306-5942 .....................................107

28804-59.........................................033

35603-69 .........................................045

43306-6 ............................................107

28804-65.........................................033

35846-47 ............................... 088, 268

43306-65 ..........................................107

28804-8...........................................033

35846-59 ................................089, 269

43306-86..........................................107

2900 ................................................. 355

37525-59 ..........................................075

43306-95 ..........................................107

2915................................................... 355

37525-65 ..........................................075

43425-6 ............................................109

2943 ................................................. 355

37525-8 ............................................075

43425-65 ..........................................109

2943H............................................... 355

39563-59 .........................................047

43425-86 ..........................................109

30562-47 ...................................091, 271

39563-80 ........................................ 046

43525-5942 ........................................ 111

30562-59 ...................................091, 271

40625-69 .........................................057

43525-6 ............................................... 111

3060606121 .....................................359

40625-80 ........................................057

43525-65............................................. 111

3060606321 .................................... 377

4100 .................................................. 355

43525-67............................................. 111

3060808121 .....................................359

4106-8044........................................ 351

43525-8............................................... 111

30608-59 ................................. 181, 339

4106-806 .......................................... 351

43525-86 ............................................ 111

3061515321 ....................................... 377

4106-8095 ........................................ 351

4525-0308 ........................................191

3062424321 ..................................... 377

41523-65...........................................043

4525-03159 ....................................... 191

30643-59 .........................................026

41523-69 ..........................................043

4525-03165 ........................................191

30643-65 .........................................025

41655-59 .................................... 017, 221

4525-0380 ........................................191

30643-8 ...........................................026

41655-8 ...................................... 017, 221

4525-0408 ....................................... 197

PRODUCT# .............................. PAGE#

PRODUCT# .............................. PAGE#

PRODUCT# .............................. PAGE#

4525-04159....................................... 197

4525-380 ..........................................193

5250808111 ...................................... 362

4525-04165....................................... 197

4525-386 ..........................................193

5250808121 ..................................... 362

4525-0480 ....................................... 197

4525-408 ..........................................201

5250808125..................................... 367

4525-159............................................185

4525-4159 ........................................200

5250808128 ....................................369

4525-165............................................185

4525-4165 ........................................200

5250808164 ....................................366

4525-208 ..........................................189

4525-459 ..........................................201

5250808179 .................................... 370

4525-2159 .........................................188

4525-465 .........................................200

5250808325....................................380

4525-2165 .........................................188

4525-480 ..........................................199

5250808379 ....................................381

4525-2208 ........................................189

4525-486 ..........................................199

5251515321 ........................................ 379

4525-22159 .......................................188

4525-59 .............................................185

5251515325 .......................................380

4525-22165 .......................................188

4525-65 .............................................185

5252020125 ..................................... 367

4525-2259.........................................189

4525-8 ...............................................184

5252020725 .................................... 367

4525-2265.........................................188

4525-80 ............................................185

5252020821 ..................................... 362

4525-2280 ........................................ 187

4525-86 ............................................185

5252020825 .................................... 367

4525-2286 ........................................ 187

46012-59 .................................065, 249

52523-59 ................................. 069, 253

4525-2308 ........................................195

46012-5942 ............................065, 249

52523-8 ................................... 069, 253

4525-23159 .......................................194

4605-159 ..........................................203

5252424321 ..................................... 379

4525-23165 .......................................194

4605-165 ..........................................203

5252424325.....................................380

4525-2359 ........................................195

4605-59 ...........................................202

5254124125 ...................................... 367

4525-2365 ........................................194

4605-65 ...........................................203

5254141121 ........................................ 362

4525-2380 ........................................193

4605-8 .............................................203

5254141125 ....................................... 367

4525-2386 ........................................193

4605-80...........................................203

5254141164 .......................................366

4525-2408 ........................................201

4605-86 ...........................................203

5254141321 ....................................... 379

4525-24159 ......................................200

47212-59 .................................... 067, 251

5254141325 ......................................380

4525-24165 ......................................200

47212-5942 ............................... 067, 251

5254141379 .......................................381

4525-2459 ........................................201

47212-65 .................................... 067, 251

5254424111 ....................................... 362

4525-2465 .......................................200

50605-69........................................... 115

5254424125 ..................................... 367

4525-2480 ........................................199

51306-8 ..............................................119

5254424164.....................................366

4525-2486 ........................................199

51425-8............................................... 121

5254424165 ..................................... 367

4525-259...........................................189

51525-6 .............................................. 123

5254545111 ....................................... 362

4525-265...........................................188

51525-6522........................................ 123

5254545121 ...................................... 362

4525-280 .......................................... 187

51525-8 .............................................. 123

5254608111....................................... 362

4525-286 .......................................... 187

5250202179 ..................................... 370

5254608121 ......................................363

4525-308 ..........................................195

5250606111....................................... 362

5254747321 ...................................... 379

4525-3159 .........................................194

5250606121...................................... 362

5254747821 ......................................363

4525-3165 .........................................194

5250606125 ..................................... 367

5254747825 ..................................... 367

4525-359...........................................195

5250606321..................................... 379

5255024111 .......................................363

4525-365...........................................194

5250808079 ....................................381

5255024121 ......................................363

INDEX

393

PRODUCT# .............................. PAGE#

PRODUCT# .............................. PAGE#

PRODUCT# .............................. PAGE#

5255050321 ..................................... 379

5256767321 ...................................... 379

5658624125 ..................................... 372

5255055111 .......................................363

5256969325 ....................................380

5658624133 ...................................... 371

5255206125 .....................................368

5258324121 ......................................365

5658624165..................................... 372

5255524111........................................363

5258383111 .......................................365

6050202179 .................................... 376

5255524121 .......................................363

5258624111 .......................................365

6050808033 ..................................384

5255524125 ......................................368

5258624121 ......................................365

6050808125 .................................... 374

5255555321 ...................................... 379

5258624125 .....................................368

6050808133.................................... 373

5255624111 .......................................363

5258624164.....................................366

6050808179.................................... 376

5255624121 ......................................363

5258624165 .....................................368

6050808325 ...................................385

5255624179 ..................................... 370

5258641121 .......................................365

6050852128 .................................... 375

5255650111 .......................................363

5258641128 ......................................369

6051515325 ......................................385

5255650121 ......................................363

5258641179 ...................................... 370

60523-59 ..................................145, 323

5255655111........................................363

5258686079 ....................................381

60523-65 ..................................145, 323

5255655121.......................................364

5258686321 ..................................... 379

60523-8 ....................................145, 323

5255924111 .......................................364

5258686379 .....................................381

6052424325 ....................................385

5255941111 ........................................364

5259524111 .......................................365

6054124125 ...................................... 374

5255941121 .......................................364

54525-65..........................................205

6054141033 .....................................384

5255941128 ......................................369

54525-69 .........................................205

6054141125....................................... 374

5255941179 ...................................... 370

54525-8............................................205

6054242033 ...................................384

5255942121 ......................................364

54525-80 .........................................205

6054424125..................................... 374

5255942128 .....................................369

54525-86 .........................................205

6055524125 ..................................... 374

5255959079 .....................................381

55606-59 ................................. 073, 261

6055555325 ....................................385

5255959379 .............................329, 381

55606-80 ................................ 073, 261

6055624133..................................... 373

5256524111 .......................................364

5650808033 ...................................382

6055624179..................................... 376

5256524121 ......................................364

5650808133 ..................................... 371

6055924128..................................... 375

5256524125......................................368

5651515325.......................................383

6055941179...................................... 376

5256524164 .....................................366

5652424325 ....................................383

6055942128..................................... 375

5256524179 ..................................... 370

5654141033......................................382

6055959033 ...................................384

5256542121 ......................................364

5654141125 ....................................... 372

6056524125 ..................................... 374

5256542128 .....................................369

5654141165 ....................................... 372

6056524128..................................... 375

5256542179 ..................................... 370

5654242033 ....................................382

6056524133..................................... 373

5256565079 .....................................381

5655624125 ..................................... 372

6056524179..................................... 376

5256565121 ......................................364

5655624133 ...................................... 371

6056541179...................................... 376

5256565379 .....................................381

5655941133 ....................................... 371

6056542128..................................... 375

5256752121 .......................................364

5655959033....................................382

6056542179..................................... 376

5256752164 .....................................366

5656524133 ...................................... 371

6056565033 ...................................384

5256767111........................................364

5656565033....................................382

6056969325 ...................................385

5256767121 .......................................364

5656969325 ....................................383

6058624125..................................... 374

PRODUCT# .............................. PAGE#

PRODUCT# .............................. PAGE#

PRODUCT# .............................. PAGE#

6058624133 .................................... 373

6-1867 ...............................................386

64525-86 .........................................087

6058641128 ..................................... 375

6-1869 ..............................................386

64525-8641 .....................................087

6058641179 ..................................... 376

6-1870...............................................386

6-484 ...............................................386

60603-59...................................147, 325

6-188.................................................386

6-4844 .............................................386

60603-65...................................147, 325

6-1880 ..............................................386

6-4859 .............................................386

60603-8.....................................147, 325

6-1886 ..............................................386

6-486................................................386

6-0608 .............................................386

6-189 .................................................386

6-4860 .............................................386

6-064 ...............................................386

6-1895...............................................386

6-4865 .............................................386

6-0644 .............................................386

6-244 ................................................386

6-4867 .............................................386

6-0659 .............................................386

6-2444 .............................................386

6-4869 .............................................386

6-066 ...............................................386

6-2459 ..............................................386

6-4870 .............................................386

6-0665 .............................................386

6-246 ................................................386

6-488 ...............................................386

6-0667 .............................................386

6-2460 .............................................386

6-4880 .............................................386

6-0686 .............................................386

6-2465 ..............................................386

6-4886 .............................................386

6-069 ...............................................386

6-2467 ..............................................386

6-489................................................386

6-0695 .............................................386

6-2469..............................................386

6-4895 .............................................386

6-124 .................................................386

6-2470 ..............................................386

6-604 ...............................................386

6-1244...............................................386

6-248 ................................................386

6-6044 .............................................386

6-1259 ...............................................386

6-2480 .............................................386

6-6059 .............................................386

6-126 .................................................386

6-2486 .............................................386

6-606 ...............................................386

6-1260...............................................386

6-249 ................................................386

6-6060 .............................................386

6-1265 ...............................................386

6-2495 ..............................................386

6-6065 .............................................386

6-1267 ...............................................386

6-364 ................................................386

6-6067 .............................................386

6-1269 ...............................................386

6-3644 .............................................386

6-6069 .............................................386

6-1270 ...............................................386

6-3659..............................................386

6-6070 .............................................386

6-128 .................................................386

6-366 ................................................386

6-6080 .............................................386

6-1280 ..............................................386

6-3660 .............................................386

6-6086 .............................................386

6-1286...............................................386

6-3665..............................................386

6-609 ...............................................386

6-129 .................................................386

6-3667 ..............................................386

6-6095 .............................................386

6-1295 ...............................................386

6-3669 .............................................386

66565-65 ..........................................021

61603-59 ................................. 063, 247

6-3670..............................................386

66565-8 ............................................021

61603-8 ................................... 063, 247

6-368 ................................................386

6-724 ................................................386

6-184 .................................................386

6-3680 .............................................386

6-7244 ..............................................386

6-1844 ..............................................386

6-3686 .............................................386

6-7259 ..............................................386

6-1859...............................................386

6-369 ................................................386

6-726 ................................................386

6-186 .................................................386

6-3695..............................................386

6-7260 ..............................................386

6-1860 ..............................................386

64525-65 .........................................087

6-7265 ..............................................386

6-1865...............................................386

64525-80 .........................................087

6-7267 ..............................................386

INDEX

395

PRODUCT# .............................. PAGE#

PRODUCT# .............................. PAGE#

PRODUCT# .............................. PAGE#

6-7269 ..............................................386

69-7280 ...........................................386

7060-69 ............................................165

6-7270 ..............................................386

7052-208 .......................................... 155

7060-8 ..............................................165

6-728 ................................................386

7052-265 ...........................................154

7060-80............................................165

6-7280..............................................386

7052-269...........................................154

7060-86 ............................................165

6-7286 ..............................................386

7052-280 .......................................... 153

7-1100-04 ......................................... 387

6-729 ................................................386

7052-286 .......................................... 153

7-1100-044 ....................................... 387

6-7295 ..............................................386

7052-308 ..........................................159

7-1100-059 ....................................... 387

68524-65 ......................................... 077

7052-365...........................................158

7-1100-06 ......................................... 387

69-1247 .............................................386

7052-380 .......................................... 157

7-1100-060 ....................................... 387

69-1259.............................................386

7052-386 .......................................... 157

7-1100-065 ....................................... 387

69-1280 ............................................386

7052-408 .......................................... 162

7-1100-067 ....................................... 387

69-1847 ............................................386

7052-465 .......................................... 162

7-1100-069 ....................................... 387

69-1859 ............................................386

7052-480 ...........................................161

7-1100-070 ....................................... 387

69-1880 ............................................386

7052-486 ...........................................161

7-1100-08 ......................................... 387

69-2447............................................386

70525-308 ........................................158

7-1100-080....................................... 387

69-2459 ...........................................386

70525-365 ........................................158

7-1100-086 ....................................... 387

69-2465 ...........................................386

70525-369 ........................................158

7-1100-095 ....................................... 387

69-248 .............................................386

70525-380 ........................................ 157

7-1190-6 ............................................389

69-2480 ...........................................386

70525-386 ........................................ 157

7-1191-6 .............................................389

69-3647 ...........................................386

70525-408 ........................................163

7-1192-6.............................................389

69-3659 ...........................................386

70525-465 ........................................ 162

7-1196-0 ............................................389

69-3665 ...........................................386

70525-469 ........................................ 162

7-1197-0 ............................................389

69-368 .............................................386

70525-480 .........................................161

7-1301-0 ............................................388

69-3680 ...........................................386

70525-486 .........................................161

7-1305-0 ...........................................388

69-4847 ...........................................386

70525-65...........................................154

7-1307-0 ...........................................388

69-4859 ...........................................386

70525-69 ..........................................154

7-1600-4........................................... 387

69-4865 ...........................................386

70525-8 ............................................. 155

7-1600-44 ........................................ 387

69-488 .............................................386

70525-80 .......................................... 153

7-1600-47 ......................................... 387

69-4880 ..........................................386

70525-86 .......................................... 153

7-1600-59......................................... 387

69-6047 ...........................................386

7052-65 .............................................. 151

7-1600-6 ........................................... 387

69-6059 ...........................................386

7052-69.............................................. 151

7-1600-60 ........................................ 387

69-6065 ...........................................386

7052-8 ................................................ 151

7-1600-65......................................... 387

69-608 .............................................386

7052-80 ............................................. 151

7-1600-67......................................... 387

69-6080 ..........................................386

7052-86.............................................. 151

7-1600-69 ........................................ 387

69-7247 ............................................386

70605-65 .......................................... 167

7-1600-70......................................... 387

69-7259 ............................................386

70605-69 .......................................... 167

7-1600-8........................................... 387

69-7265 ............................................386

70605-86.......................................... 167

7-1600-80 ........................................ 387

69-728 ..............................................386

7060-65 ............................................165

7-1600-86 ........................................ 387

PRODUCT# .............................. PAGE#

PRODUCT# .............................. PAGE#

PRODUCT# .............................. PAGE#

7-1600-95......................................... 387

8-21653.................................... 079, 387

92413-86 ...........................................310

7-1745-4 ............................................386

82725-65 ................................. 085, 267

93203-59 ......................................... 337

7-1745-44 .........................................386

82725-8 ................................... 085, 267

94144-69..........................................305

7-1745-59 ..........................................386

82725-80 ................................085, 266

94144-86 .........................................305

7-1745-6 ............................................386

8-288-59 .................................. 031, 033

94410-86 .......................................... 132

7-1745-60 .........................................386

8-288-65 .................................. 031, 033

95210-69 ........................................... 135

7-1745-65 ..........................................386

8-288-8 .................................... 031, 033

95210-86 ........................................... 135

7-1745-67 ..........................................386

8-306-59.......................................... 027

95210-9 ............................................. 135

7-1745-69..........................................386

8-306-65.......................................... 027

96015-69 ........................................... 137

7-1745-70 ..........................................386

8-306-8 ............................................ 027

96015-86........................................... 137

7-1745-8 ............................................386

83565-86 ..........................................128

96015-9 ............................................. 137

7-1745-80 .........................................386

8-356-65 ..........................................045

96608-65 ........................................035

7-1745-86 .........................................386

8-356-69 ..........................................045

96608-69 ........................................035

7-1745-9 ............................................386

8-41655-59 ................................ 017, 221

96608-86 ........................................035

7-1745-95 ..........................................386

8-41655-8................................... 017, 221

96728-65 .........................................037

7-1945-47 .........................................386

8-52523 ................................... 069, 253

96728-69 .........................................037

7-1945-59 .........................................386

85525-44 ...........................................141

96728-86 .........................................037

7-1945-80.........................................386

85525-67............................................141

97215-69............................................139

74603-8 ...........................................023

8-78525-70 ......................................366

97215-86 ...........................................139

74603-86 .........................................023

8-80805 .................................. 081, 263

97215-9 ..............................................139

7-501-0 ............................................. 387

8-827-59 ................................. 085, 267

97543-59 .................................029, 223

78525-1970 ........................................101

8-827-65 ................................. 085, 267

97543-8 ...................................029, 223

78525-67 ......................................... 099

8-827-8 ................................... 085, 267

98134-59 ...........................................277

78525-70 ......................................... 099

8-827-80 ................................. 085, 267

78525-8 ........................................... 099

90565-65 .........................................059

78525-86 ........................................ 099

90565-69 .........................................059

78525-95 ......................................... 099

90565-8 ...........................................059

78605-86 ..........................................103

90565-80 ........................................059

80805-59 ................................ 081, 263

90565-86.........................................059

80805-8059 ........................... 081, 263

9-12583............................................. 225

80805-808 ............................. 081, 263

91525-4 .............................................. 127

8-10806-59..................... 049, 051, 053

91525-60 ........................................... 127

8-10806-65..............................049, 051

91525-65............................................ 127

8-10806-8 ....................... 049, 051, 053

91525-8.............................................. 127

8-10806-80 .....................................053

91525-86 ........................................... 127

8-208-59.................. 039, 041, 231, 233

91525-95............................................ 127

8-208-65.................. 039, 041, 231, 233

92413-59 ............................................ 311

8-208-8 .................... 039, 041, 231, 233

92413-65 ............................................ 311

INDEX

397

Fan & Accessory

FINISH GUIDE

Antique Brass 4 AB

Gloss White 6 WH

Studio White 8 SW

Galvanized 9 GV

Toasted Sienna 44 TS

Brushed Brass 47 BRB

Matte Black 59 MB

Aged Silver Leaf 60 ASL

Satin Nickel 65 STN

Antique White 67 AW

Noir 69 NR

Persian White 70 PW

Aged Brass 80 AGB

Oiled Bronze 86 OB

Old World 95 OW

FIND US ON SOCIAL MEDIA:

BE SURE TO PICK UP THE NEW 2025 QUORUM LIGHTING CATALOG! You’ll find hundreds of fresh new designs for both indoor and outdoor lighting fixtures.

With Quorum’s enormous selection of styles ranging from traditional to contemporary, you’re sure to find your perfect fixture in the pages of our new catalog. You can also view all of our lighting and ceiling fans online at: QuorumInternational.com QUORUM INTERNATIONAL - 201 Railhead Road | Fort Worth, Texas 76106 817.626.5483 p | 800.934.8176 f | QuorumInternational.com JANUARY 2025 QUORUM INTERNATIONAL | ALL RIGHTS RESERVED. CATBFANQ25
