“The ARIA Juliet balcony is simple and beautiful, It’s easy to install and it works!”
Contractor, Truro

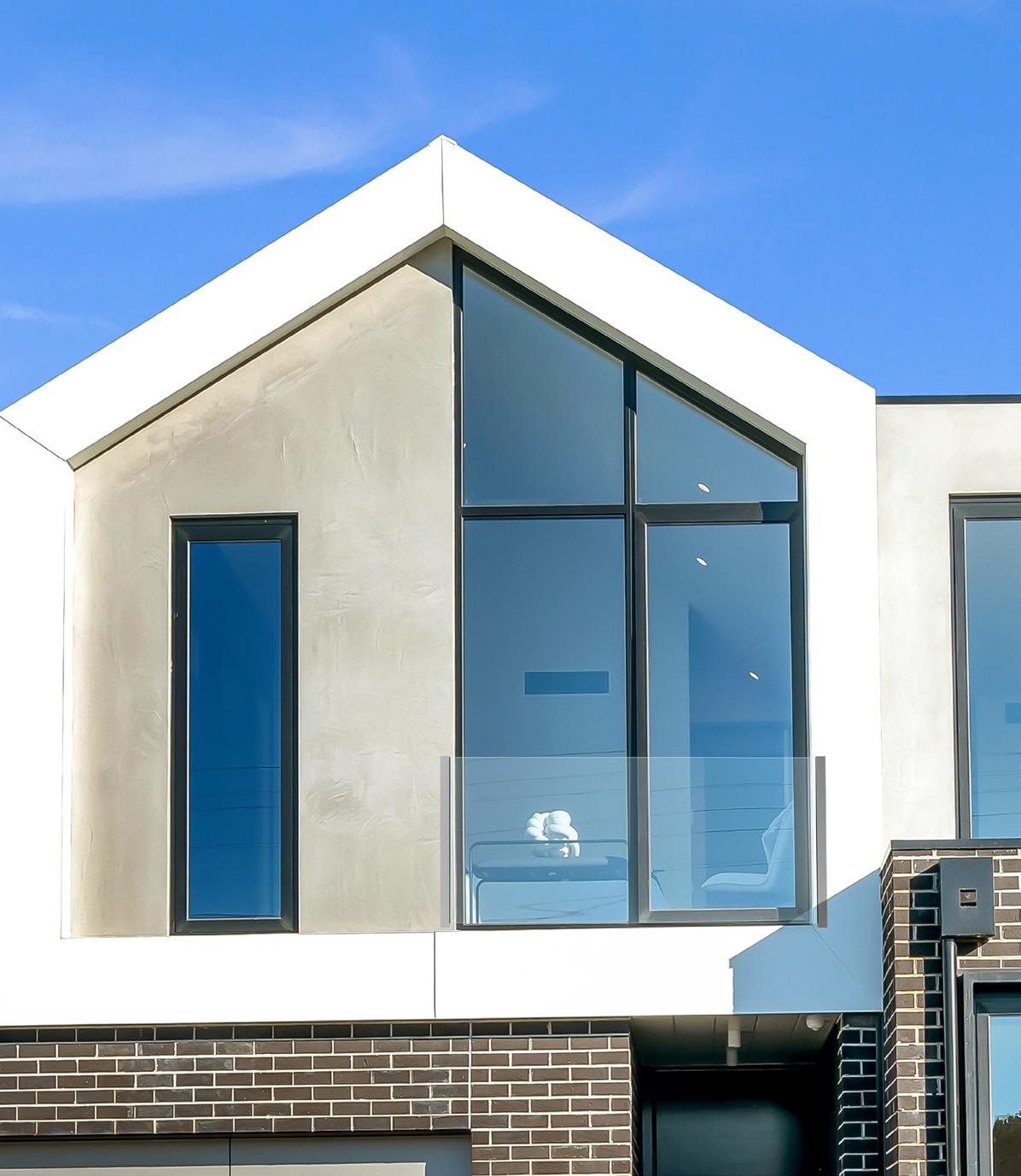

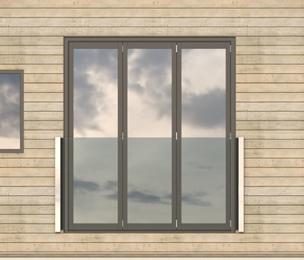

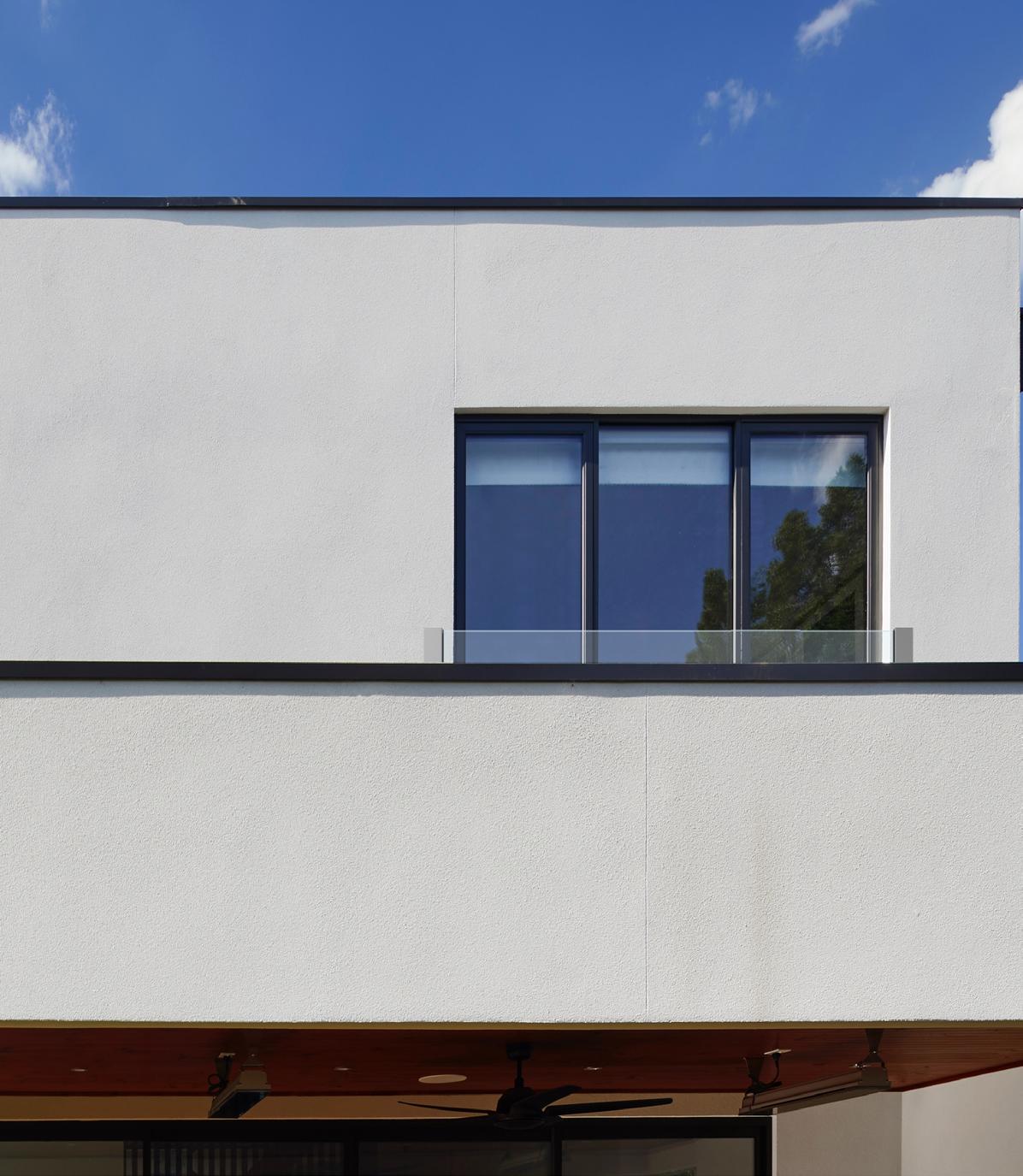

A stunning new Juliet System that meets all the required safety measures in a gentle and beautiful way. ARIA means air and we want you to feel fully connected to the outside through your ARIA balcony. Bringing fresh air into your home and enjoying your views to the maximum. Another great benefit of the ARIA is that the increased window size will bring in lots of natural sunlight.
Available for glass lengths of up to 3000mm and height of 1100mm. This channel can be used for fascia or side fixing.
The ARIA Juliet channel is tested up to 0.74kN per metre fixing into concrete and steel. The lightweight Aluminium channel is anodised to 25 microns, ensuring protection from the elements. Delivered in one box with all the components needed for simple storage and a quick installation. When installing ARIA please work as a pair and follow the instructions in the installation guide for both the left and right side of the profile before moving onto the next step.
Both sides of this channel are the same, just flip each one to the right way up for the installation.
// ARIA Frameless Glass Balustrade
FAST AND EASY TO INSTALL
Like all Pure Vista products the ARIA system has been designed to be fast and easy to install. Available in silver and black brushed.
PATENTED DESIGN
The patented design works to allow extra light and air into your home. Different to other versions with an easier installation method.
EXTRA SAFETY FOR PETS AND CHILDREN
Reduced risk of falls and injuries due to the solid pane of glass and no railings. Glass width of up to 3000mm.
STRONG AND ROBUST
ARIA is accredited and approved by multiple organisations to verify that it meets national and international building regulations for use as edge protection, where up to 0.74kN force loading is required.
LIGHTWEIGHT & STRONG
Precision engineered using extruded aluminum; providing an incredible strength to weight ratio. For added protection ARIA is anodised to 25 microns
DOMESTIC USES
With 0.74kN force loading capability, ARIA is a domestic to light commercial crossover product, making it an appropriate choice for a wide range of installations.
// ARIA Frameless Glass Balustrade
INSTALLATION GUIDE
When installing the ARIA system please ensure you follow the instructions on both sides of the installation, each step will need to be completed on both channels before proceeding to the next instruction.
1. DRILL THE HOLES
Mark out and set the positions for where the Aria channel will be installed. Once correct and level, you will need to drill the holes in the channel in the direction of installation.
2. FIT THE CHANNEL
Using the holes previously drilled as a guide, mark out holes on substrate and drill. Bolt the channels to the substrate with correct fixings and ensure fully tightened before moving on to the next step.
3. ADD PROTECTIVE STRIP
Place aluminium blocks into the slot at the lower end of each channel and place rubber pad on top. Remove the protective strip from double sided tape and stick to the inside of the channel.
4. FIT THE GLASS
With the help of a second
Align the plastic wedge strips and proceed to knock them in with a hard-plastic hammer until flush (both sides). Finally, press in the end caps and clean down your work. 3. 1. 2. 6. 4. 5.
person, place the glass into both channels, resting on top of the support block and hard back against the rubber strip and hold in to place.
5. ADD COVER
Hook the ARIA cover plate over the channel locking strip, inside the channel, and then press down over the aluminium support block.
6. FINISH THE INSTALLATION

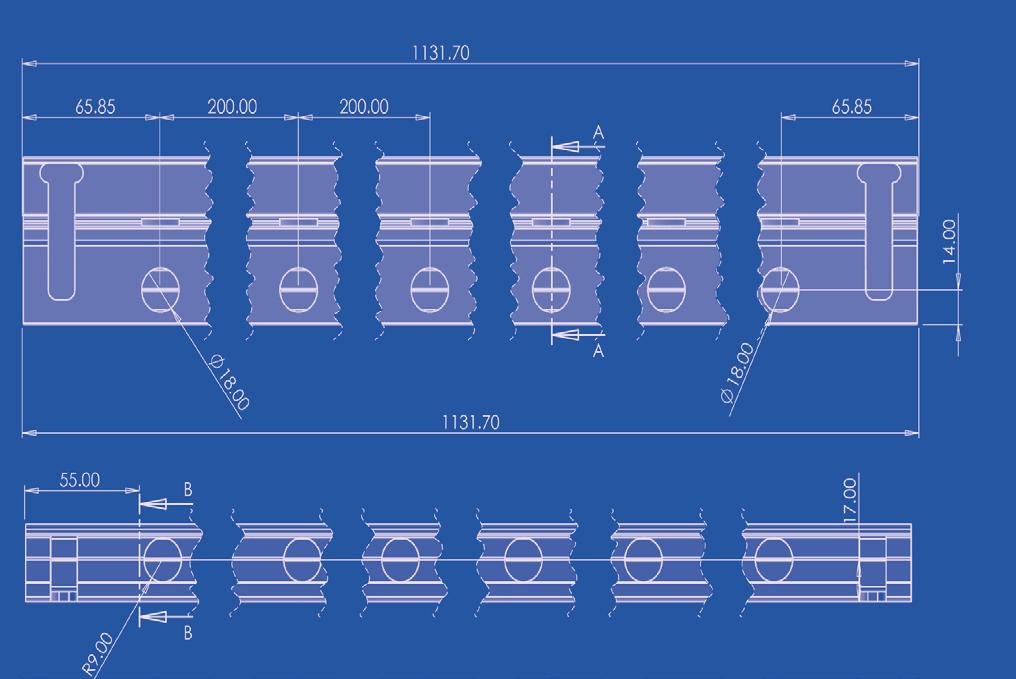

TECHNICAL INFORMATION
1. Bolt hole drilling
2. Measuring glass for fascia installation

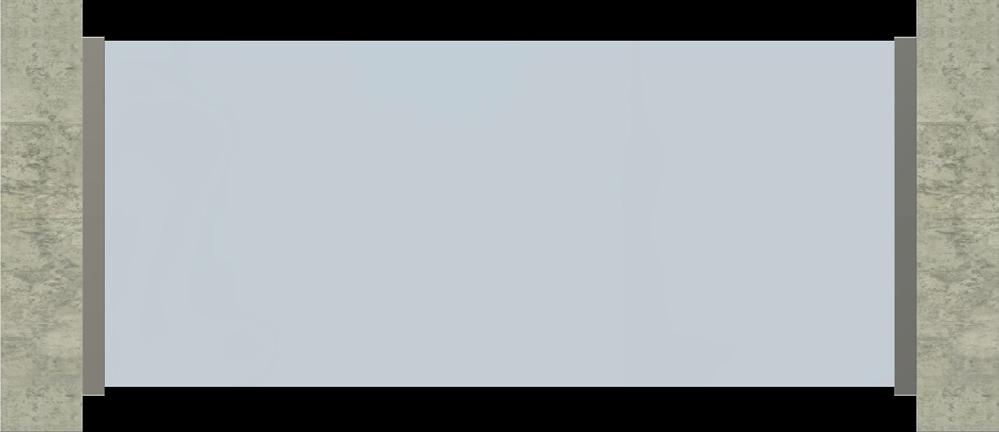

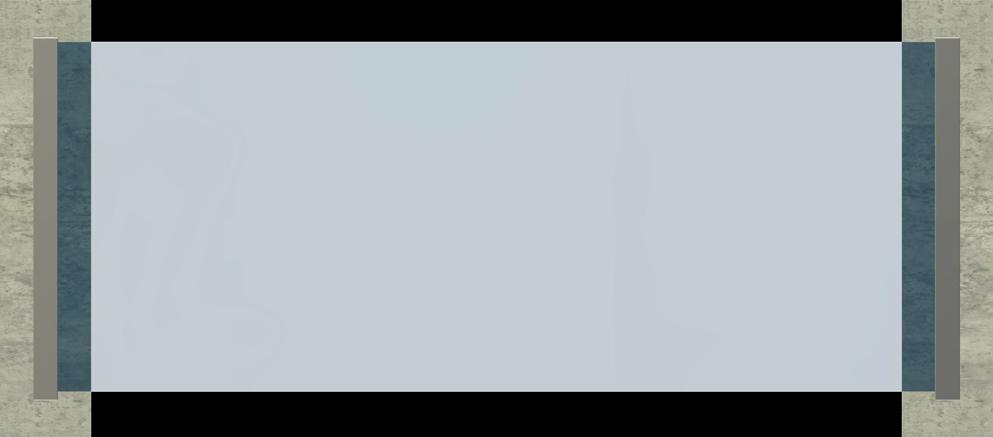

3. Measuring glass for reveal installation
// ARIA Frameless Glass Balustrade
GLASS SPAN
// ARIA Frameless Glass Balustrade
The table to the below shows the glass span that ARIA is certified to achieve.
These tests have been conducted in accordance with BS6180:2011 to certify that ARIA meets the force loading requirement under this British standard for a range of glass height and thickness configurations.
OTHER PRODUCTS
// ARIA Frameless Glass Balustrade
POSIglaze
The most popular domestic to light commercial crossover product in the range, POSIglaze uses a screw-clamp making it extremely quick and easy to install with precise adjustments for perfect alignment. It achieves up to 1.50kN and can be used on uneven surfaces, with a range of glass sizes, thanks to the adjustment capability of the system.
POSIone
Popular for domestic to light commercial projects, POSIone is one-side-fit. Achieving up to 1.50kN and can be used on un-even surfaces, with a range of glass sizes, thanks to it’s unique adjustment capabilities. Compatible with Balcony seal and has adjustment capabilities of up to 20mm each way.
SPIG-LITEadvanced
Very easy to stock, dispatch and install due to it being a spigot-based, as opposed to channel-based, configuration. Ideal for domestic installations where up to 0.74kN force loading capability is required. Without a channel, there is a greater percentage of glass visible to maximise your view and the individual spigots allow for free flow water drainage making this system perfect for wet areas such as a poolside.
MEGAgrip
MEGAgrip is a heavy-duty and fully adjustable 3.00kN commercial balustrade system, designed as a highly-durable public safety barrier for large commercial constructs. Using a variation of the POSIglaze screw-clamp technology to secure the glass in place, the system requires a 13mm Hex Bolt and ¼ inch torque wrench and extension arm to tighten the bolts, for a quick and simple installation.
If you would like to speak with the manufacturer Pure Vista please email us on sales@pure-vista.com, call us on +44 (0)1208 261040 or visit the website www.pure-vista.com.
