Pudsey Diamond Heritage Lighting Brochure

Heritage Lighting

With a demand for lighting that restores a forgotten era, we take pride in offering a superior level of craftmanship fused with the latest in modern technology, that not only levels with the historic value of original gas luminaires but delivers optimized energy savings.

Bronte Page 10

Austen Page 12

Huxley Page 16

Dickens Page 4

Orwell Page 6

Brunel Page 8

Kingsley Page 14

Nightingale Page 18

Billinton Page 20

4-21 Heritage Lanterns

Spoilt for choice with our extensive range of hand-crafted luminaires. Covering everything from true Victorian styling and embellishments to contemporary design, all carefully manufactured with the closest attention to detail.

24-31 Varoptic® & other LED optic options

We take pride in offering a lighting range that delivers the truest reflection of original gas luminaires, whilst using the latest technology and innovations to meet the demand of modern-day lighting standards. Our range includes patented designs and multi-award winning LED optics.

34-39 Heritage Columns & Brackets

To complement our lantern range and provide a uniformed street scene, we offer a variety of heritage columns and ornate brackets. As a proud British manufacturer for over 40 years, our teams have the knowledge and skilled craftmanship to create products that meet the highest standards.

Mount St, Sefton

Optic options:

Dickens

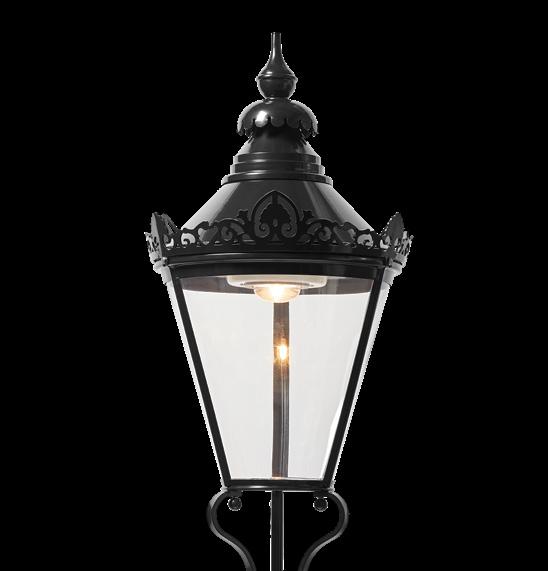

Our Dickens heritage lantern replicates traditional Victorian streetlighting design, popular for its uniformed look. When paired with our choice of LED optics this lantern radiates style and ambience.

Image shown with 5 mantle Varoptic® and fabricated open frog base.

Each lantern is manufactured using carefully selected components and a skilful assembly.

Main Features:

• Tool-free access luminaire housing

• UKCA/CE Marked

• CB certified

• DALI enabled

• Available with pre-programmed dimming profile

• Luminaire frame tested to IP54

• 1.6mm polished or lacquered copper

• Standard or marine-grade coating

• Available powder coated to any RAL colour

• Traditional 76mm fabricated open frog or 76mm cast base

• Miniature photocell, NEMA socket or CMS

• Electrical compartment tested to IP66

• Optical compartment tested to IP66

• Impact tested to IK10

• Automotive-grade sealing gasket

Materials:

• 2mm sturdy aluminium housing

• Anti-vandal, UV resistant clear polycarbonate bowl

Technical:

• Nominal weight: 13kg (varies depending on specification)

• Windage: 0.20m²

• Recommended mounting height 3-6 metres

Varoptic® Soft COB LED Array Jewel

*Optic options:

Orwell

The petite and spherical frame of our Orwell lantern is inspired by traditional Victorian railway lighting and fits seamlessly with heritage schemes.

Image shown with 3 mantle Varoptic® .

Each lantern is manufactured using carefully selected components and a skilful assembly.

Key Features:

Main Features:

Highly versatile, conical lantern offered with a choice of traditional canopy styles

• Tool-free access luminaire housing

Choose from:

• Standard or marine-grade coating

• Available powder coated to any RAL colour

• Miniature photocell or CMS

• Mounts directly to the column via a cast base resulting in a compact profile

• UKCA/CE Marked

• CB certified

• DALI enabled

• Single-piece clear polycarbonate glazing for added ingress protection and durability

• Available with pre-programmed dimming profile

• Luminaire tested to IP66

• Perfectly suited for new developments and upgrading existing schemes

• Impact tested to IK10

Materials:

• 3mm pressure die cast aluminium housing

• Anti-vandal, UV resistant clear polycarbonate bowl

Technical:

• Nominal weight: 7.5kg (varies depending on specification)

• Windage: 0.11m²

• Recommended mounting height: 3-6 metres

• Suspended mounting on 1 ¼ BSPP thread (other sizes available)

Colour Options:

*Note our Orwell lantern is supplied without our ClampPD® system due to its high pressure die cast housing, note this does not compromise the ingress protection of the luminaire with the lantern frame being rated to IP66.

Varoptic®

Soft COB LED Array Jewel

Brunel

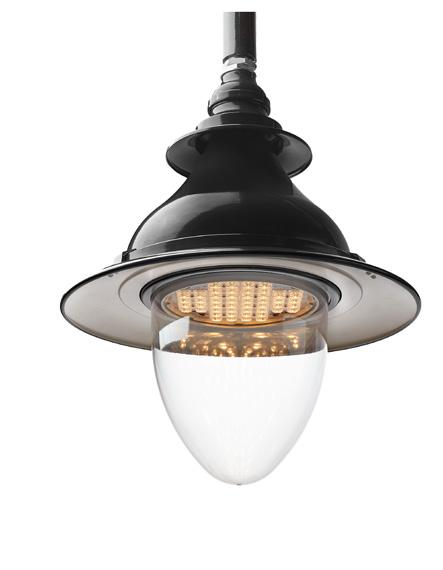

Our Brunel pendant lantern remains in keeping with traditional heritage styling, allowing you to perfectly replicate street lighting from the past. Customise your lantern finish from the various shade and finial options available.

Image shown with LED Array optic with a top finial in the size small.

Key Features:

Each lantern is manufactured using carefully selected components and a skilful

Optic options:

Choose from:

• Optional top finial

• Standard or marine-grade coating

• Available powder coated to any RAL colour

• Miniature photocell or CMS

Highly versatile, conical lantern offered with a choice of traditional canopy styles

Main Features:

• Mounts directly to the column via a cast base resulting in a compact profile

• Tool-free access luminaire housing

• UKCA/CE Marked

• CB certified

• Single-piece clear polycarbonate glazing for added ingress protection and durability

• DALI enabled

• Perfectly suited for new developments and upgrading existing schemes

• Available with pre-programmed dimming profile

• Luminaire frame tested to IP65

• Electrical compartment tested to IP66

• Optical compartment tested to IP66

• Impact tested to IK10

• Automotive-grade sealing gasket

Materials:

• 2mm spun aluminium housing

• Anti-vandal, UV resistant clear polycarbonate bowl

Technical:

• Nominal weight: 8 - 10kg (depending on size and specification)

Colour Options:

• Windage: 0.17m² / 0.18m² / 0.20m² (depending on size)

• Recommended mounting height: 3-8 metres

• Suspended mounting on 1 ¼ BSPP thread (other sizes available)

Varoptic® Soft COB LED Array Jewel

Choose from:

• Standard or marine-grade coating

• Available powder coated to any RAL colour

• Miniature photocell or CMS

Bronte

Creating the perfect partnership between historic and contemporary design, the frame of our Bronte lantern complements almost all street scenes and allows you to seamlessly upgrade areas of historic interest to LED.

Image shown with soft COB optic.

Key Features:

Each lantern is manufactured using carefully selected components and a skilful assembly.

Highly versatile, conical lantern offered with a choice of traditional canopy styles

Main Features:

• Mounts directly to the column via a cast base resulting in a compact profile

• Tool-free access luminaire housing

• UKCA/CE Marked

• CB certified

• Single-piece clear polycarbonate glazing for added ingress protection and durability

• DALI enabled

• Available with pre-programmed dimming profile

• Perfectly suited for new developments and upgrading existing schemes

• Luminaire frame tested to IP65

• Electrical compartment tested to IP66

• Optical compartment tested to IP66

• Impact tested to IK10

• Automotive-grade sealing gasket

Materials:

• 2mm spun aluminium housing

• Anti-vandal, UV resistant clear polycarbonate bowl

Technical:

• Nominal weight: 8.5kg (varies depending on specification)

• Windage: 0.11m²

Colour Options:

• Recommended mounting height: 3-8 metres

• Suspended mounting on 1 ¼ BSPP (other sizes available)

Varoptic® Soft COB LED Array Jewel

Choose from:

• Standard or marine-grade coating

• Available powder coated to any RAL colour

• Miniature photocell, NEMA socket or CMS

•

Austen

Our Austen lantern beautifully replicates a classic lantern design whilst delivering the latest in lighting performance. Choose from various sizes to better suit your heritage

Image shown with soft COB optic in size

Key Features:

Each lantern is manufactured using carefully selected components and a skilful assembly.

Highly versatile, conical lantern offered with a choice of traditional canopy styles

Main Features:

• Mounts directly to the column via a cast base resulting in a compact profile

• Tool-free access luminaire housing

• UKCA/CE Marked

• Single-piece clear polycarbonate glazing for added ingress protection and durability

• CB certified

• DALI enabled

• Available with pre-programmed dimming profile

• Perfectly suited for new developments and upgrading existing schemes

• Luminaire frame tested to IP65

• Electrical compartment tested to IP66

• Optical compartment tested to IP66

• Impact tested to IK10

• Automotive-grade sealing gasket

Materials:

• 2mm spun aluminium housing

• Anti-vandal, UV resistant clear polycarbonate bowl

Technical:

• Nominal weight: 9kg - 11kg (depending on size and specification)

Colour Options:

• Windage: 0.17m² / 0.18m² / 0.20m² (depending on size)

• Recommended mounting height: 3-8 metres

• Suspended mounting on 1 ¼ BSPP thread (other sizes available)

Varoptic® Soft COB LED Array Jewel

Optic options:

Kingsley

Inspired by original gas luminaires, our Kingsley lantern comes complete with a faux gas pipe and clock and is exclusively available in copper with various finishing options available. Providing an elegant aesthetic both day and night that almost identically replicates those from a bygone era.

Image shown with 4 mantle Jewel.

Each lantern is manufactured using carefully selected components and a skilful assembly.

Main Features:

• Tool-free access luminaire housing

• UKCA/CE Marked

• DALI enabled

• Available with pre-programmed dimming profile

Choose from:

• Polished, lacquered or powder coated finish

• Standard or marine-grade coating

• Miniature photocell or CMS

• Luminaire frame designed to IP54

• Electrical compartment tested to IP66

• Optical compartment tested to IP66

• Automotive-grade sealing gasket

Materials:

• 1.2mm copper housing with 4mm copper crown

• Anti-vandal, UV resistant clear polycarbonate bowl

Technical:

• Nominal weight: 17kg (varies depending on specification)

• Windage: 0.20m²

• Recommended mounting height: 3-6 metres

Varoptic® Soft COB LED Array Jewel

Optic options:

Huxley

Our Huxley lantern is manufactured from aluminium and is available with a decorative crown to beautifully replicate classic Victorian styling. Unlike our Kingsley lantern, the Huxley is available with all four of our optic options.

Image shown with soft COB optic and fabricated open frog base.

Each lantern is manufactured using carefully selected components and a skilful assembly.

Main Features:

• Tool-free access luminaire housing

• UKCA/CE Marked

• DALI enabled

• Available with pre-programmed dimming profile

• Luminaire frame designed to IP54

• Standard or marine-grade coating

• Available powder coated to any RAL colour

• Traditional 76mm fabricated frog base or 76mm cast base

• Miniature photocell or CMS

• Available with or without decorative crown

• Electrical compartment tested to IP66

• Optical compartment tested to IP66

• Automotive-grade sealing gasket

Materials:

• 2mm sturdy aluminium housing

• Anti-vandal, UV resistant clear polycarbonate bowl

Technical:

• Nominal weight: 11kg (varies depending on specification)

• Windage: 0.20m²

• Recommended mounting height: 3-8 metres

A 490mm D 234mm G 120mm

B 846mm E 75mm

C 360mm F 76mm

Varoptic® Soft COB LED Array Jewel

St.Nicholas Fountain, Sefton

Choose from:

• Standard or marine-grade coating

• Available powder coated to any RAL colour

• Clear, opal, half white or half black globe

• Scolloped or non-scalloped finial

• Full, basket or no frame

• Miniature photocell or CMS

Nightingale

Our Nightingale lantern is the epitome of style and makes an eye catching addition to any heritage scheme. Replicating a lantern design from an historic period and upgrading it to meet modern-day lighting performance.

Image shown with 3 mantle Jewel, clear bowl, scalloped finial.

Each lantern is manufactured using carefully selected components and a skilful

Main Features:

• UKCA/CE Marked

• DALI enabled

• Available with pre-programmed dimming profile

• Luminaire frame designed to IP66*

• Electrical compartment designed to IP66*

• Optical compartment designed to IP66*

Materials:

• Pressure die cast aluminium housing

• Anti-vandal, UV resistant polycarbonate bowl

Technical:

• Nominal weight: 13kg (varies depending on specification)

• Windage: 0.22m²

• Recommended mounting height: 3-6

*IP ratings TBC

Varoptic® Jewel Soft COB

Choose from:

• Standard or marine-grade coating

• Available powder coated to any RAL colour

• Miniature photocell, NEMA socket or CMS

Billinton

Our Billinton lantern has been designed to suit areas with modern day architecture with its simple streamline design. Customise its appearance with a choice of LED optics and decorative bracketry.

Image shown with soft COB optic. Each lantern is manufactured using carefully selected components and a skilful

Main Features:

• UKCA/CE Marked

• DALI enabled

• Available with pre-programmed dimming profile

• Luminaire frame designed to IP54

• Electrical compartment tested to IP66

• Optical compartment tested to IP66

• Automotive-grade sealing gasket

Materials:

• 2mm sturdy aluminium housing

• Anti-vandal, UV resistant clear polycarbonate bowl

Technical:

• Nominal weight: 11kg (varies depending on specification)

• Windage: 0.20m²

• Recommended mounting height: 3-8 metres

• Suspended mounting on 1 ¼ BSPP thread (other sizes available)

Varoptic® Soft COB LED Array Jewel

Royal Albert Hall

Westminster Lighting Upgrade

“Working with Pudsey Diamond on our gas replacement programme has been nothing but professional from start to finish, from the site visits, the interaction with our clients and the beautifully finished products, thank you for your dedication to the Westminster contract”

Gary Thorne I FM Conway

LED optic options

With both an environmental and social impact, your lighting choice is arguably the most important when it comes to your street scene. Discover our choice of LED optics with options to suit all your requirements, including our patented, industry favourite - Varoptic® .

Soft COB

Our Soft COB (chip on board) LED offers many advantages over the standard options. Simply put, COB LEDs are multiple LED chips bonded directly to a substrate to form a single module. Our Soft COB LED creates a look similar to traditional lamps, and is a step forward to a more efficient energy use.

LED Array

Our LED Array is a high-power LED optic which offers fantastic performance and directional lighting. It is best suited for areas with high columns which require higher lighting levels.

Choose from any of our LED optics to retrofit into your existing luminaire.

Retrofit Jewel optic

Improved integrity, lighting distribution & service life

Retrofit Module Size Options

Fits Into: Urbis Abbey Medium

Urbis Abbey Large

WRTL Precinct

Metcraft Victoria MSD

Urbis Albany Large Urbis Albany Medium DW Windsor Strand A

DW Windsor Strand B Ely A/B

Urbis Albany Medium DW Windsor Strand B

Each optic is supplied with our unique high integrity ClampPD® seal technology, securing the optical and electrical compartments for dust and water ingress. Rated to IP66, it means when using our retrofit solutions not only can you improve your lighting distribution but also the integrity of your existing luminaire.

Our patented, multi-award

winning lighting optic

Main Features

• Avoid unwanted light spill in minutes - The 3D printed mantles can be rotated 360º in 10º steps providing both directional control of the illuminated area as well as providing a shield for areas where light is not desired, meaning you can fully customise your lighting distribution.

• Considerably reduce glare - The mantles have also been designed to significantly reduce glare by allowing stray light to be diffused through the many perforations in the mantle ensuring a comfortable output for the surrounding environment.

“When we first worked with the Dickens lantern we all said the same thing and that was this is a really well designed high quality product and the biggest WOW is that it has got LEDs which look like gas mantles. I urge you all to take a look for yourself.”

Varoptic® - product overview

Gain the benefits of switching to LED without losing the treasured gas mantle aesthetic

Varoptic® is expected to produce energy savings of up to 75%, whilst providing a diffused, low glare lighting output for the surrounding environments. All this, while remaining in keeping with period lighting during both the day and night.

Featuring...

• 18-75 Watt options

• 70 Colour Rendering Index (CRI)

• Maintenance factor: L90B10>100,000 hrs

• 10kV surge protection

• Fits a wide range of existing heritage lanterns

• Unique rotatable reflectors

• Up to 129 Lumens per watt efficacy

• DALI enabled & pre-programmed options

• Installation in minutes

• Low glare

IP66 rated unit, offering an impressive amount of protection against ingress.

Our unique and specifically designed ClampPD® seal technology assures the integrity of our Varoptic® luminaire through the use of compression rubber gaskets sealing against moisture and dust ingress, protecting both the internal electrical components as well as the LED unit inside the luminaire.

ClampPD®

Our seal technology for peace of mind when it comes to ingress protection.

Dover Lighting Upgrade

“I am very happy to report that Dover DC and all their interested parties are very pleased with the Dickens lanterns and the Varoptics used on the recent LED Conversion programme. Crucially the Dickens is an extremely strong lantern not only for the harsh coastal environment but also against potential vandalism too. In addition, it has class leading performance giving proper lighting levels with minimum glare from the replica gas mantles that are the correct aesthetic for the style of lantern which satisfies the Conservation Planning requirements too. All this at a competitive price and with excellent service that is so rare to find. Great British made product from a long standing engineering company!”

Mike Mills IEng MILP I Design and Consulting Director LEDS LTD I Consultant to Dover DC

Blists Hill Living Museum

Heritage Columns & Brackets

Designed to complement our heritage lanterns, our extensive range of decorative brackets and columns allow you to upgrade your conventional fittings to better suit areas with historic interest.

Columns

Mid Hinge Heritage Columns

• Available in 4, 5, and 6 metre shaft heights

• Column hot dipped galvanised to BS EN ISO 1461:2009

• Root protection G1 as standard, treated backboard and earth fly lead

• Durable corrosion resistant aluminium castings

• Designed to be used on sites where access for maintenance is difficult

• Padlockable discreet locking mechanism without external moving parts for improved resistance against vandalism

• MIO epoxy primed & black topcoat as standard

• Other colours available upon request

Straight Heritage Columns

• Choice of Chandler and Beaufort options

• Available in 4, 5, and 6 metre shaft heights

• Column hot dipped galvanised to BS EN ISO 1461:2009

• Root protection G1 as standard, treated backboard and earth fly lead

• Durable corrosion resistant aluminium castings

• MIO epoxy primed & black topcoat as standard

• Other colours available upon request

Cast Base Heritage Columns

• Cast iron ornate base

• 89Ø column shaft with 76Ø spigot for post top lantern

• Column shaft hot dipped galvanised to BS EN ISO 1461:2009

• Durable corrosion resistant aluminium ring & ladder bar

• Available in 3, 4, 5, and 6 metre shaft heights

• Available with a planted or flanged base

• MIO epoxy primed & black topcoat as standard

• Other colours available upon request

Our range of lighting column embellishments gives you the flexibility to upgrade your street scene easily and cost effectively.

Choose either our Chandler or Beaufort embellishments to turn your existing lighting columns into an eye-catching feature for any town centre or place of interest.

• Durable corrosion resistant cast aluminium

• MIO factory primed

• Final topcoat to be applied on site after installation

• Stainless steel discreet fastening for better appearance

Chandler Beaufort

Decorative Brackets

Complement your heritage lantern with our range of decorative brackets, all manufactured and painted in-house for a single point of quality control and the ability to create bespoke solutions upon request. All available with various thread sizes.

Column mounted

Cascade Column Bracket

Pot Diameters:

• 89mm

• 101mm

• 114mm

Hoops Column Bracket

Pot Diameters:

• 89mm

• 114mm

Available outreach options:

Scrolls Column Bracket

Pot Diameters: 89mm

• 114mm

Available outreach options:

• 500mm

• 750mm

• 1000mm

Upper Hoops Column Bracket

Pot Diameters:

• 89mm

• 114mm

Available outreach options:

• 500mm

• 750mm

• 1000mm

Simple & Stylish Bracket

Type 45 Swan Neck

Pot Diameters:

• 89mm

Available height options:

Available outreach options: 750mm

• 1000mm

• 1000mm

• 1200mm

Available with a 0° or 5 ° uplift

Cascade Wall Bracket

Available outreach options:

• 580mm

• 960mm

Hoops Wall BracketPost Top

Available outreach options:

• 500mm

• 750mm

• 1000mm

Scrolls Wall BracketPost Top

Available outreach options:

• 500mm

• 750mm

• 1000mm

Hoops Wall Bracket - Top Entry

Available outreach options:

• 500mm

• 750mm

• 1000mm

Scrolls Wall BracketTop Entry

Available outreach options:

• 500mm

• 750mm

• 1000mm

Knuckle Finials

• Can be sold seperatly to embellish existing bracketry.

Wall mounted

Blists Hill Museum

Blists Hill Victorian living museum

This open-air museum is a very popular tourist attraction to step back in time and experience the sights and sounds of Victorian life. It was imperative the overall aesthetics were a true reflection of the lanterns used in that period, including the light output which replicates the original warmth and glow of a gas luminaire. Our lanterns were supplied complete with a faux mechanical clock and gas pipes, along with the latest in lighting technology – our patented Varoptic® module. Mounted on our heritage columns and decorative brackets, providing a finished product that fits seamlessly with the surrounding architecture.

Why choose us?

UK Design & Manufacture

Our in-house design team have over 40 years of experience in the industry. As a UK manufacturer, from raw materials to finished product, we source as many materials as possible from our home market thereby supporting the UK economy and keeping our carbon footprint as low as possible.

Innovative Design

We have a reputation for providing the highest quality products and engineering solutions across the street lighting industry. Our products are easy to install and provide a long trouble-free service life, and of course, meet all the relevant safety and product standards.

Customer Driven

We pride ourselves on excellent customer service and ongoing support. It is not just about the initial sale but the aftercare and ongoing support to our customers. Our experienced team is here to assist wherever possible, from initial enquiry to the final product, our service is tailored to each customers’ specification. We have a fully supportive aftersales service.

We are proud to hold a number of industry awards, memberships and accreditations, which help to cement us as one of the best in the industry. All certifications available upon request.

Big enough to cut it, small enough to care.

Jason Hughes I Shropshire Council

‘’We have worked with Pudsey Diamond for our heritage replacement projects, where together we have developed products best suited for the area, to the specification we required. From conception to delivery, the service we have received is excellent’’
