PEDESTRIANVEHICLESHIGH SECURITY CATALOGUE
PEDESTRIAN PRODUCTS
Scan the page to see more reference pictures

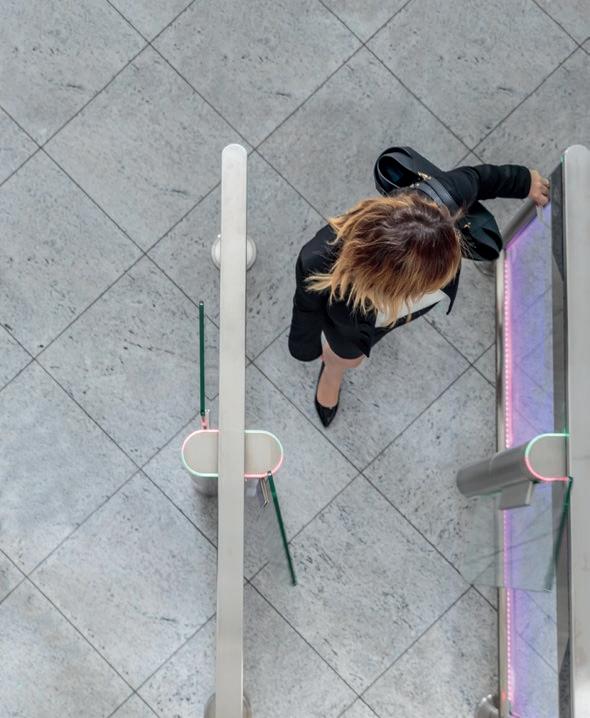

SECURITY ENTRANCE LANES

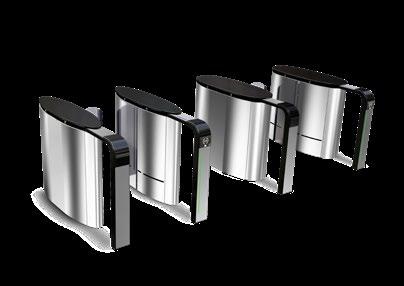

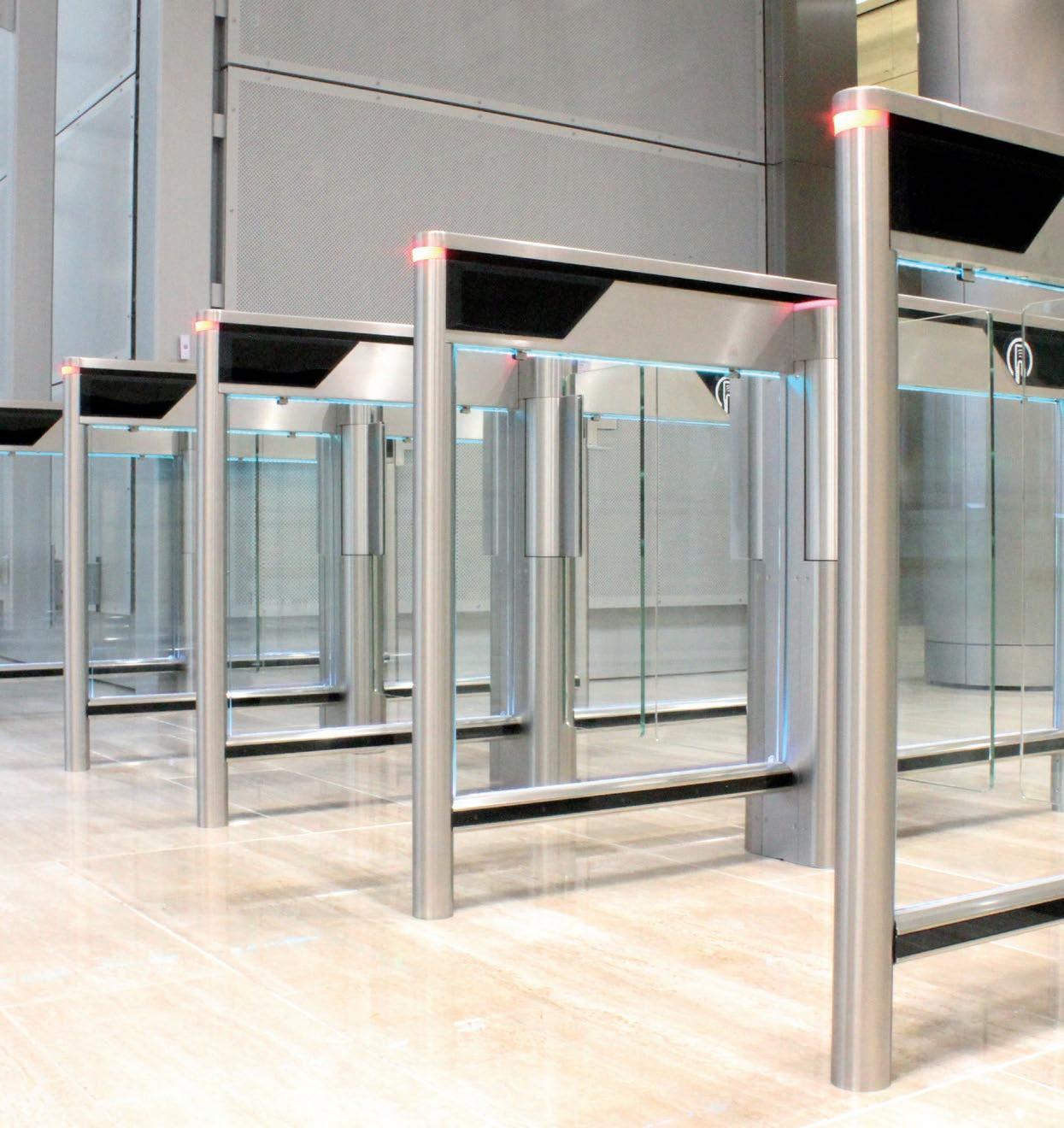

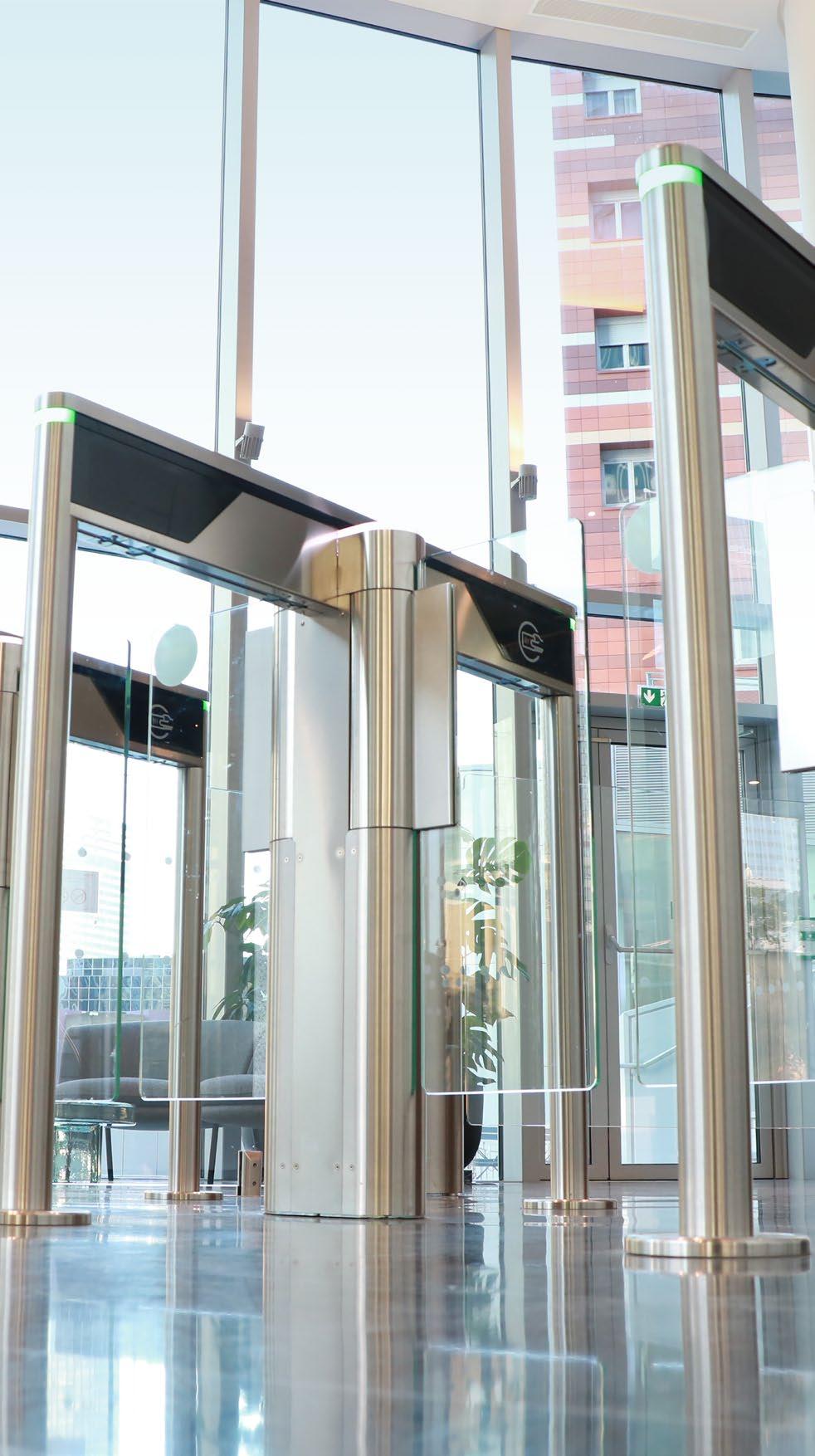

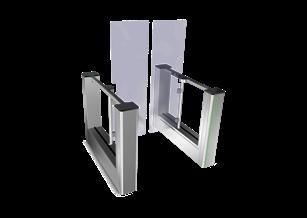

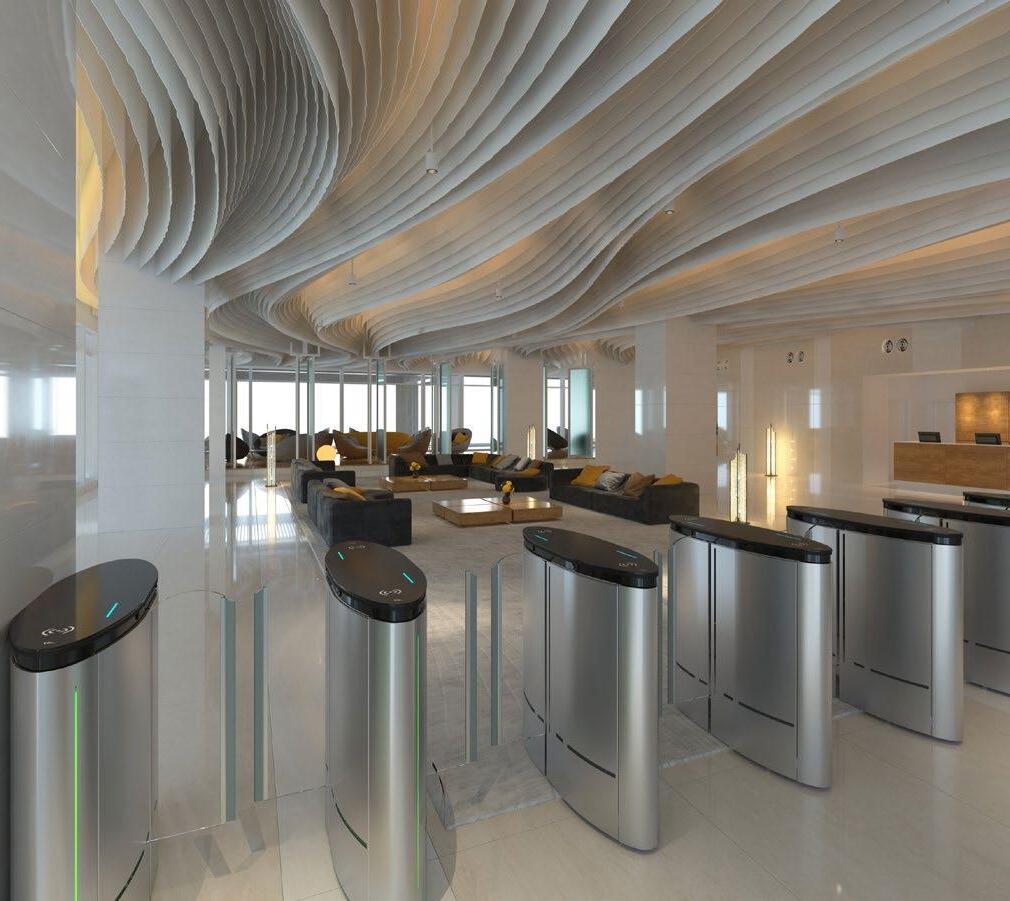

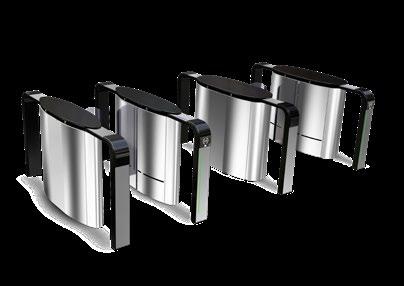

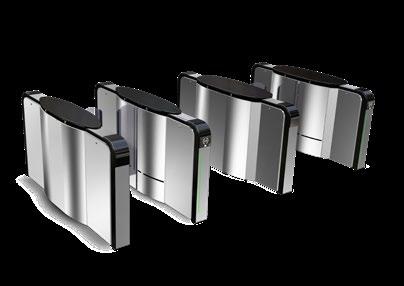

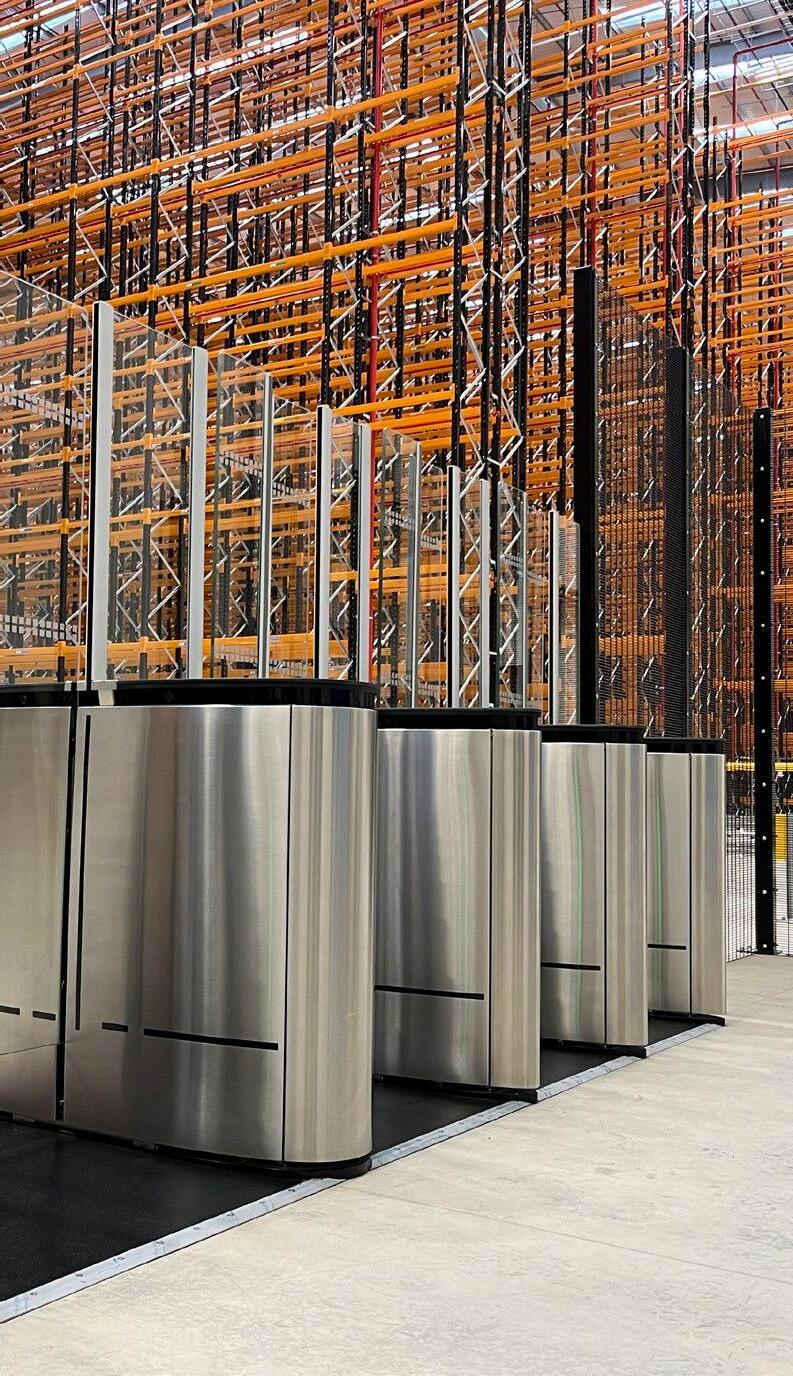

SLIMLANE SERIES - AESTHETICS & SECURITY
Featuring a streamlined design, SlimLane’s double swing door security entrance lanes combine high throughput (opening time < 1 sec.) with advanced user protection while providing a minimal footprint.
SLIMLANE - 2 DOORS
SLIMLANE 940-940SC STANDARD LANE
◆ Passage width: 600 mm (from 550 to 725 mm)
◆ Obstacle heights:
900 / 1200 / 1500 / 1700 mm
◆ Footprint (W x L): 1000 x 1640 mm / 1000 x 1274 mm (SC)
* picture with trolley detection, side glass and end-post extensions (EP)
SLIMLANE 950-950SC WIDE LANE
◆ Passage width: 550 mm (from 550 to 600 mm)
◆ Obstacle heights:
900 / 1200 / 1500 / 1700 mm
◆ Footprint (W x L): 1300 x 1640 mm / 1300 x 1274 mm (SC)
SLIMLANE 940SC SLIMLANE 940
SLIMLANE 950EW EXTRA-WIDE LANE
◆ Passage width: 1200 / 1400 mm
◆ Obstacle heights: 900 mm
◆ Footprint (W x L): 1600 x 1640 mm
SERVICELANE SERVICE LANE
◆ Passage width: 900 mm
◆ Obstacle heights: 1000 / 1200 mm
◆ Footprint (W x L): same dimensions as intermediate cabinets 940 / 950 / 944

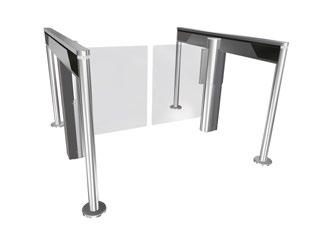

SLIMLANE 950EP + 940EP WITH END-POSTS
SLIMLANE 940 + SERVICELANE
FAIL-SAFE
SECURITY ENTRANCE LANES
SLIMLANE SERIES - GREATER MODULARITY
A compelling product offering:
◆ standard or short cabinets
◆ standard or wide lanes with end-post extensions (EP)
◆ 1 or 2 doors
SLIMLANE - 1 DOOR
SLIMLANE 944-944SC
COMPACT LANE
◆ Passage width: 550 mm (from 550 to 600 mm)
◆ Obstacle heights: 900 / 1200 / 1500 / 1700 mm
◆ Footprint (W x L): 857 x 1640 mm / 857 x 1274 mm (SC)
◆ low or high obstacles
◆ 2 operating modes - Securi-safe or Egress
SLIMLANE 945-945SC TWIN
DUAL COMPACT LANE
◆ Passage width: 900 mm (from 725 to 950 mm)
◆ Obstacle heights: 900 / 1200 / 1500 / 1700 mm
◆ Footprint (W x L): 1300 x 1640 mm / 1565 x 1274 mm (SC)
944SC
DOUBLE LANE SLIMLANE 944
SLIMLANE 950+944+944 WITH END-POST EXTENSIONS (EP)
◆ Installation example with maximum throughput and minimum footprint
◆ Footprint (W x L): 2719 x 1450 mm (1 wide lane + 2 standard lanes)
TRIPLE LANE SLIMLANE 944 WITH END-POSTS (EP)
SECURITY ENTRANCE LANES

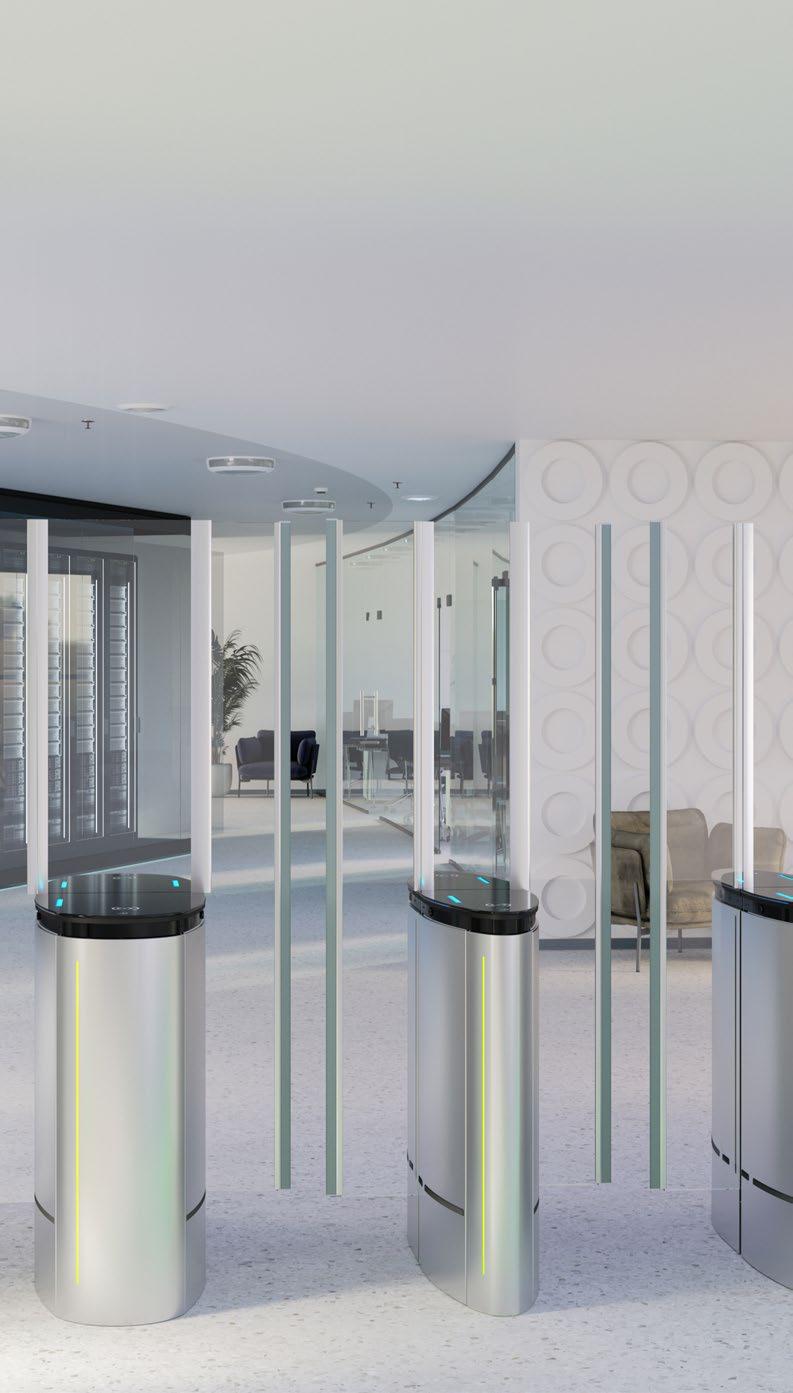

SMARTLANE SERIES
The elegant and discreet design of the SmartLane range of high security, bidirectional speed gates (opening time < 1 sec.), blends seamlessly into any type of architecture. SmartLane is available in multiple possible configurations, including extensions options, open or closed, one-way or double.
SMARTLANE 2900 STANDARD LANE
◆ Passage width: 600 mm
◆ Obstacle heights: 1000 / 1200 / 1500 / 1700 / 1800 / 1900 / 2000 mm
◆ Footprint (W x L): 1200 x 1200 mm
OPEN EXTENSION
CLOSED EXTENSION
SMARTLANE 2910 WIDE LANE
◆ Passage width: 900 mm
◆ Obstacle heights: 1000 / 1200 / 1500 / 1700 / 1800 / 1900 / 2000mm
◆ Footprint (W x L): 1800 x 1200 mm
DOUBLE OPEN EXTENSION
DOUBLE CLOSED EXTENSION
Scan the page to see more reference pictures
SECURITY ENTRANCE LANES
FIRSTLANE SERIES

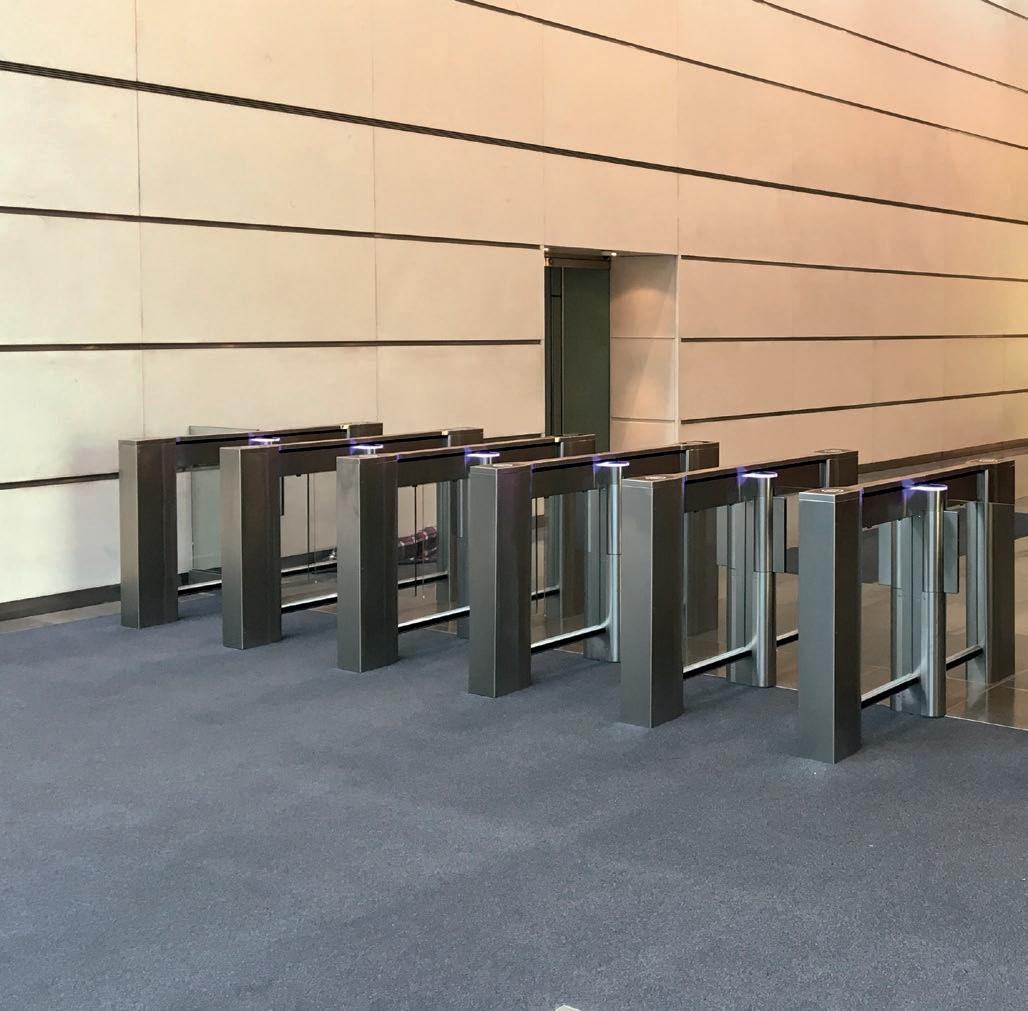

FirstLane double swing door security turnstiles provide a high bi-directional flow and safety without compromise. With its modern and stylish design, FirstLane is perfectly suited to any type of architecture. Its exclusive detection system ensures precise user tracking for maximum safety and security. FirstLane combines high throughput with state-of-the-art detection.
FIRSTLANE
◆ Passage width: 600 / 900 mm
◆ Obstacle heights:
900 / 1200 / 1500 / 1700 / 1800 mm
◆ Footprint (W x L): 990 x 1300 mm / 1290 x 1300 mm
FIRSTLANE S
◆ Passage width: 600 / 900 mm
◆ Obstacle heights:
900 / 1200 / 1500 / 1700 / 1800 mm
◆ Footprint (W x L): 990 x 1300 mm / 1290 x 1300 mm

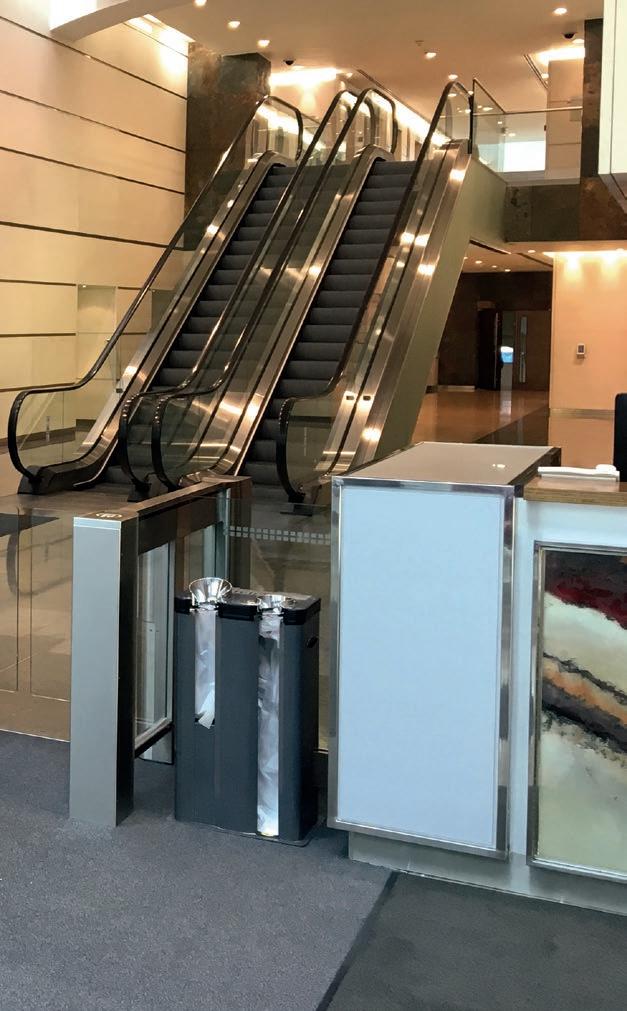

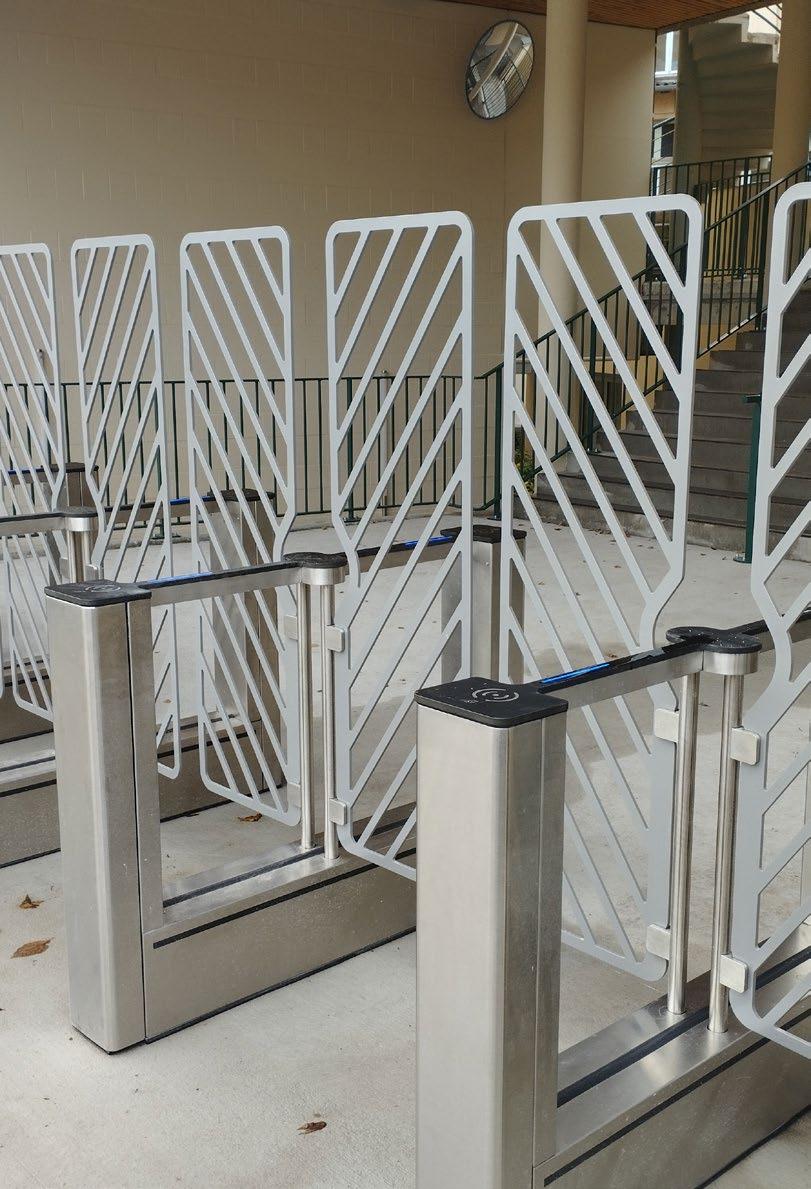

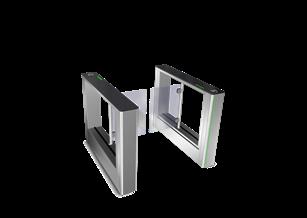

SWING GATES
ACCESSLANE SERIES
FIRSTLANE PLUS
◆ Passage width: 600 / 900 mm
◆ Obstacle heights: 900 / 1750 mm
◆ Footprint (W x L): 990 x 1300 mm / 1290 x 1300 mm
Bidirectional swing gates can be used alone or in conjunction with others products such as SmartLane, TriLane, SlimLane. They can be installed discretely and aesthetically in the entrance areal of buildings.
ACCESSLANE 933
◆ Passage width: 900 mm
◆ Obstacle heights: 900/1000/1200 mm
◆ Footprint (W x L): 1000 x 220 mm
ACCESSLANE 934
◆ Passage width: 900 mm
◆ Obstacle heights: 1500/1700/1800/1900 mm
◆ Footprint (W x L): 1535 x 220 mm
TRIPOD TURNSTILES
TRILANE SERIES

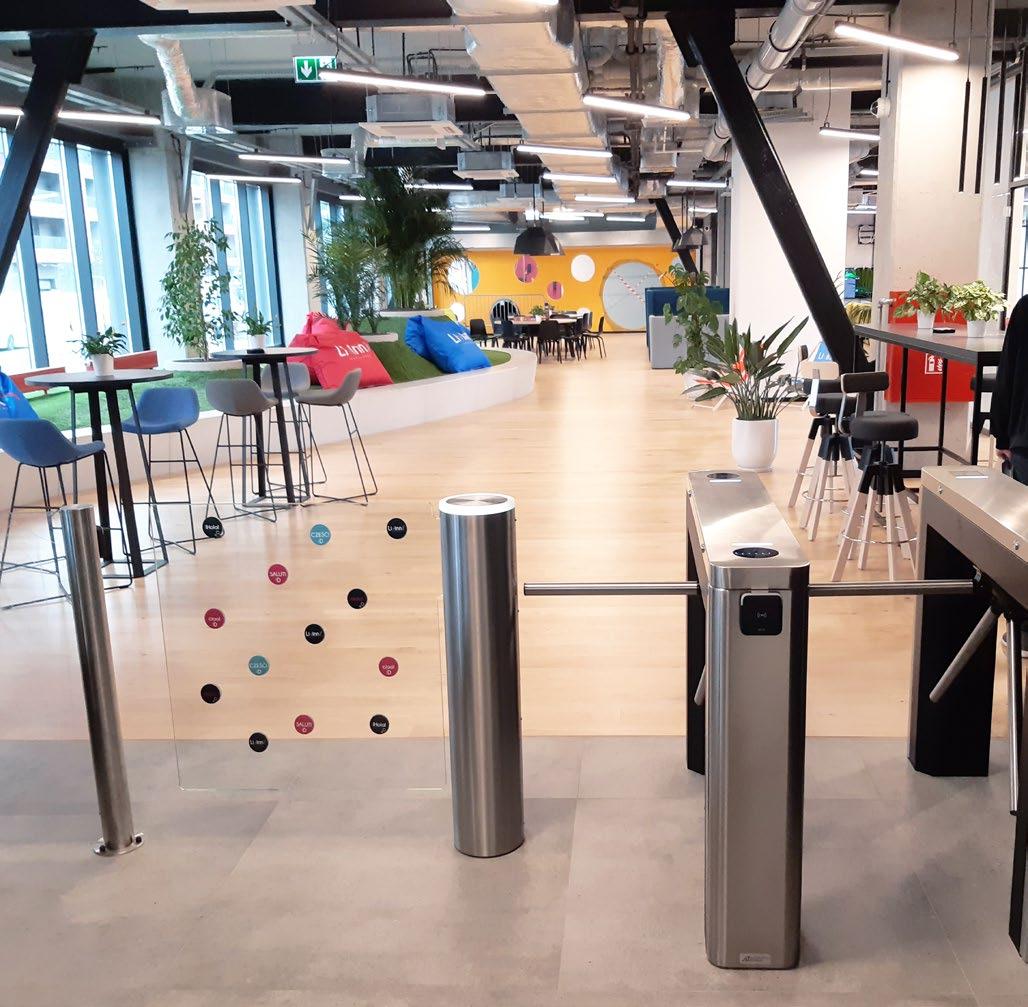

Bidirectional TriLane tripod turnstiles are robust products for sites with heavy use. They can function equally well indoors and outdoors.
TRILANE TL 1
TRIPOD TURNSTILE
◆ Passage width: 550 mm
◆ Footprint (W x L): 849 x 400 mm
TRILANE TL 2
TRIPOD TURNSTILE
◆ Passage width: 550 mm
◆ Footprint (W x L): 745 x 1300 mm

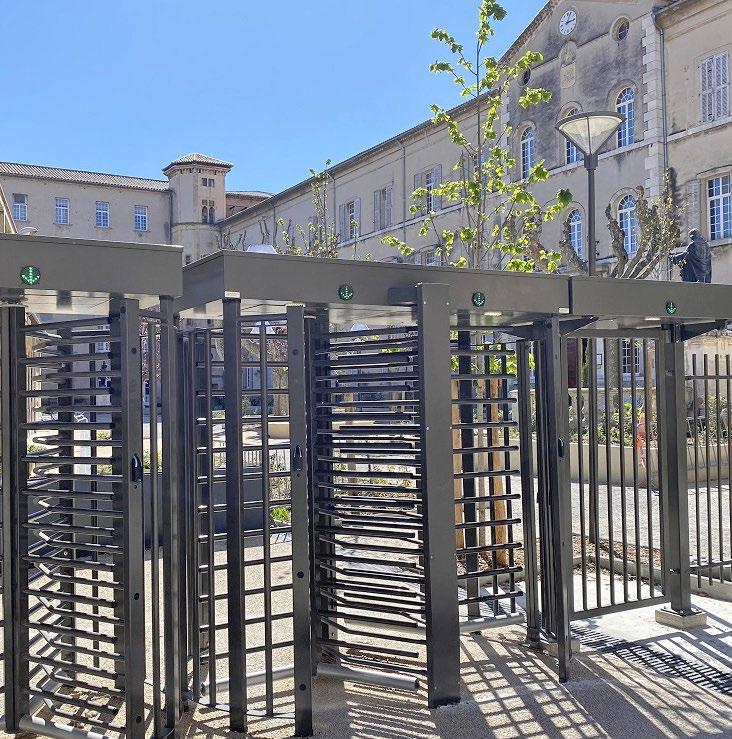

FULL-HEIGHT TURNSTILES
TRS SERIES
Mainly used to lock down the perimeter of enclosed outdoor sites, our bidirectional full-height turnstiles ensure single-user throughput and are extremely weather-resistant.
TRS 370
3-SECTIONS FULL-HEIGHT TURNSTILE
◆ Single passage
◆ Passage width: 640 mm
TRS 372
3-SECTIONS FULL-HEIGHT TURNSTILE
◆ Double passage
◆ Passage width: 2 x 640 mm
TRS PMR
SECURITY DOOR DESIGNED FOR PERSONS WITH REDUCED MOBILITY (PRM)
◆ It can be fully integrated with the TRS37x range for side-by-side or remote installation
◆ The bidirectional door is available in motorized or manual version
◆ Passage width: 1050 mm
TRS 371
4-SECTIONS FULL-HEIGHT TURNSTILE
◆ Single passage
◆ Passage width: 560 mm
TRS 373
4-SECTIONS FULL-HEIGHT TURNSTILE
◆ Double passage
◆ Passage width: 2 x 560 mm
TRS BIKE
3-SECTIONS FULL-HEIGHT
TURNSTILE DESIGNED FOR THE BIKE PASSAGE
◆ Motorized bike gate
◆ Bidirectional passage
◆ Innovative bike detection (optional)
SECURITY DOORS
CLEARLOCK SERIES
ClearLock automatic security booths are cylindrical doors that provide very strict access control, specially adapted to sensitive sites. CLEARLOCK 63X ROUND SECURITY BOOTHS
1. Passage widths: between 580 and 900 mm
2. Single passage detection
3. Metal detection
REVLOCK SERIES
4. Bullet-proof glass EN1063 (*)
5. Force-entry resistance EN1627-1630/ LPS1175 SR1-2-3 (*)
6. Intrinsic mechanical opening (*)

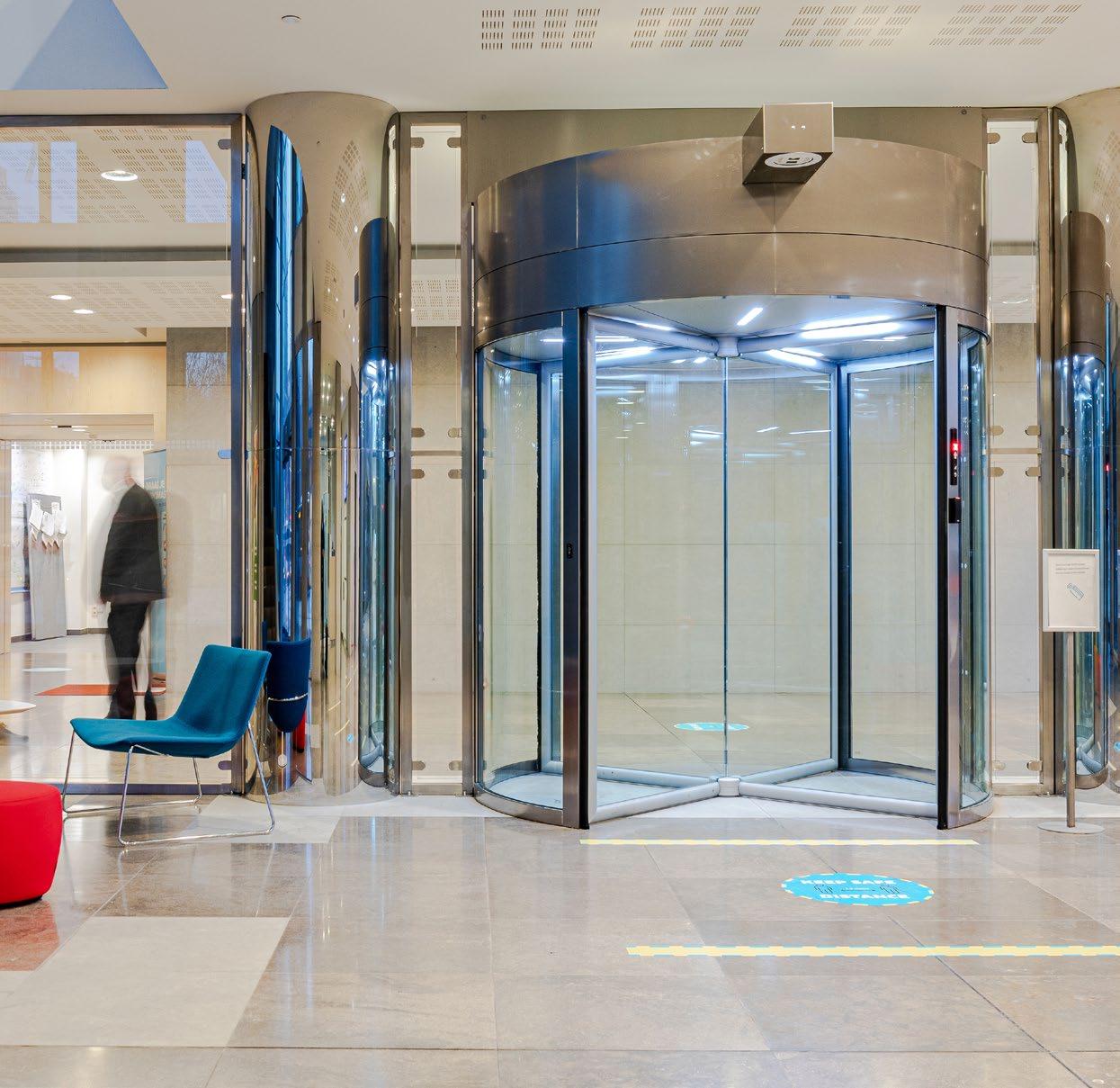

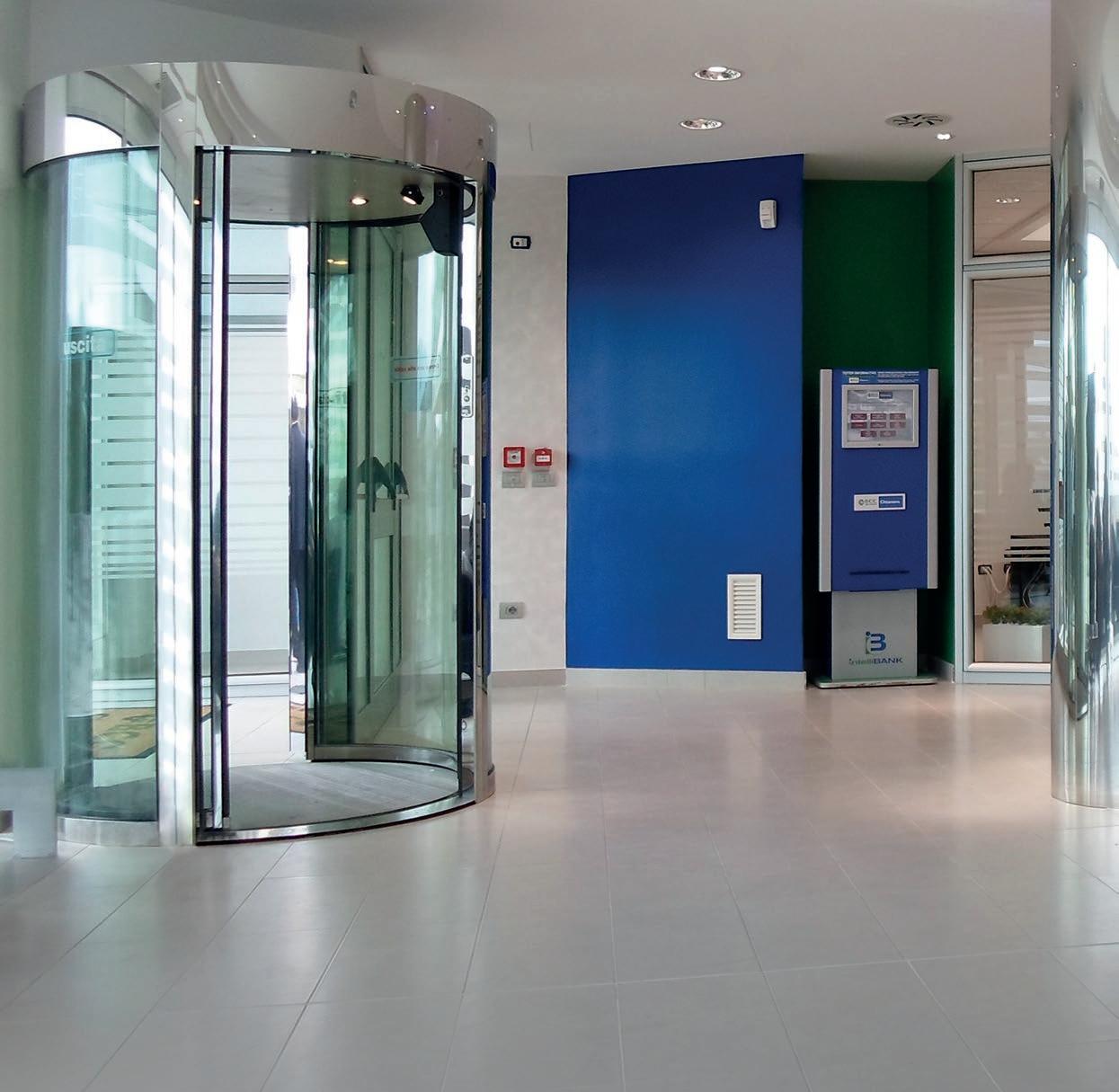

RevLock automatic revolving security doors are designed to provide high-security access control with high throughput.
REVLOCK 60X-614 REVOLVING DOORS WITH WEIGHT DETECTION
1. Doors with 3 or 4 sections
2. External diameters: 1800/2000/2300 mm (*)
3. Single passage detection
INTERLOCK SERIES
REVLOCK 60XT-614T REVOLVING DOORS WITH VOLUMETRIC DETECTION
4. Bullet-proof glass EN1063 (*)
5. Forced-entry resistance EN1627-1630 (*)
6. Night doors and folding doors (*)
InterLock rectangular security booths are equipped with flat glass doors, providing access control that is particularly recommended for public sites.
INTERLOCK 67X
AUTOMATIC SECURITY BOOTHS WITH FLAT DOORS
1. Passage widths: 700 or 900 mm
2. Single passage detection
3. Metal Detection
INTERLOCK 68X MANUAL SECURITY BOOTHS WITH FLAT DOORS
4. Single or double passage (*)
5. Bullet-proof glass EN1063 (*)
6. Intrinsic mechanical opening (*)
(*) depending on the model
▶ FIND THE PEDESTRIAN PRODUCT FOR YOUR NEEDS
▶ FIND THE SECURITY DOOR FOR YOUR NEEDS

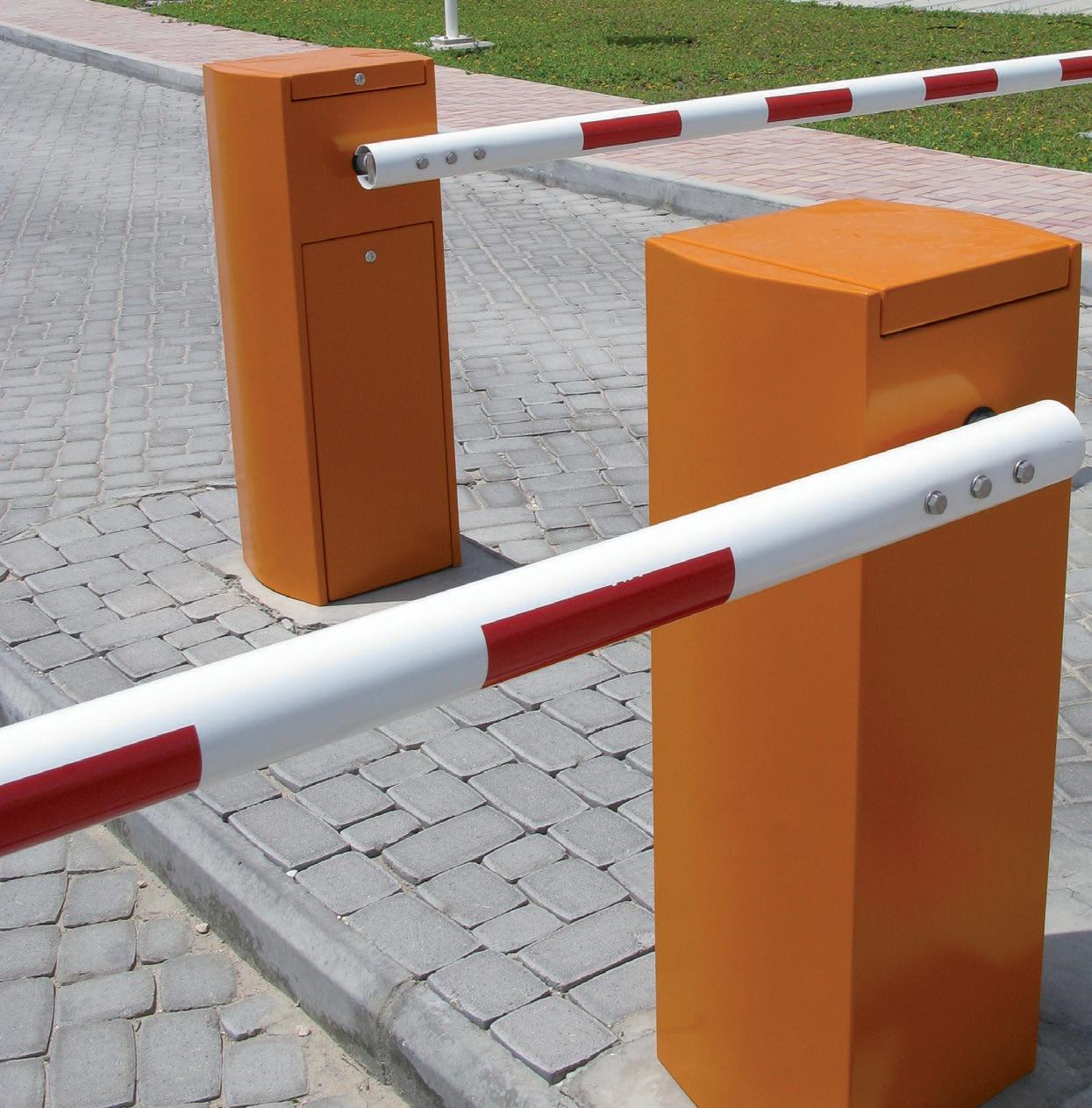

VEHICLES PRODUCTS
Scan
APPLICATIONS
Discover our range of vehicle products by application

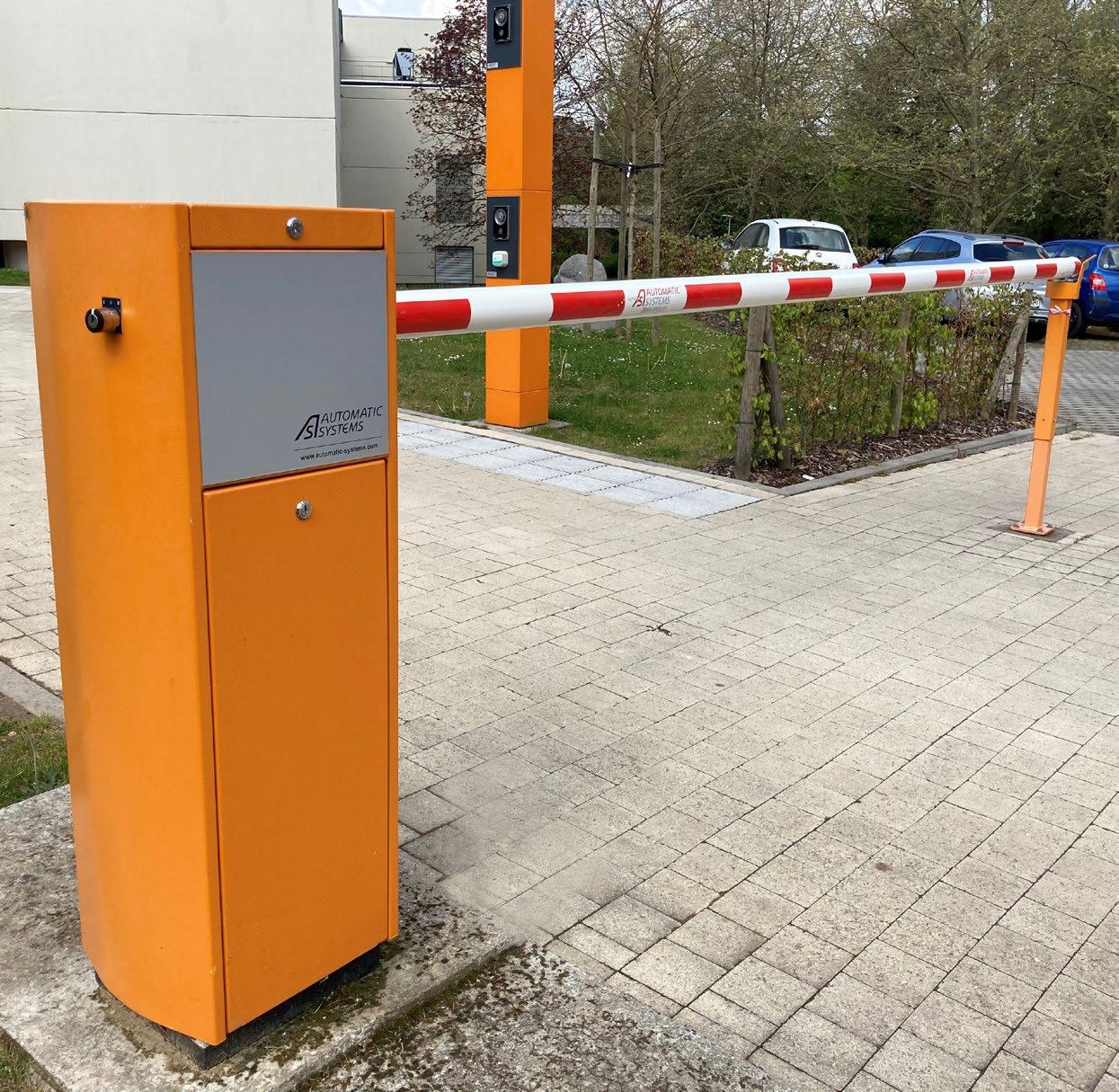

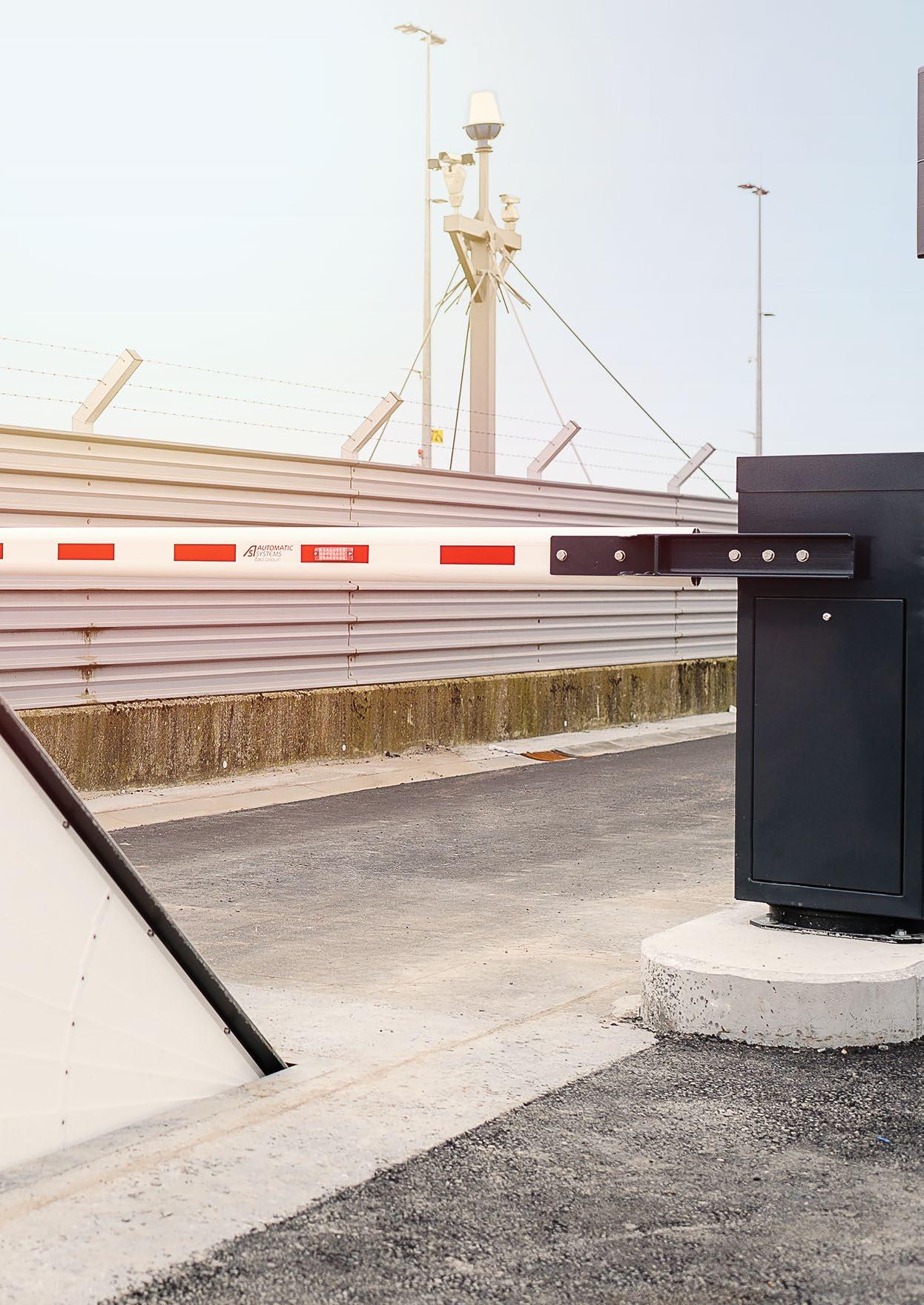

PERIMETER ACCESS

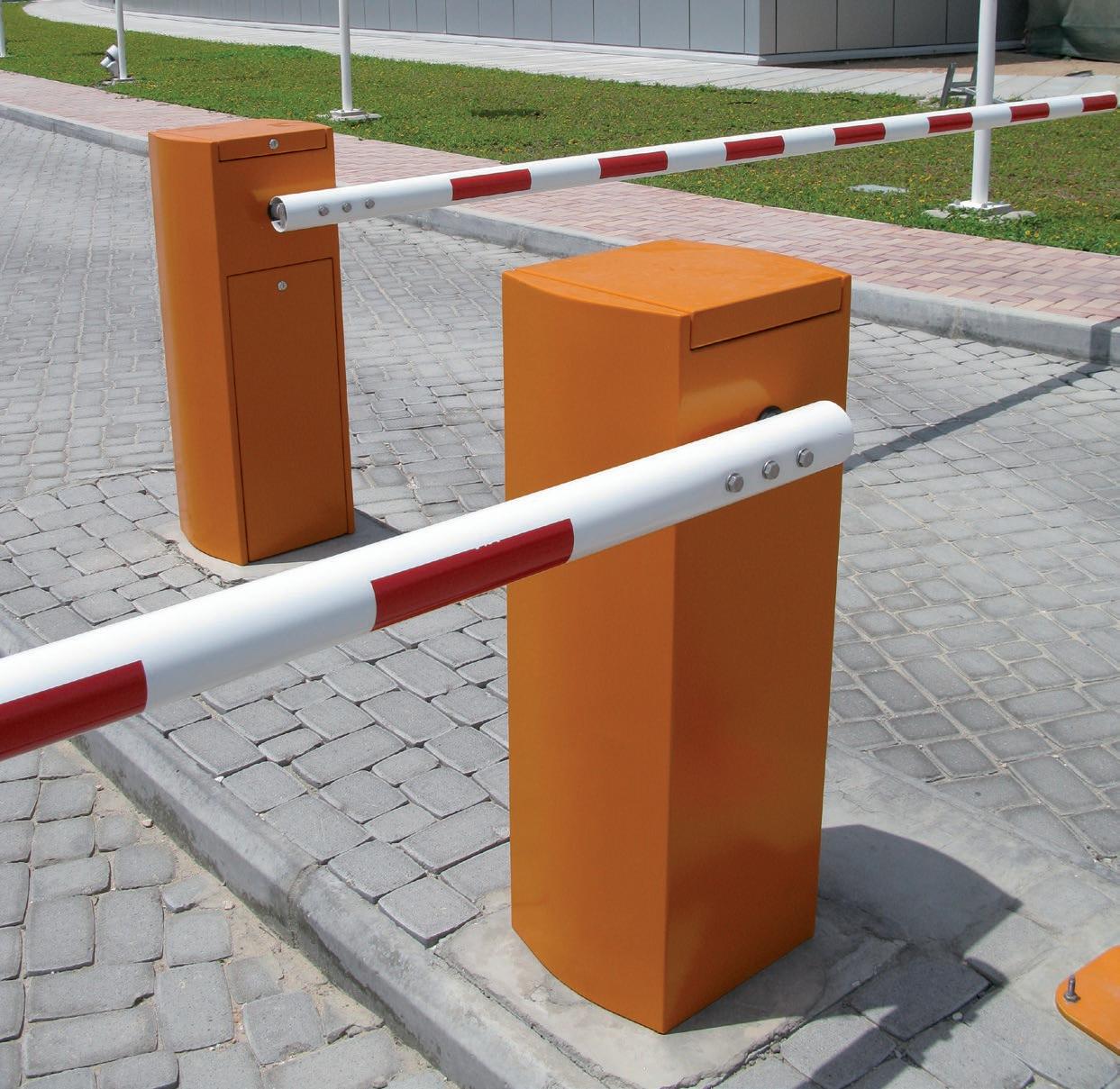

AS1 GUARD
◆ Opening time: min. 1.2 sec.
◆ Max. free passage: 7 meters
◆ Round aluminium arm
BL 10
◆ Manual rising barrier
◆ Max. free passage : 8 m
BL 40 / 41
◆ Opening time : min. 3.4 / 4.2 sec.
◆ Max. free passage : 8 m / 12 m
◆ Round aluminum arm
BL 52
◆ Opening time : min. 8 sec.
◆ Max. free passage : 14 m
◆ Round aluminum arm
◆ Mechanical locking
HIGH SECURITY

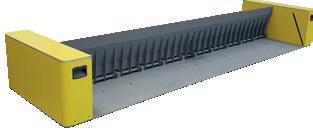

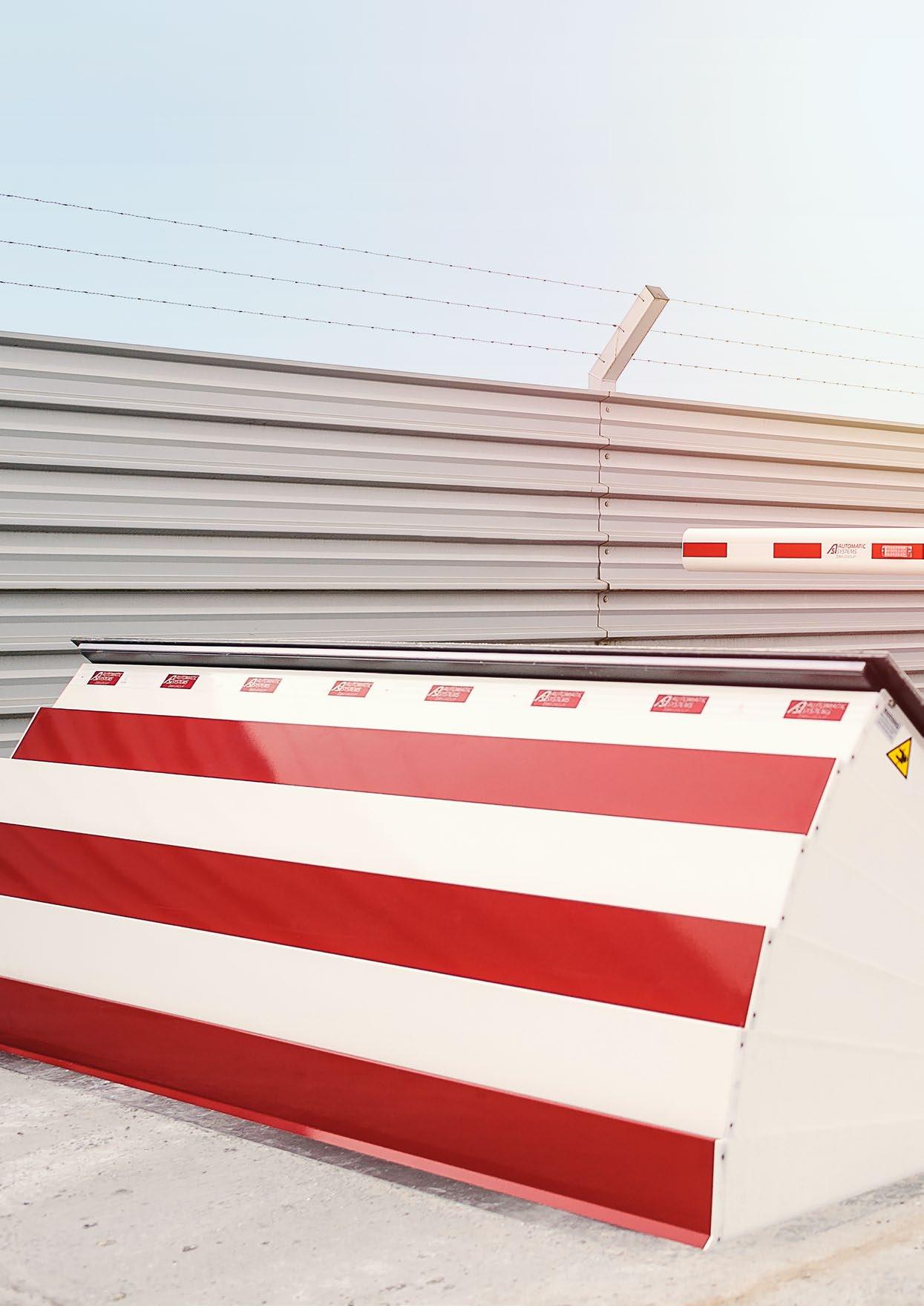

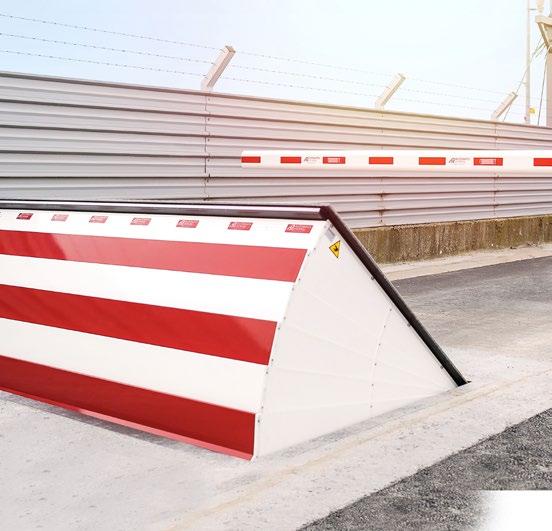

BL43 C50M1
◆ Rising barrier
◆ Impact resistance: 250,000 joules
◆ Height: 770 mm
◆ Length: 3 m
◆ Shallow mounted
◆ Electro-mechanical actuator
◆ 2 directions of obstacle
◆ For type M1 vehicle (car)
BL 229
◆ Opening time : min. 1.2 sec.
◆ Max. free passage : 6 m
◆ Round aluminum arm
◆ Mechanical locking
BL 43
◆ Opening time : min. 3.2 sec.
◆ Max. free passage : 6 m
◆ Reinforced aluminum arm
◆ Dissuasive barrier
BL 53
◆ Opening time : min. 5 sec.
◆ Max. free passage : 8 m
◆ Reinforced aluminum arm
◆ Extra-long dissuasive barrier
◆ Mechanical locking
BL43 C50N1
◆ Rising barrier
◆ Impact resistance: 250,000 joules
◆ Height: 1030 mm
◆ Length: 3 m
◆ Shallow mounted
◆ Electro-mechanical actuator
◆ 2 directions of obstacle
◆ For type N1 vehicle (flat bed)

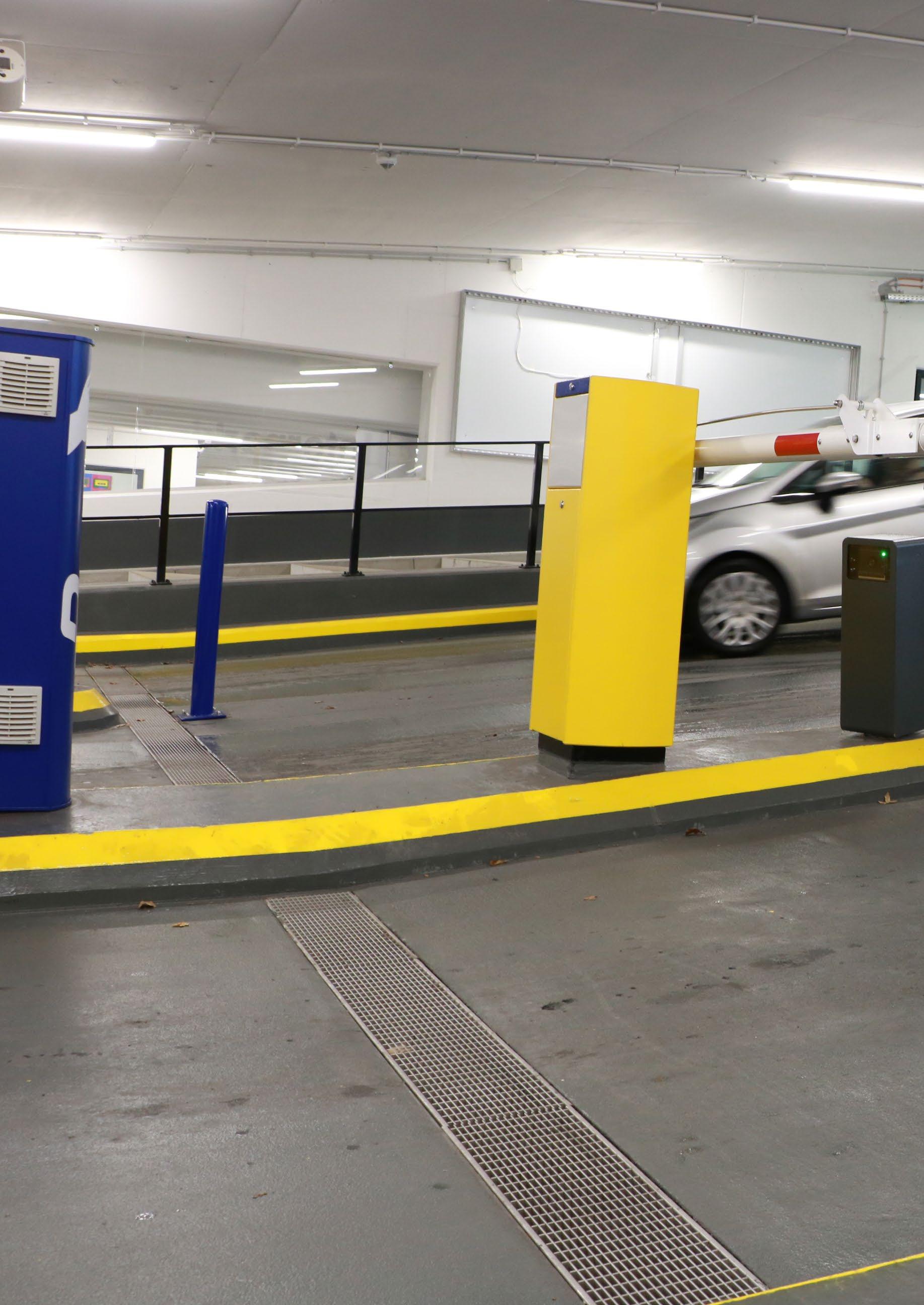

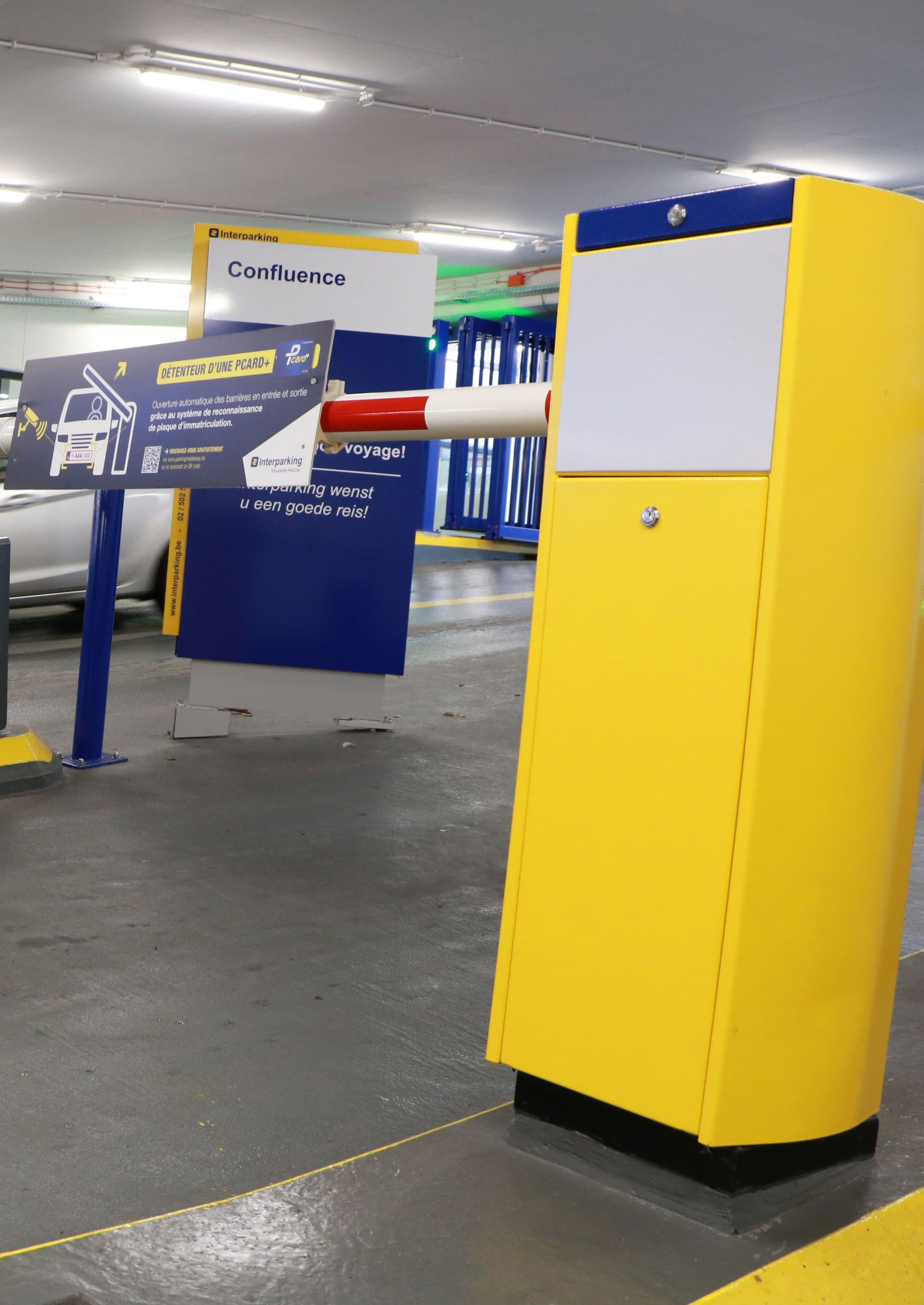

PARKING
AS1 PARK
◆ Opening time : min. 1.2 sec.
◆ Max. free passage : 4 m
◆ Straight or articulated round aluminium arm
BL 244
◆ Opening time : min. 1.2 sec.
◆ Max. free passage : 4 m
◆ Semi-reinforced aluminum arm (articulated arm is optionally available)

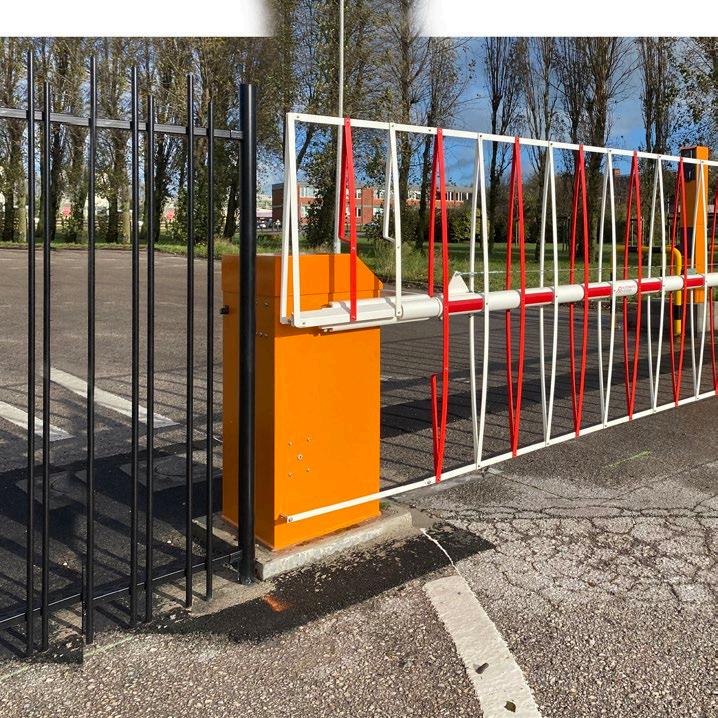

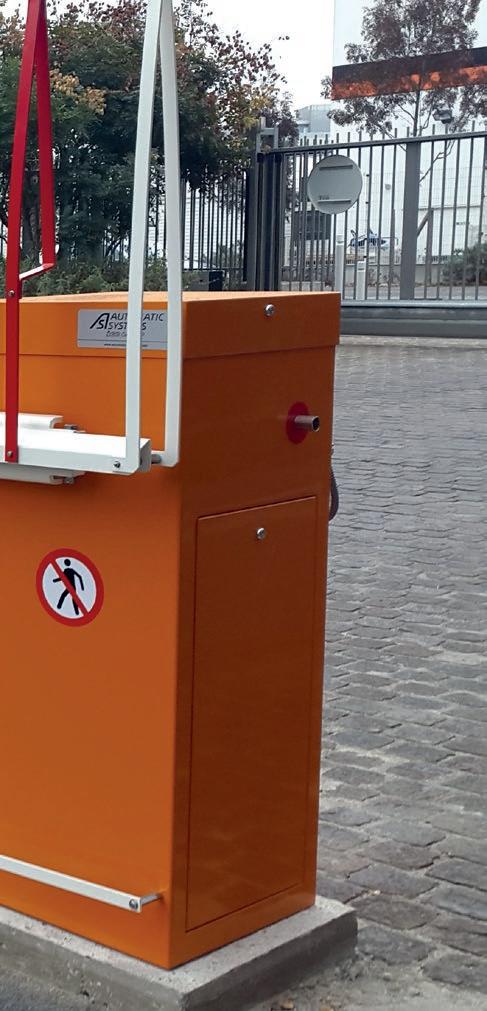

RISING FENCED BARRIERS
BL 46
◆ Opening time : min. 6 sec.
◆ Max. free passage : 7 m
◆ Aluminum folding fence
BL 47
◆ Opening time : min. 6 sec.
◆ Max. free passage : 4.35 m
◆ Height from ground : 2 m
◆ Aluminum rigid fence
BL 229
◆ Opening time : min. 1.2 sec.
◆ Max. free passage : 6 m
◆ Round aluminum arm
◆ Strong mechanical locking
BL 44
◆ Opening time : min. 2 sec.
◆ Max. free passage : 4 m
◆ Reinforced aluminum arm
◆ Security barrier

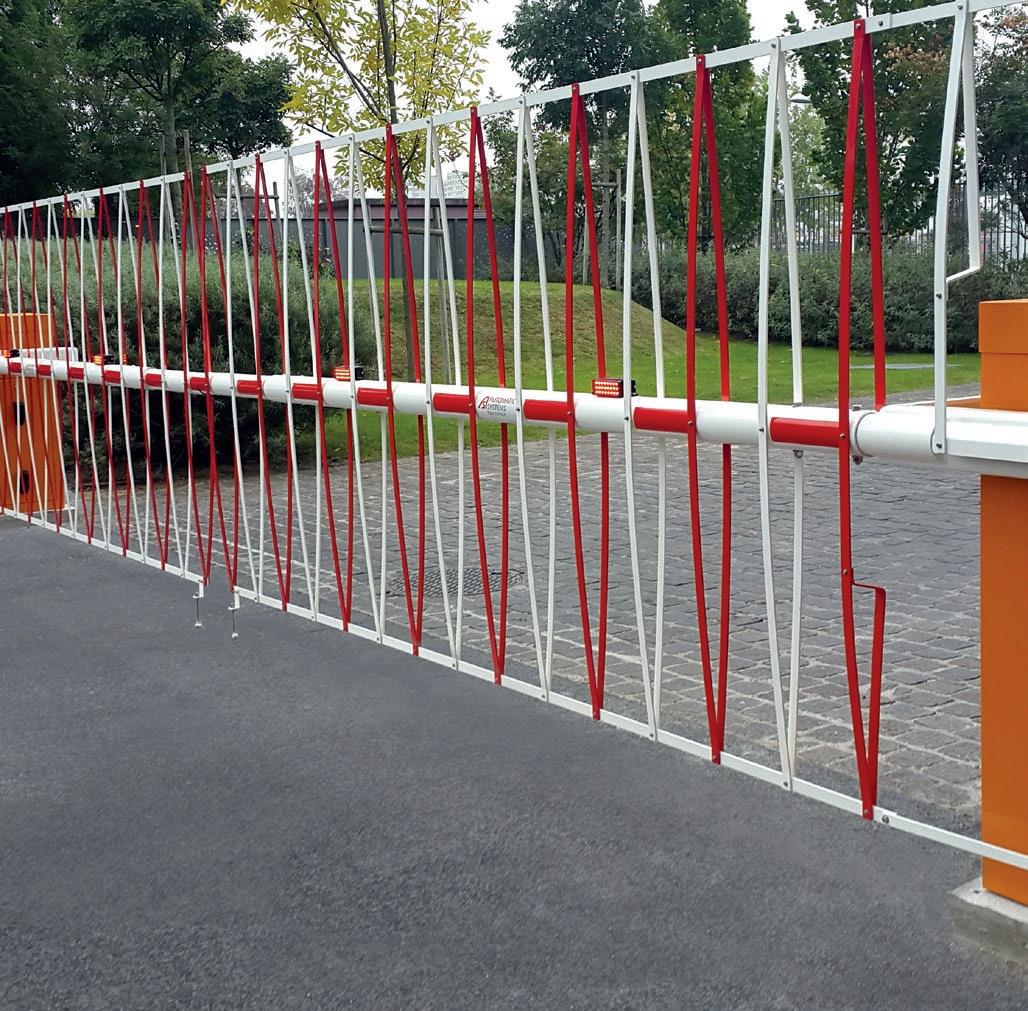

BLG 76
◆ Opening time : min. 8 sec.
◆ Max. free passage : 5 m
◆ Max. height from ground : 2.3 m
◆ Wire mesh fence
BLG 77
◆ Opening time : min. 7 sec.
◆ Max. free passage : 6.15 m
◆ Max. height from ground : 3.46 m
◆ Metal mesh fence
TOLL AS1 TOLL
◆ Opening time : min. 0.ӹsec.
◆ Max. free passage : 4 m
◆ Round aluminium arm with swing-off device
BL 229 TOLL
◆ Opening time : min. 0.6 sec.
◆ Max. free passage : 4 m
◆ Oval aluminum arm with swing-off device
◆ Mechanical locking
◆ ETC lanes with high traffic
TRAFFIC MANAGEMENT
AS1 FLOW
◆ Opening time : min. 1.2 sec.
◆ Max. free passage : 7 m
◆ Reinforced aluminium arm
BP 56
◆ Opening time : min. 9 sec.
◆ Max. free passage : 8 m
◆ Reinforced aluminium arm
◆ Swinging barrier
BL 52
◆ Opening time : min. 8 sec.
◆ Max. free passage : 14 m
◆ Round aluminum arm
BL 45A / 45F / 45T
◆ Opening time : min. 6 sec.
◆ Max. free passage : 12 m / 10 m
◆ Round aluminum arm / fiberglass arm
BL 77
◆ Opening time : min. 10 sec.
◆ Max. free passage : 14 m
◆ Fiberglass arm
ACCESSORIES
BOR 235 STANDARD / TALL MODELS
◆ Housing for integration of accessories
◆ Car height or truck height
◆ Ideal with rising barriers or road blockers
COLBE
◆ Column for integration of accessories
TIP SUPPORTS
◆ To support barrier arms
◆ To reinforce the security level
CUSTOMISATION
◆ To fit in perfectly within your site
PST STANDARD / TALL MODELS
◆ Post for integration of accessories
◆ Car height or truck height
◆ Ideal with rising barriers or road blockers
FENCES AND SKIRTS
◆ To reinforce the security level
DETECTION AND COMMAND
◆ For safety and access control
CONNECTIVITY
◆ Web server
◆ MODBUS/TCP
◆ XML/RPC

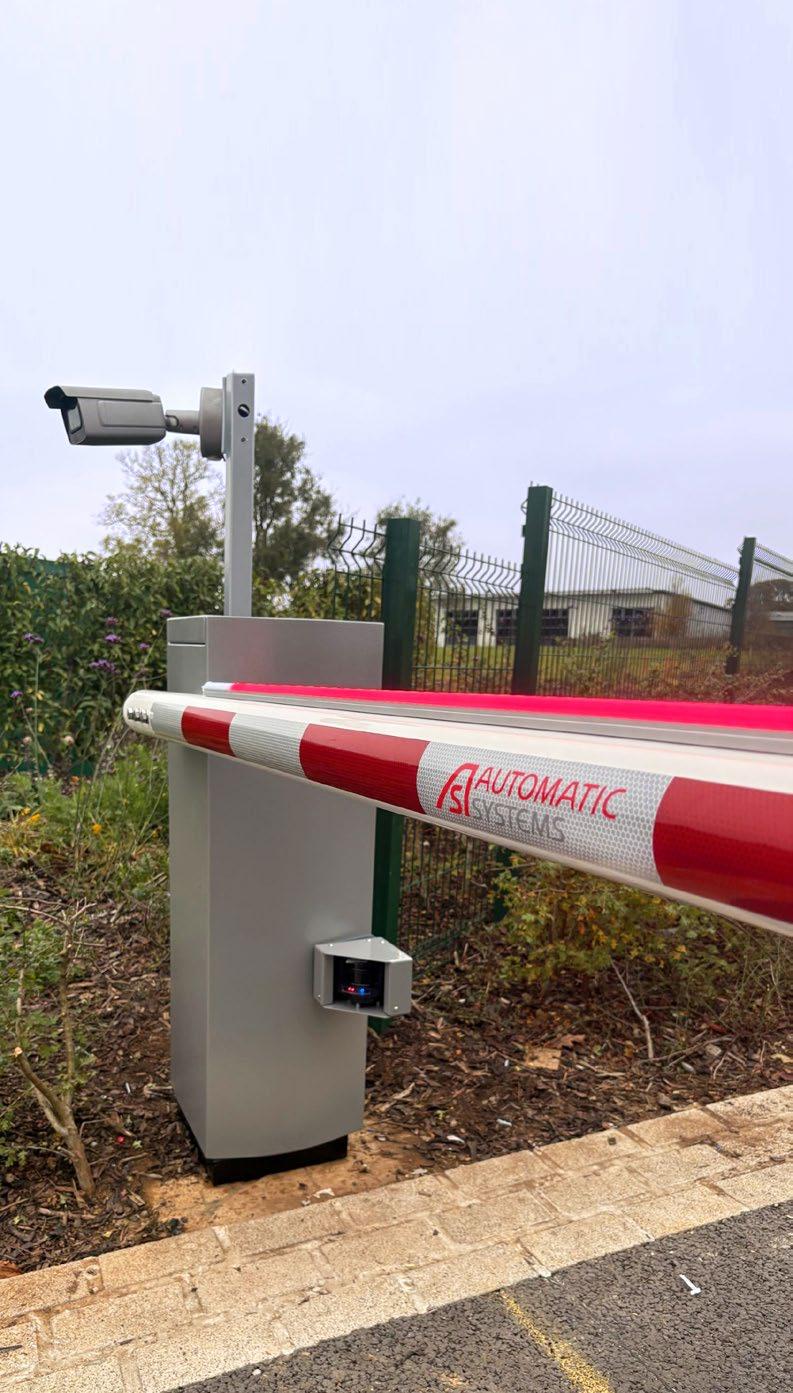

ANPR
◆ Integration of ANPR camera technology (Automatic Number Plate Recognition)
AUTOMATIC ENTRANCE AND EXIT
▶ SELECT YOUR BARRIER HERE

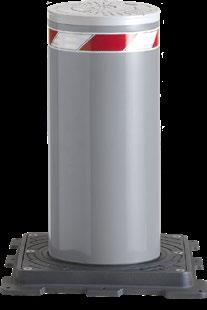

HIGH SECURITY PRODUCTS
VEHICLE BARRIERS
BY AUTOMATIC SYSTEMS
REGULAR
◆ Electromechanics
HIGH SECURITY
◆ Crash tested or rated
◆ Minimum 700,000 joules
◆ Hydraulic pumps
SECURITY
◆ Impact resistance rated
◆ Minimum 200,000 joules
◆ Hydraulics or Electromechanics
DISSUASIVE
◆ Hydraulics or Electromechanics
OUR SECURITY AND OUR HIGH SECURITY PRODUCTS
Ongoing current global terrorist activity threats continue to drive demand for antiterror measures. HIGH SECURITY products (also known as Hostile Vehicle Mitigation products) protect the infrastructure against vehicle-borne threats, creating blast stand-off distance.
Since September 11th 2001, several international accreditation standards have defined essential impact performance requirements for a vehicle security barrier (VSB) and a test method for rating its performance.
There are essentially 2 standard families:
◆ US standards with the precursor DOS K-rating which has been replaced and extended by the ASTM F2656 standard;
◆ UK created PAS68 standard which has been replaced and extended by international standard IWA14-1 (ISO).
Impact resistance equivalences between these standards do not officially exist but all those rating are using the same calculation method, that of the kinetic energy:
E = ½ (m*U²). Resulting in conclusion:
◆ M50 <> K12 <> PAS 68 V/7500/80 <> IWA14 V/7200/80 <>
2,000,000 joules
◆ M40 <> K8 <> PAS 68 V/7500/64 <> IWA14 V/7200/64 <>
1,200,000 joules
◆ M30 <> K4 <> PAS 68 V/7500/48 <> IWA14 V/7200/48 <> 750,000 joules
Impact resistance will be certified by a crash-test, a computer simulation or an engineer calculation.
SECURITY products are also defined by US, UK and ISO standards. Then, for those very products, the impact resistance are between 200,000 joules and 700,000 joules.
HIGH SECURITY and SECURITY products differentiate also themselves by several features such as: passage width, obstacle height, foundation depth, rising/ lowering speed and also the Emergency Fast Operation (E.F.O) which is mandatory for high security installations.

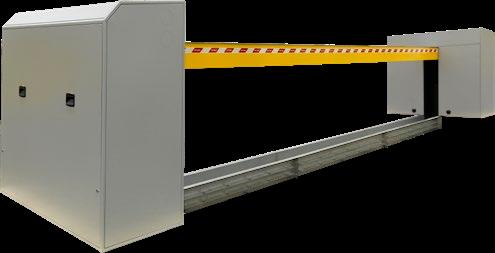

BEAM BARRIERS
SECURITY
BL43 C50M1
◆ Rising barrier
◆ Breakout resistance: 250,000 joules
◆ Height: 770 mm
◆ Length: 3 m
◆ Shallow mounted
◆ Electro-mechanical actuator
◆ 2 directions of obstacle
◆ For type M1 vehicle (car)
BL43 C50N1
◆ Rising barrier
◆ Breakout resistance: 250,000 joules
◆ Height: 1030 mm
◆ Length: 3 m
◆ Shallow mounted
◆ Electro-mechanical actuator
◆ 2 directions of obstacle
◆ For type N1 vehicle (flat bed)

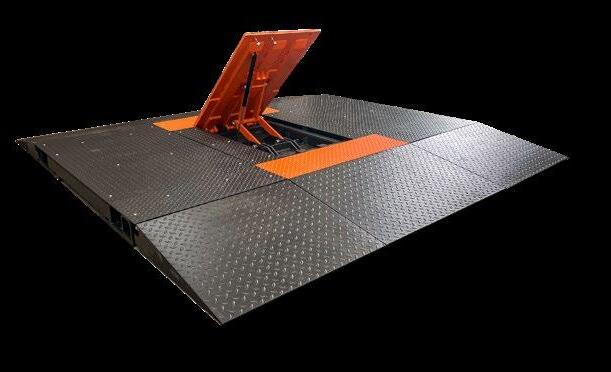

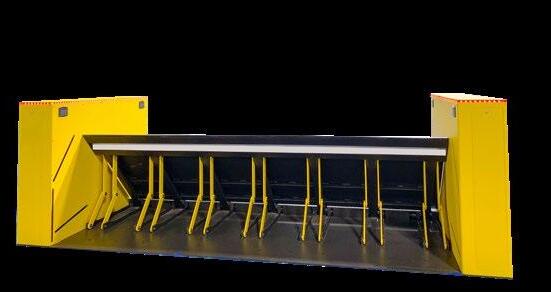

HIGH SECURITY
BL M50
◆ Lift Barrier
◆ Breakout resistance: 2,000,000 joules
◆ Height: 1100 mm
◆ Length: from 3 to 6 m
◆ Shallow mounted
◆ 2 hydraulic pumps
◆ 2 directions of passage

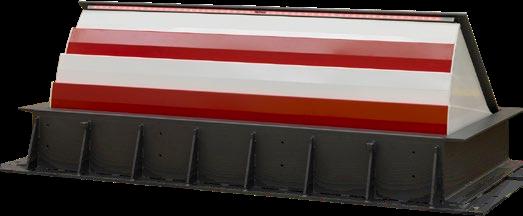

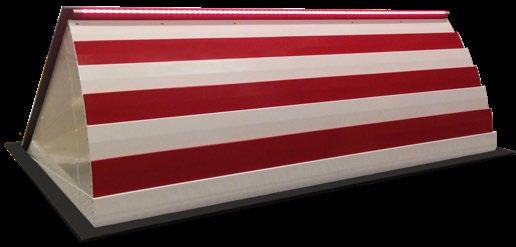

AUTOMATIC ROAD BLOCKERS
SECURITY
RSB C60SM
◆ Breakout resistance: 140,000 joules
◆ Height: 500 mm
◆ Length: 3.5 m / 4.5 m / 5.5 m
◆ Surface mounted
◆ Local hydraulic pump
HIGH SECURITY
RSB M30SM
◆ Breakout resistance: 750,000 joules
◆ Height: 1000 mm
◆ Length: 3.5 m / 4.5 m / 5.5 m
◆ Surface mounted
◆ Local hydraulic pump
RSB M30
◆ Breakout resistance: 750,000 joules
◆ Height: 500 mm
◆ Length: from 2 to 6 m
◆ Shallow mounted
◆ Remote hydraulic pump
RSB M50
◆ Breakout resistance: 2,000,000 joules
◆ Height: 1000 mm
◆ Length: from 2 to 6 m
◆ Shallow mounted
◆ Remote hydraulic pump
◆ Crash-test:
▶ PAS68:2013 V/7500(N3)/80/90:0.2/10
MANUAL ROAD BLOCKERS
HIGH SECURITY
M-RSB M30
◆ Breakout resistance: 750,000 joules
◆ Height: 755 mm
◆ Length: from 2 to 6 m
◆ Surface mounted
◆ Crash-test:
▶ IWA 14-1:2013 V/7200(N2A)/48/90
◆ DIN test:
▶ DIN 91414-1-2021-04
▶ Displacement 0,1m / 0,0m
▶ Manipulation resistance class MK2

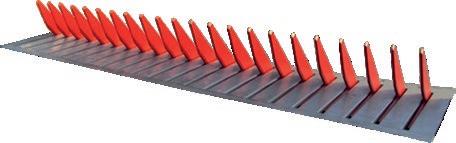

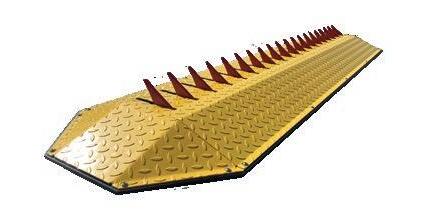

TYRE KILLERS
TK AUTO
◆ Immobilization of a vehicle by puncturing its tires
◆ Height: 500 mm
◆ Length: from 2 to 6 m
◆ Spikes: 20 mm
◆ Automatic lift with remote hydraulic pump
◆ 2 directions of passage
TK MAN
◆ Immobilization of a vehicle by puncturing its tires
◆ Height: 60 mm
◆ Length: from 2 to 6 m
◆ Spikes: 10 mm
◆ Mechanical lift by counterweight
◆ Free exit (1 direction of passage)

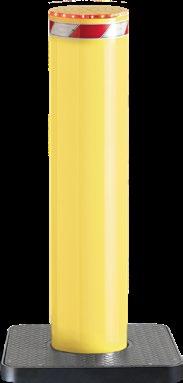

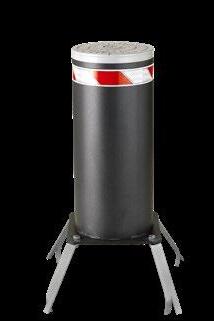

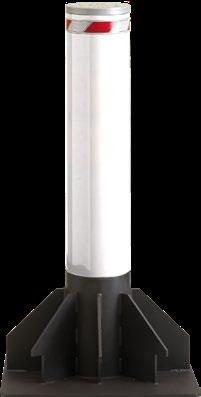

AUTOMATIC BOLLARDS
SECURITY
RB C50/C60
RB C50_600
◆ Automatic bollard with built-in hydraulic pump
◆ Breakout resistance:
250,000 joules
◆ Height: 600 mm
◆ Diameter/Thickness:
Ø ± 275/6 mm
◆ Also available in version:
▶ RB EM_600: automatic electro-mechanical bollard
▶ MB_600: semi-automatic bollard (retractable with a key)
RB C60_600
◆ Automatic bollard with built-in hydraulic pump
◆ Breakout resistance: 400,000 joules
◆ Height: 600 mm
◆ Diameter/Thickness: Ø ± 275/10 mm
◆ Also available in version:
▶ RB EM_600: automatic electro-mechanical bollard
▶ MB_600: semi-automatic bollard (retractable with a key)
RB EM_600, RB EM_800
◆ Automatic electromechanical bollard
◆ Impact resistance: 150,000 joules
◆ Height: 600/800 mm
◆ Diameter/Thickness: Ø ± 275/4 mm
RB C50_800
◆ Automatic bollard with built-in hydraulic pump
◆ Breakout resistance: 250,000 joules
◆ Height: 800 mm
◆ Diameter/Thickness: Ø ± 275/6 mm
◆ Also available in version:
▶ RB EM_600: automatic electromechanical bollard
▶ MB_600: semi-automatic bollard (retractable with a key)
RB C60_800
◆ Automatic bollard with built-in hydraulic pump
◆ Breakout resistance: 400,000 joules
◆ Height: 800 mm
◆ Diameter/Thickness: Ø ± 275/10 mm
◆ Also available in version:
▶ RB EM_800: automatic electro-mechanical bollard
▶ MB_800: semi-automatic bollard (retractable with a key)

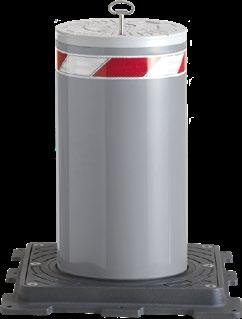

MB_500, MB_600, MB_800
◆ Semi-automatic bollard
◆ Gas-embedded activator
◆ Impact resistance: 250,000 joules
◆ Height: 500/600/800 mm
◆ Diameter/Thickness: Ø ± 275/6 mm

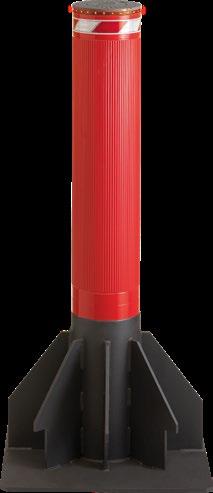

AUTOMATIC BOLLARDS
HIGH SECURITY
RB M30/M40
RB M30_700
◆ Automatic bollard with built-in hydraulic pump
◆ Breakout resistance: 750,000 joules
◆ Height: 700 mm
◆ Diameter/Thickness: Ø ± 275/10 mm
RB M30_900
◆ Automatic bollard with built-in hydraulic pump
◆ Breakout resistance: 750,000 joules
◆ Height: 900 mm
◆ Diameter/Thickness: Ø ± 275/10 mm
◆ Crash-test:
▶ PAS68: 2013
V/7500(N3)/48/90:1.0/2.5
▶ IWA 14-1: 2013
V/7200(N3C)/48/90:1.0
◆ Also available in version:
▶ RB EMB M30_900: automatic electromechanical bollard
▶ RMB M30_900: manual bollard (retractable with a drill)
RB M50
RB M50_900
◆ Automatic bollard with built-in hydraulic pump
◆ Impact resistance:
◆ 2,000,000 joules
◆ Height: 900 mm
◆ Diameter/Thickness: Ø ± 275/25 mm
◆ Crash-test:
▶ DOS SD-SDT-02.01 Rating K12/L1
◆ Also available in version:
RB M40_1200
◆ Automatic bollard with built-in hydraulic pump
◆ Breakout resistance: 1,200,000 joules
◆ Height: 1200 mm
◆ Diameter/Thickness: Ø ± 275/15 mm
◆ Also available in version:
▶ RB EMB M40_1200: automatic electromechanical bollard
▶ RMB M40_1200: manual bollard (retractable with a drill)
▶ RB EMB M50_900: automatic electro-mechanical bollard
▶ RMB M50_900: manual bollard
RB M50_1200
◆ Automatic bollard with built-in hydraulic pump
◆ Impact resistance:
◆ 2,000,000 joules
◆ Height: 1200 mm
◆ Diameter/Thickness: Ø ± 275/25 mm
◆ Crash-test:
▶ PAS68: 2013 V/7500(N3)/80/90:1.4/8.0
◆ Also available in version:
▶ RB EMB M50_1200: automatic electro-mechanical bollard
▶ RMB M50_1200: manual bollard
AUTOMATIC BOLLARDS
HIGH SECURITY
RB EMB M30/M40/M50
RB EMB M50_900
◆ Automatic electro-mechanical bollard
◆ Breakout resistance: 750,000 joules
◆ Height: 900 mm
◆ Diameter/Thickness: Ø ± 275/10 mm
RB EMB M40_1200
◆ Automatic electro-mechanical bollard
◆ Breakout resistance: 1,200,000 joules
◆ Height: 1200 mm
◆ Diameter/Thickness: Ø ± 275/15 mm
RB EMB M50_900, RB M50_1200
◆ Automatic electro-mechanical bollard
◆ Breakout resistance: 2,000,000 joules
◆ Height: 900 / 1200 mm
◆ Diameter/Thickness: Ø ± 275/25 mm

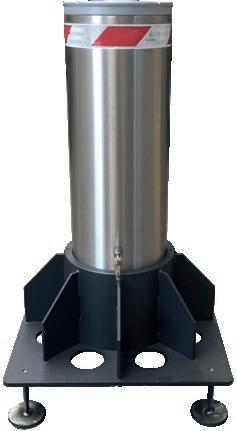

RMB M30/M40/M50

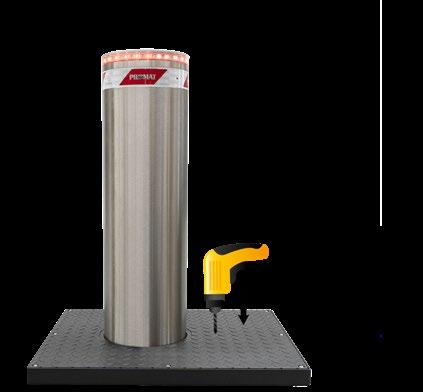

RMB M30_900
◆ Semi-automatic bollard (retractable with a drill)
◆ Gas-embedded activator
◆ Breakout resistance: 750,000 joules
◆ Height: 900 mm
◆ Diameter/Thickness: Ø ± 275/10 mm
RMB M40_1200
◆ Semi-automatic bollard (retractable with a drill)
◆ Gas-embedded activator
◆ Breakout resistance: 1,200,000 joules
◆ Height: 1200 mm
◆ Diameter/Thickness: Ø ± 275/15 mm
RMB M50_900, RMB M50_1200
◆ Semi-automatic bollard (retractable with a drill)
◆ Gas-embedded activator
◆ Breakout resistance: 2,000,000 joules
◆ Height: 900 / 1200 mm
◆ Diameter/Thickness: Ø ± 275/25 mm

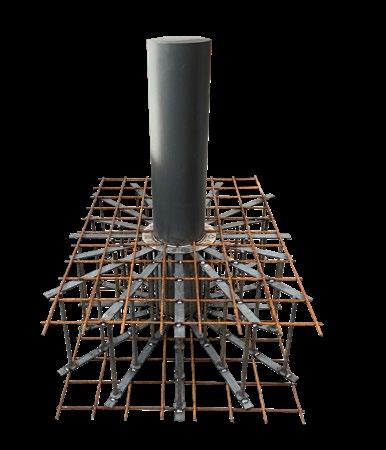

FIXED BOLLARDS
SECURITY
FB C50 / C60
FB C50_500
◆ Breakout resistance: 250,000 joules
◆ Height: 500 mm
◆ Diameter/Thickness: Ø ± 275/6 mm
◆ Fixed into the ground
◆ Shallow mounted
◆ Also available in removable version with cover plate
FB C50_600
◆ Breakout resistance: 250,000 joules
◆ Height: 600 mm
◆ Diameter/Thickness: Ø ± 275/6 mm
◆ Fixed into the ground
◆ Shallow mounted
◆ Also available in removable version with cover plate
FB C60_600
◆ Breakout resistance: 400,000 joules
◆ Height: 600 mm
◆ Diameter/Thickness: Ø ± 275/10 mm
◆ Fixed into the ground
◆ Shallow mounted
FB C50_800
◆ Breakout resistance: 250,000 joules
◆ Height: 800 mm
◆ Diameter/Thickness: Ø ± 275/6 mm
◆ Fixed into the ground
◆ Shallow mounted
◆ Also available in removable version with cover plate
FB C60_800
◆ Breakout resistance: 400,000 joules
◆ Height: 800 mm
◆ Diameter/Thickness: Ø ± 275/10 mm
◆ Fixed into the ground
◆ Shallow mounted
FIXED BOLLARDS
HIGH SECURITY
FB M30 / M40/M50
FB M30_700
◆ Breakout resistance: 750,000 joules
◆ Height: 700 mm
◆ Diameter/Thickness: Ø ± 275/10 mm
◆ Fixed into the ground
◆ Shallow mounted
FB M30_900
◆ Breakout resistance: 750,000 joules
◆ Height: 900 mm
◆ Diameter/Thickness: Ø ± 275/10 mm
◆ Fixed into the ground
◆ Shallow mounted
◆ Crash-test:
▶ PAS 68:2013 V/7500(N3)/48/90:-1.3
▶ IWA 14-1:2013
V/7200(N3C)/48/90:-1.0
▶ ASTM M30 C730/P1
FB M40_1200
◆ Breakout resistance:1,200,000 joules
◆ Height: 1200 mm
◆ Diameter/Thickness: Ø ± 275/15 mm
◆ Fixed into the ground
◆ Shallow mounted
FB M50
FB M50_900
◆ Breakout resistance: 2,000,000 joules
◆ Height: 900 mm
◆ Diameter/Thickness: Ø ± 275/25 mm
◆ Fixed into the ground
◆ Shallow mounted
◆ Crash-test:
▶ PAS68:2013 V/7500(N3)/80/90:20.0
▶ IWA 14-1:2013 V/7200(N3C)/80/90:0.3
▶ ASTM M50 C750/P1
FB M50_1200
◆ Breakout resistance: 2,000,000 joules
◆ Height: 1200 mm
◆ Diameter/Thickness: Ø ± 275/25 mm
◆ Fixed into the ground
◆ Shallow mounted

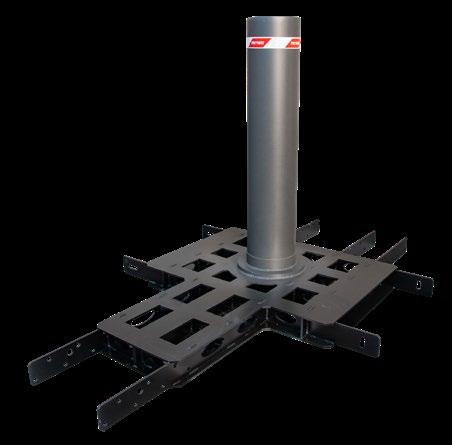

SUPER SHALLOW MOUNT FIXED BOLLARDS
HIGH SECURITY
M30/M50/H30SD

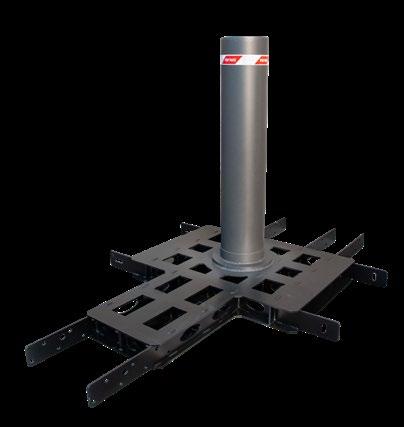

FB H30_900SD
◆ Breakout resistance: 3,000,000 joules
◆ Height: 900 mm
◆ Diameter/Thickness: Ø ± 275/32 mm
◆ Base plate of minimum width for 1 bollard
◆ Super shallow mounted

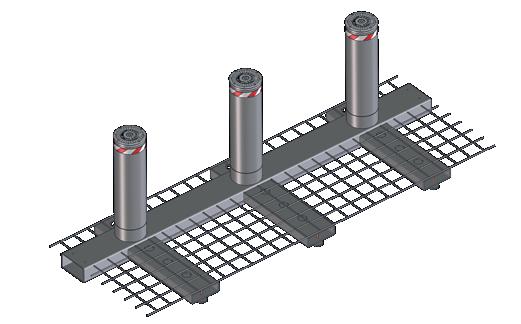

FB M30_900SD
◆ Breakout resistance: 750,000 joules
◆ Height: 900 mm
◆ Diameter/Thickness: Ø ± 275/10 mm
◆ Base plate of minimum width for 3 bollards
◆ Super shallow mounted
◆ Crash-test:
▶ PAS68: 2013 V/7500(N3)/48/90:7.4
▶ IWA 14-1:2013 V/7200(N3C)/48/90:7.7
▶ ASTM M30 C730/P3
FB M50_900SD
◆ Breakout resistance: 2,000,000 joules
◆ Height: 900 mm
◆ Diameter/Thickness: Ø ± 275/25 mm
◆ Base plate of minimum width for 1 bollard
◆ Super shallow mounted
FB M50_1200SD
◆ Breakout resistance: 2,000,000 joules
◆ Height: 1200 mm
◆ Diameter/Thickness: Ø ± 275/25 mm
◆ Base plate of minimum width for 1 bollard
◆ Super shallow mounted
◆ Crash-test:
▶ PAS68: 2013
V/7500(N3)/80/90:0.7/2.4.7
▶ IWA 14-1:2013
V/7200(N3C)/80/90:0.5
▶ ASTM M30 C750/P1
FB H30_1200SD
◆ Breakout resistance: 3,000,000 joules
◆ Height: 1200 mm
◆ Diameter/Thickness: Ø ± 275/32 mm
◆ Base plate of minimum width for 1 bollard
◆ Super shallow mounted
ECONOMIC FIXED BOLLARDS
HIGH SECURITY
FBE M30 / M40
FB M30_900
◆ Breakout resistance: 750,000 joules
◆ Height: 900 mm
◆ Diameter/Thickness: Ø ± 275/10 mm
◆ Fixed into the ground
◆ Shallow mounted
◆ Crash-test:
▶ PAS68: 2013 V/7500(N2)/48/90:-1.2/0.0
▶ IWA 14-1:2013 V/7200(N2A)/48/90:-1.4
FBE M50
FBE M50_900
◆ Impact resistance: 2,000,000 joules
◆ Height: 900 mm
◆ Diameter/Thickness: Ø ± 275/25 mm
◆ Fixed into the ground
◆ Shallow mounted
◆ Crash-test:
▶ PAS68: 2013 V/7500 (N3)/80/90:2.9/3 1.7
▶ IWA 14-1:2013 V/7200
(N3C)/80/90:3.2
▶ ASTM M50 P2
FB M40_1200
▶ Breakout resistance: 1,200,000 joules
▶ Height: 1200 mm
▶ Diameter/Thickness: Ø ± 275/15 mm
▶ Fixed into the ground
▶ Shallow mounted
FBE M50_1200
◆ Impact resistance: 2,000,000 joules
◆ Height: 1200 mm
◆ Diameter/Thickness: Ø ± 275/25 mm
◆ Shallow mounted
REMOVABLE BOLLARDS
SECURITY
FR 600
FR _600
◆ Height: 600 mm
◆ Diameter/Thickness: Ø ± 275/5 mm
HIGH SECURITY
FR M30/M50
FR M30_700
◆ Breakout resistance: 750,000 joules
◆ Height: 700 mm
◆ Diameter/Thickness: Ø ± 275/10 mm
FR M30_900
◆ Breakout resistance: 750,000 joules
◆ Height: 900 mm
◆ Diameter/Thickness: Ø ± 275/10 mm
◆ Crash-test:
▶ PAS68: 2013 V/7500(N3)/48/90:-0.95
▶ IWA 14-1:2013
V/7200(N3C)/48/90:-0.67
▶ ASTM M30 C730/P1
FR M50_900
◆ Impact resistance: 2,000,000 joules
◆ Height: 900 mm
◆ Diameter/Thickness: Ø ± 275/25 mm
SUPER SHALLOW MOUNT REMOVABLE BOLLARDS
HIGH SECURITY
FR M50SD
FR M50_900SD
◆ Breakout resistance: 2,000,000 joules
◆ Height: 900 mm
◆ Diameter/Thickness: Ø ± 275/20 mm
◆ Base plate of minimum width for 1 bollard
◆ Super shallow mounted
FR M50_1200SD
◆ Breakout resistance: 2,000,000 joules
◆ Height: 1200 mm
◆ Diameter/Thickness: Ø ± 275/20 mm
◆ Base plate of minimum width for 1 bollard
◆ Super shallow mounted
▶ SELECT YOUR BARRIER
FIXED BOLLARD
15
FBE
Diameter 275 / Thickness 10 FB
HEADQUARTERSINTERNATIONAL SALES
AUTOMATIC SYSTEMS SA
Avenue Mercator 5 - 1300 Wavre
BELGIUM
T. : +32 (0)10 230 211 sales.asgroup@automatic-systems.com
LOCAL OFFICES AROUND THE WORLD
UNITED KINGDOM
T. : +44 (0)1604 65 42 10
E : sales.uk@automatic-systems.com
UNITED STATES
T. : +1 516 944 94 98
E : sales.nam@automatic-systems.com
CANADA
T. : +1 450 659 07 37
E : sales.nam@automatic-systems.com
FRANCE
T. : +33 (0)1 30 28 95 50 (Persan office)
T. : +33 (0)1 41 11 40 20 (Suresnes office)
E : sales.fr@automatic-systems.com
SPAIN
T. : +34 (0)93 478 77 55 (Barcelona office)
T. : +34 (0)91 659 07 66 (Madrid office)
E : sales.es@automatic-systems.com
GERMANY
T. : +49 2303 553 4040
E : sales.de@automatic-systems.com
Visit our virtual showroom to discover the other Automatic Systems’ products
