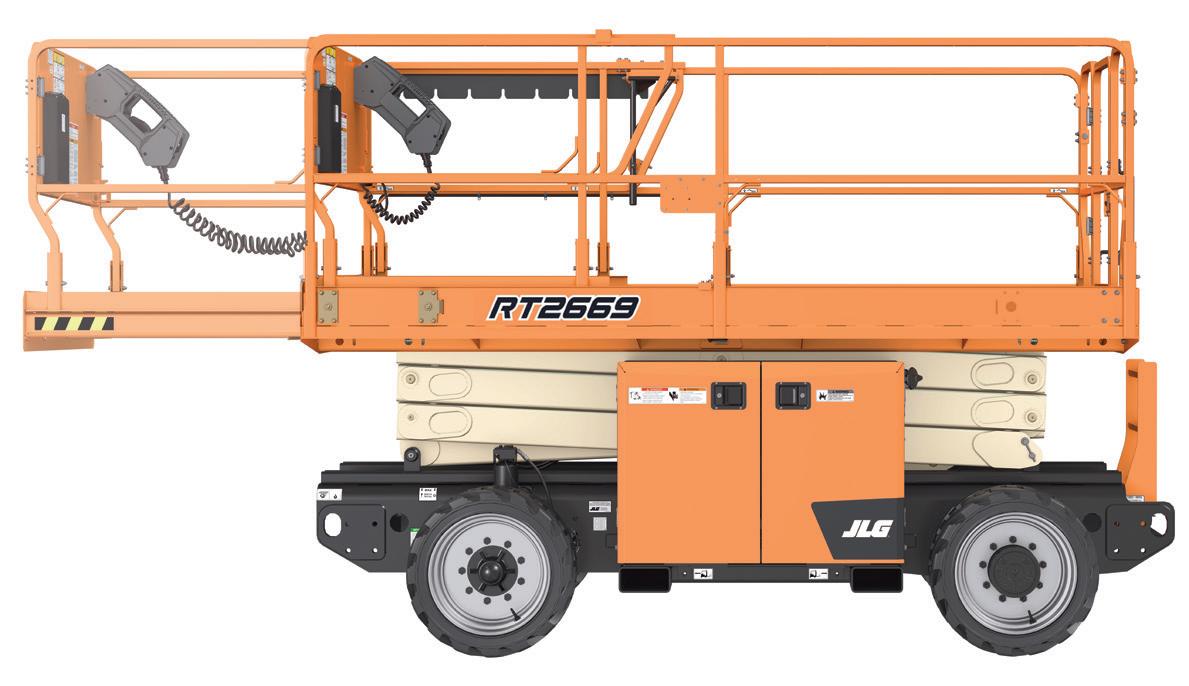

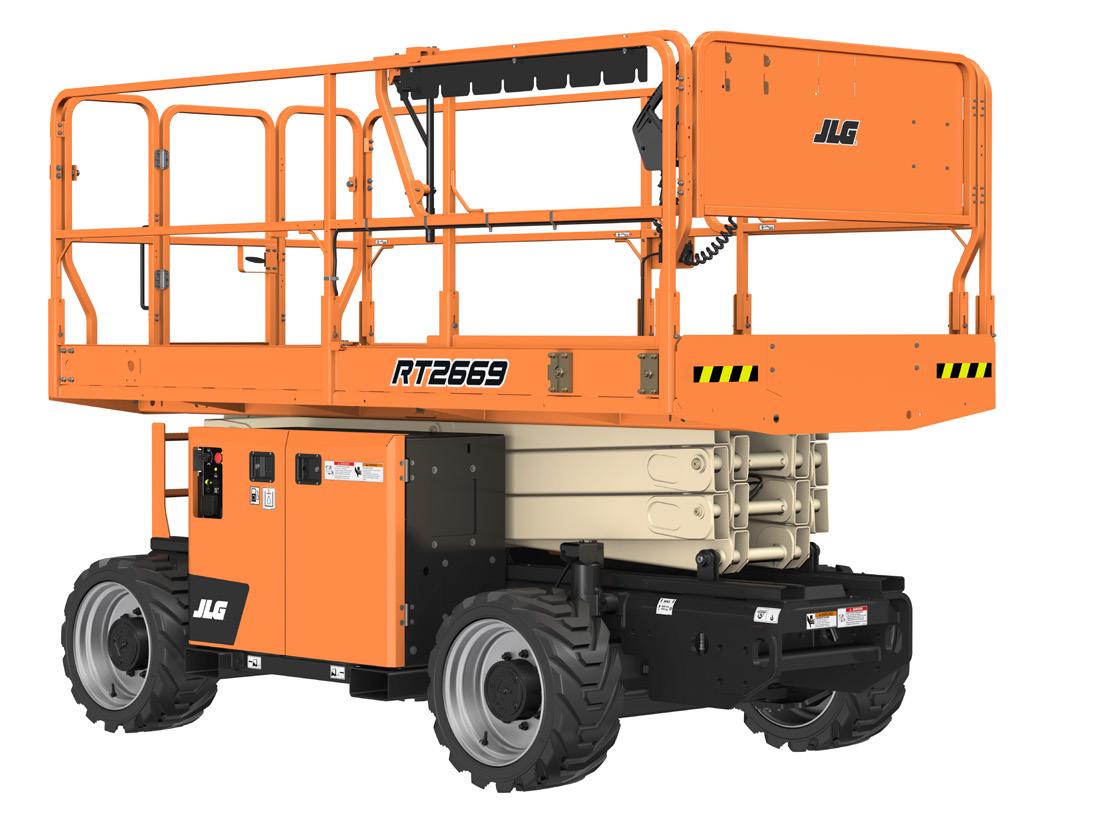

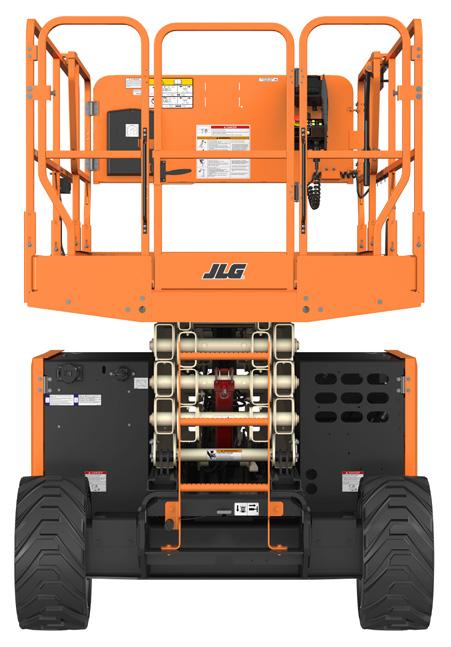

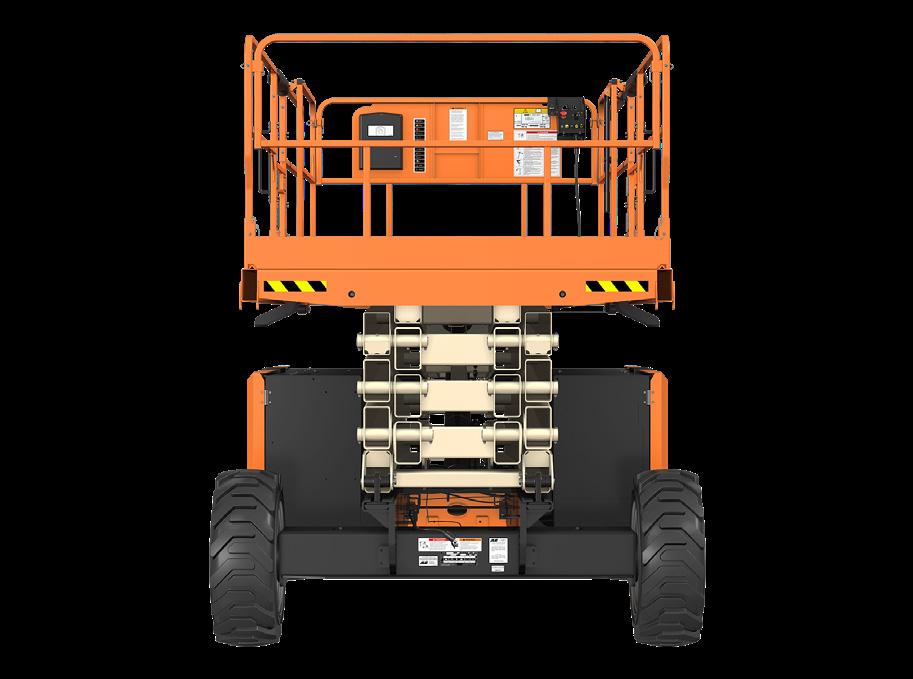

RT2669
ENGINE POWERED ROUGH TERRAIN SERIES
STANDARD SPECIFICATIONS
KEY FEATURES
Our engine powered rough terrain models offer drive capability at full height, limiting unnecessary trips up and down for working professionals. Delivers the latest technology, featuring an LCD platform control box with LiftSense technology and USB charging for next-level, real-time productivity and service communication to the operator.
This machine utilizes higher part commonality for simplified service across the rough terrain family. An optional QuikLevel Advanced system allows the machine to level on a side slope, helping operators position and drive while elevated closer to the job.
ACCESSORIES & OPTIONS
2WD
2500W Generator
60Hz/110V (Belt-driven)
26 x 12 Foam-filled
Non-Marking Tires
33.5-lb (15.2-kg) Aluminum
Propane Tank
ClearSky™
Dual Flashing Amber Beacons - LED
Dual LP Tanks (Dual Fuel Engines Only)
Dual LP Tank Brackets
Flashing Amber Beacon - LED
Heavy Duty Pipe Racks
Hydraulic Leveling Jacks¹ (Auto Level)
Hydraulic Oil Cooler
STANDARD FEATURES
Lubrication-Free Scissor Arm Bushings
Manual Descent Pull Cable
Nickel Plated Pins, Yellow
Zinc-Chromate
Proportional Lift and Drive Remote Engine Oil Filter Package
Scissor Maintenance Prop
Self-Closing Gate
Movable, Removable Platform Control Box
Operator Access Control
QuikLevel Advanced¹
Special Hydraulic Fluids
Special Paint
Alarm
ECU Controlled Engine Speed
Fold Down Rails
Full Time Traction Control
Horn
Hourmeter
LCD Display with LiftSense System
Plated Fasteners
Oscillating Front Axle
Pin-based Load Sensing System
Pin-Less Fold Down Rail System
Platform Control Box with LCD Display, USB Charger and Phone Holster
Telematics-Ready Harness Tie Down Lugs
White Noise Backup Alarm 1. Hydraulic leveling jacks and Quiklevel Advanced cannot be outfitted on same machine.
SCISSOR LIFT KEY SPECS Platform Height 26-ft 2-in / 8-m Platform Capacity 1,500-lb / 680-kg Machine Width 69.3-in / 1.76-m Stowed Drive Speed 3.5 mph / 5.6 km/h
Performance Indoor Outdoor Platform Height (Elevated) 26-ft 2-in / 8-m 26-ft 2-in / 8-m Platform Capacity 1,500-lb / 680-kg 1,500-lb / 680-kg Capacity on Platform Extension 300-lb / 136-kg 300-lb / 136-kg Number of Occupants 4 4 Lift / Lower Time 32 / 37 seconds 32 / 37 seconds Maximum Drive Height Fully Elevated Fully Elevated Weight w/One Extension* 8,250-lb / 3,750-kg 8,250-lb / 3,750-kg Drive Speed (Lowered) 3.5 mph / 5.6 km/h 3.5 mph / 5.6 km/h Drive Speed (Raised) 0.5 mph / 0.8 km/h 0.5 mph / 0.8 km/h Gradeability 40% 40% Max Tilt Rating (Side-to-Side) 2.5 Degrees 2.5 Degrees Max Tilt Rating (Fore and Aft) 3 Degrees 3 Degrees Turning Radius (Inside) 83-in / 2-m 83-in / 2-m Turning Radius (Outside) 175-in / 4-m 175-in / 4-m *Certain options or country standards increase weight Engine Dual Fuel – Kubota WG972-GL-E4 31 hp 31 hp / 23.2 kW Diesel Fuel – Kubota D1305-E4B 24.8 hp 24.8 hp / 18.5 kW Fuel Tank Capacity 10 gal / 38 L Tires Standard 26 x 12-in Foam-filled Brakes Rear Wheel Spring Applied Hydraulic System Capacity 13.2 gal / 50 L
Receptacle In Platform 26 x 12 Foam-filled Tires 42-in Roll-out Deck Extension All Motion
110V-AC
RT2669
ENGINE POWERED ROUGH TERRAIN SERIES
DIMENSIONS
All dimensions are approximate
We provide coverage for one (1) full year, and cover all specified major structural components for five (5) years. Due to continuous product improvements, we reserve the right to make specification and/or equipment changes without prior notification. This machine meets or exceeds applicable ANSI and CSA requirements based on machine configuration as originally manufactured for intended applications. Please reference the serial number plate on the machine for additional information.
SCISSOR LIFT
JLG INDUSTRIES, INC.
Toll-free US 877-JLG-LIFT JLG.com
An
Corporation Company
Part No. 3131412 | R0822_03
Oshkosh
1&5 TH E JLG WAR R A NTY A. Platform Height (Lowered) 4-ft 3-in / 1.3-m B. Platform Railing Height 44.7-in / 1.14-m C. Machine Height 96.7-in / 2.46-m D. Platform Width 63-in / 1.6-m E. Platform Length 130.5-in / 3.3-m F. Platform Extension 42-in / 1.07-m G. Machine Width 69.3-in / 1.76-m H. Machine Length 139-in / 3.53-m I. Wheelbase 81.3-in / 2.07-m J. Ground Clearance 9.5-in / 24-cm
G B J D C A H I F E

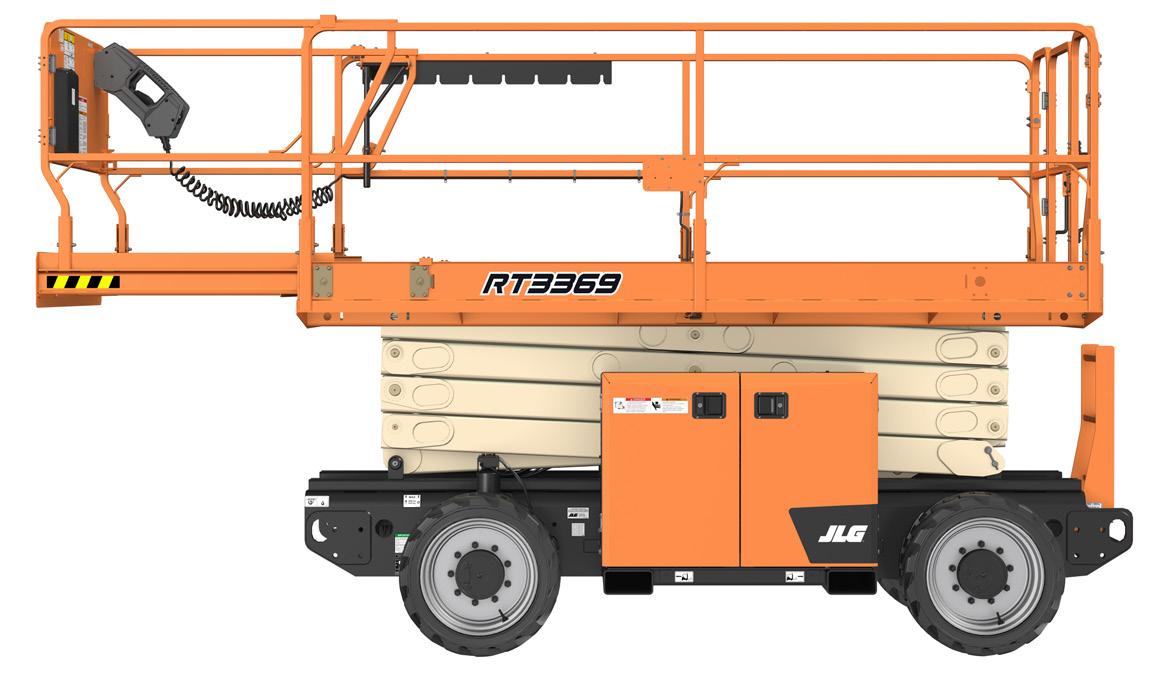

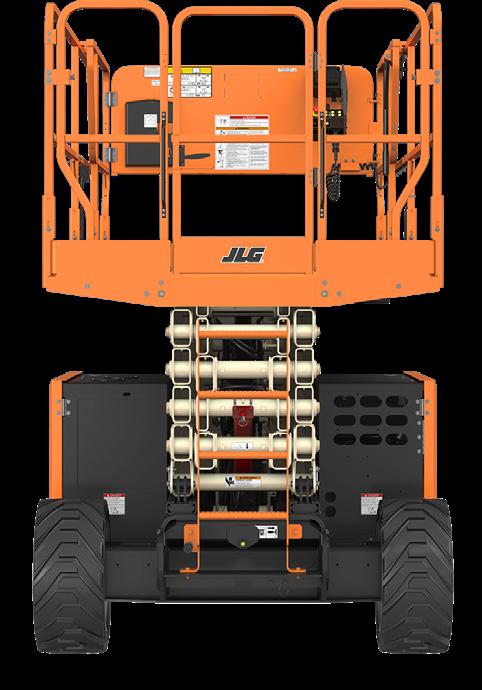

RT3369
ENGINE POWERED ROUGH TERRAIN SERIES
STANDARD SPECIFICATIONS
KEY FEATURES
Our engine powered rough terrain models offer drive capability at full height, limiting unnecessary trips up and down for working professionals. Delivers the latest technology, featuring an LCD platform control box with LiftSense technology and USB charging for next-level, real-time productivity and service communication to the operator.
An optional QuikLevel Advanced system allows the machine to level on a side slope, helping operators position and drive while elevated closer to the job.
This machine utilizes higher part commonality for simplified service across the rough terrain family.
ACCESSORIES & OPTIONS
2WD
2500W Generator
60Hz/110V (Belt-driven)
26 x 12 Foam-filled
Non-Marking Tires
33.5-lb (15.19-kg) Aluminum
Propane Tank
ClearSky™
Dual Flashing Amber Beacons - LED
Dual LP Tanks (Dual Fuel Engines only)
Dual LP Tank Brackets
Flashing Amber Beacon - LED
Heavy Duty Pipe Racks
Hydraulic Leveling Jacks¹ (Auto Level)
Hydraulic Oil Cooler
STANDARD FEATURES
Lubrication-Free Scissor Arm
Bushings
Manual Descent Pull Cable
Proportional Lift and Drive
Remote Engine Oil Filter Package
Movable, Removable Platform Control Box
Operator Access Control
QuikLevel Advanced¹
Special Hydraulic Fluids
Special Paint White Noise Backup Alarm
42-in Roll-out Deck Extension
All Motion Alarm
ECU Controlled Engine Speed
Fold Down Rails
Full Time Traction Control Horn
Hourmeter
LCD Display with LiftSense System
Nickel Plated Pins, Yellow
Zinc-Chromate
Plated Fasteners
Oscillating Front Axle
Pin-based Load Sensing System
Pin-Less Fold Down Rail System
Platform Control Box with LCD Display, USB Charger and Phone Holster
Scissor Maintenance Prop
Self-Closing Gate
Telematics-Ready Harness
Tie Down Lugs
SCISSOR LIFT
Platform Height 32-ft 8-in / 10-m Platform Capacity 1,000-lb / 454-kg Machine Width 69.3-in / 1.76-m Stowed Drive Speed 3.5 mph / 5.6 km/h
KEY SPECS
Performance Indoor Outdoor Platform Height (Elevated) 32-ft 8-in / 10-m 32-ft 8-in / 10-m Platform Capacity 1,000-lb / 454-kg 1,000-lb / 454-kg Capacity on Platform Extension 300-lb / 136-kg 300-lb / 136-kg Number of Occupants 4 2 Lift / Lower Time 40/40 seconds 40/40 seconds Maximum Drive Height Fully Elevated Fully Elevated Weight w/One Extension* 9,457-lb / 4,284-kg 9,457-lb / 4,284-kg Drive Speed (Lowered) 3.5 mph / 5.6 km/h 3.5 mph / 5.6 km/h Drive Speed (Raised) 0.5 mph / 0.8 km/h 0.5 mph / 0.8 km/h Gradeability 35% 35% Max Tilt Rating (Side-to-Side) 2.5 Degrees 2.5 Degrees Max Tilt Rating (Fore and Aft) 3 Degrees 3 Degrees Turning Radius (Inside) 83-in / 2-m 83-in / 2-m Turning Radius (Outside) 174.8-in / 4.44-m 174.8-in / 4.44-m *Certain options or country standards increase weight Engine Dual Fuel – Kubota WG972-GL-E4 31 hp 31 hp / 23.2 kW Diesel Fuel – Kubota D1305-E4B 24.8 hp 24.8 hp / 18.5 kW Fuel Tank Capacity 10 gal / 38 L Tires Standard 26 x 12-in Foam-filled Brakes Rear Wheel Spring Applied Hydraulic System Capacity 13.2 gal / 50 L
Receptacle In Platform 26 x 12 Foam-filled Tires
110V-AC
1. Hydraulic leveling jacks and Quiklevel Advanced cannot be outfitted on same machine.

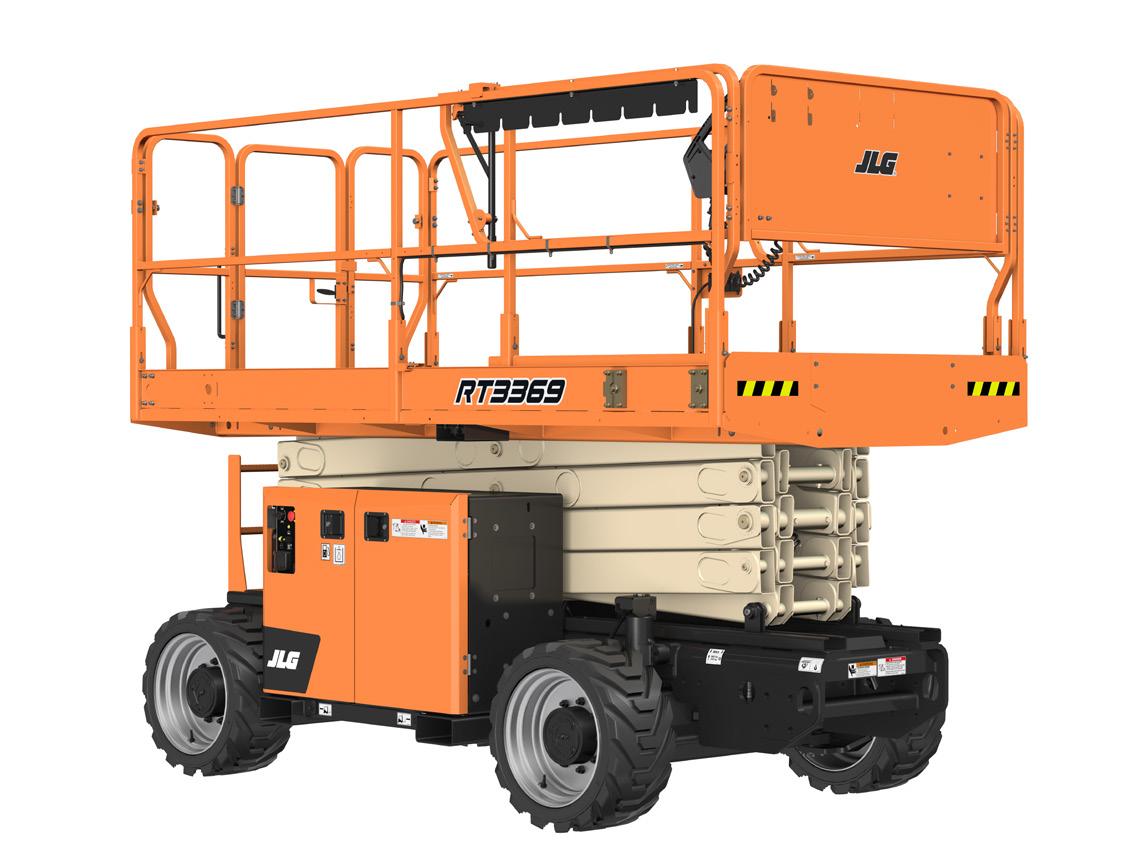

RT3369
ENGINE POWERED ROUGH TERRAIN SERIES
DIMENSIONS
We provide coverage for one (1) full year, and cover all specified major structural components for five (5) years. Due to continuous product improvements, we reserve the right to make specification and/or equipment changes without prior notification. This machine meets or exceeds applicable ANSI and CSA requirements based on machine configuration as originally manufactured for intended applications. Please reference the serial number plate on the machine for additional information.
SCISSOR LIFT
JLG INDUSTRIES, INC.
Toll-free US 877-JLG-LIFT
JLG.com
An
Corporation Company
Part No. 3131413 | R0822_03
Oshkosh
1&5 TH E JLG WAR R A NTY A. Platform Height (Lowered) 4-ft 9-in / 1.46-m B. Platform Railing Height 44.7-in / 1.14-m C. Machine Height 8-ft 7-in / 2.62-m D. Platform Width 63-in / 1.6-m E. Platform Length 130.5-in / 3.3-m F. Platform Extension 42-in / 1.07-m G. Machine Width 69.3-in / 1.76-m H. Machine Length 139-in / 3.53-m I. Wheelbase 81.3-in / 2.07-m J. Ground Clearance 9.5-in / 24-cm All dimensions are approximate H I G F E B A J D C

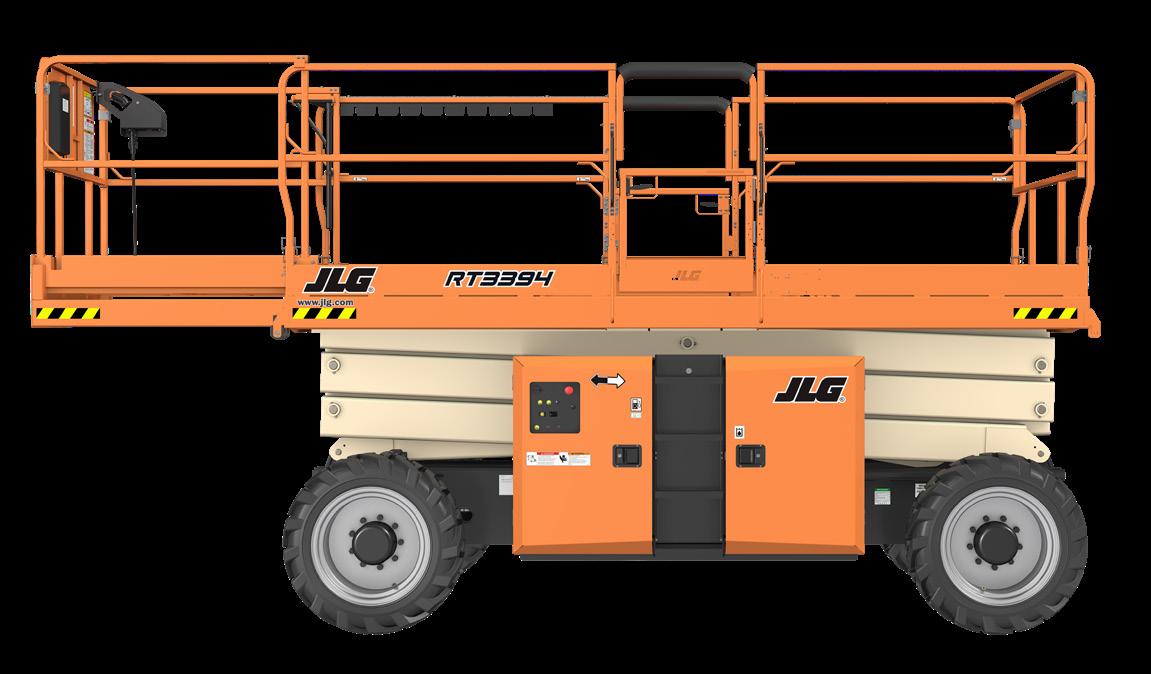

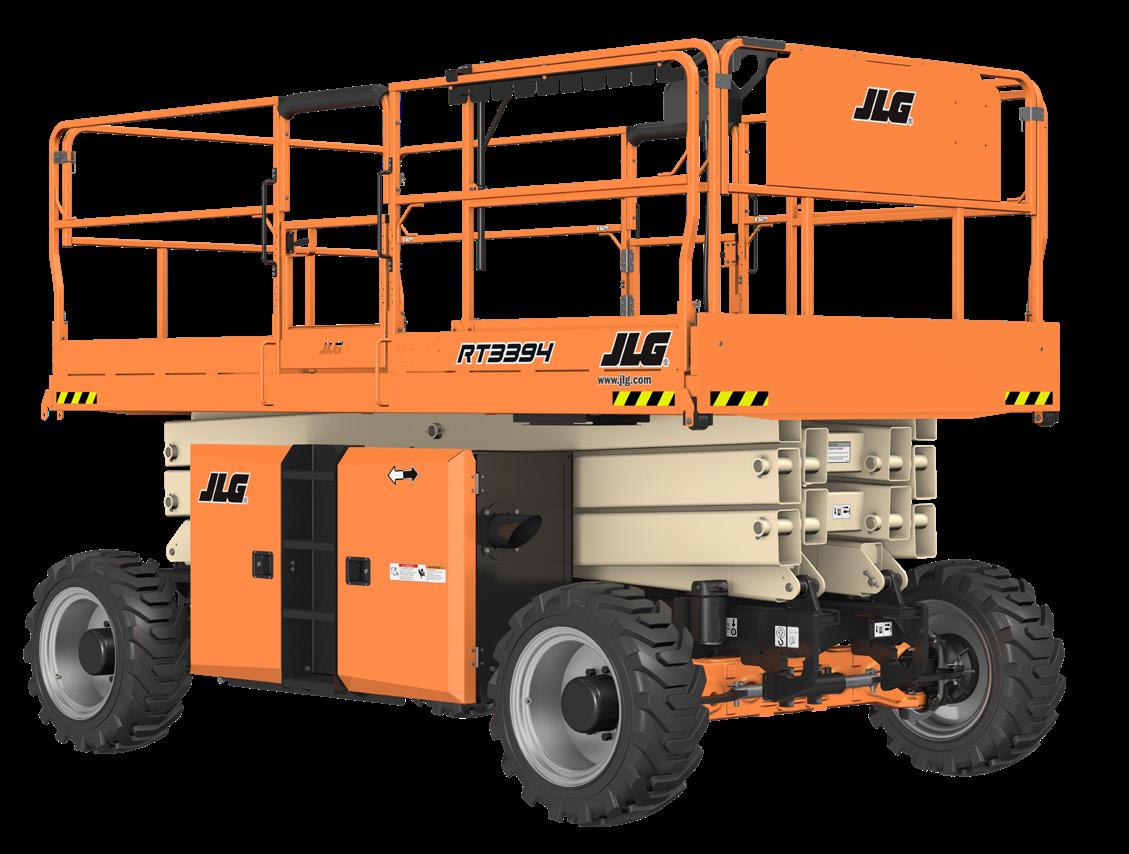

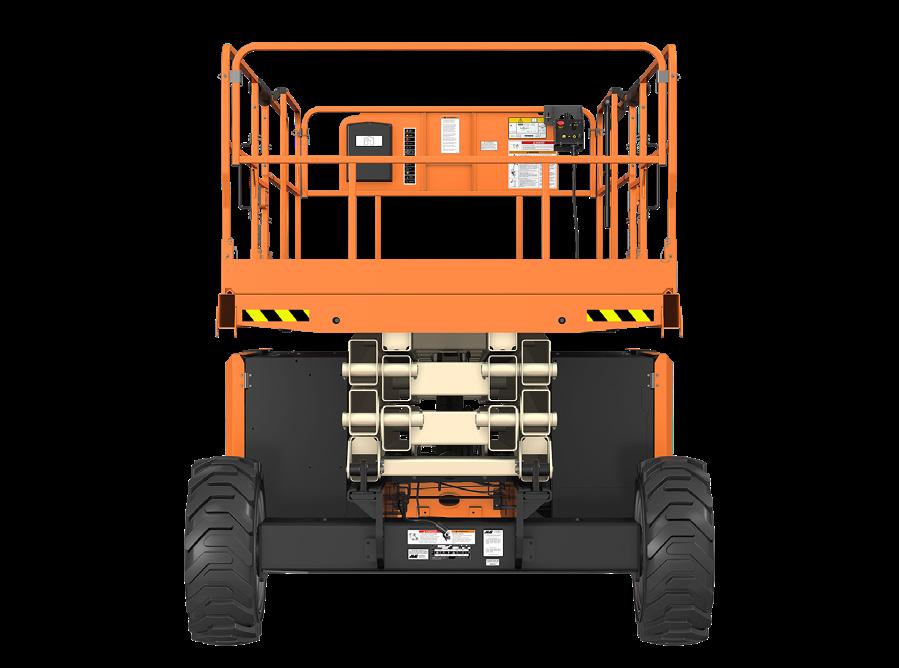

RT3394
ROUGH TERRAIN SERIES
STANDARD SPECIFICATIONS
Performance
Platform Height (Elevated) 33-ft / 10.06-m
Platform Capacity 2,250-lb / 1,020-kg
Capacity on Platform Extension 500-lb / 227-kg
Number of Occupants 6 Lift / Lower Time 35/39 seconds
Maximum Drive Height Fully Elevated
Weight w/One Extension* 11,820-lb / 5,372-kg
Ground
KEY SPECS
Platform Height 33-ft / 10.06-m
KEY FEATURES
Enhanced stability on uneven surfaces with a standard oscillating axle for better traction and grade climbing ability.
With the operator in mind, the platform is designed to shed debris and to allow for smoother extension deployment.
The fully accessible hydraulic and engine compartments provide for enhanced ease of service.
A standard 4-ft deck extension provides more space for people and materials.
ACCESSORIES & OPTIONS
43.5-lb (19.7-kg) Propane Tank
Cold Weather Start Kit
Dual Extension Deck
Flashing Amber Beacon
Large Material Rack
Leveling Jacks
Pipe Rack Accessory
Platform Worklights
SkyPower®
STANDARD FEATURES
110V-AC Receptacle in Platform
4-ft (1.22-m) Manual Deck
4-Wheel Drive 70.5 x 149.8-in (1.8 x 3.8-m), All Steel Platform with Aluminum Deck
SkyPower with SkyWelder Workstation
SCISSOR LIFT
Platform Capacity 2,250-lb / 1,020-kg Machine Width 7-ft 9-in / 2.4-m Stowed Drive Speed 3.5 mph / 4.8 km/h
3.5 mph
km/h
Bearing Pressure 73 psi / 5.1 kg/cm² Drive Speed (Lowered)
/ 4.8
(Fore
5 Degrees Turning Radius (Inside) 8-ft 10.5-in / 2.7-m Turning Radius (Outside) 19-ft 5.5-in / 5.9-m *Certain options or country standards increase weight Engine Dual Fuel – Kubota WG972 31 hp / 23.2 kW Diesel Fuel – Kubota D1305 24.8 hp / 18.5 kW Fuel Tank Capacity 22 gal / 83.3 L Tires Standard 12 x 16.5-in Foam-filled Brakes Four Wheel Spring Applied Hydraulic System Capacity 32 gal / 121.4 L
Drive Speed (Elevated) .5 mph / .8 km/h Gradeability 45% Max Tilt Rating (Side-to-Side) 3 Degrees Max Tilt Rating
and Aft)
Extension
Adjustable, Removable Platform Control Station All Motion
Automatic Transmission Fold-Down Handrails Horn Oscillating Axle Proportional Drive/Lift Up/ Lift Down Self-Closing Gate Three-speed Drive Select Tilt Light and Alarm
Alarm
RT3394
ROUGH TERRAIN SERIES
DIMENSIONS
SCISSOR LIFT
We provide coverage for one (1) full year, and cover all specified major structural components for five (5) years. Due to continuous product improvements, we reserve the right to make specification and/or equipment changes without prior notification. This machine meets or exceeds applicable ANSI and CSA requirements based on machine configuration as originally manufactured for intended applications. Please reference the serial number plate on the machine for additional information.
JLG INDUSTRIES, INC.
Toll-free US 877-JLG-LIFT JLG.com
An
Corporation Company
Part No. 3131409 | R0223_04
Oshkosh
1&5 TH E JLG WAR R A NTY A. Platform Height (Rails Lowered) 6-ft 5.75-in / 1.97-m B. Platform Railing Height 43.5-in / 1.1-m C. Machine Height 9-ft 1-in / 2.77-m D. Platform Width 70.5-in / 1.8-m E. Platform Length 149.8-in / 3.8-m F. Platform Extension 4-ft / 1.2-m G. Machine Width 7-ft 9-in / 2.4-m H. Machine Length 16-ft / 4.9-m I. Wheelbase 9-ft 9-in / 3.0-m J. Ground Clearance 13.6-in / 34.5-cm
H I G F E B A J D
All dimensions are approximate
C

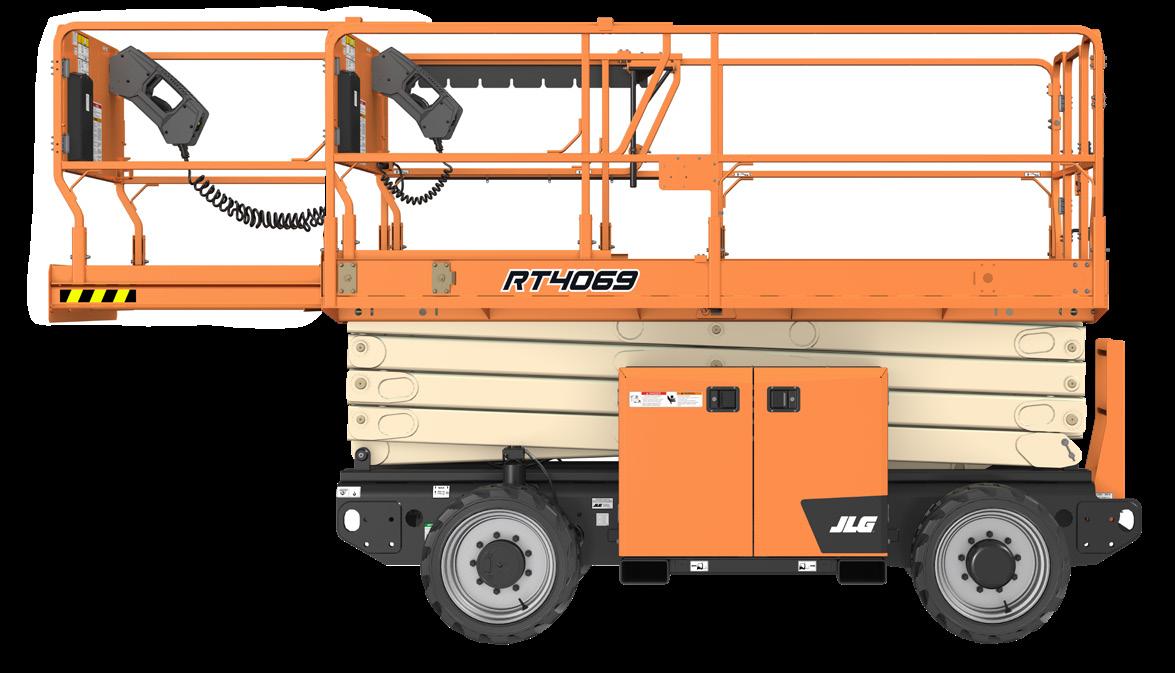

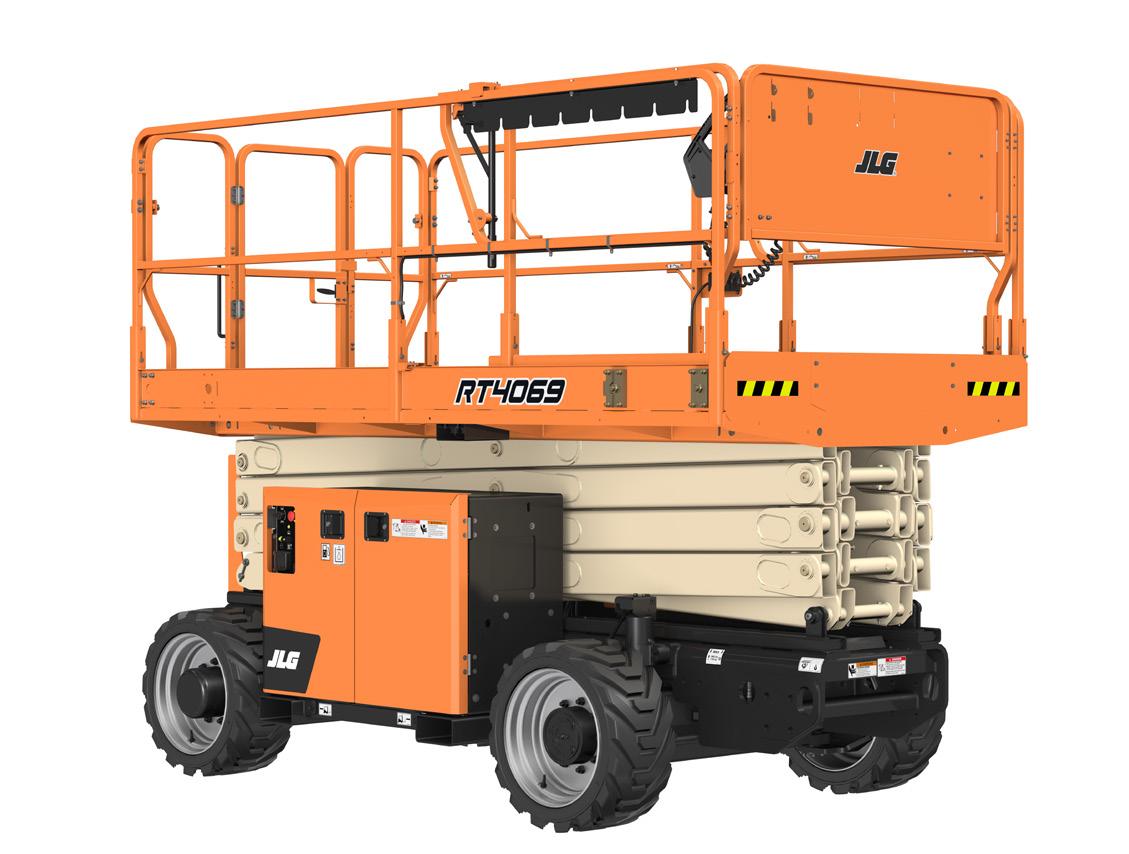

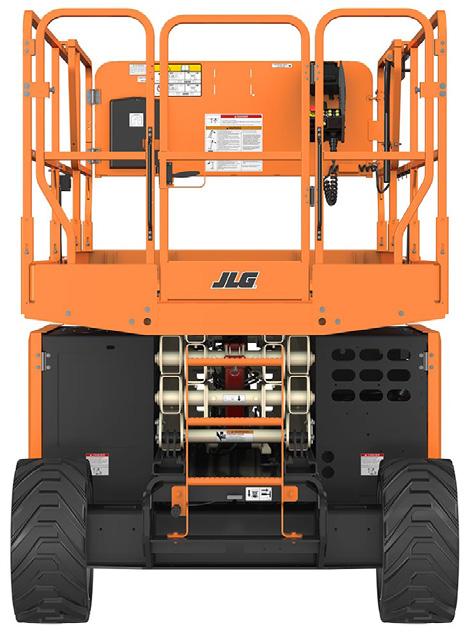

RT4069
ENGINE POWERED ROUGH TERRAIN SERIES
STANDARD SPECIFICATIONS
KEY FEATURES
Our engine powered rough terrain models offer drive capability at full height, limiting unnecessary trips up and down for working professionals. Delivers the latest technology, featuring an LCD platform control box with LiftSense technology and USB charging for next-level, real-time productivity and service communication to the operator.
This machine utilizes higher part commonality for simplified service across the rough terrain family. An optional QuikLevel Advanced system allows the machine to level on a side slope, helping operators position and drive while elevated closer to the job.
ACCESSORIES & OPTIONS
2WD
2500W Generator
60Hz/110V (Belt-driven)
26 x 12 Foam-filled
Non-Marking Tires
33.5-lb (15.2-kg) Aluminum
Propane Tank
ClearSky™
Dual Flashing Amber Beacons - LED
Dual LP Tanks (Dual Fuel Engines only)
Dual LP Tank Brackets
Flashing Amber Beacon - LED
Heavy Duty Pipe Racks
Hydraulic Leveling Jacks¹ (Auto Level)
Hydraulic Oil Cooler
STANDARD FEATURES
Lubrication-Free Scissor Arm
Bushings
Manual Descent Pull Cable
Nickel Plated Pins, Yellow
Zinc-Chromate
Plated Fasteners
Proportional Lift and Drive
Remote Engine Oil Filter Package
Scissor Maintenance Prop
Self-Closing Gate
Telematics-Ready Harness
Movable, Removable Platform Control Box
Operator Access Control
QuikLevel Advanced¹
Special Hydraulic Fluids
Special Paint White Noise Backup Alarm
ECU Controlled Engine Speed
Fold Down Rails
Full Time Traction Control
Horn
Hourmeter
LCD Display with LiftSense System
Oscillating Front Axle
Pin-based Load Sensing System
Pin-Less Fold Down Rail System
Platform Control Box with LCD Display, USB Charger and Phone Holster
Tie Down Lugs
SCISSOR LIFT
Platform Height 40-ft 3-in / 12.3-m Platform Capacity 800-lb / 363-kg Machine Width 69.3-in / 1.76-m Stowed Drive Speed 3.0 mph / 4.82 km/h
KEY SPECS
Performance Indoor Outdoor Platform Height (Elevated) 40-ft 3-in / 12.3-m 40-ft 3-in / 12.3-m Platform Capacity 800-lb / 363-kg 800-lb / 363-kg Capacity on Platform Extension 300-lb / 136-kg 300-lb / 136-kg Number of Occupants 3 2 Lift / Lower Time 50/48 seconds 50/48 seconds Maximum Drive Height Fully Elevated Fully Elevated Weight w/One Extension* 10,558-lb / 4,799-kg 10,558-lb / 4,799-kg Drive Speed (Lowered) 3.0 mph / 4.82 km/h 3.0 mph / 4.82 km/h Drive Speed (Raised) 0.3 mph / .48 km/h 0.3 mph / .48 km/h Gradeability 35% 35% Max Tilt Rating (Side-to-Side) 2.5 Degrees 2.5 Degrees Max Tilt Rating (Fore and Aft) 3 Degrees 3 Degrees Turning Radius (Inside) 83-in / 2-m 83-in / 2-m Turning Radius (Outside) 175-in / 4-m 175-in / 4-m *Certain options or country standards increase weight Engine Dual Fuel – Kubota WG972-GL-E4 31 hp 31 hp / 23.2 kW Diesel Fuel – Kubota D1305-E4B 24.8 hp 24.8 hp / 18.5 kW Fuel Tank Capacity 10 gal / 38 L Tires Standard 26 x 12-in Foam-filled Brakes Rear Wheel Spring Applied Hydraulic System Capacity 13.2 gal / 50 L
Receptacle In Platform 26 x 12 Foam-filled Tires 42-in Roll-out Deck Extension All Motion Alarm
110V-AC
1.
Hydraulic leveling jacks and Quiklevel Advanced cannot be outfitted on same machine.
RT4069
ENGINE POWERED ROUGH TERRAIN SERIES
DIMENSIONS
All dimensions are approximate
We provide coverage for one (1) full year, and cover all specified major structural components for five (5) years. Due to continuous product improvements, we reserve the right to make specification and/or equipment changes without prior notification. This machine meets or exceeds applicable ANSI and CSA requirements based on machine configuration as originally manufactured for intended applications. Please reference the serial number plate on the machine for additional information.
SCISSOR LIFT
JLG INDUSTRIES, INC.
Toll-free US 877-JLG-LIFT JLG.com
An
Corporation Company
Part No. 3131414 | R0822_03
Oshkosh
1&5 TH E JLG WAR R A NTY A. Platform Height (Lowered) 4-ft 10-in / 1.46-m B. Platform Railing Height 44.7-in / 1.14-m C. Machine Height 8-ft, 7-in / 2.62-m D. Platform Width 63-in / 1.6-m E. Platform Length 130.5-in / 3.3-m F. Platform Extension 42-in / 1.07-m G. Machine Width 69.3-in / 1.76-m H. Machine Length 139-in / 3.53-m I. Wheelbase 81.3-in / 2.07-m J. Ground Clearance 9-in / 22-cm
H I G F E B J D C A

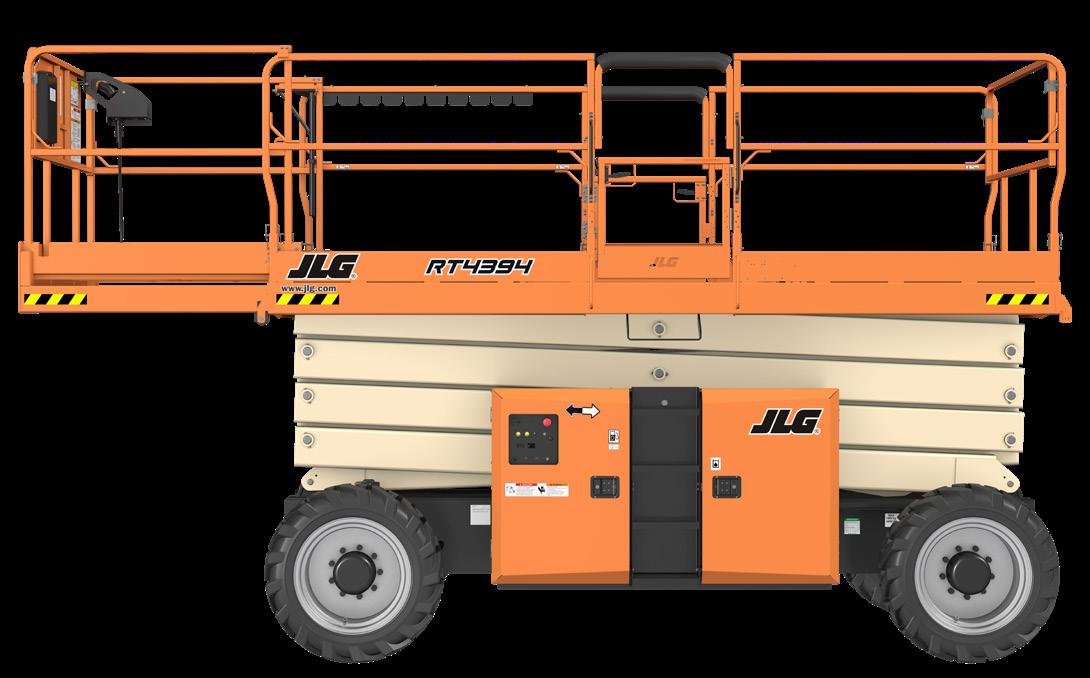

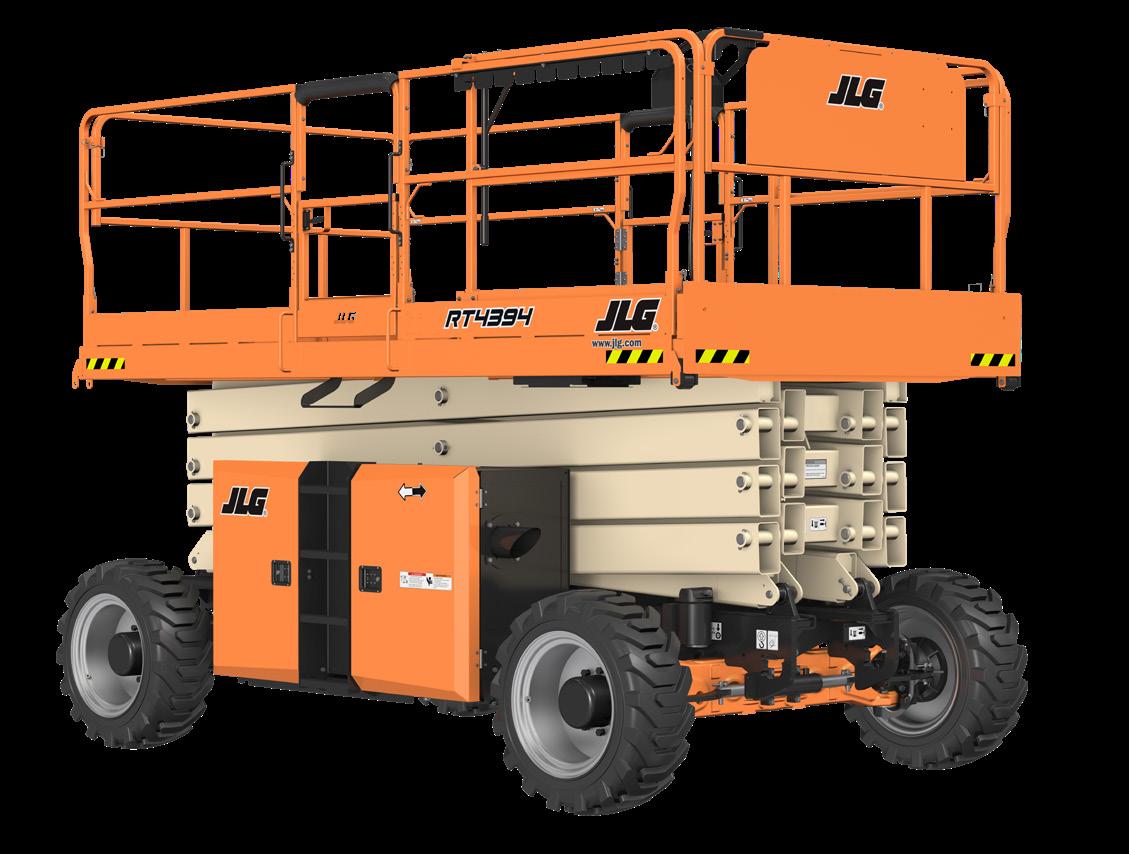

RT4394 ROUGH TERRAIN SERIES
STANDARD SPECIFICATIONS
Performance
Platform Height (Elevated) 43-ft / 13.11-m
Platform Capacity 1,500-lb / 680-kg
Capacity on Platform Extension 500-lb / 227-kg Number of Occupants 6 Lift / Lower Time 45/49 seconds
Maximum Drive Height Fully Elevated Weight w/One Extension* 15,210-lb / 6,914-kg
KEY SPECS
KEY FEATURES
Enhanced stability on uneven surfaces with a standard oscillating axle for better traction and grade climbing ability.
With the operator in mind, the platform is designed to shed debris and to allow for smoother extension deployment.
The fully accessible hydraulic and engine compartments provide for enhanced ease of service.
A standard 4-ft deck extension provides more space for people and materials.
ACCESSORIES & OPTIONS
43.5-lb (19.7-kg) Propane
Tank
Cold Weather Start Kit
Dual Extension Deck
Flashing Amber Beacon
Large Material Rack
Leveling Jacks
Pipe Rack Accessory Platform Worklights SkyPower®
STANDARD FEATURES
110V-AC
SkyPower with SkyWelder Workstation
SCISSOR LIFT
Platform Height 43-ft / 13.11-m Platform Capacity 1,500-lb / 680-kg Machine
7-ft 9-in / 2.4-m
3.5 mph / 5.6 km/h
Width
Stowed Drive Speed
3.5
mph / .8 km/h Gradeability 45% Max Tilt Rating (Side-to-Side) 3 Degrees Max Tilt Rating (Fore and Aft) 5 Degrees Turning Radius (Inside) 8-ft 10.5-in / 2.7-m Turning Radius (Outside) 19-ft 5.5-in / 5.9-m *Certain options or country standards increase weight Engine Dual Fuel – Kubota W6972 31 hp / 23 kW Diesel Fuel – Kubota D1305 24.8 hp / 18.5 kW Fuel Tank Capacity 22 gal / 83.3 L Tires Standard 12 x 16.5-in Foam-filled Brakes Four Wheel Spring Applied Hydraulic System Capacity 32 gal / 121.4 L
Ground Bearing Pressure 83 psi / 5.8 kg/cm² Drive Speed (Lowered)
mph / 5.6 km/h Drive Speed (Elevated) .5
Platform
Extension 4-Wheel Drive 70.5 x
All Steel
Aluminum
Adjustable, Removable Platform Control Station
Motion
Automatic Transmission Fold-Down Handrails Horn Oscillating
Proportional Drive/Lift Up/ Lift Down Self-Closing Gate Three-speed Drive Select Tilt Light and Alarm
Receptacle in
4-ft (1.22-m) Manual Deck
149.8-in (1.8 x 3.8-m),
Platform with
Deck
All
Alarm
Axle
RT4394
ROUGH TERRAIN SERIES
DIMENSIONS
All dimensions are approximate
SCISSOR LIFT
We provide coverage for one (1) full year, and cover all specified major structural components for five (5) years. Due to continuous product improvements, we reserve the right to make specification and/or equipment changes without prior notification. This machine meets or exceeds applicable ANSI and CSA requirements based on machine configuration as originally manufactured for intended applications. Please reference the serial number plate on the machine for additional information.
JLG INDUSTRIES, INC.
Toll-free US 877-JLG-LIFT JLG.com
An
Corporation Company
Part No. 3131410 | R0223_04
Oshkosh
1&5 TH E JLG WAR R A NTY A. Platform Height (Rails Lowered) 7-ft 2.4-in / 2.19-m B. Platform Railing Height 3-ft 7.5-in / 1.1-m C. Machine Height 9-ft 10-in / 3-m D. Platform Width 70.5-in / 1.8-m E. Platform Length 149.8-in / 3.8-m F. Platform Extension 4-ft / 1.2-m G. Machine Width 7-ft 9-in / 2.4-m H. Machine Length 16-ft / 4.9-m I. Wheelbase 9-ft 9-in / 3.0-m J. Ground Clearance 13.6-in / 34.5-cm
H I G F E J D
B A C

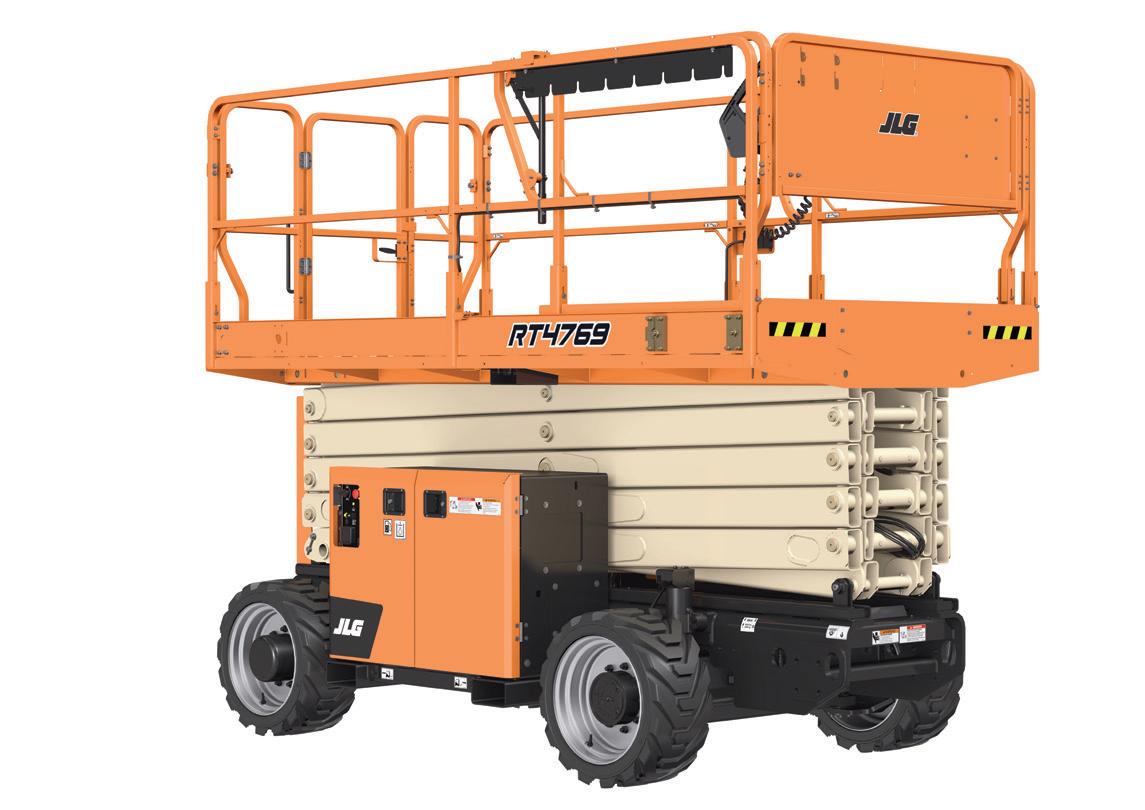

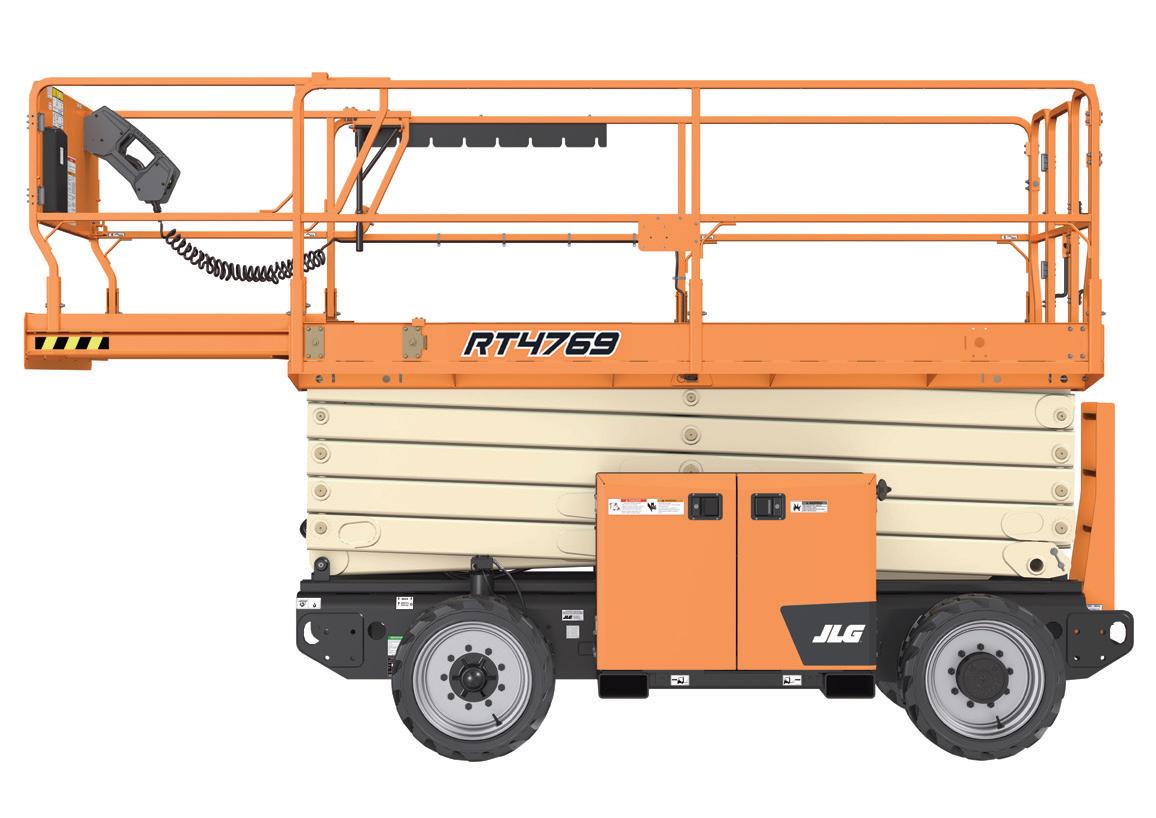

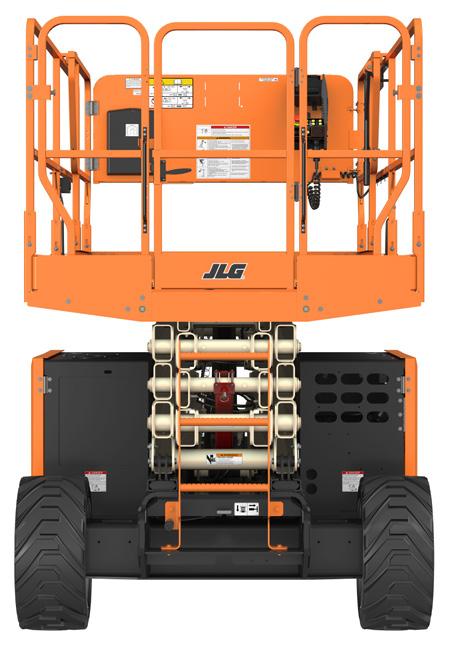

RT4769
ENGINE POWERED ROUGH TERRAIN SERIES
STANDARD SPECIFICATIONS
KEY FEATURES
Our engine powered rough terrain models offer drive capability at full height, limiting unnecessary trips up and down for working professionals. Delivers the latest technology, featuring an LCD platform control box with LiftSense technology and USB charging for next-level, real-time productivity and service communication to the operator.
This machine utilizes higher part commonality for simplified service across the rough terrain family.
An optional QuikLevel Advanced system allows the machine to level on a side slope, helping operators position and drive while elevated closer to the job.
ACCESSORIES & OPTIONS
2WD
2500W Generator
60Hz/110V (Belt-driven)
26 x 12 Foam-filled
Non-Marking Tires
33.5-lb (15.2-kg) Aluminum
Propane Tank
ClearSky™
Dual Flashing Amber
Beacons - LED
Dual LP Tanks (Dual Fuel Engines only)
Dual LP Tank Brackets
Flashing Amber Beacon
- LED
Heavy Duty Pipe Racks
Hydraulic Leveling Jacks¹ (Auto Level)
Hydraulic Oil Cooler
STANDARD FEATURES
Lubrication-Free Scissor Arm
Bushings
Manual Descent Pull Cable
Nickel Plated Pins, Yellow
Zinc-Chromate
Plated Fasteners
Oscillating Front Axle
Pin-based Load Sensing System
Proportional Lift and Drive
Remote Engine Oil Filter Package
Scissor Maintenance Prop
Self-Closing Gate
Telematics-Ready Harness
Tie Down Lugs
Moveable, Removable Platform Control Box
Operator Access Control
QuikLevel Advanced¹
Special Hydraulic Fluids Special Paint
White Noise Backup Alarm
Time Traction Control Horn
Hourmeter
LCD Display with LiftSense System
Pin-Less Fold Down Rail System
Platform Control Box with LCD Display, USB Charger and Phone Holster
1. Hydraulic leveling jacks and Quiklevel Advanced cannot be outfitted on same machine.
SCISSOR LIFT
Platform Height 47-ft / 14.3-m Platform Capacity 800-lb / 363-kg Machine Width 69.3-in / 1.76-m Stowed Drive Speed 3.0 mph / 4.82 km/h
KEY SPECS
Performance Indoor Outdoor Platform Height (Elevated) 47-ft / 14.3-m 47-ft / 14.3-m Platform Capacity 800-lb / 363-kg 800-lb / 363-kg Capacity on Platform Extension 300-lb / 136-kg 300-lb / 136-kg Number of Occupants 3 3 Lift / Lower Time 65/60 seconds 65/60 seconds Maximum Drive Height Fully Elevated Fully Elevated Weight w/One Extension* 15,200-lb / 6,909-kg 15,200-lb / 6,909-kg Drive Speed (Lowered) 3.0 mph / 4.82 km/h 3.0 mph / 4.82 km/h Drive Speed (Raised) 0.3 mph / .48 km/h 0.3 mph / .48 km/h Gradeability 35% 35% Max Tilt Rating (Side-to-Side) 2.5 Degrees 2.5 Degrees Max Tilt Rating (Fore and Aft) 3 Degrees 3 Degrees Turning Radius (Inside) 83-in / 2-m 83-in / 2-m Turning Radius (Outside) 175-in / 4-m 175-in / 4-m *Certain options or country standards increase weight Engine Dual Fuel – Kubota WG972-GL-E4 31 hp 31 hp / 23.2 kW Diesel Fuel – Kubota D1305-E4B 24.8 hp 24.8 hp / 18.5 kW Fuel Tank Capacity 10 gal / 38 L Tires Standard 26 x 12-in Foam-filled Brakes Rear Wheel Spring Applied Hydraulic System Capacity 13.2 gal / 50 L
Receptacle In Platform 26 x 12 Foam-filled Tires 42-in Roll-out Deck Extension All Motion Alarm ECU Controlled Engine Speed Fold Down Rails Full
110V-AC
RT4769
ENGINE POWERED ROUGH TERRAIN SERIES
DIMENSIONS
We provide coverage for one (1) full year, and cover all specified major structural components for five (5) years. Due to continuous product improvements, we reserve the right to make specification and/or equipment changes without prior notification. This machine meets or exceeds applicable ANSI and CSA requirements based on machine configuration as originally manufactured for intended applications. Please reference the serial number plate on the machine for additional information.
SCISSOR LIFT
JLG INDUSTRIES, INC.
Toll-free US 877-JLG-LIFT
JLG.com
An
Corporation Company
Part No. 3131415 | R0822_03
Oshkosh
1&5 TH E JLG WAR R A NTY A. Platform Height (Lowered) 5-ft 4-in / 1.62-m B. Platform Railing Height 44.7-in / 1.14-m C. Machine Height 109.1-in / 2.77-m D. Platform Width 63-in / 1.6-m E. Platform Length 130.5-in / 3.3-m F. Platform Extension 42-in / 1.07-m G. Machine Width 69.3-in / 1.76-m H. Machine Length 139-in / 3.53-m I. Wheelbase 81.3-in / 2.07-m J. Ground Clearance 9-in / 22-cm
dimensions are approximate
All
G B D C A H I F E

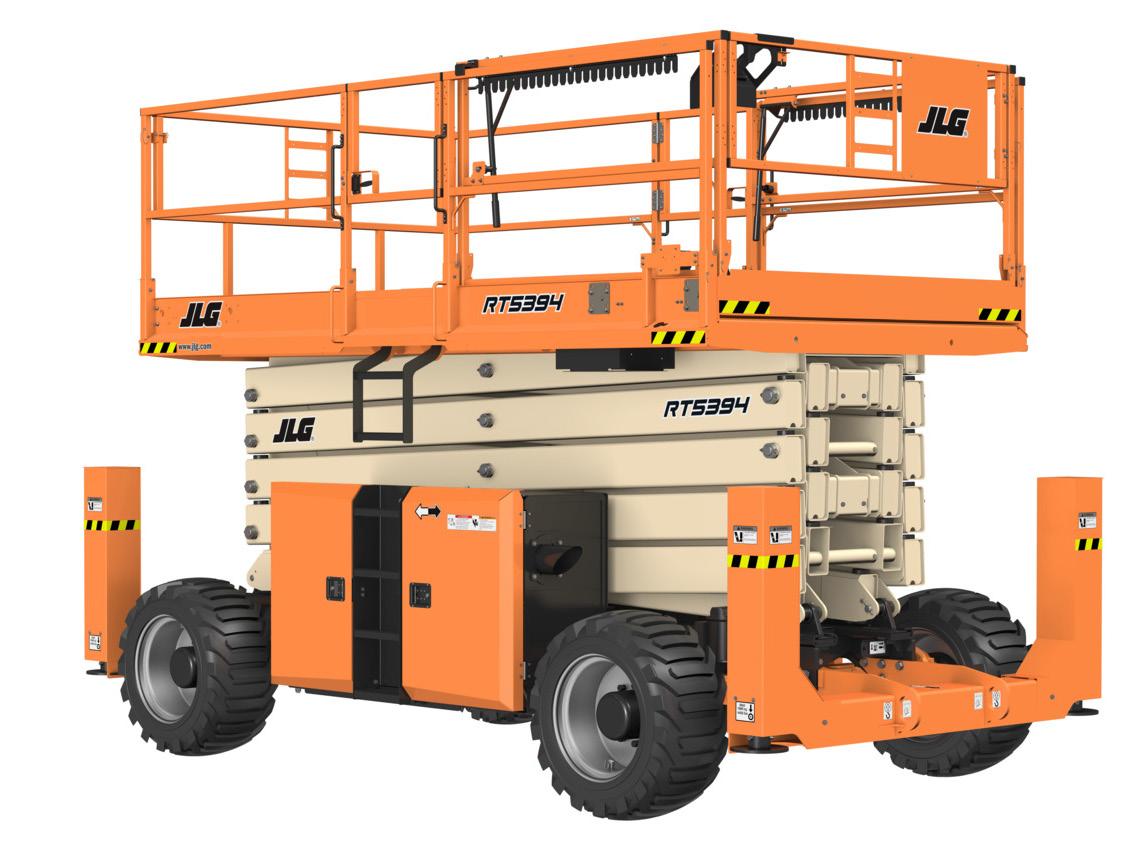

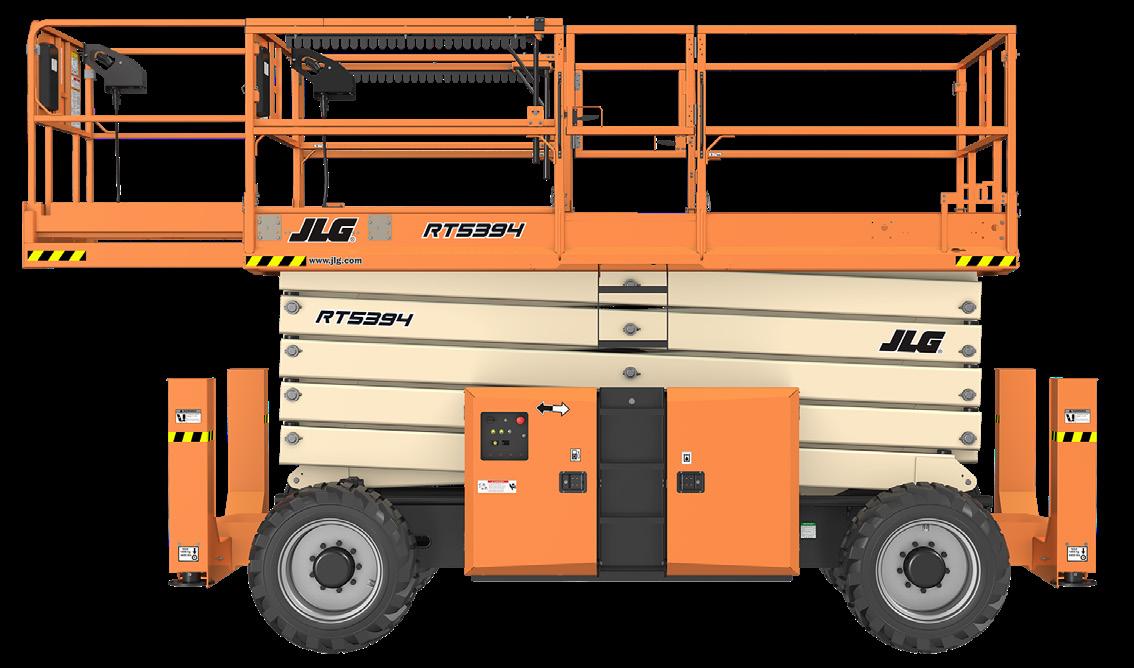

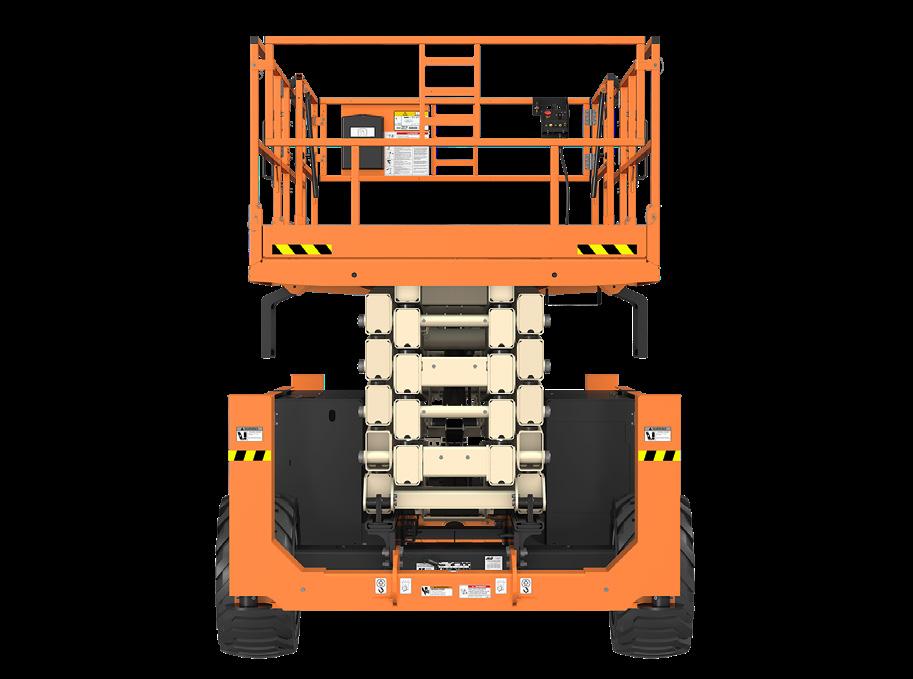

RT 5394
ROUGH TERRAIN SERIES
STANDARD SPECIFICATIONS
Performance
Platform Height (Elevated) 53-ft / 16.2-m
Platform Capacity 1,500-lb / 680-kg
Capacity on Platform Extension 500-lb / 227-kg
Number of Occupants 6
Lift / Lower Time 65/60 seconds
Maximum Drive Height 32-ft / 9.75-m
Weight w/One Extension* 17,110-lb / 7,761-kg
Ground Bearing Pressure 90 psi / 6.3 kg/cm²
Drive Speed (Lowered) 3.5 mph / 5.6 km/h
Drive Speed (Elevated) .5 mph / .8 km/h
Gradeability 40%
Max Tilt Rating (Side-to-Side) 1.5 Degrees Max Tilt Rating (Fore and Aft) 1.5 Degrees
KEY SPECS
KEY FEATURES
Enhanced stability on uneven surfaces with a standard oscillating axle for better traction and grade climbing ability.
With the operator in mind, the platform is designed to shed debris and to allow for smoother extension deployment.
The fully accessible hydraulic and engine compartments provide for enhanced ease of service.
A standard 4-ft deck extension provides more space for people and materials.
ACCESSORIES & OPTIONS
1/2-in Airline to Platform
43.5-lb (19.7-kg) Propane
Tank
Cold Weather Start Kit
Dual Extension Deck
Flashing Amber Beacon
Large Material Rack
Pipe Rack Accessory
STANDARD FEATURES
110V-AC Receptacle in Platform
4-ft (1.22-m) Manual Deck
Extension
4-Wheel Drive
70.5 x 149.8-in (1.8 x 3.8-m), All Steel Platform with Aluminum Deck
Adjustable, Removable Platform Control Station
All Motion Alarm
Automatic Transmission
Fold-Down Handrails
Horn
Leveling Jacks
Oscillating Axle Proportional Drive/Lift Up/ Lift Down
Self-Closing Gate
Three-speed Drive Select Tilt Light and Alarm
Platform Worklights SkyPower®
SkyPower with SkyWelder Workstation
SCISSOR LIFT
Platform Height 53-ft / 16.2-m Platform Capacity 1,500-lb / 680-kg Machine Width 7-ft 7-in / 2.3-m Stowed Drive Speed 3.5 mph / 5.6 km/h
9-ft
2.7-m Turning
(Outside) 19-ft 9-in
6.0-m
options or country standards increase weight
Dual Fuel –
W6972 31 hp / 23 kW Diesel Fuel –
D1305 24.8 hp / 18.5 kW Fuel Tank Capacity 22 gal / 83.3 L Tires Standard 12
16.5-in
Brakes
Hydraulic System Capacity 32
L
Turning Radius (Inside)
/
Radius
/
*Certain
Engine
Kubota
Kubota
x
Foam-filled
Four Wheel Spring Applied
gal / 121.4
RT 5394 ROUGH TERRAIN SERIES
DIMENSIONS
SCISSOR LIFT
We provide coverage for one (1) full year, and cover all specified major structural components for five (5) years. Due to continuous product improvements, we reserve the right to make specification and/or equipment changes without prior notification. This machine meets or exceeds applicable ANSI and CSA requirements based on machine configuration as originally manufactured for intended applications. Please reference the serial number plate on the machine for additional information.
JLG INDUSTRIES, INC.
Toll-free US 877-JLG-LIFT JLG.com
An
Corporation Company
Part No. 3131411 | R0223_03
Oshkosh
1&5 TH E JLG WAR R A NTY A. Platform Height (Rails Lowered) 7-ft 9-in / 2.36-m B. Platform Railing Height 43.5-in / 1.1-m C. Machine Height 10-ft 5-in / 3.2-m D. Platform Width 70.5-in / 1.8-m E. Platform Length 149.8-in / 3.8-m F. Platform Extension 4-ft / 1.2-m G. Machine Width 7-ft 7-in / 2.3-m H. Machine Length 16-ft / 4.9-m I. Wheelbase 9-ft 9-in / 3.0-m J. Ground Clearance 12-in / 30-cm All dimensions are approximate H I G F E J D
B A C
