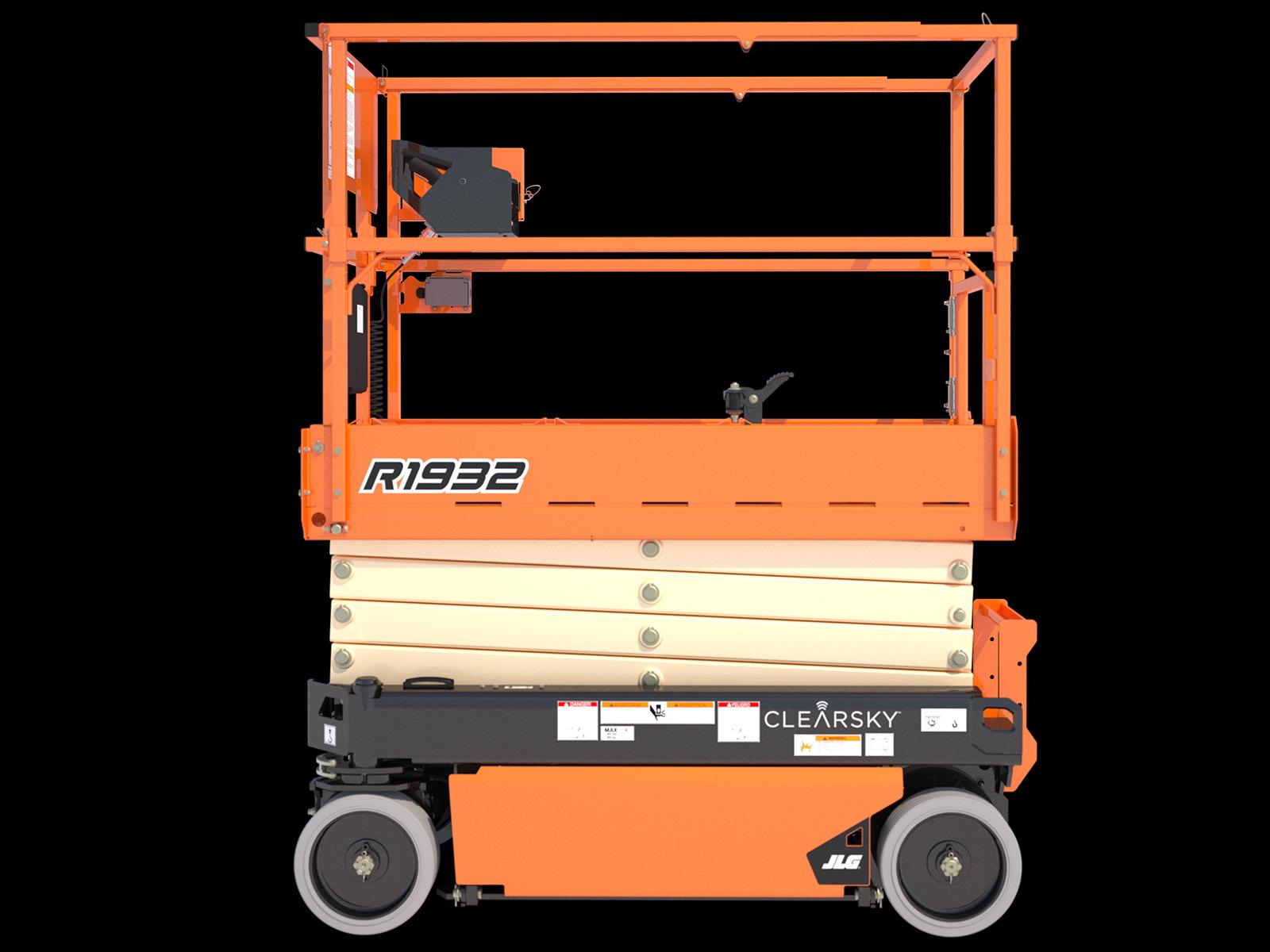

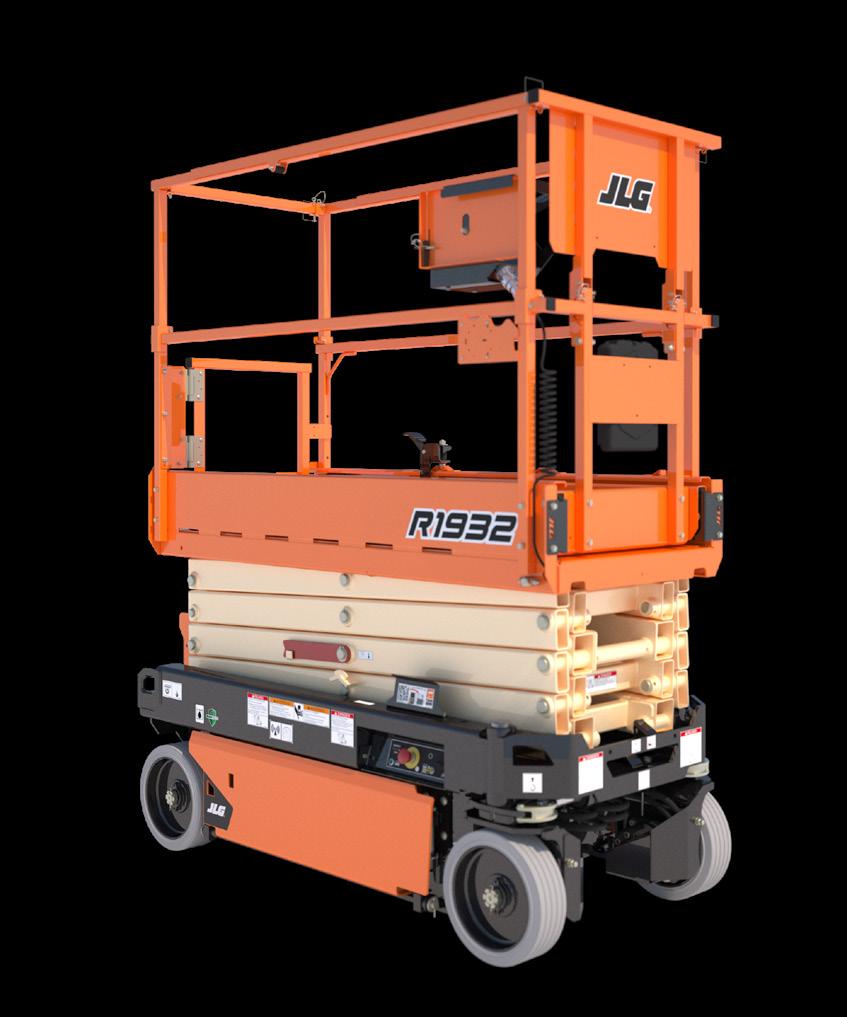

R1932
ELECTRIC SCISSOR LIFT
STANDARD SPECIFICATIONS
KEY SPECS
Platform Height 19-ft / 5.8-m
Platform Capacity 507-lb / 230-kg
KEY FEATURES
Available as an indoor-only option (R1932i) that is one of the lightest 19-ft scissor in its category.
Active pothole protection provides increased ground clearance to tackle demanding terrain.
Number of Occupants Indoor: 2 Outdoor: 1
Stowed Drive Speed 2.1 mph / 3.4 km/h
Utilizes fewer parts with an improved battery charger for greater serviceability.
Equipped with an all-steel platform and component doors with thicker rubber tires for added durability.
ACCESSORIES & OPTIONS
4 x 6V AGM Batteries, 220 ah
900W Inverter
Anti-Vandalism PKG
CAN-Enabled Charger
ClearSky™
Coiled Platform Control Box Cable
Drive Motor Covers
Dual Flashing Amber Beacons - LED
Eagle Performance Charger
Flashing Amber Beacon - LED
JLG® Mobile Control
MDI (Ground)
Panel Carrier
Pipe Racks
QuikFold Rails
SkySense® Enhanced Detection System
USB Charger & Phone Holder
White Noise Alarm
STANDARD FEATURES
27 amp Multi-Function Universal Charger AC Receptacle in Platform Active Pothole Protection System
All Motion Alarm
Analyzer Port for Diagnostics
Battery Condition Indicator
Diamond Tread Steel Deck
Dynamic Braking
Foot-Actuated Deck Extension
Fork Lift Pockets
Greaseless Kingpin Joints
Horn
Hourmeter
Lanyard Attach Points
Lifting and Tie Down Points
Load Sensing System
Lubrication Free Scissor Arm
Bushings
Manual Descent Cable
Movable, Removable
Platform Control
Nickel Plated Pins
Proportional Controls
Removable Ladder
Scissor Maintenance Prop
Self-Closing Gate
Steel Swing-Out Doors
Tilt Alarm and Light
Variable Tilt Visual Zone Indicator
SCISSOR LIFT
Performance Indoor Outdoor Platform Height (Elevated) 19-ft / 5.8-m 19-ft / 5.8-m Platform Capacity 507-lb / 230-kg 507-lb / 230-kg Capacity on Platform Extension 265-lb / 120-kg 265-lb / 120-kg Number of Occupants 2 1 Lift / Lower Time (No Load) 20/27 seconds 20/27 seconds Lift / Lower Time (Rated Load) 25/26 seconds 25/26 seconds Maximum Drive Height Fully Elevated Fully Elevated Weight* 3,450-lb / 1,564-kg 3,450-lb / 1,564-kg Max. Ground Bearing Pressure 114 psi / 8.0 kg/cm² 114 psi / 8.0 kg/cm² Drive Speed (Lowered) 2.1 mph / 3.4 km/h 2.1 mph / 3.4 km/h Drive Speed (Raised) 0.5 mph / 0.8 km/h 0.5 mph / 0.8 km/h Gradeability 25% 25% Max Tilt Rating (Side-to-Side) 1.75 Degrees 1.50 Degrees Max Tilt Rating (Fore and Aft) 3.75 Degrees 3.75 Degrees Turning Radius (Inside) Zero Zero Turning Radius (Outside) 66-in / 1.68-m 66-in / 1.68-m *Certain options or country standards increase weight Power Batteries 4 x 6V 220 amp-hr Charger 27 Amp Drive Hydraulic Front Wheel Tires Standard 12.7 x 4-in / 323 x 100-mm Brakes Multi-Disc Friction Hydraulic System Capacity 4 gal / 15 L Pump Fixed Displacement Gear
R1932
ELECTRIC SCISSOR LIFT
DIMENSIONS
are approximate
SCISSOR LIFT
We provide coverage for one (1) full year, and cover all specified major structural components for five (5) years. Due to continuous product improvements, we reserve the right to make specification and/or equipment changes without prior notification. This machine meets or exceeds applicable ANSI and CSA requirements based on machine configuration as originally manufactured for intended applications. Please reference the serial number plate on the machine for additional information.
JLG INDUSTRIES, INC.
Toll-free US 877-JLG-LIFT
JLG.com
An
Corporation Company
Part No. 3131519 | R0122_05
Oshkosh
1&5 TH E JLG WAR R A NTY A. Platform Height (Lowered) 38.6-in / .981-m B. Platform Railing Height 43.3-in / 1.1-m C. Machine Height (Rails Raised) 82.8-in / 2.1-m D. Machine Height (Rails Lowered) 64.3-in / 1.63-m E. Platform Width 25.4-in / .64-m F. Platform Length 62.7-in / 1.59-m G. Platform Extension 36-in / 91-cm H. Machine Width 32-in / 81-cm I. Machine Length 68.7-in / 1.74-m J. Wheelbase 53-in / 1.34-m K. Ground Clearance 2.8-in / 7-cm
dimensions
All
E B G F A J I H C D K

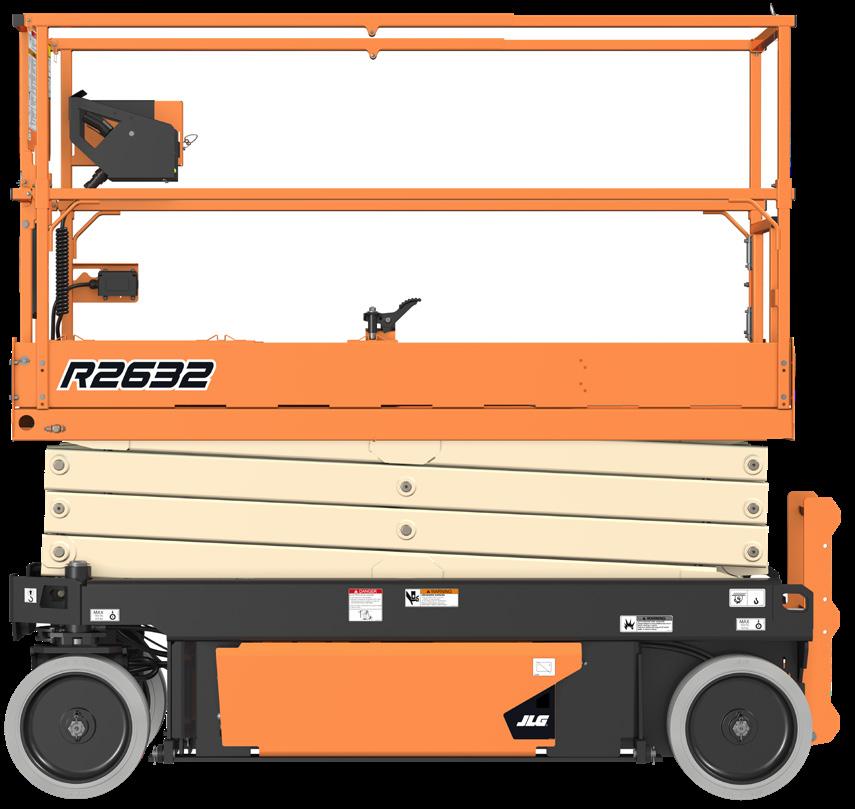

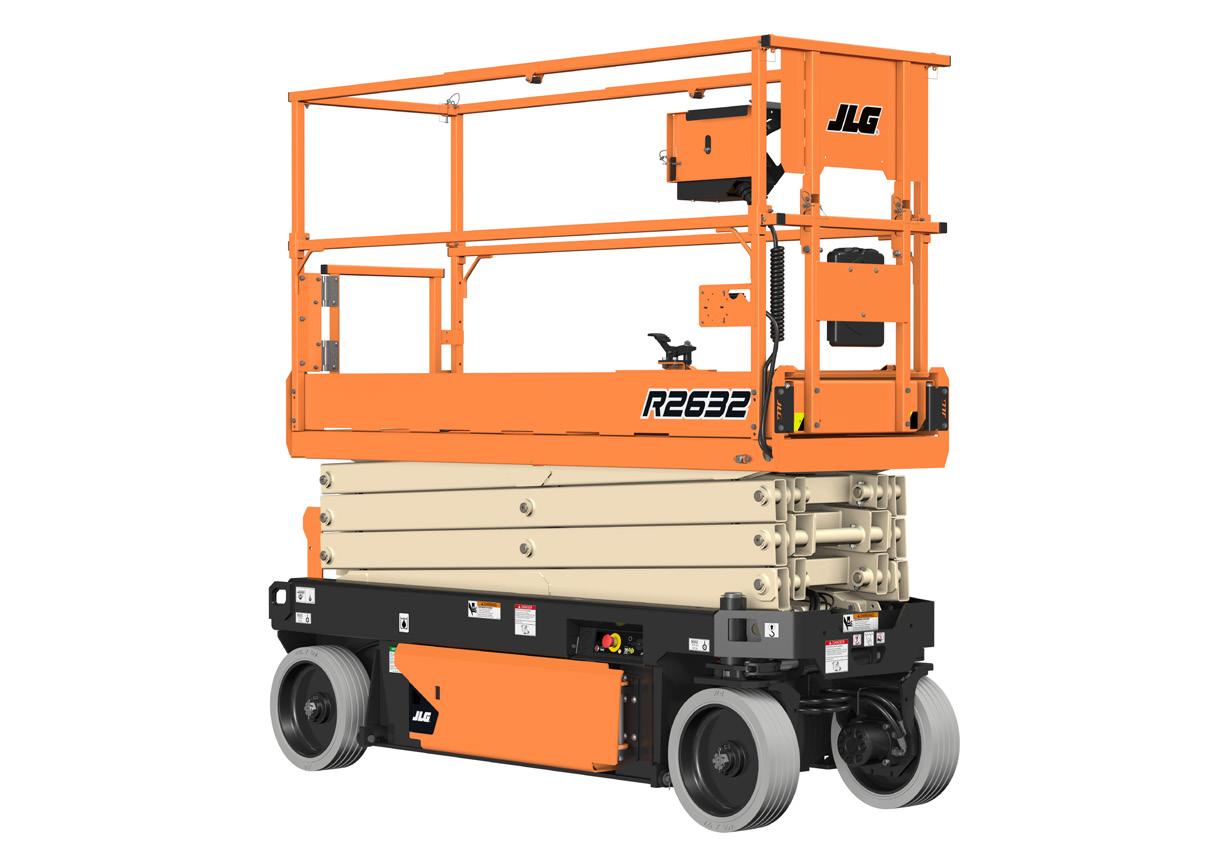

R 2632
ELECTRIC SCISSOR LIFT
STANDARD SPECIFICATIONS
KEY SPECS
Platform Height
Indoor: 25.5-ft / 7.8-m
Outdoor: 21-ft / 6.4-m
Platform Capacity
Indoor: 507-lb / 230-kg
Outdoor: 275-lb / 125-kg
KEY FEATURES
Delivers Industry-exclusive outdoor rating for use up to 21-ft to reach more in difficult conditions.
Active pothole protection provides increased ground clearance to tackle demanding terrain.
Number of Occupants
Indoor: 2
Outdoor: 1
Stowed Drive Speed 2.2 mph / 3.5 km/h
Ability to pass through single doorways gives you more access site-wide.
Complies with A92.20 ANSI regulations, achieving the highest standards.
ACCESSORIES & OPTIONS
4 x 6V AGM Batteries, 220 ah
4 x 6V Batteries, 255 ah
900W Inverter
Anti-Vandalism PKG
CAN-Enabled Charger
ClearSky™
Coiled Platform Control Box Cable
Drive Motor Covers
Dual Flashing Amber Beacons - LED
Eagle Performance Charger
Flashing Amber Beacon - LED
JLG® Mobile Control
MDI (Ground)
Panel Carrier
Pipe Racks
QuikFold Rails
SkySense® Enhanced Detection System
USB Charger & Phone Holder
White Noise Alarm
STANDARD FEATURES
27 amp Multi-Function
Universal Charger
AC Receptacle in Platform
Active Pothole Protection System
All Motion Alarm
Analyzer Port for Diagnostics
Battery Condition Indicator
Diamond Tread Steel Deck
Dynamic Braking
Foot-Actuated Deck Extension
Fork Lift Pockets
Greaseless Kingpin Joints
Horn
Hourmeter
Lanyard Attach Points
Lifting and Tie Down Points
Load Sensing System
Lubrication Free Scissor Arm
Bushings
Manual Descent Cable
Movable, Removable
Platform Control
Nickel Plated Pins
Proportional Controls
Removable Ladder
Scissor Maintenance Prop
Self-Closing Gate
Steel Swing-Out Doors
Tilt Alarm and Light
Variable Tilt Visual Zone Indicator
SCISSOR LIFT
Performance Indoor Outdoor Platform Height (Elevated) 25.5-ft / 7.8-m 21-ft / 6.4-m Platform Capacity 507-lb / 230-kg 275-lb / 125-kg Capacity on Platform Extension 265-lb / 120-kg 265-lb / 120-kg Number of Occupants 2 1 Lift / Lower Time (No Load) 33/36 seconds 33/36 seconds Lift / Lower Time (Rated Load) 39/29 seconds 39/29 seconds Maximum Drive Height Fully Elevated 21-ft / 6.40-m Weight* 4,280-lb / 1,941-kg 4,280-lb / 1,941-kg Max. Ground Bearing Pressure 92 psi / 6.2 kg/cm² 92 psi / 6.2 kg/cm² Drive Speed (Lowered) 2.2 mph / 3.5 km/h 2.2 mph / 3.5 km/h Drive Speed (Raised) 0.5 mph / 0.8 km/h 0.5 mph / 0.8 km/h Gradeability 25% 25% Max Tilt Rating (Side-to-Side) 1.50 Degrees 1.50 Degrees Max Tilt Rating (Fore and Aft) 3.50 Degrees 3.50 Degrees Turning Radius (Inside) Zero Zero Turning Radius (Outside) 88.2-in / 2.24-m 88.2-in / 2.24-m *Certain options or country standards increase weight Power Batteries 4 x 6V 220 amp-hr Charger 27 Amp Drive Hydraulic Front Wheel Tires Standard 16 x 5-in / 406 x 127-mm Brakes Multi-Disc Friction Hydraulic System Capacity 4.8 gal / 18 L Pump Fixed Displacement Gear
R 2632 ELECTRIC SCISSOR LIFT
DIMENSIONS
SCISSOR LIFT
We provide coverage for one (1) full year, and cover all specified major structural components for five (5) years. Due to continuous product improvements, we reserve the right to make specification and/or equipment changes without prior notification. This machine meets or exceeds applicable ANSI and CSA requirements based on machine configuration as originally manufactured for intended applications. Please reference the serial number plate on the machine for additional information.
JLG INDUSTRIES, INC.
Toll-free US 877-JLG-LIFT JLG.com
An
Corporation Company
Part No. 3131520 | R0122_05
Oshkosh
1&5 TH E JLG WAR R A NTY A. Platform Height (Lowered) 43.6-in / 1.11-m B. Platform Railing Height 44.6-in / 1.13-m C. Machine Height (Rails Raised) 88.2-in / 2.24-m D. Machine Height (Rails Lowered) 70.3-in / 1.79-m E. Platform Width 25.4-in / .64-m F. Platform Length 84.0-in / 2.13-m G. Platform Extension 34-in / 86.5-cm H. Machine Width 32-in / 81-cm I. Machine Length 94.3-in / 2.4-m J. Wheelbase 74-in / 1.88-m K. Ground Clearance 3.9-in / 9.8-cm
dimensions
All
are approximate
E B G F A J I H C D K

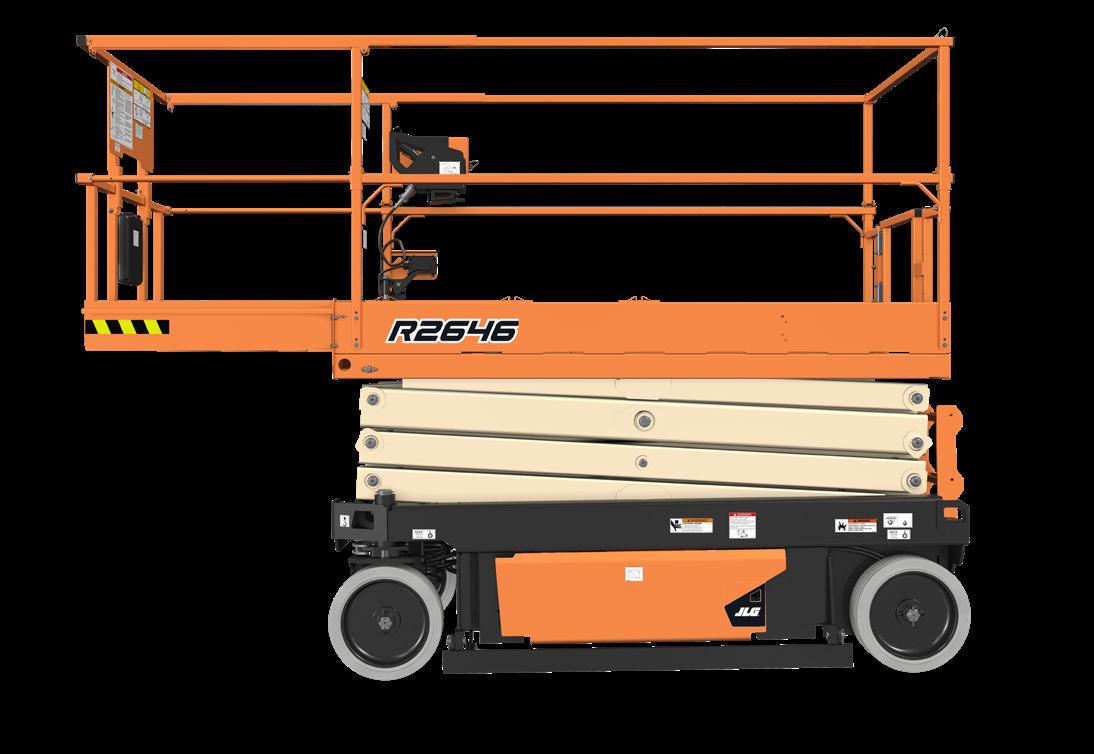

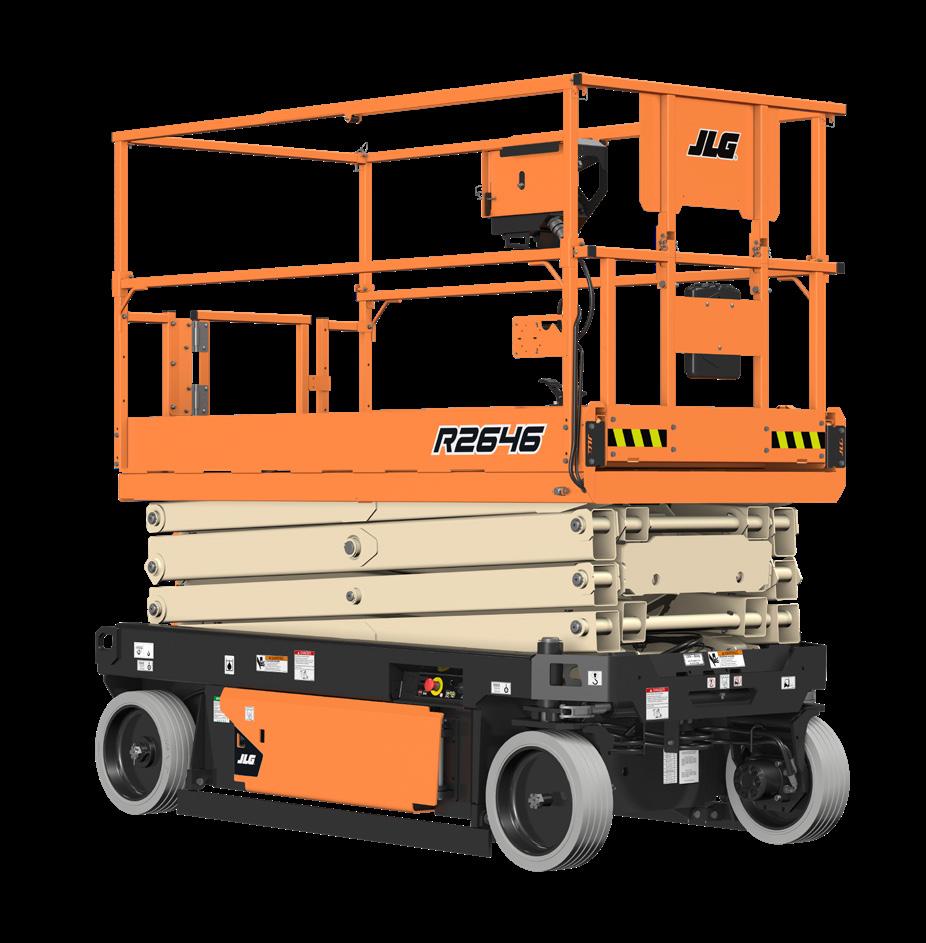

R 2646
ELECTRIC SCISSOR LIFT
STANDARD SPECIFICATIONS
KEY SPECS
Platform Height 26-ft / 7.92-m
Platform Capacity 1,200-lb / 545-kg
KEY FEATURES
The 1,200-lb indoor and outdoor platform capacity beats the competition.
Built rugged for rentals, allows professionals to meet the demands of any job site.
Number of Occupants
Indoor: 2 Outdoor: 1
Stowed Drive Speed 3 mph / 4.8 km/h
Active pothole protection provides increased ground clearance to tackle demanding terrain.
Complies with A92.20 ANSI regulations, achieving the highest standards.
ACCESSORIES & OPTIONS
4 x 6V AGM Batteries, 220 ah
4 x 6V Batteries, 255 ah
900W Inverter
Anti-Vandalism PKG
Ambient Noise Alarm
Coiled Platform Control Box Cable
Drive Motor Covers
Eagle Performance Charger
Extension Deployment Handles
Fire Extinguisher
Flashing Amber Beacon
JLG® Mobile Control
MDI (Ground)
Pipe Racks
SkySense® Enhanced Detection System
STANDARD FEATURES
SCISSOR LIFT
Performance Indoor Outdoor Platform Height (Elevated) 26-ft / 7.92-m 26-ft / 7.92-m Platform Capacity 1,200-lb / 545-kg 1,200-lb / 545-kg Capacity on Platform Extension 265-lb / 120-kg Number of Occupants 2 1 Lift / Lower Time (No Load) 47/44 seconds 47/44 seconds Lift / Lower Time (Rated Load) 54/37 seconds 54/37 seconds Maximum Drive Height Fully Elevated Fully Elevated Weight* 5,267-lb / 2,389-kg 5,267-lb / 2,389-kg Max. Ground Bearing Pressure 122 psi / 8.6 kg/cm² 122 psi / 8.6 kg/cm² Drive Speed (Lowered) 3 mph / 4.8 km/h 3 mph / 4.8 km/h Drive Speed (Raised) 0.5 mph / 0.8 km/h 0.5 mph / 0.8 km/h Gradeability 25% 25% Max Tilt Rating - Side-to-Side (Indoor) 2.5 Degrees 1.5 Degrees Max Tilt Rating (Fore and Aft) 3.5 Degrees 3.5 Degrees Turning Radius (Inside) Zero Zero Turning Radius (Outside) 88-in / 2.24-m 88-in / 2.24-m *Certain options or country standards increase weight Power Source Battery 4 x 6V 220 amp-hr Charger 27 amp Drive Hydraulic Front-Wheel Tires Standard 16 x 5-in / 406 x 127-mm Brakes Multi-Disc Friction Hydraulic System Capacity 4 gal / 15 L Pump Fixed Displacement Gear
amp Multi-Function Universal Charger AC Receptacle in
Active Pothole Protection System All Motion
Analyzer
Diagnostics
Diamond
Dynamic
Fork Lift Pockets Foot-Actuated Deck Extension Greaseless Kingpin
Horn Hourmeter
and
Movable, Removable Platform Control Nickel Plated
Proportional Controls Removable Ladder
Steel Swing-Out Doors
Alarm and
Variable Tilt Visual Zone Indicator
27
Platform
Alarm
Port for
Battery Condition Indicator
Tread Steel Deck
Braking
Joints
Lanyard Attach Points Lifting
Tie Down Points Lubrication Free Scissor Arm Bushings Manual Descent Cable
Pins
Scissor Maintenance Prop
Tilt
Light
R 2646
ELECTRIC SCISSOR LIFT
DIMENSIONS
SCISSOR LIFT
We provide coverage for one (1) full year, and cover all specified major structural components for five (5) years. Due to continuous product improvements, we reserve the right to make specification and/or equipment changes without prior notification. This machine meets or exceeds applicable ANSI and CSA requirements based on machine configuration as originally manufactured for intended applications. Please reference the serial number plate on the machine for additional information.
JLG INDUSTRIES, INC.
Toll-free US 877-JLG-LIFT
JLG.com
An
Corporation Company
Part No. 3131528 | R0122_03
Oshkosh
1&5 TH E JLG WAR R A NTY A. Platform Height (Lowered) 45-in / 1.14-m B. Platform Railing Height 44.6-in / 1.1-m C. Machine Height (Rails Raised) 89.6-in / 2.28-m D. Machine Height (Rails Lowered) 71.7-in / 1.82-m E. Platform Width 41.6-in / 1.1-m F. Platform Length 84-in / 2.1-m G. Platform Extension 36-in / 91-cm H. Machine Width 46-in / 117-cm I. Machine Length 94.3-in / 2.4-m J. Wheelbase 74-in / 1.9-m K. Ground Clearance 3.9-in / 9.8-cm
dimensions
I J H G F B K E C D A
All
are approximate

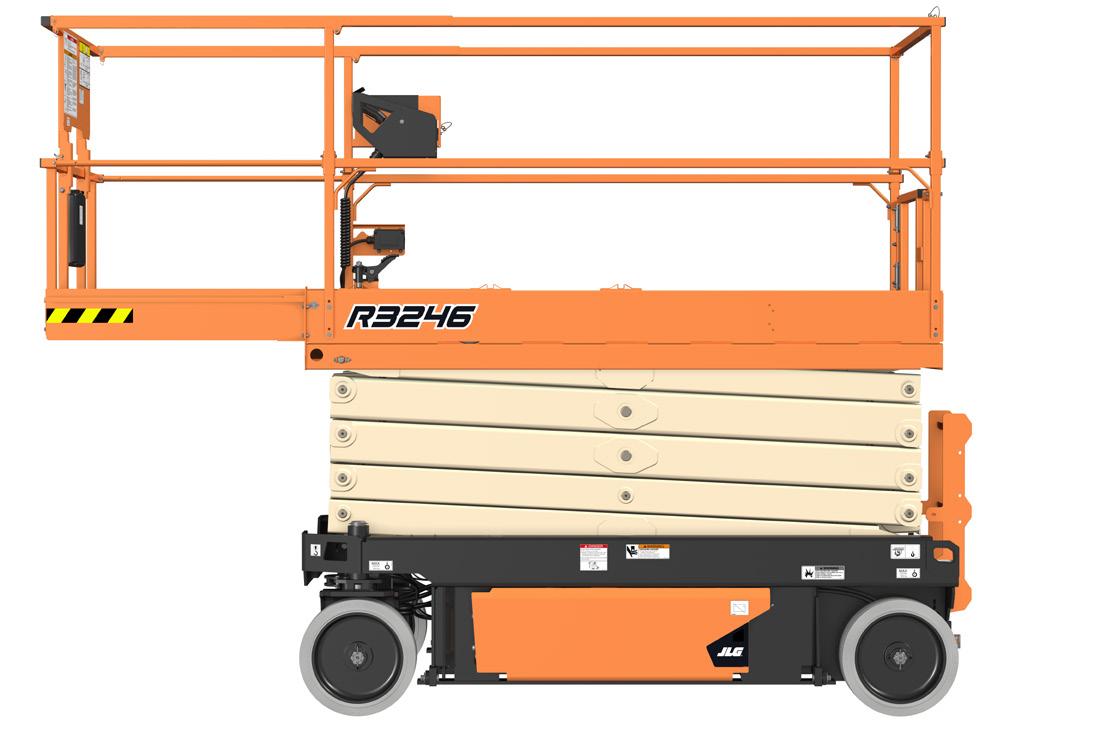

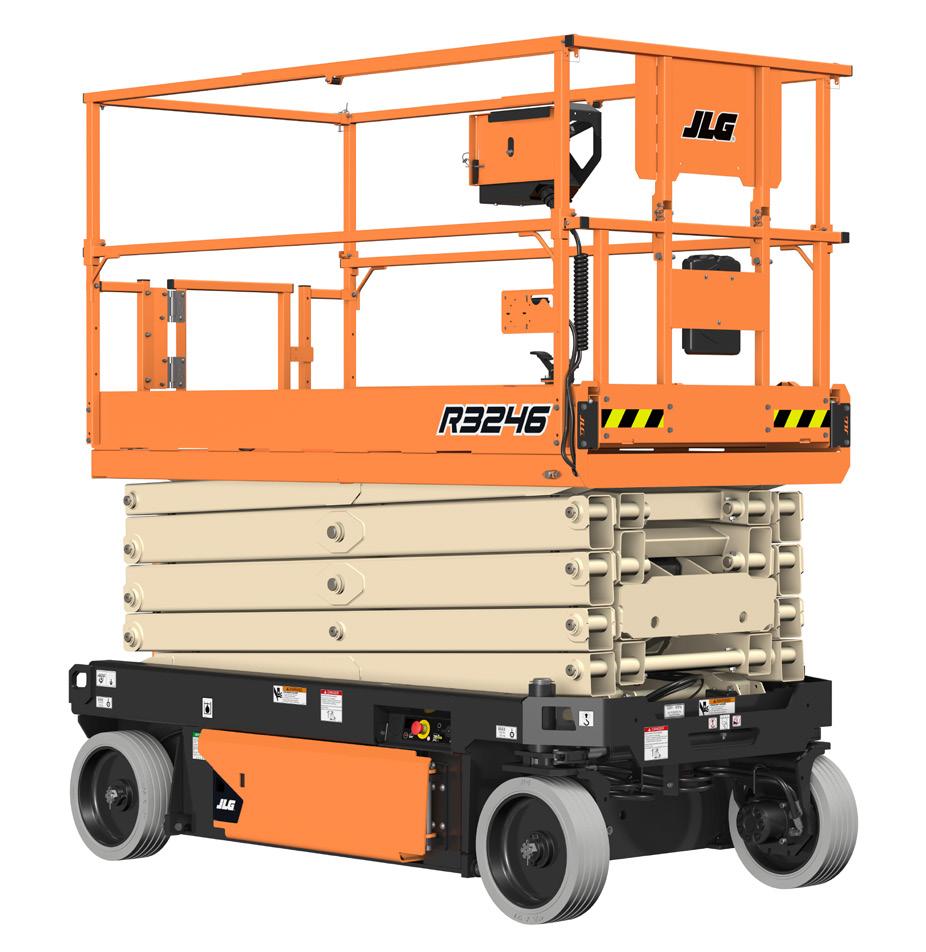

R 3246
ELECTRIC SCISSOR LIFT
STANDARD SPECIFICATIONS
KEY SPECS
Platform Height
32-ft / 9.8-m
Platform Capacity
Indoor: 705-lb / 320-kg
Outdoor: 507-lb / 230-kg
KEY FEATURES
The lightest scissor in Its class. Lightweight with a simplified lift system.
Active pothole protection provides increased ground clearance to tackle demanding terrain.
Number of Occupants
Indoor: 2 Outdoor: 1
Stowed Drive Speed 2.2 mph / 3.5 km/h
Ability to pass through doorways gives you more access site-wide.
Complies with A92.20 ANSI regulations, achieving the highest standards.
ACCESSORIES & OPTIONS
4 x 6V AGM Batteries, 220 ah 4 x 6V Batteries, 255 ah
900W Inverter
Anti-Vandalism PKG
Ambient Noise Alarm
Coiled Platform Control Box Cable
Drive Motor Covers
Eagle Performance Charger
Extension Deployment Handles
Fire Extinguisher
Flashing Amber Beacon
JLG® Mobile Control
MDI (Ground)
Pipe Racks
SkySense® Enhanced Detection System
STANDARD FEATURES
SCISSOR LIFT
Performance Indoor Outdoor Platform Height (Elevated) 32-ft / 9.8-m 32-ft / 9.8-m Platform Capacity 705-lb / 320-kg 507-lb / 230-kg Capacity on Platform Extension 265-lb / 120-kg Number of Occupants 2 1 Lift / Lower Time (No Load) 42/44 seconds 42/44 seconds Lift / Lower Time (Rated Load) 50/37 seconds 50/37 seconds Maximum Drive Height Fully Elevated Fully Elevated Weight* 5,410-lb / 2,454-kg 5,410-lb / 2,454-kg Max. Ground Bearing Pressure 131 psi / 9.21 kg/cm² 131 psi / 9.21 kg/cm² Drive Speed (Lowered) 2.2 mph / 3.5 km/h 2.2 mph / 3.5 km/h Drive Speed (Raised) 0.5 mph / 0.8 km/h 0.5 mph / 0.8 km/h Gradeability 25% 25% Max Tilt Rating - Side-to-Side (Indoor) 2.5 Degrees 1.5 Degrees Max Tilt Rating (Fore and Aft) 3.5 Degrees 3.5 Degrees Turning Radius (Inside) Zero Zero Turning Radius (Outside) 88-in / 2.24-m 88-in / 2.24-m *Certain options or country standards increase weight Power Source Battery 4 x 6V 220 amp-hr Charger 27 amp Drive Hydraulic Front-Wheel Tires Standard 16 x 5-in / 406 x 127-mm Brakes Multi-Disc Friction Hydraulic System Capacity 4 gal / 15 L Pump Fixed Displacement Gear
amp Multi-Function Universal Charger AC Receptacle in Platform Active Pothole Protection System
Motion
Analyzer
Diagnostics
Dynamic
Fork Lift Pockets Foot-Actuated Deck Extension Greaseless Kingpin
Horn Hourmeter
Attach
and
Free
Bushings Manual Descent
Movable, Removable Platform Control Nickel Plated Pins Proportional Controls Removable Ladder
Maintenance Prop Steel Swing-Out Doors Tilt Alarm and Light Variable Tilt Visual Zone Indicator
27
All
Alarm
Port for
Battery Condition Indicator Diamond Tread Steel Deck
Braking
Joints
Lanyard
Points Lifting
Tie Down Points Lubrication
Scissor Arm
Cable
Scissor
R 3246
ELECTRIC SCISSOR LIFT
DIMENSIONS
All
are approximate
We provide coverage for one (1) full year, and cover all specified major structural components for five (5) years. Due to continuous product improvements, we reserve the right to make specification and/or equipment changes without prior notification. This machine meets or exceeds applicable ANSI and CSA requirements based on machine configuration as originally manufactured for intended applications. Please reference the serial number plate on the machine for additional information.
JLG INDUSTRIES, INC.
Toll-free US 877-JLG-LIFT
JLG.com
An
Corporation Company
Part No. 3131521 | R0122_06
Oshkosh
1&5 TH E JLG WAR R A NTY A. Platform Height (Lowered) 50.9-in / 1.3-m B. Platform Railing Height 44.6-in / 1.1-m C. Machine Height (Rails Raised) 96.3-in / 2.5-m D. Machine Height (Rails Lowered) 77.6-in / 2.0-m E. Platform Width 41.6-in / 1.1-m F. Platform Length 84-in / 2.1-m G. Platform Extension 36-in / 91-cm H. Machine Width 46-in / 117-cm I. Machine Length 94.3-in / 2.4-m J. Wheelbase 74-in / 1.9-m K. Ground Clearance 3.9-in / 9.8-cm
dimensions
SCISSOR LIFT
I J H G F B K E C A D

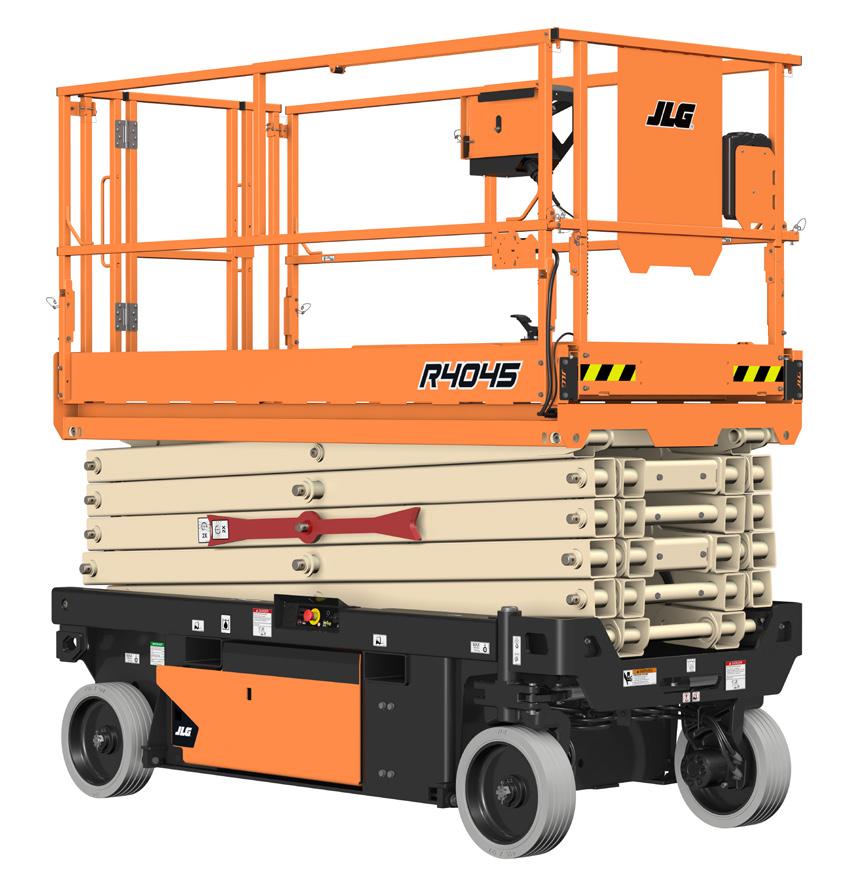

R4045 ELECTRIC SCISSOR LIFT
STANDARD SPECIFICATIONS
KEY SPECS
Platform Height
Indoor: 39-ft 3-in / 12-m
Outdoor: 29-ft / 8.8-m
Platform Capacity
Indoor: 770-lb / 350-kg
Outdoor: 550-lb / 250-kg
KEY FEATURES
Features narrow 45-in width, one of the narrowest widths in its class allowing for use in warehouse and distribution center aisles.
Delivers a simplified, reliable design featuring our pothole protection system and fewer moving parts to reduce service calls.
Number of Occupants
Indoor: 3
Outdoor: 1
Stowed Drive Speed 2.1 mph / 3.4 km/h
Built rugged for rentals, featuring an all-steel platform with steel component trays that allow professionals to meet the demands of the toughest job sites.
Complies with A92.20 ANSI regulations, achieving the highest standards.
ACCESSORIES & OPTIONS
4 x 6V AGM Batteries, 150 ah
4 x 12V Batteries, 185 ah
900W Inverter
Anti-Vandalism PKG
CAN-Enabled Charger
ClearSky™
Coiled Platform Control Box Cable
Drive Motor Covers
Dual Flashing Amber Beacons - LED
Eagle Performance Charger
Flashing Amber Beacon - LED
JLG® Mobile Control
MDI (Ground)
Panel Carrier
Pipe Racks
QuikFold Rails
SkySense® Enhanced Detection System
USB Charger & Phone Holder
White Noise Alarm
STANDARD FEATURES
27 amp Multi-Function
Universal Charger
AC Receptacle in Platform
Active Pothole Protection System
All Motion Alarm
Analyzer Port for Diagnostics
Battery Condition Indicator
Diamond Tread Steel Deck
Dynamic Braking
Foot-Actuated Deck Extension
Fork Lift Pockets
Greaseless Kingpin Joints
Horn
Hourmeter
Lanyard Attach Points
Lifting and Tie Down Points
Load Sensing System
Lubrication Free Scissor Arm
Bushings
Manual Descent Cable
Movable, Removable
Platform Control
Nickel Plated Pins
Proportional Controls
Removable Ladder
Scissor Maintenance Prop
Self-Closing Gate
Steel Swing-Out Doors
Tilt Alarm and Light
Variable Tilt Visual Zone Indicator
SCISSOR LIFT
Performance Indoor Outdoor Platform Height (Elevated) 39-ft 3-in / 12-m 29-ft / 8.8-m Platform Capacity 770-lb / 350-kg 550-lb / 250-kg Capacity on Platform Extension 250-lb / 113-kg 250-lb / 113-kg Number of Occupants 3 1 Lift / Lower Time (No Load) 68/41 seconds 68/41 seconds Lift / Lower Time (Rated Load) 73/48 seconds 73/48 seconds Maximum Drive Height Fully Elevated 29-ft / 8.8-m Weight* 7,000-lb / 3,175-kg 7,000-lb / 3,175-kg Max. Ground Bearing Pressure 137 psi / 9.65 kg/cm² 137 psi / 9.65 kg/cm² Drive Speed (Lowered) 2.1 mph / 3.4 km/h 2.1 mph / 3.4 km/h Drive Speed (Raised) 0.5 mph / 0.8 km/h 0.5 mph / 0.8 km/h Gradeability 25% 25% Max Tilt Rating (Side-to-Side) 1.50 Degrees 1.50 Degrees Max Tilt Rating (Fore and Aft) 3.50 Degrees 3.50 Degrees Turning Radius (Inside) Zero Zero Turning Radius (Outside) 100-in / 2.54-m 100-in / 2.54-m *Certain options or country standards increase weight Power Batteries 4 x 12V 150 amp-hr Charger 27 Amp Drive Hydraulic Front Wheel Tires Standard 16 x 5-in / 406 x 127-mm Brakes Multi-Disc Friction Hydraulic System Capacity 7.9 gal / 30 L Pump Fixed Displacement Gear
R4045 ELECTRIC SCISSOR LIFT
DIMENSIONS
We provide coverage for one (1) full year, and cover all specified major structural components for five (5) years. Due to continuous product improvements, we reserve the right to make specification and/or equipment changes without prior notification. This machine meets or exceeds applicable ANSI and CSA requirements based on machine configuration as originally manufactured for intended applications. Please reference the serial number plate on the machine for additional information.
JLG INDUSTRIES, INC.
Toll-free US 877-JLG-LIFT
JLG.com
An
Corporation Company
Part No. 3131522 | R0122_05
Oshkosh
1&5 TH E JLG WAR R A NTY A. Platform Height (Lowered) 55.0-in / 1.4-m B. Platform Railing Height 44-in / 1.132-m C. Machine Height (Rails Raised) 100-in / 2..53-m D. Machine Height (Rails Lowered) 75-in / 1.9-m E. Platform Width 41-in / 1.05-m F. Platform Length 96-in / 2.43-m G. Platform Extension 36-in / 91-cm H. Machine Width 45-in / 114.3-cm I. Machine Length 106-in / 2.71-m J. Wheelbase 80-in / 2.03-m K. Ground Clearance 5-in / 12.7-cm
dimensions are approximate
All
SCISSOR LIFT
E B G F A J I H C D K
