Translifters

R4 translifter with 90 t capacity

I6 or I8 translifter with up to 230 t capacity

Tower segment and nacelle cassettes

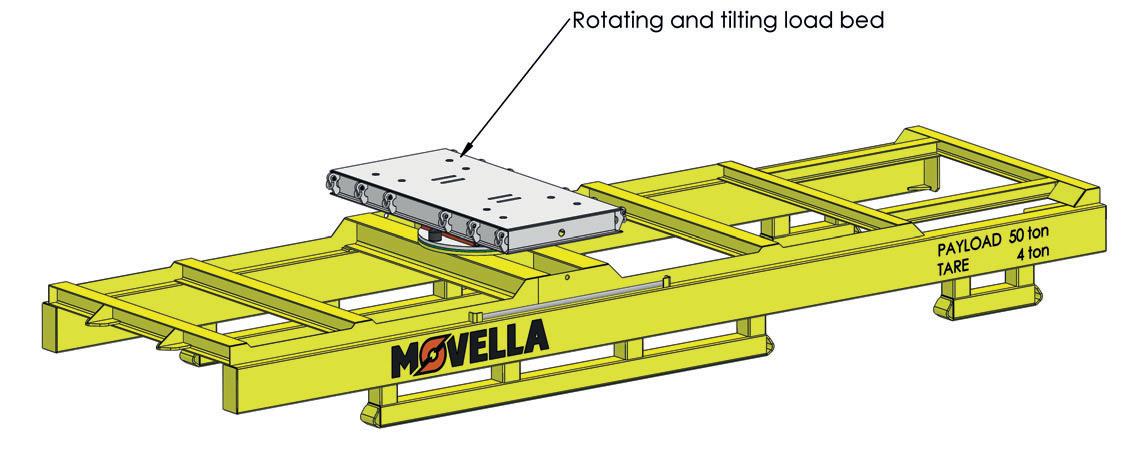

Rotating and tilting load bed

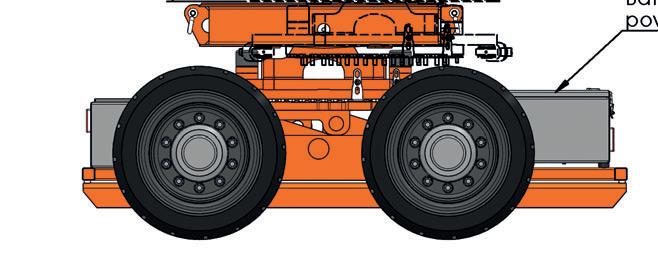

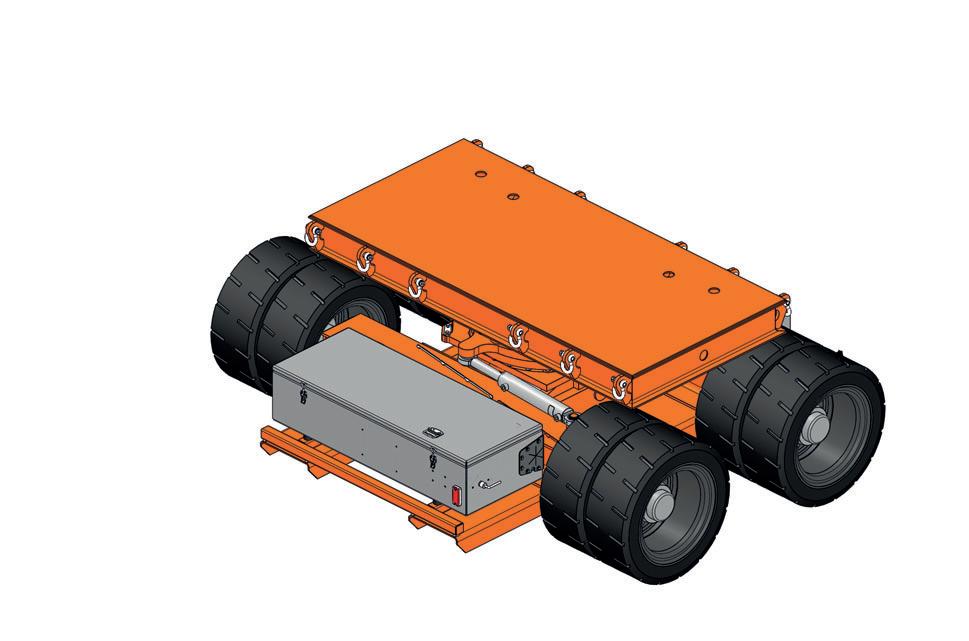

Dolly T60d Load lashing points Tilting load bed Battery operated hydraulic power pack

Solid tyres

Steering

Transportsystems for

Wind energy

Movella Oy Sales: +358 10 567 9300 | sales@movella.fi Service: +358 10 567 9301 | service@movella.fi www.movella.fi

FOR BET TER LOGISTICS

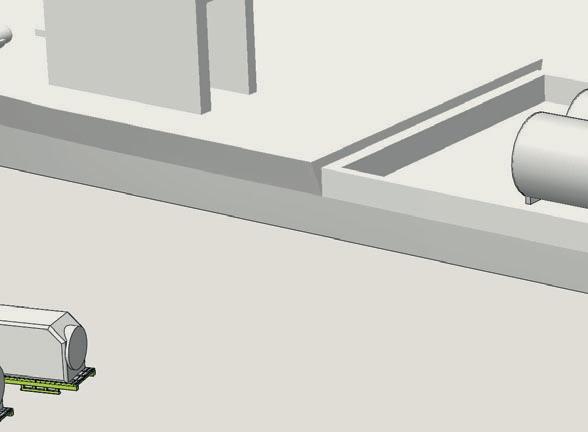

The best system for transporting wind turbine components in the port Additionally nacelles and other heavy cargo can be transported and warehoused on cassettes

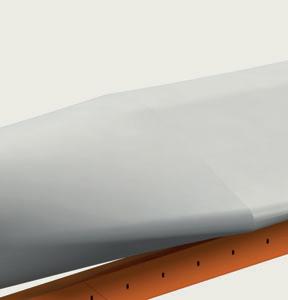

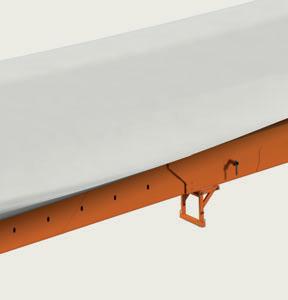

Wind turbine blade transport Safety rails on load platforms as option

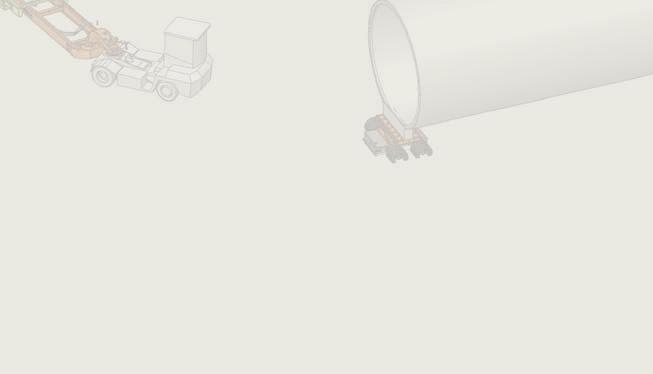

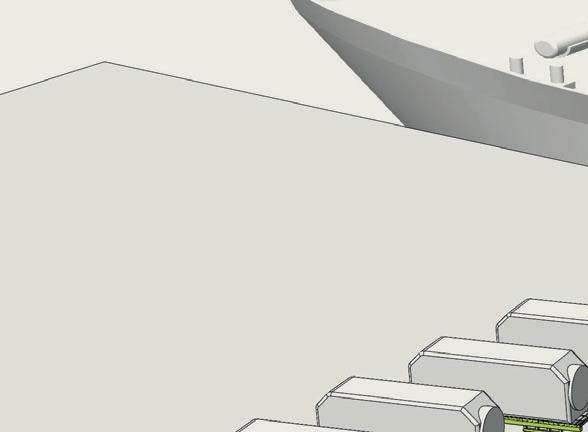

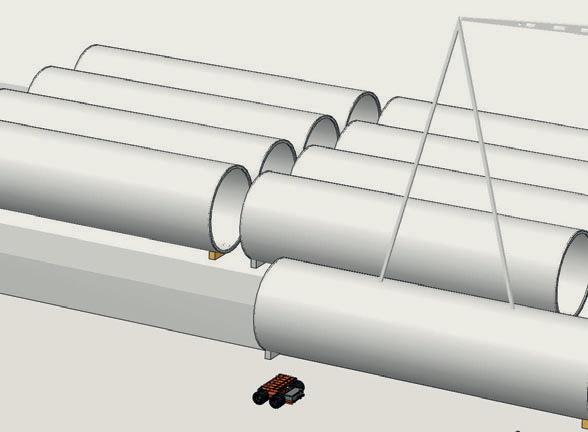

1 Crane lifts the tower segment from vessel directly to the cassette + dolly.

3 In the warehousse area 1. The transliftter leaves the load 2. The 2 Th translifter t lift picks an empty cassette + dollyy and continu continues back to the quay.

3. Crane or reachstackers unload the tower segment from cassette + dolly.

2 The translifter picks the load and transports it to warehouse area

No waiting times for operators • Translifter has always a cassette to be transported • Cranes always have a cassette + dolly to be loaded or unloaded

Steerable axles with maintenance free solid tyres

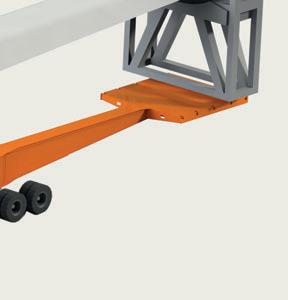

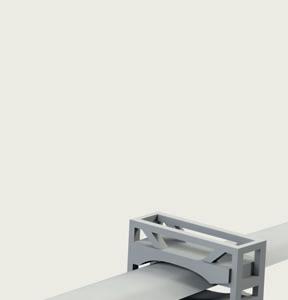

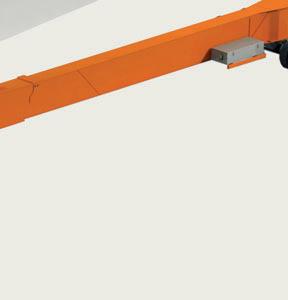

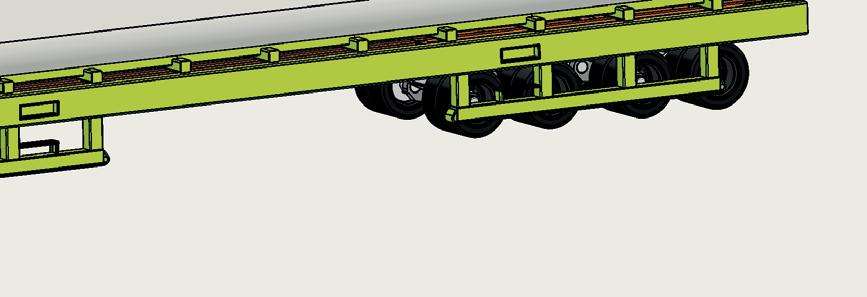

As standard telescopic lenght adjustment between 52-69 meters – suitable for even up to 100 meter long blades Load support area with easy to use lashing points

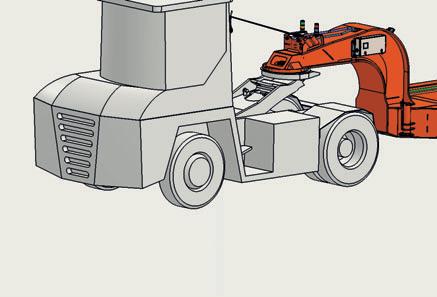

Can be pulled by any terminal tractor

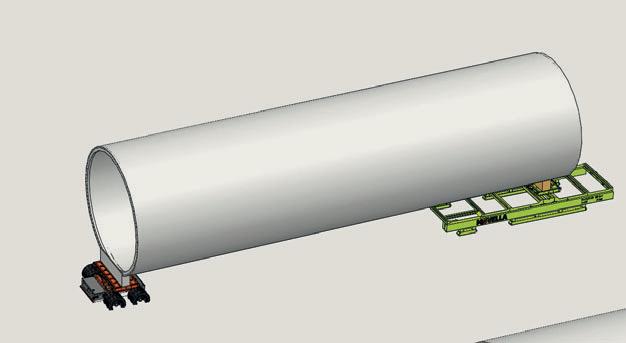

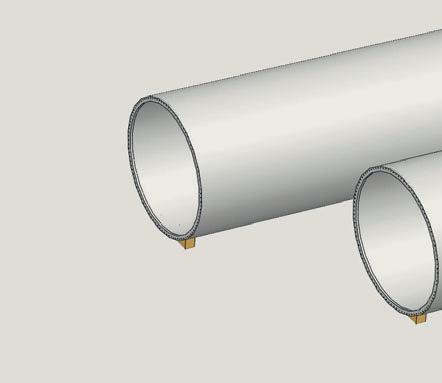

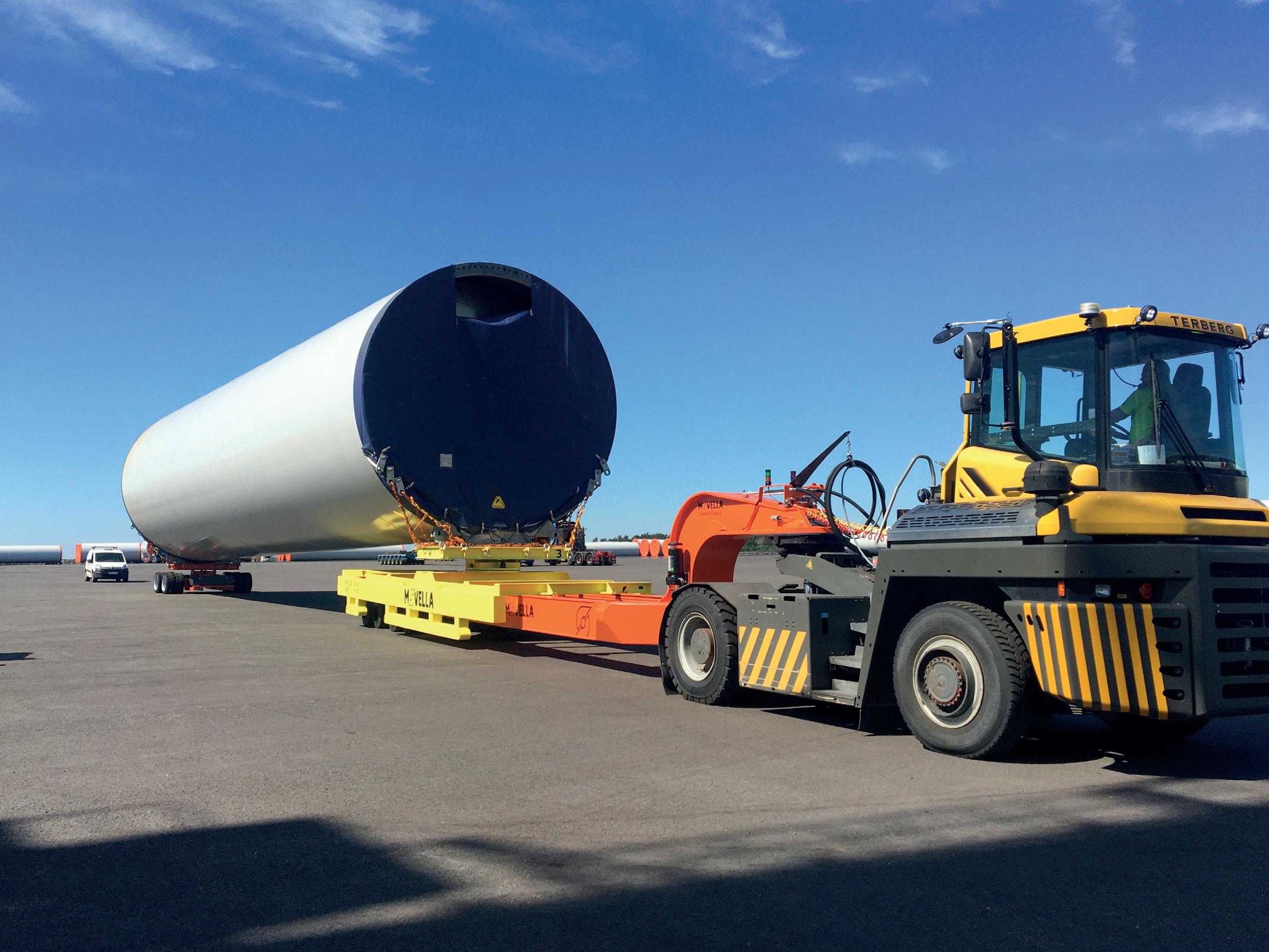

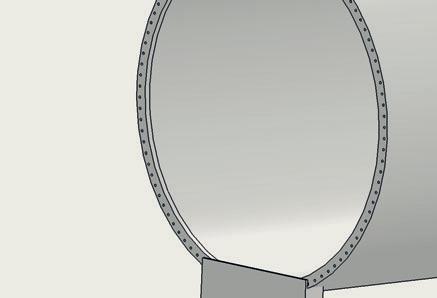

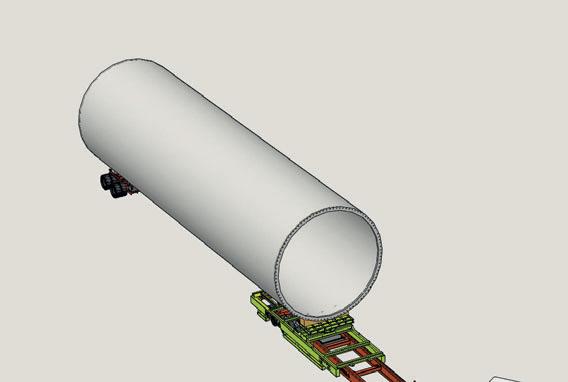

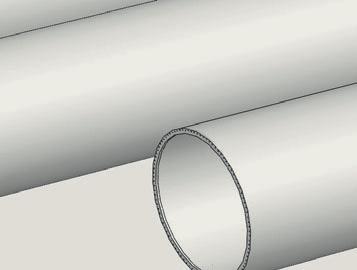

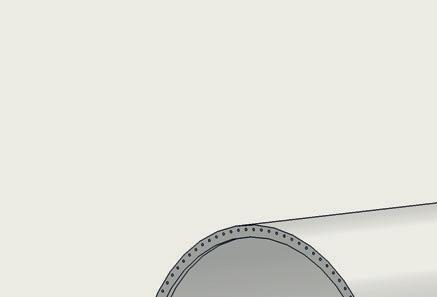

Tower segment transports

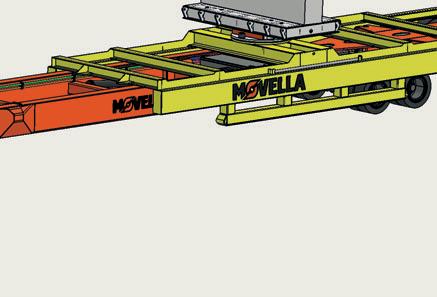

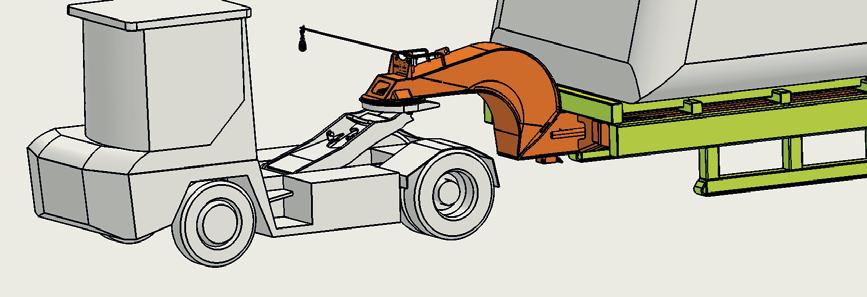

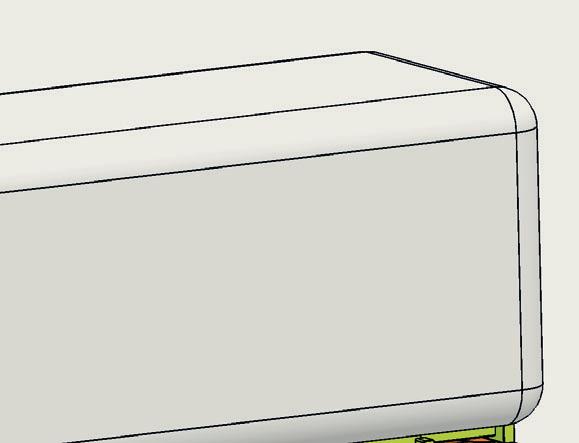

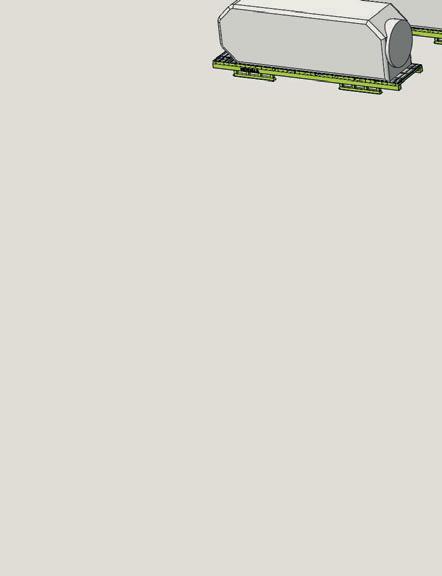

Nacelle transport Movella Translifter Movella translifter with capacity up to 230 t

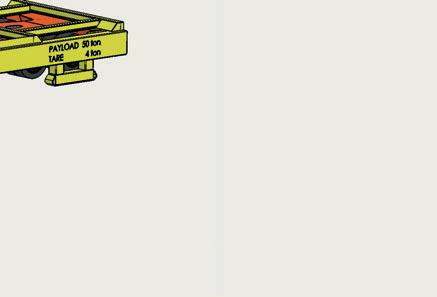

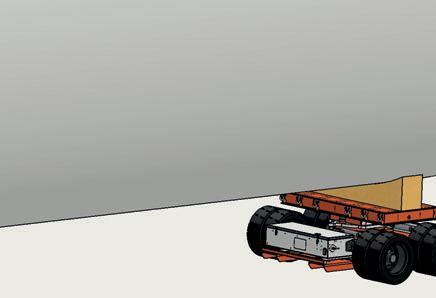

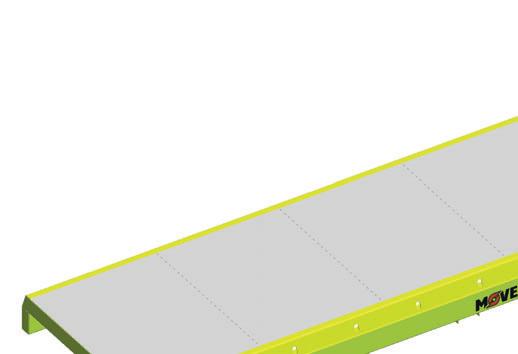

Movella steerable Dolly T60d Movella tower section cassette with movable loading bed Movella cassette for nacelles

The translifter with dolly and cassettes handles tower elements, nacelles and other heavy cargo in ports and terminals Movella blade transporter is the best way to transport blades in ports and terminals

Tower segment transports

Nacelle transport

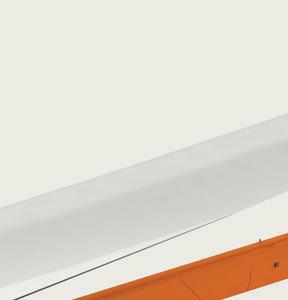

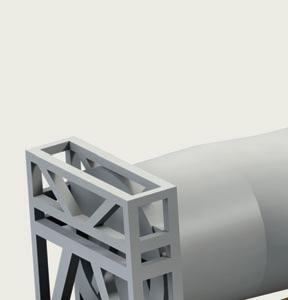

Wind turbine blade transport

• Standard Translifter with tower section cassette

• Standard Translifter

• Safe and effective transport of blades

• High capacity cassette for Nacelles

• Steerable wheels with remote control

• Steerable dolly in the rear

• Payloads up to 230 tons

• Cost effective and easy to use

• Efficient and safe handling of tower segments

• Safe transport and warehousing of Nacelles

• Suitable for up to 100 m / 35 t blades

• No waiting times for operators
