Electric Slab Scissor Lifts
CE 2006/42/EC, 2004/108/EC, 2000/14/EC

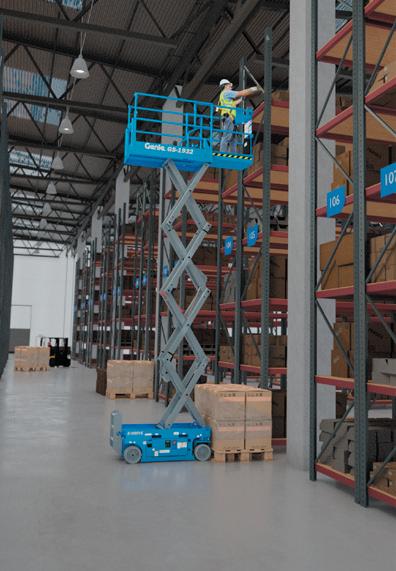

Genie GS™-1930 & GS-1932 ®
Specifications Models Measurements
Working height max. - indoor(1) Working height max. - outdoor(1) A Platform height max. - indoor A Platform height max. - outdoor B Platform height - stowed C Platform length - outside C Platform length - outside, extended Slide-out platform extension deck - length D Platform width - outside Guardrail height Toeboard height E Height - stowed (folding rails) E Height - stowed (rails lowered) F Length machine - stowed F Length machine - stowed, extended G Width H Wheelbase I Ground clearance (center) - pothole guards retracted I Ground clearance - pothole guards deployed
Productivity
Maximum platform occupancy (in/out) Lift capacity Lift capacity - extension deck extended Max. platform drive height Drive speed - stowed Drive speed - raised Gradeability - stowed(2) Turning radius - inside/outside Lifting speed - raise/lower Tilt sensor activation (front to back/side to side) Tires - solid non-marking
Power Power
Hydraulic tank capacity (E-Drive) Hydraulic tank capacity (hydraulic drive)
Weight(3) and Floor Loading(4) Weight Tire load max. Tire contact pressure Occupied floor pressure
Sound and Vibration Levels
Sound Pressure level (ground workstation) Sound Pressure level (platform workstation) Vibrations
US
GS-1930 Metric
US
GS-1932 Metric
25 ft 3 in 20 ft 8 in 19 ft 3 in 14 ft 8 in 3 ft 5 in 5 ft 5 in 8 ft 5 in 3 ft 29.9 in 3 ft 7 in 6 in 7 ft 1 in 5 ft 11 in 6 ft 8 ft 11 in 2 ft 6 in 4 ft 4 in 3.2 in
7.85 m 6.47 m 5.85 m 4.47 m 1.04 m 1.66 m 2.55 m 0.91 m 0.76 m 1.10 m 15 cm 2.16 m 1.80 m 1.83 m 2.72 m 0.76 m 1.32 m 8 cm
25 ft 3 in 20 ft 8 in 19 ft 3 in 14 ft 8 in 3 ft 5 in 5 ft 5 in 8 ft 5 in 3 ft 29.9 in 3 ft 7 in 6 in 7 ft 1 in 5 ft 11 in 6 ft 8 ft 11 in 2 ft 8 in 4 ft 4 in 3.2 in
7.85 m 6.47 m 5.85 m 4.47 m 1,04 m 1.66 m 2.55 m 0.91 m 0.76 m 1.10 m 15 cm 2.16 m 1.80 m 1.83 m 2.72 m 0.81 m 1.32 m 8 cm
0.9 in
2.30 cm
0.9 in
2.30 cm
2/1 500 lb 250 lb 19 ft 3 in 2.5 mph 0.5 mph 25 % 0 / 5 ft 1 in 26 / 22 sec 3° / 1.5° 12 ×4.5 in
2/1 227 kg 113 kg 5.85 m 4.0 km/h 0.8 km/h 25 % 0 / 1.55 m 26 / 22 sec 3° / 1.5° 30.5 ×11.5 cm
2/1 500 lb 250 lb 19 ft 3 in 2.5 mph 0.5 mph 25 % 0 / 5 ft 1 in 26 / 22 sec 3° / 1.5° 12 ×4.5 in
2/1 227 kg 113 kg 5.85 m 4.0 km/h 0.8 km/h 25 % 0 / 1.55 m 26 / 22 sec 3° / 1.5° 30.5 ×11.5 cm
A
C
24 V DC (4 × 6 24 V DC (4 × 6 24 V DC (4 × 6 24 V DC (4 × 6 V 225 Ah) V 225 Ah) V 225 Ah) V 225 Ah) 1 gal 3.8 L 1 gal 3.8 L 3.8 gal 14.2 L 3.8 gal 14.2 L
3,209 lb 1,460 lb 162 psi 284 psf
1,456 kg 662 kg 1,118 kPa 13.6 kPa
2,929 lb 1,435 lb 159 psi 244 psf
1,329 kg 651 kg 1,099 kPa 11.69 kPa
< 70 dBA < 70 dBA < 2.5 m/s2
< 70 dBA < 70 dBA < 2.5 m/s2
< 70 dBA < 70 dBA < 2.5 m/s2
< 70 dBA < 70 dBA < 2.5 m/s2
B H F D
E
(1) The metric equivalent of working height adds 2 m to platform height. US adds 6 ft to platform height. (2) Gradeability applies to driving on slopes and may vary depending on options and machine configurations. See operator‘s manual for details regarding slope ratings. (3) Weight refers to standard configuration and may vary depending on options and/or country standards. (4) Floor loading information is approximate and may vary depending on options and machine configurations. It should be used only with adequate safety factors.
I
G
