Genie_z-4525

CE, UKCA

Articulated Boom Lifts

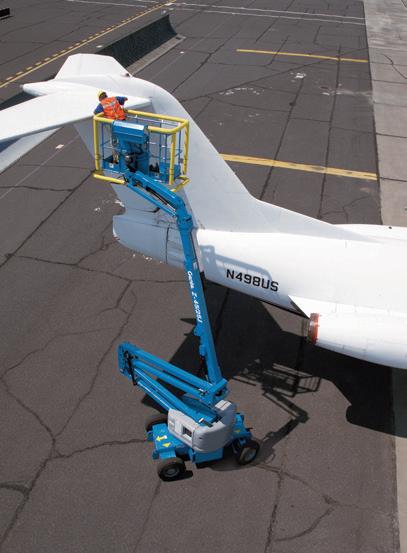

Genie Z -45 / 25J DC ®

®

Specifications

Range of motion Z-45 / 25J DC

Models Measurements

Z-45/25J DC US

orking height max.(1) W Platform height max.

Horizontal reach max.

Up and over clearance max.

A Platform length B Platform width C Height - stowed D Length - stowed E Width F Wheelbase G Ground clearance - center

Metric

51 ft 9 in 45 ft 9 in 25 ft 1 in 23 ft 9 in 2 ft 6 in 6 ft 6 ft 7 in 22 ft 5 in 5 ft 10.25 in 6 ft 8 in 9.5 in

Productivity

L ift capacity max. - unrestricted Platform rotation Jib length Vertical jib rotation Turntable rotation Turntable tailswing Drive speed - stowed(2) Drive speed - raised Gradeability - stowed(2) Tilt sensor activation (front to back/side to side) Turning radius - inside/outside Tires (solid, non-marking)

15.94 m 13.94 m 7.65 m 7.24 m 0.76 m 1.83 m 2.00 m 6.83 m 1.79 m 2.03 m 0.24 m

500 lb

227 kg 160°

5 ft

1.52 m 135° 355°

0 in 3.0 mph 0.61 mph

0 cm 4.8 km/h 1.0 km/h

30 % 2.5°- 4.5° / 4.5° 6 ft/14 ft 1.8 m / ​4.27 m 9 ​× ​14.5 in 0.23 ​× ​0.37 m

Power

Power Auxiliary power unit Hydraulic tank capacity

48 V DC (8 ​× ​6 V 350 Ah) 24 V DC 8 gal 30.3 L

Weight(3) and Floor Loading(4) Weight Tire contact pressure Occupied floor pressure (tires)

16,315 lb 100 psi 315 psf

Sound and Vibration Levels

S ound Pressure level (ground workstation) Sound Pressure level (platform workstation) Vibrations

7,400 kg 689 kPa 15.08 kPa

< 70 dBA < 70 dBA 8 ft 2 in/s²

2.5 m/s2

A

B

E

C

G D

F

(1) The metric equivalent of working height adds 2 m to platform height. The imperial equivalent adds 6 ft to platform height.

(2) Gradeability applies to driving on slopes and may vary depending on options and machine configurations.

See operator’s manual for details regarding slope ratings.

(3) Weight refers to standard configuration and may vary depending on options and/or country standards.

(4) Floor loading information is approximate and may vary depending on options and machine configurations.

It should be used only with adequate safety factors.

CE, UKCA

Articulated Boom Lifts

Genie Z -45 / 25J DC ®

®

SKU: Standard Model • Z45JDC01CE0001: Z-45/25J DC, DC Power, 110V, 2WD • Z45JDC01CE0002: Z-45/25J DC, DC Power, 220V, 2WD

S

S+ BtO

Power

Standard FLA flooded lead acid battery AGM Maintenance-free batteries Low voltage interrupt (LVI) with battery charge indicator (BCI)

✔ ✔ ✔

✔ ✔ ✔

✔ ❍ ✔

Platform

6ft/1.83m dual-entry platform with side swing gate Power to platform, no RCBO Power to platform with RCBO Air line to platform Control box covers Lift Guard Half Mesh panels Light Package: drive and work lights Platform auxiliary top rail Platform level cutout AC Power cord to platform Alarm package: flashing beacons, descent, travel and tilt alarms Drive enable system Horn LCD display Lift Guard Contact Alarm Lift Tools Work Tray Platform load sense system Proportional controls Self-leveling platform

✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔

✔ ✔ ❍ ✔ ❍ ✔ ✔ ✔ ❍ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔

✔ ✔ ❍ ❍ ❍ ❍ ❍ ❍ ❍ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔

Chassis

* Build to Order

Option availability

Lift Connect Telematics Telematics-ready Lift Connect with Access Manager upgrade Eco32 biodegradable hydraulic oil Industrial, foam-filled tires Industrial, foam-filled, non-marking tires Chassis tilt lift and drive function cut-out Chassis tilt drive function cut-out Dual parallelogram lift linkage Hour meter Zero tail swing

✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔

❍ ✔ ❍ ✔ ✔ ✔ ❍ ✔ ✔ ✔ ✔

❍ ✔ ❍ ❍ ❍ ✔ ❍ ✔ ✔ ✔ ✔

S S+ BtO ✔

❍

Standard Standard + Build to Order Standard Features Options

Quiet Operation

Zero Tailswing

Dual Parallel Linkage

Genie Genuine Accessories(1) • Lift Tools Productivity Tools • Lift Connect Telematics • Tech Pro Link Handheld Device (1) More accessories available from Genie Genuine Parts.

Product specifications are subject to change without notice or obligation. Photographs and/or drawings herein are for illustrative purposes only. Refer to the appropriate Operator’s Manual for instructions on proper equipment use. Failure to follow instructions in the Operator’s Manual may result in serious injury or death. The only warranty applicable to our equipment is the standard written warranty applicable to the particular product and sale and we make no other warranty, express or implied. Products and services listed may be trademarks, service marks or trade names of Terex Corporation and/or their subsidiaries in the USA and many other countries. Terex, Genie, Quality By Design, Xtra Capacity, Lift Power, Lift Guard, Lift Tools, Lift Connect and Tech Pro Link are registered trademarks of Terex Corporation or its subsidiaries.

01/25

© 2024 Terex Corporation

CE, UKCA

Articulated Boom Lifts

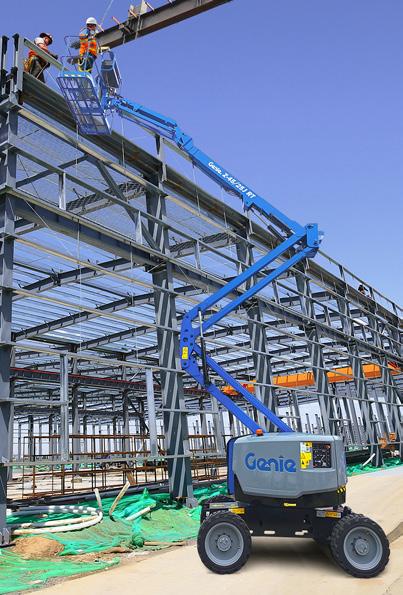

Genie Z -45 / 25J RT ®

®

Specifications

Range of motion Z-45 / 25J RT

Models Measurements

55 ft

Z-45/25J RT US

orking height max.(1) W Platform height max.

Horizontal reach max.

Up and over clearance max.

A Platform length B Platform width C Height - stowed D Length - stowed E Width F Wheelbase G Ground clearance - center

16.76 m

Metric

51 ft 6 in 45 ft 6 in 24 ft 8 in 23 ft 7 in 2 ft 6 in 6 ft 7 ft 21 ft 10 in 7 ft 6 in 6 ft 8 in 1 ft 3 in

15.86 m 13.86m 7.52 m 7.14 m 0.76 m 1.83 m 2.13 m 6.65 m 2.29 m 2.03 m 0.37 m

50 ft 15.24 m

45 ft 13.72 m

40 ft 12.19 m

35 ft 10.67 m

30 ft 9.14 m

25 ft 7.62 m

20 ft 6.1 m

15 ft

Productivity

4.57m

L ift capacity max. - unrestricted Platform rotation Jib length Vertical jib rotation Turntable rotation Turntable tailswing Drive speed - stowed(2) Drive speed - raised Gradeability - stowed(2) Tilt sensor activation (front to back/side to side) Turning radius - inside/outside Tires (solid, non-marking)

500 lb

227 kg 160°

5 ft

1.52 m 135° 355° 0 cm 5 km/h 1.1 km/h

45 % 2.5°- 4.5° / 4.5° 5 ft 6 in / ​14 ft 9 in 1.68 m / ​4.50 m 315 / 55 D20

Power Auxiliary power unit Hydraulic tank capacity Fuel tank capacity

Diesel 12 V DC

Weight(3) and Floor Loading(4) Weight Tire contact pressure Occupied floor pressure (tires)

22 gal 17 gal

83 L 64 L

14,363 lb 60 psi 190 psf

6,515 kg 414 kPa 9.12 kPa

Sound and Vibration Levels

Sound Pressure level (ground workstation) S ound Pressure level (platform workstation) Vibrations

87 dBA 82 dBA 8 ft 2 in/s²

2.5 m/s2

A

B

E

C

G D

5 ft 1.52 m

0 in 3.1 mph 0.68 mph

Power

10 ft 3.05 m

F

(1) The metric equivalent of working height adds 2 m to platform height. The imperial equivalent adds 6 ft to platform height.

(2) Gradeability applies to driving on slopes and may vary depending on options and machine configurations.

See operator’s manual for details regarding slope ratings.

(3) Weight refers to standard configuration and may vary depending on options and/or country standards.

(4) Floor loading information is approximate and may vary depending on options and machine configurations.

It should be used only with adequate safety factors.

0 ft 0m

-5 ft -1.52 m

-5 ft

0 ft

5 ft

10 ft

15 ft

20 ft

25 ft

30 ft

-3.05 m -1.52 m

-10 ft

0m

1.52 m

3.05 m

4.57 m

6.1 m

7.62 m

9.14 m

CE, UKCA

Articulated Boom Lifts

Genie Z -45 / 25J RT ®

®

SKU: Standard Model • Z45RT001CG0028: Z-45/25J RT, 220V, 4WD • Z45RT001CG0026: Z-45/25J RT, 220V, Control box covers, 4WD • Z45RT001CG0025: Z-45/25J RT, 110V, 2.2kW AC Generator, 4WD

S+ BtO

✔ ✔

✔ ❍

✔ ❍

Platform

Option availability

6ft/1.83m dual-entry platform with side swing gate Power to platform Power to platform with RCBO Air line to platform Control box covers Light Package: drive and work lights 2.2kW AC Generator, 110V/50Hz, with RCBO 2.2kW AC Generator, 220V/50Hz, with RCBO AC Power cord to platform Alarm package: flashing beacons, descent, travel and tilt alarms Drive enable system Horn Lift Guard Contact Alarm Lift Tools Work Tray Platform load sense system Proportional controls Self-leveling platform Thumb rocker steering

✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔

✔ ✔ ❍ ✔ ❍ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔

✔ ✔ ❍ ❍ ❍ ❍ ❍ ❍ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔

Lift Connect Telematics Telematics-ready Lift Connect with Access Manager upgrade Eco32 biodegradable hydraulic oil Rough terrain, foam-filled tires Rough terrain, foam-filled, non-marking tires Hostile environment kit Hydraulic oil cooler Active oscillating axle Chassis tilt lift and drive function cut-out Dual parallelogram lift linkage Hour meter Positive traction drive Zero tail swing

✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔

❍ ✔ ❍ ❍ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔

❍ ✔ ❍ ❍ ✔ ❍ ❍ ❍ ✔ ✔ ✔ ✔ ✔ ✔

Power

S

24.7 hp, 18.4 kW, Perkins 403J-11 Diesel, T4i/T4f, Stage IIIA/V, CN III Cold weather package

Chassis

* Build to Order

S S+ BtO ✔

❍

Standard Standard + Build to Order Standard Features Options

Rugged Terrainability

Zero Tailswing

Dual Parallel Linkage

Engine make and model subject to availability

Genie Genuine Accessories(1) • Lift Tools Productivity Tools • Lift Connect Telematics • Tech Pro Link Handheld Device (1) More accessories available from Genie Genuine Parts.
