ERT2669
ELECTRIC POWERED ROUGH TERRAIN SERIES
STANDARD SPECIFICATIONS
KEY FEATURES
Our electric powered rough terrain models offer drive capability at full height, limiting unnecessary trips up and down for working professionals.
As the largest platform size in its class, you can bring more operators and tools to the job.
STANDARD FEATURES
Delivers the latest technology, featuring an LCD platform control box with LiftSense technology and USB charging for next-level, real-time productivity and service communication to the operator. This machine utilizes higher part commonality and a maintenance-free 2WD AC drive system for simplified service across the rough terrain family.
ACCESSORIES & OPTIONS
26 x 12-in Foam Filled Lug
Tread Tires
ClearSky™
Dual Flashing Amber
Beacons - LED
8 x 6V, 310 Amp Hr
Flashing Amber Beacon - LED
Generator Set (Kubota
Stage V OC60-E4) 6hp (4.5kW)
Heavy Duty Pipe Racks
Hydraulic Leveling Jacks (Auto Level)
JLG CleanGuard
Operator Access Control
Special Hydraulic Fluids
Special Paint
White Noise Backup Alarm
225 Amp Hr
All Motion Alarm
Descent Alarm
Full Time Traction Control
Horn
Hourmeter
LCD Display with LiftSense System
Lubrication-Free Scissor Arm
Bushings
Manual Descent Pull Cable1
Moveable, Removable
Platform Console Box
Nickel Plated Pins, Yellow
Zinc-Chromate Plated
Fasteners
Oscillating Front Axle
Pin-Less Fold Down Rail
System
Pin-based Load Sensing System
Platform Control Box with LCD Display, USB Charger and Phone Holster
Proportional Lift and Drive
Self-closing Gate
Scissor Maintenance Prop
Telematics-Ready Harness Tie Down Lugs
SCISSOR LIFT KEY SPECS Platform Height 26-ft 2-in / 8-m Platform Capacity 1,500-lb / 680-kg Machine Width 69.3-in / 1.76-m Stowed Drive Speed 3.5 mph / 5.6 kph
Performance Indoor Outdoor Platform Height–Elevated 26-ft 2-in / 8-m 26-ft 2-in / 8-m Platform Height–Lowered 4-ft 3-in / 1.3-m 4-ft 3-in / 1.3-m Platform Capacity 1,500-lb / 680-kg 1,500-lb / 680-kg Capacity on Platform Extension 300-lb / 136-kg 300-lb / 136-kg Number of Occupants 4 4 Lift / Lower Time 37/37 seconds 37/37 seconds Maximum Drive Height Fully Elevated Fully Elevated Weight w/One Extension* 8,250-lb / 3,750-kg 8,250-lb / 3,750-kg Drive Speed–Lowered 3.5 mph / 5.6 km/h 3.5 mph / 5.6 km/h Drive Speed–Raised 0.5 mph / 0.8 km/h 0.5 mph / 0.8 km/h Gradeability 40% 40% Max Tilt Rating - Side-to-Side 2.5 Degrees 2.5 Degrees Max Tilt Rating - Fore and Aft 3 Degrees 3 Degrees Turning Radius - Inside 83-in / 2-m 83-in / 2-m Turning Radius - Outside 175-in / 4-m 175-in / 4-m * Certain options or country standard will increase weight. Power Source Drive (2WD) AC Electric Drive Tires Non-Marking 26-in x 12-in Foam-filled Hydraulic System Capacity 13.2 gal / 50 L
In Platform 2WD AC Drive System 23 Amp Automatic, SCR Battery Charger 26 x 12-in Foam Filled Non-Marking Tires 42-in Roll-out Deck Extension 8 x 6V,
110V-AC Receptacle
ERT2669
SCISSOR LIFT
ELECTRIC POWERED ROUGH TERRAIN SERIES
DIMENSIONS
We provide coverage for one (1) full year, and cover all specified major structural components for five (5) years. Due to continuous product improvements, we reserve the right to make specification and/or equipment changes without prior notification. This machine meets or exceeds applicable ANSI and CSA requirements based on machine configuration as originally manufactured for intended applications. Please reference the serial number plate on the machine for additional information.
JLG INDUSTRIES, INC.
Toll-free US 877-JLG-LIFT
JLG.com
An
Corporation Company
Part No. 3131523 | R0822_03
Oshkosh
1&5 TH E J LG WAR R A NTY A. Platform Height – Lowered 4-ft 3-in / 1.3-m B. Platform Railing Height 44.7-in / 1.14-m C. Machine Height 96.7-in / 2.46-m D. Platform Width 63-in / 1.6-m E. Platform Length 130.5-in / 3.3-m F. Platform Extension 42-in / 1.07-m G. Machine Width 69.3-in / 1.76-m H. Machine Length 139-in / 3.53-m I. Wheelbase 81.3-in / 2.07-m J. Ground Clearance 9.5-in / 24-cm
dimensions
approximate
All
are
G D C B A H I F E J
ERT3369
ELECTRIC POWERED ROUGH TERRAIN SERIES
STANDARD SPECIFICATIONS
KEY FEATURES
Our electric powered rough terrain models offer drive capability at full height, limiting unnecessary trips up and down for working professionals. This machine utilizes higher part commonality and a maintenance-free 2WD AC drive system for simplified service across the rough terrain family.
STANDARD FEATURES
As the largest platform size in its class, you can bring more operators and tools to the job.
Delivers the latest technology, featuring an LCD platform control box with LiftSense technology and USB charging for next-level, real-time productivity and service communication to the operator.
ACCESSORIES & OPTIONS
26 x 12-in Foam Filled Lug
Tread Tires
ClearSky™
Dual Flashing Amber
Beacons - LED
8 x 6V, 310 Amp Hr
Flashing Amber Beacon - LED
Generator Set (Kubota
Stage V OC60-E4) 6hp (4.5kW)
Heavy Duty Pipe Racks
Hydraulic Leveling Jacks (Auto Level)
JLG CleanGuard
Operator Access Control
Special Hydraulic Fluids
Special Paint
White Noise Backup Alarm
Roll-out Deck
8 x 6V, 225 Amp Hr
All Motion Alarm
Descent Alarm
Full Time Traction Control Horn
Hourmeter LCD Display with LiftSense
Lubrication-Free Scissor Arm
Bushings
Manual Descent Pull Cable1
Moveable, Removable
Platform Console Box
Nickel Plated Pins, Yellow
Zinc-Chromate Plated
Fasteners
Oscillating Front Axle
Pin-Less Fold Down Rail System
Pin-based Load Sensing System
Platform Control Box with LCD Display, USB Charger and Phone Holster
Proportional Lift and Drive
Self-closing Gate
Scissor Maintenance Prop
Telematics-Ready Harness
Tie Down Lugs
SCISSOR LIFT KEY SPECS Platform Height 32-ft 8-in / 10-m Platform Capacity 1,000-lb / 453.59-kg Machine Width 69.3-in / 1.76-m Stowed Drive Speed 3.5 mph / 5.6 kph
Performance Indoor Outdoor Platform Height–Elevated 32-ft 8-in / 10-m 32-ft 8-in / 10-m Platform Height–Lowered 4-ft 9-in / 1.5-m 4-ft 9-in / 1.5-m Platform Capacity 1,000-lb / 453.59-kg 1,000-lb / 453.59-kg Capacity on Platform Extension 300-lb / 136-kg 300-lb / 136-kg Number of Occupants 4 2 Lift / Lower Time 44/40 seconds 44/40 seconds Maximum Drive Height Fully Elevated Fully Elevated Weight w/One Extension* 9,457-lb / 4,284-kg 9,457-lb / 4,284-kg Drive Speed–Lowered 3.5 mph / 5.6 km/h 3.5 mph / 5.6 km/h Drive Speed–Raised 0.5 mph / 0.8 km/h 0.5 mph / 0.8 km/h Gradeability 35% 35% Max Tilt Rating - Side-to-Side 2.5 Degrees 2.5 Degrees Max Tilt Rating - Fore and Aft 3 Degrees 3 Degrees Turning Radius - Inside 83-in / 2-m 83-in / 2-m Turning Radius - Outside 175-in / 4-m 175-in / 4-m * Certain options or country standard will increase weight. Power Source Drive (2WD) AC Electric Drive Tires Non-Marking 26-in x 12-in Foam-filled Hydraulic System Capacity 13.2 gal. / 50 L
110V-AC Receptacle In Platform 2WD AC Drive System 23 Amp Automatic, SCR Battery Charger 26 x 12-in Foam Filled Non-Marking Tires 42-in
Extension
System
ERT3369
SCISSOR LIFT
ELECTRIC POWERED ROUGH TERRAIN SERIES
DIMENSIONS
All dimensions are approximate
All
are approximate.
We provide coverage for one (1) full year, and cover all specified major structural components for five (5) years. Due to continuous product improvements, we reserve the right to make specification and/or equipment changes without prior notification. This machine meets or exceeds applicable ANSI and CSA requirements based on machine configuration as originally manufactured for intended applications. Please reference the serial number plate on the machine for additional information.
JLG INDUSTRIES, INC.
Toll-free US 877-JLG-LIFT JLG.com
An
Corporation Company
Part No. 3131524 | R0822_03
1&5 TH E JLG WAR R A NTY A. Platform Height – Lowered 4-ft 9-in / 1.46-m B. Platform Railing Height 44.7-in / 1.14-m C. Machine Height 8-ft 7-in / 2.61-m D. Platform Width 63-in / 1.6-m E. Platform Length 130.5-in / 3.3-m F. Platform Extension 42-in / 1.07-m G. Machine Width 69.3-in / 1.76-m H. Machine Length 139-in / 3.53-m I. Wheelbase 81.3-in / 2.07-m J. Ground Clearance 9.5-in / 24-cm
Oshkosh
Dimensions
dimensions
G D C B A H J I F E
ERT4069
ELECTRIC POWERED ROUGH TERRAIN SERIES
STANDARD SPECIFICATIONS
KEY FEATURES
Our electric powered rough terrain models offer drive capability at full height, limiting unnecessary trips up and down for working professionals.
As the largest platform size in its class, you can bring more operators and tools to the job.
STANDARD FEATURES
Delivers the latest technology, featuring an LCD platform control box with LiftSense technology and USB charging for next-level, real-time productivity and service communication to the operator. This machine utilizes higher part commonality and a maintenance-free 2WD AC drive system for simplified service across the rough terrain family.
ACCESSORIES & OPTIONS
26 x 12-in Foam Filled Lug
Tread Tires
ClearSky™
Dual Flashing Amber
Beacons - LED
8 x 6V, 310 Amp Hr
Flashing Amber Beacon - LED
Generator Set (Kubota
Stage V OC60-E4) 6hp (4.5kW)
Heavy Duty Pipe Racks
Hydraulic Leveling Jacks (Auto Level)*
JLG CleanGuard
Operator Access Control
Special Hydraulic Fluids
Special Paint
White Noise Backup Alarm
Amp Hr
All Motion Alarm
Descent Alarm
Full Time Traction Control Horn
Hourmeter
LCD Display with LiftSense System
Lubrication-Free Scissor Arm
Bushings
Manual Descent Pull Cable1
Moveable, Removable
Platform Console Box
Nickel Plated Pins, Yellow
Zinc-Chromate Plated
Fasteners
Oscillating Front Axle
Pin-Less Fold Down Rail
System
Pin-based Load Sensing System
Platform Control Box with LCD Display, USB Charger and Phone Holster
Proportional Lift and Drive
Self-closing Gate
Scissor Maintenance Prop
Telematics-Ready Harness
Tie Down Lugs
SCISSOR LIFT KEY SPECS Platform Height 26-ft 2-in / 8-m Platform Capacity 800-lb / 363-kg Machine Width 69.3-in / 1.76-m Stowed Drive Speed 3.5 mph / 5.6 km/h
Performance Indoor Outdoor Platform Height–Elevated 40-ft 3-in / 12.3-m 40-ft 3-in / 12.3-m Platform Height–Lowered 4-ft 10-in / 1.5-m 4-ft 10-in / 1.5-m Platform Capacity 800-lb / 363-kg 800-lb / 363-kg Capacity on Platform Extension 300-lb / 136-kg 300-lb / 136-kg Number of Occupants 3 2 Lift / Lower Time 50/48 seconds 50/48 seconds Maximum Drive Height Fully Elevated Fully Elevated Weight w/One Extension* 10,558-lb / 4,799-kg 10,558-lb / 4,799-kg Drive Speed–Lowered 3.5 mph / 5.6 km/h 3.5 mph / 5.6 km/h Drive Speed–Raised 0.3 mph / 0.48 km/h 0.3 mph / 0.48 km/h Gradeability 35% 35% Max Tilt Rating - Side-to-Side 2.5 Degrees 2.5 Degrees Max Tilt Rating - Fore and Aft 3 Degrees 3 Degrees Turning Radius - Inside 83-in / 2-m 83-in / 2-m Turning Radius - Outside 175-in / 4-m 175-in / 4-m * Certain options or country standard will increase weight. Power Source Drive (2WD) AC Electric Drive Tires Non-Marking 26-in x 12-in Foam-filled Hydraulic System Capacity 13.2 gal / 50 L
Receptacle In Platform 2WD AC Drive System 23 Amp Automatic, SCR Battery Charger 26 x 12-in Foam Filled Non-Marking Tires 42-in Roll-out Deck Extension 8 x 6V, 225
110V-AC
*Machine pictured features optional hydraulic leveling jacks.
SCISSOR LIFT ERT4069
ELECTRIC POWERED ROUGH TERRAIN SERIES
DIMENSIONS
We provide coverage for one (1) full year, and cover all specified major structural components for five (5) years. Due to continuous product improvements, we reserve the right to make specification and/or equipment changes without prior notification. This machine meets or exceeds applicable ANSI and CSA requirements based on machine configuration as originally manufactured for intended applications. Please reference the serial number plate on the machine for additional information.
JLG INDUSTRIES, INC.
Toll-free US 877-JLG-LIFT
JLG.com
An
Corporation Company
Part No. 3131525 | R0822_03
Oshkosh
1&5 TH E J LG WAR R A NTY A. Platform Height – Lowered 4-ft 10-in / 1.46-m B. Platform Railing Height 44.7-in / 1.14-m C. Machine Height 103-in / 2.62-m D. Platform Width 63-in / 1.6-m E. Platform Length 130.5-in / 3.3-m F. Platform Extension 42-in / 1.07-m G. Machine Width 69.3-in / 1.76-m H. Machine Length 139-in / 3.53-m I. Wheelbase 81.3-in / 2.07-m J. Ground Clearance 9-in / 22-cm All dimensions are approximate
G D C B A H I F E

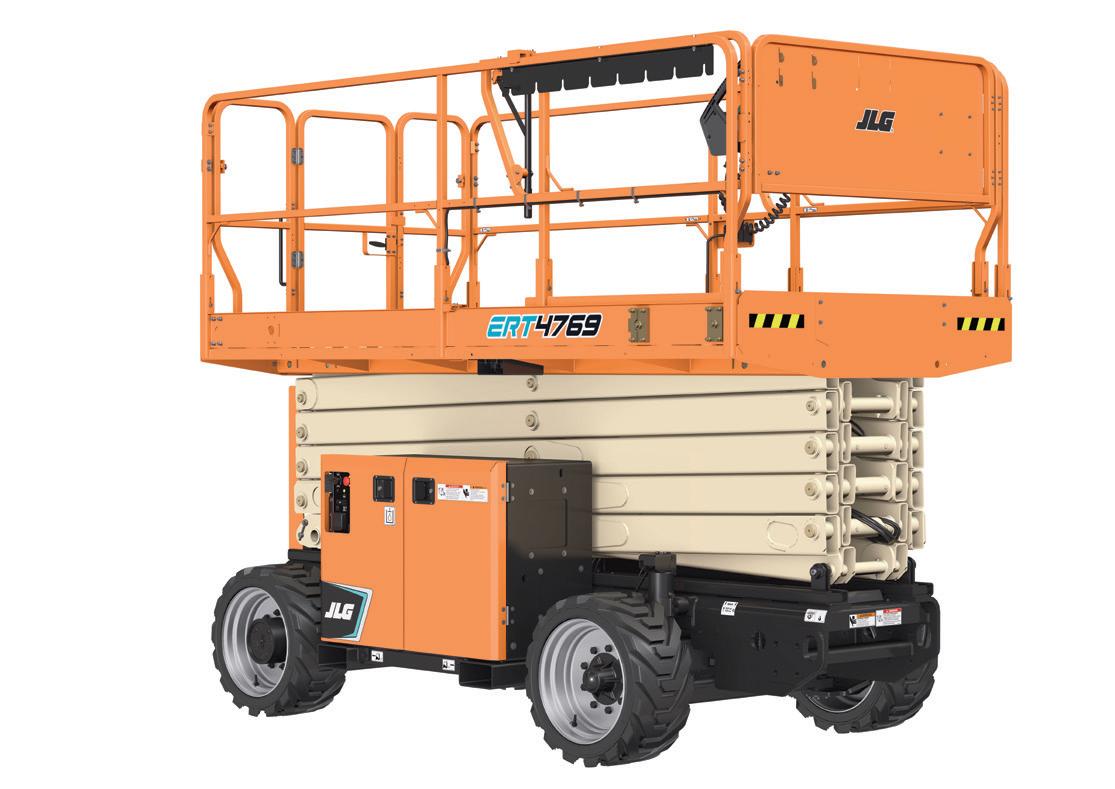

ERT4769
ELECTRIC POWERED ROUGH TERRAIN SERIES
STANDARD SPECIFICATIONS
KEY FEATURES
Our electric powered rough terrain models offer drive capability at full height, limiting unnecessary trips up and down for working professionals.
As the largest platform size in its class, you can bring more operators and tools to the job.
STANDARD FEATURES
Delivers the latest technology, featuring an LCD platform control box with LiftSense technology and USB charging for next-level, real-time productivity and service communication to the operator. This machine utilizes higher part commonality and a maintenance-free 2WD AC drive system for simplified service across the rough terrain family.
ACCESSORIES & OPTIONS
26 x 12-in Foam Filled Lug
Tread Tires
ClearSky™
Dual Flashing Amber
Beacons - LED
8 x 6V, 310 Amp Hr
Flashing Amber Beacon - LED
Generator Set (Kubota
Stage V OC60-E4) 6hp (4.5kW)
Heavy Duty Pipe Racks
Hydraulic Leveling Jacks (Auto Level)
JLG CleanGuard
Operator Access Control
Special Hydraulic Fluids
Special Paint
White Noise Backup Alarm
Hourmeter
Lubrication-Free Scissor Arm
Bushings
Manual Descent Pull Cable1
Moveable, Removable
Platform Console Box
Nickel Plated Pins, Yellow
Zinc-Chromate Plated
Fasteners
Oscillating Front Axle
Pin-Less Fold Down Rail System
Pin-based Load Sensing System
Platform Control Box with LCD Display, USB Charger and Phone Holster
Proportional Lift and Drive
Self-closing Gate
Scissor Maintenance Prop
Telematics-Ready Harness
Tie Down Lugs
SCISSOR LIFT
SPECS Platform Height 47-ft / 14.3-m Platform Capacity 800-lb / 363-kg Machine Width 69.3-in / 1.76-m Stowed Drive Speed 3.5 mph / 5.6 kph
KEY
Performance Indoor Outdoor Platform Height–Elevated 47-ft / 14.3-m 47-ft / 14.3-m Platform Height–Lowered 5-ft 4-in / 1.6-m 5-ft 4-in / 1.6-m Platform Capacity 800-lb / 363-kg 800-lb / 363-kg Capacity on Platform Extension 300-lb / 136-kg 300-lb / 136-kg Number of Occupants 3 2 Lift / Lower Time 76/60 seconds 76/60 seconds Maximum Drive Height Fully Elevated Fully Elevated Weight w/One Extension* 15,200-lb / 6,909-kg 15,200-lb / 6,909-kg Drive Speed–Lowered 3.5 mph / 5.6 km/h 3.5 mph / 5.6 km/h Drive Speed–Raised 0.3 mph / .48 km/h 0.3 mph / .48 km/h Gradeability 35% 35% Max Tilt Rating - Side-to-Side 2.5 Degrees 2.5 Degrees Max Tilt Rating - Fore and Aft 3 Degrees 3 Degrees Turning Radius - Inside 83-in / 2-m 83-in / 2-m Turning Radius - Outside 175-in / 4-m 175-in / 4-m * Certain options or country standard will increase weight. Power Source Drive (2WD) AC Electric Drive Tires Non-Marking 26-in x 12-in Foam-filled Hydraulic System Capacity 13.2 gal / 50 L
110V-AC Receptacle In Platform 2WD AC Drive System 23 Amp Automatic, SCR Battery Charger 26 x 12-in Foam Filled Non-Marking Tires 42-in Roll-out Deck Extension 8 x 6V, 225 Amp Hr All Motion Alarm Descent Alarm
Full Time Traction Control Horn
LCD
System
Display with LiftSense
SCISSOR LIFT ERT4769
ELECTRIC POWERED ROUGH TERRAIN SERIES
DIMENSIONS
We provide coverage for one (1) full year, and cover all specified major structural components for five (5) years. Due to continuous product improvements, we reserve the right to make specification and/or equipment changes without prior notification. This machine meets or exceeds applicable ANSI and CSA requirements based on machine configuration as originally manufactured for intended applications. Please reference the serial number plate on the machine for additional information.
JLG INDUSTRIES, INC.
Toll-free US 877-JLG-LIFT
JLG.com
An
Corporation Company
Part No. 3131526 | R0822_03
Oshkosh
1&5 TH E J LG WAR R A NTY A. Platform Height – Lowered 5-ft 4-in / 1.62-m B. Platform Railing Height 44.7-in / 1.14-m C. Machine Height 109.1-in / 2.77-m D. Platform Width 63-in / 1.6-m E. Platform Length 130.5-in / 3.3-m F. Platform Extension 42-in / 1.07-m G. Machine Width 69.3-in / 1.76-m H. Machine Length 139-in / 3.53-m I. Wheelbase 81.3-in / 2.07-m J. Ground Clearance 9-in / 22-cm All dimensions are approximate
G D C B A H I F E J
