Combi CBE datablad

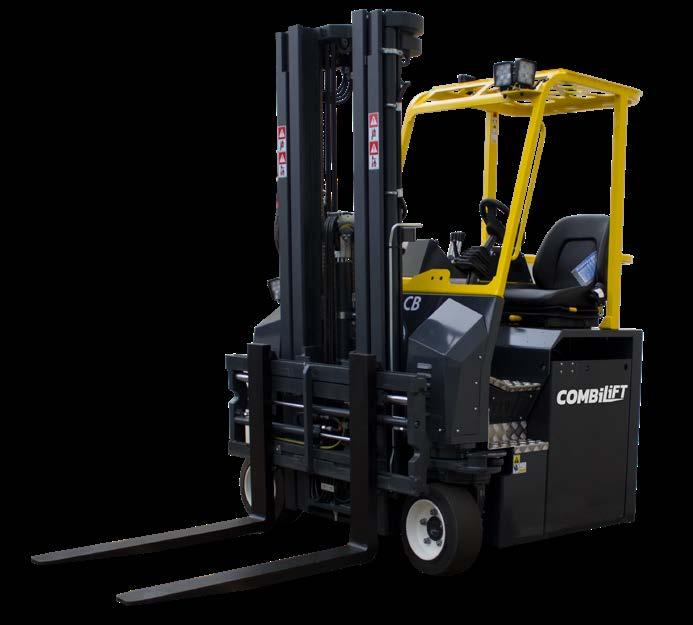

COMBi-CBE The innovative Combi-CBE is designed to increase productivity, improve safety and help increase your storage capacity both indoors & outdoors.

combilift.com

COMBi- CBE

4

3

FRONTAL MODE 19

10

SiDEWARD MODE

1 20

2

7

11

8

17

9

21

18

16 12

13

5

6

14

REF. DESCRIPTION 1a 1b 2 3 4 5 6

15

7 8 9 10 11 12 13 14 15 16 17 18 19 20 21

Standard Lift Height Free Lift Height Height Mast Closed Max. (Mast raised) Overall Length Ground Clearance Under Mast Ground Clearance to Wheelbase Centre Height of Overhead Guard Width Outside Spread of Fork Arms Track Front Load Centre Distance Overhang Front Wheelbase Overhang Back Length From Face of Fork Approach Angle Ramp Angle Departure Angle Forward Tilt Backward Tilt Minimum Outside Radius

A B C D E F G H I J K L

Capacity Unladen Weight Maximum Ground Speed Gradeability Battery Capacity AC Electric Traction Motor x 2 AC Electric Pump Motor Fork Section 16 x 7 – 10.5 Front Tyre x 2 22 x 10 x 16 Rear Tyre x 1 Standard Colour Suspension Seat

STD.

4000mm 0mm 2670mm 4850mm

OPTION

4900mm 5500mm 1318mm 1518mm 2243mm 2443mm 5778mm 6378mm 2565mm / 2695mm 125mm

Multi-Directional 6000mm 1683mm 2610mm 6878mm

100mm 2250mm 1500mm 1325mm 1320mm 600mm 300mm 1070mm 150 / 130 mm 1500mm / 1580mm 30° 15° 30° 3° 5° 1400mm 2500 kg / 3000 kg 6500 kg / 6800 kg 11 km/h 10% 48 V / 930 Ah 48 V / 5 kW 48 V / 14 kW 125mm x 50mm x 1065mm OD 406mm / Width 178mm OD 559mm / Width 254mm Green and Grey Grammer MSG 65

Features Include: • +/- 100mm side shift • Load sensing steering • 4-Way lever positioning of wheels • System Communication via CAN-BUS • Multi-directional operation • 2 Wheel Electric Drive • Powered by AC Technology Distributed by:

rev. 1.1

Protected by Design Registration Copyright: European Community No.: 000725668-0001|US No.: D579, 624| Canadian No.: 123292|Australian No.: 318370| Russian Federation No.: 70814 |Korean No.: 30-0516087| Japanese No.: 1330896|Taiwan No.: D126056| Chinese No.: ZL200730329732.6

CO. MONAGHAN IRELAND

+353 47 80500 INFO@COMBILIFT.COM

COMBILIFT HAS A POLICY OF CONTINUOUS PRODUCT DEVELOPMENT AND RESERVES THE RIGHT TO ALTER SPECIFICATIONS WITHOUT PRIOR NOTICE. SPECIFICATIONS AND/OR DIMENSIONS MAY VARY FROM THOSE ILLUSTRATED IN SOME COUNTRIES.
