Combilift Combi WR datablad

COMBi-WR

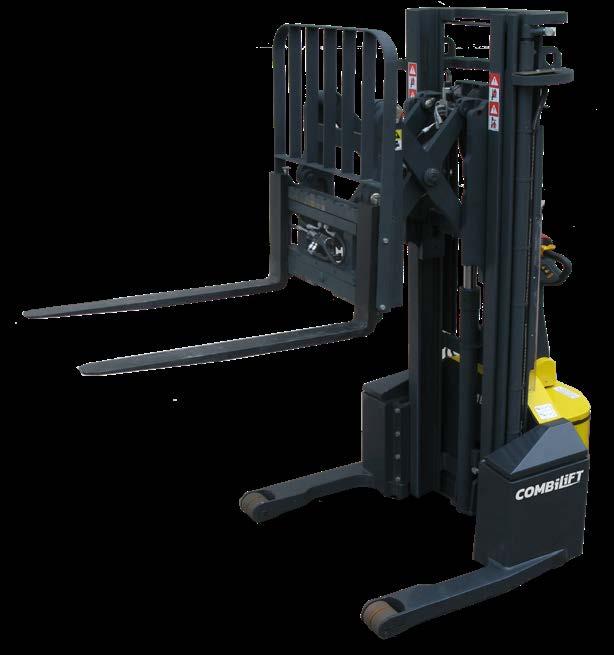

Pedestrian Reach Stacker The first purpose built pedestrian reach stacker combining innovative features and effortless operation.

Patented Multi-Position Tiller Arm

combilift.com

COMBi- WR

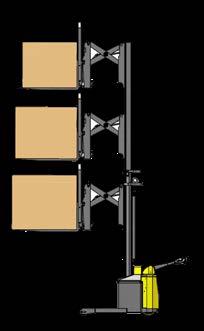

PANTOGRAPH FULLY EXTENDED

Pedestrian Reach Stacker

3 1

1100kg 4900mm

17

22

1300kg 4200mm

12 8

2

11 10 16

18 1450kg

9

3200mm 5

19 21

13

20

REF. DESCRIPTION

STD.

7 14

OPTIONAL

1a 1b 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22

Standard Lift Height Free Lift Height Height Mast Closed Max. (Mast Raised) Overall Length Fork Travel Ground Clearance Under Mast Ground Clearance to Centre of Wheelbase Width Outside Spread of Fork Arms Track Front Frame Opening Load Centre Distance Overhang Front Wheelbase Overhang Back Fork Side Shift Length from Face of Fork Fork Backward Tilt Fork Forward Tilt Minimum Outside Radius Leg Height Leg Length

3000mm 900mm 2100mm 4200mm

4200mm 4900mm 1500mm 1850mm 2700mm 3050mm 5400mm 6100mm 1950mm 590mm 80mm 50mm 1320mm 815mm 1165mm 1058mm 600mm 603mm 1172mm 175mm 80mm Left / 80mm Right 880mm 3° 3° 1350mm 127mm 530mm

A B C D E F G H I J K

Capacity Unladen Weight Maximum Ground Speed Gradeability Battery Capacity Fork Section Front Tyre (Polyurethane) Rear Tyre (Vulkollan) Standard Colour AC Electric Traction Motor AC Electric Pump Motor

1450kg @ 3200mm Lift 2500 kg 2600 kg 2700 kg 6 km/h 5% 24 V / 270 Ah 35mm x 100mm x 1070mm OD 127mm / Width 75mm OD 250mm / Width 75mm Yellow & Grey 24V / 2.5 kW 24V / 5 kW

Using Combi-WR

6 4

15

Superior safety with Combilift's patented Multi-Position Tiller Arm The tiller can be turned to the left or right to allow the operator to remain at the side. This enables full visibility of the load and forks, while maintaining full steering control, providing greater awareness of the surroundings for enhanced overall safety.

Features Include: • Pantograph • Power Steering • AC Motor Technology • 1000mm High Load Back Rest • Rear Wheel Drive • 80/80mm Side Shift • Patented Multi-Position Tiller Arm Distributed by:

Standing to the side of the stacker eliminates the risk of being trapped or crushed whilst allowing the CombiWR to operate in very narrow aisles.

International Application No. PCT/ EP2012/067238 Multi Position Tiller

CO. MONAGHAN IRELAND

+353 47 80500 INFO@COMBILIFT.COM
