Combilift Combi-SLE datablad

COMBi-SLE 5000 The 3 wheel electric sideloader forklift designed for the safe, space saving and productive handling of long and bulky loads.

Combi-SRE: Rear Mounted Cabin

rev 1.4

combilift.com

COMBi-SLE 5000

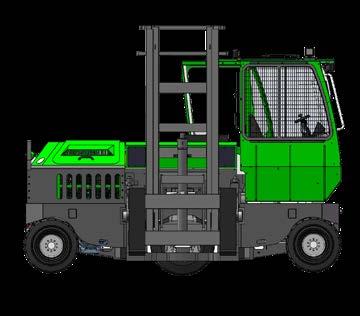

FRONT VIEW 5

21

OVERHEAD VIEW

22

25

17

13

SiDE VIEW

3 1

2 12

8

10

9

11

24 20

18 6

16

15

7

REF. DESCRIPTION 1a 1b 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25

Standard Lift Height Free Lift Height Height Mast Closed Max. (Mast raised) Overall Length Mast Travel Ground Clearance Under Mast Ground Clearance to Centre of Wheelbase Height Over Cab (Without work lights) Width Outside Spread of Fork Arms Track Front Frame Opening Load Centre Distance Overhang Front Wheelbase Overhang Back Length From Face of Fork Approach Angle Ramp Angle Departure Angle Forward Tilt Backward Tilt Minimum Outside Radius Platform Height (Optional 750mm) Platform Length

A B C D E F G H I J K

Capacity Unladen Weight Maximum Ground Speed Gradeability Battery Capacity Electrics Fork Section 50mm x 200mm 27 x 10 - 12 Front Tyre 355 / 65 - 15 Rear Tyre Standard Colour Suspension Seat

19 14

23 4

Multi-Directional

5000 SLE 4040mm 0mm 3207mm 5495mm 2350mm 1400mm 472mm 100mm 2740mm 4245mm 1450mm 3610mm 1600mm 600mm 271mm 1960mm 120mm 1100mm 45o 18o 45o 3o 5o 2980mm 750mm 1300mm

Features Include: • Rubber Mounted Cabin • Multi-Direction Operation • Load Sensing Steering ● • 3 Wheel Electric Drive • 4-way lever positioning of Wheel • AC Motor Technology

5000kg 10000kg 15km/h 10% 80V 1080Ah 12 Volt 1300mm OD 585mm / Width 255m OD 800mm / Width 295 Green & Grey KAB Model 116

Distributed by:

rev. 1.1

CO. MONAGHAN IRELAND

+353 47 80500 INFO@COMBILIFT.COM

COMBILIFT HAS A POLICY OF CONTINUOUS PRODUCT DEVELOPMENT AND RESERVES THE RIGHT TO ALTER SPECIFICATIONS WITHOUT PRIOR NOTICE. SPECIFICATIONS AND/OR DIMENSIONS MAY VARY FROM THOSE ILLUSTRATED IN SOME COUNTRIES.
