Combilift Combi-SL datablad

COMBi-SL 4500-6000 The 3 wheel sideloader forklift designed for the safe, space saving and productive handling of long and bulky loads.

Combi-SR: Rear Mounted Cabin

combilift.com

COMBi-SL 4500-6000

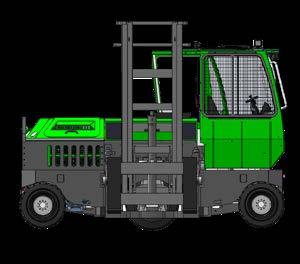

FRONT VIEW 5

21

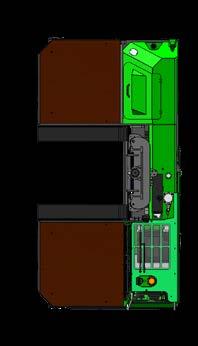

OVERHEAD VIEW

22

25

17

13

SiDE VIEW

3 1

2 12

8

10

9

11

24 20

18 6

16

15

7

REF. DESCRIPTION 1a 1b 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25

Standard Lift Height Free Lift Height Height Mast Closed Max. (Mast raised) Overall Length Mast Travel Ground Clearance Under Mast Ground Clearance to Centre of Wheelbase Height Over Cab (Without work lights) Width Outside Spread of Fork Arms Track Front Frame Opening Load Centre Distance Overhang Front Wheelbase Overhang Back Length From Face of Fork Approach Angle Ramp Angle Departure Angle Forward Tilt Backward Tilt Minimum Outside Radius Platform Height (Optional 750mm) Platform Length

A B C D E F G H I J K

Capacity Unladen Weight Maximum Ground Speed Gradeability Deutz TCD 3.6L / 4.3 ltr GM LPG Electrics Fork Section 50mm x 200mm 27 x 10 - 12 Front Tyre 355 / 65 - 15 Rear Tyre Standard Colour Suspension Seat

19 14

4500 SL

2050mm 1290mm

1200mm

23 4

5000 SL 6000 SL

4040mm 0mm 3000mm 5200mm 2050mm 1290mm 300mm 335mm 2670mm 3900mm 1350mm 3258mm 1400mm 600mm 320mm 3260mm 320mm 850mm 45° 18° 45° 3° 5° 2590mm 850mm 1200mm

2250mm 1490mm

1400mm

4500 kg 9800 kg

5000 kg 6000 kg 9900 kg 10,200 kg 20 km/h 15% 55 kW / 72 kW 12 Volt 1200mm 1200mm 1400mm OD 680mm / Width 255mm OD 800mm / Width 295mm Green & Grey KAB Model 116 rev. 1.1

CO. MONAGHAN IRELAND

+353 47 80500 INFO@COMBILIFT.COM

Multi-Directional

Features Include: • Rubber Mounted Cabin • Multi-Direction Operation • 3 Wheel Hydrostatic Drive • Load Sensing Steering • 4 Way Lever Positioning of Wheels • Hydraulic Oil Cooler Distributed by:

COMBILIFT HAS A POLICY OF CONTINUOUS PRODUCT DEVELOPMENT AND RESERVES THE RIGHT TO ALTER SPECIFICATIONS WITHOUT PRIOR NOTICE. SPECIFICATIONS AND/OR DIMENSIONS MAY VARY FROM THOSE ILLUSTRATED IN SOME COUNTRIES.
