Combilift Combi-MR datablad

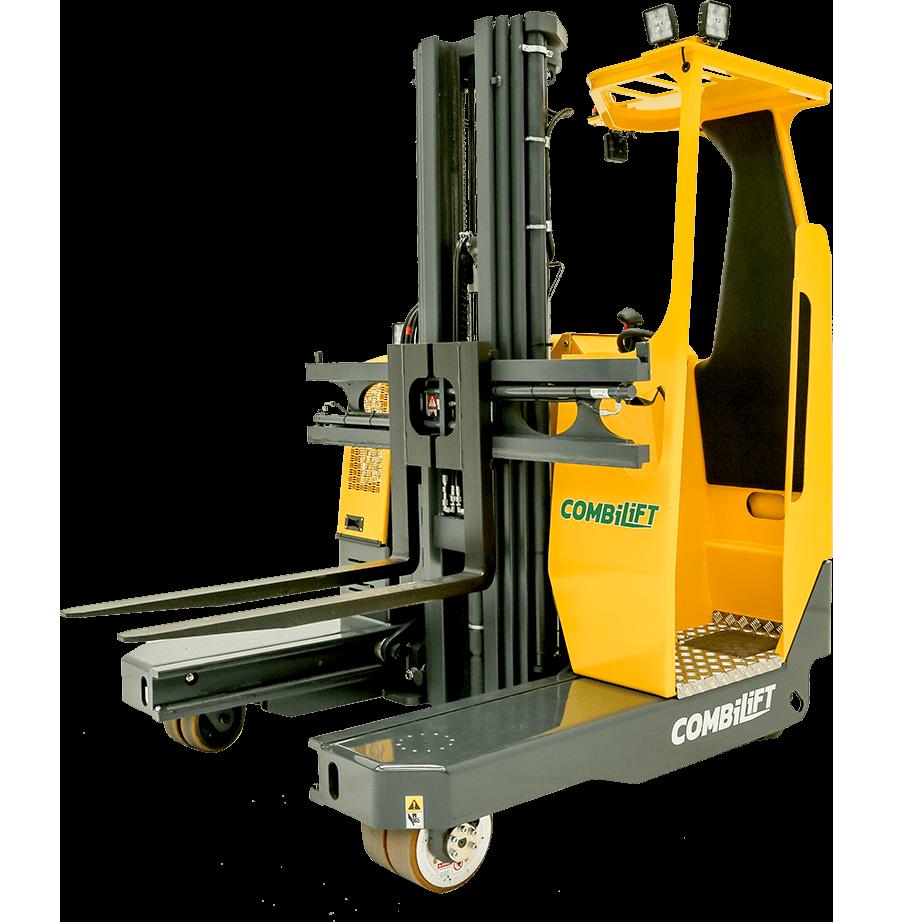

COMBi-MR The Combi-MR is Combilift's multidirectional stand-on reach truck which offers superb manoeuvrability and safety in the tightest working conditions.

combilift.com

COMBi- MR FRONTAL MODE

21

SiDEWARD MODE

3

22

17

1

4

5

10

13

8

2

11 9

25

12

24 20

18

19

15 14

16

6

7

23

4

This compact truck features one rear wheel drive with a large rubber tyre and 360° steering rotation. The multi-functional controlled joystick allows the operator to change direction and travel speed in a smooth seamless motion, in addition to full control of all the hydraulic functions.

This contributes to faster procedures for manufacturing distribution and logistics operations.

REF. DESCRIPTION 1a 1b 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25

Standard Lift Height Freelift Height Height Mast Closed Max. (Mast raised) Overall Length Mast Travel Ground Clearance Under Mast Ground Clearance to Wheelbase Height Over Cab (without work lights) Overall Width Width over forks Track Front Frame Opening Load Centre Distance Overhang Front Wheelbase Overhang Back Length From Face of Fork Approach Angle Ramp Angle Departure Angle Forward Tilt Backward Tilt Minimum Outside Radius Platform Height Platform Length

A B C D E F G H I J

Capacity Unladen Weight Maximum Ground Speed Gradibility AC Rear Drive Battery Fork Section Vulkollan Front Tyre Solid Rubber Rear Tyre Standard Colour

STANDARD OPTIONAL 4040 mm 5540 mm 0 mm 1480 mm 2670 mm 2490 mm 4750 mm 6530 mm 1905mm 865 mm 100 mm 100 mm 2490 mm 1850 mm 2105 mm 1450 mm 940 mm 610 mm 200 mm 1475 mm 1625 mm 230 mm 1090 mm 35° 15° 35° 2° 4° 1955 mm 390 mm 790 mm

2500 kg 5000 kg 7 km/h 7% 6 kW 48V x 775Ah 50 mm x 100 mm x 1150 mm OD 250 mm / Width 75 mm OD 400 mm / Width 180 mm Yellow & Grey

Multi-Directional

Features Include: • Standing Operator Over-Head Guard • Multi-Direction Operation • AC Electric Steering • AC Motor Technology • Multi-Function Joystick • Optional Integrated Hydraulic Fork Positioner Distributed by:

rev. 1.1

COMBILIFT HAS A POLICY OF CONTINUOUS PRODUCT DEVELOPMENT AND RESERVES THE RIGHT TO ALTER SPECIFICATIONS WITHOUT PRIOR NOTICE. SPECIFICATIONS AND/OR DIMENSIONS MAY VARY FROM THOSE ILLUSTRATED IN SOME COUNTRIES.
