Combilift CB4E datablad

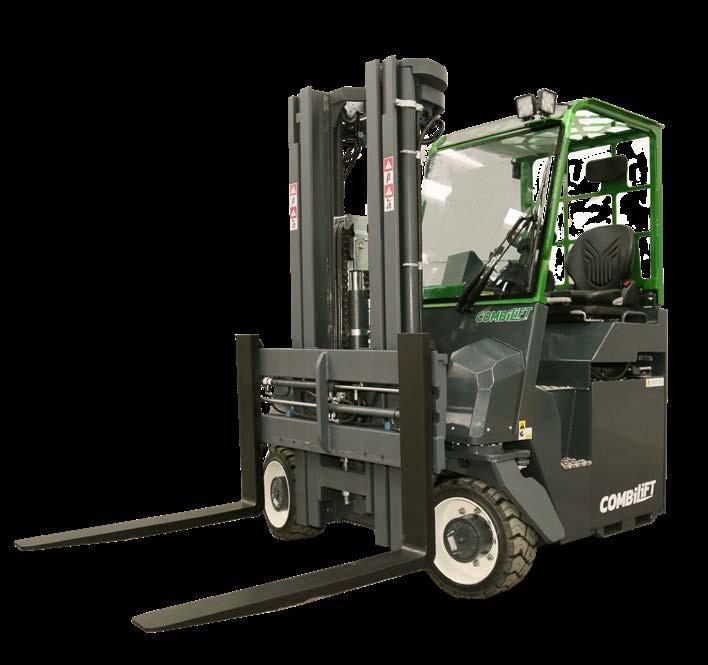

COMBi-CBE4 The innovative Combi-CBE4 is designed to increase productivity, improve safety and help increase your storage capacity both indoors & outdoors.

rev. 1.3

combilift.com

COMBi- CBE4

4

3

FRONTAL MODE 19

10

SiDEWARD MODE

1

15

20

2

7 11

8

17

9

21

18

16 13 12

5

6

14

REF. DESCRIPTION 1a 1b 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21

Standard Lift Height Free Lift Height Height Mast Closed Max. (Mast raised) Overall Length Ground Clearance Under Mast Ground Clearance to Wheelbase Centre Height of Overhead Guard Width Outside Spread of Fork Arms Track Front Load Centre Distance Overhang Front Wheelbase Overhang Back Length From Face of Fork Approach Angle Ramp Angle Departure Angle Forward Tilt Backward Tilt Minimum Outside Radius

A B C D E F G H I J K L

Capacity Unladen Weight Maximum Ground Speed Gradeability Battery Capacity AC Electric Traction Motor x 3 AC Electric Pump Motor Fork Section 21 x 9 x 22 Front Tyre x 2 (Solid Rubber) 28 x 10 x 22 Rear Tyre x 1 (Super Elastic Rubber) Standard Colour Suspension Seat

STANDARD 4040mm 0mm 2900mm 5050mm 2893mm 152mm 125mm 2356mm 1650mm 1500mm 1395mm 600mm 365mm 1350mm 153mm 1870mm 30° 20° 30° 3° 7° 1670mm

4000 kg 8750 kg 11 km/h 10% 72 V / 775 Ah 2 x 3 kW (front) / 1 x 5 kW (rear) 19 kW 150mm x 50mm x 1065mm OD 533mm / Width 229mm OD 711mm / Width 254mm Green and Grey Grammer MSG 65

Protected by Design Registration Copyright: European Community No.: 000725668-0001|US No.: D579, 624| Canadian No.: 123292|Australian No.: 318370| Russian Federation No.: 70814 |Korean No.: 30-0516087| Japanese No.: 1330896|Taiwan No.: D126056| Chinese No.: ZL200730329732.6

CO. MONAGHAN IRELAND

+353 47 80500 INFO@COMBILIFT.COM

Multi-Directional

Features Include: • Open cabin • Load sensing steering • 4-Way lever positioning of wheels • System Communication via CAN-BUS • Multi-directional operation • 3 wheel electric drive • Powered by AC technology Distributed by:

COMBILIFT HAS A POLICY OF CONTINUOUS PRODUCT DEVELOPMENT AND RESERVES THE RIGHT TO ALTER SPECIFICATIONS WITHOUT PRIOR NOTICE. SPECIFICATIONS AND/OR DIMENSIONS MAY VARY FROM THOSE ILLUSTRATED IN SOME COUNTRIES.
