COMBi-4WSL 4500- 6000 The 4 wheel Sideloader forklift designed for the safe, space saving and productive handling of long and bulky loads.

REV 1.5

combilift.com

COMBi- 4WSL 5000-6000

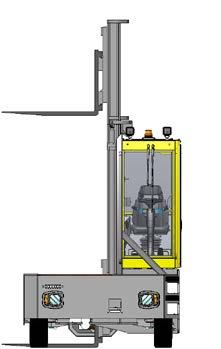

FRONT VIEW 13

18

OVERHEAD VIEW

19

22

SiDE VIEW

17

3 1

2

5 8

21

6

16

15

7

REF. DESCRIPTION 1a 1b 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22

Standard Lift Height Freelift Height Height Mast Closed Max. (Mast raised) Overall Width Mast Travel Ground Clearance Under Mast Ground Clearance to Centre of Wheelbase Height Over Cab (Without work lights) Length Frame Opening Track Outside Spread of Fork Arms Load Centre Distance Overhang Front Wheelbase Overhang Back Length From Face of Fork Forward Tilt Backward Tilt Minimum Outside Radius Platform Height Platform Length

A B C D E F G H I J

Capacity Unladen Weight Maximum Ground Speed Gradeability Deutz TCD 3.6 L4 (Stage IIIB) / 4.3 ltr GM LPG Electrics Fork Section 50mm x 200mm x Pneumatic/Super Elastic Front Tyre Standard Colour Suspension Seat

14

10

12

9

20

11

4

5000 4WSL 6000 4WSL 4040 mm 0 mm 3135 mm 5150 mm 2000 mm 2200 mm 1250 mm 1450 mm 160 mm 405 mm 2730 mm 4630 mm 1400 mm 1608 mm 1330 mm 600 mm 390 mm 2650 mm 800 mm 800 mm 3° 5° 4200 mm 950 mm 1200 mm 1400 mm 5000 kg 9000 kg

6000 kg 9500 kg 25 km/h 15% 75 kW 12 Volt 1200 mm 1400 mm 8.25 - 15 300 - 15 Yellow & Grey KAB Model 116

Features Include: • Hydraulic Suspended Cabin • Wet Disc Brakes • 2 Wheel Drive • Load Sensing Steering • Tilting Chassis • Hydraulic Oil Cooler Distributed by:

COMBILIFT HAS A POLICY OF CONTINUOUS PRODUCT DEVELOPMENT AND RESERVES THE RIGHT TO ALTER SPECIFICATIONS WITHOUT PRIOR NOTICE. SPECIFICATIONS AND/OR DIMENSIONS MAY VARY FROM THOSE ILLUSTRATED IN SOME COUNTRIES.
