ProtoPixel Solution Packages

ProtoPixel Solution Packages First Semester 2024

1

Solution Packages

The new way of creating lighting projects

ProtoPixel is a lighting platform for all types of lighting projects, with seamless experiences at all stages of the journey.

ProtoPixel 2024

2

Take project designs to the next level

Develop more projects, more diverse and with greater differentiation and emotionality.

Accelerate project implementation

Improve revenue through 3x faster, more robust, future-proof execution.

Add value through digital services

Ecourage upseeling and enhance customer loyalty.

Agnostic & Interoperable

High Quality

3

Seamless Experience

Solution Packages

Develop differentiated projects, suitable for all sectors

ProtoPixel’s platform is versatile and adaptable to a variety of use cases and markets. For example, it can integrate high-quality lighting in private homes or serve as a comprehensive smart home app. The platform allows for the orchestration of light in space and time, allowing

ProtoPixel 2024

for unique products and projects that are easy to use on a daily basis. ProtoPixel can serve different professionals such as designers, integrators, and installers by allowing them to collaborate on any lighting project. From the smallest installation to the largest building.

4

#MadeWithProtoPixel

Glòries Tower,5 Barcelona

Solution Packages

ProtoPixel 2024

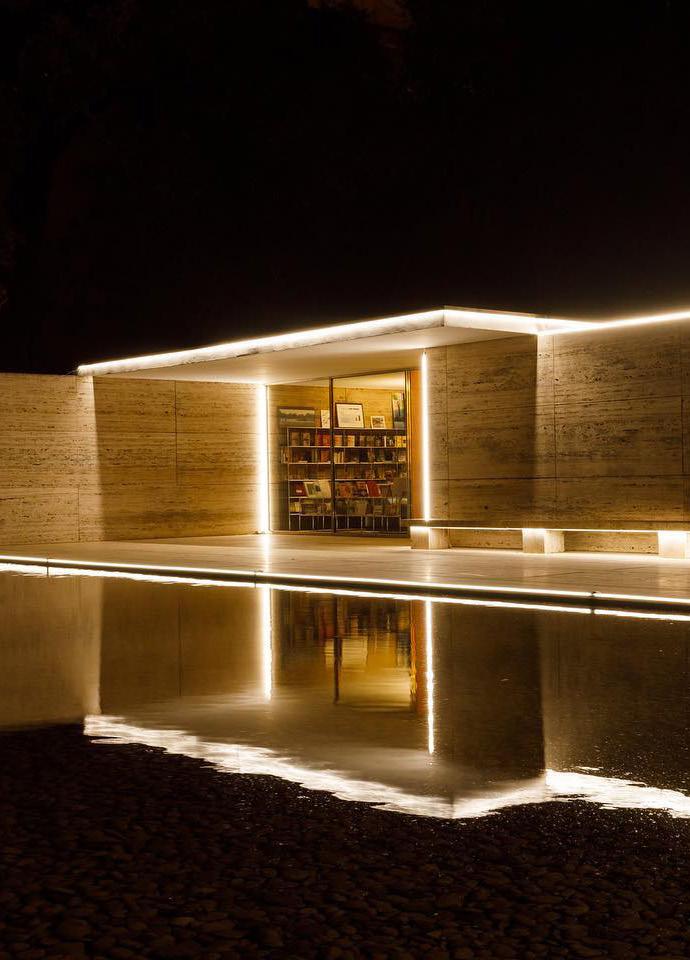

6 Rohe Pavilion Mies van der

Solution Packages

7

Solution Packages

Solution Packages With our unique combination of software, hardware, and accessories, we provide a wide range of solutions tailored to different market applications. Furthermore, ProtoPixel’s integration tools make it easy to expand these solutions with other technologies.

1

Small Corporate Indoor

2

High End Residential

3

Retail and HORECA SMEs

4

Small Offices

5

MICE Spaces

6

Retail Outdoor

7

Retail Displays

8

Residential Plug & Play

9

OEM Solutions

10

General Lighting

ProtoPixel 2024

8

Definition Our solution packages encompass various types of lighting, different sizes of spaces, and diverse installation typologies, ensuring a comprehensive lighting solution that can be tailored to meet the unique requirements of each project.

LIGHT TYPE

Point-to-Point

Dimming

Hybrid

Pixel addressable lighting.

White, tuneable white or RGB lighting.

Point to Point and Dimming control.

Small

Medium

Large

One room, one to ten devices.

One floor, large meeting room, high standing residential, or one house.

Up to fifty devices.

A building, with up to two thousand devices.

Wired

Wireless

Hybrid

Data transmission through ethernet cables.

Data transmission through Wi-Fi or Bluetooth.

Wired and wireless technology.

SIZE

INSTALLATION

9

Solution Packages

SOLUTION 1

DIMMING LIGHTING

MEDIUM SIZE

HYBRID INSTALLATION

Small Corporate Indoor

DESCRIPTION

BENEFITS

This is a fast, optimized solution for general lighting control in medium-sized corporate spaces. The most typical application involves the use of wired luminaires for the majority of the area, supplemented by Casambi wireless luminaires for remote areas. Control is typically achieved through wireless buttons or switches.

Scalable to larger installations Supports Wireless and wired luminaires and peripherals Requires minimum training to install

The focus on lighting functionality is to automate control using various strategies like scenes, schedules, presence sensors, and brightness sensors. This approach aims to create comfortably lit spaces while optimizing energy usage.

AVERAGE SOLUTION TICKET Includes Hardware, and Outlets.

€ 3.6 K

OTHER APPLICATIONS

MAIN LIGHTING PROTOCOLS

Small areas in an office building that lack lighting control.

Wireless: Wi-Fi, Wi-Fi / BLE-DALI, Casambi.

Wired: Ethernet

ProtoPixel 2024

10

La Casa de la Luz, SIMON

PACKAGE OPTIONS PROJECT PRODUCTS

LUMINAIRE PRODUCTS

USER INTERFACES

(*)

SOFTWARE TOOLS

ACCESORIES ( * ) COMING SOON

11

Solution Packages

Small Corporate

ProtoPixel 2024

DIMMING LIGHTING

12

MEDIUM SIZE

HYBRID INSTALLATION

La Casa de la Luz, SIMON

13

Solution Packages

Small Corporate

DIMMING LIGHTING

ARCHITECTURE

ProtoPixel 2024

14

MEDIUM SIZE

HYBRID INSTALLATION

FUNCTIONALITIES

Well-being / Lighting quality:

Integrations:

• On-Off + Dimming • Tunable White • Moods

• API • Casambi • KNX

Energy saving:

Automations:

• Daylight control (CLC) • Sensors

• Lighting behaviours via external inputs • Scheduling

15

Solution Packages

SOLUTION 2

HYBRID LIGHTING MEDIUM SIZE

WIRELESS INSTALLATION

High-End Residential DESCRIPTION

BENEFITS

This is a solution for adaptive lighting in a residential setting. It allows for the seamless integration of functional and emotional lighting to create high-value atmospheres, combining white light with pixel-to-pixel lighting.

Simplified implementation of multiple lighting protocols.

Easy Scale-up to larger installations.

Advanced configuration through ProtoPixel Software.

The functionality of lighting primarily involves creating experiences and moods for wellbeing, decorating spaces, and humanizing the area with lighting that adapts to people’s daily lives.

Ideal for installations where it is not possible to pass wiring or reduce installation time.

AVERAGE SOLUTION TICKET Includes Hardware, and Outlets.

OTHER APPLICATIONS

MAIN LIGHTING PROTOCOLS

Medium-sized businesses looking for added value to space through lighting.

Wi-Fi, Wi-Fi / BLE-DALI, Casambi, Wifi/BLE-SPI

ProtoPixel 2024

16

€ 2.9 K

Residential Space, Vibia

PACKAGE OPTIONS PROJECT PRODUCTS

(*)

(*)

LUMINAIRE PRODUCTS

(*)

USER INTERFACES

SOFTWARE TOOLS

ACCESORIES ( * ) COMING SOON

17

Solution Packages

High-End Residential

ProtoPixel 2024

HYBRID LIGHTING MEDIUM SIZE

18

WIRELESS INSTALLATION

Residential Space, Vibia

19

Solution Packages

High-End Residential

HYBRID LIGHTING MEDIUM SIZE

ARCHITECTURE

ProtoPixel 2024

20

WIRELESS INSTALLATION

FUNCTIONALITIES

Integrations:

Well-being / Lighting quality:

• API • Casambi

• On-Off + Dimming • Tunable White + RGBv • Moods

• KNX

Energy saving:

Tools:

• Daylight control (CLC) • Sensors

• Content Library • Playlist SOON

Automations: • Lighting behaviours via external inputs • Scheduling

21

Solution Packages

SOLUTION 3

HYBRID LIGHTING MEDIUM SIZE

Retail, HORECA, SMEs DESCRIPTION

HYBRID INSTALLATION

HORECA: Hotels, Restaurants, Cafés SMEs: Small and Midsize Enterprises

BENEFITS

Lighting control solution for mediumsized retail stores, hotel common areas, or restaurants where lighting serves as a signature element to enhance brand positioning and awareness.

Simplified implementation of multiple lighting protocols.

Dynamic lighting is crucial in this solution package. It creates comfortable and unique spaces, highlighting products and areas. Moreover, lighting captures consumers’ attention, directs customer journeys, and enhances the shopping and brand experiences.

Easy modify and Scale-up according to business needs.

Content Library with ready to use immersive and impactful lighting moods.

Advanced configuration through ProtoPixel Software.

AVERAGE SOLUTION TICKET Includes Hardware, and Outlets.

OTHER APPLICATIONS

MAIN LIGHTING PROTOCOLS

Large-scale high end residential.

Wireless: Wi-Fi, Wi-Fi / BLE-DALI, Casambi.

Wired: Ethernet

ProtoPixel 2024

22

€ 10.2 K

Ceiling for Shopping Center in Barcelona, Lumalia

PACKAGE OPTIONS PROJECT PRODUCTS

(*) (*)

LUMINAIRE PRODUCTS (*)

USER INTERFACES

SOFTWARE TOOLS

ACCESORIES ( * ) COMING SOON

23

Solution Packages

Retail and HORECA SMEs

HYBRID LIGHTING MEDIUM SIZE

Ceiling for Shopping Center in Barcelona, Lumalia

ProtoPixel 2024

24

HYBRID INSTALLATION

Roca Casablanca Showroomw, LEDDream

Click for video

25

Solution Packages

Retail and HORECA SMEs

HYBRID LIGHTING MEDIUM SIZE

ARCHITECTURE

ProtoPixel 2024

26

HYBRID INSTALLATION

FUNCTIONALITIES

Well-being / Lighting quality:

Integrations:

• On-Off + Dimming • Tunable White + RGB • Moods

• API • Casambi • KNX

Energy saving:

Tools:

• Daylight control (CLC) • Sensors

• Content Library • Playlist SOON

Automations: • Lighting behaviours via external inputs • Scheduling

27

Solution Packages

SOLUTION 4

DIMMING LIGHTING

MEDIUM SIZE

WIRED INSTALLATION

Small Offices DESCRIPTION

BENEFITS

A package perfectly tailored for small offices and meeting rooms, offering a secure, fully automated, and efficient lighting environment. Designed for ease of installation and control, this package enhances workspaces by integrating advanced features like sensors, daylight regulation, and circadian rhythm alignment.

Easy configuration of CLC and automatic behaviours from desktop.

Easy to replicate in multiple working spaces

These elements work in harmony to create an optimal working environment, fostering productivity and comfort. Additionally, the inclusion of audiovisual integration allows for a more cohesive and functional office setting.

This solution ensures that small workspaces are not only well-lit but also smartly adapted to the needs of modern professionals.

Includes Hardware, and Outlets.

OTHER APPLICATIONS

MAIN LIGHTING PROTOCOLS

Small functional spaces such as Libraries or hotel’s common areas.

Wired: Ethernet, DALI Gateway

ProtoPixel 2024

AVERAGE SOLUTION TICKET

28

€ 5.9 K

DEWA Offices at Dubai

PACKAGE OPTIONS PROJECT PRODUCTS

USER INTERFACES

SOFTWARE TOOLS

ACCESORIES

29

Solution Packages

Small Offices

DIMMING LIGHTING

Click for video

ProtoPixel 2024

30

MEDIUM SIZE

WIRED INSTALLATION

Small Office at La Casa de la Luz, SIMON

31

Solution Packages

Small Offices

DIMMING LIGHTING

ARCHITECTURE

ProtoPixel 2024

32

MEDIUM SIZE

WIRED INSTALLATION

FUNCTIONALITIES

Well-being / Lighting quality:

Integrations:

• On-Off + Dimming • Tunable White • Moods

• API

Energy saving:

Automations:

• Daylight control (CLC) • Sensors

• Lighting behaviours via external inputs • Scheduling

33

Solution Packages

SOLUTION 5

HYBRID LIGHTING

MEDIUM SIZE

WIRED INSTALLATION

Atriums DESCRIPTION

BENEFITS

Transform MICE venues into dynamic spaces where lighting enhances every event. This package enables the creation of customizable, flexible lighting environments perfect for any activity, from product launches to keynote speeches.

Enhanced Ambiance: create captivating, theme-adaptable environments.

Energy Efficiency: reduce energy use and costs with automated, efficient lighting.

Improved Experience: enhance attendee engagement with dynamic lighting.

Easily adapt lighting to different space sizes and layouts for ideal illumination.

Remote management simplifies creating and implementing lighting playlists and schedules, automating your lighting for seamless event execution.

Easy Control: effortlessly adjust settings for diverse event needs.

Flexibility: versatile lighting for any event layout and size.

AVERAGE SOLUTION TICKET Includes Hardware, and Outlets.

€ 8.4 K

OTHER APPLICATIONS

MAIN LIGHTING PROTOCOLS

Atriums and polyvalent spaces.

Wired: Ethernet, Ethernet-DALI Gateway, Ethernet-SPI.

ProtoPixel 2024

34

The Core The Atrio, Core School at School Madrid

Click for video

PACKAGE OPTIONS PROJECT PRODUCTS

USER INTERFACES

SOFTWARE TOOLS

ACCESORIES

35

Solution Packages

Atriums

ProtoPixel 2024

HYBRID LIGHTING

36

MEDIUM SIZE

WIRED INSTALLATION

The Core The Atrio, Core School at School Madrid

37

Solution Packages

Atriums

HYBRID LIGHTING

ARCHITECTURE

ProtoPixel 2024

38

MEDIUM SIZE

WIRED INSTALLATION

FUNCTIONALITIES

Well-being / Lighting quality:

Integrations:

• On-Off + Dimming • Tunable White + RGB W • Moods

• API

Energy saving:

Tools:

• Daylight control (CLC) • Sensors

• Content Library • Playlist

Automations: • Scheduling

39

Solution Packages

SOLUTION 6

PIXEL-TO-PIXEL LIGHTING MEDIUM SIZE

WIRED INSTALLATION

Outdoor Retail DESCRIPTION

BENEFITS

The outdoor retail lighting solution package is specially designed to create dynamic, eye-catching facades and installations. It features a robust, wired, pixelto-pixel installation, ensuring low latency and fluidity in lighting scenes, ideal for displaying engaging brand content through a variety of sources including colors, images, videos, and more.

This system is further enhanced by integration with video systems for a more impactful and immersive effect. Additionally, the ease of remote control and updates via the cloud ensures that your lighting display remains adaptable to brand’s evolving needs, making it a powerful tool for captivating and engaging customers in any outdoor retail setting.

Brand visibility: dynamic lighting dramatically increases brand presence and recognition.

Customer engagement: captivating displays boost foot traffic and interest.

Content versatility: easily showcase diverse and changing content.

Aesthetic appeal: enhances the retail space’s visual appeal.

AVERAGE SOLUTION TICKET Includes Hardware, and Outlets.

OTHER APPLICATIONS

MAIN LIGHTING PROTOCOLS

HORECA facades, lighting sculptures and unique lighting objects.

Wired: Ethernet, Ethernet-SPI, ArtNet, DMX.

ProtoPixel 2024

40

€ 14.0 K

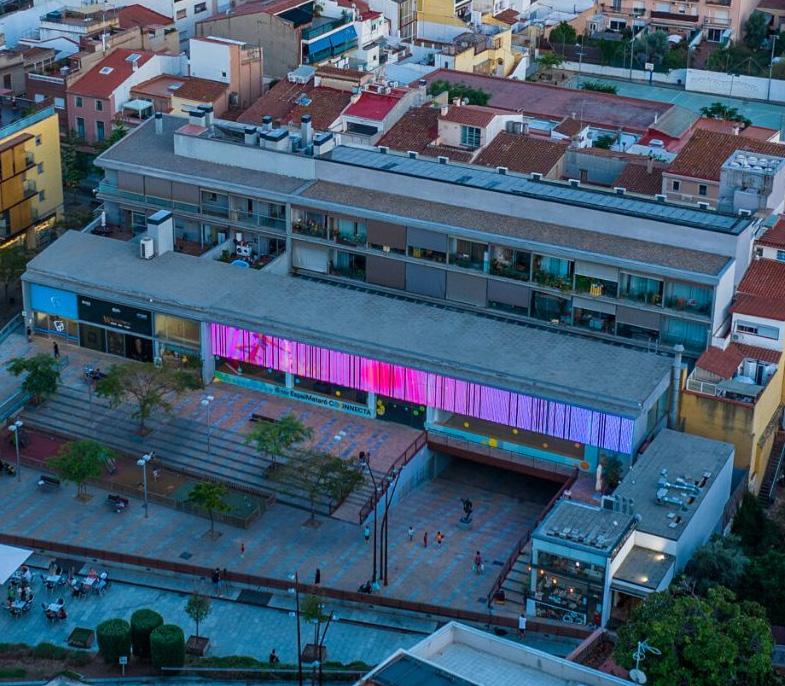

Espai Mataró Connecta, ARTEC

Click for video

PACKAGE OPTIONS PROJECT PRODUCTS

USER INTERFACES

SOFTWARE TOOLS

ACCESORIES

41

Solution Packages

Outdoor Retail

ProtoPixel 2024

PIXEL-TO-PIXEL LIGHTING MEDIUM SIZE

42

WIRED INSTALLATION

Espai Mataró Connecta, ARTEC

43

Solution Packages

Lanzarote Open Mall, Maraba Studio

ProtoPixel 2024

44

45

Solution Packages

Outdoor Retail

PIXEL-TO-PIXEL LIGHTING MEDIUM SIZE

ARCHITECTURE

ProtoPixel 2024

46

WIRED INSTALLATION

FUNCTIONALITIES

Well-being / Lighting quality:

Integrations:

• On-Off + Dimming • Tunable White + RGBW • Moods

• • • • •

Automations:

Tools:

• Scheduling

• Content Library • Lighting Content Preview • Offsite mode for dynamic content

47

API Video Codecs Image Formats Syphon, NDI Scripting Capabilities

Solution Packages

SOLUTION 7

PIXEL-TO-PIXEL LIGHTING MEDIUM SIZE

HYBRID INSTALLATION

Retail Displays DESCRIPTION

BENEFITS

Our solution package is tailor-made for creating dynamic, attractive storefront window displays, enhancing store performance and customer engagement. Ideal for both seasonal and year-round displays, it turns retail storefronts into visual art pieces.

Versatility and scalability: The solution grows with your needs. You can add new luminaires or local control at any time, and it’s completely wireless.

Updatable: easily adapt lighting content or add new functionalities with the futureproof ProtoPixel platform.

The package includes adaptable, impactful lighting for interactive branding and visual marketing, coupled with functional and experiential elements. Features like automated mood and scene scheduling, along with remote cloud control, ensure easy management and continual freshness, keeping displays engaging and effective.

Easy to use: fine-tune the space by adjusting lighting features like tunable whites, brightness, speed or dynamic texts.

AVERAGE SOLUTION TICKET Includes Hardware, and Outlets.

OTHER APPLICATIONS

MAIN LIGHTING PROTOCOLS

Energize zones.

Wired: Ethernet, Ethernet-SPI. Wireless: Wifi/Bluetooth, Wifi/Bluetooth - SPI.

( * ) Coming Soon

ProtoPixel 2024

48

€ 4.9 K

Adidas, ACID HOUSE

PACKAGE OPTIONS PROJECT PRODUCTS

LUMINAIRE PRODUCTS

(*)

(*)

USER INTERFACES

SOFTWARE TOOLS

ACCESORIES

( * ) COMING SOON

49

Solution Packages

Retail Displays

ProtoPixel 2024

PIXEL-TO-PIXEL LIGHTING MEDIUM SIZE

50

HYBRID INSTALLATION

Gallery Sessions, ACID HOUSE

Facade for Espai Mataró Connecta

Click for video

51

Solution Packages

Retail Displays

PIXEL-TO-PIXEL LIGHTING MEDIUM SIZE

ARCHITECTURE

ProtoPixel 2024

52

HYBRID INSTALLATION

FUNCTIONALITIES

Well-being / Lighting quality:

Integrations:

• On-Off + Dimming • Tunable White • Moods

• API

Energy saving:

Tools:

• Sensors

• Content Library • Playlist SOON

Automations: • Lighting behaviours via external inputs • Scheduling

53

Solution Packages

SOLUTION 8

HYBRID LIGHTING SMALL SIZE

WIRELESS INSTALLATION

Residential Plug & Play DESCRIPTION

BENEFITS

The residential lighting solution package, tailored for spaces like living rooms, lounges, and bedrooms, offers the full advantages of state-of-the-art digital lighting with minimal installation effort. This userfriendly system features wireless installation and control, enabling easy management of lighting types, dimming, color, and dynamic scenes to create comfortable, human-centric environments conducive to well-being.

Easy installation: quick, wireless setup and user-friendly controls.

Customizable ambiance: personalize lighting for comfort and atmosphere.

Energy efficiency: reduces costs and environmental impact.

Mood enhancement: adjust lighting to improve relaxation and well-being.

Ideal for both new projects and renovations, it allows end users to seamlessly adapt lighting scenes and moods to their daily lives. Experience the benefits of advanced digital lighting effortlessly integrated into your home.

Versatile use: ideal for different rooms and activities.

AVERAGE SOLUTION TICKET Includes Hardware, and Outlets.

OTHER APPLICATIONS

MAIN LIGHTING PROTOCOLS

Small meeting rooms, small atriums.

Wireless: Wifi/Bluetooth, Wifi/Bluetooth - SPI, Wifi/ Bluetooth - DALI, Casambi.

ProtoPixel 2024

54

€ 300

Mies van d

Mies vanMataró der Rohe Pavilion Facade for Espai Connecta

Click for video

PACKAGE OPTIONS

PROJECT PRODUCTS

(*)

(*)

LUMINAIRE PRODUCTS (*)

USER INTERFACES

SOFTWARE TOOLS

ACCESORIES

der Rohe Foundation in Barcelona

( * ) COMING SOON

55

Solution Packages

Residential Plug&Play

ProtoPixel 2024

HYBRID LIGHTING SMALL SIZE

56

WIRELESS INSTALLATION

Mies van der Rohe Pavilion

57

Solution Packages

Residential Plug&Play

HYBRID LIGHTING SMALL SIZE

ARCHITECTURE

ProtoPixel 2024

58

WIRELESS INSTALLATION

FUNCTIONALITIES

Well-being / Lighting quality:

Integrations:

• On-Off + Dimming • Tunable White + RGBW • Moods

• API • Casambi • KNX

Energy saving:

Tools:

• Sensors

• Content Library • Playlist SOON

Automations: • Lighting Behaviours via External Inputs

59

Solution Packages

SOLUTION 9

PIXEL-TO-PIXEL LIGHTING

OEM

SMALL SIZE

WIRELESS INSTALLATION

Original Equipment Manufacturer

DESCRIPTION

BENEFITS

This specialized package empowers Original Equipment Manufacturers (OEMs) to design digital lighting luminaires, starting from the core element - the pixel. The solution integrates effortlessly with the ProtoPixel App and software suite, allowing OEMs to design distinctive, emotionally engaging lighting experiences, such as custom turn-ons, moods, and scenes, thereby amplifying the digital value of their products.

Interoperability: connect your luminaires with standard switches or smart switches such as Simon 270 iO. Product differentiation: Design lighting scenes and unique dynamic moods Business digitalization: adding extra value services and customer loyalty (Customer service tools, Documentation and Guides, Business Insights, …)

The package merges lighting and control design to significantly enhance user experience, aligning with OEMs’ brand strategies and positioning. The app can be adapted to provide a smooth and intuitive interface, reinforcing OEMs’ brand image and augmenting the overall allure of their lighting solutions.

Scalability: from one luminaire to a complete building

OTHER APPLICATIONS

MAIN LIGHTING PROTOCOLS

Small entertainment spaces.

Wireless: Wifi/Bluetooth, Wifi/Bluetooth - SPI.

ProtoPixel 2024

60

Mies vanFacade der Rohe Foundation in Barcelona for Espai Mataró Connecta MOODMOON, Ingo Maurer

Click for video

PACKAGE OPTIONS (*)

(*)

LUMINAIRE PRODUCTS (*)

USER INTERFACES

SOFTWARE TOOLS

ACCESORIES ( * ) COMING SOON

61

Solution Packages

OEM

PIXEL-TO-PIXEL LIGHTING

SMALL SIZE

WIRELESS INSTALLATION

MOODMOON, Ingo Maurer

ProtoPixel 2024

62

Mies van d

der Rohe Foundation in Barcelona

Mies vanFacade der Rohe in Barcelona forFoundation Espai Mataró Connecta Dama, Vibia

Click for video

63

Solution Packages

OEM

PIXEL-TO-PIXEL LIGHTING

ARCHITECTURE

ProtoPixel 2024

64

SMALL SIZE

WIRELESS INSTALLATION

FUNCTIONALITIES

Well-being / Lighting quality:

Accesibility:

• • • •

• Remote Access • User Profile

On-Off + Dimming Tunable White Moods Circadian cycle

Energy saving:

Tools:

• Sensors

• Content Library • Playlist SOON • Device Library

Automations: • Lighting behaviours via external inputs • Scheduling • Timeline

65

Solution Packages

SOLUTION 10

DIMMING LIGHTING MEDIUM SIZE WIRELESS INSTALLATION

General Lighting DESCRIPTION

BENEFITS

The general lighting solution package, ideal for multipurpose areas and flexible workplaces, offers easy wireless installation and adaptable lighting control. Incorporating wireless, battery-free buttons and sensors, it automates lighting behavior and maximizes energy efficiency.

Seamlessly integrate this package with your building management system (BMS) via a local API for cohesive, building-wide lighting management, ensuring an efficient and responsive lighting environment for every space’s unique needs.

Convenient ongoing adaptation and reconfiguration of sensors and automated behaviors, accessible from both the desktop and app.

Perfect for existing installations where refurbishment is not feasible.

With flexibility and versatility, you can modify space management and readjust on the go.

AVERAGE SOLUTION TICKET Includes Hardware, and Outlets.

OTHER APPLICATIONS

MAIN LIGHTING PROTOCOLS

Small Corporate Indoor.

Wireless: Wifi/Bluetooth, Wifi/Bluetooth - DALI, Casambi.

ProtoPixel 2024

66

€ 1.9 K

Mies vanFacade der Rohe Foundation inatBarcelona forIngo Espai SWITCH Mataró Office, Connecta SIMON MOODMOON for Maurer, Euroluce

Click for video

PACKAGE OPTIONS PROJECT PRODUCTS (*)

LUMINAIRE PRODUCTS

(*)

USER INTERFACES

SOFTWARE TOOLS

ACCESORIES ( * ) COMING SOON

67

Solution Packages

General Lighting

ProtoPixel 2024

DIMMING LIGHTING MEDIUM SIZE WIRELESS INSTALLATION

68

SWITCH Offices. SIMON

69

Solution Packages

General Lighting

DIMMING LIGHTING MEDIUM SIZE WIRELESS INSTALLATION

ARCHITECTURE

ProtoPixel 2024

70

FUNCTIONALITIES

Well-being / Lighting quality:

Integrations:

• On-Off + Dimming • Tunable White • Moods

• API • Casambi

Energy saving:

Automations:

• Daylight control (CLC) • Sensors

• Lighting Behaviours via External Inputs • Schedulling

71

Solution Packages

ProtoPixel 2024

72

ProtoPixel Products

73

Solution Packages

ProtoPixel 2024

ProtoPixel App 74

Product Classification Project Products

Project Products serve as centralized devices for advanced and orchestrated control, offering both wired and wireless setups for managing multiple luminaires seamlessly.

Luminaire Products

Luminaire Products are crafted for seamless integration within or near luminaires, providing straightforward lighting solutions with an emphasis on simplicity and functionality.

User Interfaces

User interfaces tools to enhance usability through intuitive controls.

Software Tools

ProtoPixel’s Software Tools facilitate project creation, design, and implementation for comprehensive lighting management through intuitive interfaces and advanced control functions.

Accesories

Peripheral devices or additional elements, both required and useful, to complement lighting setups, enhancing functionality and compatibility within ProtoPixel’s ecosystem.

75

Solution Packages

Software Tools

ProtoPixel’s Software Tools facilitate project creation, design, and implementation for comprehensive lighting management through intuitive interfaces and advanced control functions.

Project Tool

ProtoPixel 2024

Software for managing lighting projects. It handles floorplan setup, luminaire control, space mood management, scheduler configuration, and is compatible with DALI devices. It also offers a WebSocket API for real-time control. It integrates different technologies while remaining agnostic and interoperable.

76

Mapping Tool

Pixel-to-pixel control tool, supports the creation of static and dynamic lighting scenes, interactive content using Python scripts, as well as the integration of image content from other software using NDI technology.

77

Solution Packages

Software Tools

ProtoPixel App

ProtoPixel 2024

The ProtoPixel App allows you to connect to a Project tool installation running on a node on the same network. With this app, you can see and control all elements, spaces, moods, and behaviors of your lighting project, depending on their capabilities. You can also create moods and apply them, as well as create behaviors for buttons and sensors.

78

79

Solution Packages

Project Products

Project Products serve as centralized devices for advanced and orchestrated control, offering both wired and wireless setups for managing multiple luminaires seamlessly.

Node

Autonomous, miniaturized orchestrator that integrates easily with ProtoPixel Controllers and all lighting systems.

ProtoPixel Long-Range LED Controller

Long-Range Controller

LED SPI Controller for large-scale projects, up to 330 meters wiring, with 8 SPI outlets to control up to 9600 RGB pixel LEDs in total.

TOP

Overview

Robust, versatile and powerful. The ProtoPixel Long-Range is the perfect LED Controller for large scale projects.

The ProtoPixel Long-Range Controller allows control of a wide range of digital LED fixtures and each unit can handle up to 9600 RGB LEDs. It fits all standards through a centralized, safe, and accessible setup in a rack.

Standard PoE Ethernet 10/100 Mbps port, for both power and data.

54

REAR 40

215

Width

215 mm

Depth

54 mm

Height

40 mm

Weight

500 gr

Indicators LED 1

Status (Blue)

Depth

Network (Green)

Height

Test (Orange)

The ProtoPixel Duo is a dual output pixel LED controller with an integrated micro SD card reader. It can control popular IC’s through Ethernet or Wi-Fi.

REAR 33

Control No. of Pixels per Outlet TOP

RGB: up to 1200 pixels at 27FPS RGBW: up to 900 pixels at 27FPS

Framerate

min: 27 FPS (using max. Pixels per Outlet) max: > 500 FPS (using 1 Pixel per Outlet) 61

You can find more resources at our Zendesk Help Center Wiring

→ 2 SPI pixelCommunications LED output. → 2400 RGB or 1800 RGBW pixel in Ethernet total @27 fps. → Standalone mode via Wi-fi Wi-Fi and web app → Streaming controller with ProtoPixel Node → Art-Net SPI Controller → 3 years warranty

Yes

8 X 3-way pluggable terminal blocks. 1 for each data outlet.

Each block contains A, B and SCR pins for standard RS485 connection

Mounting Dimensions

Shell Supported LED ICs

Material WS2811, WS2812, WS2812B,

Isolation

1 or 2 units in single rack space

Power*

Width

110 mm

Input Voltage

5 - 24 VDC

Depth

61 mm

Current Consumption Other

250mA@5V Idle: 90mA@5V

Height

Enviromental

33 mm

Steel Weight

Operating Temperature

0ºC to 70ºC 90 gr

WS2813, WS2815, Neopixel,Matte Black Finish SK6812, GW6205, UCS1903, Control UCS1903B, UCS2904 and CS8812 protocol families.

Max. of LED per Outlet Protection IP 30

Communications

Framerate

ProtoPixel 2023 10BASE-T

LED SPI controller with dual output and an integrated micro SD card reader. It can control up to 2400 RGB pixels, most IC’s through Ethernet or Wi-Fi. It can orchestrate with up to 10 DUOs in standalone mode.

110

Data outlets

Yes

DALI Gateway

Ethernet

WS2811, WS2812, WS2812B, WS2813, WS2815, Neopixel, SK6812, GW6205, UCS1903, UCS1903B, UCS2904 and CS8812 protocol families.

802.3 af compliant

Power over Ethernet

DUO Controller ProtoPixel Duo V2 LED Controller Overview

Supported LED ICs

Electronics (Power)

Dimensions

support@protopixel.io

Country of Origin Spain *Power Supply not included Warranty 3 years

RGB: up to 1200 pixels at 27FPS RGBW: up to 900 pixels at 27FPS min: 27 FPS (using max. Pixels per Outlet) max: > 500 FPS (using 1 Pixel per Outlet) LONG RANGE CONTROLLER V2 SPEC SHEET

100BASE-TX

Status Indicators Wi-Fi

IEEE802.11bgn

Operating Temperature

1 LED RGB

Color and pattern indicate the device status

Wiring

Enviromental -10ºC to 40ºC

LED Outlets

1 Pluggable terminal block (4 Ways—Black) Max Section: 2.5 mm2

IP30

IP Rating

Essential Setup using Ethernet

Essential Setup using Wi-Fi

FIXTURES

Standalone installation

ProtoPixel August 2023

ProtoPixel 2024

support@protopixel.io

DUO CONTROLLER V2 SPEC SHEET

80

Ethernet to DALI2 communication device (DT6, DT7, DT8). Allows control over 64 gears or 64 input devices.

Luminaire Products

Luminaire Products are crafted for seamless integration within or near luminaires, providing straightforward lighting solutions with an emphasis on simplicity and functionality.

DalcNet DALI SLIM Broadcast

Wireless DALI converter (supports Bluetooth and Wi-Fi) designed to manage up to 15 lighting fixtures or 0/1-10V signals as a unified group.

Enabler SPI

Compact and configurable (Bluetooth and Wi-Fi) SPI Driver to embed in luminaires.

User Interfaces

User interfaces tools to enhance usability through intuitive controls.

Simon iO 270

Smart switch from Simon iO 270 compatible with the ProtoPixel Platform.

DALI Sensor

Input signal sensor to automate daylight functionalities or presence behaviours.

DALI Switches

Control and manage DALI2 installations with any kind of keypads or digital input accesories for standard switches.

81

Solution Packages

Coming Soon

Node LITE

Efficient and compact orchestrator suitable for medium-sized installations, compatible with all ProtoPixel Controllers.

Wireless Digital Input

A wireless device designed to incorporate standard push-buttons, relays, sensors, etc., into the ProtoPixel platform.

DalcNet DALI SLIM Addressable

Wireless (Bluetooth and Wi-Fi) DALI converter, for up to 15 adressable luminaires or 0/1-10V signals.

Accesories

Peripheral devices or additional elements, both required and useful, to complement lighting setups, enhancing functionality and compatibility within ProtoPixel’s ecosystem.

CASAMBI Lithernet, Network Router, DALI Luminaires, SPI LED Strips, DMX LED Strips, BUS, SPI Product, DALI Product, DMX Washer, DALI Driver, DALI Relay, DALI Switch, amongst others.

ProtoPixel 2024

82

ProtoPixel Duo Controller

ProtoPixel Long-Range Controller

83

Solution Packages

ProtoPixel’s Ecosystem Architecture

ProtoPixel 2024

84

85

Solution Packages

For more projects and information go to protopixel.io

2024

ProtoPixel 2024

86
