From: Jimena, Oliver and Emilio To: Zona Industrial Vallejo Made with love

With our hearts in our hands, we thank our teachers for guiding us along the path and never leaving us alone, our colleagues for their support, but above all, thank you to our parents for being a pillar in our professional development.

Jimena Gallardo

Emilio Sánchez

Oliver Wilson

Jimena Gallardo González Emilio Sánchez Moreno Wendall Oliver Wilson Participatory Architecture of Medium Complexity School of Architecture, Art and Design Tecnológico de Monterrey, Campus Querétaro Febrero-Junio 2024

Diana García Cejudo Rodrigo Pantoja Calderón Daniela Cruz Naranjo Viviana Margarita Barquero Díaz Barriga Roberto David Cevada González Pedro Mendoza Hernández Andrea Maria Parga Vázquez

1.

Paradigm shift

3.

Design genesis

2.

From ground to sky

4.

Connection nodes

n

5.

Growing together

7.

Health and community

6.

Dinamic spaces

8.

Energetic pulse

1. Paradigm shift

1

Energy transition Definition

Energy transition refers to the orderly and planned process of transformation in electricity generation, aimed at shifting from conventional sources towards clean energy with sustainability criteria. This process seeks to establish an energy generation model that is environmentally more sustainable, reducing carbon emissions, and socially more inclusive. In other words, the energy transition involves the progressive adoption of new sources of electricity generation, accompanied by the necessary procedures to increase the use of clean and renewable energies as fundamental components in various productive sectors, especially those linked to electricity generation and the socioeconomic development of the country. All of this with the aim of carrying out this transition in an effective, efficient, equitable, innovative, and sustainable manner.

12

Paradigm shift

Polluting energy

Renewable energy

Graphic: Own elaboration 13

1

Decarbonization

What does this mean?

Decarbonization is defined as the process of reducing carbon emissions, mainly carbon dioxide (CO2), in the atmosphere. This approach aims to establish a global economy with low emissions to achieve climate neutrality through an efficient and sustainable energy transition.

The energy transition is a fundamental pillar in this decarbonization process. It consists of a structural change that aims to progressively eliminate the use of carbon in energy production. To achieve this goal, electrification of the economy through clean alternative energy sources is essential, ensuring emissions are in line with the planet’s absorption capacity.

This vision oriented towards decarbonization and energy transition reflects an active commitment to environmental sustainability and the mitigation of the impacts of climate change, paving the way towards a more resilient and equitable future for future generations.

14

Paradigm shift

Use of solar panels

Reuse of bags

CO2 capture parks

Electrification of public transport

Wind energy generation

Prioritize bicycle use

Graphic: Own elaboration 15

1

Urban transition Cities role

Cities play a crucial role in driving the energy transition, as they are significant consumers of energy and sources of greenhouse gas emissions. Setting ambitious renewable goals to invest in sustainable infrastructure towards more energy-efficient buildings and transportation systems, fueled by renewable energy is what cities need to do.

Cities that are able to adapt and carry out the necessary transformations efficiently will end up being more competitive (that is, more capable of generating sustainable economic activity and social well-being).

16

Paradigm shift

Paseo de la Reforma Mexico City 60´s

Paseo de la Reforma Mexico City 2000´s

Image: Mexicana Aerofotos 17

1

Energy reform Make the change

The energy reform establishes a minimum participation of 35% of clean energy in the generation of electrical energy by 2024 and establishes as one of its main objectives to promote the sustainable development of the electricity industry, as well as compliance with the public and universal service obligations of Clean Energy and the reduction of polluting emissions.

(AMDEEE, 2005)

18

Paradigm shift

Graphic: Own elaboration 19

2. From ground to sky

Vall 20

22

ejo

24

Collage: Own elaboration 23

2

Site context

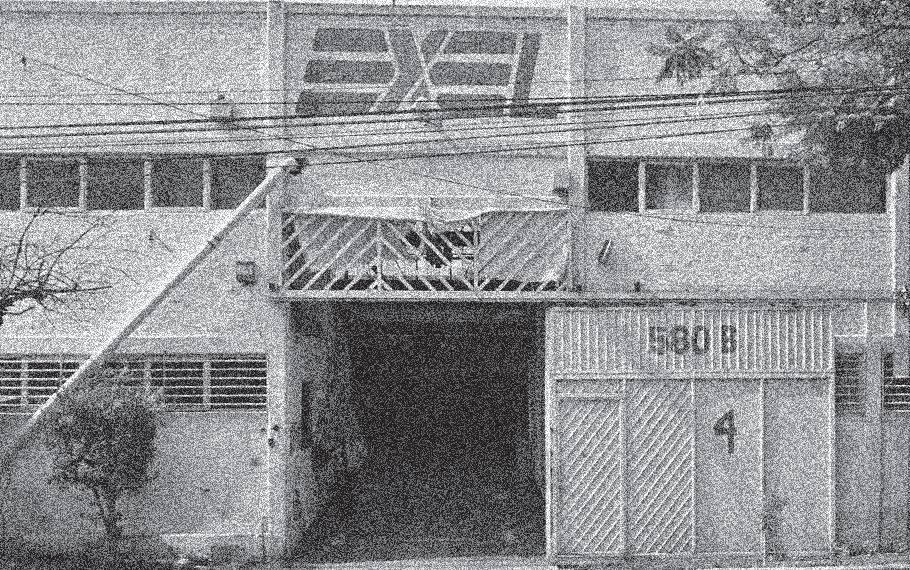

Vallejo Industrial Zone The Vallejo Industrial zone is located in the north of Mexico City, almost bordering the State of Mexico. It is an industrial zone of utmost importance for the country since its Gross Domestic Product is comparable to that of entire countries.

It has around 500 hectares of land and is home to around 760 economically active companies. It has informal housing areas but its conditions are not worthy for a person to live there. It has a train track that is infrequently used but that in the 70’s, was the main means of transportation for company supplies.

Scale: 1:25000

Vallejo site 24

From ground to sky

Map: Own elaboration 25

2

Site context

Public transport The Vallejo Industrial Zone covers an area of 500 hectares of land and is home to approximately 760 industries, employing a workforce of around 50,000 people. Despite this significant industrial activity and the substantial number of workers, the availability of public transportation in the area is limited compared to the demand from users.

Bus routes are indicated by yellow lines on the map, while the metro route is marked in pink and the metrobus line is highlighted in green. Although access to the area is relatively straightforward from various points in the city, users face difficulties in moving within it due to the limited public transportation options. Furthermore, the roads are primarily designed for private vehicles, freight trucks, and trailers, further complicating the mobility of those reliant on public transport in the area.

Scale: 1:25000 Site Metro route Bus route Metrobus line 26

From ground to sky

Map: Own elaboration 27

2

Site Context

Recreational Equipment In Vallejo, there’s a significant demand for sporting equipment, primarily supplied by private industries within their employeecentric shared spaces. However, publicly accessible facilities are often situated on the outskirts of the industrial area. This arrangement underscores the employees’ keen interest in such amenities, highlighting sports and recreational activities as integral components of the social and communal fabric within the industrial zones of the metropolitan area. Notably, the sole provision for children’s recreational equipment is a playground near the Vallejo Metro station.

Scale: 1:25000 Sports complex 28

From ground to sky

Map: Own elaboration 29

2

Site Context

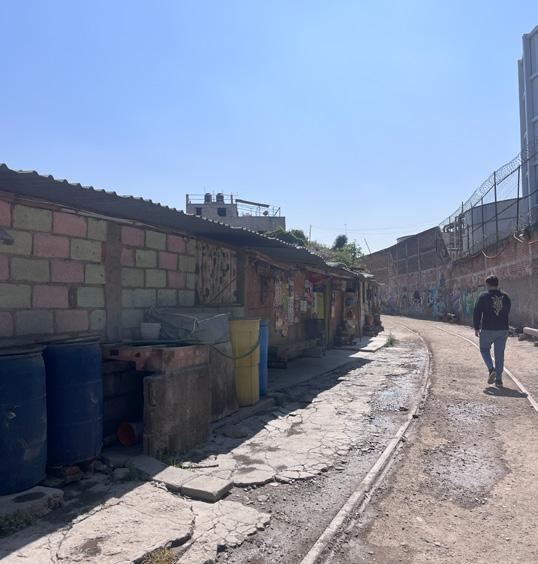

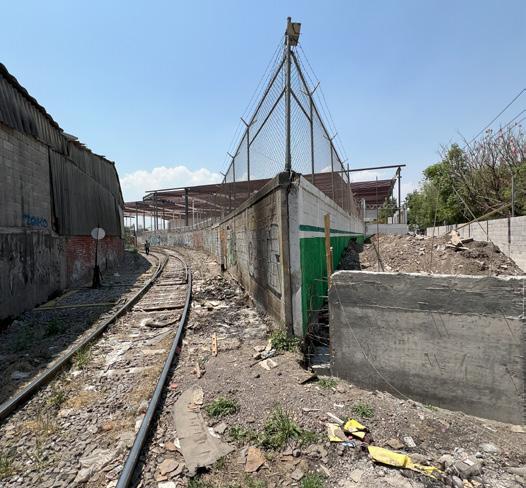

Location of the site The chosen site corresponds to a parking lot owned by the Sherwin Williams factory, covering an area of 10 ​​ hectares and having an irregular shape. The strategic selection of this site is based on its direct connection to the railway tracks, which offers numerous possibilities for its reuse. Additionally, its proximity to main roads such as Calzada Vallejo adds significant value.

This vacant space, formerly used as a parking lot, along with the railway tracks, is seen as an extension of underutilized areas that currently represent social barriers in the area.

Scale: 1:25000 Site Vallejo site 30

From ground to sky

Map: Own elaboration 31

2

Site analysis

Sun and wind path The trajectory followed by the sun is consistently from East to West. However, during the Winter season, this path manifests distinctly as it descends below the horizon line in relation to the specified location. Conversely, in Summer, the sun’s trajectory ascends above the designated site, presenting a contrasting position and angle in the sky. This, not only defines the length of daylight and darkness but also profoundly impacts the thermal regimes, energy inputs, and climatic nuances experienced at the selected site.

The prevailing wind consistently flows from the southwest to the northeast, traversing the designated location. This directional pattern is a consistent feature, contributing significantly to the climatic conditions and environmental dynamics of the area. Thus, understanding and analyzing the behavior of this southwest-to-northeast wind flow is essential for comprehensively assessing the environmental characteristics and patterns within the specified geographical context.

Scale: 1:7000 Site Sun Wind 32

From ground to sky

SUMMER

W INTER Map: Own elaboration 33

2

Site analysis Flood zone

Based on climatological data, which encompasses records spanning at least three decades pertaining to rainfall patterns, Mexico City experiences an annual average precipitation ranging from 600 to 800 millimeters, with July exhibiting the highest accumulation throughout the year. Similarly, Vallejo, situated in the northern vicinity of Mexico City, displays a comparable rainfall pattern. Notably, it is imperative to underscore that one of the most flood-prone areas within the industrial complex lies north of the designated intervention site.

Scale: 1:7000 Site Flood zone 34

From ground to sky

Map: Own elaboration 35

2

Site analysis

Public transport The designated area, marked in pink, is located in the vicinity of major roadways, allowing for the visualization of the various transportation methods used by users to access it. In pink, the metrobus route is identified, green highlights the metro lines, and blue outlines the local bus transportation routes. The white circles represent the stops corresponding to each of the aforementioned transportation methods.

Scale: 1:7000 Site Metrobus route Bus route Metro line Metrobus stops Bus stops Metro stops 36

From ground to sky

Map: Own elaboration 37

2

Site context Access map

Regarding the site’s location, it has been previously mentioned that it is situated between main thoroughfares, as evidenced by the map where the various entrances are clearly highlighted: pedestrian entrances, identified in blue; entrances for trucks and cargo transport, highlighted in pink; and finally, commercial areas, represented in yellow.

It is worth noting that, in this distribution, the emphasis seems to be more on the entrances for cargo vehicles and commercial establishments, relegating pedestrian entrances to a secondary position. This fact is particularly relevant given the limited development of public transportation in the area, which implies that the majority of users are forced to travel on foot to reach their workplaces or other destinations.

This situation poses a significant challenge in terms of accessibility and safety for pedestrians, who should occupy a prioritized position in urban planning and the design of road infrastructure.

Scale: 1:7000 Site Transport entrances Pedestrian entrances Commercial areas 38

From ground to sky

Map: Own elaboration 39

3. Design genesis

Analogous example

Coulée verte René-Dumont It is located in Paris, France. It was created in 1988

by Philippe Mathieux and Jacques Vergely on the site of an old railway line. It combines spaces of wild vegetation that were invading the area that was disused, with modern landscaping. It has a commercial part, followed by tunnels and ditches. The walk is 4.5 km long.

It has 4 different gardens and is mixed with street art.

42

Design genesis

Collage: Own elaboration 43

Analogous example Bar Hoegaarden

The space was designed by Metamoorfose Studio, in Brazil in 2019. It is located in a quite diverse region with constant movement and development. It consists of a bar made within vernacular nursery structures (greenhouses). It has an area of ​​360 m2 and has the capacity to accommodate 200 users, it has 264 plants of 38 species, it is a space created for people to connect with nature and forget the daily hustle and bustle a little.

44

Design genesis

Collage: Own elaboration 45

Analogous example StreetDome

StreetDome is a unique urban landscape created by CEBRA and Glifberg+Lykke on the harbour front of Haderslev in southern Denmark. It is a multi park and cultural centre for street sports. The overall ambition of the project is to set new standards for urban arenas for unorganized sports. To reduce costs, the hall is unheated and lit through daylight while the building’s has been minimized through its dome shape. The roof spans around 40 meters.

46

Design genesis

Collage: Own elaboration 47

3

Every Meter Counts Even Ground For All 48

Design genesis

Unleash Earths Potential

Change < Evolve

r 49

3

Nexo Vallejo

Community for everyone Nexo Vallejo is a project aimed at fostering a united community where all aspects of individuals’ comprehensive development are taken into account.

At the core of this project lies the well-being of the area’s workers. This entails providing them with dignified transportation to their workplaces, offering spaces for meals, relaxation, and leisure activities, as well as ensuring proximity to their children.

Contributing to decarbonization and global improvement is a holistic process. It encompasses not only environmental aspects but also the change that begins within each individual. To achieve significant change, it is essential to start by attaining a state of personal well-being.

50

Design genesis

Collage: Own elaboration 51

3

Sketch ideas

First idea of circulation The drawing represents a first approach to the way the circulations were going to work, giving priority to pedestrians.

Additionally, the placement of plant barriers as a method of protecting the property is shown. The wetland was always proposed at the center of the project since it is the main water collection point.

52

Design genesis

Hand drawing: Own elaboration 53

3

Sketch ideas

Second idea of circulation All possible ways in which people who use bicycles and pedestrians can enter and leave the site are proposed. A space with completely free flows is proposed, except for the daycare area, which is a more private space.

54

Design genesis

Hand drawing: Own elaboration 55

3

Sketch ideas Noise drawing

The drawing shows the noise zones on the property, the pink zone being where the most noise pollution exists, the yellow zone being in the middle and the green zone being the cleanest in terms of noise.

56

Design genesis

Hand drawing: Own elaboration 57

3

Users

Human Users Commerce related

Transport related

58

Design genesis

Infancy

Industry related

Collage: Own elaboration

59

Vegetation palette Non-human users

Lantana

Medlar

Guava

Apricot

60

Clove

Apple

Design genesis

Water shell

Reed

Peach

Pear

Plum

Lemon

Graphic Own elaboration 61

3

Vegetation palette Justification

The Secretary of the Environment (SEDEMA) of Mexico City reports on the program for the revegetation of the Conservation Soil with the planting of 10.5 million trees, shrubs and other types of plants.

All the plants used in reforestation are produced in the Corenadr forest nursery.

Revegetation seeks to make the city greener, connecting the conservation land with the urban dream through green infrastructure. “It is important to reforest and take care of the trees because we are going to obtain great benefits from them, better air quality, infiltration and availability of water, as well as the retention of suspended particles,” said Miguel Ángel Delgado, in charge of the forest nursery.

62

Design genesis

Photo: SEDEMA, own edition 63

3

Mobility Strategies Vallejo Site

N

Scale - 1:8500 0

Nexo Vallejo

GSEducationalVersion

85

170

340

Mobility Strategy

64

Design genesis

Map Legend

5 min 2 min 1 min 100 m 200 m

Walking Radious Distance

400 m

Traffic Flow Bus Routes Metrobus Line 1 Line 2 Stops Line 1 Stops Line 2 Pedestrian Movement

65

3

Design process

Boundaries and Limitations The property has a single access point at the front. The road bordering it is a six-lane avenue, two of which belong to the East Metrobus. The property is surrounded by two 6-meterhigh walls, and the rear accesses are the backs of industrial warehouses. There are plans to intervene in the street with a median, creating a connection for pedestrians with all the people transiting through Vallejo. The site is bordered by railways, which is important for the project as it allows for the creation of two lines of the trolleybus system.

66

Design genesis

BORDE

RS

BORDE

BORDE

RS

67

RS

3

Design process Access

The project has 3 entrances through which users can access the site. There are routes for pedestrians, bicycle routes and routes for children.

68

Design genesis

Access Pedestrian Bycicle Children

69

3

Design process

Excavation of the land and water The current land is a completely flat pavement slab. The purpose of the transformation is to create spaces that generate diverse views and emotions, as well as to create a wetland that takes advantage of the rainy seasons for the filtration and collection of irrigation and rainwater.

70

Design genesis

Wetland Maximum Capacity: 350 m3 of water

Terrain shift of: 5 meters below ground level

71

3

Design process 6x6 Grid

Due to the nature of the project, we aim to create main axes and, from them, generate a 6x6 grid, providing modular logic.

This will allow the use of prefabricated second-use profiles with standard measurements during construction.

72

Design genesis

73

3

Design process Structure

The structure is designed to reuse profiles and metalwork from nearby industries. The joints will be made with screw anchors so that, if the project does not continue, it can be dismantled, and the materials reused.

74

Design genesis

75

3

Connection diagram Nexo Vallejo Trolley plaza and storage Daycare Fruit trail and wetland

Commercial zone

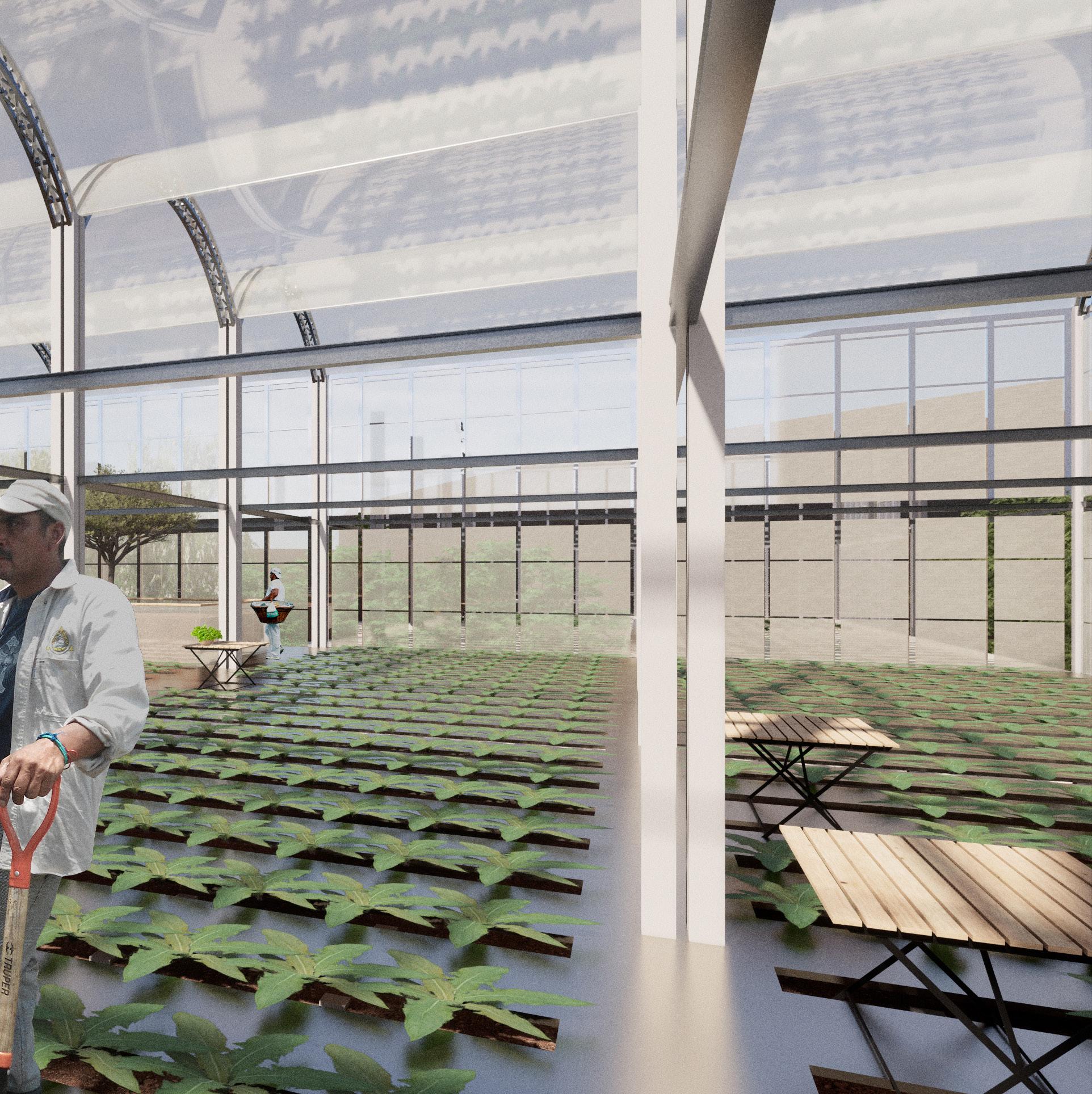

Greenhouse

Sports complex

Dinning area

76

Design genesis

Take advantage of unused spaces Adaptable to all types of terrain Physical health Social cohesion Economic growth Youth development Safe place for development Promotes sustainable practices Optimize the use of electrical energy Reduce dependence on non-renewable energy Capture the CO2 emitted by the factories Reduces the use of transportation Improves water management Development of clean technologies Industrial clusters Government programs Fares adjustable to the local market Seeking financial support from government Supported by the return of investment Formal and informal sales Industrial zone workers Local residents Visitors Educational institutions Children of workers New way of transportation Avoid personal exposure to road traffic Generation of employment Generation of commerce Improve the work environment Increase productivity

Why? Energy transition Investment Sustain Users Attractive

77

Ground floor Complete view

G F E D

0

±0.0

C

00

30.0 00

B

0 00 6.00 12.0 .000 0 6 00 6.00 12.0 0 .00 0 6 6.00 24.0

1

B'

A

6.00

2

.000 0 6

6.00 00 30.0 .000 0 6 6.00

Sto 0

hine Mac m Roo

0

+0.6

5 6 7

00 12.0 00 12.0

+1.5

4

0

rage

3

8

.000 0 6

6.00

A'

0

0

-3.0

0

0

0 -4.0

0

-3.0

0

-2.0

0

-2.5 0

±0.0

0 -1.5

-1.0

-0.5

±0.0

0

-0.5

8%

+0.20

+1.25

7%

A

00 30.0

+2.20

5%

6.000

N

23 22

21

17

36.000 12.000

6.000

20 19

6.000

18

Scale - 1:1250

Nexo Vallejo

25

50

B

0

GSEducationalVersion

6.000

9 10 11 12 13 14 15 16

.000 0 6 6.00 00 00 .000 120.0 48.0 0 6 6.00 .000 0 6

6.00

9%

3

Ground Floor

78

Design genesis 1

Trolley Plaza

2

Comercial Zone

3

Dinning Area

4

Trolley Storage

5

Daycare

1

Plum Tree Lemon Tree Appricot Tree Pear Tree Peach Tree Guava Tree

2

ge

Stora

9%

hine Mac m Roo

3

8%

5

7%

5%

4

N

Scale - 1:1250 0

Nexo Vallejo

GSEducationalVersion

25

50

Ground Floor

79

Level -1

Complete view Plum Tree Lemon Tree Appricot Tree B'

Pear Tree Peach Tree Guava Tree

A'

A

R

R

R

3

6.000

N

23 22

21

36.000 12.000

6.000

20 19

6.000

18

Scale - 1:1250

Nexo Vallejo

25

50

B

0

GSEducationalVersion

6.000

Level -1

80

Design genesis

Plum Tree Lemon Tree Appricot Tree Pear Tree Peach Tree Guava Tree

R

R

R

N

Scale - 1:1250 0

Nexo Vallejo

GSEducationalVersion

25

50

Level -1

81

3

Level 1

Complete view

G F E D C 1

0

6.00 00 30.0 .000 0 6 6.00

2

.000 0 6

0

6.00

0 6.00

6.00

A

B'

B

0

+6.0

6.00 00 30.0 .000 0 6 6.00

3 4 5

0

6 7 8

00

18.0

0

+6.0

A'

00 120.0 00 60.0

00

12.0

9 10 11 12 13 14 15 16

00 30.0

e

ag Stor

e

nc tena

Main

A 00

30.0

17

N

Scale - 1:1250

Nexo Vallejo

GSEducationalVersion

25

50

B

0

First Level

82

Design genesis 1

Greenhouse

2

Sporting Complex

3

Terrace

Plum Tree Lemon Tree Appricot Tree Pear Tree Peach Tree

1

Guava Tree

2

e

ag Stor

e

nc tena

Main

3

N

Scale - 1:1250 0

Nexo Vallejo

GSEducationalVersion

25

50

First Level

83

3

Rooftops

Complete view

G F E D C B

1

B'

A

2 30.0

3

00

4 5 6 7 8 9 10 11 12 13 14 15 16

A'

00 120.0 00 60.0

A 00 30.0

17

N

23 22

20 19

18

Scale - 1:1250 0

Nexo Vallejo

GSEducationalVersion

21

25

B

50

Rooftops

84

Design genesis

Plum Tree Lemon Tree Appricot Tree Pear Tree Peach Tree Guava Tree

N

Scale - 1:1250 0

Nexo Vallejo

GSEducationalVersion

25

50

Rooftops

85

3

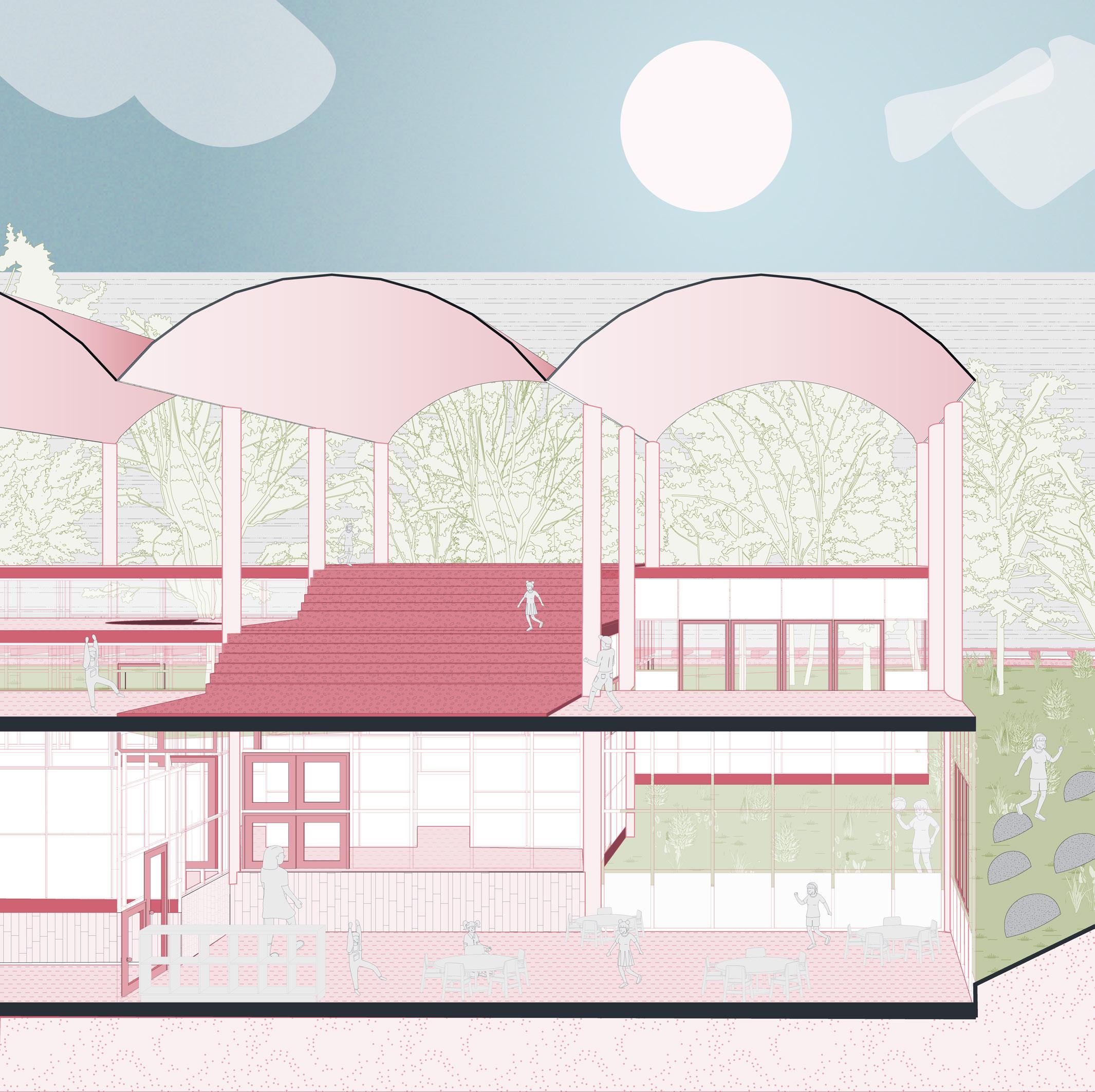

First Facade

Daycare Building

+6.000 1 Level

±0.000 0 Ground Floor

-4.000 -1 Level

6.000

18

6.000

12.000

19

20

GSEducationalVersion

86

6.000

21

22

Design genesis

3

1 4

2 +6.000 1 Level

5 6

7 ±0.000 0 Ground Floor

1.

2.

3.

4.

5.

6.

7.

-4.000 -1 Level

6.000

Nexo Vallejo Facade 1: Daycare

6.000

22

LED Light Arm Solar Panels SP Support Battery Cabinet Lamppost (8m)

Scale - 1:200

23

0

87

2

4

3

Second Facade

Nexo Vallejo Building +12.000 2 Level

+6.000 1 Level

±0.000 0 Ground Floor -4.000 -1 Level

6.000

1

GSEducationalVersion

6.000

2

6.000

3

6.000

4

88

6.000

5

6.000

6

6.000

7

6.000

8

9

8

Design genesis

+12.000 2 Level

+6.000 1 Level

±0.000 0 Ground Floor -4.000 -1 Level

6.000

6.000

9

6.000

10

6.000

11

6.000

12

6.000

13

6.000

14

6.000

15

16

Nexo Vallejo Facade 2: Nexo Vallejo Building Scale - 1:250 0

89

2.5

5

3

Section A-A´

Nexo Vallejo Site +12.000 2 Level

+6.000 1 Level

±0.000 0 Ground Floor -4.000 -1 Level

GSEducationalVersion

90

Design genesis

+12.000 2 Level

+6.000 1 Level

±0.000 0 Ground Floor -4.000 -1 Level

36.000 6.000

A

6.000

B

6.000

C

6.000

D

6.000

E

6.000

F

G

Nexo Vallejo Section A-A': Nexo Vallejo Site Scale - 1:400 0

91

4

8

3

Section B-B´

Nexo Vallejo Site

+12.000 2 Level +6.000 1 Level ±0.000 0 Ground Floor -4.000 -1 Level

42.000

17

6.000

14

GSEducationalVersion

92

6.000

13

6.000

12

6.000

11

10

Design genesis

+12.000 2 Level +6.000 1 Level ±0.000 0 Ground Floor -4.000 -1 Level

00

6.000

11

6.000

10

6.000

9

6.000

8

6.000

7

6.000

6

6.000

5

6.000

4

6.000

3

6.000

2

1

Nexo Vallejo Section B-B': Nexo Vallejo Building Scale - 1:500 0

93

5

10

3

Structural Section

1.

Sport Complex Structure

2.

3.

4.

7. 8.

6.

9.

5.

10.

1.

2.

3.

4.

5.

Corrugated Slab Monten Beam 8’’ x 2 3/4’’ cal. 10 Gambrel Truss 0.30x0.30 m bracket 0.60x0.60 m concrete column

GSEducationalVersion

94

6. Losacero cal. 24 7. Compression layer with mesh 6x6/8-8 w/ 2cm coating 8. Nelson Bolt 9. IPR Beam 8’’ 10. Warren Truss

Design genesis

95

96

Design genesis

Illustrated section of the sports complex building 97

Design genesis

Aerial view 99

4. Connection nodes

4

Connection diagram Connection nodes Trolley plaza and storage Daycare Fruit trail and wetland

Commercial zone

Greenhouse

Sports complex

Dinning area

102

Connection nodes

Take advantage of unused spaces Adaptable to all types of terrain Physical health Social cohesion Economic growth Youth development Safe place for development Promotes sustainable practices Optimize the use of electrical energy Reduce dependence on non-renewable energy Capture the CO2 emitted by the factories Reduces the use of transportation Improves water management Development of clean technologies Industrial clusters Government programs Fares adjustable to the local market Seeking financial support from government Supported by the return of investment Formal and informal sales Industrial zone workers Local residents Visitors Educational institutions Children of workers New way of transportation Avoid personal exposure to road traffic Generation of employment Generation of commerce Improve the work environment Increase productivity

103

Why? Energy transition Investment Sustain Users Attractive

4

CO2 comparison

Cars vs Public transport

If one person took the Trolley+Metro system, they would decrease their emissions by

98%

Car

Users CO2 CO2 per KM daily

16.6 Kg CO

CO2 per 10KM daily

166 Kg CO

CO2 per 10KM/yearly 41,500 Kg C 104

Connection nodes

CO2 Emissions for 100 users by transport

Car

Bus Metro

Trolley

.6 Kg CO2

9.6 Kg CO2

3.4 Kg CO2

3 Kg CO2

6 Kg CO2

96 Kg CO2

34 Kg CO2

30 Kg CO2

00 Kg CO2

24,000 Kg CO2

850 Kg CO2

750 Kg CO2

105

Trolley Plaza Zoom In

G F E D C ±0.00

B A

30.000 24.000 12.000 6.000

6.000

Nexo Vallejo Ground Floor (1): Trolley Plaza

12.000 6.000

6.000

6.000

Scale - 1:500 0

6.000

4

GSEducationalVersion

106

1 2

5

10

N

Connection nodes

Nexo Vallejo Ground Floor (1): Trolley Plaza Scale - 1:500 0

5

10

N GSEducationalVersion

107

4

Trolley Routes

4.3 K

M

Subu rban

4.1 KM

10 Sta

10 mi

nutes

light

8 Stati ons 10 min utes

train una Fort No

rte

108

tions

45

Connection nodes

ico técn Poli

ations

utes

ns s

Line 5 Line 6

leo

ó Petr

o j e ll a V

109

110

Connection nodes

View from the pedestrian crossing 111

112

Connection nodes

View from the Trolley Plaza entrance 113

-1.50

-1.00

-0.50

±0.00

6.000

6.000

6.000

Zoom In

48.000

-2.00

6.000

Trolley storage -2.50

12 13 14 15 16

30.000

4

17 Nexo Vallejo Ground Floor (4): Trolley Storage Scale - 1:500 0

5

10

N GSEducationalVersion

114

8%

Connection nodes

7%

Nexo Vallejo Ground Floor (4): Trolley Storage Scale - 1:500 0

5

10

N GSEducationalVersion

115

5. Growing together

5

Connection diagram Growing together Trolley plaza and storage Daycare Fruit trail and wetland

Commercial zone

Greenhouse

Sports complex

Dinning area

118

Growing together

Take advantage of unused spaces Adaptable to all types of terrain Physical health Social cohesion Economic growth Youth development Safe place for development Promotes sustainable practices Optimize the use of electrical energy Reduce dependence on non-renewable energy Capture the CO2 emitted by the factories Reduces the use of transportation Improves water management Development of clean technologies Industrial clusters Government programs Fares adjustable to the local market Seeking financial support from government Supported by the return of investment Formal and informal sales Industrial zone workers Local residents Visitors Educational institutions Children of workers New way of transportation Avoid personal exposure to road traffic Generation of employment Generation of commerce Improve the work environment Increase productivity

Why? Energy transition Investment Sustain Users Attractive

119

5

Fruit Trail contribution CO2 Reduction

1 tree reduces 25 kg of CO2 per year

The project has a total of 83 trees

120

Growing together

Total reduction: 2075 kg of CO2 per year 121

Daycare

Zoom In -1

23

22

21

20

19

18

30.000 12.000

12.000

6.000

-3.00

-2.00

R

-1.00 R

R

5

Nexo Vallejo Level -1: Daycare Scale - 1:250 0

2.5

N GSEducationalVersion

122

5

Growing together

R

Nexo Vallejo Level -1: Daycare

R

R

Scale - 1:250 0

2.5

N GSEducationalVersion

123

5

124

Growing together

View from the Daycare play area 125

126

Growing together

View from the Daycare room 127

5

Daycare

00

-3.

Zoom Ground Floor

00

-4.

23

22

21

20

19

18

30.000 6.000

6.000

18.000

±0.00

+1.00

+2.00

Nexo Vallejo Ground Floor: Daycare Rooftop Scale - 1:250 0

2.5

N GSEducationalVersion

128

5

Growing together

5%

Nexo Vallejo Ground Floor: Daycare Rooftop Scale - 1:250 0

2.5

N GSEducationalVersion

129

5

130

Growing together

Illustrated section of the Daycare building 131

132

Growing together

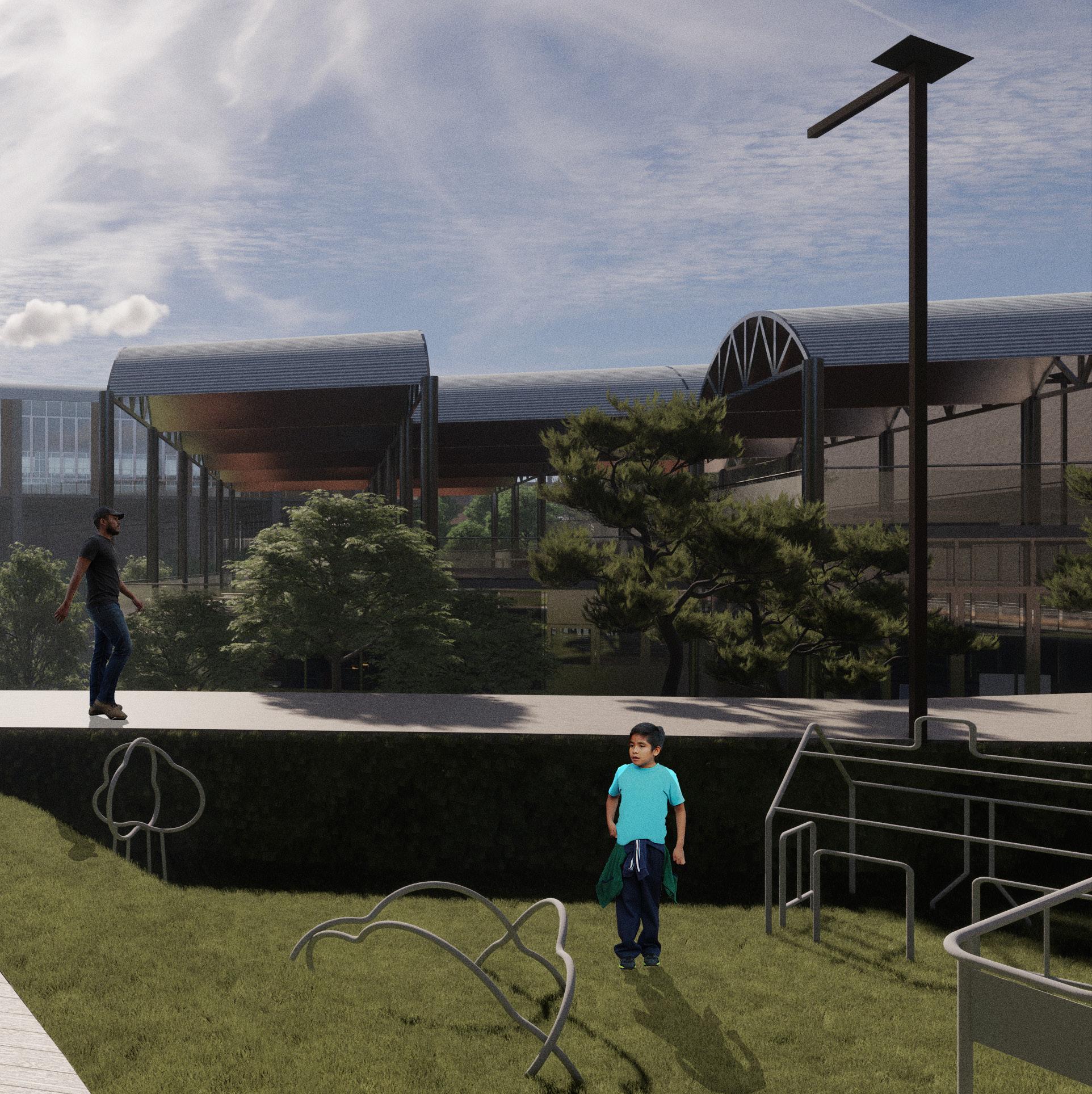

View from the Daycare rooftop 133

Title

Subtitle Bla bla bla

Bla bla bla

134

Growing together

View from the Wetland Area 135

6. Dinamic spaces

6

Connection diagram Dinamic spaces Trolley plaza and storage Daycare Fruit trail and wetland

Commercial zone

Greenhouse

Sports complex

Dinning area

138

Dinamic spaces

Take advantage of unused spaces Adaptable to all types of terrain Physical health Social cohesion Economic growth Youth development Safe place for development Promotes sustainable practices Optimize the use of electrical energy Reduce dependence on non-renewable energy Capture the CO2 emitted by the factories Reduces the use of transportation Improves water management Development of clean technologies Industrial clusters Government programs Fares adjustable to the local market Seeking financial support from government Supported by the return of investment Formal and informal sales Industrial zone workers Local residents Visitors Educational institutions Children of workers New way of transportation Avoid personal exposure to road traffic Generation of employment Generation of commerce Improve the work environment Increase productivity

Why? Energy transition Investment Sustain Users Attractive

139

D

Commercial Zone C

Zoom In

±0.00

B

A

30.000 24.000 12.000

6.000

6.000

6.000

6.000

1

6.000

6.000

12.000

2

6.000

+0.60

30.000

6.000 6.000

+1.50

GSEducationalVersion

140

4 6

12.000

12.000

Machine Room

3

5

6.000

Storage

6.000

6

7 8 9

Nexo Vallejo Ground Floor (2): Commercial Zone Scale - 1:500 0

5

10

N

Dinamic spaces

Storage

Nexo Vallejo Ground Floor (2): Commercial Zone

Machine Room

Scale - 1:500 0

5

10

N

9%

GSEducationalVersion

141

Dinamic spaces

View from the Commercial Zone 143

Greenhouse and Sports Complex 6.000

1 2 30.000

3 4

6.000

6.000

6.000

Zoom In

+6.00

6.000

5 6 7

18.000

+6.00

8 9 120.000

60.000

12.000

10 11 12

Nexo Vallejo First Level: Greenhouse & Sports Complex Scale - 1:500

30.000

6

0

13

5

10

14

N Storage Maintenance GSEducationalVersion

144

Dinamic spaces

Nexo Vallejo First Level: Greenhouse & Sports Complex Scale - 1:500 0

5

10

N Storage Maintenance GSEducationalVersion

145

6

Greenhouse contribution CO2 Reduction

CO2

1 sqm of greenhouse captures .754 kg of CO2 per year

146

Dinamic spaces

The CO2 captured by the greenhouse per year is 588.12 kg 147

6

Greenhouse contribution Water management

Planter bed Greywater sources

To ground water Overflow

Degreasing chamber Septic tank

148

Dinamic spaces

Industry

Grey water reusage

O2 Introduced N2 Removed Biochemical oxigen demand

Ma

CO2 O2

crop

hyte

rhiz

ome

s or

gan i

c de scom

pos itio

np

roce ss

Suspended solids aerobically composted

149

Disccharge to natural ground

150

Dinamic spaces

View from the Greenhouse 151

152

Dinamic spaces

View of the Sports Complex play area 153

154

Dinamic spaces

View of the Sports Complex play area 155

156

Dinamic spaces

View of the sports complex’s court area 157

7. Health and community

7

Connection diagram Health and community Trolley plaza and storage Daycare Fruit trail and wetland

Commercial zone

Greenhouse

Sports complex

Dinning area

160

Health and community

Take advantage of unused spaces Adaptable to all types of terrain Physical health Social cohesion Economic growth Youth development Safe place for development Promotes sustainable practices Optimize the use of electrical energy Reduce dependence on non-renewable energy Capture the CO2 emitted by the factories Reduces the use of transportation Improves water management Development of clean technologies Industrial clusters Government programs Fares adjustable to the local market Seeking financial support from government Supported by the return of investment Formal and informal sales Industrial zone workers Local residents Visitors Educational institutions Children of workers New way of transportation Avoid personal exposure to road traffic Generation of employment Generation of commerce Improve the work environment Increase productivity

Why? Energy transition Investment Sustain Users Attractive

161

7 6.000

2 4

6.000

+0.60

3

30.000

6.000

+1.50

5

6.000

Storage

6 12.000

7 8

6.000

12.000

Machine Room

6.000

9

-1.50

-1.00

-0.50

±0.00

6.000 6.000 GSEducationalVersion

162

48.000

-2.00

6.000

-2.50

6.000

6.000

-3.00

120.000

6.000

10 11 12 13 14 15 16

Nexo Vallejo Ground Floor (3): Dinning Area Scale - 1:500 0

5

10

N

Health and community

Storage

Machine Room

9%

8%

Nexo Vallejo Ground Floor (3): Dinning Area Scale - 1:500

7%

0

5

10

N GSEducationalVersion

163

164

Health and community

View of the Dinning Area 165

8. Energetic pulse

8

168

Ener getic pulse

169

8

Energy

Consumption and production The project has an annual consumption of 676,390 kW/h per year, however, it produces 1,064,985 kW/h, that is, it is energy self-sustainable. The remaining watts are destined for the Azcapotzalco public lighting system and the Sherwin Williams Factory, because it is an immediate neighbor of the site.

170

Ener getic pulse

Annual consumption of buildings + tr olley: 676,390 kW/h

Sur plus of: 388,595 kW/h

Annual pr oduction of buildings: 1,064,985 kW/h

28,000 to Azcapotzalco Public Lighting System 360,000 to Sherwin W illiams Factor y

171

172

173

May architecture embrace us so tightly that we always want to be better for it.

174

175

References

Knowledge bible Aguilar, C. (2021, October 13). StreetDome / CEBRA + Glifberg + Lykke. Recovered from:: https://www. archdaily.com/558349/streetdome-cebra-glifberg-lykke Britannica (2024). Solar Panel. Recovered from: https://www.britannica.com/technology/solar-panel Caballero, P. (2020, July 23). Invernadero Bar Hoegaarden / Metamoorfose studio. Recovered from: https:// www.archdaily.mx/mx/933298/invernadero-bar-hoegaarden-metamoorfose-studio Clancy, M. (2022). The Difference Between Crystalline and Thin Film Solar Panels Explained. Recuperado de: https://korvustech.com/crystalline-vs-thin-film-solar-panels/ De Sortiraparis, M., & De Sortiraparis, R. (2023). La Coulée Verte de París, el insólito y escondido paseo de Bastilla a Vincennes.Recovered from: https://www.sortiraparis.com/es/que-visitar-en-paris/caminatas/articles/248008-la-coulee-verte-de-paris-el-insolito-y-escondido-paseo-de-bastilla-a-vincennes Del Medio Ambiente, S. (s. f.). Revegeta Sedema el Suelo de Conservación de la Ciudad de México con 28.5 millones de árboles y plantas. Recovered from: https://www.sedema.cdmx.gob.mx/comunicacion/nota/ revegetara-sedema-suelo-de-conservacion-con-10-5-millones-de-plantas#:~:text=Con%20la%20revegetaci%C3%B3n%20del%20campo,mil%20hect%C3%A1reas%20de%20parques%20p%C3%BAblicos v

176

Fernandez, J. (2021). ¿Por qué las ciudades son clave para el éxito de la transición energética mundial?

Recovered from: https://www.orkestra.deusto.es/es/actualidad/noticias-eventos/beyondcompetitiveness/2271-por-que-las-ciudades-son-clave-para-el-exito-de-la-transicion-energetica-mundial Lane, C. (2024). How much energy does a solar panel produce? recuperado de: https://www.solarreviews. com/blog/how-much-electricity-does-a-solar-panel-produce Meteoblue (s.f.). Datos climáticos y meteorológicos históricos simulados para Ciudad de México. Recovered from: https://www.meteoblue.com/es/tiempo/historyclimate/climatemodelled/ciudad-de-m%C3%A9xico_m%C3%A9xico_3530597 SENER (s.f.). Transición energética. Recovered from: https://www.gob.mx/cms/uploads/attachment/file/610957/Cap3_-_Transicio_n_Energe_tica_WEB.pdf Simpson, B. (2023). War in Ukraine speeding up Germany’s transition to renewables. Recovered from: https://theworld.org/stories/2023-07-10/war-ukraine-speeding-germanys-transition-renewables Turner, J. (2014). This Changes Everything: Capitalism vs the Climate by Naomi Klein. Recovered from: https://www.theguardian.com/books/2014/sep/19/this-changes-everything-capitalism-vs-climate-naomi-klein-review

177

We have reached the end of this chapter of our lives.

From the bottom of our hearts, thank you for making us grow.

We cherish you, Vallejo Industrial Zone.

Jimena, Emilio and Oliver

178
