NEWS

Snowy Mountains Scheme 2.0 set to begin

W

ork will soon begin on a plan for the Snowy Mountains Scheme 2.0, a project that aims to increase the generation of the Snowy Hydro Scheme by 50 per cent, adding 2000 megawatts of renewable energy to the National Electricity Market.

Once completed, the project could produce 20 times the 100MWh expected from the battery proposed by the South Australian Government in one hour, but would deliver it constantly for almost a week (or 350,000MWh over seven days).

The unprecedented expansion will help make renewables reliable, filling in holes caused by intermittent supply and generator outages.

Prime Minister Malcolm Turnbull said, “For too long policymakers have put ideology and politics ahead of engineering and economics.

“Successive governments at all levels have failed to put in place the necessary storage to ensure reliable power supply to homes and businesses.

“The energy storage infrastructure should be a critical priority to ensure better integration of wind and solar into the energy market, and more efficient use of conventional power.

“By supercharging the Snowy Hydro precinct, affordable and reliable electricity for Australian households and businesses can be ensured.”

The Australian Government, through the Australian Renewable Energy Agency (ARENA), will examine several sites, that could support large-scale pumped hydroelectric energy storage in the precinct.

These sites would involve new tunnels and power stations, connecting existing storages.

The project will have no impact on the scheme’s ability to supply water to irrigators in New South Wales, South Australia and Queensland.

A feasibility study is expected to be completed before the end of 2017, and construction can commence soon after.

Bredel pumps save water, chemical and maintenance costs • Average 71% water savings* lowers chemical costs • Glandless design, no costly valves, seals or liners to replace • Can easily handle SG 4.0 and 80% solids • Metering to ± 0.5% accuracy

50 years of innovation in pump technology

*

vs centrifugal pumps

wmftg.com/au

+61 1300 wmbpumps

6

Australian Bredel ad.indd 1

pump industry | Autumn 2017 | Issue 19

www.pumpindustry.com.au

STANDING IN PERFORMANCE Electric actuators for the water industry Reliable, powerful, efficient. AUMA offer a large portfolio of actuator and gearbox type ranges.

■ Automating all types of industrial valves ■ Integration into all commonly used control systems ■ High corrosion protection ■ Service worldwide

Barron GJM Pty Ltd +61 2 8437 4300

www.barron.com.au

NEWS

Construction underway on Tasmanian irrigation schemes

T

he next round of Tasmanian irrigation projects is now underway, with the start of construction of the $31 million Southern Highlands Irrigation Scheme.

The Southern Highlands Irrigation Scheme will increase water security for local irrigators and is part of many irrigation projects aimed at supporting regional development, and strong and sustainable growth in Tasmania’s irrigated agriculture sector.

Deputy Prime Minister and Minister for Agriculture and Water Resources Barnaby Joyce, Tasmanian Deputy Premier and Minister for Primary Industries and Water Jeremy Rockliff, and Tasmanian Senator Jonathon Duniam, said works were progressing quickly on the $31 million project to expand the Southern Highlands Irrigation Scheme, the first project to break ground under Tasmanian Irrigation Tranche II. “The Coalition Government is contributing up to $60 million to the Tasmanian Irrigation Tranche II program, including $15 million towards works to expand the Southern Highlands Irrigation Scheme, which I’ve been pleased to inspect today,” Minister Joyce said.

“This government has a vision for building the water infrastructure needed for our nation to reach its full economic and productive potential, and we are making unprecedented levels of funding available to make it happen.

“It’s a vision shared by the Tasmanian Government, who, together with local irrigators, have co-invested with us to deliver the exciting and important projects under Tasmanian Irrigation Tranche II. “Now, through the National Water Infrastructure Development Fund and National Water Infrastructure Loan Facility, we are putting $2.5 billion on the table to incentivise other state and territory governments to follow suit and get priority water infrastructure projects off the drawing board and under construction more quickly.”

Senator Jonathon Duniam, said the Coalition Government’s commitment to the Tasmanian Irrigation Tranche II program also included $25 million approved for the Swan Valley and Duck schemes, which are also under construction. The proposed Scottsdale and North Esk schemes currently in the planning and approvals phase.

“In addition to funding for Tasmanian Irrigation Tranche II, we are investing $1.78 million towards a $2.5 million project with Tasmanian Irrigation to fast-track a feasibility study into potential new areas for developing irrigation schemes in Tasmania.”

OVER 50 YEARS EXPERIENCE

YOUR CUSTOM DESIGN PARTNERS

NEVER HAVE A MECHANICAL

SEAL FAILURE AGAIN WITH THE CANTILEVER COLUMN

C SERIES PUMP RANGE No mechanical seals or bearings submerged in the liquid Can run dry indefinitely without damage Self-priming Wide range of options to suit all applications Solids Handling & Clean water options available Phone: 03 9793 7577 Web: asmpumps.com.au Email: sales@asmpumps.com.au

8

pump industry | Autumn 2017 | Issue 19

www.pumpindustry.com.au

NEWS

Three contracts awarded for Bendigo Groundwater Project

T

he Victorian Government has awarded three contracts for separate works on Coliban Water’s Bendigo Groundwater Project.

Victorian Member for Bendigo East Jacinta Allan said Lendlease was awarded a contract to design, construct, operate and maintain a groundwater treatment plant, Veolia Water Network Services would construct the pipeline, and Ward Bros from Rochester would construct the brine storage lagoon.

In total, the state government has provided $29.77 million in funding to manage rising groundwater in mine voids beneath Bendigo.

Previously, Bendigo Trust, the operators of the Central Deborah Gold Mine, had been contracted to pump the groundwater out of the mines.

Ms Allan said, “The Victorian Government is fulfilling its commitment to the people of Bendigo by getting on with this essential project to protect the city and surrounding areas from contaminated groundwater from Bendigo’s historic mines.”

The Bendigo Groundwater Project involves a total of 32 jobs across the construction, operation, and maintenance of the treatment plant, pipeline, and storage lagoon. Of the 32, five new jobs have been created across the treatment plant, pipeline and storage lagoon.

The refurbishment, construction, and operation will deliver a four-year solution for managing the rising groundwater in the Central Deborah Gold Mine and prevent discharge, and associated environmental and amenity impacts in, and around Bendigo.

The groundwater has elevated levels of arsenic, heavy metals and salinity, and gives off an unpleasant odour due to the presence of hydrogen sulphide gas.

With the treatment process in place, the groundwater will no longer need to be stored at the Woodvale evaporation ponds north-west of Bendigo, as was the previous practice.

The appointment of contractors follows a tender process, and an agreement between Coliban Water and Kralcopic that will drive investment towards a solution that contributes to the long-term management of groundwater from mine voids beneath Bendigo.

When complete, the groundwater treatment facilities will be operational for an initial period of four years while plans for the permanent solution are progressed.

Naturally occurring groundwater within Bendigo’s network of disused and abandoned mines has been recovering to natural levels since mining ceased in 2011.

Works have commenced on schedule and the interim solution will be fully operational by mid-2017.

BAKER-BLOC

BAKER-LINE

BAKER-FLOW

 Local Support  Engineered Design  Rugged construction  Optimum Efficiencies  High Pressure, up to 40bar  Conforms to API standards Sydney – Brisbane – Melbourne – Perth

Head Office +612 9748 2022

www.masterflow.net.au www.pumpindustry.com.au

~w

30 Y ith ~ EAR OF AUS S T R

SUC ALIAN CES S

pump industry | Autumn 2017 | Issue 19

9

NEWS

The importance of professional installation and commissioning

D

ue to the impacts of climate change, there is now an increased focus on industries employing strategies that reduce energy consumption.

The Federal Government offers incentives linked to the Emissions Reduction Fund (ERF), including a scheme by the Department of Environment that covers large pumping equipment using the Industrial Equipment Upgrade method, and work on a new standard, AS/NZS3598.2 Energy audits – Industrial and related activities, is currently in progress.

Despite these initiatives, the PIA says there still needs to be an adequate supply of resources to verify that these improvements do result in actual gains.

PIA recognised the need to identify specialists that can effectively supervise the installation of pumping equipment, and then commission the plant to ensure that the operational requirements are satisfactorily achieved. While this expertise did exist in many pump companies, there was no uniformity in approach and these personnel were not easy to identify.

Realising this, PIA developed a pump installation and commissioning training course to outline a consistent set of

guidelines. The one-day course was first introduced in 2016 at Link Pumps in Williamstown and includes both a theoretical and practical component.

As a result, around 30 engineers are now accredited by PIA to conduct this work, and are listed on the PIA website.

Recently, the course was held in Sydney where further engineers were added to the list.

The Sydney training program was conducted in the new training centre at Hydro Innovations in Rydalmere. Alan Rowan and Keith Sanders conducted this course, with strong support from Zach Jerla of Hydro Innovations for the practical demonstrations.

The mix of theory and hands-on activities helped participants appreciate the issues that need to be addressed when supervising the installation of pumping equipment, and the procedures for accurate testing of the plant on site. All participants achieved certification by PIA. Further courses are planned for the rest of 2017, with the next course being held in Melbourne on 24 May 2017. The program is open to both members and non members.

Register your interest at www.pumps.asn.au or, for further information, contact pumpsaustralia@bigpond.com.

THE NEXT GENERATION OF SOLARPAK

10

pump industry | Autumn 2017 | Issue 19

www.pumpindustry.com.au

NEWS | PARTNER SOLUTIONS

New pump training facility H ydro Innovations has just opened a new training centre, called the Hydro Innovations Pump Institute, to assist their customers in the selection, troubleshooting, and maintenance of centrifugal pumps.

The centre will focus most attention on self-priming pumps, but aspects of the curricula offered will include standard centrifugal and submersible pumps.

The institute covers two floors, and houses a variety of training assets. The main attraction is a full-size functioning pump station on the first floor, with suction lines going down into a clear wet well system on the ground floor, demonstrating the self-priming process very clearly through clear acrylic suction lines. Other training assets include a glass-faced pump and a full-size “tear-down” pump The glass-faced pump is a full-size pump with a glass front. This allows observers to see the inside workings of a centrifugal pump, and is capable of demonstrating a raft of troubleshooting scenarios, including air binding, pipe blockages, and many others.

The “tear-down” pump enables training for operators and fitters on disassembly and reassembly of a centrifugal pump, including tips on seal and bearing installation, setting pump clearances, and other key elements in repair and maintenance procedures. The Hydro Innovations team hope that this element of operator training, along with gauge reading and troubleshooting training will help keep pumping assets at their efficient best for a long and trouble free time.

THE GLOBAL LEADER

IN SUBMERSIBLE

WASTEWATER MANAGEMENT SYSTEMS

For more information visit

www.pentair.com.au

www.pumpindustry.com.au

PPC RANGE Sub pump controllers

MULTISTREAM RANGE Sub sewage pumps

MULTICUT RANGE Sub sewage pumps with cutter

pump industry | Autumn 2017 | Issue 19

11

PIA NEWS

Getting technical at PIA’s Sydney meeting

P

ump Industry Australia started off a busy 2017 with a technical meeting at Hydro Innovations on 21 February.

The meeting was a great opportunity for PIA members and guests to network with colleagues who operate in the Sydney pump market, and the event was well-received by those who attended.

Presentations were made by Keith Sanders, Garry Grant, and ABB’s David Goodchild. Keith’s presentation, an introduction to lifecycle costs, explored total cost of ownership, and provided useful information to pump users and specifiers in attendance.

Garry spoke about the recent activities at Hydro Innovations including their new test bay that opened in 2016.

Attendees were given the chance to view the new test bay at the Rydalmere facility, which has been set up as part of Hydro Innovations training centre.

PIA President Dave Alexander said the “impressive” centre was “designed to feel as though you are actually in a pump station”.

David Goodchild, Business Development Manager for High Voltage Motors and Generators at ABB, presented on the Dodge vertical gearmotor (VGM), a solution for

12

pump industry | Autumn 2017 | Issue 19

low-speed vertical pumping applications that have high power requirements.

David, whose career at ABB spans more than 15 years, discussed the benefits of the VGM compared to pump drive technologies that utilitse large pole count motors, which can be expensive.

He also talked about the applications the VGM is suitable for, including pumping stations for flood control and wastewater, circulating water in power plants, desalination plants, irrigation systems, and pumping systems for residential and commercial water supplies.

www.pumpindustry.com.au

PIA NEWS

Vale ANTONY GRAGE Long-time pump professional and PIA life member Antony Grage sadly passed away on 30 December 2016, aged 76.

O

ver his 22-year career in pumps, Antony worked at Thompsons-Byron Jackson; Thompsons, Kelly & Lewis; and Flowserve. He was also involved with Pump Industry Australia, including a period as president.

Antony’s career began in the road transport equipment industry after joining Transpec Ltd as a part-time draftsman in 1963. After working at Transpec for 23 years, including in the position of Technical Director, Antony joined the pump industry in 1986 as Sales and Marketing Manager at Thompsons-Byron Jackson. This was shortly before the company took over Kelly & Lewis, forming Thompsons, Kelly & Lewis (TKL). Years later, TKL took over Ingersoll Rand Pumps, and was then acquired by Flowserve.

Antony’s passion for pumps was evident throughout his time at these organisations, and he was held in high regard by his colleagues and the industry. In Antony’s last four years working in the industry he was the Business Development Manager for the mining industry at Flowserve, before retiring at 68.

After retirement, Antony continued working part-time at a small industrial company that made emergency flashing

beacons, and kept in touch with many of his pump industry colleagues at regular lunches and PIA events. It was after retirement that Antony was also made a PIA life member.

Outside of pumps, Antony also loved sailing and had a long association with the Flinders Yacht Club, serving as Commodore for a number of years. He also satisfied a lifelong interest in aviation history as the President of the Aviation Historical Society of Australia.

Antony’s funeral was held on 9 January at the Flinders Yacht Club, and was attended by more than 200 friends, family members, and former colleagues, including Keith Sanders, Les Boelckey, and Bill Coulter from the PIA. “It is clear that Antony had a rich and meaningful life. He will be sadly missed by all of his industry friends and colleagues,” said PIA President Dave Alexander.

Antony is survived by his wife Deidre, sons Paul and Nick, daughter Anna and his six grandchildren.

You can read more about Antony’s career and life in Pump Industry’s 2013 profile on him, which can be viewed at www. pumpindustry.com.au/antony-grage.

Highly efficient and cost-effective solutions for large pumping applications?

Absolutely.

The Dodge Vertical Gearmotor provides an alternative to common vertical pump drive technologies and offers significant benefits when compared to other systems.

The Vertical Gearmotor is built on a standard low pole count motor platform utilizing proven Dodge planetary gear technology. This results in a smaller, lighter, more cost-effective and highly efficient package. www.abb.com/mechanicalpowertransmission

ABB Australia Pty Limited Tel. 1800 222 435 E-mail: abb.dodge.sales@au.abb.com

VGM half page ad for Pump Industry mag 2017.indd 1

www.pumpindustry.com.au

3/8/2017 12:41:07 PM

pump industry | Autumn 2017 | Issue 19

13

PIA MEMBER NEWS | PARTNER SOLUTIONS

As energy prices continue to rise, motor efficiencies will remain a hot topic

by Spiro Fkiaras – Product Manager LV Motors at WEG Australia

R

educing the speed of a pump to deliver required levels of flow or pressure can result in significant energy savings. Whilst this statement is generally true and readily accepted by industry, those scrutinising return on investment and payback periods have often found them to be much longer than originally anticipated. Why? Often overlooked is the fact that with any reduction in pump speed and pump load, there will also be a reduction in motor efficiency. Power consumed throughout the speed range is therefore higher than expected, thus extending the payback period.

To address this issue, WEG has further developed its highly successful CFW11 “Optimal Flux” drives. The new technology allows WEG motors to maintain high levels of efficiency, irrespective of pump speed and load, thus significantly improving return on investment.

Figure 1 demonstrates the efficiency gains realised through the use of WEG motor and drive packages.

Continuing to lead the way in energyefficient solutions, WEG understands that many installations do not comprise variable speed drives and cannot benefit through the application of same. To that end, WEG offers a full range of IE4 induction motors. These deliver high efficiency and high starting torque and unlike some other IE4 motors on the market, are also suitable for direct on line and soft starting application.

For installations where super high levels of efficiency are mandated, the ultimate energy-efficient solution comes in the form of a WEG WMagnet/ CFW11 motor/drive package. WMagnet is WEG’s latest range of permanent magnet AC motors delivering IE5 efficiency levels.

In comparison to alternative technologies, including switched and synchronous reluctance, WMagnet delivers smoother operation, reduced audible noise, and reduced supply current draw, as outlined in Figure 2.

Figure 1.

Figure 2.

For more information, please consult your nearest WEG office.

Motors | Automation | Energy | Transmission & Distribution | Coatings

Highly Efficient Solutions for the Pump Industry

WEG Australia MELBOURNE | SYDNEY | BRISBANE | ADELAIDE | PERTH

14

pump industry | Autumn 2017 | Issue 19

IE2 IE3 IE4 IE5

www.weg.net/au

www.pumpindustry.com.au

PIA MEMBER NEWS | PARTNER SOLUTIONS

Winning the battle

AGAINST WIPES A

ustralian utilities fight battles against sewer clogs and the potential overflows that may result. The rise in the use of personal wipe products and their improper disposal has worsened the problem.

Operators and technicians often crawl into confined spaces or hoist pumps out of wet wells to wrestle with rag monsters.

KSB Australia is well aware of this issue and is leading a campaign to “Conquer the Clog”.

The newly developed free-flow impeller for wastewater pumps will be the trade fair highlight showcased by KSB Australia at this year’s OzWater in Sydney.

The F-max impeller incorporates different distances between its blades, arranged in groups with two small and two large distances.

The asymmetrical blade arrangement offers impressively wide free passages, ensuring that even larger, rigid solids pass easily and are reliably handled by the pump. The blades were designed to create a swirl in the hub area.

This swirling effect shifts fibers away from the impeller hub and transports them to the outside. Based on decades of experience in free-flow impeller design, KSB hydraulic experts employed the CFD method (Computational Fluid Dynamics) to gain detailed knowledge about the complex flow processes inside the pump via computer-aided simulations.

The new F-max impellers are achieving efficiencies previously only reached by single-channel impellers.

Subsequent balancing is no longer required.

The radial forces and vibrations created by the new impeller are usually lower than those of single-channel impellers, so the service life of shaft seals and rolling element bearings is increased. Pumps with F-max impellers require only minimal maintenance.

When they rotate, free-flow impellers develop a strong swirl which keeps solids suspended in the pump casing and, with the inclined suction area,

16

pump industry | Autumn 2017 | Issue 19

generates an additional flushing action.

This significantly reduces the risk of clogging in the impeller’s centre caused by long fibers, in particular by wet wipes.

KSB Australia’s holistic approach to clogging It starts with a good design – the pump and impeller must fit into design parameters. When properly executed, it all works together with minimal need for maintenance or downtime.

Station design While the increasing use of wipes is a challenge, different systems handle the problem differently, and variable fluid content influences performance.

Engineering and planning of wastewater facilities requires an understanding of the pumped wastewater composition for trouble-free performance and energy efficiency.

Automation KSB offers highly specialised technologies to assist in the control and monitoring of the wastewater treatment process. This includes process control systems to monitor and optimise pumps, valves, flow rates, and other critical information.

Solids separation In all waste streams there are solid and liquid components. To “Conquer the Clog”, it’s best to first remove as many of the solid components as possible.

Hydraulics The heart of the hydraulic system is the pump and, more importantly, the impeller. The design and efficient operation of these critical components is essential for successful fluid flow.

This is the systemic approach – all components must work together.

Impeller technologies There are many types of impellers – just like there are many types of pumps.

This can make the selection process complicated if you don’t know what you need. Fortunately, KSB Australia makes a wide variety of impellers, which can be utilised in the same pump with minor modifications to the volute.

www.pumpindustry.com.au

NEW

F-max Impeller

NEW

D Impeller

E-max Impeller

NEW

K-max Impeller

Next Generation Amarex KRT with high efficiency motor.

S Impeller

Clogging and 'ragging' is a 'systems' problem. KSB takes a holistic approach with solutions that cover:

KSB unclogs problems by bringing new ideas to solve the toughest wastewater challenges.

Pump station design Solids Separation Automation Hydraulics Each waste water plant is unique. Each clog is different. KSB solves these system wide problems with experience, perspective, and innovative technologies that minimizes downtime and improves operational efficiency.

Conquer The Clog today. Visit KSB Australia at OzWater'17: stand L15

Our technology. Your success.

Pumps • Valves • Service

www.ksb.com.au

INDUSTRY NEWS | PARTNER SOLUTIONS

Corrosive liquid pump

A

new cast 316 stainless steel self-priming centrifugal pump has been introduced to handle corrosive liquids in mining and processing applications. The new range of electric drive pumps are close coupled and feature high efficiencies for both high and low head applications.

Introduced by Australian Pump Industries, the pumps are designed to answer a serious need in mining and chemical industries for cost efficient, ISO 9001 quality products, capable of handling contaminated and corrosive liquids.

“This product line has been developed for mine tailings and other difficult corrosive liquids including salt water,” said Aussie Pumps Product Manager Neil Bennett.

“We perceived a major market opportunity for a top-quality stainless steel pump at a realistic price, and built strictly in accordance with our quality culture.”

The first pump to be introduced is a 5.5kW 3” pump that delivers a maximum flow of 910LPM with the added ability to handle solids to 10mm.

Like all of the Aussie GMP range, the pump is self-priming with the ability to

draft water from depths of six metres.

The maximum pump head is 40m, making it ideal for high pressure water transfer or even machinery washdown.

Power for the machine comes from a 5.5kW TEFC three phase, two-pole electric drive motor. Pump and motor are installed from the factory on a heavy duty steel base for ease of installation. Optional stainless steel or hot galvanised steel bases are available on request.

“The pump’s big advantage is its ease of repair in the field and simplicity of operation. Even changing the seals is simple,” said Mr Bennett.

“The pump is close coupled to the motor with a 316 stainless steel stub shaft. Disassembly of the pump body from the motor is a matter of minutes, giving access to the pump chamber for clean out or service.”

The secret of the pump’s excellent self-priming characteristics are the big “shoulders” in the priming tank incorporated in the unit’s design. The high-mounted suction port also helps fast self-priming without the need for additional aids like vacuum pumps or compressors.

Aussie Pumps Operations Manager Hamish Lorenz checks out the new 316 stainless steel Aussie G3TK-A electric pump.

The new pump is available in nickel aluminium bronze, as well as with a semi-trash version available in the cast iron configuration. Seals are heavy duty mechanical style with nitrile elastomers.

Optional Viton and silicon carbide are also available on request.

The first pumps are going to Kalgoorlie where they will be used for mine tailings and washstand applications in high ph level liquids.

Further information, including a free data pack, is readily available from Australian Pump Industries or Aussie Pump Distributors throughout Australia or at www.aussiepumps.com.au.

REDUCED ENERGY COSTS SCT PUMP The special design of SEEPEX progressive cavity pumps with Smart Conveying Technology (SCT) offers reduced energy consumption along with ease of maintenance, extended service life and significantly reduced life cycle costs.

SCT pumps effectively convey the large range of fluids and solids in the water and wastewater industry and provide the best solution for your application.

18

BENEFITS  Use up to 25% less energy than conventional progressive cavity pumps  Quick maintenance  Reduced downtime  Increased productivity  Less space required for installation and maintenance Contact our experts now, to experience these benefits yourself.

pump industry | Autumn 2017 | Issue 19

SEEPEX Australia Pty. Ltd. info.au@seepex.com www.seepex.com

www.pumpindustry.com.au

PIA MEMBER NEWS | PARTNER SOLUTIONS

Innovative solution to sewage pump station upgrade

T

he asset owner at the Mount Piper Power Station, Mr Rainer Scheurer, was looking for a solution to the maintenance issues associated with his submersible sewage pump stations on the site. The problems were many and varied, including lifting chains breaking, pumps becoming stuck on their guide rails, as well as general reliability issues. Even with everything going well, operators would be exposed to a 7m fall into the pit whilst hoisting submersible pumps to the surface for maintenance.

Mr Scheurer came to Hydro Innovations for some ideas on how he could get away from these issues.

Hydro Innovations suggested the use of Gorman-Rupp self-priming sewage pumps, which would mean that only one operator would be needed for most of the maintenance issues, and any work could be done without opening wet well covers. Rainer liked the idea, but the pit was so deep that self-priming pumps could not be located at ground level.

Hydro Innovations suggested putting

the pumps into the existing valve vault to get pumps closer to water level, reusing the path the old discharge lines took, and connecting directly into the existing rising main in the valve vault.

Gorman-Rupp’s V3B60-B pumps were chosen for the job, to deliver the 15 litres per second flow rate, but most importantly, were capable of re-priming the required 7.6m suction lift – a tough ask for most self-priming pumps.

Hydro Innovations explained that most self-priming pumps with a full casing of liquid are capable of priming to this level, but re-priming automatically, with only a partially filled casing (because casing siphoning can occur between pump cycles), is a totally different proposition.

As Gorman-Rupp publish guaranteed re-prime lifts on their sewage pump curves, Hydro Innovations had no hesitation applying the pump on this suction lift.

Hydro Innovations were duly given the go-ahead on the project and set to work designing a piping and valve system that could comfortably fit in

the valve vault. A compact but practical design was approved and the project delivered.

Mount Piper Power Station now has a sewage pump station that is under cover, inside the valve vault, is easily accessed without the need for lifting apparatus, and can be safely maintained by one operator.

GORMAN-RUPP SELF PRIMING WASTEWATER PUMPS easy access lower life cycle cost fastest to service

less choking

no confined spaces longer lasting

T: 02 9898 1800 E: sales@hydroinnovations.com.au

HydroInnovations.com.au www.pumpindustry.com.au

pump industry | Autumn 2017 | Issue 19

19

PIA MEMBER NEWS | PARTNER SOLUTIONS

Brown Brothers strengthens partnership with Layne Bowler vertical turbine pumps Layne Bowler’s history can be traced back to 1882, when the inventor Mahlon Layne drilled his first well and found himself in need of a pump to deliver the water from the well. He understood that the pump he required would need to be different from all existing pumps of that time.

I

n 1903, Mahlon Layne and entrepreneur PD Bowler got together and created the Layne & Bowler Company in the Mississippi Basin, where they manufactured vertical turbine pumps for use in cased wells or where the water level was below the practical limits of surface pumps. From these humble beginnings Layne Bowler pumps are now installed in all parts of the world.

Layne Bowler Pump Company Inc. was established in Ankara, Turkey, in 1965, where the innovation and engineering development never stopped, with Layne Bowler continuing to introduce new pump ranges.

Layne Bowler’s premises in Ankara covers 42,000sqm, where its qualified engineers and experienced technicians continue to serve the energy, industrial, municipal, and agricultural markets.

Brown Brothers Engineers is the exclusive nationwide distributor for Layne Bowler vertical turbine pumps in both

Layne Bowler vertical turbine pumps are designed primarily for heavy duty, continuous operation in irrigation, municipal, and industrial applications.

Australia and New Zealand, and carries a comprehensive range of pump components including column and shafting.

The Brown Brothers engineering facilities allow them to promptly build the Layne Bowler product. The Melbourne facility has full testing capabilities to meet customer requirements, and the installed population continues to grow across Australia and New Zealand. For your vertical turbine pump requirements contact Brown Brothers Engineers today on 1300 4 BBENG (1300 4 22364) or at www.brownbros.com.au.

VERTICAL TURBINE PUMPS • Flows to 2,300 L/Sec • Heads to 350 m • Power to 1000+ kW • Temperatures to 150°C • Bowls Diameter up to 45 inch Design Advantages • Exceptional engineering quality • Highly efficient hydraulic design • Heavy duty component castings • Cast discharge heads • In-built thrust bearing with anti-rotation arrangement • Standard IEC electric motors • Superior quality column assemblies • Materials of construction options • Shaft sealing options • Engine drive options Applications • Irrigation • Water Supply • Process water • Geothermal • Cooling towers

TASTE THE ENGINEERING

• Fire protection • Marine • Water treatment • De-watering

Exclusive Australian Distributor

03/17

Layne Bowler vertical turbine pumps have a proven record under the most demanding and toughest of conditions.

20

Ph: 1300 4 BBENG www.brownbros.com.au

DELIVERING PUMPING SOLUTIONS pump industry | Autumn 2017 | Issue 19

www.pumpindustry.com.au

PIA MEMBER NEWS | PARTNER SOLUTIONS

How to get the best out of your pumps

I

t’s the question that underpins everything pump users and specifiers do when monitoring and operating pumps: how do you ensure you’re getting optimal performance every time?

PIA is hosting a technical seminar on 27 April in Mount Waverley, Melbourne, that will explore what steps need to be taken in pump design, testing, and performance monitoring to allow for optimum operating conditions.

The seminar will also help pump users determine the best inspection and testing planning (ITP).

Running from 9am – 5pm, the full-day program will include presentations from key players in the pump industry, and explore topics ranging from sensors and meters, to pump standards and guidelines.

Keith Sanders, Ken Kugler, and Ron Astall will discuss pump standards, including ISO, and API 610, and compare approaches to pump specifications.

Nasir Akolawala and Les Luke’s presentation will explore sensors and meters that have been developed for submersible sewage pumps.

Ken Kugler and Ron Astall will then be back to talk about

PUMP SEMINAR

works testing (AS 2417) and how it stacks up to the results of site testing.

Malcolm Robertson will present on the continuous performance monitoring thermal method, and demonstrate this through a case study.

A presentation by WEG will cover motor MEPS operation and service recommendations, while Keith Sanders will explore the condition monitoring guideline ANSI/HI 9.6.5.

The topic of process instrumentation remote monitoring of pump stations will be discussed by speakers Josh Pinto and Arash Louie, before the final PIA panel session, where Praveen Salian and Farukh Yaqub will cover remote on-line condition monitoring for pumps.

These presentations together aim to highlight pump lifecycle costs, and the balance between reliability of service, and maintaining plant output programs.

PIA’s technical seminar will take place at Bruce County Hotel, 445, Blackburn Rd, Mt. Waverley, VIC, 3149. To register, visit www.pumps.asn.au or contact the PIA secretary at pumpsaustralia@bigpond.com.

HOW TO GET THE BEST OUT OF YOUR PUMPS?

27 APRIL 2017

This will look at various aspects of pump design, testing and performance monitoring in the field to determine the optimum operating conditions and the most appropriate Inspection and Testing planning (ITP’s) for reliable operation through to eventual plant replacement.

27 April 2017, 9am - 5pm Bruce County Hotel 445 Blackburn Rd, Mt Waverley VIC 3149 $500 +GST for PIA members $600 +GST for non-members

www.pumpindustry.com.au

Registration and payment can be made on-line at www.pumps.asn.au Alternatively please contact the Secretary on pumpsaustralia@bigpond.com

pump industry | Autumn 2017 | Issue 19

21

INDUSTRY NEWS | PARTNER SOLUTIONS

EXTREME CONDITIONS CALLS FOR ROBUST PIPING SYSTEMS

On the rocky Antarctic plateau adjacent to the Larsemann Hills, at temperatures down to minus 40°C, India has been operating a science research station since 2012. Named “Bharati”, after the Hindu goddess of wisdom and knowledge, it serves as headquarters for climate change and oceanographic research.

T

his high-tech station consists of one main building, a fuel farm, fuel station, seawater pump house, a summer camp, and a number of smaller containerised modules.

The main building offers regulated power supply, automated heating and air conditioning with hot and cold running water, flush toilets, sauna, cold storage, PA system, living areas and laboratory space.

To enable Bharati’s researchers to continue their vital work in extreme conditions during the Antarctic winter, it required especially robust drinking water and heating solutions.

Drinking water hygiene is particularly vital at the remote location. Contamination by legionella or similar harmful microbes would be disastrous, not only for the researchers– the very future of the mission would be placed at risk.

That is why the planners chose Viega’s Sanpress Inox system with pipes made of premium quality EN1.4521 stainless steel, and Viega Easytop circulation regulating valves that ensure the hot water is kept at a constant 60°C. The facility’s thermal disinfection system provides further protection against legionella, while Easytop extraction valves allow easy regular monitoring of drinking water quality.

22

pump industry | Autumn 2017 | Issue 19

Kerosene is used to generate heat and power, because it keeps liquid down to minus 54°C. So to aerate the tank, Indian engineers installed the Viega Sanpress Inox G piping system because of its permanent resistance to the media being pumped. Sanpress Inox G is usually used for gas and heating oil pipes. It was launched in Australia in 2013.

The Viega Prestabo galvanised steel system was used for Bharati’s heating installation. To prevent the heating water from freezing, a 57 per cent glycol-L additive is mixed into it.

For the project, Viega tested the reaction of the EPDM sealing rings to such extremely high glycol content levels. The end result: the sealing rings of the press connectors are fully usable for the heating water/glycol mix. They are also suitable for operating temperatures from minus 40°C up to 80°C plus.

Some 25 people will be working under extreme conditions at the Bharati station all year round for at least 20 years – in part thanks to Viega press-fit technology.

For more information, visit www.viega.com.au.

www.pumpindustry.com.au

The Wellmaster range is the Flexible Rising Main System for all types of ground water extraction and well monitoring operations.

Features Regulation 31 UK Drinking Water Inspectorate Regulation 27 Drinking Water Scotland Total corrosion, microbiological and internal scaling resistance Long operational life with a 10 year warranty* High abrasion resistant lining and cover Superior hydraulic performance with low friction loss for a reduced operating cost Rapid installation and retrieval resulting in substantial labour and cost savings Available with a range of reusable field-fittable high security 316 stainless steel couplings and a full range of other accessories Diameters from 38mm – 200mm Range includes WM150, WM250 and WM400 Manufactured under Angus Flexible Pipelines ISO 9001 Quality Management Systems accreditation Angus Environmental Management System complies with ISO 14001

Angus Flexible Pipelines Australia Pty Ltd

Ph: 07 3256 7624 9/67 Depot Street BANYO Qld 4014 *

if installed by an Angus approved installer

Its simplicity of installation makes Wellmaster the cost-effective alternative to rigid pipe.

Wellmaster is manufactured from high tenacity synthetic yarns, circular woven and totally encapsulated in a tough elastomeric polyurethane lining and cover. The riser has an integral textile reinforced rib for location of the power cable strapping system. The larger sizes have two ribs.

INDUSTRY NEWS | PARTNER SOLUTIONS

4

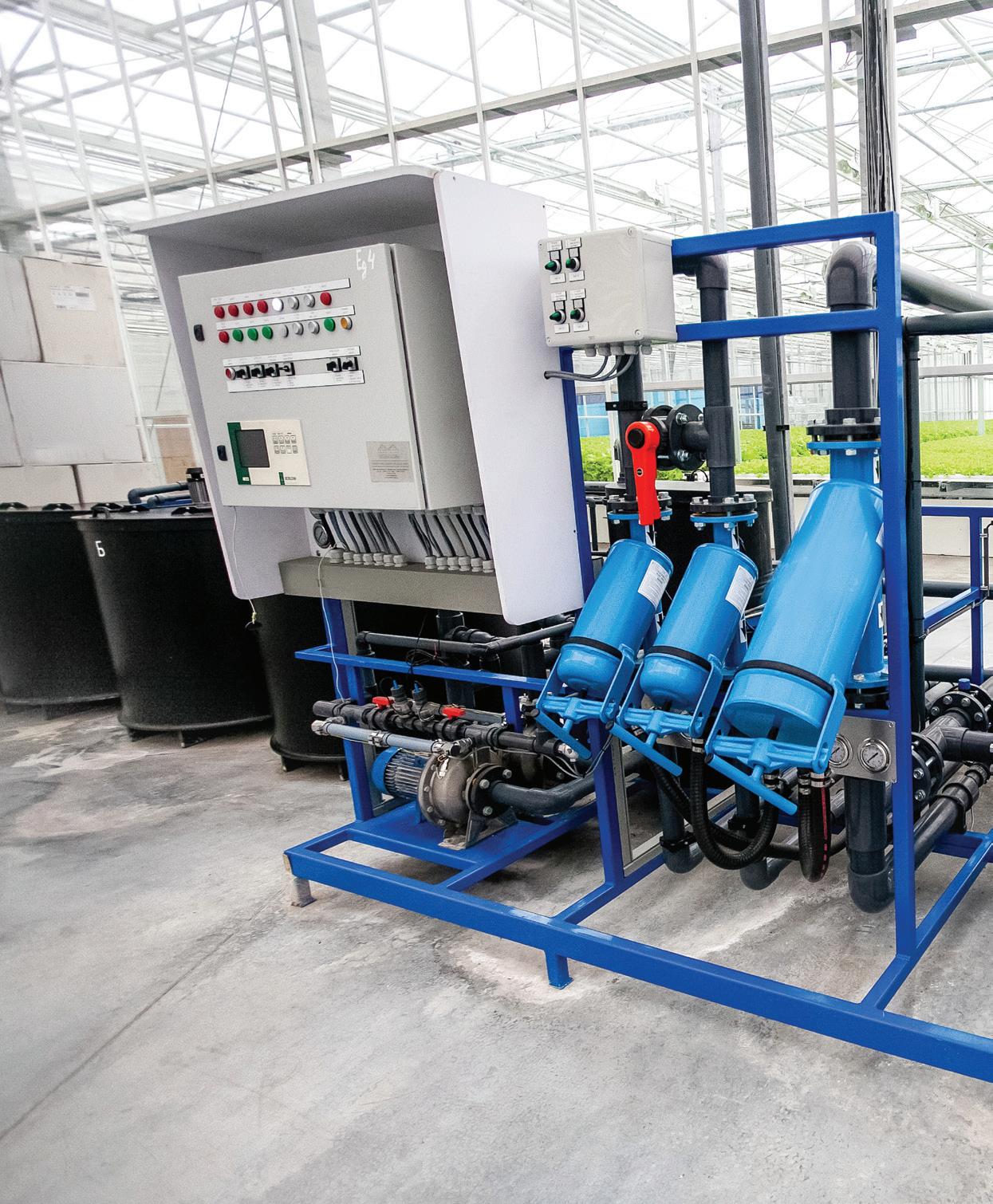

Four reasons to start using Shakti solar water pumps

by Anshul Gupta, National Sales Manager – Australia, Shakti Pumps

Technological advances towards more efficient and environmentally conscious solutions have reached almost all strata of human habitation, including the oldest human profession; farming. In this article, Mr Gupta discusses Shakti solar water pumps and why you should be using them.

24

pump industry | Autumn 2017 | Issue 19

S

hakti solar water pumps are used throughout the world. Popular on farms and rural areas, these pumps provide water for domestic use, and for agricultural and livestock production.

One of the main challenges in some countries is the difficulty of extracting water in areas that have no grid power supply. This process can be more expensive if you use wind turbines, and more labor intensive if you use livestock for turning the waterwheels.

By using a Shakti solar water pump you can more easily save money, more efficiently utilise your resources, and extract and supply water for all your needs.

Here are four reasons to start using Shakti solar water pumps:

1. Multifunctionality A Shakti solar water pump can be used to extract water for animals, plants and human consumption, and for farming and irrigation.

Since the need for water is greater on hot, sunny days, solar technology is an obvious choice for this application. This is a simple, reliable process that requires almost no maintenance by the user. During the night that same system can also be connected to the grid and used to pump water.

2. Easy to use Those who have already worked with water pumps know that it is not a difficult system.

Water pumping systems powered by solar energy are similar to any other pumping system. The only difference is the type of energy that feeds it: solar energy. Shakti solar water pumps usually consist of photovoltaic panels (modules), a HES motor, a bore pump, and a solar controller. Solar water pumping arrays are fixed, mounted or sometimes even placed on sun-tracking machines to increase the time and volume of pumping.

3. Reduced price The price of solar water pumps has decreased in recent years. This means that not only will you recover your investment faster, but you will also be able to use the pump for free for a longer period of time, which basically means free water harvesting for a long time.

4. Efficiency and quality The best photovoltaic water pumping systems installed can provide more than 30 years of reliable and continuous service. Most of the solar modules come with a 20–25 year warranty and an average usable life of 30–35 years.

www.pumpindustry.com.au

INDUSTRY NEWS | PARTNER SOLUTIONS

Tsurumi construction kings T surumi Pump is widely regarded as the global leader for construction site pumps. The company has established itself firmly in the Australian market in the last five years. Tsurumi has always had a clear focus on pumps for land reclamation, piling and the construction industry.

“It’s easy to see the origin of Tsurumi design criteria for construction application pumps,”said Aussie Pumps Product Manager Neil Bennett.

“The market calls for simple, robust, and reliable pumps that can take the rigours of working on sites where product abuse is not uncommon.”

Unique technology-based design Tsurumi’s breakthrough design technology led to the incorporation of a unique anti-wicking cable entry that prevents water incursion. It’s a simple device that protects against the wicking of water up the cable in the event of damage of the submerged end.

They took a similar approach to mechanical seal design. Tsurumi ensured that both surfaces of the double silicon carbide seals used in their pumps are protected in an oil chamber.

It is the immersion in oil of both seal surfaces that makes the difference.

It eliminates spring failure caused by corrosion or abrasion and keeps both surfaces of the seal lubricated and cool.

All Tsurumi KTZ dewatering pumps and KRS series sand pumps feature this combination of protective technology.

“Tsurumi understands that the way to eliminate product failures is what they call ‘preventative design action’, so that ‘PDA’ philosophy has allowed Tsurumi to become the world’s biggest manufacturer of electro submersible pumps,” said Mr Bennett.

Other key features include top-quality ball bearings. A unique oil

26

lifter is fitted in the oil chamber that continues to lubricate seals even if the oil level falls. This increases the time between routine pump maintenance and cuts down time and costs.

All heavy duty Tsurumi pumps use inbuilt thermal protection for the motor against overheating. Tsurumi’s dewatering pumps are heavy duty cast iron, with 316 stainless steel options readily available.

KTZ series The KTZ series is now regarded as the most reliable construction site pump on the market. The semi-open impeller is high chrome iron and the whole design is so simple that impellers and suction covers can be easily changed on site.

The mechanical seal’s unique resistance to high pressure means that this series pump can be submerged to depths as low as 50 metres.

“Australian Pump Industries continues to build the Tsurumi reputation in Australia,” said Mr Bennett.

“We are encouraged by the recent positive moves in mining and believe that the cost-conscious contractors, miners and construction material manufacturers can continue to reduce expenses based on using these ultra-reliable pumps.”

Tsurumi pumps come with a unique three-year warranty.

“Tsurumi believes that the clearest way to convey confidence in the product to the market is with the three-year guarantee!” said Mr Bennett.

Free application stories, technical data, and selection guides are available from Australian Pump Industries on the website, by contacting marketing@ aussiepumps.com.au or by phoning Neil Bennett on 02 8865 3500.

KRS series The KRS four-pole, slow-speed heavy duty sand pumps are also a major asset for sites involving bridge building, piling, and even in concrete batch plants. These pumps are built around a dredger principle with a second impeller mounted below the pump chamber. The lower impeller, designed to agitate the slurry, prevents choking and allows high solid content.

SFQ series The 316 stainless steel SFQ series employs the same technology and features, but the pumps are manufactured from fully cast 316 stainless steel. That unique configuration allows the products to be used in the most aggressive mining applications, as well as with seawater, chemicals, and more specifically, chlorine used in wastewater or sewage treatment.

pump industry | Autumn 2017 | Issue 19

Neil Bennett supervises the installation of Tsurumi KTZ pump at a construction site.

www.pumpindustry.com.au

Repair, Re-Manufacture and Re-Design Service For ALL types of Centrifugal Pumps Efficiency Improvement Reconditioning Restore Clearances Re- Engineering P f Performance T Testing. ti Services available include:

• Inspection and trouble-shooting • Case build up and re-machining • Axial A i l split lit case facing f i and d reboring b i • Axial thrust balancing • Shaft and bearing API 610 upgrades • Mechanical Seal upgrades to API 682 • Bearing housing & back cover retrofit • Lube system upgrades • Composite Wear Parts • Tighter clearances • Hydraulic Re-Rating • Rapid R id prototyping t t i • Driver upgrades (MEPS compliance) • Baseplate adaptors and rebuilding • Custom Spare Parts • Rotating Element balancing • ASME & AS1210 qualified Welding • Hydrostatic Testing • Performance Testing • FFT Vibration analysis

A.B.N. 37 006 317 979

31 WESTERN AVENUE SUNSHINE, VICTORIA 3020 P.O. BOX 348, SUNSHINE, VICTORIA 3020 • PHONE +613 9312 6566 • FAX +613 9312 6371

EMAIL unitedpumps@unitedpumps.com.au http://www.unitedpumps.com.au/

ASK AN EXPERT SECTION HEADING

The pump industry relies on expertise from a large and varied range of specialists, from experts in particular pump types to those with an intimate understanding of pump reliability; and from researchers who delve into the particulars of pump curves to experts in pump efficiency. To draw upon the wealth of expert knowledge the Australian pump industry has to offer, Pump Industry has established a panel of experts to answer all your pumping questions.

PROGRESSIVE CAVITY PUMPS IN THE WASTEWATER AND SLUDGE TREATMENT INDUSTRY What are the benefits of using progressive cavity pumps for applications in the wastewater and sludge treatment industry?

You’ll find out below.

28

Q: Can progressive cavity pumps (PCPs) handle variable dry solids content sludge?

Q: One of the industry’s concerns is reducing energy costs. Do PCPs offer any special solutions?

A:

A:

Yes, PCPs can successfully handle a wide variety of sludge applications with differing dry solids content because of their following characteristics: • Stable, variable flow rates • Minimal pulsation • Excellent suction lift capability • Flexible installation • Accurate metering of flocculants • High self-priming capabilities • Lower energy use

Progressive cavity pumps are known to operate very efficiently, which typically results in reduced operating costs. Additionally, several PCP manufacturers have now incorporated new pump designs which offer reduced energy consumption, along with ease of maintenance, extended service life and significantly reduced life cycle costs (SEEPEX’s unique SCT is a good example of a modern progressive cavity pump innovation).

pump industry | Autumn 2017 | Issue 19

www.pumpindustry.com.au

ASK AN EXPERT

Q: How well do PCPs work in pumping systems?

A: PCPs can be incorporated into numerous systems. They can be integrated into control systems to maximise productivity or used in connection with macerating, dosing, and/or chopping pumps.

From primary to thickened sludge, progressive cavity pumps provide the best pumping solution designed specifically for your application.

One example of modern PCP technology–in this case showing SEEPEX SCT design.

Peter Vila, Managing Director of SEEPEX Australia, is a progressive cavity pump expert.

He has been involved with pumps for over 35 years. Peter spent the first five years repairing pumps and the following 30 years in technical sales, 15 of which have been with SEEPEX progressive cavity pumps.

For more information on progressive cavity pumps, please contact SEEPEX Australia at +61 2 4355 4500 or info.au@seepex.com

Are the Fire Panels that you supply FULLY AS 2941-2013 Compliant?

Welling & Crossley Diesel Fire Control Panels are Fully Compliant with Australian Standard AS 2941-2013 The ones we’ve seen that are not, don’t have: 3 stage Battery Charger - Standard Ref. # 9.4.14 Jacket Heater Failure Indicator - Standard Ref. # 9.4.7 Battery Charge & Temperature Monitoring - Standard Ref. # 9.4.14

GO CHECK YOURS NOW! Don’t risk it with a non-compliant panel “The inspectors are coming” 59 Export Drv Brooklyn VIC 3012 Email: sales@wellcross.com.au

www.pumpindustry.com.au

. pump industry | Autumn 2017 | Issue 19

29

WATER & WASTEWATER

Selecting the correct sewage pump impeller

by Joe Evans, Pump Ed 101

The selection of an impeller for a sewage pump application has a significant effect on the efficiency, maintenance, and reliability of the pump. So, how should you determine which impeller is the suitable choice for your application? One way to differentiate between the various sewage pump impellers available is by examining how they accomplish the passing of solid material.

T

he fundamental difference between a centrifugal sewage pump impeller and the clear water impeller is the former’s ability to pass solid material that would cause a clog in the latter. Although the mathematics that define the operation of an impeller can be complex (it is the stuff of Bernoulli and Euler), its purpose is straightforward. An impeller is designed to impart energy to a fluid so that it will flow, or, if it is already flowing, undergo some increase in its elevation or pressure.

It accomplishes this by increasing the fluid’s velocity as it travels through its vanes from the leading edges, located at the eye, to their exits at the periphery. The ever increasing radius of the vanes results in an increasing rotational velocity that reaches some maximum at the periphery. The resulting linear velocity of the fluid, at the vane exit, is then converted to pressure in the volute.

If one were to set out to design a typical radial vane impeller, several guidelines would be followed quite closely.

For instance, the overall diameter of the impeller would closely match the volute and cut water diameters in order to reduce slippage of the pumped fluid in these areas. Also, depending upon the desired hydraulic characteristics, four or more vanes would be incorporated to smooth flow at the vane exit. Their leading edges would also be sharpened to reduce losses due to friction and turbulence.

Unfortunately, if one followed these same guidelines when designing a solids handling impeller, the outcome would be doomed to failure. Unlike the typical radial vane impeller, those designed to accommodate solids violate many of the standard design rules.

Small to medium-sized sewage pumps are often referred to as non-clogs and their impellers are designed to try to live up to that name. Although many factors contribute to the ability of an impeller to pass solids without clogging, one of the more important factors is its throughlet size.

The throughlet is defined as the open internal passage through the impeller that ultimately determines the largest diameter solid that can be passed. All impellers, regardless of their design, have some maximum throughlet size. In order to maximise throughlet size, solids handling impellers limit the number of vanes so that the passages between them can be as large as possible. Let’s take a look at some of the common sewage pump impeller designs and discuss the benefits and limitations of each.

30

pump industry | Autumn 2017 | Issue 19

Radial flow solids handling impellers The various members of the radial flow impeller family include the closed, open, and semi-open designs. Depending upon capacity, each design may incorporate anywhere from one to four vanes. The vanes are not straight, but describe a smooth curve that begins at the eye of the impeller and extends to its periphery. They may also be curved upward at their entry as in the Francis vane design.

The closed impeller looks very much like an exaggerated version of the clear water impeller. The shrouds of the closed impeller enclose the impeller’s vane passages from the eye to the periphery and are designed to accommodate the largest possible diameter solids. The vanes themselves have large, rounded leading edges to prevent clogging by rags and stringy material that could become entangled at the vane entry. On pumps with suctions up to 12”, a two-vane (often referred to as a two-port) design is typical, while larger pumps may utilise a three or four-vane design. Most closed impellers also incorporate pump out vanes on the back side of the back shroud. These small, straight vanes keep the sealing area free of debris and also reduce the unbalanced axial forces that can occur due to back shroud’s larger surface area.

The major wearing surface of the closed impeller is the area where the eye protrudes into the volute suction. Replaceable volute wear rings are used to maintain proper clearance and hydraulic efficiency. A typical rule of thumb calls for wear ring replacement when the factory set tolerance has doubled.

Very large sewage pumps often use a mixed flow impeller for low head, high flow conditions. The mixed flow design utilises a double curvature vane that provides both radial (centrifugal) and axial (lifting) flow characteristics. Also, because of their extremely large throughlets (4” and greater) these larger pumps can utilise sharpened vane leading edges for greater efficiency.

Another characteristic of the closed solids impeller is that its diameter seldom exceeds 80 per cent of the volute cut water diameter, as compared with about 92 per cent for a standard impeller. This diameter is restricted, at the expense of slippage, in order to reduce vibration and noise, especially at lower flows. This larger than normal clearance also reduces clogging in the area where the impeller periphery is closest to the volute case.

Another closed design is the single-vane impeller. On the positive side, it allows for the largest possible throughlet.

www.pumpindustry.com.au

WATER & WASTEWATER

Since there is only one vane, there is only one leading edge, and thus potential clogging at the vane entry is reduced.

Unfortunately, due to its lack of symmetry, it is inherently out of balance. Unlike the multi-vane impeller, most cannot be trimmed and must be replaced if hydraulic conditions change. The single-vane impeller also tends to produce a rather steep head-capacity curve. Although this can be useful in some applications, the flatter multi-vane curve generally has greater utility.

By definition, the true open impeller consists of nothing more than vanes mounted to a hub that is attached to the pump shaft. They are usually seen in smaller pumps and are best suited for applications involving stringy materials.

Because they are shroudless, it is less likely for material to become entrapped between the impeller and the front and rear portions of the pump case. A disadvantage is their structural weakness and, because of this, they are often strengthened by a partial shroud on the back side. If the back shroud covers the entire vane structure, the impeller is designated as semi-open.

Since one or both shrouds are missing from each design, both are prone to wear at the vane edges and must be adjusted periodically in order to maintain hydraulic efficiency.

Typical volute/vane clearances range from 0.020” to 0.030”

www.pumpindustry.com.au

and increases due to wear affect pump efficiency to a greater degree than the eye/volute wear of the closed impeller.

The semi-open impeller, due to its lack of a front shroud, also tends to create greater unbalanced axial forces than does the closed impeller. Both pump out vanes and balance holes are often utilised to minimise these forces and prevent potential bearing damage.

Although the radial flow impeller is the workhorse of the sewage pump industry, there are applications for which it is not well-suited. One example is low flow applications. By virtue of its large throughlet, flow rates will always be far greater than impellers of the same diameter designed for clear fluids. For example, even a small impeller designed to pass 2” solids will create BEP (Best Efficiency Point) flows of 80 to 120gpm. Increase solids size to 3” and the flow range increases to 400 to 700gpm.

With conventional pumps, flow can be reduced by throttling the discharge. However, such a tactic is not acceptable when solids are involved. This problem is exacerbated when a low flow application is complicated by a high head requirement.

Radial forces When a centrifugal pump is operating, the pumped fluid exerts a force on its impeller both radially (perpendicular to the shaft) and axially (parallel to the shaft). When the pump pump industry | Autumn 2017 | Issue 19

31

WATER & WASTEWATER is operating at its design point (BEP), relatively uniform pressures act upon most surfaces of the impeller. An exception is the area about the periphery where pressures are rarely uniform, regardless of the operating point. As flow decreases (or increases), unbalanced radial forces increase and usually reach a maximum at or near shut off head. This radial thrust, as it is known, is a function of total head, and the width and diameter of the impeller. Thus a high head pump with a large impeller will generate more radial thrust than a low head model incorporating a smaller impeller.

By design, the sewage pump impeller is unusually wide and the radial forces created can be extremely high as operation moves to either side of BEP. Depending upon the particular pump, as much as the first 30 per cent of the entire performance curve is considered unsuitable for normal operation. High radial forces can damage a pump’s rotating components and can, in some cases, create enough vibration to dislodge a submersible pump from its lift out connection.

One way of reducing the effect of radial thrust is to neutralise the force itself. The double volute pump accomplishes this by adding an internal wall to the casing that, in effect, creates two volutes. Although the double volute is found in very large sewage pumps, it is not a workable solution when small to medium-sized solids handling pumps are involved.

Another method involves modifying the standard constant velocity volute by increasing the volute volume in the area about the cut water. Although this reduces efficiency by one to two per cent, radial forces at lower flows can be reduced by as much as 25 per cent.

Vortex (recessed) solids handling impellers So, is there another way to overcome the low flow, high head shortcomings of the radial flow impeller? The answer is

32

pump industry | Autumn 2017 | Issue 19

yes but, since there is no such thing as a free lunch, there is a price to pay.

The vortex impeller operates quite differently than the radial flow type. Instead of imparting energy directly to the pumpage, it creates a liquid vortex (whirlpool) which, in turn, imparts its energy to the pumped fluid. And, as with any multistage process, some energy is consumed by the intermediate step (in this case creation and maintenance of the vortex) and results in a lower overall hydraulic efficiency.

Actual efficiency depends upon pump size and speed and can range from a low of 20 per cent, to better than 55 per cent.

Nonetheless, such losses can often be tolerated if the end result allows something unobtainable otherwise. And, in the case of the vortex impeller, several distinct advantages are offered. The most obvious visual difference between the vortex pump and radial flow models is that its semi-open impeller resides completely out of the volute. This feature offers the sewage pump designer three distinct advantages.

• The throughlet size can easily be made to equal that of the pump’s inlet. Therefore any solid that can enter the inlet can traverse the throughlet.

• Since the pumpage traverses the throughlet via vortex action, its solids seldom come in contact with the impeller.

This reduces the possibility that solids, especially stringy ones, will become entangled or clog it. For the very same reason impeller wear is minimised.

• Due to its location above the volute, unbalanced radial forces are almost nonexistent. This allows the vortex impeller to run continuously at or near shut off head without damage.

An important application of the vortex impeller is the centrifugal grinder pump. The grinder pump utilises a shredder assembly to macerate large solids into a fine slurry prior to

www.pumpindustry.com.au

WATER & WASTEWATER its entry into the volute. Since solids no larger than 1/8” are encountered, the volute and impeller can be designed for low flow at very high heads.

Small centrifugal grinders offer flows to 40gpm at heads to 140’, while larger units offer flows to 180gpm at heads to 170’.

These pumps are well suited for low pressure sewer systems because of their ability to vary flow dynamically depending upon conditions and to run at shut off head during periods when the system is loaded to capacity.

Centrifugal screw impellers The centrifugal screw impeller is another very different solids handling impeller design. The centrifugal screw pump is a hybrid that combines features of the positive displacement screw and the centrifugal pump. More often seen in the process environment because of its low shear and NPSHR characteristics, it is becoming more common in the wastewater industry. It offers relatively high efficiencies and good solids handling capability.

The head capacity curve is quite steep, but is typically non-overloading. This allows operable range from about ten to 125 per cent of BEP. The portion of the screw that resides in the suction nozzle is prone to wear and is protected by a replaceable or adjustable wearing surface. Like open impeller pumps, these clearances must be adjusted periodically to maintain hydraulic efficiency. The major disadvantage of the centrifugal screw is that they tend to be quite costly when compared to other designs.

Which sewage pump impeller is most suitable?

So, which impeller is the best choice for any given sewage pumping application? There is no easy answer to this question.

If there were, there would not be such a broad selection from which to choose.

ACTION AQUATICS HAVE JUST CHANGED THE GAME

1986 and is passionate about the sharing of knowledge within the industry. To read more of his insights into the world of pumping, visit www.pumped101.com.

FUNCTIONS:

dehumidifier / heat exchanger units to the Australian market.

Fully automated, scalable systems with programmable customised operating profiles, the systems are multifunctional, allowing them to be utilised for:

Evaporation, condensation, fungus, mould, sodium, chlorine and bromine combine forces to create corrosion problems in pool facility environments.

Joe Evans has been in the pump industry since

Multifunctional Dehumidification System

It’s Not The Heat, It’s The Humidity!

Keeping humidity under control in enclosed swimming pool facilities is critical to the longevity of the facility.

It can probably be said that the closed, mixed flow impeller is the most efficient and trouble-free choice when large pumps are involved. In the case of small to medium-sized pumps, however, the particular application becomes an important factor in the selection process.

Although the closed Francis vane tends to be more popular, the open vane design has its own strengths under certain conditions. The vortex impeller combines the positive traits of both but does so at the expense of lower hydraulic efficiency.

Yet when it comes to high head, low flow applications, its lower efficiency is hardly factored into the equation.

Several manufacturers have recognised these differences and the advantages that different impeller designs can offer in a particular application environment. For this reason they offer different impeller options for their more popular pump models.

It is definitely worth considering these options when designing new sewage pumping systems. They can also often solve problems in existing installations that have undergone major changes in hydraulic conditions.
