72 Formation Street, Wacol, Qld, 4076 Queensland: (07) 3271 7777
WEB: man.com.au
EMAIL: bussales@man.com.au
YEAR: 2022 MAKE: MAN MODEL: LE 19.330 RC2
APPLICATION: CITY – ROUTE
DIMENSIONS:
Length (metres) 11.6 to 12.5
Wheelbase (mm) 4,000 Buggy form
Front Overhang (mm) Provisional
Rear Overhang (mm) 3,400 (3,250 opt)
Turning Circle Diameter (m) Dependent on wheelbase. 52 degree front inner wheel cut angles.
LOH17 E6e (opt. LOH18/LOH10)
6-cyl. 9ltr turbo
YEAR: 2022 MAKE: MAN MODEL: LE 19.290 RC2
APPLICATION: CITY – ROUTE
DIMENSIONS:
Length (metres) 10.5 to 11.5
Wheelbase (mm) 4,000 Buggy form
Front Overhang (mm) Provisional
Rear Overhang (mm) 3,400 (3,150 opt)
Turning Circle Diameter (m) Dependent on wheelbase. 52 degree front inner wheel cut angles.
ENGINE: Make/Model MAN/D0836 LOH91 E6e
Inline 6-cyl. 7ltr turbo
213 kW opt: 186
FUEL TYPE (DIESEL/CNG/ELECTRIC/DIESEL ELECTRIC HYBRID)
Type Diesel E6, Denso common rail
Capacity (litres) 1 x 300 opt: 2 x 145
TRANSMISSION:
Auto Model / Type ZF/6AP1420 Ecolife 2 6-speed
AXLES:
Type – Front MAN/VOK-07-B-11/ 7,200kg. Cast cranked rigid front axle with stabiliser and steering damper.
Type – Rear MAN/HY1350-B03/13000kg. Stabiliser bar.
SUSPENSION:
Type – Front Air (ECAS)
Type – Rear Air (ECAS)
BRAKES:
Service Brakes Air/Disc
Retarding Brake System Integrated hydraulic retarder
EBS EBS
ELECTRONIC SYSTEM:
Alternator 2x 120A
Starter 24V/5.5kW
Batteries 2x 12V 225Ah
WHEELS & TYRES:
Type 10 stud steel
Rim Size 8.25 x 22.5
FUEL TYPE (DIESEL/CNG/ELECTRIC/DIESEL ELECTRIC HYBRID)
TRANSMISSION:
Auto Model / Type ZF/ 6AP1220 Ecolife 2 6-speed
AXLES:
Type – Front MAN/VOK-07-B-11/7,200kg. Cast cranked rigid front axle with stabiliser and steering damper.
Type – Rear MAN/HY1350-B03/13000kg. Stabiliser bar.
SUSPENSION:
Type – Front Air (ECAS)
Type – Rear Air (ECAS)
BRAKES:
Service Brakes Air/Disc
Retarding Brake System Integrated hydraulic retarder
EBS EBS
ELECTRONIC SYSTEM:
Alternator 2x 120A
Starter 24V/5.5kW
Batteries 2x 12V 225Ah
WHEELS & TYRES:
Type 10 stud steel
Rim Size 8.25 x 22.5 (opt. 7.5 x 22.5 for 275/70R22.5 tyres)
72 Formation Street, Wacol, Qld, 4076 Queensland: (07) 3271 7777
WEB: man.com.au
EMAIL: bussales@man.com.au
YEAR: 2022 MAKE: MAN MODEL: IC 19.330 RR8
APPLICATION: CHARTER, SCHOOL, MINING
DIMENSIONS:
Length (metres) 12.0 to 13.0
Wheelbase (mm) 4,000 Buggy form
Front Overhang (mm) Provisional
Rear Overhang (mm) 3,400 (3,250 opt)
Turning Circle Diameter (m) Dependent on wheelbase. 56 degree front inner wheel cut angles.
Make/Model
YEAR: 2022 MAKE: MAN MODEL: IC 19.290 RR8
APPLICATION: CHARTER, SCHOOL, MINING
DIMENSIONS:
Length
Wheelbase (mm) 4,000 Buggy form
Front Overhang (mm) Provisional
Rear Overhang (mm) 3,150 (3,400 opt)
Turning Circle Diameter (m) Dependent on wheelbase. 52 degree front inner wheel cut angles.
MAN/D0836 LOH91 E6e
6-cyl. 7ltr turbo
FUEL
Auto
AXLES:
E6, Denso common rail
Type – Front MAN/VOS-08-B-01/ 8,000kg. Rigid front axle (opt: Independent Inter City or Inderpendent Coach).
Type – Rear MAN/HY1350-B03/13000kg. Stabiliser bar.
SUSPENSION:
Type – Front Air (ECAS)
Type – Rear Air (ECAS)
BRAKES:
Service Brakes Air/Disc
Retarding Brake System Integrated hydraulic retarder EBS EBS
ELECTRONIC SYSTEM: Alternator
WHEELS & TYRES:
E6, Bosch EDC 7 common rail
1 x 300
TRANSMISSION:
AXLES:
Type – Front MAN/VOK-08-B/8,000kg. Rigid front axle.
Type – Rear MAN/HY1350-B03/13,000kg. Stabiliser bar.
SUSPENSION:
Type – Front Air (ECAS)
Type – Rear Air (ECAS)
BRAKES: Service Brakes Air/Disc
Retarding Brake System Integrated hydraulic retarder EBS EBS
ELECTRONIC
WHEELS & TYRES: Type 10 stud steel Rim Size
x 22.5 (opt. 7.5 x 22.5 for 275/70R22.5 tyres)
72 Formation Street, Wacol, Qld, 4076 Queensland: (07) 3271 7777
WEB: man.com.au
EMAIL: bussales@man.com.au
YEAR: 2022 MAKE: MAN MODEL: CO 19.430 RR2
APPLICATION: CHARTER - LONG DISTANCE, MINING

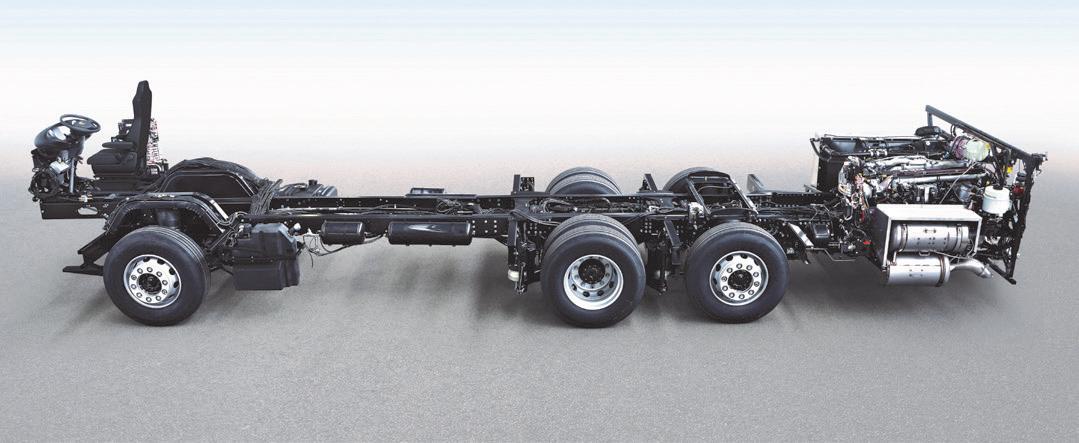

YEAR: 2022 MAKE: MAN MODEL: CO 26.510 RR4
APPLICATION: CHARTER - LONG DISTANCE
4,000 Buggy form Front
2,005mm temporary Rear Overhang
1,470mm + 3,100mm
Circle Diameter (m) Dependent on wheelbase. 52 degree front inner wheel cut angles.
FUEL TYPE (DIESEL/CNG/ELECTRIC/DIESEL ELECTRIC HYBRID)
Type Diesel E6, Bosch EDC 17 common rail
(litres) 480 (opt: 2 x 220)
TRANSMISSION:
Auto Model / Type ZF/MAN Tipmatic 12OD automated with retarder. Opt: ZF 6AP2520 Ecolife 2 (430/470hp only) 12-speed
AXLES:
Type – Front MAN/VOS-08-B-01/8,000kg. Independent front axle with stabiliser (opt: Rigid axle).
Type – Rear MAN/HY1350-B03/13,000kg. Stabiliser bar.
SUSPENSION:
Type – Front Air (ECAS)
Type – Rear Air (ECAS)
BRAKES:
Service Brakes Air/Disc
Retarding Brake System Integrated hydraulic retarder EBS EBS
ELECTRONIC SYSTEM:
Alternator 2x 120A
Starter 24V/5.5kW
Batteries 2x 12V 225Ah
WHEELS & TYRES:
Type 10 stud alloy
Rim Size 8.25 x 22.5
FUEL TYPE (DIESEL/CNG/ELECTRIC/DIESEL ELECTRIC HYBRID)
Diesel E5, Bosch EDC 17 common rail
TRANSMISSION:
Auto Model / Type ZF/ MAN Tipmatic 12OD automated with retarder 12-speed
AXLES: Type – Front MAN/VOS-08-B-01/8,000kg. Independent front axle with stabiliser.
Type – Rear MAN/HY1350-B01/13,000kg. Stabiliser bar.
SUSPENSION:
Type – Front Air (ECAS)
Type – Rear Air (ECAS)
BRAKES:
Service Brakes Air/Disc
Retarding Brake System Integrated hydraulic retarder EBS EBS
ELECTRONIC SYSTEM:
Alternator 2x 120A
Starter 24V/5.5kW
Batteries 2x 12V 225Ah
WHEELS & TYRES:
Type 10 stud alloy
Rim Size 8.25 x 22.5
72 Formation Street, Wacol, Qld, 4076 Queensland: (07) 3271 7777
WEB: man.com.au
EMAIL: bussales@man.com.au
YEAR: 2022 MAKE: MAN MODEL: eLF 480KW
APPLICATION: CITY – ROUTE
ENGINE:
Make/Model MAN/P160 Motor (Synchronous)
Configuration Electrical central unit, permanently excited DC motor
FUEL TYPE (DIESEL/CNG/ELECTRIC/DIESEL ELECTRIC HYBRID)
Type Battery electric vehicle
(litres) 480 kw battery capacity
TRANSMISSION: Auto Model / Type MAN single-speed adapter gearbox (no gear shifting)
AXLES:
Type – Front MAN VOK-08-B rigid cast tubular axle, anti-roll bar, steering damper.
Type – Rear MAN/hypoid portal axle with stabiliser
SUSPENSION:
Type – Front Air (ECAS)
Type – Rear Air (ECAS)
BRAKES: Service Brakes Air/Disc
Retarding Brake System Kinetic energy recuperation system (KERS)
EBS EBS
ELECTRONIC SYSTEM:
Alternator N/A
Starter N/A
Batteries 2x 12V 225Ah
WHEELS & TYRES:
Type 10 stud alloy
Rim Size 7.5 x 22.5 (for 275/70R22.5 tyres)
