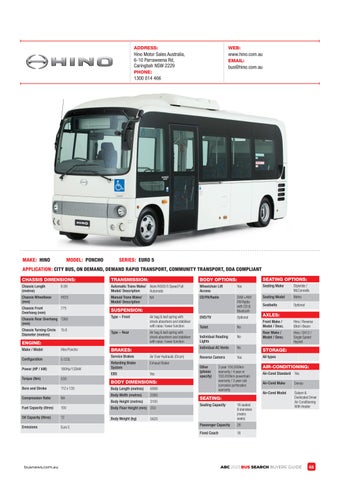

Bus Search 2023 - Hino

Page 1

ADDRESS: Hino Motor Sales Australia, 6-10 Parraweena Rd, Caringbah NSW 2229

PHONE:

WEB: www.hino.com.au

EMAIL: bus@hino.com.au

MAKE: HINO MODEL: PONCHO SERIES: EURO 5

APPLICATION: CITY BUS, ON DEMAND, DEMAND RAPID TRANSPORT, COMMUNITY TRANSPORT, DDA COMPLIANT

SUSPENSION:

Type – Front Air bag & leaf spring with shock absorbers and stabiliser with raise / lower function Type – Rear Air bag & leaf spring with shock absorbers and stabiliser with raise / lower function

BRAKES: Service Brakes Air Over Hydraulic (Drum)

BODY DIMENSIONS:

DVD/TV Optional Toilet No Individual Reading Lights No Individual AC Vents No Reverse Camera Yes Other (please specify)

3 year 100,000km warranty / 4 year or 100,000km powertrain warranty / 3 year cab corrosion perforation warranty

SEATING:

SEATING OPTIONS: Seating Make Styleride / McConnells Seating Model Metro

AXLES: Front Make / Model / Desc. Hino / Reverse Elliot I-Beam

Make / Model / Desc. Hino / SH12 / Single Speed Hypoid

STORAGE: All types

AIR-CONDITIONING: Air-Cond Standard Yes

Air-Cond Make Denso

Air-Cond Model Saloon & Dedicated Driver Air Conditioning With Heater

ABC 2023 BUS SEARCH BUYERS’ GUIDE 65 busnews.com.au
Rear
Seatbelts Optional
Seating Capacity 18 seated 8 standees (metro seats)
Passenger Capacity 26 Fixed Coach 18 BODY OPTIONS: Wheelchair Lift Access Yes CD/PA/Radio DAB+AM/ FM Radio with CD & Bluetooth
Body Length (metres)
Body Width (metres)
Body Height (metres) 3100 Body Floor Height (mm) 350 Body Weight (kg) 5620
6990
2080
Retarding
EBS
Brake System Exhaust Brake
Yes
TRANSMISSION: Automatic Trans Make/ Model/ Description Aisin/A500/5 Speed Full Automatic Manual Trans Make/ Model/ Description NA ENGINE: Make / Model Hino Poncho Configuration 5.123L Power (HP / kW) 180Hp/132kW Torque (Nm) 530 Bore and Stroke 112 x 130 Compression Ratio NA Fuel Capacity (litres) 100 Oil Capacity (litres) 12 Emissions Euro 5 CHASSIS DIMENSIONS: Chassis Length (metres) 6.99 Chassis Wheelbase (mm) 4825 Chassis Front Overhang (mm) 775 Chassis Rear Overhang (mm) 1360 Chassis Turning Circle Diameter (metres) 15.6
