DIS COV ERY 2022 09.28.2022 [ PART 2 ]

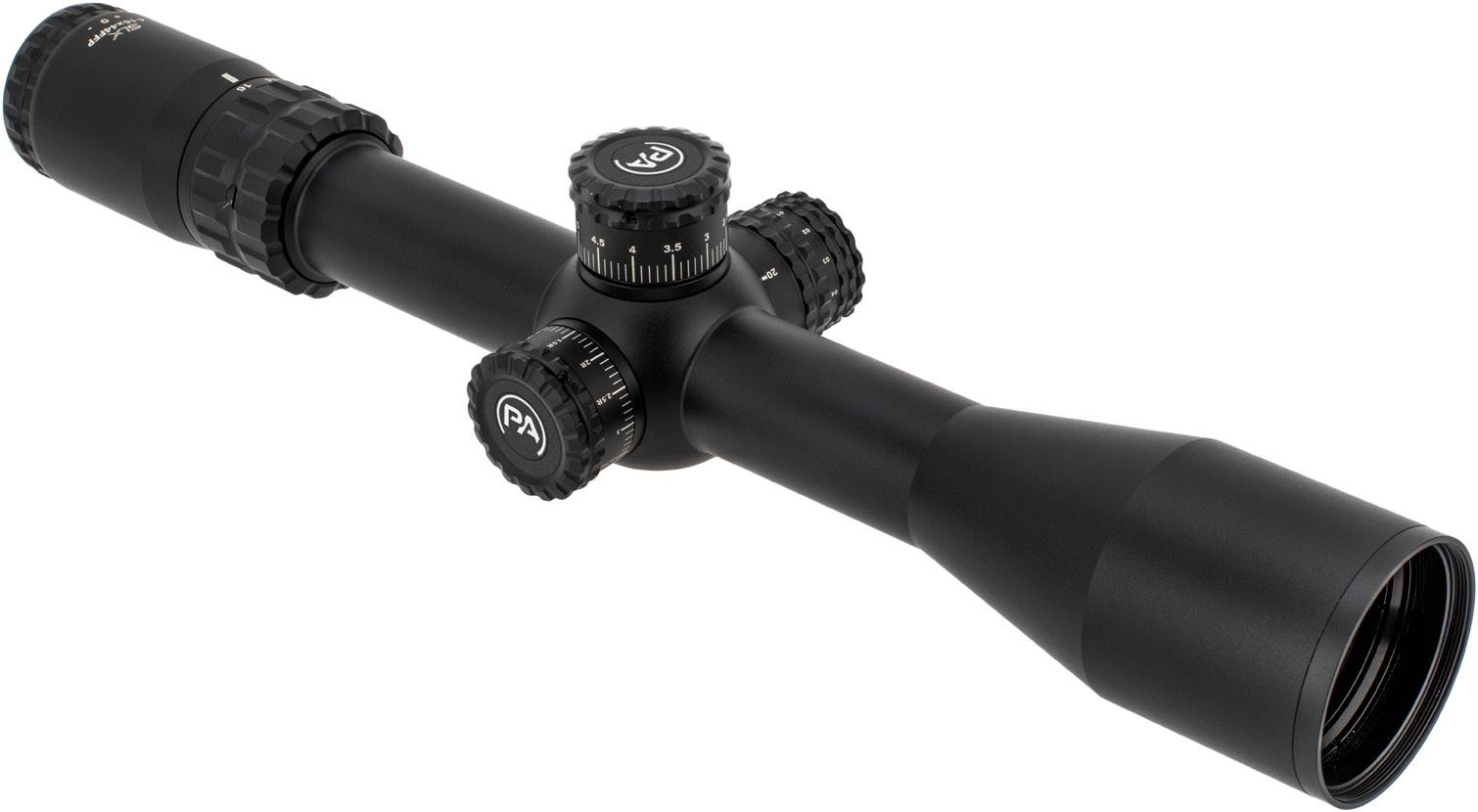

4-16x44 FIRST FOCAL PLANE RIFLE SCOPE SPECIFICATIONS MODEL NUMBER PA-SLX-4-16X44FHUD-308 PA-SLX-4-16X44FRGRID PA-SLX-4-16X44FARC-2-MOA PA-SLX-4-16X44FAPOLLO MPN 610110 610122 610126 610124 MAGNIFICATION 4X - 16X (MIN - MAX) FOCAL PLANE FIRST FOCAL PLANE OBJECTIVE LENS DIAMETER 44 MM EXIT PUPIL 11.6 MM - 2.8 MM (LOW - HIGH) EYE RELIEF 3.6 IN. - 3.9 IN. TOTAL WINDAGE/ELEVATION ADJUSTMENT 85 MOA FIELD OF VIEW @100 YARDS 26.6 FT. - 6.5 FT. (LOW - HIGH) ILLUMINATION PARTIAL RED CLICK VALUE 0.25 MOA / 0.1 MIL LENGTH W/O LENS COVERS 14.3 IN. WEIGHT W/ INCLUDED BATTERY W/O LENS COVERS 25.4 OZ. UPC 818500015314 818500015284 818500015338 818500015307 RETICLE ACSS-HUD-DMR-308 16X ACSS-R-GRID-2B 16X ARC-2-MOA 16X ACSS-APOLLO-6.5CR/.224V 16X ® 713-570-1910 • SALES@PRIMARYARMSOPTICS.COM • 3219 S. SAM HOUSTON PKWY E. HOUSTON, TEXAS 77047 © COPYRIGHT 2022 PRIMARY ARMS, LLC HIGHLIGHTS • First focal plane illuminated reticle. • Fully multi-coated glass. • 11 brightness settings including 2 for night vision. • Tactical turrets with 0.1 MIL or .25 MOA click value. • 85 MOA windage/elevation travel • Backed by our Primary Arms Lifetime Warranty.
HIGHLIGHTS

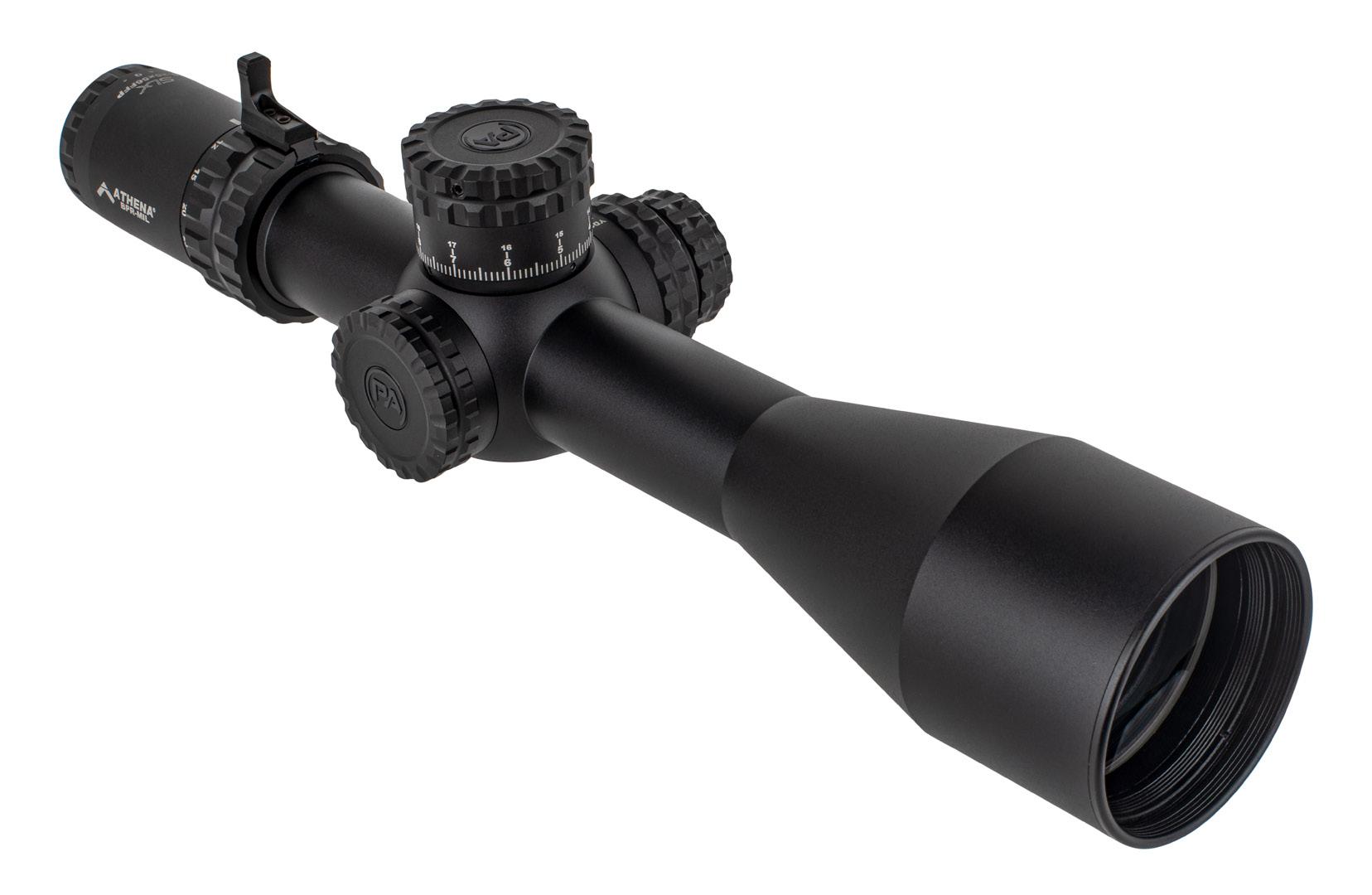

5-25x56 FIRST FOCAL PLANE RIFLE SCOPE SPECIFICATIONS MODEL NUMBER PA-SLX-5-25X56F-ATHENA PA-SLX-5-25X56FAPOLLO-6.5 MPN 610177 610178 MAGNIFICATION 5X - 25X (MIN - MAX) FOCAL PLANE FIRST FOCAL PLANE OBJECTIVE LENS DIAMETER 56 MM EXIT PUPIL 11.2 MM - 2.24 MM(LOW - HIGH) EYE RELIEF 4.0 IN. TOTAL WINDAGE/ELEVATION ADJUSTMENT 80/105 MOA FIELD OF VIEW @100 YARDS 21 FT. - 4 FT. (LOW - HIGH) ILLUMINATION FULL RED CLICK VALUE 0.1 MOA LENGTH W/O LENS COVERS 13.98 IN. WEIGHT W/ INCLUDED BATTERY W/O LENS COVERS 34.6 OZ. UPC 818500018117 818500018124 RETICLE ACSS ATHENA BPR MIL ACSS APOLLO 6.5CR/.224 ® 713-570-1910 • SALES@PRIMARYARMSOPTICS.COM • 3219 S. SAM HOUSTON PKWY E. HOUSTON, TEXAS 77047 © COPYRIGHT 2022 PRIMARY ARMS, LLC
• 5-25 Magnification Range with FFP Reticle for Optimal Long-Range Performance • High-quality 56mm Objective Lens that improves exit pupil and light transmission for superior optical performance • 34mm Tube Diameter for Extended Elevation Range • Parallax Adjustment from 10yd to Infinity • 6 Illumination Settings with ‘Off’ Setting in between • Built-in Modular Magnification Throw Lever • Integrated Return-To-Zero and Zero Set Elevation Turret • User Configurable Capped/Exposed Windage Turret • Tested and proven for durability with extensive ‘live fire’ testing • Backed by Primary Arms Optics Lifetime Warranty
SPECIFICATIONS
HIGHLIGHTS
• 10 Brightness Settings
• Bright LED with Lowlight and Daytime Settings
• Up to 41K-hour Battery Life at Medium Settings
• Large 24x17mm Clear Aperture in a
Compact and Light Weight Design
• Tough 6061 Aluminum Alloy Housing
• Multicoated Lens
• Fits common RMR mounting footprint
• Backed by Primary Arms Optics Lifetime Warranty

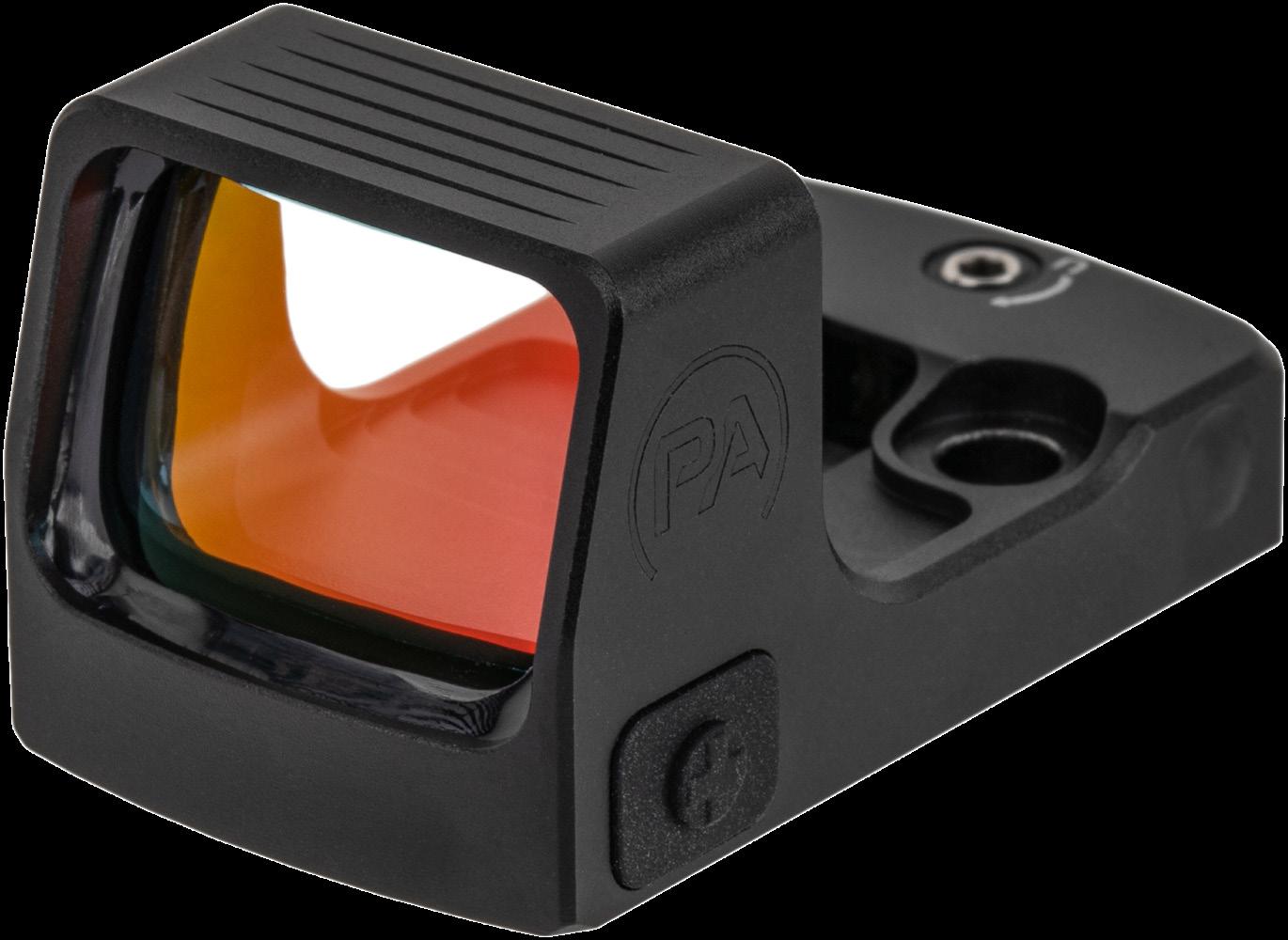

MINI REFLEX SIGHT WITH 3 MOA DOT RETICLE
MODEL NUMBER PA-CLX-MRS MPN 810034 CLEAR APERATURE DIAMETER 24 MM X 17 MM TOTAL WINDAGE/ELEVATION ADJUSTMENT 60 MOA BATTERY LIFE UP TO 40K HOURS AT MEDIUM SETTING ILLUMINATION FULL RED, 10 ILLUMINATION SETTINGS LENGTH 1.78 IN WEIGHT W/ INCLUDED BATTERY .97 OZ UPC 818500018315 RETICLE 3 MOA DOT 713-570-1910 • SALES@PRIMARYARMSOPTICS.COM • 3219 S. SAM HOUSTON PKWY E. HOUSTON, TEXAS 77047 © COPYRIGHT 2022 PRIMARY ARMS, LLC
SPECIFICATIONS
HIGHLIGHTS
• 10 Brightness Settings
• Bright LED with Lowlight and Daytime Settings
• Up to 40k-hour Battery Life at Medium Settings
• RMSc-compatible Mounting Footprint
• 21x15mm Clear Aperture in a Compact and Light Weight Design
• Tough 6061 Aluminum Alloy Housing
• Multicoated Lens
• Backed by Primary Arms Optics Lifetime Warranty

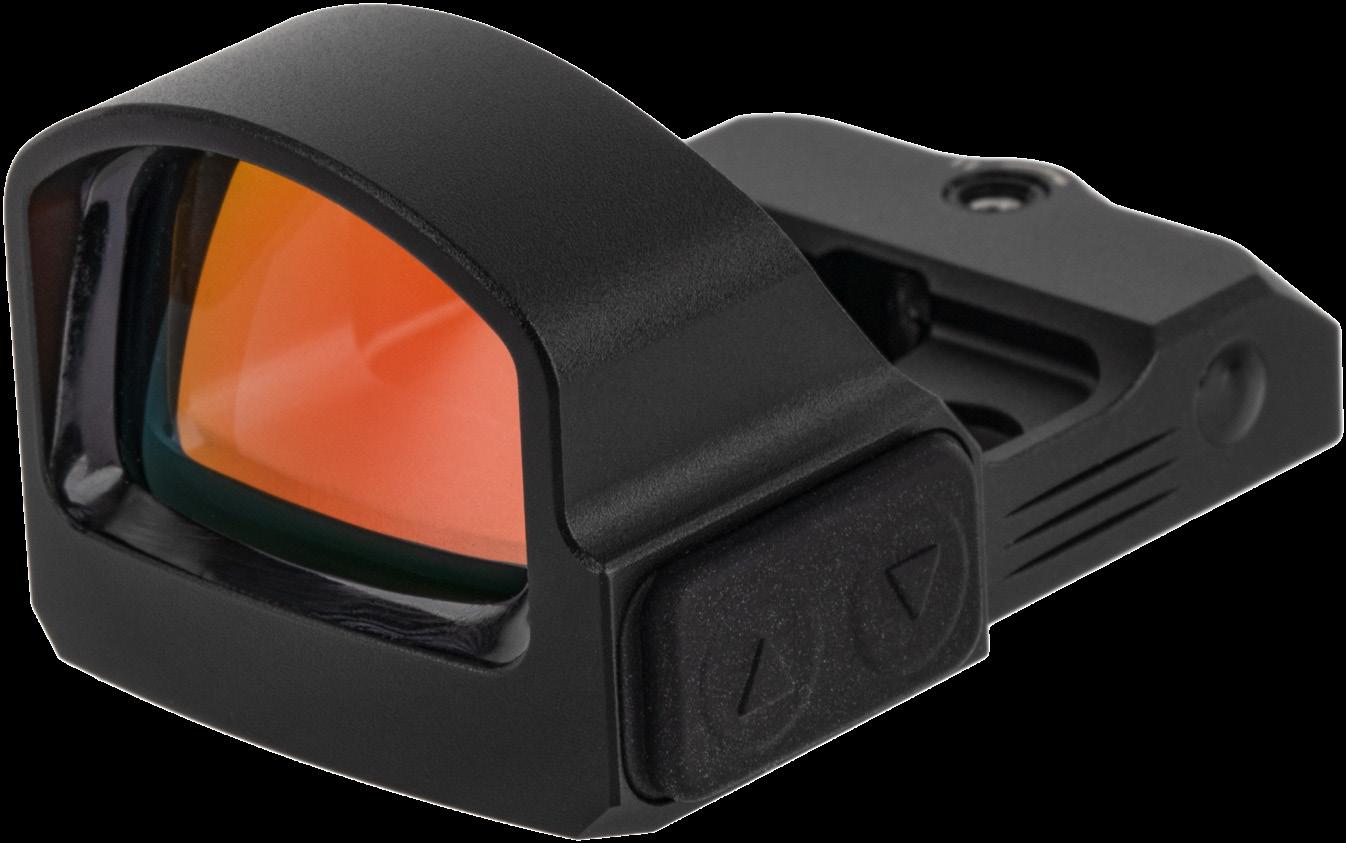

MICRO REFLEX SIGHT WITH 3 MOA DOT RETICLE
MODEL NUMBER PA-CLX-MRSC MPN 810035 CLEAR APERATURE DIAMETER 21 MM X 15 MM TOTAL WINDAGE/ELEVATION ADJUSTMENT 60 MOA BATTERY LIFE UP TO 40K HOURS AT MEDIUM SETTING ILLUMINATION FULL RED, 10 ILLUMINATION SETTINGS LENGTH 1.58 IN WEIGHT W/ INCLUDED BATTERY .56 OZ UPC 818500018322 RETICLE 3 MOA DOT 713-570-1910 • SALES@PRIMARYARMSOPTICS.COM • 3219 S. SAM HOUSTON PKWY E. HOUSTON, TEXAS 77047 © COPYRIGHT 2022 PRIMARY ARMS, LLC

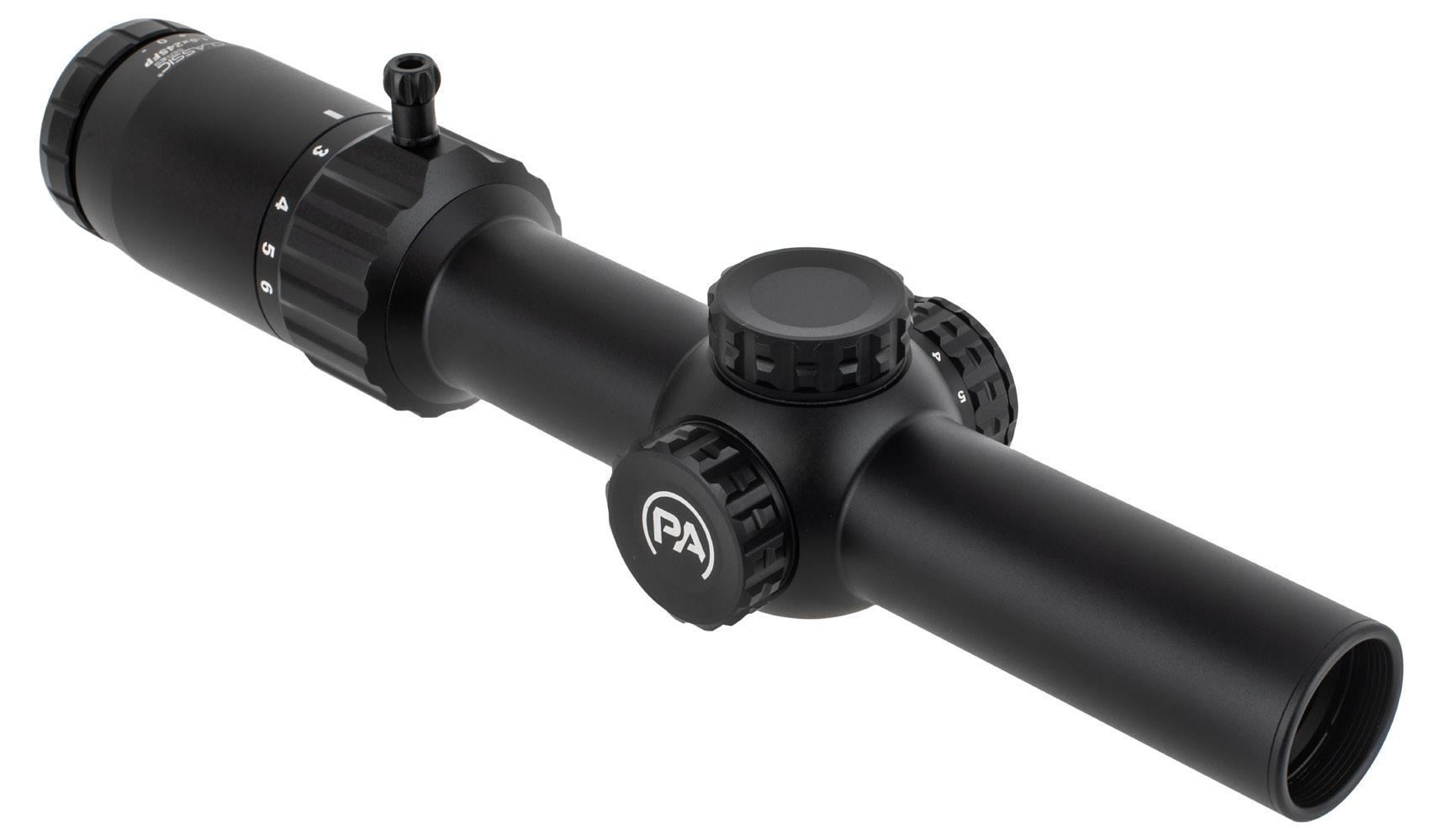

1-6x24 SECOND FOCAL PLANE RIFLE SCOPE SPECIFICATIONS MODEL NUMBER PA-CLX-1-6X24S-D MPN 610184 MAGNIFICATION 1X - 6X (MIN - MAX) FOCAL PLANE SECOND FOCAL PLANE OBJECTIVE LENS DIAMETER 24 MM EXIT PUPIL 8 MM - 3.5 MM (LOW - HIGH) EYE RELIEF 3.5 IN. - 3.9 IN. TOTAL WINDAGE/ELEVATION ADJUSTMENT 120 MOA FIELD OF VIEW @100 YARDS 113.5 FT. - 18.8 FT. (LOW - HIGH) ILLUMINATION RED CLICK VALUE 0.5 MOA LENGTH W/O LENS COVERS 10.6 FT. WEIGHT W/ INCLUDED BATTERY W/O LENS COVERS 17.21 OZ. UPC 818500018353 713-570-1910 • SALES@PRIMARYARMSOPTICS.COM • 3219 S. SAM HOUSTON PKWY E. HOUSTON, TEXAS 77047 © COPYRIGHT 2022 PRIMARY ARMS, LLC RETICLE DUPLEX DOT HIGHLIGHTS • Red Illuminated Center Dot • Fast Focus Eyepiece • Fog Proof • Fully Nitrogen Purged, IP67 Waterproof Standard and Dust Proof • 6063 Aluminum Body with Matte Black Anodization • Uses CR2032 Battery (Included) • Backed by Primary Arms Optics Lifetime Warranty
SPECIFICATIONS
PA-SLX-3XMPRAPTOR-5YP PA-SLX-3XMPRAPTOR-5YP-G PA-SLX-3XMPRAPTOR-5MP PA-SLX-3XMPRAPTOR-7YP PA-SLX-3XMPRAPTOR-7YP-G
PA-SLX-3XMPRAPTOR-5YP-
PA-SLX-3XMPRAPTOR-7YP-
MAGNIFICATION
Primary Arms Lifetime

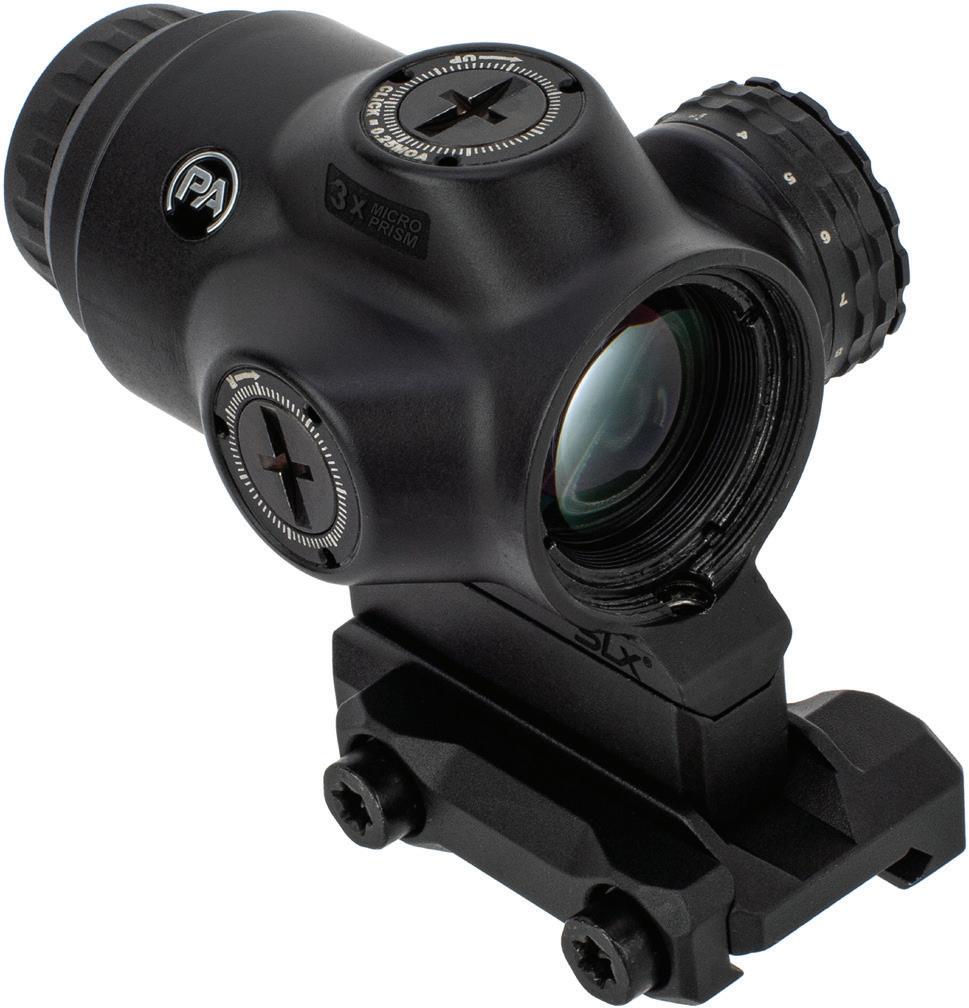

3x MICROPRISM SCOPE 713-570-1910 • SALES@PRIMARYARMSOPTICS.COM • 3219 S. SAM HOUSTON PKWY E. HOUSTON, TEXAS 77047 © COPYRIGHT 2022 PRIMARY ARMS, LLC RETICLE ACSS-RAPTOR-5.56/.308-YP ACSS-RAPTOR-7.62X39/300BO-YP ACSS-RAPTOR-5.56/.308-MP ®
MODEL NUMBER
FDE
FDE MPN 710036 710037 710038 710040 710041 710054 710057
3X MAGNIFICATION YARD/METER YARDS METERS YARDS OBJECTIVE LENS DIAMETER 23 MM EXIT PUPIL 7.4 MM EYE RELIEF 2.7 IN. TOTAL WINDAGE/ELEVATION ADJUSTMENT 80 MOA FIELD OF VIEW @100 YARDS 38 FT. ILLUMINATION RED GREEN RED RED GREEN RED RED CLICK VALUE 0.25 MOA COLOR BLK FDE LENGTH W/O LENS COVERS 2.95 IN. WEIGHT W/ INCLUDED BATTERY W/O LENS COVERS 8.0 OZ. UPC 818500015673 818500015291 818500015796 818500015680 818500015802 818500015864 818500015871 HIGHLIGHTS • 13 settings; three night vision settings (NV1, NV2, NV3). Highest settings are daylight bright. • AutoLive® motion sensing on/off technology. • Wide field of view, excellent for CQB use. • Accommodation for anti-reflection devices (ARD sold separately). • Aluminum alloy main body with hard coat anodizing. • Fully multi-coated optic. • Nitrogen-purged. • IP67 waterproof and dust proof. • 8 mounting height options from 1.1” to 2.075” including absolute co-witness and lower 1/3rd options. (See next page for full options). • Backed by our
Warranty. ALSO AVAILBLE IN FDE
