PORTFOLIO Architecture + Urban Design Selected Works 2015-2024

Praneetha Putta

CONTENTS 01

02 03 04

05

Hydro - Urbanism

Pg - 01

The Solar Glowway

Pg - 07

A Symphony Of Terrain and Flow

Pg - 11

Cartographic Impressions

Pg - 13

Empowerment Through Education

Pg - 17

Master’s Thesis Project

Master's Design Studio

Master's Landscape Architecture Introductory Course

Master's Elective Course - Geographic information system

Professional Practice

06 07

08

09 10

Pathways To Percision

Pg - 21

Home Beyond Borders

Pg - 23

Morphology Of Healing

Pg - 27

Rendered Realities

Pg - 29

Miscellaneous

Pg - 33

Professional Practice

Architecture Thesis Project

Architecture Design Studio

Professional Practice

Photography and Product Design

01

Hydro-Urbanism

This thesis redefines urban flood management for Hyderabad through "Hydro Urbanism," an approach that views stormwater as a valuable resource. Facing increasing flood risks due to rapid urbanization and climate change, the city requires sustainable stormwater management solutions that enhance resilience while benefiting communities. Using GIS to identify flood-prone areas, this project proposes modular, adaptable designs for key urban spaces, such as roads, parks, and playgrounds. The design modules transform these spaces into functional, flood-responsive areas.

Streets integrate permeable surfaces to reduce runoff and improve drainage, while parks and playgrounds serve as retention zones during heavy rainfall. Scalable across the city, this modular approach allows similar strategies to be applied in other flood-prone areas, promoting citywide resilience.

This project advocates for holistic water management, balancing environmental and social needs to foster a more sustainable urban landscape. Offering a replicable model, it provides a blueprint for cities facing similar challenges, merging flood resilience with enhanced quality of life for urban residents.

“Reimagining Urban Landscapes to Accommodate and Utilize Stormwater”

Sustainable Urban Stormwater Management Master’s Thesis - 2023 Mentors: Paul.K, Paul.E, Scott.A Location: Hyderabad, Telangana, India

Hydrological Map of Hyderabad

Skill Set Hydrological Analysis, Stormwater Management Design, Flood Risk Assessment & Mitigation Auto Cad, Adobe Suite, GIS, Pro Create Click Here to Explore the complete Thesis Project

Topography Map

Storm Water Drains Network Map

Sub-Watershed Storm Water Flow Direction Map

Storm Water Zone 8 Inundation Areas

Flood Inundation Areas Map

Catchment Area and Sub Watershed Study Area

Catchment Basin with Sub Watershed Map

Sub-Watershed Land Use Map

1 2

1. Proposed Site

3 2. Potential Site - A

Map Showing the Potential Sites for Intervention in the Sub-watershed Area

3. Potential Site - B

Storm water Drain

Parking Bio-retention swale

Street Section Representing 6” Rainfall

Seating

Street Vendors

Permeable Pavers for Parking

Urban Street Garden Cross

Bus Stop

Permeable walkways

Street Section Representing 12” Rainfall

Accessible Side walk

RippleReclaim: Balancing Water Absorption and Pedestrian Connection - Proposed Plan

Percentage of Runoff for 1 mile of Road During 6” and 12” Rainfall

Street Section Representing 6” Rainfall

Urban Street Garden

Permeable Pavers for Parking

Permeable walkways

Street Section Representing 12” Rainfall

Retention Cell Detail

Canopy Crossing: A community Integrating Stormwater Garden Street - Proposed Plan

Porus Pavement Detail

Catch Basin Detail

Retention , Detention and Recharge Design Features for Effective Storm Water Management

Pedestrian Pathway Raised Safe Zone

Ponding Area with Play Area

Seating Area Storm Water Well

Water Square: Community Multi-Use Area with Flood Pond and Storm Water Well

Street Section representing 6” Rainfall

Street Section representing 12” Rainfall

Map showing the future scope of the project

02

The Anacostia Solar Path is a 6-mile shared-use pathway that connects communities along the Anacostia River, accommodating pedestrians, cyclists, e-bikes, scooters, and wheelchair users. The path is powered by solar energy, providing lighting and supporting adjacent neighborhoods. Designed to improve mobility, it enhances connectivity between diverse areas, offering a sustainable alternative to motorized transport. This project promotes safety, inclusivity, and environmental responsibility, while fostering social interaction across different communities. Drawing inspiration from Frederick Law Olmsted’s approach to public spaces, the path encourages unity, sustainability, and active living.

T HE S OLAR G LOWWAY “A Shared-use Path Connecting the Communities along the Anacostia River”

Active Mobility Design / Urban Revitalization / Green Infrastructure Master’s studio - 2022 Mentors: Paul.K, Scott.A Location: Anacostia River, Washington D.C., USA

Washington D.C. Demographics Map

Washington D.C. Heat-Island Map

Skill Set Sustainable Design Strategies, Solar Energy Integration, Environmental Analysis, Transportation Design, Spatial Planning, Auto Cad, Photoshop, GIS, Pro Create, Sketch Up, Lumion

Study Area Existing Road Network Map

Master Plan Length Of The Trail : 6 Miles

RFK STADIUM

E CAPITOL ST

BUILDING'S GREEN LAND

FOREST LAND ANACOSTIA RIVER PROPOSED TRAIL ACCESS POINT ZONE 1,2,3 CHARGING STATION METRO STATION CAPITAL BIKE SHARE

Zone - 2

CONGRESSIONAL CEMETERY

JO

HN

11

YARDS PARK

C RE IA TRE T OS CEN AC

COS

TIA

ARD ER

GE

ID

RIV

AN

BR

Zone - 1

ANA

YY

ET RE ST

NAV

TH

L PARK

CA

PIT

OL

ST

POPLAR POINT ANACOSTIA PARK

N

TIO

A RE

ANACOSTIA BOAT COMMUNITY

PH

ILI

AN

Zone - 3

PS

OU

SA

BR

ID

GE

I

ST

O AC

AT

K AS

RK

A EP

Anacostia Solar Path - Day View

Zone 1 - High Density Recreational

Zone 2 - Wooded Path

Zone 3 - Underutilized Area

Anacostia Solar Path - Night View

03

This project transforms the existing under utilized park along Commonwealth Avenue to improve resilience and accessibility. It addresses flooding through cut and fill techniques and integrates stormwater solutions like check dams, stepped contours, and flood-mitigating vegetation for better water absorption and recharge. The design features inviting park trails that blend with the natural landscape, enhancing both recreational and ecological value while prioritizing sustainability and accessibility.

A Symphony Of Terrain and Flow

“Transforming Four Mile Run Park for Resilience and Recreation”

Landscape Architecture / Community Park Design Master’s studio - 2023 Mentors: Paul Kelsch Location: Four Mile Run Park, Alexandria, VA

Sculptured Horizons Redefining Landforms through Cut and Fill Techniques

Skill Set Grading and Drainage, Stormwater Design, Ecological Planning, Landform Visualization, Terrain Modeling, Auto Cad, Terrain Modelling, Photoshop, GIS, Pro Create

Flow Scape Navigating Stormwater by Integrating Check Dam

Living Landscapes Integrating dynamic plantings that adapt to seasonal cycles and ecological needs.

Hydrological Rhythm Guiding stormwater with stepped contours and check dams to regulate water flow, mitigate flooding and enhance park aesthetics

FOUR MILE RUN PARK

04

Cartographic Impressions “A Visual Journey through Geographic Information System to Understand D.C.'s Traac Crisis”

Master’s Elective Course - 2022 Mentors: Miranda Shugars Location: Washington D.C., USA

Skill Set Data Extraction and Analysis, Interactive Story Maps, Traac and Urban Planning Insights GIS, Mapbox, Git Hub, Visual Code Studio Click Here to Explore the complete Scrolly Map of the Project

This project explores traffic congestion in Washington, D.C., using GIS tools and data to map and analyze contributing factors. It highlights how urban planning, housing affordability, and demographics influence traffic patterns.

The study examines how the city's history, limited space, and growing commuter population contribute to congestion, visualizing accident hotspots, transportation modes, and commute times. It highlights the need for improved transit, infrastructure, and policies.

Washington D.C. Bus Routes

Washington D.C. Traffic Volume - 2019 (Pre- Covid)

Washington D.C. Traffic Volume - 2020 (During Covid)

Washington D.C. Accident Prone Areas

05

The Mandal Parishad Primary School (MPPS) in Malkapuram, as a pilot project under the CITIIS program, focuses on the adaptive reuse of existing school infrastructure. The design enhances the learning environment by upgrading facilities for improved accessibility, sustainability, and efficiency.

This project aims to provide a cost-effective solution while maintaining the structural integrity of the school, contributing to the larger effort of revitalizing schools in Amaravati's low-income settlements.

Empowerment Through Education “Redevelopment of existing government school in low income community”

Site Area 1618.74 Sqm Existing Built up Area 182.0 Sqm Demolition Area 97.0 Sqm Demolision Area Existing Area

Existing Site Plan

Institutional/Retrofitting Professional Project - 2021 Mentors: Prasuna Barathi Location: Malkapuram, Amaravati, India

Total Built up Area 356.0 Sqm Height of the Building 3.95 m

Skill Set Construction Monitoring, On-Site Coordination, Building Codes & Regulations Compliance, Project Documentation & Reporting Auto Cad, Revit, Lumion, Adobe Suite, Microsoft OOce

Proposed Area Existing Area

Malkapuram MPPS - Proposed Site Plan

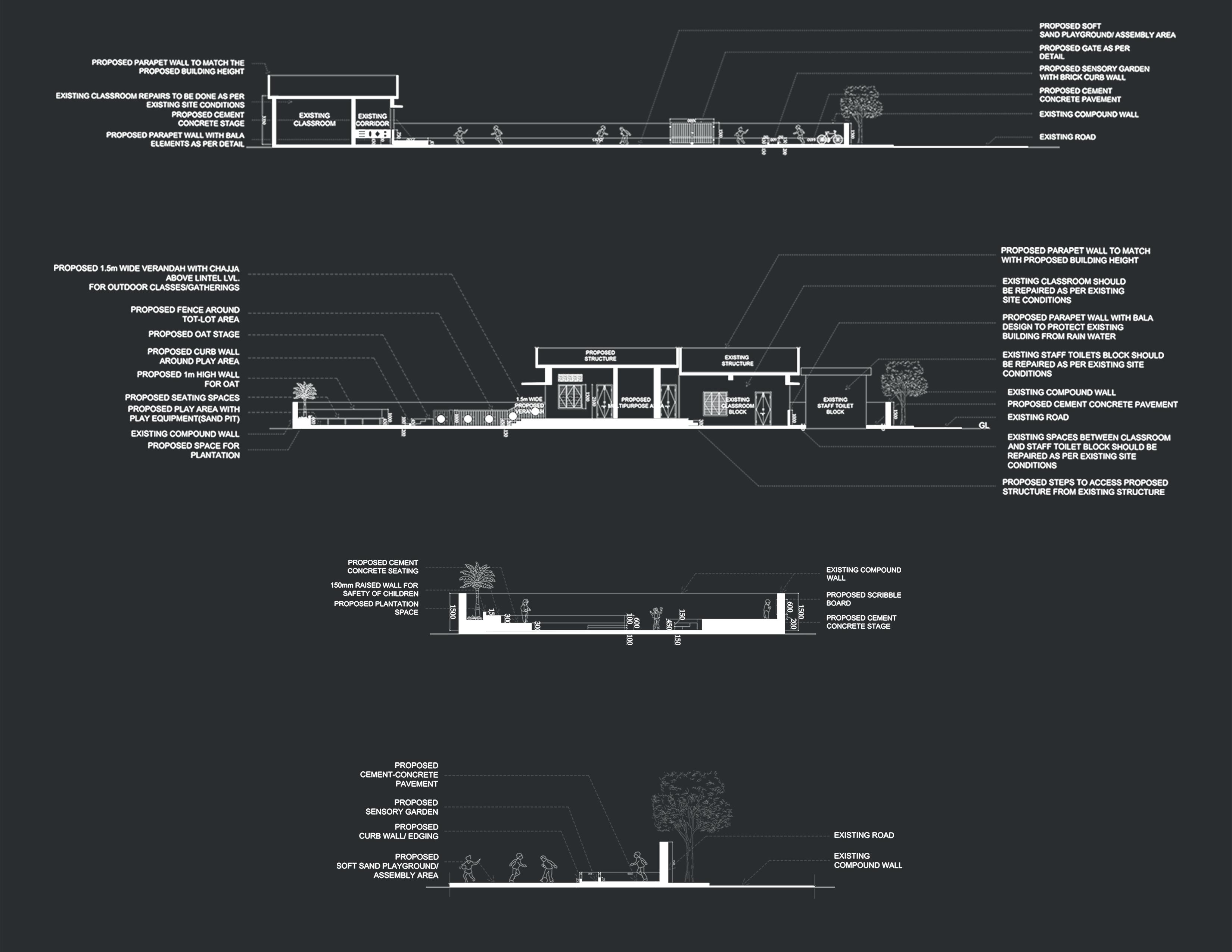

Site Section - A

Site Section - B

Open Air Theatre Detail Section - C

Play Area Detail Section - D

Elevation - D

Elevation - C

Elevation - A

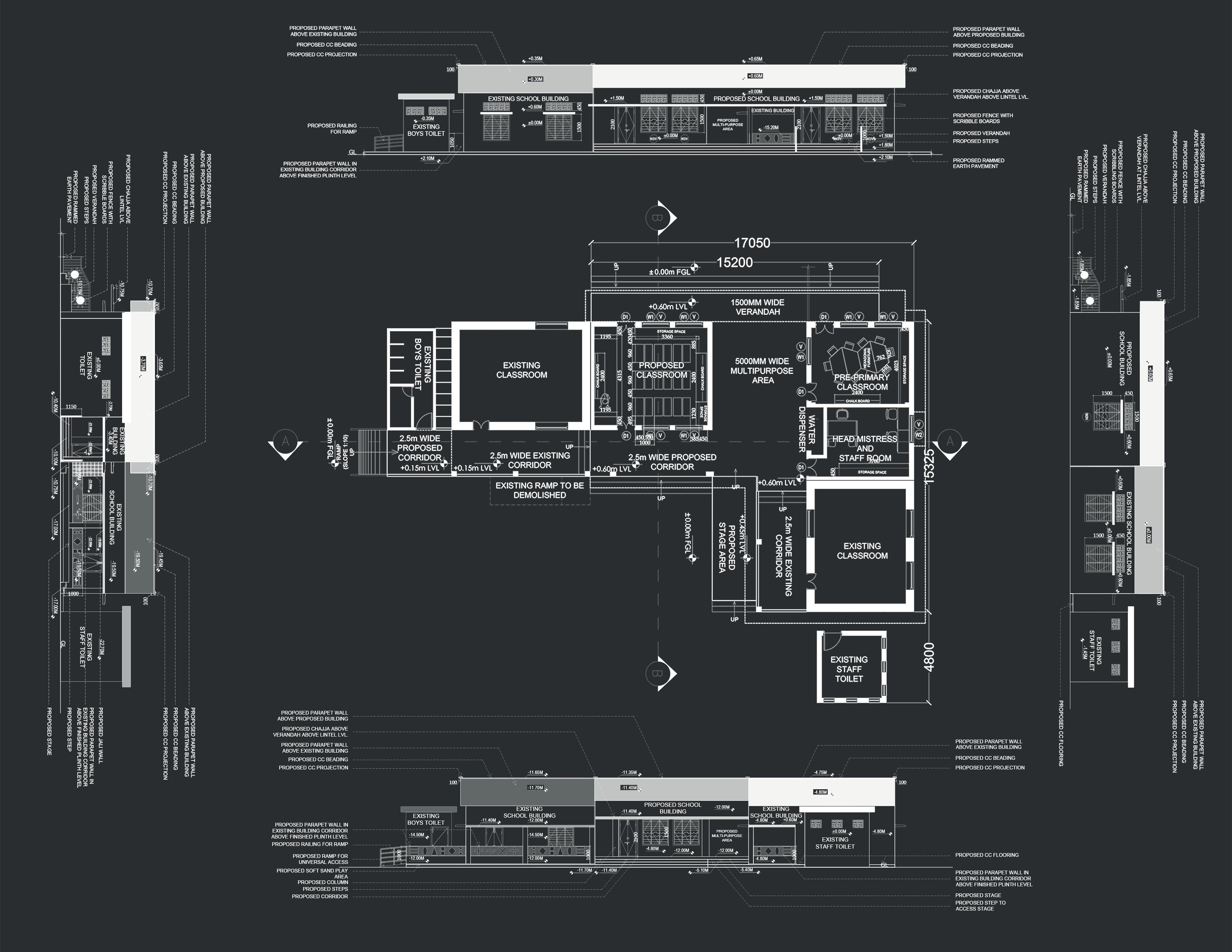

Floor Plan School area Malkapuram village population Total Government schools in village Total students in govt. schools Current MPPS (AA) Strength

- 1618.74 sqm - 1360 (2011) - 2 No’s - 73 students - 38 (Boys -21, Girls - 16)

Elevation - B

Class Room Type Design for MPPS

ADA Restroom Type Design for MPPS

Section - A

Section - A

Section - B

Section - B

Movement Of Wheel Chair In the Restroom

06

Home Beyond Borders

This thesis project addresses the pressing global refugee crisis by designing a self-sustaining, adaptable campus for Sri Lankan refugees in Madurai, Tamil Nadu state of India. It integrates housing, essential services, and income-generating resources within a cohesive development, fostering a sense of "home" and community. With a focus on humane living conditions, the design promotes self-sufficiency, enabling refugees to access basic needs, build skills, and achieve economic independence. The campus is adaptable, offering the potential to transition into low-income housing in the future, supporting long-term community resilience.

Study Area People of concern: 5,000 Area: 60 acres

“Enhance the living conditions of Sri Lankan refugees living in refugee camps in Madurai city” Humanitarian Design for Evolving Self-Suucient Communities Architecture Thesis Project- 2020 Mentors: Amulya.B, Kiran Kumar.B Location: Madurai City, India

Skill Set Research, Survey and Analysis, Human-Centered Design, Disaster Resilience & Emergency Planning, Auto Cad, Sketch Up, Adobe Suite, Lumion, Model Making, Microsoft OOce

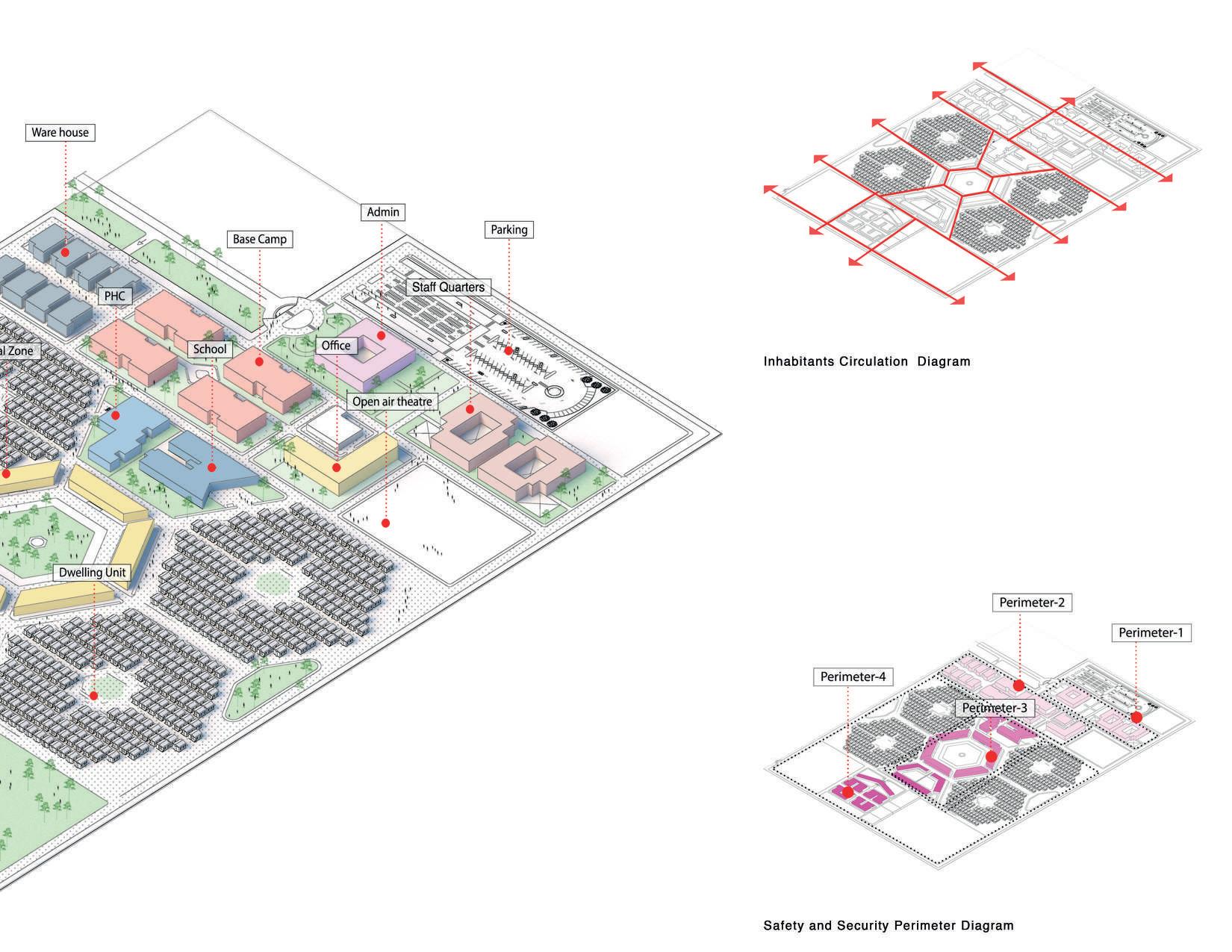

Refugee Community - Isometric View

Police station and holding Cell, Advocate room, Court room, Toilets, Dining hall, Food pantry, cafeteria, storeroom, record room, Staff room, Maintenance room, Refugee welfare office, Chief security office, CCTV room, Control station.

Administrative Building Ground Floor Plan

Reception, Registration room, Record room, Health screening room, Counseling room, UNHCR office, storeroom, Toilets, Conference hall, Camp officials and assistant's rooms.

Administrative Building First Floor Plan

Built-up area : 2029 sq.m Total capacity: 1000 persons Structure : G+1 (+6.0 m Lvl) Classes : LKG – 10th No of students per class: 40 Spaces Provided: Classrooms – 21, library, Computer lab, Science lab, Multipurpose hall, staff room-2, Admin office, Principal room, office, Toilets, Outdoor area

School Ground Floor Plan

School First Floor Plan

07

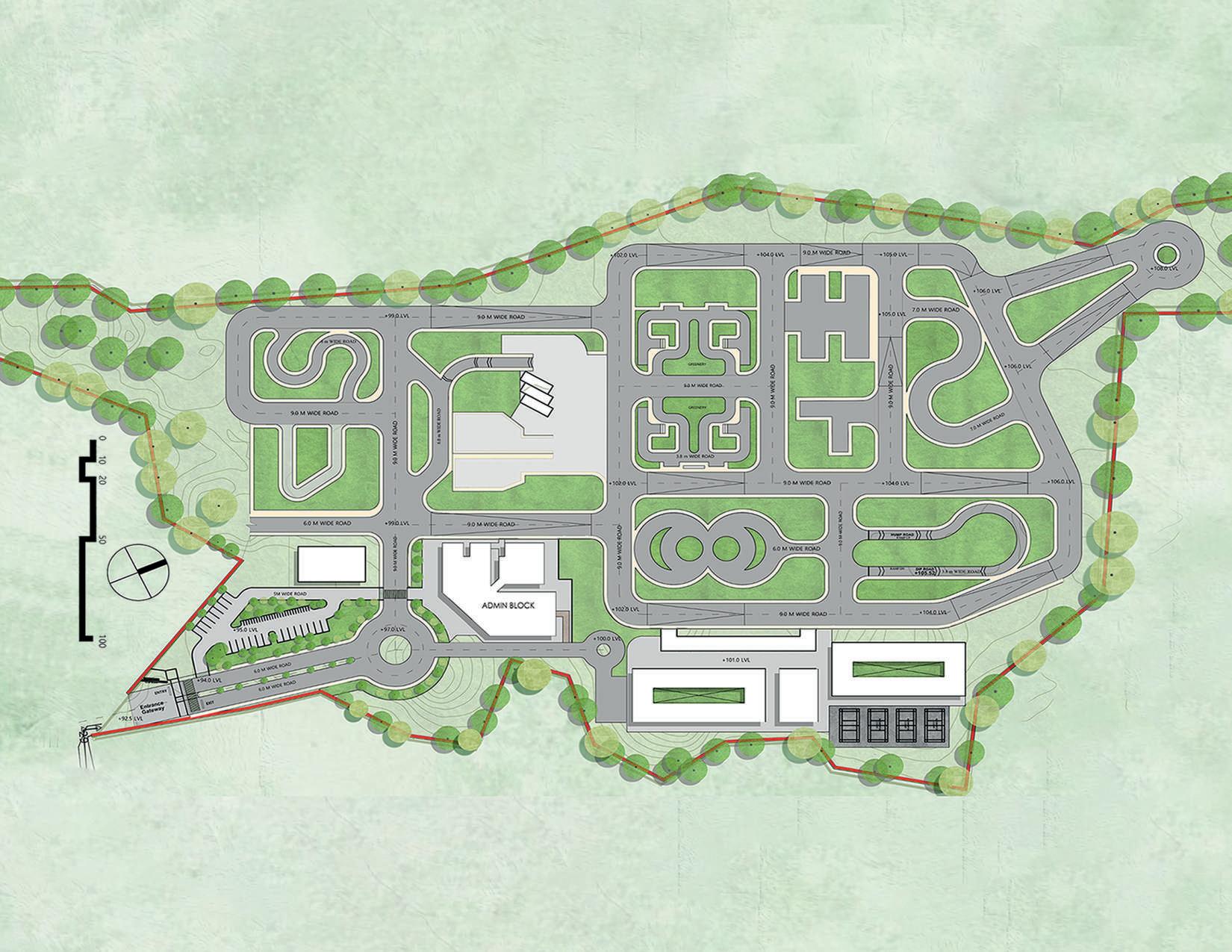

Pathways To Percision “Institute of Driving Training & Research with Focus on Training the drivers”

Transportation Infrastructure, Driver Training Facility Professional Project- 2021 (APCRDA) Mentor: Prasuna Bharathi Location: Dhone, Andhra Pradesh, India

Skill Set Roadway & Track Design, Cmpus Planning, Space Programming and Zoning, Auto Cad, sketchUp, Photoshop

08

Morphology of Healing “A Design Discourse for Tribal Health and Well-being”

Rural Health Care Facility Design Studio 1 - 2016 Mentors: Sankar.K, Sagar.G Location: Kanakavalli, Andhra Pradesh, India

Skill Set Survey and analysis, Community-Centered Design,Cultural Sensitivity, Healthcare Regulations & Standards, Time Management, Revit, Photoshop, Model making, Power Point

Section - V

Section - H

Ground Floor Plan

First Floor Plan

09

Rendered Realities

Designed the interiors of a 1,500 sq. ft. 3BHK apartment, starting with just the skeletal walls, to create a luxurious and functional living environment within a limited budget. Developed comprehensive MEP drawings, innovative ceiling designs, and efficient bathroom layouts to maximize space and utility.

Addressed the challenge of compact room layout by strategically incorporating lighting and using design techniques to create a sense of spaciousness. Carefully selected materials to balance cost-efficiency with high-end aesthetics. The design successfully combined modern elegance with practicality, fulfilling the client's goals and exceeding expectations for both style and functionality.

“Single Family Unit Interior Design”

Residential Interiors Internship Project- 2020 (VAID Architects) Mentor: Suresh Kumar.V Location: Hyderabad, TS, India

Skill Set Client Interaction, On-site supervision, MEP Drawings, Ceiling Plan, Auto Cad, Sketch Up, Lumion, V-RAY

Floor Plan

Master Bedroom

Guest Bedroom

Living Room

Kids Bedroom

10

Miscellaneous “Exploring the Artistic Intersection of Digital Media, Craft, and Design”

Storytelling through lens, focusing on light, shadow, and narrative composition.

Competition entry and on-site production of a large-scale mural.

Conceptualized, fabricated, and installed acoustic panels for a lecture hall at WAAC Campus.

Skill Set Composition & Framing, Post-Processing & Editing Material Exploration, Sculpting Techniques, Acoustic Material Exploration,Precision Assembly, Installation and Mounting Methods,

Fire En-Lightning Cultural Spirits Birla White Mural Competition 2017

This collaborative mural project explores the concept of fire as an eternal cultural symbol that transcends boundaries in India, a land of diverse cultures and ideologies.

The design reflects the unifying power of fire, revered across different religions and communities. Through dynamic forms and intricate patterns, we represented fire as a force that connects spiritual and physical realms, defying the concept of possession.

The mural blends abstract symbolism with cultural motifs, capturing the essence of

devotion and the transformative energy of fire. The project emphasizes India’s shared reverence for this element, showcasing how it binds diverse traditions and beliefs.

Crafting Soundscapes: Acoustic Solution for the West Room Master’s Elective course (Design Build) - 2022 Mentor: Ryan.P

This project aimed to enhance sound quality in the West Room at the Washington Alexandria Architecture Center (WAAC), Virginia Tech’s urban campus, a space central

to presentations and events. Faced with acoustical challenges due to the room’s size and creaky flooring, I designed and installed geometric acoustic panels using

sustainable PET felt. This design improved sound absorption, reduced echoes, and introduced a dynamic visual element. By utilizing an innovative magnet-based installation, the solution was both functional and aesthetically cohesive, creating a more acoustically optimized environment.
