RESIDENCEAt Murbad

LOCATION : Murbad , Thane , Maharashtra , INDIA

SITE AREA : 1000 SQ.M

ABOUT :

A house is to be designed for an elite urban family in the city. The father is a working professional – an architect . The mother also works with him and both are in same profession. They want Office with a Residence.

1. Rectangular site having 1000sq.m Area

2. Applying the setback rule front 6m side & back 3m

3.Elevating the area to maximum height of 9m

L- Shaped layout creates more shadow

The layout of Lshaped floor plan lends itself to a seamless continuity of indoors and outdoors

Change in massing for more wind direction, ventilation

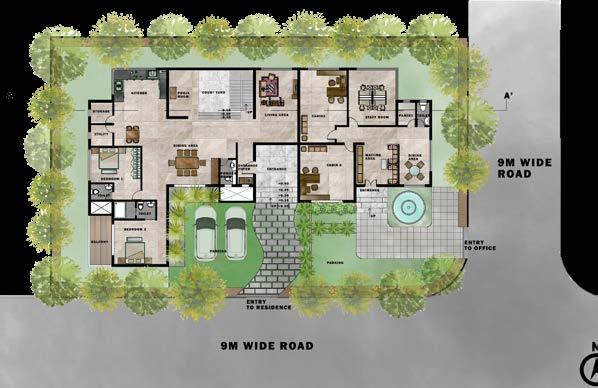

SITE LAYOUT & GROUND FLOOR PLAN
