MAP 1
NOTES :
MAP 1 - Shows the natural setting topographic features of India.
MAP 2 - Shows all the kingdoms of India and various temples built during their regime.
Marks temples across India showing the three different styles of architecture styles.
i.e Nagara Style (North India)
Vesara Style (Central India)
Dravidian Style (South India)
SOURCES :
https://www.pikpng.com/pngvi/iRJoTbJ_india-map-india-politcalmap-outline-clipart/ https://commons.wikimedia.org/wiki/File:Physical_Map_of_India.jpg https://www.mapsofindia.com/my-india/travel/top-10-buddhist-monasteries-you-should-visit https://selfstudyhistory.com/2021/11/03/ancient-jain-sites-map-for-history-optional/
Architectural Thesis
Thesis
..... Architectural Thesis IN QUEST OF SELF
Architectural
Koj
PRABODH KATGERI USN : 1RW18AT081 X - Sec, B - Sec, B. Arch R V College of Architecture
MAP 2
MAP 3
NOTES :
MAP 3 - Shows all the various spiritual institutions of astika and nastika systems - Hindu Vaishnava and Shaiva Mathas, Buddhist and Jain Monasteries and ancient Indian universities destroyed by invaders. MAP 4 - Shows the modern day temples and spiritual institutions of pre and post independent India.
SOURCES
https://www.pikpng.com/pngvi/iRJoTbJ_india-map-india-political-map-outline-clipart/ https://commons.wikimedia.org/wiki/File:Physical_Map_of_India.jpg https://www.mapsofindia.com/my-india/travel/top-10-buddhist-monasteries-you-should-visit https://selfstudyhistory.com/2021/11/03/ancient-jain-sites-map-for-history-optional/
Architectural Thesis
Thesis
.....
Thesis IN QUEST OF SELF
Architectural
Koj
Architectural
PRABODH KATGERI USN : 1RW18AT081 X - Sec, B - Sec, B. Arch R V College of Architecture
:
MAP 4
NOTES :
SOURCES :
https://en.wikipedia.org/wiki/Hindu_philosophy#:~:text=Epistemology,-Main%20article%3A%20Pramana&text=Epistemology%20is%20 called%20pramana.,beings%20can%20gain%20accurate%20knowledge. https://en.wikipedia.org/wiki/Indian_philosophy https://en.wikipedia.org/wiki/Hinduism https://en.wikipedia.org/wiki/Vedas https://en.wikipedia.org/wiki/%C4%80stika_and_n%C4%81stika
Architectural Thesis Architectural Thesis
..... Architectural Thesis IN QUEST OF SELF
Koj
PRABODH
X - Sec, B - Sec, B. Arch R V College of Architecture
KATGERI USN : 1RW18AT081
Indian Belief Systems - Astika & Nastika. Indian Schools of Epistomology. Various Indian Scriptures and its division. Astika & Nastika Indian School of Thoughts.
AND NATURE RELATIONSHIP
HUMAN
SACRED TREES MENTIONED IN VARIOUS HINDU SCRIPTURES
NOTES :
SOURCES : PRABODH KATGERI USN : 1RW18AT081
https://religion.fandom.com/wiki/Tree_worship#:~:text=Tree%20worship%20refers%20to%20the,sacred%20meanings%20throughout%20 the%20ages. https://en.wikipedia.org/wiki/Trees_in_mythology https://ethnobiomed.biomedcentral.com/articles/10.1186/1746-4269-2-26 http://magazines.odisha.gov.in/Orissareview/2012/June/engpdf/58-60. pdf
Architectural Thesis Architectural Thesis Koj ..... Architectural Thesis IN QUEST OF SELF
X - Sec, B - Sec, B. Arch R V College of Architecture
EVOLUTION OF TREE WORSHIP - Understanding the idea of place making with respect to the functional needs of people and its evolution over a great period of time. i.e: a raised platform - plinths, fencing - for safety, stone slab as shelters - small shrines, temples and temple towns etc. LIST OF SACRED TREES
Architectural
Architectural Thesis
Architectural Thesis
NOTES :
LITERATURE STUDY : Diagramatic representation of metaphorical explaination of human beings from various Hindu puranas, itihasa, scriptures etc. Human as Chakras - Energy Source Human as a Fort Huamn as a Chariot Human as a Tree
SOURCES :
Srimand Bhagavatam Srimand Bhagavad Gita kathopanishad Yoga Shastra - Vedas - Tantra Vidya
PRABODH KATGERI
USN : 1RW18AT081
Koj .....
Thesis IN QUEST OF SELF
X - Sec, B - Sec, B. Arch R V College of Architecture
NOTES :

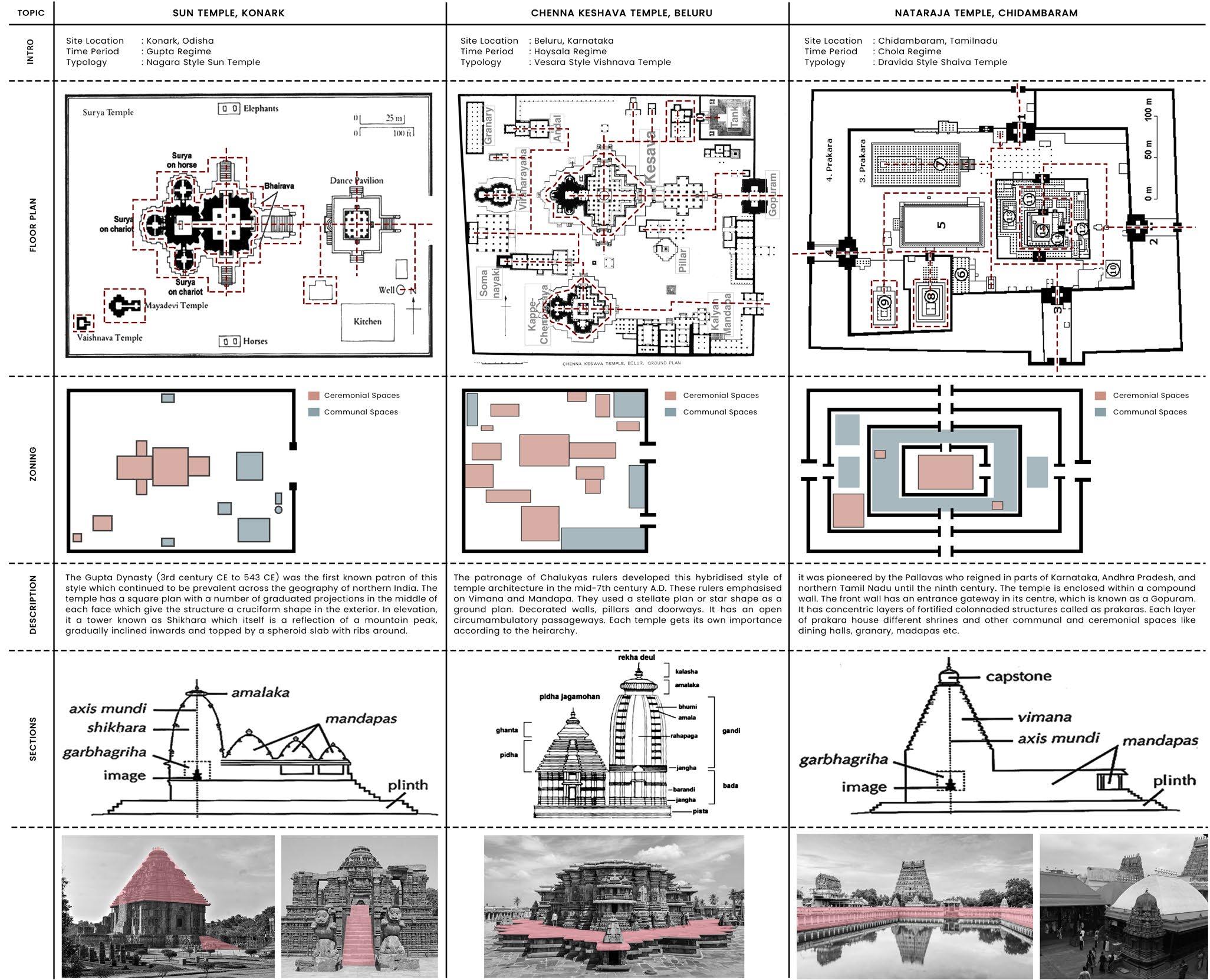

Case Study Matrix - Comparison of three prominent Ancient Indian Temple Styles.
i.e: Nagara, Vesara, Dravida Styles. Understanding the scale of spaces, quality of spaces, light, materiality, integration of nature, architectural elements used like - plinths, colonnades etc to define the enclosur, openings, transition spaces etc.
SOURCES :
https://byjus.com/free-ias-prep/difference-between-nagara-and-dravidian-style/#:~:text=In%20Dravidian%20Style%2C%20the%20most%20 prominent%20element%20is%20the%20Gopuram.&text=In%20Dravidian%20Style%2C%20the%20entrance%20has%20Dwarapalas.&text=In%20 Nagara%20style%2C%20pedestals%20are,level%20in%20the%20Dravidian%20Style. https://www.geeksforgeeks.org/nagara-style-of-temples/ https://www.insightsonindia.com/indian-heritage-culture/architecture/ temple-architecture/dravida-style/ https://www.insightsonindia.com/indian-heritage-culture/architecture/ temple-architecture/vesara-style/
Architectural Thesis Architectural Thesis
.....
Thesis IN
Koj
Architectural
QUEST OF SELF
PRABODH KATGERI USN : 1RW18AT081 X - Sec, B - Sec, B. Arch R V College of Architecture
NOTES :
Case Study Matrix - Comparison of various modern day temples built by contemporary architects. Understanding the reinterpretation of the scale and the elements of classical Indian temple styles. Ex: Shikahara, Gopura, Mahadwara - Threshold, Garbha Griha, Kalyani/ Kund etc.
SOURCES : PRABODH KATGERI USN : 1RW18AT081
https://www.archdaily.com/943320/temple-of-steps-sameep-padora-and-associates https://www.archidiaries.com/projects/balaji-temple-temple-of-steps-sameep-padora-associates/#:~:text=The%20Balaji%20 temple%20in%20Nandyal,exploring%20what%20not%20to%20repeat. https://www.archdaily.com/896923/tejorling-radiance-temple-karan-darda-architects#:~:text=The%20temple%20built%20in%20 a,everyday%20worship%20by%20surrounding%20farmers. https://www.archdaily.com/78415/shiv-temple-sameep-padora-associates
Architecture
Architectural Thesis
Thesis
..... Architectural Thesis IN QUEST OF SELF
Architectural
Koj
X - Sec, B - Sec, B. Arch R V College of
Architectural Thesis Architectural Thesis Koj ..... Architectural Thesis IN QUEST OF SELF NOTES : SOURCES : PRABODH KATGERI USN : 1RW18AT081 X - Sec, B - Sec, B. Arch R V College of Architecture Case Study Matrix - Comparison of modern day Spirituality Centers. Understanding the scale of spaces, quality of spaces, play of light and shadow, textures, materials used etc.
-
https://www.archdaily.com/790646/jetavan-sameep-padora-and-as
sociates https://archello.com/project/jetavan https://www.archdaily.com/798645/vajrasana-buddhist-retreat-walters-and-cohen-architects
Koj
NOTES :

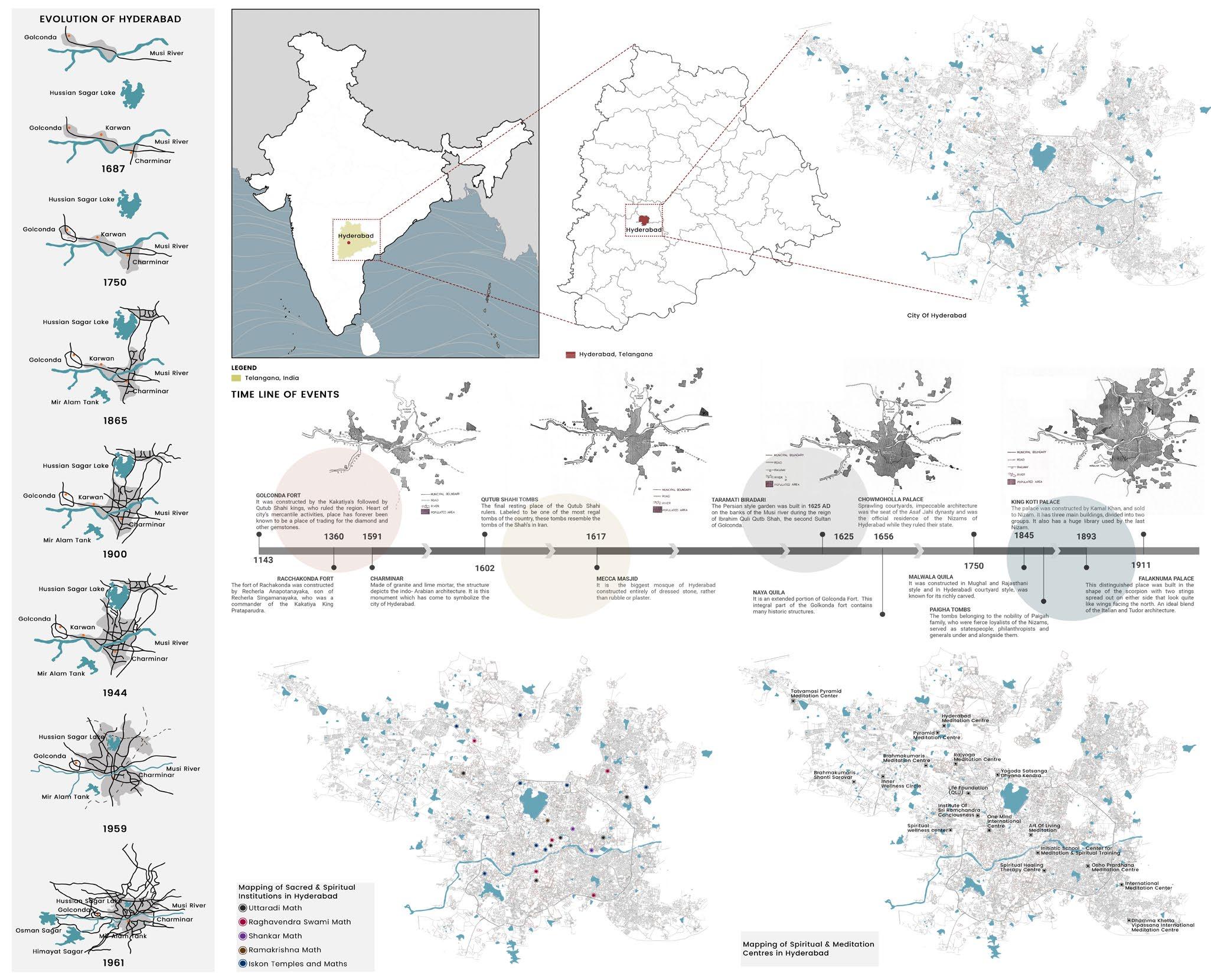

HISTORIOGRAPHY : Discovering different cultural, economical, historical layers hidden under the blanket of time. Understanding the evolution of the city over the period of time - under varios rulers from Mauryans to Qutub Shais.
SOURCES : PRABODH KATGERI USN : 1RW18AT081
https://hyderabad.telangana.gov.in/history/#:~:text=Hyderabad%20 emerged%20as%20the%20foremost,Nizam%2C%20enriched%20the%20 cultural%20milieu. https://www.oldmapsonline.org/en/Hyderabad_district%2C_India https://www.geographicus.com/P/AntiqueMap/cityhyderabad-pharoah-1854 https://en.wikipedia.org/wiki/Hyderabad https://hydlab.co.in/maps/ https://www.reddit.com/r/MapPorn/comments/ulc09o/growth_of_hyderabad_india_over_272_years_from/
Thesis
Architectural Thesis Architectural
.....
Thesis IN
Architectural
QUEST OF SELF
X - Sec, B - Sec, B. Arch R V College of Architecture
Koj
NOTES :
NATARUAL FEATURES : Understanding various layers of natural features of the city - terrain, water bodies, soil type, green cover, land cover etc. ACCESSIBILITY - CONNECTIVITY : Modes of transportation available to reach the site. Bus routes, rail routes, metro routes. Highways,Outer Ring Roads, Main Roads etc. Analysisng the proposed network maps for future development and better connectivity.
SOURCES :
https://www.researchgate.net/figure/Soil-loss-tolerance-map-of-Telangana_fig3_285482660 https://www.researchgate.net/figure/Detailed-land-use-map-of-Hyderabad-urban-agglomeration-from-2011-to-2012_fig2_322335006 https://www.researchgate.net/figure/Land-use-land-cover-change-dynamics-in-Hyderabad-city-during-1973-2015_fig2_318012981 https://www.researchgate.net/figure/Hyderabad-Metropolitan-Region-HMR-and-its-constituents-Source-Hyderabad-Metropolitan_ fig4_332370360 http://hyderabad-india-online.com/2009/11/major-bus-routes-of-tsrtcin-twin-cities/
Thesis
Architectural Thesis Architectural
.....
IN
Architectural Thesis
QUEST OF SELF
PRABODH KATGERI USN : 1RW18AT081 X - Sec, B - Sec, B. Arch R V College of Architecture
Koj
NOTES :
CLIMATE ANALYSIS : Humidity, Rainfall, Temperature, Wind flow, Precipitation of Hyderabad DEMOGRAPHIC STUDY Understanding various age groups, sex ratio, literacy rates of Hyderabad. https://www.meteoblue.com/en/weather/week/hyderabad_india_1269843 https://www.meteoblue.com/en/weather/historyclimate/climatemodelled/hyderabad_india_1269843 https://www.meteoblue.com/en/weather/archive/windrose https://www.census2011.co.in/census/city/392-hyderabad.html#:~:text=Hyderabad%20Literacy%20Rate%20and%20Sex,was%2087.31%20and%20 79.04%20percent. https://en.wikipedia.org/wiki/Demographics_of_Hyderabad
SOURCES :
Thesis
Architectural Thesis Architectural
.....
IN
Architectural Thesis
QUEST OF SELF
PRABODH KATGERI USN : 1RW18AT081 X - Sec, B - Sec, B. Arch R V College of Architecture
SOURCES
Primary
Secondary
Architectural Thesis Architectural Thesis Koj ..... Architectural Thesis IN QUEST OF SELF
:
NOTES
: PRABODH KATGERI USN : 1RW18AT081 X - Sec, B - Sec, B. Arch R V College of Architecture
shows various layer of information of infrastructure - connectivity, natural features, relation between built and unbuilt spaces, important landmarks etc.
Mapping
Documentation - Site Visits, interviews
Documentation -
SCALE 1 : 1000
https://earth.google.com/web/ https://www.treebo.com/blog/monuments-in-hyderabad/ https://en.wikipedia.org/wiki/Kachiguda
SCALE 1 : 500
Architectural
NOTES :
Mapping of kinetic & Static elements - Daily activities, festivals celebrated annually by various religions and their processional pathways etc. Relation between built and unbuilt spaces through spot sections and building heights through elevation photo montages etc.
Circular Calender - mapping of festivals celebrated in the locality.
SOURCES :
Primary Documentation - Site Visits, interviews
Secondary Documentationhttps://www.hyd.co.in/festivals/ https://hyderabad.telangana.gov.in/festivals/ https://en.wikipedia.org/wiki/Kachiguda
PRABODH KATGERI
USN : 1RW18AT081
Architectural Thesis
.....
Thesis Koj
Architectural Thesis IN QUEST OF SELF
X - Sec, B - Sec, B. Arch R V College of Architecture
Architectural Thesis Architectural Thesis Koj ..... Architectural Thesis IN QUEST OF SELF NOTES : SOURCES : PRABODH KATGERI USN : 1RW18AT081 X - Sec, B - Sec, B. Arch R V College of Architecture Documentation of kinetic & Static elementsDaily activities, Building elevations, sturctures up for demolition and structures under construction. Primary Documentation - Site Visits, interviews SCALE 1 : 250
Koj
NOTES : CLIMATE ANALYSIS : Humidity, Rainfall, Temperature, Wind flow, Precipitation of Hyderabad
DEMOGRAPHIC STUDY Understanding various age groups, sex ratio, literacy rates of Hyderabad.
SOURCES : PRABODH KATGERI USN : 1RW18AT081
Responses from Interviewed people (Primary data) https://docs.google.com/spreadsheets/d/12CHSDOVLL9w5xseL1atLD34coT-afKn7QxUvs1UOEOs/edit#gid=1507532937 https://docs.google.com/spreadsheets/d/1rM6UjEuV9rvRlnLZZacPOWuQZq2-gecglRjp74iJnZQ/edit#gid=0 https://www.freewordcloudgenerator.com/ https://www.jasondavies.com/wordcloud/ https://issuu.com/pavana_shaili/docs/draft_model_17-87
Thesis
Architectural Thesis Architectural
.....
Architectural Thesis IN QUEST OF SELF
X - Sec, B - Sec, B. Arch R V College of
Architecture
Architectural
Architectural
Architectural
Koj
NOTES :
Diagram explains the understanding of program and its generation from the core ideas. Criteria generated to choose the site based on the relavance to the program.
Quantitive Analysis - Area Statement and its individual program split up to understand the idea of spaces and its relationships.
SOURCES :
https://docs.google.com/spreadsheets/d/1Fra71c8bZPyv4a8zHkhgxSn5slGTO_ep3arOu_0Dwg4/edit#gid=0 https://docs.google.com/spreadsheets/d/1-5XPVAsYbUDzb55srdKhP1kz9hq-gY3Jcb1N3HHLD3Q/edit#gid=0
Thesis
Thesis
.....
Thesis IN QUEST OF
SELF
PRABODH KATGERI USN : 1RW18AT081 X - Sec, B - Sec, B. Arch R V College of Architecture
Architectural Thesis Architectural Thesis Koj ..... Architectural Thesis IN QUEST OF SELF NOTES : SOURCES : PRABODH KATGERI USN : 1RW18AT081 X - Sec, B - Sec, B. Arch R V College of Architecture Commercial Sacred Spaces Residential Educational Institutions Primary Road Secondary Road Teritary Road SCALE 1 : 250
Architectural Thesis ROOF PLAN
BHUMANNAGALLI BASANT
BARKATPURA ROAD
GROUND FLOOR PLAN
Thesis
1 : 250
Architectural
SCALE
1. Sanjeevini Mukhya Prana - Garbha Griha 2. Kalyani / Kund 3. Dhatri Vrukhsa - Sacred Tree 4. Shami Vruksha - Sacred Tree 5. Utsava Mantapa 6. Smaller Shrines 7. Seating Space 8. Meditation Pods 9. Mukhya Dwara 10. Side Entrance 11. Ramp Entrance 12. Side Entrance 13. Storage Space 14. Garuda Khamaba 15. Dorms / Rooms 16. Market Space 17. Learning Spaces - Library, Discussion Spaces 18. Public Toilet 19. Entrance to Meditation Hall 20. Admin Block 21. Fodder Storage 22. Gow Shala 23. Kitchen Garden 24. Community Dining Hall 25. Community Kitchen 26. Green Rooms 27. Performance Space - Stage 28. Seating Spaces 29. Spillout Spaces 30. Space for Therapies LINGAMPALLY ROAD
BASANTTALKIESROAD
BHUMANNAGALLI BASANT
BARKATPURA
1 : 250 1. Sanjeevini Mukhya Prana - Garbha Griha 2. Kalyani / Kund 3. Dhatri Vrukhsa - Sacred Tree 4. Shami Vruksha - Sacred Tree 5. Utsava Mantapa 6. Smaller Shrines 7. Seating Space 8. Meditation Pods 9. Mukhya Dwara 10. Side Entrance 11. Ramp Entrance 12. Side Entrance 13. Storage Space 14. Garuda Khamaba 15. Dorms / Rooms 16. Market Space 17. Learning Spaces - Library, Discussion Spaces 18. Public Toilet 19. Entrance to Meditation Hall 20. Admin Block 21. Fodder Storage 22. Gow Shala 23. Kitchen Garden 24. Community Dining Hall 25. Community Kitchen 26. Green Rooms 27. Performance Space - Stage 28. Seating Spaces 29. Spillout Spaces 30. Space for Therapies LINGAMPALLY ROAD
Architectural Thesis SCALE
BASANTTALKIESROAD
PRABODH KATGERI USN : 1RW18AT081 X - Sec, B - Sec, B. Arch R V College of Architecture
ROAD FIRST FLOOR PLAN
Basant Talkies Road SECTION AA’ SECTION BB’ SECTION CC’ SECTION DD’ SECTION EE’ Bhumanna Galli Basant Talkies Road Foot Path Foot Path Kitchen Garden Admin Block Seating Spaces Community Dining Hall Sunken Court & Gow Shala (In Elevation) Community Kitchen Sunken Courtyard Pradakshina Patha Secondary Entrance Pradakshina Patha Garbha Griha Community Kitchen Market Front Utsava Mantapa Utsava Mantapa Lingampally Road Kalyani / Kund (Stepped Well) Seating Space Meditation Pods (In Elevation) Bhumanna Galli Bhumanna Galli Seating Space Outdoor Reading and Seating Space Thorough Fare Stage and Green Rooms Learning Spaces - Library, Discussion Yoga and Meditation Hall Sunken Courtyard Yoga and Meditation Hall Yoga and Meditation Hall
Architectural Thesis Architectural Thesis Koj ..... Architectural Thesis IN QUEST OF SELF NOTES : PRABODH KATGERI USN : 1RW18AT081 X - Sec, B - Sec, B. Arch R V College of Architecture Architectural Design Sections SCALE 1 : 250 A D’ D E’ E B C Lingampally Road Bhumanna Galli Well) Main Entrance Secondary Entrance SECTIONS 1 : Drawing Name / Sheet Title Architectural Thesis Koj ..... PRABODH KATGERI USN : 1RW18AT081 X Sem, B - Sec, B. Arch R V College of Architecture LEGEND Architectural Thesis IN QUEST OF SELF Koj Lingampally Road Basant Talkies Road Spillout Spaces Spillout Spaces Admin Block Gow Shala Sunken Courtyard Sunken Courtyard Dorms and Guest Rooms Dorms and Guest Rooms Dorms and Guest Rooms Kitchen Garden Market Front A’ B’ C’ SOURCES :
Perforated Panel IN ELEVATION SCREED 0.20 Concrete Wall Panel Stone Connectors Concrete Platform Cut out - Kalyani Steps Plinth Column Horizontal Vertical Perforated Mesh Panel Walls Materiality Joinery Details + 15mm
Architectural Thesis I - Section Staircase Detail Joinery Stone Beam
Mesh Staircase Materiality 11.70 SHOP SHOP SHOP SHOP SECTION DETAIL DETAIL Box Section Stone Beam 2 Plinth Brick Jaali Capital Beam Column CASSETTE CASSETTE SECTION @ 2-2 DETAIL SHOP SHOP 11.70 11.70 11.70 11.70 11.70 11.70 40mm thk natural stone, Metal profile PVC profile Sand blasted granite PCC ( as per structural 80mm thk natural stone backup water
Perforated
NOTES
SOURCES
Architectural Thesis
Thesis Koj ..... Architectural Thesis IN QUEST OF SELF
Architectural
:
: PRABODH KATGERI USN : 1RW18AT081 X - Sec, B - Sec, B. Arch R V College of Architecture

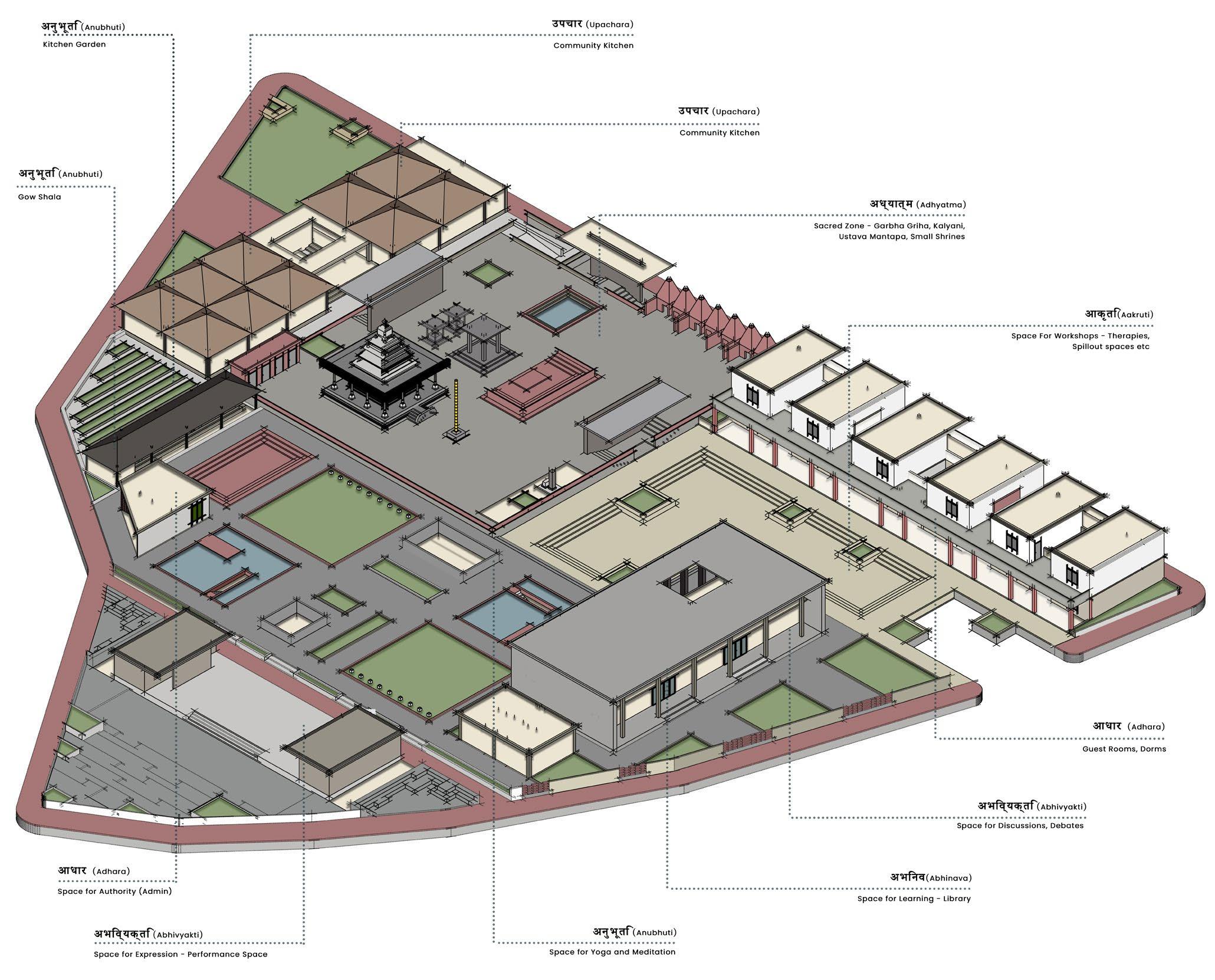

View of the design.
Axonometric
View from Admin Block
View from Thoroughfare
View from Secondary Entrance
View from
View from
View leading
Architectural Thesis Architectural Thesis Koj ..... Architectural Thesis IN QUEST OF SELF
:
: PRABODH KATGERI USN : 1RW18AT081 X - Sec, B - Sec, B. Arch R V College of Architecture Rendered Views from Primary Entrance
NOTES
SOURCES
from Sunken Courtyard - Library & Discussion Spaces
leading to Underground Meditation Space
