Museo Del Domus Severiana Page 1
Museo Del Domus Severiana
Concrete nish 20 mm
Screed 40 mm with under oor heating 40 mm
Perforated steel decking slab with concrete lling between Steel beams 220 mm
Steel frame Screw xed on frame 25 mm with Cavity barriers between
Polyester ceiling 18 mm attached to steel frame

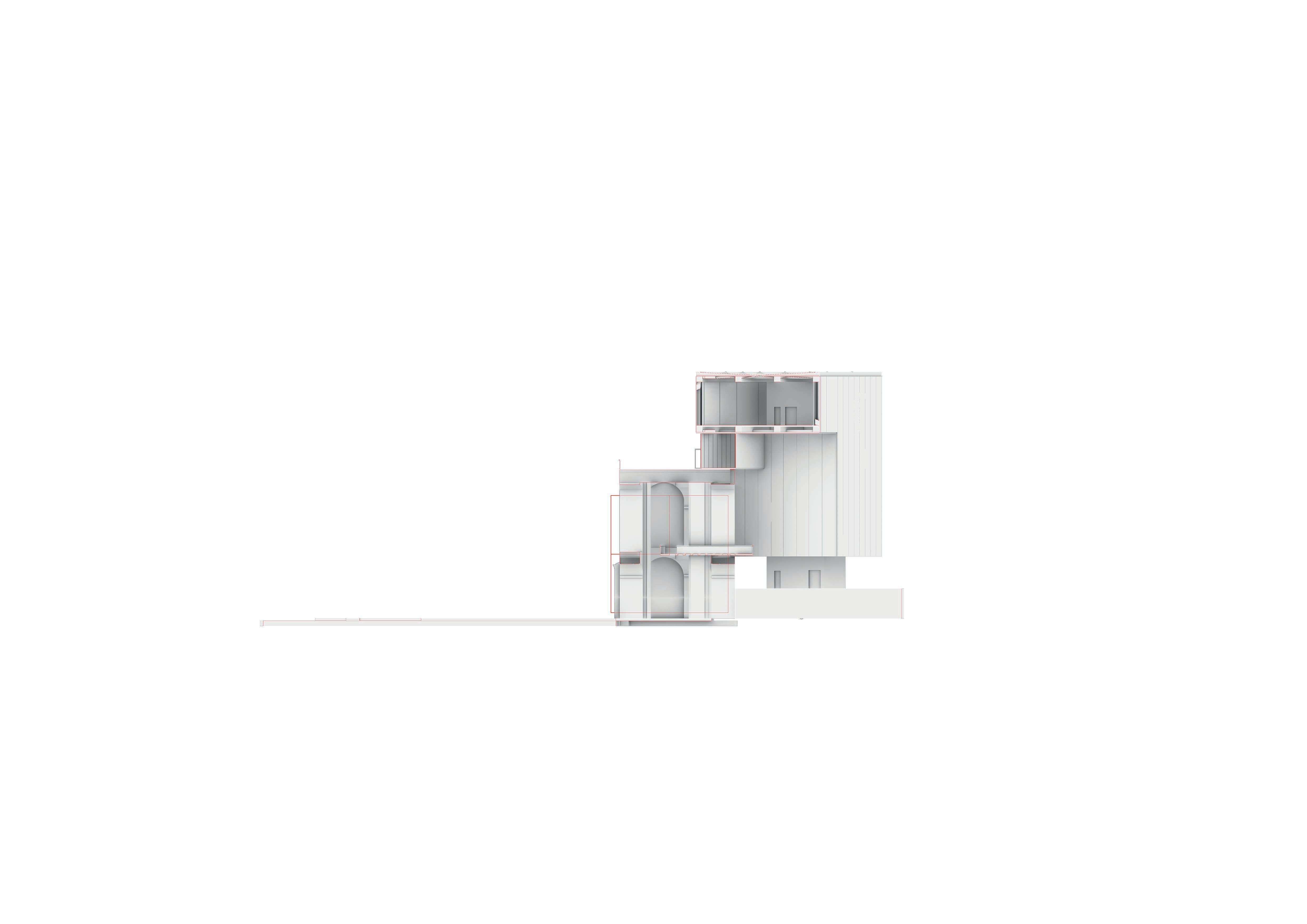

SECTION DETAIL MUSEUM OF ARTEFACT
This building displays a bold skin externally but the make up of the wall is hefty and works mainly by keeping the temperature regulated from the outside and inside, in the winter the under oor heating turn on and in the summer they are o but the windows are open and can provide big insulated barrier
Polycarbonate facade nish 20 mm
Polycarbonate facade with second layer between frames 25 mm
Sandwich wall with air gap to regulate temperature and heat escape 345 mm
Single glazing glass with reinforced frame 2 mm
Polycarbonate facade nish 20 mm
Rockwool insulation 50 mm
Cavity barrier for re protecting in-between the steel rail structure Under oor heating between screed to provide thermal comfort during winter.
Polyester ceiling 18
Museo Del Domus Severiana Page 2 Floor to Wall Detail 1:20
PALATINO
DPC layer to protect structure 2mm Air vapour barrier 2 mm Ply board backing 30 mm Main Beam structure pro le 500 mm x 300 mm Timber baton 905 mm x 45 mm Ply board backing
mm
30
mm
steel
Edgebeam
for polycarbonate skin 75 mm x 63 mm
attached to
frame
frame
SECTION DETAIL MUSEUM OF ARTEFACT
PALATINO
Museo Del Domus Severiana Page 3
Metal Plate 3 mm
sheets 20 mm x 2
plate 20 mm panel support Flashing 3 mm Metal Flashing 2 mm 24 mm Glazing 100 mm window rise Drainage perimeter around glass box in ground oor Rigid isulation 50 mm Pad foundation 900 mm x 600 mm Glazing
frame Outside
Polycarbonate
Polycarbonate
with
and
!:10 Section of Foundation on glass frame 1:10 Section of Frame facade Inside ground oor I-Beam 750 mm x 500 mm Metal nish 8 mm Rigid insulation 150 mm Piles x4 50 mm x 1000 mm Under oor heating Under oor heating
!:50 Section of foundation
ground oor
SECTION DETAIL MUSEUM OF ARTEFACT
PALATINO
1:50 Section of Roof ventilation detail Inside Third oor Polycarbonate sheets 20 mm x 2 Bolt xing for panels Metal ashing 2 mm cover Vapour barrier 2 mm Steel frame 60 mm for polycarbonate sheets Timber Baton xings 550 mm x 150 mm I-beam 750 mm X 500 mm Metal Vent Metal lining vent 2 mm Shingles nish 2 mm Movement of air ow and ventilation 22 mm cieling boarding 35 mm Thermal boarding 140 mm Rigid insulation with services in between frames 140 mm Timber battens support for ply 10 mm Timber boarding for supporting air circulation vent Varying sizes of timber beams 24 mm Glazing attached to metal frame
Museo Del Domus Severiana Page 5
Museo Del Domus Severiana

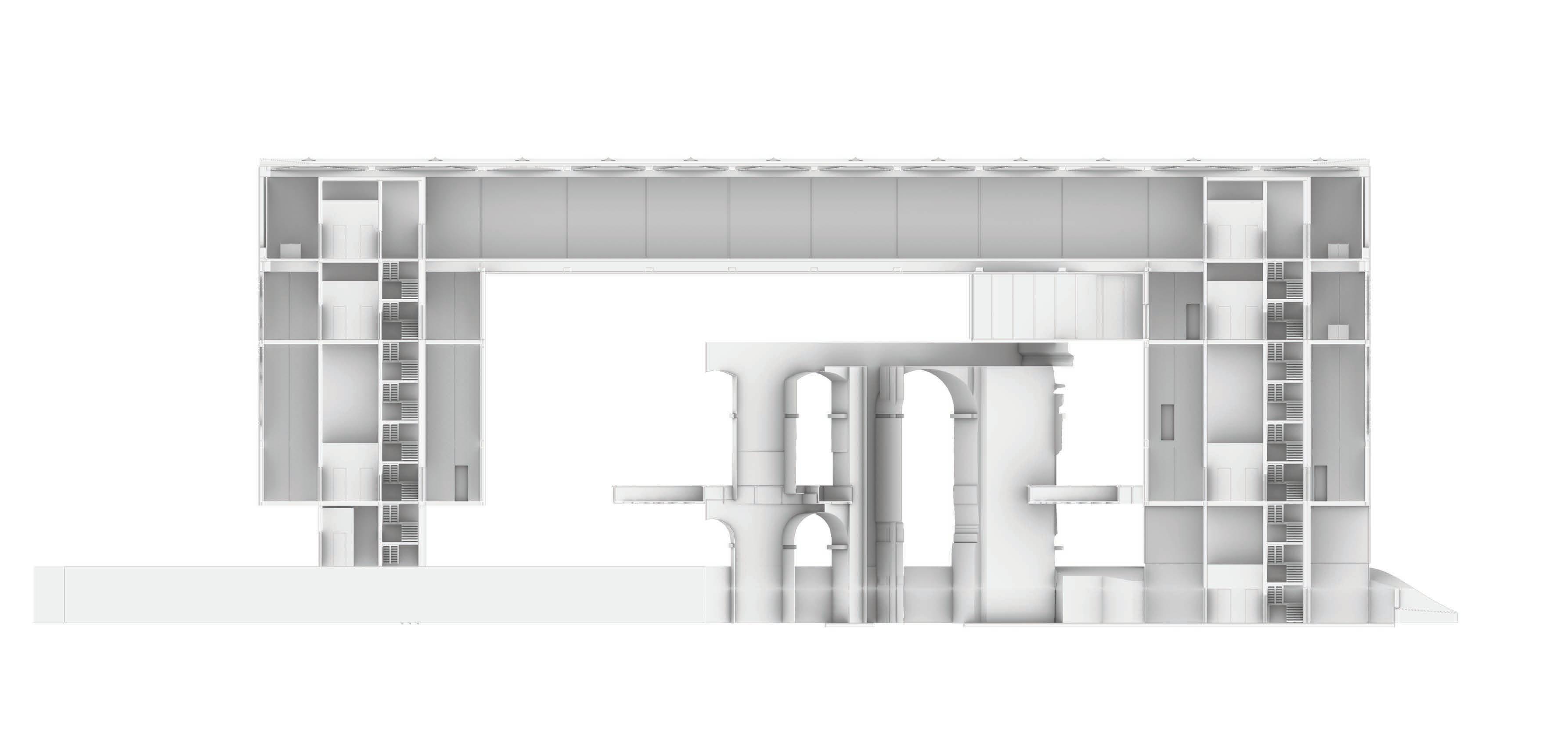

Section Detail
SECTION DETAIL MUSEUM OF ARTEFACT
Building Regulations
The suspended walkways in the Museo del Domus Severiana are designed to fully comply with building regulations and standards. The walkways feature a height of 1.1 meters, which ensures safety and accessibility. Additionally, the walkways incorporate a timber balustrade on a metal frame, heavy-duty glass, and robust structural supports, all of which contribute to meeting the stringent requirements set forth in safety and construction codes.
PALATINO
Museo Del Domus Severiana Page 6
Timber balustrade on metal frame 70 mm diameter
Single glazed glass between metal frame railing (heavy duty) 2 mm
Hinge brace footing attached on steel frame for 50 mm diameter suspended legs 165 mm x 130 mm
Metal suspended legs 50 mm
Isometric view 1:50
Boxed Beam frame for the glass to sit on 150 mm x 150 mm
1.1 m
Heavy duty glass sitting on a rectangular steel frame 30 mm double glazing (12 mm x 2)
Museo Del
hosts a large array of artwork from local artist that create contemporary piece by working on existing relics and ruin of statue across the Roman forum and Palatino hill. By working with modern tools to re ect on statues in the artist’s own unique way.
Museo
The
Domus Severiana
Museo Del Domus Severiana Page 8
Museo Del Domus Severiana
MUSEO DEL DOMUS SEVERIANA FIRE SAFETY
In compliance with BS5839-1, the entire building is equipped with automatic heat and smoke detectors, accompanied by visual alarms and integrated sirens throughout the Museum. The horizontal escape distance to a protected stairwell or nal exit is less than 18 meters in one direction or less than 45 meters in two directions. All re escape doors lead to a safe external re refuge point away from the building. Escape routes are at least 1200mm wide and feature automated release doors to prevent re spread. Disabled refuges are located within each protected core without obstructing movement. Combustible materials within protected cores are minimized.
B2 & B3 Internal Fire Spread (Lining and Structure)
The reinforced concrete structure of the building is inherently re-resistant, with concrete partitions e ectively minimizing the risk of re spreading from one room to another. The placement of a person is always within regulation distance when the re alarm sounds and main spaces are around the core, such as the Gallery spaces in the re safety plans. The 250mm solid concrete cores are non-combustible and provide a minimum of 60-minute re protection.
Hand-held re extinguishers are strategically distributed throughout the building, with particular emphasis on access around the core and bridge where the re risk is higher.
B4 External Fire Spread regulations for a polycarbonate

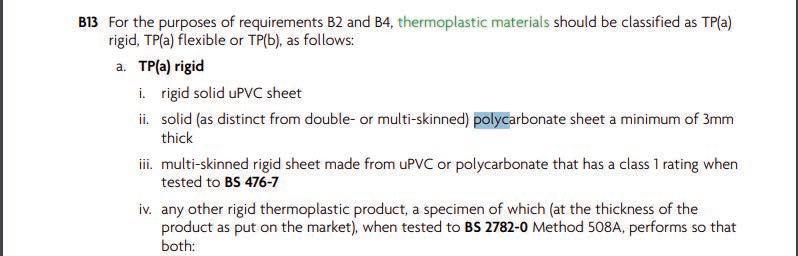

To comply with B4 External Fire Spread regulations for a polycarbonate facade, the building uses ame-retardant polycarbonate panels and install non-combustible re barriers. Ensure the supporting structures are non-combustible and seal around openings. Maintain safe distances between buildings and use re-resistant roo ng. Regular inspections and maintenance are essential to uphold re safety.
B2 & B3 Internal Fire Spread (Lining and Structure)
The building’s perimeter is largely accessible to the re service, meeting Part B, section 16, table 19 requirements, which mandate at least 15% accessibility for buildings sized between 2000-8000m². Water valves are installed in stair cores, and hydrants are present across the site for emergency.
Concrete core with re safety layout on 1st oor gallery space
Museo Del Domus Severiana Page 9
PALATINO
SE
3.8m 3.1m
Museo Del Domus Severiana Page 10 Evacuation point outdoor gallery space 16.5m 18m 4m Fire Exits: Multiple re exits are clearly marked, providing several routes for evacuation. The re exits lead directly to safe outdoor areas, ensuring quick egress in an emergency. Accessible Perimeter: An accessible perimeter is indicated, allowing re department vehicles and personnel to approach the building e ciently. Fire hydrant reel Fire extinguisher and reel Fire safety staircase Fire safety door Stairs to re exit Fire Exit Fire exit path Concrete core Accessible perimeter Power & outlet key Fire alarm push button Smoke Detector 1 2 3 4 5 6 7 8 9 10 Main entrance to building Museo space with statues and 3D artefacts Concrete shaft lobby Outdoor elevated footpath Live museum with artists in act Fire protected staircase Fire protected staircase lobby Gentlemen Toilet Ladies Toilet Disabled toilet 11 12 13 Lift shaft staircase Service shaft 1 12 2 4 5 11 3 6 7 10 13 8 9 11 3 6 7 10 8 13 N Gr ound Floor Plan Fire safety 1:200 68 METRICSCALE 1:200 02410m PALATINO
Smoke Detectors and Fire Alarms:
Smoke detectors and re alarm push buttons are present, which are crucial for early detection of re and prompt evacuation.
Evacuation Routes and Points:
Clearly marked evacuation paths and an outdoor gallery space designated as an evacuation point ensure organized and safe evacuation.
Concrete Core and Shaft Lobbies:
The use of concrete cores and shaft lobbies helps provide additional re protection, as these structures are typically re-resistant and help in containing the re.
Museo Del Domus Severiana Page 11 4 4 N First Floor Plan 1:200 68 METRICSCALE 1:200 02410m 1 2 3 4 5 6 7 8 9 10 Gallery Space Museo space with statues and 3D artefacts Concrete shaft lobby Hollow opening on oor Museo Space suspended walkway Fire protected staircase Fire protected staircase lobby Gentlemen Toilet Ladies Toilet Disabled toilet 11 12 13 Lift shaft Staircase Service shaft 1 1 12 2 4 5 11 3 6 10 13 8 9 11 3 6 7 10 8 13 PALATINO 13m 18m 40m 40m 13m Power & outlet key Fire alarm push button Smoke Detector Fire hydrant reel Fire extinguisher and reel Fire safety staircase Fire safety door Stairs to re exit Fire Exit Fire exit path Concrete core
The inclusion of a disabled toilet indicates compliance with regulations to ensure safe evacuation for all occupants, including those with disabilities. Clear Signage:
Signage for re exits and safety equipment is critical, and the plan indicates the placement of these elements, ensuring that they are visible and understandable.
Museo Del Domus Severiana Page 12 N Second Floor Plan 1:200 68 METRICSCALE 1:200 02410m 1 2 3 4 5 6 7 8 9 10 Gallery Space Outdoor courtyard Concrete shaft lobby Hollow opening on oor Lobby to courtyard Fire protected staircase Fire protected staircase lobby Gentlemen Toilet Ladies Toilet Disabled toilet 11 12 Lift shaft Service shaft 1 1 2 4 4 5 11 3 6 10 12 8 9 11 3 6 7 10 8 13 4 4 PALATINO Fire hydrant reel Fire extinguisher and reel Fire safety staircase Fire safety door Stairs to re exit Fire Exit Fire exit path Concrete core 12.5m 25m 30m 18.5m Power & outlet key Fire alarm push button Smoke Detector
Disabled Access:
Fire Extinguishers and Hydrant Reels:
Fire extinguishers and hydrant reels are strategically placed throughout the building.
Their locations ensure that they are easily accessible within the required distance, typically not more than 75 feet (23 meters) from any point in the building.
Fire Safety Staircases and Doors:
Fire safety staircases are indicated, which are essential for safe evacuation from upper oors.
Fire safety doors are also marked, which help to compartmentalize the building and prevent the spread of re and smoke.
Museo Del Domus Severiana Page 13 N Third Floor Plan 1:200 68 METRICSCALE 1:200 02410m 1 2 3 4 5 6 7 8 9 10 Public library & Social Space Library counter Concrete shaft lobby Hollow opening on oor Cafeteria Fire protected staircase Fire protected staircase lobby Gentlemen Toilet Ladies Toilet Disabled toilet 11 12 Lift shaft Service shaft 1 2 4 5 11 3 6 10 12 8 9 11 6 7 10 8 13 4 5 Power & outlet key Fire alarm push button Smoke Detector Fire hydrant reel Fire extinguisher and reel Fire safety staircase Fire safety door Stairs to re exit Fire Exit Fire exit path Concrete core 12.7m 12.7m 26m 26m
MUSEO DEL DOMUS SEVERIANA FIRE SAFETY
The diagrams e ectively illustrate a well-planned re safety strategy, highlighting both the active evacuation paths and the passive re protection measures. This dual approach ensures that occupants can evacuate safely and that the building structure supports a controlled and safe evacuation process, complying with relevant building and re safety regulations.
Protected Routes: The use of protected re staircases (yellow) aligns with the requirement for buildings to have safe, re-protected routes for occupants to exit the building during a re.
Clear Egress Paths: The movement paths (red) ensure that the routes are clear and well-marked, which is a fundamental requirement of re safety regulations. These paths should lead to nal exits that open directly to a safe area outside the building.
Strategic Placement of Fire Safety Features: The diagrams show strategic placement of re safety features, such as hydrants and re alarms, along these routes and near staircases, ensuring they are accessible during an emergency.
Museo Del Domus Severiana Page 14 NE
PALATINO
SE
Fire staircase
Direction of movement in the case of a re or emergency
Museum space adjacent to the concrete core & protected re staircase
Protected re staircase
Semi-Outdoor monument (Arches De Severiana)

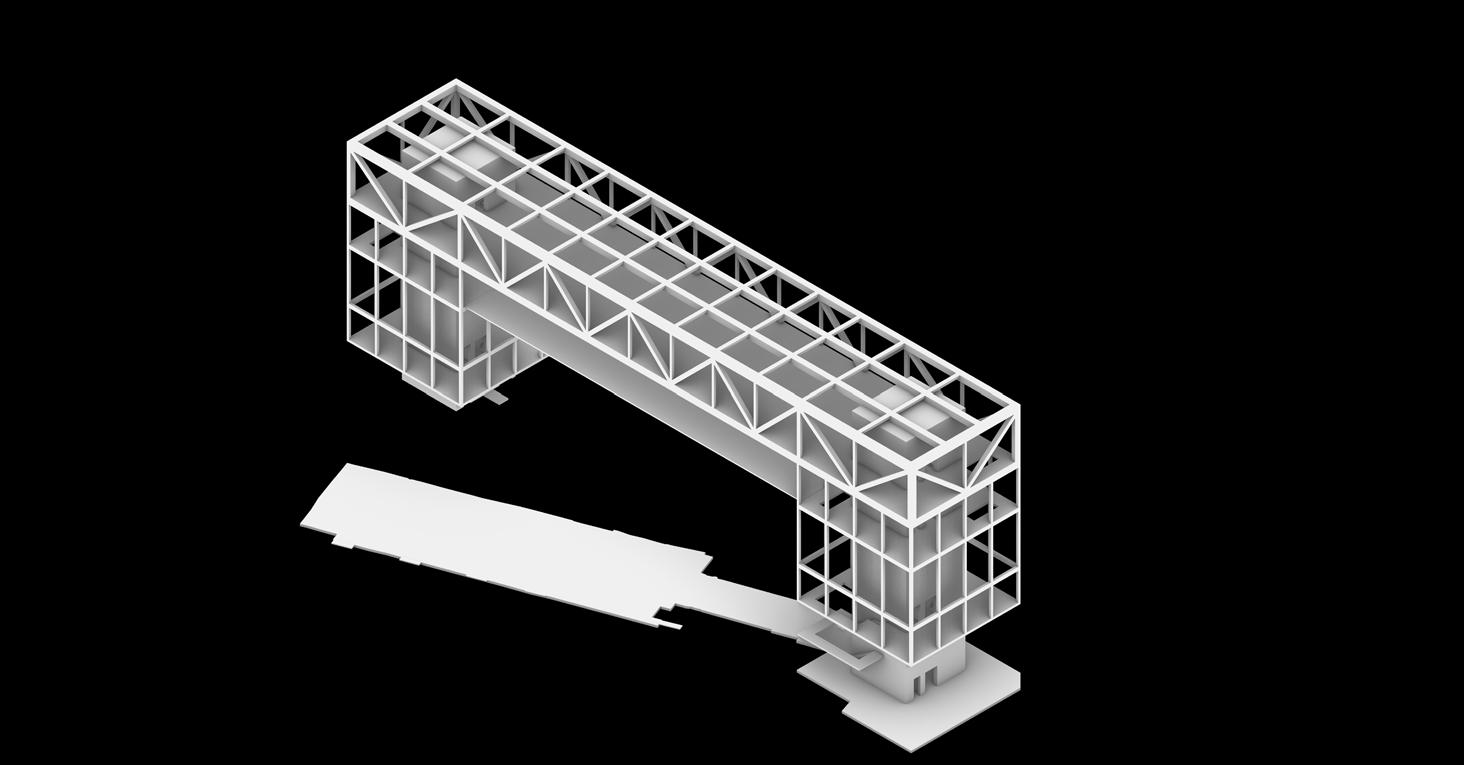

MUSEO DEL DOMUS SEVERIANA STRUCTURE

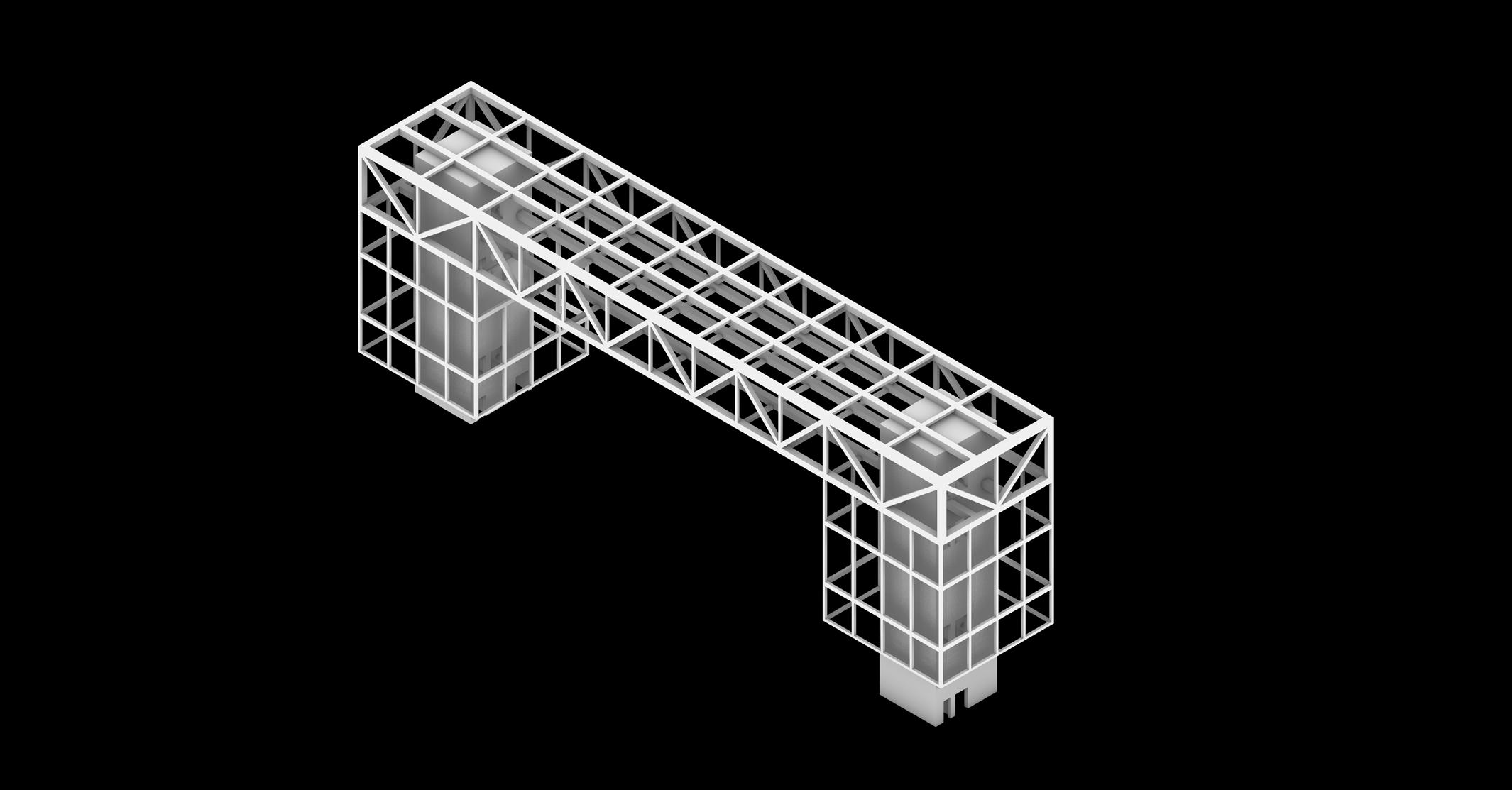

The structure of this building has a metal frame with 750 mm x 750 mm I beam, 750 mm x 500 mm I beams, 500 mm x 500 mm I beams for main structures,

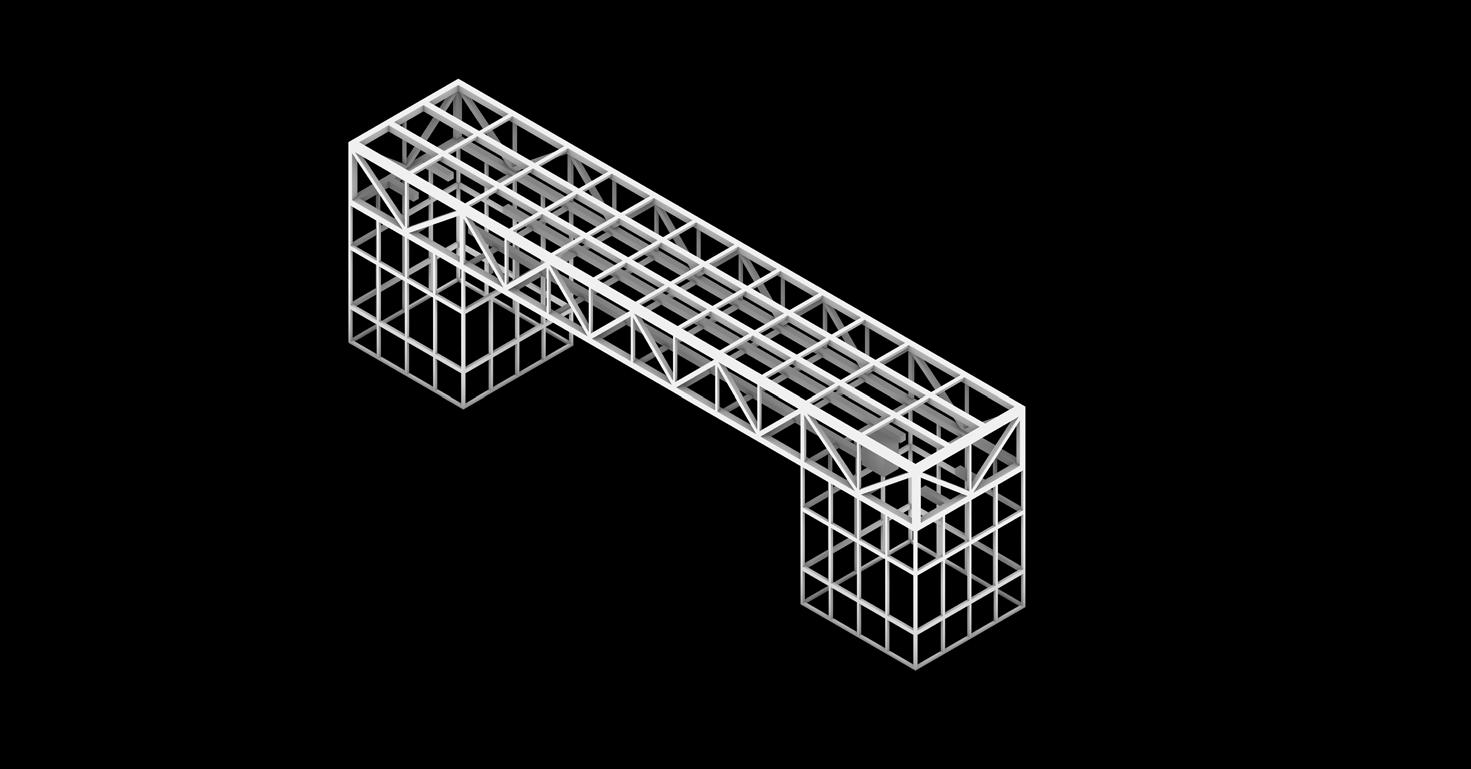

The steel structure shows what everything sits on from oors, roof and

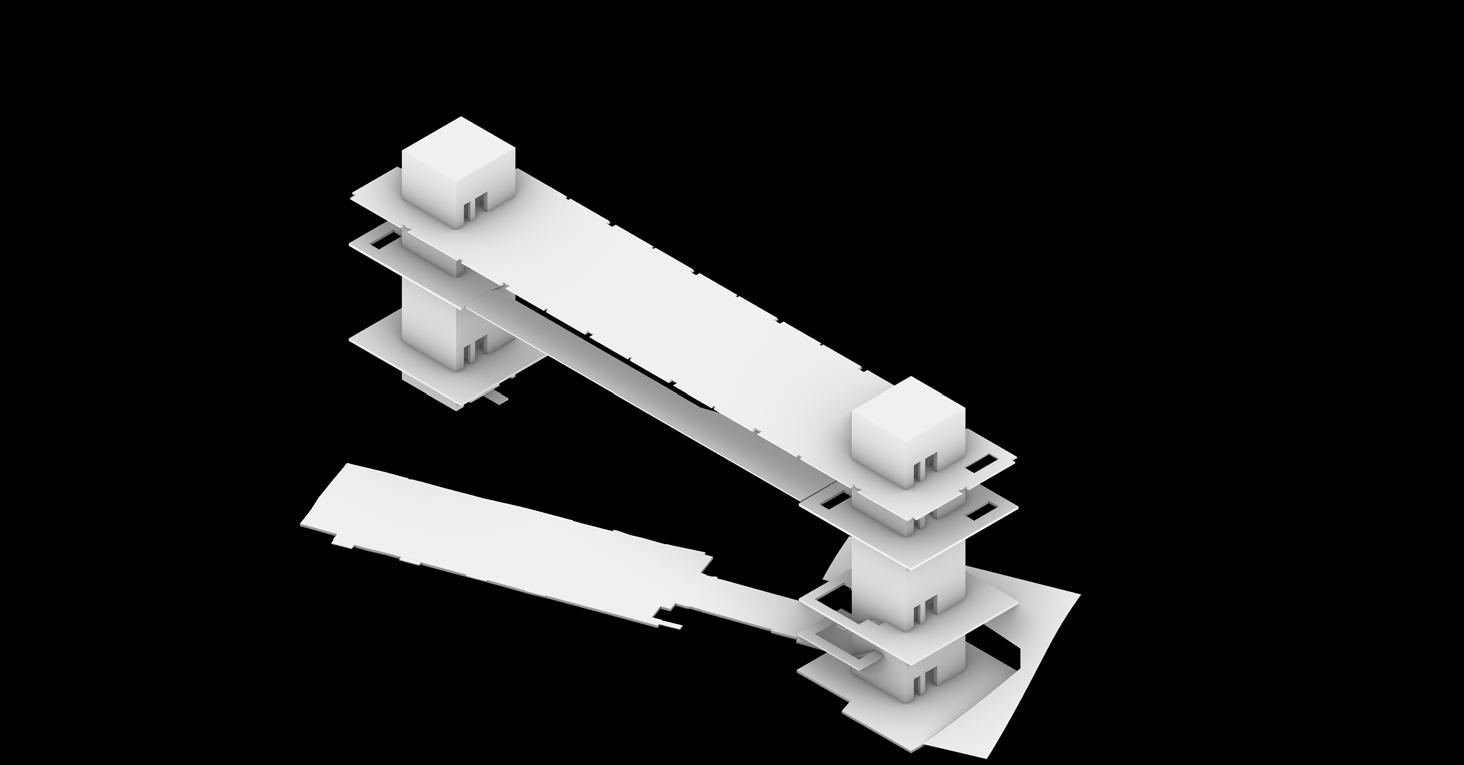

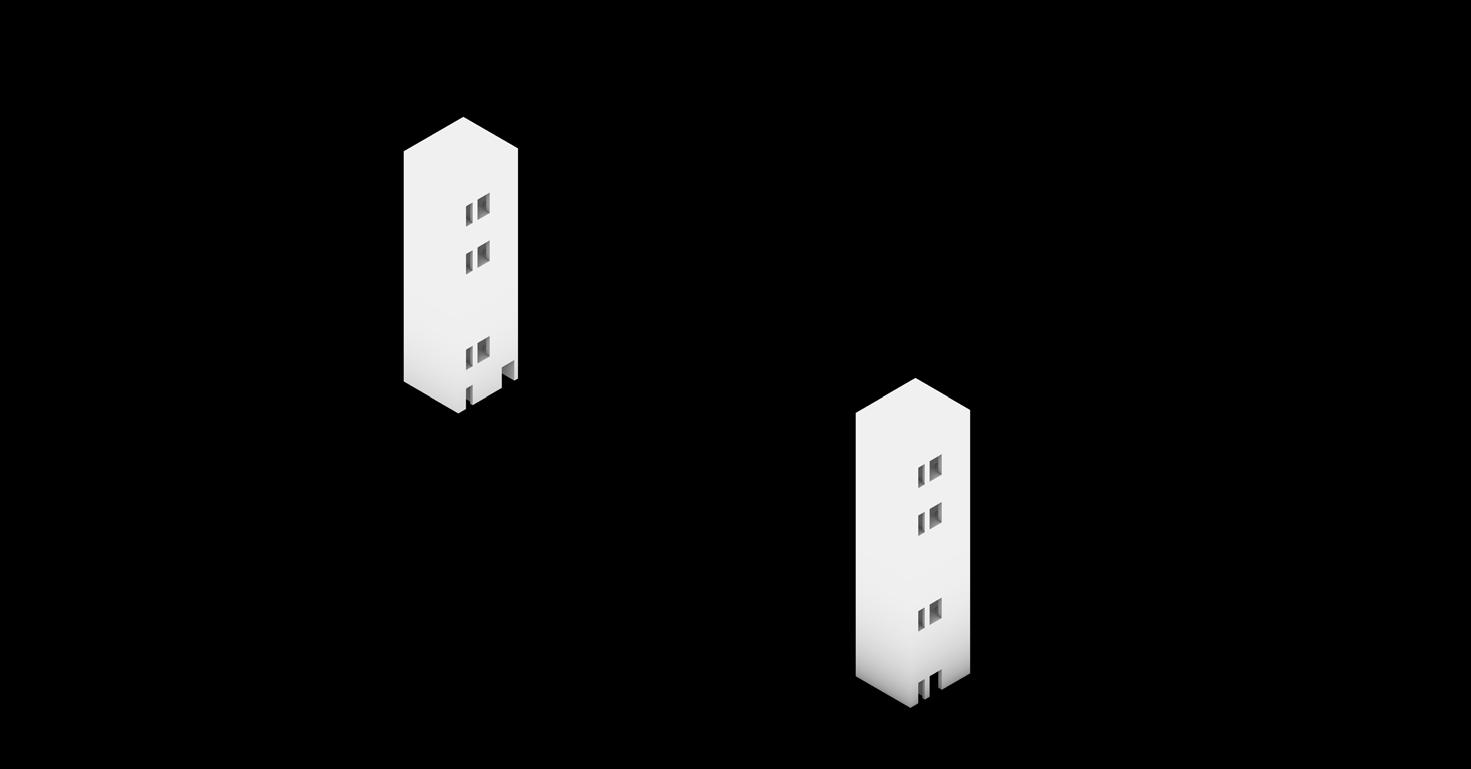

The concrete core shows where lift, re protected staircase and lifts are.
Museo Del Domus Severiana Page 15
PALATINO
MUSEO DEL DOMUS SEVERIANA STRUCTURE
The steel structure attaches on the rst, second and third oor, it is o the ground and doesn’t touch it directly, this is partially to decrease the footprint of the foundations on the site as it is amidst historical ruins. The concrete core which does have a foundation is o set 3m inside the border of the steel structure.
Museo Del Domus Severiana Page 16
PALATINO
MUSEO DEL DOMUS SEVERIANA STRUCTURE

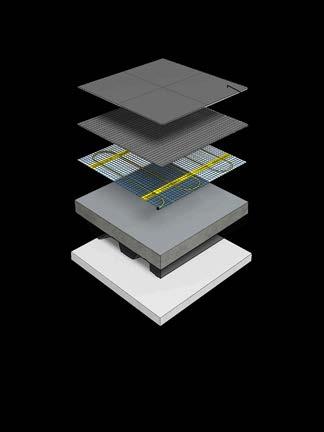

The oorings are fairly light and they have under oor heating to keep the building warm from the inside.
PALATINO
The oors sit on top of the steel structures, some of which are connected to the concrete core
Under oor heating, creating a oor system that is comfortable during winter times 40 mm diameter under oor heating tubes
Concrete nish 20 mm
Screed 40 mm with under oor heating 40 mm
Perforated steel decking slab with concrete lling between Steel beams 220 mm
Steel frame Screw xed on frame 25 mm with Cavity barriers between
Polyester ceiling 18 mm attached to steel frame
Museo Del Domus Severiana Page 17
Concrete core 250 mm thickness
Concrete nish/tiles Screed
Perforated steel decking slab with concrete
MUSEO DEL DOMUS SEVERIANA STRUCTURE ISOMETRIC
Exploded isometric shows the layers of the building, how key elements make up the building.
PALATINO
Inward pitched roof for water control of rain
Northern lights for constant and non-solar intensive light
750 mm x 500 main structure beam
Interior glass with framing inside
Facade with spotted faces to make faces on polycarbonate
Under roof of the top oor, porcelain nish
Concrete lift core with services and re staircase
facade
Arches De Severiana
Framing made of metal for glass
Museo Del Domus Severiana Page 18
Polycarbonate
Glass with single glazing and spotted pattern.
Existing
(Museo)
These strategies demonstrate a thoughtful approach to sustainable design, leveraging natural elements and passive cooling techniques to optimize the building’s performance year-roun to dissipate heat, reducing the building’s overall temperature without relying on mechanical systems.
MUSEO DEL DOMUS SEVERIANA ENVIRONMENTAL STRATEGY
This building incorporates several environmental strategies to enhance energy e ciency and occupant comfort. Roof lights provide constant northern light, naturally illuminating the oor without adding heat, enhancing energy e ciency and comfort..
Heating and cooling
Shading with Trees:
The trees positioned on the right-hand side of the building provide natural shading during the summer. This reduces solar heat gain, lowering the need for arti cial cooling and enhancing comfort inside the building.
Cantilevered Underside Cooling:
The cantilevered underside in the middle of the building is exposed to air, allowing for natural cooling. As air passes through this space, it helps dissipate heat, reducing the building’s overall temperature without relying on mechanical systems.
PALATINO
NE
Heat escaping
Summertime sun 71.5 Degrees above horizon Wintertime sun 24.5 Degrees above horizon
Cool Air cycle
Museo Del Domus Severiana Page 22
MUSEO DEL MANUFATTO Bibliography & Appendix
Museo Del Domus Severiana Page 24
PALATINO
Bibliography
Mastermap and Agricultural Revival - Groupwork
Text
Books
Pallasmaa, J. (1996). The eyes of the skin. Chichester Wiley. Livy (1872). The seven kings of Rome. Superstudio (1982). Superstudio & Radicals. Superstudio.
Psarra, S. (2009). Architecture and narrative the formation of space and cultural meaning. Milton Park, Abingdon, Oxon ; New York, Ny: Routledge.

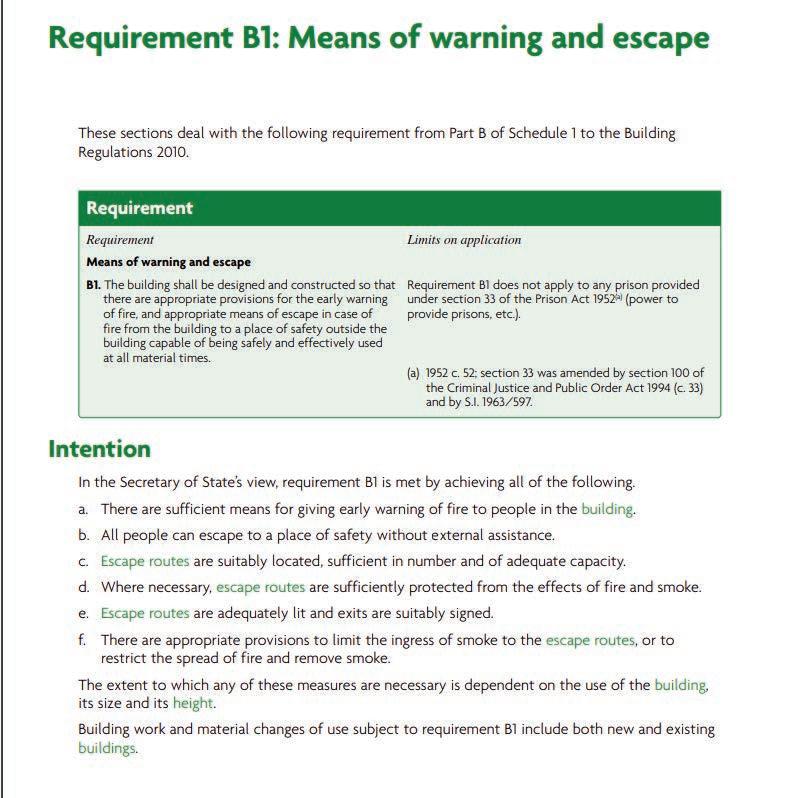

HM Government (2022). Volume 2: Buildings other than dwellings Requirement B1: Means of warning and escape Requirement B2: Internal re spread (linings) Requirement B3: Internal re spread (structure) Requirement B4: External re spread Requirement B5: Access and facilities for the re service Regulations: 6(3), 7(2) and 38 APPROVED DOCUMENT B Fire safety O N L I N E V E R S I O N O N L N E V E R S I O N. [online] Available at: https://assets.publishing.service.gov.uk/media/639ae876e90e0721839ea637/Approved_Document_B__ re_safety__volume_2_-_Buildings_other_than_dwellings__2019_edition_incorporating_2020_ and_2022_amendments.pdf.
Volume 2: Buildings other than dwellings Requirement B1: Means of warning and escape Requirement B2: Internal re spread (linings) Requirement B3: Internal re spread (structure) Requirement B4: External re spread Requirement B5: Access and facilities for the re service Regulations: 6(3), 7(2) and 38 APPROVED DOCUMENT B Fire safety O N L I N E V E R S I O N O N L I N E V E R S I O N. (no date). [Accessed 11 March 2024].
O N L I N E V E R S I O N O N L N E V E R S I O N. (n.d.). Available at: https://assets.publishing.service.gov.uk/media/60b0ea89d3bf7f43560e324a/Approved_Document_M_vol_2.pdf.
Journals
Archdaily (2016). Antwerp Port House / Zaha Hadid Architects. [online] ArchDaily. Available at: https://www.archdaily.com/795832/antwerp-port-house-zaha-hadid-architects.
Illustration
Fig. 1, The Editors of Encyclopedia Britannica (2019). absolutism De nition, History, & Examples. In: Encyclopædia Britannica. [online] Available at: https://www.britannica.com/topic/absolutism-political-system.
Fig. 2, Sculptor, R. (2022). Roman Woman. [online] Museodelprado.es. Available at: https://www.museodelprado.es/en/the-collection/art-work/roman-woman/d0c4472f-6f79-4fda-9d09-4052e55381f5?searchid=812a792c-6767-2e0f-0415-d9b991b1a37f [Accessed 1 May 2024].
Fig. 6, Unknown [online] https://www.stilus.nl/oudheid/wdo/ROME/PLAATJES/DOMSEVER.html [Accessed 1 May 2024].
Fig. 7, Roberts (2011). Nelson Atkins Museum (1999). [online] Architectuul. Available at: https://architectuul.com/architecture/nelson-atkins-museum-1999 [Accessed 08 May 2024].
Fig. 8, Upadhyaya, N. (2022). Everything Old is New: Revisiting the Iconic Grid of Italy’s Superstudio. [online] Journal. Available at: https://architizer.com/blog/inspiration/stories/superstudio-gridded-architecture/. [Accessed 08 May 2024]
Fig. 9, Ruault, P. (n.d.). Bibliothèque Alexis de Tocqueville. [online] OMA. Available at: https://www.oma.com/projects/bibliotheque-alexis-de-tocqueville [Accessed 10 May 2024].
Museo Del Domus Severiana Page 25 PALATINO

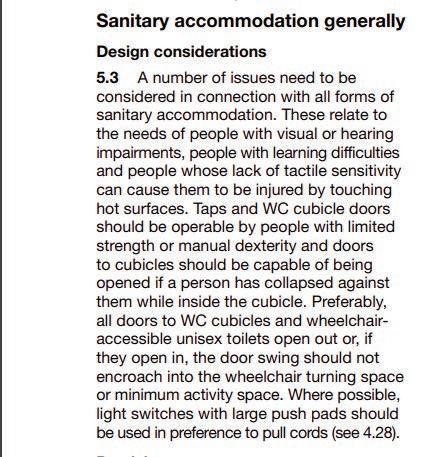

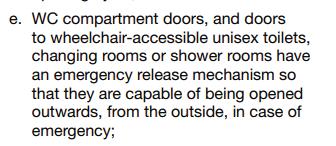

In compliance with UK Building Regulations, particularly Approved Document M (Access to and Use of Buildings), the design and provision of disabled toilets in your building must meet speci c criteria to ensure accessibility for all users, including those with disabilities.
Museo Del Domus Severiana Page 26 PALATINO
Part B5 Fire service access routes ensure at least 15% accessibility for buildings between 2000-8000m² (Table 19) Fire hydrants and water valves located in stair cores and around the perimeter
Appendix
Part M
MUSEO DEL DOMUS SEVERIANA END ARCHES DE SEVERIANA
