Power Probe Catalog 2023

PRODUCT CATALOG 2023

At Power Probe, we believe things should be simple. That’s why we design tools to make complex automotive technology accessible for the modern auto technician. As automotive technology continues to evolve, Power Probe will provide innovative Technology, Energy, and Knowledge solutions for technicians and consumers alike.

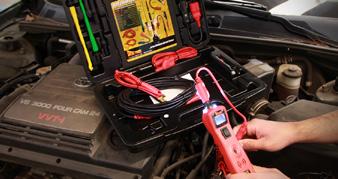

Circuit Testing and Diagnostic Tools

Tools to provide fast electrical testing and short circuit tracing. Based on the success of the past, our tools are now made simpler and easy to use.

Tools & Accessories

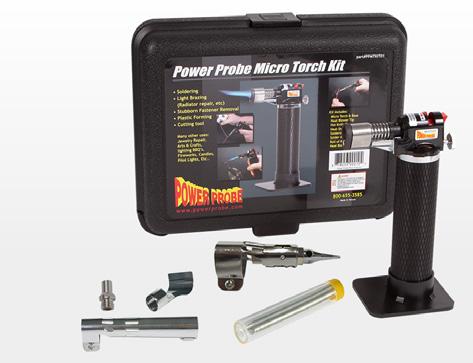

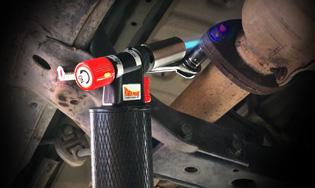

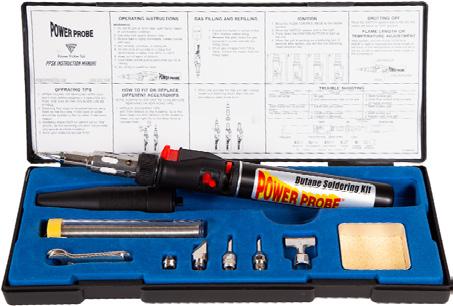

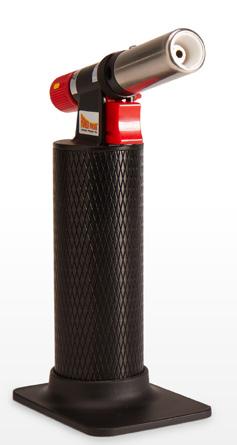

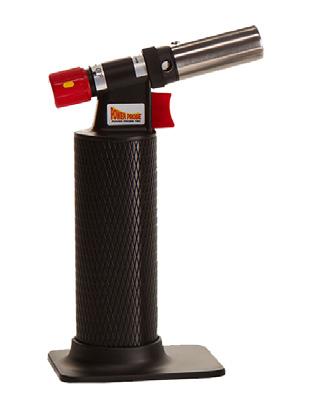

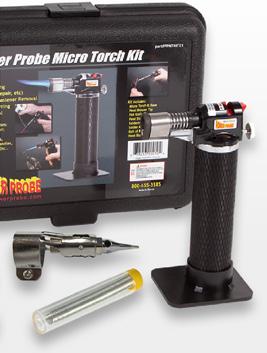

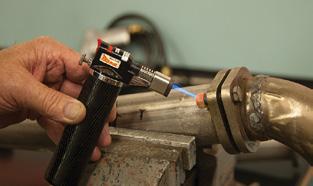

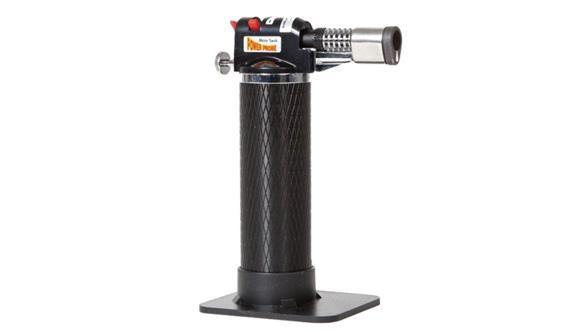

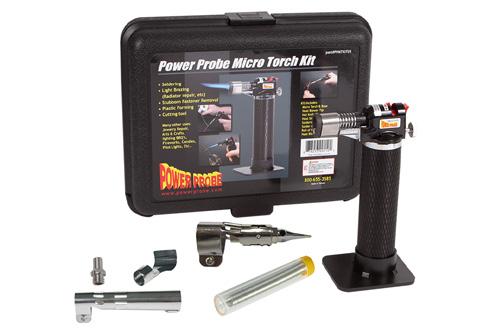

Workplace Improvement Tools including butane torches, wireless temperature probes, IR thermometers, modular work lights, cordless and butane soldering kits.

MGL is a global group of companies operating locally. We manufacture test and measurement products for the electrical and automotive industry, from the entry level through high tech products. Our companies work globally, serving our customers worldwide. This global network delivers a deeper understanding of each individual market, with solutions tailored to the unique requirements of each customer.

With customers over 20 years old, our goal is to be a recognized, honest and fair company. We aim to be the most valued partner for our customers in the research, development, manufacture and supply of innovative, modern and customer-focused technologies. We have a highly experienced team which is openminded, receptive to new ideas and adaptive to evolving market trends.

This solid foundation guarantees that we are well informed and fully equipped to deliver excellent solutions to meet our customers’ real needs.

NEW PRODUCTS

INSULATION TESTER & MULTIMETER INT500

Full function 1kV Insulation & Earth bond Resistance Tester

600V DC & AC (TRMS) measurement Bluetooth connection with Power Probe connect APP

0.1nF to 10uF Capacitance measurement

PACKAGING

CASE

Color Box : 240 x 180 x 73 mm

Carton Box : 573 x 403 x 274 mm

Amount / Box : 15 PCS

OVERVIEW

INT500 Insulation and Earth-bond Resistance (Continuity) tester is not only a must-have for electricians, but with multiple features and wild ranges of automotive, motor testing, electrical installation, etc.

Features are:

Insulation Test with PI/DAR/Timed, mA-selectable mode/Auto bi-direction Continuity Test,  visual/ acoustic Compare Function, Auto AC/DC Voltage Test with LPF and 1500 records of Store/Recall

COLOR OPTIONS

CIRCUIT TESTERS

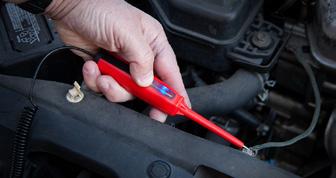

CIRCUIT TESTERS PPBASIC

4 mm banana jack and removable tip

Easy replaceable power switch

20 . extendable power lead

Switch latch for constant power

2 separate LED indicators

Automatic circuit breaker reset

Ergonomic housing design

OVERVIEW

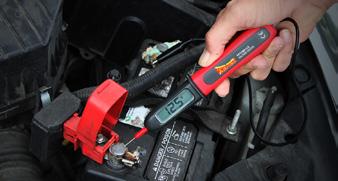

Upon connecting the instrument to the vehicle’s battery, you can detect if a circuit is Positive, Negative or Open. You can do this by probing it and observing the RED or GREEN LED. To quickly activate electric components, press the power switch to activate. It is short circuit protected. Continuity of switches, relays, diodes, fuses and wires are easily tested by connecting them between the auxiliary ground lead and the probe tip. To confirm continuity, observe the GREEN LED. Check fuses and test for short circuits. Find faulty ground connections instantly. The 20 foot lead will reach from bumper to bumper and it has the option to connect an additional 20 foot extension cable to make it reach up to 40 feet. Great for trucks, trailers and motorhomes.

PACKAGING

STAND ALONE

Clamshell : 307 x 194 x 48 mm

Carton Box : 481 x 432 x 361 mm

Amount / Box : 20 PCS

Includes

• Switch Latch • 4mm

Male/Female Keyed Connectors

• Instruction Manual • 20 (6 m) Power Cable Extension

COLOR OPTIONS

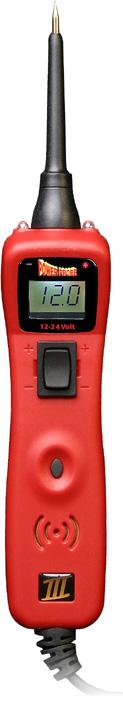

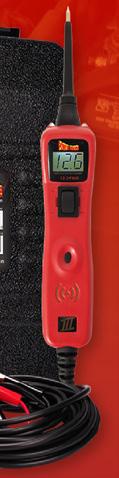

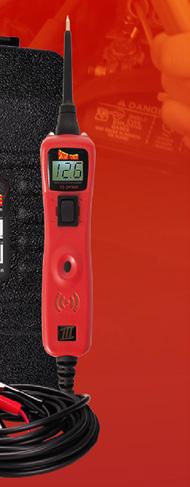

CIRCUIT TESTERS PP3

OVERVIEW

The original Power Probe 3 uses a 20 cable which attaches to the vehicle’s battery, allowing the user to perform an electrical test anywhere in, or around the vehicle. The PP3 is a Voltmeter and Continuity Tester, with Audible & Visual indicators along with two LED headlights to light up your work area. This circuit tester also supplies Battery Voltage or Ground to activate components. This powerful time-saver tool is perfect for every level of technician.

DC voltmeter indicators provide active feedback

Bad ground indicator

Short circuit indicator

Relay and component tester

Audible monitoring of electrical signals

PACKAGING

CASE

Tool Box : 258 x 192 x 97 mm

Carton Box : 531 x 500 x 213 mm

Amount / Box : 10 PCS

Includes

• Power Probe 3 with standard 20 cable (6 m)

• 20 (6 m) Power Cable Extension

• Power Cable

• 3 In (8 cm) Probe Tip

• Battery Clip Set

• Cigarette Lighter Adapter

• Instruction Manual

STAND ALONE

Clamshell : 307 x 194 x 48 mm

Carton Box : 481 x 432 x 361 mm

Amount / Box : 20 PCS

Includes • Power Probe 3 with standard 20 cable (6 m)

• Power Cable

• 3 In (8 cm) Probe Tip

• Battery Clip Set

• Instruction Manual CD

ACCESSORIES

COLOR OPTIONS

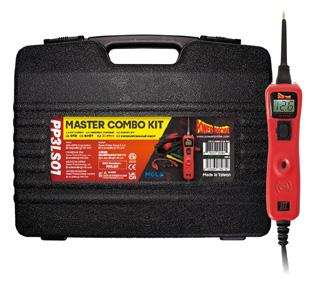

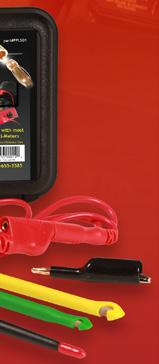

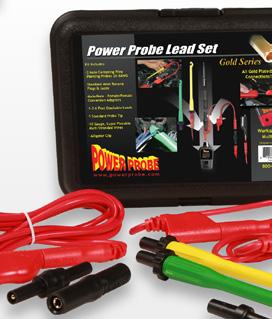

LEAD SET KIT PP3LS01

DC voltmeter indicators provide active feedback

Relay and component tester

Audible monitoring of electrical signals

Bad ground indicator

Short circuit indicator

OVERVIEW

Power Probe 3 combined with the Gold Series Lead Set makes this kit the ultimate in circuit testing diagnosis. The best sidekick to the PP3 is a kit with different connectors, adapters, and extensions.

The PP3LS01 was designed to increase the usability for the Power Probe 3 while diagnosing electrical circuits.

PACKAGING CASE

Expert Tool Box : 357 x 286 x 85mm

Carton Box : 445 x 379 x 321 mm

Amount / Box : 5 PCS

Includes

• Power Probe 3 (Red Only)

• Alligator Clip Adapter

• Probe Tip Battery Clip Set

• 20 (6 m) Extension

• 3 (1 m) Test Lead

• 6 (2 m) Test Lead

• Cigarette Lighter Adapter

• 4 mm Male/Male Adapter

• Instruction Manual/CD

• Large Piercing Probe

• Small Piercing Probe

• 2 (31 cm) Test lead

• Large Piercing Probe

• 4 mm Female/Female Adapter

COLOR OPTIONS

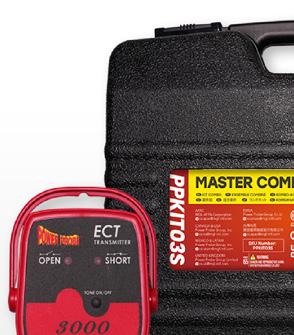

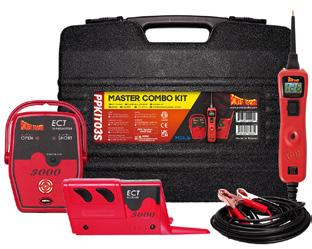

MASTER COMBO KIT PPKIT03S

DC voltmeter indicators provide active feedback (PP3)

Audible monitoring of electrical signals (PP3)

Works on cars, boats, RV’s, light duty, heavy duty trucks, and trailers (ECT3000)

OVERVIEW

The Power Probe 3 Master Combo Kit combines the Power Probe 3, PPECT3000 and various accessories to provide the ultimate combination of diagnostic and circuit testing capabilities.

The Power Probe 3 provides simplified testing of Motors, Lights, Relays, Sensors, as well as supplying Power and Ground for functional component testing on or off the vehicle. The PPECT3000 will help you trace short and open circuits quickly and accurately.

PACKAGING CASE

Expert Tool Box : 380 x 310 x 88 mm

Carton Box : 460 x 401 x 346 mm

Amount / Box : 5 PCS

Includes

• Power Probe 3 (Red Only)

• Battery Clip Set

• 20 (6 m) Extension

• Large Piercing Probe

• 3 (1m) Test Lead

• Alligator Clip Adapter

• ECT3000 Receiver

• Blade Probe Adapter

• AAA Batteries x2

• Probe Tip

• Cigarette Lighter Adapter

• Small Piercing Probe

• 1 (31 cm) Test Lead

• 6 (2 m) Test Lead

• ECT3000 Transmitter

• Bulb Adapter Kit

• Instruction Manual

• 4 mm Male/Male Adapter

• 4 mm Female/Female Adapter

COLOR OPTIONS

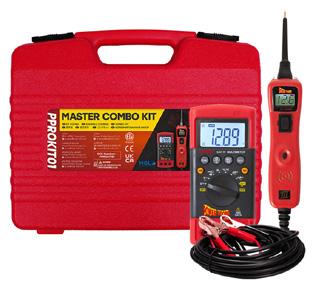

PROFESSIONAL ELECTRICAL TEST KIT

PPROKIT01

DC voltmeter indicators provide active feedback (PP3)

Relay and component tester (PP3)

Audible monitoring of electrical Signals (PP3)

CAT-IV 600V hybrid safe rating (DMM)

Measures frequency for sensor testing (DMM)

OVERVIEW

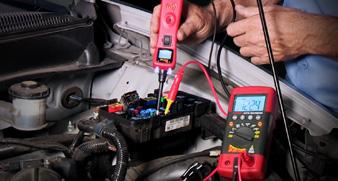

The Power Probe Professional Electrical Test Kit provides the circuit testing ability of the Power Probe 3 combined with the diagnostic capabilities of the Power Probe Digital Multimeter.

PACKAGING CASE

Expert Tool Box : 370 x 303 x 91 mm

Carton Box : 445 x 379 x 321 mm

Amount / Box : 5 PCS

Includes

• Power Probe 3 (Red Only)

• Battery Clip Set

• Blade Probe Adapter

• 4 mm Male/Male Adapter

• Alligator Clip x2

• 10 (3 m) Lead Red

• Test Leads

• 600 mA Fuse

• Instruction Manual

COLOR OPTIONS

• 3 In (8 cm) Probe Tip

• Digital Multimeter

• Back Probe Adapter

• 4 Mm Female/Female Adapter

• 10 (3 m) Lead Black

• 5 (2 m) CAT IV 600V

• 10 Amp Fuse

• AAA Batteries x3

• Magnetic Strap

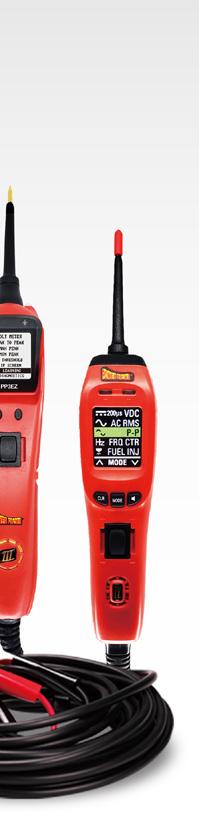

CIRCUIT TESTERS PP3EZ

OVERVIEW

The PP3EZ includes all the powerful testing modes and features of the Power Probe 3S plus now includes 2 new modes - EZ Learning Mode and EZ Diagnostics Mode. The PP3EZ speeds you through the diagnosing of 12 to 24 volt automotive electrical systems. A er connecting the PP3EZ’s clips to the vehicle’s battery, the automotive technician can determine at a glance, the voltage level and the polarity of a circuit without running for a voltmeter or reconnecting hook-up clips from one battery pole to the other. The power switch allows the automotive technician to conduct a positive or negative battery current to the tip for activating and testing the function of electrical components without wasting time with jumper leads.

Includes EZ learning & diagnostics

Flip screen mode displays readings

180°

Quickly test fuses & circuits for voltage in VDC mode

Adjust the AC threshold setting to audio circuits or AC signals

Power and Ground Rocker Switch Circuit Breaker Reset

Probe Tip

LCD Display Voltmeter

Red / Green polarity indicator

Speaker

PACKAGING

CASE

Tool Box : 305 x 210 x 90 mm

Carton Box : 630 x 471 x 246 mm

Amount / Box : 10 PCS

Includes

Power Probe 3EZ with standard 20 cable (6 m) • Power Cable

STAND ALONE

Color Box : 327 x 260 x 295 mm

Carton Box : 356 x 261 x 310 mm

Amount / Box : 10 PCS

Includes • Power Probe 3EZ with Standard 20 cable (6 m)

• Power Cable • 3 In (8 cm) Probe Tip

• Battery Clip Set • Cigarette Lighter Adapter

• 20 (6 m) Power Cable Extension

• Instruction Manual

ACCESSORIES

COLOR OPTIONS

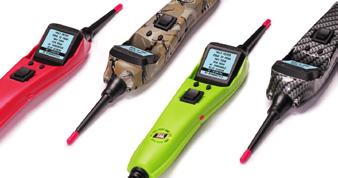

CIRCUIT TESTERS PP4

OVERVIEW

The Power Probe IV is the next generation of Power Probe Circuit Testers. Now loaded with powerful multimeter functions, advanced diagnostic test modes, an easy to read color LCD display and a new rugged water and dust resistant housing, the Power Probe IV is designed to give you years of trouble free testing, even in the most demanding work environments.

The unique configuration of Power Probe testers gives them many advantages over using conventional test lights or multimeters for circuit testing.

Supply power or ground for functional component testing

Self-resetting thermal 8 Amp circuit breaker

Multiple DC volt readings on the same display

Ohmmeter provide active feedback

PACKAGING

CASE

Tool Box : 305 x 210 x 90 mm

Carton Box : 630 x 471 x 246 mm

Amount / Box : 10 PCS Includes

COLOR OPTIONS

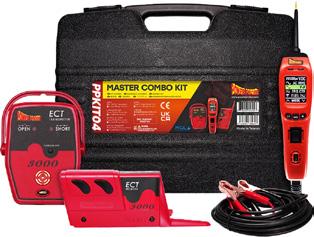

MASTER COMBO KIT PPKIT04

Supply power or ground for functional component testing (PP4)

Self-resetting thermal 8 Amp circuit breaker (PP4)

Test and find intermittent conditions (ECT3000)

Find short to ground circuits, switches, or breaks in wires (ECT3000)

PACKAGING

CASE

Expert Tool Box : 380 x 305 x 91 mm

Carton Box : 475 x 401 x 340 mm

Amount / Box : 5 PCS

Includes

• Power Probe 4 • ECT3000 Transmitter

OVERVIEW

The Power Probe 4 Master Combo Kit combines the Power Probe 4, PPECT3000 and various accessories to provide the ultimate combination of diagnostic and circuit-testing capabilities. The Power Probe 4 provides simplified testing of Motors, Lights, Relays, and Sensors, and even Fuel Injectors. Also, like all Power Probe circuit-testers, it supplies Power and Ground for functional component testing on or off the vehicle. The PPECT3000 will help you trace short and open circuits quickly and accurately.

•

•

•

• Self-resetting Circuit Breaker

COLOR OPTIONS

CIRCUIT TESTERS THE MAESTRO

Trace mode offers scope-like functionality

DC voltmeter with the capability of applying battery Supplied voltage or ground AC voltmeter: TRMS, peak-to-peak/ min/max, frequency, duty cycle

ACCESSORIES

OVERVIEW

This is the first of our Pro Series line of tools made for professionals. With powerful multimeter functions, advanced diagnostic modes, easy to read color LCD display, and a new rugged dust and water resistant housing. The Pro Series Maestro™ is designed to give you years of trouble free testing. Also, an updateable and useful app that will expand your tools capabilites and give you access to answers and solutions that you need.

The unique configuration of Power Probe testers gives them many advantages over using conventional test lights or multimeters for circuit testing.

PRO SERIES APP

• Data Logging

• Bluetooth connection to The Maestro

• Project Saving & Data Sharing

• Power Probe Knowledge Base

• Real Time Wireless Communication & Data

PACKAGING

CASE

Color Box : 270 x 219 x 80 mm

Carton Box : 440 x 320 x 375 mm

Amount / Box : 10 PCS

Includes

• Power Probe Maestro

• Battery Clip Set

• Instruction Manual

COLOR OPTIONS

Available On

• 4 In (10 cm) Probe Tip

• Alligator Clip Adapter

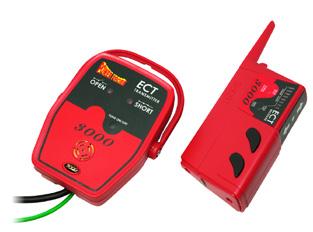

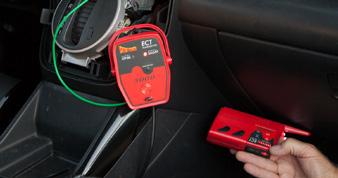

CIRCUIT TRACER & SHORT FINDER ECT3000

Locate short circuits without removing plastic panels, molding, and carpet

Find short to ground circuits, switches, or breaks in wires

Test and find intermittent conditions

Sensitivity adjustment from 1-8 in (3-20 cm)

OVERVIEW

We designed the ECT3000 as a quick solution to your automotive circuit problems. The ECT3000 consists of 2 main components. An Intelligent transmitter and a Intelligent receiver along with a set of connection adapters that will help you :

• Locate short circuits without unnecessarily removing plastic panels, molding, and carpet.

• Trace wires to see where they lead

• Find open circuits, switches or breaks in wires

• Trace and locate the cause of a severe battery drain

• Test and find intermittent conditions

• Check continuity with the assistance of the Power Probe 3, 4, or Hook

These features are extremely handy for the professional technician. An appropriate schematic or wiring diagram is always useful and many times necessary when tracing circuits. The better you understand your circuit, the better the ECT3000 can assist you.

PACKAGING

CASE

Expert Tool Box : 380 x 310 x 88 mm

Carton Box : 430 x 345 x 280 mm

Amount / Box : 5 PCS

Includes

• ECT3000 Transmitter

• Battery Clip Set

• Universal 4mm Adapter

• Bulb Adapter Kit

• Blade Probe Adapter

STAND ALONE

Color Box : 188 x 280 x 50 mm

• ECT3000 Receiver

• Alligator Clip

• AAA Batteries x2

• Small Piercing Probe

• Back Probe Adapter

Carton Box : 400 x 290 x 315 mm

Amount / Box : 10 PCS

Includes

• ECT3000 Transmitter

• Universal 4mm Adapter

• AAA Batteries

COLOR OPTIONS

• ECT3000 Receiver

• Alligator Clip

WHICH POWER PROBE MEETS YOUR DIAGNOSTIC NEEDS?

COMPARISON CHART

TEST AND MEASURING TOOLS

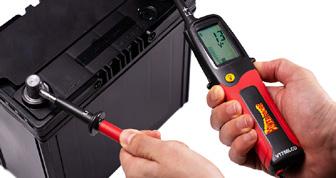

VOLT TESTER VT750

LCD

2,000 count digital display

AC / DC 750V capability

Dual display for ACV measuring with frequency

2K Ohms resistance range

1K Hz frequency counter

IP65 for outdoor use

OVERVIEW

The VT750LCD is a compact reliable robust automatic voltage tester up to 750V. The testers can measure and indicate the exact voltage (AC/DC), phase indication, phase rotation and continuity, RCD, and resistance via an LCD.

PACKAGING CASE

Color Box : 267 x 115 x 45 mm

Carton Box : 494 x 250 x 290 mm

Amount / Box : 20 PCS

Includes

•

COLOR OPTIONS

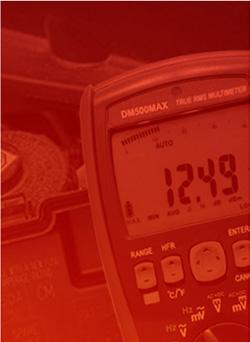

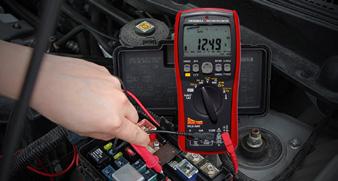

DIGITAL MULTIMETER DM500 MAX

40,000 count extra-large digital display

Auto backlit, dual display

Auto AC/DC voltage detect with low impedance

Auto-save mode to automatically save new reading

PACKAGING

CASE

Color Box : 222 x 180 x 65 mm

Carton Box : 561 x 347 x 247 mm

Amount / Box : 15 PCS

OVERVIEW

The DM500MAX with an input terminal, and battery cover to keep out dust, dirt, and splashing. They can also take shocks and drops, work anywhere from indoor to outdoor, and special designed LoZ(Low Impedance) feature to prevent false reading caused by ghost voltages.

COLOR OPTIONS

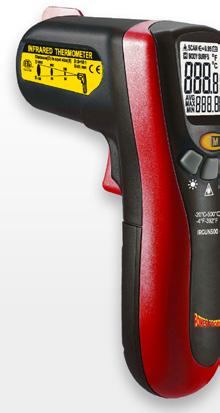

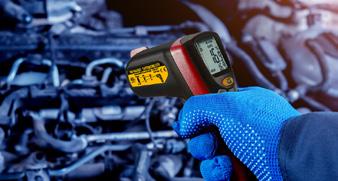

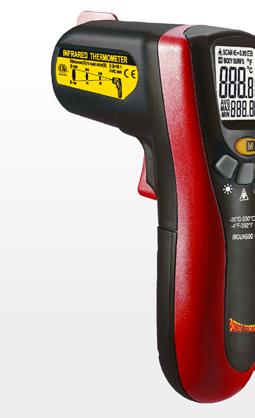

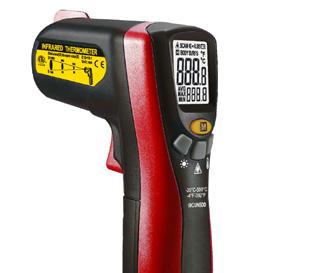

INFRARED

THERMOMETERS IRGUN 500

Spectral response 8-14 μm

Laser <1mW / 630-670nm

°C / °F selection

Response time 1 second

Relative humidity 10%~90%

PACKAGING CASE

Color Box : 125 x 55 x 183 mm

Carton Box : 575 x 391 x 275 mm

Amount / Box : 40 PCS

OVERVIEW

The No-Contact Thermometer detects the infrared rays that an object emits. The instrument focuses the infrared energy of the object through the lens and onto a sensor. As a result, the instrument changes the surface temperature into an electrical signal, and a microcomputer calculates and displays the measured temperature on the LCD.

COLOR OPTIONS

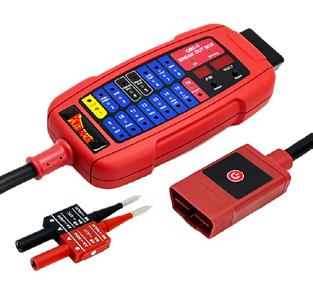

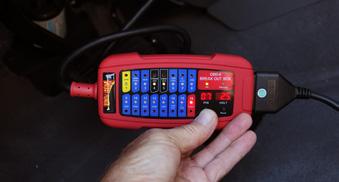

OBD-II BREAKOUT BOX PPECB

Test DLC (OBD port) for any abnormalities, such as shorting and reverse polarity at the pins before connecting other diagnostic equipment to DLC

Quickly access all 16 pin connections during repair and diagnosis of the vehicle

OVERVIEW

The Power Probe OBD-II Breakout Box is a CAN Bus circuit tester compatible with 12 and 24 Volt systems. The tool connects directly into the Vehicle’s Data Link Connector (DLC) testing for any abnormalities such as shorting and reverse polarity at the pins. If shorting or reverse polarity is present, connecting the PPECB first will prevent harm before connecting a Diagnostic Scan Tool. The Breakout Box provides a live display of present communicating signals without having to use a Digital Multimeter. Additionally, you can quickly test the voltages at all 16 pins.

ACCESSORIES

OBD-II BREAKOUT BOX

PIN ADAPTERS

PPTK0048

PACKAGING

STAND ALONE

Color Box : 225 x 95 x 75 mm

Carton Box : 510 x 470 x 175mm

Amount / Box : 20 PCS

Includes

• OBD-II Breakout Box • PPTK0048 Pin Adapters

COLOR OPTIONS

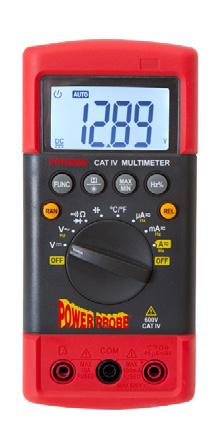

DIGITAL MULTIMETER PPDMM

CAT-IV 600V hybrid safe rating

Digital volt and ohmmeter for circuit testing

Measures frequency for sensor testing

Included K-Type temp probe allows for temperature readings

PACKAGING

STAND ALONE

Color Box : 196 x 140 x 60 mm

Carton Box : 370 x 365 x 300 mm

Amount / Box : 20 PCS Includes

OVERVIEW

This CAT-IV 600V Automotive Digital Multimeter by Power Probe is versatile, accurate and rugged with Large LCD Screen with Bright Backlight. Measures AC/DC Voltage and Current, Resistance, Frequency, Temperature, and Capacitance.

COLOR OPTIONS

DIGITAL CLAMP METERS

PPDCM80

Voltage : AC 600V DC 600V

Current : AC 80A DC 80A

Display 4000 counts

Jaw opening 24mm/0.9”

Auto & manual ranging

Auto power off

Non-contact voltage detector

OVERVIEW

The Power Probe Digital Clamp Meter is an 80amp, auto-ranging clamp meter designed specifically for the automotive technician. This meter is rated CAT III 600V and can measure Volts, Amps, Ohms, Frequency and Temperature, necessary for automotive electrical testing.

This meter’s diagnostic applications include (but are not limited to) Parasitic Draw, Crank Current testing and HVAC Temperature testing.

PACKAGING

STAND ALONE

Color Box : 235 x 115 x 55 mm

Carton Box : 485 x 315 x 250 mm

Amount / Box : 20 PCS

Includes

• Two 5 (1.5 m) Test Leads • So Carrying Case

• AAA Batteries x3

COLOR OPTIONS

THE PROBE 12V TEST LIGHT WITH HAPTIC FEEDBACK

PPTACT1CS

Vibrates between 12 volts to 18 Volts

Green LED illuminates < 10 OHMS

Blue LED illuminates > 10 OHMS

Uses replacement bulb PPTACT-1

Uses replacement battery CR1632

Computer safe 3-volt output 10mA

OVERVIEW

THE PROBE 12-Volt Test Light with Haptic Feedback, (PPTACT1CS) this tool vibrates and lights when voltage over 12 volts is detected. When a voltage is below 12 volts, this functions as a standard test light. Just push the button and go! Shows positive voltage, ground, and continuity “all in one tool” with haptic advantage. It has a cable of 86 cm long.

PACKAGING

STAND ALONE

Color Box : 257 x 90 x 40 mm

Carton Box : 530 x 330 x 290 mm

Amount / Box : 42 PCS

Includes

User Replacement Bulb • Battery

Manual

COLOR OPTIONS

DC VOLT TESTER PPTVM01

Able to read a positive and negative voltage

Used to measure voltage in an electronic circuit LCD for Voltage Display

DC voltmeter

Self powered- no battery needed

The DC Voltage Tester is an easy-to-use tool that can quickly test for voltage. Perfect for testing batteries, lighting systems, trailer connections, and more. This voltage tester is self-powered with a 210cm cable. LCD displays voltage readings from 5 volts to 35 volts.

PACKAGING

STAND ALONE

Header Card : 90 x 280 mm

Carton Box : 330 x 300 x 240 mm

Amount / Box : 20 PCS

Includes • Voltage Tester

COLOR OPTIONS

WIRELESS DUAL ZONE TEMPERATURE KIT

TEMPKIT

Measuring range -9°F to 158°F

Operating environment -9° to 158°F

Wireless reading distance : 5m-16.5 Feet

Wireless transmitter distance : 5m-16.5 Feet

Accuracy ±2.0°F (±2.0°C)

OVERVIEW

The Power Probe Temperature Kit is designed to give readings for ambient temperature and from the wireless Temperature Probe. The Tempkit has a built–in temperature sensor in the base unit, plus a temperature sensor in the remote wireless Probe. This allows for multiple readings simultaneously. One additional wireless Temperature Probe (TEMPPROBE) is available separately, for a second temperature reading.

ACCESSORIES

ADDITIONAL WIRELESS TEMPERATURE PROBE TEMPPROBE

PACKAGING

STAND ALONE

Color Box : 95 x 45 x 195 mm

Carton Box : 415 x 270 x 215 mm

Amount / Box : 20 PCS

Includes

• Main Unit 2 Channel Wireless Receiver

• 1 Temperature Probe Unit (Wireless Transmitter)

• Instruction Manual

COLOR OPTIONS

MINI PROBES TST3PK

Checks the voltage in AC, accessory, and USB outlets

Socket testers notifies user of operational outlet with LED lights

Available individually or in a 3-Pack (TST3PK)

PACKAGING

COMPLETE KIT

Color Box : 220 x 58 x 54 mm

Carton Box : 490 x 290 x 440 mm

Amount / Box : 48 PCS

Includes

• USB Probe (TSTUSB)

• VAC Probe (TST110V)

TST12V

Color Box : 84 x 65 x 57 mm

OVERVIEW

Mini Probe: Easy to use plug-in style current testers, simple way to verify current flow in a socket.

COLOR OPTIONS

• ACC Probe (TST12V)

Carton Box : 530 x 400 x 540 mm

Amount / Box : 192 PCS

TSTUSB

Color Box : 84 x 65 x 57 mm

Carton Box : 530 x 400 x 540 mm

Amount / Box : 192 PCS

SOLDERING

SHOP TOOLS PPPS50W

Reaches operating temperature (536°F) in 10 seconds

Can be used for soldering, brazing, loosening fasteners, and heat shrinking

Max temperature: 1112°F

Charging time 3.5 hours

OVERVIEW

The Pro-Solder 50 is an electric, rechargeable Soldering Iron Kit that is Multifunctional and reaches operating temperature in 10 seconds. Ideal for quick wiring repairs, whether at home or in the shop. The Pro-Solder 50 also includes various tip attachments along with a protective blow molded case.

PACKAGING

STAND ALONE

Carton Box : 521 x 309 x 455 mm

Amount / Box : 16 PCS

Includes

• 10g Lead free solder

• Protective Cap

• Blow Mold Case

• Stand

• Copper cleaning sponge

• USB Charging Cable

• Instruction Manual

• 50w Rechargeable Soldering Iron

• Point tip 2mm (PS50PT2)

• Chisel tip 3.2mm (PS50CT3.2)

• Heat shrink tip (PS50HST)

BUTANE TORCH PPBT

OVERVIEW

The Power Probe Butane Torch is a heavy duty high powered high capacity butane torch that is capable of brazing, soldering, and loosening bolts.

Soldering

Brazing

Stubborn fasteners

Plastic forming

Heavy duty heating electronic ignition system

Large capacity 45-gram tank

Run time of 60 minutes at full flame

PACKAGING

STAND ALONE

Amount / Box : 40 PCS

Includes

• Butane Torch

• Butane Torch Stand

• Instruction Manual (Printed on the Box)

COLOR OPTIONS

PPMT

The flame adjustment from 12mm to 32mm (1/2" to 1 1/4")

Maximum heat for torch set up 1250°C to 2400°F

Maximum heat for soldering set up 500°C to 950°F

Light brazing

Stubborn fasteners

Jewelry repair

OVERVIEW

The Power Probe Micro Torch is both versatile and powerful. Perfect for Automotive or Home use. It features an electronic ignition allowing for easy startup, and flame adjustment from 1/2" to 2 1/2". The PPMT is easily refillable with butane and will last up to 2 hours between refills.

PACKAGING STAND ALONE

Amount / Box : 50 PCS

COLOR OPTIONS

Electronic Instant Ignition System

Safety Lock

MICRO TORCH

OVERVIEW

The Power Probe Micro Torch Kit is both versatile and powerful. Perfect for Automotive or Home use. Features an electronic ignition, and a flame adjustment from 1/2" to 2 1/2". Easily refillable with butane and will last up to 2 hours between refills. Included are various tips and attachments in a convenient blow molded case.

Electronic ignition system

The flame adjustment from 12mm to 32mm (1/2" to 1 1/4" )

Maximum heat for torch set up 1250°C to 2400°F

Maximum heat for soldering set up 500°C to 950°F

Non-corrosive RA type flux in rosen core

PACKAGING

CASE

Amount / Box : 20 PCS Includes

COLOR OPTIONS

SOLDER KIT PPSK

OVERVIEW

Versatile and fast flame Soldering Iron with Accessory Kit. Features an electronic ignition, and a flame adjustment from 1/2" to 2 1/2". Easily refillable with butane and will last up to 2 hours between refills.

120 Watt/500 BTU

Rosen core is a 60/40 mix

0.02 Diameter

Non-corrosive RA type flux in rosen core

Jewelry repair

Arts and cra s

PACKAGING

STAND ALONE

Amount

LIGHTING

MODULAR WORK LIGHT PPMWL 1000

Dust and water resistant (IP54 on base and IP65 on modules)

COB LED 1000 total lumens

Rechargeable base unit

3 hour runtime on high, 6 hour runtime on low

OVERVIEW

The Pro Series Modular Work Light is extremely versatile and can be used as an under-hood light, an Area Spot light or four individual work lights. The light can be mounted in multiple orientations for hands-free use by utilizing the magnets on the side or back of the housing, the threaded hole for mounting to a tripod, the magnets on each individual module or the hooks on each module. The PPMWL1000 has a US plug type.

ACCESSORIES

PPTK0047

These Modules are replacement for the PPMWL1000, each light outputs 125 lumens on low and 250 lumens on high, and has a hook and magnet for mounting

PACKAGING

STAND ALONE

Color Box : 468 x 88 x 80 mm

Carton Box : 435 x 194 x 502 mm

Amount / Box : 10 PCS

Includes • Charge Plug

COLOR OPTIONS

Magnets on the backside of the light

PARTS & ACCESSORIES

DC CURRENT READER PPAMP

PWM SIGNAL GENERATOR

PPPWM

OVERVIEW

PPAMP is an adapter that is plugged into PP products with 4mm banana plugs ( such as THE MAESTRO / PP4 / PP3 / PP3EZ , etc. ). This adapter is used as a measurement tool for DC currents. It is mainly used for PP products, such as automotive fan circuit detection, to find the part of the circuit failure, in order to replace and repair.

PACKAGING

CASE

Color Box : 98 x 96 x 38 mm

Carton Box : 410 x 211 x 220 mm

Amount / Box : 40 PCS

Includes

• Instruction Manual

OVERVIEW

The adapter can be set for the output 0 - 100% pulse width drive waveform by pressing the key. It is mainly used for such as automotive fan circuit detection, to find the part of the circuit failure, in order to replace and repair. PPPWM is an adapter that is plugged into PP products with 4mm banana plugs ( such as THE MAESTRO / PP4 / PP3 / PP3EZ , etc. ).

PACKAGING

CASE

Color Box : 98 x 96 x 38 mm

Carton Box : 410 x 211 x 220 mm

Amount / Box : 40 PCS

Includes

• Instruction Manual

PARTS & ACCESSORIES

5-VOLT REFERENCE ADAPTER PPT5VA

EAN Code : 8435394784861

UPC Code : 816724020411

- Standard 4mm banana connectors

DMM ADAPTER EXTENSION LEAD PPTK0002

EAN Code : 8435394784939

UPC Code : 816724020374

- One 10 red test lead for DMM

- One 10 black test lead for DMM

GOLD SERIES LEAD SET PPLS01

EAN Code : 8435394784908

UPC Code : 878253000142

- Standard 4mm banana connectors

PIERCING PROBE KIT PPTK0003

EAN Code : 8435394784946

UPC Code : 816724020381

- One yellow 4mm banana jack 8-18 gauge wires

- One green 4mm banana jack 20-28 gauge wires

DIGITAL VOLT AND OHM METER LEADS PPTK0001

EAN Code : 8435394784922

UPC Code : 816724020367

- Two 5 CAT-IV test leads

- Two color-coded alligator clips

WIRE EXTENSION PPTK0004

EAN Code : 8435394784953

UPC Code : 816724020398

- One 3 wire extension

PARTS & ACCESSORIES

TEST PROBE ADAPTER KIT

PPTK0005

EAN Code : 8435394784960

UPC Code : 816724020404

- One back probe

- One blade probe

LIGHT BULB ADAPTER KIT PPTK0006

EAN Code : 8435394784977

UPC Code : 816724021074

- Three light bulb adapters

UNIVERSAL 4MM WIRE AND ALLIGATOR CLIP PPTK0007

EAN Code : 8435394784984

UPC Code : 816724021081

- One universal 4mm wire

- One alligator clip connector

PPECT BATTERY CLIP SET WITH BATTERIES PPTK0008

EAN Code : 8435394784991

UPC Code : 816724021098

- One clip-set - One Alligator clip wire

- Two AAA batteries - One universal clip wire

1 FT WIRE EXTENSION RED PPTK0012

EAN Code : 8435394785004

UPC Code : 816724021135

- One 1 wire extension

6 FT WIRE EXTENSION- RED PPTK0013

EAN Code : 8435394785011

UPC Code : 816724021142

- One 6 wire extension

PARTS & ACCESSORIES

ADAPTER SET PPTK0014

EAN Code : 8435394785028

UPC Code : 816724021159

- One male/male adapter 4mm

- One female/female adapter 4mm

TIP SET PPTK0019

EAN Code : 8435394782478

UPC Code : 816724020541

- One hot knife

- One chisel

- One wedge tip

SOLDER ATTACHMENT

PPTK0017

EAN Code : 8435394782454

UPC Code : 816724020527

- One solder attachment

- One solder tip

PPMT TIP SET PPTK0018

EAN Code : 8435394782461

UPC Code : 816724020534

- One heat blower

- One heat shrink

- One heat shrink holder

PPMT ACCESSORY KIT

PPTK0020

EAN Code : 8435394782485

UPC Code : 816724020558

- One heat shrink attachment for the micro torch

- One heat blowers tip - One hot knife tip

- One standard solder tip - One PPMT solder attachment

- One rosin core solder - One stand

- One PPMT heat blower attachment

ROCKER SWITCH

PPTK0021

EAN Code : 8435394785035

UPC Code : 816724021203

- Two rocker switches

PARTS & ACCESSORIES

CASE PPTK0022

EAN Code : 8435394785042

UPC Code : 816724021210

- One black blow molded case

ALLIGATOR CLIP

PPTK0023

EAN Code : 8435394785059

UPC Code : 816724021227

- One alligator clip

3" PROBE TIP

PPTK0024

EAN Code : 8435394785066

UPC Code : 816724021234

- Two black Power Probe standard 3" probe tips

POWER PROBE 3 / 3S / 3EZ CLIP SET

PPTK0025

EAN Code : 8435394785073

UPC Code : 816724021241

- One Clip set

ACCESSORY / CIGARETTE ADAPTER

PPTK0026

EAN Code : 8435394785080

UPC Code : 816724021258

- One cigarette Power Probe adapter for PP3 / The Maestro / PP3EZ / Basic

20FT EXTENSION CABLE

PPTK0027

EAN Code : 8435394785097

UPC Code : 816724021265

- One 20 extension cable for PP3 / The Maestro / PP3EZ / Basic

PARTS & ACCESSORIES

SWITCH LATCH PPTK0028

EAN Code : 8435394782416

UPC Code : 816724021272

- Two switch latch for PP3

EXTENSION CABLE PPTK0029

EAN Code : 8435394782409

UPC Code : 816724020640

- One 20 extension cable for the PP4

BATTERY CLIP SET PPTK0031

EAN Code : 8435394785110

UPC Code : 816724021302

- One battery clip set for the PP4

SWITCH LATCH PPTK0032

EAN Code :

UPC Code :

- Two Power Probe 4 Switch Latches

CIRCUIT BREAKER PPTK0030

EAN Code : 8435394785103

UPC Code : 816724021296

- One self resetting circuit breaker for the PP4

FUSE COVER

PPTK0033

EAN Code : 8435394785127

UPC Code : 816724021326

- Two fuse cover for PP4 and Hook

PARTS & ACCESSORIES

FUSE, 10A/600 VDC

PPTK0034

EAN Code : 8435394785134

UPC Code : 816724021333

- Three fuses 10 Amp/600 VDC for DMM

MAGNETIC HANGING STRAP

PPTK0037

EAN Code : 8435394785165

UPC Code : 816724021364

- One magnetic hanging strap for PPDMM

FUSE, 600MA/600 VDC

PPTK0035

EAN Code : 8435394785141

UPC Code : 816724021340

- Three fuses 600mA /600 VDC for DMM

SOLDER ROSEN

PPTK0038

EAN Code : 8435394782508

UPC Code : 816724020732

- Five rosen core solder

THERMOCOUPLE FOR PPDMM

PPTK0036

EAN Code : 8435394785158

UPC Code : 816724021357

- One thermocouple probe for the PPDMM

HEAT SHRINK ATTACHMENT FOR SK

PPTK0039

EAN Code : 8435394782515

UPC Code : 816724020749

- One heat shrink attachment for PPSK

PARTS & ACCESSORIES

SOLDER KIT HEAD ASSEMBLY FOR SK PPTK0040

EAN Code : 8435394782522

UPC Code : 816724020756

- One solder tip - One catalyst

TIPS FOR PPSK & PPMT PPTK0041

EAN Code : 8435394779966

UPC Code : 816724020763

- One chisel tip - One wedge tip

- One hot knife - One solder tip

FUSE PPTK0042

EAN Code : 8435394785172

UPC Code : 816724021418

- Five 20 Amp fuse fast blow for PP4

6" PROBE TIP

PPTK0043

EAN Code : 8435394782423

UPC Code : 816724021609

- One 6" probe tip

MOTORCYCLE BATTERY ADAPTER

PPTK0044

EAN Code : 8435394782539

UPC Code : 816724021708

- One motorcycle battery adapter

CHARGE CABLE FOR PPMWL1000

PPTK0046

EAN Code : X

UPC Code : 816724021722

- Charge cable for PPMWL1000 modular work light

- The PPMWL1000 has a US plug type

PARTS & ACCESSORIES

MODULAR WORK LIGHT REPLACEMENT MODULES

PPTK0047

EAN Code : 8435394782553

UPC Code : 816724021739

- These Modules are replacement for the PPMWL1000, each light outputs 125 lumens on low and 250 lumens on high, and has a hook and magnet for mounting, also has a US plug type.

5.0MM CHISEL TIP

PS50CT5

EAN Code : 8435394777344

UPC Code : 816724021944

- Tip for PPS50W

PIN ADAPTERS

PPTK0048

EAN Code : 8435394788036

UPC Code : 816724021876

- OBD-II breakout box pin adapters

HOT KNIFE TIP

PS50HK

EAN Code : 8435394777351

UPC Code : 816724021951

- Tip for PPS50W

3.2MM CHISEL TIP

PS50CT3.2

EAN Code : 8435394777320

UPC Code : 816724021920

- Tip for PPS50W

3.2MM HEAT SHRINK TIP

PS50HST

EAN Code : 8435394777337

UPC Code : 816724021937

- Tip for PPS50W

PARTS & ACCESSORIES

2.0MM POINT TIP PS50PT2

EAN Code : 8435394777313

UPC Code : 816724021913

- Tip for PPS50W

TEMPERATURE PROBE TEMPPROBE

EAN Code : 8435394785202

UPC Code : 816724020039

- TEMPKIT additional wireless temperature probe

APAC MGL APPA Corporation

cs.apac@mgl-intl.com

8F., No. 537, Tanmei St., Neihu Dist., Taipei City 114, Taiwan

Tel: +886 2-2508-0877

CANADA & USA

Power Probe Group, Inc. cs.na@mgl-intl.com

6509 Northpark Blvd Unit 400, Charlotte, North Carolina 28216 USA

Tel: +1 833 533-5899

EMEA

Power Probe Group S.L.U. cs.emea@mgl-intl.com

Parque Empresarial Argame, 33163 Morcín. Asturias, Spain.

Tel: +34 985-08-18-70

MEXICO & LATAM

Power Probe Group, Inc.

cs.latam@mgl-intl.com

Colonia Industrial Vallejo Del. Azcapotzalco 02300, Mexico D.F

Tel: +1 833-533-5899

UNITED KINGDOM

Power Probe Group Limited cs.uk@mgl-intl.com

14 Weller St, London, SE1 1QU, UK

Tel: +34 985-08-18-70

www.powerprobe.com
