Pump
• Industrial Heavy-Duty Triplex
Plunger Pumps
• Oil Bath Crank Case
• Stainless Steel Valves
• Brass Manifold
• Thermo Pump Protector
• Belt or Gearbox Driven
Engines
• Gasoline Driven
Heating Coil

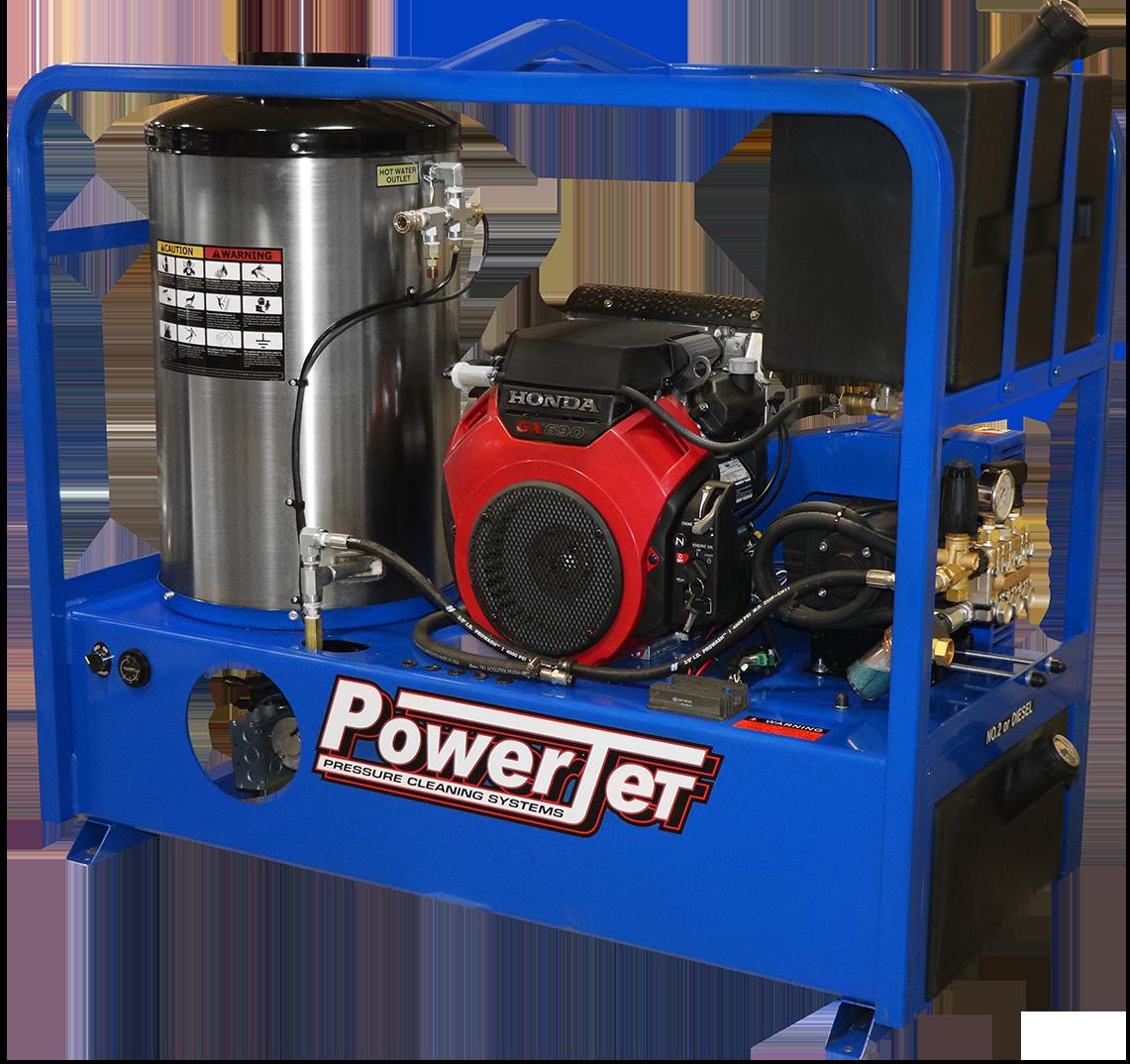

This series of hot water pressure washers was designed to be truck or trailer mounted for mobile washing purposes. These units are ideal for use within municipal, mining, oil field, forestry, and industrial cleaning operations.
• Efficient • Serviceable
• Schedule 80 & 160 Pipe • No Seam Welds
• Elliptically Wound & Stretched
• Structurally Braced to Reduce Vibration & Pipe Wear • Sealed With Ceramic Blanket
• Stainless Steel Housing
Burners (Wayne 120 & 12 Volt)
• Oil Fired • Adjustable Thermostat
• On/Off Switch • North American Made
• Cleanable Fuel Filter • Dependable
• Serviceable
Compact Frame
• All Welded • Powder Coated
• 1-1/2” Bent Steel Cage with 3/16“
Mounting Plate
• All Mounting Bolts are Welded to the Frame for Ease of Service
• 10 Gallon Gas Tank
• 20 Gallon Diesel Tank • Lifting Bar
• Designed to be Truck or Trailer Mounted
• Skid Frame Design
• Hose Reel Compatible
• 38 HP Units are Equipped with a 1/4”
Mounting Plate and Roll Cage is Optional
Includes
• Adjustable Pressure Regulator
• 48” Gun & Wand Assembly With Quick Coupler System for Machines under 5000 PSI • 0°/15°/25°/40° Nozzles
• Chemical Injector up to 5 GPM
• 50’ of High Pressure Hose
Options & Accessories
• 3000 Watt Generator • Steam Kit
• Hose Reel • Drain Cleaning/Jetter Kit
• Super Skid & Water Tank Frames
• Open and Enclosed Trailer Packages
• Certified Lift Cages • Electric Clutch
• Winterization System
These units can also be upgraded to a horizontal frame, or mounted on a skid frame in combination with 225, 550, or 740 gallon water tanks and a variety of hose reel and accessory options to create a totally customizable self contained system.
1-877-765-9211

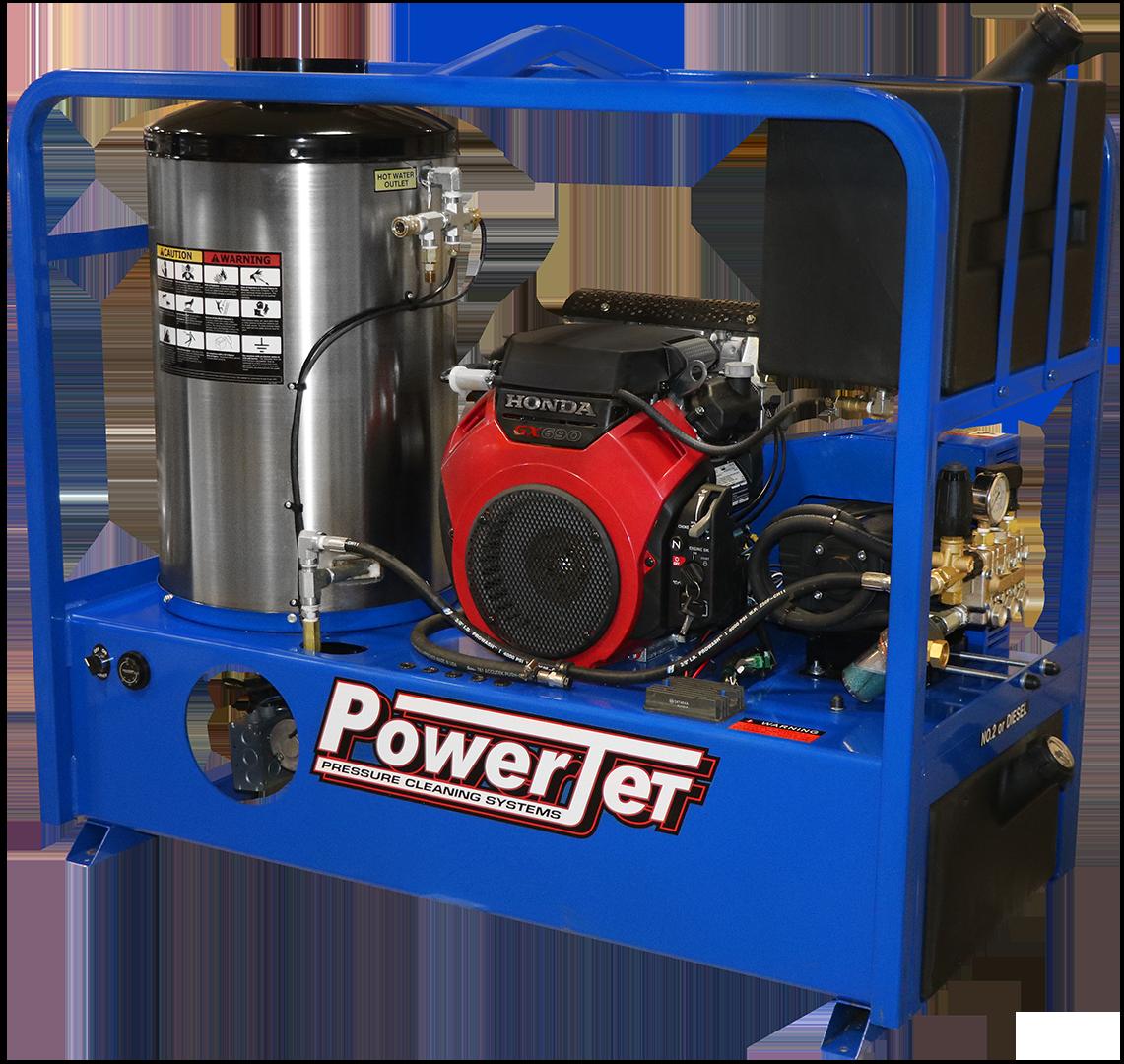

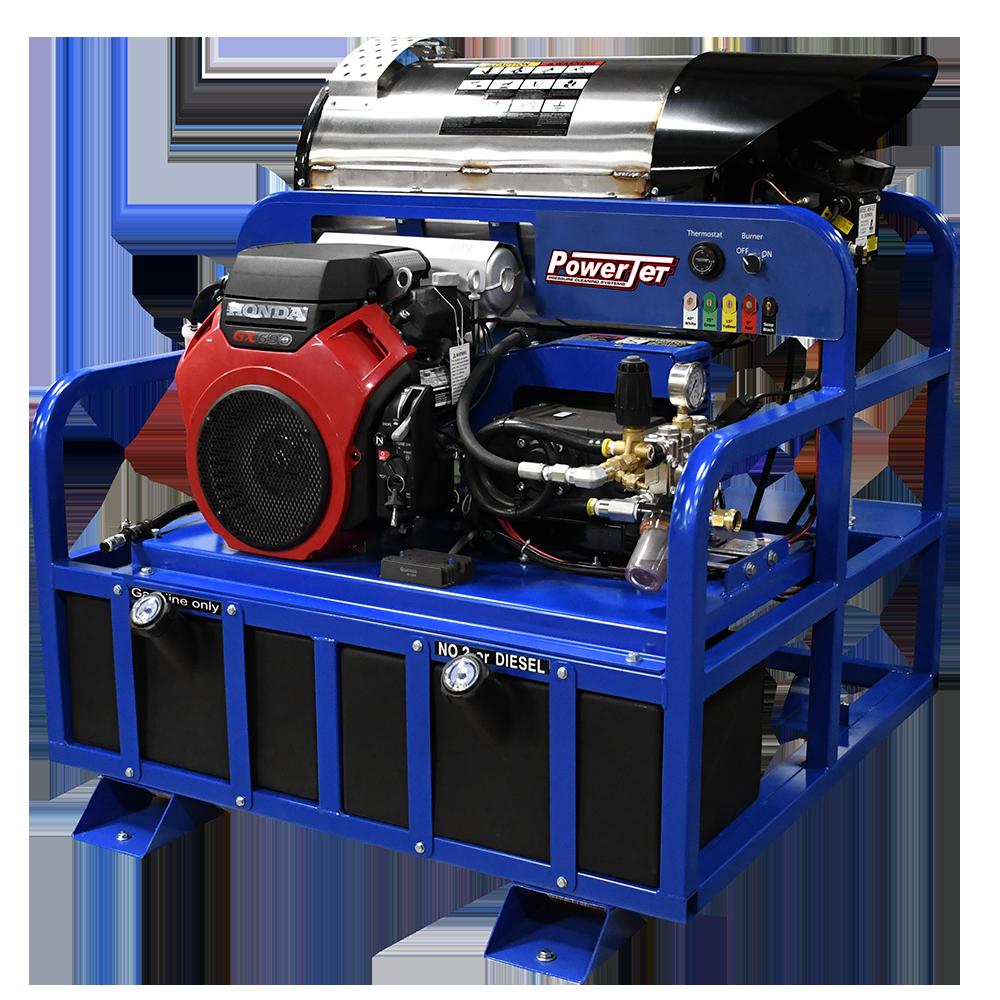

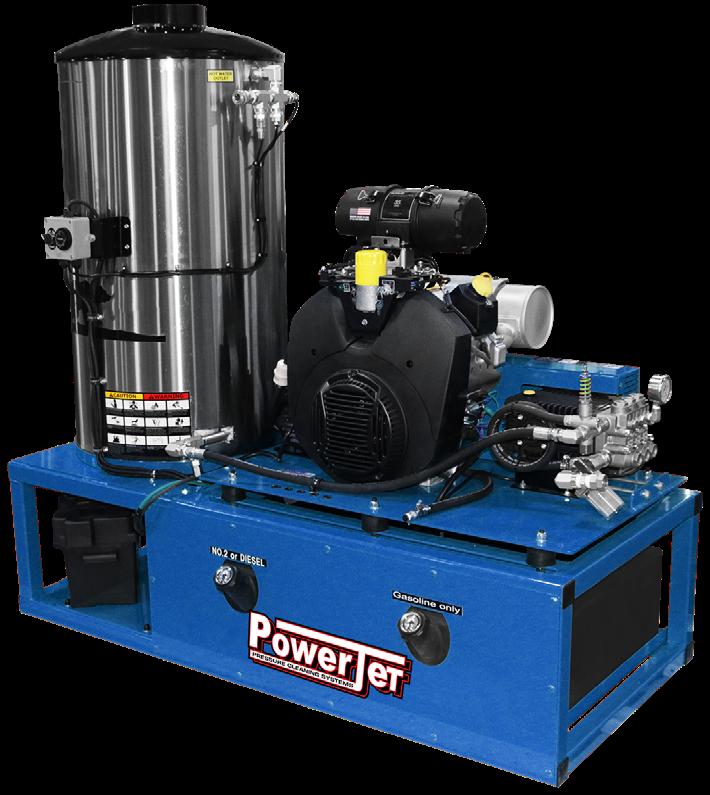

Industrial Hot Water Gas Driven Oil Fired Series is ideal for use in municipal, mining, oil field, and forestry cleaning operations. This machine can be mounted on a skid frame or mounted to a truck or trailer in combination with a water tank and a variety of hose reel and accessory options to create a totally customizable self-contained system.
A hose reel will extend the life of your high pressure cleaning hose considerably by providing safe tangle and kink free storage. It will also save you time when using and storing your high pressure cleaning equipment. Every machine should have one!
ADDITIONAL HIGH PRESSURE HOSE 30/50/100/150/200
Foot Hose Lengths

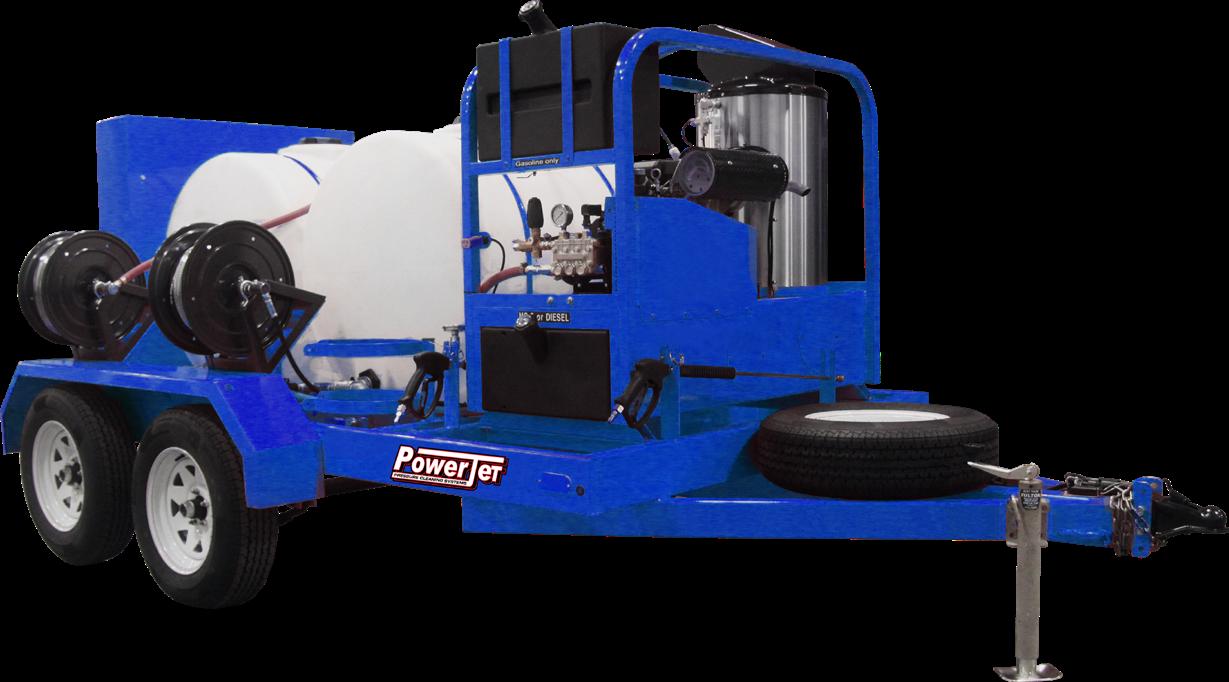

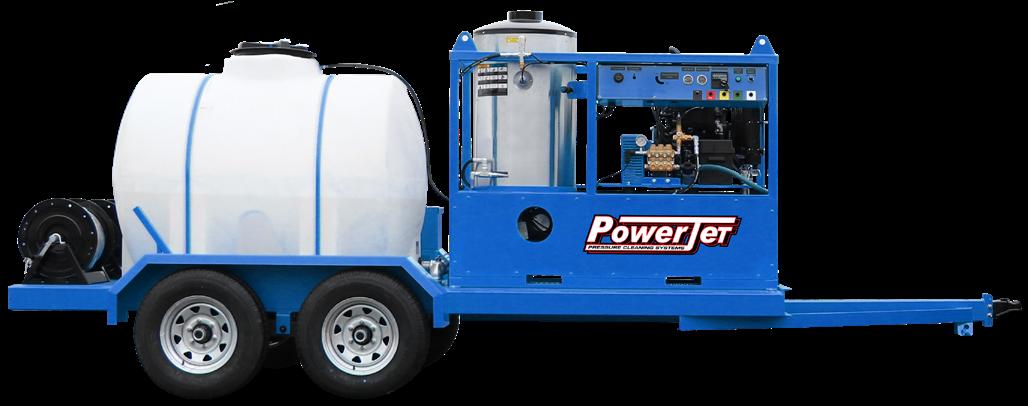

Designed for construction and forestry applications for cleaning equipment and thawing culverts. 5 GPM at 5000 PSI unit with 225 gallon tank and 250 foot
This larger capacity 525 gallon water tank is designed for the construction, forestry, mining, and industrial applications for cleaning equipment and thawing. This 5 GPM at 5000 PSI unit features two hose reels and a steam kit.
ROTARY NOZZLES
Rotary nozzles can cut cleaning time in half. PowerJet carries a variety of rotary nozzles from commercial to industrial grade.

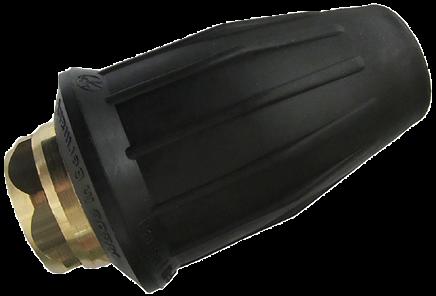

GIANT TM ROTARY NOZZLES
This nozzle allows one to have the benefit of a 0º stream of water in a 20º spray pattern. Max 3600 PSI, 195ºF.

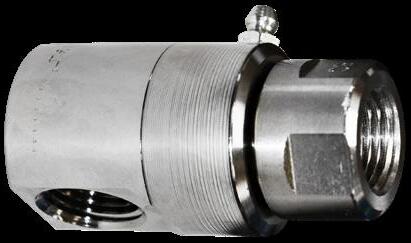

GREASEABLE SUPER SWIVELS
Upgraded swivel for hose reels. 90˚ stainless steel swivel with grease nipple. 5000 PSI, 400˚F (Mount on any hose reel, except 360˚ pivot)

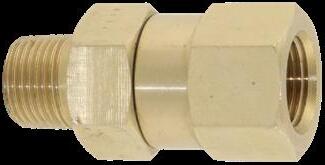

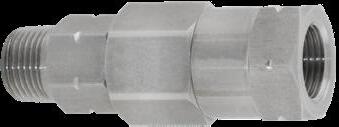

SWIVEL
Allows your hose to swivel under high pressure. No more tangled hose!

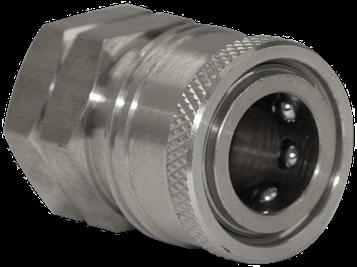

QUICK COUPLERS
For speedy and sturdy interchanging of tools and attachments. Disconnect coupler band rated at 5000 PSI, 210°F.

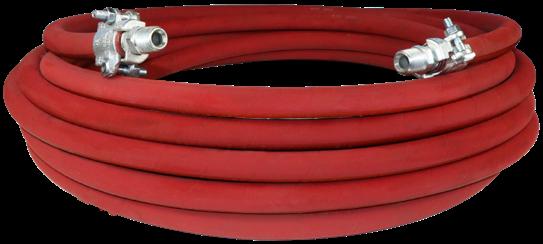

STEAM HOSE
Hose used for wet steam. Rated at 3000 PSI, 325º F. Available in 50’ or 100’ lengths.

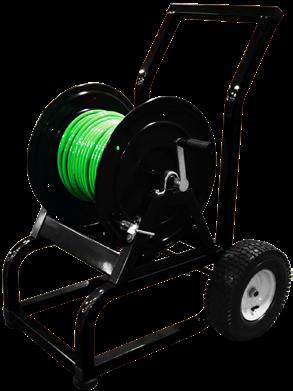

HOSE REEL CARTS
For the ability to make your hose mobile, perfect for setting 150’ and 300’ capacity.

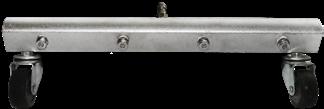

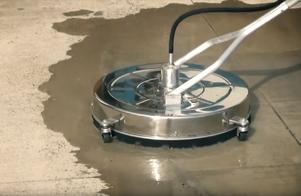

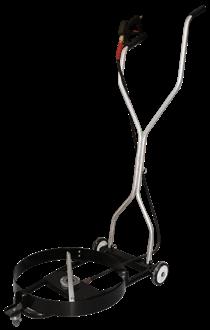

UNDERCARRIAGE, WATERBROOM, & SURFACE CLEANER ACCESSORIES
Maintain shop cleanliness and easily wash everything from floors to the undercarriages on your equipment.
FOAM CANNON
Allows full chemical coverage and activation. Ideal for vehicle and house washing.
WET STEAM KIT
For cleaning and thawing operations. Great for de-icing. Steam Wand must be used in steam application. Safety guard around wand. Steam Nozzles are to be installed on steam wand. WAN-STM.

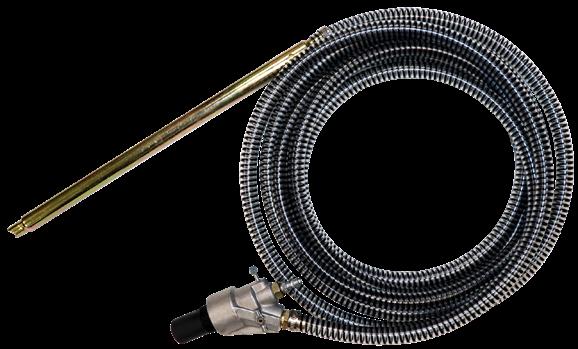

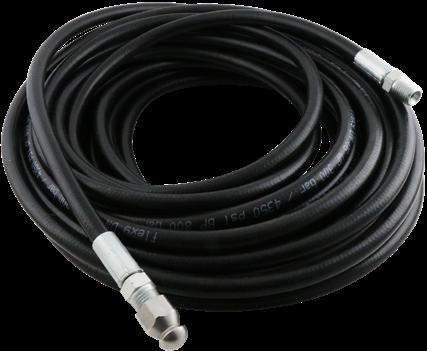

MEGA-FLEX DRAIN CLEANING KIT
Used for cleaning drains, culverts and downspouts, as well as thawing and unclogging pipes. Stainless steel drain nozzle included. Available in 50’ or 100’ lengths.

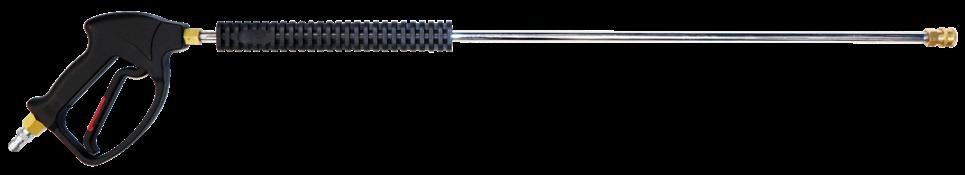

GUN & WAND ASSEMBLIES
Gun & Wand Assemblies 12”/18”/24”/36”(Standard)/48”/59”/72”

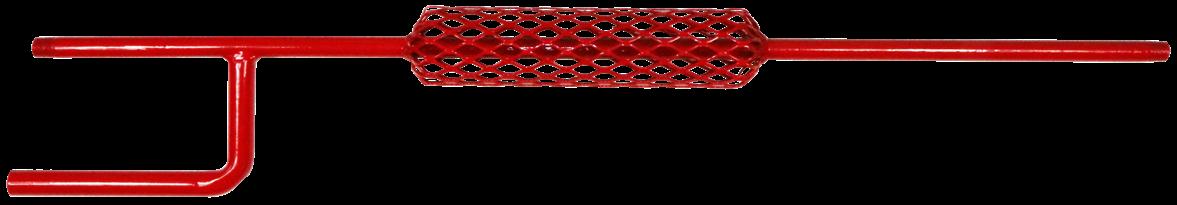

SIDE HANDLE GRIP
Great for extra control, leverage, and precision.
WET SANDBLAST KIT
Peels paint and rust from metal effortlessly with no dust. Leaves surface ready to paint. 10 GPM max flow.

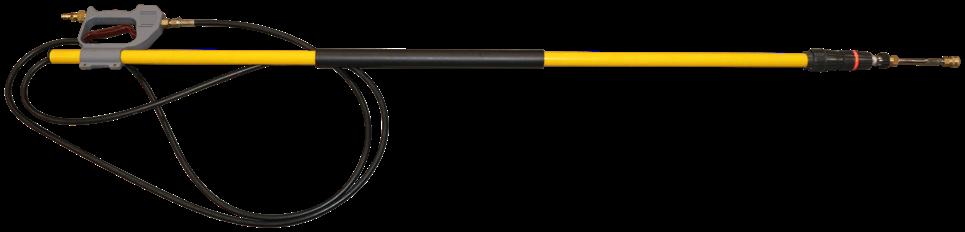

Telescopic Wand - 18’ & 24’

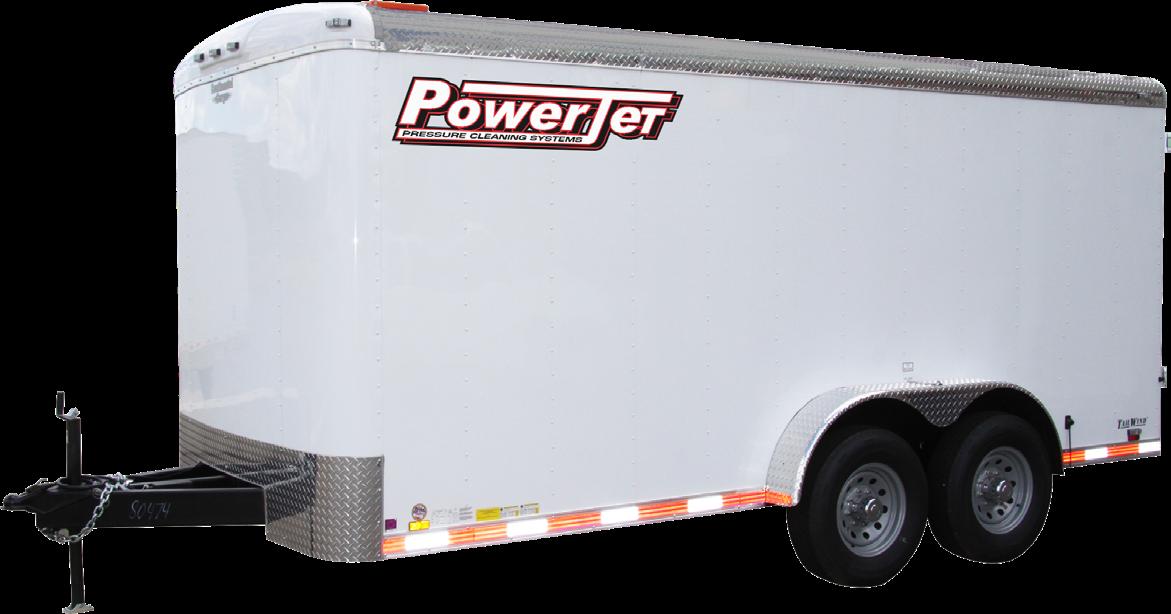

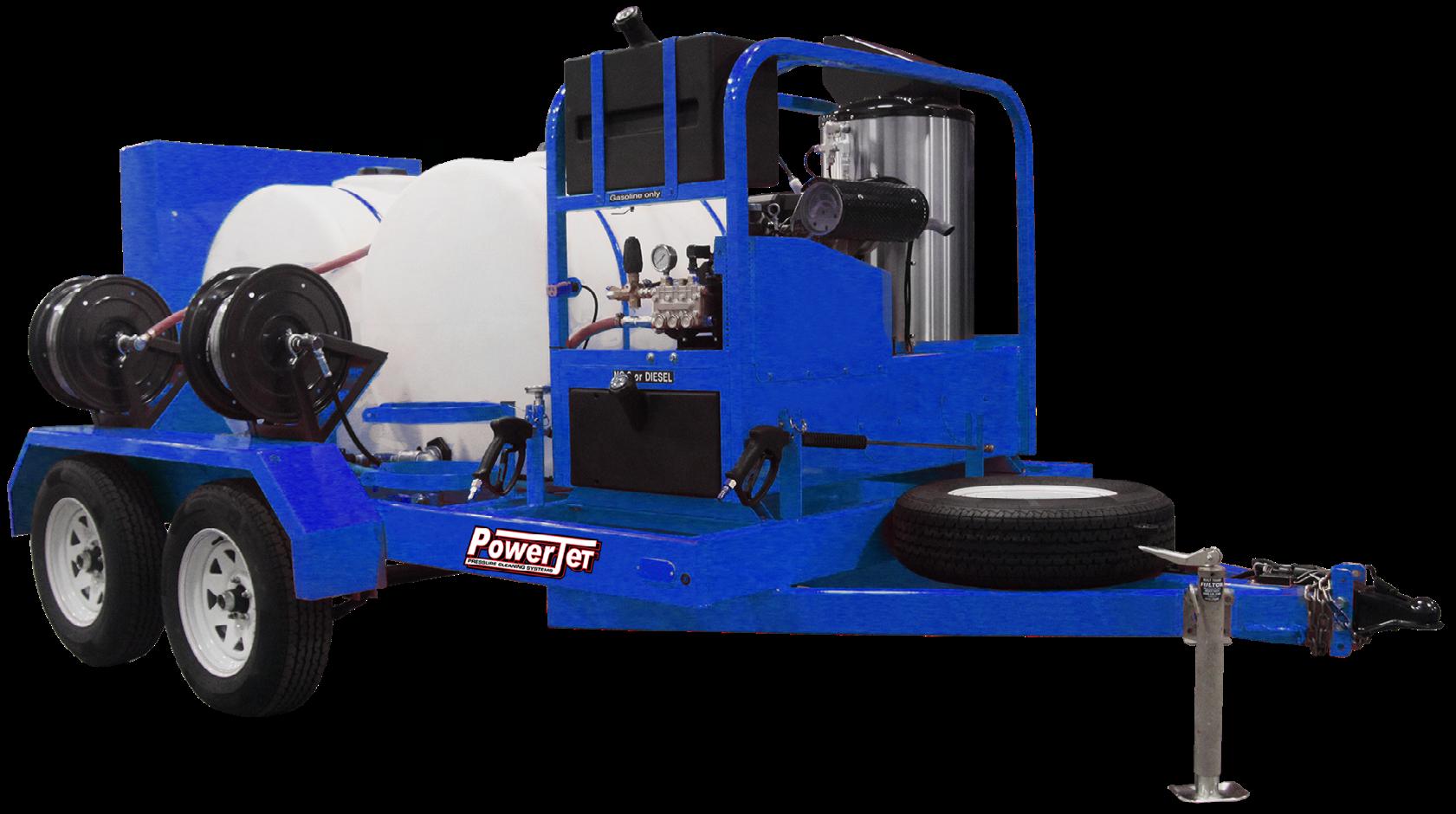

Complete open or insulated enclosed trailer packages. Everything has been thought of to ensure your success. Paired with machines from the Industrial Hot Water Gas or Diesel Series. 4 to

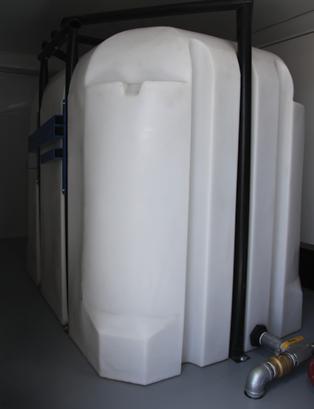

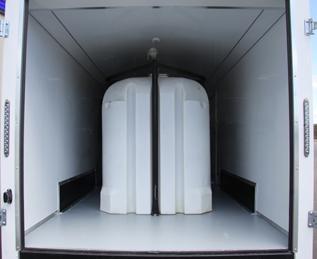

WATER TANKS
225, 550, and 740 gallon poly water tanks. The 225 and 550 gallon tanks are secured to the trailer floor with heavy duty ratchet straps. The 740 gallon tank is enclosed in a steel pipe frame and bolted to the floor of the trailer.

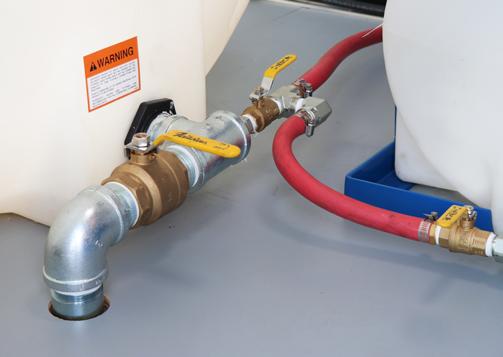

DUMP VALVE
Equipped with a 2” dump valve that empties the water tank through the floor.

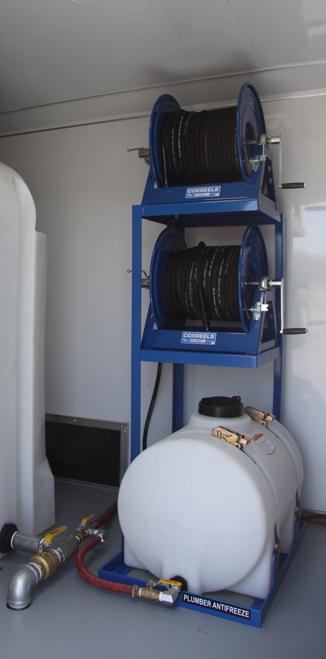

REEL RACK
Capacity For 2 - 300 Foot Hose Reels. A wide variety of reel options are available.

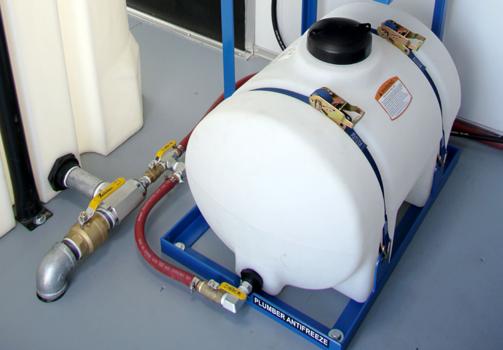

WINTERIZATION SYSTEM
35 Gallon Poly Antifreeze Tank.

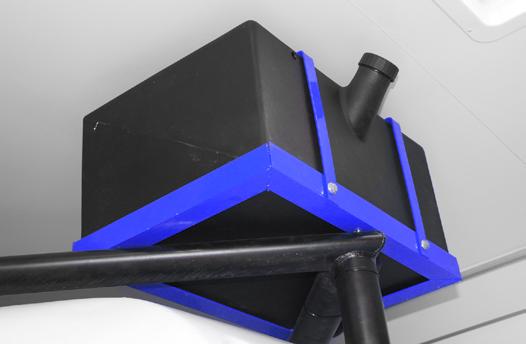

CHEMICAL TANK
10 Gallon Poly Chemical Tank mounted on top of the water tank for high pressure soap injection.

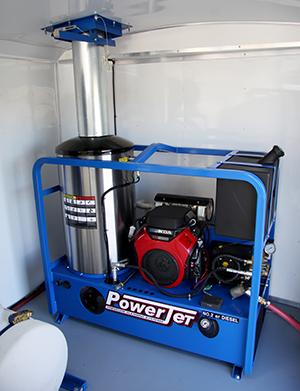

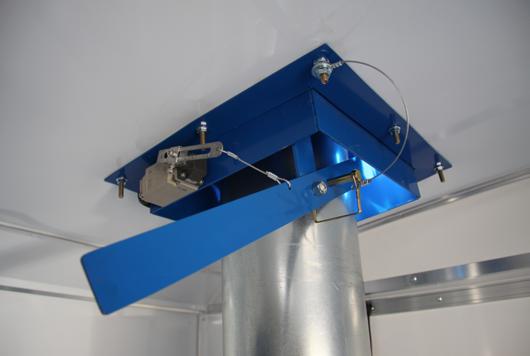

EXHAUST VENT
These enclosed trailers are equipped with steel roof vents with special safety switches that will not allow the burner to operate without opening the vent.
120 VOLT HEATER
1500 Watt Heater.
