IT’S THE POWER YOU NEED! Industrial Hot Water Electric - Oil Fired 1-877-765-9211 Made In North America
Industrial Hot Water Electric -
Oil Fired
Pumps
• Industrial Duty Triplex Plunger Pumps • Oil Bath Crankcase
• Stainless Steel Valves • Brass Manifold • Thermo Pump Protector
Electric Motors (5, 7.5, 10, 15, 20 & 50 HP)
• 1750 RPM • TEFC • Full Frame • 1.15 Service Factor (Single Phase)
• 1.25 Service Factor (3 Phase - High Efficiency)
• Thermal Overload Protection • Continuous Duty
Electrical Control Panel
• Nema 4 • Water Tight • Easy Access
• Heavy Duty On/Off Cam Switch Or Optional Auto Stop/Start With Time Delay
Heating Coil
• Schedule 80 or 160 Pipe • Elliptically Wound & Stretched
• No Seam Welds • Thermostat Controlled
• Structurally Braced To Reduce Vibration & Pipe Wear
• Sealed with Ceramic Blanket • Stainless Steel Housing
Burners
• Oil Fired • Adjustable Thermostat • On/Off Switch
• Cleanable Fuel Filters • North American Made
• Dependable • Serviceable
Frame
• All Welded • Powder Coated
• Heavy gauge bent one piece plate
• Tip Ahead Shroud with built-in Belt Guard designed to fully expose all components for Ease of Maintenance • 10 Gallon Heavy Poly Fuel Tank (15+ HP Fuel Tank Optional) • Hose Reel Compatible
• Stationary Units Built with Skid Style Frame
Includes
• Liquid Filled Pressure Gauge
• Adjustable Pressure Regulator
• 48” Gun And Wand Assembly with Quick Coupler System for machines under 5000 PSI • 0°/15°/25°/40° Nozzles • 1 Soap Nozzle
• Chemical Injection System System for machines up to 7.5 HP
• 50’ Of High Pressure Hose Options &

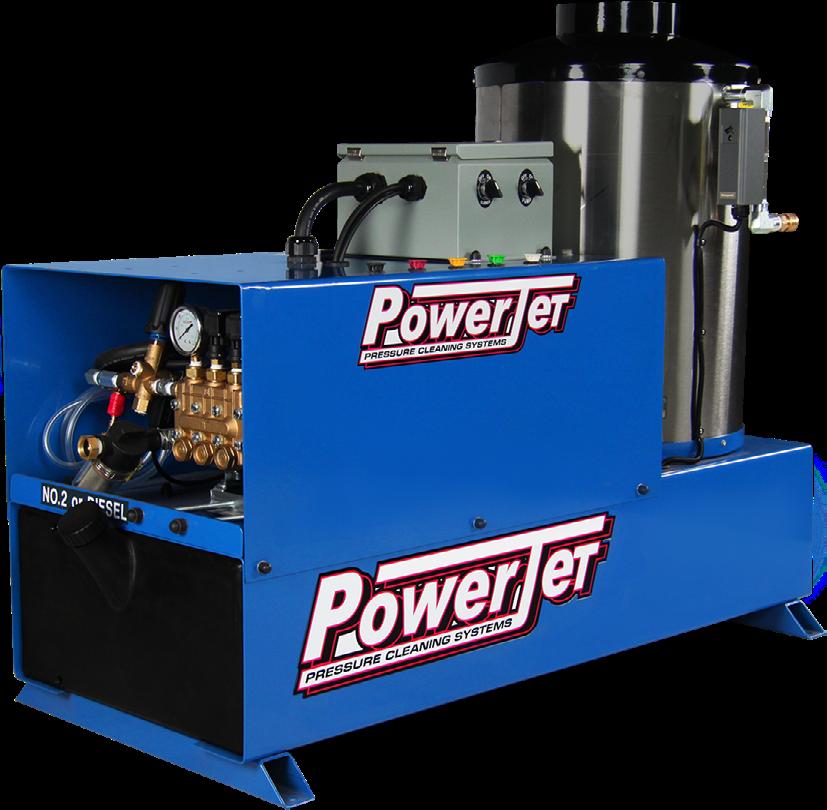

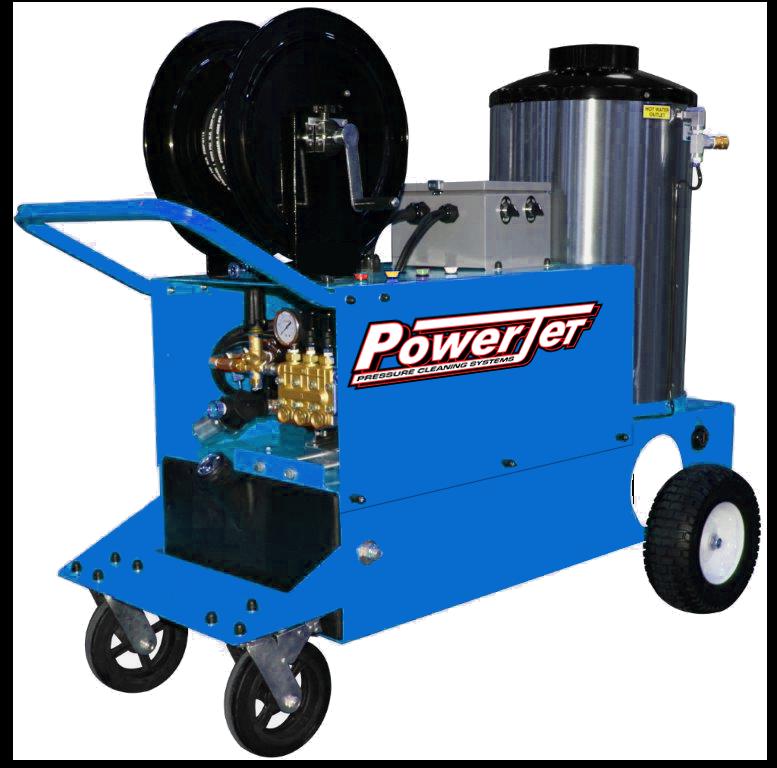

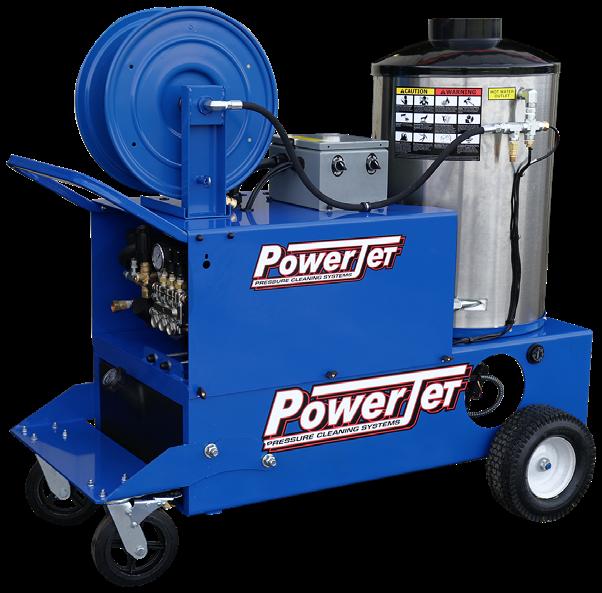

PJO5003-3-575/-A-WK with Optional Auto Stop/Start, Hose Reel & Wheel Kit
1-877-765-9211

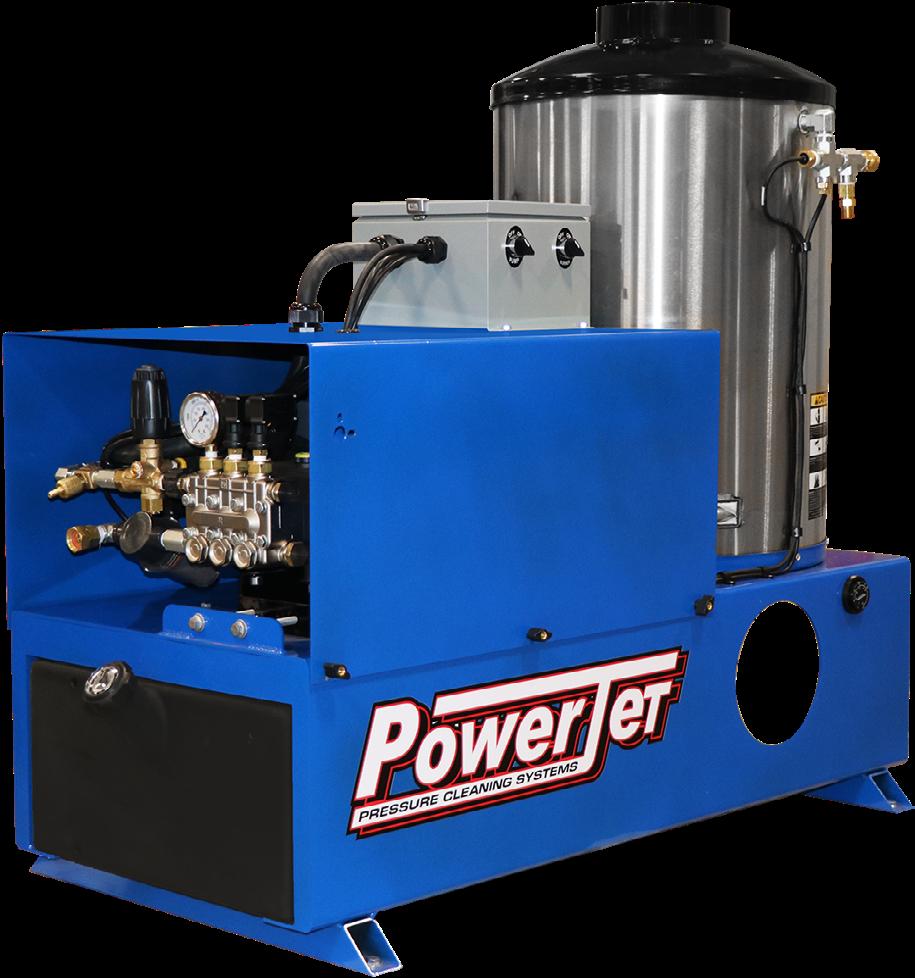

• Auto Stop/Start - Add (/A) • Hose Reel • Wheel Kit - Add (/WK) • Remote • VFD • PLC • Stainless Steel - Add (/SS) • Pressure Transducer PJO5003-1/-A with Optional Auto Stop/Start
Accessories
MODEL GPM PSI BTU DRIVE HP VOLTAGE L" X W" X H" PJO4002F-1 4 2000 400,000 FLANGE/COUPLING 5 220V-1PH 48 X 26 X 43 PJO4002-1 4 2000 400,000 BELT 5 220V-1PH 48 X 26 X 48 PJO4002F-3 4 2000 400,000 FLANGE/COUPLING 5 208/230/460/575 V-3PH 48 X 26 X 43 PJO4002-3 4 2000 400,000 BELT 5 208/230/460/575 V-3PH 48 X 26 X 48 PJO4003F-1 4 3000 400,000 FLANGE/COUPLING 7.5 220V-1PH 48 X 26 X 43 PJO4003-1 4 3000 400,000 BELT 7.5 220V-1PH 48 X 26 X 48 PJO4003F-3 4 3000 400,000 FLANGE/COUPLING 7.5 208/230/460/575 V-3PH 48 X 26 X 43 PJO4003-3 4 3000 400,000 BELT 7.5 208/230/460/575 V-3PH 48 X 26 X 48 PJO5003-1 5 3000 500,000 BELT 10 220V-1PH 48 X 26 X 48 PJO5003-3 5 3000 500,000 BELT 10 208/230/460/575 V-3PH 48 X 26 X 48 PJO4004F-1 4 4000 400,000 FLANGE/COUPLING 10 220V-1PH 48 X 26 X 43 PJO4004-3 4 4000 400,000 BELT 10 208/230/460/575 V-3PH 48 X 26 X 48 PJO8002-1 8 2000 800,000 BELT 10 220V-1PH 48 X 26 X 48 PJO6036-3-A 6 3600 600,000 BELT 15 208/230/460/575 V-3PH 60 X 31 X 50 PJO8003-3-A 8 3000 800,000 BELT 20 208/230/460/575 V-3PH 60 X 31 X 54 PJO8036-3-A 8 3600 800,000 BELT 20 208/230/460/575 V-3PH 60 X 31 X 65 PJO1030-3-A 10 3000 1,000,000 BELT 20 208/230/460/575 V-3PH 60 X 31 X 65 PJO1225-3-A 12 2500 1,200,000 BELT 20 208/230/460/575 V-3PH 60 X 31 X 65 PJO5005-3-A 5 5000 500,000 BELT 20 208/230/460/575 V-3PH 60 X 31 X 50 PJO4006-3-A 4 6000 400,000 BELT 20 208/230/460/575 V-3PH 60 X 31 X 50 PJO4007-3-A 4 7000 400,000 BELT 20 208/230/460/575 V-3PH 60 X 31 X 50 PJO8008-3 8 8000 800,000 BELT 50 208/230/460/575 V-3PH 64 X 38 X 59
Industrial Hot Water Electric - Oil Fired

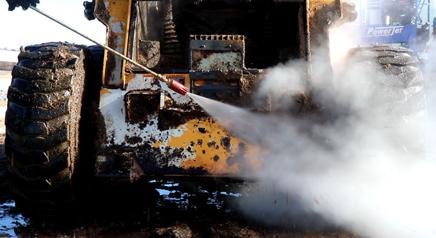

Our Industrial Hot Water Oil Fired Unit is a standout for heavyduty cleaning. This machine can reach a water temperature of up to 200°F, allowing it to cut through grease and grime with fewer chemicals! That makes this machine great for farms, to wash barns and tractors, or trucking companies to keep their fleets clean.

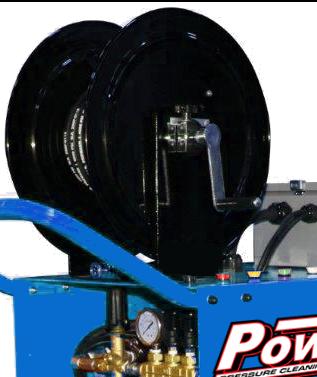

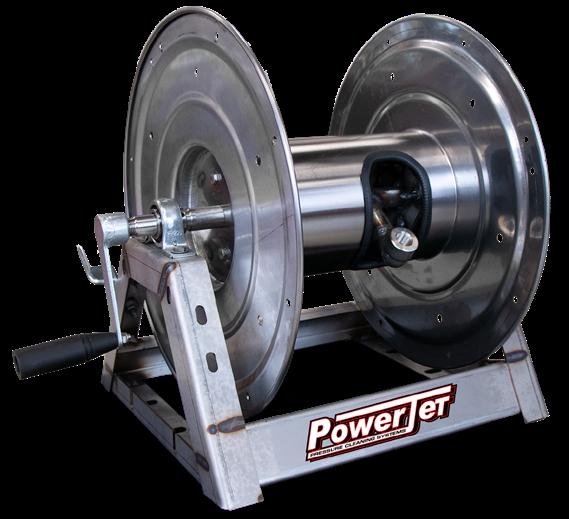

Hose Reels & Frame Options
A Hose Reel will extend the life of your high pressure cleaning hose considerably by providing safe tangle and kink free storage. It will also save you time when using and storing your high pressure cleaning equipment. Every machine should have one!

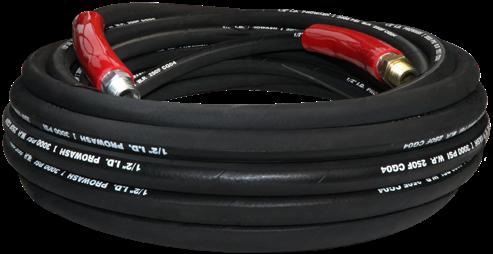

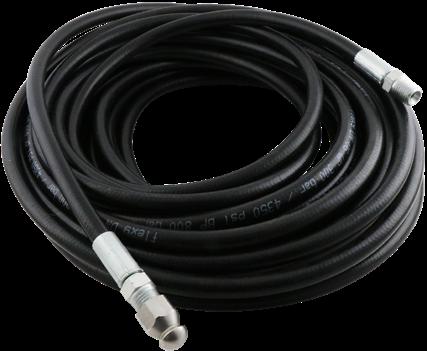

ADDITIONAL HIGH PRESSURE HOSE 30/50/100/150/200’
Hose Lengths

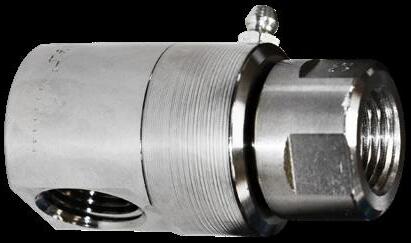

GREASEABLE SUPER SWIVELS
Upgraded swivel for hose reels. 90˚ stainless steel swivel with grease nipple. 5000 PSI, 400˚F (Mount on any hose reel, except 360˚ pivot)

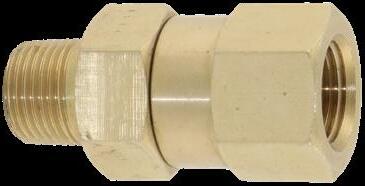

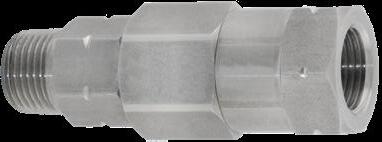

SWIVEL
Allows your hose to swivel under high pressure. No more tangled hose!
PORTABLE UNITS
Mounted on two 13” foam filled rubber tires and two 8” heavy duty casters
STATIONARY FRAME
For mounting in a open or enclosed trailer.
1-877-765-9211

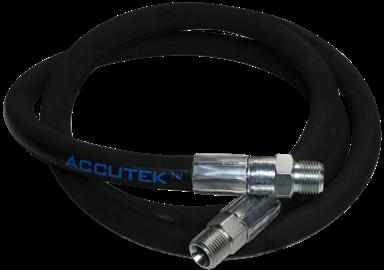

JOINER HOSE
Single Braid Connects short distances.
Rated at 4000 PSI and 212º F
Learn More With Our Videos

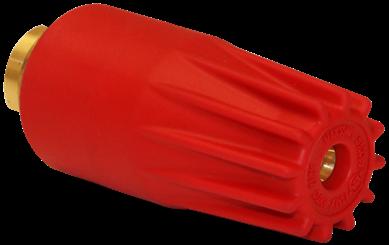

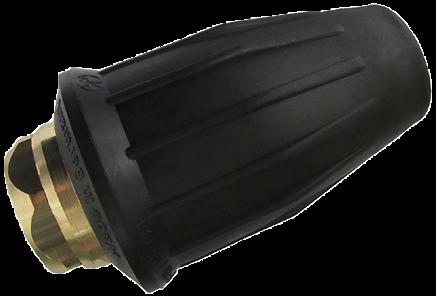

ROTARY NOZZLES
Rotary nozzles can cut cleaning time in half. PowerJet carries a variety of rotary nozzles from commercial to industrial grade.
GIANT
This nozzle allows one to have the benefit of a 0º stream of water in a 20º spray pattern. Max 3600 PSI, 195ºF.

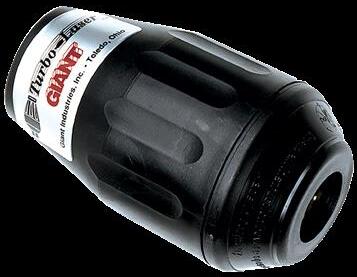

GIANT
Giant’s original Turbo LaserTM nozzles takes the power of a zero-degree nozzle and rotate it in either a circular or linear fashion. This allows the user to clean up to 70% faster than with a conventional zero-degree nozzle.

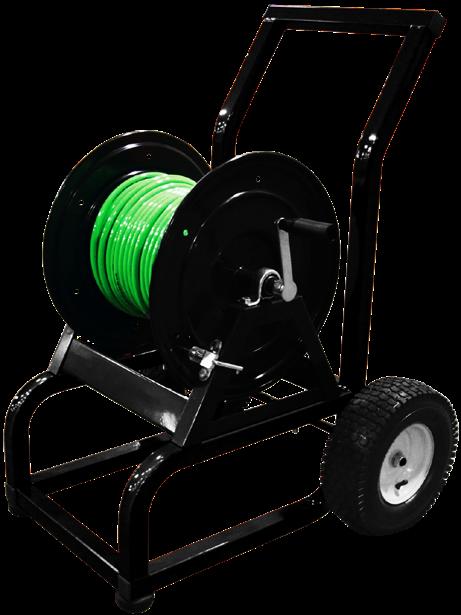

HOSE REEL CARTS
For the ability to make your hose mobile, perfect for setting 150’ and 300’ capacity.
RAIN
This option keeps rain and snow from entering your coil, which increases coil and burner life.

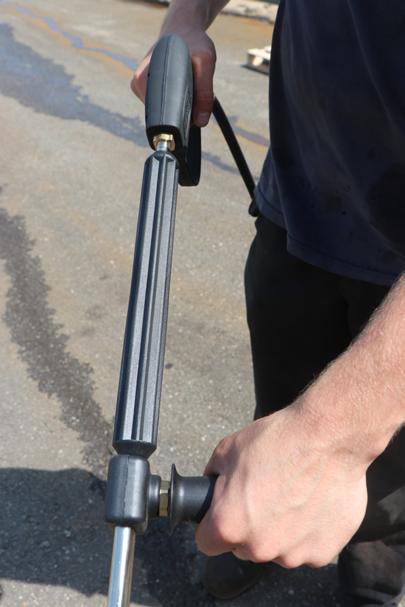

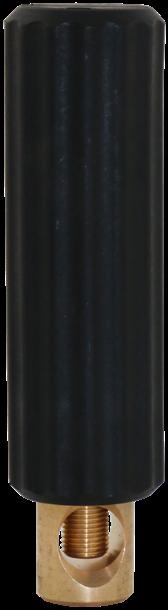

SIDE HANDLE GRIP
Great for extra control, leverage, and precision.

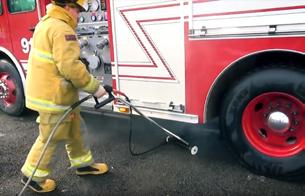

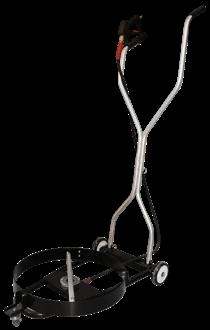

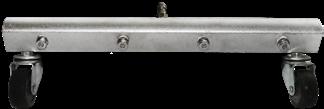

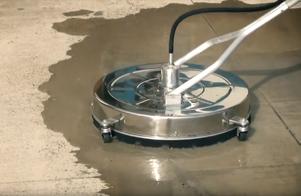

UNDERCARRIAGE,
WATERBROOM, & SURFACE CLEANER ACCESSORIES
Maintain shop cleanliness and easily wash everything from floors to the undercarriages on your equipment.
FOAM CANNON
Allows full chemical coverage and activation. Ideal for vehicle and house washing.

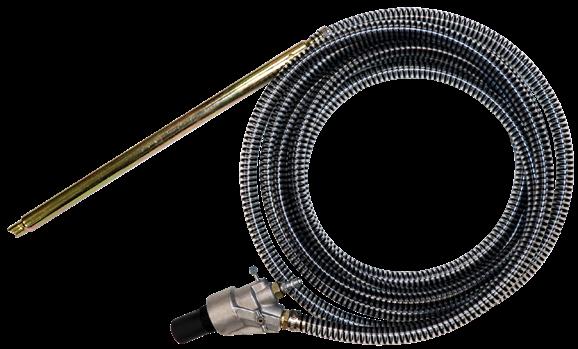

MEGA-FLEX
Used for cleaning drains, culverts and downspouts, as well as thawing and unclogging pipes. Stainless steel drain nozzle included. Available in 50’ or 100’ lengths.
WET SANDBLAST KIT
Peels paint and rust from metal effortlessly with no dust. Leaves surface ready to paint. 10 GPM max flow.

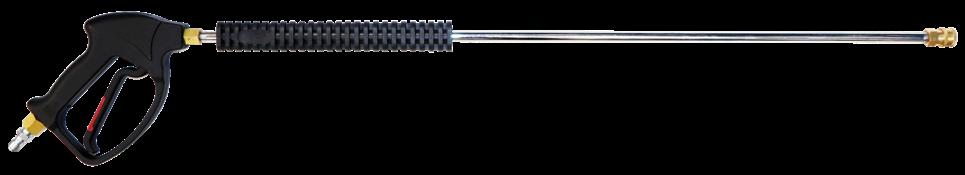

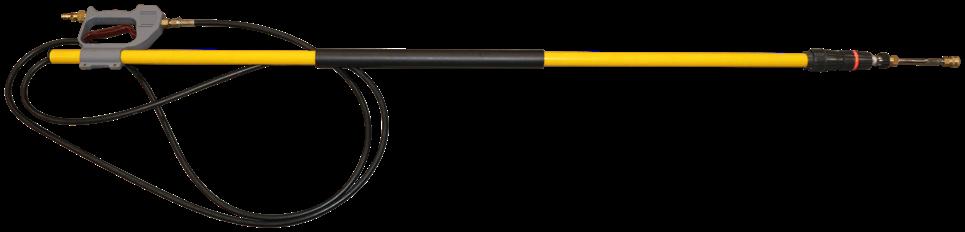

GUN & WAND ASSEMBLIES
Gun & Wand Assemblies 12”/18”/24”/36”(Standard)/48”/59”/72”
Relaxed Trigger Gun (VEGA)
1-877-765-9211
TM ROTARY NOZZLES
Accessories
CAP
TM ROTARY NOZZLES
DRAIN CLEANING KIT
