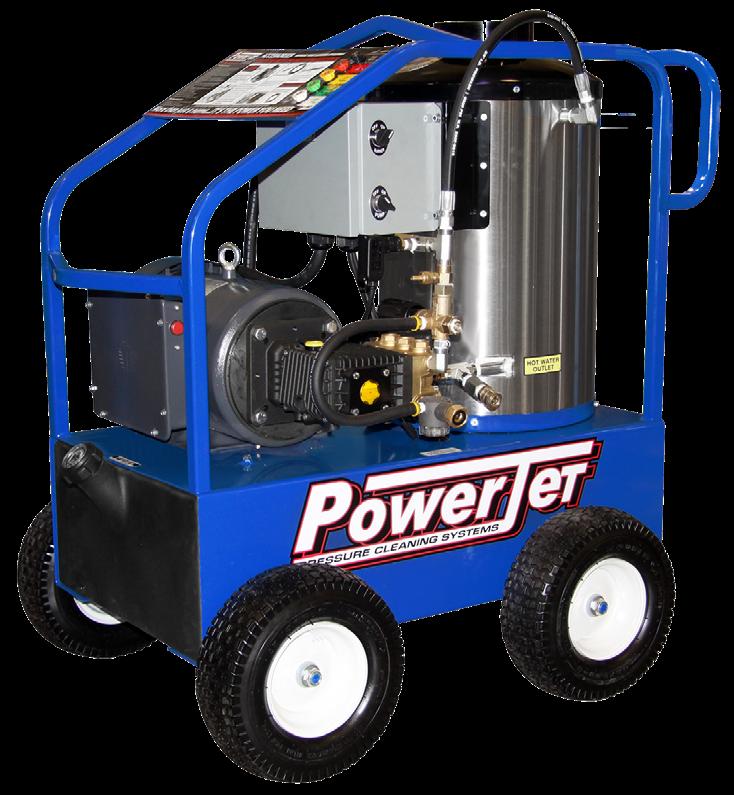

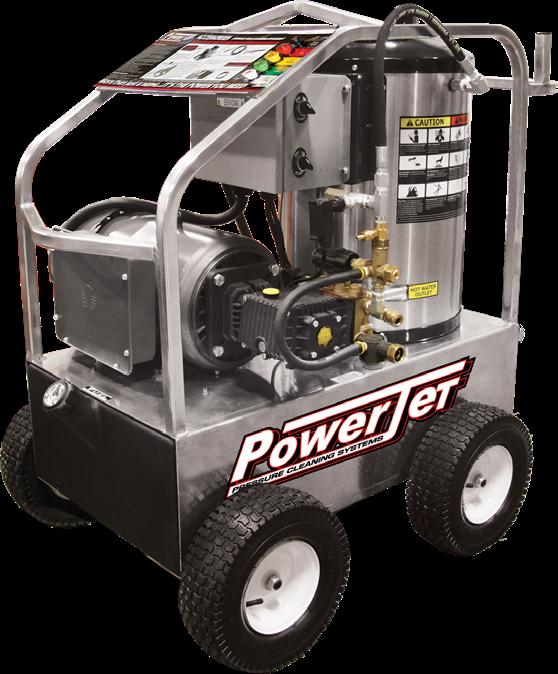

PowerJet, North America Commercial Hot Water Electric - Spec Sheet

Commercial

Hot Water Electric - Oil Fired

Pumps

• Commercial Duty Triplex Plunger Pumps • Direct Drive

• Oil Bath Crankcase

• Stainless Steel Valves • Brass Manifold

• Thermo Pump Protector

Electric Motors (2, 5 & 7.5 HP)

• 1750 RPM • TEFC • Full Frame

• 1.15 Service Factor

• Thermal Overload Protection

• Continuous Duty

Electrical Control Panel

• Nema 4 • Water Tight • Easy Access

• Heavy Duty On/Off Cam Switch or Optional Auto Stop/Start with Time Delay

Heating Coil

• Schedule 80 Pipe

• Elliptically Wound & Stretched

• No Seam Welds

• Structurally Braced to Reduce Vibration & Pipe Wear

• Sealed with Ceramic Blanket

• Stainless Steel Housing

Burners

• Oil Fired • Adjustable Thermostat

• On/Off Switch • North American Made

• Dependable • Serviceable

Frame

• All Welded • Powder Coated

• 12 Gauge Bent Steel Roll Cage

• Lifting Bar

• 3/4” Threaded Axles Welded to Frame

• 13” Foam Filled Tires Attached with Lock Nuts

• 10 Gallon Poly Fuel Tank

• Hose Reel Mounting Plate

Includes

• 36” Gun and Wand Assembly with Quick Coupler System

• 0°/15°/25°/40° Nozzles

• 1 Soap Nozzle

• Downstream Chemical Injection System

• 50’ of High Pressure Hose

Options & Accessories

• Auto Stop/Start • General Pump Upgrade

• Hose Reel • 3 Phase Options

• Rotary Nozzle

• Wet Sandblast Kit

• Water Broom

• Drain Cleaning/Jetter Kit

Dependable, long lasting machines built for a multitude of applications. Heats water faster and hotter than our competitors.

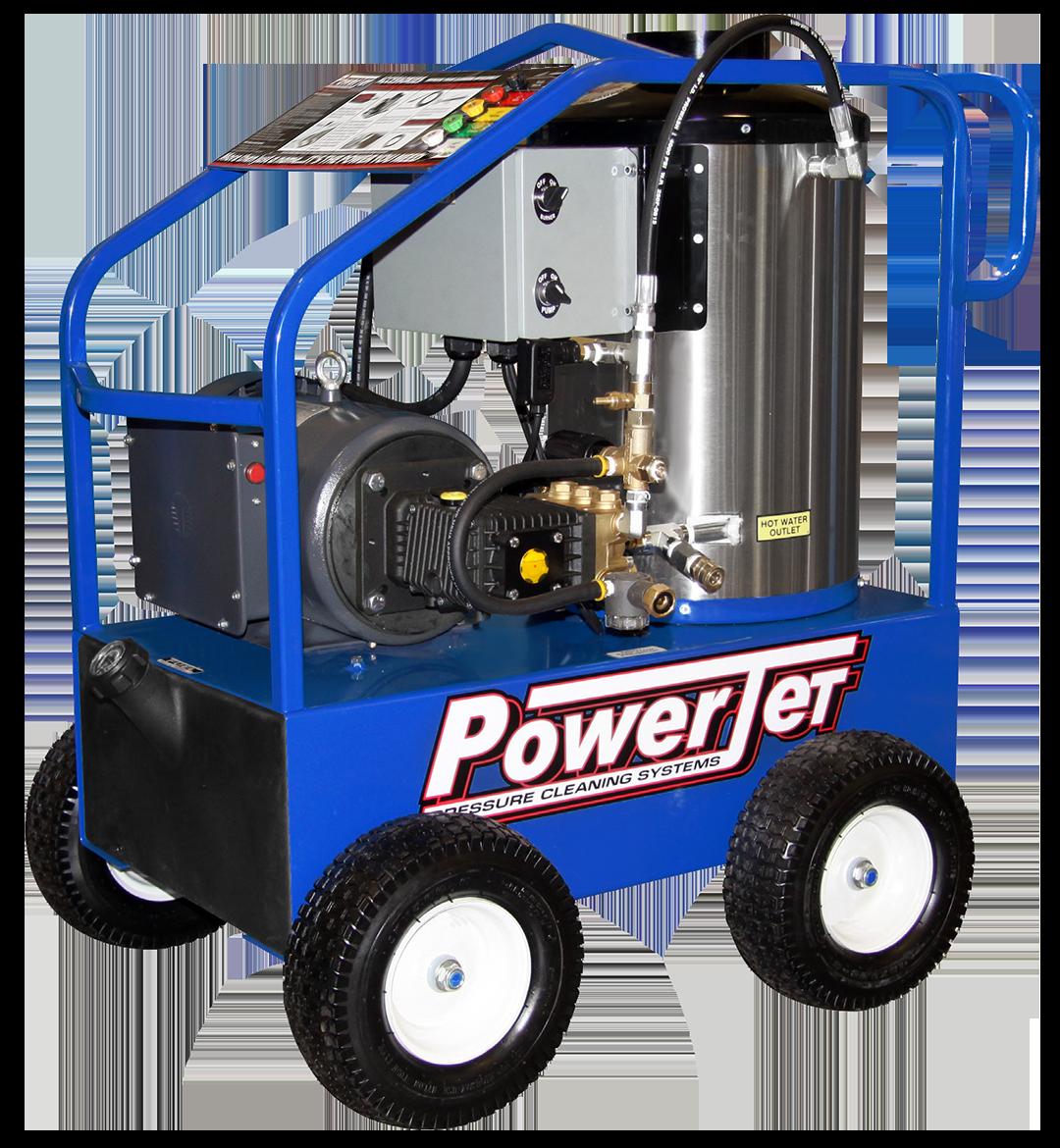

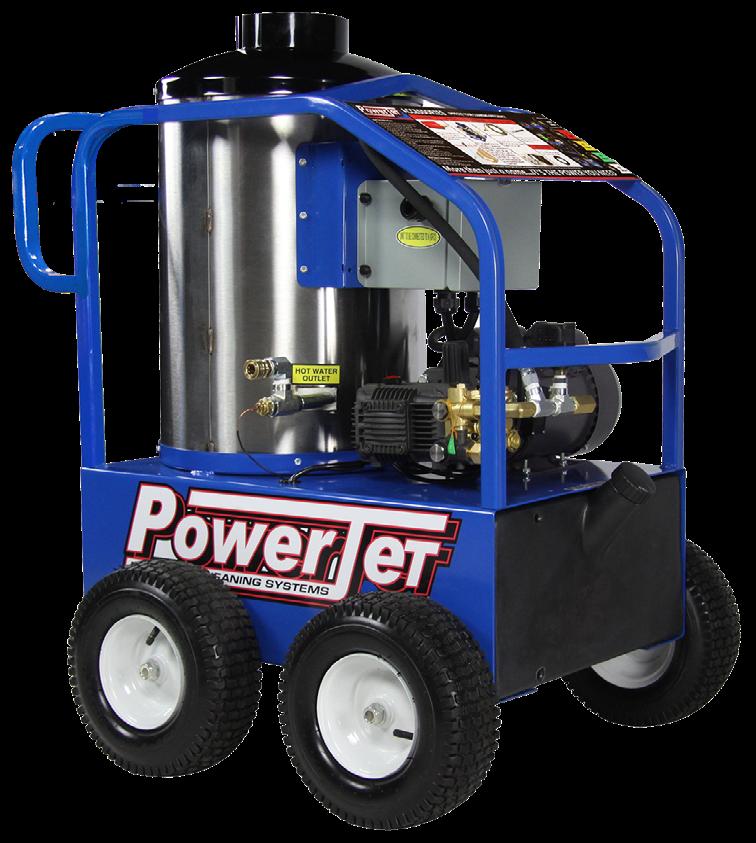

with Manual Stop/Start

with Optional Auto Stop/Start

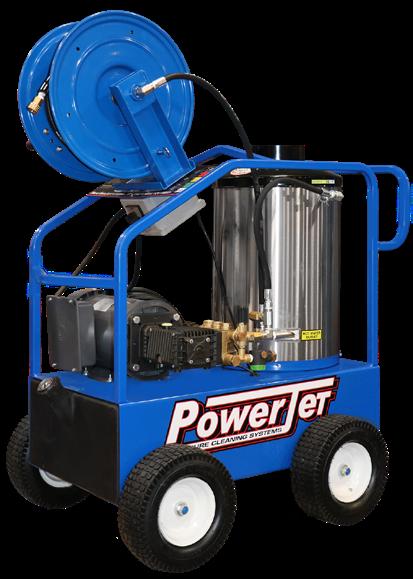

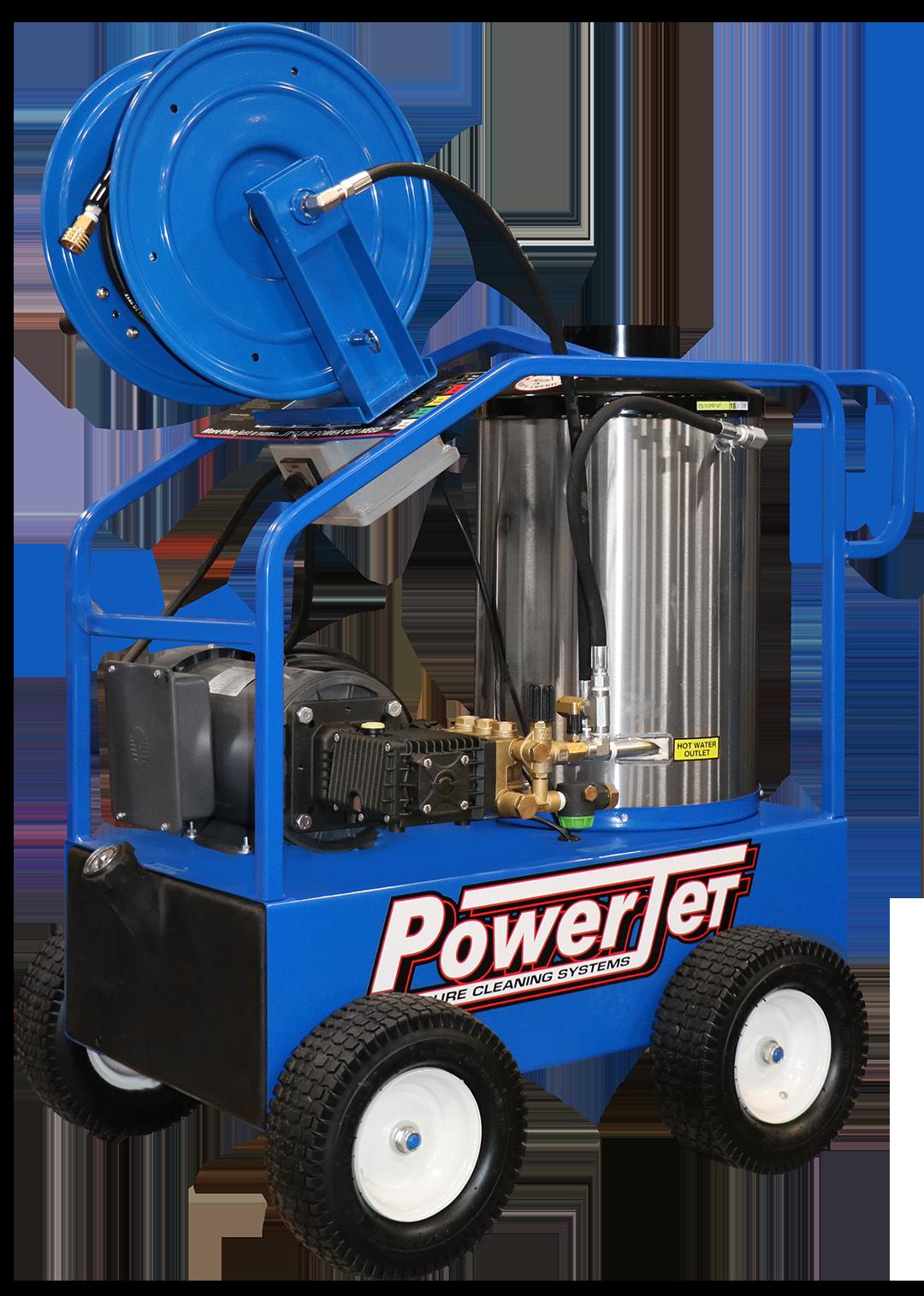

PJO3525E-AR/-A with Optional Auto Stop Start & Hose Reel

Hose Reels

Learn More With Our Videos

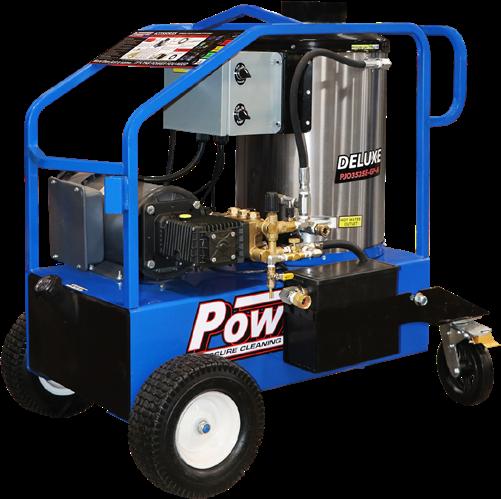

Commercial Hot Water Electric - Oil Fired Deluxe

Our Commercial Hot Water Electric - Oil Fired Deluxe Pressure Washers are dependable, long lasting machines built for a multitude of applications. The upgrades on this unit makes pressure washing easier and better than ever before! This includes the 8” Swivel Caster Wheels with Crab Leg Extension for ease of mobility, the optional Float Tank with metering valve for High Pressure Soap, an optional wand holder with upgraded 36” Vega Gun and Wand Assembly, 100’ of High Pressure Hose, and much more!

#1 ACCESSORY! EVERY MACHINE SHOULD HAVE ONE!

A hose reel will extend the life of your high pressure cleaning hose considerably by providing safe tangle and kink free storage. It will also save you time when using and storing your high pressure cleaning equipment. Every machine should have one!

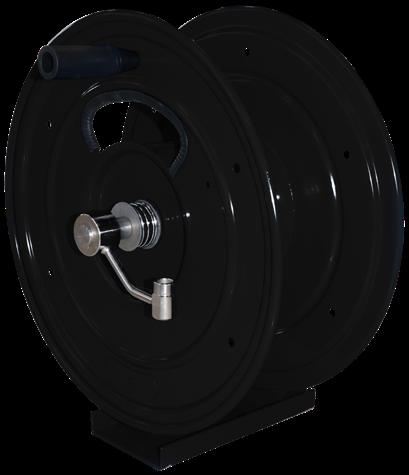

MANUAL U-FRAME HOSE REEL

Capacity: 150’

Commercial Hot Water Units Come Standard with Mounting Plates for Easy Install

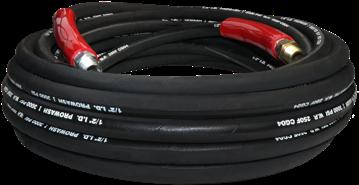

ADDITIONAL HIGH PRESSURE HOSE 30/50/100/150/200

Foot Hose Lengths

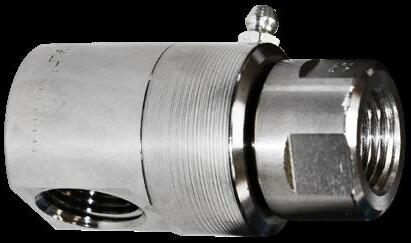

GREASEABLE SUPER SWIVELS

Upgraded swivel for hose reels. 90˚ stainless steel swivel with grease nipple. 5000 PSI, 400˚F (Mount on any hose reel, except 360˚ pivot)

Frame Options

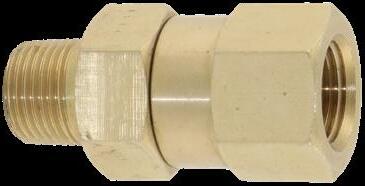

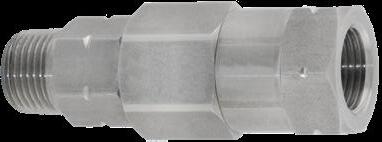

SWIVEL

Allows your hose to swivel under high pressure. No more tangled hose!

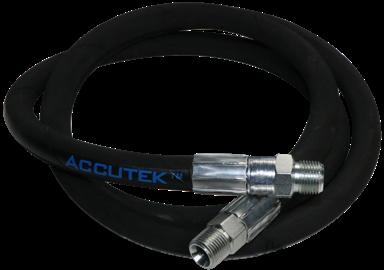

JOINER HOSE

Single Braid Connects short distances.

Rated at 4000 PSI and 212º F

STAINLESS STEEL FRAME

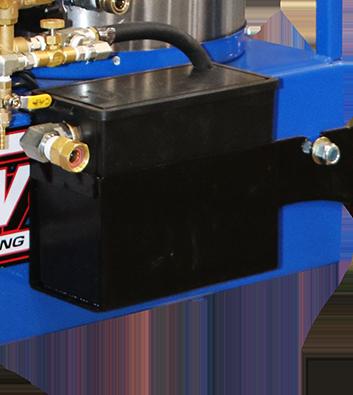

FLOAT TANK

1 Gallon Float Tank for Commercial Hot Water Units, comes with ball valve for high pressure soap.

CASTER WHEELS

1-877-765-9211

Outside of our standard paint coating, we offer these machines with a stainless steel option as well!

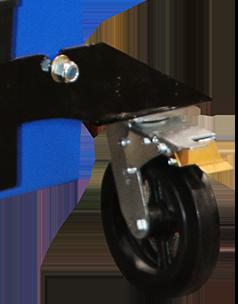

Caster Wheel Kit for Roll Cage Frame - 8” Swivel Casters & Crab Leg Extension

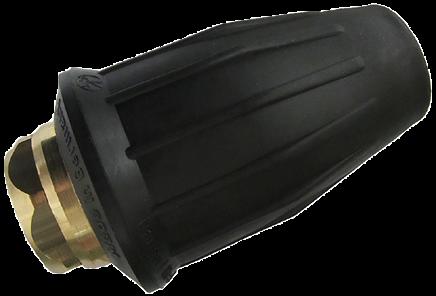

ROTARY NOZZLES

Rotary nozzles can cut cleaning time in half. PowerJet carries a variety of rotary nozzles from commercial to industrial grade.

Options & Accessories

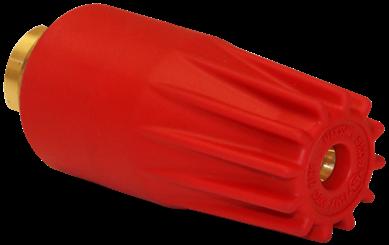

GIANT TM ROTARY NOZZLES

This nozzle allows one to have the benefit of a 0º stream of water in a 20º spray pattern. Max 3600 PSI, 195ºF.

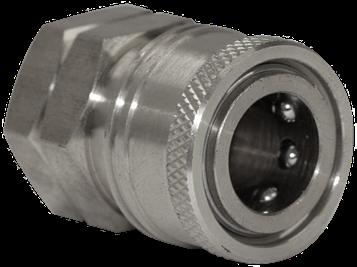

QUICK COUPLERS

For speedy and sturdy interchanging of tools and attachments. Disconnect coupler band rated at 5000 PSI, 210°F.

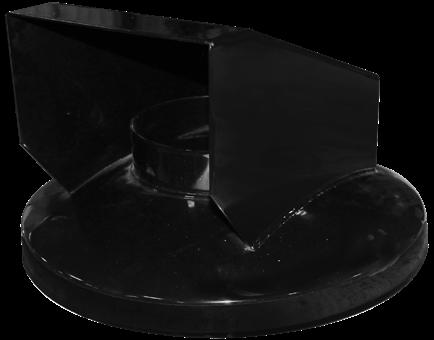

RAIN CAP

This option keeps rain and snow from entering your coil, which increases coil and burner life.

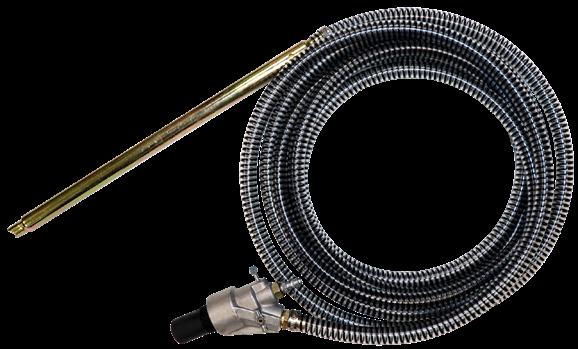

MEGA-FLEX DRAIN CLEANING KIT

Used for cleaning drains, culverts and downspouts, as well as thawing and unclogging pipes. Stainless steel drain nozzle included. Available in 50’ or 100’ lengths.

WET SANDBLAST KIT

Peels paint and rust from metal effortlessly with no dust. Leaves surface ready to paint. 10 GPM max flow.

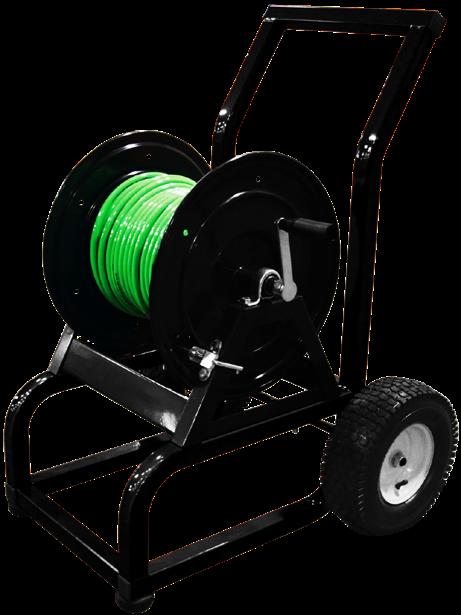

HOSE REEL CARTS

For the ability to make your hose mobile, perfect for setting 150’ and 300’ capacity.

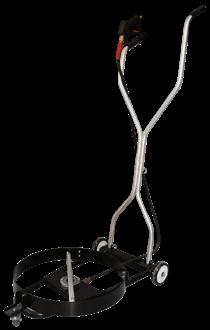

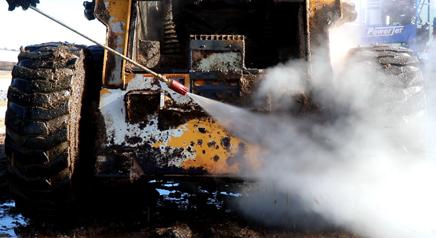

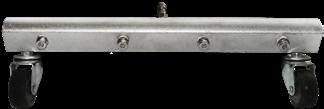

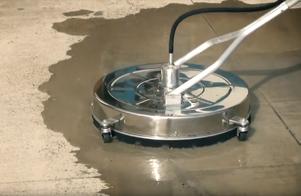

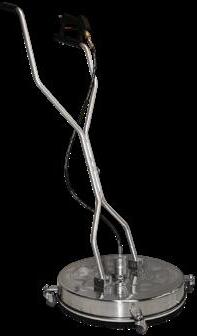

UNDERCARRIAGE, WATERBROOM, & SURFACE CLEANER ACCESSORIES

Maintain shop cleanliness and easily wash everything from floors to the undercarriages on your equipment.

FOAM CANNON

Allows full chemical coverage and activation. Ideal for vehicle and house washing.

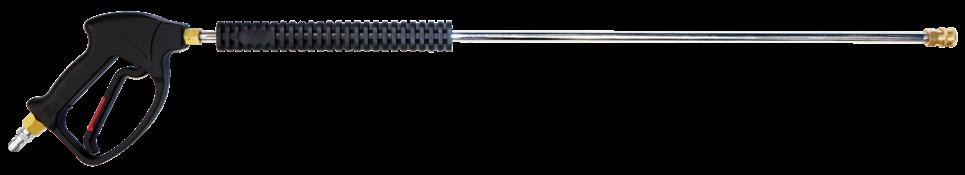

GUN & WAND ASSEMBLIES

Gun & Wand Assemblies 12”/18”/24”/36”(Standard)/48”/59”/72”

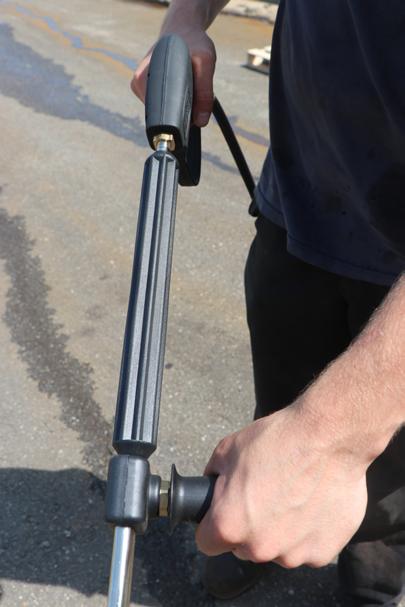

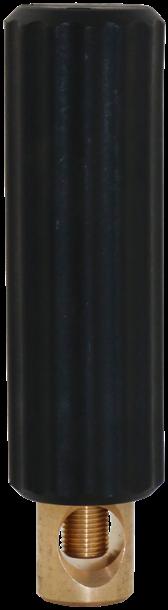

SIDE HANDLE GRIP

Great for extra control, leverage, and precision.

Relaxed Trigger Gun (VEGA)
