Produktkatalog for porttelefoner fra AES og Holars

porttelefonsystemer.no dørtelefoner.no

Holars startet sin virksomhet på Minnesund i Eidsvold kommune 1 1976. Siden den gang har vi jobbet med sikkerhet og vært med å utvikle sikkerhetsprodukter sammen med våre leverandører. I dag har vi et stort utvalg av sikkerhets produkter fra mange ulike leverandører.

Porttelefoner og port-åpnere av ulike slag har vært et fokusområde for oss de seneste årene. I dag kan vi stolt presentere våre produkter fra vår samarbeidspartner AES. Mange av disse produktene lagerføres på vårt lager i Sverige og i Norge.

2

PRODUCT CODE GUIDE (1) Technology – (2) Design – (3) Accessories – (4) Area EXAMPLE: 603-ABPK-EU

DESCRIPTION

CODE

603 Architectural unit with keypad & prox reader.

Technology

Design

603

DECT 603 audio panel with standard handset.

AB

Architectural panel with gloss black acrylic font.

603-HF

DECT 603 audio panel with wall mount hands-free handset.

AS

Architectural steel panel.

703

DECT 703 multi-button audio panel with standard handset.

FB

Flush panel with gloss black acrylic modules.

705

DECT 705 video panel with standard video handset.

FS

Flush steel panel with steel effect modules.

PRIME7

Cellcom Prime7 (GSM).

IB

Imperial black panel, gloss acrylic font & hood.

LITE

Cellcom LITE. (GSM).

IS

Imperial steel panel & hood.

MULTI-CL

Multicom Classic (GSM).

PB

Pedestal/industrial black panel.

MULTI-LITE

Multicom LITE (GSM).

PS

Pedestal/industrial steel panel.

PRAE-IP

Internet Protocol Praetorian range.

ARC-RB

ARC black panel.

PRAE-4G

Praetorian Range with 4G access point.

ARC-RS

ARC steel panel.

STYLUS-VID

Video Styluscom panel.

EB

Eco black panel.

STYLUS-AUD

Audio Styluscom panel.

SLIM-CL

Slim audio panel with corded handset.

Accessories

SLIM-HF

Slim audio panel with wall mount hands-free handset.

P

Panel with Prox/card reader.

KEY-MST

Keycell master unit.

K

Panel with keypad.

KEY-AUX

Keycell auxiliary unit.

NT

Panel with no touch sensor call button.

2

2 Button panel (for multi-button panels).

3

3 Button panel (for multi-button panels).

4

4 Button panel (for multi-button panels).

Area Intercom styles:

EU

AB

ABK

AS

ASK

FB

FBK

FS

FSK

3

UK/Europe.

IB

PSK

ARC-RSK

IBK

PBK

ARC-RBK

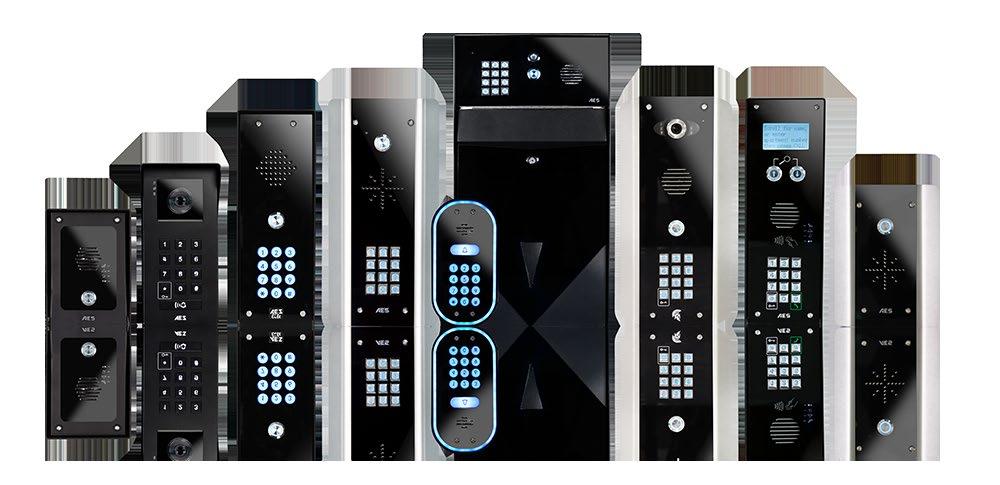

MODULAR RANGE The Intercom ranges can be custom built to your specification! With multiple modules available to choose from, to match with your chosen Modular shell, to create your Modular System.

WIRELESS Intercom System with a cordless telephone.

DECT, 603, 703 & 705.

GSM

IP

Intercoms For Talking & Operating Your Door/Gates By Phone.

GSM SINGLE BUTTON, GSM MUTLIBUTTON, MULTICOM CLASSIC & LITE.

Smartphone IP / 4G Video Intercom System.

PRAETORIAN GURAD.

All panels are available in:

IMPERIAL

ARCHITECTURAL

FLUSH

FLUSH STEEL

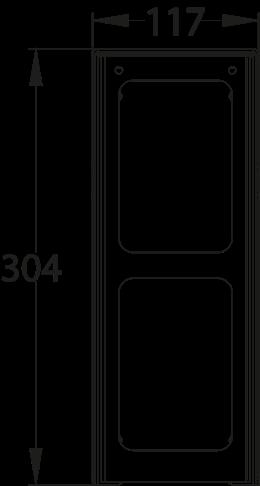

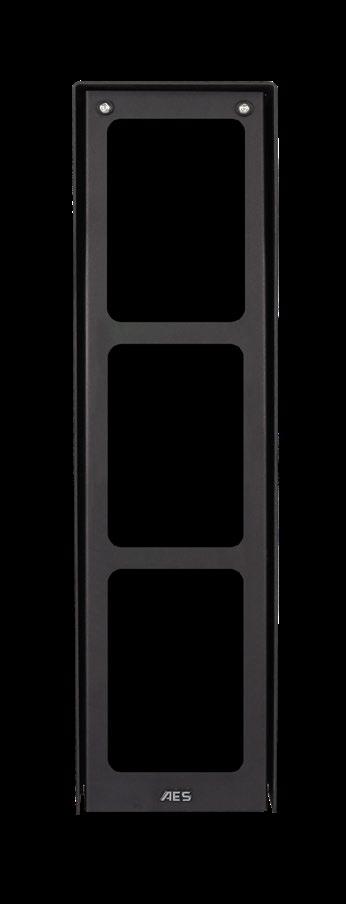

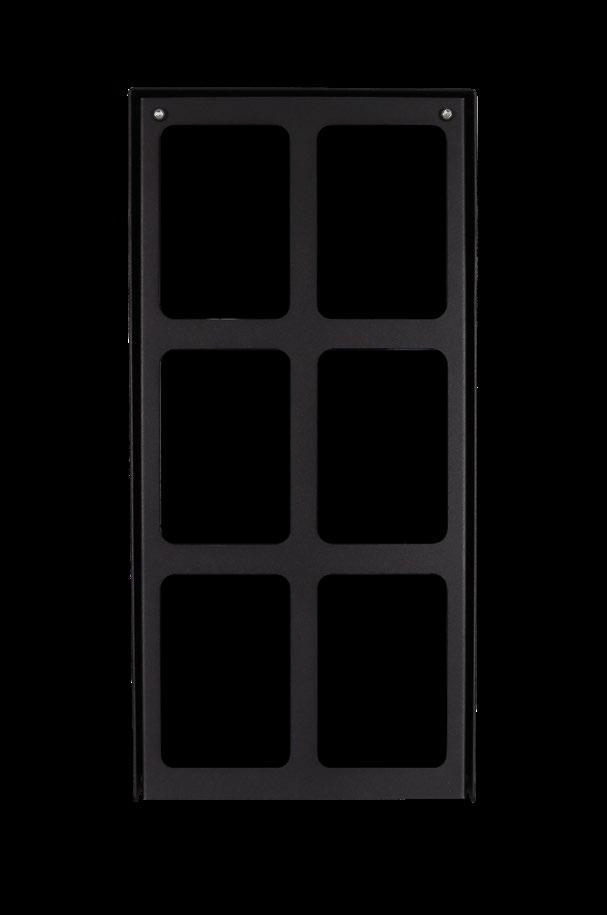

Panel sizes:

MOD-1X1 1 MODULE UNIT

MOD-1X2 2 MODULE UNIT

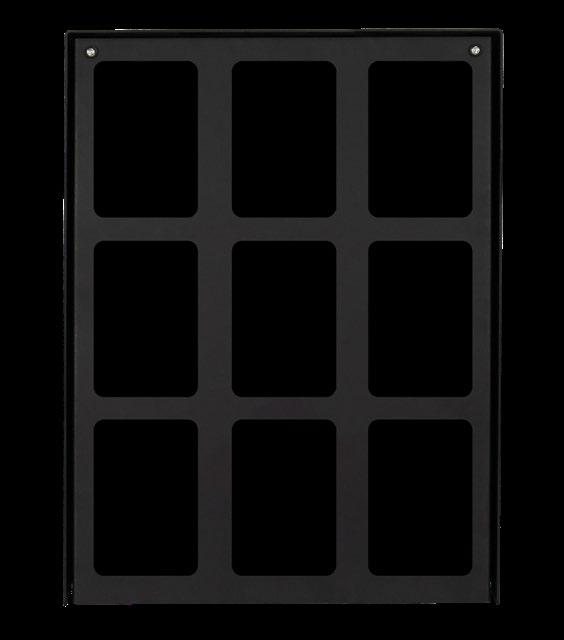

MOD-3X3

MOD-2X2 4 MODULE UNIT

MOD-1X3 3 MODULE UNIT

4

MOD-3X2

6 MODULE UNIT

9 MODULE UNIT

Speaker modules: MOD-GSM-1B-EU

MOD-PRIME7

MOD-GSM-EU

MOD-CP-1B

MOD-705

MOD-PRAE

MOD-CP

GSM SINGLE

GSM SINGLE

GSM SINGLE BUTTON

DECT 603

DECT 705

PRAETORIAN IP

DECT 703

BUTTON

BUTTON

GSM MUTLIBUTTON

SLIM

MULTICOM CLASSIC MULTICOM LITE

Call button modules: MOD-2B

MOD-1B

2 Button Module

1 Button Module

GSM MUTLIBUTTON DECT 703

GSM MUTLIBUTTON

MOD-5B

MOD-4B

MOD-3B

4 Button Module

3 Button Module

5 Button Module

GSM MUTLIBUTTON DECT 703

GSM MUTLIBUTTON DECT 703

GSM MUTLIBUTTON

Keypads modules: MOD-PRIME-MKP

MOD-PRIME-PX-MKP

MOD-ASSM-PX-KP

MOD-ASSM-KP

MOD-IP-PX-KP

MOD-IP-KP

Illuminated

Combined Prox and keypad

Illuminated keypad

Rubber Prox and keypad

Rubber Illuminated keypad

GSM SINGLE BUTTON

GSM SINGLE BUTTON GSM MUTLIBUTTON

Combined Prox and keypad DECT 603, 703 & 705 SLIM STYLUSCOM

DECT 603, 703 & 705 SLIM STYLUSCOM

PRAETORIAN IP

PRAETORIAN IP

MOD-PRIME-RKP

MOD-PRIME-PX-RKP

MOD-MULTI-PX-KP

MOD-MULTI-KP

MOD-IP-PX-MKP

MOD-IP-MKP

Illuminated Rubber keypad

Combined Prox and keypad

Combined Prox and keypad

Illuminated keypad

Combined Prox and keypad

Illuminated keypad

GSM SINGLE BUTTON

GSM SINGLE BUTTON GSM MUTLIBUTTON

MULTICOM CLASSIC & LITE

MULTICOM CLASSIC & LITE

PRAETORIAN IP

PRAETORIAN IP

keypad

Misc modules: MOD-PRIME-PX

MOD-BLANK

MOD-INFO

MOD-DDA-LOOP

MOD-CLASSIC

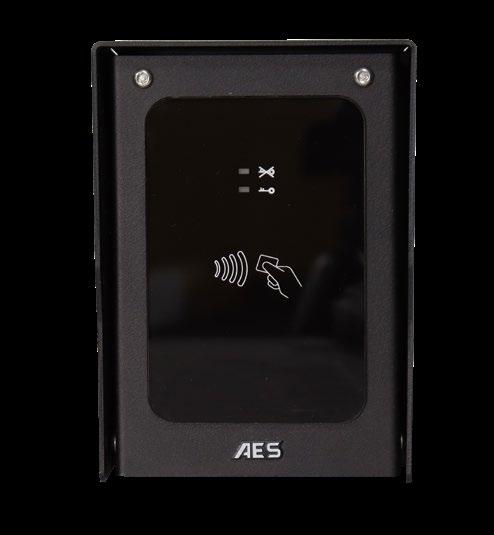

Prox

Blank Module

Illuminated information window

Hearing Loop

Illuminated information window with scroll buttons.

CAN BE USED ACROSS ALL RANGES

FOR GSM PRODUCTS ONLY

5

MULTICOM CLASSIC

FOTA – Upgrade firmware via SMS.

Bigger 2 amp power supply.

All new and improved hardware.

Auto clock sync.

Antenna.

Store up to 4 notification phone numbers to receive an SMS (customizable) when relay is triggered etc

2x Relays.

Issue time restricted codes.

Ability to set Do-notdisturb times.

AES PRO The ideal app for installers, offering the ability to program intercoms across multiple sites and including additional features.

Set automatic gate open & close times.

Trigger, latch and unlatch SMS replies added. Ability to disable.

AES HOME The user-friendly option allows the end user to program their AES intercom conveniently.

Technical Details Dial Out Numbers

4

Relays

2

Permanent Codes/cards

250

Relay Type

N/C and N/O

Time Restricted Codes/cards

250

Relay Load

2 amps, 24v ac max

Temporary Codes/cards

50

Power Consumption

300mA on dial out, 2amp peak demand

Automatic Trigger Events per Week

50

Modem Models

4G Europe, 4G USA, 4G AUS/NZ

Caller ID Numbers

250

Power Supply

24v dc (24v dc 2A adaptor included)

Time Restricted Caller ID Numbers

250

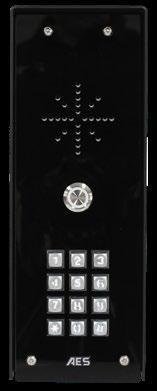

PRIME7-AB-EU

PRIME7-ABK-EU

PRIME7 7E - Multicall system/ 2 part high security.

GSM Module

MULTIP2 Multiplexor

4 METRES MAX

144 x 297mm

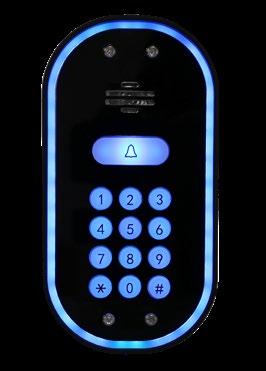

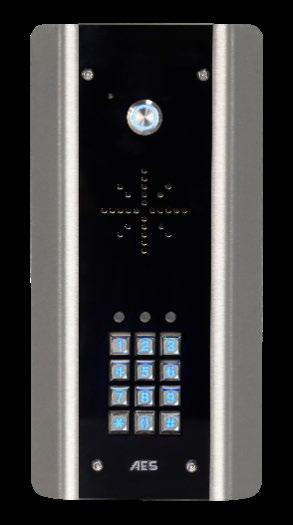

Stylish, modern curved profile call point with blue backlighting effect and illuminated keypad option.

Constructed from 100% marine grade stainless steel and toughened black gloss acrylic faceplate.

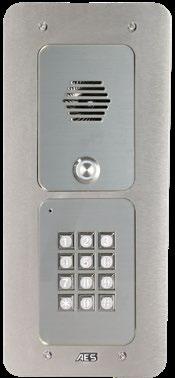

Also available in: Architectural full stainless steel = AS, ASK (Keypad) All black hooded Imperial = IB, IBK (keypad).

Call Fixed Line Phone

8 METRES MAX

144 x 192mm

Speech Panel 1

SIM Card Inside (Any speech panel style can be used).

6

Speech Panel 2

Call up to 3 Numbers in Sequence.

Call Mobile/ Cell Phone

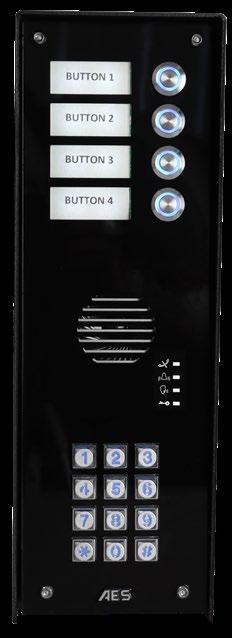

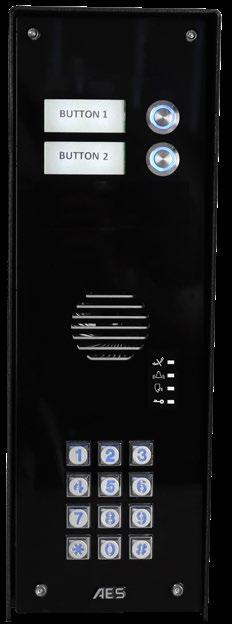

M U LT I - B U T T O N

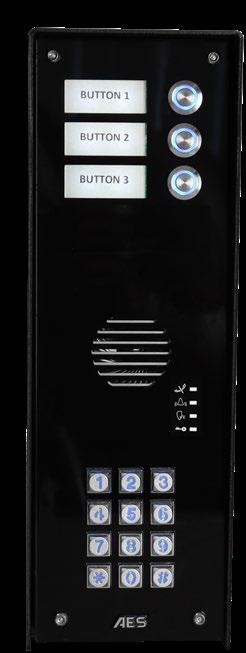

PRIME7-IBK2-EU

PRIME7-IBK3-EU

S Y S T E M

PRIME7-IBK4-EU

Panels are available in all black with textured powder coated aluminium hood and gloss acrylic faceplate or full BS316 marine grade stainless steel. Both panels have white illuminated push button and keypad. Up to 4 call buttons (each button calling a different homeowner).

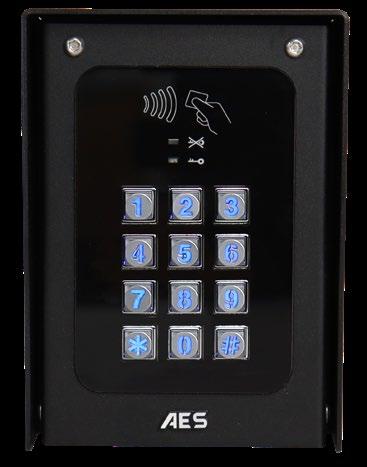

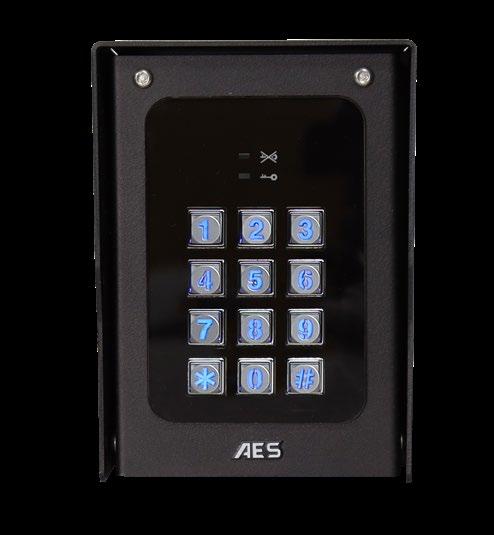

Standalone GSM/4G Keypad System All devices are connected to a master unit which has a built-in transmitter. Up to 6 auxiliary units can be connected to the master unit: Relay 1 and 2 on the master unit; relays 3 to 8 on auxiliary units.

Master Units

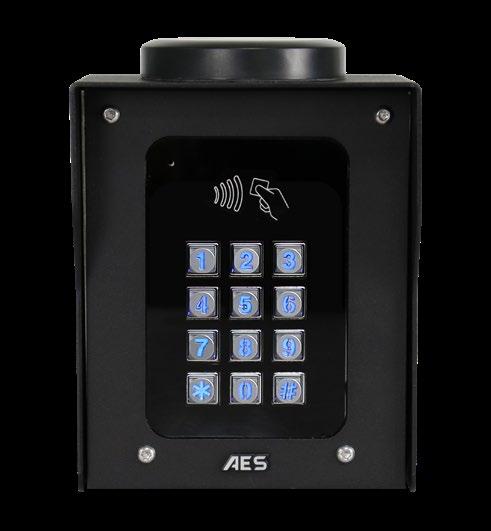

KEY-MST-PBPK-EU

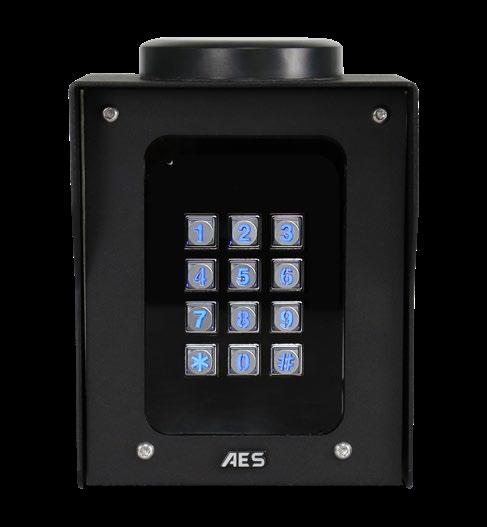

KEY-MST-PBK-EU

KEY-MST-PBP-EU

Master unit with keypad & prox reader.

Master unit with keypad.

Master unit with prox reader.

KEY-AUX-IBPK-EU

KEY-AUX-IBK-EU

KEY-AUX-IBP-EU

Aux unit with keypad.

Aux unit with prox reader.

Aux unit with keypad & prox reader.

7

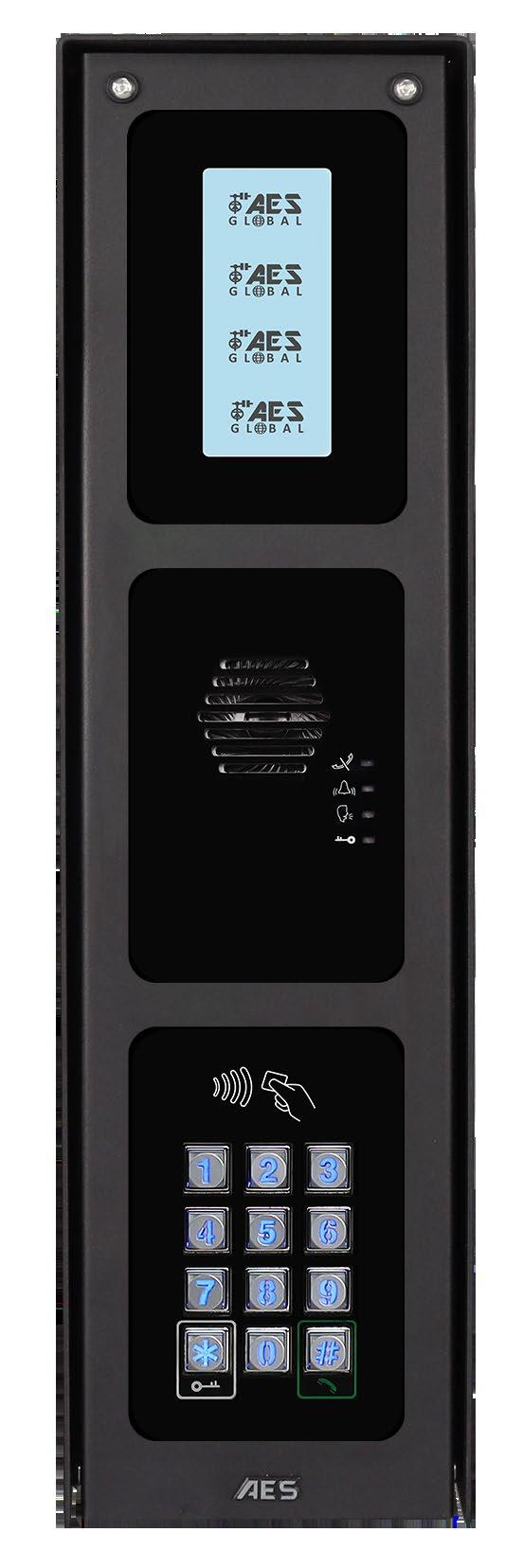

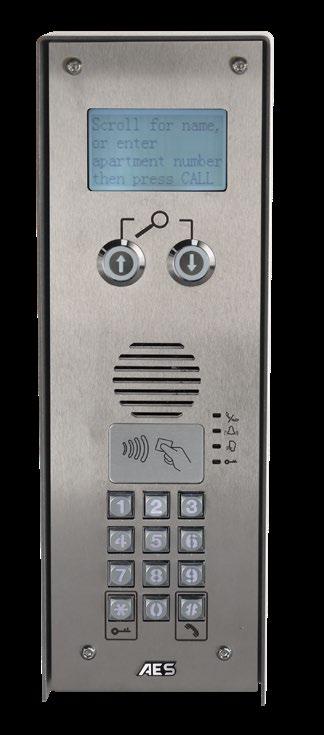

Multicom Classic Multi Apartment Intercom!

MULTI-CL-IBPK-EU

MULTI-CL-ISPK-EU

Sleek all-black panel with blue lighting.

Full steel panel with white lighting.

― Calls up to 500 apartments from a single SIM card. (3 users per apartment) ― Visitors can scroll for residents, or enter apartment number to call. ― HD voice with VoLTE*. ― Programmable via free Android and Iphone app: AES PRO. ― Prox cards, Caller ID, Keypad codes = 250 permanent & time-restricted. ― ―

(temporary 50).

Built in time clock for auto opening and closing of gates, barriers or doors in busy periods or for day time operation.

Do not disturb feature.

AES PRO APP, for programming both Multicom Classic & Lite.

*Requires correct APN to be set and will only be experienced on a VoLTE-enabled device.

Multicom LITE

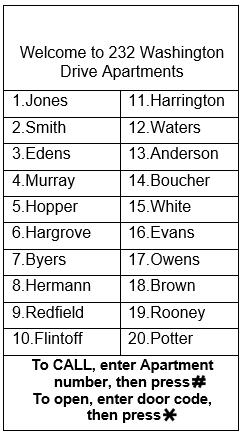

Customisable name directory.

Display up to 30 families on the illuminated directory screen.

― Multicom Lite - 4G LTE capable, GSM

MULTI-LITE-IBPK-EU

―

All-black panel with blue lighting.

― ―

― ―

8

multiapartment intercom.

Up to 100 family direct dialling from the keypad.

300 maximum Caller ID numbers (not including visitor CID) Prox cards, Caller ID, Keypad codes = 250 permanent & time-restricted. (temporary 50).

Store visitor codes by APP. Do not disturb feature.

i-GATE i-GATE-WIFI

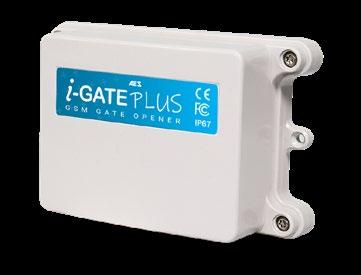

i-GATE-PLUS

i-GATE-PRIME

An innovative IP Switch for gates, barriers and doors!

GSM Gate Switch

GSM Gate Switch

Numbers for caller ID access = 250.

Volt-free momentary relay outputs = 2.

FOTA – Upgrade firmware via SMS. Trigger, latch and unlatch gates by SMS or with app.

Auto call feature to schedule outgoing call (prevents SIM card being deactivated).

Activity log feature.

Includes 7-day time clock.

Check stored numbers by SMS. Check if gates are opened or closed (limit switch).

Check relay status.

SMS passcode access for non stored numbers.

Store up to four phone numbers to receive SMS alerts each time the unit is used to grant access.

Program times for the relay(s) to operate automatically.

Push-To-Exit time limits.

AES LITE APP.1

− − − −

Elevate your connectivity with our user-friendly IP solution.

Choose between Din Rail or iGate Enclosure mounting for adaptability. Connecting seamlessly to 2.4GHz WiFi networks. Control via I-gate-wifi App.

− − − − − − − − − − −

IGATE-WIFI-ENC

−

i-Gate enclosure for outside install.

−

IGATE-WIFI

− −

− − − − − − − − − −

Numbers for caller ID access = 1280.

Volt-free momentary relay outputs = 1.

FOTA – Upgrade firmware via SMS. Trigger, latch and unlatch gates by SMS or with app.

Auto call feature to schedule outgoing call (prevents SIM card being deactivated).

Activity log feature.

Includes 7-day time clock.

Check stored numbers by SMS. Check relay status.

SMS passcode access for non stored numbers.

Store up to four phone numbers to receive SMS alerts each time the unit is used to grant access.

Program times for the relay(s) to operate automatically.

Push-To-Exit time limits.

AES PRO APP.

i-Gate Din Rail for inside enclosure install.

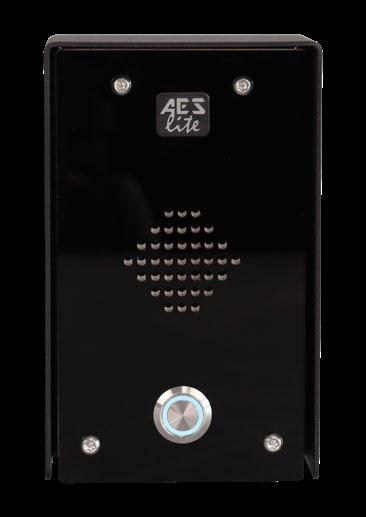

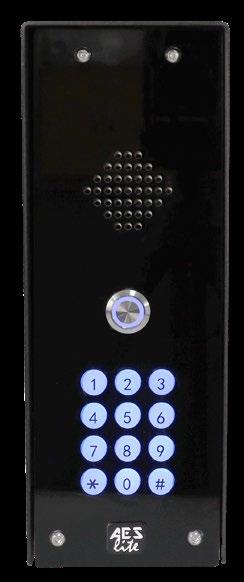

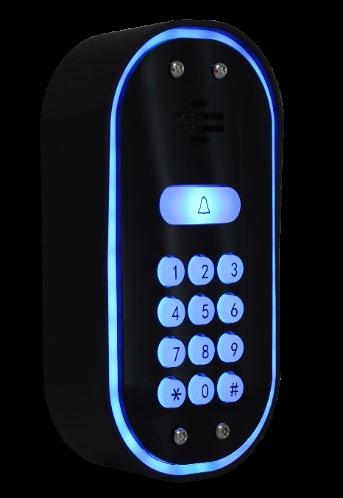

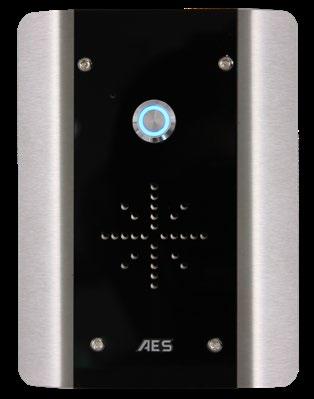

CELLCOM Simple, Effective GSM Intercom – – – – –

Calls your home phone and mobiles on roll-over when a visitor presses the call button.

Works with any standard contract or Pre-Pay GSM Nano SIM card.

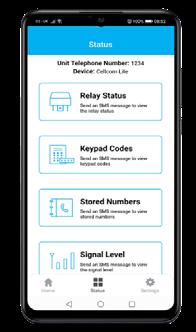

AES Lite app for installer programming. Homeowners can use the app to trigger gates (AES LITE APP).

Permanent codes, caller ID numbers = 25. Dial out numbers = 3.

Relays = 1.

LITE-IBK-EU

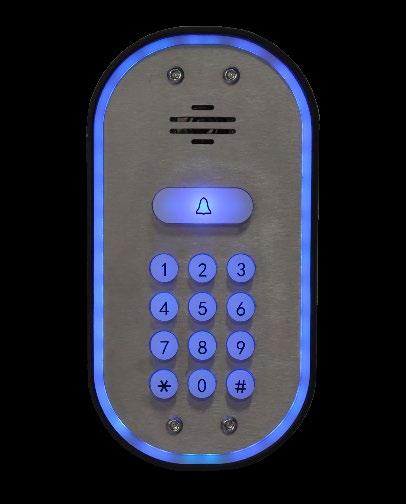

LITE-ARC-RBK-EU

LITE-ARC-RSK-EU

All black non keypad panel.

All black panel with blue illuminated keypad.

All black keypad panel with blue ring illumination.

Stainless-steel keypad panel with blue ring illumination.

100 x 165mm

100 x 278mm

LITE-IB-EU

9

100 x 193mm

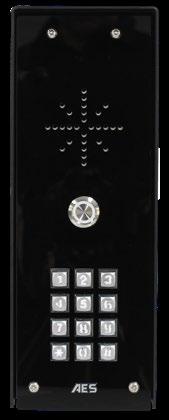

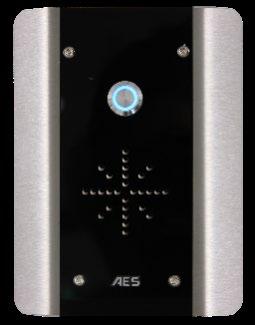

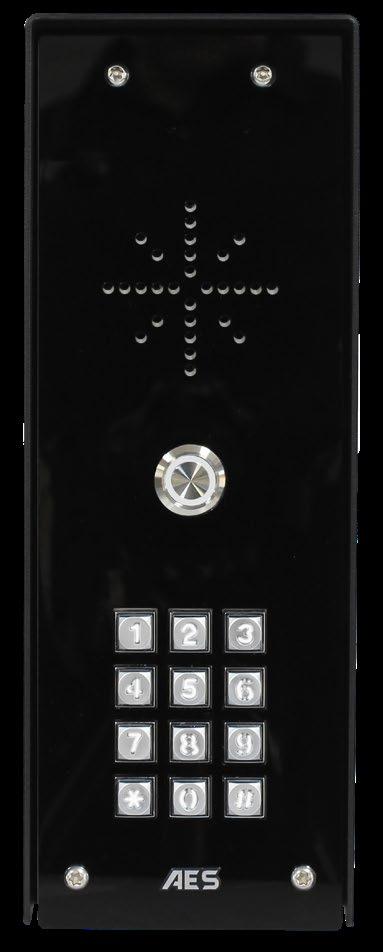

D.E.C.T 603 WIRELESS AUDIO INTERCOM SYSTEM ― Up to 400 meters open field range! ― Working range of 200 meters through 1 exterior concrete, brick or stone wall. ― Up to 4 handsets / indoor units per system. ― Built-in voicemail feature to record missed callers at your door or gate (playback from handset), plus intercall between handsets. ― 2 Relays.

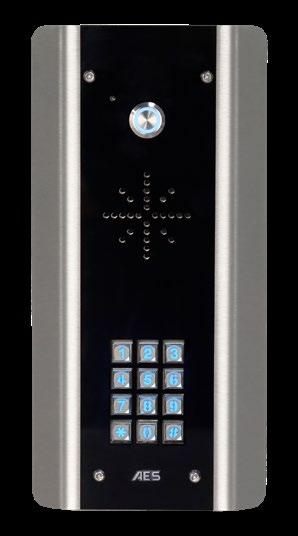

ARCHITECTURAL MODELS – Stylish panels with backlighting.

Black/steel panels with blue lighting.

(DECT-EH-EU for extra handset).

603-AB-EU

603-ABK-EU

144 x 192mm

144 x 297mm

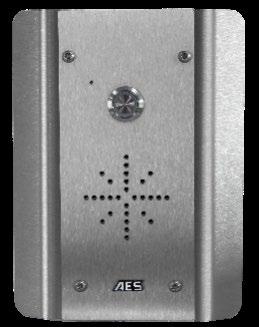

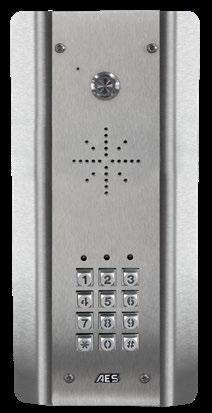

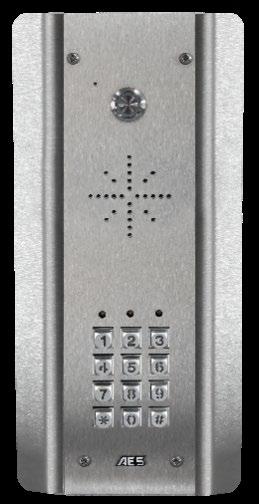

ARCHITECTURAL STEEL MODELS – Stylish panels with backlighting.

Full steel panels with white lighting.

603-AS-EU

603-ASK-EU

144 x 192mm

144 x 297mm

IMPERIAL MODELS – Sleek all black panels.

All black panels with white lighting.

603-IB-EU

603-IBK-EU

100 x 166mm

100 x 278mm

For kits with the hands-free handset.

Add HF to product code:

603-HF-ABK-EU

(DECT-HF-EU for extra hands-free handset).

10

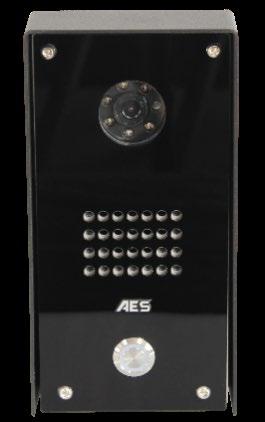

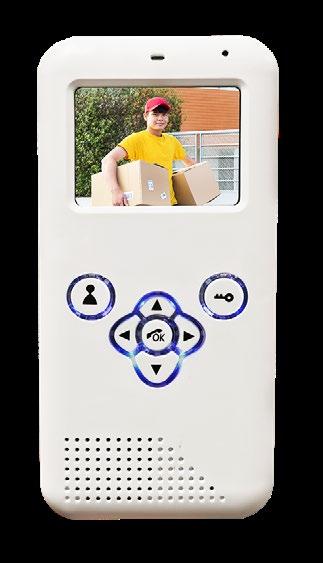

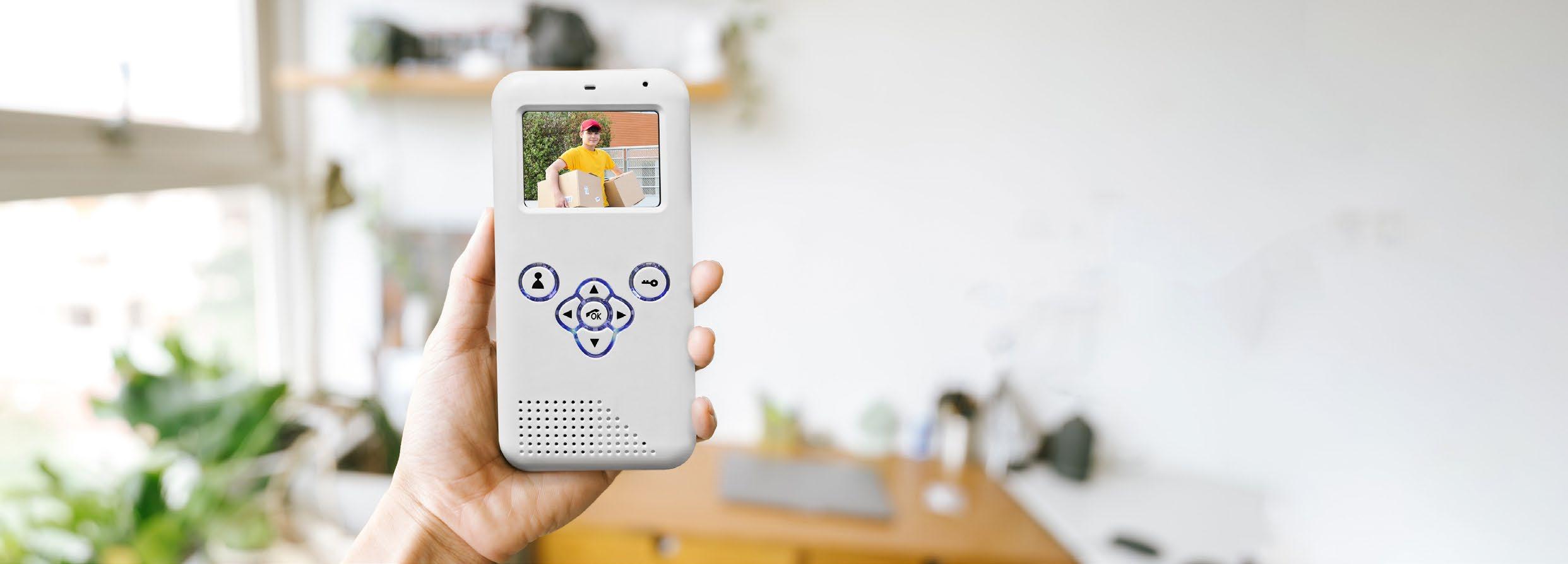

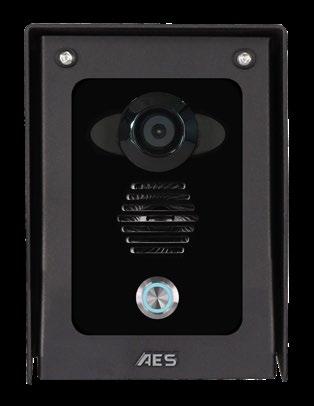

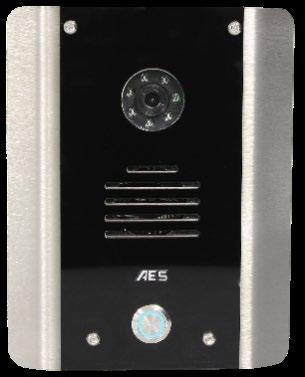

D.E.C.T 705 WIRELESS VIDEO INTERCOM SYSTEM

− One of the longest range Rf video intercoms in the world, a working range of 200 metres (450m open field).

− Unique technology combining 2.4GHz digital & DECT 1.88GHz digital signals. − Colour camera with infrared night vision capability. − Long range antenna as standard. − Gate / Door release relay built-in. (1 Relay) − Optional keypad for access control.

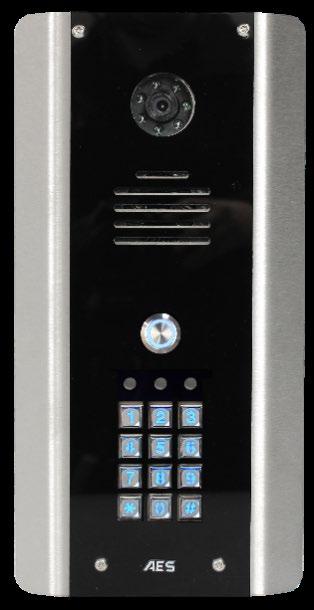

ARCHITECTURAL MODELS – Stylish panels with backlighting.

Black/steel panels with blue lighting.

705-AB-EU

705-ABK-EU

100 x 202mm

160 x 322mm

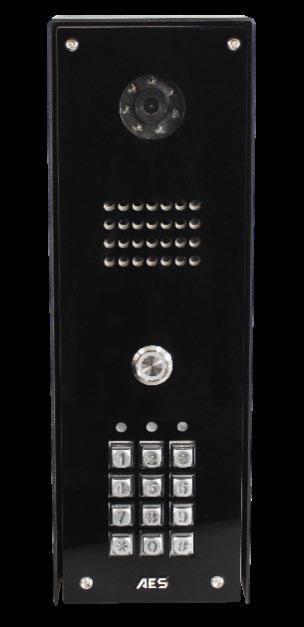

IMPERIAL MODELS – Sleek all black panels.

All black panels with white lighting.

705-IB-EU

705-IBK-EU

106 x 209mm

160 x 319mm

DECT-EH-EU Add up to 3 additional audio handsets to any 705-video kit as additional slave handsets.

11

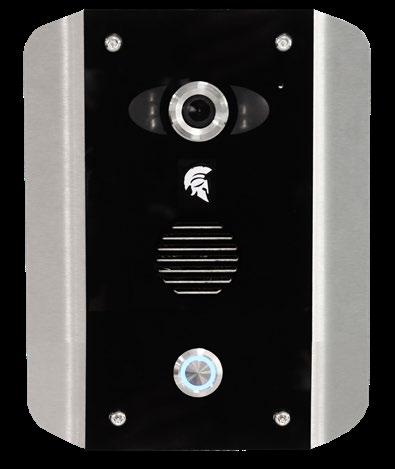

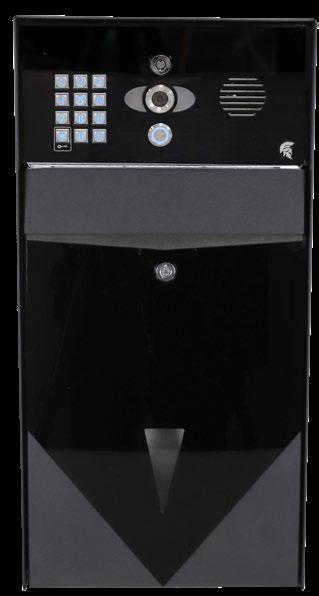

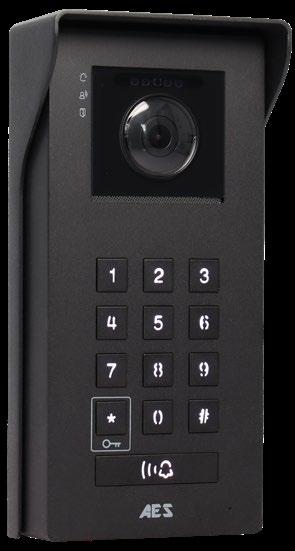

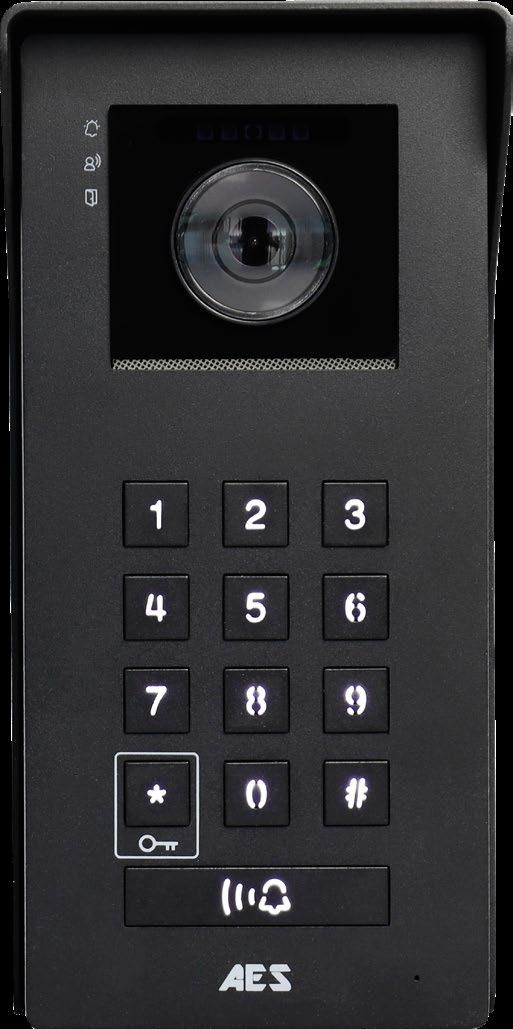

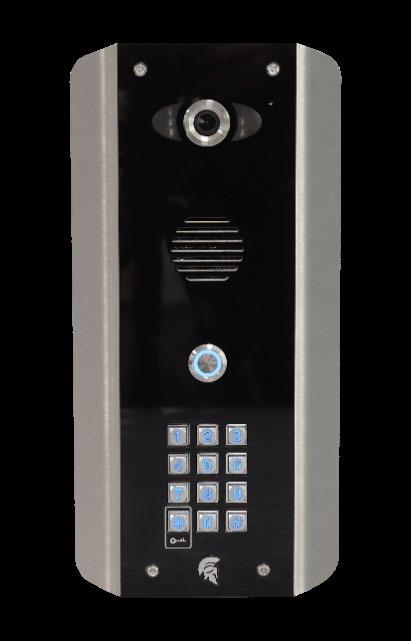

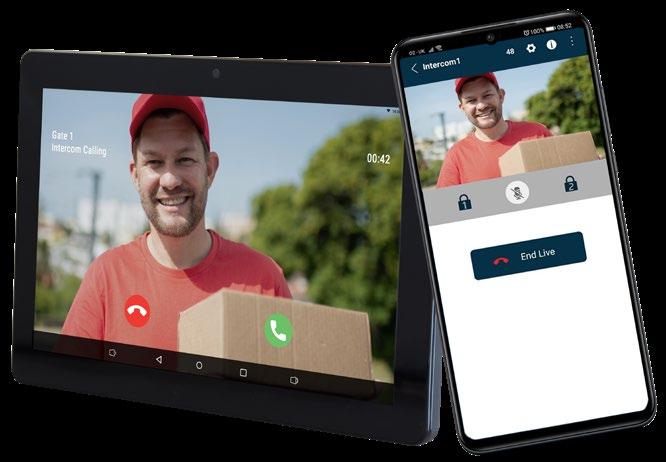

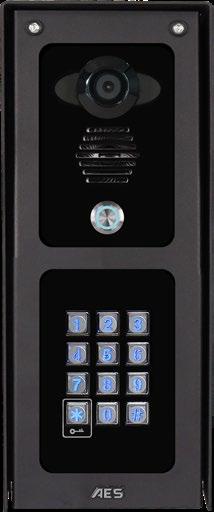

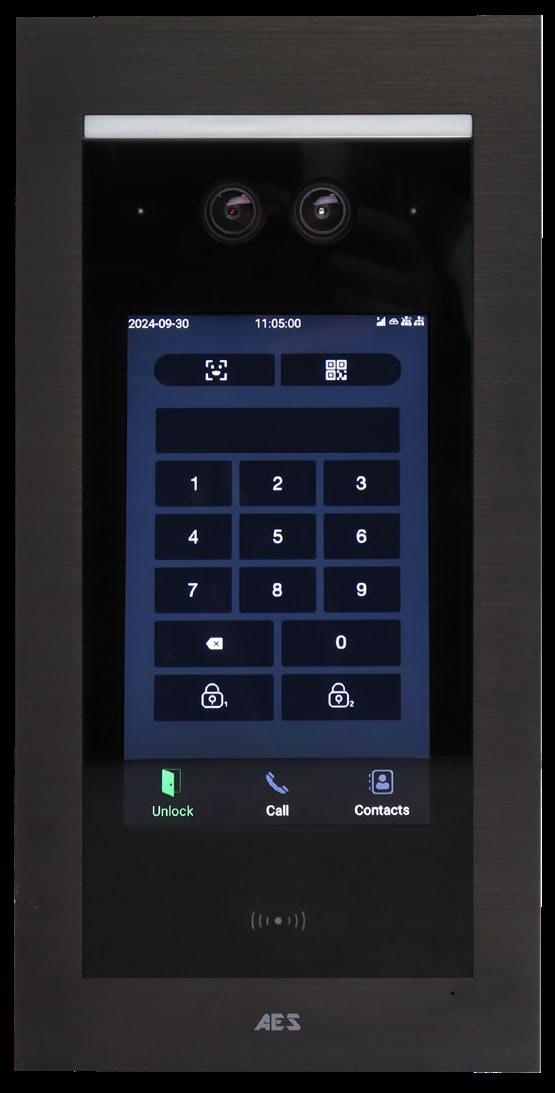

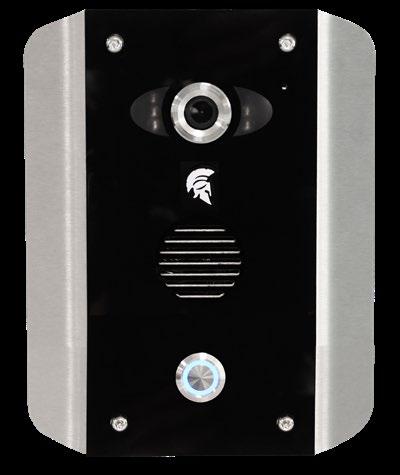

Praetorian Guard IP Video Intercom

Long Range Antenna (2.4GHz) (up to 60m working range depending on router type and location)!

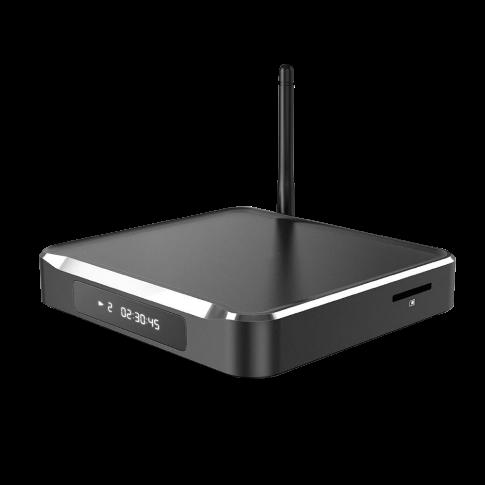

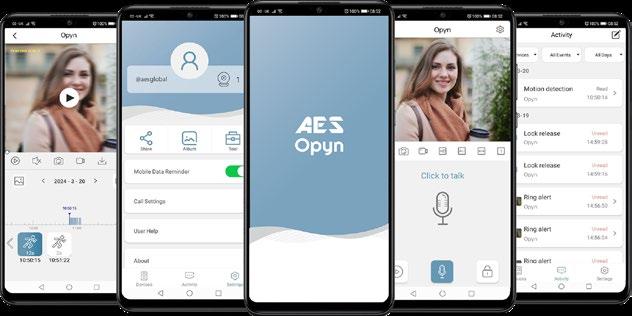

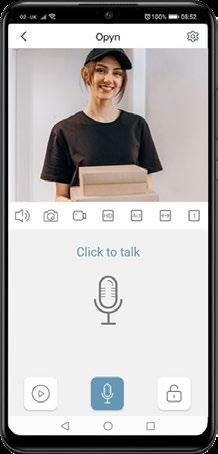

Existing Wi-Fi Hub New Smart APP

−

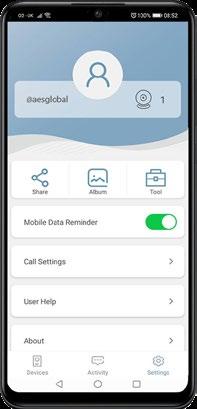

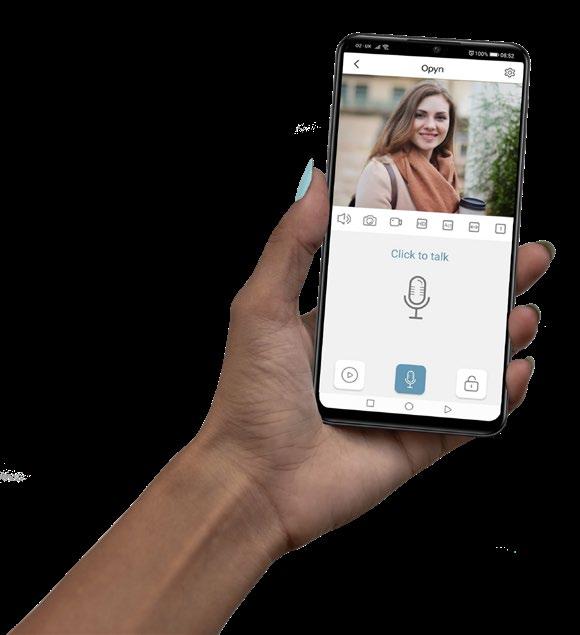

Speak and view your visitors from anywhere in the world.

−

Grant access remotely - Send a command to the gate motor via the app to open your gates etc.

−

Keypad Codes – 24-7 / Timed / Temporary (Optional)

−

Wifi/LAN cable (Dualband WIFI. 2.4 & 5.8G wifi (802.11 b/g/n/a/c) can also be connected to a local Network.

−

*HD camera with video motion sensor.

*Moving objects & changing weather may trigger the sensor.

ARCHITECTURAL MODELS – Stylish panels with backlighting.

Black/steel panels with blue lighting.

Also available in: Architectural full stainless steel = AS, ASK (Keypad)

PRAE-IP-AB-EU

PRAE-IP-ABK-EU

152 x 206mm

152 x 316mm

IMPERIAL MODELS – Sleek all-black panels.

All black panels with white lighting.

12

PRAE-IP-IB-EU

PRAE-IP-IBK-EU

110 x 216mm

110 x 322mm

Praetorian Guard IP-4G Video Intercom

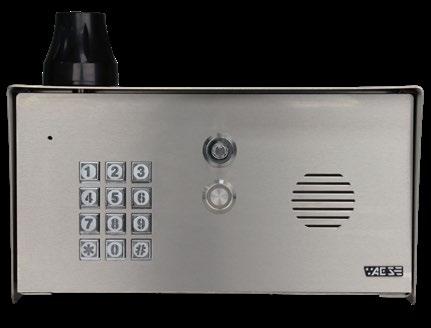

Praetorian Guard IP Intercom complete with 4G access point. The access point will provide an internet connection via a compatible SIM card* * MIN 1.5MB UPLOAD.

4G MODEM with Sim port inside.

* MIN 1GB P/MIN DATA (Depending on usage).

ARCHITECTURAL MODELS – Stylish panels with backlighting.

Black/steel panels with blue lighting.

PRAE-4G-AB-EU

Also available in: Architectural full stainless steel = AS, ASK (Keypad) All black hooded Imperial = IB, IBK (keypad).

Modular.

PRAE-4G-ABK-EU

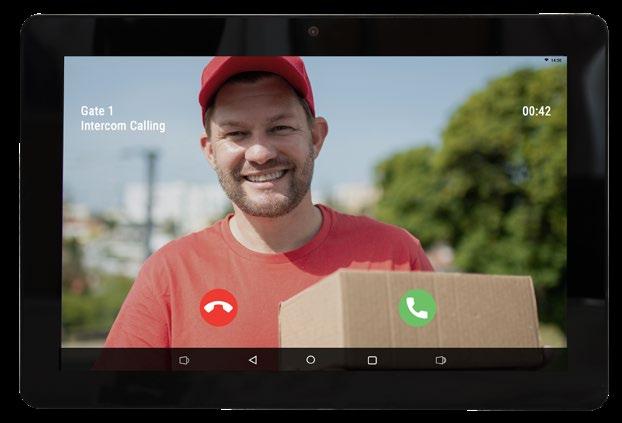

MON-11-EU – Wall mount touch screen monitor (1280x800 Resolution), compatible with the Praetorian system.

– 10.1 inch screen IPS LCD android screen.

– Wifi, Ethernet & Bluetooth connections.

– POE supplied (12V DC can be purchased separately) – Complete with wall mount bracket.

– Android OS (8.1) with Praetorian app pre-loaded.

– RK3288, Quad-core cortex A17, 1.6G. – Pre-installed AES SMART APP.

13

Advanced IP-4G Video Intercom Interact with your caller no matter where you are. Stay connected anytime, anywhere.

Establish a connection using *IP/LAN connection. 4G kits offer internet access through a compatible SIM card.

− − − −

2x Relays.

− −

Tamper alarm.

Nightvision.

LED luminance (nighttime).

Voice control via Alexa/Google integration.

−

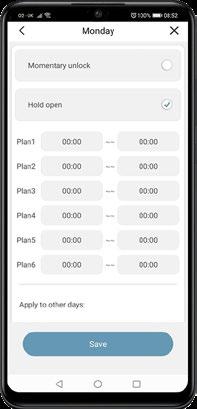

Set automatic opening times via Opyn app.

−

Scan QR code unlock.

Ability to set validity time & the number of uses or make both unlimited.

−

Motion detection alerts, use app to playback footage from online server.

−

View live camera feed via app.

−

Multiple users/devices same account online in app.

−

Ability to add 3 customized voicemail messages and set one to play when the call is not accepted.

Keypad & QR codes: 150.

98W x 195H x 53D MM

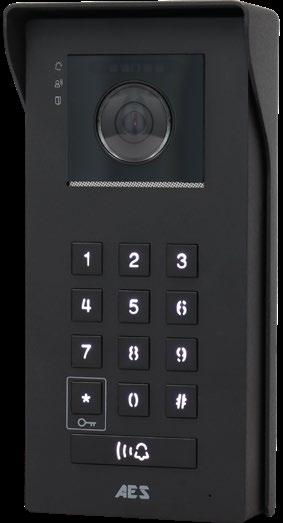

OPYN-4G-IBK Kit comes with a hooded imperial video intercom in black powder coated with white light illumination. 4G modem, SIM card options & power supply.

WIFIA-2

WIFIA-10

OPYN-IP-IBK

2.4Ghz Wifi Antenna with 10m Lead.

Kit comes with hooded imperial video intercom in black powder coated with white light illumination.

Power supply included.

2.4Ghz Wifi Antenna with 2m Lead.

*Wifi antenna sold separately. *For a more reliable connection, we recommend using a wired or 4G connection. *For a more reliable connection, we

recommend using a wired or 4G connection.

14

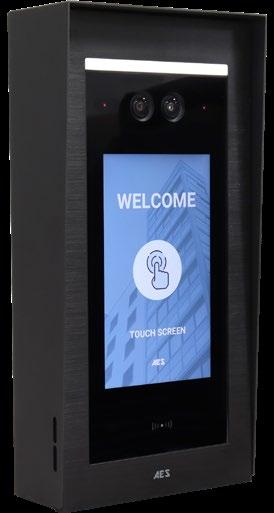

IP Multi-Apartment Intercom The Opyn-multi Intercom is an android-based system with a touch-screen experience. With a 7-inch LCD display, the system is capable of many interactive aspects. The Opyn-multi will be available as an IP system with LAN cable required for internet connection or 4G access through a compatible SIM card.

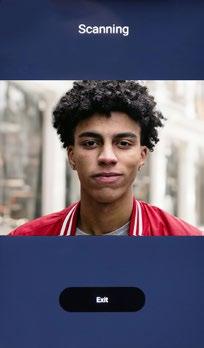

Facial recognition unlocking for quick and effortless access.

− − −

QR code unlocking with options for timed or temporary access.

− − − − −

Visitors call an apartment from the home screen.

7” IPS LCD Display. RES: 600x1024.

Customise, screen brightness & volume/tones/alarm settings.

Nightvision LED strip.

Tamper Alarm.

Ability to integrate IP cameras.

2x Relays.

Keypad codes, facial recognition, & QR codes: 10,000.

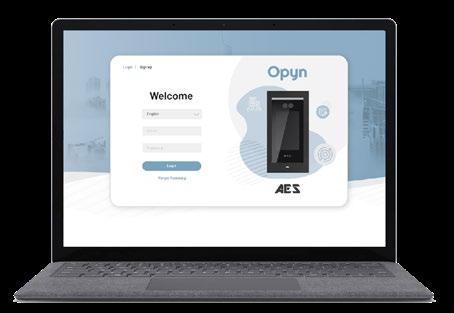

Opyn Management portal

The AES Opyn mobile app is essential for panel users. It lets you manage keypad codes, and facial IDs, upload profile pictures, invite users, activate locks, and more.

− − − −

4G KITS: 4G units come with a built-in 4G modem allowing the use of a SIM card to give the system a network connection.

Create and manage sites all in one place.

Set up users and assign each panel and user to their respective ‘’sites/buildings’’.

Adjust roles & permissions for different types of users.

Business Park setup option and management.

IP KITS: IP units need an ethernet cable (LAN) for network connection.

OPYN-MULTI-4G-FB

OPYN-MULTI-4G-IB

OPYN-MULTI-IP-FB

OPYN-MULTI-IP-IB

Flush Mount.

Surface Mount.

Flush Mount.

Surface Mount.

156 x 317 x 52 mm

159 x 319.5 x 74 mm

15

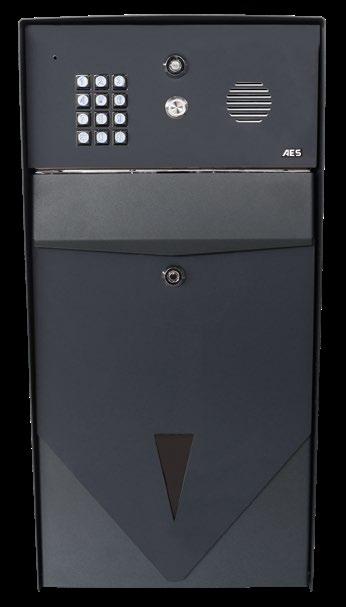

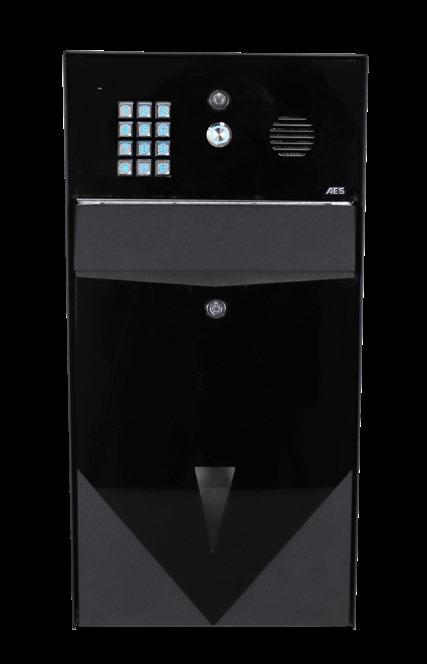

Ultra-stylish Letterbox with built-in access control technology.

The units below can be wall or pedestal-mounted.

Visit page 6 for more features and details about the PRIME7 technology.

PRIME7-LBK-EU

PRIME7-LAK-EU

LBX in anthracite grey.

All-black LBX panel.

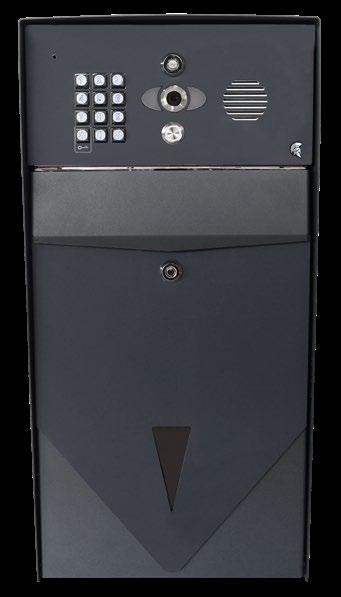

Visit pages 14 & 15 for more features and details about the Praetorian technology.

PRAE-IP-LBK-EU

PRAE-IP-LAK-EU

LBX in anthracite grey.

All-black LBX panel.

For 4G kits change IP to 4G in the product code:

e.g. PRAE-4G-LAK-EU

63961700

|

info@holars.no

Holars AS, Trondheimsvegen 590, 2092 Minnesund.
