In Thailand, population structure is tending to become more and more elder. The government pays more and more intention on this part as well. Our Chairman and president were inspired by a video from Medicare Spain system one day in 2015 under the background both are used to taking care their parents by lacking of useful and helpful equipments. Then an idea hatched from an egg which is establishing a new company in Thailand by using their excellent products and experience to help Thai people and Thai society.

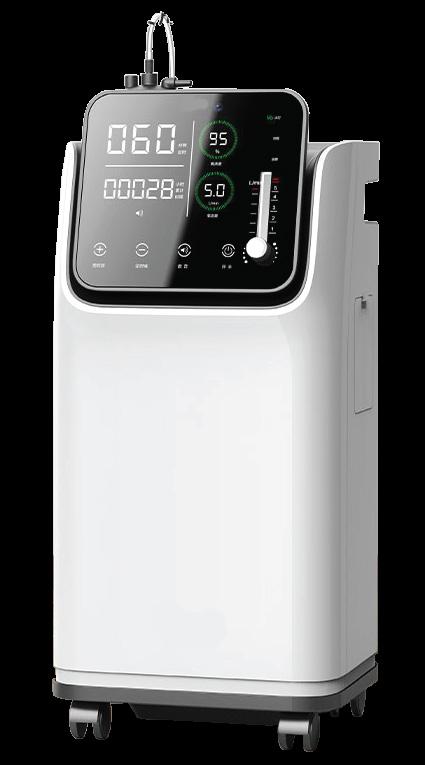

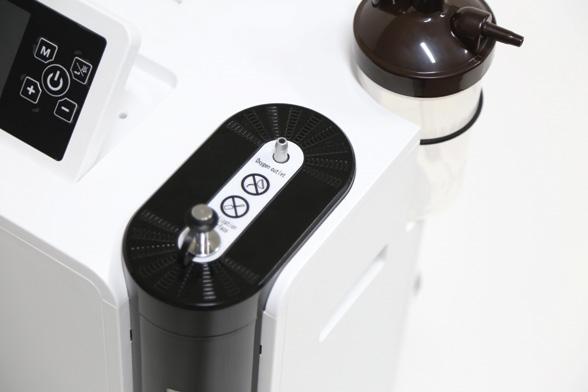

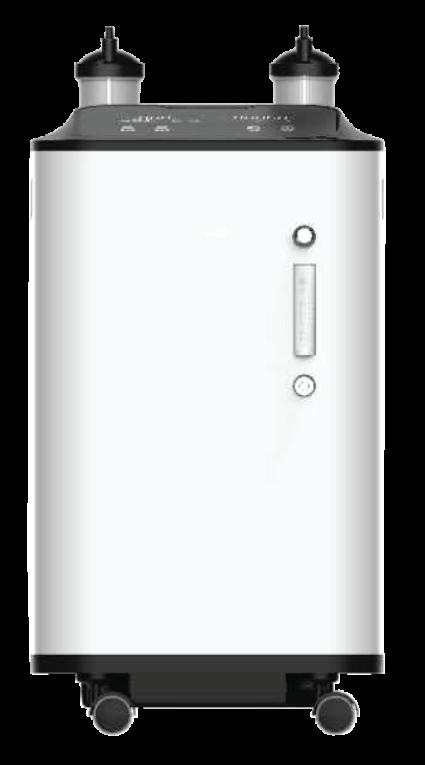

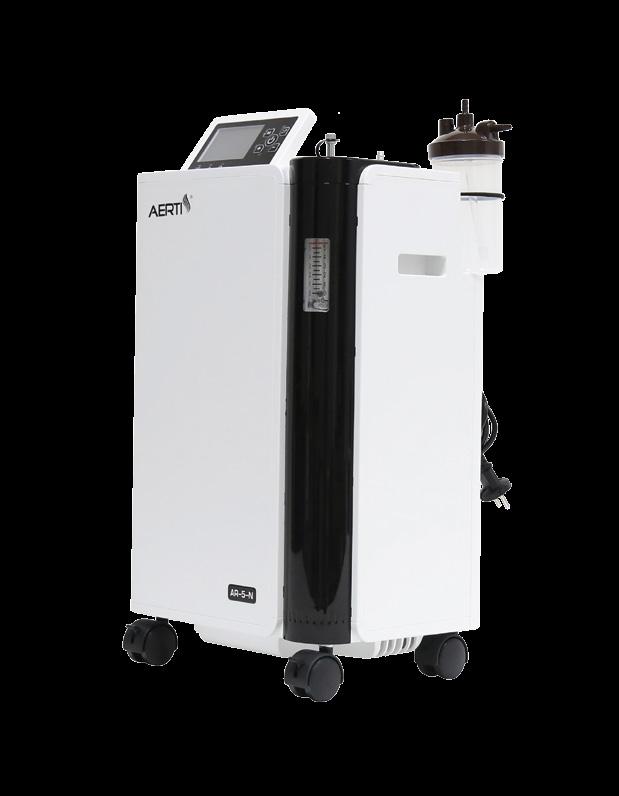

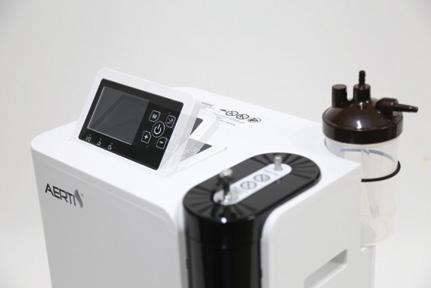

ข้อมูลทางเทคนิค

-กำลังไฟ 390 VA -แรงดันไฟฟ้า 230v/50Hz -อัตราการไหล 3(±10%) / 5(±10%) L/min -ความเข้มข้นของออกซิเจน 95±3% V/V -มี Nebulizer Function -ความดังเสียงของเครื่อง <45 dB(A) -น้ำหนักรวม 13.9 กก.

-ขนาด 314x240x515 มม.

-แรงดัน 40-80 kPa. -ฟังก์ชั่นมาตรฐาน หน้าจอพับได้ 3.5 LCD แจ้งเตือนไฟฟ้าขัดข้อง แจ้งเตือนความร้อนเกิน แจ้งเตือนการบำรุงรักษา การทดสอบการเปิดเครื่อง

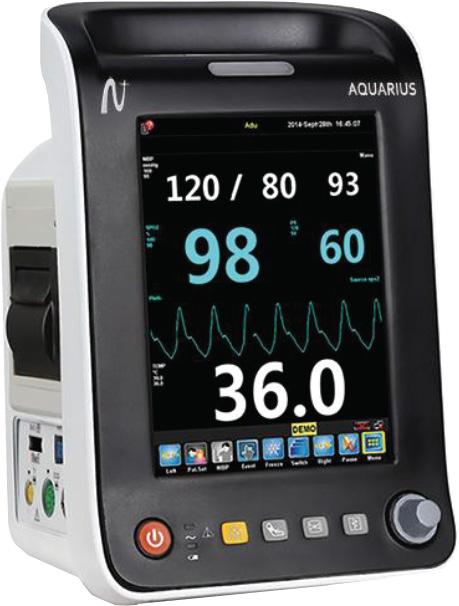

Aquarius Vital Signs Monitor

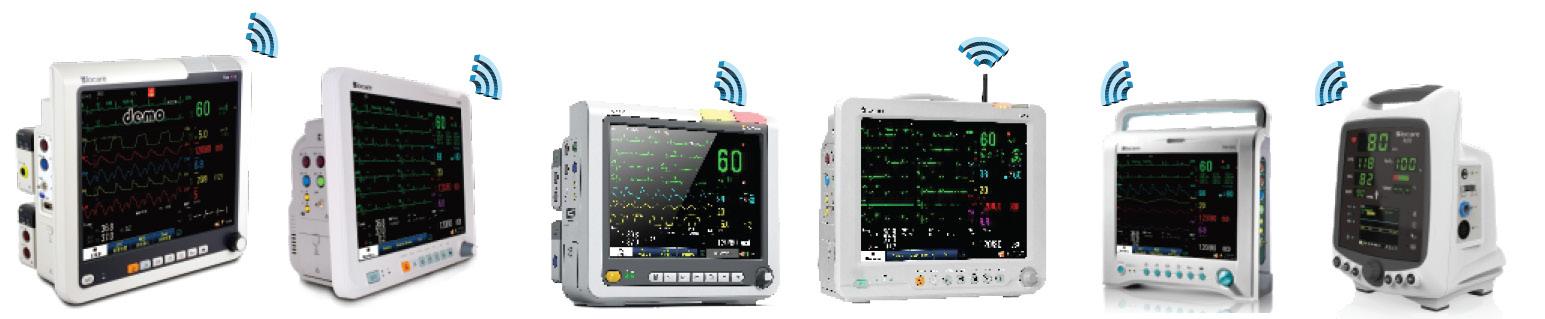

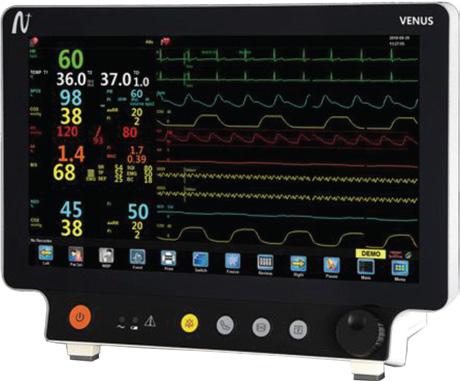

Venus Patient Monitor

Features

• 8.4” TFT color LCD, touch screen is optional

• High resolution 600*800

• Product dimension(W*H*D) 173*274*152 mm.

• Up to 6 parameter or 3 wave form display

• Powerful calculation

• Multi-selectable user screen options

• Venipuncture mode, Spot check mode

• SpO2 support PVI and PI, low perfusion 0.2%

• SpO2 pulse-tone modulation (Pitch Tone)

• Wired/Wireless CMS, support HL7

• Graphical & tabular trend review (120 hours)

• Full disclosure waveform review and storage

• Built-in rechargeable battery

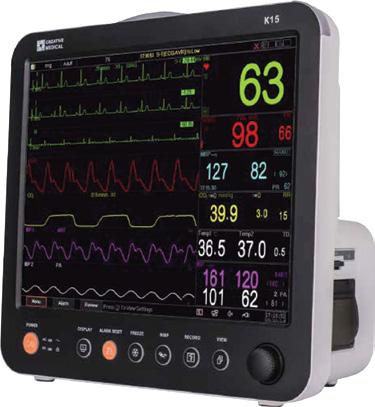

K15

Patient Monitor

Features

• 15” high resolution display Touch screen optional

• User customized NIBP measuring cycles up to 5-phase

• Versatile clinical calculations for application convenience

• 9 traces on-screen waveforms and maximal up to 13

• Data export and software upgrade

• HL7 protocol, Bed to bed view and 12-lead ECG available

Features

• 15.6” TFT LCD Touch screen, wide and flat design,

• High resolution 1366*768

• Long alarm light at both front and back side

• Product dimension(W*H*D) 398*302*183 mm.

• 10 waveform display.up to 12-lead ECG analasis

• Pacemaker detection

• ST & arrhythmia analysis

• Multi-selectable user screen options

• SpO2 support PVI and PI, low perfusion 0.2%

• Built-in rechargeable battery

• BIS module, NMT module optional

• Wired/Wireless CMS, support HL7

• SpO2 pulse-tone modulation (Pitch Tone)

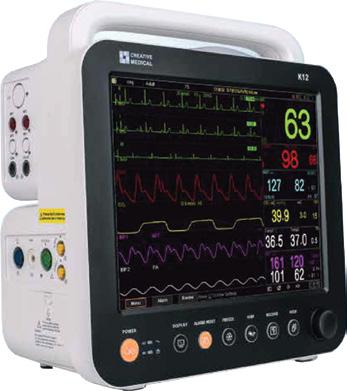

K12

Patient Monitor

Features

• 12.1” high resolution display Touch screen optional

• User customized NIBP measuring cycles up to 5-phase

• Versatile clinical calculations for application convenience

• 9 traces on-screen waveforms and maximal up to 13

• Data export and software upgrade

• HL7 protocol, Bed to bed view and 12-lead ECG available

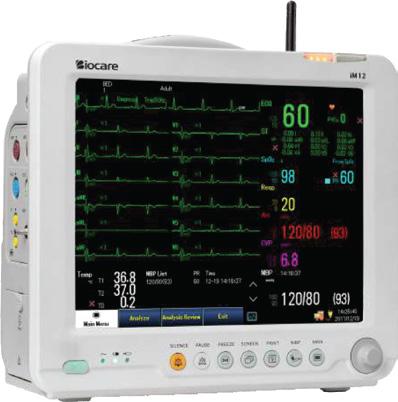

iM12 Patient Monitor

Features

• 12.1 inches high resolution color TFT screen

• User friendly and configurable interface design

• Intuitive human voice alarms

• Powerful data review

480 hours graphic and tabular trends of all parameters 1000 pieces of NIBP record storage 700 pleces of alarm review

• Buill-in rechargeable Li-ion battery for up to 5 hours of continuous work

• VGA output for external display (optional)

• Wire/wireless central monitoring systemsolution (option)

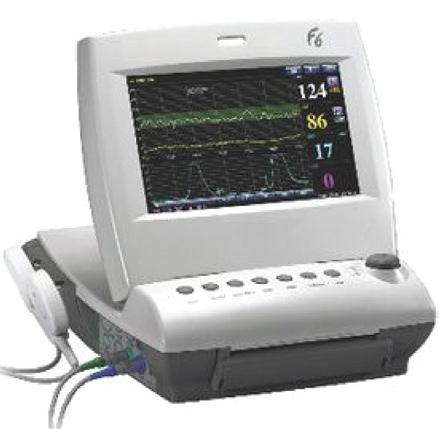

F6

Features

• 12.1 inches high resolution color TFT screen

• Optional full touch-screen for easy operation

• Durable and illuminated silicon buttons

• S-T segment analysis and 23 types of arrhythmia analysis

• Optional 12-lead ECG for accurate analysis and further diagnostic confirmation

• Maximum 480-hours graphic and tabular trends, 1000 NIBP records, 700 alarm events and 2-hours ECG waveform of storage and review

• Nurse call function and bi-directional communication solution

• VGA output for external display (optional)

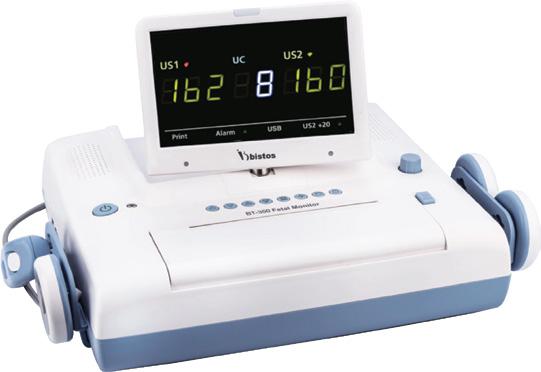

BT-350LED Fetal Monitor

Features

• Simple operation: Large foldable screen, user-friendly GUI with 2 display modes and 4 color schemes, probe rack and wall mounting rack, handle for easy carrying

• Powerful functions: 24 hours CTG storage, fast print for stored traces, signal overlap verification alerts when two FHR probes process the heart rate signal from the same source

• Printer: built-in thermal array printer supports printing of FHR, TOCO, MHR and maternal SpO2 waveforms

• “Insight Software” data management software, provides for real-time data transmission to PC

• F6 available in single, twin, and express models

• F9 available in twin and express models

Features

• CTG Analysis calculates important data suchas baseline Acceleration, Deceleration, fetal movement.

• Cross Channel Verification prevent the FHR is miscalculated by twin fetus by alarm.

• Multi Language Support 13 languages including English, Chinese, Spanish, German, Russian, Portuguese and more languages are available.

• Built-in Quick Guide Quick guide in the menu screen helps the user get to understand how to use and maintain the monitor properly.

• Various Paper Selection BT-350 can use two most usual papers in the market (30-240bpm / 50-210bpm)

Fetal Monitor

PM-2000

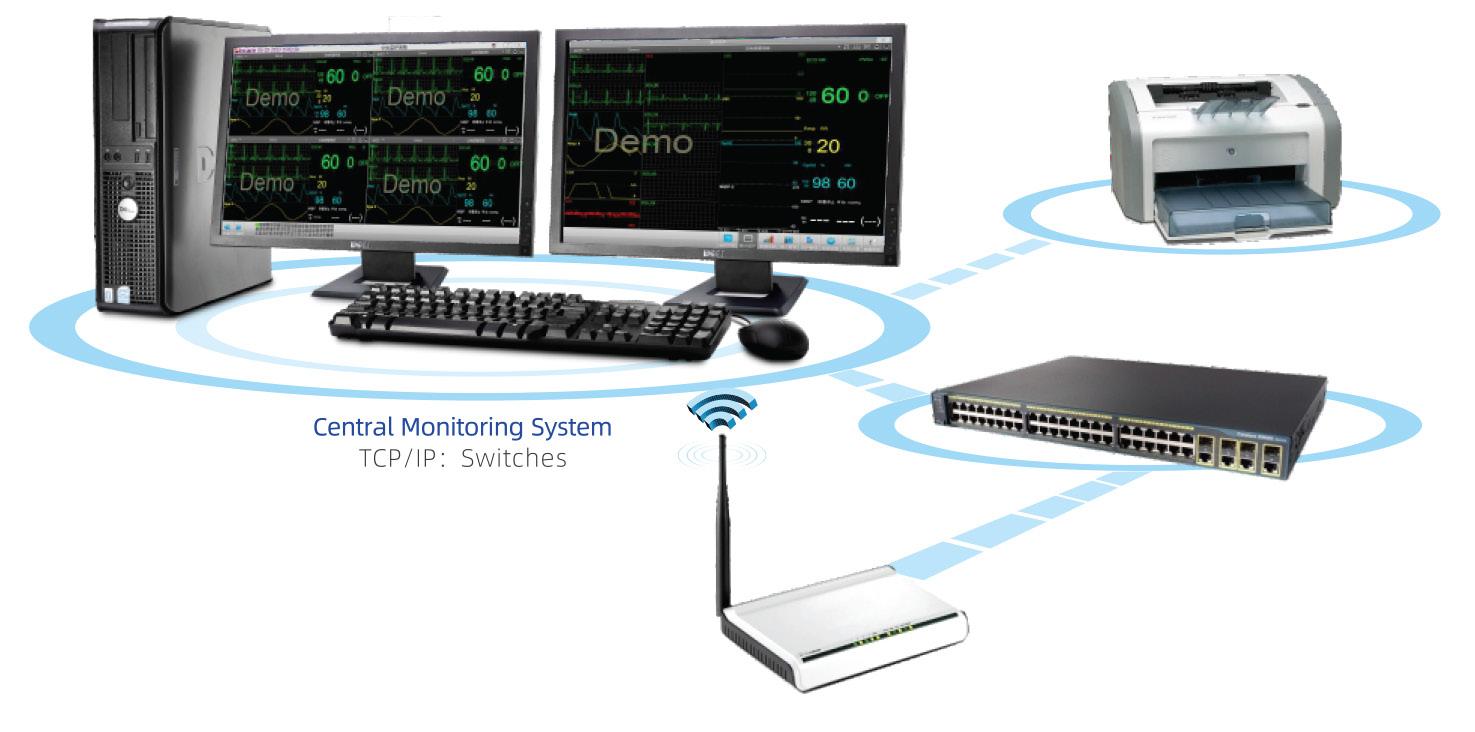

Central Monitoring System

• Expand to 64 bedside units maximum

• Store & review 240-hours trend data for each bedside monitor

• Store & review 720-alarm events for each bedside monitor

• Up to 20000 patient information records storage

• Store & review 72-hour data for 64 channels holographic waveforms

• Various display interfaces including full screen multi-bed, half screen multi-bed and half screen key beds etc.

• Waveform display: 2-CH ECG, 1-CH RESP, 1-CH PR, 1-CH EtCO2

• Parameters display: PR, RESP, ST segment, PVCs, SpO2, PR, NIBP, TEMP and EtCO2

• Real-time bidirectional contral between bedside units and central monitoring system

• Support single screen and dual-screen display

• Audible and visual alarm with text alarm on the screen

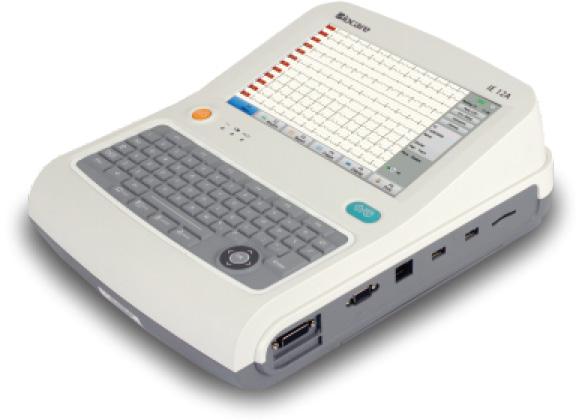

• Smart and portable design

• 9-inch high resolution TFT touch screen with 15-degree angle, easy to view

• Waterproof and full alphanumeric keyboard with shortcut key, efficiet in operation

• Broad frequency response 0.05-250Hz for weaker signal recognition and capture, more suitable for pediatrice

• Specific age and gender differential validity in Biocare CardioPro analysis program maximizes the accuracy of the ECG interpretation

• Up to 300 seconds frozen waveforms reviewable and recordable

• Up to 300 seconds R-R analysis in 1 or 3 rhythms for easier in arrhythmia locating

• Cabrera mode available

• Various file formats: ECG, XML, DICOM, JPEG and PDF

• Massive local storage for up to 5000 files

• 3 ways of file storage: local memory, SD card, USB flash disk

• ECG management software connected by LAN or WIFI (optional)

• HL7 protocol capability enable it to seamlessly interact with HIS

BP-12C

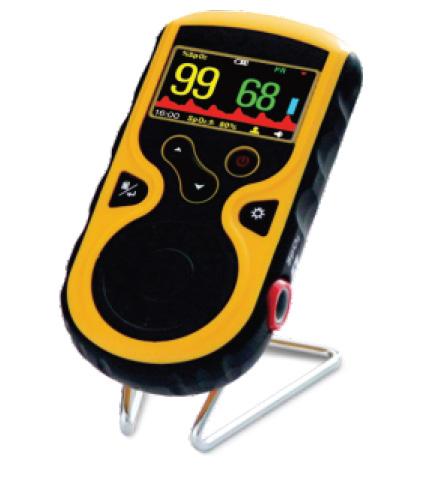

Handheld Pulse Oximeter

• Elegant and handheld design

• Color TFT LCD display of SpO2, PR. Pulse bar, PI and Plethysmogram

• Real-time review SpO2 and PR value

• Up to 384-hour of oximeter data storage (Record data once evevy 1/2/4/8 seconds)

• Oximeter data manager softwave is available

• Adible & visible alarm function

• Low battery voltage indication

• Power off automatically when no signal

• More than 40 hours battery life

• AC/DC adapter (optional)

• Data transmission to PC for view and analysis (optional)

• About 0.5kg, light in weight

• Horizontal or vertical screen selectable

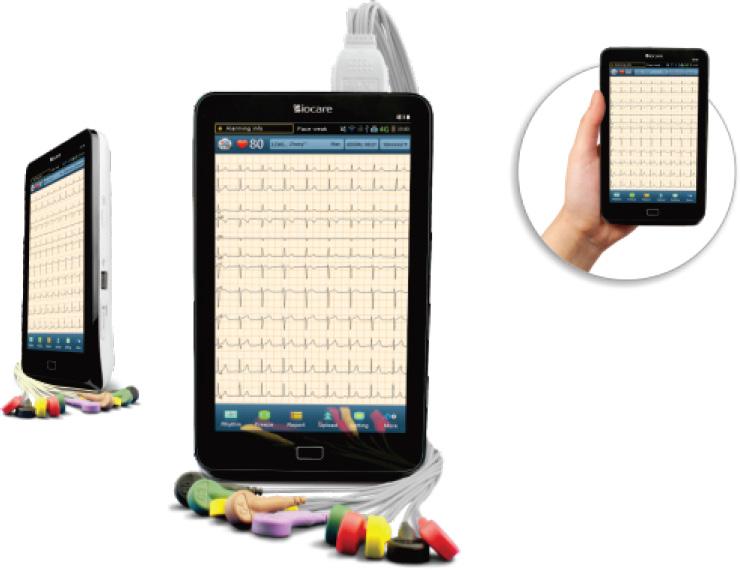

• Configuration with WiFi/4G

• 12-lead simultaneous acquisiton

• Applied Minnesota code

• Printing reports by laser printer

• High brightness 7-inch capacitive touch screen

• Built-in rechargeable battery, up to 4-hour continuous working

• Biocare CardioPro ECG analysis program, proven by CSE database

• Complete digital filyers and self-adapting filtering

• Up to 300 seconds of rhythm analysis for easier in arrhythmia locating

• HL7 protocol capability enable it to seamlessly interact with HIS

• Data storage mode is available by USB / SD card

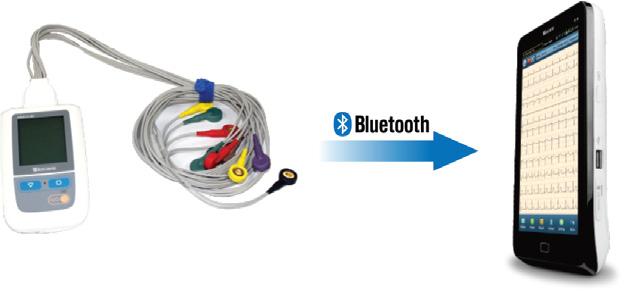

Optional Bluetooth ECG acquisition box:

• Compact, lightweight and portable

• 2.4-inch high resolution screen displays ECG waveform, leads connection status and Bluetooth connection status

• Built-in rechargeable lithium battery (3.7 / 1800mAh) for 5-hours continuous working

• Communicating wirelessly with ECG analysis terminals for data acquisition and transmission by Bluetooth module

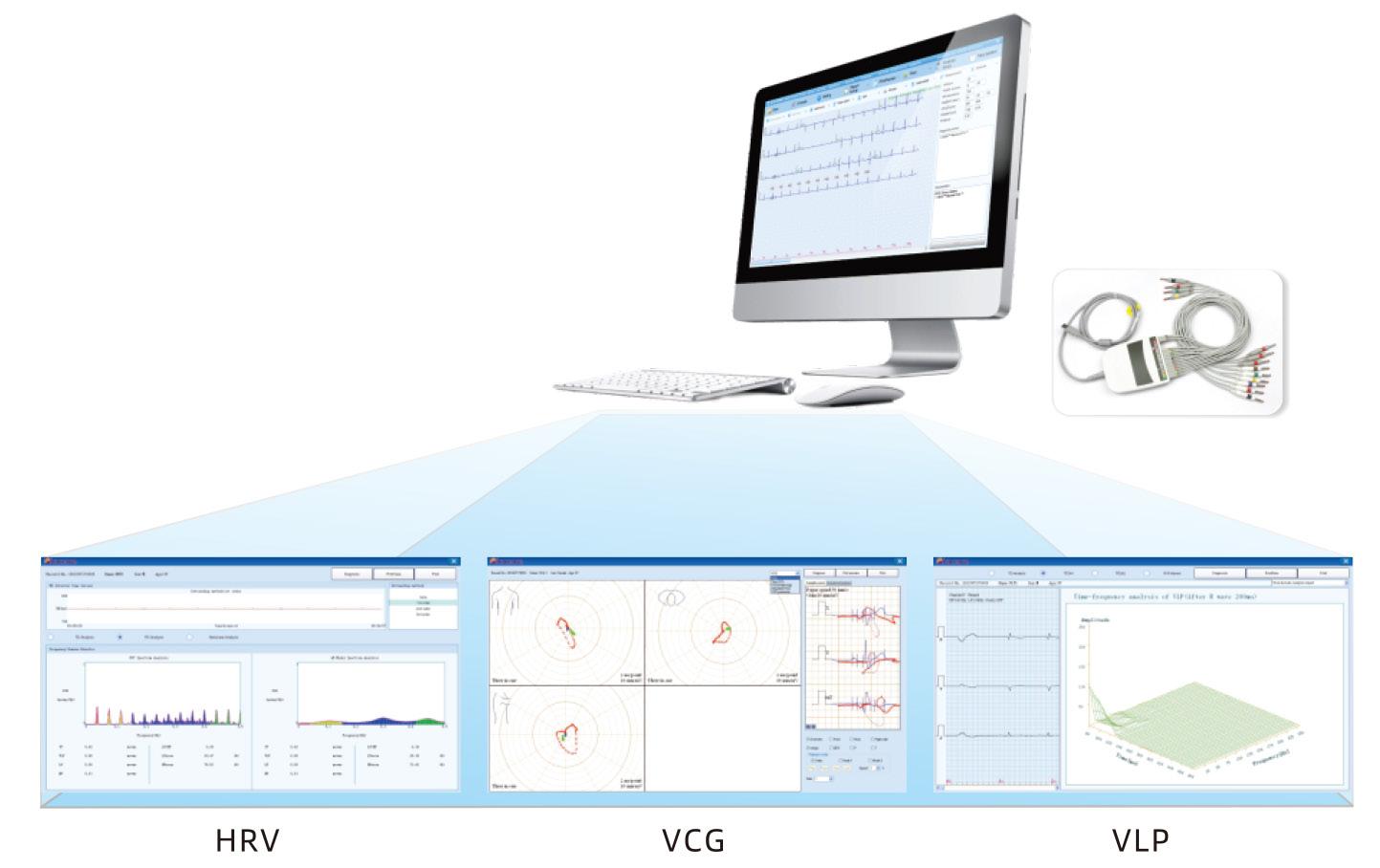

ECG-2000 PC - ECG System

Outstanding acquistion module

• New generation high-performance chip with anti-drift technology

• Independent lead wires for better anti-interferebce

• Compatible with 12-lead and 15-lead ECG acquisition

• Broad frequency response 0.05-250Hz for weaker signal recognition and capture, more suitable for pediatrics

Advanced analysis software

• Compatible with Windows XP,Win7, Win8, Win10

• Huge data storage and management capability

• Contrastive analysis for two files by the same or different patients

• Support selected waveforms enlargement

Powerful standard and customized diagnosis templates

• Advanced analysis functions: VCG, VLP, HRV, HFECG, FECG, HRT, QT

• Multiple file formats to export: XML, GDT, PDF, BMP, JPEG, etc.

• Support A4 paper printing

• HL7 protocol capability enable it to seamlessly interact with HIS

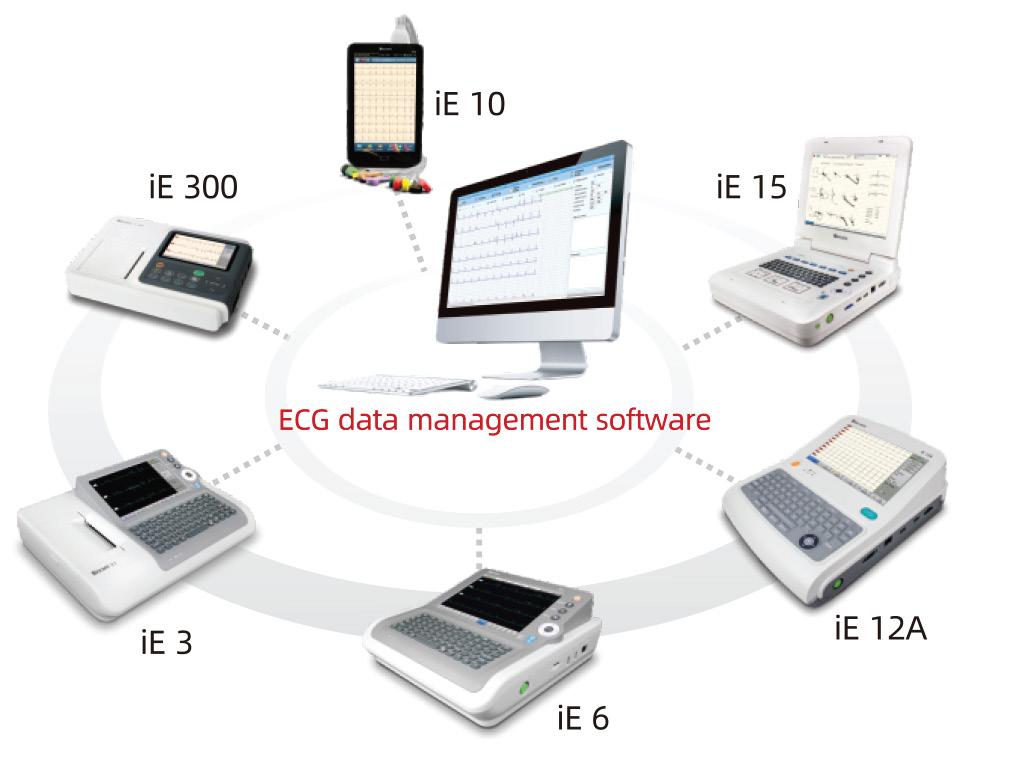

ECG-1000 ECG Data Management Software

• Compatible with Windows XP, Win7, Win8, Win10

• Support single file or batched files imported from ECGs

• Huge data storage and management capability

• High accuracy electronic ruler for ECG files re-analysis and re-edit

• Powerful standard and customized diagnosis templates

• Multiple file formats to export: XML, GDT, PDF, BMP, JPEG, etc.

• Support A4 paper printing

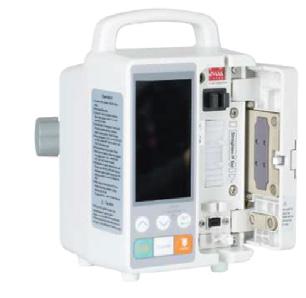

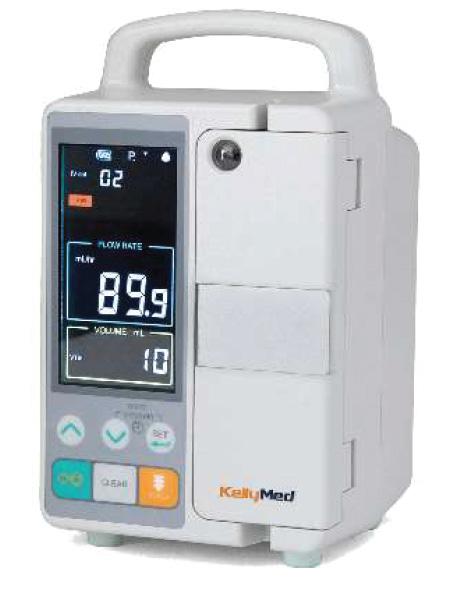

KL-8052N Infusion Pump

Features

• It can show the occlusion pressure in real time.

• Time, volume and drop three work modes.

• Adjustable occlusion sensitivity levels.

• Several alarms, the seriousness of which is distinguished by colors.

• The VTBI is showed in real time.

• The KVO will automatically work after preset volume finish.

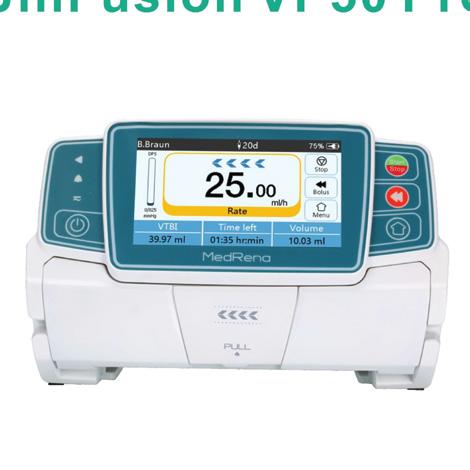

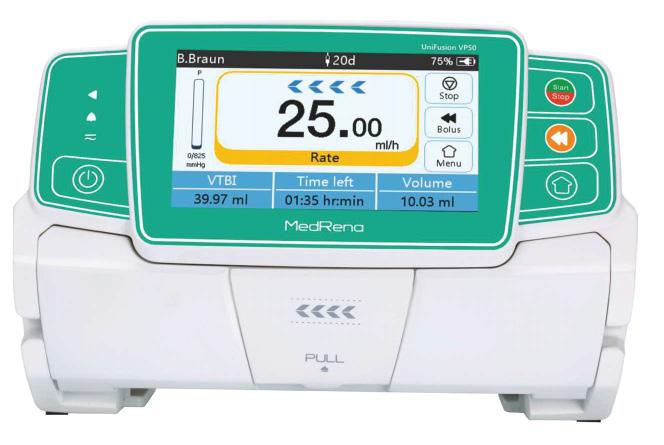

VP50 Infusion Pump

VP50 PRO Infusion Pump

Features

• 4.3” color touch screen

• High accuracy: ±5%

• KVO & Anti-bolus function

• Automatic calibration

• Water proof level: IP34

• Up to 9hrs battery back-up

• Fast start function against start delay

• Inter-lockable Design

Features

• 4.3” color touch screen

• High accuracy: ±5%

• KVO & Anti-bolus function

• DPS & DERS (Drug error reduction system)

• Double pressure sensor & air bubble sensor

• Automatic calibration

• Water proof level: IP34

• Up to 9hrs battery back-up

• Inter-lockable Design

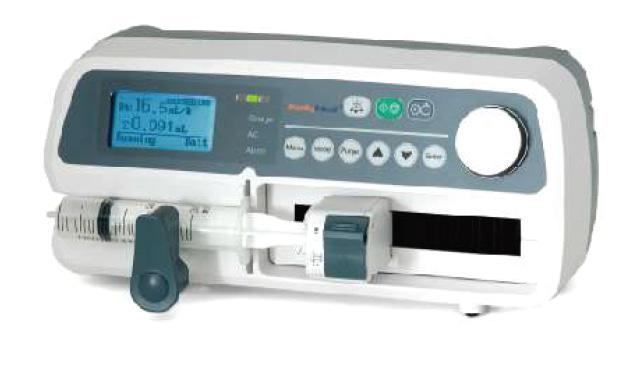

KL-602 Syringe Pump

Features

• High accuracy ±2%, high consistency.

• Multiple work modes and multiple drug units

• Anti-Bolus can release pressure automatically when occlusion alarms happens

• Several occlusion pressure alarm can meet different pressure requirement for drugs, and improve the safety in the clinic use.

• Key lock avoids misoperation and improve safety.

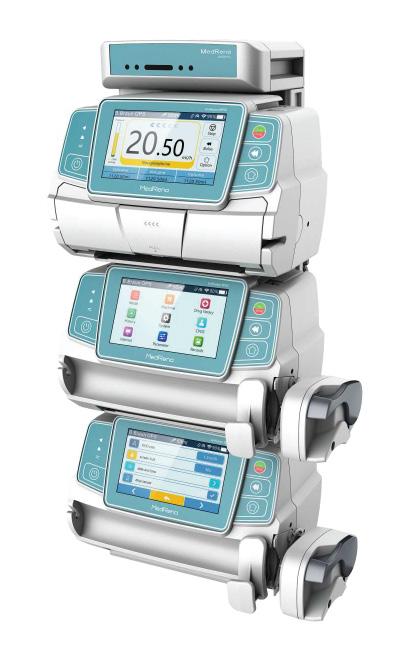

DS50

Docking Station

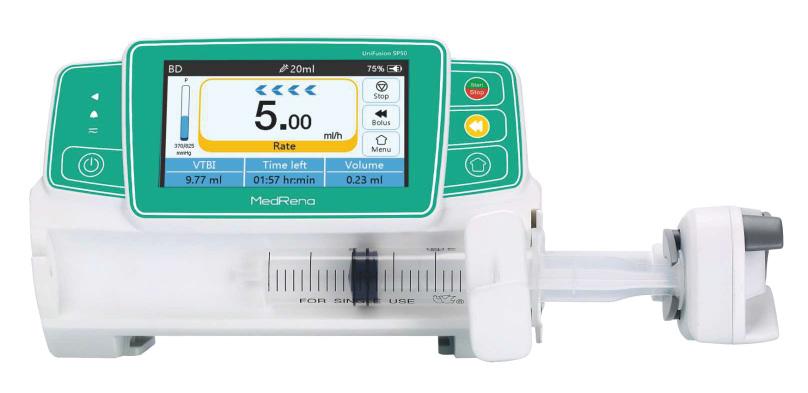

SP50

Syringe Pump

Features

• 4.3” color touch screen

• High accuracy: ±2%

• KVO & Anti-bolus function

• Automatic calibration

• Water proof level: IP34

• Up to 11hrs battery back-up

• Inter-lockable Design

Features

• One Power Cord

• Alarm management

• Idea bedside space management

• Any comblenation from 3 to 12 pumps

• Flexible with horizontal and vertical fixing clamp

SP50 PRO Syringe Pump

Features

• 4.3” color touch screen

• High accuracy: ±2%

• KVO & Anti-bolus function

• DPS & DERS (Drug error reduction system)

• Automatic calibration

• Water proof level: IP34

• Up to 11hrs battery back-up

• Fast start function against start delay

Air Temp

Skin Temp Humidity Scale O2 Masimo SpO2 CCD Camera Hood Bed

Lifting Stand IV Plate IV Pole Basket Shelf Air filter General Dimensions Weight Warranty

Control Measurement Control Measurement Control Measurement System Water Tank Measurement Trend Control Measurement Measurement Accuracy Pulse Rate Range Resolution Video Transfer Hand Port Tubing Port Structure Air Curtain Noise Tilt Matress X-ray tray Height Load limit Hook Load limit Load limit Particle Efficiency Display Trend Alarm Warm up Self Test Multi Language

Normal : 23-37°C Override : 37.1 - 39°C 20 - 45 ±0.5°C

Normal : 35 - 37.5°C Override : 37.6 - 39°C 25 - 45 ±0.3°C 30 - 95% 15 - 99 ±5% RH Steam (Boiling at 100°C) 1,000ml (Autoclavable) 0 - 10Kg ±10g 216 Hour 21 - 65 ±5% 18 - 100 ±5% 1 - 100% ± 3% (70-100%) Unspecified (0~69%) 25 - 240bpm ±3bpm 2.5M pixel Wi-Fi 6 Door 2 x 6 Port Double wall Support < 45dB < 12° 72 x 39 x 2 cm 35 x 40 cm 65 - 85 cm 11 Kg 2 Hook 10 Kg 3 Kg 0.3 Micron 99.8% 7” TFC Color LCD 72 Hour 27 Events (Visual & Sound) < 30 Minute (Fast Mode) Power On Support

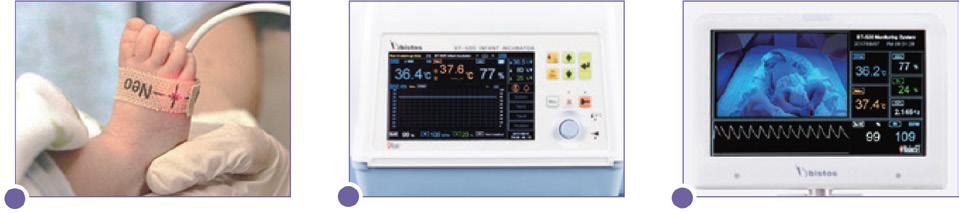

Masimo Pulse oximeter

Trend Display

External Monitor

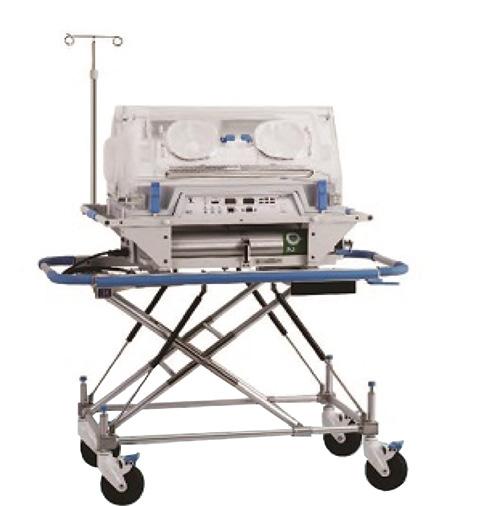

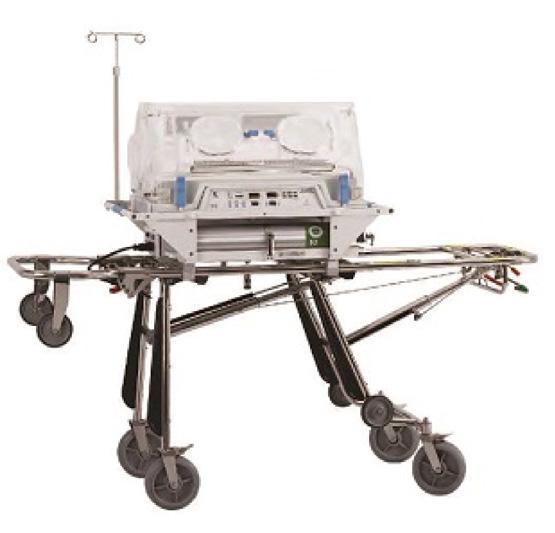

• Air mode and baby mode controlled by micro-computer

• Use AC Power and DC Power alternatively, DC 12V or DC 24V Power on the ambulace

• Set temperature, air temperature, baby temperature and internal battery capacity can be displayed saparately

• Multiple failure alarm indications

• Three power supply modes: AC power, DC power and battery

• Double wall hood with side door so that the bassinet can be pulled out

• Functions of trolley: height adjustment, damping and lock

• With Oxygen cylinder and Oxygen supply configuration

• Observation lamp

• Low noise DC motor

• Optional configuration: >37 ํC temperature set function, ambulance type trolley.

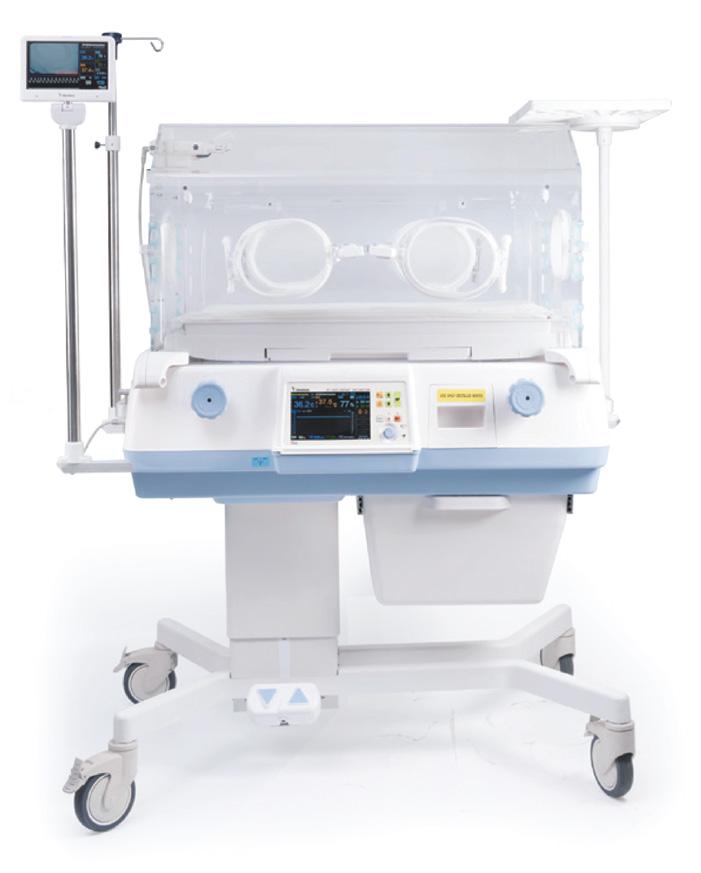

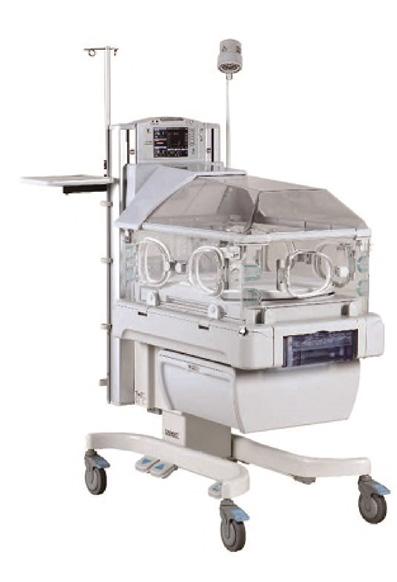

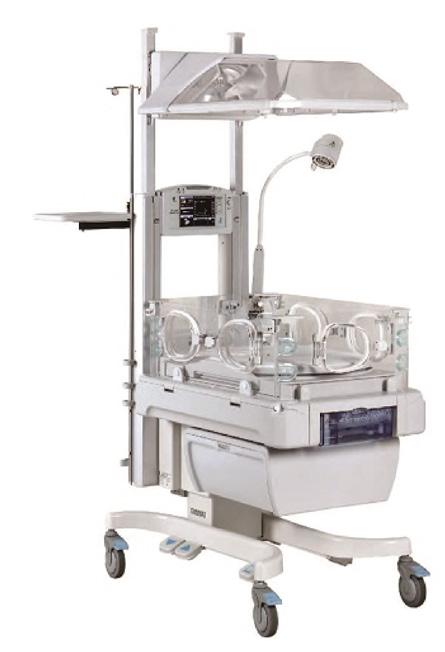

YP-3000 INFANT INCUBATOR

• The full-featured incubator converts from incubator to a radiant warmer

• Alarm for conversion failure

• Large color LCD screen

• Baby bassinet rotates 360 ํC from both sides

• Guide rail column in dovetail shape

• Designed with the air circulation system which has air outlets in front and back

• X-ray cassette under the bassinet

• Step-less adjustable inclination of bassinet

• Stored data displayed in curve with Cartesian coordinate axis

• The height of whole unit can be adjusted

• Self-check function with multiple alarm indications

• Low noise DC motor

• RS-232 connector

• Optional Configuration: Weighing ststem.

RESPRO VENTILATOR

The BMC ResPro series non-invasive Bi-level ventilator has been designed highly integrated with twin turbine motor, with its high flow and non-invasive mode, can meet the more needs of clinical treatment.

• The high flow mode provides a maximum of 80L / min of air/oxygen mixtures, the oxygen concentration setting automatically, and exclusive patented AutoFlow function and SmartFlow function.

• In Bi-level non-invasive mode, the max. IPAP can reach 50cmH2O and target oxygen concentration can be set. The specifically design of disinfection-free, the backflow prevention valve on humidifier chamber to prevent gas backflow, make the maintenance much more convenient.

Optional Accessories

Product Parameters

R-80B

High flow mode

Adjustment method of Oxygen concentration

Flow monitoring

Flow range

Oxygen concentration adjustment range

Temperature output range

Temperature adjustment gear Whether the host is disinfection-free

Screen size

Trend review function

Oxygen concentration monitoring Temperature monitoring sPEEP

Respiratory rate SpO2 Pulse rate Automatic reminder of filter replacement Automatic water filling chamber AutoFlow SmartFlow Humidity compensation sPEEP set

Warm standby Twin turbine motor

Non-invasive mode

Oxygen concentration setting FiO2

IPAP(cmH2O)

EPAP(cmH2O)

Delay time Ramp

Target tidal volume

Ti max Ti min Isens Esens

Respiratory rate

Tubing temperature Max. treatment pressure of noninvasive mode

Auto Yes, adjustable 2L~80L/min 21%~100% 29C~37C 9 steps adjustable Yes 3.5 inches 1 day; 3 days; 7 days Yes, adjustable Yes, adjustable Yes Yes Option Option Yes, settable Yes / / -3~+3, 7 steps adjustable / Yes Yes

CPAP、S、S/T、T Off, 21%-100% settable 21%~100% monitorable 4~30 4~25 0 ～ 60 min 1-6, 6 adjustable gears 100 ～ 2000 mL Off 0.3～3 s adjustable 0.1～3 s adjustable 1-8, 8 adjustable gears 1-8, 8 adjustable gears 3～60 times/min adjustable 18 ～ 30 ℃ Off 30

SIRIO S2/T VENTILATOR

Versatility

Sirio S2/T offers a wide range of therapeutic option, it grants a controlled volume ventilation limited by pressure in invasive and non-invasive modality that meets the breathing requirements of adult, paediatric and neonatal patients (weight >3 kg)

Simplicity

The friendly user interface, cleverly designed to facilitate emergency health operators, makes of this ventilator the ideal choice for application on ambulance, helicopter and airplanes.

Performances

Sirio S2/T grants excellent performances taking advantage of the technological benefits offered by Siare. It is equipped with several ventilation modalities: CPAP - PSV (Apnoea Back-up) - IPPV+ AST - MANUAL - PEEP - Pressure Trigger - FiO2 adjustable at 50% or 100% Built-in spirometry. Long lasting internal battery and a serie of optional accessories designed for an easy mobility of the device.

MRI Compatible Version

The new Sirio S2/T is available also in the non-magnetic version (code 09636/RMN) for application in Magnetic Resonance environments from 1,5 to 3.0 Tesla. It is the ideal choice for intra-hospital transportation to transfer the patients from resuscitation to magnetic resonance in continuous ventilation without disconnection, ensuring greater comfort and safety to the patient.

Friendly use settings

Patient circuit with expiratory valve and proximal flow sensor.

Built-in spirometer

Acoustic and visual alarms

Long lasting internal battery (3 hours operation)

Adjustable trigger

Version for transport with professional bag for ventilator and 2 it cylinder housing, complete with support for rapid connection/disconnection for installation in ambulance/helicopter.

Version for transport with professional stainless-steel tubular support for ventilator and 2 it cylinder housing, with possibility to attach a rapid disconnection plate for installation in ambulance/helicopter.

Code 104631/SLU

Code A26.049048 Stand for ventilator with 5 wheels

Code G00203001

Plate for rapid connection of tubolar support 10G (code G00208003) on wall.

Code 05048/RMN

Castor LT Non-magnetic trolley with 4 wheels and 1 tray

Code 06750/SB

Aluminium patirnt circuit supporting arm

Code 10006/2

Pin Index O2 cylinder

2 it capacity, empty Code 10026/2

Pin Index O2 cylinder

2 it capacity, empty for MRI Code 109006/CM

Pin Index O2 pressure reducer

Code G00213000

Plate for rapid connection of ventilator on ambulance flat surfaces

Code G90003012

Padded and refracting transport bag for ventilator and 2it O2 cylinder complete with ambulance connection.

Code G00208003

Stainless steel support with housing for ventilator and 2 It. O2 cylinder complete with safety band and bag for accessories.

Silicone adult/paediatric patient circuit with expiratory valve and flow sensor Code 104631/PLU

Disposable PVC single tube adult/paediatric patient circuits with exp. valve and flow sensor

Code A17.07000001

Proximal flow sensor Code 03000

VAPOUR 2 electronic humidifier

Code G80063001

Long life external additional battery pack (for 12 hours additional operation)

FALCO 101 VENTILATOR

PARAMETERS

CPAP

PCV - APCV

PSV

BILEVEL S - ST

SIMV

Inspiratory pressure limit

PEEP - EPAP Rate

Minimum Inspiratory time

Maximum Inspiratory time

Inspiratory flow ramp

Flow trigger

Oxygen Enrichment

FiO2 monitor setting (21%-100%)

Trends

Historical Events

Integreted battery Extra battery pack

Trasport bag Weight Dimension (WxHxD)

FALCO 101

2 - 80 (cmH2O) da OFF, 2 a 30 (cmH20) 4 - 80 (bpm) 0,036 sec 9,6 (sec) 1, 2, 3, 4 da 1 a l/min optional optional optional 5,5 Kg. 290x245x215 mm

To make the maintenance easier, the ventilator Falco 101 has been equipped with a single air filter.

Possibility of integrating FiO2 monitoring form 21% to 100%

FiO2 Monitoring from 21% to 100% (optional)

Ventilator modes

• Controlled volume VC/VAC

• Controlled volume for newborns and prematures VC/VAC BABY

• Controlled pressure APCV

• Guaranteed tidal volume in controlled pressure synchronized with patient breath APCV-TV

• Synchronized intermittent mandatory ventilation by pressure P-SIMV + PS, V-SIMV +PS

• Assisted pressure PSV with apnoea back-up

• Assisted ventilation with pressure support with guaranteed tidal volume with apnoea back-up PSV-TV

• Non invasive ventilation NIV with leaks compensation

• BILEVEL, CPAP, APRV, adjustable drug nebulizer

• Pressure and inspiratory flow trigger with adjustable sensitivity

• Graphic and table trend of data

• Visualization of all patient data by wide dimensions curves (5 contemporaneously) and alphanumerical values

• Expiratory valve and flow sensor group easily intechangeable to facilitate the sterilization

• Predisposition for inspired and expired CO2

• Integrateci battery system, 90 minutes autonomy

HugeMed Video Laryngoscope

Display Data


Size : 3.5 Full view/HDMI Extra monitor

Monitor : LCD

Resolution Ratio : 640x480 RGB

Aspect Ratio : 4:3

Video refresh Rate : 30FPS

Illumination : LED

Easy to establish and store files Connect to external monitor and convenient for training And presentation Resolution Ratio 2.0M Pixels

Field Angle : 66° Illuminance : ≥800LUX

Type Rechargeable Lithium Battery

Long working time ≥150Minutes

Voltage : 3.7V

Capacity 3200mAh

Battery life Cycle : More Than 300 times

Charging times : less than 8hrs

Temperature : -10±45 °C

Humidity : ≤93%

AP 500hPa to 1060hPa

Temperature : -10±45 °C Humidity : 30%-85%

AP 700hPa to 1060hPa

HugeMed Video Laryngoscope

Display Data

Size : 3.5 Full view/HDMI Extra monitor

Monitor : LCD

Resolution Ratio : 640x480 RGB

Aspect Ratio : 4:3

Video refresh Rate : 30FPS

Illumination : LED

Easy to establish and store files Connect to external monitor and convenient for training And presentation Resolution Ratio 2.0M Pixels

Field Angle : 66° Illuminance : ≥800LUX

Type Rechargeable Lithium Battery

Long working time ≥150Minutes

Voltage : 3.7V

Capacity 3200mAh

Battery life Cycle : More Than 300 times

Charging times : less than 8hrs

Temperature : -10±45 °C

Humidity : ≤93%

AP 500hPa to 1060hPa

Temperature : -10±45 °C Humidity : 30%-85%

AP 700hPa to 1060hPa

Comfortable ergonomic short handle design

Double Head with 24” Wall Medical Monitor LD20.24

Triple Head Operating Lights LD10.03

Double Head Operating Lights LD10.02

Single Head Operating Lights

LD10.01

Mobile with Battery LD05.06

OPERATING LIGHTS

INSPITAL LED operating lights are designed to meet all surgical illumination requirements of operating theatres. New generation LED technology helps the surgeons to operate and view the surgery area clearly. INSPITAL LED lights can be adapted in any size of operating theatres including large hybrid types with variety of models & combinations

TECHNICAL SPECIFICATIONS

• Max. Illumination power, in 1 m : 160.000 Lux

• Diameter of lighthead : Ø670 mm

• Color temperature : 3000 K - 5000 K

• Color rendering index, Ra CRI : 96%

• Dimming Range : % 1 – 100

• Light Field Diameter d10 : 24 – 36 cm / 9.5”- 14.2”

• Light Field Diameter d50 : 13 – 28 cm / 5.1” – 11”

• Number of LED modules : 60

• Lifetime of LED : >60.000 h

• Degree of turbulence (standard value 37.5% max.) : 29%

• Depth of the volume of light L1 + L2 at 20% : 130 cm / 51.2”

• Depth of the volume of light L1 + L2 at 60% : 76 cm / 30”

• Camera : 1080p Full HD Camera

• Irradiance at nominal illuminance : 200 W/m2

• Additional options : Touch Screen Pro Control Unit, Camera, Monitor, Battery Back Up

•

•

Parts & Accessories

Standard

•

•

•

• ECG

•

Option

• Carrying case

•

•

•

•

•

•

•

• SpO2 Module Set

• Softwave for data

• Pediatric pads

•

• EtCO2 (Mainstream / management(CU-EX2) Sidestream)

• NIBP (Non-Invasive

• Pacer Blood Pressure)

Key Features

• Efficient e-cube Biphasic technology (BTE Type)

• Manual and AED operation

• Defibrillation using paddles, pads or internal paddles

• ECG Monitoring (3-Lead ECG / 5-Lead ECG / 10-Lead ECG)

• SpO2 pulse oximetry with alarm (Nellcor)

• Noninvasive pacing mode

• NIBP (Non-Invasive Blood Pressure)

• EtCO2 (End-Tidal CO2)

•

•

BP868F

Intelligent Blood Pressure

Product name

Measuring method

Ventilation

Measurement Range Minimum Measurement Unit Accuracy

Cuff driving method

Pressurizing time Measuring time Print

Power

BP868F

Oscillometric method

Automatic ventilation by a micro controller Semiconductor strain gauge

LCD or FND

Input: 30 to 300 mmHg

Preesure : 1 mmHg

Pulse : 30 to 200 / min. Pressure : ±2 mmHg Pulse : ±3%

Belt driving by a micro controller Approx. 10 sec. Approx. 30 sec.

High-speed thermal printer (Auto Cut - option)

AC 110/220V to 230V

50/60 Hz

Computer, RS232C (option) Stop by microprocessor

Guiding voice messages are glven when measuring blood pressure

Blood pressure value affter value after measuring blood pressure and error messages are given by voice.

30 VA

Temperature: +10 to +40, Humidity: 95% or lower

Temperature: +5 to +50, Humidity: 95% or lower 460 (W) x 310 (D) x 296 (H) Approx. 9 kg

1 power cable, recording sheets, arm rest, user mamual, information board (option) Blood dynamics print, auto cutting, themal printer, back display, communication cable,

• Automatic External Defibrillator features include

• Three-step defibrillation process

• Two-button operation

• Extensive voice and visual prompts for the operator

• Biphasic energy output

Category

Specification

Dimensions 303 x 216 x 89 mm

Weight 2.0 kg

Operating Temperature 0 ํC to 40 ํC

Operating Humidity Relative humidity between 30% and 95% (non-condensing)

Storage Temperature -20 ํC to 55 ํC (without battery)

Storage Humidity Up to 93% (non-condensing) (without battery)

Electrical Isolation

Power Unit operates on internal battery only External Electrical Connections No external devices are attached to the unit

Risk Current Category Internally powered equipment with defibrillator-proof BF type patient applied part (as per definition of IEC 60601-1 standard)

Defibrillator

Biphasic Truncated exponential Less than 30 seconds 150, 150, 200J Less than 35 seconds 10 sec. to 150J Less than 25 seconds 15 sec. to 200 J 22 audible prompts 9 sec. LED prompts

Two buttons - On/Off, Shock ±15% into any impedance from 25 to 175Ω .20Ω to 200Ω

Battery

5 Layer of virus protection Standard

• PP conton

• Non-weven skin

• Electrostatic adsorption meltblown filter

• PP conton

• Non-woven skin

• CE • FFP2

• FIT TEST

• GB2626-2006

• EN149 : 2001+A1 : 2009
