LINE MARKING CHECKLIST
The Future of Line Marking
NOZZLE ASSEMBLY 01
NOZZLE HEIGHT 01
Carefully unscrew the bayonet cap to change the nozzle

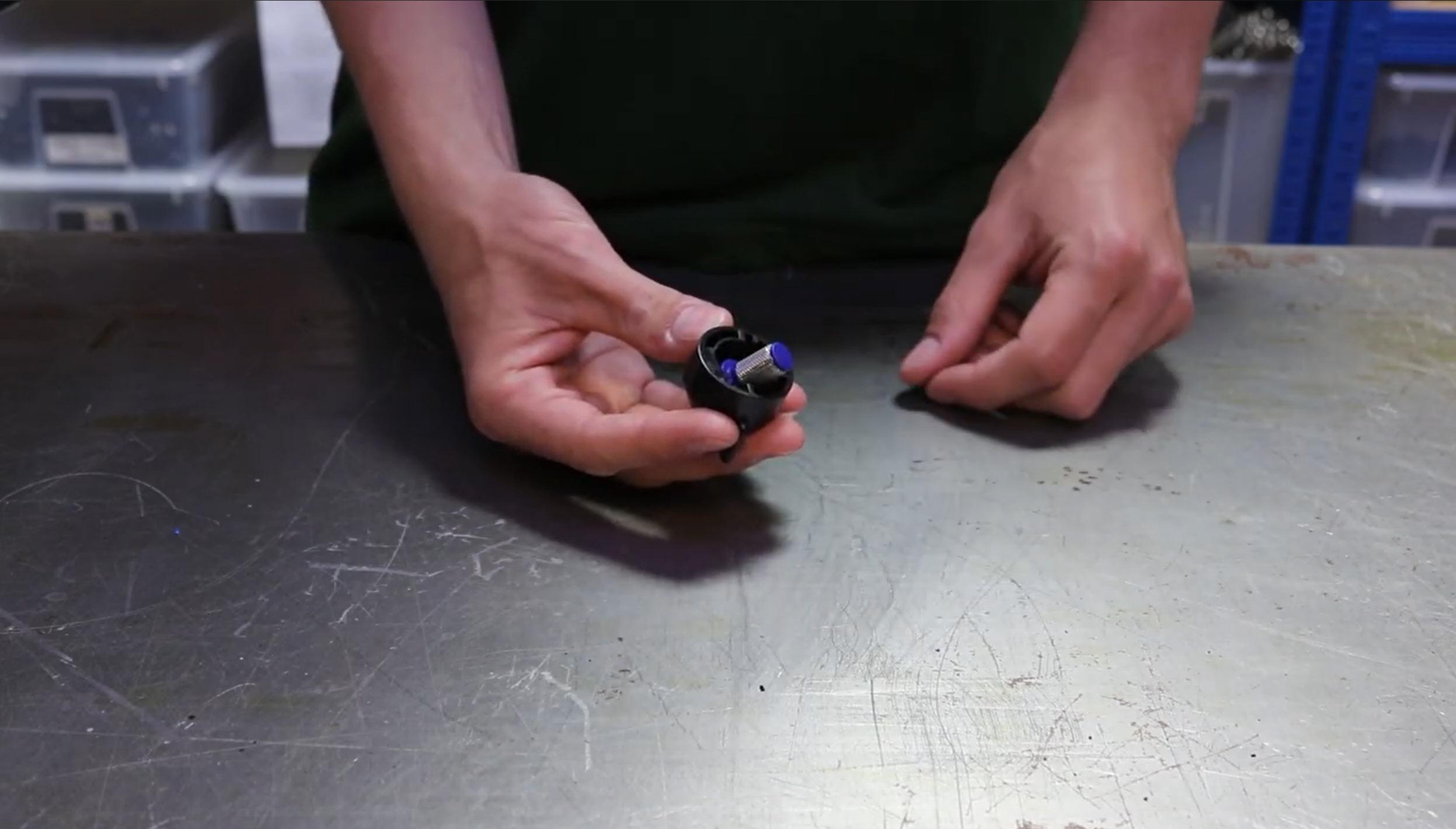

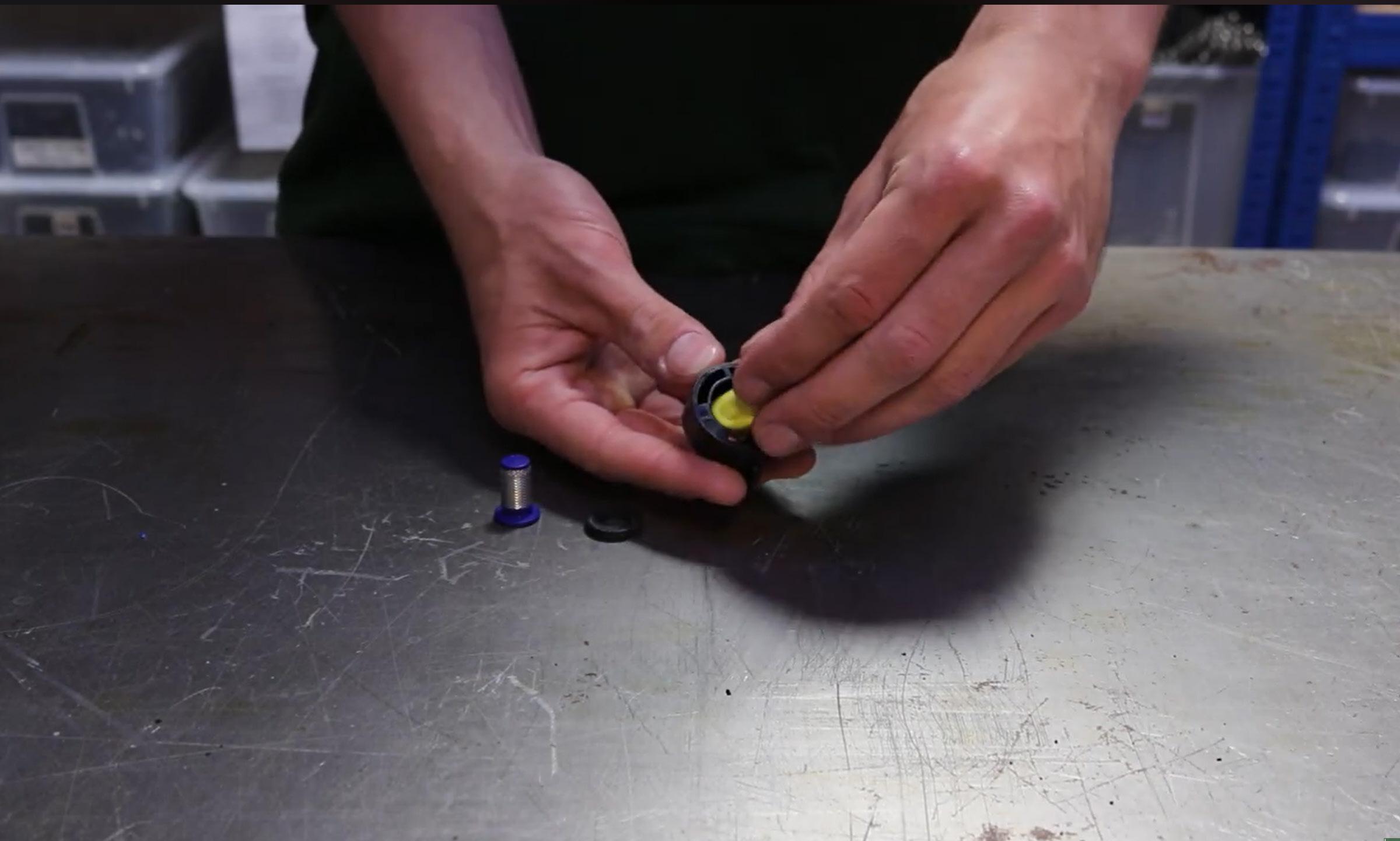

02 First, place the nozzle into the hole in the bayonet cap
To achieve the best results, it’s imperative that the nozzle is set to the correct height
01
Store your paint at the correct temperature between 10°C and 25°C

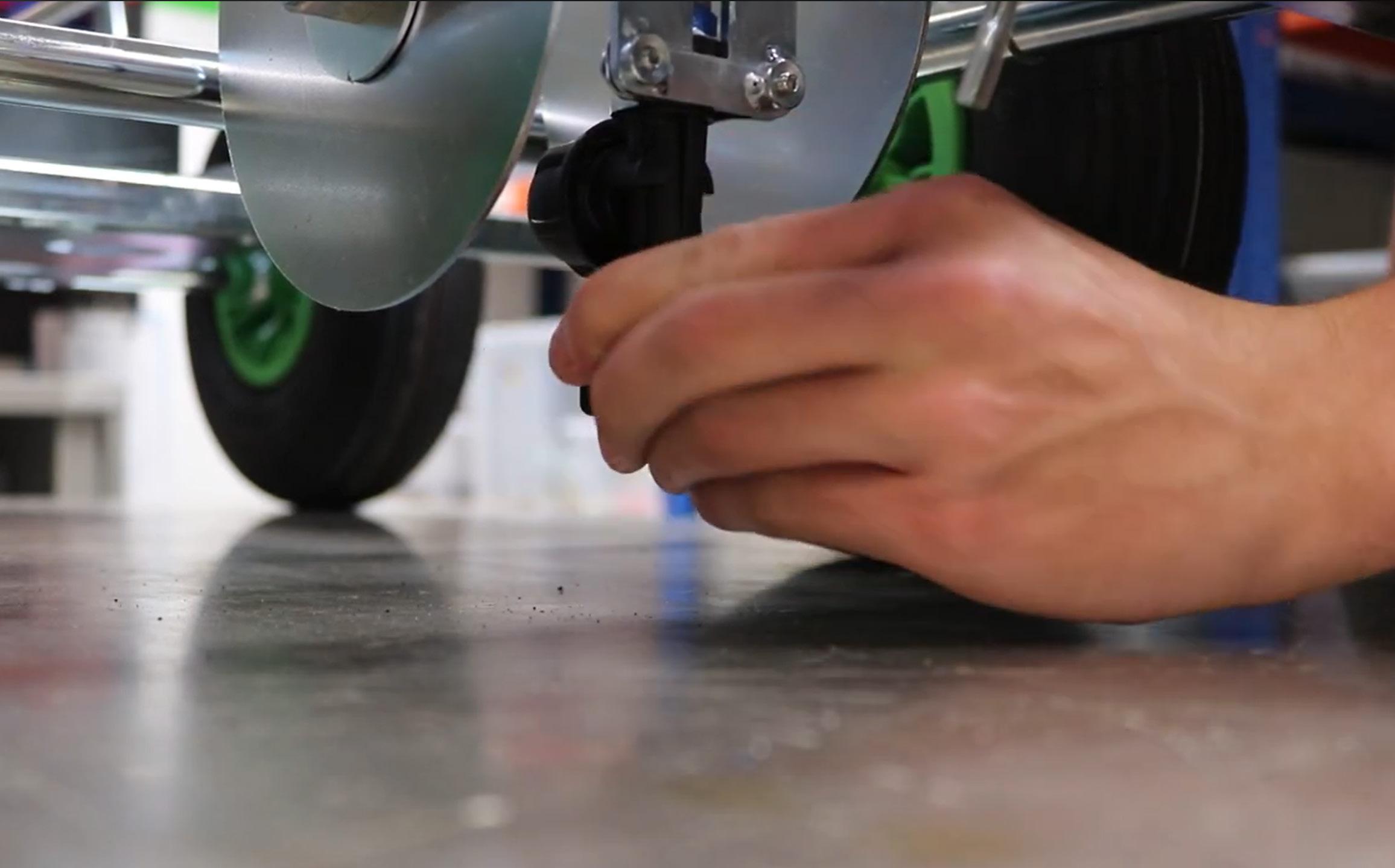

02 Turn the machine on 03 As the paint sprays through the nozzle, undo the small handwheel on the nozzle bracket
03 Next, place the rubber seal into the cap 04
LINE MARKING ‘BEST PRACTICES’
Finally, add the desired mesh filter and reconnect the bayonet cap to the spray head assembly.
04

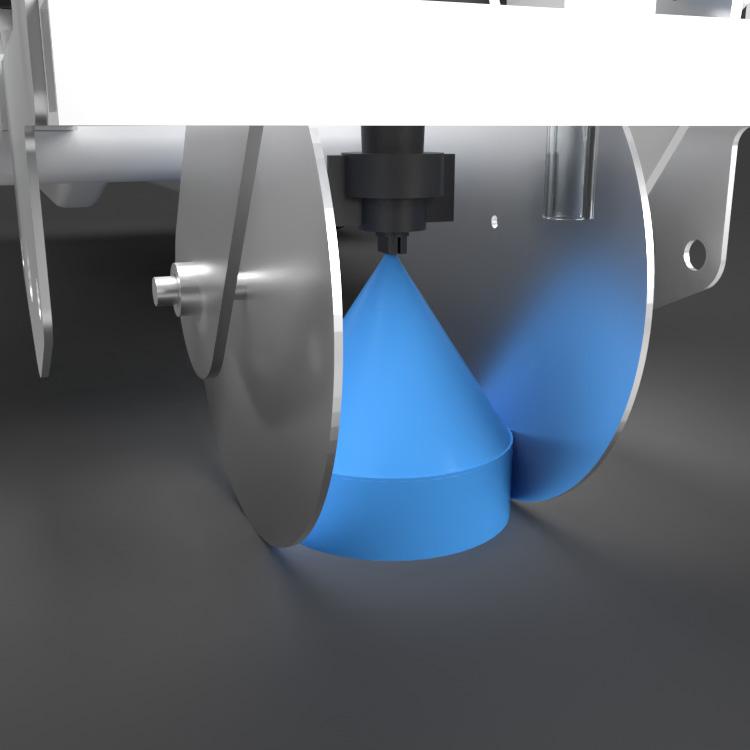

Raise or lower the bracket so that the paint hits the disc at the point where the top of the grass meets the disc

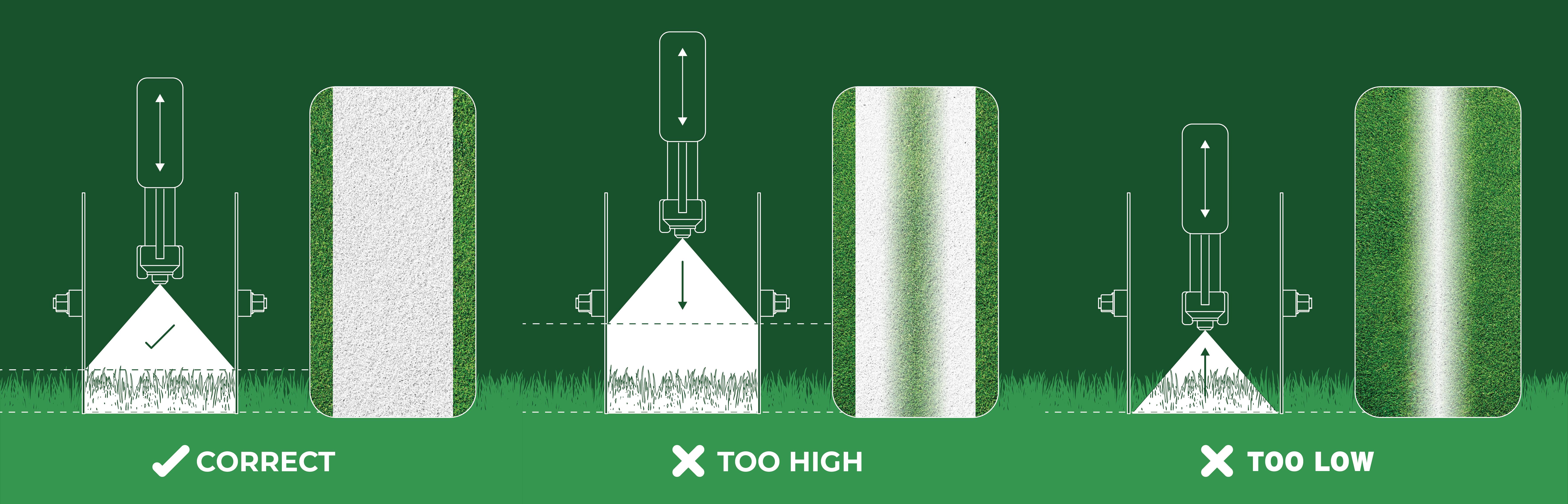

HOW TO IDENTIFY YOUR NOZZLE HEIGHT PLACEMENT:
02 Make sure the battery is fully charged mixing concentrate paints, ensure measurements are correct and accurate. 03 When Add water first so the paint doesn’t stick to the sides while mixing your line width to the desired measurement. for adult 11v11, pitches lines must 04 Set be no wider than 12cm (4 inches) nozzles, filters, and tubing are clean and clear. See After Use: Clean & Store 05 Ensure diagram that tyres are fully pumped. If flat, remove the dust cap and pump up to 30 06 Check psi
UNSCREW BAYONET CAP
THE NOZZLE IS ADDED FIRST
THE FILTER IS ADDED LAST
01 OVER MARK: ECOLINE+
INITIAL MARK: ECOLINE+
OVER MARK: DIRECT EDGE
FREE RESOURCES
AFTER USE: CLEAN & STORE
HERE IS THE FULL PITCHMARK STAINLESS STEEL NOZZLE ASSEMBLY:
Flush machine through with water or EcoClean

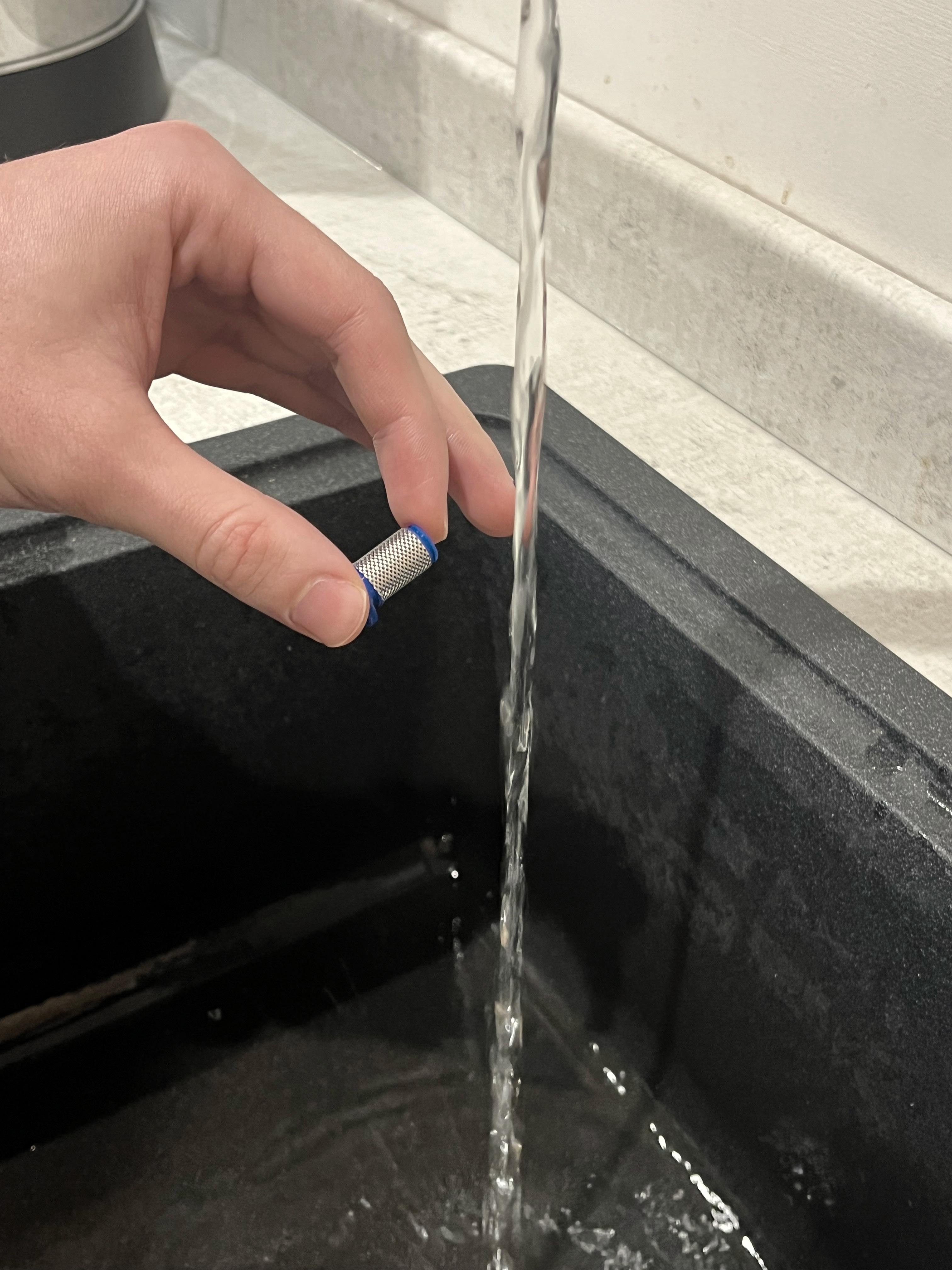

02 Flush and rinse the nozzle and all filters with clean water
INITIAL MARK: DIRECT EDGE
03
FIND YOUR DISTRIBUTOR

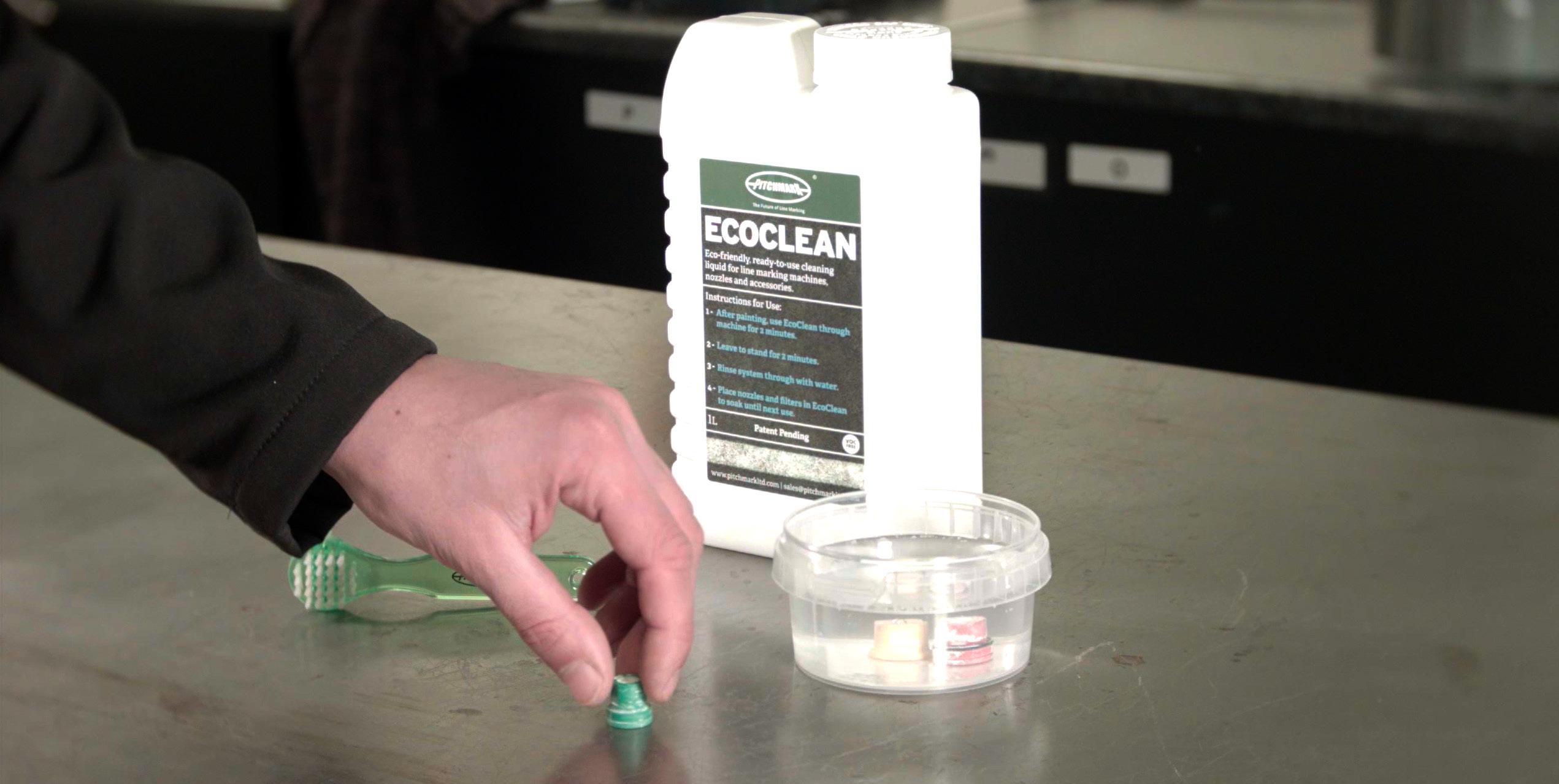

After rinsing, soak all nozzles and filters in a pot of EcoClean solution when they are not in use
04 Repeat this process after each time you mark out on your surface
2
GREEN 100 MESH FILTER
GREEN 100 MESH FILTER

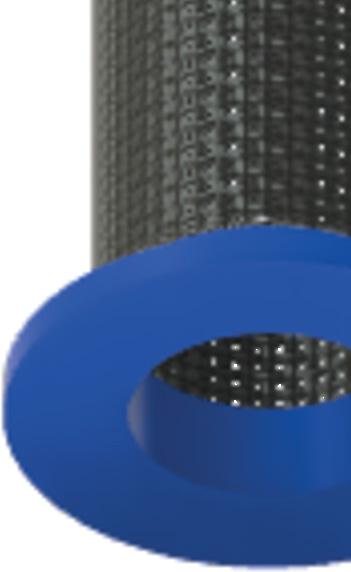

BLUE 50 MESH FILTER
BLUE 50 MESH FILTER

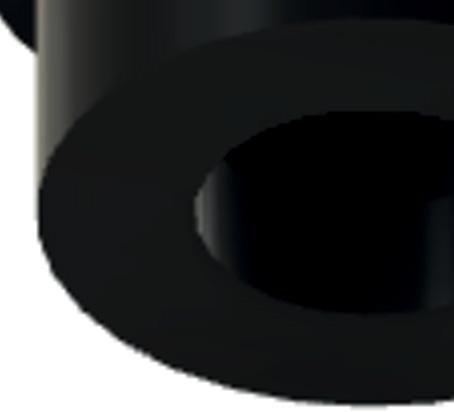

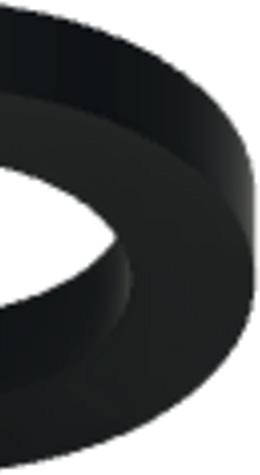

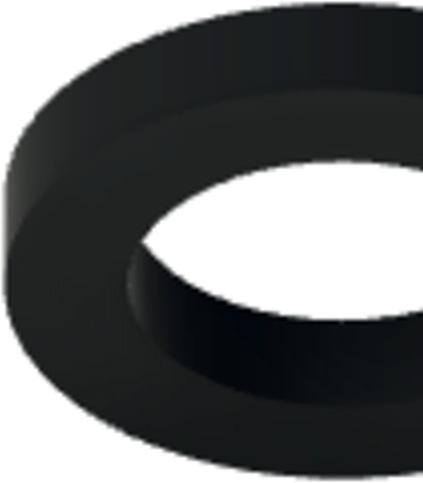

RUBBER SEAL
RUBBER SEAL
RUBBER SEAL
RUBBER SEAL

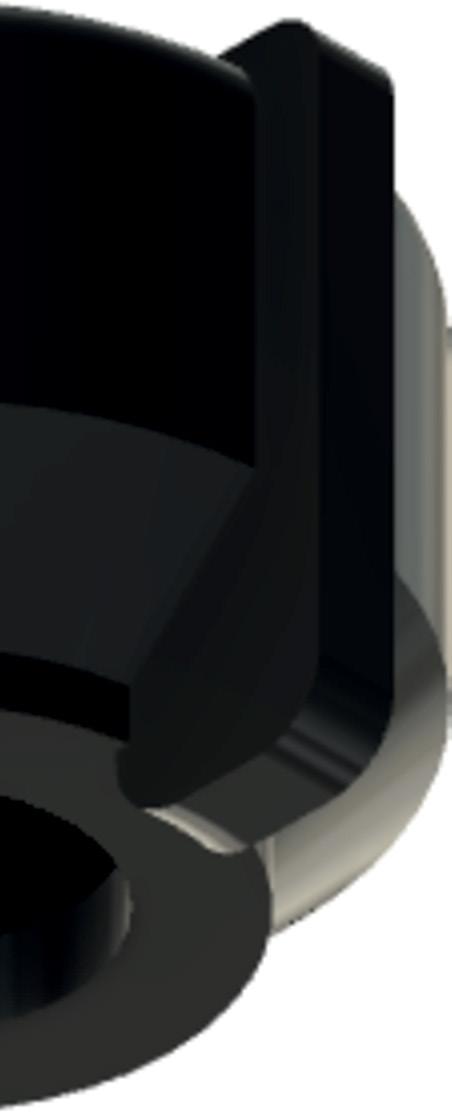

S/S NOZZLE NUMBER 2 MISTING NOZZLE BAYONET CAP
3
S/S NOZZLE NUMBER 3 MISTING NOZZLE BAYONET CAP
4
S/S NOZZLE NUMBER 4 MISTING NOZZLE BAYONET CAP
6
VIDEO TUTORIALS
S/S NOZZLE NUMBER 6 MISTING NOZZLE BAYONET CAP
Scan the QR code and use the map to find your local dealer & distributor, and get your hands on some Pitchmark products for yourself.
Access over 50+ line marking videos and tutorials through Pitchmark’s YouTube channel.
FLUSH
RINSE
SOAK
Unit 108 Longmead Road Emerald Park East Emersons Green Bristol, BS16 7FG United Kingdom
