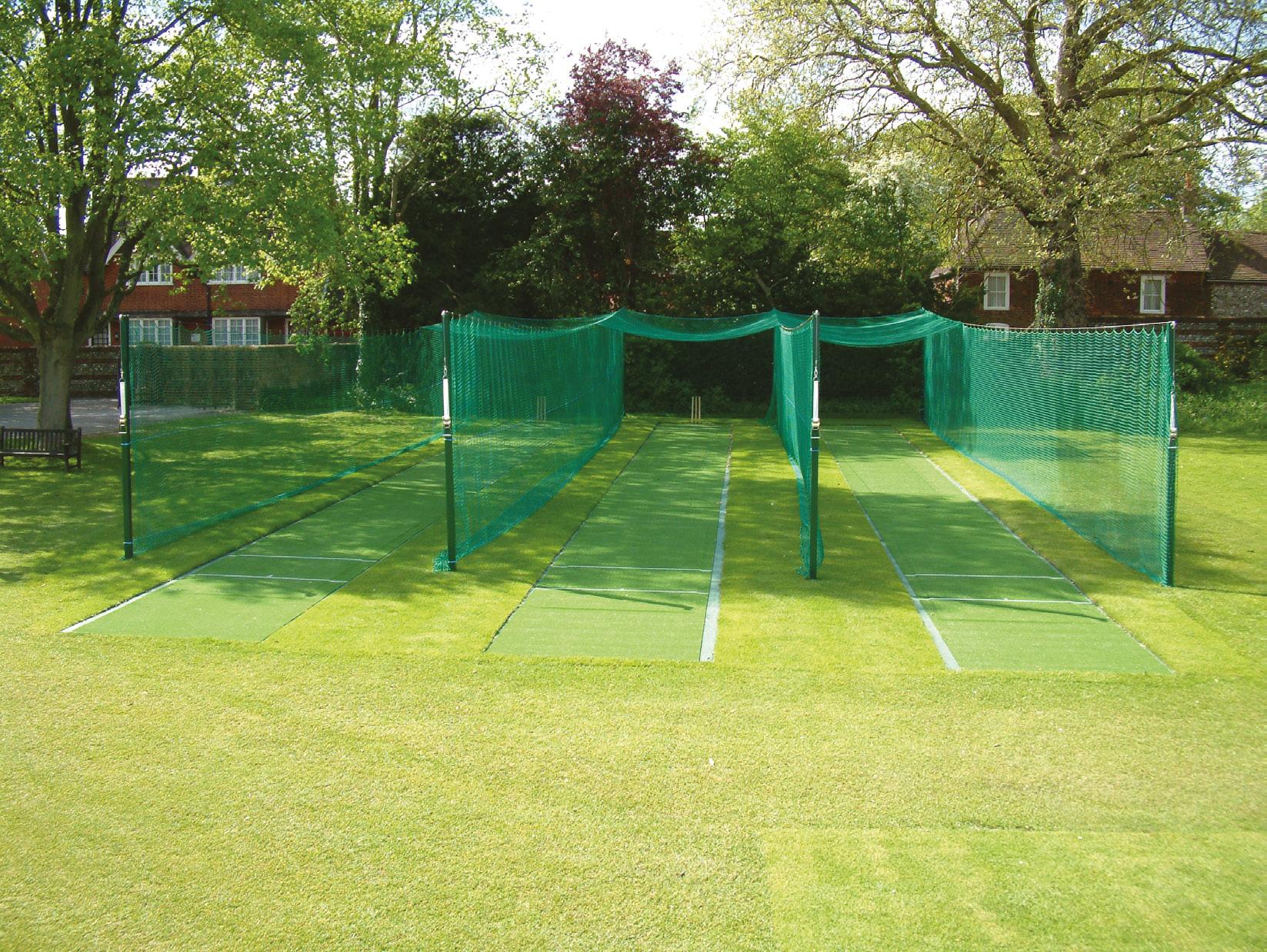

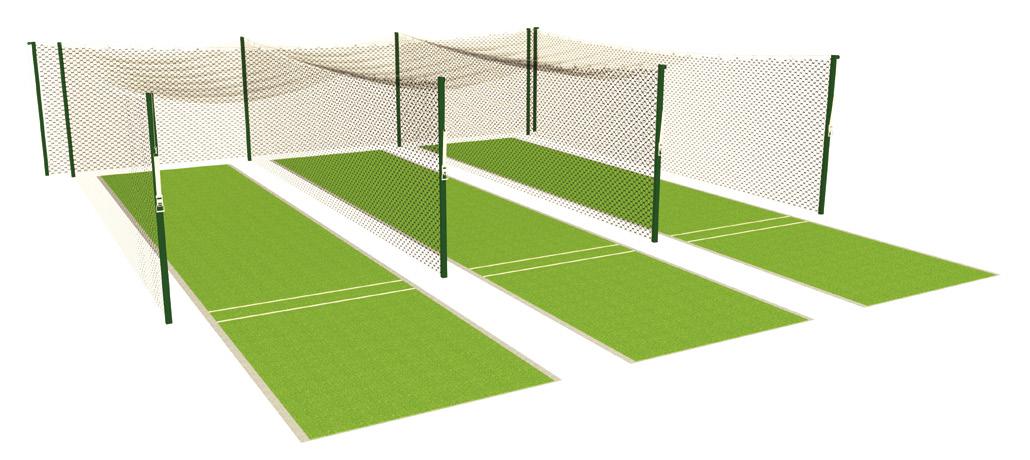

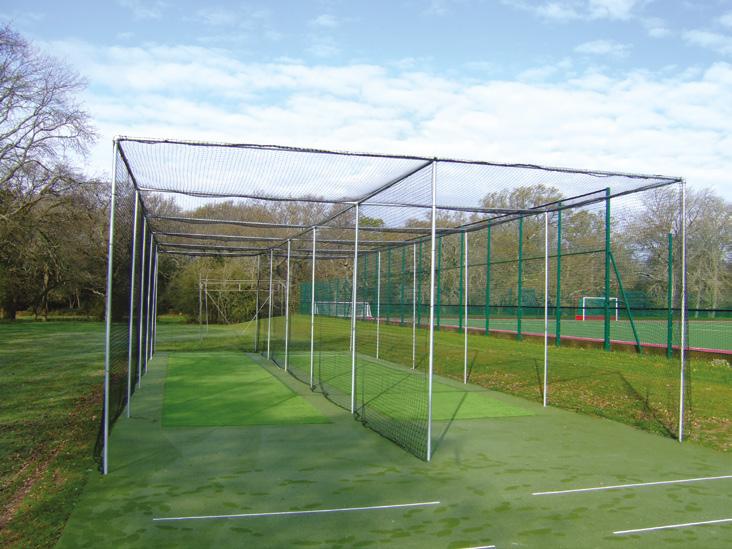

The Winch Cricket System

Ideal for groundsmen and venues that wish to fully cut, roll and maintain natural grass batting areas. Any configuration of bays can be achieved.

Specification:

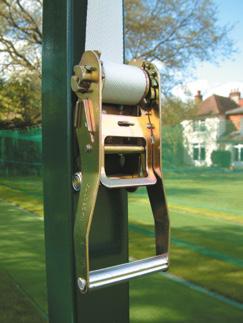

• Made from 76mm square galvanised steel uprights • Heavy duty ratchet winch • Polyester powder coated green.

Features:

1 Available in 2.7m and 3m high systems

Netting can be drawn back so access can be gained for mowing without obstruction from uprights

Can span a distance between posts of up to a maximum of 30m

Roof netting can be fitted to a maximum length of 7m

Can be concreted directly in or used with optional socket.

2

3

4

5

3m High Winch System Winch Post Anchor Post CRK-200 CRK-201

2.7m High Winch System Winch Post Anchor Post CRK-203 CRK-204

Optional extras:

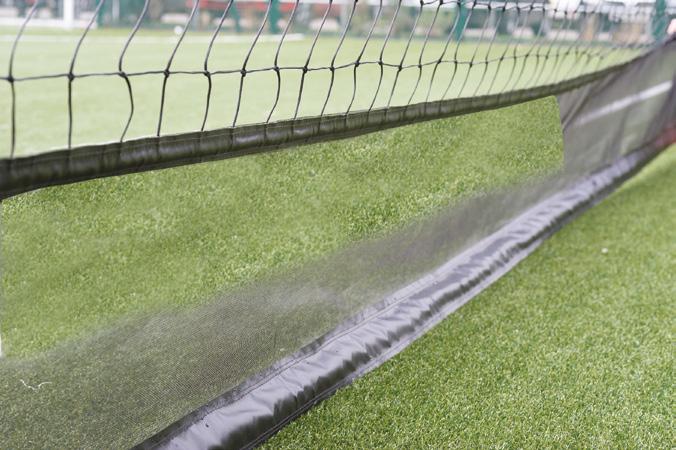

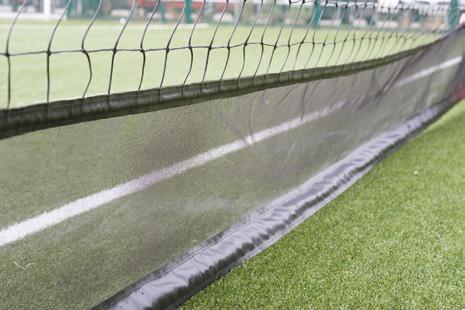

Net Protection Vermin Skirt

Designed to help prevent vermin damage to the bottom of netting. 500mm high skirt is stitched to netting and made from black mesh with a 18mm bottom rope.

For full details on cricket netting and accessories please visit harrodsport.com Black netting supplied as standard

50mm Black Bottom Band Fitted with 18mm Rope

Designed to be stitched to the bottom of netting to help prevent billowing in windy conditions. Brass eyelets at both ends.

©Copyright 2009

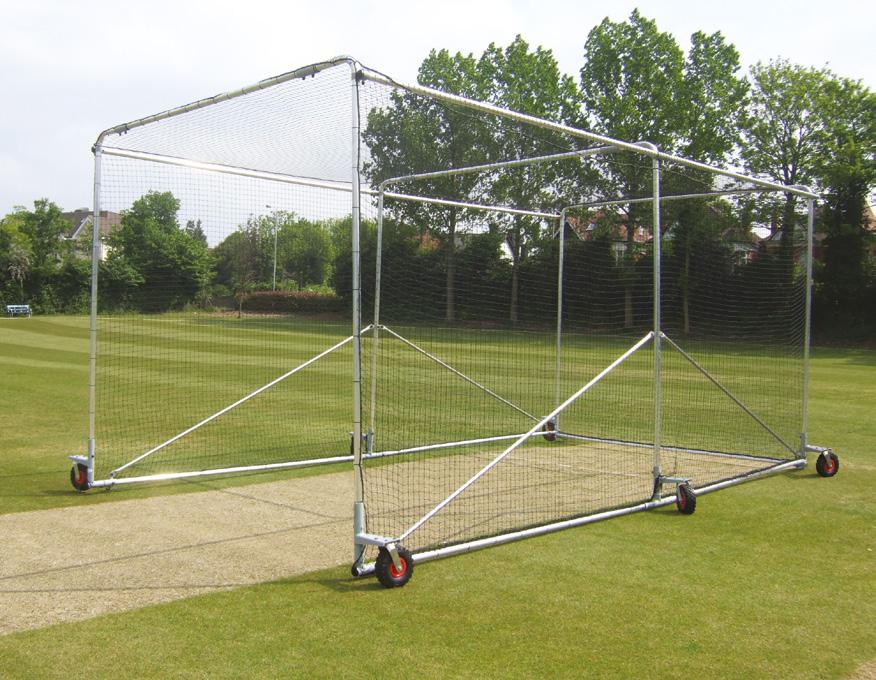

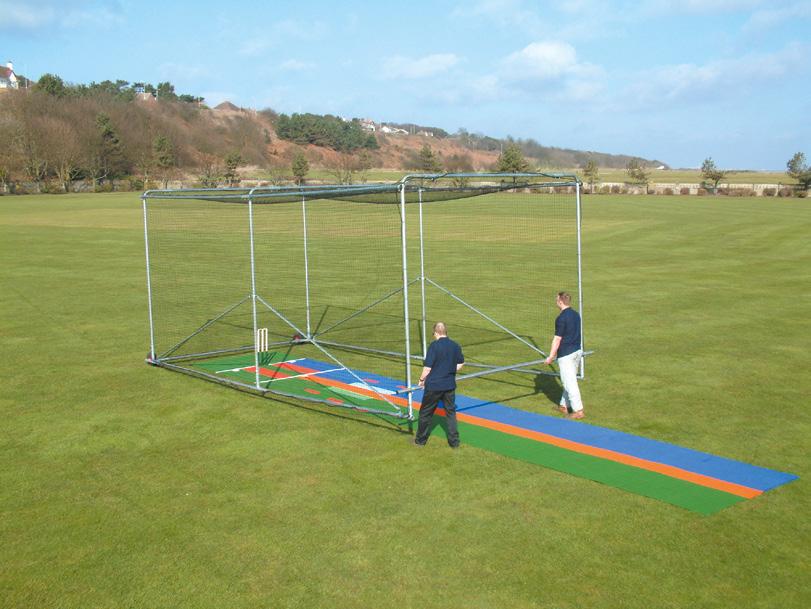

Premier Portable Cricket Cage

The freestanding cage can be wheeled by 2 people after attaching the front lifting handle. It is recommended that the lightweight aluminium option is securely anchored using the supplied pegs at all times.

Specification:

• 3.2m H x 3.6m W x 7.2m D (internal dimensions) • 50mm diameter uprights and toprods in aluminium or steel • Heavy duty 60mm steel fixing joints • Supplied complete with 2mm thick black polypropylene netting • Complete with 4 ‘U’

Peg anchors.

For full details on cricket netting and accessories please visit harrodsport.com

Features:

1 Surround and roof netting joined for ease of installation and safety

2

Diagonal supports for added stability

3

Cellular wheels.

6 Wheel cage: Steel Aluminium CRK-151 CRK-156

2 Wheel cage: Steel Aluminium CRK-150 CRK-155

CRK-150 2 wheel option 1

3 2

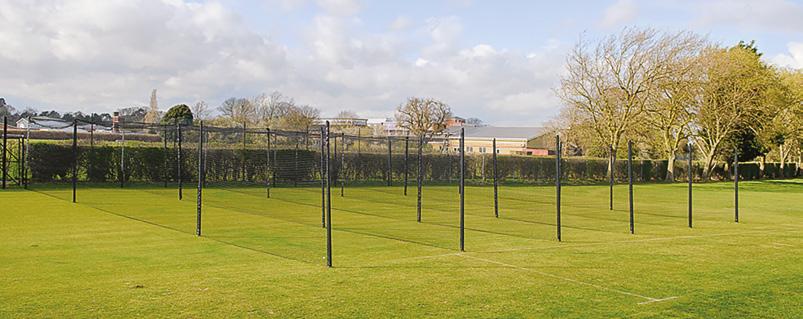

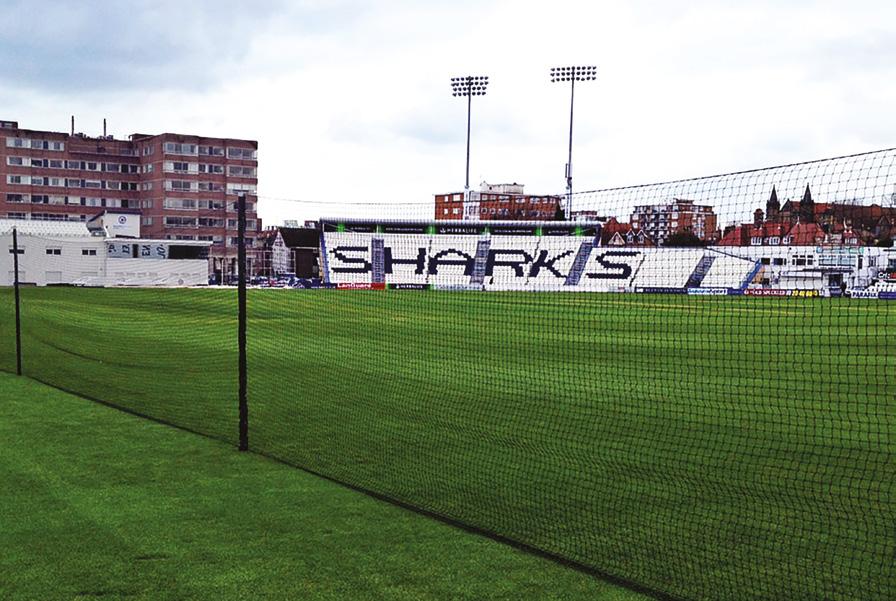

County Cricket Practice Net

Designed as a professional training system which can be easily dismantled before cricket matches. Ideal where permanent sockets are not an option.

Specification:

• Uprights are manufactured from 50mm diameter by 3.2mm thick aluminium and polyester powder coated black • Each pole measures 2.7m in height out of the ground • No headline rope is required with this system • 2mm x 50mm twisted black polypropylene net.

Features:

1 Uprights installed at 10m intervals.

2

3

Netting complete with interval sleeves so they can be easily installed onto uprights.

Turf screw ground sockets included. With plastic socket cap.

(Insertion tool must be ordered separately see BAR-031).

Sizes available: CRK-275 – 10m CRK-276 – 20m CRK-277 – 30m CRK-278 – 40m CRK-279 – 50m CRK-280 – 60m CRK-281 – 70m CRK-282 – 80m CRK-283 – 90m CRK-284 – 100m Turf Screw Insertion Tool BAR-031

County Cricket Net System

Designed as a professional system which can be easily dismantled once the cricket season is over. Ideal where permanent sockets are not an option.

3

For full details please visit harrodsport.com

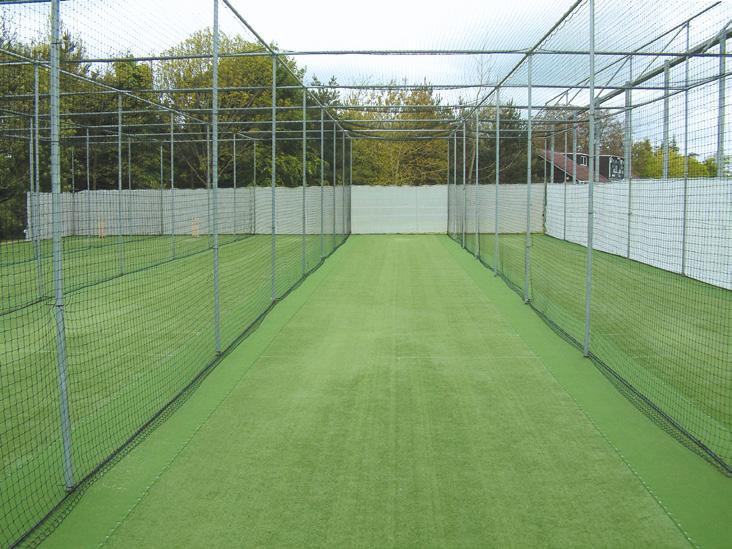

Heavy Duty Cage Parks Cage

Our sturdy and robust heavy duty and parks cages are made from galvanised steel and are designed for use in areas prone to vandalism.

Specification:

• 42.4mm diameter x 3mm galvanised steel uprights and toprods • 3.66m long toprods complete with 11 net hanging hooks • 450mm deep steel sockets fitted with stabilising base plates • A heavy duty tube clamp is supplied with each upright.

3.6m Uprights CRK-187

Heavy Duty Cage - Toprods CRK-190

Heavy Duty Cage - Sockets CRK-179

Cricket Cage Socket Lids CRK-122

The ideal choice for use in most parks and schools.

Specification:

• 38mm x 1.6mm galvanised steel with reduced ends • 3.66mm long toprods complete with 11 net hooks • 450mm deep steel sockets fitted with stabilising base plates • A heavy duty tube clamp is supplied with each upright.

3.6m Uprights CRK-087

3.66m Toprods CRK-090

Sockets CRK-079

Socket Lids CRK-122

Cricket Bays Accessories

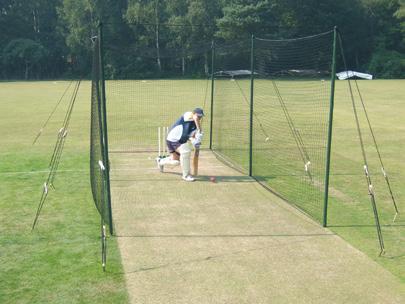

Standard Wooden Cricket Bay Systems

Standard wooden cricket bay with 4/6 poles to support surround netting.

Specification:

• Complete with 2.7m high poles, guylines and surround netting only • 2.7m high 5.5m long x 4.6m wide (4 pole system).

6 Pole System CRK-097

Wooden Cricket Poles

Wooden Cricket Poles designed to create temporary batting practice bays.

Specification:

• 50mm round poles • Ferruled tops • Spiked ends • Powder coated green • Includes guy ropes and pegs.

3m CRK-029

3.6m CRK-031

Cricket Throw Spare Guylines

Down System 7.3m guyline used to support and secure 2.4m and 2.7m wooden cricket poles.

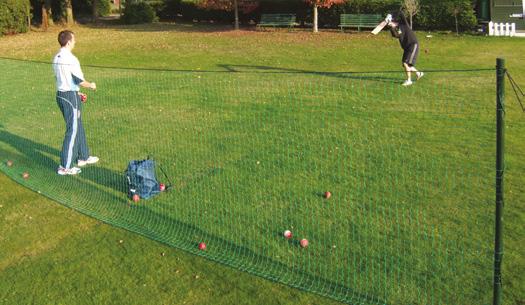

11m Cricket Throw Down System to allow batsmen to knock up without having to retrieve lots of stray balls

Specification:

• Perfect for pre match warm up and practice • Wooden 50mm diameter cricket poles with guylines and pegs • 2mm netting x 50mm sq. mesh.

2 Pole System - 11m CRK-360

Specification:

• One double polyethylene guyline is required per pole. • Complete with iron pegs.

7.3m CRK-050

10m CRK-051

3 Pole System - 21m CRK-361

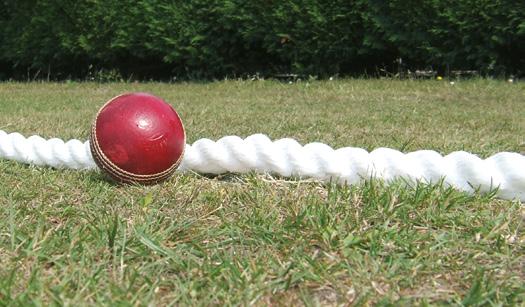

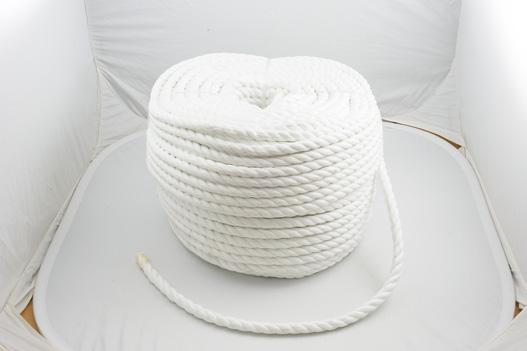

Boundary Rope

White polypropylene rope, supplied in 220m long coils with sealed ends.

24mm Thick CRK-210

Cricket Stumps

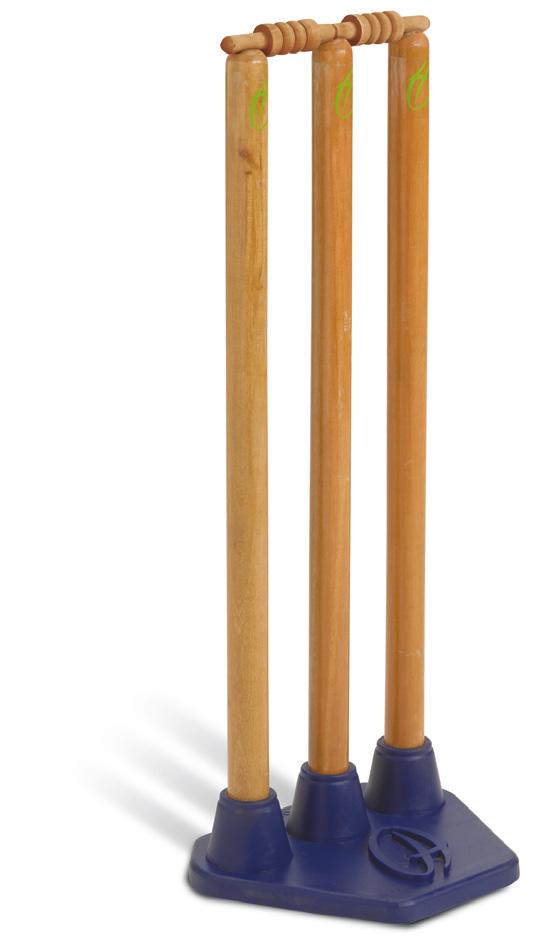

Pro Flex Cricket Stumps

Specification:

• Strong moulded rubber base with integral steel counter weight • Regulation 711mm x 37mm dia. stumps with bails • Complete with carry bag.

CRK-265

CP1 Cricket Stumps CP2 Cricket Stumps CP3 Cricket Stumps

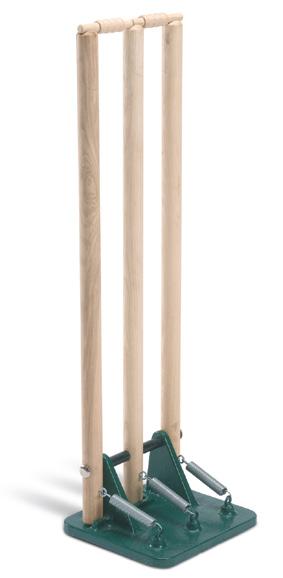

Specification:

• Strong cast iron base powder coated green. • 711mm x 30mm dia. ash stumps and bails. • Zinc plated retaining springs.

CRK-053

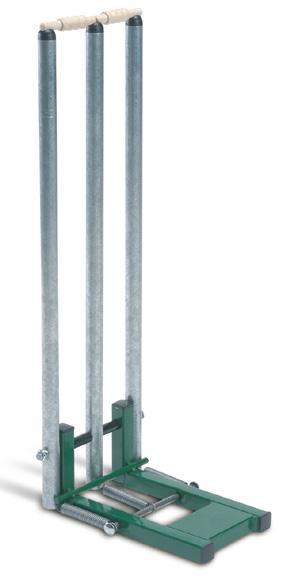

Specification:

• Steel throughout to overcome broken stumps. • 305mm x 250mm fabricated base, complete with 690mm x 25mm dia. galvanised stumps with plastic caps.

Without bails CRK-041

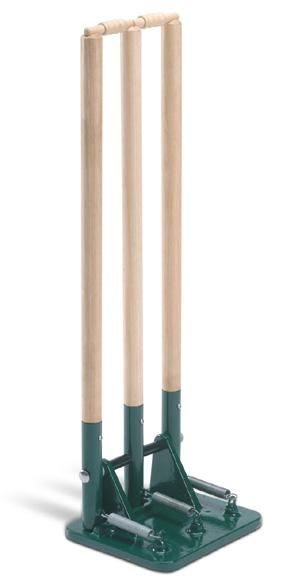

Specification:

• Polyester powder coated steel lower section gives added protection to stumps Strong cast iron base powder coated green • 711mm x 30mm dia. ash stumps and bails • Zinc plated retaining springs.

CRK-255

With bails CRK-109

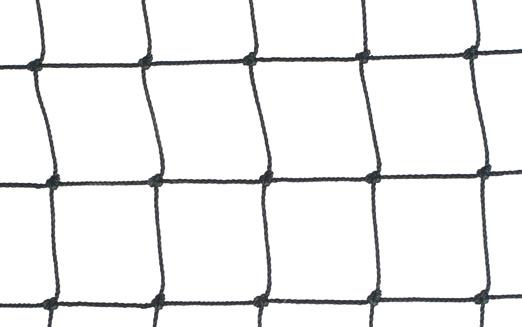

Cricket Netting

3mm

3mm Twisted

3m high twisted 3mm cricket netting designed to surround and separate each bay.

Specification:

• UV Resistant • 50mm square mesh. • 3mm thick heavy duty black twisted polypropylene netting with selvedged edges.

3m High Surround CRK-023

3m High Surround c/w 50mm band CRK-323

3m High Surround c/w Vermin Skirt CRK-328

3.6m High Surround CRK-025

3.6m High Surround c/w 50mm band CRK-325

3.6m High Surround c/w Vermin Skirt CRK-330

Twisted Cricket Roof Netting CRK-112

Heavy duty 3mm black twisted net with selvedged edges.

No.16 2mm Netting

Designed to surround and separate each bay.

Specification:

• UV Resistant • 50mm square mesh. • 2mm thick black polypropylene netting with selvedged edges.

2.7m High Surround CRK-011

2.7m High Surround c/w 50mm band CRK-311

2.7m High Surround c/w Vermin Skirt CRK-316

3m High Surround CRK-012

3m High Surround c/w 50mm band CRK-312

3m High Surround c/w Vermin Skirt CRK-317

3.3m High Surround CRK-013

2.5mm

3.6m High Surround CRK-014

3.6m High Surround c/w 50mm band CRK-314

3.6m High Surround c/w Vermin Skirt CRK-318

No16 3mm Thick Roof Netting CRK-112

Roof netting is only available for sizes over 3.6m x 3.6m. Non-standard surround heights under 2.7m or netting orders under 30 sqm will be subject to an additional charge.

Cricket Sundries

180mm Steel Pegs - Pack 10

FBL-016

250mm Heavy Duty Pegs - Pack 10

FBL-116

6mm x 200mm U Pegs - Pack 10

PEG-025

300mm Iron Peg - Each

CRK-041

6mm Polyethylene Rope CRK-039

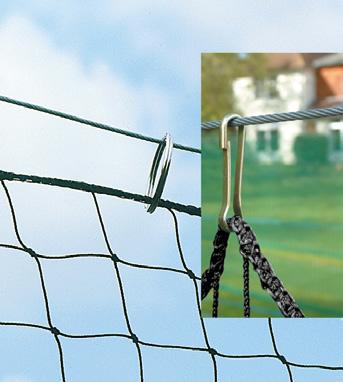

Hanging Hooks - Pack 100

TEN-059
