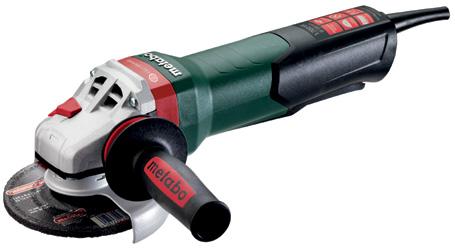

WEPBA
WEPBA
THE METABO SAFETY & PERFORMANCE ADVANTAGE

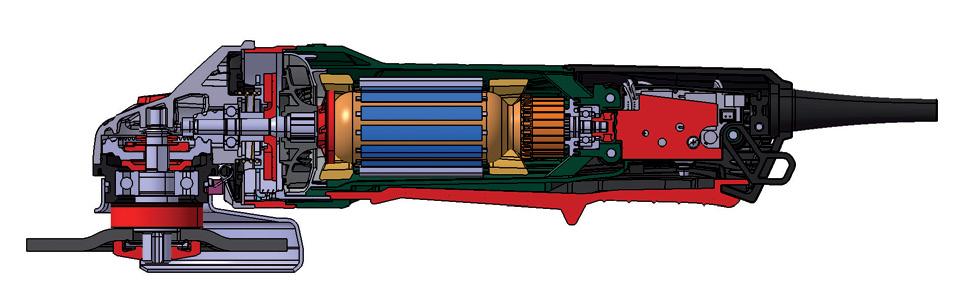

Up to 20% higher overload capacity & increased robustness:
Turbo fans accelerate the cooling air to up to 400 km/h.
Flow-optimised dust protection cage accelerates dust particles from the machine.
Rear suction vents prevent unintentional covering for longer service life.
New epoxy resin powder around the field coil.
30% more abrasion protection resin at the rotor winding.

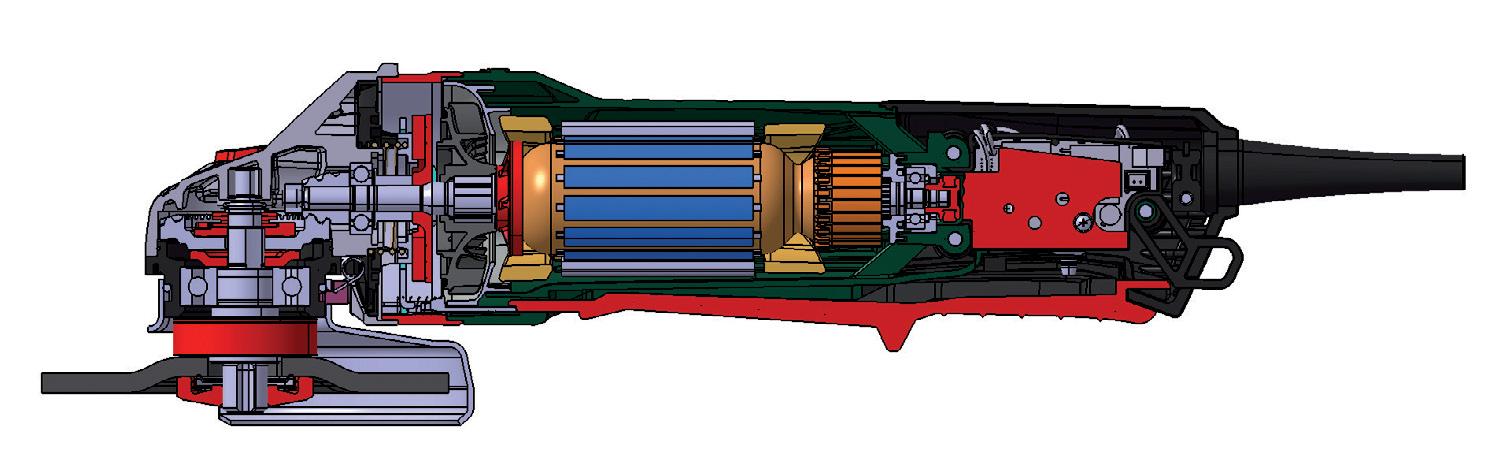

Constant high speeds under load for quickest material removal:

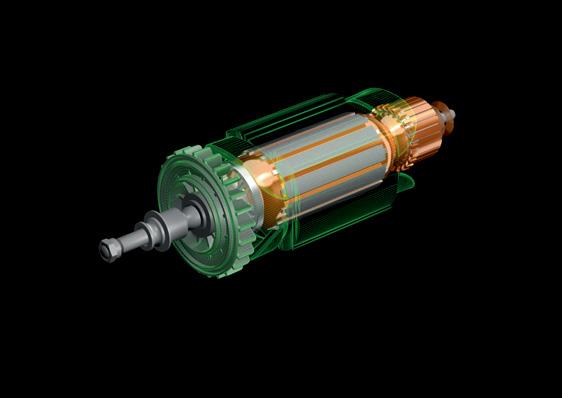

Increased rotor diameter for optimum leverage and up to 50% more torque.
New ventilation technology for significantly reduced average motor temperatures and up to 20% more max. output power.
Metabo Brake Technology
Fastest brake system for highest user protection (2 sec.)
The only braking system to be 100% effective even in the event of power failure
Metabo Deadman Paddle Switch
Metabo Autobalancer
User protection: 50% less hand-arm vibration (Vibrations may cause health problems e.g. HAVS = Hand-Arm-Vibration-Syndrom)
Longer machine lifetime: benefit from reduced vibrations
Up to 100% longer grinding disc lifetime
Up to 50% longer cutting disc lifetime
Metabo Vibratech
Effectively protect users from cumulative, work related diseases resulting from vibration, such as hand-arm vibration syndrome (HAVS)
More comfortable operation with less fatigue, resulting in safer operation
Soft Start
Stops start up shock.
Soft start or "current limitation" limits the current passed to the machine during startup, preventing dangerous powerbursts that can lead to loss of control and RSI.
Soft Start also doubles as an overload protector, if the user puts more load on the tool then they are supposed to the soft start function will kick in limiting the current and shutting down the tool until the pressure is released.
Restart Protection
Protection for unexpected start-up.
If the power supply to the machine is lost whilst in operation, an electronic safety switch prevents the motor from automatically restarting again when power is restored. So if you forget to turn your
off after the disruption you won't have a "runaway" tool when the power returns.
Dead Man Paddle Switch Range
NEW 125mm Rat Tail Angle Grinder
18V Dead Man Paddle Switch Range
•
•
Specialist Metalworking: 125mm Flat Head Angle Grinders
•
•
NEW Specialist Metalworking: Bevelling Tools

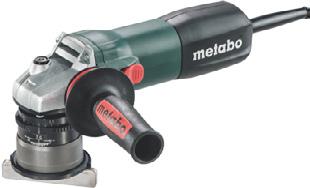

KFM 16-15 F 1600 Watt
• Input: 1,600w
• Speed: 12,000/min
• Edge types: Chamfer
NEW
•
•
•
•
•
• Max. chamfer height at 45º: 15mm
• Max. chamfer width at 45º: 21mm
• Patented One-touch controller
• Precise setting of the chamfer angle directly via the guide plates
• Universal cutter head with three carbide indexable inserts for all chamfer angles
NEW
• Max. chamfer
NEW 18 Volt Specialised Metalworking: Bevelling Tool NEW NEW

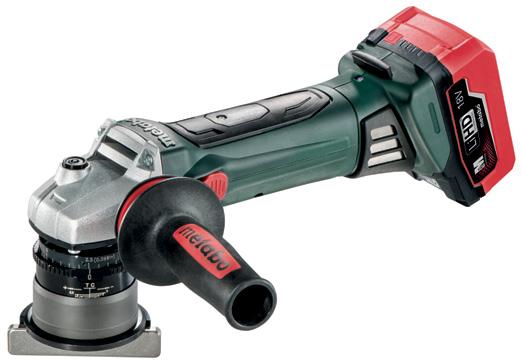

Skin Only: KFM 18 LTX 3 RF
• 18V LIHD Compatible
• Speed: 7,000 /min
• Edge types: Chamfer & radius
• Max. chamfer height at 45º: 4mm
• Max. radius: R3
10mm
• Max. chamfer width at 45º: 14mm
• Patented One-touch controller
• Precise setting of the chamfer angle directly via the guide plates
• Universal cutter head with three carbide indexable inserts for all chamfer angles
• Suitable for steel, stainless steel, aluminium and aluminium alloys
• No blue discolouration or structural change
• Dust free working for high user protection
• Standard carbide indexable Inserts
• Ball-bearing stationary seal ring for easy working in curves or corners
• Guide stop for easy processing of straight work
Patented One-Touch-Controller
• Integrated stop points against unintentional adjustment of the cutting depth when working
• Permits single-handed adjustment of the cutting depth in 0.1mm increments
Stainless Steel

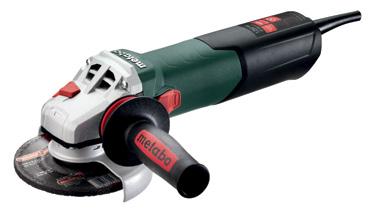

WEV 15-125 Inox Q 1500 Watt Variable Speed
• Disc Size: ø125mm
• Input: 1,500w
• Speed: 2,000 - 7,600 rpm
• Torque: 5 Nm
• 4m Cable Includes:
• Guard
• Inner support flange
• M-Quick flange nut
• Metabo VibraTech (MVT) side handle
Includes:
• Side handle
• Metal carry case
• Guard
• 1 Polishing file
• Inner support flange
• Nut with two holes
• Flat-pin spanner
• Hexagonal wrench
• 2 Fleece compact disc 150x6x25.4 mm; 1x very fine & 1x medium
• Abrasive Wheel: ø100-200 x 50-100 mm
• Input: 950w
Includes:
• 2 Fleece compact discs (150x3x 25.4 mm; medium) SE 12-115 Set
• Speed: 900 - 2,800 rpm
• Side handle
• Metal carry case
• 3 Spacer rings for narrow rollers
• 1 Expansion roller (Ø90x100mm)
• 3 Sanding belts (Ø90x100mm; P80)
• 1 Fleece grinding wheel (Ø105x100mm; P280)
• 1 Flap wheel (Ø105x100mm; P80)
• 1 Flap / fleece grinding wheel (Ø105x50mm; P180)
BFE 9-20 Set
• Belt (WxL): 6-19 x 457 mm
• Input: 950w
• Speed: 10.6 - 20 m/s
• Grinding Arm: 90 mm Includes:
• Side handle
• Metal carry case
• 2 x Sanding belt arms
• 40 Sanding belts zirconia 6x457 mm; P60 / P120 & 19x457 mm; P60/P120 (10 each)
• 10 Sanding belts zirconia (19x457 mm; P120)
• 4 Fleece bands 6x457 mm & 19x457 mm; medium. (2each)
• Input: 18 Volt
• Speed: 0-3,000 /min
• Abrasive wheel: ø105
RBE 9-60 Set
• Belt (WxL): 30 x 533 mm
• Input: 900w
• Belt Speed: 18-14 m/s
• Max. Pipe diameter: 60mm
• Wrap angle: 190º Includes:
• Metal carry case
• 10 Sanding belts zirconia (30x533 mm; P80)
• 2 Pyramid sanding belts (30x533 mm; P280/A65)
• 2 Pyramid sanding belts (30x533 mm; P400/A45)
• 2 Pyramid sanding belts (30x533 mm; P600/A30)
• 2 Pyramid sanding belts (30x533 mm; P1200/A16)
• 3 Fleece bands (30x533 mm; medium)
• Hexagonal wrench
Kit: RBE 15-180 Set
• Belt (WxL): 40
• Belt Speed: 8.4 -28 m/s
• Max. Pipe diameter: 180mm
• Wrap angle: 270º Includes:
• Side handle
• Metal carry case
• 10 Sanding belts zirconia (40x760 mm; P80)
• 2 Pyramid sanding belts (40x760 mm; P280/A65)
• 2 Pyramid sanding belts (40x760 mm; P400/A45) • 2 Pyramid sanding belts (40x760 mm; P600/A30)
• 2 Pyramid sanding belts (40x760
