PSI V2 Parallel Seismic System for Foundation Evaluation
The PSI V2 system by Piletest is a modern tool designed for parallel seismic measurement of deep foundations It is used in civil engineering projects to determine pile depth in existing structures where direct access is not possible.
Many buildings, bridges, and infrastructure projects have foundations that are hidden underground. Over time, engineers may need to verify the condition and length of these piles for safety and renovation work. The PSI V2 system provides a safe and accurate solution for this need.
This system is specially developed for testing a pile under a structure, without damaging or disturbing the existing construction. It is a non-destructive testing method that ensures reliable results in difficult site conditions.
The PSI V2 is widely used for PSI pile length measurement, especially when construction records are missing or when verification is required for safety assessment.
With advanced seismic technology, the system helps engineers understand deep foundation behavior quickly and accurately.
How the PSI V2 System Works
The PSI V2 system operates using the principle of seismic wave transmission When an impact is applied to a structure, stress waves travel through the pile and surrounding soil layers. These waves are captured and analyzed to determine pile depth.
This process is known as parallel seismic measurement, where wave behavior is studied at different depths to identify the pile tip.

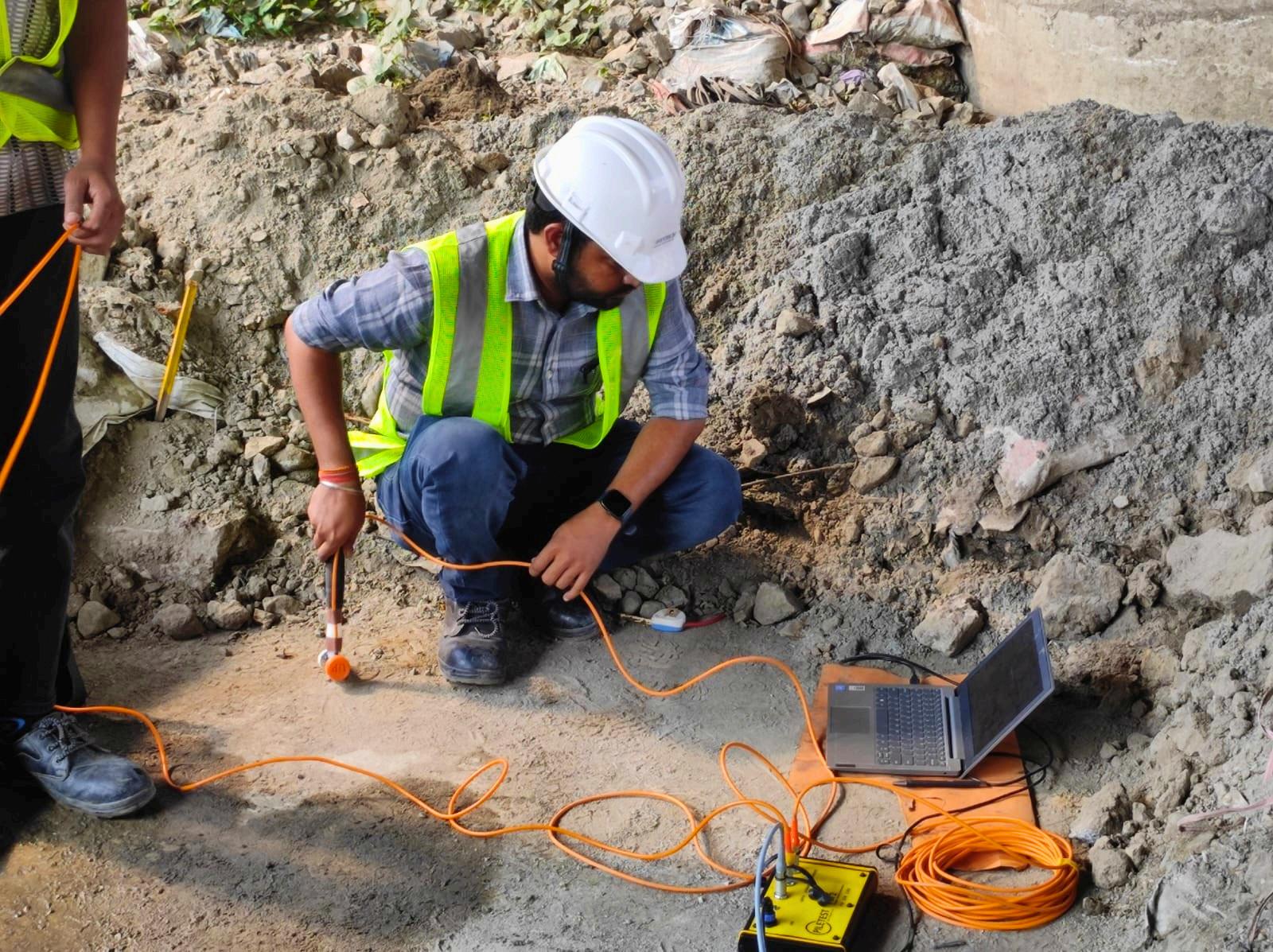

Testing Procedure:
● A borehole is drilled near the suspected pile location
● A casing or water-filled access tube is installed in the borehole
● A hydrophone sensor is inserted into the tube
● A controlled hammer impact is applied on the structure surface
● Seismic waves travel through soil and pile
● The sensor records signals at different depths
● Data is analyzed to detect changes in wave patterns
When the hydrophone moves below the pile tip level, the wave signal changes significantly. This change helps engineers determine the exact depth of the pile.
The PSI V2 system is highly effective for shaft length measurement equipment applications, especially in situations where traditional testing methods cannot be used
It ensures accurate readings even in complex soil conditions and under existing structures
Advanced Design of PSI V2 by Piletest

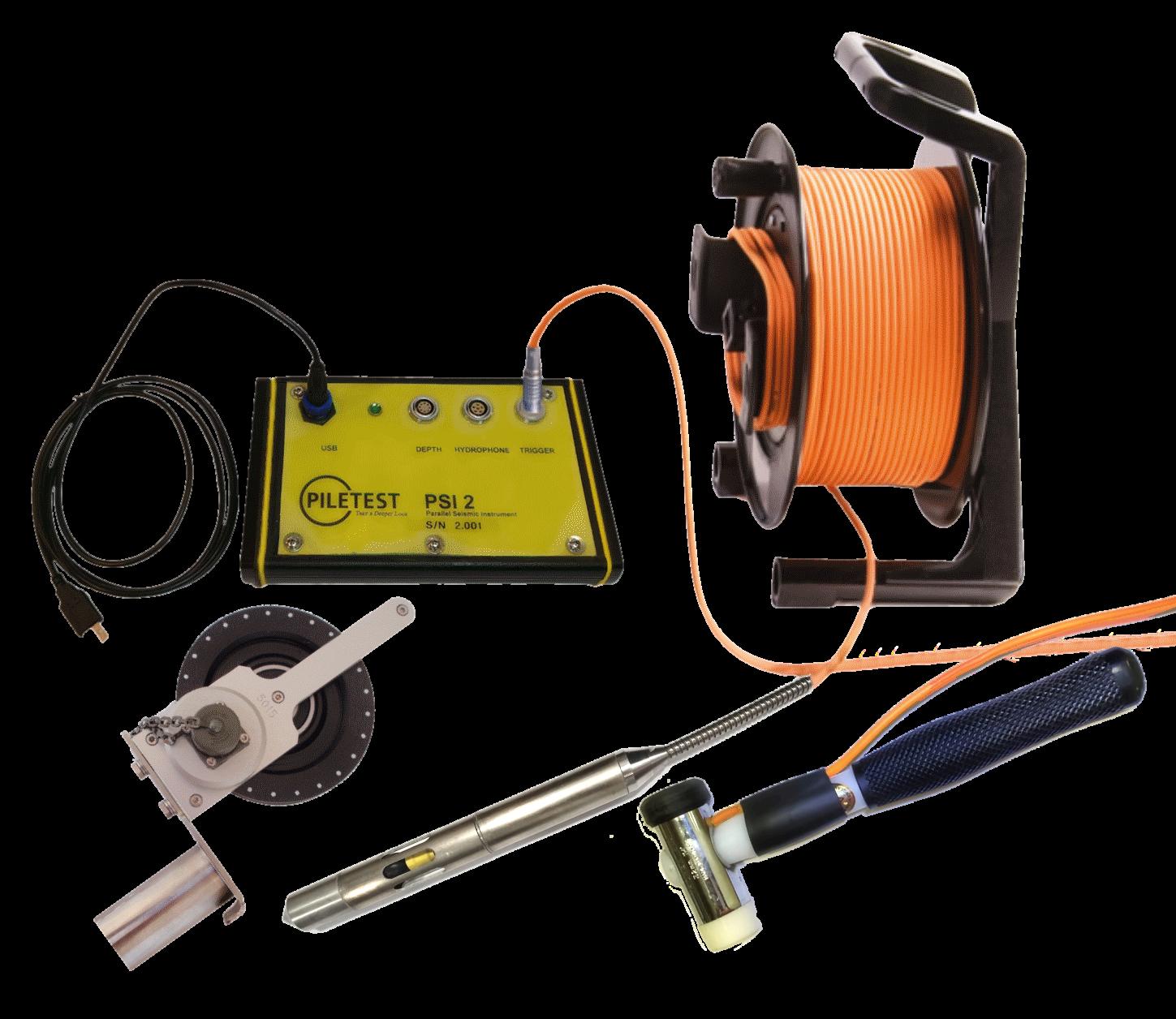

The PSI V2 system is designed to provide high accuracy, reliability, and ease of use in field conditions. It combines modern electronics with advanced seismic sensing technology.
Key Features:
● High-quality parallel seismic measurement technology
● Sensitive hydrophone sensor for accurate signal detection
● Portable and easy-to-use field equipment
● Fast setup and simple operation process
● Real-time data recording and visualization
● Compatible with analysis software for reporting
● Durable design suitable for harsh environments
The system is engineered for professional geotechnical engineers who require precise and dependable foundation testing tools.
Performance Benefits:
The PSI V2 system provides consistent and repeatable results, making it a trusted choice for deep foundation evaluation.
It offers several important performance advantages:
● Non-destructive testing method
● Accurate PSI pile length measurement
● Works on inaccessible foundations
● Reduces excavation requirements
● Saves time in field investigations
● Improves decision-making for structural safety
Because of these advantages, PSI V2 is widely used in infrastructure projects where reliability and safety are critical.
Applications of PSI V2 System
The PSI V2 system is used in a wide range of civil engineering and geotechnical applications It plays an important role in evaluating existing foundations and ensuring structural safety
Main Applications:
● Bridge foundation inspection and assessment
● Building structural evaluation
● Highway and infrastructure safety testing
● Retrofitting and renovation projects
● Industrial foundation analysis
● Testing a pile under a structure in inaccessible conditions
It is especially useful in projects where engineers need to confirm foundation depth without disturbing existing structures.
Why PSI V2 is Important
Modern construction often involves complex foundation systems that are hidden underground In such cases, traditional inspection methods are not always possible
The PSI V2 system provides a practical solution by using seismic wave analysis to determine pile length safely and accurately It reduces risk and improves confidence in engineering decisions
Conclusion
The PSI V2 system by Piletest is a reliable and advanced solution for deep foundation testing. It uses parallel seismic measurement technology to accurately determine pile depth under existing structures.
With its simple operation, advanced sensors, and non-destructive approach, it is an essential tool for PSI pile length measurement in modern civil engineering projects.
The system is also a highly effective shaft length measurement equipment solution for complex and hidden foundation conditions.
Overall, PSI V2 helps engineers ensure safety, accuracy, and efficiency in foundation investigation, making it a valuable part of modern infrastructure testing technology.
