Nick Peterson 2nd Year Portfolio University of Kansas Architecture

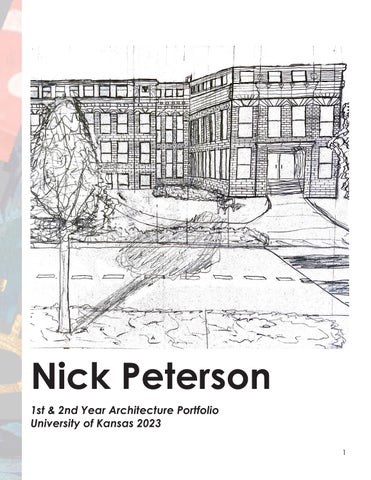

Nick Peterson 1st & 2nd Year Architecture Portfolio University of Kansas 2023 1

Table of Content

2

Art Studio

6-7

Figure Ground Mapping

10

Art Gallery/Wine Bar

12-17

KC Film Row Museum

24-33

ts Resume and Skills

4-5

Bike Stop

8-9

Case Study Diagrams

11

Prairie Garden Folly

18-23

Personal Works

34-35 3

Resume and Skills Experience -Greenhouse: Free State Growers, Linwood, KS - Yard:Lansing Lumber, Lansing, KS - Apprentice Framer: Kramer Custom Homes, Leanvenworth, KS - 3 Years of Choir at Shawnee Mission East High School - 4 Years of Soccer at Shawnee Mission East High School -1 Year of DECA at Shawnee Mission East High School -Member of The Kansas City Wood Workers Guild -Drummer for 2 music groups

Skills -Adobe Illustrator -Adobe Photoshop -Adobe Premiere Pro -Adobe Indesign -Sketchup -3D Studio Max

Interests -Sports and Entertainment Design -Timber Design -Landscape Design -Green Design -Acoustics -Woodworking

(913)-231-0422 pickneterson164@gmail.com 4

5

Art Studio/Gallery ARCH109

Sunflower Rd, Lawrence, KS

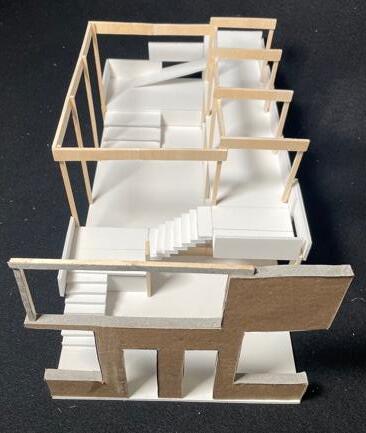

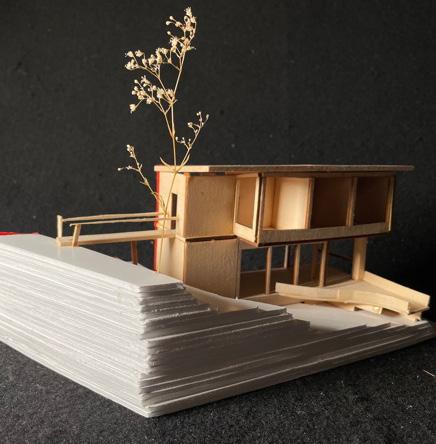

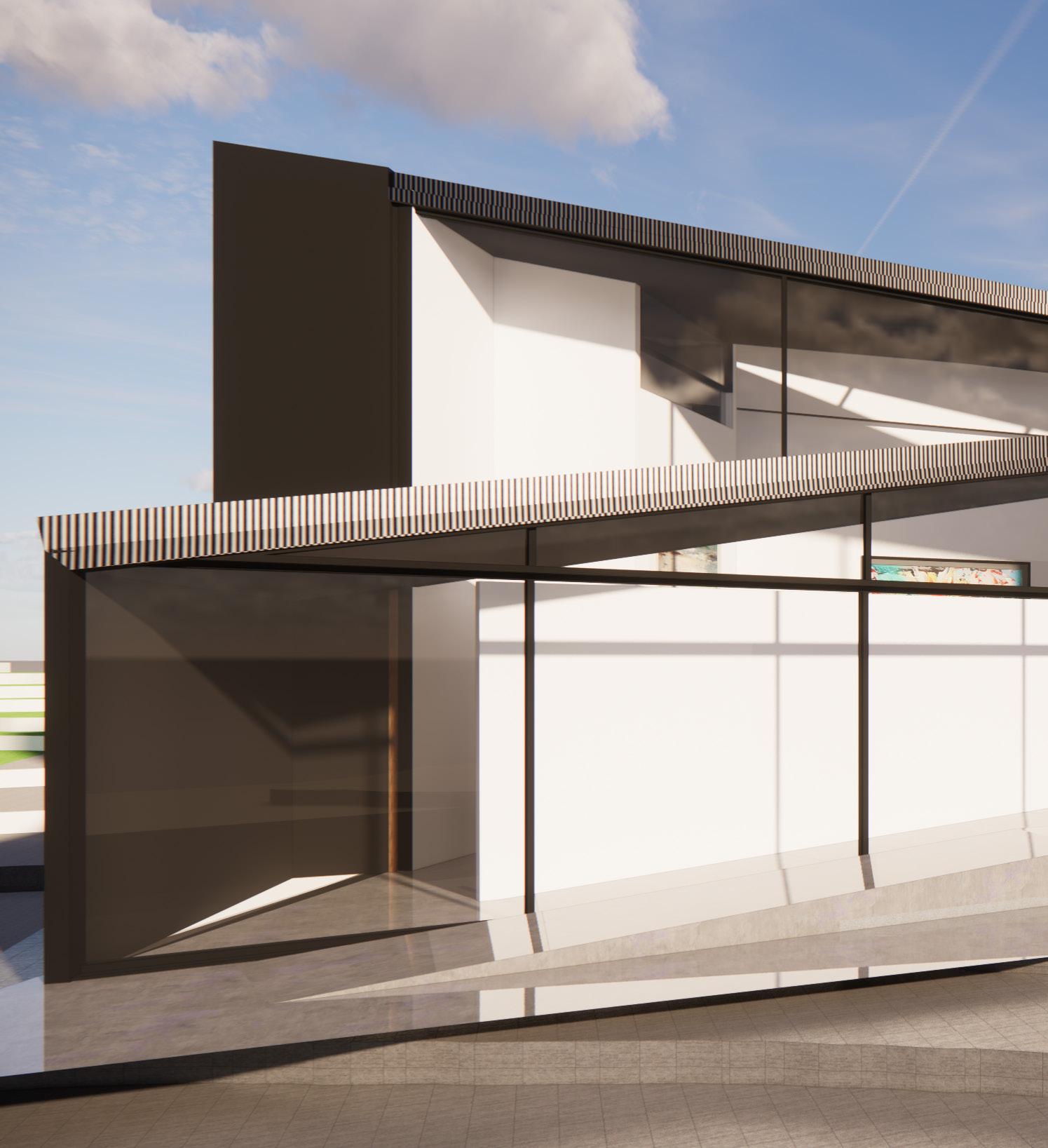

The first building I designed for school is the Art Gallery and Studio space that would be at the Southwest region of campus. It would have four offices or studios, a bathroom, and a gallery on the main floor. The way that I designed the building allows for the implementation of a dugout type of bus stop that would sit in the retaining wall.

6

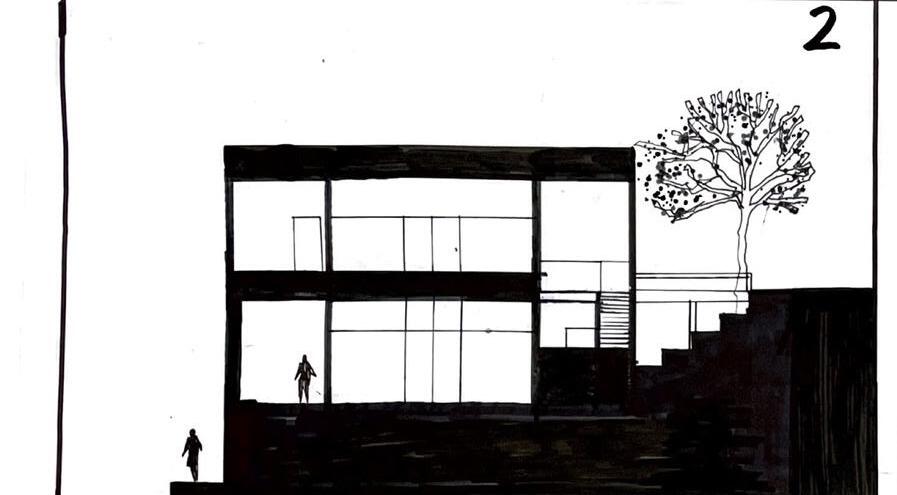

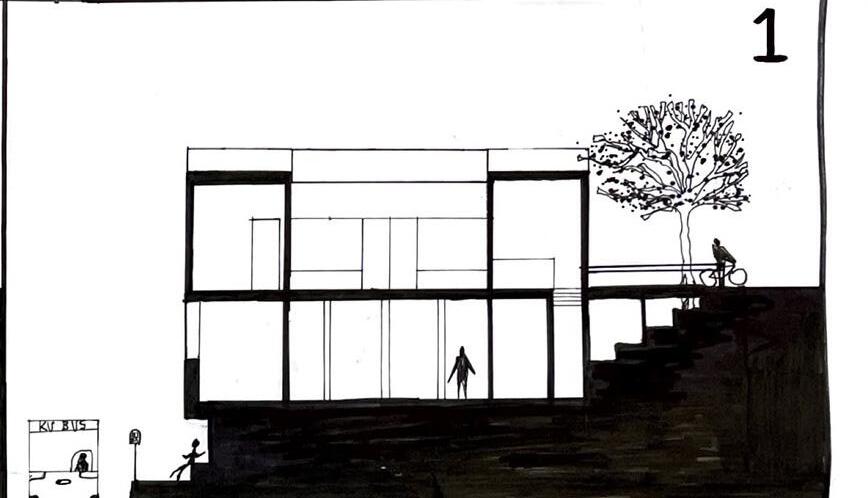

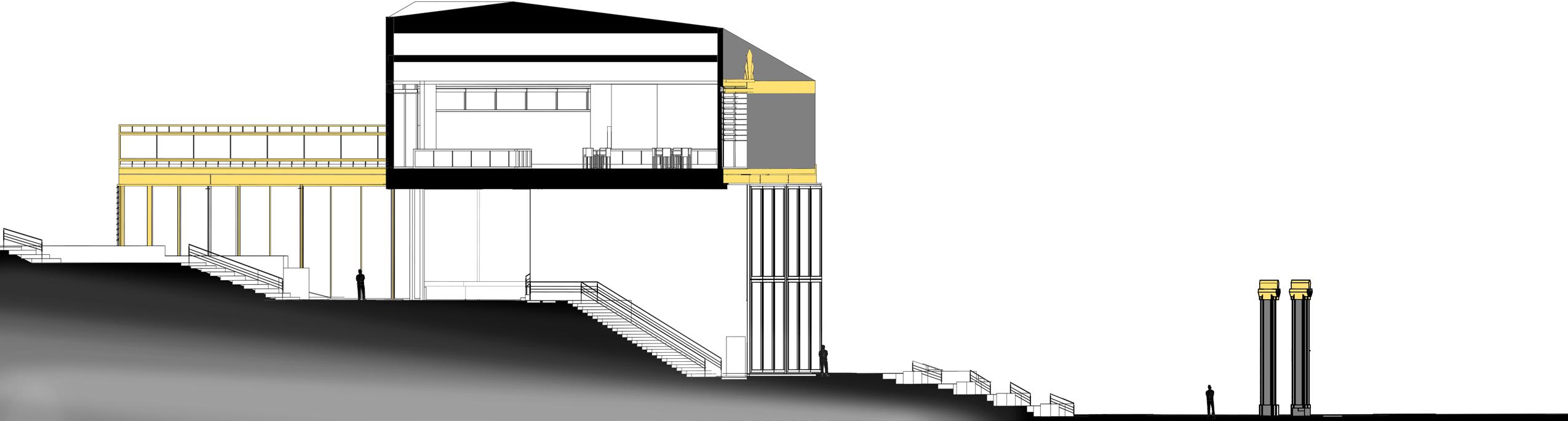

West Section

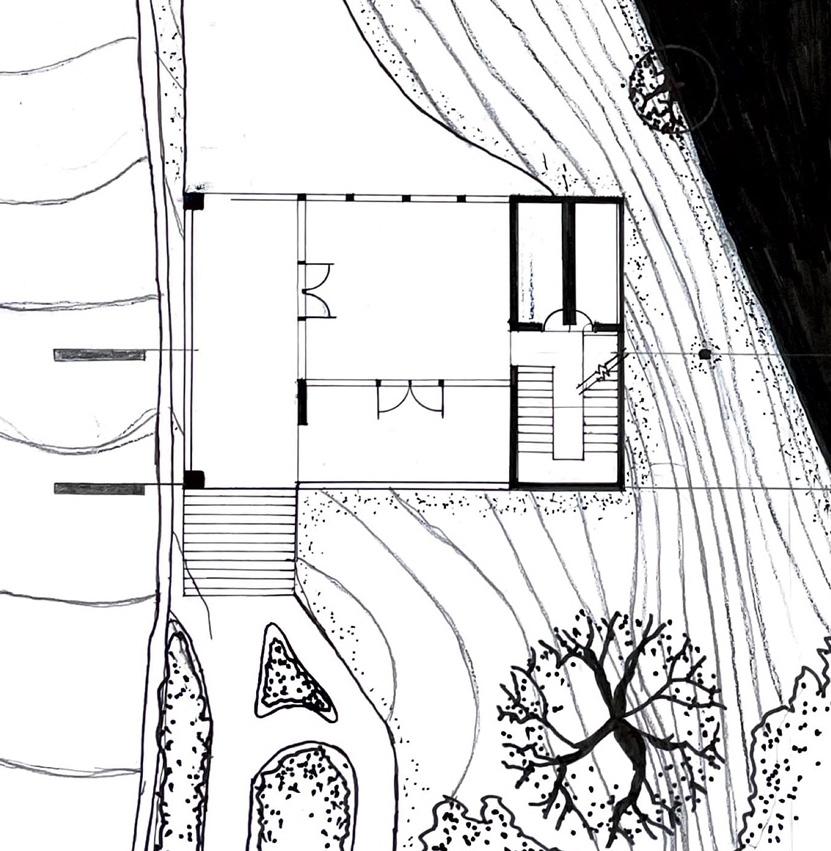

2nd Floor Plan

West Section w/Bus Stop

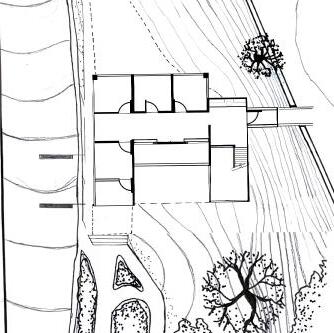

1st Floor Plan

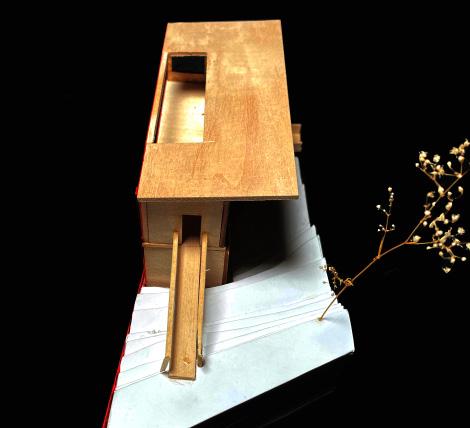

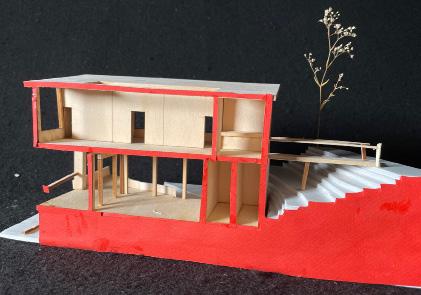

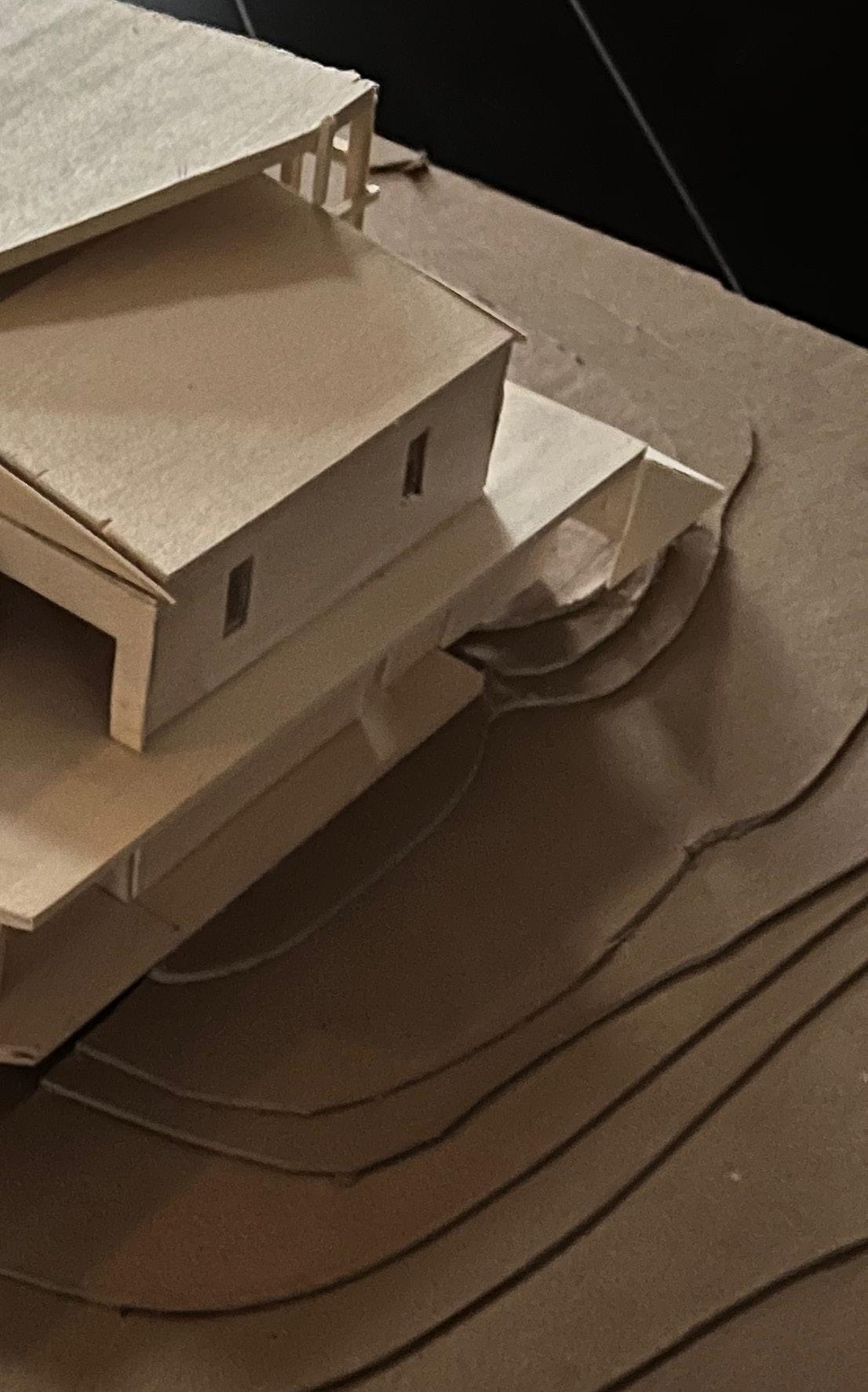

Section Model 7

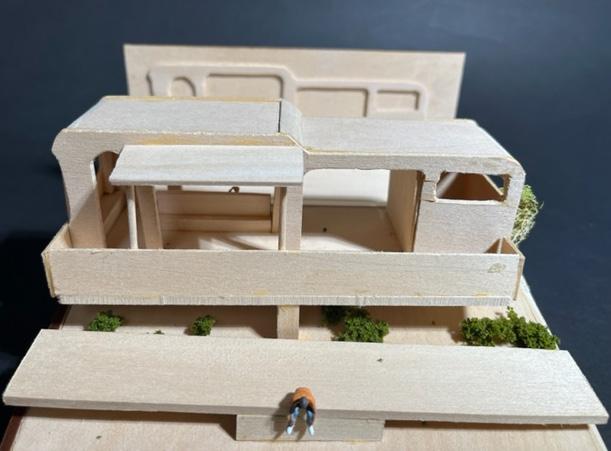

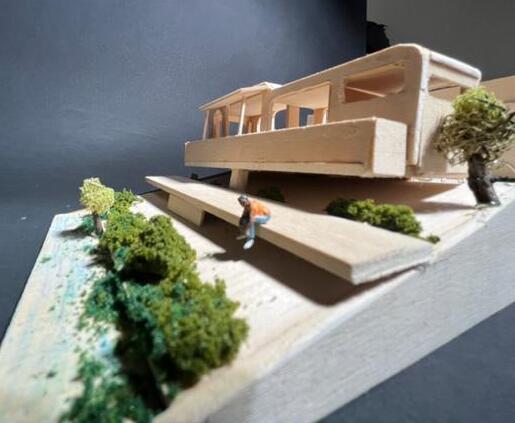

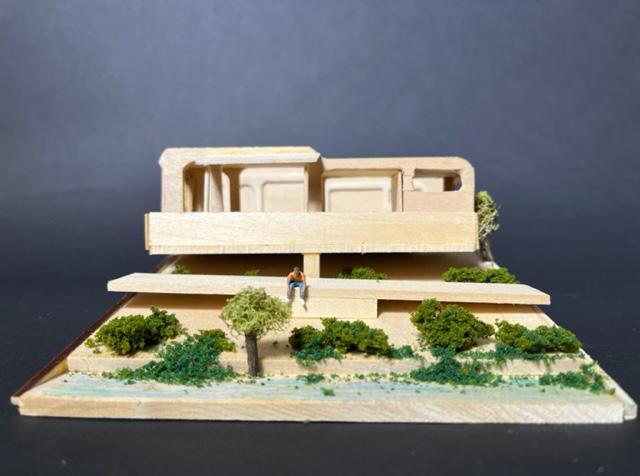

Bike Stop/Restroom ARCH208

Baker University Wetlands Trail Lawrence, KS

8

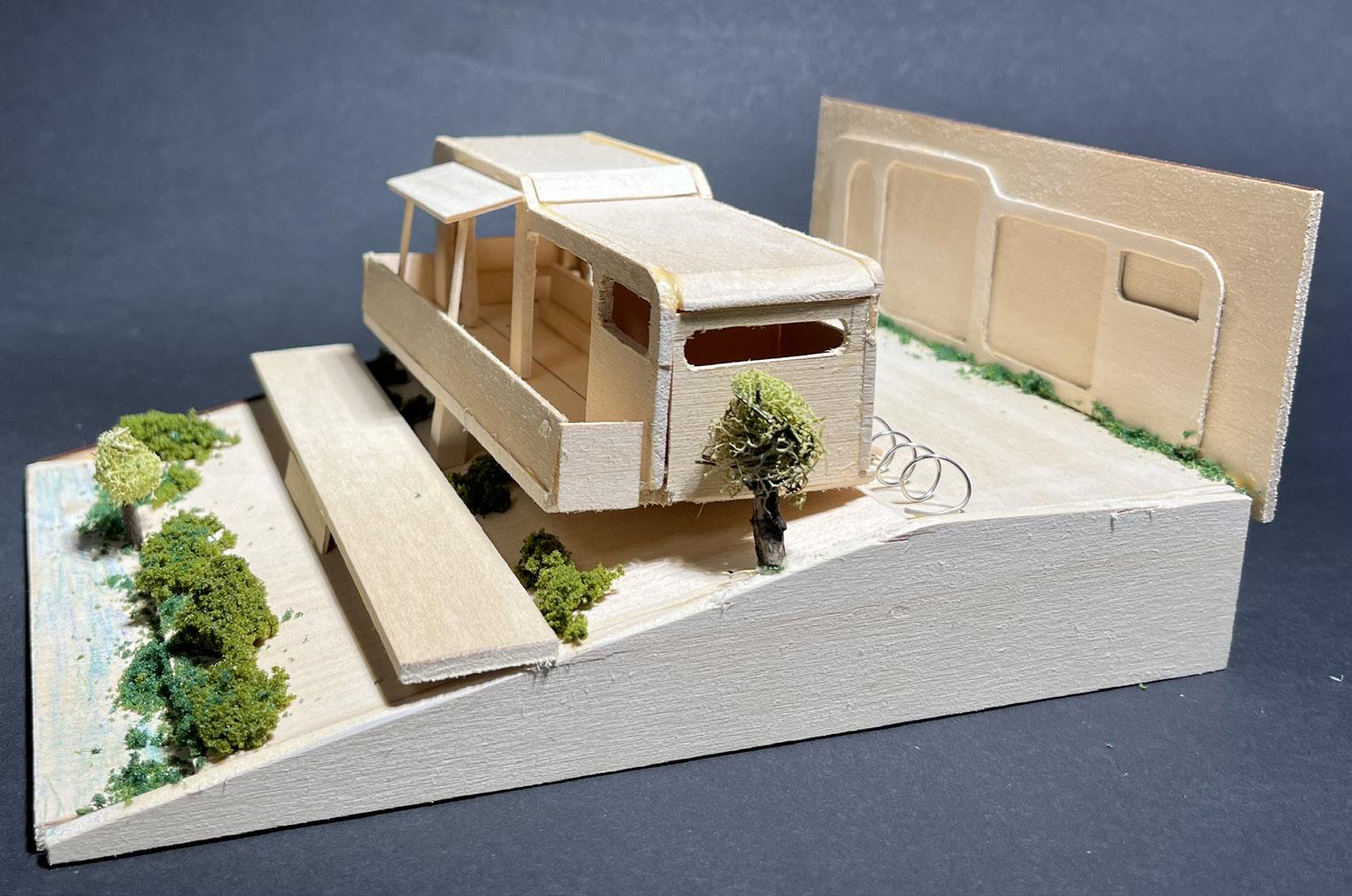

The Airstream Bike Rest design allows for cyclists and path goers a shelter and restroom as well as housing a bike tune up station. It is inspired by RV campers and offers a view of the Kansas Prairie. The project also allows people a chance to experience the pond up close with the addition of a path.

SE Elevation

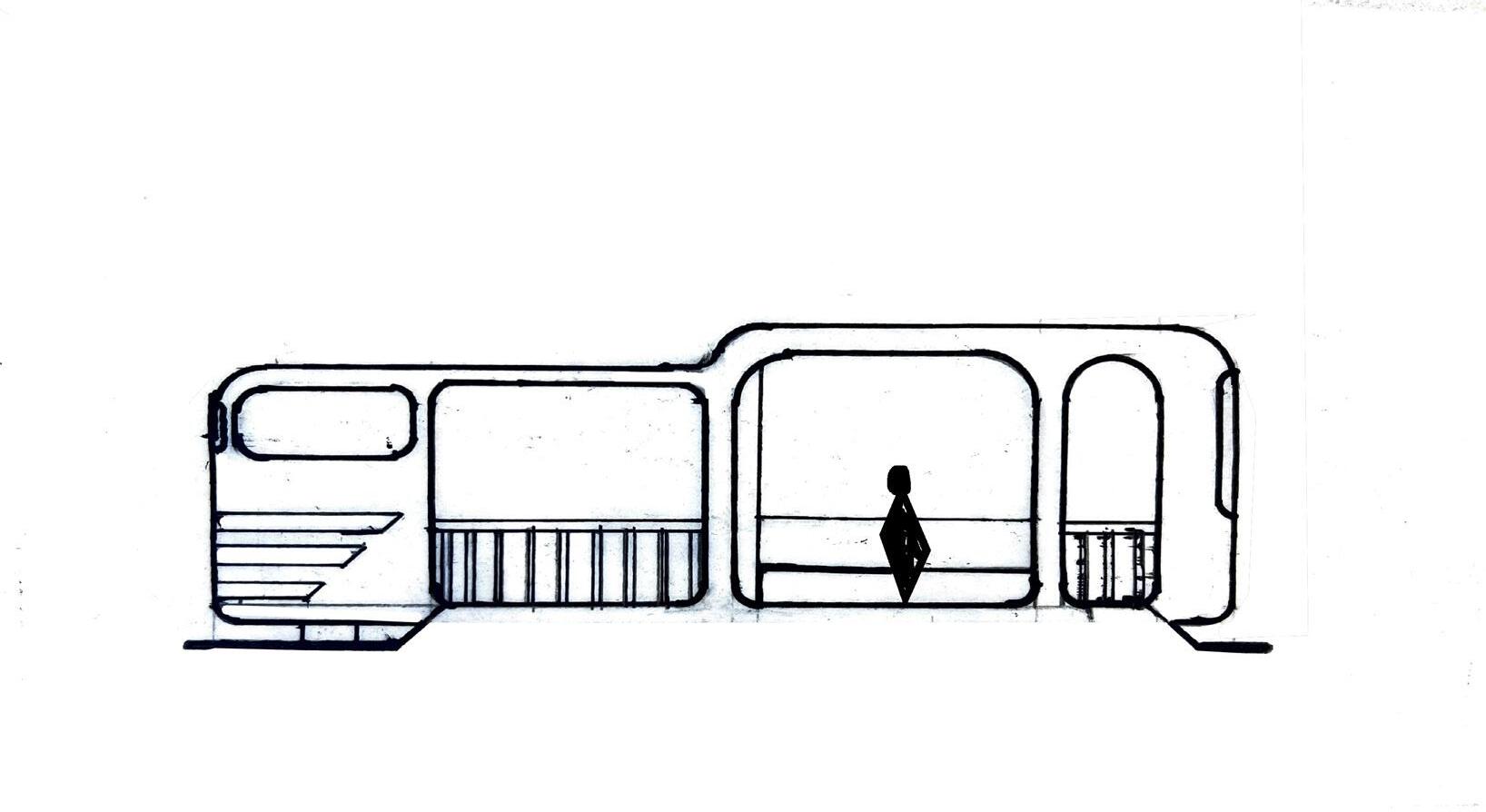

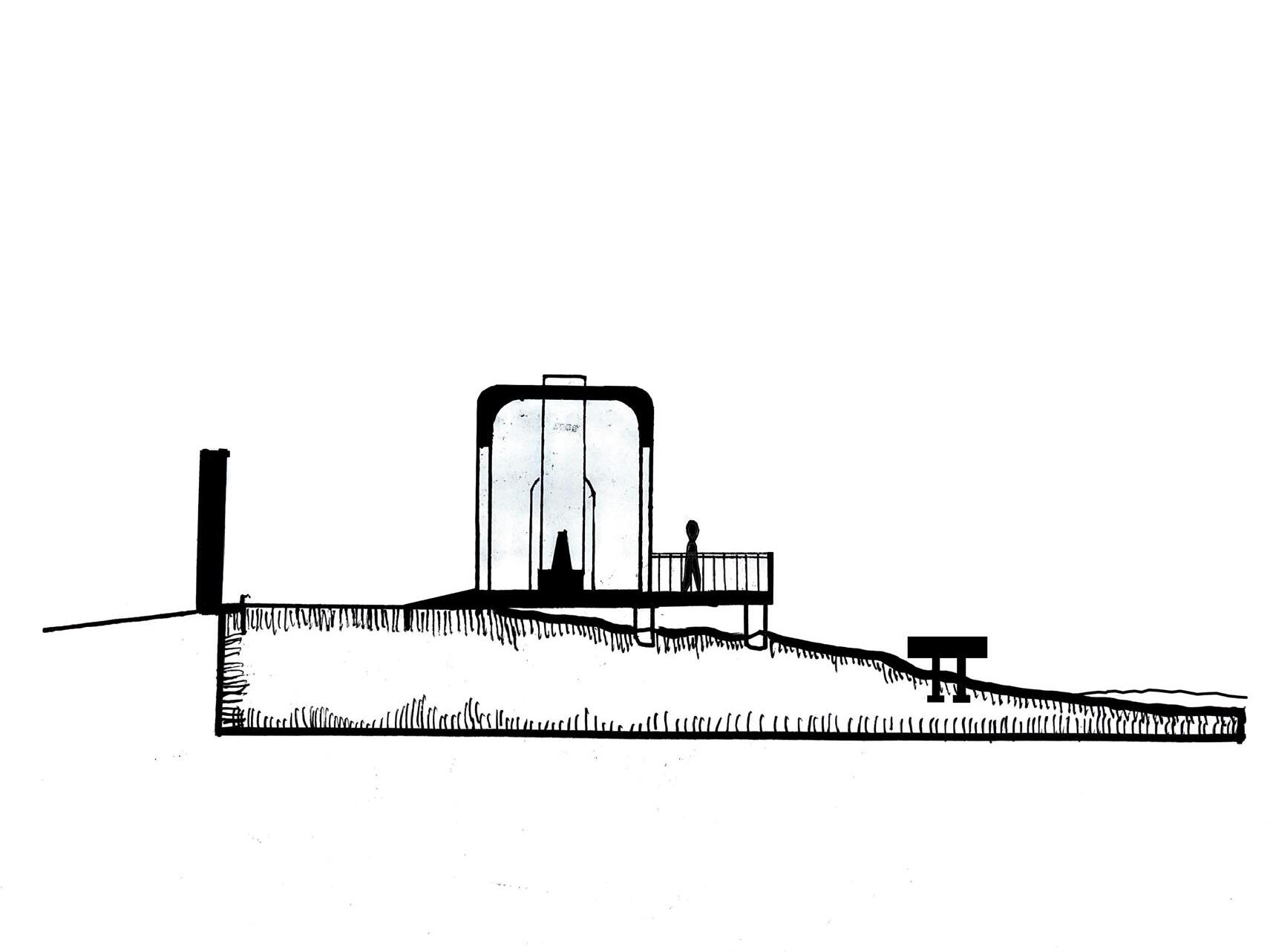

NE Section

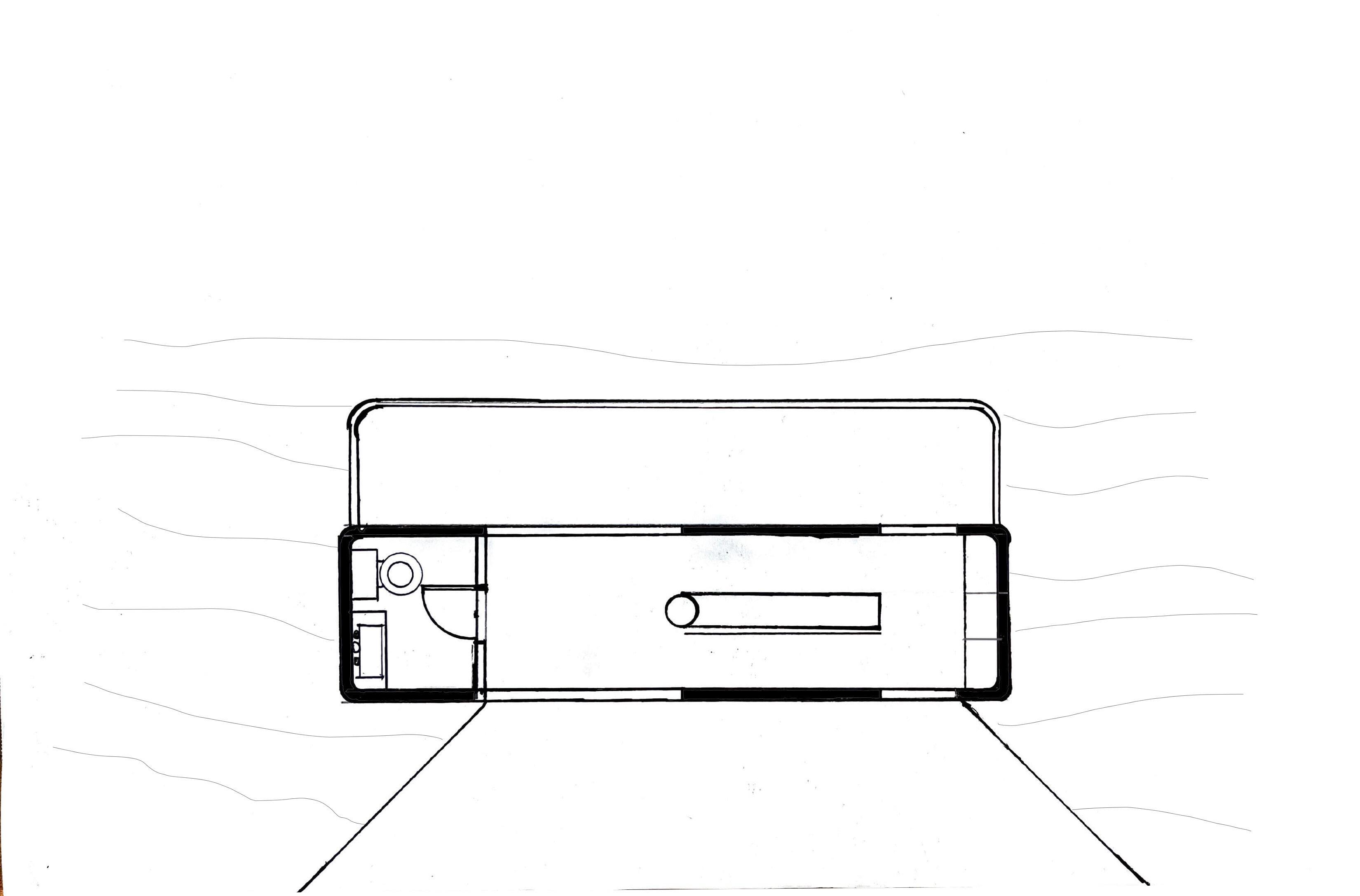

Plan

9

Kansas City Crossroads Figure Ground Maps 18th and Main to 16th and Broadway, Kansas City, MO During my second year I worked on figure ground maps that show how an area can change over time.

10

Case Study Diagrams Ruby City-Adjaye and Associates, San Antonio,TX

Camp St, San Antonio, TX

A case study of mine this past year was Ruby City, which is an art gallery located in San Antonio, TX and is known for is colorful design. These diagrams show where Ruby City is located and why it has such a unique material.

Map of Campus, SA,TX

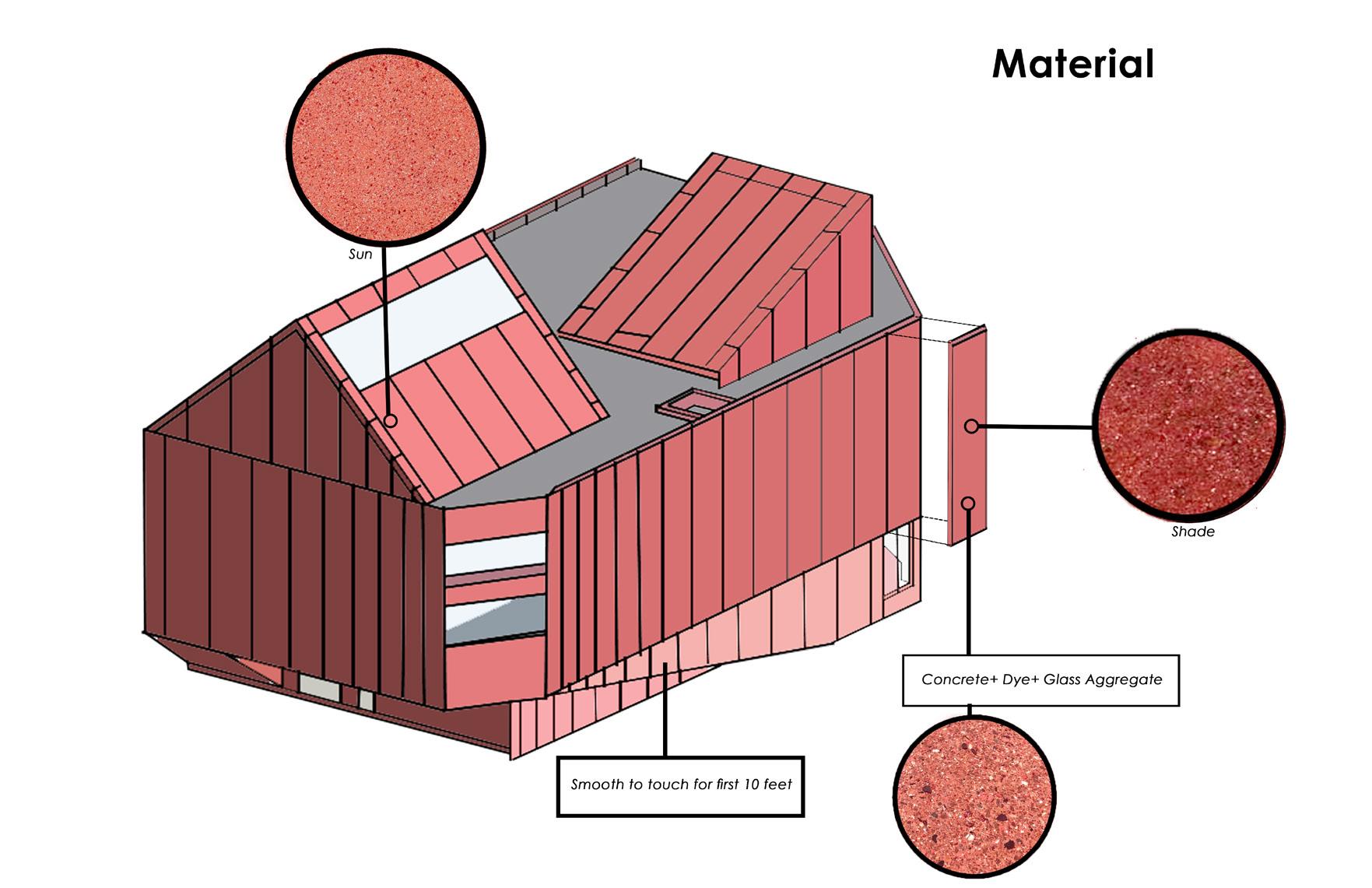

Material Diagram

11

Art Gallery/ Wine Bar ARCH208

9th and Pennsylvania St, Lawrence, KS

12

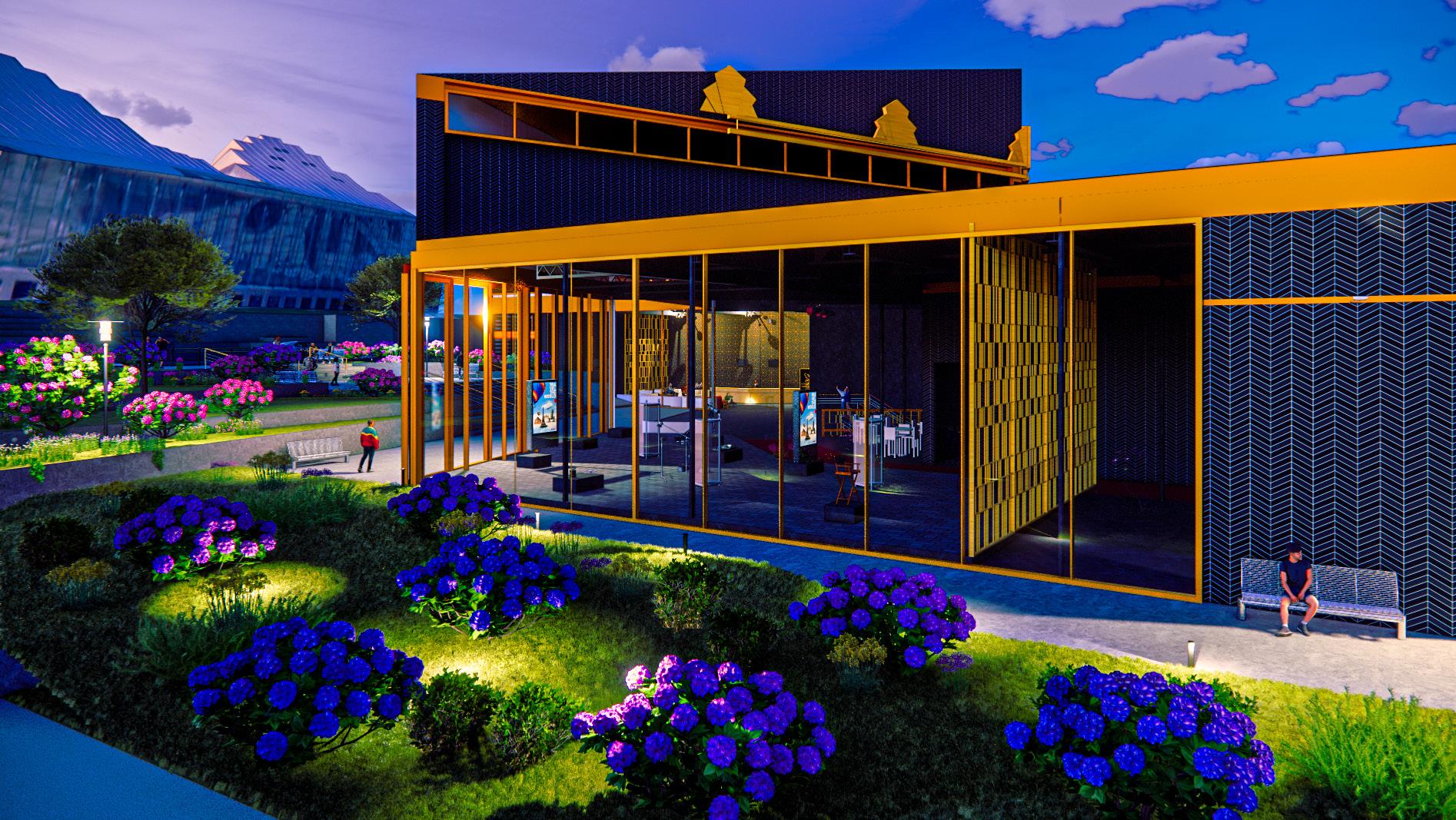

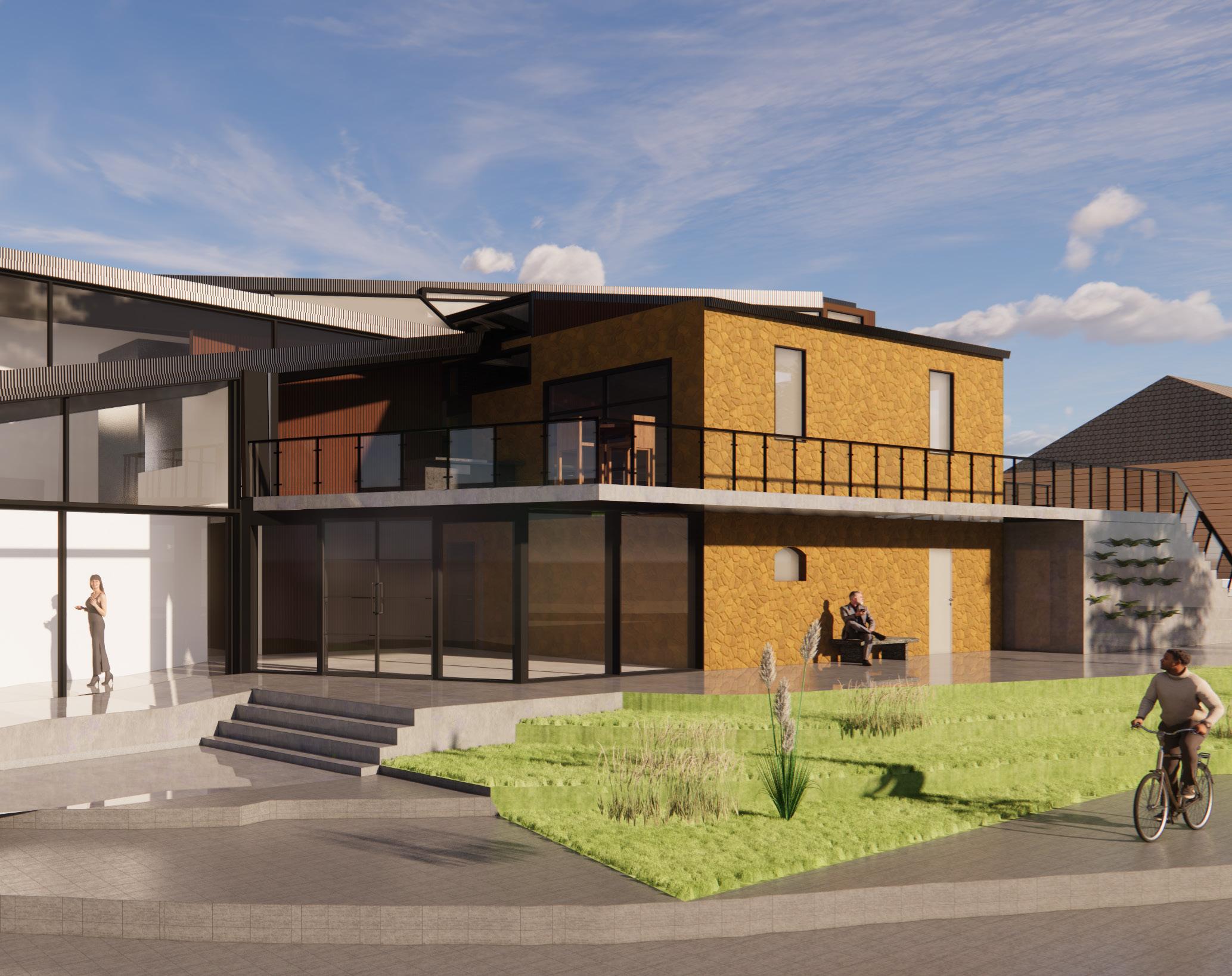

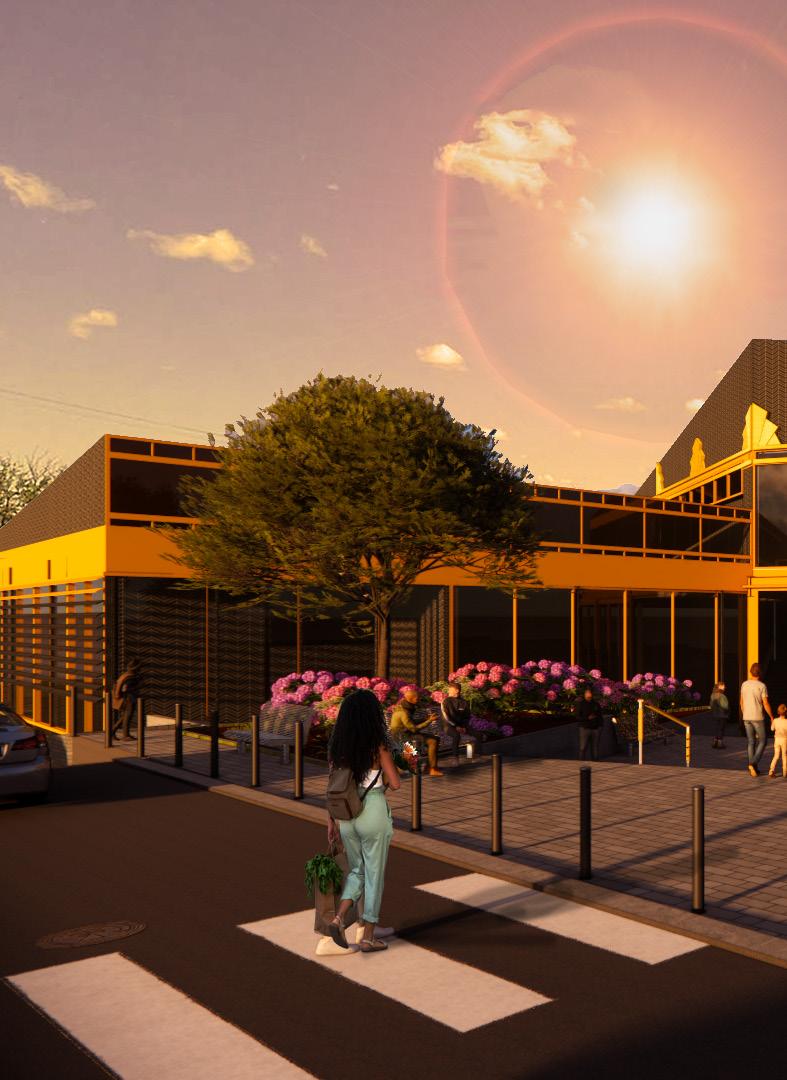

This project is a small scale art gallery and wine bar that is constructed around an existing historic building. Said building is a previous blacksmith house turned bar. The dynamic angles in the roof are inspired by the sorts of products a blacksmith would create.

13

Gallery Wine Bar

mens br

eterson 08

janitorial

main gallery

womens br

storage

Second Floor Plan Scale: 3/16” = 1’-0”

tion for my project was drawn from charicteristics of tongs in which s use. This is relevantext. to the site the fact that it used to be a blackit also has a shape that has sharp hich are similar to the sorts of at a blacksmith would create.

wine bar

patio

Summer Winds

kitchen

wine bar entrance

Scale: 3/16” = 1’-0” First Floor SecondPlan Floor Plan

Winter Winds

N

gallery two

hvac/storage

office

mens br

womens br

gallery entrance

janitorial

main gallery

storage

Second Floor Plan Scale: 3/16” = 1’-0” First Floor Plan 14 ext.

South Elevation

West Elevation

West Section

East Elevation

East Section

South Section

15

16

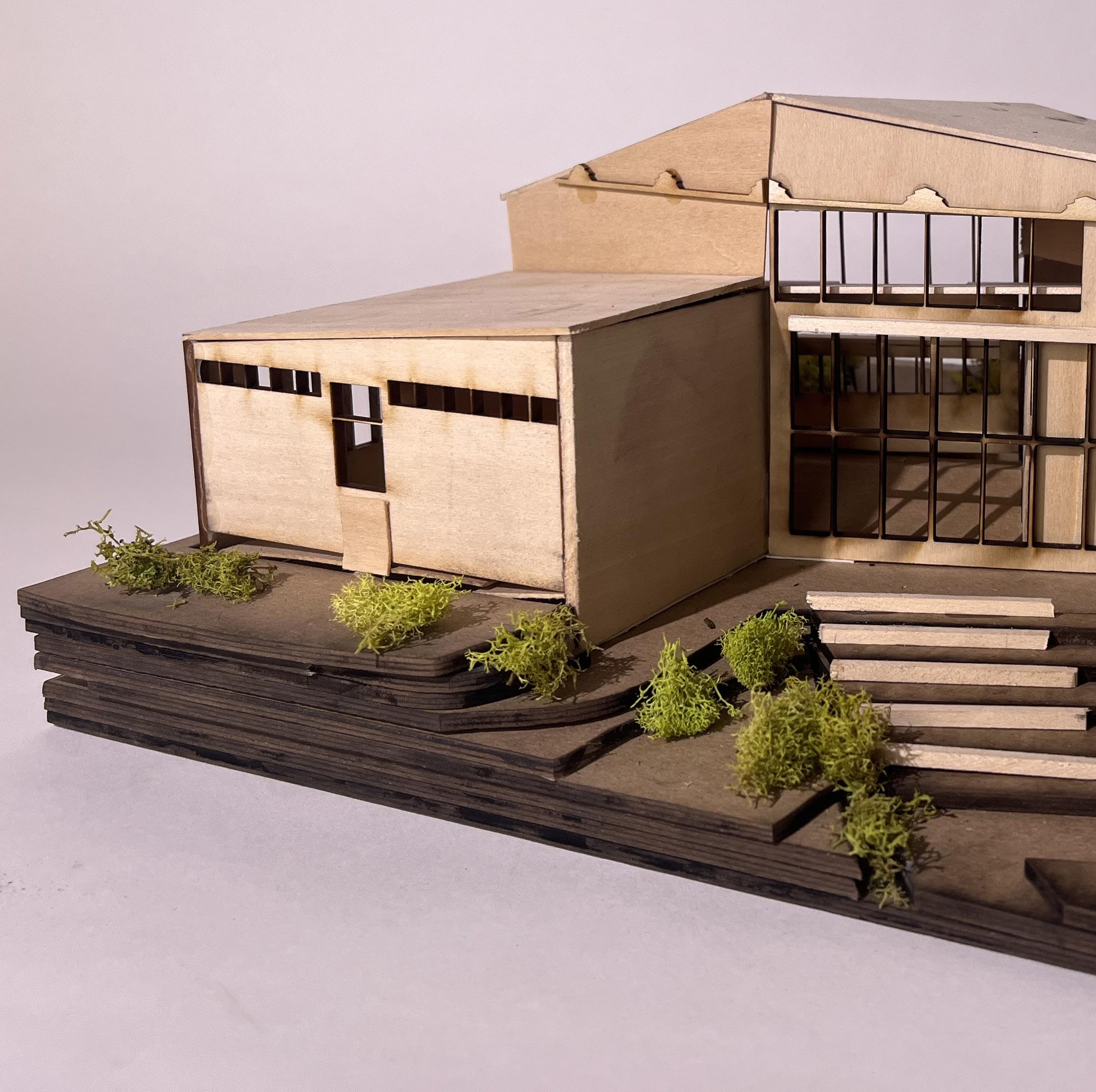

Model 17

Prairie Acre Folly ARCH209

University of Kansas Prairie Acre, Lawrence, KS

18

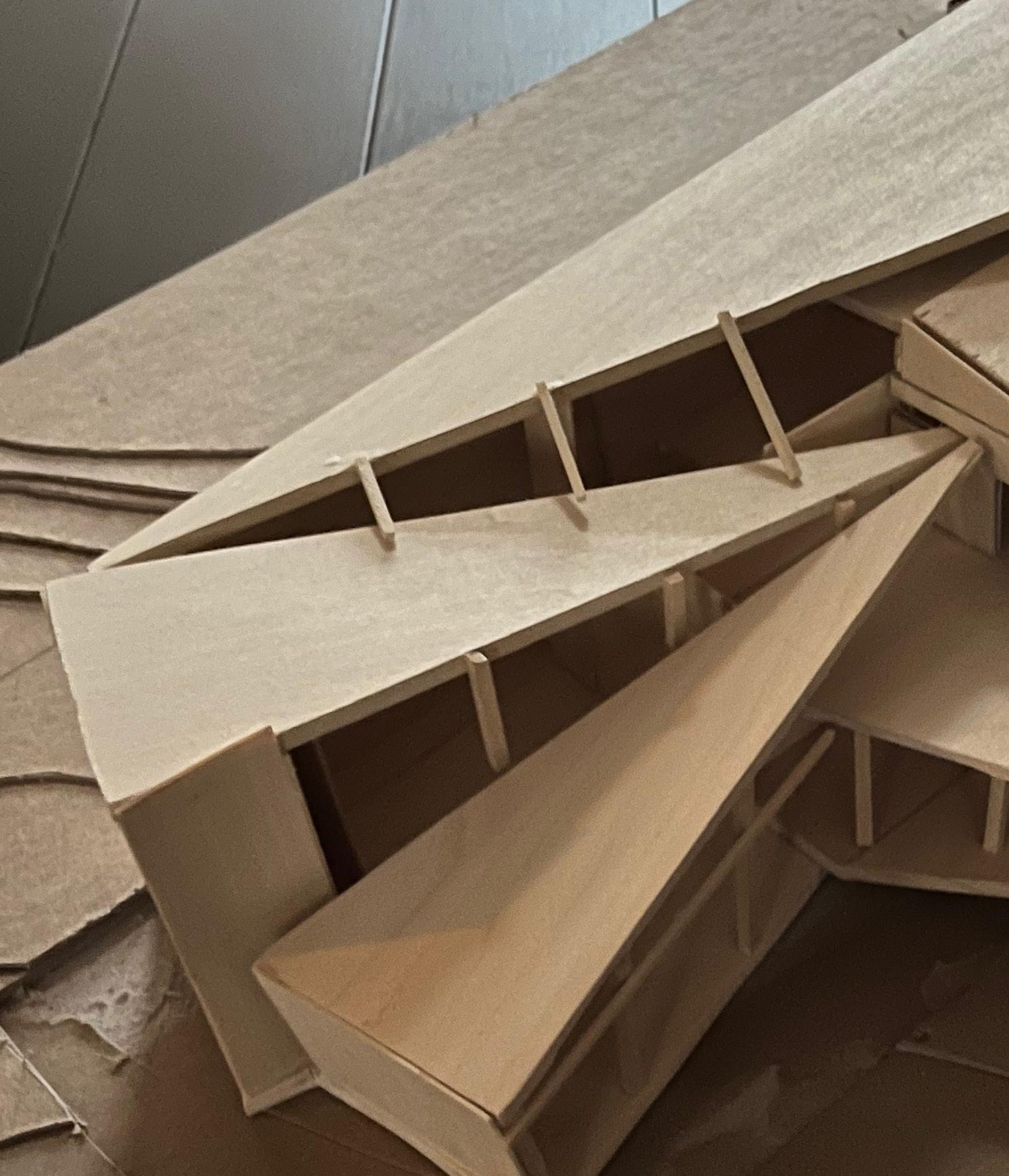

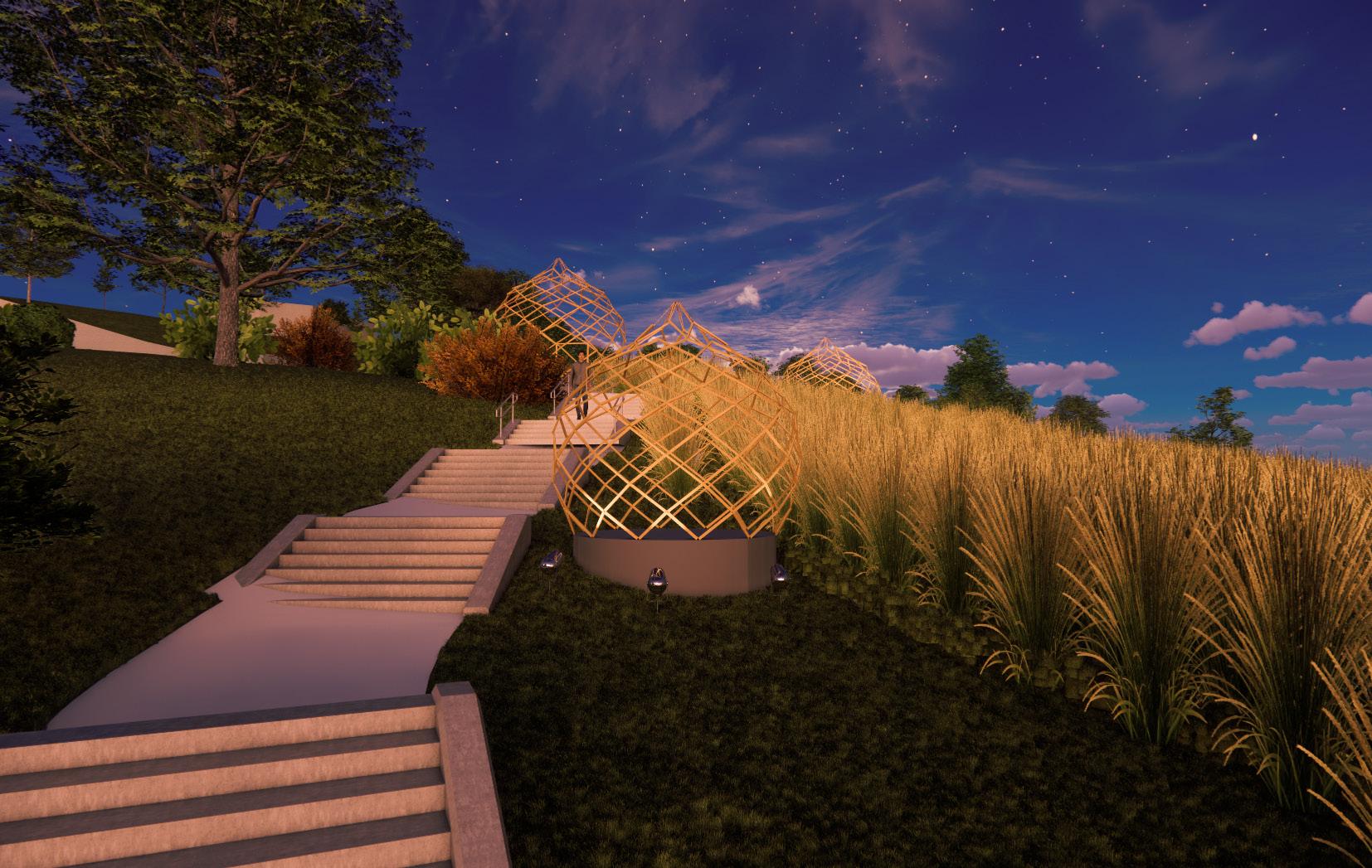

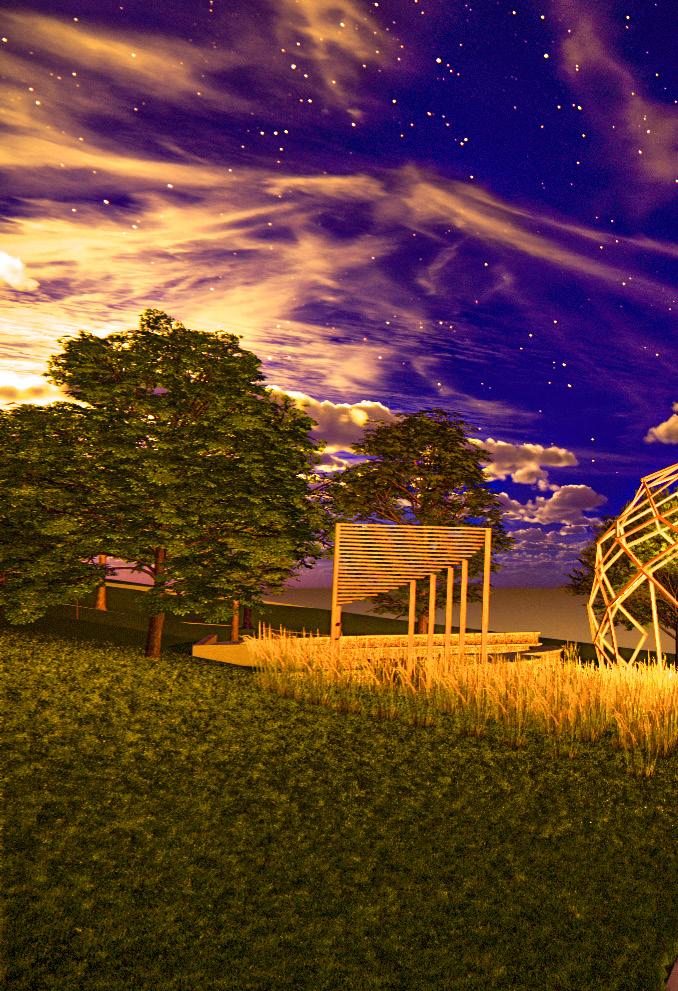

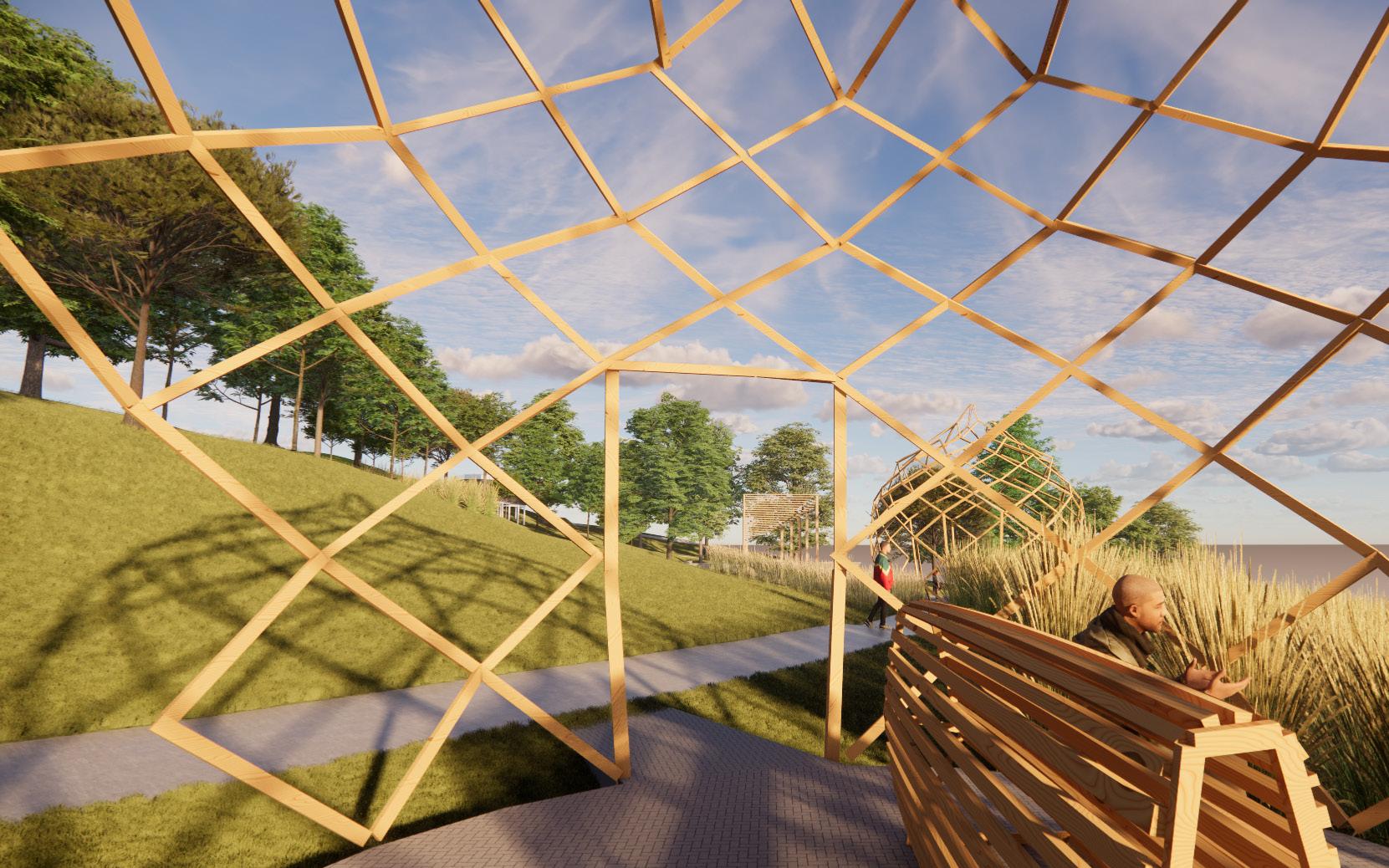

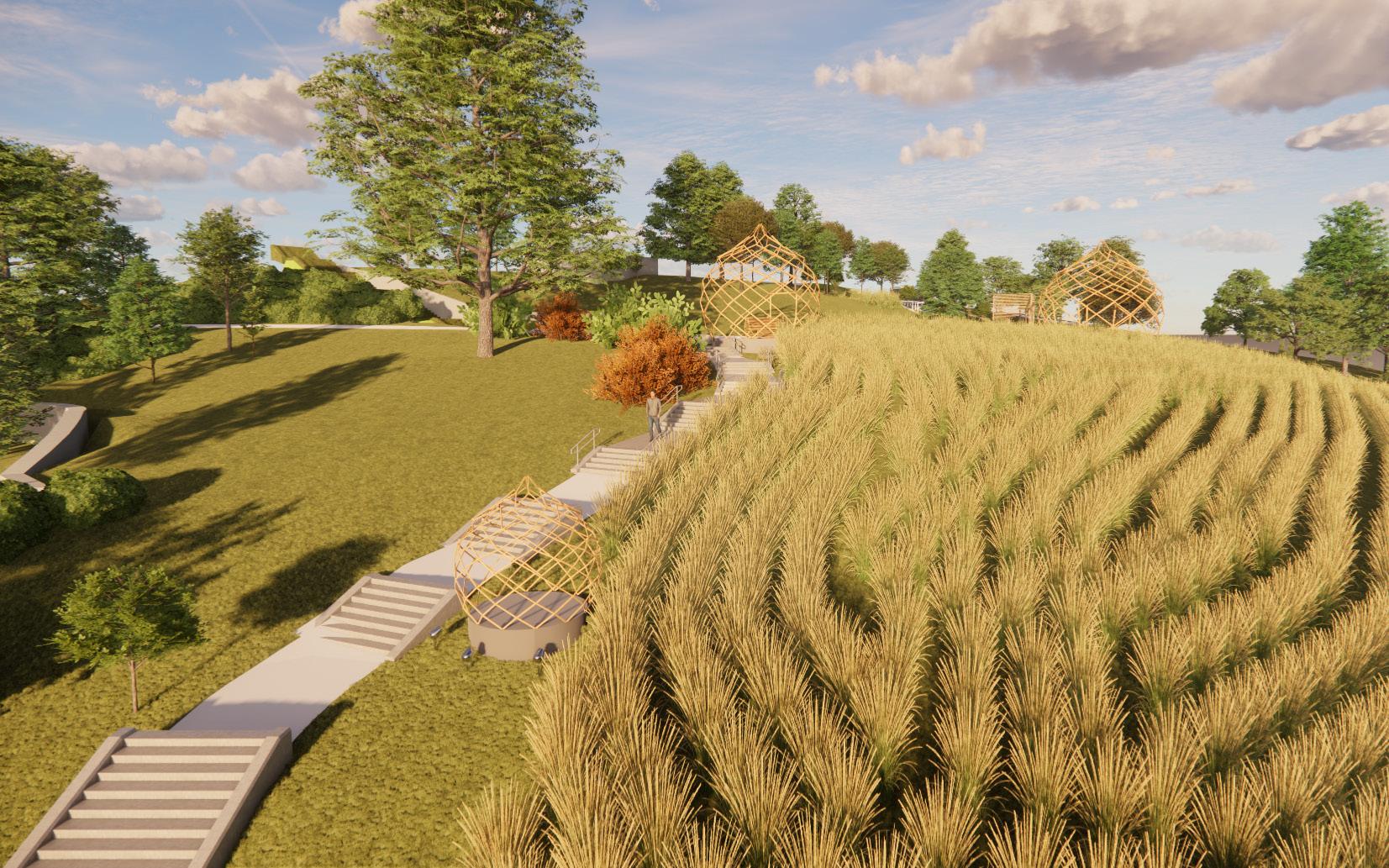

The follies located at the Kansas Prairie Acre are inspired by the purposeful and wild prairie fires. The follies each offer a different experience for the inhabitor, and all are located at different regions along the prairie acre.

19

-

_:; -

---"--· .

20

t

- - I

21

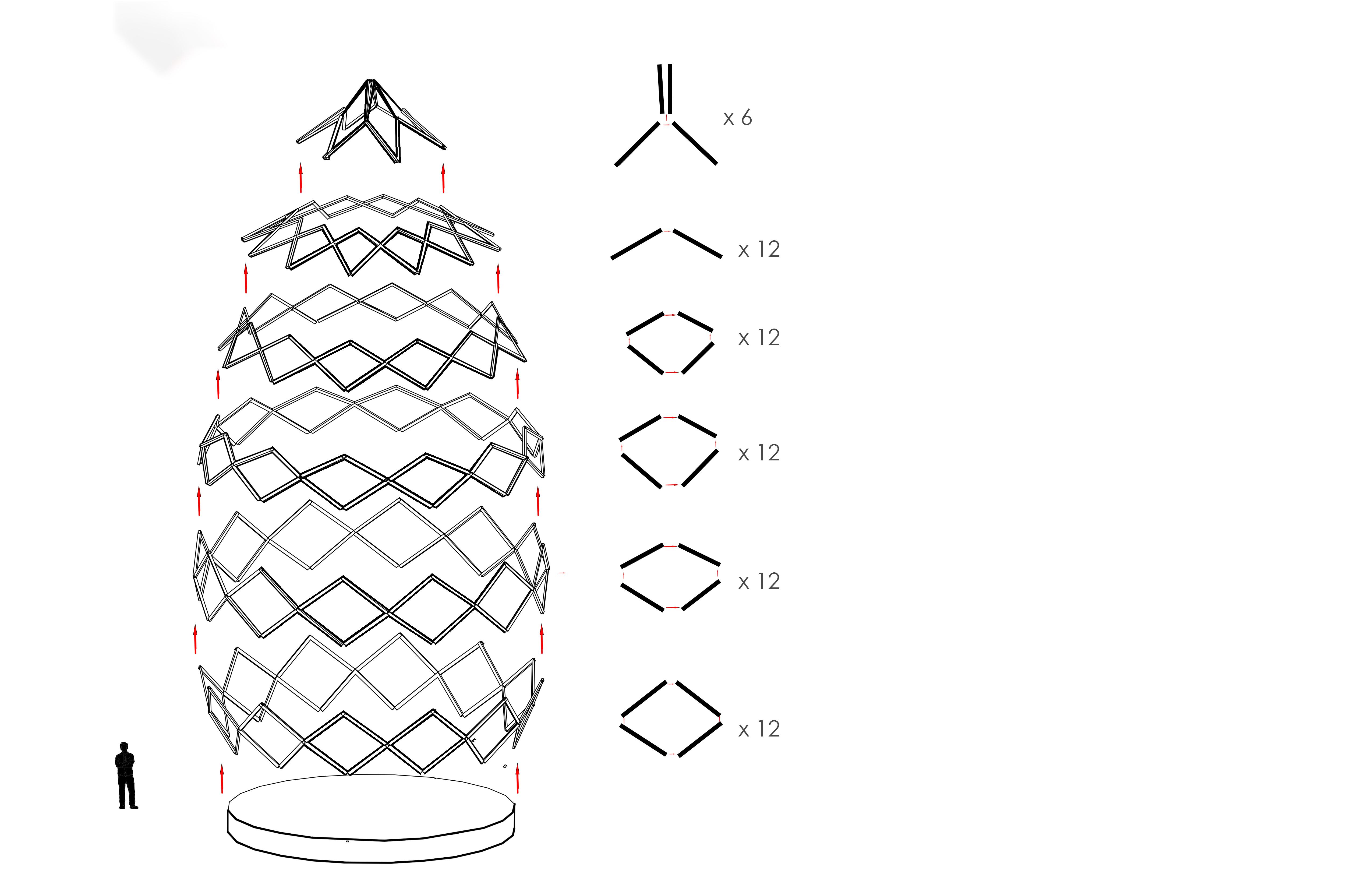

Exploded Axonometric of Folly Construction

22

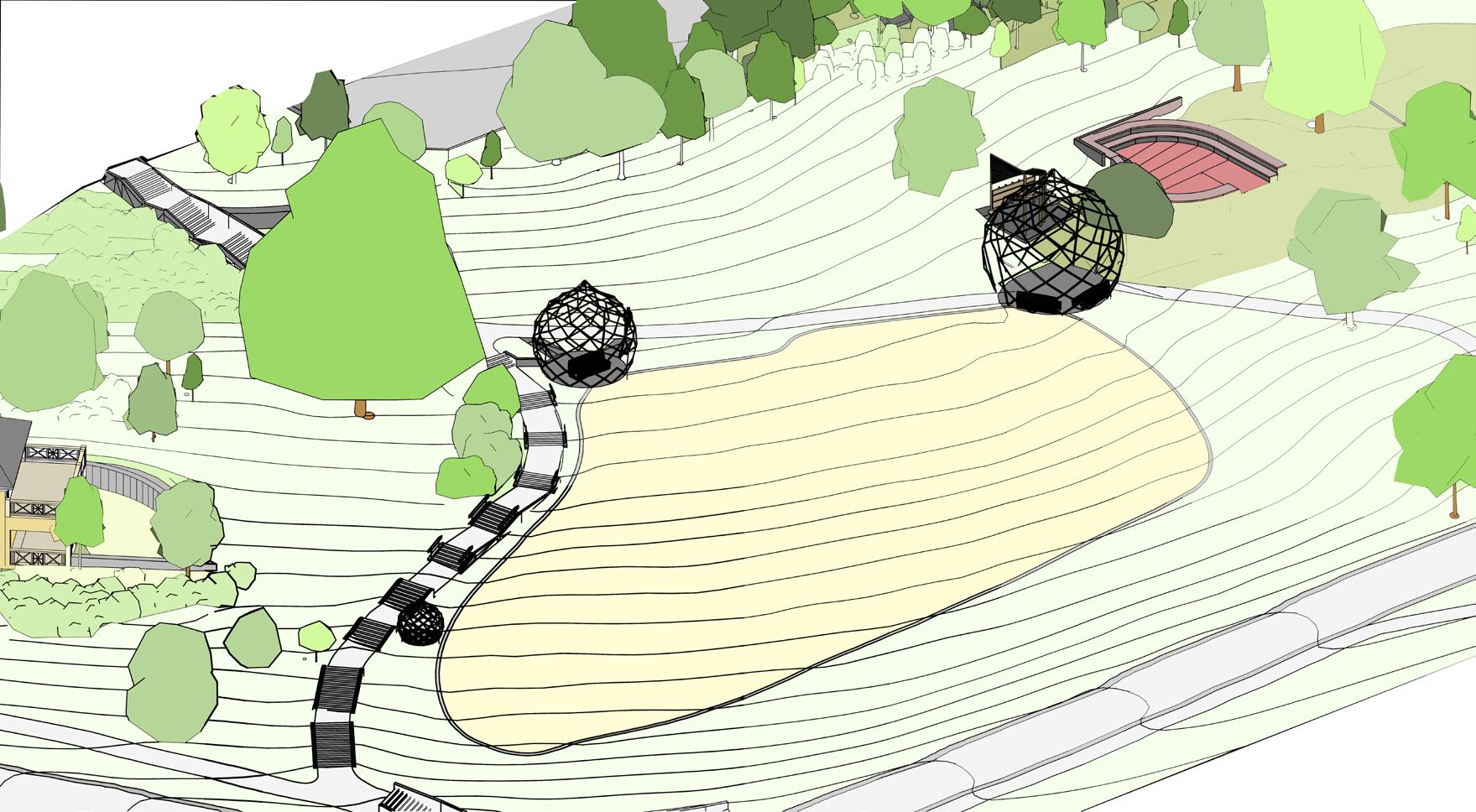

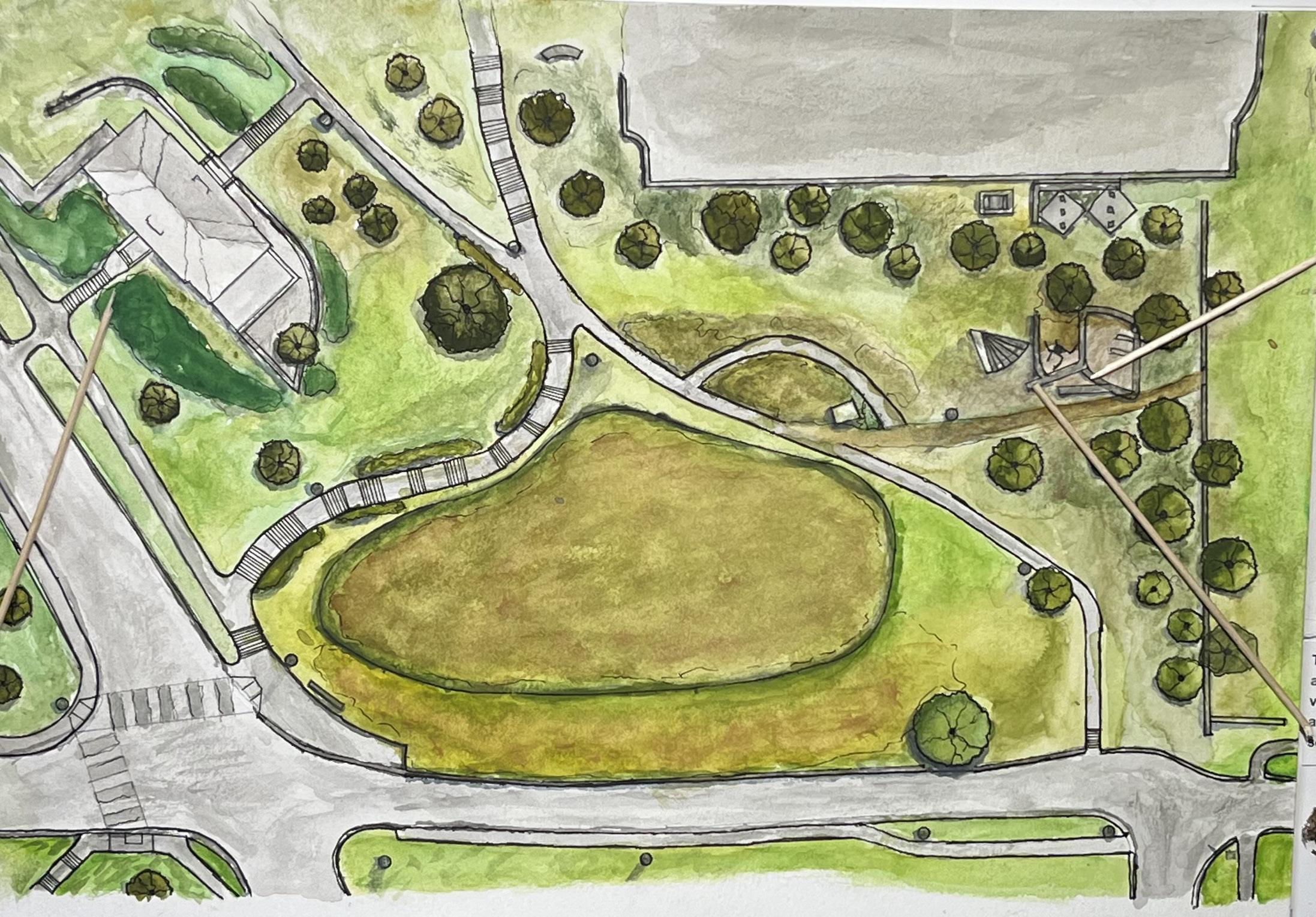

Axon with Site

Dimensions of Follies

23

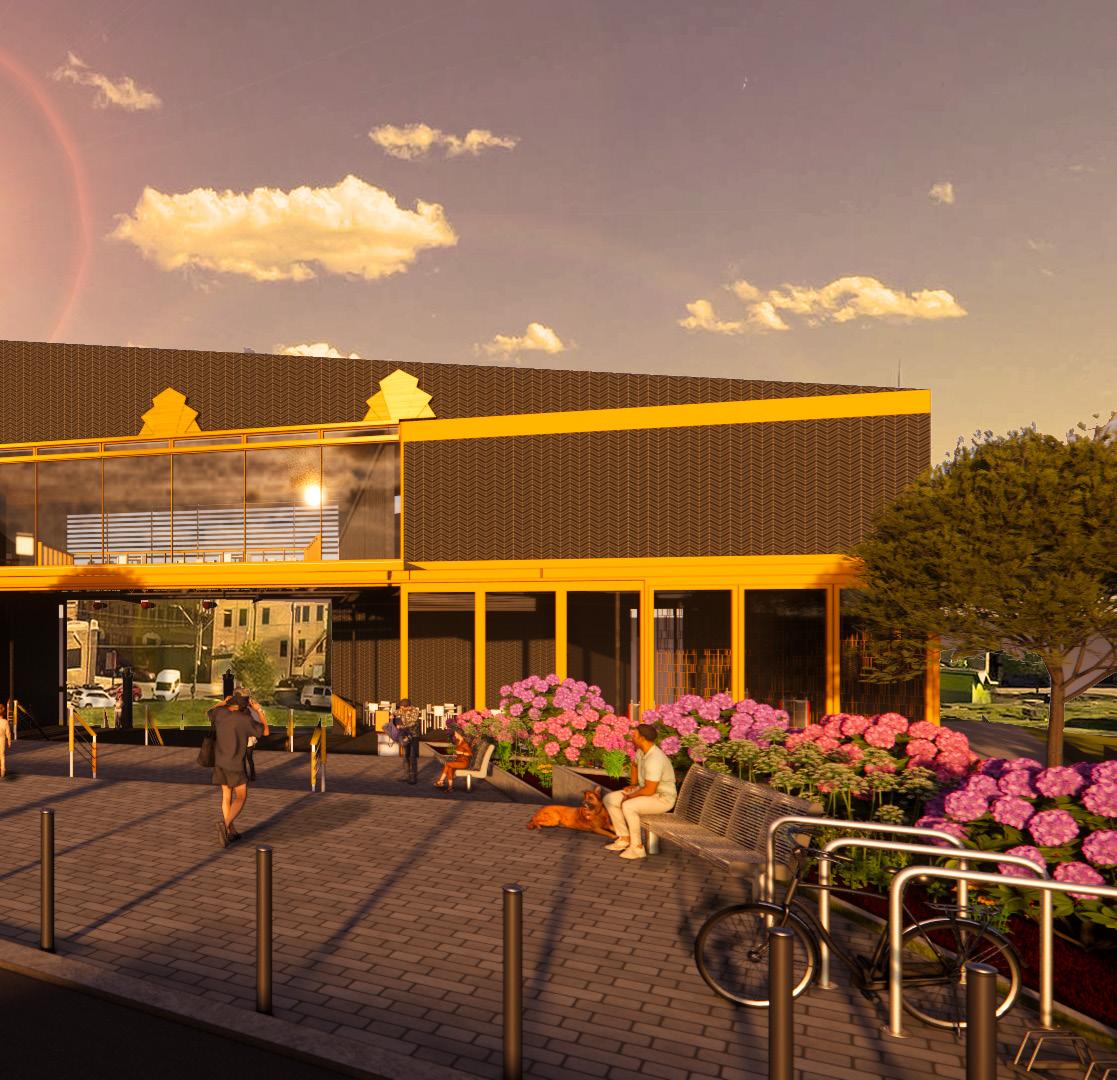

Kansas City Film Row M ARCH209

1700 Broadway St, Kansas City, MO

24

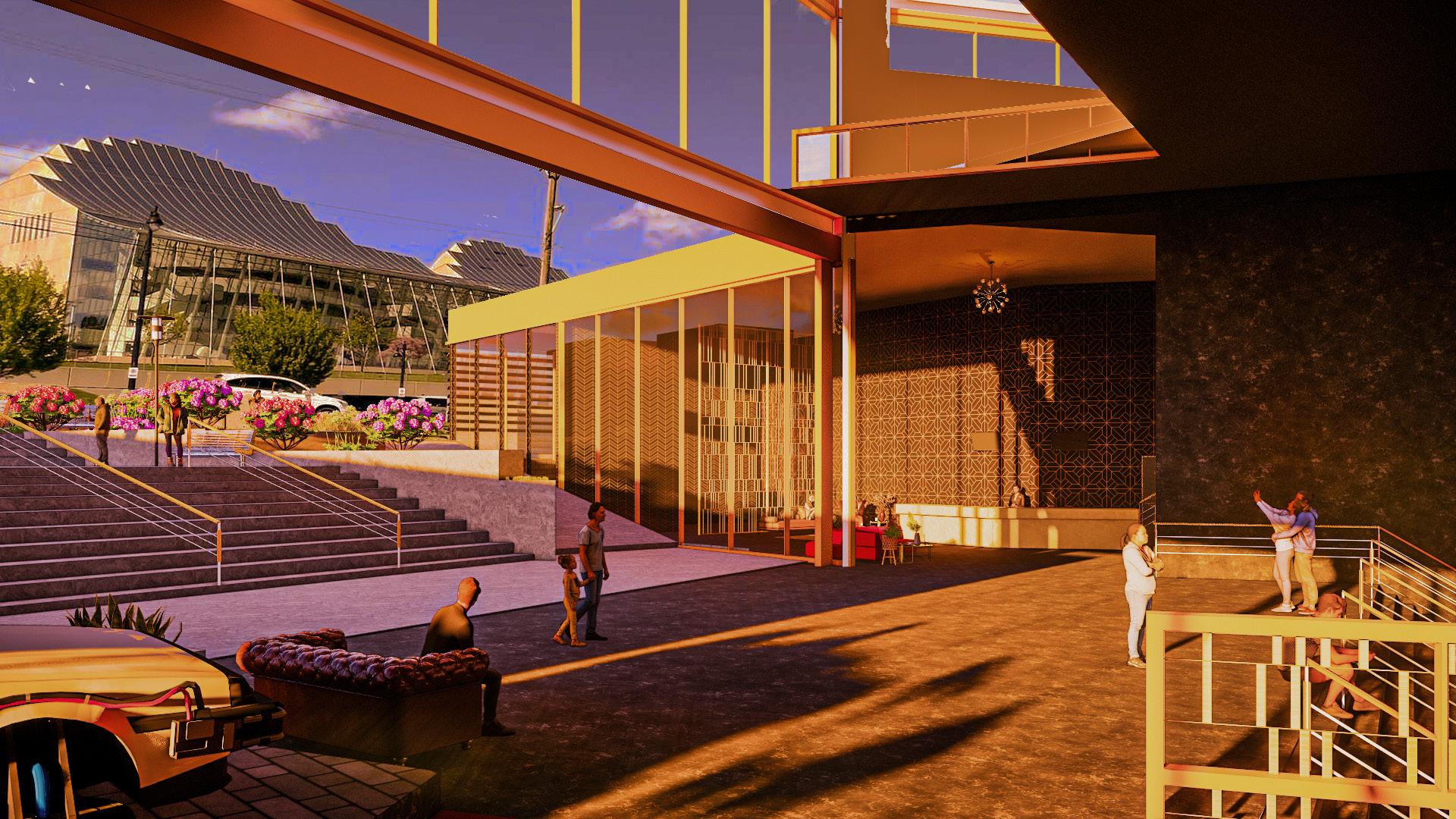

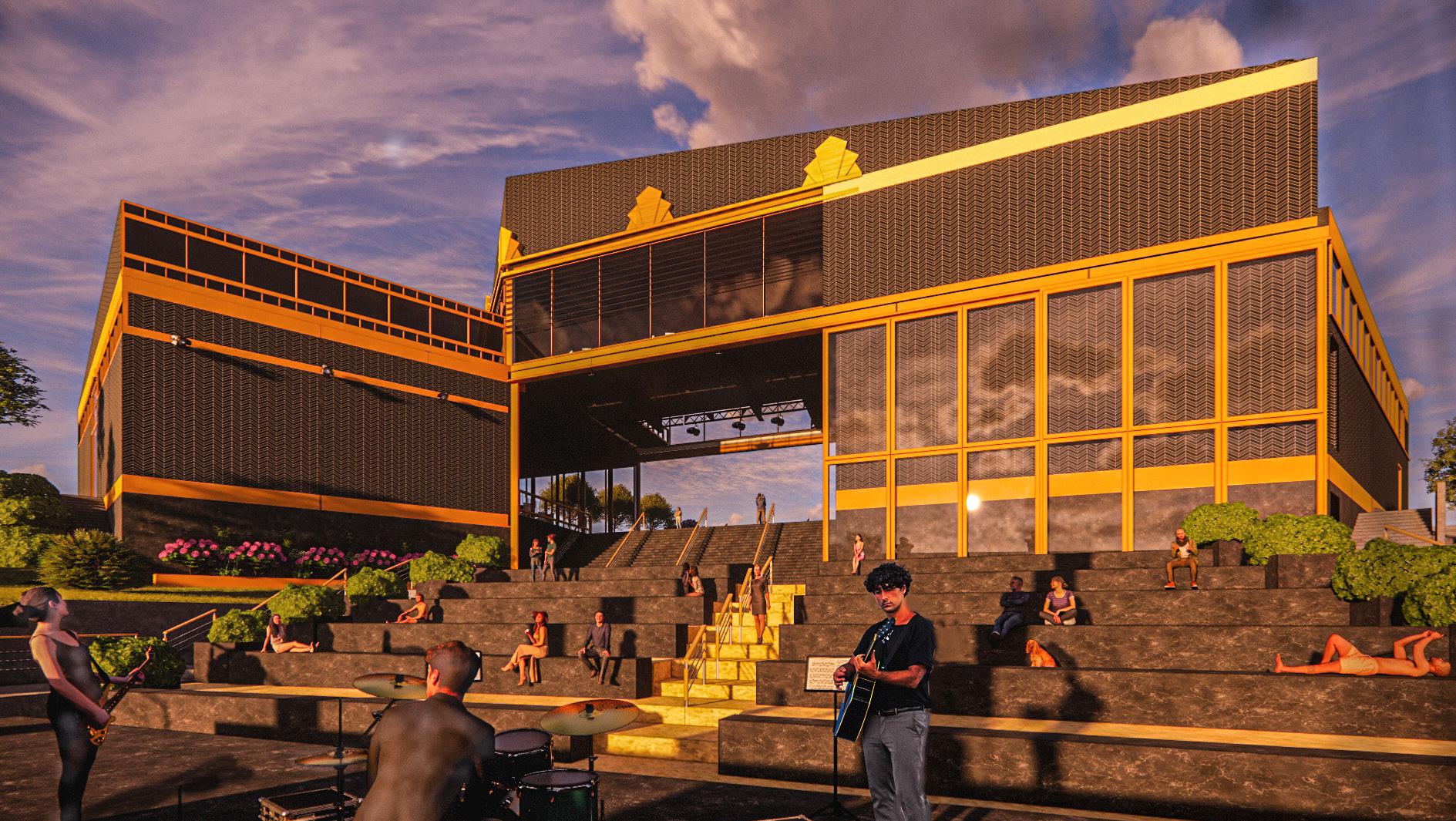

Museum The Kansas City Film Row Museum is a grand building that complements the Kauffman Center nearby and allows for a framed view and path down into the historic film row district located in Crossroads, Kansas City. The project allows for business and entertainment spaces aswell as having a large outdoor theater for live shows.

25

26

Second Floor Plan

Archive

Classroom Vault

Restroom

First Floor Plan

Work Rm Conf.

Office Office Office

Mech.

Lobby

Woodshop

Entrance

Galleries Set Room

Learning

Restroom

Seating

Restroom

Movie Theater

27

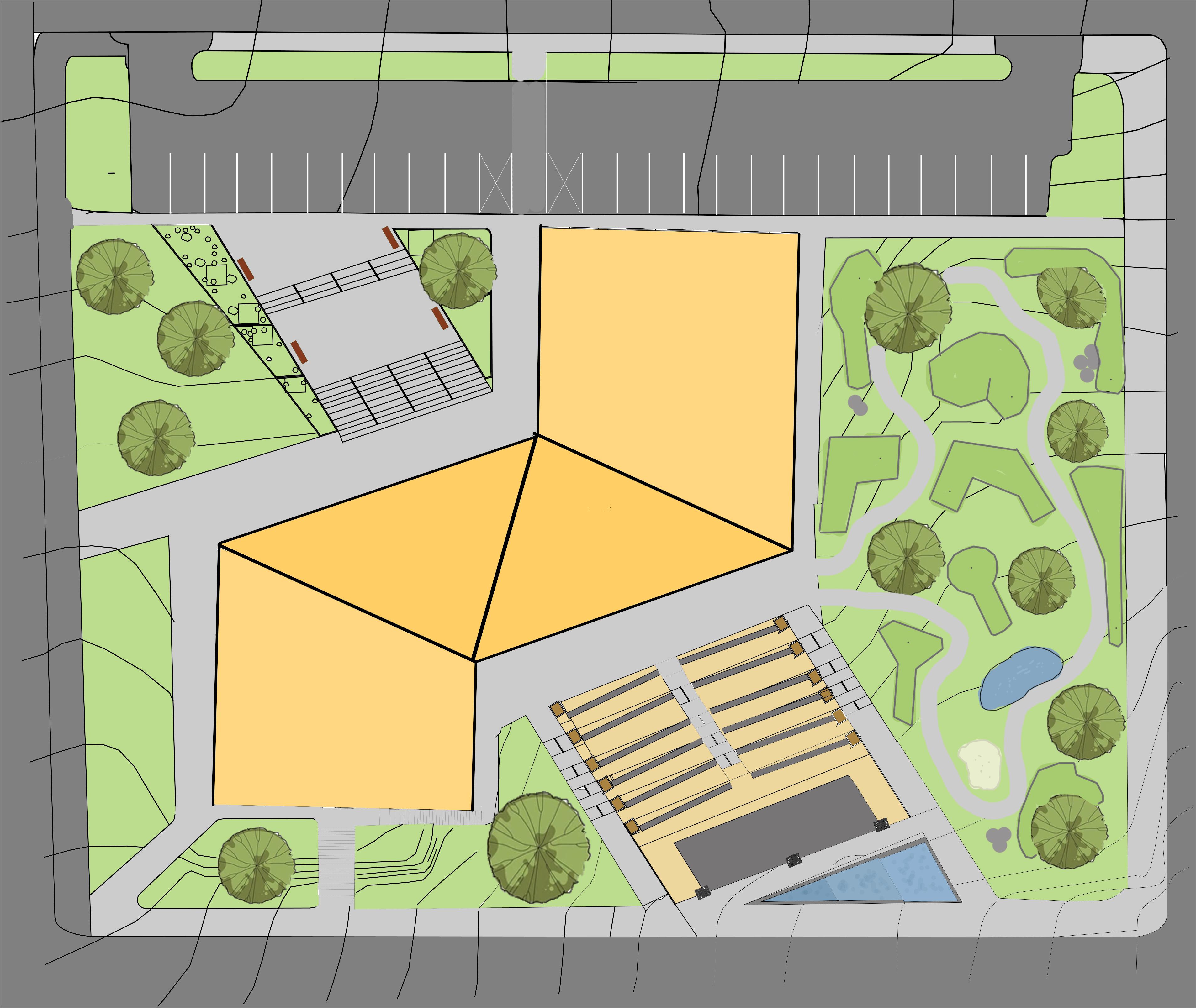

Site Plan

28

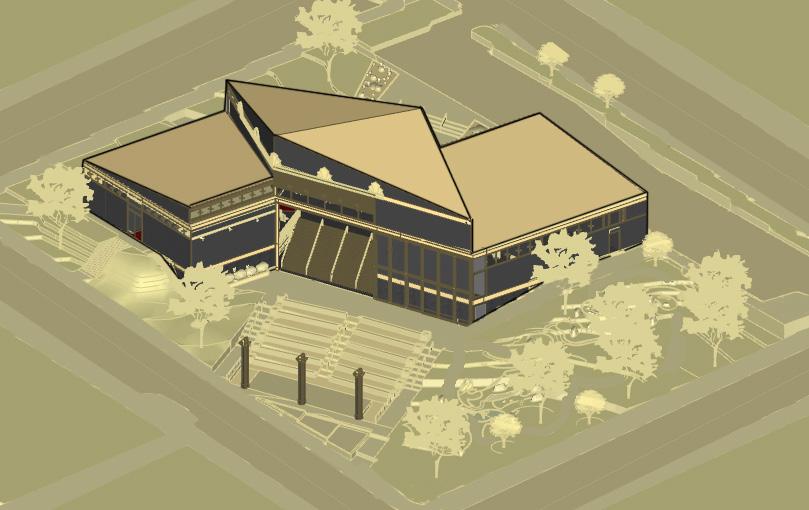

Axonometric

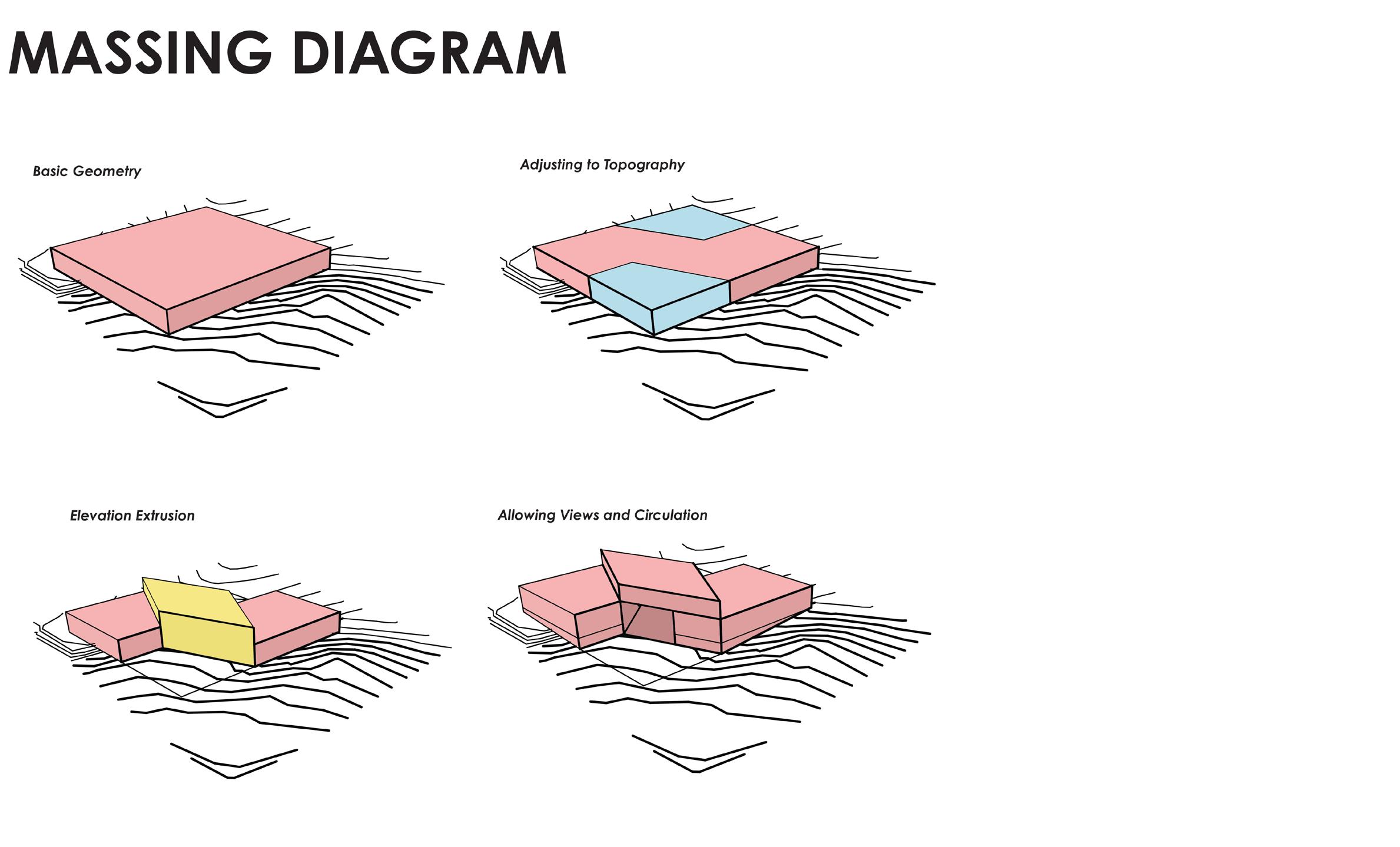

Massing Diagram

29

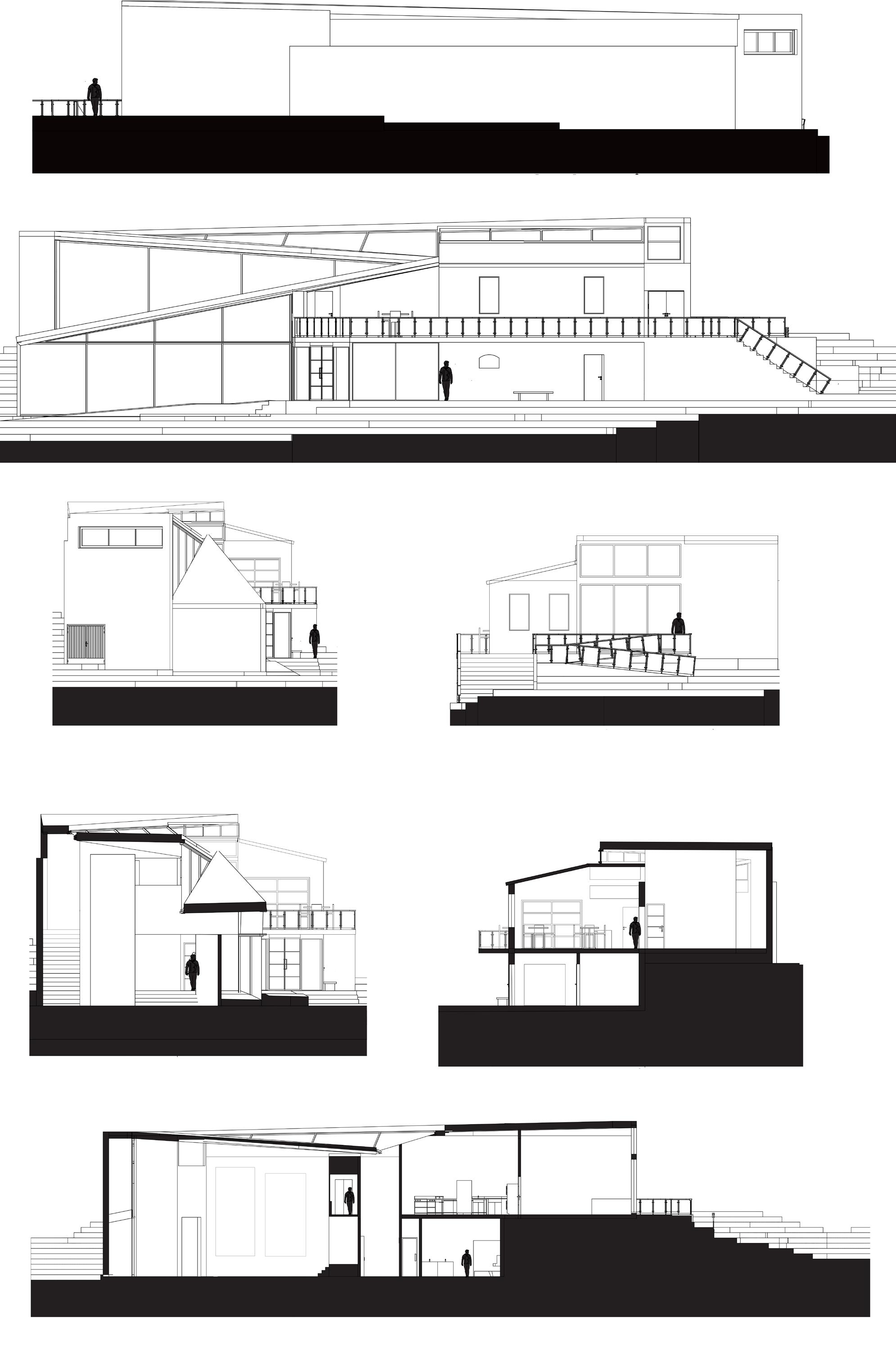

East Elevation

West Elevation

North Elevation

30

South Elevation

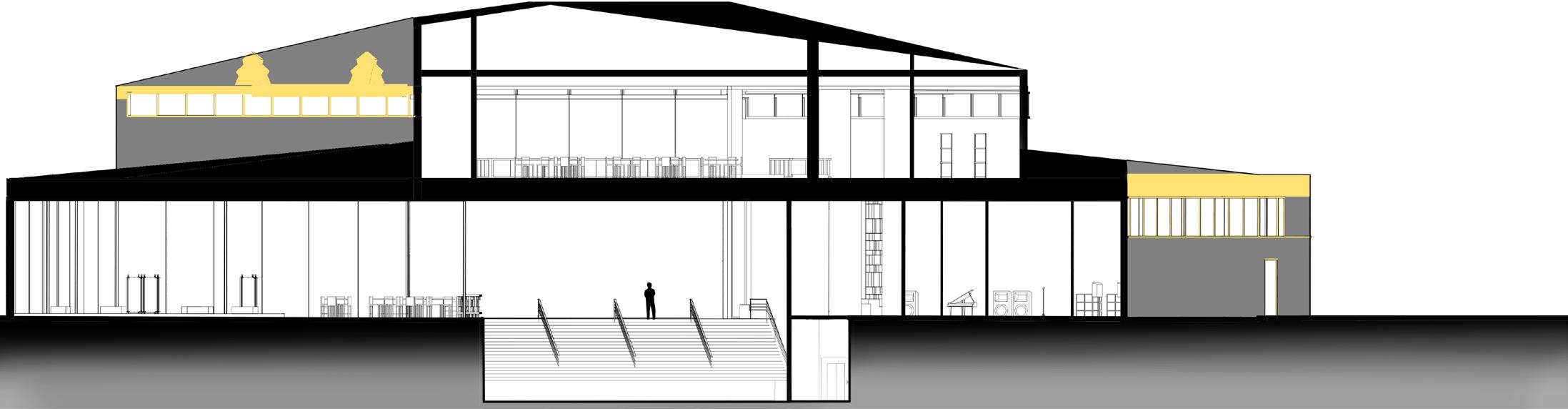

East Section

North Section

31

32

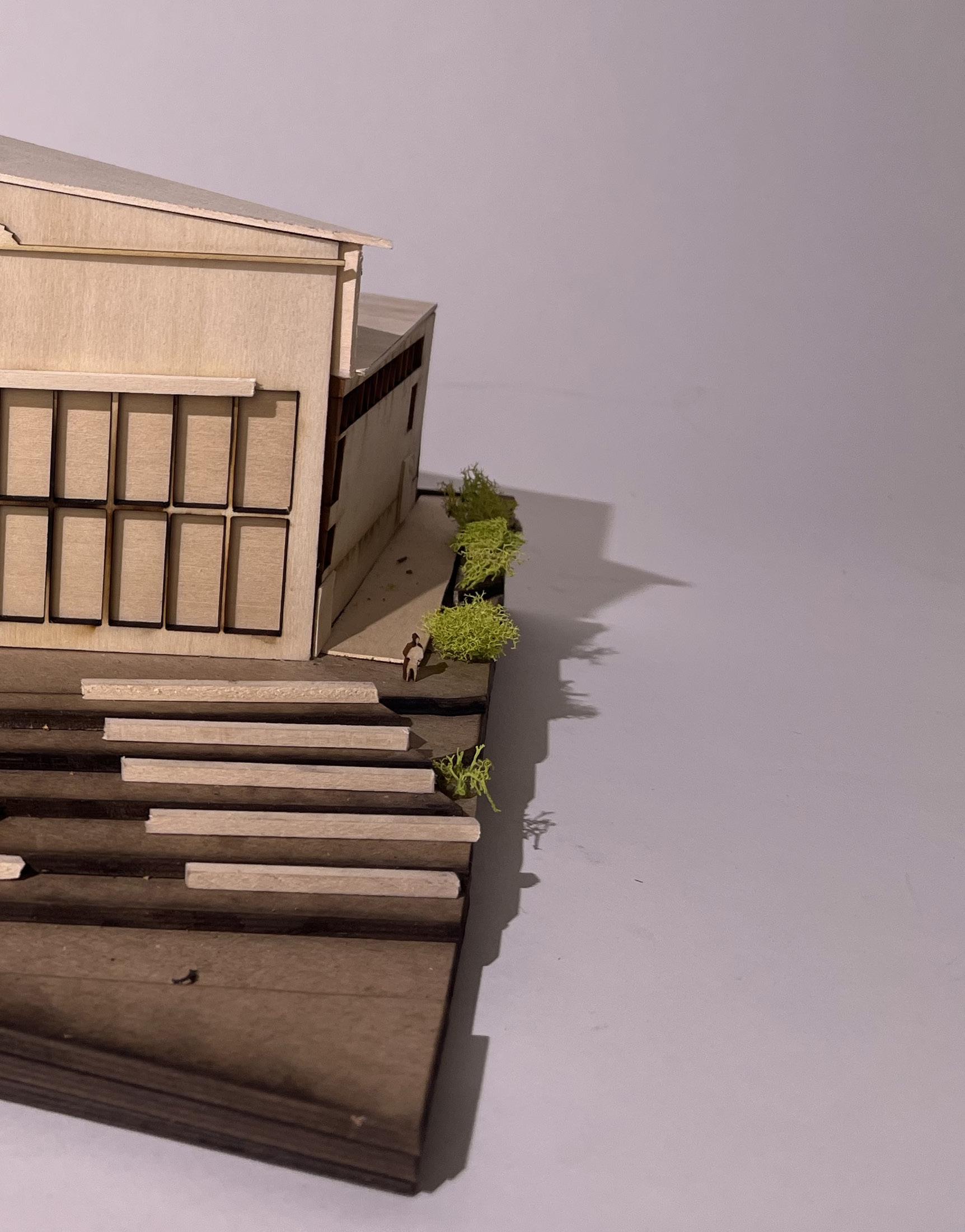

Model

33

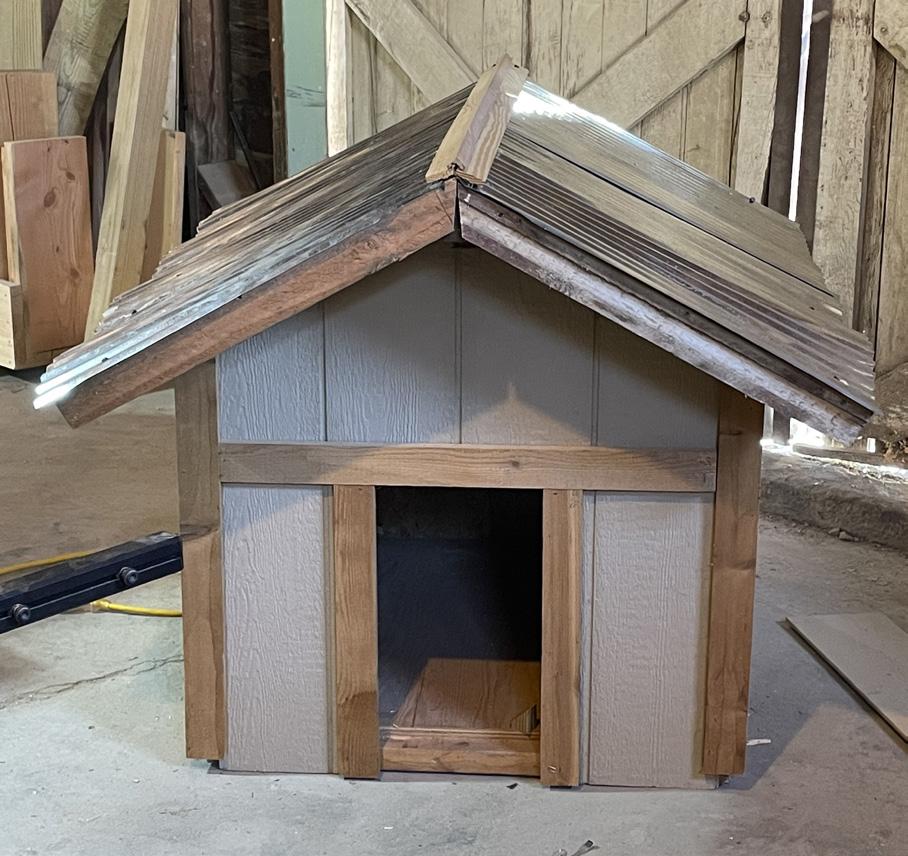

Personal Works

34

35

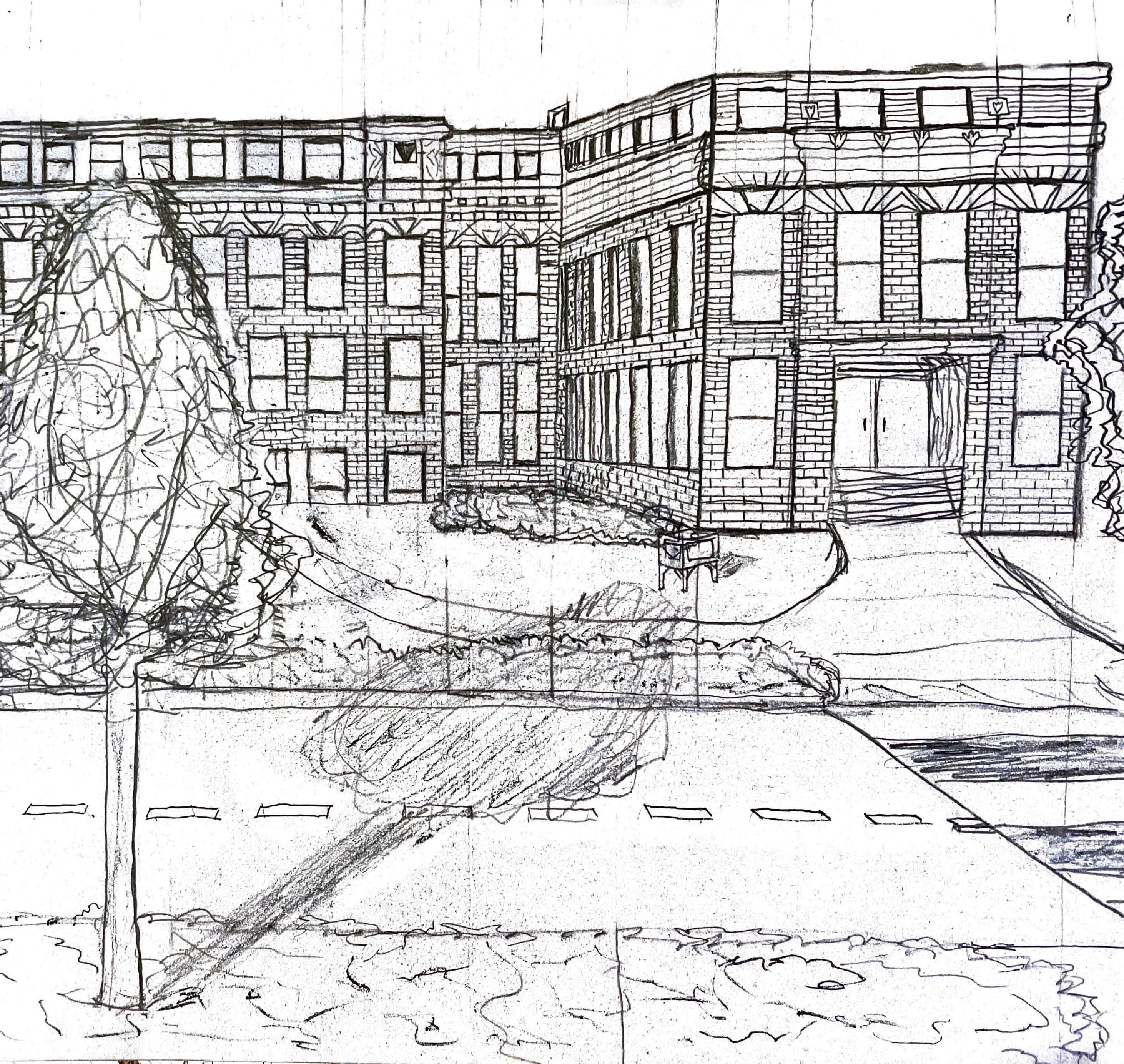

Budig Hall ‘21

36

Peterson 2023
