pewag Security Chain, Hoist, and Non-Lifting Chain Highest quality chains for strength and security
1787
pewag products The pewag group has a substantial and diverse spectrum of products and services. • Industrial Lifting Chains & Components • Traction Chains (cars, trucks, special purpose vehicles) • Tire Protection Chains (mining vehicles) • Conveyor and Hoist Chains & Components • Security Chains pewag,ContactInc 600 W. Crossroads Parkway Bolingbrook, IL 60440 P: 630.566.1394 F: pewagchain.comsales@pewagchain.com630.759.0788 1479
Creation
At the core of chain innovation since 1479 pewag is one of the oldest chain manufacturers in the world and the company’s history goes back over 535 years when the first production facility was established in the town of Brückl, Austria in 1479. With over 535 years of engineering and manufacturing know-how, pewag has continued its research and development to provide the highest-quality innovative chain products to the market.
The pewag brand is well known for premium-quality chain products around the world and is well established as a global market leader. Today, pewag is the technological innovator in the high quality chain business. Stringent demands are placed on all employees to ensure high standards of quality.
1975
First documented references of a forging plant in Brückl 1803 Founding of a chain forge in Graz 1923 Merger of plants in Graz and Kapfenberg of the name“pewag” Established pewag Inc. the North American Distribution Company 2014 pewag opens first chain production plant outside Europe in Pueblo, CO pewag acquires Terrier Lifting Clamps Founding of a chain forge in Kapfenberg Establishment of an iron casting plant in Brückl Production of the first Snow Chain worldwide Production of the first Tire Protection Chain Creation of pewag Mexico pewag is the first producer of Friction of important
2015
2 pewag Security, Hoist, and Non-Lifting Chain History
2013
events
1912
1947
1836
Welded Chains Timetable
3 pewag Security Chain 4 pewag Viro PANZER Padlocks 4 pewag Chafe Sleeve 5 pewag Security Chain in-a-Box 5 Alloy Steel Hoist Chain 6 Non-Lifting Stainless Steel Chain 6 User Information Terms and Conditions 7 Security, Hoist, and Non-Lifting Chain Contents

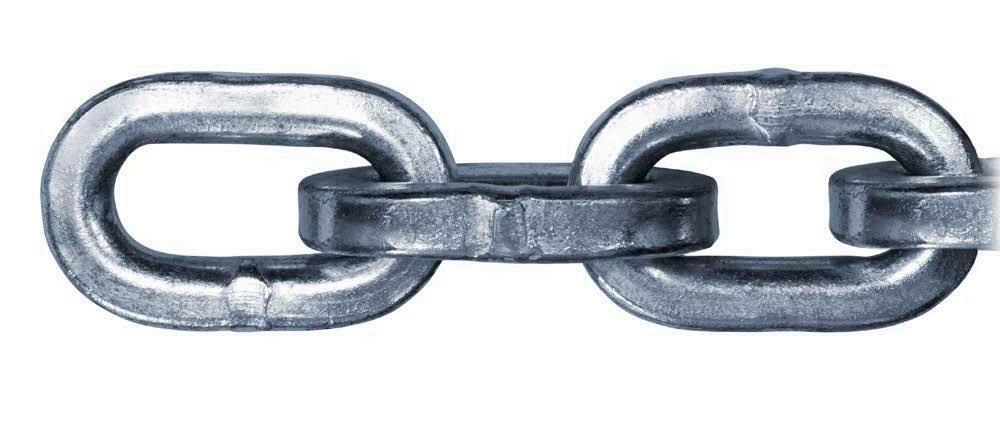

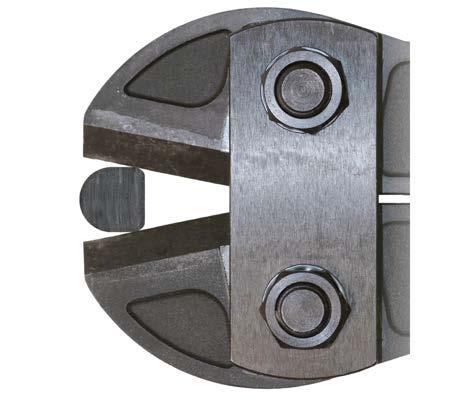

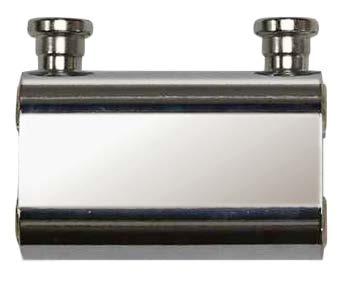

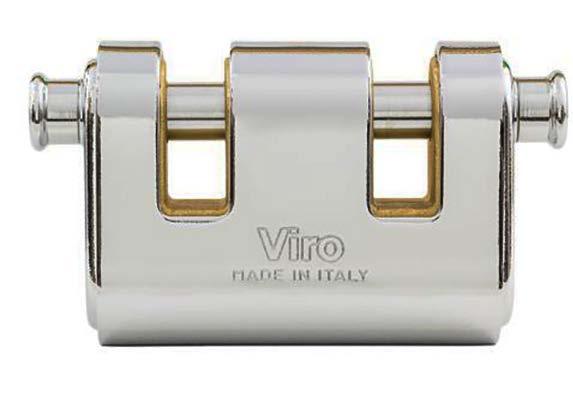

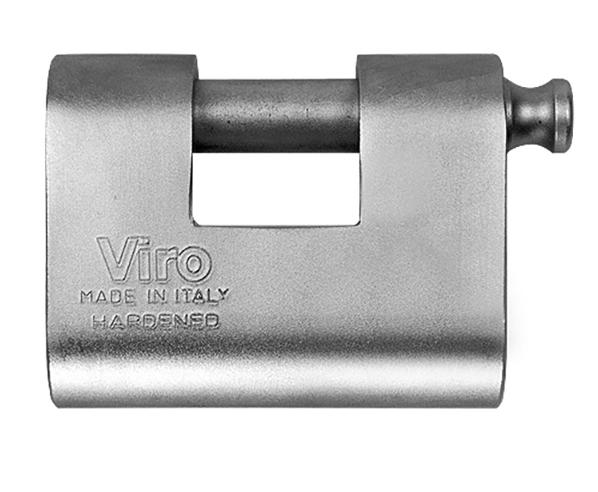

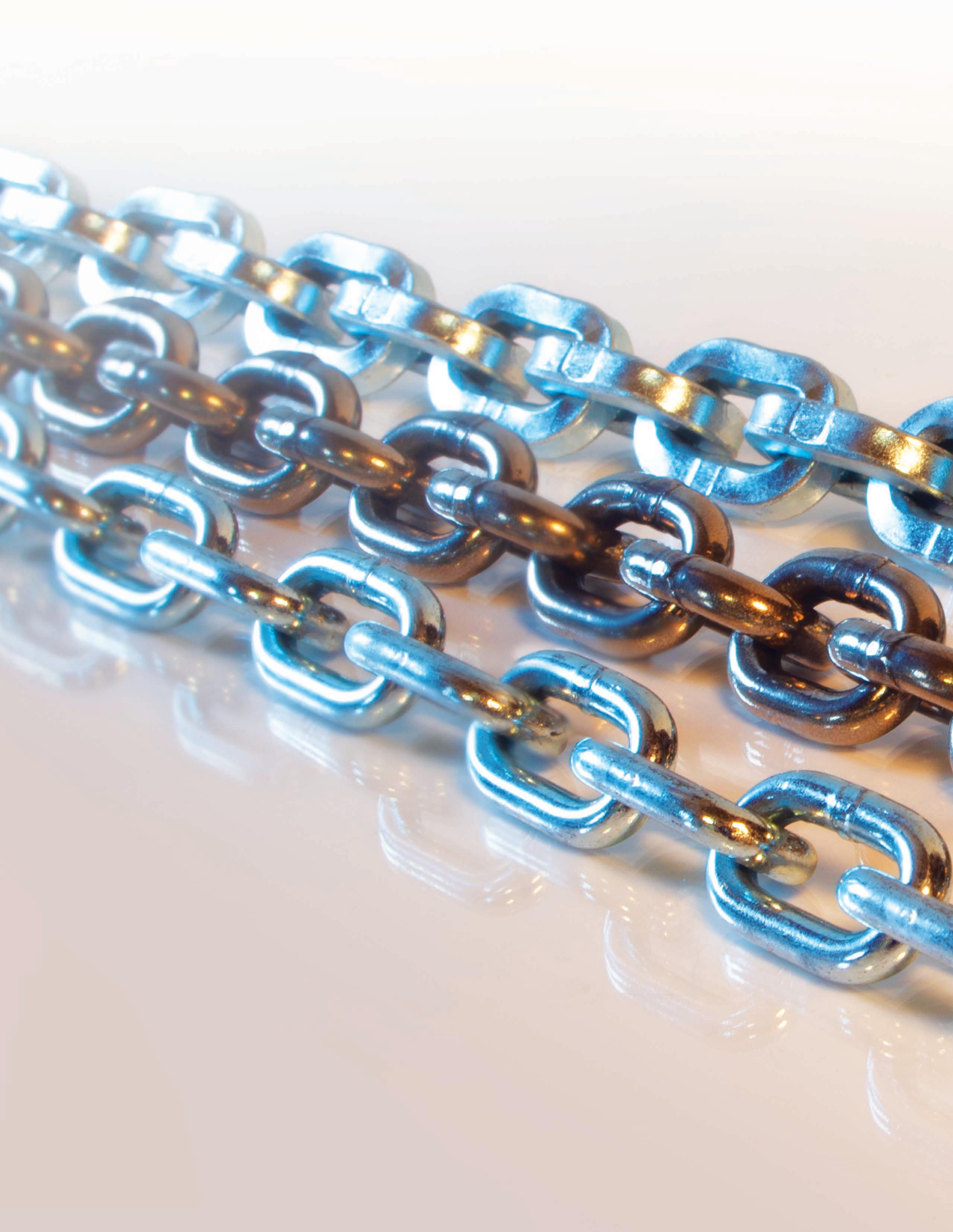

4 pewag Security, Hoist, and Non-Lifting Chain pewag security chain profile Design does not allow bolt cutters too get a good bite 4228 (9/32”) 4126 (3/8”) 4153 (1/2”) Code Chain Size Description (inch) (mm) 4228L 9/32˝ 7 Viro Panzer Lock for 9/32”(7mm) 4126L 3/8˝ 10 Viro Panzer Lock for 3/8”(10mm) 4126/KA 3/8˝ 10 Viro Panzer Lock for 3/8”(10mm) - Keyed Alike 4153L 1/2˝ 12 Viro Monolith Lock for 1/2”(12mm) 4153/KA 1/2˝ 12 Viro Monolith Lock for 1/2”(12mm) - Keyed Alike Code Description 4228/KEY 33 RH Viro Key 4126/KEY Viro Panzer Blank Key 4153/KEY 63.A Viro Key Blank Key Code Chain Size P (inch) W1 (inch) Finish Case-Hardened Rockwell Hardness / % Depth Core Hardnes Rockwell Hardness FullLengthDrum (feet) Weight (lbs/ft)(inch) (mm) 21148 9/32˝ (0.276) 7 0.93 0.40 EG 62 RC / 10% 49 RC 100 0.75 13620 3/8˝ (0.394) 10 1.37 0.56 EG 62 RC / 10% 49 RC 50 1.65 56847 1/2˝ (0.473) 12 1.75 0.68 EG 62 RC / 6% 42 RC 50 2.39 pewag Security Chain pewag’s Secuity Chain is all you need to keep any and everything you put under lock & key, safe and secure! Our new tapered square link design doesn’t allow bolt cutters to get an adequate bite, coupled with a case-hardened exterior (62 HRC) and electro-galvanized finish, pewag’s Security Chain is available in standard drum, cut foot, or Security Chain in-a-Box™. pewag Viro PANZER Padlocks Viro PANZER armored padlocks made in Italy are the ultimate lock for the ultimate chain! They have a solid brass body with a case-hardened steel deadbolt, main armor and side armor, and are chrome-plated for lasting durabilty. The rounded body resists attacks and multiple brass pins provide pick resistance! Viro Padlocks W1 P

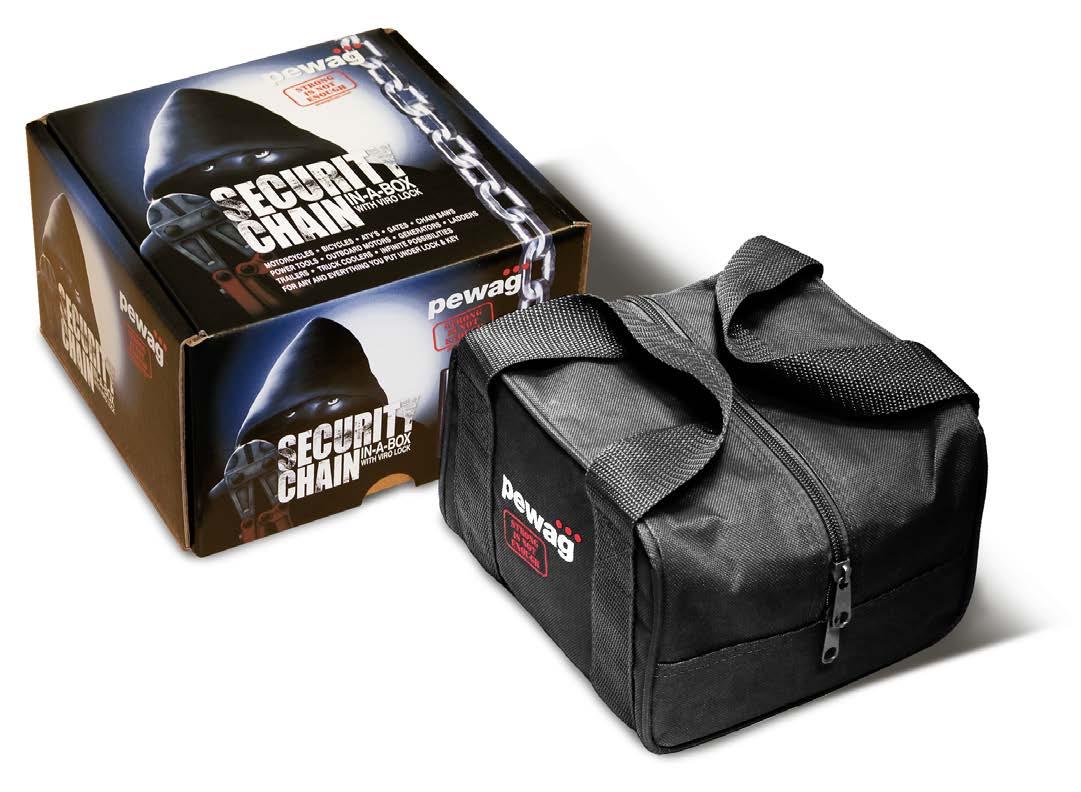

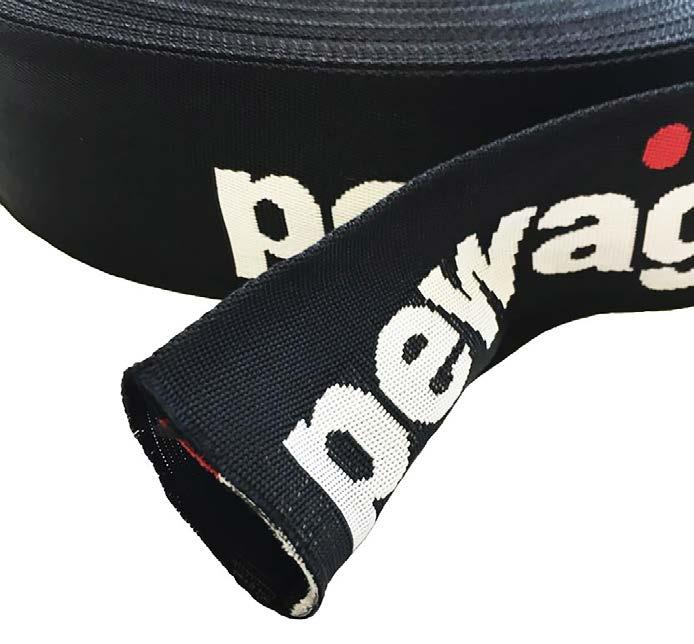

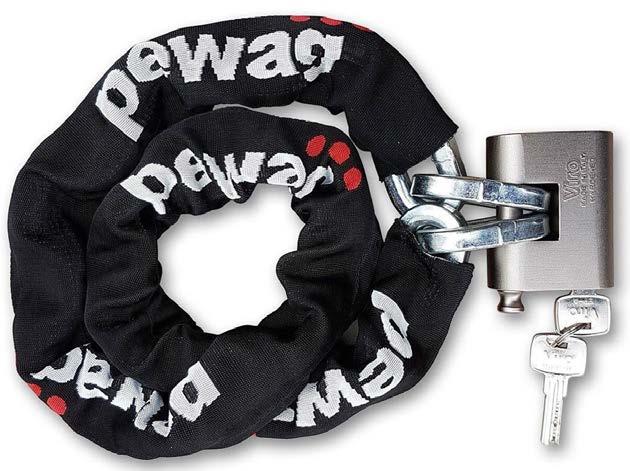

5 Code To Fit Chain Size Roll Length (inch) (mm) 7mm pewag Sleeve 9/32˝ 7 164’ 10/12mm pewag Sleeve 3/8˝ / 1/2˝ 10/12 164’ pewag Chafe Sleeve pewag Chafe Sleeve is a black tubular nylon sleeve with the pewag logo, for protecting the finish on pewag security chain. Code Chain Size LengthCut (feet) PadlockViro SleeveChafe (feet) WeightBox (lbs)(inch) (mm) 21148/3 9/32˝ 7 3 4228L 3 4 21148/6 9/32˝ 7 6 4228L 6 6 21148/9 9/32˝ 7 9 4228L 9 9 13620/3 3/8˝ 10 3 4126L 3 7 13620/6 3/8˝ 10 6 4126L 6 11 13620/9 3/8˝ 10 9 4126L 9 16 56847/3 1/2˝ 12 3 4153L 3 9 56847/6 1/2˝ 12 6 4153L 6 16 56847/9 1/2˝ 12 9 4153L 9 23 pewag Security Chain in-a-Box™ pewag’s Security Chain in-a-Box™ contains your choice of 7mm(9/32”), 10mm(3/8”), or 12mm(1/2”) chain in your choice of lengths - 3, 6, or 9 feet. Also incuded is a Viro PANZER armored padlock pewag logo chafe sleeve and a handy carrying bag.

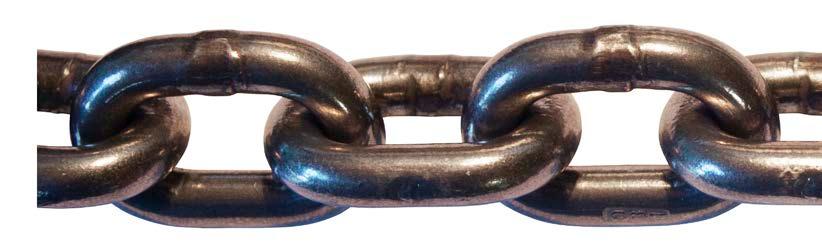

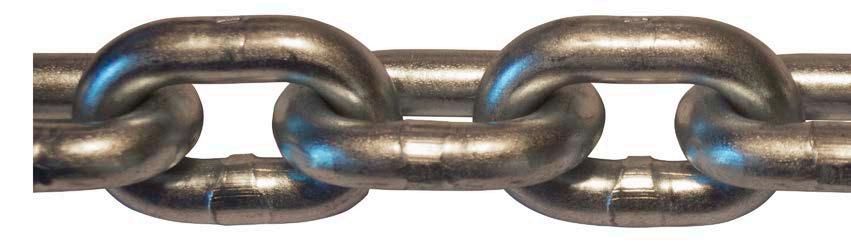

6 pewag Security, Hoist, and Non-Lifting Chain Stainless Steel Chain (Non-Lifting) 316L is a polished chain made to G4 dimensions and fits many standard US anchor windlasses as well as industrial applications. 316L Stainless Steel Chain will resist pitting and most kinds of corrosion. This chain has excellent resistance to pitting in phosphoric and acetic solution. 316L Stainless Steel Chain complies fully with all the requirements of the US National Association of Chain Manufacturers’ specifications. NOT for overhead lifting. 304L Stainless Steel Chain is an economical and commonly used chain for industrial applications. This chain has good resistance to atmospheric corrosion. 304L Stainless Steel Chain fully complies with all requirements of the US National Association of Chain Manufacturers’ specifications. NOT for overhead lifting. Code Chain Size ActualDia. (inch) WLL (lb) P (inch) W1 (inch) Weight (lbs/ft)(inch) (mm) 316L 5/64 5/64˝ 2 0.079 55 0.87 0.14 0.04 316L 7/64 7/64˝ 3 0.118 132 1.02 0.21 0.10 316L 1/8 1/8˝ 4 0.158 410 0.94 0.26 0.19 316L 3/16 3/16˝ 5 0.200 1,200 0.95 0.38 0.32 316L 9/32 9/32˝ 7 0.276 2,000 0.87 0.43 0.73 316L 5/16 5/16˝ 8 0.315 2,850 0.94 0.46 0.96 316L 3/8 3/8˝ 10 0.393 3,550 1.10 0.55 1.53 316L 1/2 1/2˝ 13 0.512 7,400 1.54 0.69 2.49 W1 P Code Chain Size ActualDia. (inch) WLL (lb) P (inch) W1 (inch) Weight (lbs/ft)(inch) (mm) 304L 1/8 1/8˝ 4 0.158 410 0.94 0.26 0.19 304L 3/16 3/16˝ 5 0.200 1,200 0.95 0.38 0.32 304L 9/32 9/32˝ 7 0.276 2,000 0.86 0.45 0.73 304L 5/16 5/16˝ 8 0.315 2,450 0.94 0.46 0.96 304L 3/8 3/8˝ 10 0.393 3,550 1.10 0.55 1.53 pewag Alloy Steel Hoist Chain pewag’s Alloy Steel Hoist Chains are 100% calibrated and a direct OEM replacement, providing exceptional pewag strength and quality. Code Hoist Brand OEM Chain Part Number Chain Description Bulk Strand Length (feet) 19790 Lodestar (CM) 85944 1/4“ G-80 RDS, Zinc Plated 400 19801 Lodestar (CM) 85949 5/16“ G-80 RDS, Zinc Plated 328 2380 Coffing EC/ELC JL-19-B 1/4“ G-80 RD, Zinc Plated 328 20577 Coffing EC/ELC JL-19-1 9/32“ G-80 RD, Black Finish 500 19790 Budgit 910126 Z/P 208776-3 1/4“ G-80 RDS Zinc Plated 400 19801 Budgit 910142 Z/P 209156-3 5/16“ G-80 RDS Zinc Plated 328 64403 Harrington LCER010C 8mm G-80 HE RDS S/C, Black Finish 656 59228 Harrington KLB5056/LCL5010 5.6mm G-100 HEO S/C, MN Ph Finish 400 54384 Harrington KLB5071/LCL5015 7.1mm G-100 HEO S/C, Black Finish 400 8942 Harrington KLB5100/LCL5030 10mm G-100 HEO S/C, Black Finish 400
customer
to the
• RETURN GOODS: pewag Inc./Terrier Lifting Clamps: Please note that we will accept returns only after a return merchandise authorization has been obtained. Items must be in new condition, unused in original packaging, with manuals and certifications. NO merchandise will be accepted without prior written authorization. be to pewag within 120 days from the day shippedNO are subject to a 25% (35% if manuals and certifications which will be deducted from the amount of the credit memo. will be refused. only as to assist with selection. as completeness accuracy of the information set forth in are subject to change pewag Inc. disclaims any and all liability for such changes. The information contained in without warranties of any kind, either express or implied, and pewag Inc. disclaims any and all liability or errors or changes affecting the products and/or the specifications contained in It is the responsibility of the customer to thoroughly analyze all aspects of the proposed application for the products. Due to the diversity of possible applications of pewag the is solely responsible for making the final selection of the product(s) to be used and to assure that all performance, safety and warning requirements of the application are satisfied.
• TERMS: Net 30 days - Credit must be established with pewag Inc. All other - cash in advance.
returns accepted after 120 days. All returns
for typographical, printing,
product
our catalog is provided
a guide
or
are not returned) restocking/handling charge,
All Viro products undergo the most stringent testing and therefore guarantee reliability. Viro SpA reserves the right to introduce modifications or improvements to its products, which may deem desirable without obligating itself to install such improvements to its previously manufactured products.
• PRICES: All prices are shown in US Dollars, order will be accepted subject to prevailing prices at time of order. Prices are subject to change without notice.
returned
customers’
7
our catalog
Items must
• CHAIN SLINGS AND SPECIALTY/CUSTOM ITEMS: Specialty items, cut chain, and chain slings are custom items and are NONRETURNABLE, NONCANCELLABLE, and NONREFUNDABLE. • FOR ALL OTHER PEWAG TERMS AND CONDITIONS OF SALE: https://www.pewagchain.com/footer/service/terms-and-conditions/ Disclaimer for Printed Literature: The information contained in our catalog is to be used
pewag Inc. makes no representation or warranty
• FREIGHT POLICY - USA & Canada pewag Inc. shipments, including Terrier Lifting Clamps, over 1,500 lbs. or $4,000.00 within the continental United States or Provincial Canada are prepaid. Carrier at the discretion of pewag. Shipments under 1,500 lbs. or $4,000.00 will be prepaid and added to the invoice. Minimum order of $25.00 For all shipments to Canada, customer will be responsible for duties and taxes.
VIRO Locks Warranty Conditions and Contents
contained in our catalog. The products and specifications
pewag Industrial Products Terms and Conditions
our catalog.
Viro SpA guarantee their products to be free from defects in material and manufacturing for the period of two years in accordance with the effective law on purchasing time (Directive No 1099/44/CE) and will replace or repair at no charge all component parts of the product under warranty – after consultation with our technical department or an authorized Service Centre - should they be defective due to a manufacturing or material flaw. Only for the "Made in Italy" padlocks the guarantee will be extended until 5 years and it will be possible to identify it by the small label that will be found in the boxes of the padlocks and the double blister. These products will also have the keys marked with the production date (month and year). The 5 year warranty against any manufacturing defect will be from this production date. The warranty covers the replacement of the products, ex-works, if defective, but does not include any other additional or any other cost or damage, even though related to the defective product. The property damage responsibility of Viro SpA will be in no case higher than the selling price of the article itself, even if the damage is due to forcing, theft or burglary. The warranty shall not apply to any Viro component part which has been subject to misuse, neglect, incorrect installation of maintenance, or to a use in contravention of instructions furnished by the Company. The warranty does not extend to products which have been installed in unsuitable environments or which have been repaired by unauthorized personnel or suffered damage in transit, or to any other circumstance not ascribable to faults in manufacture. Viro SpA shall not be liable for any direct, indirect and consequential damage and/or injury arising from the malfunctioning of their product, or if caused by negligence or by lack of compliance with the instructions manual. The warranty shall take effect from the date of purchase. Sales receipt (fiscal receipt, cash-desk receipt, invoice, delivery note or the like) validates the date of purchase, irrespective of the actual fitting date.
Inc. products,
production
Returned shipments must be prepaid. Collect or unauthorized shipments
without notice and
NONLIFTCAT/09/2022 pewag, Inc pewagchain.comsales@pewagchain.com630-566-1394
