TRACTION CATALOG 2026 – 2027

We are part of the

LEADING TO EXCELLENCE striving for excellence in QUALITY The values of the pewag group brands are demonstrated by our rst-class quality and continuous innovation. You can rely on us.

pewag snow chains is part of an internationally operating group of companies. Our success story goes back to the year 1479.

striving for excellence in RESPONSIBILITY Our goal is CO2 neutral production by 2030. We live sustainable and fair partnerships and an open way of working together. We take on social as well as environmental responsibility.

WHAT DRIVES US Through our entrepreneurial spirit - shaped by the joy of innovation - we strive to offer the best solutions for the market. Today and in the future.

striving for excellence in ENTREPRENEURSHIP Through the specic expertise of each individual and decentralized responsibilities, we ensure healthy growth and a sustainably successful future.

The high quality of our brands, products and services, as well as the passionate commitment of our employees are our most valuable assets to exceed customer expectations and to live up to our corporate responsibility towards people and environment.

striving for excellence in TECHNOLOGY We ensure our technological strength by striving for quality, continuous improvement and innovation of our products and production processes.

FROM AUSTRIA...

1479

1787

1803

1836

1912

2009

2021

First documentary mention of the forge

Foundation of the chain forge in Kapfenberg

Foundation of the location in Graz

Establishment of an iron casting plant in Brückl

Production of the rst pewag snow chain

pewag develops into an international group of companies

Extensive investment in renewable energies. Goal: CO2neutral production by 2030

...ACROSS THE GLOBE

45 +

100

Countries

Sales partners

18 Production sites

15+ Brands

History of the pewag group Advantage through tradition

Areas of application pewag offers a substantial and diverse spectrum of products and services

The history of pewag group goes back to the 15th century and therefore makes us the oldest chain manufacturer worldwide. With our experience we are ready for the future.

Timetable of important events 1479 First documented references of a forging plant in Brückl 1787 Foundation of a chain forgery in Kapfenberg 1803 Foundation of a chain forgery in Graz 1836 Establishment of an iron casting plant in Brückl 1912 Production of the first snow chain worldwide 1923 Merger of plants in Graz and Kapfenberg – creating the name “pewag” 1972 Foundation of a sales company in Germany 1975 Foundation of a sales company in the USA 1993 Foundation of pewag austria GmbH 1994 Foundation of the first subsidiary in Czech Repbulic 2005 Reorganization into 2 groups: Schneeketten Beteiligungs AG Group – Snow Chains pewag austria GmbH Group – Technical Chains 2009 Acquisition of Chaineries Limousines S.A.S. 2014 Manufacturing starts in Pueblo, CO - USA 2015 Acquisition of König Chain Italy into pewag group 2017 Merger of snow chain division from pewag, Inc. with the production team at pewag Traction Chain, Inc. 2021 Acquisition of Wallingford's/BABAC into pewag group to complete pewag's global forestry product range

Traction chains

Tire protection chains

Industrial chains

Engineering

ISO 50001:2018 ISO 45001:2018 ISO 14001:2015 ISO 9001:2015 pewag Schneeketten GmbH Kettenwerk 1 9371 Brückl +43 505011 – 0

Lithography forging plant Brückl 1855

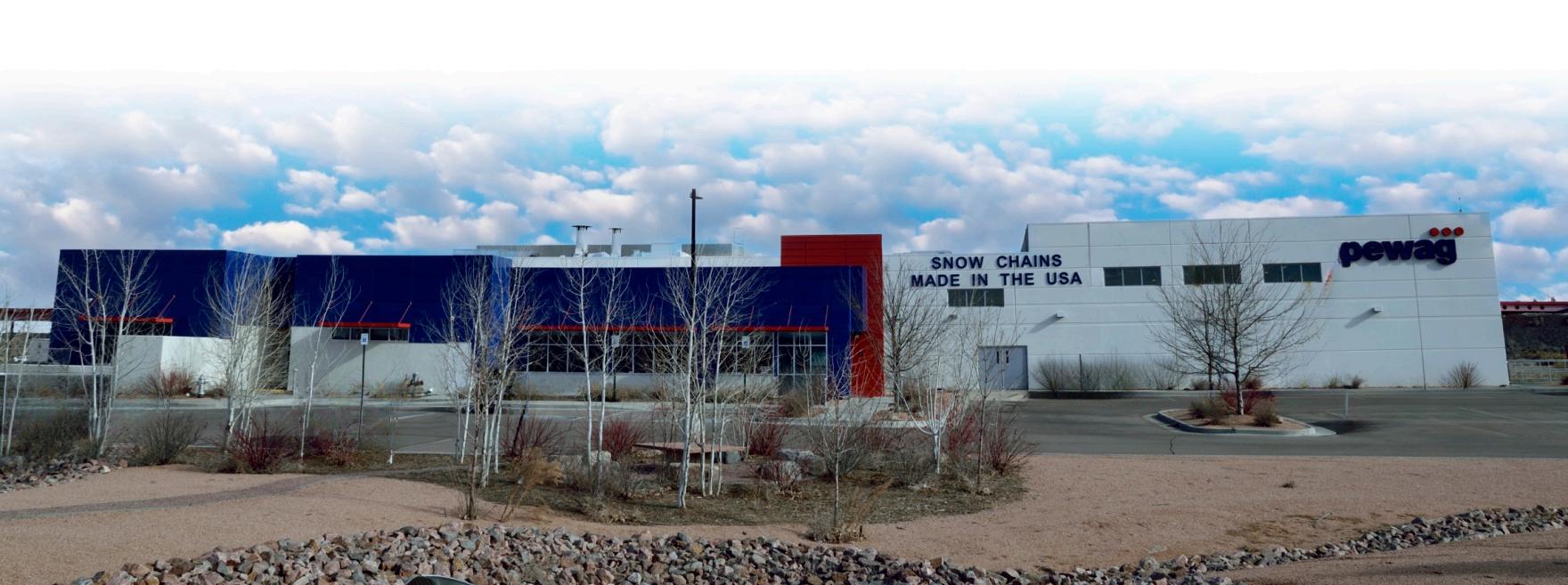

pewag Traction Chain, Inc. 190 Greenhorn Drive Pueblo, CO 81004 (800) 445-2895

pewag Traction Chain, Inc. 3825 Cincinnati Avenue Rocklin, CA 95765 (800) 445-2895 Anchor chain forgery 1878

Chain forgers 1956

Content Car, Crossover, & SUV Class “S” snox servo CB-12 CG-9 Easy-Fit K-Summit K-Summit XL K-Summit XXL snox SUV servo SUV Easy-Fit SUV XG-12 PRO

6 6 7 7 8 8 9 9 10 10 11 11

Light Truck, Pick-Up & 4WD studded ladder zig-zag pattern starwave ladder brenta-c 4x4 XD-16 PRO 4x4 XB-16

14 14 15 15 16 16

Heavy Truck & Trailer studded ladder starwave ladder & heavy duty ladder cervino CL austro super ASV zig-zag pattern zig-zag studded

18 19 20 20 21 21

Loader, Grader & Tractor starwave ladder zig-zag pattern universal ED doppelspur power-net erzberg ED austro-net

24 24 25 26 27 28 29

Skid Steer, ATV & Small Equipment skid steer ladder skid steer doppelspur ATV - UTV - SxS snow blower garden tractor forklift

32 32 33 33 34 34

Parts & Accessories end hooks, levers, clevis fasteners bulk chain, cam chain & cams cross chain hooks, cross chain guide repair links, shackles & emergency chains universal/erzberg parts & pin locks adjusters, pliers & chain tools

36 37 38 39 40 41

Fit Guide & Specs car, crossover, SUV & pick-up 4WD light truck & off-road heavy truck & trailer loader, grader & tractor chain specifications

44-75 76-81 82-86 87-92 93-96

chains are the strongest choice for each application. &

pewag group continues to be the leading supplier of traction chains around the world. As a technology leader, and determination to innovate, we offer innovative, reliable, and proven solutions for the most demanding applications. Further expanding–the KÖNIG traction portfolio delivers premium, purpose-built solutions designed to maximize road safety in the harshest winter conditions. From avid skiers & mountain explorers, to daily commuters. Drivers the world over trust pewag & KÖNIG.

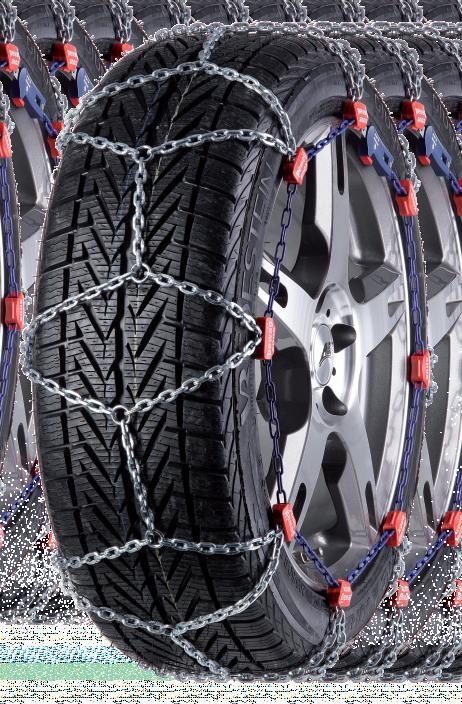

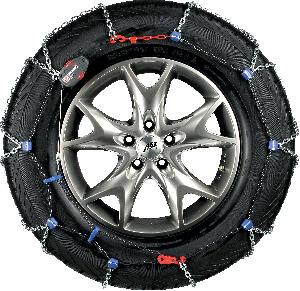

Car, Crossover & SUV Class ‘S’ snox servo CB-12 CG-9 Easy-Fit K-Summit K-Summit XL K-Summit XXL snox SUV servo SUV Easy-Fit SUV XG-12 PRO

6 6 7 7 8 8 9 9 10 10 11 11

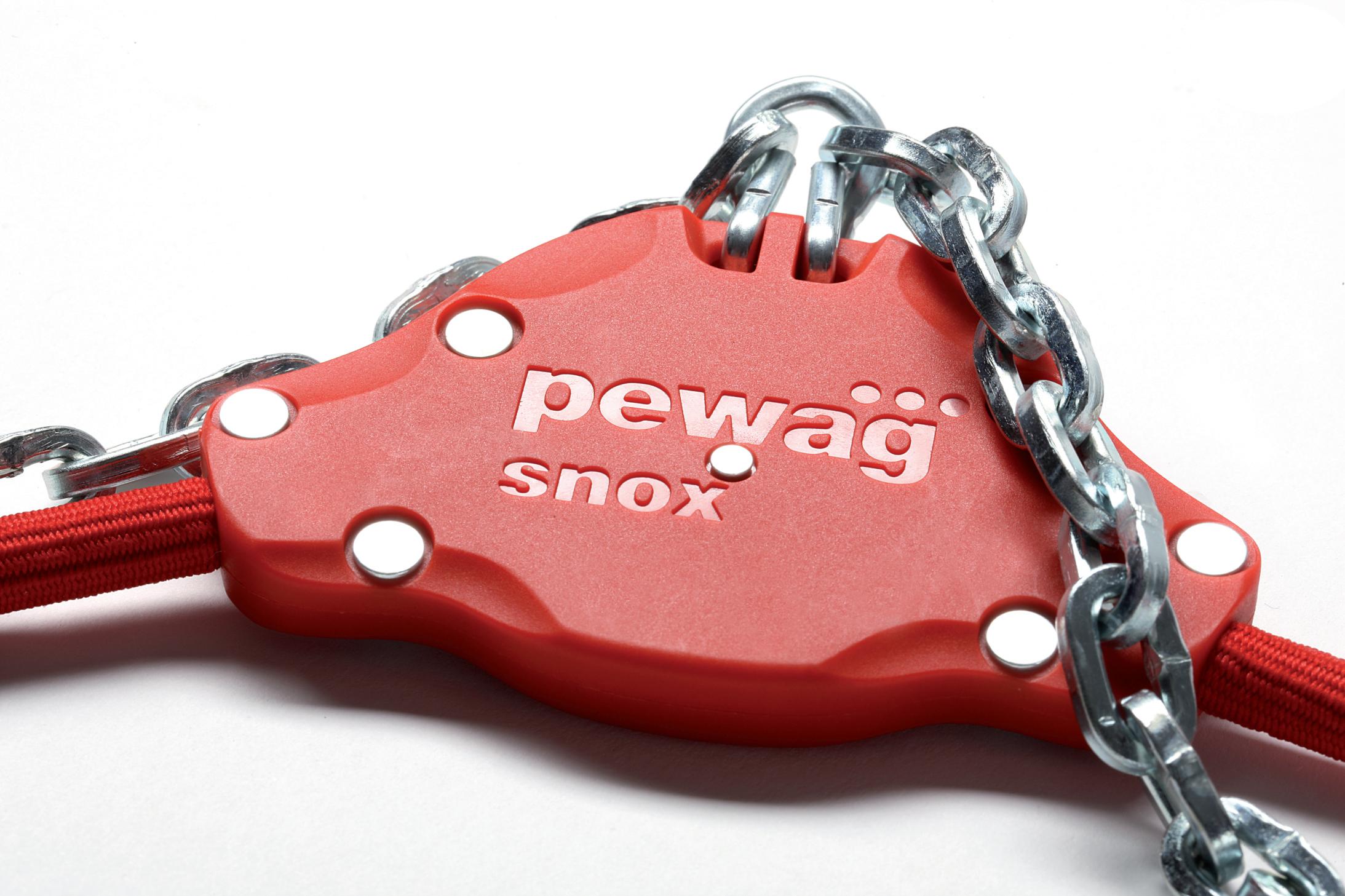

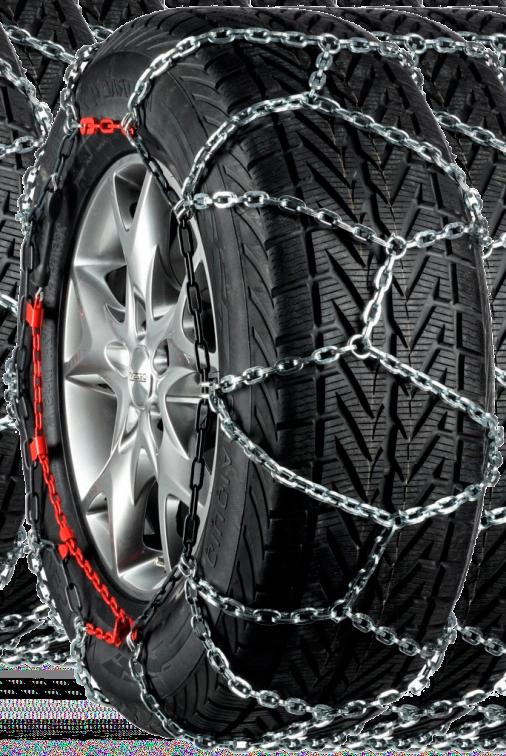

snox s(nox)olution! pewag snox pro is the only snow chain that is not mounted, but snoxed! No rings, no hooks, no re-tensioning - snow chain mounting has never been so easy. At a given speed, the pewag snox system locks the ring - and ideal tensioning of the chain is regulated automatically. When the vehicle stops, the ring is released again and you can simply pull the chain off the tire. For an even quicker removal of the chain, pewag snox is additionally equipped with the patented quick-release latch system. •High quality chain with innovative technology •pewag snox system tensions the chain automatically •Always pre-fit chains before use

Mounting Video

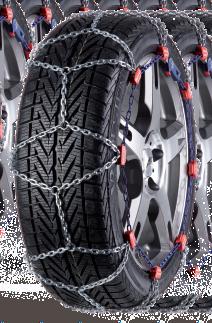

servo Sporty, thrilling, and durable. pewag servo was developed for vehicles with high powered engines and offers the ease of stationary mounting and reliability under all conditions. Due to its low profile pattern for class “S” applications; pewag servo allows for vehicle clearance, perfect traction, and a long life span. •High quality chain with innovative technology •pewag servo ratchet tensions the chain automatically •Always pre-fit chains before use

Mounting Video

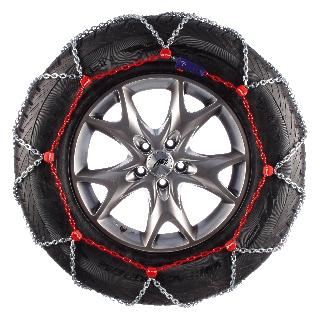

CB-12 Simple, sturdy, and affordable. The manual tensioning system requires one vehicle stop for fitting and second stop to adjust chain tension. Standard locking connection device to maintain correct tension •12mm inside and over-the-tread clearance •Always pre-fit chains before use

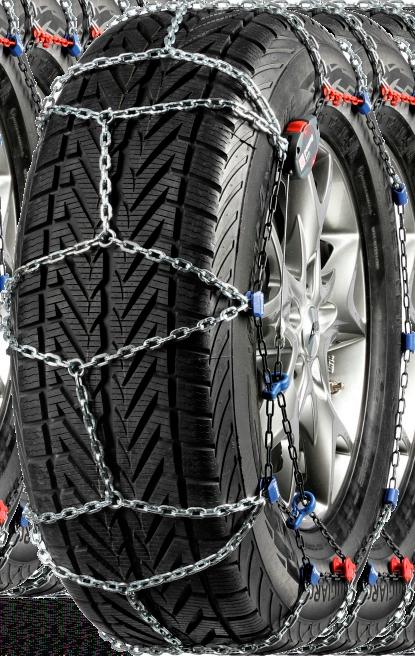

CG-9 Self-tensioning and performance. The industry leading, self-tensioning, low-profile snow chain that combines superior traction performance with driving comfort. The König Active Tensioning Control is responsible for the chain tensioning and centering while driving. Eliminating the need for further stops to tighten the chain •9mm inside and over-the-tread clearance •Always pre-fit chains before use

Easy-Fit Innovative chain installation in a fraction of time. The internal rigid arch system makes fitting the chain very intuitive and simple. Automatic tensioning system activated by foot pedal. External quick release system activated by red buttons on the aluminum tension bar. WHEEL-SHIELD provides integral protection of the wheel from scratches caused by contact with metal parts. The aluminum bar inner-face is protected with an antiscratch composite material. •9mm inside and over-the-tread clearance •Always pre-fit chains before use

Mounting Video

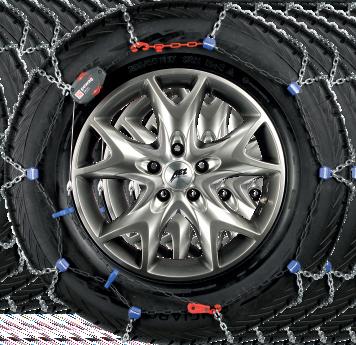

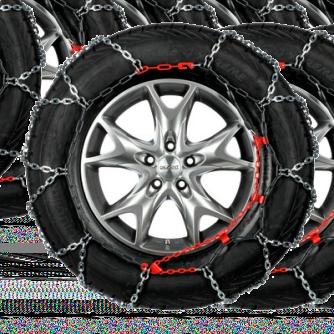

K-Summit Revolutionary mounting for unchainable cars. K-Summit is the chain that turned the industry upside-down providing the most practical functioning solution for vehicles with limited, or zero clearance behind the wheel. Fixes to OEM wheel lug, no vehicle modification necessary. Central body with integrated ratchet system for quick, powerful, and effortless tensioning operation. Foldable arms for easy storage in a compact bag. •0mm inside clearance •12mm over-the-tread clearance •Always pre-fit chains before use

Mounting Video

K-Summit XL External snow chain for crossover. Compact chain pattern with proprietary design injection-molded high-strength plastic plates infused with hard metal studs. Lug nut mounting avoids any contact between the snow chain and wheel, preventing abrasive damage. •0mm inside clearance •12mm over-the-tread clearance •Always pre-fit chains before use

K-Summit XXL Covering larger premium wheels. Active tensioning elements built into the chain decrease dynamic elevation and can be added/removed to ensure perfect fitting with different tire profiles and tread patterns. No guesswork, our included K-Tool wrench provides a familiar “click” during installation for precise torquing specs during mounting. •0mm inside clearance •12mm over-the-tread clearance •Always pre-fit chains before use

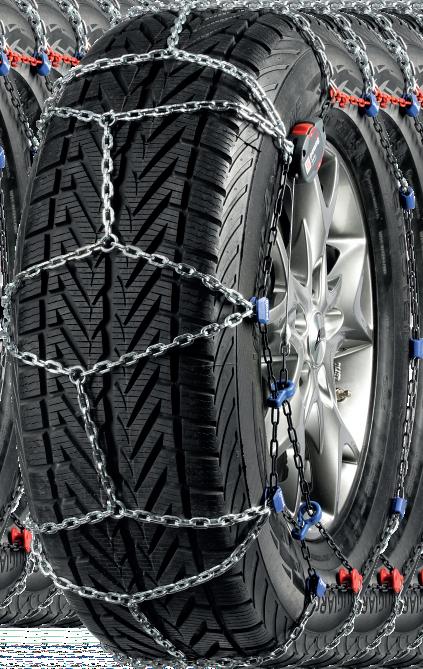

snox SUV s(nox)olution! pewag snox suv is the only snow chain that is not mounted, but snoxed! No rings, no hooks, no re-tensioning - snow chain mounting has never been so easy. At a given speed, the pewag snox system locks the ring - and ideal tensioning of the chain is regulated automatically. When the vehicle stops, the ring is released again and you can simply pull the chain off the tire. For an even quicker removal of the chain, pewag snox is additionally equipped with the patented quick-release latch system. •High quality chain with innovative technology •Class “S” clearance approved •pewag snox system tensions the chain automatically •Always pre-fit chains before use

Mounting Video Front View

servo SUV Sporty, thrilling, and durable. pewag servo was developed for vehicles with high powered engines and offers the ease of stationary mounting and reliability under all conditions. Due to its low profile pattern for class “S” applications; pewag servo allows for vehicle clearance, perfect traction, and a long life span. •High quality chain with innovative technology •Class “S” clearance approved •pewag servo ratchet tensions the chain automatically •Always pre-fit chains before use

Mounting Video Front View 10

Easy-Fit SUV Innovative chain mounting for the SUV in a fraction of time. The internal rigid arch system makes fitting the chain very intuitive and simple. Automatic tensioning system activated by foot pedal. External quick release system activated by red buttons on the aluminum tension bar. WHEEL-SHIELD provides integral protection of the wheel from scratches caused by contact with metal parts. The aluminum bar inner-face is protected with an anti-scratch composite material. •10mm inside and over-the-tread clearance •Always pre-fit chains before use

XG-12 PRO Gold standard self-tensioning performance. Special pattern chain design with welded double traction plates make this chain standout among it’s competitors. The active tensioning control is responsible for chain tensioning and centering throughout operation. Meaning, no need of further stops to tighten the chain providing a tight and precise fit for on-demand traction. •12mm inside and over-the-tread clearance •Always pre-fit chains before use

Light Truck, Pick-Up & 4WD studded ladder zig-zag pattern starwave ladder brenta-c 4x4 XD-16 PRO 4x4 XB-16

14 14 15 15 16 16

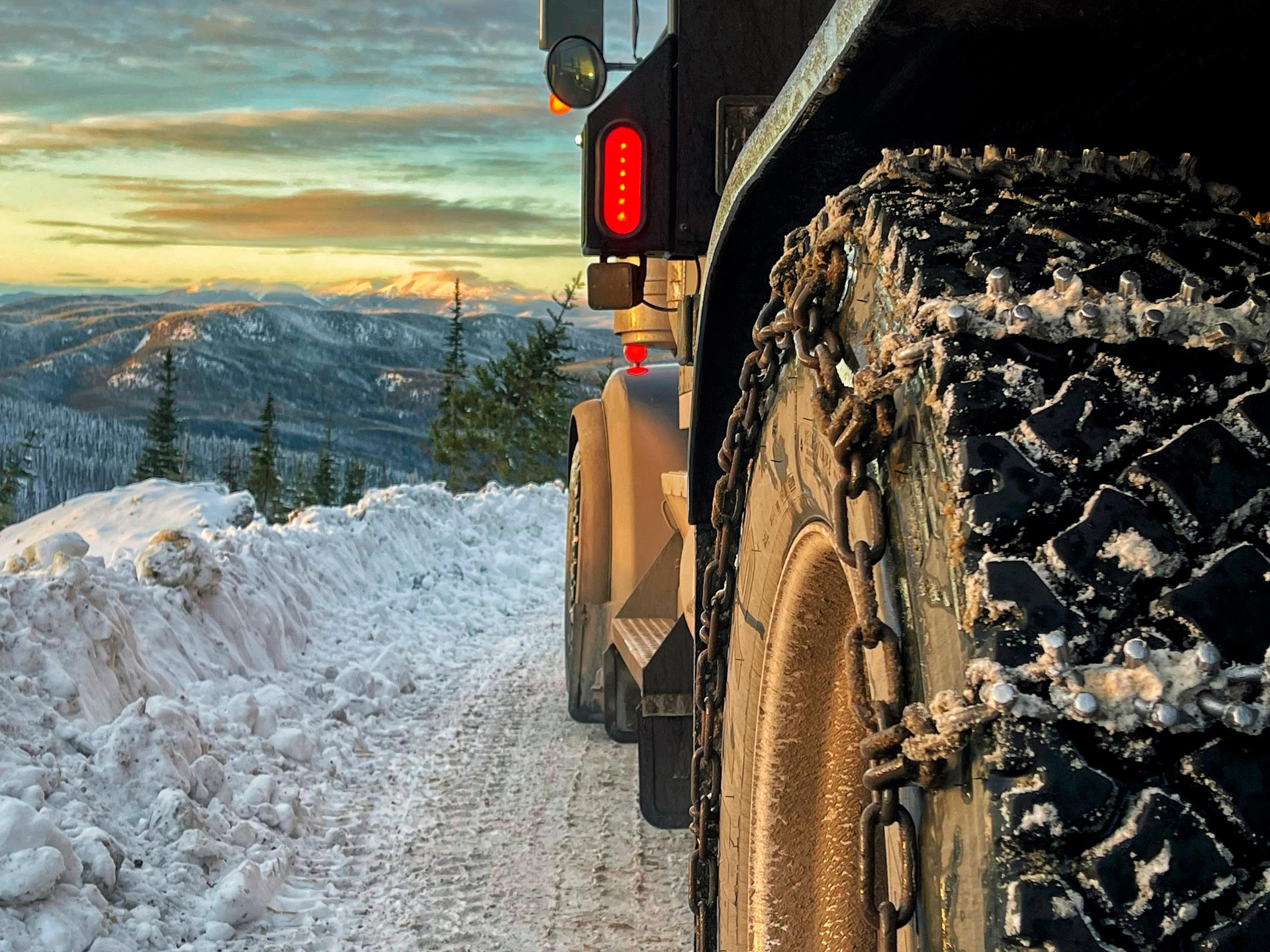

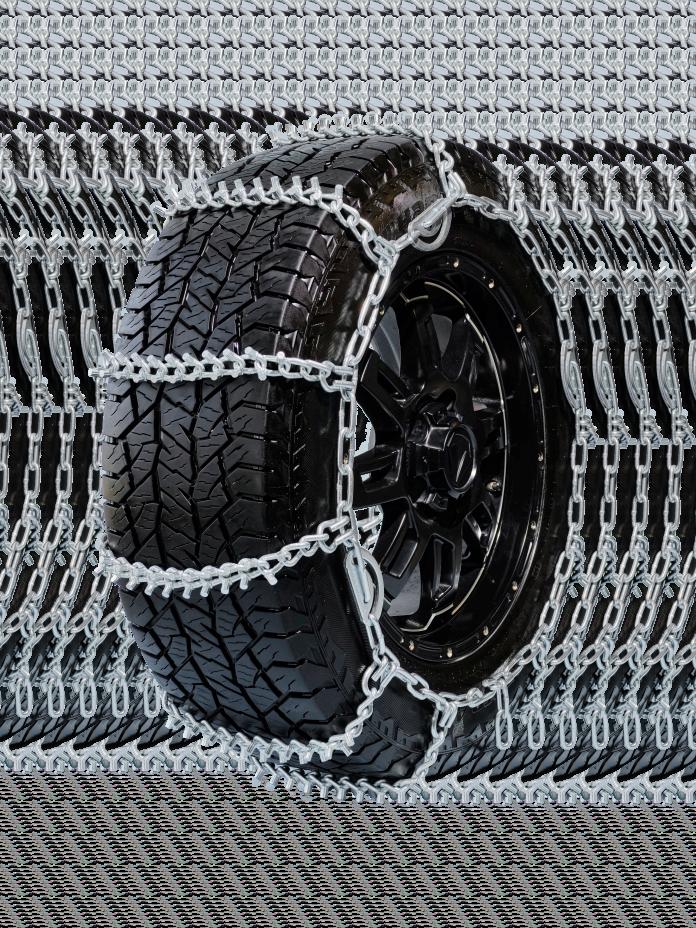

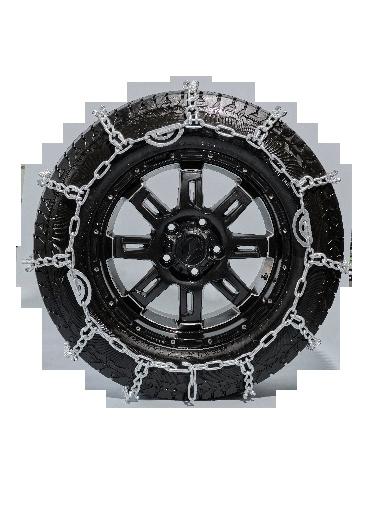

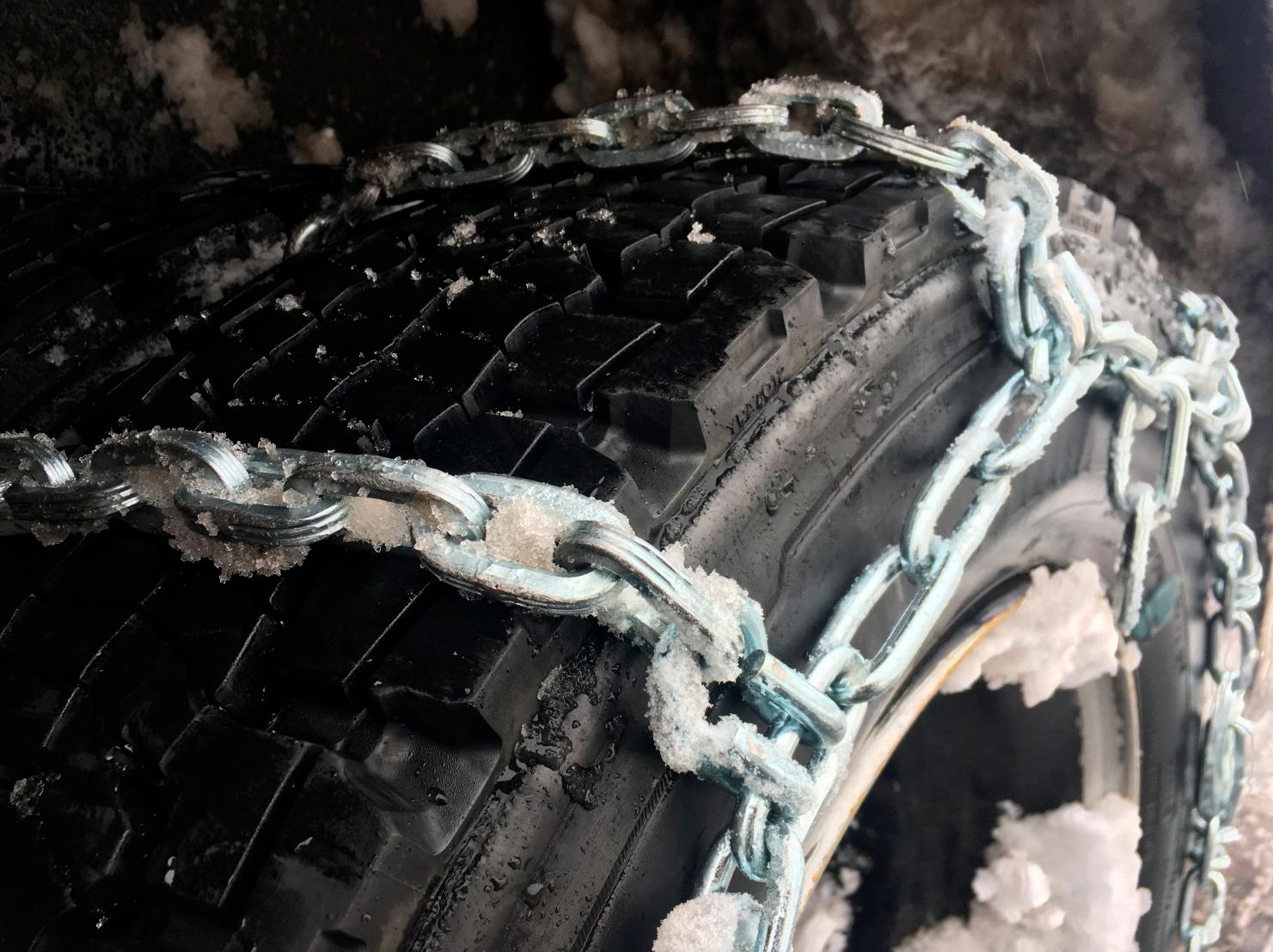

studded ladder Aggressive off-road traction on demand. pewag’s revolutionary 8-sided design is proven to outlast and outperform the competition. Breaking the mold of conventional round studs; pewag’s 8-sided allows for a deeper hardening on each individual piece. This chain is engineered for the most aggressive off-road applications. Built to last, and Made in USA! •Can be custom built to any tire size, with or without cams •Always pre-fit chains before use TM

Recommended Adjuster

Front View

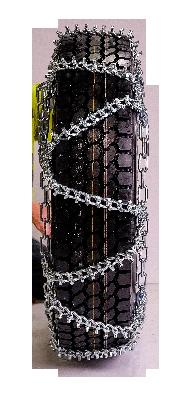

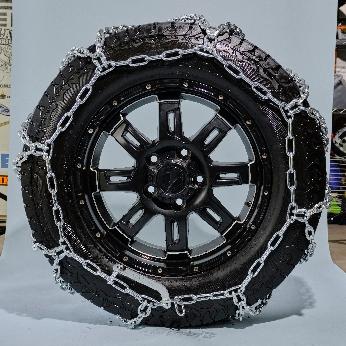

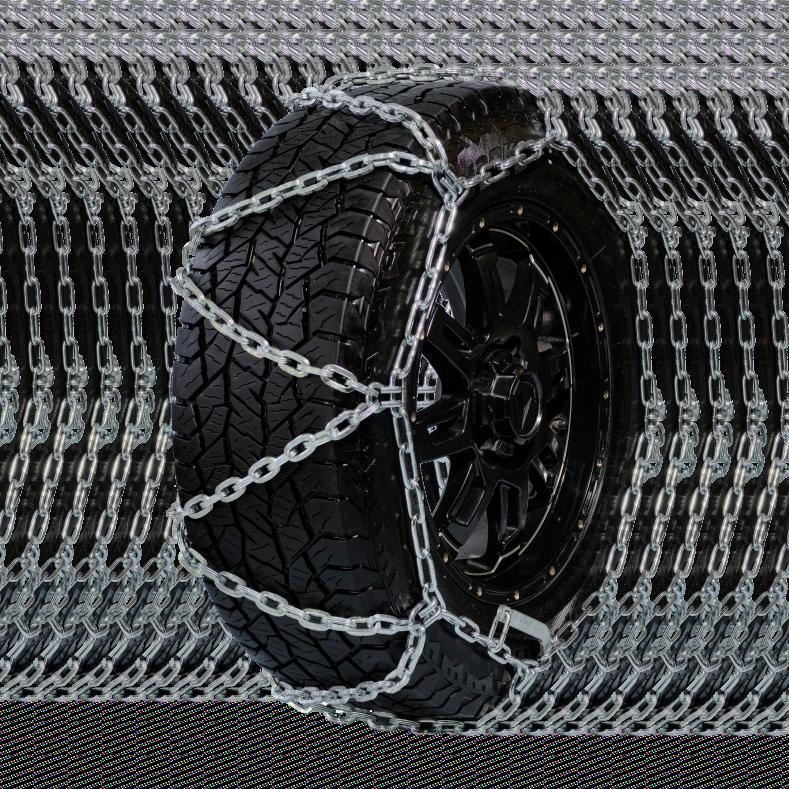

zig-zag pattern Proven design with optimum traction. The alternating pewag zig-zag pattern chain for trucks that demand high traction but also want a smooth and stable ride. This chain performs on or off road, and is suitable for any application while maintaining a low profile. •Cross chain replacements available •Can be custom built in many sizes •Always pre-fit chains before use

Front View 14

starwave ladder The standard of quality; pewag square link.

Assembled in USA

pewag nickel manganese alloy square link tire chains wear up to 8 times longer than conventional twist link tire chains while giving you up to 32% more traction. Our ladder style chain features both a cam (SC) or non-cam (S) side chain for every driver preference. •Made using pewag premium alloy •Can be reversed for better wear and longer life •Always pre-fit chains before use

Available in Duals

Recommended Adjuster

brenta-c 4x4 Rigorously tested performance. pewag brenta asymmetrical chain pattern provides capable handling and the traditional mounting configuratiaon allows for easy and fast installation thru adverse conditions. Ideal for larger SUV’s & 4x4 capable vehicles. From the city, to the mountains – brenta is the reliable choice. •Always pre-fit chains before use

Front View 15

XD-16 PRO 4x4 Robust design for larger tires and off-road. Tight, compact diamond pattern cross sections deliver a robust traction solution whether you’re on paved surface or bearing offroad. Double side spring placement at the mounting point keeps the XD-16 chain in place for 4x4 high-flotation tire applications. •16mm inside and over-the-tread clearance •Always pre-fit chains before use

XB-16 Simple, sturdy, and affordable. Quality meets affordability in one package. The manual tensioning system requires one vehicle stop for fitting and second stop to adjust chain tension. Locking connection device maintains correct fitting throughout operation. •16mm inside and over-the-tread clearance •Always pre-fit chains before use

Heavy Truck & Trailer studded ladder starwave ladder & heavy duty ladder cervino CL austro super ASV zig-zag pattern zig-zag studded

18 19 20 20 21 21

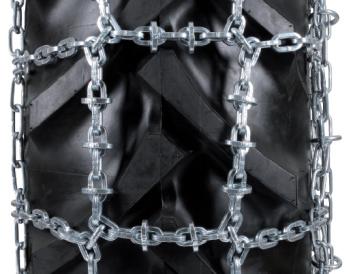

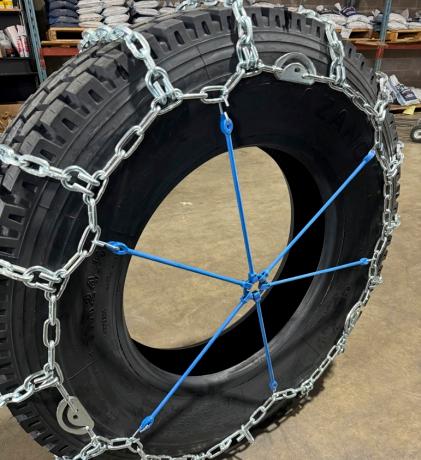

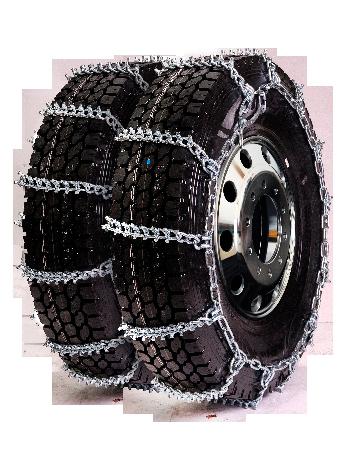

studded ladder Aggressive off-road traction on demand. pewag’s revolutionary 8-sided design is proven to outlast and outperform the competition. Breaking the mold of conventional round studs; pewag’s 8-sided allows for a deeper hardening on each individual piece. This chain is engineered for the most aggressive off-road applications, ideally forestry, oil fields, and ice road trucking. Now Made in USA! •7mm twist link w/9mm StarStud •8mm twist link w/10.5mm StarStud •Always pre-fit chains before use TM

Regular Spacing

Replaceable Parts Stock No.

2 Link Spacing

Available Options

Replacement Lever Assembly

USA8260 7ST

7mm Lever Kit

USA8260 8ST

8mm Lever Kit

•Lightweight Studded USA3000 7ST •Cam(SC) & Non-Cam(S) •Singles, Wide Base, Duals •2 Link or 4 Link Spacing

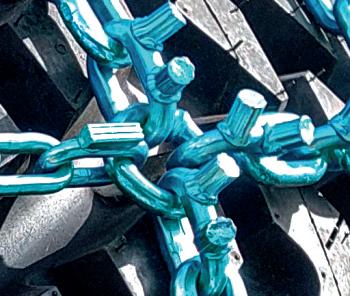

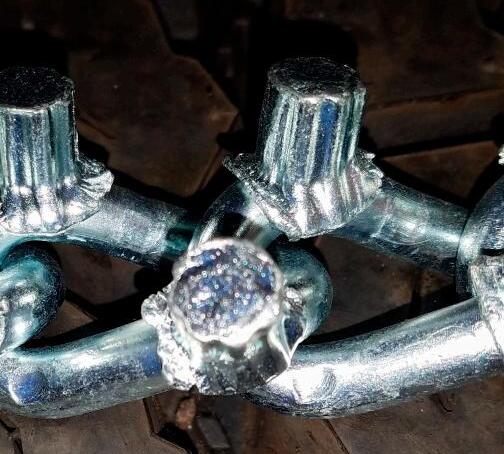

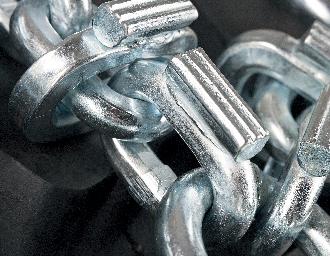

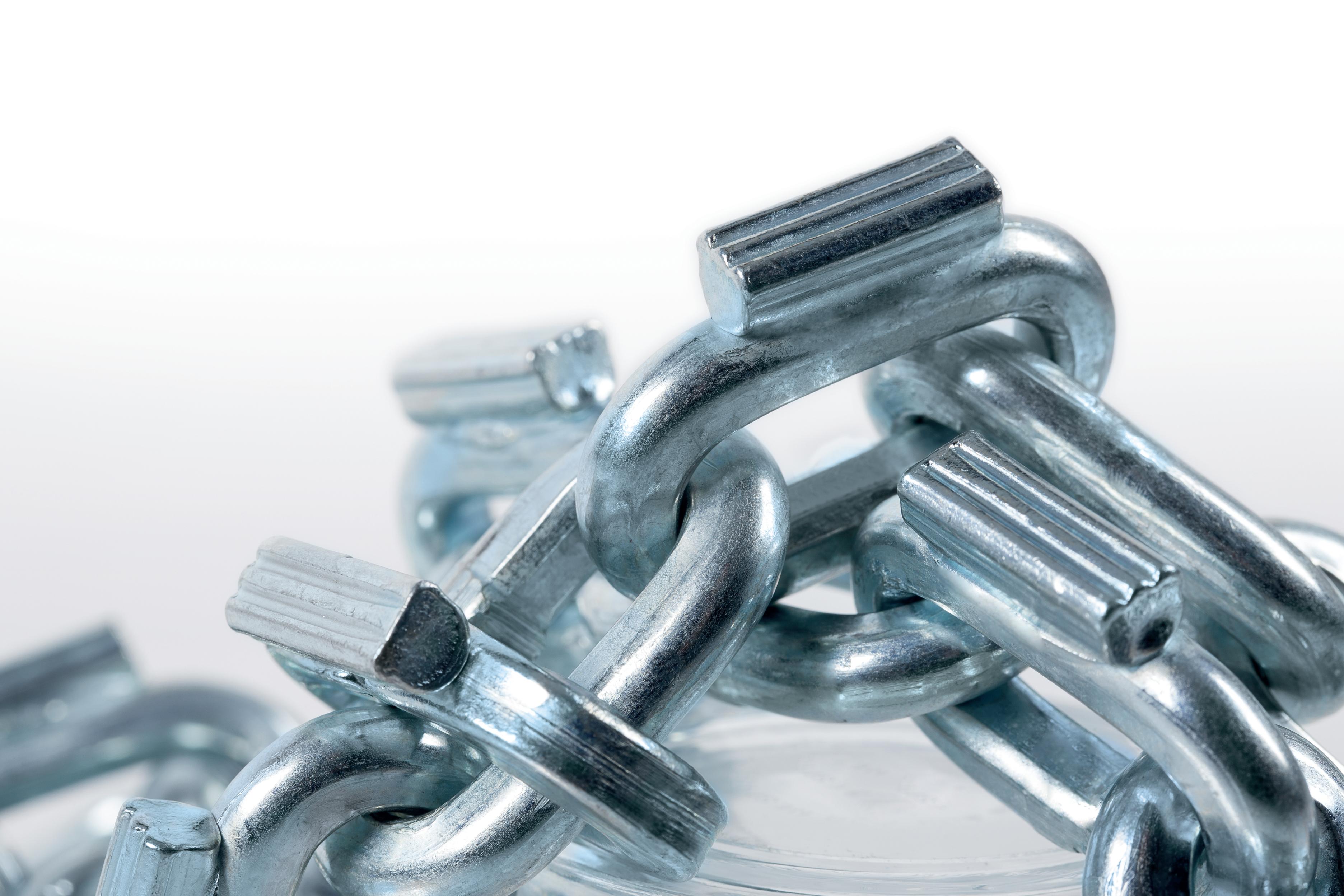

Close-up star stud design 18

Available in Duals

Recommended Adjuster

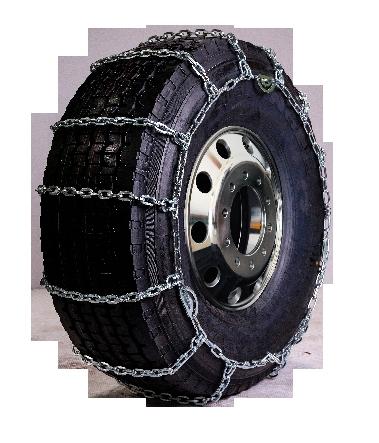

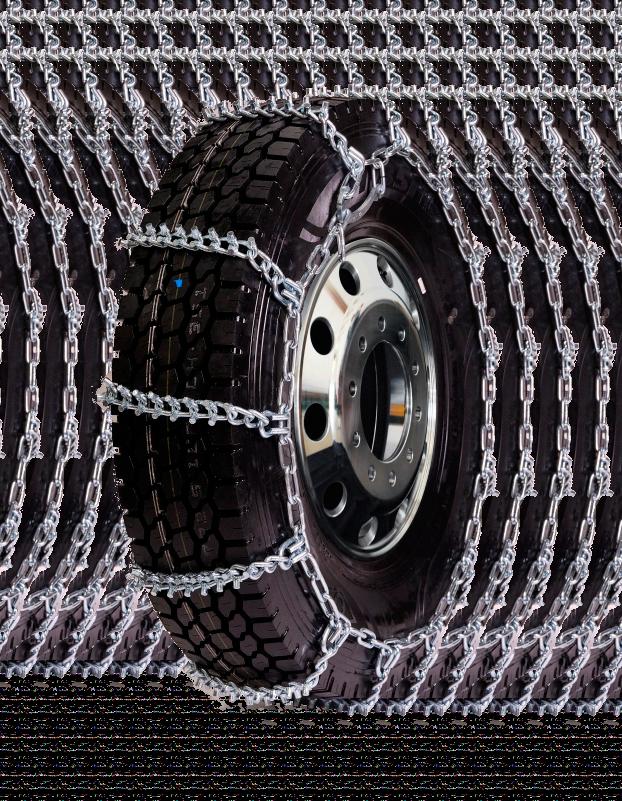

starwave ladder NEW

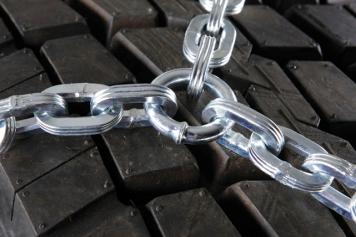

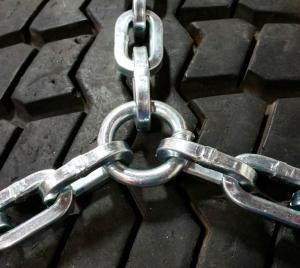

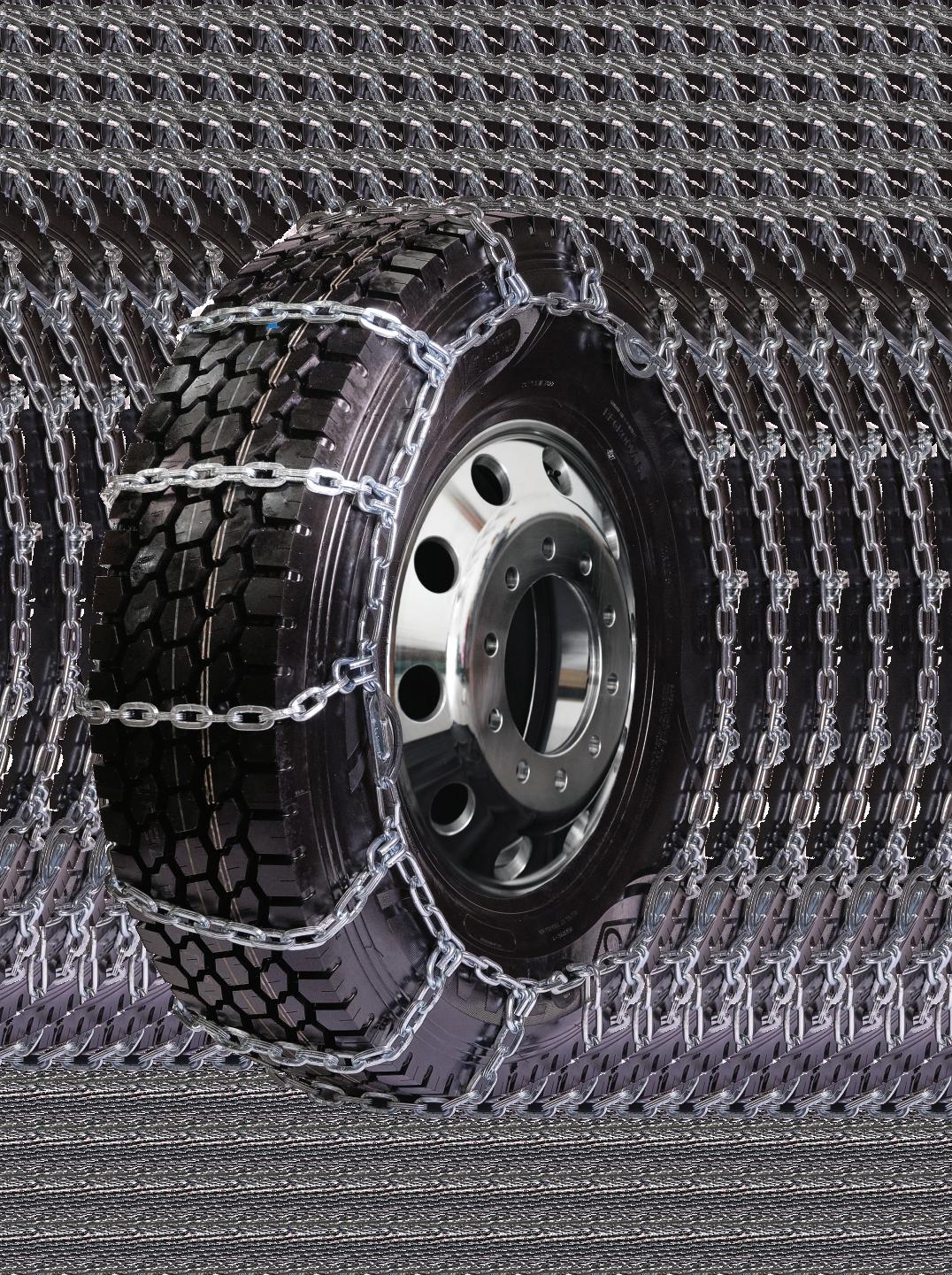

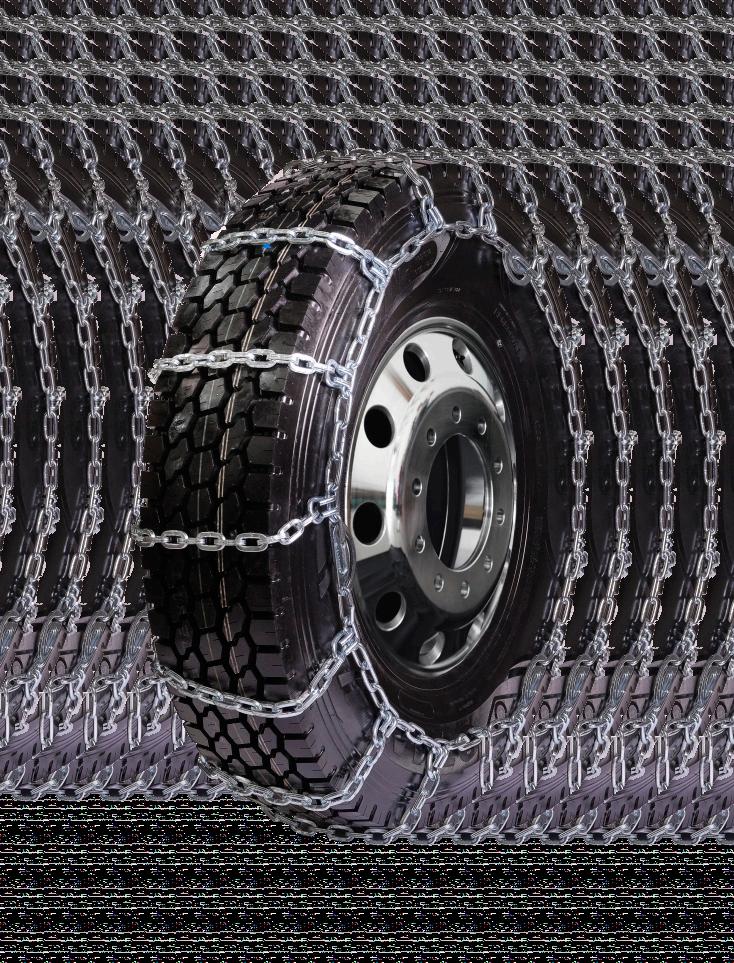

The standard of quality; pewag square link. pewag nickel manganese alloy square link tire chains wear up to 8 times longer than conventional twist link tire chains while giving you up to 32% more traction. Our ladder style chain features both a cam (SC) or non-cam (S) side chain for every driver preference. •Made using pewag premium alloy •Can be reversed for better wear and longer life •Proudly made in Pueblo, Colorado •Always pre-fit chains before use

Super Single/Wide Base

Recommended Adjuster

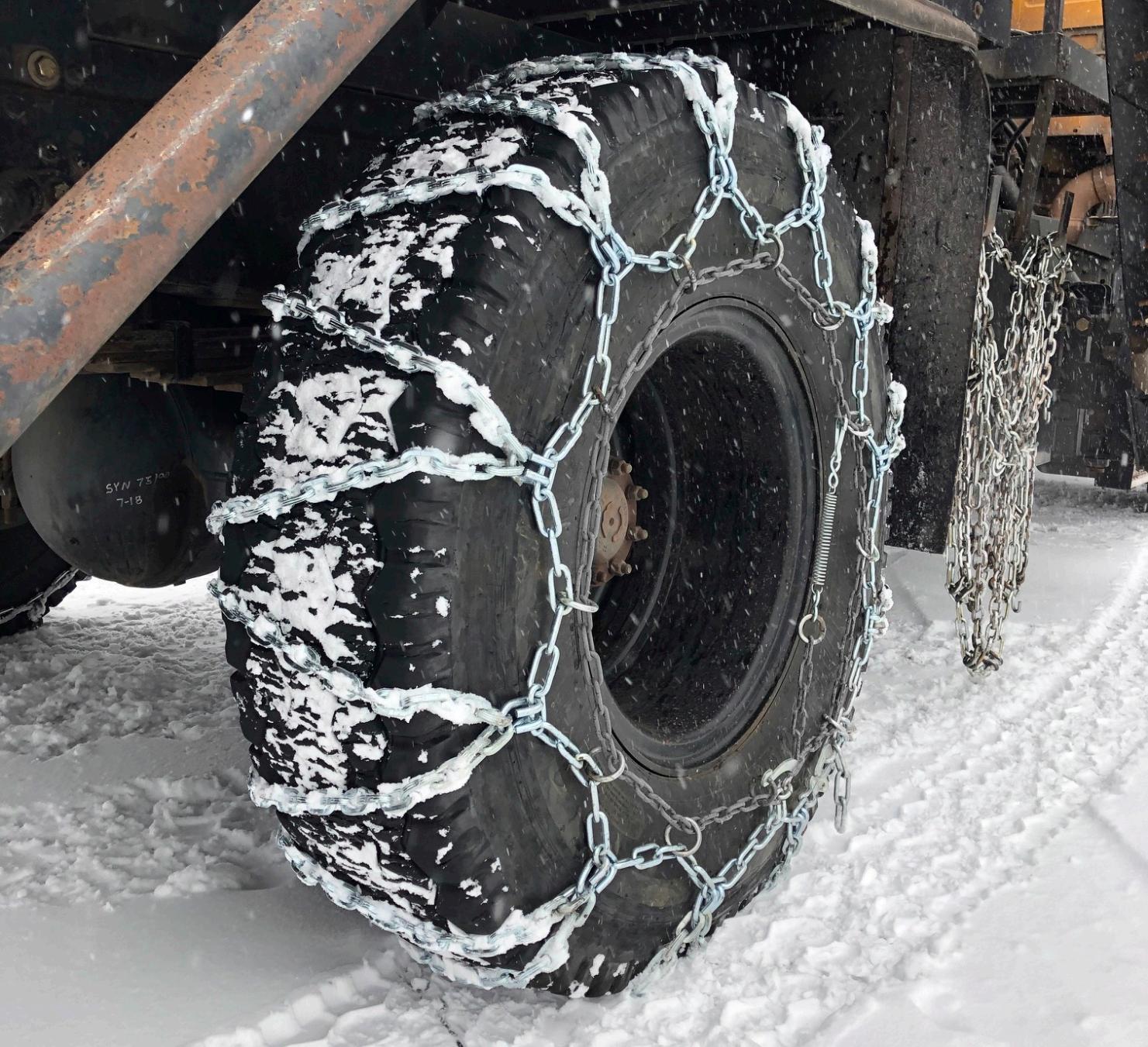

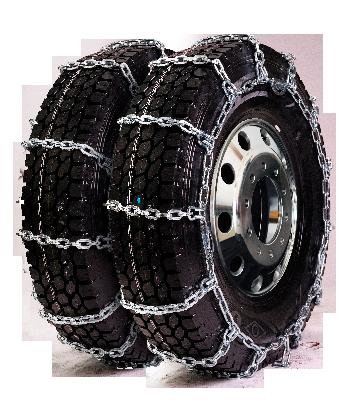

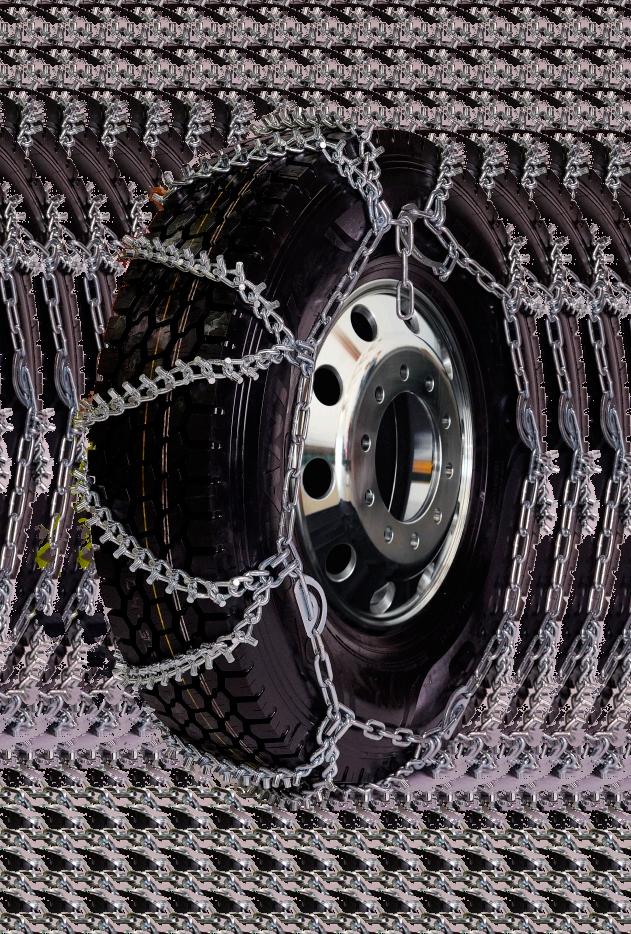

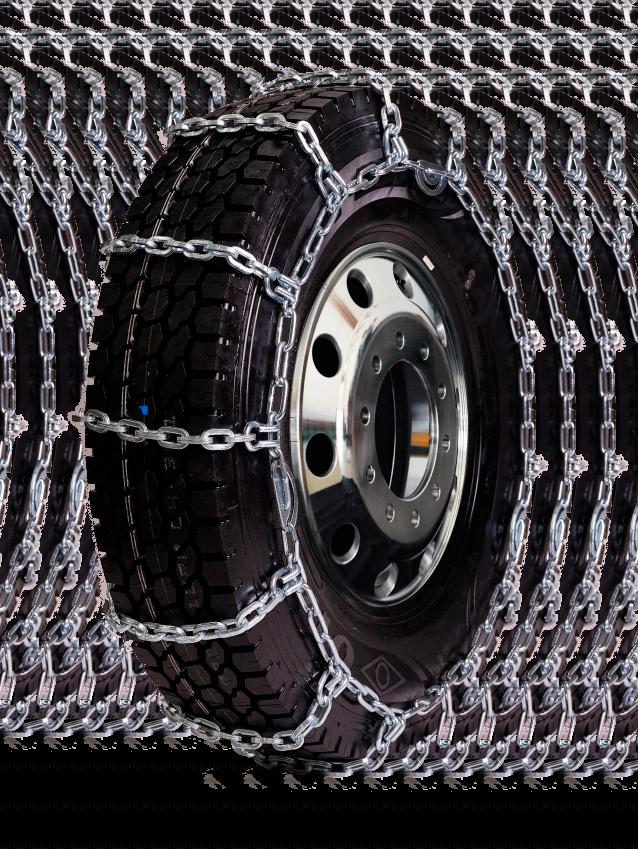

heavy duty ladder Heavy duty traction for extreme conditions. Oversized cross chain, combined with beefier side chain, deliver maximum traction in extreme conditions. Made only from pewag premium alloy square link for extended wear and strength. Quality you can trust, and rely on every time. •Made with cam (SC) or non-cam (S) locking side chain •Always pre-fit chains before use

#1 L

Available in Duals

Recommended Adjuster 19

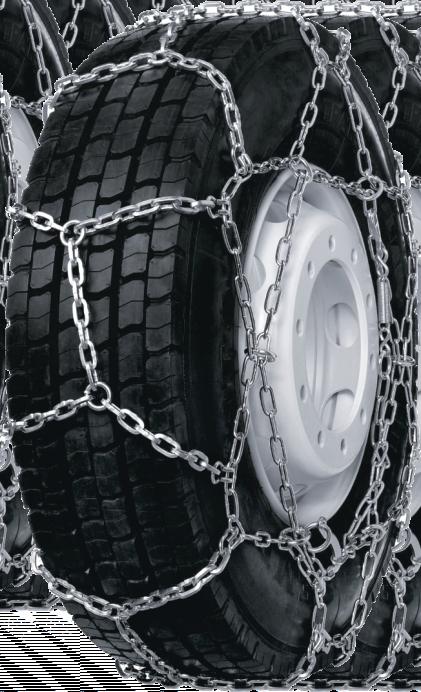

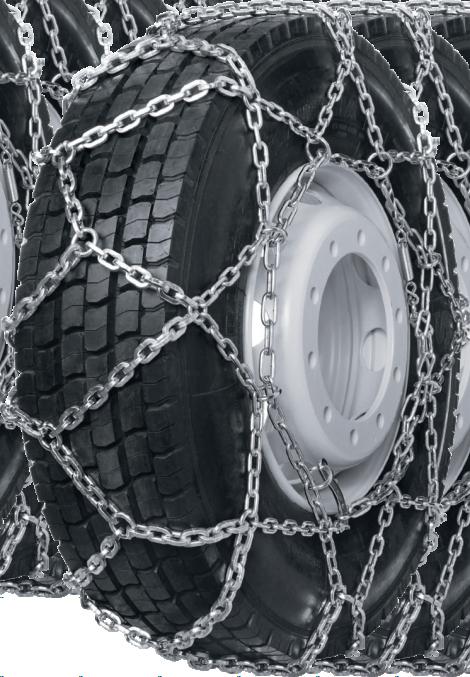

austro super ASV Strength for heavy-duty vehicle use. pewag austro super verstaerkt (ASV) pattern chain has been engineered to stand up to the most severe conditions where traction is a must. This design provides exceptional lateral and braking traction. pewag ASV chains are depended upon for professional use on heavy duty utility vehicles on or off-road. Welded rings connect the chain mesh to the side chain, which guarantee a long life span. The latest starwave® innovation provides additional grip and a longer life. Easy mounting, with hassle free traction when you need it. •Always pre-fit chains before use

Available in: 7mm & 8.2mm

Cross chain replacements and spare parts available

cervino CL The standard chain for medium-weight. The proven and popular pewag cervino (CL) is the standard chain for medium-weight utility vehicle use. Due to its light weight and tension chain, this chain can be easily mounted on the vehicle. Made using our brilliant 7mm square link titanium alloy steel for lasting wear. CL chains perform at their peak on or off-road, maintain a low profile and are suitable for any application. •Replaceable cross chain sections •Always pre-fit chains before use

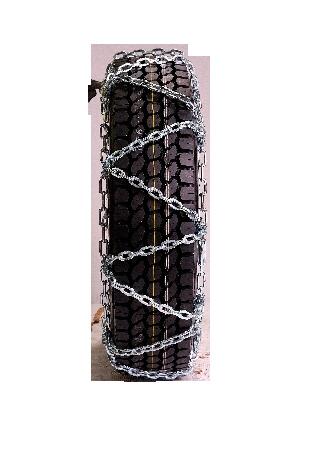

zig-zag pattern Proven design, optimum traction. The alternating pewag zig-zag pattern chain for trucks that demand high traction but also want a smooth and stable ride. This chain performs on or off road, and is suitable for any application while maintaining a low profile. •Can be custom built in many sizes •Cross chain replacements available •Always pre-fit chains before use

Tread View

Recommended Adjuster

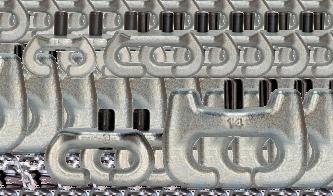

zig-zag studded The chain for heavy-duty vehicle use. The alternating pewag zig-zag studded chain for trucks that demand high traction in the harshest conditions. Our zig-zag design can be built for any application and performs great on or off-road while maintaining a smooth and stable ride. •Can be custom built in many sizes •Cross chain replacements available •Always pre-fit chains before use

#1 L

Tread View

Recommended Adjuster 21

Loader, Grader & Tractor starwave ladder zig-zag pattern universal ED doppelspur power-net erzberg ED austro-net

24 24 25 26 27 28 29

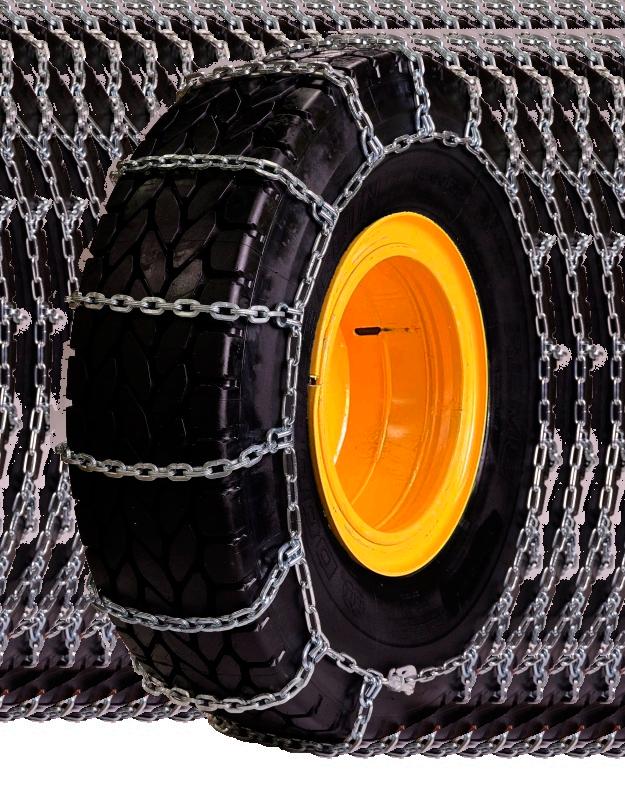

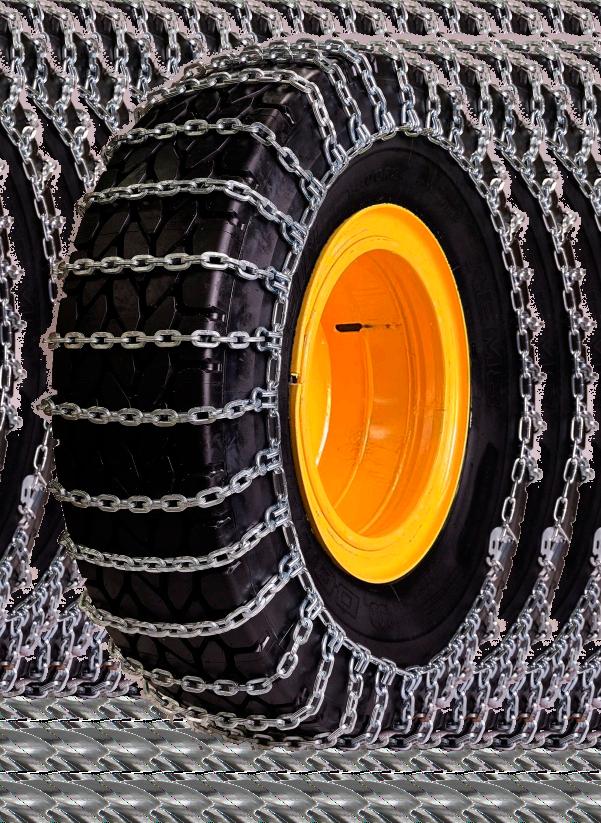

loader, grader & tractor For Plows, Scrapers, Loaders, Graders, Backhoes & Tractors. We manufacture and assemble the strongest chains for any application with trusted traction for snow removal and agriculture machinery. All made from pewag nickel manganese alloy square link; guaranteed to last longer and outperform conventional twist link. •Can be reversed for better wear and longer life •Can be custom built to any tire size •Cross chain replacements available •Always pre-fit chains before use

Assembled in USA

Available in wire diameter: 8.2mm, 10mm & 12mm

Recommended Adjuster

USA Ladder 4-Link

Optional swivel hook

USA Ladder 2-Link

Optional SP hook

USA Zig-Zag Pattern

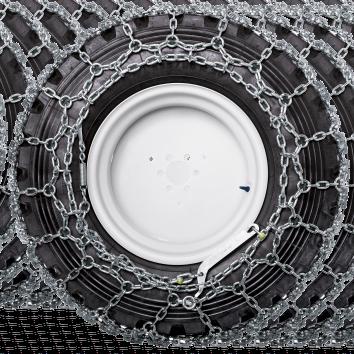

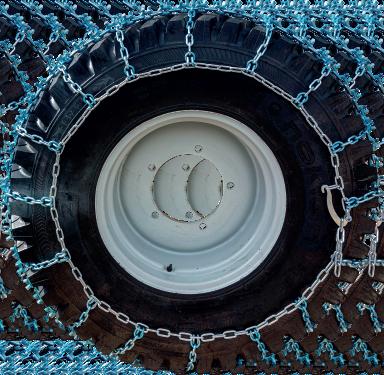

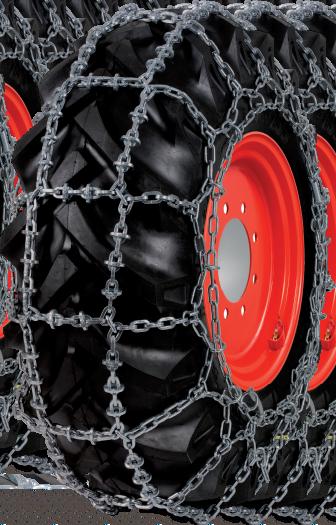

universal ED Net chain for high traction and longevity. The reinforced version of the popular universal chain now comes with welded wear bars added to the 3-Link design, providing wear resistance and durability that is unmatched. Our wear bars, made of pewag strengthened steel, significantly increase grip, stability, and life span of this chain. The universal chain mesh design provides demanding traction, smoother riding, and great wear resistance. •Always pre-fit chains before use

Available in NEW wire diameters: 8.5, 10.5, 12.5, and 13.5mm

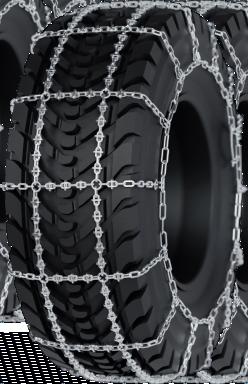

tractor doppelspur

NEW!

Square pattern and reliable performance. The proven and popular square pattern is ideal for tractor/equipment tires with directional tread to ensure maximum surface contact during use. Doppelspur’s unique welded pattern construction, with floating link made from pewag premium components, guarantee reliable performance in even the toughest conditions. Intuitive tension chain system maintains proper chain position throughout. •Can be reversed for better wear and longer life •Always pre-fit chains before use

Available in wire diameter: 5.6mm, 7mm & 8.2mm *not all 7mm sizes are link-over design

Doppelspur Light

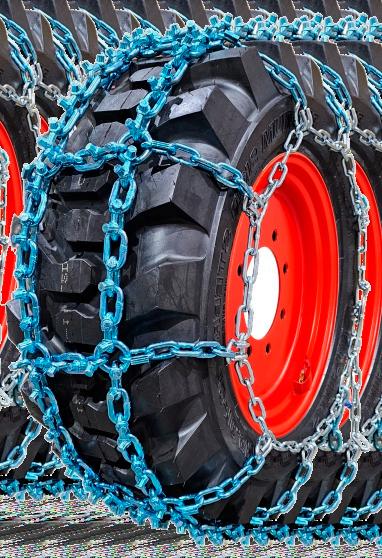

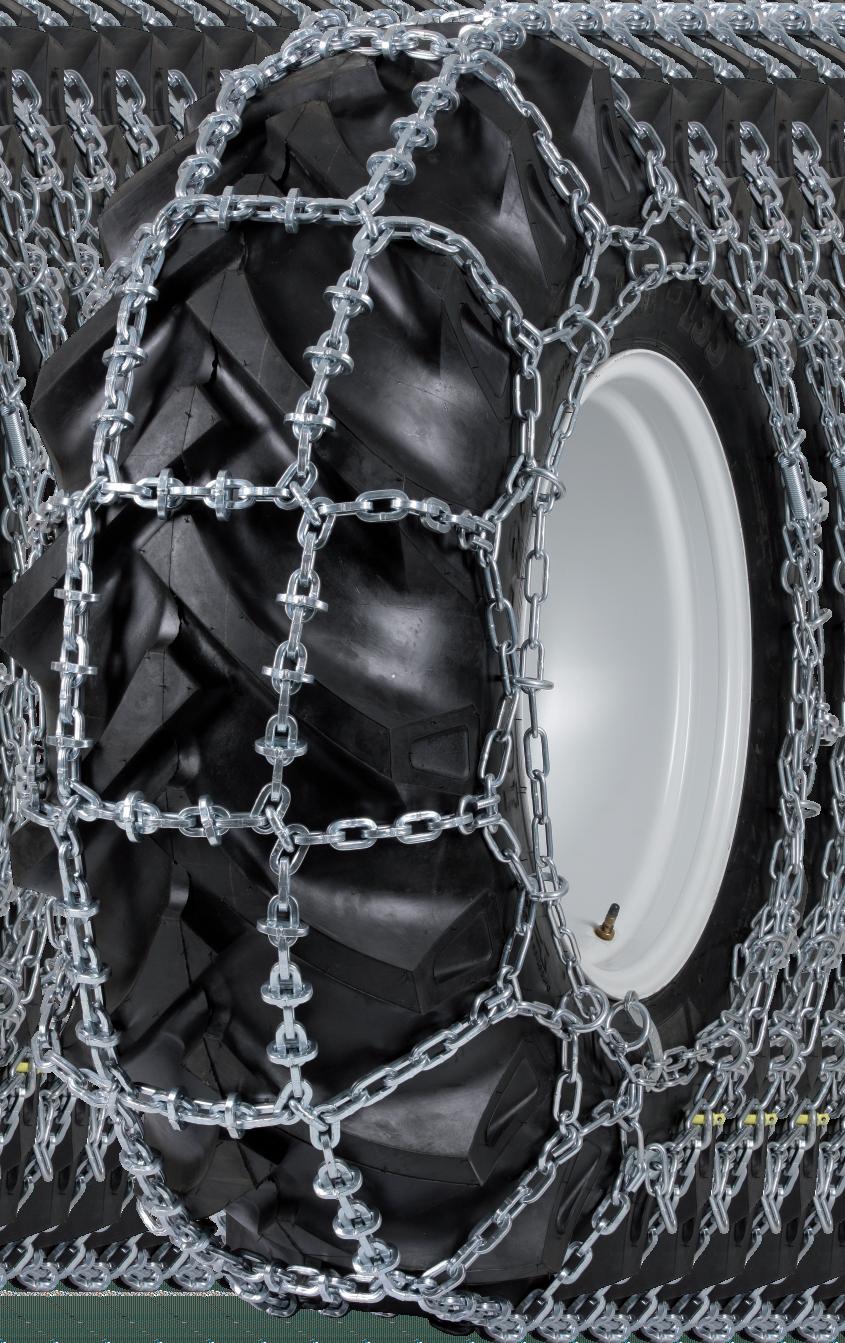

power-net

NEW!

Reinforced and capable for any job. The robust pewag power net is ideal for standard applications on tractors and other equipment. Whether clearing snow or traveling off-road and in the forest. The welded on wear elements ensure optimum grip on any surface. Thanks to an intuitive tire fit, the chain is quickly mounted and ready for use. • 8.5mm net chain is made with 10.5mm star studs, welded wear-bars, and welded rings. • 10.5mm net chain is made with 12mm star studs, welded wear-bars, and welded rings. • Always pre-fit chains before use

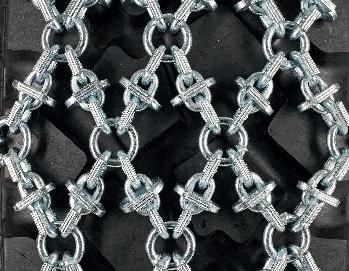

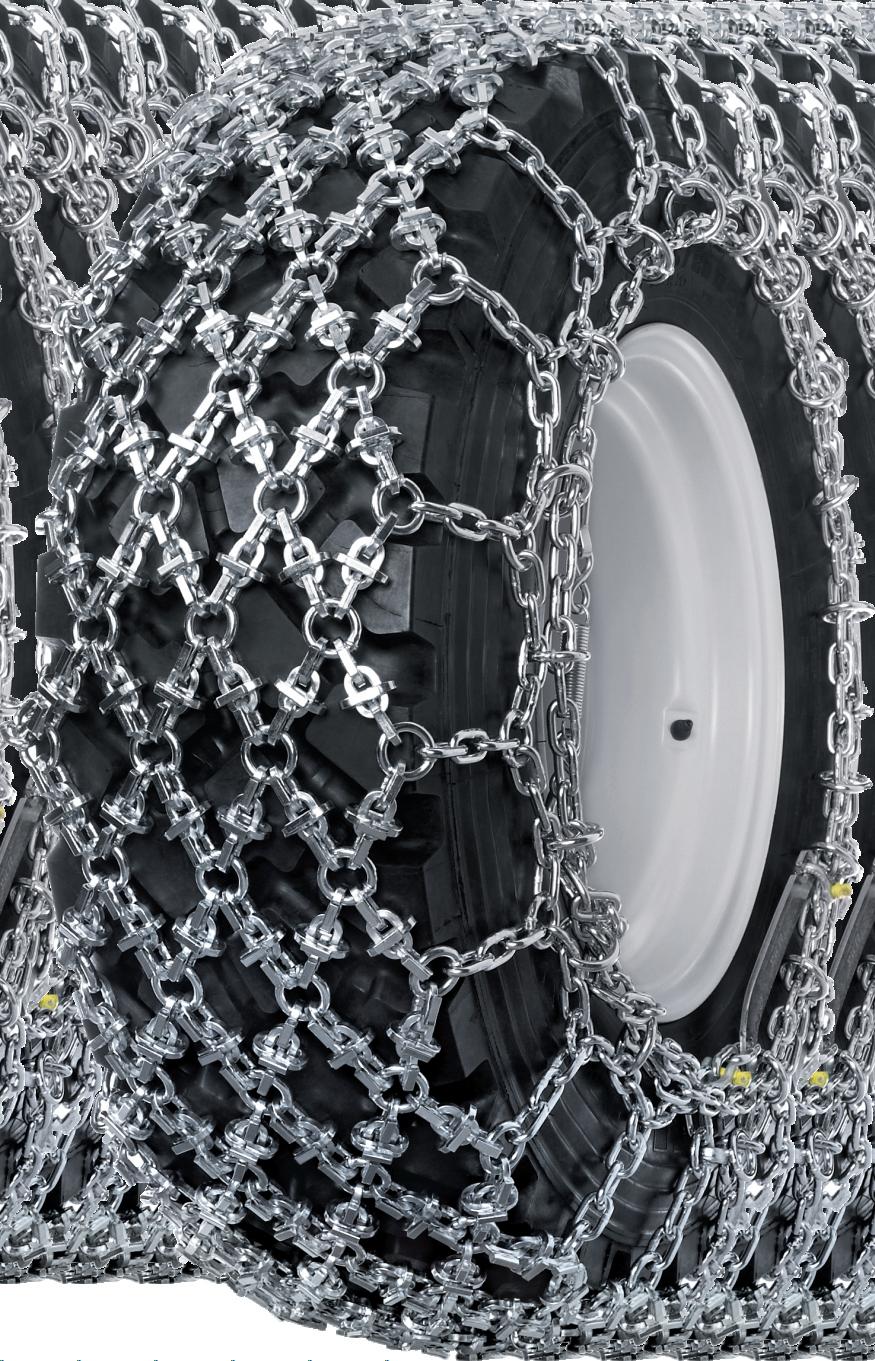

erzberg ED Triple net chain for extreme traction. pewag erzberg features a densely meshed net-style chain in a robust welded ring version. This design offers improved grip matched with tire protecting properties. The forged closing hooks reduce noise and ensure quiet running in operation. All around very reliable chain which is easy to handle and can withstand the harshest conditions. •Always pre-fit chains before use

Available in wire diameters: 10.5mm & 12.5mm

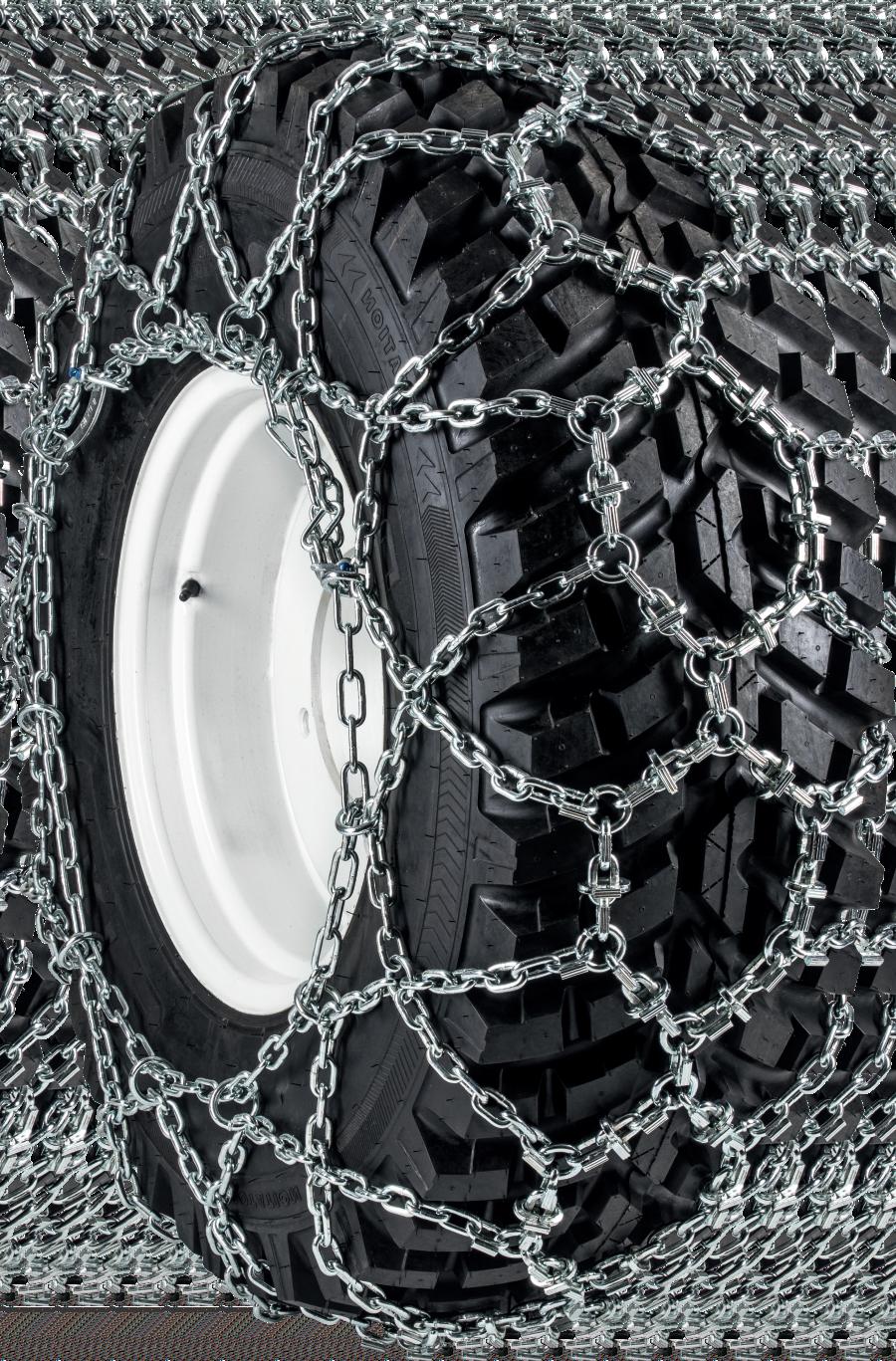

austro-net

NEW!

All-around net chain for many uses. The optimal self-cleaning design of the pewag austro-net ensures a quiet and comfortable ride across a wide range of vehicles. Adjustable elements on the inside of the chain make it very easy for operators fitting this chain to the tire. •10mm single feld continuous net pattern •Always pre-fit chains before use

Fit Guide Tire Size

Stock No.

Wire Dia.

14.00-24

4151026

10mm

16.00-24

4151027

10mm

17.5-25

4151039

10mm

20.5-25

4151031

10mm

23.5-25

4151033

10mm

Skid Steer, ATV & Small Equipment skid steer ladder skid steer pattern ATV - UTV - SxS snow blower garden tractor forklift

32 32 33 33 34 34

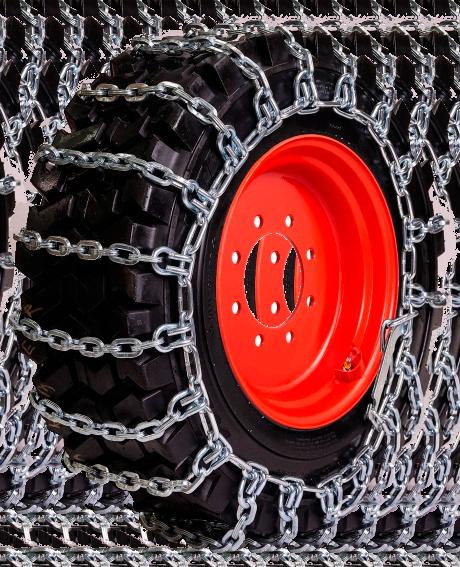

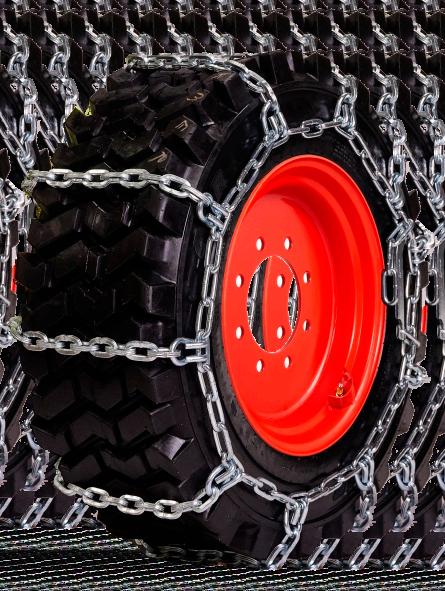

skid steer Add stability and strength to your plowing equipment. A reliable, lasting traction solution for skid steer equipment. Whether it’s plowing snow 24 hours a day, or getting materials around that muddy job site; pewag chains take you where you need to go. •Can be custom made for any skid steer size •Always pre-fit chains before use Tire Size 10 x 16.5 12 x 16.5 14 x 17.5 27 x 8.5-15 31 x 12-16.5

USA Ladder 4-Link Stock No. USASSE10165-4 USASSE12165-4 USASSE14175-4 USASSE10165-4 USASSE3112165-4

USA Ladder 2-Link Stock No. USASSE10165-2 USASSE12165-2 USASSE14175-2 USASSE10165-2 USASSE3112165-2

USA Ladder 4-link Spacing

Powernet Studded Stock No. NEW! --PN 114 8 -------

Doppelspur Stock No. D 103 7* D 115 7 D 127 7 -----

NEW!

Doppelspur Light Stock No. NEW! --DSL 3006 DSL 14.00-17.5 ----*no link-over profile

USA Ladder 2-Link Double Spacing

NEW! Powernet Studded Pattern 32

NEW! Doppelspur Square Pattern

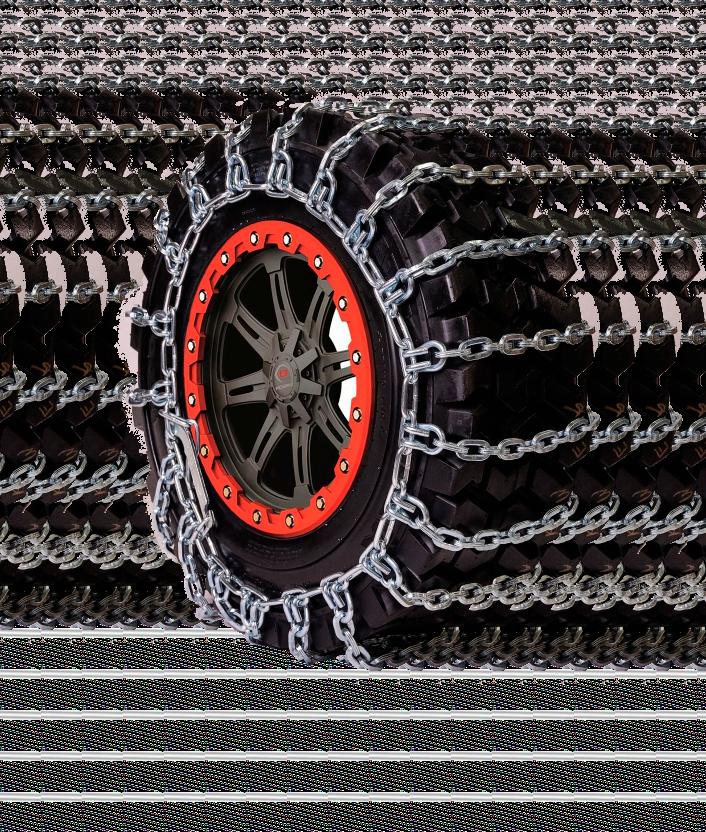

ATV - UTV - SxS Assembled in USA

Proven design, maximum traction. Built in 2-link double spaced design to float over aggressive tread lugs for on-demand traction, while giving the operator a smoother ride. Great for off-raod ATV, UTV or SxS action! •Can be custom built to any tire size •Always pre-fit chains before use Stock No. USAATV610

USAATV612 USAATV615 USAATV618

USAATV620

Tire Size 20x8x11, 21x9x10, 21x10x12, 22x8x10, 22x8x11, 22x9x8, 22x10x9, 22x10x10, 23x7x10, 23x8x10, 23x8x11, 23x10x10, 22x9x10, 22x9x12, 23x8.5x12 24x8x11, 24x8x12, 26x8x12, 24x9x11, 24x9x12, 25x8x10, 25x8x12 22x11x8, 22x11x9, 22x11x10, 23x11x10, 23x10x12, 24x9x11, 24x9.5x10, 24x10x11, 24x10x12 23x10.5x12, 24x11x8, 24x11x9, 24x11x10, 24x11x12, 24x11.5x10, 24x13x9, 25x10x10, 25x10x12, 25x11x10, 25x11x12, 25x12x9, 25x12x10, 25x11x9, 22x12.5x10, 24x10.5x10, 25x10x11, 24x11.5x12, 25x10.5x12, 26x9x12, 26x10x12, 26x9x14, 255/65-12, 27x8x12 24x12x10, 25x12x11, 25x12x12, 26x11x12, 26x12x12, 27x11x12, 27x12x12, 27x11x14, 27x12x14, 28x10x12, 26x11x14, 25x13x9, 29x9x14, 30x10x14

snow blower Assembled in USA

Simple and functional. Looking for that extra push your walk-behind snow blower needs? pewag 2-link blower chains will put a little pep in your step and finish clearing that sidewalk/driveway in half the time. •Can be custom built to any tire size •Always pre-fit chains before use Tire Size

Stock No. USASE1301

4-8,4.8-8, 13x6.5-6, 14x4-6

USASE3300

15x5-6, 15x6-6, 16x6.5-8

USASE3301

10-2.75, 10-3, 10.25-3.25, 10.5-2.75

USASE3302

4.10x3.50-5, 4.10x3.50-6

USASE3303

5-8, 5.7-8

USASE3305

18x9.5-8

USASE3307

18x8.5-8, 18x8.5-10

USASE3308

12-3, 12x3.50-6, 12.25x3.50-6, 12x4-6

USASE3312

18x6.5-8

USASE7106

3.40x3.00-5, 4.10x3.50-4

USASE7129

12x7-4, 13x4-5, 13x4-6, 13x5-6, 13x5-7, 13x5-8

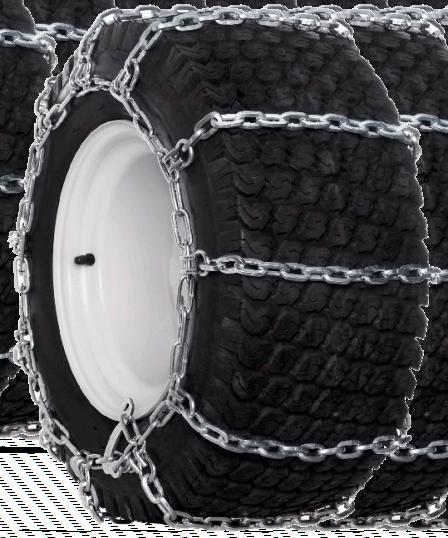

garden tractor Intermediate traction application. Assembled in USA

Whether it’s a garden tractor, a belly mower, or any intermediate compact utility equipment you’re using; pewag has the long lasting traction solution. •2-link and 4-link spacing options •Can be custom built to any tire size •Always pre-fit chains before use

Tire Size

Stock No. USAGT710

18x8.5-8, 18x9.5-8, 19x9.5-8, 18x8.5-10

USAGT713

20x8-8, 20x8-10, 20x9.5-8

USAGT716

20x9-10, 20x10-8, 20x10-10, 20x9-10, 21x8-10

USAGT719

22x9.5-12, 23x9.5-12

USAGT722

23x10.5-12, 24x9.5-12, 22x11-10, 22x11-9, 22x12-8

USAGT725

24x12-12, 26x10-12, 26x12-12, 26x11-12

forklift Tried, tested, and true. Assembled in USA

Ideal for snow operations in outdoor lumber yards, on shipping docks, at unpaved industrial sites, or anywhere in-between traction is needed to safely move loads. •Can be custom built to any tire size •Always pre-fit chains before use

Tire Size

Stock No.

USAFL108

6.00x9, 6.50x10

USAFL111

7.00-12, 7.50-10

USAFL116

7.00-15, 28x9-15, 29x8-15, 8.15-15, 28x9.50-15

USAFL119

250-15, 27x10.50-15

USAFL122

8.25-15

USAFL125

300-15, 28x12.50-15

36 37 38 39 40 41

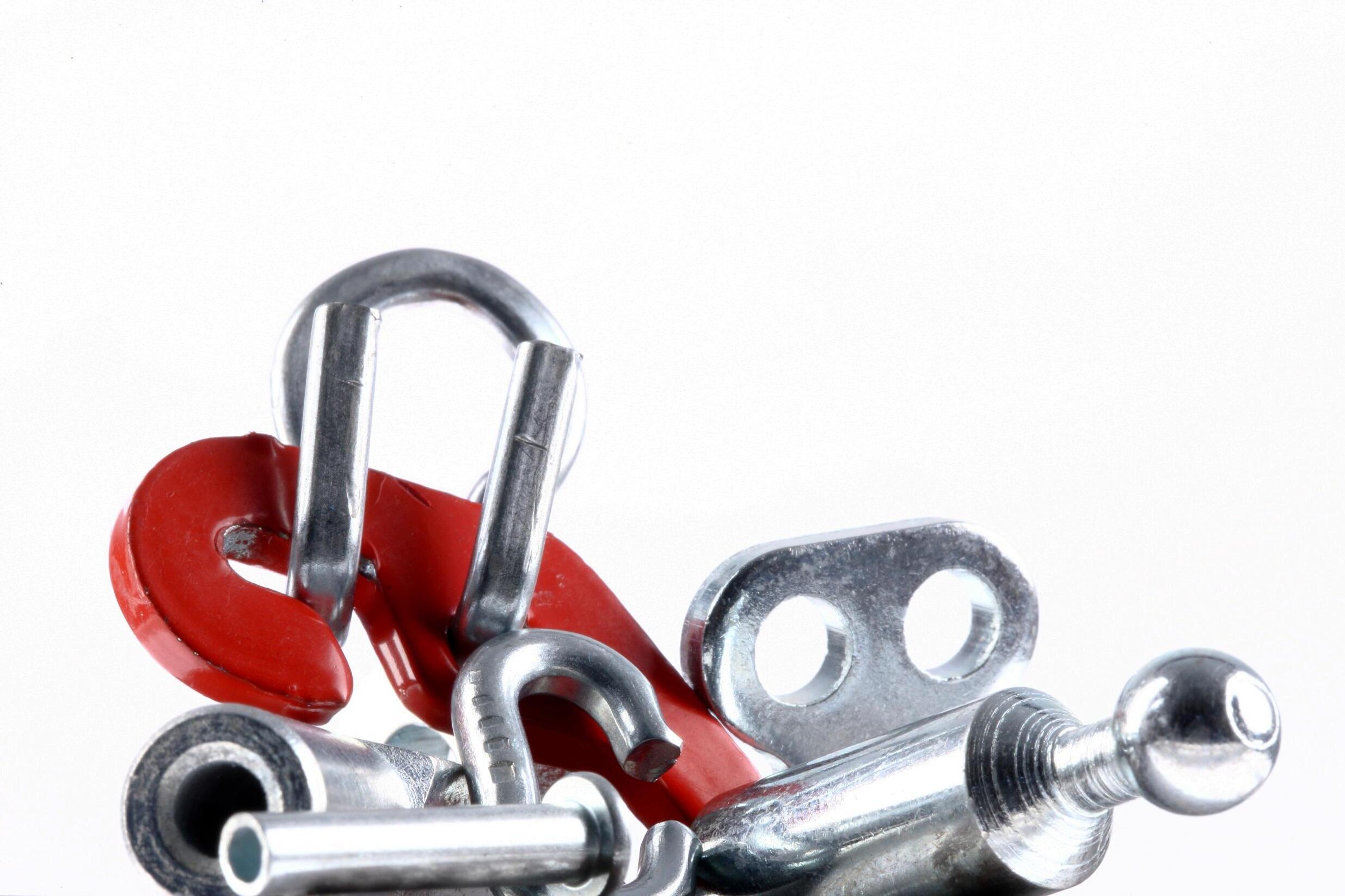

parts & accessories

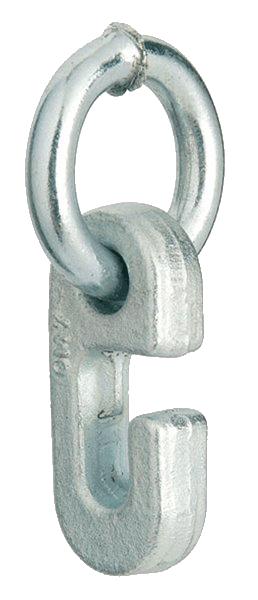

pewag side chain speed hook Stock No.

Trade Size

Diameter

318USA

Application

Package

3/0

319USA

6/0

Weight

.207 (13/64")

Passenger

100

3 lbs

.281 (9/32")

Light Truck

100

8.5 lbs

320USA

9/0

.375 (3/8")

Heavy Truck

100

21 lbs

324USA

11/0

.468 (15/32")

Heavy Equipment

100

25.5 lbs

Application

Package

Weight

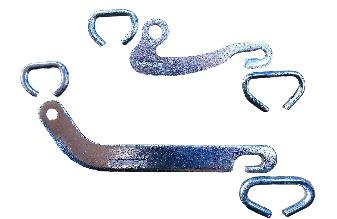

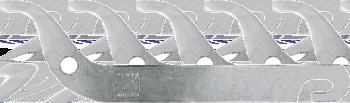

pewag end lever Stock No.

Size

USA8230 USA8250

Application

Package

Weight

4/0 & 6/0

Light Truck

3.5 lbs

7/0

Heavy Truck

11.6 lbs

pewag end lever for studded chain Stock No.

Size

Application

Package

Weight

USA8260 7ST

7/0

7mm Studded

10 lbs

USA8260 8ST

9/0

8mm Studded

21 lbs

pewag heavy equip & UNE end lever Stock No.

Size

Application

Package

Weight

5297

11/0

UNE & ERZ

36 lbs

clevis end fastener

Stock No.

Type

312

Clevis

Small Equipment

4.5 lbs

317

Clevis

Heavy Equipment

11 lbs

parts & accessories

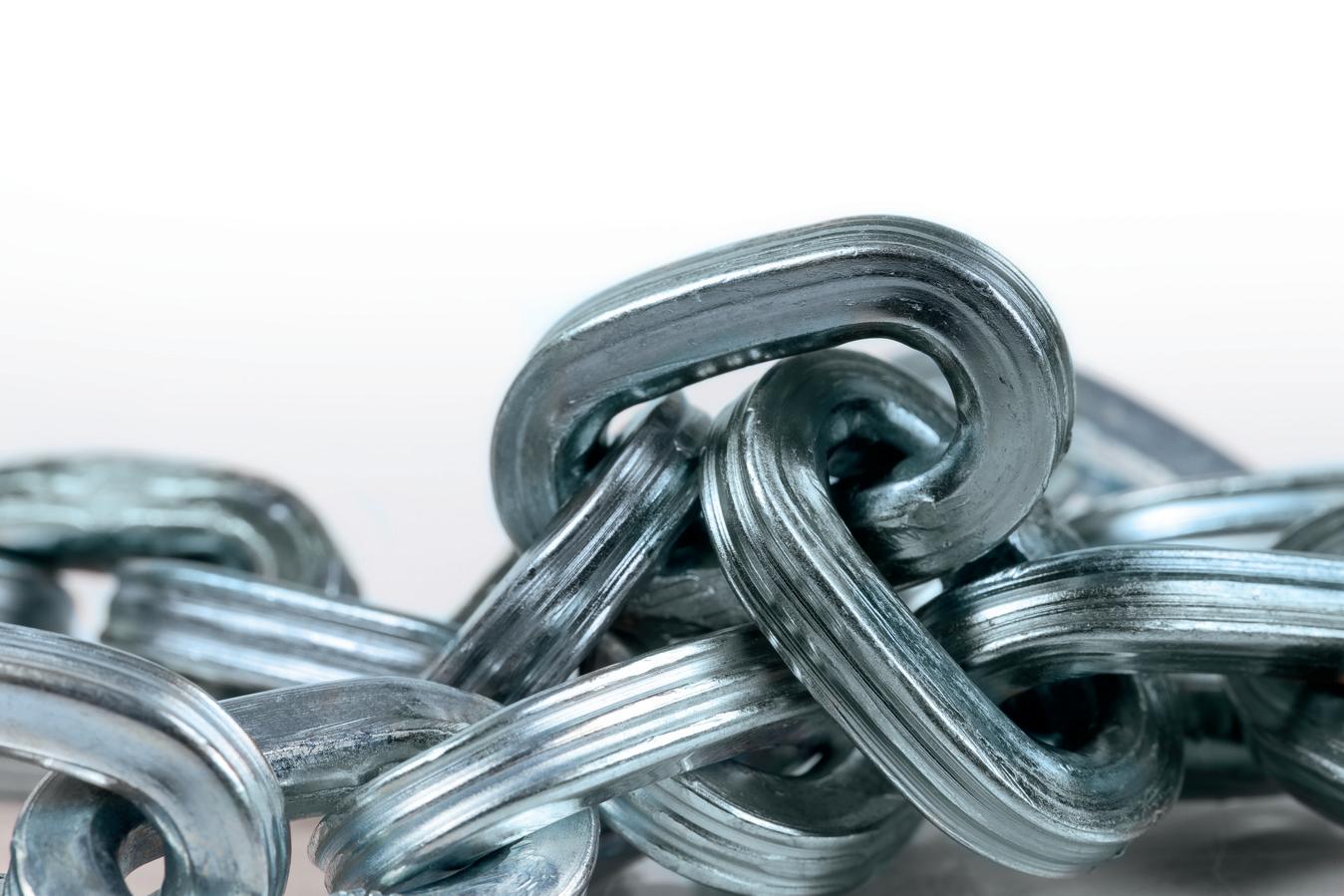

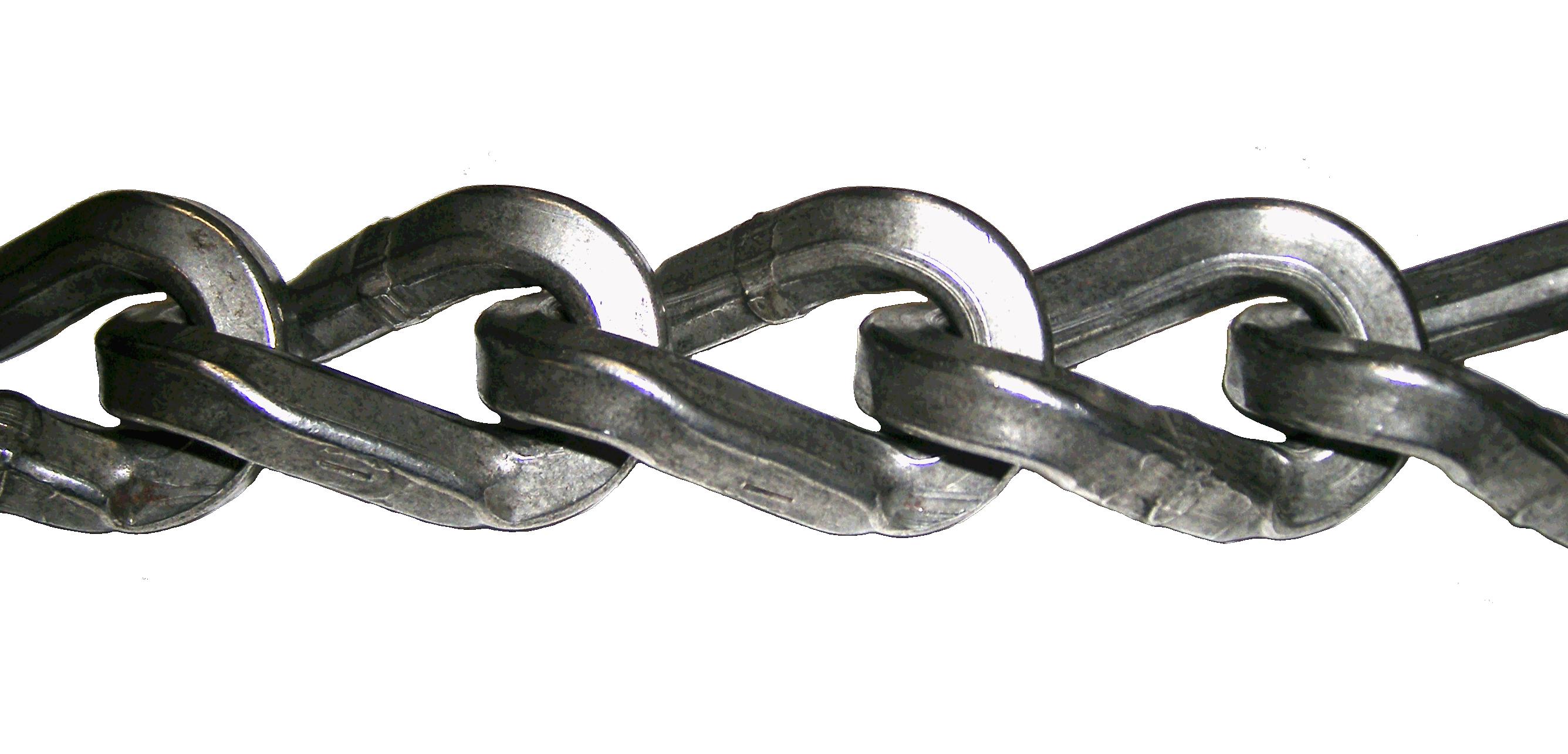

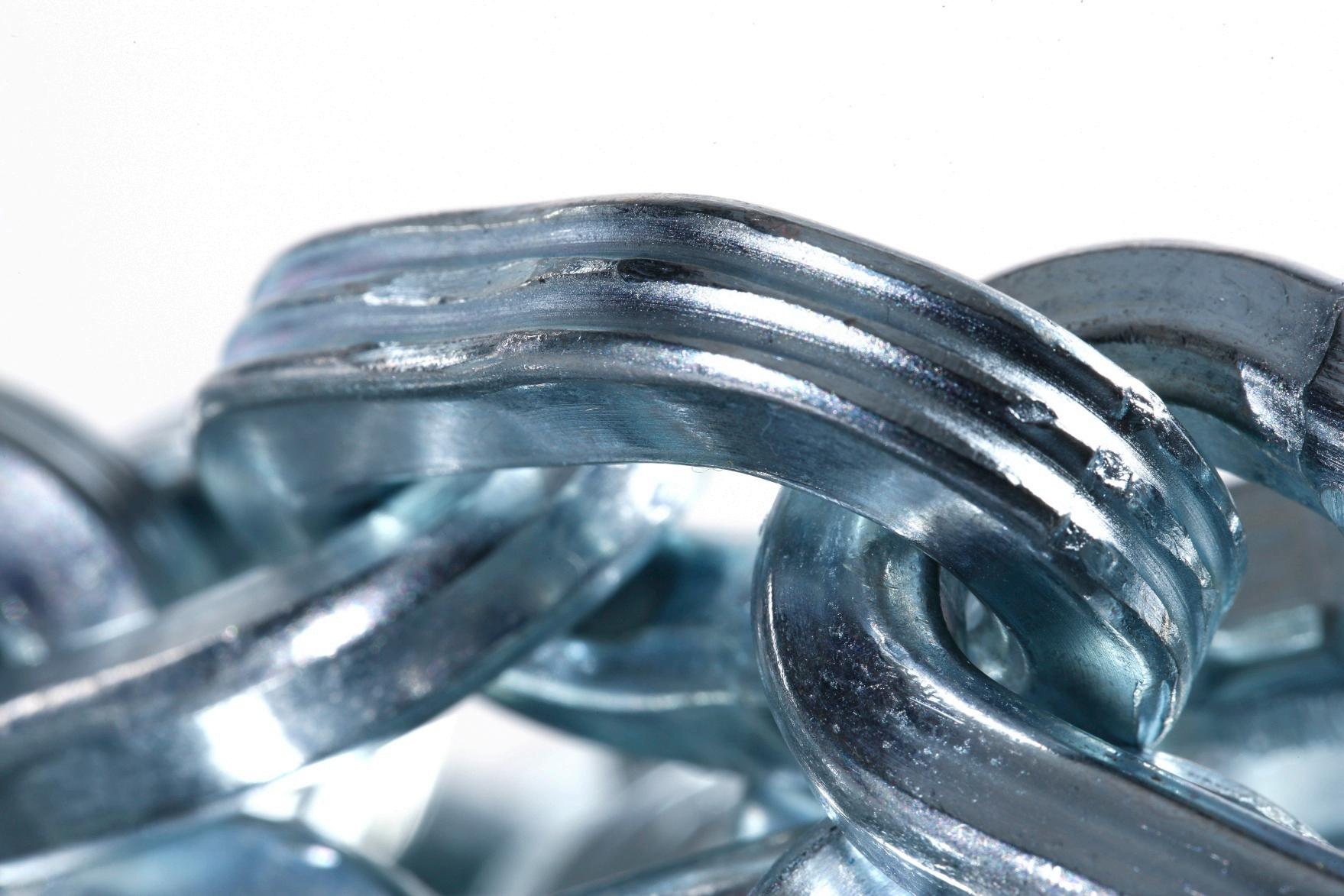

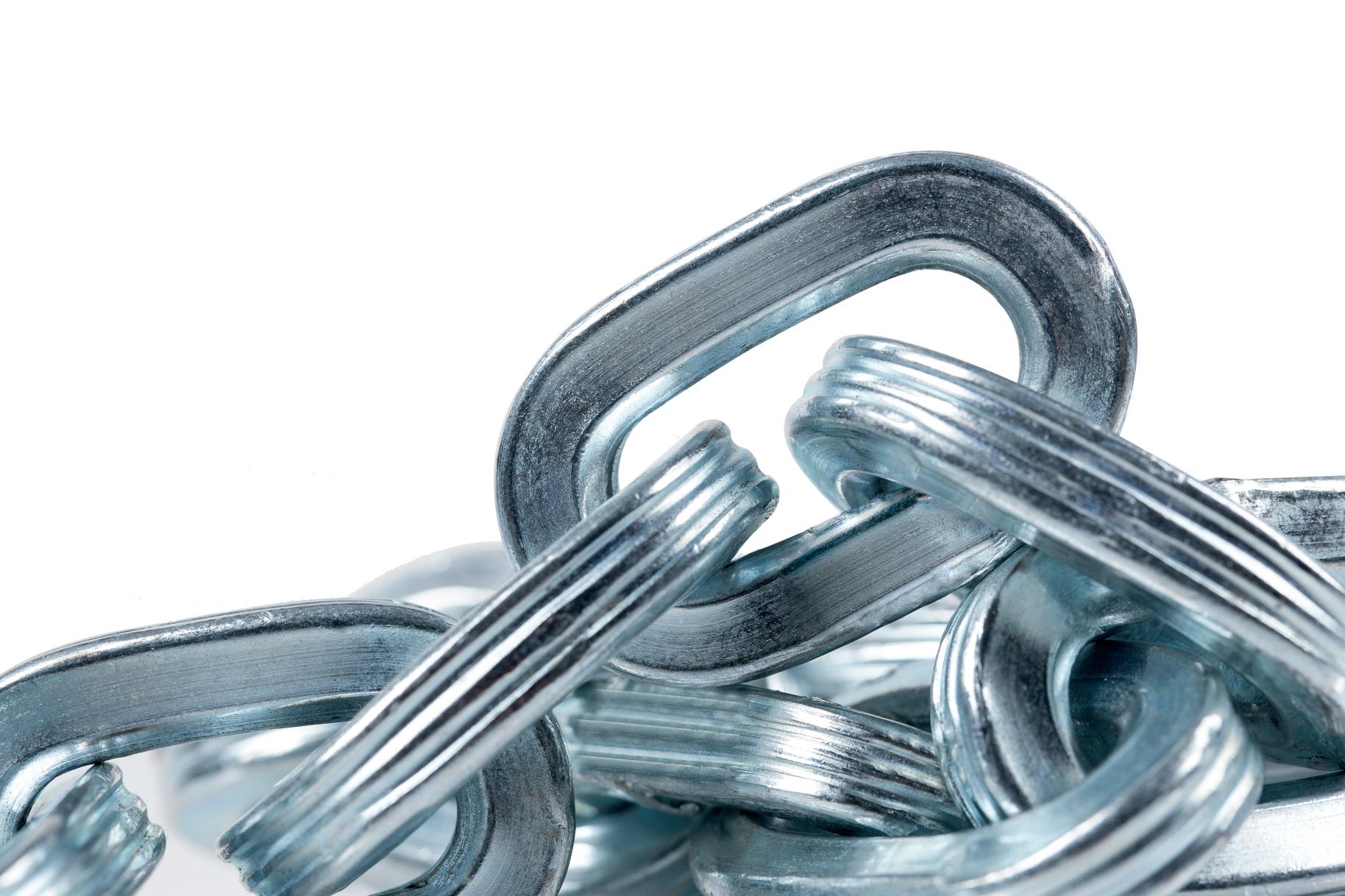

pewag hardened twisted square link Stock No.

Trade Size

Diameter

Application

Package

Weight

3008TSLUSA

8.2mm

3010TSLUSA

10mm

.322 (5/16")

Truck/Equip

100'

108 lbs

.409 (3/8")

Heavy Equip

100'

162 lbs

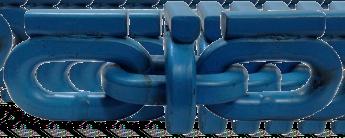

pewag hardened square link Stock No.

Trade Size

Diameter

Application

Package

Weight

3003USA 3004USA

3.7mm

.145(9/64")

Passenger

100'

21.2 lbs

4.5mm

.177 (5/32")

Passenger

100'

31.2 lbs

3005USA

5.6mm

.220 (3/16")

Light Truck

100'

49 lbs

3007USA

7mm

.275 (1/4")

Truck

100'

78 lbs

3008USA

8.2mm

.322 (5/16")

Truck/Equip

100'

108 lbs

3010USA

10mm

.409 (3/8")

Heavy Equip

100'

162 lbs

3012USA

12mm

.472 (7/16")

Heavy Equip

50'

119 lbs

pewag side chain Stock No.

Trade Size

Diameter

Application

Package

Weight

1004USA

4/0

.219 (7/32")

Light Truck

100'

35 lbs

1006USA

6/0

.281 (9/32")

Heavy Truck

100'

56 lbs

1007USA

7/0

.312 (5/16")

Truck/Equip

100'

71 lbs

1009USA

9/0

.375 (3/8")

Heavy Equip

100'

108 lbs 138 lbs

1011USA

11/0

.437 (7/16")

Heavy Equip

100'

1008USA (Hard)

7/0

.312 (5/16")

Truck/Equip

100'

68 lbs

1010USA (Hard)

9/0

.375 (3/8")

Heavy Equip

100'

104 lbs

1012USA (Hard)

11/0

.437 (7/16")

Heavy Equip

100'

141 lbs

pewag side chain with cam lock Stock No.

Trade Size

Diameter

Application

Package

Weight

1017USA

4/0

1016USA

6/0

3 cams .219 (7/32")

Light Truck

10 pcs

37 lbs

3 cams .281 (9/32")

Heavy Truck

10 pcs

1019USA

7/0

64 lbs

3 cams .312 (5/16")

Truck/Equip

10 pcs

71 lbs

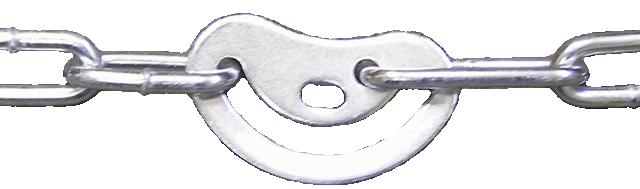

pewag cam lock Stock No.

Trade Size

Diameter

Application

Package

Weight

5998USA

4/0

.219 (7/32")

Light Truck

10 pcs

3 lbs

5999USA

6/0

.281 (9/32")

Heavy Truck

10 pcs

7 lbs

parts & accessories pewag cross chain hooks Stock No.

Trade Size

Diameter

Application

Package

Weight

403USA

3/0

.207 (13/64")

Passenger

1.26 lbs

405USA

5/0

.250 (1/4")

Small Equipment

3.5 lbs

406USA

6/0

.281 (9/32")

Light Truck

5.5 lbs

407USA

7/0

.312 (5/16")

Heavy Truck

8.2 lbs

409USA

9/0

.375 (3/8")

Equipment

13.3 lbs

411USA

11/0

.433 (7/16")

Heavy Equipment

21.8 lbs

Fits

Package

Weight

cross chain swivel hooks Stock No.

Trade Size

Diameter

507

7/0

.312 (5/16")

7mm & 8.2mm

6 lbs

509

9/0

.375 (3/8")

8.2mm & 10mm

7 lbs

511

11/0

.563 (9/16")

10mm & 12mm

12 lbs

5858SP

9/0

.563 (9/16")

8.2mm & 10mm

7 lbs

cross chain assemblies Genuine pewag USA precut cross chain with hooks.

STEP 1: Find the stock number stamped on your pewag traction chain. Which may be found in different locations depending on the chain type - cam or lever.

STEP 2: Reference pages 93-96 and match your stamped stock number with the cross chain stock number to order the correct replacement assembly.

STEP 3: Make sure you have the necessary tools (such as chain pliers 202R), to perform any cross chain replacements correctly and safely.

parts & accessories side chain repair lap link Stock No.

Trade Size

607SC

Diameter

Application

Package

Weight

608SC

7mm

1/4"

Heavy Truck

2 lbs

8mm

5/16"

Heavy Truck

609SC

3 lbs

10mm

3/8 x 2 1/8"

Heavy Truck & Equip.

6.5 lbs

side chain repair quick link Stock No.

Trade Size

Diameter

Application

Package

Weight

8005

4/0

8006

6/0

.19 (13/64")

Light Truck

1.3 lbs

.22 (7/32")

Light/Heavy Truck

8008

1.5 lbs

7/0 & 9/0

.312 (5/16")

Med/Heavy Equip

3.3 lbs

8010

11/0

.375 (3/8")

Heavy Equipment

6.0 lbs

8013

13/0

.5 (1/2")

Heavy Equipment

9.3 lbs

pewag repair link Stock No.

Trade Size

Diameter

Application

Package

Weight

705

5.6mm

707

7mm

3/16"

Light Truck

0.33 lbs

1/4"

Heavy Truck

708

0.63 lbs

8.2mm

5/16"

Heavy Truck / Equip

1.12 lbs

710

10mm

3/8"

Heavy Equipment

2.11 lbs

712

12mm

7/16"

Heavy Equipment

3.25 lbs

pewag screw pin shackle Stock No.

Trade Size

Working Load Limit

Application

Package

Weight

34937

3/16"

0.33T

Doppelspur 5.6 mm

each

0.01 lbs

34938

1/4"

0.50T

Doppelspur 7 mm

each

0.22 lbs

34939

5/16"

0.75T

Doppelspur 8 mm

each

0.31 lbs

34940

3/8"

0.10T

UNE 10 mm

each

0.39 lbs

34941

7/16"

1.50T

UNE 12 mm

each

0.47 lbs

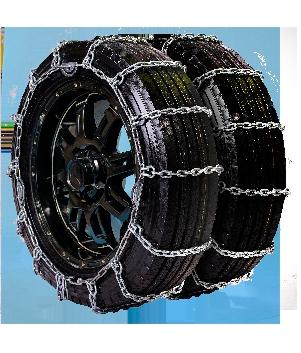

pewag emergency chain Stock No.

Fits Rim

Description

Application

Package

Weight

6083USA

19.5 - 24.5"

Twist Round w/Quick Link

Heavy Truck

pair

5.6 lbs

3007RL-44

19.5 - 24.5"

Square w/Quick Link

Heavy Truck

pair

6.2 lbs

3007LH-44

19.5 - 24.5"

Square w/Latch Link

Heavy Truck

pair

6.2 lbs

parts & accessories

pewag connecting hook Stock No.

Trade Size

Description

Application

Package

Weight

9008

8.2mm

Connecting Hook

8.2mm UNE & ERZ

3 lbs

9010

10mm

Connecting Hook

10mm UNE & ERZ

6 lbs

9012

12mm

Connecting Hook

10 lbs

8.2mm

5 lbs

84942

10mm

12mm UNE & ERZ Connecting Hook w/Ring 8.2mm UNE & ERZ Connecting Hook w/Ring 10mm UNE & ERZ

21363

8 lbs

88502

12mm

Connecting Hook w/Ring

12mm UNE & ERZ

12 lbs

Weight

pewag 3-link replacement Stock No.

Trade Size

Description

Application

Package

9900

8.2mm

3-Link Replacement

8.2mm UNE & ERZ

5 lbs

9902

10mm

3-Link Replacement

10mm UNE & ERZ

10 lbs

9904

12mm

3-Link Replacement

12mm UNE & ERZ

20 lbs

pewag slit ring & coupling ring Stock No.

Trade Size

Description

Application

Package

Weight

48621

8mm x 36mm

Slit Ring

Pattern Chains

2 lbs

71793

12mm x 45mm

Slit Ring

Pattern Chains

5 lbs

7093TC

14mm x 52mm

Slit Ring

Pattern Chains

7 lbs

05625

8mm

Coupling Ring

8.2mm UNE & ERZ

6 lbs

01386

12mm

Coupling Ring

10mm UNE & ERZ

7 lbs

01390

14mm

Coupling Ring

12mm UNE & ERZ

12 lbs

pewag pin locks Stock No.

Trade Size

Description

Application

Package

Weight

18622

5mm

pewag Pin Lock

DSPUR LIGHT

3 lbs

87757

7mm

pewag Pin Lock

DSPUR 7MM

4 lbs

27657

8.2mm

pewag Pin Lock

UNE & ERZ 8MM

5 lbs

35326

12mm

pewag Pin Lock

UNE & ERZ 10/12MM

9 lbs

Stock No.

Trade Size

Description

Application

Package

Weight

907

7mm

Pin Lock

7MM CHAIN

3 lbs

908

8mm

Pin Lock

8MM CHAIN

4 lbs

910

10mm

Pin Lock

10MM CHAIN

5 lbs

912

13mm

Pin Lock

12MM CHAIN

9 lbs

pin locks

parts & accessories

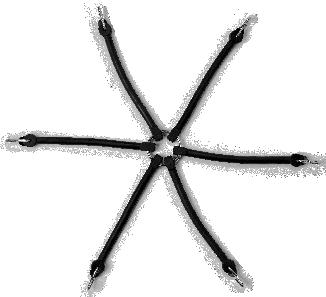

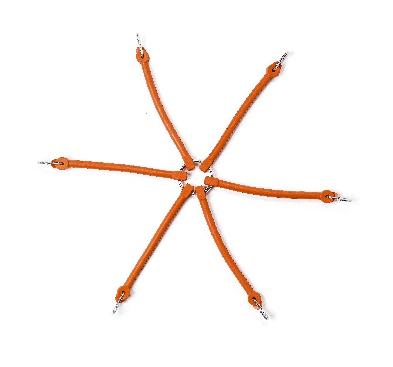

Multi-Arm Adjusters Stock No.

Description

Application

Fits Rim

103L

Blue

Heavy Truck

19.5 - 24.5''

Package Weight pair

1.1 lbs

105

Orange

Light Truck

16.5 - 19''

pair

0.9 lbs

107

Orange

Passenger

12 - 16''

pair

0.7 lbs

109

Black

Heavy Equipment

24 - 30"

pair

2.9 lbs

Metal Spring & Rubber Ring Adjusters Stock No.

Description

Application

Fits Rim

Package Weight

Metal Spring

Heavy Truck

19.5 - 24.5"

pair

1.6 lbs

Rubber Ring

Heavy Truck

19.5 - 24.5"

pair

0.8 lbs

Rubber Ring

Light Truck/SUV

16.5 - 19"

pair

0.7 lbs

100

Rubber Ring

Car/SUV

12 - 16"

pair

0.6 lbs

Long Handle Chain Pliers Stock No.

Application

Length

Package

Weight

202R

Light & Heavy Truck

30"

10.5 lbs

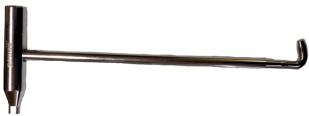

Standard Cam Tools Stock No.

Application

Length

Package

Weight

USA204HT

Heavy Truck

10"

8.2 lbs

USA204LT

Light Truck

6.8 lbs

pewag Chain Multi-Tools Stock No.

Application

Length

Package

Weight

205

Light Truck & Heavy Truck

14"

1.7 lbs

207

Light Truck & Heavy Truck

14"

1.6 lbs

#205 #207

Fit Guide by Tire Size car, crossover, SUV & pick-up 4WD light truck & off-road heavy truck & trailer loader, grader & tractor

44-75 76-81 82-86 87-92

Car, Crossover & SUV

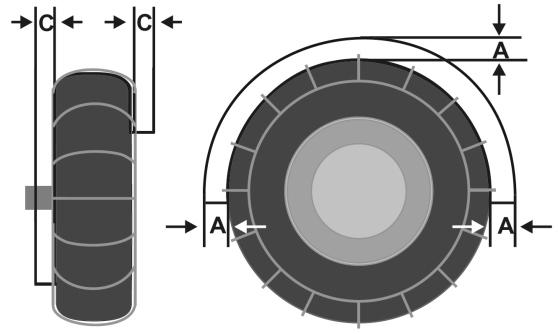

Class S Clearance

Zero Clearance

Profile

Rim

CB-12

SERVO

CG-9

SNOX

EASY-FIT

155/70 155/80 165/60 165/65

14 14 14 14

050 050 060 050

RS 60 RS 62 RS 60 RS 60

050 050 060 050

SXP 500 SXP 505 SXP 500 SXP 500

050 050 060 050

165/70 165/75 165/80 175/60 175/65 175/70

14 14 14 14 14 14

050 060 060 050 050 060

RS 62 RS 62 RS 64 RS 60 RS 62 RS 64

050 060 060 050 050 060

SXP 505 SXP 510 SXP 520 SXP 505 SXP 505 SXP 510

050 060 060 050 050 060

K11 K12 K22

175/75 175/80 185/50 185/55 185/60 185/65 185/70 185/75 185/80 195/55 195/60 195/65

14 14 14 14 14 14 14 14 14 14 14 14

075 070 060 060 050 060 065 080 080 050 060 070

RS 64 RS 68 RS 60 RS 62 RS 62 RS 64 RS 67 RS 68 RS 69 RS 62 RS 64 RS 67

075 070 060 060 050 060 065 080 080 050 060 070

SXP 520 SXP 530 SXP 500 SXP 505 SXP 510 SXP 510 SXP 530 SXP 530 SXP 540 SXP 510 SXP 520 SXP 530

075 070 060 060 050 060 065 080 080 050 060 070

K22 K23

195/70 195/75 195/80 205/50

14 14 14 14

080 090 090 065

RS 68

080 090 090 065

SXP 530

080 090 090 065

K22 K33 K34

205/55 205/60 205/65 205/70 205/75 205/80 215/50 215/55 215/60

14 14 14 14 14 14 14 14 14

065 070 080 090 100 100 065 075 080

RS 64 RS 67 RS 68 RS 73

065 070 080 090 100 100 065 075 080

SXP 520 SXP 530 SXP 530 SXP 540

065 070 080 090 100 100 065 075 080

K11 K12 K22 K23 K34 K44

215/65 215/70 215/75 215/80

14 14 14 14

097 100

RS 73 RS 74 RS 75 RS 76

097 100 103

SXP 540

097 100 103

K23 K33 K44 K45

225/50 225/55 225/60 225/65 225/70 225/75 225/80 235/60

14 14 14 14 14 14 14 14

065 080 090 097 102

K11 K12 K22 K33 K34 K45

095

K23

235/70 235/75 245/50 245/60 245/70 255/50

14 14 14 14 14 14

103

K44

095

RS 74 RS 62

RS 75

RS 69

RS 69 RS 73 RS 75 RS 76 RS 77 RS 74 RS 77

104 102 102

RS 75

065 080 090 097 102

SXP 550 SXP 510

SXP 560

SXP 530

SXP 560 SXP 560

SXP 540

K-SUMMIT

K-SUMMIT XL

K12

K11 K12

K11 K11 K22 K23 K33 K11 K12

K11 K12

K55 095 103 104

SXP 570

K55

102

K12 K33 K45 K12

THIS IS A GUIDE ONLY - ACTUAL FITMENT MAY VARY - ALWAYS PRE-FIT CHAINS BEFORE USE

Rim

155/70 155/80 165/60 165/65

14 14 14 14

165/70 165/75 165/80 175/60 175/65 175/70

14 14 14 14 14 14

175/75 175/80 185/50 185/55 185/60 185/65 185/70 185/75 185/80 195/55 195/60 195/65

14 14 14 14 14 14 14 14 14 14 14 14

195/70 195/75 195/80 205/50

14 14 14 14

205/55 205/60 205/65 205/70 205/75 205/80 215/50 215/55 215/60

14 14 14 14 14 14 14 14 14

215/65 215/70 215/75 215/80

14 14 14 14

225/50 225/55 225/60 225/65 225/70 225/75 225/80 235/60

14 14 14 14 14 14 14 14

235/70 235/75 245/50 245/60 245/70 255/50

14 14 14 14 14 14

SERVO SUV

Class U Clearance SUV or Pick-Up 4WD

XG-12 PRO

SNOX SUV

EASY-FIT SUV

XB-16

BRENTA

XD-16 PRO

RSV 68

RSV 67 RSV 68 RSV 69

XMR 69 V XMR 69 V

RSV 67 RSV 68 RSV 69 RSV 74

XMR 69 V XMR 69 V XMR 73 V

RSV 67 RSV 68 RSV 73 RSV 74 RSV 75

XMR 69 V XMR 73 V XMR 73 V XMR 75 V

225 225

RSV 69

XMR 69 V

RSV 73 RSV 74 RSV 75 RSV 76

XMR 73 V XMR 75 V XMR 75 V XMR 75 V

230 230

SXV 570

230 230

RSV 69 RSV 73

XMR 69 V XMR 73 V

RSV 75 RSV 76 RSV 77 RSV 74

230 235 240

RSV 77

230 240

RSV 75

Car, Crossover, SUV & Pick-Up 4WD

Class S Clearance Profile

230 245 230

SXV 570

230 235 240

240

230 240

240

230 245 230

XMR 75 V XMR 75 V XMR 77 V XMR 73 V XMR 77 V

XMR 75 V 245

THIS IS A GUIDE ONLY - ACTUAL FITMENT MAY VARY - ALWAYS PRE-FIT CHAINS BEFORE USE

Car, Crossover & SUV

Class S Clearance

Zero Clearance

Profile

Rim

CB-12

SERVO

255/55 255/60 265/50 265/60

14 14 14 14

102 104 102

RS 76

275/60 115/70 125/80 135/80 145/65 145/70

14 15 15 15 15 15

145/80 155/60 155/65 155/70 155/80 165/60 165/65 165/70 165/80 175/55 175/60 175/65

15 15 15 15 15 15 15 15 15 15 15 15

050 050 050 050 075 050 060 060 070 050 060 060

RS 62 RS 60 RS 60 RS 62 RS 64 RS 60 RS 62 RS 64 RS 67 RS 62 RS 62 RS 64

050 050 050 050 075 050 060 060 070 050 060 060

SXP 505 SXP 500 SXP 500 SXP 505 SXP 520 SXP 505 SXP 510

175/70 175/75 175/80 180/65

15 15 15 15

070 080 090 075

RS 67

070 080 090 075

SXP 520

185/50 185/55 185/60 185/65 185/70 185/75 185/80 190/65 195/45

15 15 15 15 15 15 15 15 15

050 060 075 070 080 090 100 080 050

RS 60 RS 64 RS 64 RS 67 RS 68

SXP 505 SXP 510 SXP 520 SXP 530 SXP 530

RS 73 RS 69 RS 60

050 060 075 070 080 090 100 080 050

195/50 195/55 195/60 195/65

15 15 15 15

060 075 070 080

RS 64 RS 64 RS 67 RS 69

060 075 070 080

195/70 195/75 195/80 205/50 205/55 205/60 205/65 205/70

15 15 15 15 15 15 15 15

090 095 100 065 075 080 090 095

RS 73 RS 74 RS 75 RS 64 RS 68 RS 69 RS 73 RS 74

090 095 100 065 075 080 090 095

205/75 205/80 215/50 215/55 215/60 215/65

15 15 15 15 15 15

RS 77

RS 60

050

075 090 090 095

102 104 102 105

SNOX

EASY-FIT

K-SUMMIT

SXP 570

102 104 102

K23 K34 K22 K34

117 050

050 050

CG-9

050

K44 050 050

K11 K12

050

K11

050 050 050 050 075 050 060 060 070 050 060 065

K12

070 080 090 075

K22 K23 K34 K22 K11 K12 K22 K23 K34 K44 K22

SXP 505

050 060 075 070 080 090 100 080 050

SXP 510 SXP 520 SXP 530 SXP 540

060 075 070 080

K11 K11 K22 K23

SXP 540 SXP 550 SXP 560 SXP 520 SXP 530 SXP 540 SXP 540 SXP 550

090 095 100 065 075 080 090 095

K33 K34 K45 K11 K12 K22 K33 K34

SXP 500 SXP 500

050

RS 69

RS 75 RS 76 RS 68 RS 73 RS 74

075 090 090 095

K-SUMMIT XL

SXP 530 SXP 505 SXP 510 SXP 520

SXP 540

SXP 560 SXP 560 SXP 530 SXP 540 SXP 550

K11 K12 K23 K11 K11 K12 K33 K11 K12

K44 K55 075 090 090 095

K11 K22 K23 K34

THIS IS A GUIDE ONLY - ACTUAL FITMENT MAY VARY - ALWAYS PRE-FIT CHAINS BEFORE USE

Rim

255/55 255/60 265/50 265/60

14 14 14 14

275/60 115/70 125/80 135/80 145/65 145/70

14 15 15 15 15 15

145/80 155/60 155/65 155/70 155/80 165/60 165/65 165/70 165/80 175/55 175/60 175/65

15 15 15 15 15 15 15 15 15 15 15 15

175/70 175/75 175/80 180/65

15 15 15 15

185/50 185/55 185/60 185/65 185/70 185/75 185/80 190/65 195/45

15 15 15 15 15 15 15 15 15

195/50 195/55 195/60 195/65

15 15 15 15

195/70 195/75 195/80 205/50 205/55 205/60 205/65 205/70

15 15 15 15 15 15 15 15

RSV 73 RSV 74 RSV 75

205/75 205/80 215/50 215/55 215/60 215/65

15 15 15 15 15 15

RSV 75 RSV 76 RSV 68

SERVO SUV

Class U Clearance SUV or Pick-Up 4WD

XG-12 PRO

SNOX SUV

230 RSV 76 RSV 77

EASY-FIT SUV

XB-16

BRENTA

XD-16 PRO

230 SXV 570

XMR 77 V

230 250

250

247

XMR 77 V

RSV 67

RSV 67 RSV 69

XMR 69 V

RSV 67 RSV 68

XMR 69 V

RSV 73 RSV 69

XMR 73 V

RSV 67 RSV 69

RSV 68 RSV 69 RSV 73 RSV 74

RSV 73 RSV 74

Car, Crossover, SUV & Pick-Up 4WD

Class S Clearance Profile

XMR 69 V 225 225

225 225

XMR 73 V XMR 74 V

XMR 69 V XMR 73 V XMR 74 V

225

225 235

225

XMR 75 V XMR 75 V

XMR 73 V XMR 74 V

THIS IS A GUIDE ONLY - ACTUAL FITMENT MAY VARY - ALWAYS PRE-FIT CHAINS BEFORE USE

Car, Crossover & SUV

Class S Clearance

Zero Clearance

Profile

Rim

CB-12

SERVO

CG-9

SNOX

EASY-FIT

K-SUMMIT

215/70 215/75 215/80 215/85

15 15 15 15

102

RS 75 RS 76 RS 77

102 103

SXP 560 SXP 570

102 103

K44 K45

220/45 225/45 225/50 225/55 225/60 225/65

15 15 15 15 15 15

065 075 095 090 095 100

225/70 225/75 225/80 235/45 235/50 235/55 235/60 235/65 235/70 235/75 240/45 245/40

15 15 15 15 15 15 15 15 15 15 15 15

245/45 245/50 245/60 245/65

15 15 15 15

245/70 245/75 245/85 255/45 255/55 255/60 255/65 255/70 255/75

15 15 15 15 15 15 15 15 15

255/80 255/85 265/45 265/50

15 15 15 15

265/60 265/70 265/75 275/35 275/45 275/50 275/55 275/60

15 15 15 15 15 15 15 15

275/65 275/70 275/75 285/40 285/50 285/70

15 15 15 15 15 15

RS 67 RS 69 RS 73 RS 74 RS 75

K56 K67 065 075 095 090 095 100

RS 76 RS 77 RS 79 097 095 102 104

RS 74 RS 75 RS 79 RS 79

SXP 530 SXP 540 SXP 550 SXP 560

065 075 095 090 095 100

SXP 570

K11 K11 K12 K22 K33 K34 K45 K55 K66

097 095 102 103 104

SXP 560

097 095 102 103

K11 K22 K23 K34 K44 K55 K66

065

095 104

070 095 104

RS 76

SXP 570

K12 K11 K12 K22 K44 K45

RS 79

102 104

RS 73 RS 77

K-SUMMIT XL

K56 K67 K78 102 104 106

102 104

K12 K34 K44 K55 K66 K77

RS80

K77 K79 102 104

RS 76

102 104

SXP 570

102 104

K22 K33 K45 K67 K77

104 104

RS 77

104 104 117

104 104

K11 K22 K33 K44 K55 K66 K77 K78

117

K12 K34 K77

THIS IS A GUIDE ONLY - ACTUAL FITMENT MAY VARY - ALWAYS PRE-FIT CHAINS BEFORE USE

Class U Clearance SUV or Pick-Up 4WD

Rim

SERVO SUV

XG-12 PRO

SNOX SUV

EASY-FIT SUV

215/70 215/75 215/80 215/85

15 15 15 15

RSV 75 RSV 76 RSV 77

227 230 240 250

SXV 570 SXV 570

230 240 250

220/45 225/45 225/50 225/55 225/60 225/65

15 15 15 15 15 15

225/70 225/75 225/80 235/45 235/50 235/55 235/60 235/65 235/70 235/75 240/45 245/40

15 15 15 15 15 15 15 15 15 15 15 15

245/45 245/50 245/60 245/65

15 15 15 15

245/70 245/75 245/85 255/45 255/55 255/60 255/65 255/70 255/75

15 15 15 15 15 15 15 15 15

RSV 79

255/80 255/85 265/45 265/50

15 15 15 15

RSV 81A

265/60 265/70 265/75 275/35 275/45 275/50 275/55 275/60

15 15 15 15 15 15 15 15

275/65 275/70 275/75 285/40 285/50 285/70

15 15 15 15 15 15

XB-16

240 250

RSV 67 RSV 69 RSV 73 RSV 74 RSV 75 RSV 76 RSV 77 RSV 79

RSV 74 RSV 75 RSV 79 RSV 79

RSV 80 RSV 81

XD-16 PRO

XMR 75 V XMR 77 V XMR 79 V

XMR 69 V XMR 73 V XMR 75 V XMR 75 V 230 240 245

SXV 570 SXV 580 SXV 580

230 240 245

SXV 580 SXV 580

230 230 240 245

240 245

245

247 250 267 230

247 250 267

240 247 247 255

XMR 77 V

267 267 230

267 267

XMR 81 V

250 250

250 250 255

XMR 81 V XMR 81 V

247 247

XMR 80 V

255 265

XMR 81 V XMR 81 V

230 230 240 245

RSV 76

RSV 73 RSV 77

BRENTA

Car, Crossover, SUV & Pick-Up 4WD

Class S Clearance Profile

240 245

XMR 75 V XMR 75 V

SXV 570

240 247 247 255

SXV 580 SXV 580 SXV 600

267 267 230

XMR 76 V XMR 77 V XMR 79 V

XMR 79 V XMR 79 V

XMR 81 V

XMR 80 V XMR 81 V

RSV 76 250 250 255

SXV 590 SXV 600

RSV 80

247 247

SXV 590

RSV 81A

255 265

RSV 80A RSV 81A

RSV 77

274

267

THIS IS A GUIDE ONLY - ACTUAL FITMENT MAY VARY - ALWAYS PRE-FIT CHAINS BEFORE USE

Car, Crossover & SUV

Class S Clearance

Zero Clearance

Profile

Rim

285/75 295/35 295/50 295/55

15 15 15 15

295/65 315/70 325/50 325/60 345/35 355/65

15 15 15 15 15 15

125/70 125/80 125/90 135/70 135/80 135/90 145/90 155/80 155/90 175/50 175/55 175/60

16 16 16 16 16 16 16 16 16 16 16 16

175/70 175/75 175/80 185/50

16 16 16 16

080 090 100 060

185/55 185/60 185/65 185/70 185/75 185/80 195/40 195/45 195/50

16 16 16 16 16 16 16 16 16

075 075 080 100 097 060 060 070

RS 64 RS 67

060 060 070

195/55 195/60 195/65 195/70

16 16 16 16

080 080 090 097

RS 68 RS 69 RS 73 RS 75

080 080 090 097

195/75 195/80 195/85 205/40 205/45 205/50 205/55 205/60

16 16 16 16 16 16 16 16

065 065 075 090 095

RS 75 RS 76 RS 77 RS 64 RS 64 RS 68 RS 73 RS 74

205/65 205/70 205/75 205/80 215/35 215/40

16 16 16 16 16 16

CB-12

SERVO

CG-9

SNOX

EASY-FIT

K-SUMMIT

K-SUMMIT XL

K78 K11 K44 K45 K77 K79 K45 K77 K22

060

050 060 065

097

065 065

RS 64 RS 73 RS 64 RS 67 RS 67 RS 69 RS 74 RS 75

RS 75 RS 75 RS 77 RS 77 RS 64

080 090 100 060 075 075 080 100 097

050 060 065

K11 K12 K23 K11 K22 K33 K34 K33 K44 K11 K12 K22

080 090 100 060

K33 K34 K44 K11

SXP 550

075 075 080 100 097

K12 K22 K33 K34 K44 K45

SXP 510 SXP 520

060 060 070

K11 K12

080 080 090 097

K22 K23 K34 K44

060

SXP 500 SXP 520 SXP 540 SXP 520 SXP 520 SXP 530 SXP 530

SXP 530 SXP 540 SXP 550 SXP 560 SXP 560 SXP 570

065 065 075 090 095 097

065 065

SXP 520 SXP 530 SXP 540 SXP 550 SXP 550 SXP 560 SXP 570

SXP 520

K45 K66 K66 065 065 075 090 095 097

K11 K12 K23 K33 K34 K45 K55 K66

065 065

K11

THIS IS A GUIDE ONLY - ACTUAL FITMENT MAY VARY - ALWAYS PRE-FIT CHAINS BEFORE USE

Class U Clearance SUV or Pick-Up 4WD

Rim

285/75 295/35 295/50 295/55

15 15 15 15

295/65 315/70 325/50 325/60 345/35 355/65

15 15 15 15 15 15

125/70 125/80 125/90 135/70 135/80 135/90 145/90 155/80 155/90 175/50 175/55 175/60

16 16 16 16 16 16 16 16 16 16 16 16

175/70 175/75 175/80 185/50

16 16 16 16

185/55 185/60 185/65 185/70 185/75 185/80 195/40 195/45 195/50

16 16 16 16 16 16 16 16 16

RSV 67 RSV 67 RSV 69

195/55 195/60 195/65 195/70

16 16 16 16

RSV 68 RSV 69 RSV 73 RSV 75

195/75 195/80 195/85 205/40 205/45 205/50 205/55 205/60

16 16 16 16 16 16 16 16

RSV 75 RSV 76 RSV 77

RSV 68 RSV 73 RSV 74

225

XMR 73 V

205/65 205/70 205/75 205/80 215/35 215/40

16 16 16 16 16 16

RSV 75 RSV 75 RSV 77 RSV 77

225 225 235 240

225 225

XMR 75 V XMR 75 V XMR 77 V XMR 77 V

SERVO SUV

XG-12 PRO

SNOX SUV

EASY-FIT SUV

XB-16

BRENTA

XD-16 PRO

274

265

265 279 274 280

RSV 73 RSV 74

RSV 74 RSV 75

XMR 73 V XMR 73 V

225

225 225 225

XMR 74 V XMR 75 V

225

XMR 69 V XMR 69 V XMR 73 V XMR 74 V

Car, Crossover, SUV & Pick-Up 4WD

Class S Clearance Profile

XMR 73 V

RSV 67

225

227 230

230

XMR 74 V XMR 75 V XMR 77 V

SXV 570

XMR 69 V

SXV 570 SXV 570

240

THIS IS A GUIDE ONLY - ACTUAL FITMENT MAY VARY - ALWAYS PRE-FIT CHAINS BEFORE USE

Car, Crossover & SUV

Class S Clearance

Zero Clearance

Profile

Rim

CB-12

SERVO

CG-9

SNOX

EASY-FIT

K-SUMMIT

215/45 215/50 215/55 215/60

16 16 16 16

075 090 095 097

RS 67 RS 73 RS 74 RS 75

075 090 095 097

SXP 530 SXP 540 SXP 550 SXP 560

075 090 095 097

K12 K22 K23 K34

215/65 215/70 215/75 215/80 215/85 220/60

16 16 16 16 16 16

102

RS 76 RS 77 RS 77 RS 79

102

SXP 560 SXP 570

102

K44

102

RS 75

102

225/40 225/45 225/50 225/55 225/60 225/65 225/70 225/75 225/80 225/85 235/45 235/50

16 16 16 16 16 16 16 16 16 16 16 16

095 095 100 102 104

RS 69 RS 74 RS 75 RS 76 RS 76 RS 79 RS 79

095 095 100 102 104 105

235/55 235/60 235/65 235/70

16 16 16 16

235/75 235/80 235/85 245/40 245/45 245/50 245/55 245/60 245/65

16 16 16 16 16 16 16 16 16

245/70 245/75 245/85 255/35

16 16 16 16

255/40 255/45 255/50 255/55 255/60 255/65 255/70 255/75

16 16 16 16 16 16 16 16

255/85 265/40 265/50 265/55 265/60 265/65

16 16 16 16 16 16

097 100 102 104

RS 75 RS 77 RS 79 RS 79

097 100 102 104

SXP 530 SXP 550 SXP 560 SXP 560 SXP 570

K-SUMMIT XL

K55 K66 K67 K77 102

K34

095 095 100 102

K11 K12 K23 K33 K44 K45 K56 K67 K77 K77

SXP 560

097 100

K22 K23

SXP 570

102 104

K34 K44 K55 K66

105

K67 K77 K78 100 100 102 104

RS 74 RS 76 RS 77

100 100 102 104

SXP 550 SXP 560 SXP 570

100 100 102 104

K12 K22 K33 K44 K45 K67 K77 K79 K11

102 102 104

RS 77

102 102 104 106

SXP 570

102 102 104

K12 K23 K34 K44

RS 79

K55 K66 K77 K77 K79

102

102 105

102

K22 K34 K66 K67

THIS IS A GUIDE ONLY - ACTUAL FITMENT MAY VARY - ALWAYS PRE-FIT CHAINS BEFORE USE

Class U Clearance SUV or Pick-Up 4WD

Rim

SERVO SUV

215/45 215/50 215/55 215/60

16 16 16 16

RSV 67 RSV 73 RSV 74 RSV 75

225

215/65 215/70 215/75 215/80 215/85 220/60

16 16 16 16 16 16

RSV 76 RSV 77 RSV 77 RSV 79 RSV 80 RSV 75

230 235 240 245 250 230

225/40 225/45 225/50 225/55 225/60 225/65 225/70 225/75 225/80 225/85 235/45 235/50

16 16 16 16 16 16 16 16 16 16 16 16

235/55 235/60 235/65 235/70

16 16 16 16

235/75 235/80 235/85 245/40 245/45 245/50 245/55 245/60 245/65

RSV 69 RSV 74 RSV 75 RSV 76 RSV 76 RSV 79 RSV 79

XG-12 PRO

230 235 240 245 250 255

SNOX SUV

EASY-FIT SUV

225 SXV 570 SXV 580 SXV 580

SXV 570 SXV 580 SXV 580

230 235 240 245 250 230

230 235 240 245 250 255

XB-16

BRENTA

225

XMR 69 V XMR 73 V XMR 75 V

240 245 250

XMR 77 V XMR 77 V XMR 77 V XMR 80 V XMR 80AV

240 245 250 255

RSV 75 RSV 77 RSV 79 RSV 79

16 16 16 16 16 16 16 16 16

RSV 80 RSV 81 RSV 81A

250 255 265

245/70 245/75 245/85 255/35

16 16 16 16

RSV 80 RSV 81

255/40 255/45 255/50 255/55 255/60 255/65 255/70 255/75

16 16 16 16 16 16 16 16

255/85 265/40 265/50 265/55 265/60 265/65

16 16 16 16 16 16

SXV 580 SXV 580

230 235 245 247

245 247

XMR 77 V XMR 79 V XMR 79 V

SXV 600 SXV 600

250 255 265

XMR 82 V XMR 81 V XMR 81 V

230

XMR 73 V XMR 75 V XMR 77 V XMR 79 V

230 SXV 570

247 250 255 267

SXV 590 SXV 590

230 230 RSV 77 RSV 79 RSV 79 RSV 80 RSV 81

XMR 69 V XMR 73 V XMR 75 V XMR 75 V XMR 76 V XMR 79 V XMR 77 V

XMR 75 V 230 235 245 247

RSV 74 RSV 76 RSV 77 RSV 79

XD-16 PRO

Car, Crossover, SUV & Pick-Up 4WD

Class S Clearance Profile

247

250 255 267

XMR 80 V XMR 81 V

230 230 SXV 570

240 247 247 255 267

SXV 590 SXV 600

240 247 247 255 267

XMR 79 V XMR 80 V XMR 81 V

RSV 83

279 230 250 255 255

230 250 255 255

250 255 255

XMR 80 V

THIS IS A GUIDE ONLY - ACTUAL FITMENT MAY VARY - ALWAYS PRE-FIT CHAINS BEFORE USE

Car, Crossover & SUV

Class S Clearance

Zero Clearance

Profile

Rim

265/65 265/70 265/75 265/80

16 16 16 16

265/85 275/40 275/45 275/55 275/60 275/65

16 16 16 16 16 16

275/70 275/75 275/85 285/60 285/65 285/70 285/75 295/50 295/65 295/75 305/70 305/75

16 16 16 16 16 16 16 16 16 16 16 16

315/70 315/75 320/65 115/95

16 16 16 17

K33

125/70 125/80 135/70 135/80 135/90 145/70 145/80 155/70 155/80

17 17 17 17 17 17 17 17 17

K12 K23 K22 K33 K44 K23 K34 K33 K44

155/90 165/80 165/90 175/55

17 17 17 17

175/65 185/50 185/60 185/65 185/70 195/40 195/45 195/55

17 17 17 17 17 17 17 17

090

075 065 090

195/60 205/40 205/45 205/50 205/55 205/60

17 17 17 17 17 17

095 070 080 090 097 100

CB-12

SERVO

CG-9

SNOX

EASY-FIT

K-SUMMIT

K-SUMMIT XL

K67 K77 K78 K79 K22 K33

117

K66 K77 K77 K79 K67 K77 K78 K79 K45 K77 K79

K79

K55 K45 K56 070

070

K22

090

K34

090 100

RS 67 RS 73

075 065 090

K33 K34 K45 K11 K12 K33

RS 67 RS 68 RS 73 RS 74 RS 75

095 070 080 090 097 100

K34 K11 K22 K23 K33 K44

RS 67 090 100

SXP 530 SXP 530 SXP 540 SXP 550 SXP 550

THIS IS A GUIDE ONLY - ACTUAL FITMENT MAY VARY - ALWAYS PRE-FIT CHAINS BEFORE USE

Class U Clearance SUV or Pick-Up 4WD

Rim

SERVO SUV

XG-12 PRO

SNOX SUV

EASY-FIT SUV

XB-16

BRENTA

265/65 265/70 265/75 265/80

16 16 16 16

RSV 81 RSV 81A RSV 82

265 265 267

SXV 600 SXV 600 SXV 600

265 265 267

XMR 80 V XMR 81 V XMR 82 V

265/85 275/40 275/45 275/55 275/60 275/65

16 16 16 16 16 16

275/70 275/75 275/85 285/60 285/65 285/70 285/75 295/50 295/65 295/75 305/70 305/75

16 16 16 16 16 16 16 16 16 16 16 16

315/70 315/75 320/65 115/95

16 16 16 17

125/70 125/80 135/70 135/80 135/90 145/70 145/80 155/70 155/80

17 17 17 17 17 17 17 17 17

155/90 165/80 165/90 175/55

17 17 17 17

175/65 185/50 185/60 185/65 185/70 195/40 195/45 195/55

17 17 17 17 17 17 17 17

195/60 205/40 205/45 205/50 205/55 205/60

17 17 17 17 17 17

XD-16 PRO

274 280

255 265 RSV 82

267

SXV 600

255 265

267

XMR 82 V 274 280

265

XMR 82 V 274 279

279

274 280 280 285 285 285

Car, Crossover, SUV & Pick-Up 4WD

Class S Clearance Profile

RSV 67

225

RSV 67 RSV 73 225 RSV 67 RSV 68 RSV 73 RSV 74 RSV 75

225

XMR 69 V XMR 73 V XMR 74 V XMR 75 V

THIS IS A GUIDE ONLY - ACTUAL FITMENT MAY VARY - ALWAYS PRE-FIT CHAINS BEFORE USE

Car, Crossover & SUV

Class S Clearance

Profile

Rim

205/65 205/70 215/35 215/40

17 17 17 17

215/45 215/50 215/55 215/60 215/65 215/70

17 17 17 17 17 17

215/80 225/35 225/40 225/45 225/50 225/55 225/60 225/65 225/70 225/75 235/40 235/45

17 17 17 17 17 17 17 17 17 17 17 17

235/50 235/55 235/60 235/65

17 17 17 17

235/70 235/75 235/80 235/85 245/35 245/40 245/45 245/50 245/55

17 17 17 17 17 17 17 17 17

245/60 245/65 245/70 245/75

17 17 17 17

245/85 255/35 255/40 255/45 255/50 255/55 255/60 255/65

17 17 17 17 17 17 17 17

255/70 255/75 255/80 255/85 265/35 265/40

17 17 17 17 17 17

CB-12

Zero Clearance

SERVO

CG-9

SNOX

EASY-FIT

RS 76 RS 77 075 080 090 095 100 104

RS 68 RS 69 RS 74 RS 75 RS 76 RS 77

K-SUMMIT

K-SUMMIT XL

K45 K66 075 080 090 095 100 103 104 105

SXP 530 SXP 540 SXP 550 SXP 560 SXP 560

075 080

K11 K12

090 095 100 103 104

K22 K33 K34 K44

075 095 095 100 103 104

K11 K12 K23 K33 K44 K45

K55 K66 K77

075 095 095 100

RS 69 RS 74 RS 75 RS 76 RS 77 RS 79

075 095 095 100 103 104 105

SXP 540 SXP 550 SXP 560 SXP 560 SXP 570

090 100

RS 74 RS 75

090 100

SXP 540 SXP 550

090 100

K22 K23

102 104

RS 76 RS 77

102 104 105

SXP 560 SXP 570

102 104

K34 K45

104

K66 K67 K77

K55 K66

RS80 RS 80

100 097 102 104

RS 74 RS 76 RS 77 RS 79

K67 K77 K78 K79 100 097 102 104 105

SXP 550 SXP 560

100 097 102 104

K12 K22 K33 K44 K45 K56 K67 K77 K78

RS80

102 102 104

RS 75 RS 76 RS 79 RS 79

102 102 104 106

SXP 560 SXP 570

102 102 104

K12 K23 K34 K44 K55 K66 K67 K77 K79 K79

102 102

RS 76

102 102

SXP 570

102 102

K22 K23

THIS IS A GUIDE ONLY - ACTUAL FITMENT MAY VARY - ALWAYS PRE-FIT CHAINS BEFORE USE

Class U Clearance SUV or Pick-Up 4WD

Rim

SERVO SUV

XG-12 PRO

205/65 205/70 215/35 215/40

17 17 17 17

RSV 76 RSV 77

235 235

RSV 68

XMR 69 V

215/45 215/50 215/55 215/60 215/65 215/70

17 17 17 17 17 17

RSV 69 RSV 74 RSV 75 RSV 76 RSV 77

XMR 69 V XMR 73 V XMR 77 V XMR 77 V XMR 77 V

215/80 225/35 225/40 225/45 225/50 225/55 225/60 225/65 225/70 225/75 235/40 235/45

17 17 17 17 17 17 17 17 17 17 17 17

235/50 235/55 235/60 235/65

17 17 17 17

RSV 76 RSV 77 RSV 79 RSV 80

230 240 245 247

235/70 235/75 235/80 235/85 245/35 245/40 245/45 245/50 245/55

17 17 17 17 17 17 17 17 17

RSV 80A

250 255 267

245/60 245/65 245/70 245/75

17 17 17 17

245/85 255/35 255/40 255/45 255/50 255/55 255/60 255/65

17 17 17 17 17 17 17 17

255/70 255/75 255/80 255/85 265/35 265/40

17 17 17 17 17 17

227 235 235 245

SNOX SUV

227 230 240 245 247 247

XB-16

235 235

SXV 570

255 RSV 69 RSV 74 RSV 75 RSV 76 RSV 77 RSV 79 RSV 79

EASY-FIT SUV

SXV 570 SXV 580 SXV 580

XD-16 PRO

XMR 76 V XMR 77 V

235 235 245

245

255

230 240 245 247 247

BRENTA

Car, Crossover, SUV & Pick-Up 4WD

Class S Clearance Profile

240 245 247 247

RSV 74 RSV 75

XMR 73 V XMR 75 V XMR 77 V XMR 77 V XMR 79 V XMR 80 V XMR 73 V XMR 75 V

SXV 580 SXV 580 SXV 580

230 240 245 247

240 245 247

250 255 267

XMR 75 V XMR 77 V XMR 79 V XMR 80 V XMR 80AV

274 RSV 74 RSV 76 RSV 77 RSV 79 RSV 80A RSV 81A RSV 81A

230 245 247 250 265 267

XMR 74 V XMR 77 V

230 SXV 580 SXV 590

245

247 250 265 267

XMR 79 V XMR 80 V XMR 81 V 279

RSV 75 RSV 76 RSV 79 RSV 79 RSV 80A RSV 81A RSV 81A RSV 83

230 230 240 247 255 265

230 230 SXV 570 SXV 580 SXV 590

255 267

XMR 75 V XMR 77 V XMR 79 V

240 247 255 265

XMR 80 V XMR 80AV

267

255 267

XMR 82 V 279 280

RSV 76

230 230

SXV 570

230 230

XMR 77 V

THIS IS A GUIDE ONLY - ACTUAL FITMENT MAY VARY - ALWAYS PRE-FIT CHAINS BEFORE USE

Car, Crossover & SUV

Class S Clearance

Profile

Rim

265/45 265/55 265/60 265/65

17 17 17 17

265/70 265/75 265/85 275/35 275/40 275/45

17 17 17 17 17 17

275/50 275/55 275/60 275/65 275/70 275/80 285/35 285/40 285/60 285/65 285/70 285/75

17 17 17 17 17 17 17 17 17 17 17 17

295/35 295/40 295/70 305/45

17 17 17 17

305/60 305/65 305/70 315/35 315/70 325/70 335/35 345/40 345/55

17 17 17 17 17 17 17 17 17

205/60 205/65 205/70 205/75

17.5 17.5 17.5 17.5

215/55 215/75 225/55 225/75 235/75 245/70 245/75 255/40

17.5 17.5 17.5 17.5 17.5 17.5 17.5 17.5

255/55 255/65 265/60 275/70 285/60 295/75

17.5 17.5 17.5 17.5 17.5 17.5

CB-12

SERVO

Zero Clearance CG-9

SNOX

EASY-FIT

105

K-SUMMIT

K-SUMMIT XL

K34 K67 K77 K78 K79

104

104 117

104

K22 K33 K44 K55 K56 K67 K77 K79 K23 K34

117

K77 K78 K79 K23 K34 K55 K78 K79 K33

K34 K55 K78 RS 76 RS 77 RS 79 102

RS 76 RS80 RS 76

102

THIS IS A GUIDE ONLY - ACTUAL FITMENT MAY VARY - ALWAYS PRE-FIT CHAINS BEFORE USE

Rim

265/45 265/55 265/60 265/65

17 17 17 17

265/70 265/75 265/85 275/35 275/40 275/45

17 17 17 17 17 17

275/50 275/55 275/60 275/65 275/70 275/80 285/35 285/40 285/60 285/65 285/70 285/75

17 17 17 17 17 17 17 17 17 17 17 17

295/35 295/40 295/70 305/45

17 17 17 17

305/60 305/65 305/70 315/35 315/70 325/70 335/35 345/40 345/55

17 17 17 17 17 17 17 17 17

205/60 205/65 205/70 205/75

17.5 17.5 17.5 17.5

215/55 215/75 225/55 225/75 235/75 245/70 245/75 255/40

17.5 17.5 17.5 17.5 17.5 17.5 17.5 17.5

255/55 255/65 265/60 275/70 285/60 295/75

17.5 17.5 17.5 17.5 17.5 17.5

Class U Clearance SUV or Pick-Up 4WD

SERVO SUV

XG-12 PRO

RSV 81A

250 265 265 265

RSV 82

267

SNOX SUV

EASY-FIT SUV

XB-16

BRENTA

SXV 600

250 265 265 265

XMR 81 V

267

XMR 82 V

XD-16 PRO

279 285 XMR 77 V 247 RSV 81 RSV 81A RSV 82

247 255 265 267

SXV 600 SXV 600

247

247 255 265 267

XMR 80AV XMR 81 V 274 280

267

RSV 84

274 279 279

279 279

Car, Crossover, SUV & Pick-Up 4WD

Class S Clearance Profile

280 274 280 280 285 285

279 RSV 76 RSV 77 RSV 79 RSV 76 RSV 80 RSV 76 RSV 80A RSV 81A RSV 81A

225 240 247

SXV 580

225 240

247

227 250 235 255 265 267 267

235 255 265 267 267

255 265 267 267

247 265 255

250

XMR 76 V XMR 79 V XMR 79 V XMR 81 V XMR 77 V XMR 81 V XMR 82 V XMR 82 V XMR 82 V XMR 77 V XMR 81 V XMR 82 V 279 274 285

THIS IS A GUIDE ONLY - ACTUAL FITMENT MAY VARY - ALWAYS PRE-FIT CHAINS BEFORE USE

Car, Crossover & SUV

Class S Clearance

Zero Clearance

Profile

Rim

125/70 135/70 135/80 145/70

18 18 18 18

K23 K33 K34 K34

145/85 155/85 155/90 175/60 175/90 195/50

18 18 18 18 18 18

K45

195/55 195/60 205/40 205/45 205/55 205/60 215/35 215/40 215/45 215/50 215/55 215/60

18 18 18 18 18 18 18 18 18 18 18 18

215/75 225/30 225/35 225/40

18 18 18 18

225/45 225/50 225/55 225/60 225/65 235/35 235/40 235/45 235/50

18 18 18 18 18 18 18 18 18

235/55 235/60 235/65 235/70

18 18 18 18

235/80 245/35 245/40 245/45 245/50 245/55 245/60 245/65

18 18 18 18 18 18 18 18

255/30 255/35 255/40 255/45 255/50 255/55

18 18 18 18 18 18

CB-12

SERVO

CG-9

SNOX

EASY-FIT

K-SUMMIT

K-SUMMIT XL

K56 K56 090

090

K34

095

K33

097 102 080 095 102 104 080 095 097 102 103

102 080 095 102 104 080 095 097 103

K34 K45 K22 K23 K44 K45 K12 K23 K33 K34 K45

K77 097 102 080 095 102 104 080 095 097 102

RS 75 RS 68

RS 73 RS 74 RS 76 RS 76

SXP 550

K55 K77 075 090 097 100 104 104

090 100 102

RS 74

075 090 097

RS 75 RS 77 RS 77 RS 79

100 104 104 105

RS 75 RS 76 RS 77

090 100 102 107

RS 79 RS80

SXP 550 SXP 560 SXP 570

075 090 097

K11 K22 K23

100 104 104

K34 K44 K45 K66 K67

SXP 560 SXP 570

090 100 102

K22 K33 K34 K45

105

K55 K66 K67 K77 K79

097 102 104

RS 76 RS 77 RS 79

097 102 104 105

SXP 560 SXP 570

097 102 104

K22 K33 K44 K45 K56 K67 K77

RS 80 102 102 104 104

RS 75 RS 77 RS 77

102 102 104 104

SXP 570

102 102 104 104

K12 K23 K34 K44 K55 K66

THIS IS A GUIDE ONLY - ACTUAL FITMENT MAY VARY - ALWAYS PRE-FIT CHAINS BEFORE USE

Class U Clearance SUV or Pick-Up 4WD

Rim

125/70 135/70 135/80 145/70

18 18 18 18

145/85 155/85 155/90 175/60 175/90 195/50

18 18 18 18 18 18

195/55 195/60 205/40 205/45 205/55 205/60 215/35 215/40 215/45 215/50 215/55 215/60

18 18 18 18 18 18 18 18 18 18 18 18

215/75 225/30 225/35 225/40

18 18 18 18

225/45 225/50 225/55 225/60 225/65 235/35 235/40 235/45 235/50

18 18 18 18 18 18 18 18 18

RSV 75 RSV 77 RSV 77 RSV 79 RSV 80

227 235 240 245 250

RSV 75 RSV 76 RSV 77

230 240

235/55 235/60 235/65 235/70

18 18 18 18

RSV 79 RSV 80A RSV 80A

235/80 245/35 245/40 245/45 245/50 245/55 245/60 245/65

18 18 18 18 18 18 18 18

255/30 255/35 255/40 255/45 255/50 255/55

18 18 18 18 18 18

SERVO SUV

XG-12 PRO

SNOX SUV

247 225

EASY-FIT SUV

XB-16

247

230 235

235

BRENTA

XD-16 PRO

Car, Crossover, SUV & Pick-Up 4WD

Class S Clearance Profile

227 RSV 75 RSV 68 230 235 RSV 73 RSV 74 RSV 76 RSV 76 RSV 77

XMR 73 V XMR 74 V 235 240

235 240

240

255

RSV 74

XMR 77 V

XMR 73 V

245 247 255 267

XMR 75 V SXV 570

SXV 580 SXV 580 SXV 580 SXV 590

235 240 245 250

240 245 250

230 240

240

245 247 255 267

XMR 77 V XMR 79 V

XMR 75 V XMR 77 V XMR 77 V XNR 79 V XMR 80 V XMR 80 V 274

RSV 76 RSV 77 RSV 79 RSV 80

RSV 75 RSV 77 RSV 77 RSV 80A

230 235 245 250 250 255

SXV 580

230 235 245 250 250 255

230 230

240 247 255

SXV 590

235 245 250 250 255

240 247 255

XMR 75 V XMR 77 V XMR 79 V XMR 80 V

XMR 75 V XMR 77 V XMR 79 V XMR 80AV

THIS IS A GUIDE ONLY - ACTUAL FITMENT MAY VARY - ALWAYS PRE-FIT CHAINS BEFORE USE

Car, Crossover & SUV

Class S Clearance

Profile

Rim

255/60 255/65 255/70 265/30

18 18 18 18

265/35 265/40 265/45 265/50 265/55 265/60

18 18 18 18 18 18

265/65 265/70 265/75 270/75 275/35 275/40 275/45 275/50 275/55 275/60 275/65 275/70

18 18 18 18 18 18 18 18 18 18 18 18

275/75 285/30 285/35 285/40

18 18 18 18

285/45 285/50 285/55 285/60 285/65 285/70 285/75 295/30 295/35

18 18 18 18 18 18 18 18 18

295/40 295/45 295/45 295/65

18 18 18 18

295/70 305/35 305/40 305/45 305/60 305/65 305/70 315/30

18 18 18 18 18 18 18 18

315/35 315/40 315/60 315/70 325/50 325/60

18 18 18 18 18 18

CB-12

SERVO

Zero Clearance CG-9

SNOX

EASY-FIT

K-SUMMIT

K-SUMMIT XL

K67 K77 K79 102 102

102 RS 76

102 105

SXP 570

102

K22

102

K23 K34 K45

RS 79

K56 K67 K77 K78 K79

104

104 106 RS 80

104

K33 K44 K45 K56 K67 K77 K79 K79

104

104 117

K22 K33 K44 K55 K66 K77 K78 K79

K23 K34 K45 K56 K66 K79 K34 K45 K66 K79

K33 K44 K55 K79 K77

THIS IS A GUIDE ONLY - ACTUAL FITMENT MAY VARY - ALWAYS PRE-FIT CHAINS BEFORE USE

Class U Clearance SUV or Pick-Up 4WD

Rim

SERVO SUV

XG-12 PRO

SNOX SUV

EASY-FIT SUV

XB-16

BRENTA

255/60 255/65 255/70 265/30

18 18 18 18

RSV 81A

265 267 266 230

SXV 590

265 267

XMR 81 V

265/35 265/40 265/45 265/50 265/55 265/60

18 18 18 18 18 18

RSV 76

230 250 250 255 265 265

SXV 570

265/65 265/70 265/75 270/75 275/35 275/40 275/45 275/50 275/55 275/60 275/65 275/70

18 18 18 18 18 18 18 18 18 18 18 18

RSV 82

275/75 285/30 285/35 285/40

18 18 18 18

285/45 285/50 285/55 285/60 285/65 285/70 285/75 295/30 295/35

18 18 18 18 18 18 18 18 18

295/40 295/45 295/45 295/65

18 18 18 18

295/70 305/35 305/40 305/45 305/60 305/65 305/70 315/30

18 18 18 18 18 18 18 18

315/35 315/40 315/60 315/70 325/50 325/60

18 18 18 18 18 18

RSV 83

RSV 79

RSV 82

267 266

XD-16 PRO

XMR 82 V 230

SXV 600 SXV 600

230 250 250 255 265 265

250 250 255 265 265

267

XMR 81 V

280 280

RSV 80

RSV 82

247 255 265 267 274 279

247 255 265 267

XMR 82 V

274 274 279 280

RSV 81A RSV 82 RSV 84

255 255 267

255 255 267 274 274 280 285

274

265

Car, Crossover, SUV & Pick-Up 4WD

Class S Clearance Profile

265

265 280 285

279 280 285

265

265 280 285 274 280

THIS IS A GUIDE ONLY - ACTUAL FITMENT MAY VARY - ALWAYS PRE-FIT CHAINS BEFORE USE

Car, Crossover & SUV

Class S Clearance

Profile

Rim

325/65 335/30 345/35 255/65

18 18 18 18.5

125/70 135/70 145/80 155/70 155/80 175/60

19 19 19 19 19 19

175/80 195/45 195/50 195/55 205/45 205/50 205/55 215/30 215/35 215/40 215/45 215/50

19 19 19 19 19 19 19 19 19 19 19 19

225/30 225/35 225/40 225/45

19 19 19 19

225/50 225/55 225/60 235/30 235/35 235/40 235/45 235/50 235/55

19 19 19 19 19 19 19 19 19

235/60 235/65 245/30 245/35

19 19 19 19

245/40 245/45 245/50 245/55 245/65 255/30 255/35 255/40

19 19 19 19 19 19 19 19

255/45 255/45* 255/50 255/55 255/60 255/65

19 19* 19 19 19 19

CB-12

SERVO

Zero Clearance CG-9

SNOX

EASY-FIT

K-SUMMIT

K-SUMMIT XL

K34 K45 K34 K34 K55 K45 K56 095

095

K45

095 100 102 097

K33 K44 K45 K34 K44

104

K67

104

RS 75 RS 77

RS 77

104

RS 75 RS 76

090 097 102 104

K22 K23 K34 K44

RS 79

105

RS 75 RS 77 RS 77 RS 79

100 103 104

090

090 RS 64

104 090 097 102 104

100 104

K55 K12 K23 K33 K44 K45

090 SXP 520

SXP 560

K55 K66 K67 100 103 104

K22 K33 K34 K45 K66 K66 K77 K77

097 102

102 104

097 102

K23 K33

RS 77 RS 79 RS 80

103 105

103

K44 K45

RS 75 RS 77

102 104 106

RS 76

K66 K67 K78 102 104

K23 K34 K44 K55 K66 K66 K67 K77 K79

THIS IS A GUIDE ONLY - ACTUAL FITMENT MAY VARY - ALWAYS PRE-FIT CHAINS BEFORE USE

Class U Clearance SUV or Pick-Up 4WD

Rim

325/65 335/30 345/35 255/65

18 18 18 18.5

267

125/70 135/70 145/80 155/70 155/80 175/60

19 19 19 19 19 19

225

175/80 195/45 195/50 195/55 205/45 205/50 205/55 215/30 215/35 215/40 215/45 215/50

19 19 19 19 19 19 19 19 19 19 19 19

247 225 225 230

247 225

RSV 77

240

225/30 225/35 225/40 225/45

19 19 19 19

RSV 75 RSV 76

230 235

225/50 225/55 225/60 235/30 235/35 235/40 235/45 235/50 235/55

19 19 19 19 19 19 19 19 19

RSV 79

240 247 245

235/60 235/65 245/30 245/35

19 19 19 19

245/40 245/45 245/50 245/55 245/65 255/30 255/35 255/40

19 19 19 19 19 19 19 19

255/45 255/45* 255/50 255/55 255/60 255/65

19 19* 19 19 19 19

RSV 80

SERVO SUV

XG-12 PRO

SNOX SUV

EASY-FIT SUV

XB-16

BRENTA

XD-16 PRO

285

RSV 75 RSV 77

RSV 75 RSV 77 RSV 77 RSV 79 RSV 80A

235 240 247 250

240 247 245

XMR 79 V

XMR 75 V 235 240 247 250

240 247 250

XMR 77 V XMR 79 V XMR 80 V

RSV 81A

255 267

267

255 267

XMR 81 V

RSV 76

230

RSV 77 RSV 79 RSV 80

230 245 250 255

RSV 75 RSV 77

230

240

RSV 81 RSV 81A RSV 82 RSV 83

Car, Crossover, SUV & Pick-Up 4WD

Class S Clearance Profile

245 252 255 265 267 266

SXV 580

SXV 600

245 250 255

XMR 79 V XMR 80 V

XMR 75 V

240

247

245

255 265 267

XMR 80AV XMR 81 V XMR 82 V

THIS IS A GUIDE ONLY - ACTUAL FITMENT MAY VARY - ALWAYS PRE-FIT CHAINS BEFORE USE

Car, Crossover & SUV

Class S Clearance

Zero Clearance

Profile

Rim

265/30 265/35 265/40 265/45

19 19 19 19

265/50 265/55 275/30 275/35 275/40 275/45

19 19 19 19 19 19

275/50 275/55 275/60 275/65 285/30 285/35 285/40 285/45 285/50 285/55 285/60 295/25

19 19 19 19 19 19 19 19 19 19 19 19

295/30 295/35 295/40 295/40

19 19 19 19

295/45 305/30 305/35 305/55 315/25 315/30 315/35 315/40 325/30

19 19 19 19 19 19 19 19 19

335/30 345/30 345/35 355/30

19 19 19 19

K44 K44

145/60 155/60 165/60 175/55 195/50 195/55 205/40 215/45

20 20 20 20 20 20 20 20

K44 K45 K45 K45 K45

225/30 225/35 225/40 225/45 225/60 235/30

20 20 20 20 20 20

CB-12

SERVO

CG-9

103 104

104

SNOX

EASY-FIT

K-SUMMIT

104

K23 K34 K45

K-SUMMIT XL

K56 K67 K77 104

104 106 117

104

K33 K44 K45 K56 K67 K77 K78 K79

117 117

K33 K44 K55 K66 K77 K78 K23

117

K34 K44 K66 K67 K34 K45 K79 K23 K34 K45 K66 K44

K66 K45

104

RS 77

104

K56 K34 K45

097 102 104

RS 77

097 102 104

K23 K34 K44 K55 K77

100

K33

THIS IS A GUIDE ONLY - ACTUAL FITMENT MAY VARY - ALWAYS PRE-FIT CHAINS BEFORE USE

Rim

265/30 265/35 265/40 265/45

19 19 19 19

265/50 265/55 275/30 275/35 275/40 275/45

19 19 19 19 19 19

275/50 275/55 275/60 275/65 285/30 285/35 285/40 285/45 285/50 285/55 285/60 295/25

19 19 19 19 19 19 19 19 19 19 19 19

295/30 295/35 295/40 295/40

19 19 19 19

295/45 305/30 305/35 305/55 315/25 315/30 315/35 315/40 325/30

19 19 19 19 19 19 19 19 19

335/30 345/30 345/35 355/30

19 19 19 19

145/60 155/60 165/60 175/55 195/50 195/55 205/40 215/45

20 20 20 20 20 20 20 20

225/30 225/35 225/40 225/45 225/60 235/30

20 20 20 20 20 20

SERVO SUV

Class U Clearance SUV or Pick-Up 4WD

XG-12 PRO

SNOX SUV

EASY-FIT SUV

XB-16

230

250 255

RSV 81A RSV 82

265 267

RSV 81

247 255

265

SXV 600

265 266

255 265

SXV 600

255 265

XMR 80AV

255 265 274 274

274

265

XD-16 PRO

274 279

279

RSV 81A

BRENTA

265

Car, Crossover, SUV & Pick-Up 4WD

Class S Clearance Profile

265

279

265 265

227 RSV 77

RSV 77

230

230 235

255

THIS IS A GUIDE ONLY - ACTUAL FITMENT MAY VARY - ALWAYS PRE-FIT CHAINS BEFORE USE

Car, Crossover & SUV

Class S Clearance

Profile

Rim

235/35 235/40 235/45 235/50

20 20 20 20

235/55 235/60 245/30 245/35 245/40 245/45

20 20 20 20 20 20

245/50 245/60 255/25 255/30 255/35 255/40 255/40* 255/45 255/50 255/55 255/60 265/25

20 20 20 20 20 20 20* 20 20 20 20 20

265/30 265/35 265/40 265/45

20 20 20 20

265/50 265/55 265/60 275/25 275/30 275/35 275/40 275/45 275/50

20 20 20 20 20 20 20 20 20

275/55 275/60 275/65 280/50

20 20 20 20

285/25 285/30 285/35 285/40 285/45 285/50 285/55 285/60

20 20 20 20 20 20 20 20

285/65 295/25 295/30 295/35 295/40 295/45

20 20 20 20 20 20

CB-12

SERVO

Zero Clearance CG-9

103 104

104

SNOX

EASY-FIT

K-SUMMIT

103

K34 K45

RS 79

K-SUMMIT XL

K66 K67 K77 K77

102 RS 77 RS 79

102 103 105 117

102 103

K33 K44 K45 K56 K67 K78

104

104 106 117

104

104 105

104

K23 K34 K44 K55 K55 K66 K67 K77 K79 K23

104

RS 77 RS 79

K34 K45 K55 K67 K77 K79

106 106 117

K33 K34 K45 K56 K67 K77 K78 K79 K77

117 105

K33 K44 K55 K66 K77 K78 K79

117

K33 K44 K55 K66 K77

THIS IS A GUIDE ONLY - ACTUAL FITMENT MAY VARY - ALWAYS PRE-FIT CHAINS BEFORE USE

Rim

235/35 235/40 235/45 235/50

20 20 20 20

235/55 235/60 245/30 245/35 245/40 245/45

20 20 20 20 20 20

245/50 245/60 255/25 255/30 255/35 255/40 255/40* 255/45 255/50 255/55 255/60 265/25

20 20 20 20 20 20 20* 20 20 20 20 20

265/30 265/35 265/40 265/45

20 20 20 20

265/50 265/55 265/60 275/25 275/30 275/35 275/40 275/45 275/50

20 20 20 20 20 20 20 20 20

RSV 81A

275/55 275/60 275/65 280/50

20 20 20 20

RSV 84

285/25 285/30 285/35 285/40 285/45 285/50 285/55 285/60

20 20 20 20 20 20 20 20

285/65 295/25 295/30 295/35 295/40 295/45

20 20 20 20 20 20

SERVO SUV

RSV 79 RSV 81

RSV 77 RSV 79

RSV 80 RSV 80A RSV 81A RSV 82 RSV 83 RSV 77 RSV 79 RSV 81A

RSV 81 RSV 81A RSV 83

RSV 84

Class U Clearance SUV or Pick-Up 4WD

XG-12 PRO

SNOX SUV

EASY-FIT SUV

XB-16

BRENTA

235 240 247 250

240 247 250

XMR 79 V

255 265 230 230 245 250

255 267 230 230 245 250

255 265

255 267

240 247 252 255 265 267 266

240 247

255 265 267

250 250 265

267 266 274

267

XD-16 PRO

Car, Crossover, SUV & Pick-Up 4WD

Class S Clearance Profile

245 250

XMR 82 V

XMR 77 V

247 255 265 266

XMR 81 V 274

SXV 600

247 255 265

274 279

274 279 280

267

255 265 267 266 274

255 265 267

255 265 267 274 280 285

RSV 82

265 265

THIS IS A GUIDE ONLY - ACTUAL FITMENT MAY VARY - ALWAYS PRE-FIT CHAINS BEFORE USE

Car, Crossover & SUV

Class S Clearance

Profile

Rim

295/50 295/55 295/60 295/65

20 20 20 20

305/25 305/30 305/35 305/40 305/45 305/50

20 20 20 20 20 20

305/55 315/25 315/30 315/35 315/45 315/60 325/25 325/30 325/35 325/50 325/60 335/25

20 20 20 20 20 20 20 20 20 20 20 20

335/30 335/35 345/25 345/30

20 20 20 20

235/30 235/45 235/50 245/30 245/35 245/40 245/45 245/50 255/30

21 21 21 21 21 21 21 21 21

255/35 255/40 255/45 255/50

21 21 21 21

255/55 265/30 265/35 265/40 265/45 265/50 275/25 275/30

21 21 21 21 21 21 21 21

275/35 275/40 275/45 275/50 275/55 285/30

21 21 21 21 21 21

CB-12

SERVO

Zero Clearance CG-9

SNOX

EASY-FIT

K-SUMMIT

K-SUMMIT XL

K78 K79

K34 K45 K56 K67 K77 K79 K34 K45 K66 K77 K34 K66 K79 K44 K55 K67 K44 K55 K34 K67 K77 103

103

K44 K45 K56 K67 K77

117

K44 K55 K66 K67 K77 K79 K45 K55 K67 K77 K78 K34 K45 K56 K67 K77 K78 K79 K45

THIS IS A GUIDE ONLY - ACTUAL FITMENT MAY VARY - ALWAYS PRE-FIT CHAINS BEFORE USE

Class U Clearance SUV or Pick-Up 4WD

Rim

295/50 295/55 295/60 295/65

20 20 20 20

274 279 280 285

305/25 305/30 305/35 305/40 305/45 305/50

20 20 20 20 20 20

274 279

305/55 315/25 315/30 315/35 315/45 315/60 325/25 325/30 325/35 325/50 325/60 335/25

20 20 20 20 20 20 20 20 20 20 20 20

335/30 335/35 345/25 345/30

20 20 20 20

235/30 235/45 235/50 245/30 245/35 245/40 245/45 245/50 255/30

21 21 21 21 21 21 21 21 21

255 230 245 250 255

230 245 250 255

245 250 255

247

255/35 255/40 255/45 255/50

21 21 21 21

245

RSV 83

245 255 265 267

267

245 255 265 267

255/55 265/30 265/35 265/40 265/45 265/50 275/25 275/30

21 21 21 21 21 21 21 21

RSV 81A RSV 82

250 250 265 265

247

275/35 275/40 275/45 275/50 275/55 285/30

21 21 21 21 21 21

255 265 267 274

255 265

255 265 267

255

SERVO SUV

XG-12 PRO

SNOX SUV

EASY-FIT SUV

XB-16

BRENTA

XD-16 PRO

280

RSV 82

265 265

265 265 285

280 285

RSV 84

Car, Crossover, SUV & Pick-Up 4WD

Class S Clearance Profile

255

274 280 255

THIS IS A GUIDE ONLY - ACTUAL FITMENT MAY VARY - ALWAYS PRE-FIT CHAINS BEFORE USE

Car, Crossover & SUV

Class S Clearance

Zero Clearance

Profile

Rim

285/35 285/40 285/45 295/25

21 21 21 21

295/30 295/35 295/40 305/25 305/30 305/35

21 21 21 21 21 21

305/40 305/45 315/30 315/35 315/40 315/45 325/25 325/30 325/40 335/25 355/25 225/40

21 21 21 21 21 21 21 21 21 21 21 22

235/30 235/45 245/30 245/35

22 22 22 22

245/40 255/30 255/35 255/40 255/45 265/30 265/35 265/40 265/45

22 22 22 22 22 22 22 22 22

K67 K55 K66 K67 K77 K55 K66 K77 K78

265/50 275/25 275/30 275/35

22 22 22 22

K79

275/40 275/45 275/45 275/50 275/55 285/25 285/30 285/35

22 22 22 22 22 22 22 22

285/40 285/45 285/50 285/55 295/25 295/30

22 22 22 22 22 22

CB-12

SERVO

CG-9

SNOX

EASY-FIT

K-SUMMIT

K-SUMMIT XL

K56 K67 K77 K44 K55 K66 K77 K44 K66 K67 K77 K79 K66 K67 K77 K79 K45 K66 K78 K55 K67 104

104

K45 K77 K45 K66

K45 K66 K67 K77 K78 K78 K79 K45 K56 K67 K77 K79

K55 K56

THIS IS A GUIDE ONLY - ACTUAL FITMENT MAY VARY - ALWAYS PRE-FIT CHAINS BEFORE USE

Rim

285/35 285/40 285/45 295/25

21 21 21 21

295/30 295/35 295/40 305/25 305/30 305/35

21 21 21 21 21 21

305/40 305/45 315/30 315/35 315/40 315/45 325/25 325/30 325/40 335/25 355/25 225/40

21 21 21 21 21 21 21 21 21 21 21 22

235/30 235/45 245/30 245/35

22 22 22 22

245/40 255/30 255/35 255/40 255/45 265/30 265/35 265/40 265/45

Class U Clearance SUV or Pick-Up 4WD

SERVO SUV

XG-12 PRO

SNOX SUV

EASY-FIT SUV

XB-16

255

RSV 83

255 267 266

RSV 81A RSV 83

265 266

265

265 266 274

265

267

265

240

245

22 22 22 22 22 22 22 22 22

265 250 265 267 267

265 250 265 267

265 250 265 267 267

265/50 275/25 275/30 275/35

22 22 22 22

255 265

275/40 275/45 275/45 275/50 275/55 285/25 285/30 285/35

22 22 22 22 22 22 22 22

285/40 285/45 285/50 285/55 295/25 295/30

22 22 22 22 22 22

266 274

274 274 279 280

RSV 84 279

RSV 84 RSV 84

255 255 265

274 274

265

XD-16 PRO

274

267 266

255 255 265

BRENTA

Car, Crossover, SUV & Pick-Up 4WD

Class S Clearance Profile

274 274 280 285 265

265

THIS IS A GUIDE ONLY - ACTUAL FITMENT MAY VARY - ALWAYS PRE-FIT CHAINS BEFORE USE

Car, Crossover & SUV

Class S Clearance

Zero Clearance

Profile

Rim

295/35 295/40 295/55 305/25

22 22 22 22

K77 K78

305/30 305/35 305/40 305/45 305/50 315/25 315/30 315/35 315/40 315/45 325/25 325/30 325/35 325/40 325/50 335/25 335/35 355/40 265/40 275/40 285/35 285/40

22 22 22 22 22 22 22 22 22 22 22 22 22 22 22 22 22 22 23 23 23 23

K67 K77 K78 K79

295/35 305/25 305/30 305/35 305/40 315/25 315/30 325/30 325/35

23 23 23 23 23 23 23 23 23

K77 K66 K77 K78 K79 K66 K77 K77 K78

255/30 275/25 275/30 285/30 285/35 285/40 295/30 295/35 305/35 315/35 325/45 305/30

24 24 24 24 24 24 24 24 24 24 24 26

K67 K67 K77 K77 K78 K79 K77 K79 K79 K79

CB-12

SERVO

CG-9

SNOX

EASY-FIT

K-SUMMIT

K-SUMMIT XL

K55

K55 K67 K77 K78 K79 K66 K67 K77 K79 K66 K78 K78 K79 K77 K79

Fitment variances noted for the following tire/wheel exceptions: *Tesla 255/45-19 (9.5J) pg. 64/65 *Tesla 255/40-20 (9.5J) pg. 68/69

THIS IS A GUIDE ONLY - ACTUAL FITMENT MAY VARY - ALWAYS PRE-FIT CHAINS BEFORE USE

Class U Clearance SUV or Pick-Up 4WD

Rim

SERVO SUV

XG-12 PRO

295/35 295/40 295/55 305/25

22 22 22 22

RSV 84

265 274

305/30 305/35 305/40 305/45 305/50 315/25

22 22 22 22 22 22

315/30 315/35 315/40 315/45 325/25 325/30 325/35 325/40 325/50 335/25 335/35 355/40

22 22 22 22 22 22 22 22 22 22 22 22

266 274

265/40 275/40 285/35 285/40

23 23 23 23

267

267 274

267

295/35 305/25 305/30 305/35 305/40 315/25 315/30 325/30 325/35

23 23 23 23 23 23 23 23 23

255/30 275/25 275/30 285/30

24 24 24 24

285/35 285/40 295/30 295/35 305/35 315/35 325/45 305/30

24 24 24 24 24 24 24 26

SNOX SUV

EASY-FIT SUV

XB-16

265

BRENTA

XD-16 PRO

274 285

274 274 280 285

274

274 280

274 279 285 279 280

RSV 84

Car, Crossover, SUV & Pick-Up 4WD

Class S Clearance Profile

274

RSV 84

274 279 274 274 279 255 265 265 267

267

255 265 265 267

267

255 265 265 267

267

274 280 274 274 279 279 285 280

Fitment variances noted for the following tire/wheel exceptions: *Tesla 255/45-19 (9.5J) pg. 64/65 *Tesla 255/40-20 (9.5J) pg. 68/69 00

THIS IS A GUIDE ONLY - ACTUAL FITMENT MAY VARY - ALWAYS PRE-FIT CHAINS BEFORE USE

Light Truck & Off-Road

Order standard variations by adding (S) or (SC) to the stock number shown in this chart, example: •USA2228SC (with cams) •USA2228S (without cams)

Zig-Zag 7mm Ladder 5.6mm Singles Singles Duals

Profile

Rim

185/75 195/75

14 14

USA2201 USA2209

205/70 205/75 215/70 215/75 225/60 225/70 235/70 245/70 255/60 265/60 275/60

14 14 14 14 14 14 14 14 14 14 14

USA2209

195/65 195/75 195/80

15 15 15

USA2201

205/75 215/70 215/75 215/80 225/70 225/75 225/80 235/70 235/75 245/60 245/70 245/75 245/85 255/60 255/65 255/70 255/75 255/80 255/85 265/60 265/65 265/70 265/75 275/60 275/65 275/70 275/75

15 15 15 15 15 15 15 15 15 15 15 15 15 15 15 15 15 15 15 15 15 15 15 15 15 15 15

285/70 285/75 295/50 305/50 305/75 315/70 325/60 355/65 185/70

15 15 15 15 15 15 15 15 15.5

195/75

Ladder 7mm Ladder Heavy Duty Singles Singles Duals

Ladder Studded Singles Duals

USA2209 USA2209 USA2216

USA4216

USA2216 ST

USA4216 ST

USA2209 USA2216

USA4216

USA2433

USA4412

USA2216 ST

USA4216 ST

USA2229

USA4229

USA2433

USA4412

USA2229 ST

USA4229 ST

USA2229

USA4229

USA2435

USA2229 ST

USA4229 ST

USA2229

USA4229

USA2433

USA2229 ST

USA4229 ST

USA2229 USA2229

USA4229 USA4229

USA2229 ST USA2229 ST

USA4229 ST USA4229 ST

USA2216 ST

USA4216 ST

USA2216 ST

USA4216 ST

USA2216 ST

USA4216 ST

USA2216 ST

USA4216 ST

USA2216 ST

USA4216 ST

USA2209 USA2209

USA4209

USA2433 USA2433

USA4412 USA4412

USA2209

USA2433

USA4412

USA2209

USA2433

USA4412 USA4412

USA2216

USA4216

USA2433

USA2216

USA4216

USA2435

USA2216

USA4216

USA2433

USA2216

USA4216

USA2435

USA2216

USA4216

USA2216

USA4216

USA2435

USA2216 ST

USA4216 ST

USA2219

USA4219

USA2435

USA2219 ST

USA4219 ST

USA2216

USA4216

USA2435

USA2216 ST

USA4216 ST

USA2219

USA4219

USA2435

USA2219 ST

USA4219 ST

USA2219

USA4219

USA2437

USA2219 ST

USA4219 ST

USA2228

USA4228

USA2441

USA2228 ST

USA4228 ST

USA2229

USA4229

USA2435

USA2228 ST

USA4229 ST

USA2229

USA4229

USA2435

USA2229 ST

USA4229 ST

USA2229

USA4229

USA2437

USA2229 ST

USA4229 ST

USA2228

USA4228

USA2228 ST

USA4228 ST

USA2228 ST

USA4228 ST

USA2229 ST

USA4229 ST

USA3210 USAZZ3227

USAZZ3227

USA4412

USA4435

USA3227 USA3227

USA2228

USA4228

USA2229

USA4229

USA3227

USA2229

USA4229

USA2229 ST

USA4229 ST

USA2221

USA4221

USA3227

USA2221 ST

USA4221 ST

USA2221

USA4221

USA3227

USA2221 ST

USA4221 ST

USA2229

USA4229

USA2229 ST

USA4229 ST

USA2437

USAZZ3227

USA3210

USA3227

USAZZ3227

USA3210 USA2228

USA4228

USA3227 USA3227

USA2228 ST

USA4228 ST

USA2228

USA4228

USA3227

USA2228 ST

USA4228 ST

USA2229 ST

USA4229 ST

USA2229 ST

USA4229 ST

USA2216 ST

USA4216 ST

USAZZ3229

USAZZ3231 USAZZ3229

USA3229 USA2229

USA4229

USA2229

USA4229

USA2226

USA4226

USAZZ3229

USA3231 USA3229 USA3229

USAZZ3229

USA3229 USA2209

USA4209

USA2216

USA4216

USA2433

USA4412

THIS IS A GUIDE ONLY - ACTUAL FITMENT MAY VARY - ALWAYS PRE-FIT CHAINS BEFORE USE

Order standard variations by adding (S) or (SC) to the stock number shown in this chart, example: •USA2228SC (with cams) •USA2228S (without cams)

Ladder 7mm Ladder Heavy Duty Singles Singles Duals

Ladder Studded Singles Duals

Rim

195/85 205/75

16 16

USA2216 USA2216

USA4216 USA4216

USA2435 USA2433

USA4412

USA2216 ST USA2216 ST

USA4216 ST USA4216 ST

205/80 215/65 215/70 215/75 215/80 215/85 225/50 225/70 225/75 225/80 225/85

16 16 16 16 16 16 16 16 16 16 16

USA2229

USA4229

USA2433

USA4412

USA2229 ST

USA4229 ST

USA2216

USA4216

USA2435

USA2216 ST

USA4216 ST

USA2216

USA4216

USA2435

USA2216 ST

USA4216 ST

USA2216

USA4216

USA2435

USA2216 ST

USA4216 ST

USA2219

USA4219

USA2435

USA2219 ST

USA4219 ST

USA2219

USA4219

USA2435

USA2219 ST

USA4219 ST

USA2209

USA4209

USA2216

USA4216

USA2435

USA2216 ST

USA4216 ST

USA2219

USA4219

USA2435

USA2219 ST

USA4219 ST

USA2219 USA2228

USA4219 USA4228

USA2435 USA2437

USA2219 ST USA2228 ST

USA4219 ST USA4228 ST

235/60 235/65 235/70

16 16 16

USA2216

USA4216

USA2433

USA2216 ST

USA4216 ST

USA2229 USA2229

USA4229 USA4229

USA2435 USA2435

USA2229 ST USA2229 ST

USA4229 ST USA4229 ST

235/75 235/80 235/85 245/60 245/65 245/70 245/75 245/85 255/60 255/65 255/70 255/75 255/85 265/50 265/55 265/60 265/65 265/70 265/75 265/85 275/55 275/60 275/65 275/70 275/75 275/85 285/60

16 16 16 16 16 16 16 16 16 16 16 16 16 16 16 16 16 16 16 16 16 16 16 16 16 16 16

USA2219

USA4219

USA2435

USA2219 ST

USA4219 ST

USA2219

USA4219

USA2437

USA2219 ST

USA4219 ST

USA2221

USA4221

USA2437

USA2221 ST

USA4221 ST

USA2229

USA4229

USA2435

USA2229 ST

USA4229 ST

USA2229

USA4229

USA2435

USA2229 ST

USA4229 ST

USA2229

USA4229

USA2435

USA2229 ST

USA4229 ST

USA2221

USA4221

USA2437

USA2221 ST

USA4221 ST

USA2228

USA4228

USA2437

USA2228 ST

USA4228 ST

USA2229

USA4229

USA2229 ST

USA4229 ST

USA2229

USA4229

USA2229 ST

USA4229 ST

285/65 285/70 285/75 295/65 295/75 305/70 305/85 315/70 315/75

16 16 16 16 16 16 16 16 16

325/80

USAZZ3227

USA3210

USA3227

USA4412

USA2435 USA3227

USA2437

USA2228

USA4228

USA2437

USA2228 ST

USA4228 ST

USA2228

USA4228

USA2437

USA2228 ST

USA4228 ST

USA2229

USA4229

USA2229 ST

USA4229 ST

USA2229

USA4229

USA2229 ST

USA4229 ST

USA2229

USA4229

USA2229 ST

USA4229 ST

USA2229

USA4229

USA2229 ST

USA4229 ST

USAZZ3227

USA2228

USA4228

USA3227

USA2228 ST

USA4228 ST

USAZZ3227

USA2228

USA4228

USA3227

USA2228 ST

USA4228 ST

USA2228

USA4228

USA2228 ST

USA4228 ST

USA2229

USA4229

USA2229 ST

USA4229 ST

USA2228 ST

USA4228 ST

USA2228 ST

USA4228 ST

USAZZ3227

USA3210

USA3227

USA3210 USAZZ3227

USA2228

USA2441

USA4435

USA2437

USA3227 USA4228

USAZZ3227

USA3227 USA3227

USAZZ3231 USA2228

USA4228

USA3210

USA3231 USA3227 USA3227

USAZZ3229

USA2228

USA4228

USA3229

USA2228 ST

USA4228 ST

USAZZ3229

USA2228

USA4228

USA3229

USA2228 ST

USA4228 ST

USA2226 ST

USA4226 ST

USAZZ3229 USAZZ3229 USAZZ3231

USA3229 USA2226

USA4226

USA3229 USA3231

USA2441

USA4435

USA3259

USA2445

USA4437

USAZZ3231

USA2226

USA4226

USA3231

USA2441

USA4435

USA2226 ST

USA4226 ST

USAZZ3231

USA2226

USA4226

USA3231

USA2441

USA4435

USA2226 ST

USA4226 ST

USAZZ3235

Light Truck & Off-Road

Zig-Zag 7mm Ladder 5.6mm Singles Singles Duals

Profile

USA3235

THIS IS A GUIDE ONLY - ACTUAL FITMENT MAY VARY - ALWAYS PRE-FIT CHAINS BEFORE USE

Light Truck & Off-Road

Order standard variations by adding (S) or (SC) to the stock number shown in this chart, example: •USA2228SC (with cams) •USA2228S (without cams)

Profile

Rim

Zig-Zag 7mm Ladder 5.6mm Singles Singles Duals

325/85 365/65

16 16

USAZZ3235 USAZZ3235

215/70 215/80 225/70 225/75 235/55 235/60 235/65 235/70 235/75 235/80 235/85

17 17 17 17 17 17 17 17 17 17 17

245/60 245/65 245/70

17 17 17

245/75 245/85 255/50 255/55 255/60 255/65 255/70 255/75 255/80 255/85 265/55 265/60 265/65 265/70 265/75 265/85 275/50 275/55 275/60 275/65 275/70 275/80 285/60 285/65 285/70 285/75 295/70

17 17 17 17 17 17 17 17 17 17 17 17 17 17 17 17 17 17 17 17 17 17 17 17 17 17 17

305/60 305/65 305/70 315/70 325/70 325/75 345/55 205/60 205/65

17 17 17 17 17 17 17 17.5 17.5

205/70

17.5

USAZZ3227

Ladder 7mm Ladder Heavy Duty Singles Singles Duals USA3235 USA3235

USA2445

Ladder Studded Singles Duals

USA4437

USA2219

USA2219 ST

USA4219 ST

USA2221

USA2221 ST

USA4221 ST

USA2229

USA4229

USA2435

USA2229 ST

USA4229 ST

USA2219

USA4219

USA2437

USA2219 ST

USA4219 ST

USA2229

USA4229

USA2433

USA2229 ST

USA4229 ST

USA2219

USA4219

USA2435

USA2219 ST

USA4219 ST

USA2211

USA4211

USA2435

USA2219

USA4219

USA2437

USA2219 ST

USA4219 ST

USA2228 ST USA2228 ST

USA4228 ST USA4228 ST

USA3210

USA4412

USA3227

USA2228 USA2228

USA4228 USA4228

USA3227 USA3227

USA2219

USA4219

USA2435

USA2219 ST

USA4219 ST

USA4229

USA2437 USA2437

USA2229 ST

USA4229 ST

USAZZ3227

USA2229 USA3210

USAZZ3229

USA2237

USA4237

USA2229

USA4229

USA2435

USA2229 ST

USA4229 ST

USA2229

USA4229

USA2435

USA2229 ST

USA4229 ST

USAZZ3227

USA2229

USA4229

USA3227

USA2435

USA2229 ST

USA4229 ST

USAZZ3227

USA3210

USA3227

USA2437

USAZZ3227

USA2228

USA4228

USA3227

USA2228 ST

USA4228 ST

USAZZ3227

USA2228

USA4228

USA3227

USA2228 ST

USA4228 ST

USA2228

USA4228

USA2228 ST

USA4228 ST

USA2228 ST

USA4228 ST

USA2228 ST

USA4228 ST

USA2228 ST

USA4228 ST

USA3227 USA3227 USA3229

USA2237

USA4237

USAZZ3227

USA2228

USA4228

USAZZ3227

USA3210

USAZZ3227

USA3210

USAZZ3227

USA2228

USA4228

USA3227

USAZZ3229

USA2228

USA4228

USA3229

USA2441

USA4441

USAZZ3231

USA2226

USA4226

USA3231

USA2441

USA4441

USA2229

USA4229

USA2229 ST

USA4229 ST

USAZZ3227

USA2229

USA4229

USA3227

USA2229 ST

USA4229 ST

USAZZ3227

USA2228

USA4228

USA3227

USA2228 ST

USA4228 ST

USAZZ3227

USA2228

USA4228

USA3227

USA2228 ST

USA4228 ST

USAZZ3229

USA2228

USA4228

USA3229

USA2228 ST

USA4228 ST

USA2228

USA4228

USA2228 ST

USA4228 ST

USAZZ3231

USA2228

USA4228

USA3231

USA2228 ST

USA4228 ST

USAZZ3231

USA2228

USA4228

USA3231

USA2228 ST

USA4228 ST

USA2216 ST

USA4216 ST

USA2216 ST

USA4216 ST

USA3227 USA3227 USA3227

USAZZ3231

USA3231

USAZZ3231 USAZZ3231

USA3231 USA3231

USAZZ3231

USA3231

USAZZ3231

USA3231

USAZZ3231

USA2226

USA4226

USA3231

USA2441

USA4435

USAZZ3231

USA2226

USA4226

USA3231

USA2441

USA4435

USA3235 USA3235

USA2441

USA4435

USAZZ3235 USAZZ3235 USAZZ3231

USA3231 USA2209

USA4209

USA2433

USA4412

USA2216

USA4216

USA2433

USA4412

USA2216

USA4216

USA2435

THIS IS A GUIDE ONLY - ACTUAL FITMENT MAY VARY - ALWAYS PRE-FIT CHAINS BEFORE USE

Order standard variations by adding (S) or (SC) to the stock number shown in this chart, example: •USA2228SC (with cams) •USA2228S (without cams)

Ladder 7mm Ladder Heavy Duty Singles Singles Duals

Rim

205/75 215/70

17.5 17.5

USA2219 USA2219

USA4219 USA4219

USA2433 USA2435

215/75 225/55 225/70 225/75 235/75 245/70 245/75 255/40 255/55 255/65 265/60

17.5 17.5 17.5 17.5 17.5 17.5 17.5 17.5 17.5 17.5 17.5

USA2219

USA4219

USA2437

USA2216

USA4216

USA2433

USA2221

USA4221

USA2221

USA4221

275/70 285/60 295/75

17.5 17.5 17.5

215/75 235/60 235/80 245/55 245/60 255/55 255/60 255/65 255/70 265/50 265/60 265/65 265/70 265/75 270/75 275/55 275/60 275/65 275/70 275/75 285/50 285/55 285/60 285/65 285/70 285/75 295/45

18 18 18 18 18 18 18 18 18 18 18 18 18 18 18 18 18 18 18 18 18 18 18 18 18 18 18

295/65 295/70 305/60 305/65 305/70 315/60 325/50 325/60 325/65

18 18 18 18 18 18 18 18 18

255/65

18.5

USA3227

USA4412

Ladder Studded Singles Duals USA2219 ST USA2219 ST

USA4219 ST USA4219 ST

USA2219 ST

USA4219 ST

USA2216 ST

USA4216 ST

USA2437

USA2221 ST

USA4221 ST

USA2437

USA2221 ST

USA4221 ST

USA4412

USAZZ3227

USA3210

USAZZ3229

USA2228

USA4228

USA3229

USA2228 ST

USA4228 ST

USAZZ3229

USA2228

USA4228

USA3229

USA2228 ST

USA4228 ST

USA2216

USA4216

USA2433

USA2216 ST

USA4216 ST

USA2229

USA4229

USA2435

USA2229 ST

USA4229 ST

USA2229 USA3210

USA4229

USA2437

USA2229 ST

USA4229 ST

USA2228 USA2226

USA4228

USA2228 ST

USA4228 ST

USA2219

USA4219

USA2437

USA2219 ST

USA4219 ST

USA2229

USA4229

USA2435

USA2229 ST

USA4229 ST

USA2228

USA4228

USA2228 ST

USA4228 ST

USA2229

USA4229

USA2229 ST

USA4229 ST

USA2229 ST

USA4229 ST

USA2229 ST

USA4229 ST

USA2228 ST

USA4228 ST

USA2229 ST

USA4229 ST

USA2228 ST

USA4228 ST

USA2228 ST

USA4228 ST

USA3229 USA3231

USA3227 USA2435

USA3210 USA2229 USAZZ3227 USAZZ3227

USA2437 USA4229

USA3210

USA2437 USA3227

USA2229

USA4229

USA2228

USA4228

USA2229

USA4229

USAZZ3227 USAZZ3227

USA2437 USA2437

USA3227 USA3227

USA2228

USA4228

USA2228

USA4228

USA3227

USAZZ3229

USA3229

USAZZ3229

USA3229

USAZZ3227 USAZZ3229

USA4412

USA3227

USAZZ3229 USAZZ3231

USA2437

USA3227 USA2228

USA4228

USA3227

USA2228 ST

USA4228 ST

USA2228

USA4228

USA3229

USA2228 ST

USA4228 ST

USAZZ3229

USA3229

USAZZ3231

USA2226

USA4226

USA3231

USAZZ3231

USA2228

USA4228

USA3231

USA2228 ST

USA4228 ST

USA2228

USA4228

USA3227

USA2228 ST

USA4228 ST

USA2228

USA4228

USA3229

USA2228 ST

USA4228 ST

USA2228 ST

USA4228 ST

USAZZ3229 USAZZ3229 USAZZ3231

USA3229 USA2226

USA4226

USAZZ3231 USAZZ3227 USAZZ3231 USAZZ3231

Light Truck & Off-Road

Zig-Zag 7mm Ladder 5.6mm Singles Singles Duals

Profile

USA2226

USA4226

USA3231 USA3231 USA3227

USA2441

USA4435

USA3231

USA2441

USA4435

USA3231

USA2441

USA4435

USAZZ3231

USA3231

USAZZ3231

USA3231

USAZZ3235 USAZZ3231

USA3235 USA3231

USA2441 USA2441

USA4435 USA4435

USAZZ3231

USA3231

USA2441

USA4435

USAZZ3231

USA3231

USA2441

USA4435

USAZZ3235

USA3235

USA2441

USA4435

USA2228

USA4228

USA3227

THIS IS A GUIDE ONLY - ACTUAL FITMENT MAY VARY - ALWAYS PRE-FIT CHAINS BEFORE USE

Light Truck & Off-Road

Order standard variations by adding (S) or (SC) to the stock number shown in this chart, example: •USA2228SC (with cams) •USA2228S (without cams)

Zig-Zag 7mm Ladder 5.6mm Singles Singles Duals

Ladder 7mm Ladder Heavy Duty Singles Singles Duals

Ladder Studded Singles Duals

Profile

Rim

225/55 225/60

19 19

USA2216 USA2221

USA4216 USA4221

USA2435

USA2216 ST USA2221 ST

USA4216 ST USA4221 ST

235/50 235/55 245/55 255/50 255/55 255/60 255/65 265/50 275/45 275/55 275/65

19 19 19 19 19 19 19 19 19 19 19

USA2216

USA4216

USA2435

USA2216 ST

USA4216 ST

USA2219

USA4219

USA2435

USA2219 ST

USA4219 ST

USA2229

USA4229

USA2437

USA2229 ST

USA4229 ST

USA2229

USA4229

USA2435

USA2229 ST

USA4229 ST

285/45 285/55 285/60

19 19 19

235/55 245/45 255/40 255/50 255/55 255/60 265/40 265/45 265/50 265/60 275/45 275/50 275/55 275/60 275/65 285/50 285/60 285/65 295/40 295/45 295/50 295/60 305/45 305/50 305/55 325/50 325/60

20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20

275/45 285/40 285/45 305/40 305/45 325/40 295/35 295/40 305/35

22 22 22 22 22 22 24 24 24

315/35

USAZZ3227

USA3210

USA3227

USAZZ3227

USA2228

USA4228

USA3227

USA2228 ST

USA4228 ST

USAZZ3227

USA2228

USA4228

USA3227

USA2228 ST

USA4228 ST

USA2229

USA4229

USA2229 ST

USA4229 ST

USA2229

USA4229

USA2229 ST

USA4229 ST

USA2228

USA4228

USA2228 ST

USA4228 ST

USA2228 ST

USA4228 ST

USAZZ3229 USAZZ3227

USA3210

USA2437

USA3227 USA3229 USA3227

USA2228

USA4228

USA2229

USA4229

USA2229 ST

USA4229 ST

USA2229

USA4229

USA2435

USA2229 ST

USA4229 ST

USA2229

USA4229

USA2435

USA2229 ST

USA4229 ST

USAZZ3229

USA3227 USA3229

USAZZ3227

USA3210

USAZZ3227

USA2228

USA4228

USA3227

USA2228

USA4228

USA3227

USA2228 ST

USA4228 ST

USA2229

USA4229

USA2229 ST

USA4229 ST

USA2229

USA4229

USA2229 ST

USA4229 ST

USA2228 ST

USA4228 ST

USA2228 ST

USA4228 ST

USA2228 ST

USA4228 ST

USAZZ3227

USA3210

USAZZ3229

USA2228

USAZZ3227

USA3210 USA2228

USA3227

USA3227 USA4228

USAZZ3229 USAZZ3231

USA2226

USA4226

USA3231 USA3231

USA2228

USA4228

USAZZ3231 USAZZ3231

USA3227 USA3229

USAZZ3231 USAZZ3229

USA3229

USA3229 USA3231

USA2226

USA4226

USA3231

USA2228

USA4228

USA3227

USA2228 ST

USA4228 ST

USA2228

USA4228

USA3227

USA2228 ST

USA4228 ST

USA2228 ST

USA4228 ST

USAZZ3229

USA2228

USAZZ3231

USA2226

USA3229 USA4226

USA3231

USAZZ3229

USA3229

USAZZ3229

USA3229

USAZZ3231

USA3231

USAZZ3231 USAZZ3235

USA3231 USA3235

USAZZ3229

USA3229

USAZZ3227

USA2228

USA4228

USA3227

USAZZ3231

USA2226

USA4226

USA3231

USAZZ3231

USA2238

USA4238

USA3231

USAZZ3231 USAZZ3231

USA2226 USA2226

USA4226 USA4226

USA3231 USA3231

USAZZ3231

USA2226

USA4226

USA3231

USAZZ3231

USA2226

USA4226

USA3231

USA2226

USA4226

USA3231

USAZZ3231

USA2441

USA4435

USA3231

THIS IS A GUIDE ONLY - ACTUAL FITMENT MAY VARY - ALWAYS PRE-FIT CHAINS BEFORE USE

Order standard variations by adding (S) or (SC) to the stock number shown in this chart, example: •USA3231SC (with cams) •USA3231S (without cams)

Rim 15-20 15-20 15-20 15-20 15-20 15-20 15-20 15-20 15-20 15-20 15-20 15-20 15-20 15-20 15-20 15-20 15-20 15-20 15-20 15-20 15-20 15-20 15-20 15-20 15-20 15-20 15-20 15-20 15-20 15-20 15-20 15-20 15-20 15-20 15-20 15-20 15-20 15-20 15-20 15-20 15-20 15-20 15-20 15-20 15-20 15-20 15-20 15-20 15-20 15-20 15-20 15-20 15-20 15-20 15-20 15-20 15-20 15-20

XB-16

BRENTA

XD-16

ZIG-ZAG

XMR 81 V

XMR 80 V XMR 80 V

265 265

XMR 81 V XMR 82 V

267

Ladder 7mm Ladder Heavy Duty Singles Singles Duals

Ladder Studded Singles Duals

USA2216 USA2229 USA3210 USA2229

USA4216 USA4229

USA2433 USA2433

USA4412 USA4412

USA2216 ST USA4216 ST USA2229 ST USA4229 ST

USA4229

USA2433

USA4412

USA2229 ST USA4229 ST

USA2216 USA3210 USA3210

USA4216

USA2435

USA2216 ST USA4216 ST

USA2229 USA3210 USA3210

USA4229

USA2435 USA2437 USA2437

USA2229 ST USA4229 ST

USAZZ3227 USAZZ3227 USAZZ3227 USAZZ3227 USAZZ3227 USAZZ3229

USA3210 USA2228 USA3210

USA4228

274 274 279

USAZZ3227 USAZZ3227 USAZZ3229

USA2228

USA4228

279 274 280

USAZZ3227 USAZZ3229 USAZZ3229 USAZZ3231 USAZZ3229 USAZZ3231 USAZZ3229

USA2228

USA4228

USAZZ3227 USAZZ3227 250 255

Ladder 5.6mm Singles Duals

274 274

280 280 280

USAZZ3227

285 285

USAZZ3231 USAZZ3235 USAZZ3235 USAZZ3235

USA2226

USA3227 USA3227 USA3227

USA4226

USAZZ3227

USAZZ3235 USAZZ3235 USAZZ3235

USAZZ3269 USAZZ3269 USAZZ3269

USA3227 USA3229 USA3229 USA3231 USA3229 USA3231 USA3229

USA2228 ST USA4228 ST

USA2228 ST USA4228 ST USA2441 USA2441 USA2441

USA4435 USA4435 USA4435 USA2226 ST USA4226 ST

USA3227 USA4226 USA4226 USA4226 USA4226

USA3231 USA3235 USA3235 USA3235 USA3251 USA3251 USA3237

USA2226 USA2226 USA2226

USA4226 USA4226 USA4226

USA3235 USA3235 USA3235 USA3251 USA3251 USA3235

USAZZ3235 USAZZ3251

USAZZ3235 USAZZ3235

USA2228 ST USA4228 ST

USA3227 USA3227 USA3229

USA2226 USA2226 USA2226 USA2226

USAZZ3235 289

USA2437 USA2437

USA3227

USAZZ3237 289

USA3227 USA3227 USA3227 USA3227 USA3229 USA3237 USA3259

(non-metric sizes) Light Truck & Off-Road

Pattern Chain Profile 27x8.5 27x9.5 27x10.5 28x8.5 29x9.5 29x10.5 29x11.5 29x12.5 30x7.5 30x9.5 30x10.5 31x9.5 31x10.5 31x11.5 31x12.5 31x13.5 31x15.5 31x16 32x9.5 32x11.5 32x12.5 33x9.5 33x10.5 33x12.5 33x13.5 33x14 33x14.5 33x15 34x9 34x10 34x9.5 35x10.5 35x12.5 35x13.5 35x14 35x14.5 35x15 35x15.5 36x12.5 36x13.5 36x14 36x14.5 36x15.5 36.5x14 37x12.5 37x13.5 37x14.5 38x12.5 38x14.5 38x15 38x15.5 38.5x15 38.5x16 39.5x15 40x15.5 40x17 42x15 44x18.5

USA3235 USA3251 USA3251

USA2226 USA2226

USA4226 USA4226

USA3259 USA3259 USA3259 USA3235 USA3235 USA3267 USA3251

USA2441 USA2441

USA4435 USA4435

USA2445 USA2445 USA2445

USA4437 USA4437 USA4437

USA2445

USA4437

USA2445 USA2445

USA4437 USA4437

USA2445 USA2445

USA4437 USA4437

USA2226 ST USA2226 ST USA2226 ST USA2226 ST

USA4226 ST USA4226 ST USA4226 ST USA4226 ST

USA2226 ST USA4226 ST USA2226 ST USA4226 ST USA2226 ST USA4226 ST

USA2226 ST USA4226 ST USA2226 ST USA4226 ST

USA3255 USA3269 USA3269 USA3269

THIS IS A GUIDE ONLY - ACTUAL FITMENT MAY VARY - ALWAYS PRE-FIT CHAINS BEFORE USE

Heavy Truck & Trailer Pattern

Order standard variations by adding (S) or (SC) to the stock number shown in this chart, example: •USAZZ2247SC (with cams) •USAZZ2247S (without cams)

ASV Singles

Duals

19.5 19.5

A 82 SV A 82 SV

A 282 SV A 282 SV

245/70 265/70

19.5 19.5

A 84 SV A 85 SV

A 284 SV A 285 SV

6.5 7.5 8.25

20 20 20

A 82 SV

9 10/90 10 11 12 12/80 12.5 13/80 14/80

20 20 20 20 20 20 20 20 20

14 14.5 14.75/80 16 275/55 335/80 365/80 365/85 370/75 395/85

20 20 20 20 20 20 20 20 20 20

10 11 12

22 22 22

8 9 10 11 12 12.5 12.75 13 255/70 275/70 275/75 275/80 275/85 295/70 295/75 295/80 305/70 305/85 315/70 315/75 315/80 375/90 385/65 425/65

22.5 22.5 22.5 22.5 22.5 22.5 22.5 22.5 22.5 22.5 22.5 22.5 22.5 22.5 22.5 22.5 22.5 22.5 22.5 22.5 22.5 22.5 22.5 22.5

Profile

Rim

8 225/70

Zig-Zag Singles

Duals

USAZZ2255

Studded Zig-Zag Singles Duals

USAZZ2255

CL Singles

Duals

A 85 SV A 88 SV

A 285 SV A 291 SV

CL 91 S

CL 291 S

A 91 SV

CL 94 S

CL 294 S

A 94 SV

CL 97 S

CL 297 S

A 97 SV

A 297 SV

CL 01 S

CL 201 S

A 01 SV

A 201 SV

CL 94 S

CL 294 S

A 94 SV

CL 95 S

CL 295 S

A 95 SV

CL 01 S

CL 201 S

A 01 SV

A 201 SV

A 08 SV USAZZ2255

USAZZ2255

CL 02 S

A 08 SV A 05 SV A 10 SV A 84 SV

USAZZ2255

CL 95 S

CL 295 S

A 95 SV A 02 SV A 05 SV

USAZZ2249

USAZZ4249

USAZZ2255

USAZZ2249

CL 01 S CL 07 S

CL 201 S

A 01 SV A 07 SV

CL 03 S

CL 203 S

A 03 SV

A 203 SV

A 85 SV

A 287 SV

USAZZ4249 ST

USAZZ2255

A 88 SV CL 91 S USAZZ2247

USAZZ4247

USAZZ2247

USAZZ2255

USAZZ2247

USAZZ4247

USAZZ2247

USAZZ4247 ST

USAZZ4249

USAZZ2249

USAZZ4249 ST

USAZZ4247

USAZZ2247

USAZZ4247 ST

USAZZ2247

USAZZ4247

USAZZ2247

USAZZ4247 ST

USAZZ2255

USAZZ2247

A 94 SV

A 294 SV

CL 97 S

CL 297 S

A 97 SV

A 297 SV

A 01 SV

A 201 SV

A 88 SV

A 288 SV

CL 91 S

CL 291 S

A 90 SV

A 290 SV

CL 94 S

CL 294 S

A 94 SV

A 294 SV

CL 91 S

CL 291 S

A 94 SV

A 294 SV

CL 94 S

CL 294 S

A 94 SV

A 294 SV

CL 94 S

CL 294 S

A 94 SV A 94 SV

A 294 SV

CL 97 S

CL 297 S

A 97 SV

A 297 SV

CL 97 S

CL 297 S

A 97 SV

A 297 SV

USAZZ4247 ST

USAZZ2247

USAZZ4247

CL 294 S

CL 01 S

USAZZ2249

USAZZ2247

A 91 SV

CL 94 S

USAZZ4247 ST

USAZZ2255

A 08 SV A 01 SV A 155 8 SV

THIS IS A GUIDE ONLY - ACTUAL FITMENT MAY VARY - ALWAYS PRE-FIT CHAINS BEFORE USE

Order standard variations by adding (S) or (SC) to the stock number shown in this chart, example: •USAZZ2247SC (with cams) •USAZZ2247S (without cams)

Studded Zig-Zag Singles Duals

CL Singles

ASV Singles

Rim

445/50 445/65

22.5 22.5

12 13

24 24

A 06 SV A 08 SV

14 315/75 320/75

24 24 24

A 10 SV

11 12 12.5 275/80 285/70 285/75 285/80 305/75 315/75

24.5 24.5 24.5 24.5 24.5 24.5 24.5 24.5 24.5

Duals

USAZZ3269

Duals

USAZZ3269 A 160 8 SV

USAZZ2255 USAZZ2255 USAZZ2249

USAZZ2255 USAZZ2255 USAZZ4249

USAZZ2249

USAZZ2255

A 10 SV USAZZ4249 ST

USAZZ2247

USAZZ4247

USAZZ2247

USAZZ4247 ST

USAZZ2247

USAZZ4247

USAZZ2247

USAZZ4247 ST

USAZZ2249

USAZZ4249

USAZZ2249

USAZZ4249 ST

USAZZ2249

USAZZ4249

USAZZ2249

USAZZ4249 ST

USAZZ2255 USAZZ2255

CL 97 S

CL 297 S

A 97 SV

USAZZ2255 USAZZ2255

THIS IS A GUIDE ONLY - ACTUAL FITMENT MAY VARY - ALWAYS PRE-FIT CHAINS BEFORE USE

Heavy Truck & Trailer Pattern

Zig-Zag Singles

Profile

Heavy Truck & Trailer Ladder

Order standard variations by adding (S) or (SC) to the stock number shown in this chart, example: •USA2227SC (with cams) •USA2247S (without cams)

Profile

Rim

8 15 16.5 18

19.5 19.5 19.5 19.5

19.5 225/70

19.5 19.5

225/75 245/70 245/75 255/70

Ladder Singles

Duals

USA2214

USA4214

Super Single Singles Duals

Heavy Duty Singles

Duals

Studded Singles

Duals

Studded Super Single Singles Duals

USA2439 USA3265

USA3265 ST

USA3255 USA3257

USA3255 ST USA3257 ST

USA3261 USA3227

USA3261 ST USA2221 ST USA4221 ST USA3227 ST

USA2221

USA4221

USA2439

19.5 19.5 19.5 19.5

USA2228

USA4228

USA2228

USA4228

USA2228 USA2237

USA4228 USA4237

265/70 265/75 275/70 285/70

19.5 19.5 19.5 19.5

USA2237

USA4237

USA2237

USA4237

USA2237 USA2238

USA4237 USA4238

285/75 305/70 445/65

19.5 19.5 19.5

USA2239

USA4239

USA2239

USA4239

6.5 7 7.5 8 8.25

20 20 20 20 20

USA2233

USA4233

USA2233

USA4233

USA2237

USA4237

USA3267

USA2441

USA4435

USA2237 ST USA4237 ST

USA3267 ST

USA2239 USA2239

USA4239 USA4239

USA3269

USA2437 USA2441

USA4435

USA2239 ST USA4239 ST USA2239 ST USA4239 ST

USA3269 ST

9 10/90 10 10.5 11 11.5 12 12/80 12.5 13/80

20 20 20 20 20 20 20 20 20 20

USA2241

USA4241

USA3273

USA2445

USA4437

USA2241 ST USA4241 ST

USA3273 ST

USA2245

USA4245

USA2448

USA4448

USA2245 ST USA4245 ST

USA2245

USA4245

USA3275

USA2448

USA4448

USA2245 ST USA4245 ST

USA2241

USA4241

USA2249

USA4249

USA3277

USA2452

USA4461

USA2249 ST USA4249 ST

USA2249

USA4249

USA2452

USA4461

USA2249 ST USA4249 ST

USA2255

USA4255

USA2486

USA4486

USA2255 ST USA4255 ST

USA2249

USA4249

USA2448

USA4448

USA2249 ST USA4249 ST

USA2255 USA2255

USA4255 USA4255

USA2452 USA2486

USA4461 USA4486

USA2255 ST USA4255 ST USA2255 ST USA4255 ST

13 14/80 14 14.5 14.75/80 15.5/80 16 33x12.5 35x13.5 37x13.5 40x15.5 225/70 245/60 245/70 275/55 275/60 285/50 305/50 335/80 355/80 365/80

20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20

USA2257

USA4257

USA2257 ST USA4257 ST

USA2257

USA4257

USA2257 ST USA4257 ST

USA2228 ST USA4228 ST USA2439

USA2228 ST USA4228 ST USA2228 ST USA4228 ST USA2237 ST USA4237 ST

USA3229

USA2237 ST USA4237 ST USA3229 ST USA2237 ST USA4237 ST USA2237 ST USA4237 ST USA2238 ST USA4238 ST USA3231 ST

USA3231 USA3235 USA3257

USA2445

USA4437

USA2239 ST USA4239 ST

USA2441 USA2445

USA4435 USA4437

USA2239 ST USA4239 ST USA3235 ST USA3257 ST

USA2437

USA2233 ST USA4233 ST USA2233 ST USA4233 ST

USA3275 ST

USA2241 ST USA4241 ST

USA2271

USA2271 ST USA4271 ST

USA2255

USA2255 ST USA4255 ST

USA2257

USA2257 ST USA4257 ST

USA3277 ST

USA2271 USA3277

USA3277 ST

USA3231

USA3231 ST

USA3235

USA3235 ST

USA3251

USA3251 ST

USA3255 USA2233 USA2228

USA3255 ST USA2437

USA2233 ST USA4233 ST

USA4228

USA2228 ST USA4228 ST

USA2233

USA2233 ST USA4233 ST USA3231

USA3231 ST

USA3231

USA3231 ST

USA3231

USA3231 ST

USA3231 USA2255 USA2257

USA4255 USA4257

USA3231 ST

USA3255

USA2452

USA4461

USA2255 ST USA4255 ST USA3255 ST

USA3255

USA2452

USA4461

USA3255 ST

USA3261

USA2486

USA4486

USA2257 ST USA4257 ST USA3261 ST

THIS IS A GUIDE ONLY - ACTUAL FITMENT MAY VARY - ALWAYS PRE-FIT CHAINS BEFORE USE

Order standard variations by adding (S) or (SC) to the stock number shown in this chart, example: •USA2247SC (with cams) •USA2247S (without cams)

Duals

20 20 20 20

USA2271

USA4271

14 24

21 21

USA2271

325/50 10 11 12

22 22 22 22

7 7.5 8 8.25

Rim

365/85 370/75 395/85 405/70

Super Single Singles Duals

Heavy Duty Singles

Duals

Studded Singles

Duals

USA2271 ST USA4271 ST USA3255

USA2271

Studded Super Single Singles Duals USA3255 ST

USA3271 USA3255

USA2486

USA4486

USA4271

USA2271 ST USA4271 ST USA3271 ST USA3255 ST USA2271 ST USA4271 ST

USA3261

USA3261 ST

USA3235

USA3235 ST

USA2249

USA4249

USA3277

USA2452

USA4461

USA2249 ST USA4229 ST

USA3277 ST

USA2255

USA4255

USA3277

USA2486

USA4486

USA2255 ST USA4255 ST

USA3277 ST

22.5 22.5 22.5 22.5

USA2233

USA4233

USA3259

USA2439

USA2233 ST USA4233 ST

USA3259 ST

USA2239

USA4239

USA2237 USA2239

USA4237 USA4239

USA3267

9 10 11

22.5 22.5 22.5

USA2239

USA4239

USA3269

USA2441

USA2241 USA2247

USA4241 USA4247

USA3273 USA3275

12 12.5 12.75 13 15

22.5 22.5 22.5 22.5 22.5

USA2249

USA4249

USA2255

USA4255

USA2255

USA4255

USA2255

USA4255

16.5 18 19 225/70 235/75 235/80 245/70 245/75 245/80 255/70

22.5 22.5 22.5 22.5 22.5 22.5 22.5 22.5 22.5 22.5

255/75 255/80 265/65 265/75 275/70 275/75 275/80 275/85 285/60 285/70 285/75 295/60 295/70 295/75 295/80 305/60 305/70 305/80 305/85 315/60 315/70

22.5 22.5 22.5 22.5 22.5 22.5 22.5 22.5 22.5 22.5 22.5 22.5 22.5 22.5 22.5 22.5 22.5 22.5 22.5 22.5 22.5

USA2239 ST USA4239 ST USA2237 ST USA4237 ST USA2239 ST USA4239 ST

USA3267 ST

USA4435

USA2239 ST USA4239 ST

USA3269 ST

USA2445 USA2448

USA4437 USA4448

USA2241 ST USA4241 ST USA2247 ST USA4247 ST

USA3273 ST USA3275 ST

USA3277

USA2452

USA4461

USA2249 ST USA4249 ST

USA3277 ST

USA3277

USA2452

USA4461

USA2255 ST USA4255 ST

USA3277 ST

USA2255 ST USA4255 ST USA2255 ST USA4255 ST USA3255

USA3255 ST

USA3261

USA3261 ST

USA3261

USA3261 ST

USA2237

USA4237

USA2441

USA4435

USA2237 ST USA4237 ST

USA2237

USA4237

USA2441

USA4435

USA2237 ST USA4237 ST

USA2239

USA4239

USA3269

USA2441

USA4435

USA2239 ST USA4239 ST

USA3269 ST

USA2239

USA4239

USA3269

USA2441

USA4435

USA2239 ST USA4239 ST

USA3269 ST

USA2239

USA4239

USA3269

USA2441

USA4435

USA2239 ST USA4239 ST

USA3269 ST

USA2239 USA2238

USA4239 USA4238

USA2441 USA2441

USA4435 USA4435

USA2239 ST USA4239 ST USA2238 ST USA4238 ST

USA2239

USA4239

USA2445

USA4437

USA2239 ST USA4239 ST

USA2241

USA4241

USA2445

USA4437

USA2241 ST USA4241 ST

USA2237

USA4237

USA2241

USA4241

USA2445

USA4437

USA2241 ST USA4241 ST

USA2241

USA4241

USA2445

USA4437

USA2241 ST USA4241 ST

USA2247

USA4247

USA2445

USA4437

USA2247 ST USA4247 ST

USA2245

USA4245

USA2445

USA4437

USA2245 ST USA4245 ST

USA2249

USA4249

USA2448

USA4448

USA2249 ST USA4249 ST

USA2441

USA4435

USA2448

USA4448

USA2247 ST USA4247 ST

USA2448

USA4448

USA2247 ST USA4247 ST

USA3269

USA3269 ST

USA2237 ST USA4237 ST

USA3235 USA3275

USA3235 ST

USA2247

USA4247

USA2247

USA4247

USA2445

USA4437

USA2247

USA4247

USA3277

USA2448

USA4448

USA2247 ST USA4247 ST

USA3277 ST

USA2247

USA4247

USA3275

USA2448

USA4448

USA2247 ST USA4247 ST

USA3275 ST

USA2249

USA4249

USA3273

USA2448

USA4448

USA2249 ST USA4249 ST

USA2445

USA4437

USA2448

USA4448

USA3235

USA3235 USA2247

USA4247

USA2249

USA4249

USA2255

USA4255

Heavy Truck & Trailer Ladder

Ladder Singles

Profile

USA3277

USA3275 ST USA3235 ST

USA3273 ST USA3235 ST

USA2247 ST USA4247 ST

USA3277 ST

USA2249 ST USA4249 ST USA2255 ST USA4255 ST USA2445

USA4437

USA2448

USA4448

THIS IS A GUIDE ONLY - ACTUAL FITMENT MAY VARY - ALWAYS PRE-FIT CHAINS BEFORE USE

Heavy Truck & Trailer Ladder

Order standard variations by adding (S) or (SC) to the stock number shown in this chart, example: •USA2247SC (with cams) •USA2247S (without cams)

Ladder Singles

Duals

22.5 22.5 22.5 22.5

USA2249

USA4249

USA2255

USA4255

375/90 385/65

22.5 22.5

USA2273

425/55 425/65 445/50 445/55

Profile

Rim

315/75 315/80 365/70 365/80

Super Single Singles Duals USA3277

Heavy Duty Singles

Duals

Studded Singles

USA2452

USA4461

USA2249 ST USA4249 ST

USA2486

USA4486

USA2255 ST USA4255 ST

Duals

USA3255 USA3255

Studded Super Single Singles Duals USA3277 ST USA3255 ST USA3255 ST

USA2273 ST USA4273 ST USA3255

USA3255 ST

22.5 22.5 22.5 22.5

USA3271

USA3271 ST

USA3271

USA3271 ST

USA3269 USA3271

USA3269 ST USA3271 ST

445/65 445/80 455/50 455/55

22.5 22.5 22.5 22.5

USA3261

USA3261 ST

USA3271

USA3271 ST

USA3271 USA3271

USA3271 ST USA3271 ST

11 12 13

24 24 24

USA2253

USA4253

USA2257 USA2271

USA4257 USA4271

14 315/75 320/75 385/95 420/70

24 24 24 24 24

USA2273

USA4273

USA2255

USA4255

USA2452

USA2255

USA4255

USA2452

USA2273

USA4273

11 12 12.5 275/80 285/70 285/75 285/80 295/75 305/75 315/75

24.5 24.5 24.5 24.5 24.5 24.5 24.5 24.5 24.5 24.5

USA2249

USA4249

USA2255

USA4255

USA2255

USA4255

USA2247

USA4247

USA2448

USA4448

USA2247 ST USA4247 ST

USA2247

USA4247

USA2448

USA4448

USA2247 ST USA4247 ST

USA2249

USA4249

USA2452

USA4461

USA2249 ST USA4249 ST

USA2249

USA4249

USA2452

USA4461

USA2249 ST USA4249 ST

USA2253

USA4253

USA2452

USA4461

USA2253 ST USA4253 ST

USA2255 USA2255

USA4255 USA4255

USA2452 USA2452

USA4461 USA4461

USA2255 ST USA4255 ST USA2255 ST USA4255 ST

USA2486

USA4486

USA2253 ST USA4253 ST USA2257 ST USA4257 ST USA2271 ST USA4271 ST USA2273 ST USA4273 ST

USA4461

USA2255 ST USA4255 ST USA2255 ST USA4255 ST USA2273 ST USA4273 ST

USA3261

USA3261 ST USA3277

USA2452

USA4461

USA2249 ST USA4249 ST

USA2486

USA4486

USA2255 ST USA4255 ST

USA3277 ST

USA2255 ST USA4255 ST

USA3275

USA3277 USA3277

USA3275 ST

USA3277 ST USA3277 ST

THIS IS A GUIDE ONLY - ACTUAL FITMENT MAY VARY - ALWAYS PRE-FIT CHAINS BEFORE USE

Erzberg Doppelspur 12.5mm 10.5/12.5mm Standard

Rim

10.00 10

12 15

D 103 7

11.5/80 315/75 11.5/80 295/80 8.3

15 15 15.3 15.3 16

D 115 7

9.5 10.5 11 11.00 11.2 12.4 13.6 21.5

16 16 16 16 16 16 16 16

13.5 18.4 21.5L

16.1 16.1 16.1

10 12 14.00 7.5

16.5 16.5 17.5 18

9.5 10.5/80 12.0

18 18 18

D 128 7

12.5 12.5/80

18 18

D 128 7

13.0/65 15.5/55

18 18

D 123 7 D 127 7

280/70 300/65 320/65 335/80

18 18 18 18

D 115 7 D 115 7

340/70 340/80 360/70 365/70 385/55 405/70 15 445/65 7.5

18 18 18 18 18 18 19.5 19.5 20

D 127 7

9.5 10.00 10.5 12.00 12.5 13.00 14.00 14.5

20 20 20 20 20 20 20 20

14.75/80 16

20 20

73370

16.00

69122

Light

Powernet Ladder 8.5mm 10/12mm

8.2mm

D 103 7 USA3231 D 115 7 D 115 7 USA3227 USA0829 D 115 7 USA0822 USA0822 D 115 7 D 123 7 D 127 7

USA0836 DSL 3103

USA0850 USA0882 USA0838 USA0881 USA0882

D 103 7 D 115 7

DSL 3006

D 127 7

DSL 14-17.5

Loader, Grader & Tractor

Universal 8.5mm 10.5mm

Profile

PN 114 8 USA0836 USA0822 USA0822 USA0834 USA0834

USA0836 USA0834 D 133 7

USA0836 USA0838

D 133 7 D 127 7

USA0838

D 148 8

USA2612

D 148 8

PN 143 8

USA0859 USA2612 USA0836 USA0832

PN 133 8 D 123 7 69162 4143

DSL 314

USA0856

3999 69163 69164

USA2612 USA2612 USA2612 D 148 8 69158

69160

93087

D 148 8

USA2624

THIS IS A GUIDE ONLY - ACTUAL FITMENT MAY VARY - ALWAYS PRE-FIT CHAINS BEFORE USE

Loader, Grader & Tractor 88

Universal 8.5mm 10.5mm

Erzberg Doppelspur 12.5mm 10.5/12.5mm Standard

Profile

Rim

16.0/70 16.5/75

20 20

D 148 8

17.5/65 275/80 300/70 320/70 320/85

20 20 20 20 20

D 157 8 D 123 7

355/80 360/70 360/80 365/80 375/70 38/18.00 395/80 395/85

20 20 20 20 20 20 20 20

400/70 405/70 41/14

20 20 20

420/75 425/70 425/75 43/16

20 20 20 20

44/18.00 455/70 625/70

20 20 20

14.00 16.00

21 21

15 315/80

22.5 22.5

400/55 445/65 495/55 8.3

22.5 22.5 22.5 24

9.00 9.5 11.2 12.4 13.00 13.6 14.00 14.9 16.00

24 24 24 24 24 24 24 24 24

16.5/85 16.9 17.5 17.5L 18.00 18.4 19.5L 21.00

24 24 24 24 24 24 24 24

21 21L

24 24

220/85

Light

Powernet Ladder 8.5mm 10/12mm

8.2mm

D 157 8 USA2627

D 123 7

USA0832

D 127 7 D 3350

USA0838 USA0838 USA0838 USA2612

45657 USA2612 USA2612 USA2615 14122 73370

D 148 8

USA2612

73370

D 148 8

USA2612 USA0858

D 157 8 D 157 8 D 157 8 USA0852 USA2612 D 157 8 USA2645 USA2612 USA2624 USA0852 PN 139 8 D 148 8 60197 USA2612 D 123 7

USA0822

D 3350 USA0832 D 3350

DSL 314

D 3370

DSL 320

PN 139 8

USA0838 USA0859

69120

USA2612 D 3390

69121

85228

69141

USA0858

D 3420

PN 174 0

D 3821 69119

USA2615 USA2612

03481

USA2627 D 176 8 D 176 8

DSL 326

USA2615

D 17.5L-24 DSL 17.5L-24 PN 169 8

USA2615

D 182 8

USA2627 USA2648

USA0874 69124 USA0883 69119

03481

USA0885 USA2636 USA0822

THIS IS A GUIDE ONLY - ACTUAL FITMENT MAY VARY - ALWAYS PRE-FIT CHAINS BEFORE USE

Erzberg Doppelspur 12.5mm 10.5/12.5mm Standard

Rim

240/85 245/85

24 24

280/85 320/70 320/80 320/85 340/80

24 24 24 24 24

D 3350

340/85 360/70 380/70 380/85 385/95 400/70 400/80 420/65

24 24 24 24 24 24 24 24

D 3390

420/70 420/85* 420/85

24 24* 24

440/65 440/70 440/80 445/70

24 24 24 24

455/70 460/70 480/65

24 24 24

D 3854

480/70 495/70

24 24

D 182 8 D 182 8

500/70 540/65

24 24

D 182 8 D 182 8

13.00 14.00 15.5 16.00

25 25 25 25

16.9 17.5 18.00 20.5 21.00 23.5 24.00 25.5 25/65

25 25 25 25 25 25 25 25 25

26.5 29.5 385/95 445/80 445/95 505/95 525/80 550/65

25 25 25 25 25 25 25 25

555/70 600/65

25 25

605/80

Light

Powernet Ladder 8.5mm 10/12mm

8.2mm USA0832 USA0832 USA0838 USA0838

DSL 314 D 3370 D 3370

USA0852

D 3370 USA0858 PN 150 8

USA0852 USA0858

D 3821 69121

USA2612

85228

USA2615 USA0858

69164

USA0859 USA0859 D 3854 D 182 8 D 176 8

PN 167 8 DSL 326

USA2624

Loader, Grader & Tractor

Universal 8.5mm 10.5mm

Profile

USA2615 USA0858

D 3854

USA2615

D 176 8 D 3854

USA2615

D 3854

USA2615 PN 171 8 USA0874 USA2627 USA2627 PN 186 8

69120

USA0874 USA2612 USA2615

D 3420 69157

USA2612

69119

03481

69158

69160

USA2627 D 181 8

69122

69124

93087

D 181 8

DSL 326

PN 179 0

69128

69123

69112

95122/69143

69125

69149

69144

USA2624 USA2636

PN 201 0

USA2633 USA2648 USA2645 USA2660 USA2645 USA2645

69159

69150

69142/69145

USA2657

69161

USA2672

69121

85228

DSL 334

69122

69158

69160

USA2624

69119

03481

USA2612

69124 69123

USA2615

USA2636 69112

USA2633 USA2636 USA2636 USA2642

69125

69149

USA2645

THIS IS A GUIDE ONLY - ACTUAL FITMENT MAY VARY - ALWAYS PRE-FIT CHAINS BEFORE USE

Loader, Grader & Tractor 90

Universal 8.5mm 10.5mm

Erzberg Doppelspur 12.5mm 10.5/12.5mm Standard Light

Profile

Rim

625/70 650/65

25 25

685/80 705/70 750/65 755/70 13.6

25 25 25 25 26

14.9 16.9 18.00 18.4 23.1 360/70 420/70 420/85

26 26 26 26 26 26 26 26

460/85 480/70 480/80

26 26 26

480/85 520/70 540/65 500/65

26 26 26 26.5

9.5 11.2 12

28 28 28

12.4 13.6

28 28

14.9 16.5/85

28 28

D 3420 D 3430

16.9 18.4 19.5L 23.1

28 28 28 28

D 3430

280/85 320/70 320/85 340/85 360/70 380/70 380/85 400/80 420/65

28 28 28 28 28 28 28 28 28

D 3370

420/70* 420/70 420/80 420/85* 420/85 440/65 440/80 460/80

28* 28 28 28* 28 28 28 28

D 176 8

480/65 480/70

28 28

520/70

Powernet Ladder 8.5mm 10/12mm

8.2mm

84849 69159

84849

USA2648

69150

USA2657 USA2648 USA2657 USA2657 USA0858 USA0869 D 181 8

USA2615 USA2636

D 3435 69125

USA0883

69149

USA0891 D 3390 USA0876 USA0876

D 181 8

USA0883 D 182 8

USA0876 USA0883 USA0883 USA0883 USA0876

D 182 8 USA0836 D 3370

USA0838 USA0856 DSL 3211 DSL 3211

PN 166 8

USA0856

DSL 334

PN 174 8

USA2612 USA0869 USA0876 USA0884 USA0876 USA0891

D 3370

PN 151 8

USA0838 USA0856

DSL 3211

USA2612

D 3821

USA0856 USA2612

D3420

USA0869 PN 176 8 USA0856

D 181 8

PN 177 8 USA0869

D 3435 D 3430 D 176 8

USA0876 PN 173 8

D 3435 D 3435

USA2612 USA0884 USA0869 USA0876

PN 200 8

THIS IS A GUIDE ONLY - ACTUAL FITMENT MAY VARY - ALWAYS PRE-FIT CHAINS BEFORE USE

Erzberg Doppelspur 12.5mm 10.5/12.5mm Standard Light

Powernet Ladder 8.5mm 10/12mm

Rim

540/65 600/65

28 28

26.5 29.5 875/65 14.9 16.9

29 29 29 30 30

18.4 19.5L 23.1 380/85 420/70 420/85 420/90 440/80

30 30 30 30 30 30 30 30

460/85 480/70 520/70

30 30 30

540/65 600/70 620/70 620/75

30 30 30 30

9.5 16.9 210/95

32 32 32

230/95 800/65

32 32

USA2657

18.00 33.5

33 33

USA2642 USA2678

11.2 12.4 16.9 18.4

34 34 34 34

20.8 23.1 290/95 320/85 320/95 380/85 385/85 420/70 420/85

34 34 34 34 34 34 34 34 34

460/85 480/70 480/85 500/70 520/70 540/65 600/65 620/75

34 34 34 34 34 34 34 34

21.00 29.5

35 35

11.2

8.2mm USA0876 USA0895

USA2660 USA2675 USA2675 D 3430

USA0876

D 3435

USA0877 USA0885 USA0877 USA0893

D 3430

USA0876

D 3430

USA0876 USA0877 USA0877

D 3435 USA0885 USA0877 USA0885

Loader, Grader & Tractor

Universal 8.5mm 10.5mm

Profile

USA0877 69125

69149 USA0892 USA0893 USA0838 USA0877 USA0856 USA0856

USA0846 USA0876 PN 199 8

USA0879 USA0887 USA0890 USA0895 USA0876 USA0876 USA0876 USA0879 USA0885

D 3435 USA0879 USA0887 USA0879 USA0887 USA0879 USA0887 PN 212 8

USA0885 USA0887 USA0895 USA2654 USA2688 USA0846

THIS IS A GUIDE ONLY - ACTUAL FITMENT MAY VARY - ALWAYS PRE-FIT CHAINS BEFORE USE

Loader, Grader & Tractor

Universal 8.5mm 10.5mm

Erzberg Doppelspur 12.5mm 10.5/12.5mm Standard Light

8.2mm

PN 178 8

USA0862

Rim

12.4 13.6

36 36

13.9 210/95 270/95 320/85 340/85

36 36 36 36 36

USA0866 USA0856

11.2 12.4 13.6 14.9 15.5 16.9 18.4 20.8

38 38 38 38 38 38 38 38

USA0862

230/95 290/90 320/85

38 38 38

USA0880

340/85 380/80 380/85 420/85

38 38 38 38

USA0879 USA0871

460/85 480/70 480/80

38 38 38

USA0889

520/85 540/65

38 38

PN 222 8

580/70 600/65

38 38

PN 234 8

650/65 710/70 180/95 230/95

38 38 40 40

12.4 18.4 320/90 460/85 480/80 380/90 480/80 320/90 300/95

42 42 42 42 42 46 46 50 52

D 3435

Fitment variances noted for the following tire/wheel exceptions: *420/85-24 pg. 89 *420/70-28 pg. 90 *420/85-28 pg. 90 Continental AS-Farmer Continental Mitas AC70T Continental Mitas AC85 Continental Tractor Master Cultor RD-02 Kleber Fitker Nokian TRI-2 92

Powernet Ladder 8.5mm 10/12mm

Profile

USA0866

USA0876 USA0877 USA0885 USA0862 USA0866 USA0871 USA0879 USA0880 USA0889 USA0892 USA0862 USA0885

USA0879 USA0880 USA0880 USA0889 USA0892 USA0880 USA0892 PN 246 8

USA0892 USA2657 USA0876 USA0877 USA0866 USA0894 USA0880 USA0894 USA0894 USA0892 USA0894 USA0892 USA0892

THIS IS A GUIDE ONLY - ACTUAL FITMENT MAY VARY - ALWAYS PRE-FIT CHAINS BEFORE USE

Trade Size

Decimal

1/0

0.177''

3/0

Imperial

Metric

Pitch

Trade Size

Decimal

Metric

Pitch

11/64''

4.5 mm

1.180''

3.7 mm

0.145"

0.207''

13/64''

5.25 mm

0.920''

4.5 mm

0.177"

9/64"

3.7 mm

11 mm

5/32"

4.5 mm

4/0

0.234''

15/64''

5.95 mm

1.000''

5.6 mm

0.221''

18 mm

15/64''

5.6 mm

24 mm

6/0

0.281''

9/32''

7.14 mm

1.250''

7 mm

0.276''

7/0

0.312''

5/16''

7.92 mm

1.390''

8.2 mm

0.322''

9/32''

7 mm

30 mm

21/64''

8.2 mm

9/0

0.375''

3/8''

9.53 mm

1.260''

10 mm

0.394''

33 mm

25/64''

10 mm

11/0 14/0

0.437'' 0.531''

7/16'' 17/32''

11.10 mm 13.50 mm

1.562'' 1.734''

12 mm 14 mm

0.472'' 0.551''

35 mm

15/32'' 35/64''

12 mm 14 mm

45 mm 43 mm

16 mm 18 mm 21 mm

0.630''

5/8''

16 mm

56 mm

0.709'' 0.827''

45/64'' 53/64''

18 mm 21 mm

52 mm 66 mm

Round Link Chain

Imperial

Square Link Chain

Chain Specifications

Wire & Link Diameter Quick Reference

Measurement Definitions Trade Size Wire Diameter: (A) Refers the thickness of the steel wire material used to form the chain link. This measurement should be taken at an unbent/uniform area (A) (B) of the link where possible. Pitch: (B) Refers the inside measurement across the length of the link.

Chain Specifications

Stock No.

Cross Chain Per ½ Pair Stock No.

Width

Wire Dia.

Links

Hook No. & Dia.

Side Chain Length Stock No.& Dia.

Weight Per Pair

pewag 2200 Singles USA2209

USA6219

11.25''

5.6 mm

406USA .276"

66.00"

1004USA .219"

21.5

USA2211

USA6221

13.25''

5.6 mm

406USA .276"

77.75"

1004USA .219"

26.0

USA2214 USA2216

15 12

USA6221 USA6221

13.25'' 13.25''

5.6 mm 5.6 mm

11 11

406USA .276" 406USA .276"

89.00" 74.00"

1004USA .219" 1004USA .219"

31.0 25.5

USA2219

USA6221

13.25''

5.6 mm

406USA .276"

80.00"

1004USA .219"

27.0

USA2221

USA6221

13.25''

5.6 mm

406USA .276"

84.50"

1004USA .219"

29.5

USA2226

USA6229

16.75''

5.6 mm

406USA .276"

89.00"

1004USA .219"

36.0

USA2228

USA6225

15.00''

5.6 mm

406USA .276"

84.50"

1004USA .219"

31.0

USA2229

USA6225

15.00''

5.6 mm

406USA .276"

74.00"

1004USA .219"

27.0

USA2233 USA2237

11 12

USA6251 USA6251

13.50'' 13.50''

7 mm 7 mm

9 9

407USA .312" 407USA .312"

83.50" 94.50"

1006USA .281" 1006USA .281"

40.0 44.0

USA2238

USA6253

16.25''

7 mm

407USA .312"

94.50"

1006USA .281"

48.0

USA2239

USA6251

13.50''

7 mm

407USA .312"

101.75"

1006USA .281"

48.0

USA2241

USA6251

13.50''

7 mm

407USA .312"

109.00"

1006USA .281"

51.0

USA2245

USA6251

13.50''

7 mm

407USA .312"

112.00"

1006USA .281"

56.0

USA2247

USA6253

16.25''

7 mm

407USA .312"

109.00"

1006USA .281"

56.3

USA2249 USA2253

15 16

USA6253 USA6253

16.25'' 16.25''

7 mm 7 mm

11 11

407USA .312" 407USA .312"

116.00" 126.75"

1006USA .281" 1006USA .281"

59.0 63.2

USA2255

USA6263

18.50''

7 mm

407USA .312"

116.75"

1007USA .312"

66.4

USA2257

USA6263

18.50''

7 mm

407USA .312"

126.75"

1007USA .312"

75.1

USA2271

USA6266

20.75''

7 mm

407USA .312"

130.50"

1007USA .312"

81.0

USA2273

USA6266

20.75''

7 mm

407USA .312"

145.50"

1007USA .312"

90.0

pewag 4200 Duals USA4211

USA6219

13.25''

5.6 mm

406USA .276"

77.75"

1004USA .219"

42.0

USA4214

USA6221

13.25''

5.6 mm

406USA .276"

89.00"

1004USA .219"

57.0

USA4216 USA4219

24 26

USA6221 USA6221

13.25'' 13.25''

5.6 mm 5.6 mm

11 11

406USA .276" 406USA .276"

74.00" 80.00"

1004USA .219" 1004USA .219"

44.0 50.0

USA4221

USA6221

13.25''

5.6 mm

406USA .276"

85.50"

1004USA .219"

53.0

USA4228

USA6225

15.00''

5.6 mm

406USA .276"

83.75"

1004USA .219"

58.0

USA4229

USA6225

15.00''

5.6 mm

406USA .276"

71.25"

1004USA .219"

47.0

USA4233

USA6251

13.50''

7 mm

407USA .312"

83.50"

1006USA .281"

73.0

USA4237 USA4238

24 24

USA6251 USA6253

13.50'' 16.25''

7 mm 7 mm

9 11

407USA .312" 407USA .312''

94.50" 94.50"

1006USA .281" 1006USA .281"

82.0 88.0

USA4239

USA6251

13.50''

7 mm

407USA .312"

101.75"

1006USA .281"

89.0

USA4241 USA4245

28 30

USA6251 USA6251

13.50'' 13.50''

7 mm 7 mm

9 9

407USA .312" 407USA .312"

109.00" 116.00"

1006USA .281" 1006USA .281"

91.0 101.0

USA4247

USA6253

16.25''

7 mm

407USA .312"

109.00"

1006USA .281"

103.0

USA4249

USA6253

16.25''

7 mm

407USA .312"

116.00"

1006USA .281"

105.0

USA4253 USA4255

32 28

USA6253 USA6263

16.25'' 18.50''

7 mm 7 mm

11 13

407USA .375" 407USA .375"

126.75" 116.75"

1006USA .281" 1007USA .312"

112.0 117.0

USA4257

USA6263

18.50''

7 mm

407USA .375"

126.75"

1007USA .312"

126.0

USA4271

USA6266

20.75''

7 mm

407USA .375"

130.50"

1007USA .312"

154.0

USA4273

USA6266

20.75''

7 mm

407USA .375"

145.50"

1007USA .312"

171.0

pewag 3200 Singles

USA3210

USA6225

15.00''

5.6 mm

406USA .276"

80.00"

1004USA .219"

28.0

USA3227

USA6253

16.25''

7 mm

407USA .312"

80.00"

1006USA .281"

40.0

USA3229

USA6263

18.50''

7 mm

407USA .312"

80.00"

1006USA .281"

42.0

USA3231

USA6263

18.50''

7 mm

407USA .312"

87.25"

1006USA .281"

47.0

USA3235

USA6263

18.50''

7 mm

407USA .312"

94.50"

1006USA .281"

51.0

USA3237

USA6267

23.50''

7 mm

407USA .312"

69.00"

1006USA .281"

42.0

USA3249 USA3251

9 10

USA6267 USA6267

23.50'' 23.50''

7 mm 7 mm

17 17

407USA .312" 407USA .312"

69.00" 76.25"

1006USA .281" 1006USA .281"

43.0 48.0

THIS IS A GUIDE ONLY - SPECIFICATIONS AND MEASUREMENTS ARE SUBJECT TO CHANGE

Cross Chain Per ½ Pair Stock No.

Width

Wire Dia.

Links

Hook No. & Dia.

Side Chain Length Stock No.& Dia.

Weight Per Pair

pewag 3200 Singles USA3255

USA7213

20.75''

7 mm

407USA .312"

109.00"

1006USA .281"

63.5

USA3257

USA7213

20.75''

7 mm

407USA .312"

112.25"

1006USA .281"

78.0

USA3259 USA3261

11 16

USA7214 USA7214

23.00'' 23.00''

7 mm 7 mm

17 17

407USA .312" 407USA .312"

83.50" 123.25"

1006USA .281" 1006USA .281"

60.0 75.0

USA3265

USA7214

23.00''

7 mm

407USA .312"

83.50"

1006USA .281"

59.0

USA3267

USA7214

23.00''

7 mm

407USA .312"

90.75"

1006USA .281"

60.0

USA3269

USA7214

23.00''

7 mm

407USA .312"

101.75"

1006USA .281"

60.5

USA3271

USA7214

23.00''

7 mm

407USA .312"

109.00"

1006USA .281"

66.0

USA3273

USA7216

32.50''

7 mm

407USA .312"

90.75"

1006USA .281"

79.0

USA3275 USA3277

13 14

USA7216 USA7216

32.50'' 32.50''

7 mm 7 mm

25 25

407USA .312" 407USA .312"

97.75" 105.25"

1006USA .281" 1006USA .281"

86.0 92.0

USA2433

USA6251

13.50''

7 mm

407USA .312"

61.75"

1006USA .281"

33.0

USA2435

USA6251

13.50''

7 mm

407USA .312"

69.00"

1006USA .281"

35.0

USA2437

USA6251

13.50''

7 mm

407USA .312"

80.00"

1006USA .281"

37.0

USA2441

USA6434

17.50''

8.2 mm

409USA .375"

92.75"

1007USA .312"

63.0

USA2445 USA2448

12 13

USA6434 USA6434

17.50'' 17.50''

8.2 mm 8.2 mm

11 11

409USA .375" 409USA .375"

96.25" 108.25"

1007USA .312" 1007USA .312"

71.0 68.5

USA2452

USA6434

17.50''

8.2 mm

409USA .375"

116.00"

1007USA .312"

73.5

USA2486

USA6445

20.50''

8.2 mm

409USA .375"

116.00"

1007USA .312"

90.0

pewag 2400 Heavy Duty Singles

Chain Specifications

Stock No.

pewag 4400 Heavy Duty Duals USA4412

USA6251

13.50''

7 mm

407USA .312"

61.60"

1006USA .281"

72.0

USA4435

USA6251

13.50''

7 mm

407USA .312"

68.90"

1006USA .281"

118.0

USA4437

USA6434

17.50''

8.2 mm

409USA .375"

76.10"

1007USA .312"

124.0

USA4448

USA6434

17.50''

8.2 mm

409USA .375"

108.25"

1007USA .312"

136.0

USA4461 USA4486

28 28

USA6434 USA6445

17.50'' 20.50''

8.2 mm 8.2 mm

11 13

409USA .375" 409USA .375"

116.00" 116.00"

1007USA .312" 1007USA .312"

137.0 183.0

USA2219SC 7ST

USA 6250 7ST

13.75''

7 mm

407USA .312"

75.83"

1006USA .281"

35.7

USA2221SC 7ST

USA 6250 7ST

13.75''

7 mm

407USA .312"

84.25"

1006USA .281"

39.0

USA2228SC 7ST

USA 62517ST

14.75''

7 mm

407USA .312"

84.25"

1006USA .281"

42.0

USA2233SC 7ST USA2237SC 7ST

11 12

USA 62517ST USA 62517ST

14.75'' 14.75''

7 mm 7 mm

11 11

407USA .312" 407USA .312"

87.50" 95.00"

1006USA .281" 1006USA .281"

40.0 51.3

USA2238SC 7ST

USA 6253 7ST

15.75''

7 mm

407USA .312"

95.00"

1006USA .281"

56.0

USA2239SC 7ST USA2241SC 7ST

13 14

USA 62517ST USA 62517ST

14.75'' 14.75''

7 mm 7 mm

11 11

407USA .312" 407USA .312"

102.25" 109.25"

1006USA .281" 1006USA .281"

53.8 58.1

USA2245SC 7ST

USA 62517ST

14.75''

7 mm

407USA .312"

116.50"

1006USA .281"

62.2

USA2247SC 7ST

USA 6253 7ST

15.75''

7 mm

407USA .312"

109.25"

1006USA .281"

60.4

USA2249SC 7ST USA2253SC 7ST

15 17

USA 6253 7ST USA 6263 7ST

15.75'' 17.00''

7 mm 7 mm

12 13

407USA .312" 407USA .312"

116.50" 131.00"

1006USA .281" 1006USA .281"

64.0 72.6

USA2255SC 7ST

USA 6266 7ST

18.25''

7 mm

407USA .312"

123.75"

1006USA .281"

74.4

USA2247S 7ST

USA 6253 7ST

15.75''

7 mm

407USA .312"

110.63"

1005USA

48.0

USA2249S 7ST

USA 6253 7ST

15.75''

7 mm

407USA .312"

116.50"

1005USA

51.4

USA2255S 7ST

USA 6266 7ST

18.25''

7 mm

407USA .312"

118.11"

1005USA

56.7

pewag 2200 7mm Studded Singles - With Cams

pewag 2200 7mm Studded Singles - Without Cams

pewag 2200 8mm Studded Singles - With Cams USA2233SC 8ST

USA 62518ST

16.00''

8 mm

409USA .375"

85.25"

1007USA .312"

63.8

USA2237SC 8ST

USA 62518ST

16.00''

8 mm

409USA .375"

92.25"

1007USA .312"

66.4

USA2238SC 8ST

USA 6253 8ST

17.50''

8 mm

409USA .375"

92.25"

1007USA .312"

71.0

USA2239SC 8ST

USA 62518ST

16.00''

8 mm

409USA .375"

100.50"

1007USA .312"

51.7

USA2241SC 8ST USA2245SC 8ST

13 14

USA 62518ST

16.00'' 16.00''

8 mm 8 mm

11 11

409USA .375" 409USA .375"

108.25" 117.50"

1007USA .312" 1007USA .312"

56.0 64.0

USA 62518ST

THIS IS A GUIDE ONLY - SPECIFICATIONS AND MEASUREMENTS ARE SUBJECT TO CHANGE

Chain Specifications

Stock No.

Cross Chain Per ½ Pair Stock No.

Width

Wire Dia.

Links

Hook No. & Dia.

Side Chain Length Stock No.& Dia.

Weight Per Pair

pewag 2200 8mm Studded Singles - With Cams USA2247SC 8ST

USA 6253 8ST

17.50''

8 mm

409USA .375"

108.25"

1007USA .312"

81.0

USA2249SC 8ST

USA 6253 8ST

17.50''

8 mm

409USA .375"

117.50"

1007USA .312"

87.1

USA2253SC 8ST USA2255SC 8ST

16 14

USA 6253 8ST

17.50'' 17.50''

8 mm 8 mm

12 12

409USA .375" 409USA .375"

131.25" 117.50"

1007USA .312" 1007USA .312"

88.9 87.1

USA4219SC 7ST

USA 6250 7ST

13.75''

7 mm

407USA .312"

75.83"

1006USA .281"

68.0

USA4221SC 7ST

USA 6250 7ST

13.75''

7 mm

407USA .312"

84.25"

1006USA .281"

70.5

USA4228SC 7ST

USA 62517ST

14.75''

7 mm

407USA .312"

84.25"

1006USA .281"

77.0

USA4233SC 7ST

USA 62517ST

14.75''

7 mm

407USA .312"

87.50"

1006USA .281"

91.5

USA4237SC 7ST USA4238SC 7ST

24 24

USA 62517ST USA 6253 7ST

14.75'' 15.75''

7 mm 7 mm

11 12

407USA .312" 407USA .312"

95.00" 95.00"

1006USA .281" 1006USA .281"

95.1 96.8

USA4239SC 7ST

USA 62517ST

14.75''

7 mm

407USA .312"

102.25"

1006USA .281"

98.8

USA4241SC 7ST

USA 62517ST

14.75''

7 mm

407USA .312"

109.25"

1006USA .281"

106.4

USA4245SC 7ST

USA 62517ST

14.75''

7 mm

407USA .312"

116.50"

1006USA .281"

114.0

USA4247SC 7ST

USA 6253 7ST

15.75''

7 mm

407USA .312"

109.25"

1006USA .281"

110.0

USA4249SC 7ST

USA 6253 7ST

15.75''

7 mm

407USA .312"

116.50"

1006USA .281"

117.0

USA4253SC 7ST USA4255SC 7ST

34 32

USA 6263 7ST

17.00'' 18.25''

7 mm 7 mm

13 14

407USA .312" 407USA .312"

131.00" 123.75"

1006USA .281" 1006USA .281"

132.4 134.0

USA4247S 7ST

USA 6253 7ST

15.75''

7 mm

407USA .312"

110.63"

1005USA

88.4

USA4249S 7ST

USA 6253 7ST

15.75''

7 mm

407USA .312"

116.50"

1005USA

92.0

USA4255S 7ST

USA 6266 7ST

18.25''

7 mm

407USA .312"

118.11"

1005USA

104.3

USA4233SC 8ST

USA 62518ST

16.00''

8 mm

409USA .375"

85.25"

1007USA .312"

100.3

USA4237SC 8ST

USA 62518ST

16.00''

8 mm

409USA .375"

92.25"

1007USA .312"

106.8

USA4238SC 8ST USA4239SC 8ST

22 24

USA 6253 8ST USA 62518ST

17.50'' 16.00''

8 mm 8 mm

12 11

409USA .375" 409USA .375"

92.25" 100.50"

1007USA .312" 1007USA .312"

109.4 115.7

USA4241SC 8ST

USA 62518ST

16.00''

8 mm

409USA .375"

108.25"

1007USA .312"

125.4

USA4245SC 8ST

USA 62518ST

16.00''

8 mm

409USA .375"

117.50"

1007USA .312"

135.0

USA4247SC 8ST

USA 6253 8ST

17.50''

8 mm

409USA .375"

108.25"

1007USA .312"

149.6

USA4249SC 8ST

USA 6253 8ST

17.50''

8 mm

409USA .375"

117.50"

1007USA .312"

159.3

USA4253SC 8ST USA4255SC 8ST

32 28

USA 6253 8ST

17.50'' 17.50''

8 mm 8 mm

12 12

409USA .375" 409USA .375"

131.25" 117.50"

1007USA .312" 1007USA .312"

--159.3

USA3227SC 7ST USA3231SC 7ST

10 11

USA 6253 7ST

84.25" 87.50"

1006USA .281" 1006USA .281"

-----

USA3255SC 8ST

USA 7213 8ST

20.75''

8 mm

409USA .375"

110.23"

1007USA .312"

64.0

USA3271SC 8ST USA3261SC 8ST

13 15

USA 7215 8ST

23.25'' 22.00''

8 mm 8 mm

17 16

409USA .375" 409USA .375"

112.21" 127.56"

1007USA .312" 1007USA .312"

85.0 110.0

USA 6253 8ST

pewag 4200 7mm Studded Duals - With Cams

USA 6266 7ST

pewag 4200 7mm Studded Duals - Without Cams

pewag 4200 8mm Studded Duals - With Cams

USA 6253 8ST

pewag 3200 7mm Studded Singles - With Cams USA 6266 7ST

15.75'' 18.25''

7 mm 7 mm

12 14

407USA .312" 407USA .312"

pewag 3200 8mm Studded Singles - With Cams

USA 7214 8ST

pewag 3200 8mm Studded Singles - Without Cams - Double Spaced USA3255 DS 8ST

USA 7213 8ST

20.75''

8 mm

409USA .375"

112.21"

1007USA .312"

154.1

USA3261 DS 8ST

USA 7214 8ST

22.00''

8 mm

409USA .375"

127.56"

1007USA .312"

185.3

USA3271 DS 8ST

USA 7215 8ST

23.25''

8 mm

409USA .375"

112.21"

1007USA .312"

168.1

pewag Skid Steer - Single Spaced USASSE10165-4

USA6434

17.50''

8.2 mm

409USA .375"

72.00"

1007USA .312"

44.0

USASSE12165-4

USA6445

20.50''

8.2 mm

409USA .375"

79.00"

1007USA .312"

69.0

USASSE14175-4

USA6445

20.50''

8.2 mm

409USA .375"

94.00"

1007USA .312"

76.0

pewag Skid Steer - Double Spaced

USASSE10165-2

USA6434

17.50''

8.2 mm

409USA .375"

72.00"

1007USA .312"

78.0

USASSE12165-2 USASSE14175-2

19 23

USA6445 USA6445

20.50'' 20.50''

8.2 mm 8.2 mm

13 13

409USA .375" 409USA .375"

79.00" 94.00"

1007USA .312" 1007USA .312"

88.0 120.0

THIS IS A GUIDE ONLY - SPECIFICATIONS AND MEASUREMENTS ARE SUBJECT TO CHANGE

Cross Chain Per ½ Pair Stock No.

Width

Wire Dia.

Links

Hook No. & Dia.

Side Chain Length Stock No.& Dia.

Weight Per Pair

pewag 2600 OTR USA2612

USA6630

25.50''

8.2 mm

409USA .375"

115.50"

1007USA .312"

98.0

USA2615

USA6630

25.50''

8.2 mm

409USA .375"

126.75"

1007USA .312"

114.0

USA2624 USA2627

13 15

USA6640 USA6640

28.00'' 28.00''

10 mm 10 mm

17 17

411USA .437" 411USA .437"

121.75" 138.50"

1009USA .375" 1009USA .375"

146.0 168.0

USA2633

USA6650

33.75''

10 mm

411USA .437"

130.00"

1009USA .375"

176.0

USA2636

USA6650

33.75''

10 mm

411USA .437"

134.75"

1009USA .375"

188.0

USA2642

USA6650

33.75''

10 mm

411USA .437"

160.75"

1009USA .375"

232.0

USA2645

USA6660

38.25''

12 mm

411USA .437"

148.00"

1011USA .437"

268.0

USA2648

USA6660

38.25''

12 mm

411USA .437"

153.00"

1011USA .437"

298.0

USA2657 USA2672

17 17

USA6670 USA6680

45.25'' 52.25''

12 mm 12 mm

23 27

411USA .437" 411USA .437"

163.00" 163.00"

1011USA .437" 1011USA .437"

375.0 403.0

USA2675

USA6680

52.25''

12 mm

411USA .437"

171.00"

1011USA .437"

427.0

pewag 0800 Tractor USA0822

USA6434

17.50''

8.2 mm

409USA .375"

88.50"

1007USA .312"

79.0

USA0829

USA6434

17.50''

8.2 mm

409USA .375"

73.00"

1007USA .312"

76.0

USA0831

USA6445

20.50''

8.2 mm

409USA .375"

80.75"

1007USA .312"

72.0

USA0832 USA0834

12 11

USA6434 USA6445

17.50'' 20.50''

8.2 mm 8.2 mm

11 13

409USA .375" 409USA .375"

96.25" 88.50"

1007USA .312" 1007USA .312"

79.0 78.0

USA0836

USA6445

20.50''

8.2 mm

409USA .375"

96.25"

1007USA .312"

88.0

USA0838

USA6445

20.50''

8.2 mm

409USA .375"

111.50"

1007USA .312"

109.0

USA0846

USA6445

20.50''

8.2 mm

409USA .375"

134.50"

1007USA .312"

126.0

USA0850

USA7420

22.75''

8.2 mm

409USA .375"

80.75"

1007USA .312"

86.0

USA0852

USA6445

20.50''

8.2 mm

409USA .375"

103.75"

1007USA .312"

105.0

USA0856

USA6445

20.50''

8.2 mm

409USA .375"

119.25"

1007USA .312"

111.0

USA0858

USA7420

22.75''

8.2 mm

409USA .375"

111.50"

1007USA .312"

122.0

USA0859 USA0862

15 18

USA7420 USA6445

22.75'' 20.50''

8.2 mm 8.2 mm

15 13

409USA .375" 409USA .375"

119.25" 142.25"

1007USA .312" 1007USA .312"

124.0 145.0

USA0866

USA7420

22.75''

8.2 mm

409USA .375"

149.75"

1007USA .312"

153.0

USA0869

USA7420

22.75''

8.2 mm

409USA .375"

126.75"

1007USA .312"

137.0

USA0871

USA7420

22.75''

8.2 mm

409USA .375"

157.50"

1007USA .312"

163.0

USA0874

USA7426

28.50''

8.2 mm

409USA .375"

119.25"

1007USA .312"

137.0

USA0876 USA0877

16 17

USA7426 USA7426

28.50'' 28.50''

8.2 mm 8.2 mm

19 19

409USA .375" 409USA .375"

126.75" 134.50"

1007USA .312" 1007USA .312"

158.0 164.0

USA0879

USA7426

28.50''

8.2 mm

409USA .375"

142.25"

1007USA .312"

171.0

USA0881 USA0882

10 12

USA9562 USA9562

30.75'' 30.75''

10 mm 10 mm

19 19

411USA .437" 411USA .437"

92.25" 108.50"

1009USA .375" 1009USA .375"

205.0 244.0

USA0883

USA9562

30.75''

10 mm

411USA .437"

117.25"

1009USA .375"

268.0

USA0884

USA9562

30.75''

10 mm

411USA .437"

126.00"

1009USA .375"

283.0

USA0885 USA0887

15 16

USA9562 USA9562

30.75'' 30.75''

10 mm 10 mm

19 19

411USA .437" 411USA .437"

134.75" 143.25"

1009USA .375" 1009USA .375"

319.0 324.0

USA0889

USA9562

30.75''

10 mm

411USA .437"

152.00"

1009USA .375"

364.0

USA0890

USA6650

33.75''

10 mm

411USA .437"

152.00"

1009USA .375"

438.0

USA0891

USA9567

39.25''

10 mm

411USA .437"

126.00"

1009USA .375"

338.0

USA0892

USA6650

33.75''

10 mm

411USA .437"

160.75"

1009USA .375"

385.0

USA0893

USA9567

39.25''

10 mm

411USA .437"

143.25"

1009USA .375"

384.0

USA0894

USA9562

30.75''

10 mm

411USA .437"

169.50"

1009USA .375"

370.0

USA0895

USA9567

39.25''

10 mm

411USA .437"

152.00"

1009USA .375"

523.0

Chain Specifications

Stock No.

THIS IS A GUIDE ONLY - SPECIFICATIONS AND MEASUREMENTS ARE SUBJECT TO CHANGE

Manufacturing Headquarters pewag Traction Chain, Inc. 190 Greenhorn Drive Pueblo, CO 81004

Distribution Hub

Factory Tour

@pewagtraction

Chain Install

@pewagtraction

pewag Traction Chain, Inc. 3825 Cincinnati Avenue Rocklin, CA 95765

Satellite Warehouses •Denver, CO •Sparks, NV •Portland, OR

Assembled in USA

(800) 445-2895 | traction@pewagchain.com

Distributed By:

pewag Traction Catalog 2026.42
