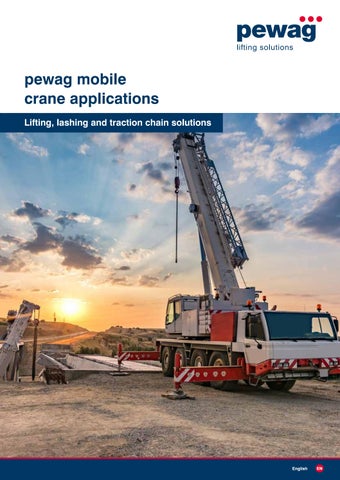

pewag mobile crane applications Lifting, lashing and traction chain solutions

English

EN

Content We are part of the pewag group

2

4-5

pewag Lifting and Lashing in G12 Plus

6

pewag Textile Slings

7

pewag Wire Rope Slings

7

pewag levo Hook

8

pewag Snatch Block (SBRH)

8

pewag Shackles

9

LMS Load Pin Shackle

9

LMS Load Links

9

LMS MOD® Spreader Beam

10

pewag StrongHold - Rigging Lockers

10

pewag Snow and Traction Chains

11

pewag levo Balancer & Compensator

12

pewag levo Balancer Features

14

pewag levo Balancer Technical Specification

15

pewag levo Compensator Features

16

pewag levo Compensator Technical Specification

17

pewag levo Balancer Remote

18

pewag levo Integrated Floodlights

18

pewag levo Industry Sectors and Applications

19

pewag solutions and services

3

We are part of the

LEADING TO EXCELLENCE striving for excellence in QUALITY The values of the pewag group brands are demonstrated by our first-class quality and continuous innovation. You can rely on us.

pewag lifting solutions is part of an internationally operating group of companies. Our success story goes back to the year 1479.

striving for excellence in RESPONSIBILITY Our goal is CO2 neutral production by 2030.

We live sustainable and fair partnerships and an open way of working together. We take on social as well as environmental responsibility.

W H AT D R I V E S U S Through our entrepreneurial spirit - shaped by the joy of innovation - we strive to offer the best solutions for the market. Today and in the future.

striving for excellence in ENTREPRENEURSHIP Through the specific expertise of each individual and decentralized responsibilities, we ensure healthy growth and a sustainably successful future.

The high quality of our brands, products and services, as well as the passionate commitment of our employees are our most valuable assets to exceed customer expectations and to live up to our corporate responsibility towards people and environment.

striving for excellence in TECHNOLOGY We ensure our technological strength by striving for quality, continuous improvement and innovation of our products and production processes.

FROM AUSTRIA....

1479

1787

1803

1836

1912

2009

2021

First documentary mention of the forge

Foundation of the chain forge in Kapfenberg

Foundation of the location in Graz

Establishment of an iron casting plant in Brückl

Production of the first pewag snow chain

pewag develops into an international group of companies

Extensive investment in renewable energies. Goal: CO2neutral production by 2030

. . . . A C R O S S T H E G LO B E

100+ Countries

50

45

Sales and other locations

Sales partners

18 Production sites

15+ Brands

5 Continents

I N A S U S T A I N A B L E W AY Social Excellence The corporate ethics of the pewag group are based on our clear commitment to universal human rights. As a globally active group of companies, we bear a social and corporative responsibility. This applies in particular to our employees. Their occupational safety and health protection are our top priority. We promote their personal and professional development and foster a culture of open, honest, non-discriminatory and team-oriented exchange based on transparent communication. We apply the same standards in our dealings with customers, suppliers and other business partners.

Environmental Excellence We are committed to a careful and sustainable approach to the environment. This applies to all areas and activities of our group of companies. For us, it is a matter of course to use resources as efficiently as possible and to ensure this also in the future through new environmentally friendly and efficient processes.

We are continuously working to optimize the durability and recyclability of our products. In this context, one of our core concerns is to continuously improve our energy efficiency and thus reduce energy consumption in the long term. The energy we use comes from renewable energy sources and is already partly generated by ourselves.

W H AT D E F I N E S U S

Snow and forestry chains

Hoist and conveyor chains

Do-it-yourself

Engineering

Lifting solutions

Tire protection chains

Our Expertise.

Our Network.

Our Experience.

Our international brands have an extensive and diverse range of products and services.

With over 50 locations on five continents, the pewag group forms a global platform of product specialists, partners and suppliers.

Based on centuries of experience, genuine craftsmanship and innovative technologies we process the highest quality materials with the claim to offer the best solutions on the market.

The portfolio ranges from traction chains for tires, tire protection chains for mining vehicles over a wide range of technical chains and innovative lifting solutions up to products for the do-it-yourself area as well as forming technology.

This community is strengthened by a large network of external experts from science, research and development and a wide range of brands and companies within the group.

What unites us as people within the pewag group is the strong ambition for continuous development.

Lifting and Lashing in G12 Plus Chain slings, indispensable lifting tools in heavy-duty operations, are known for their strength, durability, and flexibility, across a wide range of applications. pewag chain sling systems are engineered for maximum performance and safety – setting global benchmarks in quality and innovation.

• Intelligent connection systems designed for flexible on-site handling and user-friendly operation • Minimal wear and easy inspection reduce maintenance • Suitable for varied lifting and lashing scenarios, in welded or modular systems • Available in grade G12 Plus for a optimized strength-to-weight ratio • Also available in various lengths, tailored to meet the needs of the customer and their specific application • Trusted worldwide for providing reliable and efficient lifting solutions

Lifting pewag offers ready-made and packaged standardized lifting chain slings in lengths of 3 m (10 feet) and 7 m (25 feet), complete with all necessary components. pewag also provides customized, tailormade solutions, where the appropriate components and lengths are adapted to suit your specific application.

Safety factor 4

Angle of inclination β Load factor Code Dimension winplus 10 10 winplus 13 13 winplus 16 16

IV - leg chains

0°– 45° 45°– 60° 2,1 1,5 Working load limit [kg] 11.200 8.000 17.000 11.800 26.500 19.000

Working Load Limits in Grade 12 Plus

6

pewag solutions and services

Lashing The pewag winner G12 Plus lashing chains are characterized by their exceptional lashing capacity and reduced weight, ensuring maximum safety and ease of handling. Available as single- or twopart systems, they provide versatile usage options.

Textile Slings Textile slings, such as webbing slings and round slings, are made from durable and flexible polyester, specifically designed for the lifting, lashing, and transporting of loads. Their lightweight construction makes them easy to handle and transport, while also offering a more cost-effective solution compared to traditional chain slings. In addition, their soft material is gentle on sensitive surfaces, helping to prevent scratches or damage to the loads being lifted. pewag webbing slings are available in three standard designs. The wide range includes lifting slings with reinforced end loops, endless slings, and versions with metal fittings. In addition, the product portfolio is complemented by custom-made solutions and a broad selection of accessories. pewag round slings combine maximum load capacity with low weight, flexibility, and load-friendly handling.

Color coding and load capacity stripes ensure ease of use and a high level of safety. The range includes round slings with load capacities up to 300 metric tons.

Wire Rope Slings pewag wire rope slings combine well-known Grade 10 lifting components such as master links, master link assemblies, various hooks, shackles, and spare parts. Designed for demanding industrial applications, they provide exceptional strength, durability, and flexibility for safe and efficient load handling. pewag also offers customized solutions to meet specific application needs.

• Lightweight, making them easier to handle and transport • More cost-effective than chain slings, providing an affordable lifting solution • Gentle on surfaces, preventing scratches or damage to loads

7

levo Hook The levo hooks are automated lifting devices that facilitate hands-free load attachment and release through remote control, enhancing operational efficiency and safety.

• Workers avoid dangerous situations, reducing risks • Automatic attachment and release of loads optimizes workflow • Suitable for various applications across industries like steel, construction, logistics, and manufacturing • Service is available worldwide, ensuring quick repairs and inspections to minimize downtime • Optionally available with Connex and Masterlink • Available with load capacities ranging from 5,000 kg (LH5) to 32,000 kg (LH32)

Snatch Block (SBRH) The Snatch Block is suitable for use in mobile crane applications, offering practical features that support efficient and safe lifting operations in the field. These pulleys feature a bolt-release mechanism that facilitates the easy insertion of wire rope, making them ideal for time-sensitive on-site operations.

• Lifting component with safety factor of 4:1 for loads of 4, 8, or 12 metric tons • Sheave for different wire rope diameters adds flexibility for various crane setups • Powder-coated parts have high corrosion resistance • Bolt cannot be lost during handling or operation, enhancing safety • Compact and user-friendly construction, well-suited for dynamic environments and mobile us 8

pewag solutions and services

SBRH

Code

WLL [kg]

Weight [kg/pc.]

SBRH 04 13 115 SBRH 08 22 150

4000 8000

4.80 11.70

SBRH 12 22 150

12000

25.50

Snatch Block

Shackles pewag Shackles are load lifting components available in both bolt type and screw pin designs. They are designed and produced in-house by pewag, ensuring high quality and swift delivery times for our esteemed customers. These shackles are versatile and can be used in various applications such as lifting, rigging, and fishing. With working load limits ranging from 2 to 1,500 metric tons, they offer reliable performance across a wide range of lifting requirements.

Load Pin Shackle These load pin shackles from LMS are engineered for precise tensile load monitoring in lifting, pulling, weighing, and static applications. Designed for demanding environments, they are ideal for mobile crane operations across construction, logistics, infrastructure, and heavy transport industries.

• Load range from 3.25 to 2,000 metric tons • Link up to 12 shackles to a handheld display (individual or total load values) • 200 % proof load tested for safety and reliability • Accuracy of 0.5% of applied load • Wireless range of up to 800 meters • Long battery life — up to 3,000 hours (AAA alkaline) • IP67 rated for protection against water and dust

Load Links Engineered for mobility and ease of use, these load links are ideal for dynamic, on-the-go lifting operations. Their lightweight yet durable high-tensile aluminum construction ensures reliable performance even in demanding environments. Available in both cabled and wireless versions, they offer the flexibility to adapt to a variety of different situations. With accurate and dependable tensile load monitoring, these load links are a smart choice for lifting tasks where precision and portability matter.

• Load range from 1 to 500 metric tons • 200 % proof load tested for safety and reliability • made from lightweight yet durable high tensile aircraft-grade aluminum (2014 A) • Wireless range of up to 800+ meters • Accuracy of 0.5 % of applied load • Long battery life — up to 3000 hours (AAA alkaline) • IP67 rated for protection against water and dust 9

MOD® Spreader Beam The MOD® Spreader Beam is the heart of Modulift’s below-the-hook solutions — a versatile, modular system that can be effortlessly adapted into various Spreader Frames or Beam configurations.

Engineered for strength, flexibility, and efficiency, it is the ideal lifting solution for mobile crane operations where adaptability and quick setup are key.

• Capacities ranging from 6 to 2,000 metric tons • Spans from 0.4 to 36 meters for a wide range of lifting needs • Lightweight and cost-effective, making handling and transport easy for mobile crane crews • Reusable and durable — ideal for frequent and varied lifting tasks • Modular design with interchangeable struts, offering maximum flexibility on-site

StrongHold – Rigging Lockers Stronghold Rigging lockers are designed to provide secure storage and easy organization for all your rigging gear, including chains, hoists, straps, clamps, and lifting points. These lockers are built with extreme-duty 12-gauge steel, ensuring durability and the ability to withstand tough environments.

They feature adjustable hooks, drawers that can hold up to 400 lbs, and ventilated doors for visibility and airflow. Additionally, Stronghold Rigging lockers come with forklift pockets for easy and safe movement, and they are shipped fully assembled with a 99-year warranty. These lockers are made in the USA and are designed to maximize efficiency and safety in storing rigging equipment.

10

pewag solutions and services

Snow and Traction Chains pewag snow and traction chains help heavy vehicles to access construction sites even under the most challenging winter conditions. The hexagonal tread net improves vehicle handling and steering control on snow and ice.

• Excellent directional stability and smooth running, due to special tread design • Minimized risk of oversteer and understeer and improved overall stability through even distribution of traction • Long product life, due to even vehicle weight distribution on the chain links

11

levo Balancer & Compensator Hydraulic driven, built for precision The levo load balancer and compensator deliver smooth, pinpoint load control, outperforming electric equivalents.

Efficient yet powerful, the levo has accurate valve control, and the strength required to manage heavy imbalances. Hydraulics reduce energy use and maintain full performance where electric motors falter.

Benefits • Reduced manual handling – multi-directional movement without needing to stop and reposition • Low maintenance and reduced energy use – hydraulic motor • Keeps personnel out of danger – operate safely from up to 100 m • Flexible load turning – Optional belt attachment • Lower labour costs – fewer personnel required • Durable construction – no plastic parts Key Features • Operated by remote control • Floodlights for enhanced visibility • Free-release function on load balancer • Chain or synthetic sling options • Supplied in wooden carry case • Spare parts available globally Technical Specification • Operation temperature: -20°C to +60°C • Battery life: Approx 10h • Protection class: IP65

Certified and compliant Fully CE and UKCA compliant, with a 3.1 certificate available.

Manufactured in Europe Precision engineered and manufactured in Europe.

12

pewag solutions and services

pewag levo balancer and compensator

13

levo Balancer Features The pewag levo balancer provides full 360° tilting and rotation for safer load handling. Available with a free release function (FR).

Standard variants come with a chain sling and and -B variants include a synthetic sling

Feature

G8 chain sling (6m standard length)

Synthetic sling (6m standard length)

12V or 24V battery with built-in charger

Remote control

Integrated flood lights 2 x 12V

Galvanised finish and RAL powder coating

Free release function for use as a snatch block

IP55 wooden carry case

Additional battery*

Alternative chain length*

Rain cover*

*Available as an optional extra 14

pewag solutions and services

pewag levo balancer LB5FR

pewag levo balancer LB5-FRB

pewag levo balancer LB20

pewag levo balancer LB20-B

pewag levo balancer LB20FR

pewag levo balancer LB20FR-B

pewag levo balancer LB50FR

pewag levo balancer LB50FR-B

levo Balancer Technical Specification

Code

Tonnage [t]

Imbalance capacity

Free release

Weight [kg]

Lifting eye

LB5FR

5

1500 kg

Yes

190

pewag Shackle 6.5T

LB5FR-B

5

1500 kg

Yes

190

pewag Shackle 6.5T

LB20

20

6000 kg

No

480

pewag Shackle 25T

LB20-B

20

6000 kg

No

480

pewag Shackle 25T

LB20FR

20

6000 kg

Yes

510

pewag Shackle 25T

LB20FR-B

20

6000 kg

Yes

510

pewag Shackle 25T

LB50FR

50

14500 kg

Yes

990

pewag Shackle 55T

LB50FR-B

50

14500 kg

Yes

990

pewag Shackle 55T

Dimensions [mm] Code

A

B

C

D

LB5FR

495

580

510

1610

LB20

670

900

530

2417

LB20FR

670

900

600

2400

LB50

900

1175

840

2205

15

levo Compensator Features The pewag levo compensator keeps loads steady and evenly distributed.

Feature

Standard stroke 500mm

12V battery with built-in charger

Remote control

Integrated flood lights 2 x 12V

Galvanised finish and RAL powder coating

IP55 wooden carry case

Additional battery*

Longer stroke length*

Rain cover*

Load pin on each cylinder with display* *Available as an optional extra

16

pewag solutions and services

pewag levo compensator

levo Compensator Technical Specification

Code

WLL single

WLL combined

Weight combined [kg]

Lifting eye

LC12

12

24

800

pewag Shackle 25T

LC17

17

34

950

pewag Shackle 35T

LC24

24

50

1750

pewag Shackle 55T

Dimensions [mm] Code

A

B

C

D standard stroke

LC212 (Double)

820

800

710

500

LC217 (Double)

910

890

850

500

LC224 (Double)

1070

1050

1040

500

17

levo Balancer Remote Automated and reliable The pewag levo balancer and compensator are both powered remotely. The standard remote control enables safe lifting and placement from a distance.

The lightweight and ergonomic design makes the levo compensator and balancer easy to control and comfortable to use. When not in use the remote can be stored inside the balancer or compensator.

Technical specification • Battery life: Approx 1000h • Power supply: 3pcs AA 1.5 batteries • Protection class: IP65

pewag levo balancer remote

levo Integrated Floodlights The integrated floodlight provides clear, hands-free illumination for safe and efficient work during nighttime or low-light conditions.

Integrated flood light for nighttime operation

18

pewag solutions and services

levo Industry Sectors and Applications Chemical & Oil Industry The levo enables smooth repositioning of valves from horizontal to vertical and effortless pipe connections.

Solar Energy Use the levo to accurately position subframes and solar panels during large-scale park installations. More pre-assembly in the factory means less on-site labour.

Concrete Industry With the levo, floors and walls can be installed with fewer personnel and minimal risk of damage thanks to precise load control.

Aerospace & Drone Industry The levo ensures delicate components and long heat shields are installed precisely, reducing manual handling and error margins.

Construction

Levo load balancer equalising crane counter weight

Position steel structures and bolted connections accurately with the levo, tilting and moving profiles in the air rather than on the ground, reducing damage and labour.

Energy Production & Storage Our levo optimises efficiency and performance for energy production and storage, helping companies streamline processes and operate sustainably.

Wind Energy The levo provides safe, precise positioning of wind turbine blades and components, ensuring optimal control and speed during production.

Housing Compensators on the levo deliver maximum precision for unit installation, making housing construction faster, safer, and more reliable.

Levo load balancer use to install sloped roof systems

19

pewag austria GmbH A-8041 Graz, Gaslaternenweg 4, Phone: +43 316 6070-0, Fax: +43 316 6070-100, saleinfo@pewag.com, www.pewag.com
